OAXACA STAR
9314363 | XCBR6 | 9314363 by ********* Last update: Thu Jun 06 2024
General Info
Ship Name:OAXACA STAR
IMO Code:9314363
Call Sign:XCBR6
Line Operator:9314363
Class Name for Sister Ships:SAFMARINE BASILEA
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):133.50
LOA (Length Overall):139.95
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:768
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

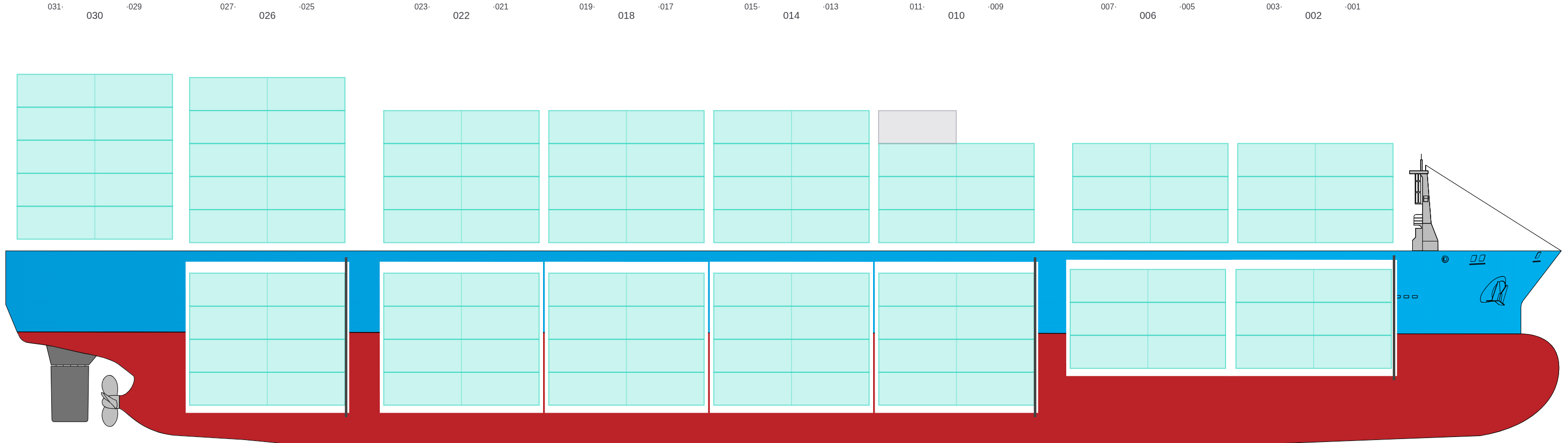

Side View

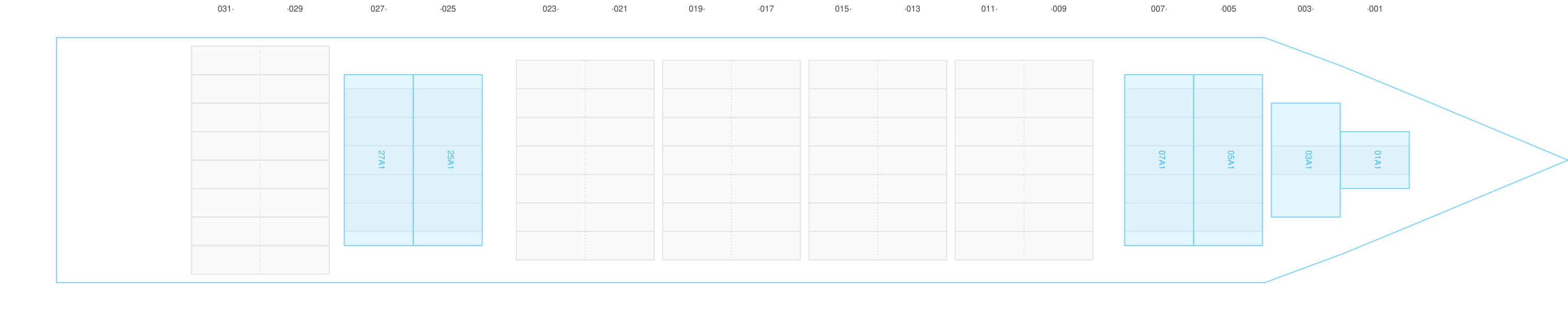

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

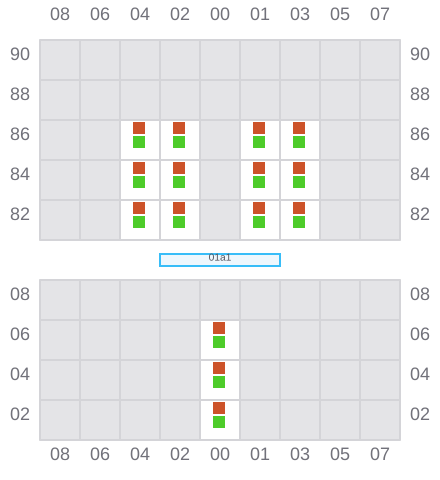

001 (002)
- →

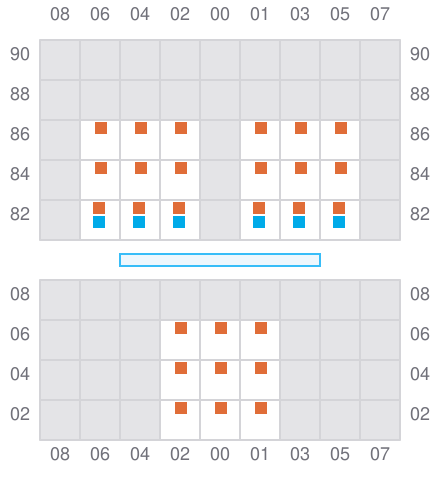

003
- ←
- → / ?

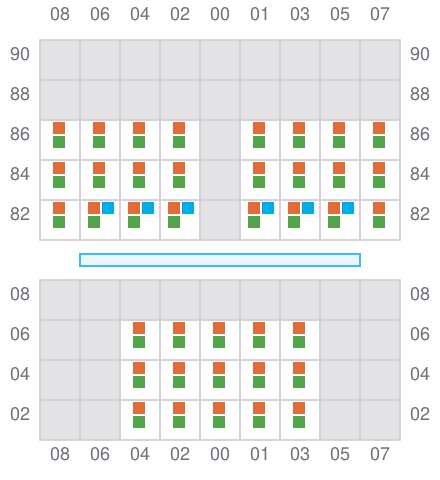

005 (006)
- →
- ← / ?
007
- ←
- → / ?

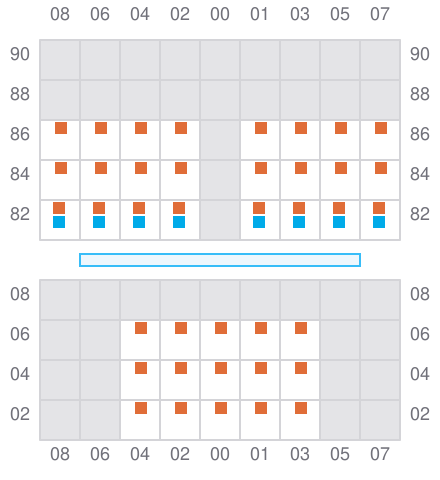

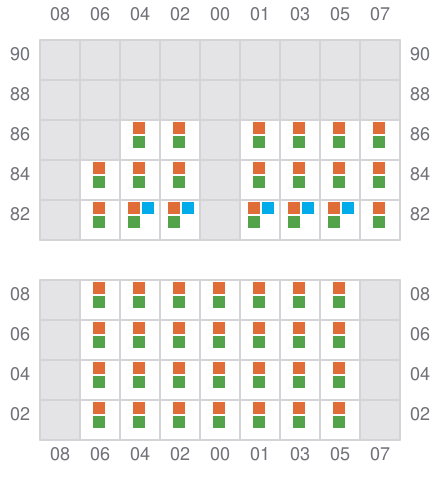

009 (010)
- →
- ← / ?

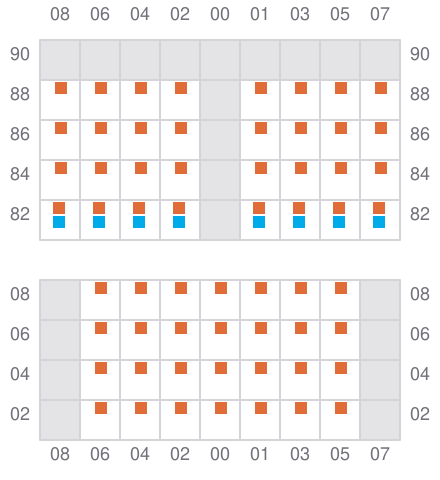

011
- ←
- → / ?

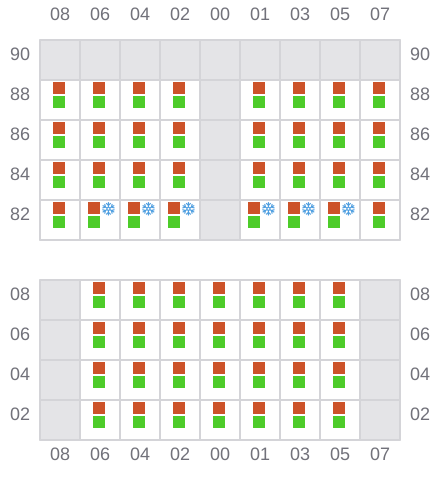

013 (014)
- →
- ← / ?
015
- ←
- → / ?
017 (018)
- →
- ← / ?

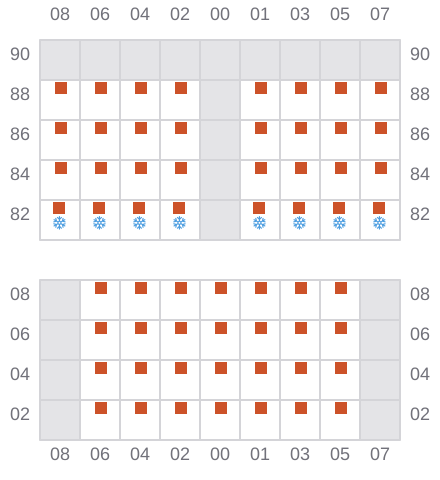

019
- ←
- → / ?

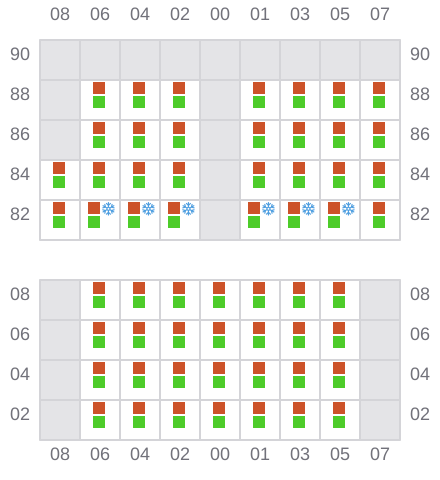

021 (022)
- →
- ← / ?

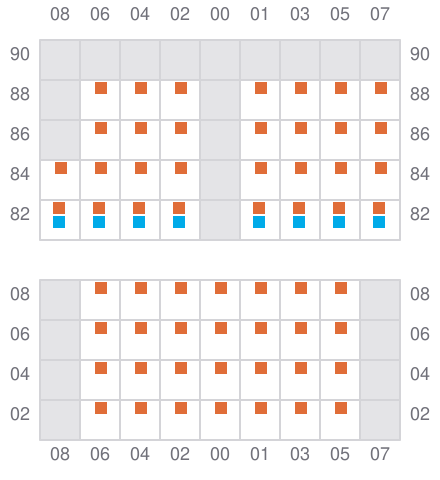

023
- ←
- → / ?
025 (026)
- →
- ← / ?
027
- ←
- → / ?

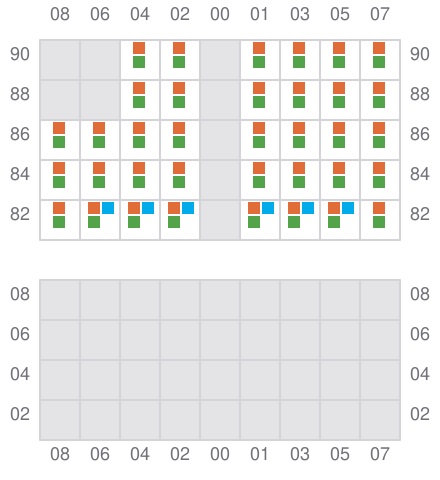

029 (030)
- → / ?
- ← / ?

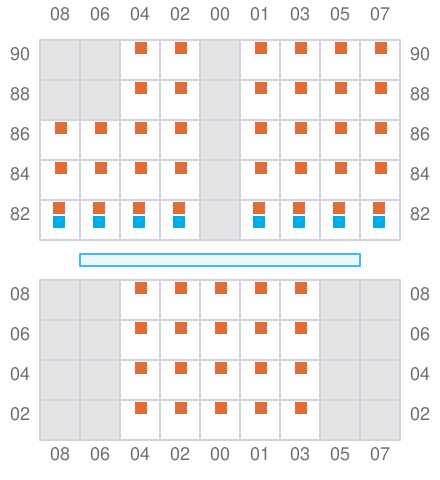

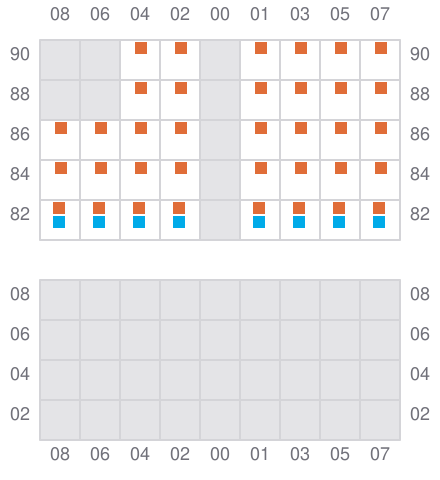

031
- ← / ?
- → / ?
