OCEAN SERENITY
9009059 | 4DEF5 | 9009059 by ********** Last update: Mon Feb 03 2025

General Info

Ship Name:OCEAN SERENITY
IMO Code:9009059
Call Sign:4DEF5
Line Operator:9009059
Class Name for Sister Ships:64T
Year Built:1990
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):90.00
LOA (Length Overall):98.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:021
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:356

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

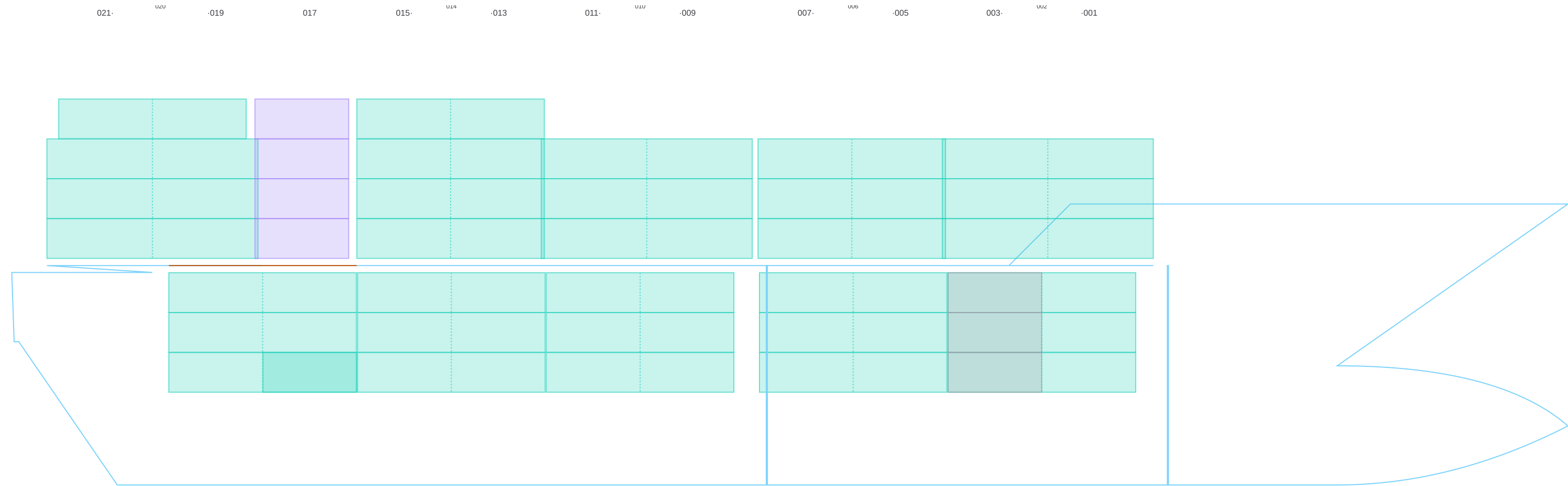

Side View

Side view of OCEAN SERENITY

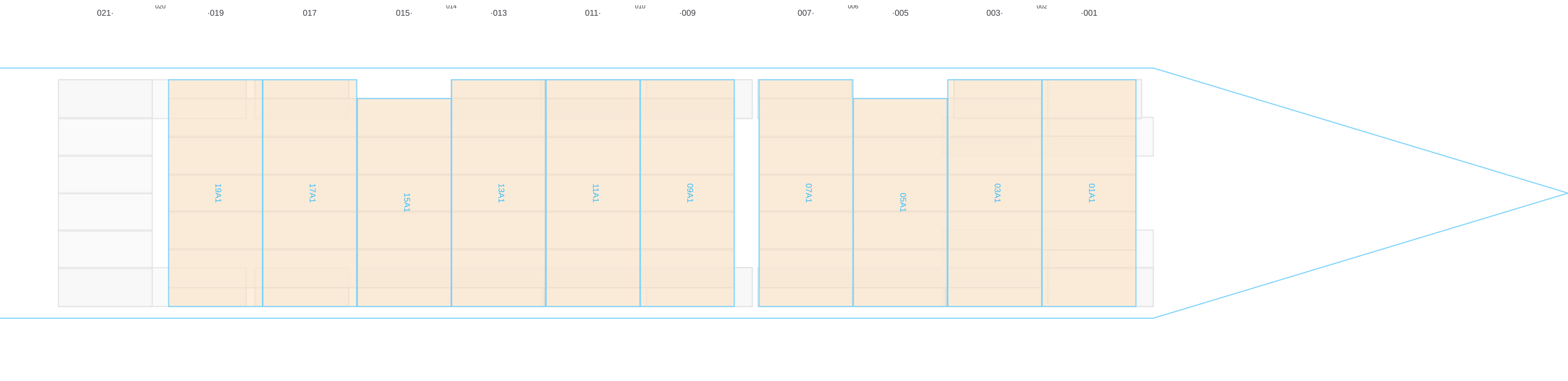

Hatch-Covers View

Deck view of OCEAN SERENITY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →

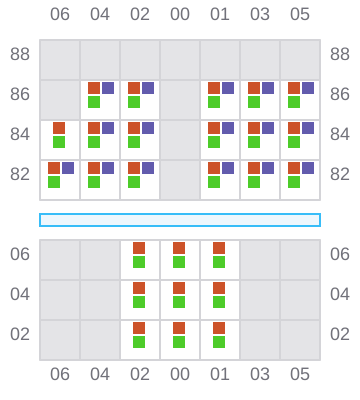

Bay 001 view and slots of OCEAN SERENITY

003

  • ←
  • → / ?

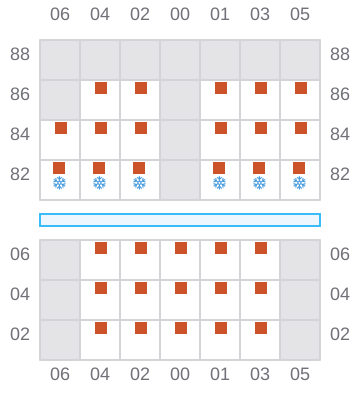

Bay 003 view and slots of OCEAN SERENITY

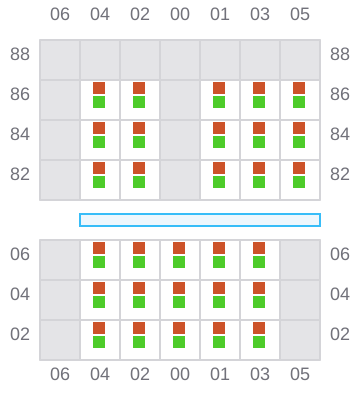

005 (006)

  • →
Bay 005 view and slots of OCEAN SERENITY

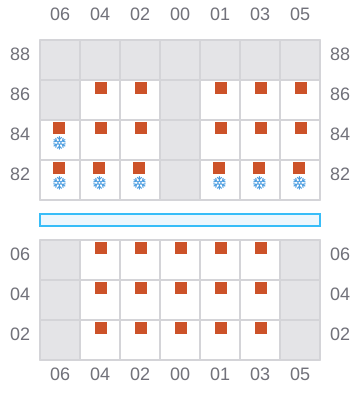

007

  • ←
  • → / ?
Bay 007 view and slots of OCEAN SERENITY

009 (010)

  • →
  • ← / ?

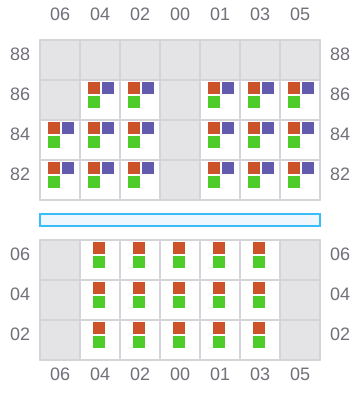

Bay 009 view and slots of OCEAN SERENITY

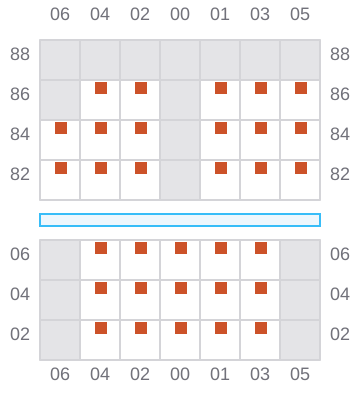

011

  • ←
Bay 011 view and slots of OCEAN SERENITY

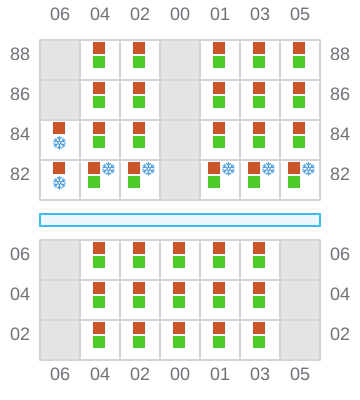

013 (014)

  • →
Bay 013 view and slots of OCEAN SERENITY

015

  • ←

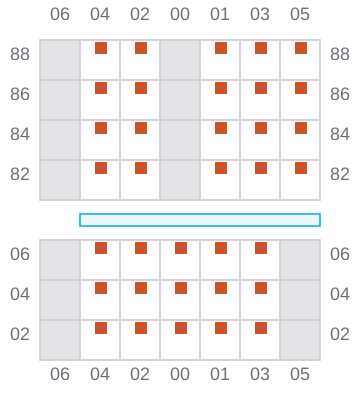

Bay 015 view and slots of OCEAN SERENITY

017 (018)

  • ? / →
  • ← / ?

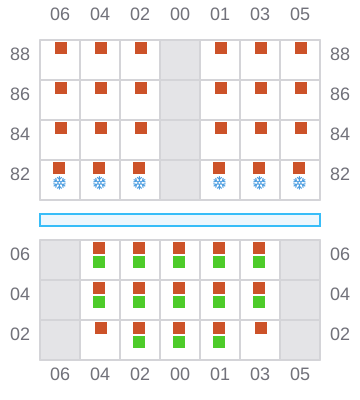

Bay 017 view and slots of OCEAN SERENITY

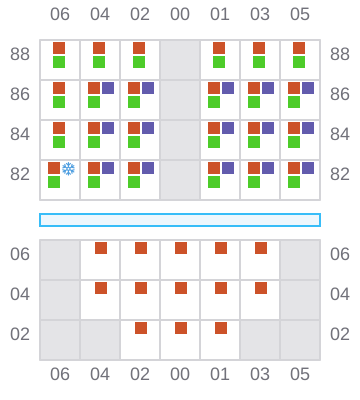

019 (020)

  • → / ←
  • ← / ?
Bay 019 view and slots of OCEAN SERENITY

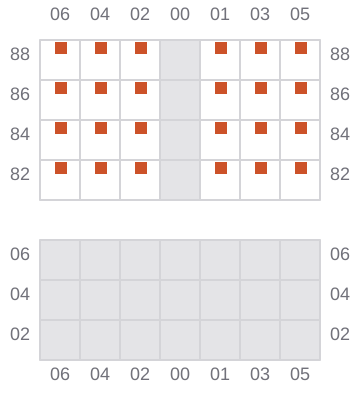

021

  • ← / ?
Bay 021 view and slots of OCEAN SERENITY
