OKEE HENRI
9347279 | A8PC8 | CHI by ************************** Last update: Thu Jun 29 2023
General Info
Ship Name:OKEE HENRI
IMO Code:9347279
Call Sign:A8PC8
Line Operator:CHI
Class Name for Sister Ships:SAD
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,873
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

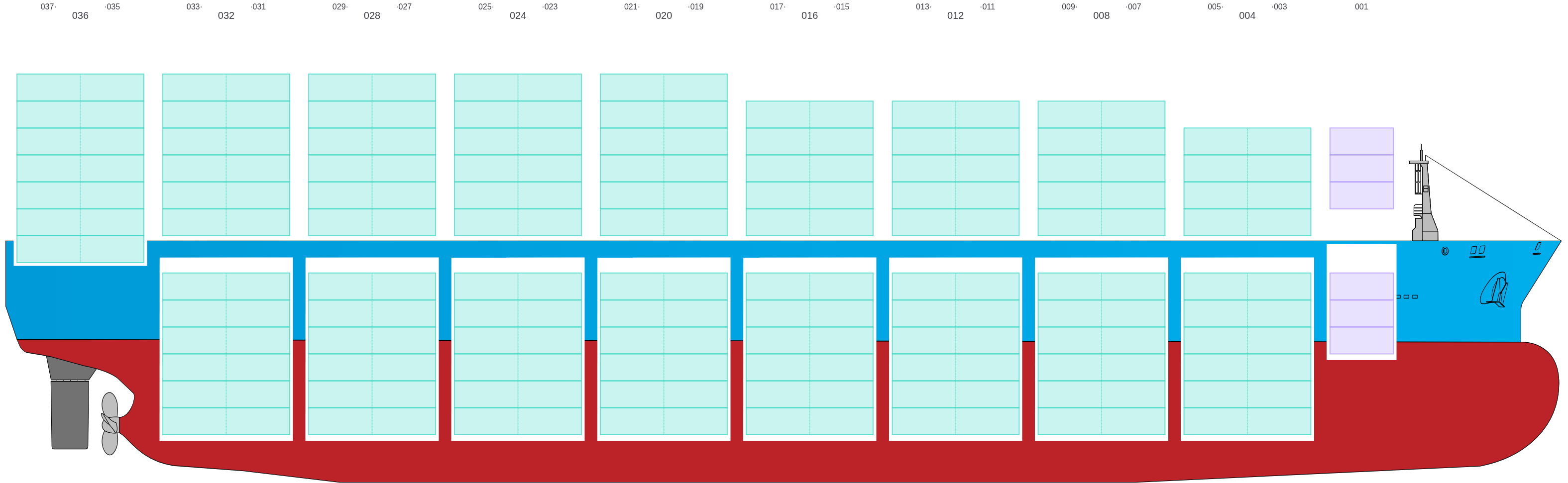

Side View
![Side view of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-sideView.png?v=1688076034133)

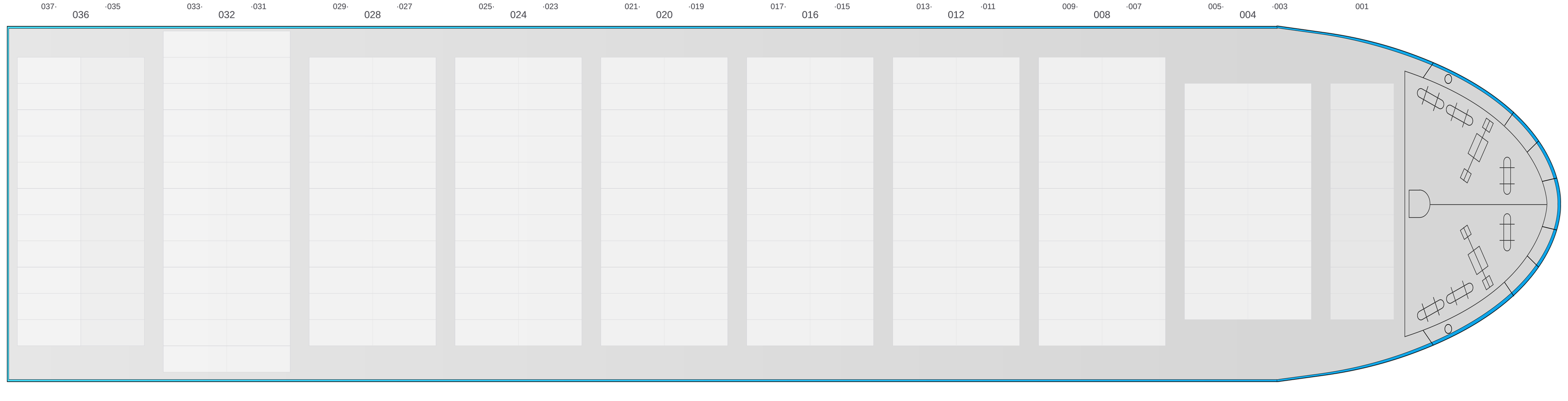

Hatch-Covers View
![Deck view of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-deckView.png?v=1688076034133)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

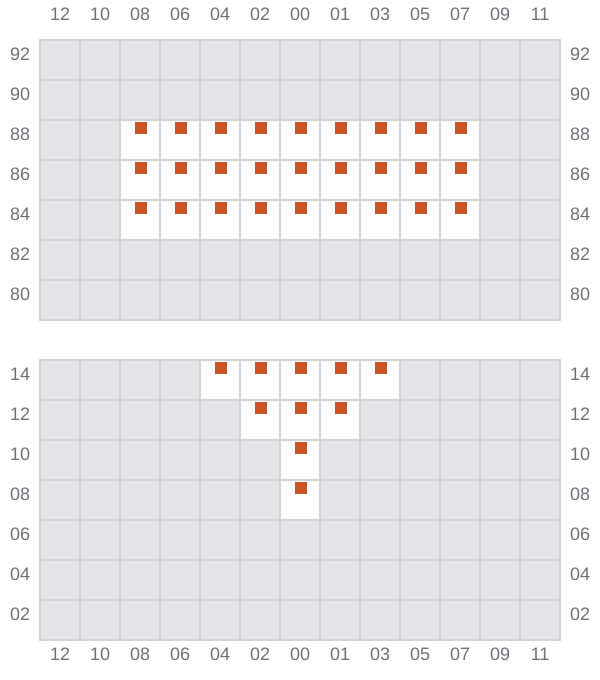

001
![Bay 001 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b001.png?v=1688076034133)

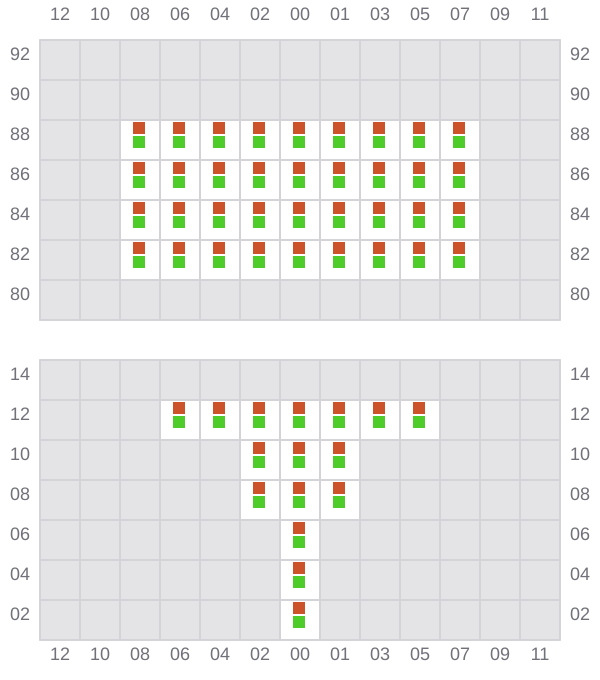

003 (004)
- →
![Bay 003 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b003.png?v=1688076034133)

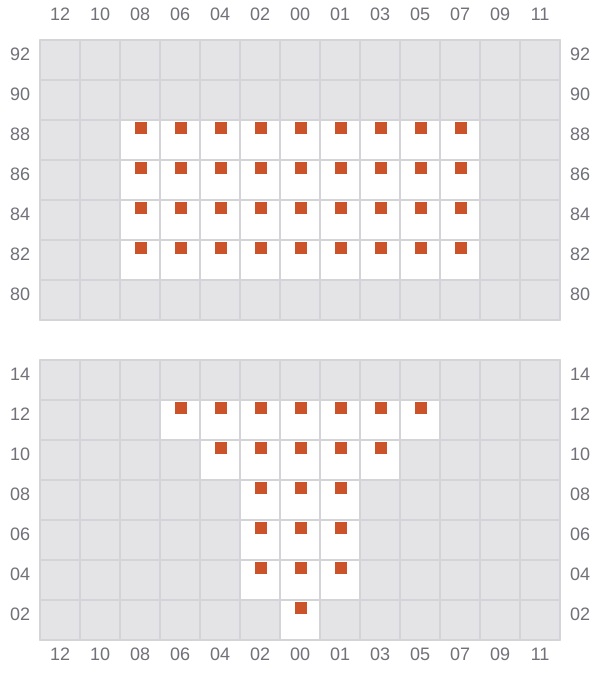

005
- ←
![Bay 005 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b005.png?v=1688076034133)

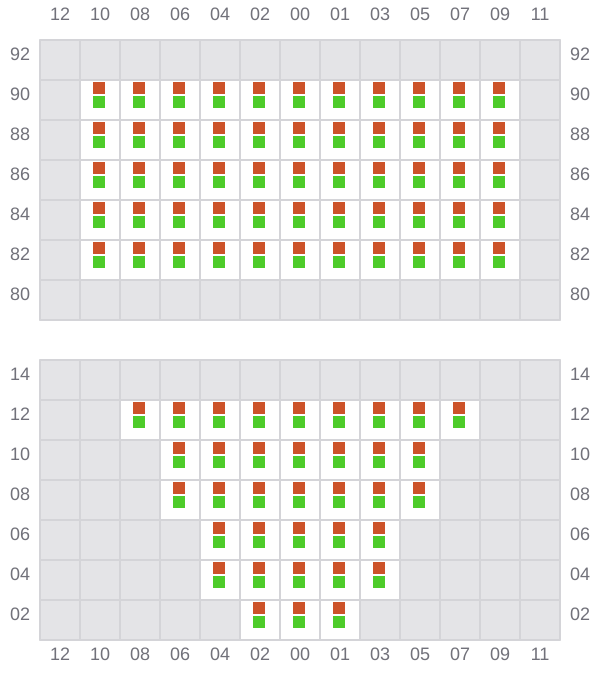

007 (008)
- →
![Bay 007 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b007.png?v=1688076034133)

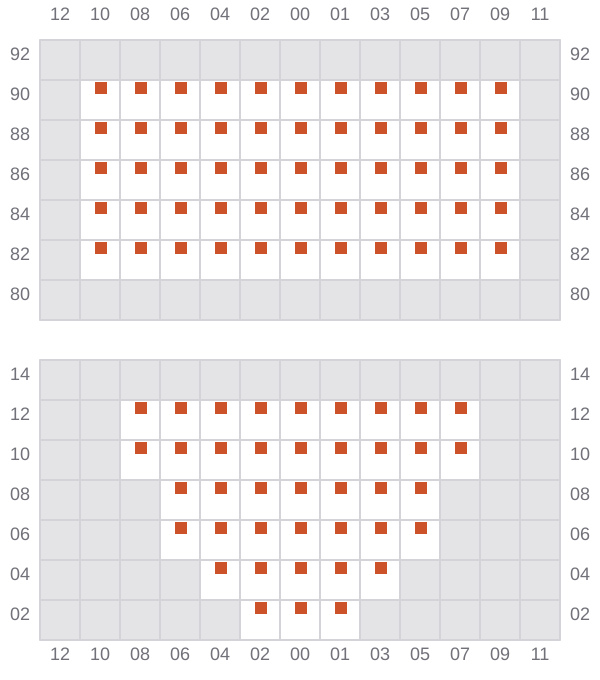

009
- ←
![Bay 009 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b009.png?v=1688076034133)

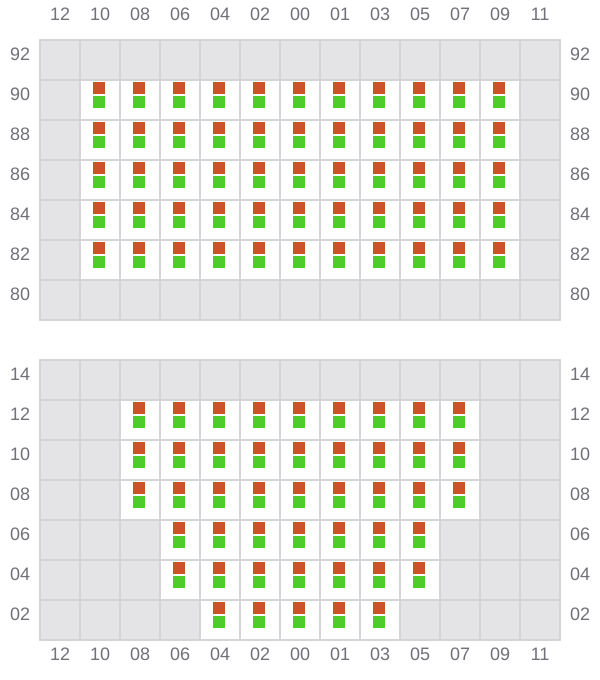

011 (012)
- →
![Bay 011 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b011.png?v=1688076034133)

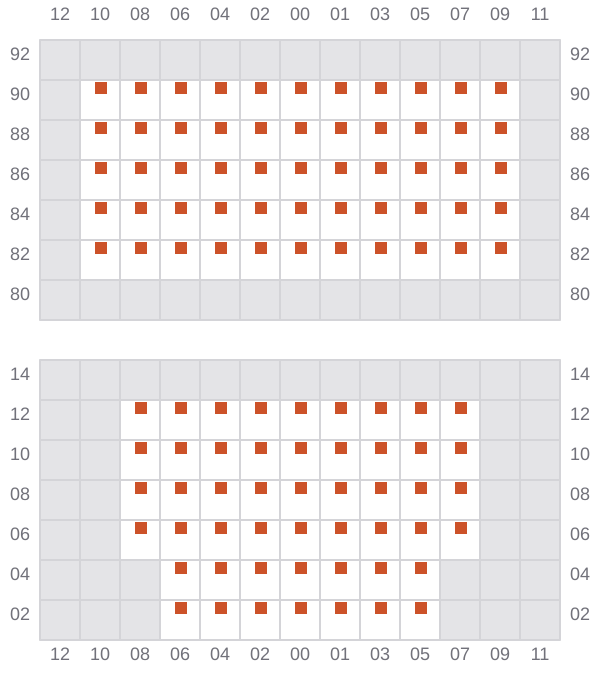

013
- ←
![Bay 013 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b013.png?v=1688076034133)

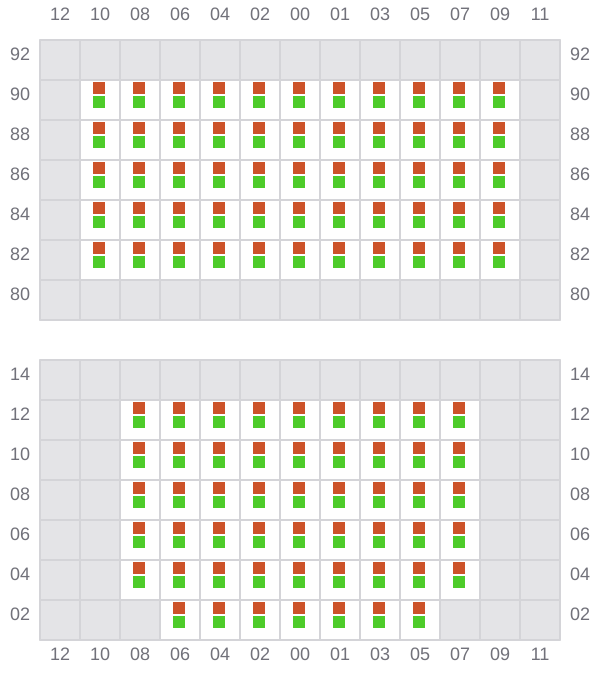

015 (016)
- →
![Bay 015 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b015.png?v=1688076034133)

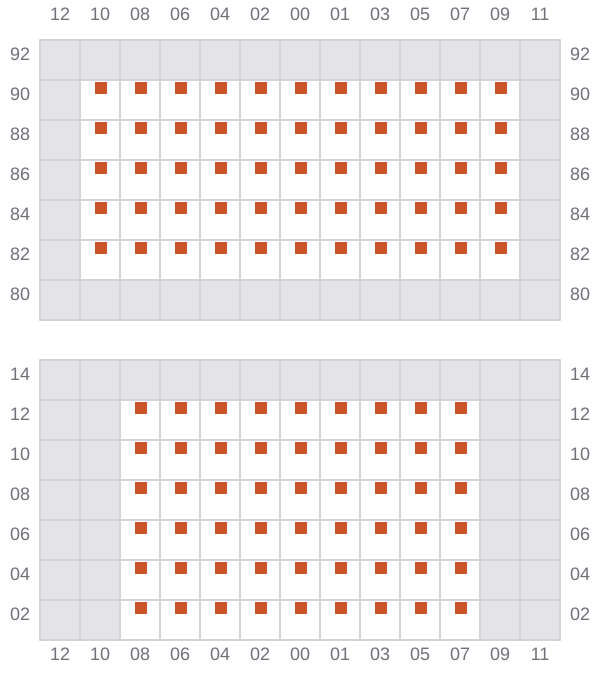

017
- ←
![Bay 017 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b017.png?v=1688076034133)

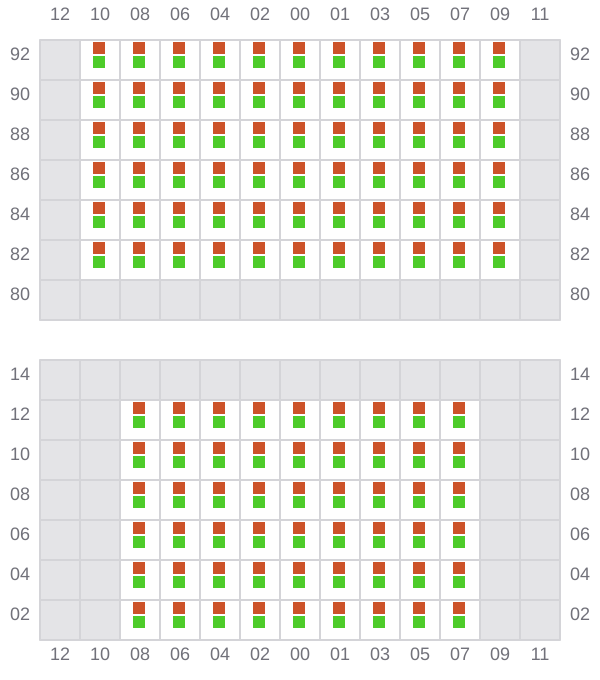

019 (020)
- →
![Bay 019 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b019.png?v=1688076034133)

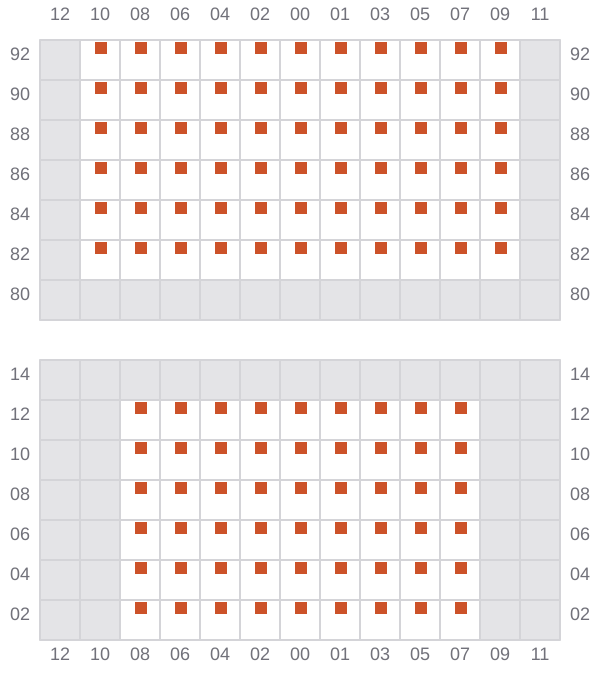

021
- ←
![Bay 021 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b021.png?v=1688076034133)
023 (024)
- →
![Bay 023 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b023.png?v=1688076034133)
025
- ←
![Bay 025 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b025.png?v=1688076034133)

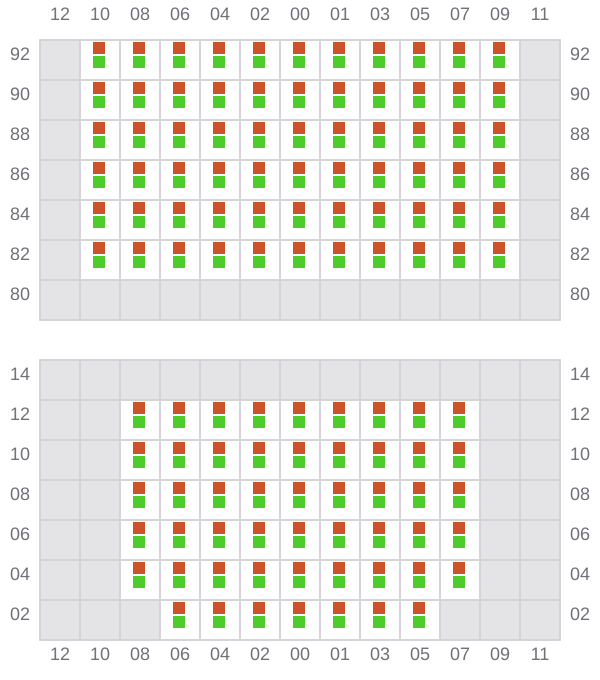

027 (028)
- →
![Bay 027 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b027.png?v=1688076034133)

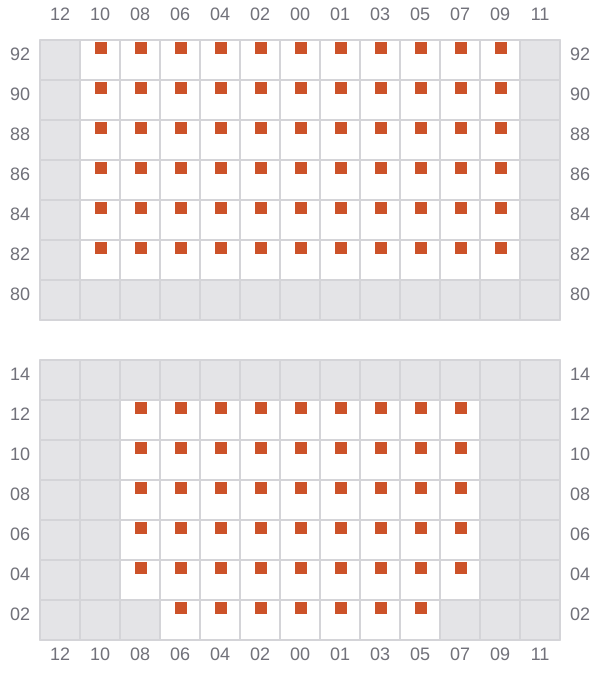

029
- ←
![Bay 029 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b029.png?v=1688076034133)

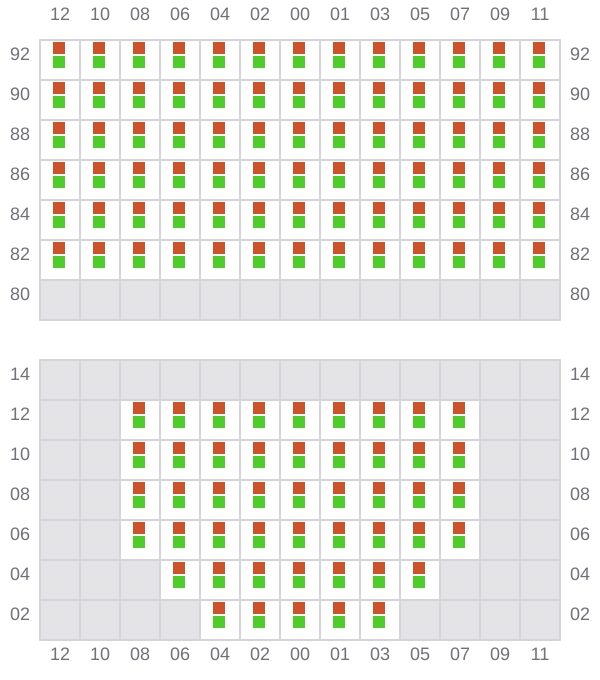

031 (032)
- →
![Bay 031 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b031.png?v=1688076034133)

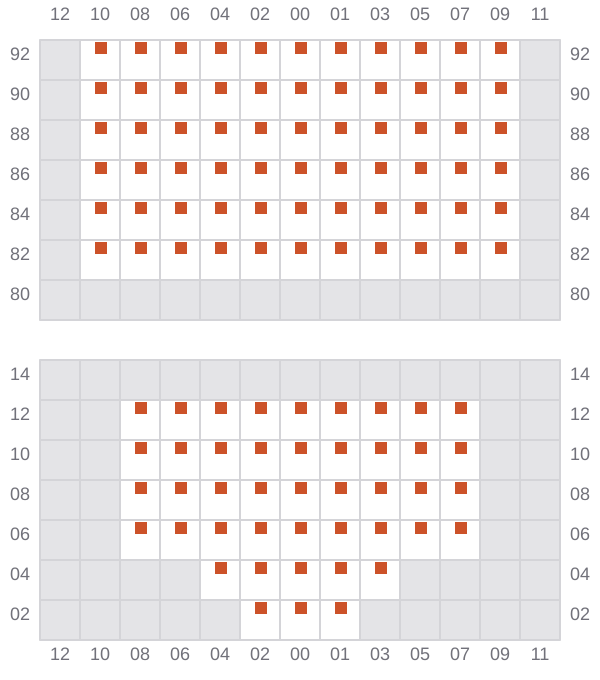

033
- ←
![Bay 033 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b033.png?v=1688076034133)

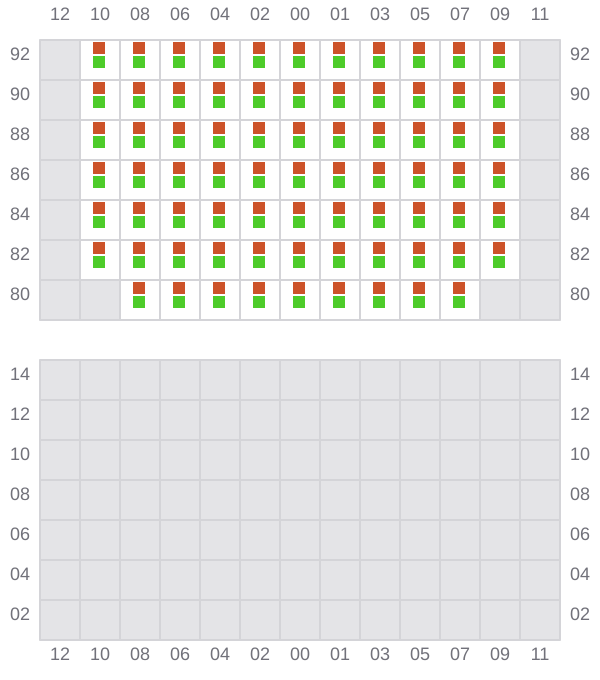

035 (036)
- → / ?
![Bay 035 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b035.png?v=1688076034133)

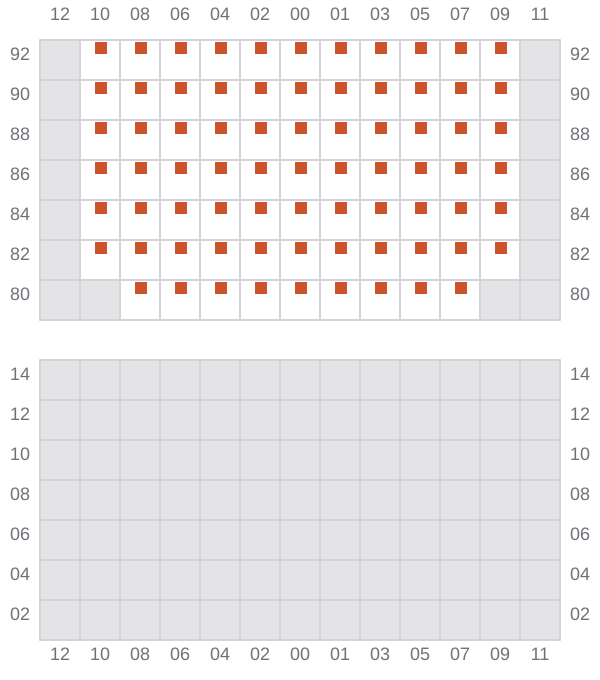

037
- ← / ?
![Bay 037 view and slots of OKEE HENRI](/vessel-images/f9e24bac-e98b-4cac-a9bd-8cd193152a5c-b037.png?v=1688076034133)
