OLIVIA
9634672 | CQIZ9 | 9634672 by ********* Last update: Tue Jun 18 2024
General Info
Ship Name:OLIVIA
IMO Code:9634672
Call Sign:CQIZ9
Line Operator:9634672
Class Name for Sister Ships:MCC
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,714
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

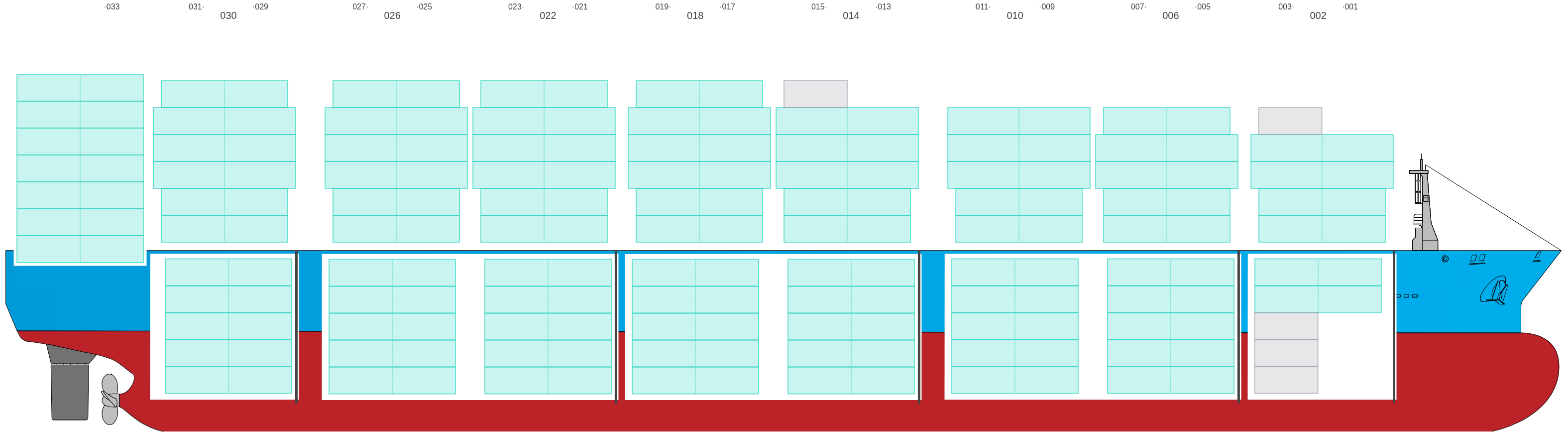

Side View
![Side view of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-sideView.png?v=1718733963720)

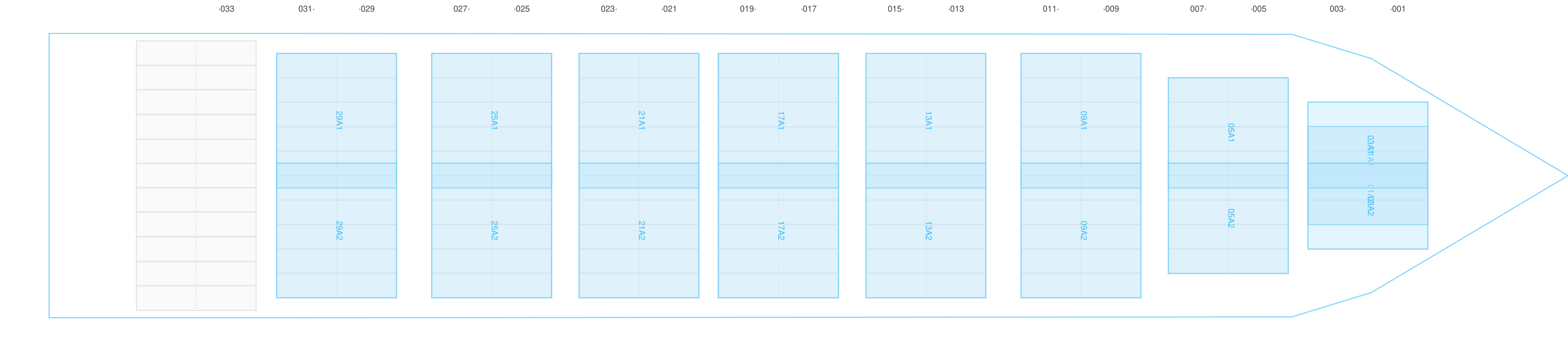

Hatch-Covers View
![Deck view of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-deckView.png?v=1718733963720)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

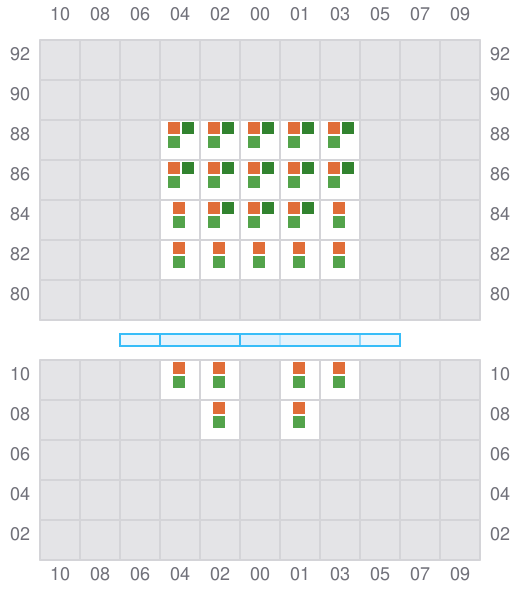

001 (002)
- →
![Bay 001 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b001.png?v=1718733963720)

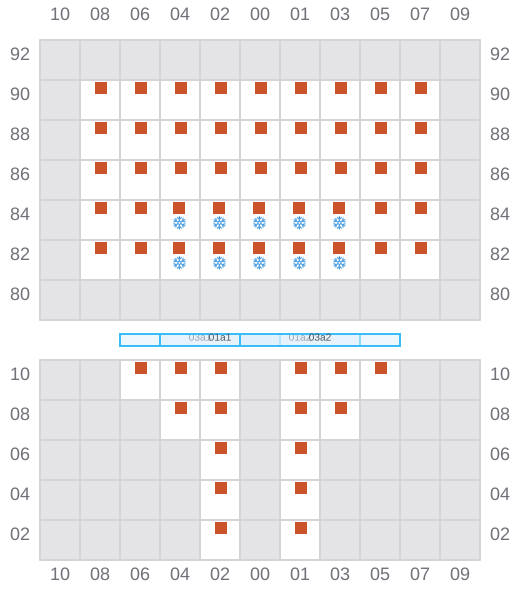

003
- ←
- → / ?
![Bay 003 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b003.png?v=1718733963720)

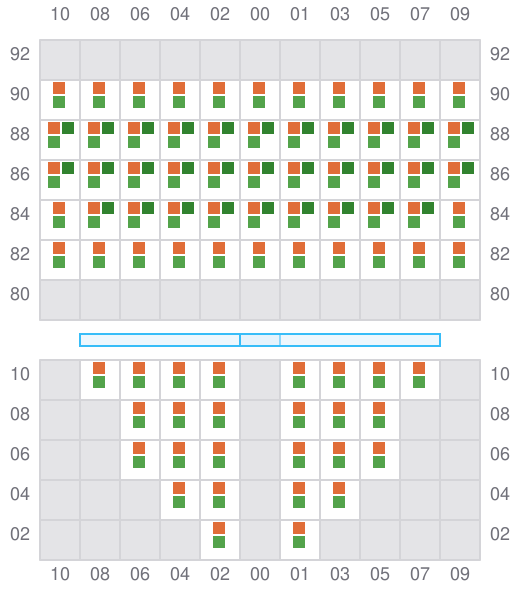

005 (006)
- →
![Bay 005 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b005.png?v=1718733963720)

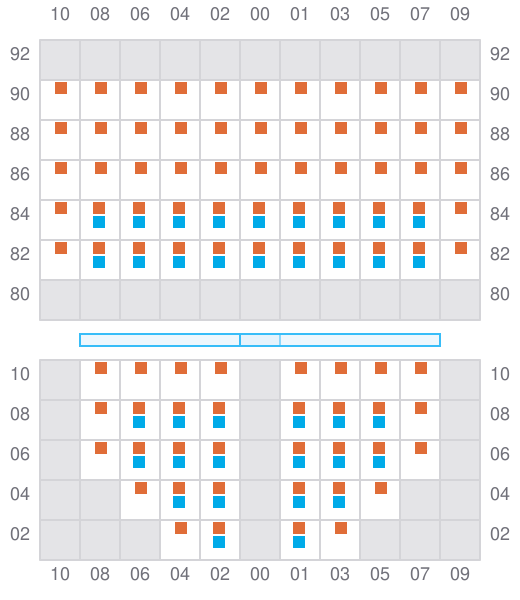

007
- ←
- →
![Bay 007 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b007.png?v=1718733963720)

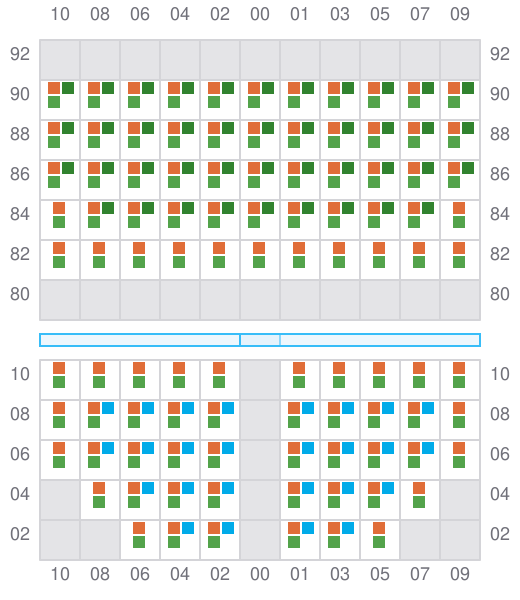

009 (010)
- →
- ? / ←
![Bay 009 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b009.png?v=1718733963720)

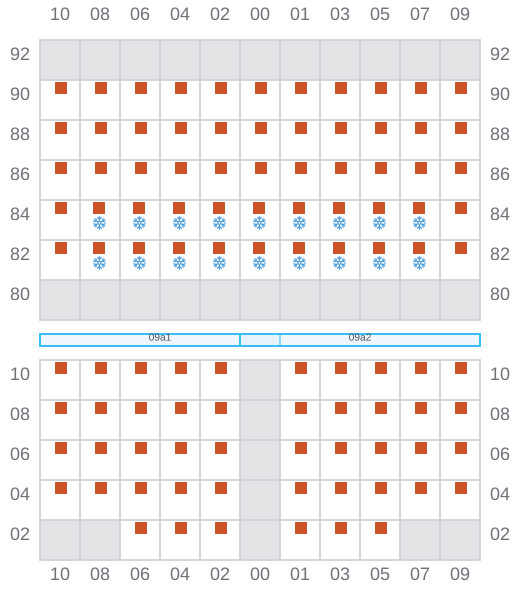

011
- ←
- → / ?
![Bay 011 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b011.png?v=1718733963720)

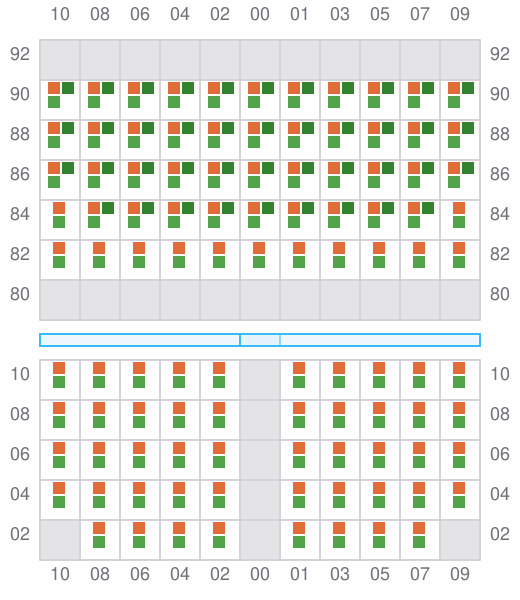

013 (014)
- →
![Bay 013 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b013.png?v=1718733963720)
015
- ←
- →
![Bay 015 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b015.png?v=1718733963720)
017 (018)
- →
- ? / ←
![Bay 017 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b017.png?v=1718733963720)

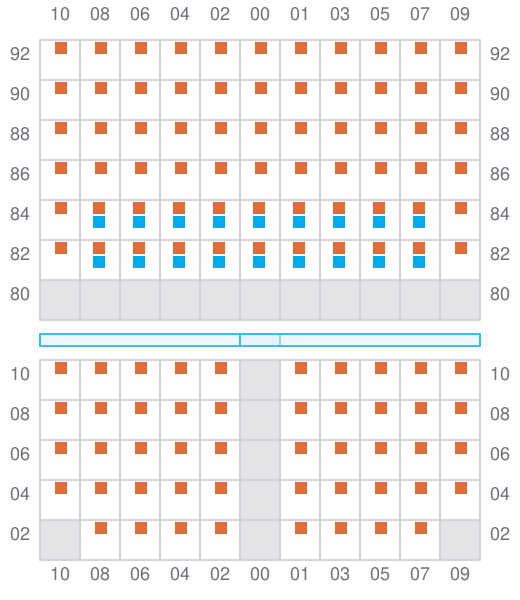

019
- ←
- → / ?
![Bay 019 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b019.png?v=1718733963720)

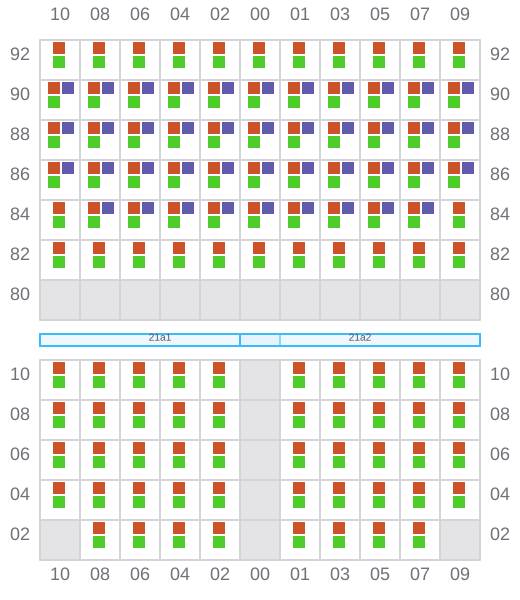

021 (022)
- →
![Bay 021 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b021.png?v=1718733963720)

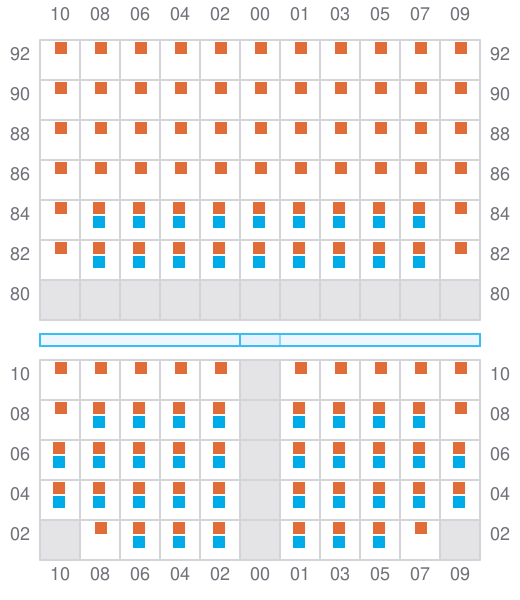

023
- ←
- →
![Bay 023 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b023.png?v=1718733963720)

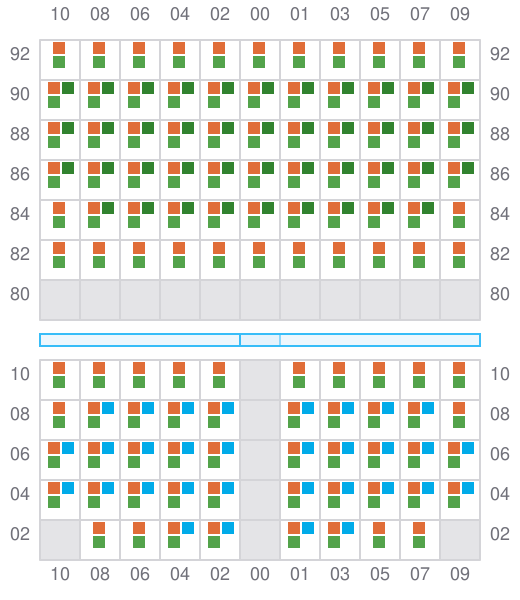

025 (026)
- →
- ? / ←
![Bay 025 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b025.png?v=1718733963720)
027
- ←
- → / ?
![Bay 027 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b027.png?v=1718733963720)

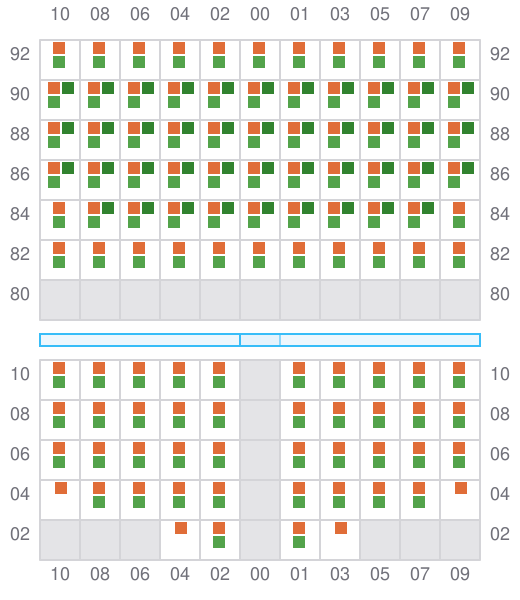

029 (030)
- →
![Bay 029 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b029.png?v=1718733963720)

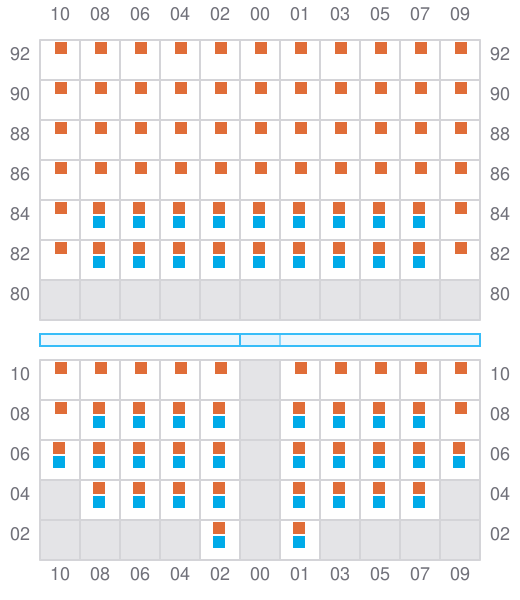

031
- ←
- →
![Bay 031 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b031.png?v=1718733963720)

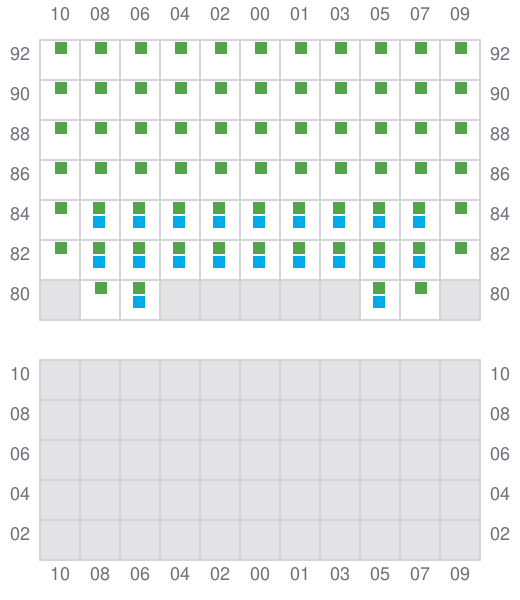

033 (034)
- → / ?
- → / ?
![Bay 033 view and slots of OLIVIA](/vessel-images/73bf2c6c-f7d9-4c9a-b257-6df612febef4-b033.png?v=1718733963720)
