OLOMANA
9184225 | V2BQ6 | 9184225 by ********* Last update: Sat Mar 09 2024
General Info
Ship Name:OLOMANA
IMO Code:9184225
Call Sign:V2BQ6
Line Operator:9184225
Class Name for Sister Ships:15D
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:029
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:630
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

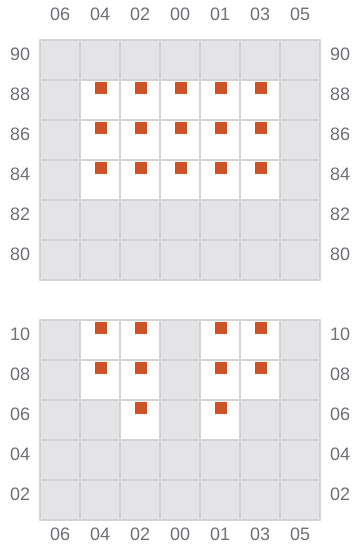

001

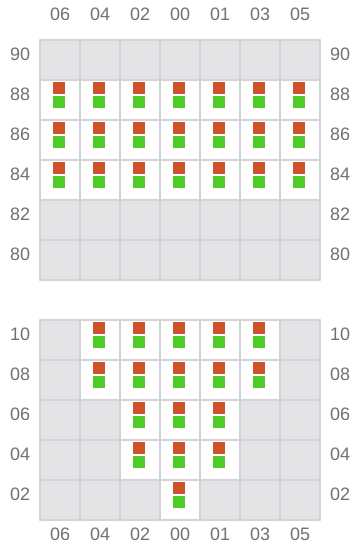

003 (004)
- →

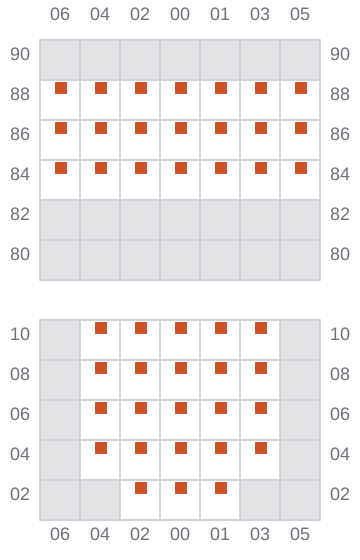

005
- ←
007

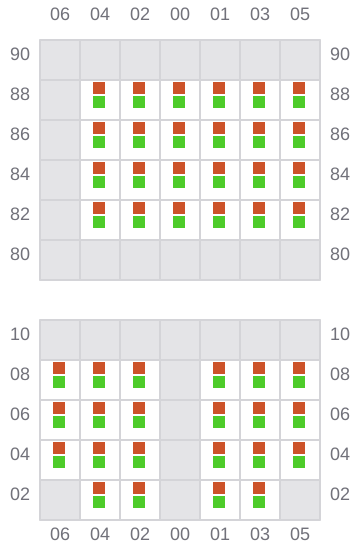

009 (010)
- →

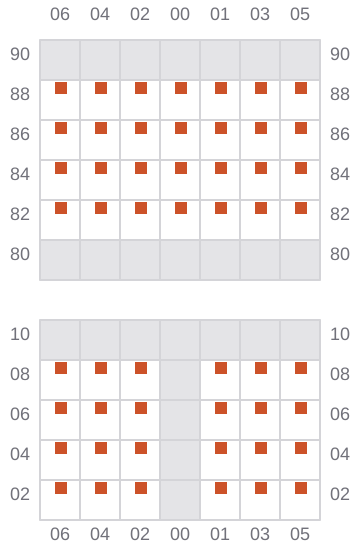

011
- ←
013 (014)
- →
015
- ←
017

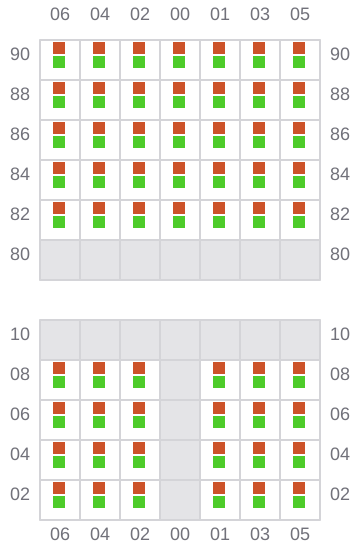

019 (020)
- →

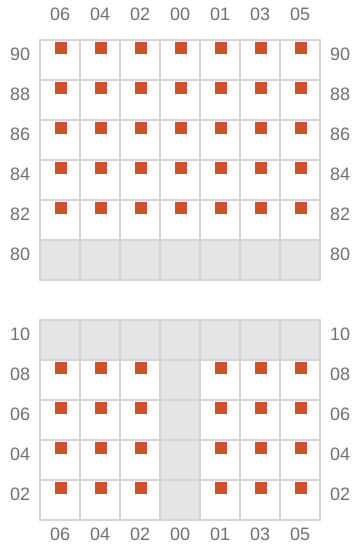

021
- ←

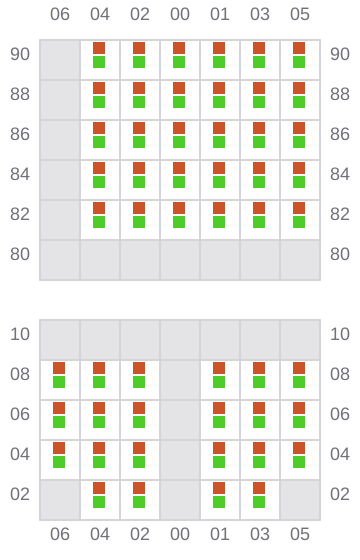

023 (024)
- →

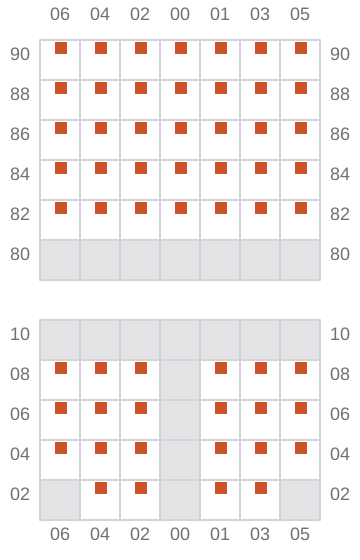

025
- ←

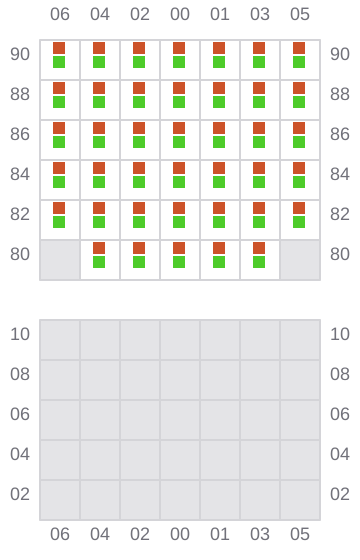

027 (028)
- → / ?

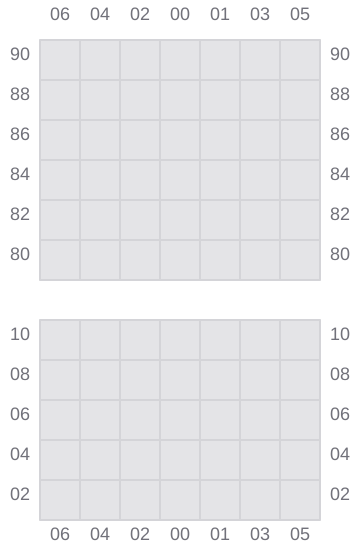

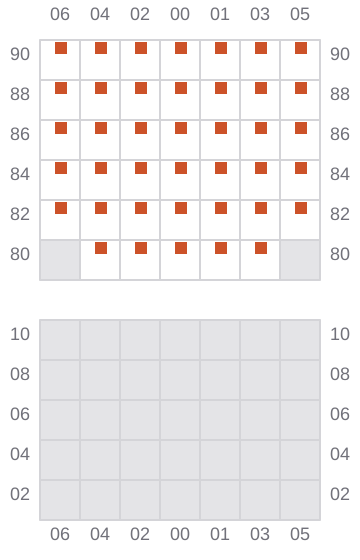

029
- ← / ?
