ONE AQUILA
9806043 | H9LE | ONE by *********************** Last update: Tue Feb 11 2025

General Info

Ship Name:ONE AQUILA
IMO Code:9806043
Call Sign:H9LE
Line Operator:ONE
Class Name for Sister Ships:OAQU
Year Built:2018
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):349.20
LOA (Length Overall):364.15
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:78
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,052

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of ONE AQUILA

Hatch-Covers View

Deck view of ONE AQUILA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • →

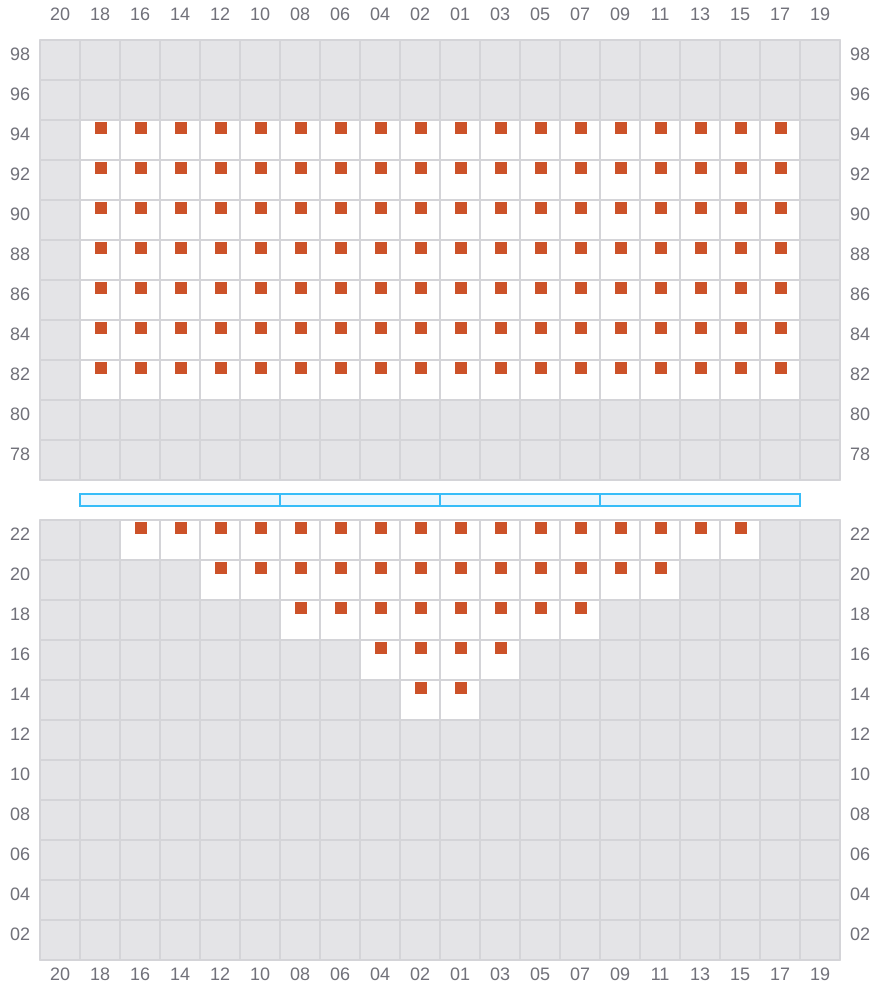

Bay 001 view and slots of ONE AQUILA

003 (002)

  • ←
  • →

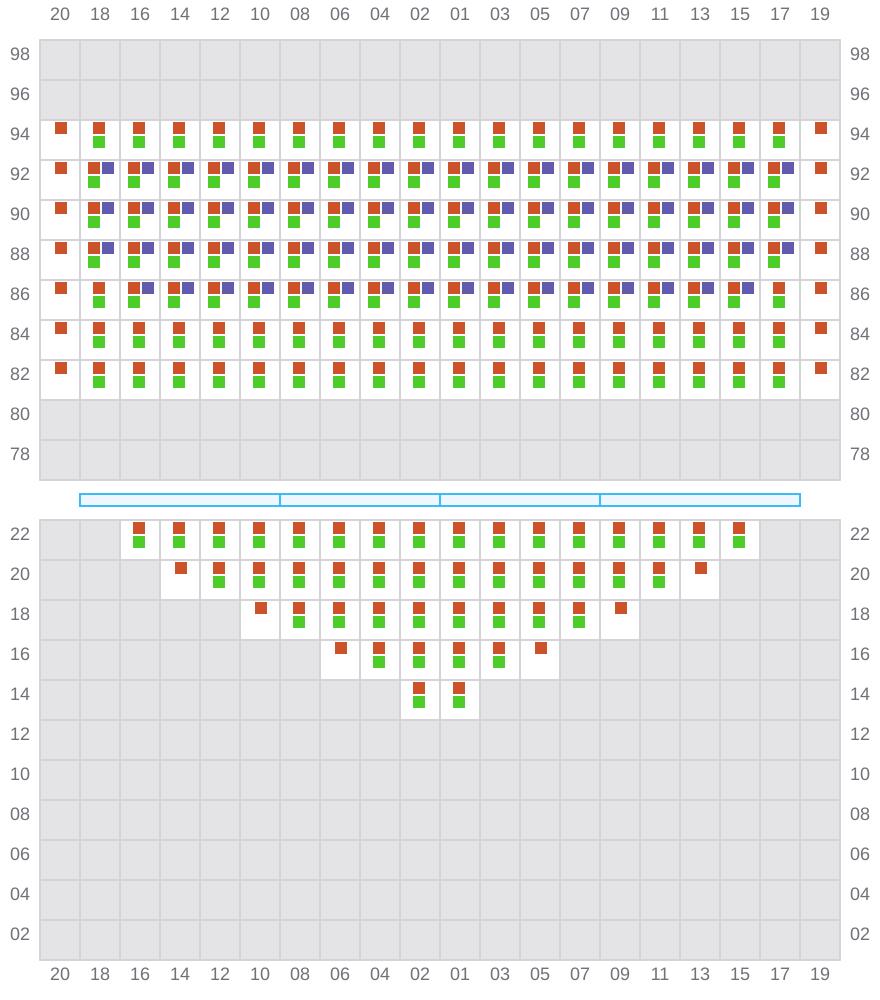

Bay 003 view and slots of ONE AQUILA

005

  • →
  • →

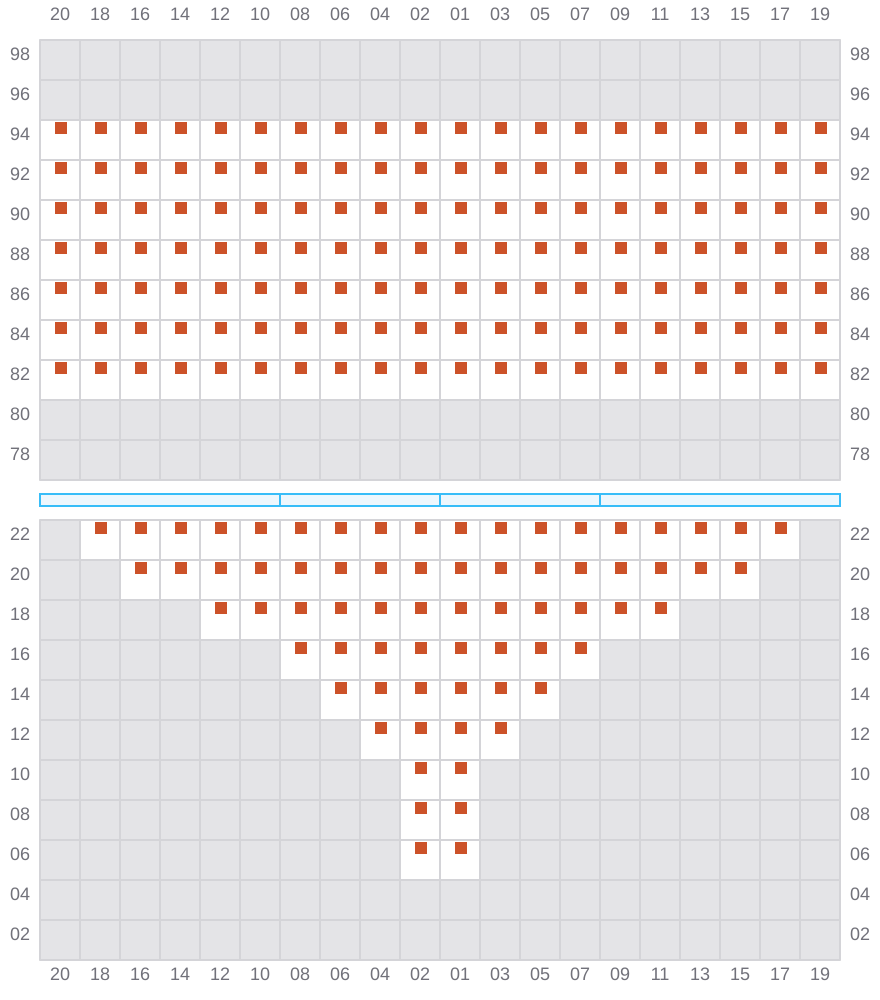

Bay 005 view and slots of ONE AQUILA

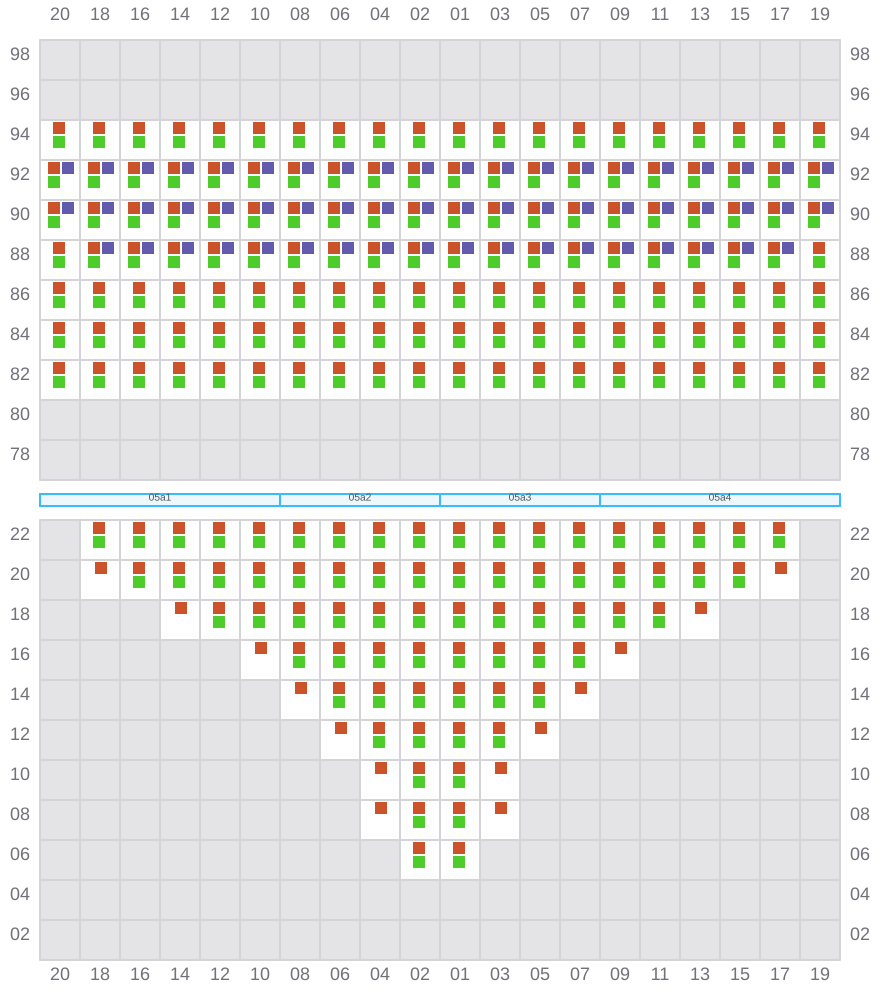

007 (006)

  • ←
  • →
Bay 007 view and slots of ONE AQUILA

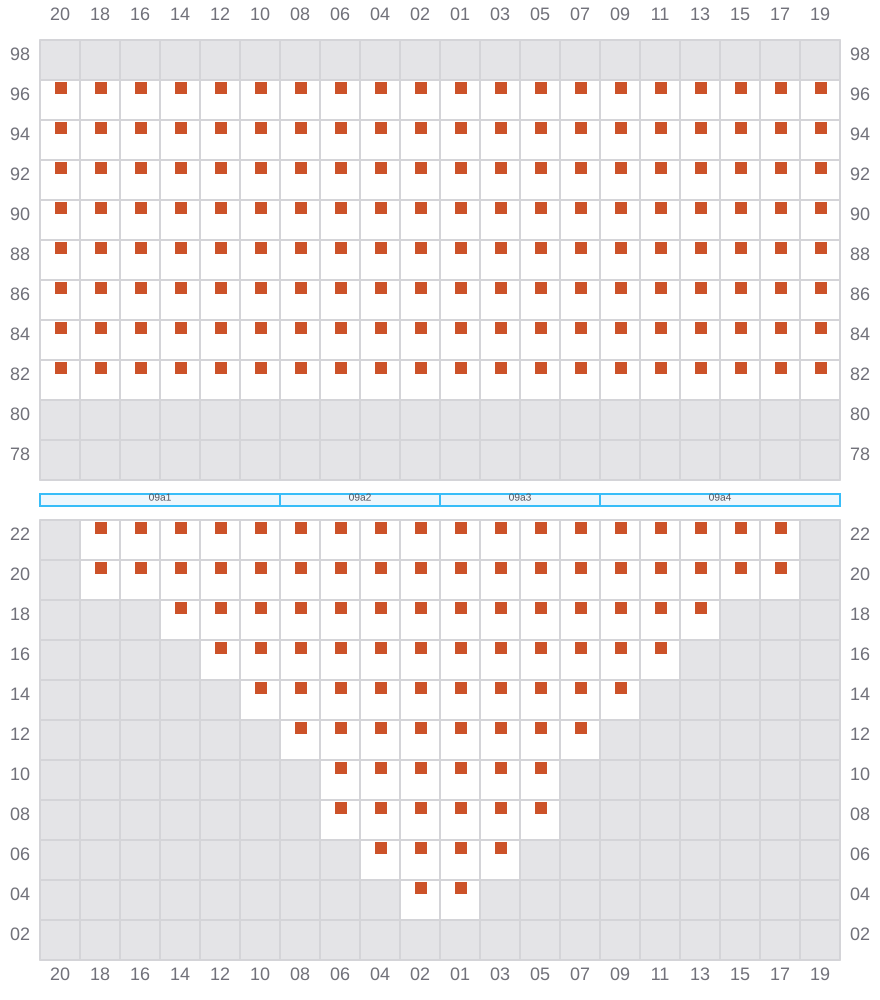

009

  • →
  • →
Bay 009 view and slots of ONE AQUILA

011 (010)

  • ←
  • →

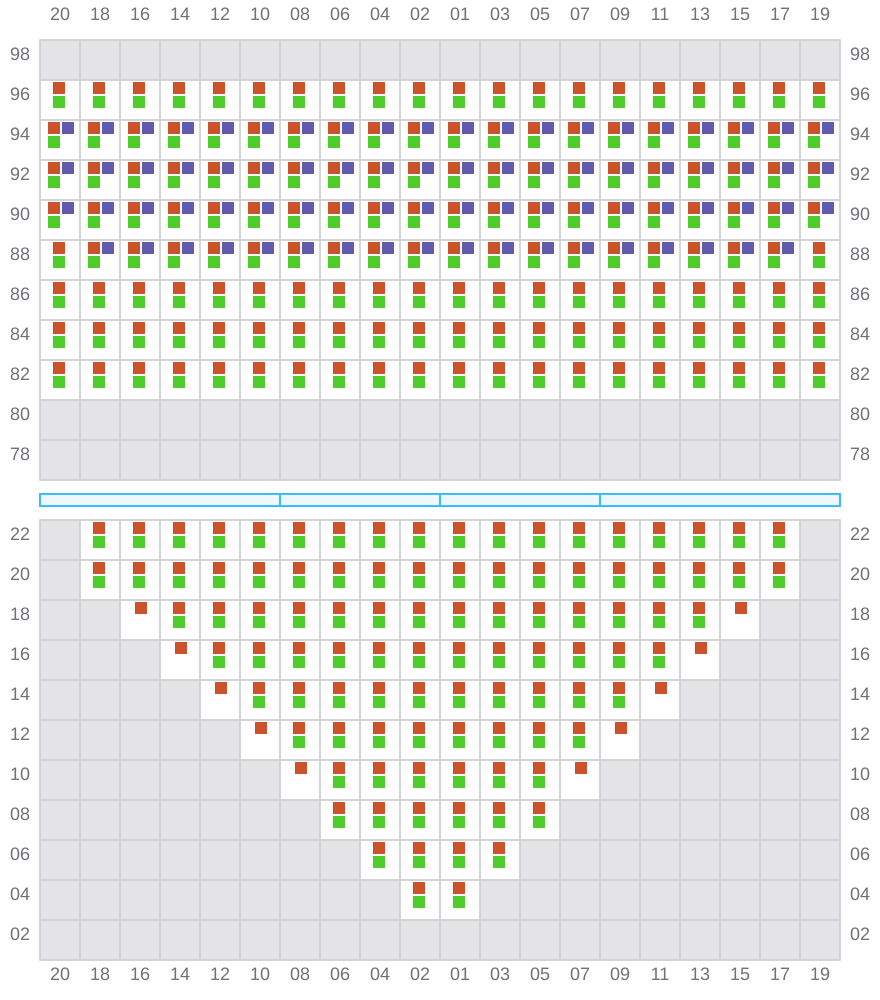

Bay 011 view and slots of ONE AQUILA

013

  • →
  • →

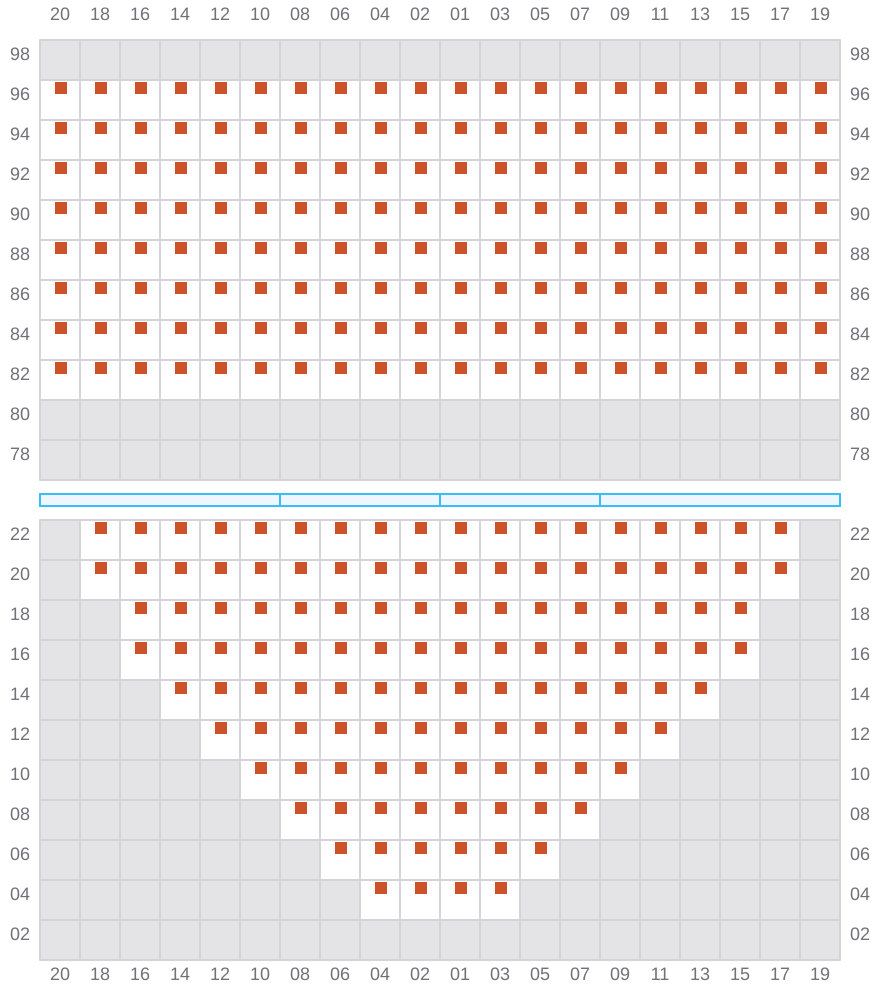

Bay 013 view and slots of ONE AQUILA

015 (014)

  • ←
  • → / ?
  • →

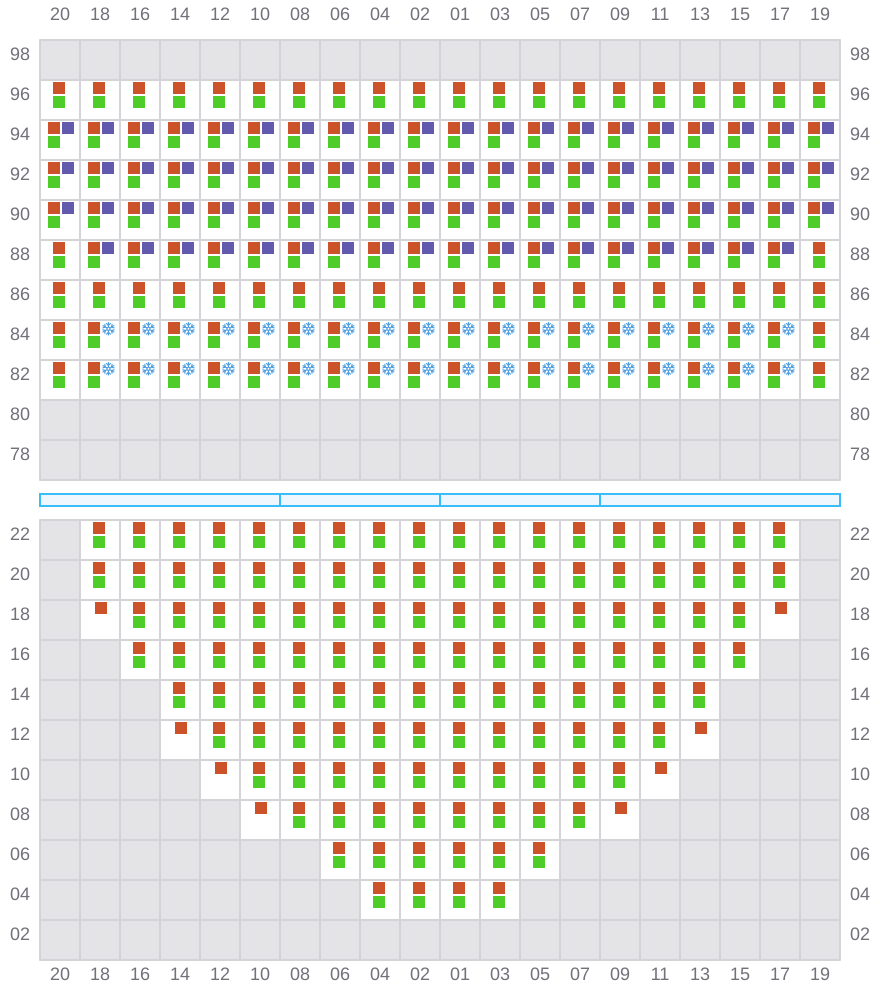

Bay 015 view and slots of ONE AQUILA

017

  • →
  • ← / ?
  • →

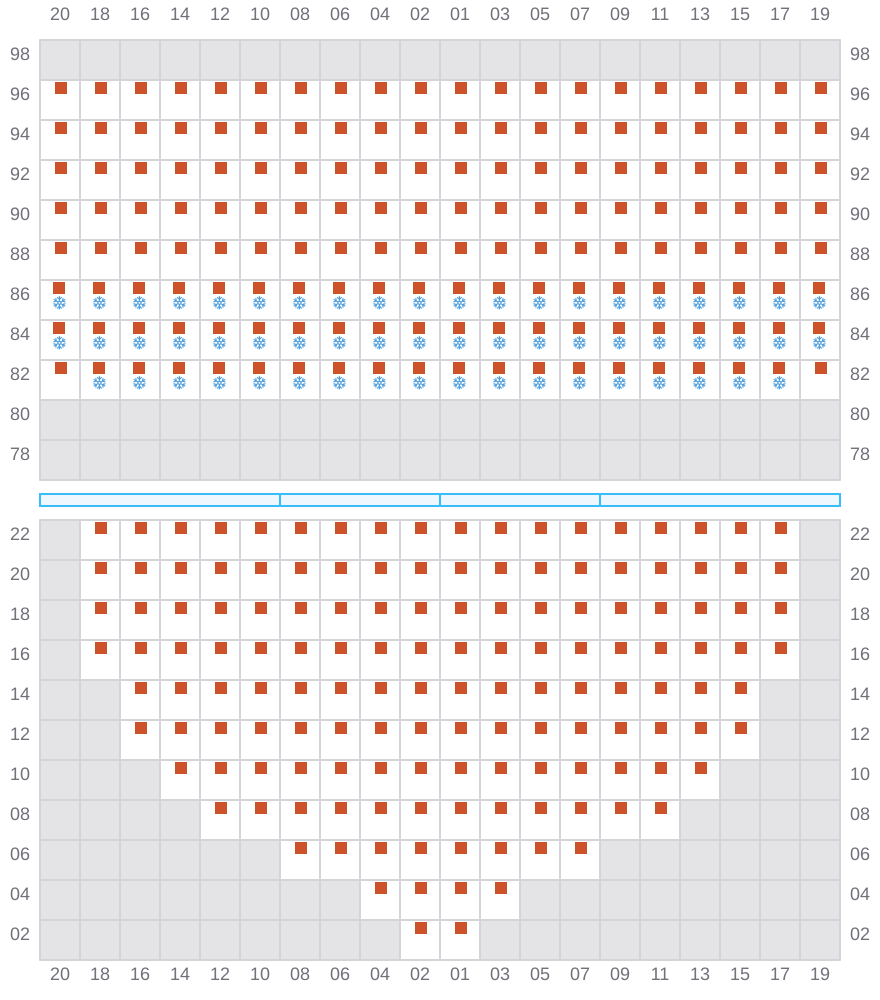

Bay 017 view and slots of ONE AQUILA

019 (018)

  • ←
  • ← / ?
  • →

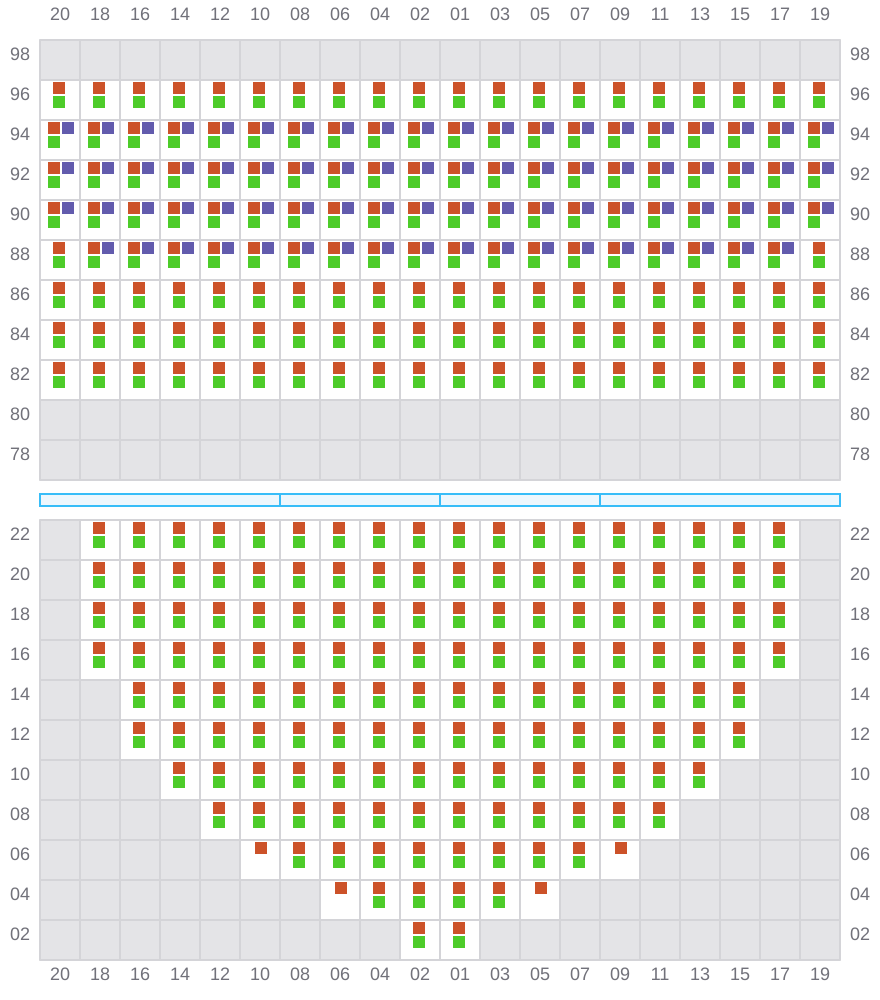

Bay 019 view and slots of ONE AQUILA

021

  • →
  • →

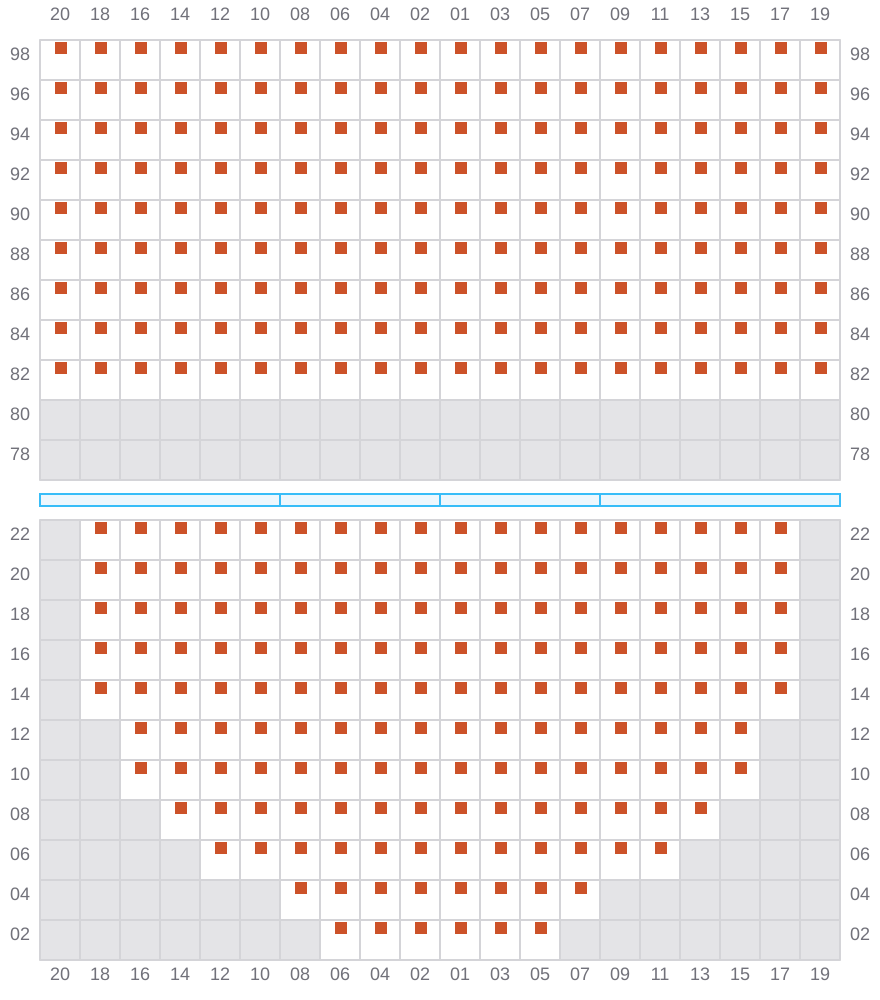

Bay 021 view and slots of ONE AQUILA

023 (022)

  • ←
  • → / ?
  • →

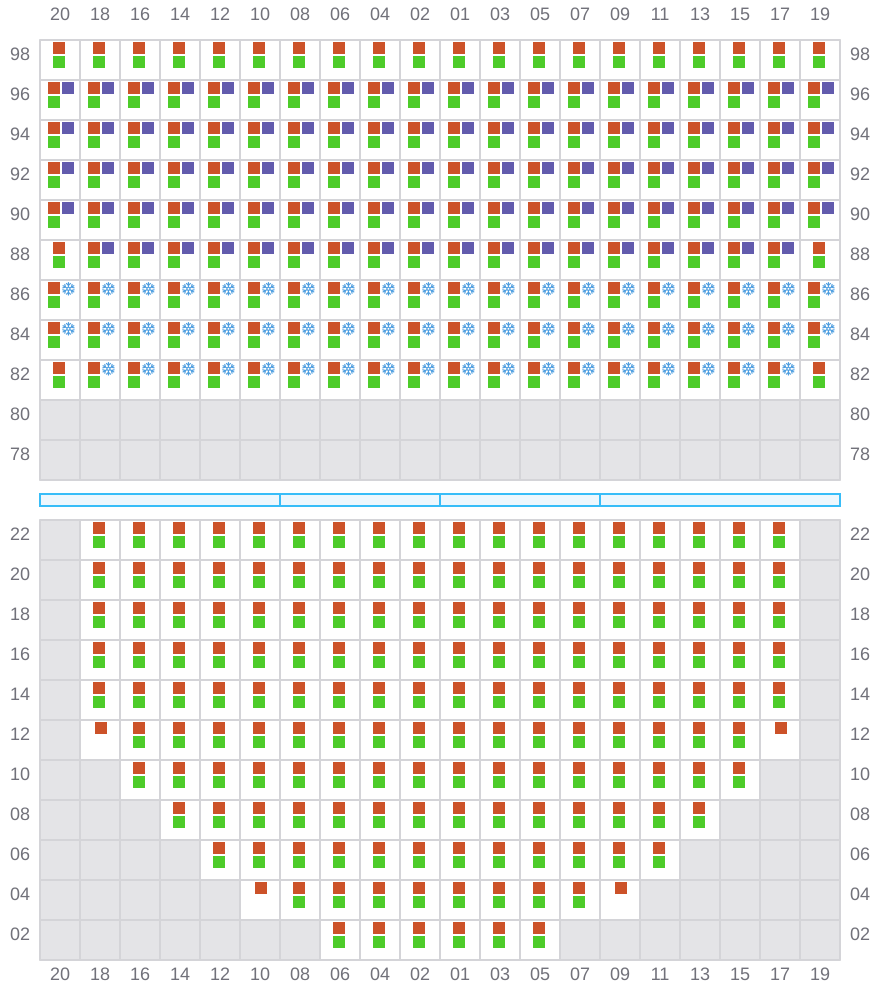

Bay 023 view and slots of ONE AQUILA

025

  • →
  • ← / ?
  • →

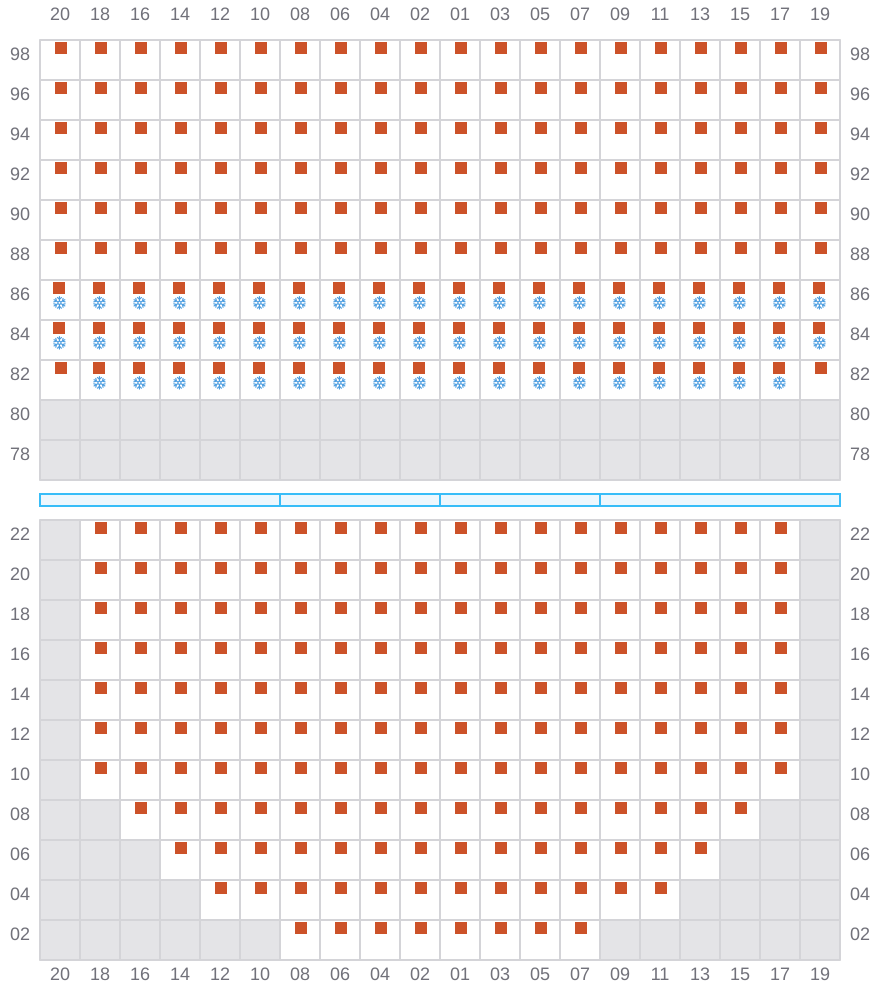

Bay 025 view and slots of ONE AQUILA

027 (026)

  • ←
  • ← / ?
  • →

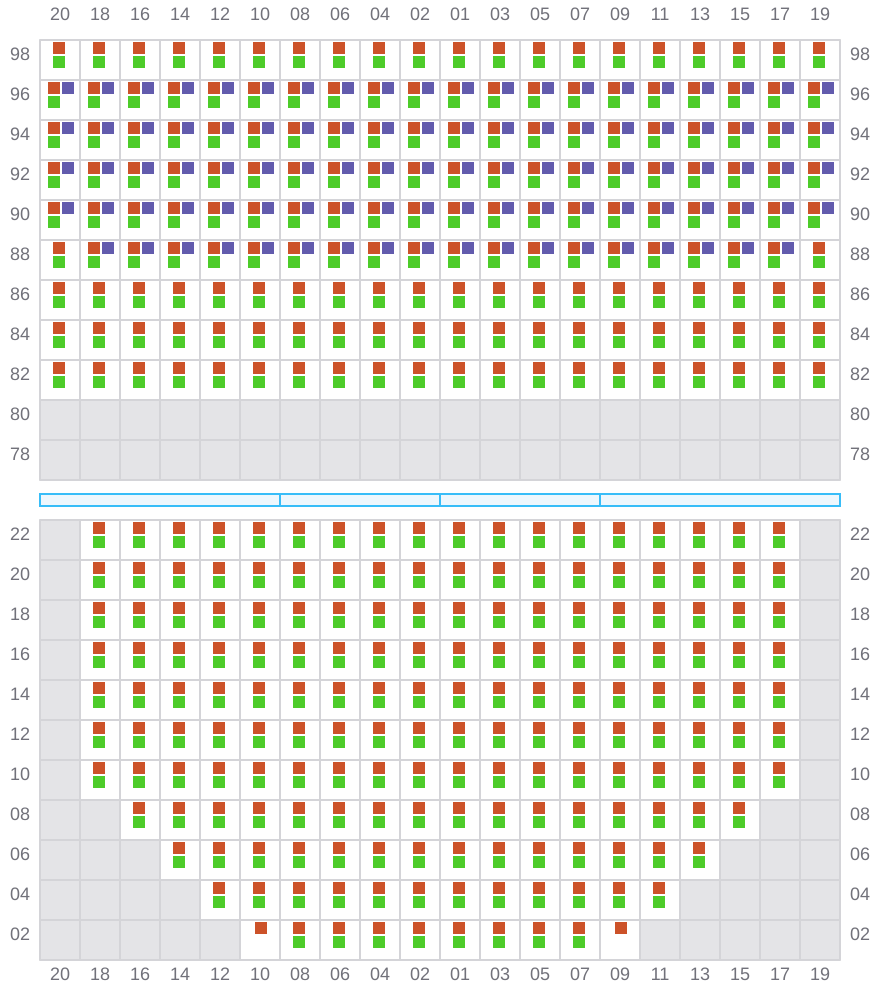

Bay 027 view and slots of ONE AQUILA

029

  • →
  • → / ?
  • →

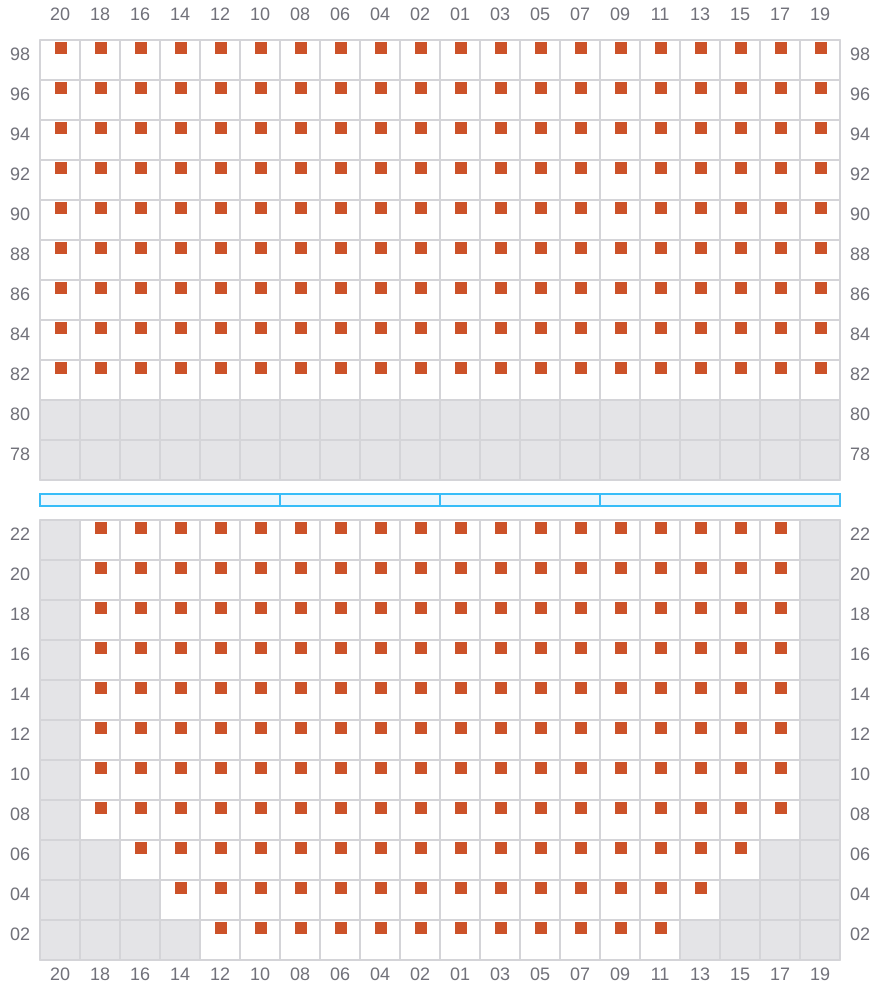

Bay 029 view and slots of ONE AQUILA

031 (030)

  • ←
  • → / ?
  • →

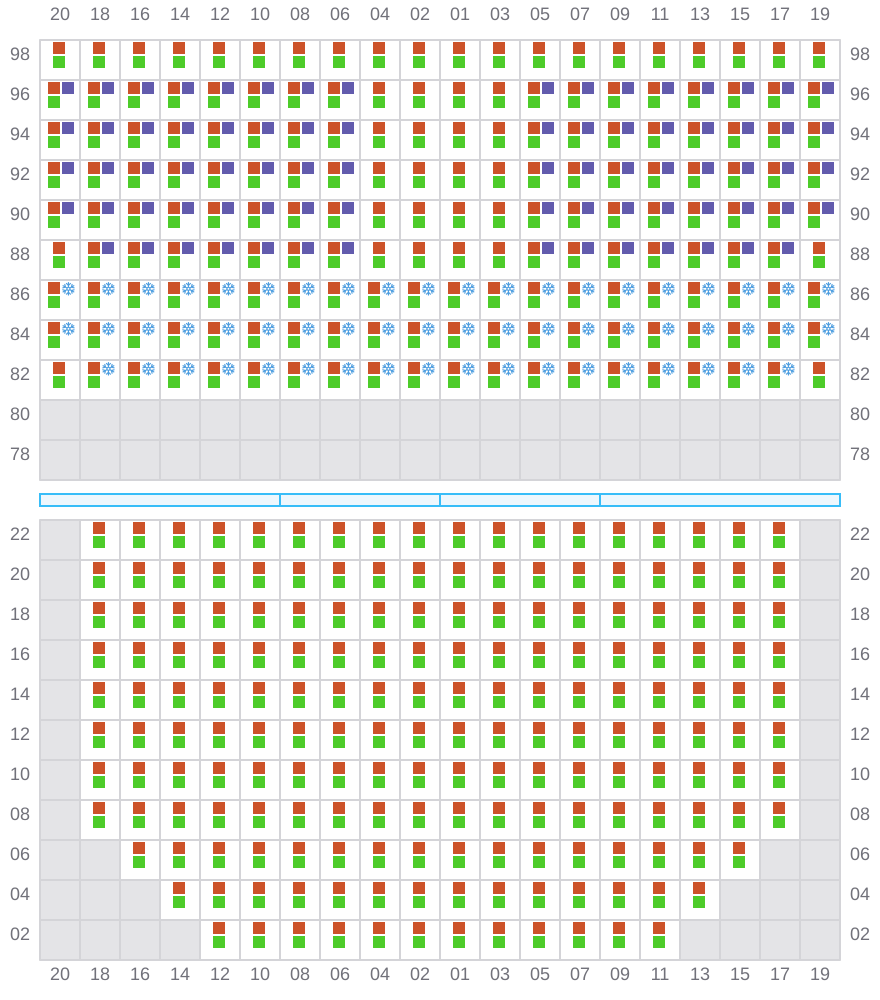

Bay 031 view and slots of ONE AQUILA

033

  • →
  • ← / ?
  • →
Bay 033 view and slots of ONE AQUILA

035 (034)

  • ←
  • ← / ?
  • →

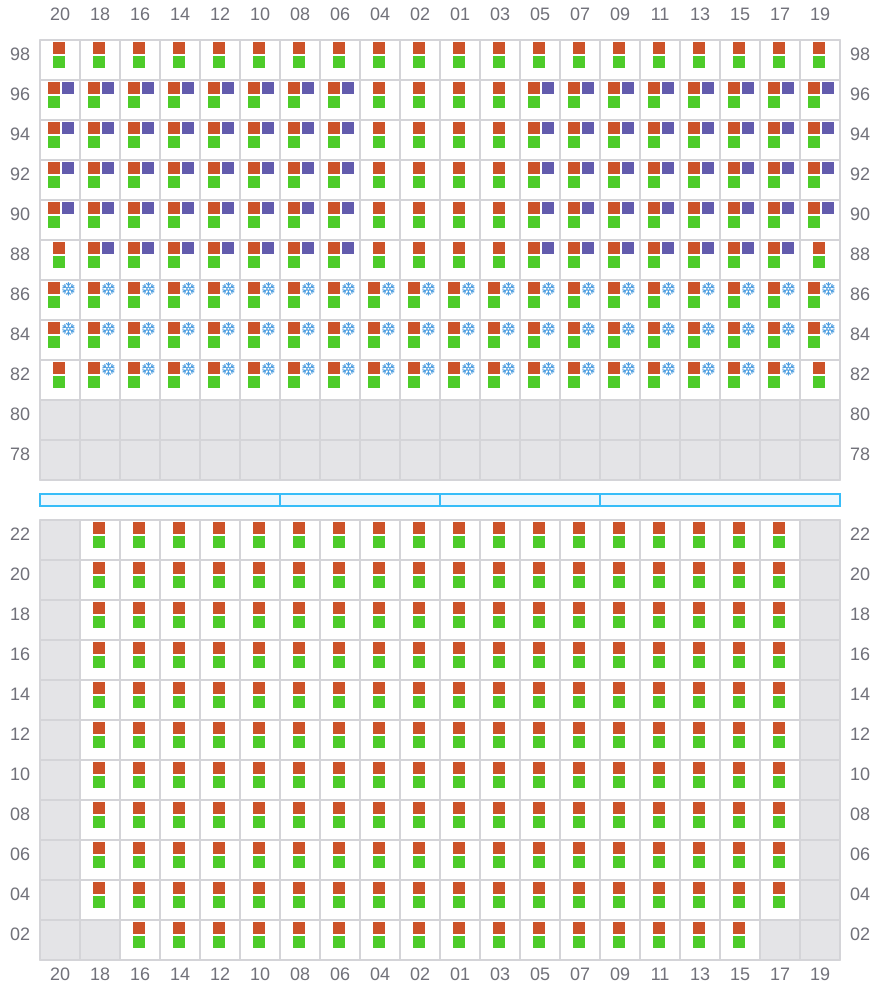

Bay 035 view and slots of ONE AQUILA

037

  • →
  • →
Bay 037 view and slots of ONE AQUILA

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of ONE AQUILA

041

  • →
  • ← / ?
  • →

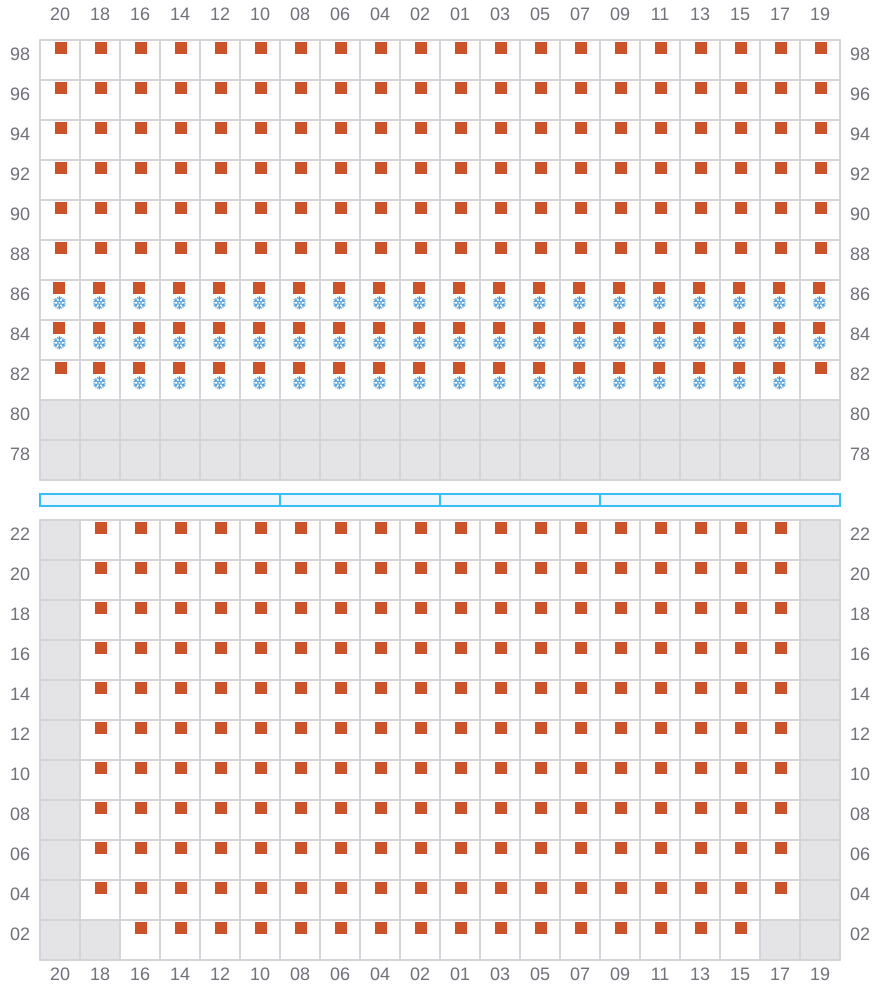

Bay 041 view and slots of ONE AQUILA

043 (042)

  • ←
  • ← / ?
  • →

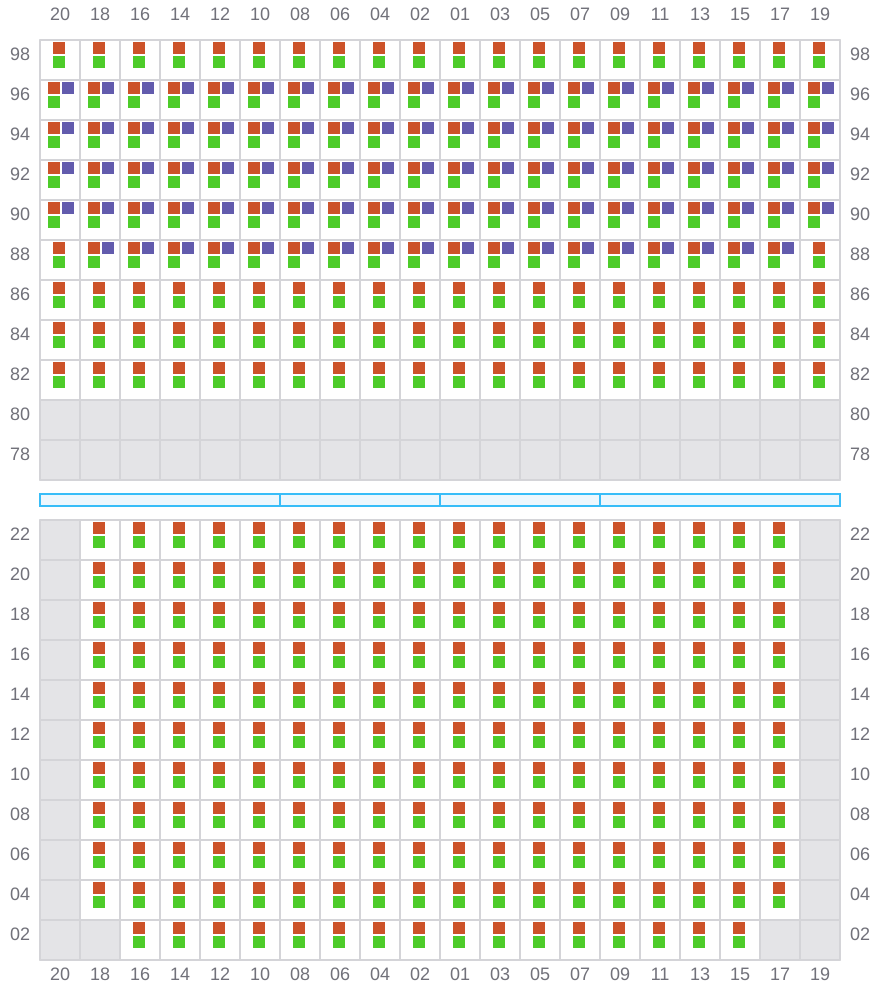

Bay 043 view and slots of ONE AQUILA

045

  • →
  • →
Bay 045 view and slots of ONE AQUILA

047 (046)

  • ←
  • → / ?
  • →

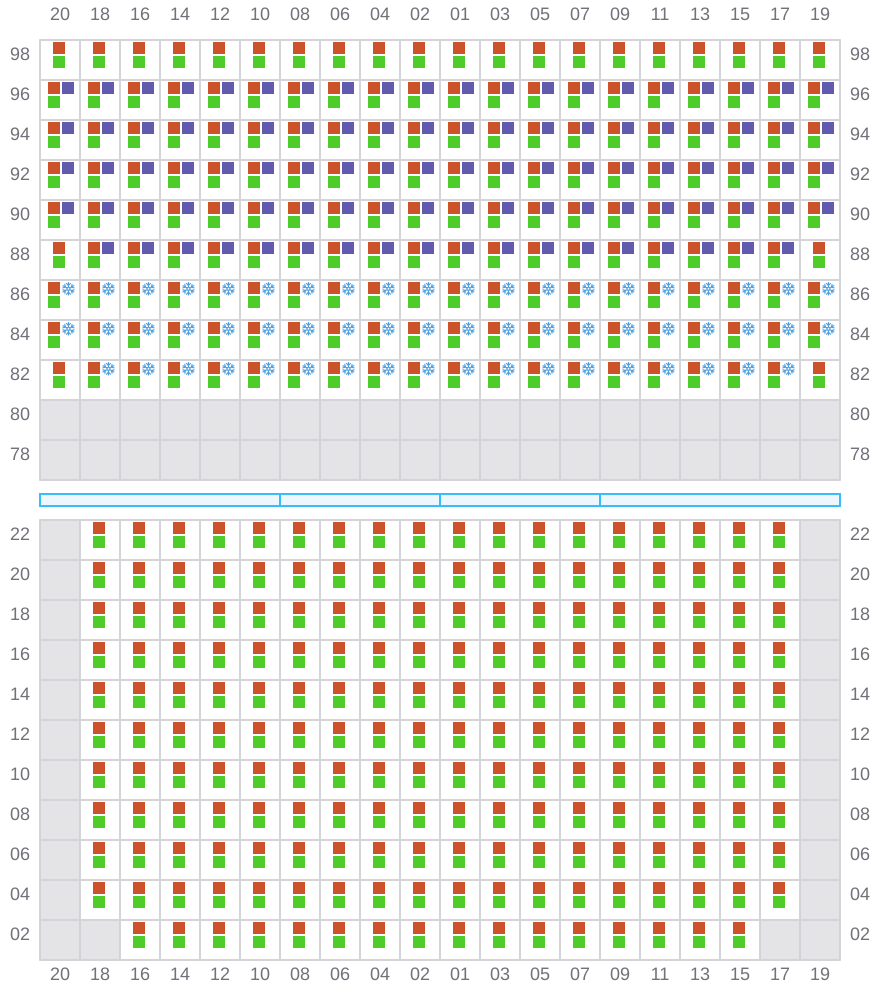

Bay 047 view and slots of ONE AQUILA

049

  • →
  • ← / ?
  • →
Bay 049 view and slots of ONE AQUILA

051 (050)

  • ←
  • ← / ?
  • →
Bay 051 view and slots of ONE AQUILA

053

  • →
  • →

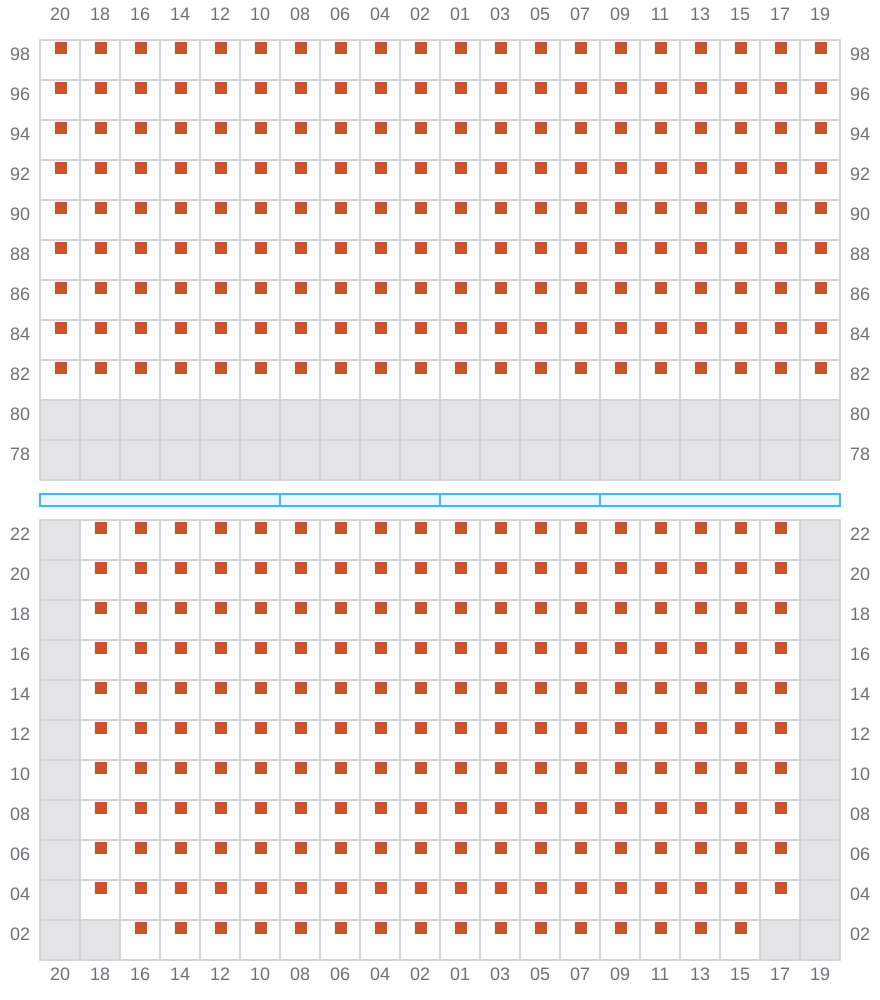

Bay 053 view and slots of ONE AQUILA

055 (054)

  • ←
  • → / ?
  • →
Bay 055 view and slots of ONE AQUILA

057

  • →
  • ← / ?
  • →
Bay 057 view and slots of ONE AQUILA

059 (058)

  • ←
  • ← / →
  • →
Bay 059 view and slots of ONE AQUILA

061

  • →
  • →

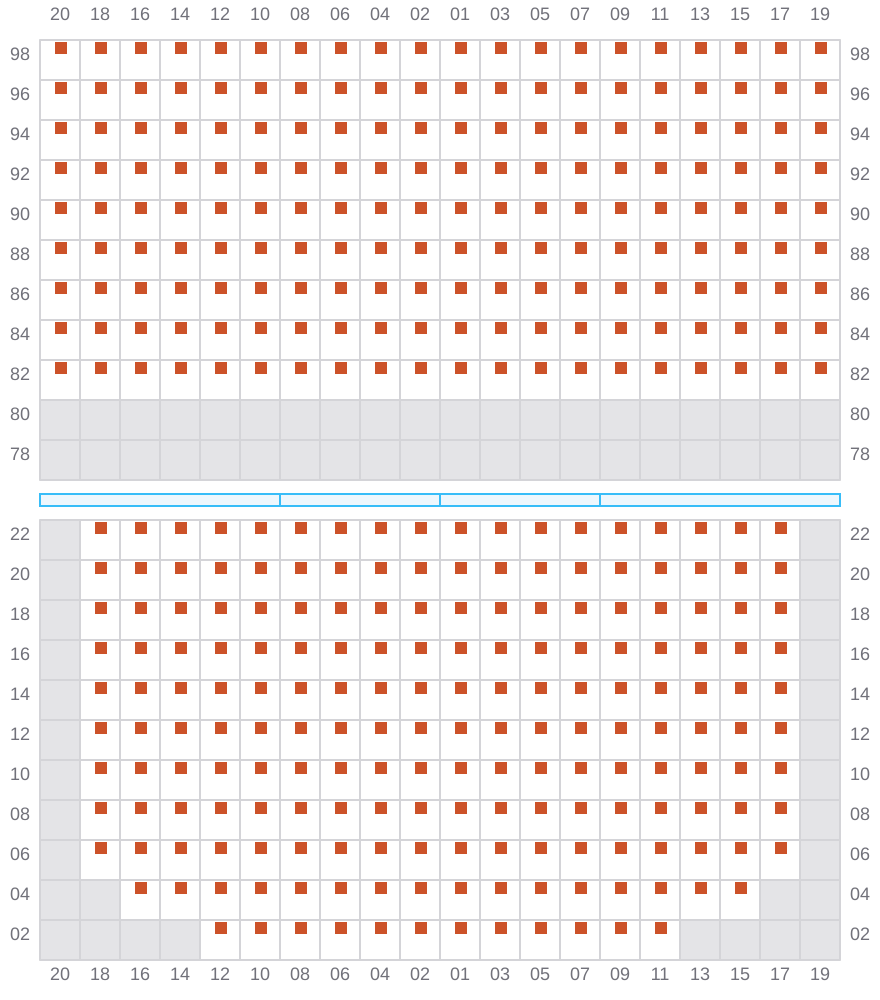

Bay 061 view and slots of ONE AQUILA

063 (062)

  • ←
  • → / ?
  • →

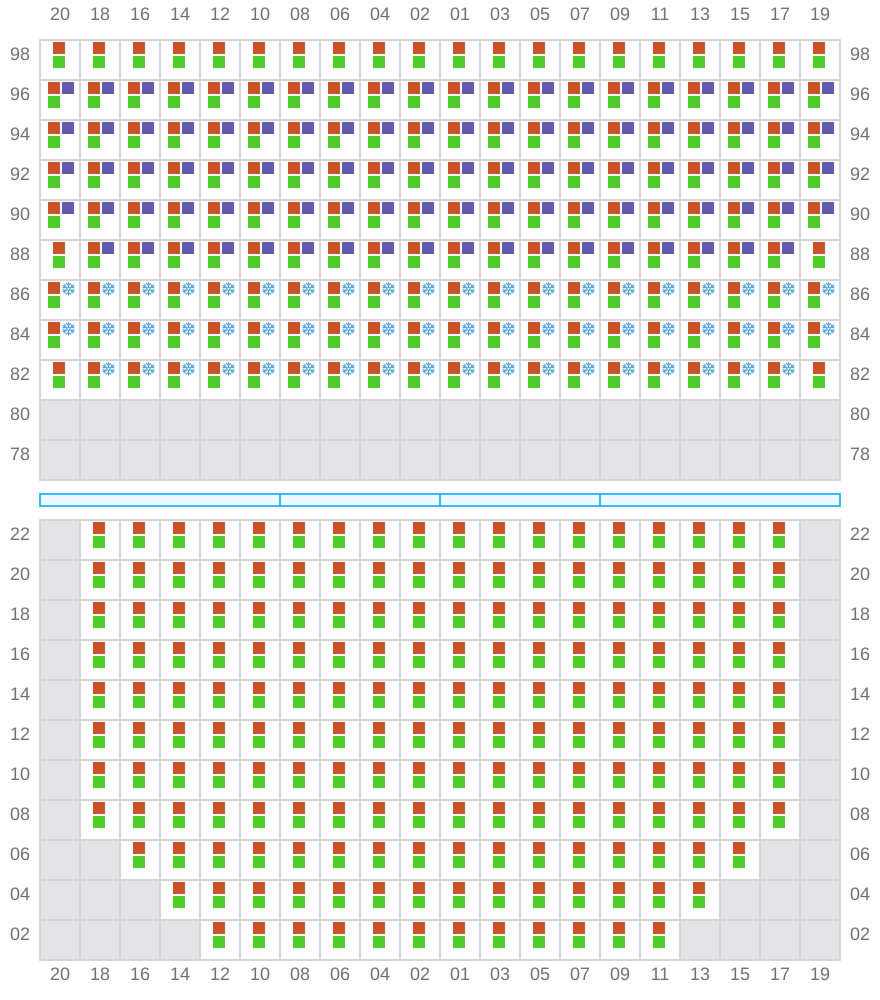

Bay 063 view and slots of ONE AQUILA

065

  • →
  • ← / ?
  • →

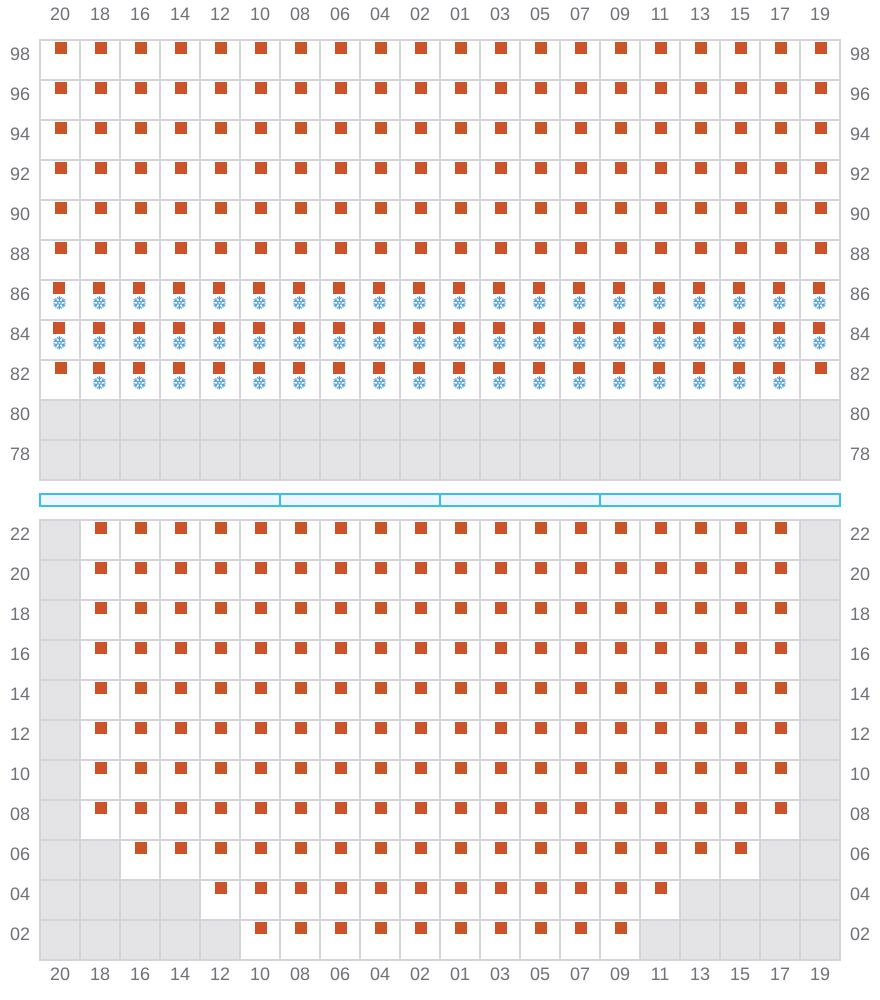

Bay 065 view and slots of ONE AQUILA

067 (066)

  • ←
  • ← / →
  • →
Bay 067 view and slots of ONE AQUILA

069

  • →
  • → / ?
  • →

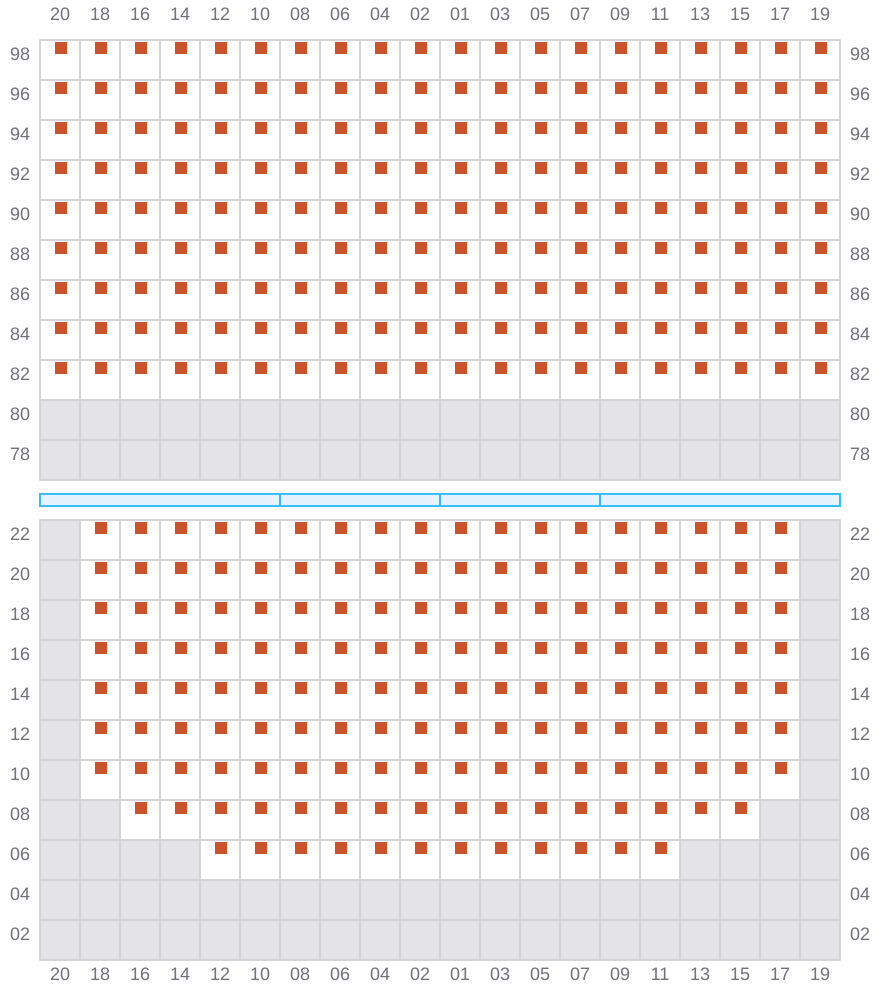

Bay 069 view and slots of ONE AQUILA

071 (070)

  • ←
  • → / ?
  • →

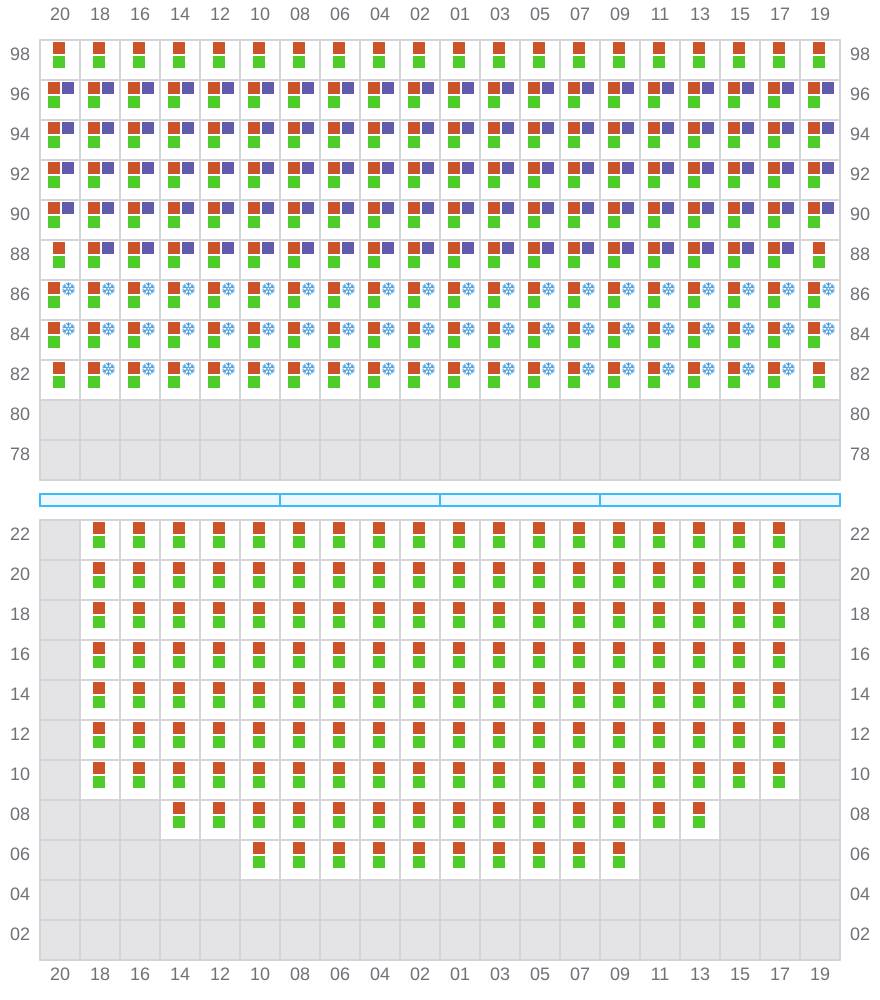

Bay 071 view and slots of ONE AQUILA

073

  • →
  • →

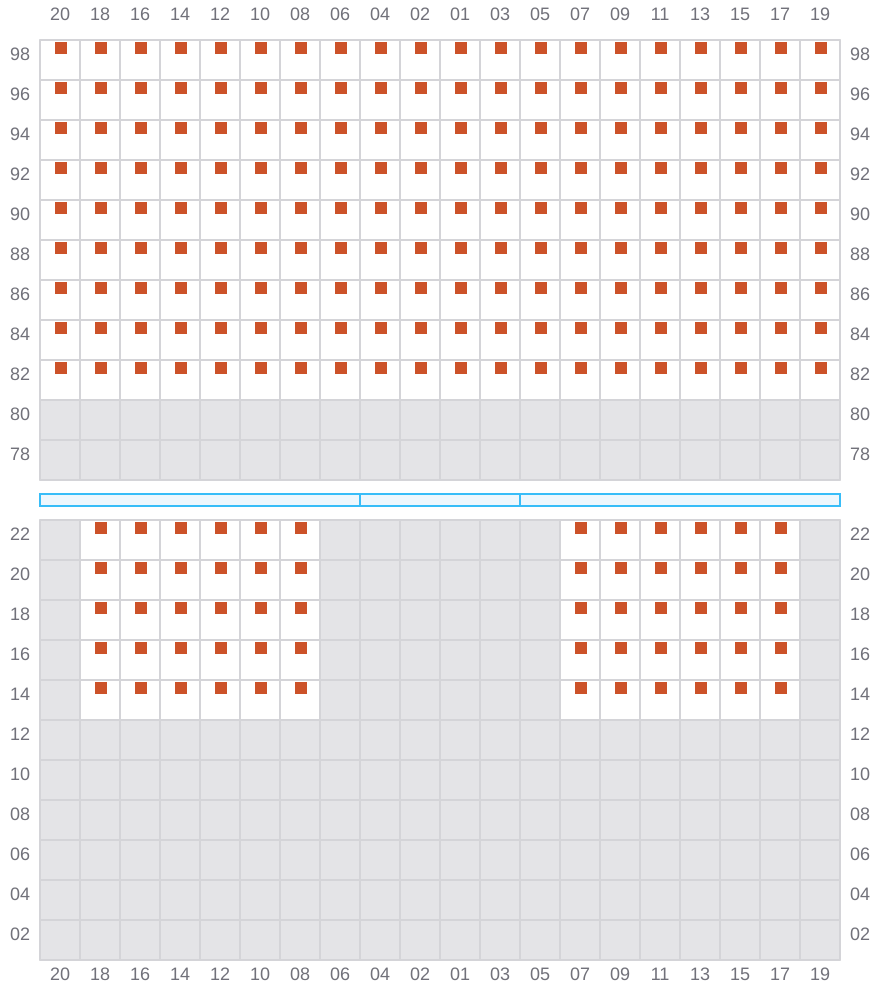

Bay 073 view and slots of ONE AQUILA

075 (074)

  • ←
  • → / ?
  • →

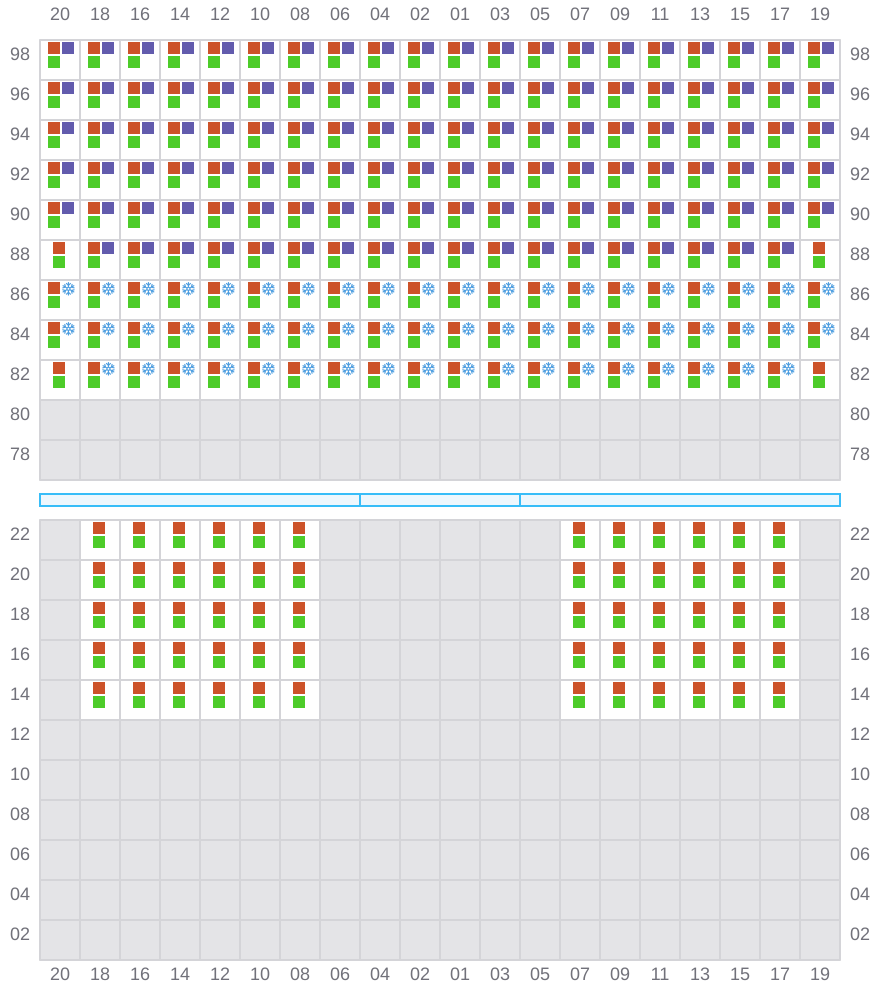

Bay 075 view and slots of ONE AQUILA

077

  • →
  • ← / ?
  • →

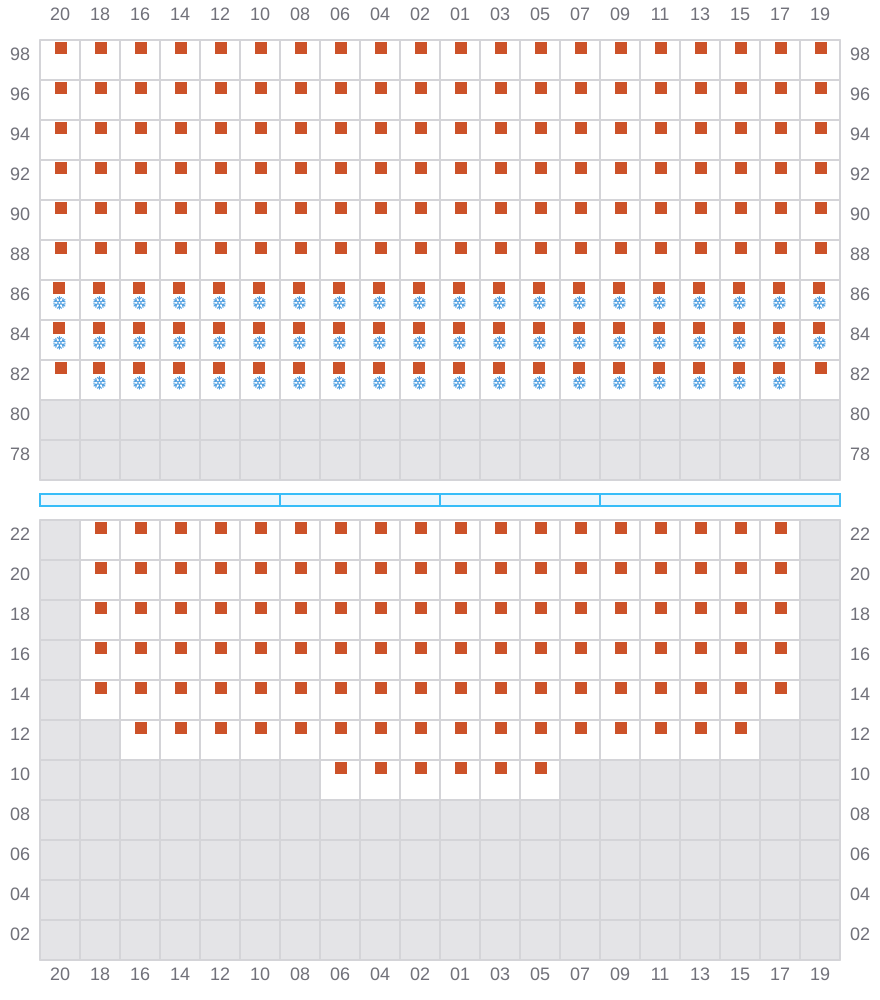

Bay 077 view and slots of ONE AQUILA

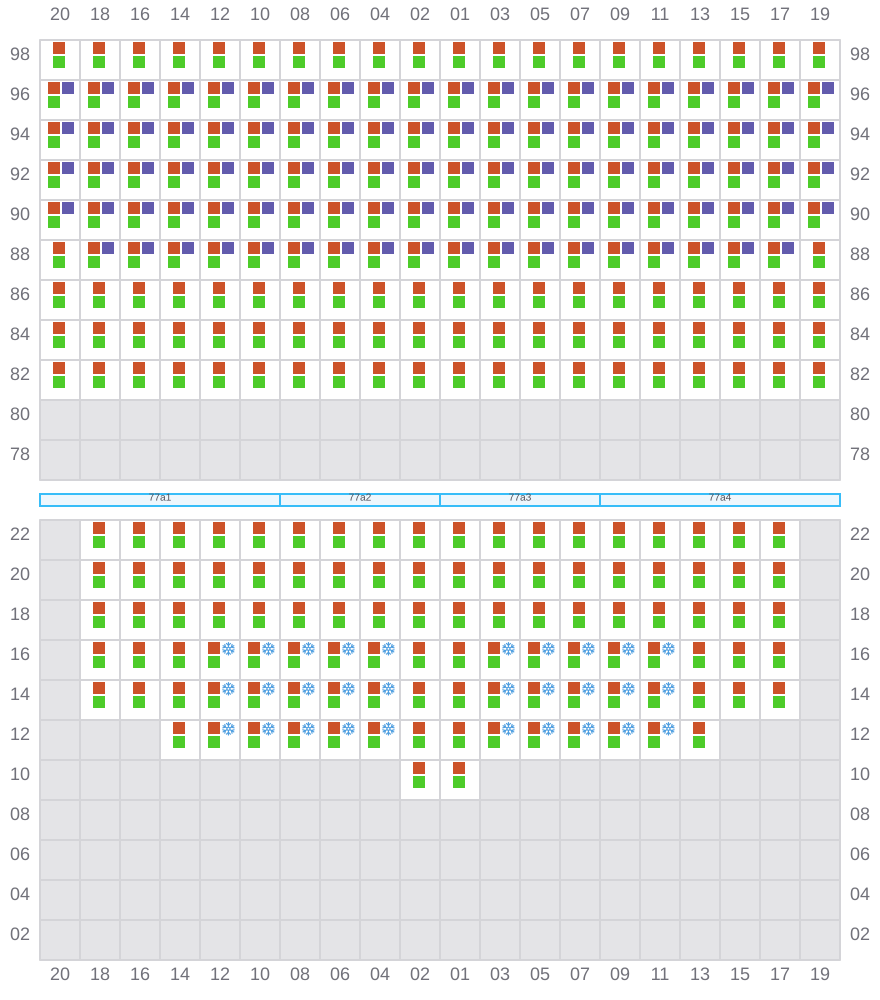

079 (078)

  • ←
  • ← / →
  • →
Bay 079 view and slots of ONE AQUILA

081

  • →
  • →

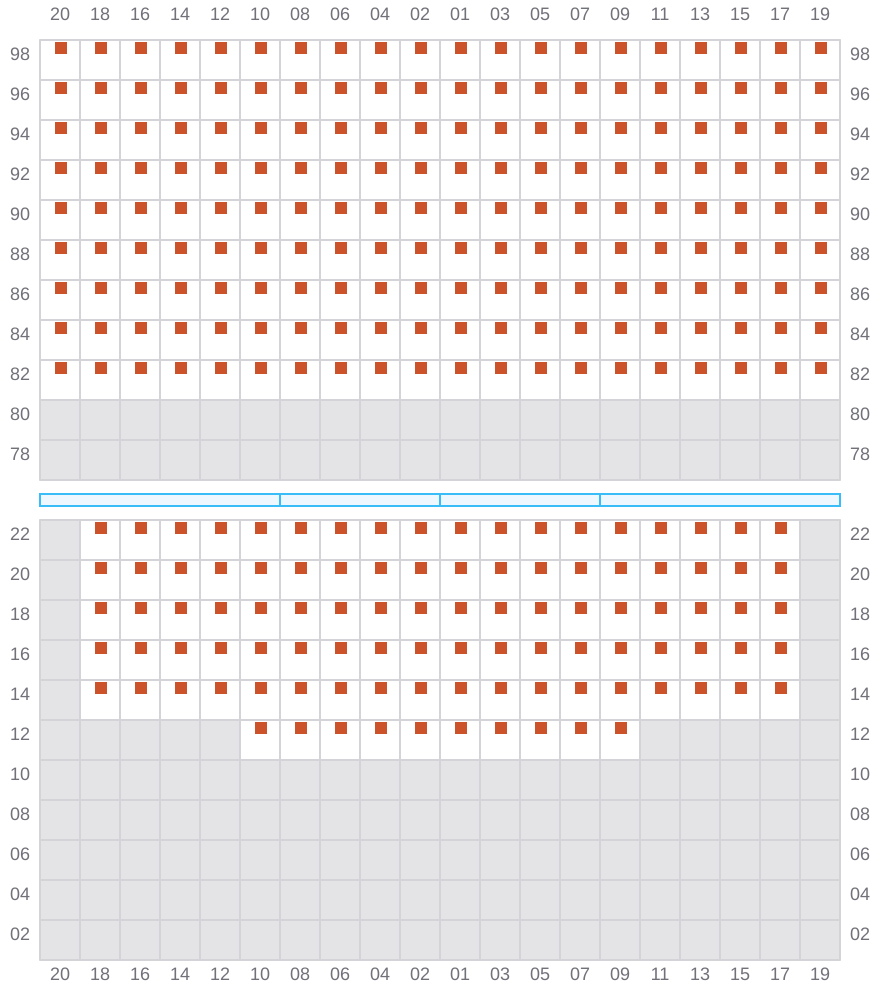

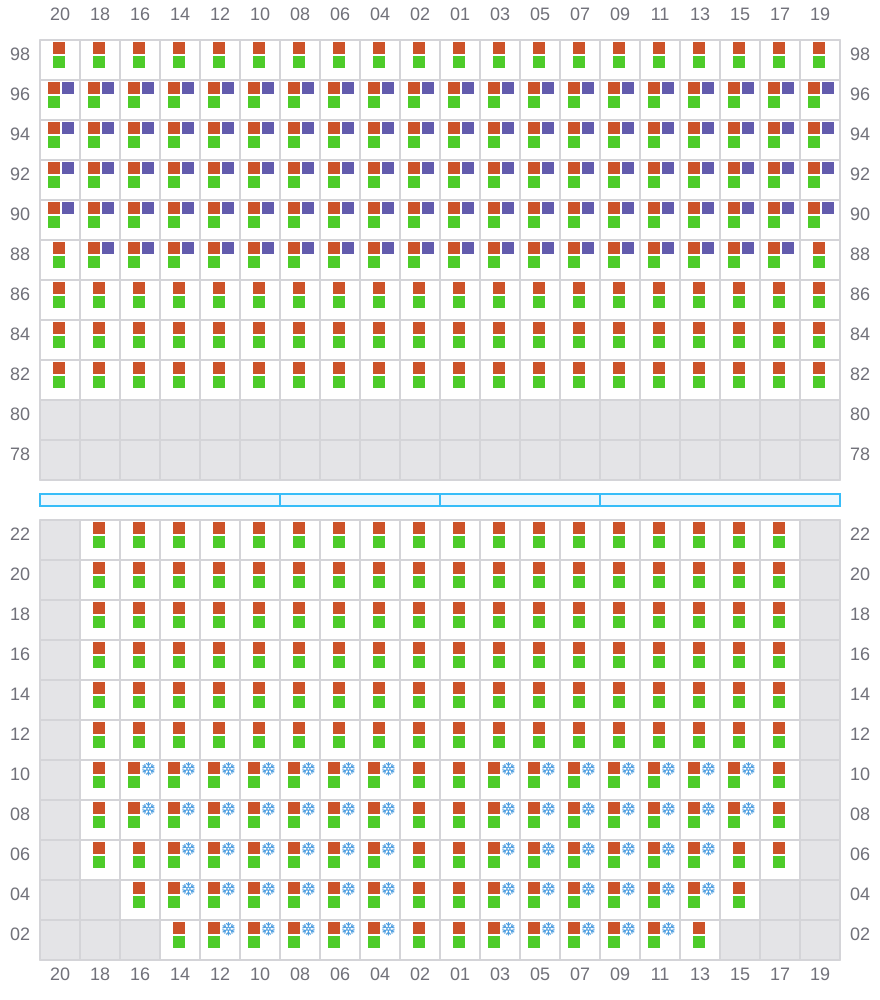

Bay 081 view and slots of ONE AQUILA

083 (082)

  • ←
  • → / ?
  • →

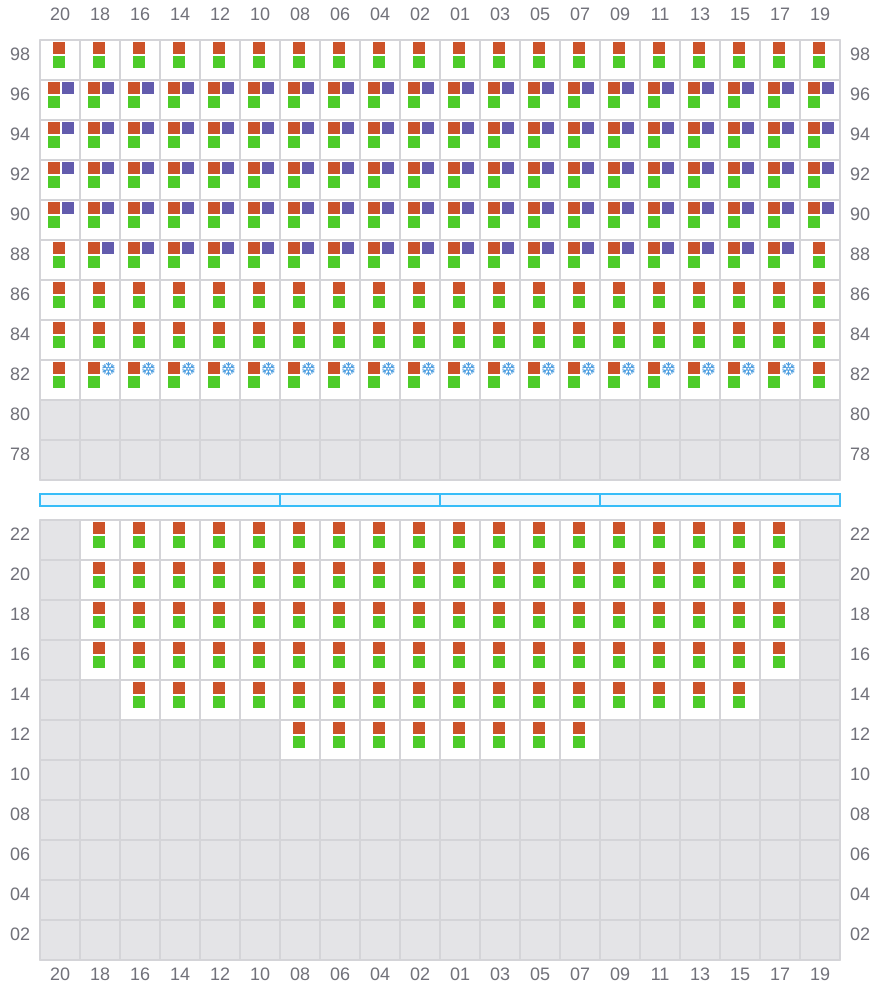

Bay 083 view and slots of ONE AQUILA

085 (086)

  • → / ?
  • ← / ?
  • → / ?

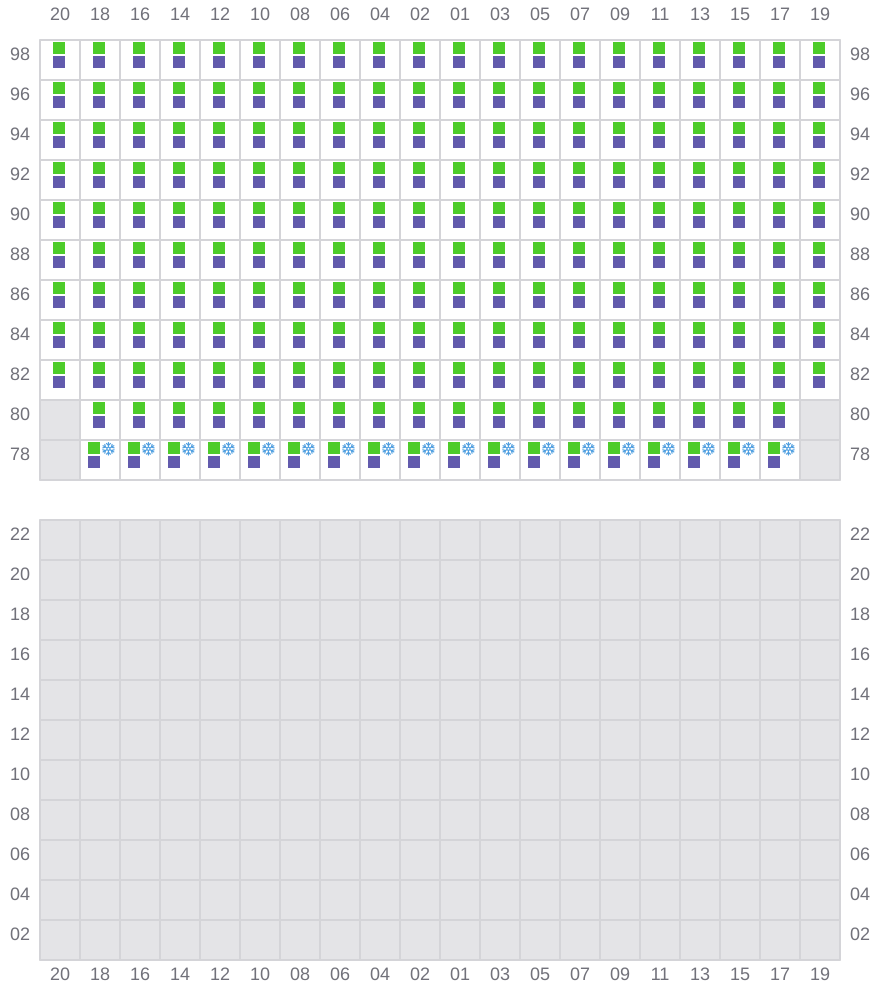

Bay 085 view and slots of ONE AQUILA
