ONE ARCADIA
9468310 | ZGOK7 | ONE by ******************** Last update: Thu Dec 18 2025
General Info
Ship Name:ONE ARCADIA
IMO Code:9468310
Call Sign:ZGOK7
Line Operator:ONE
Class Name for Sister Ships:OART
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):322.00
LOA (Length Overall):332.15
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,586
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

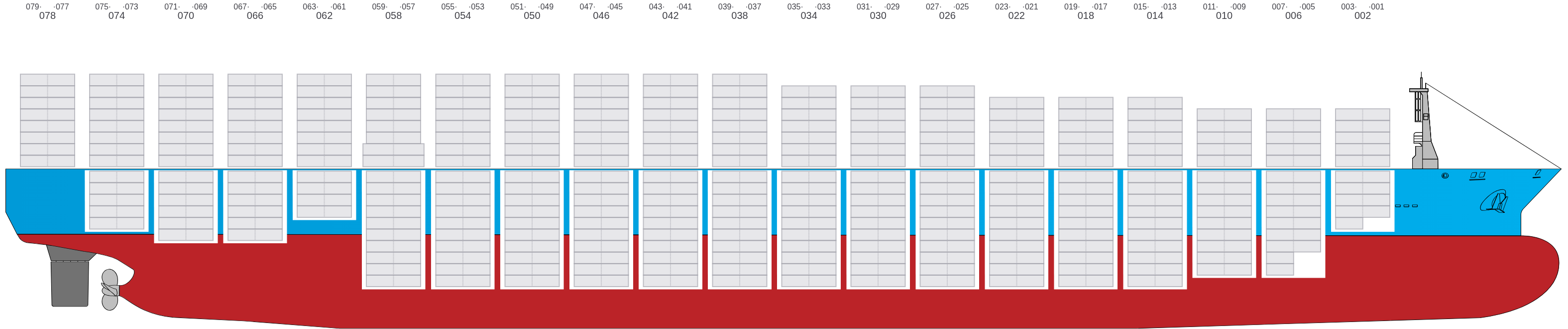

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

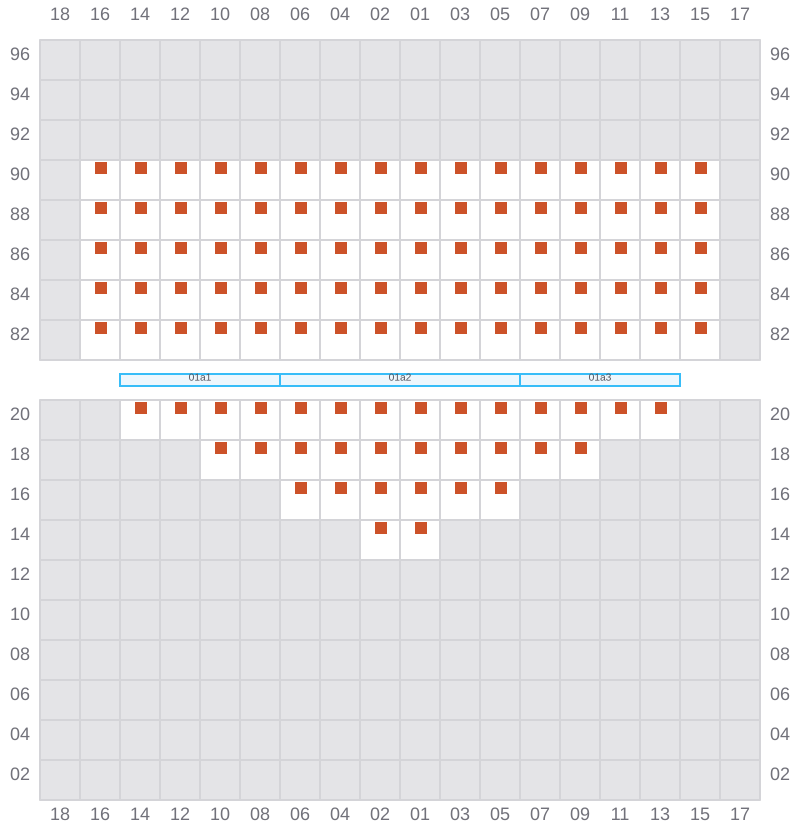

001
- →
- ✓

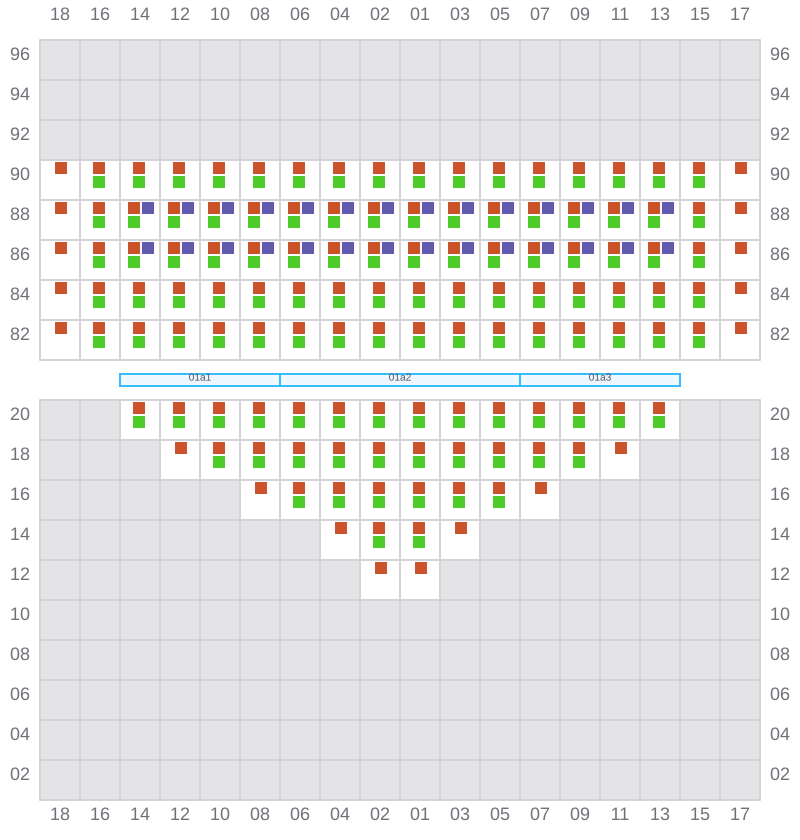

003 (002)
- ←
- ✓

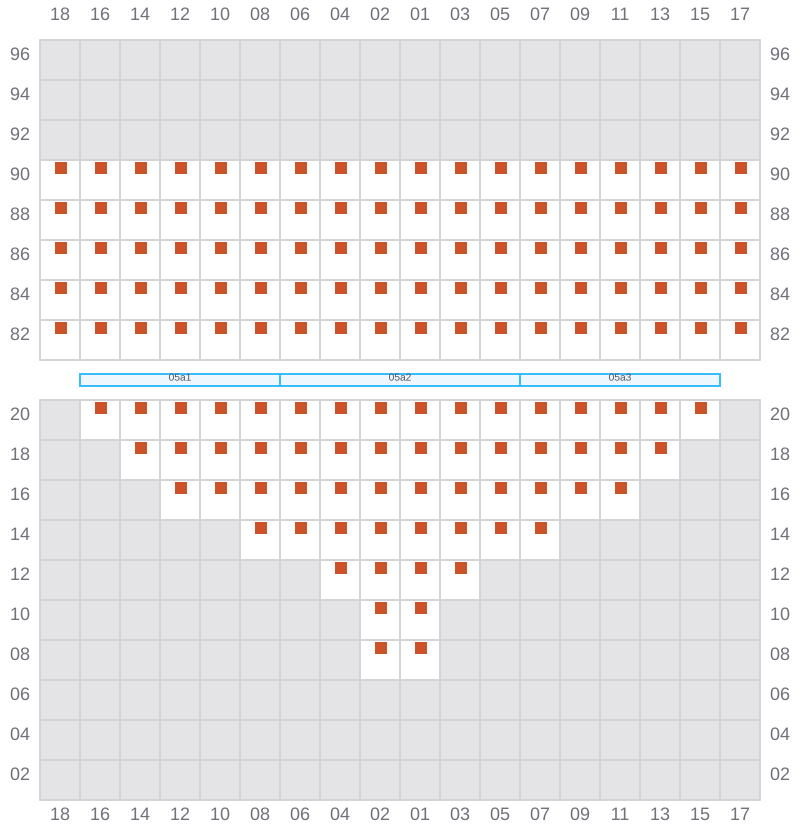

005
- →
- ✓

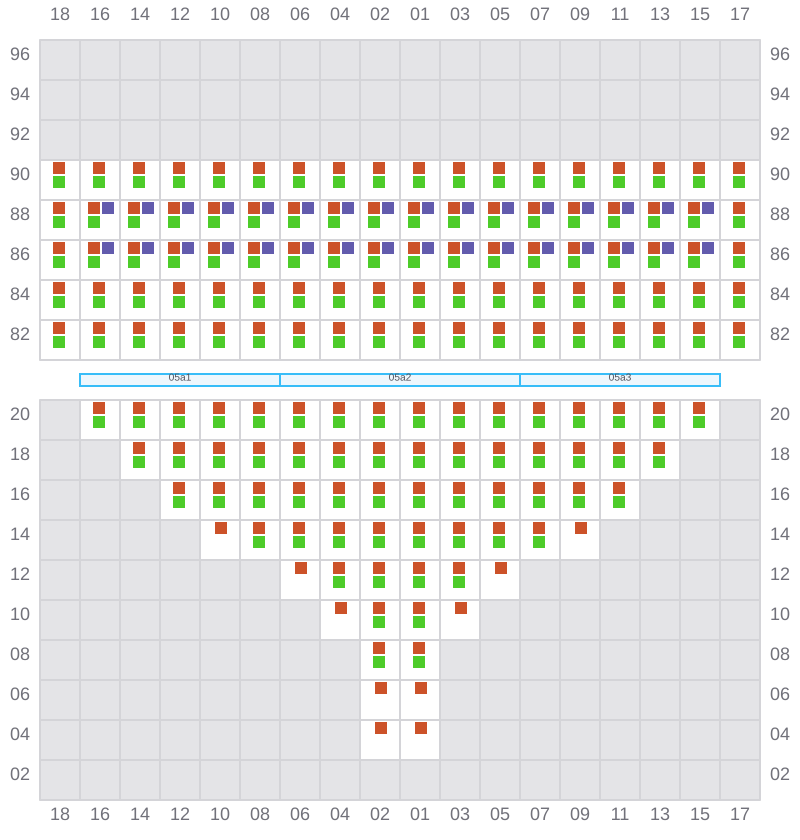

007 (006)
- ←
- ✓

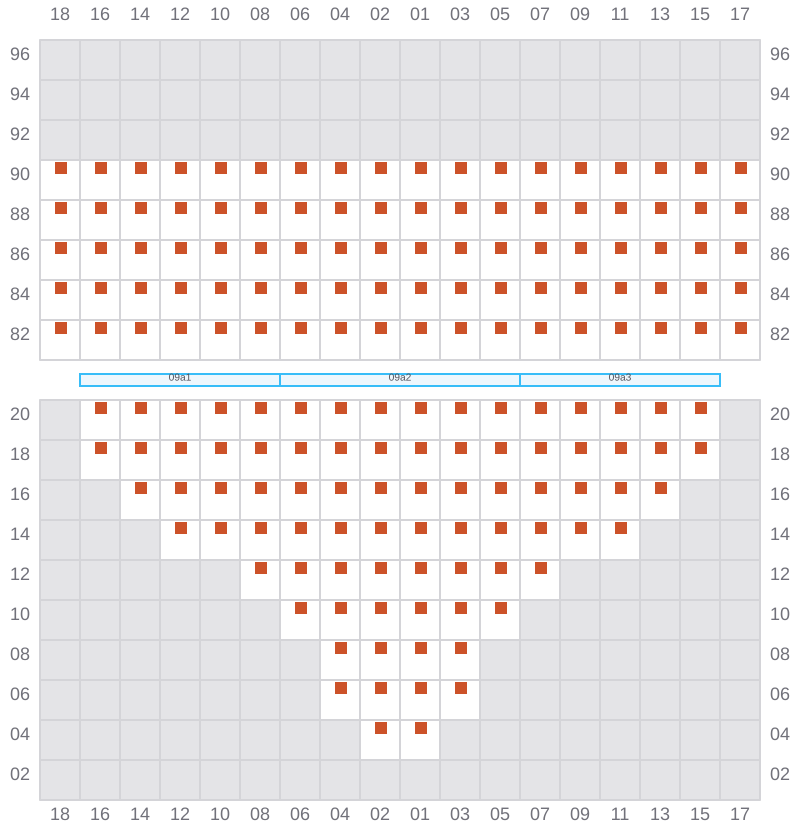

009
- →
- ✓

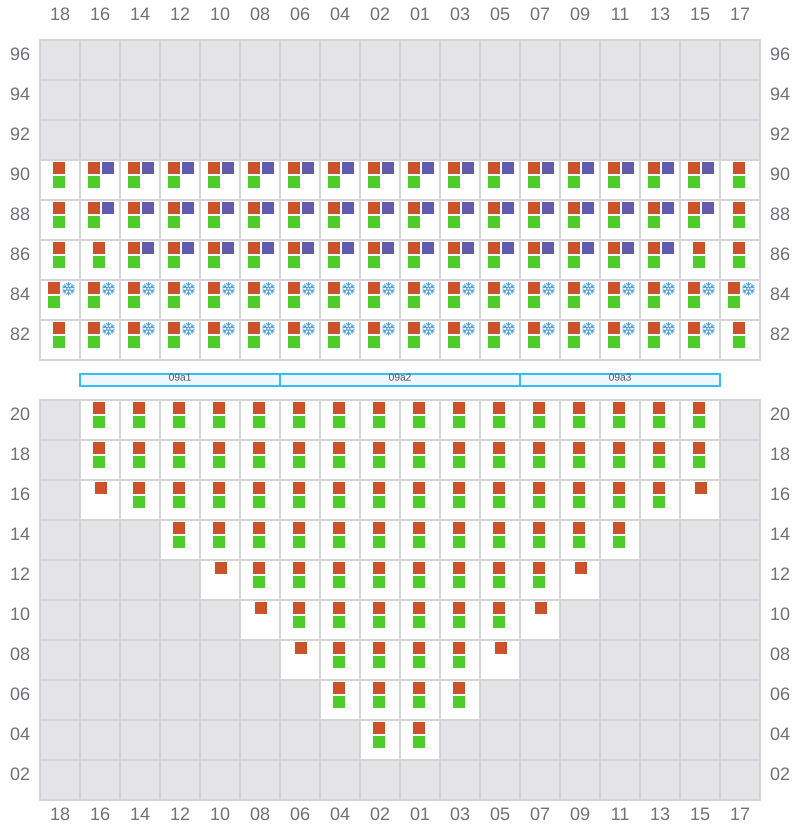

011 (010)
- ←
- ✓

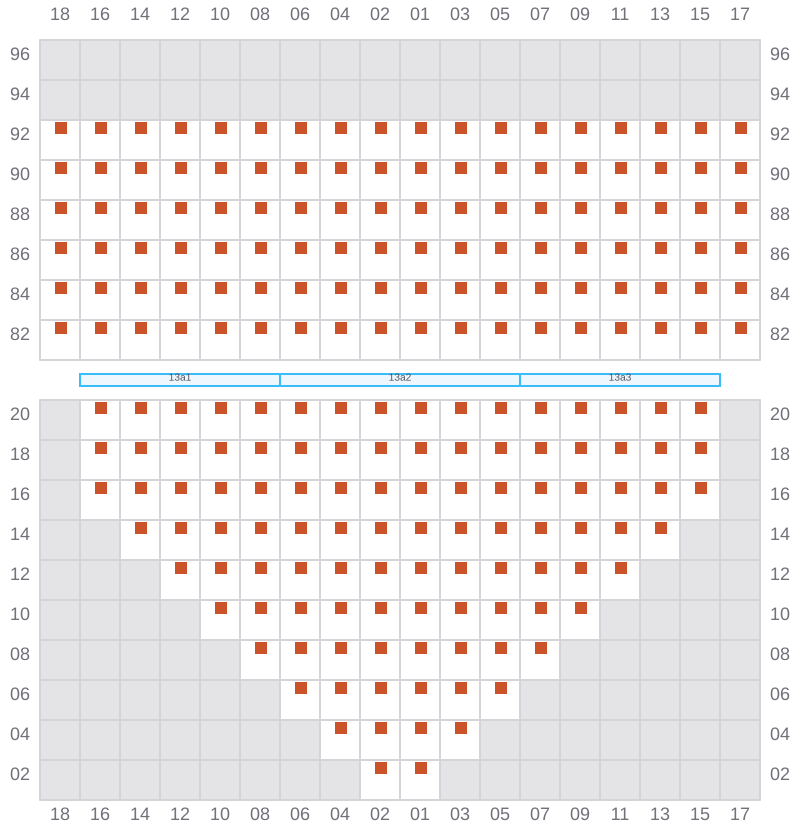

013
- →
- ✓

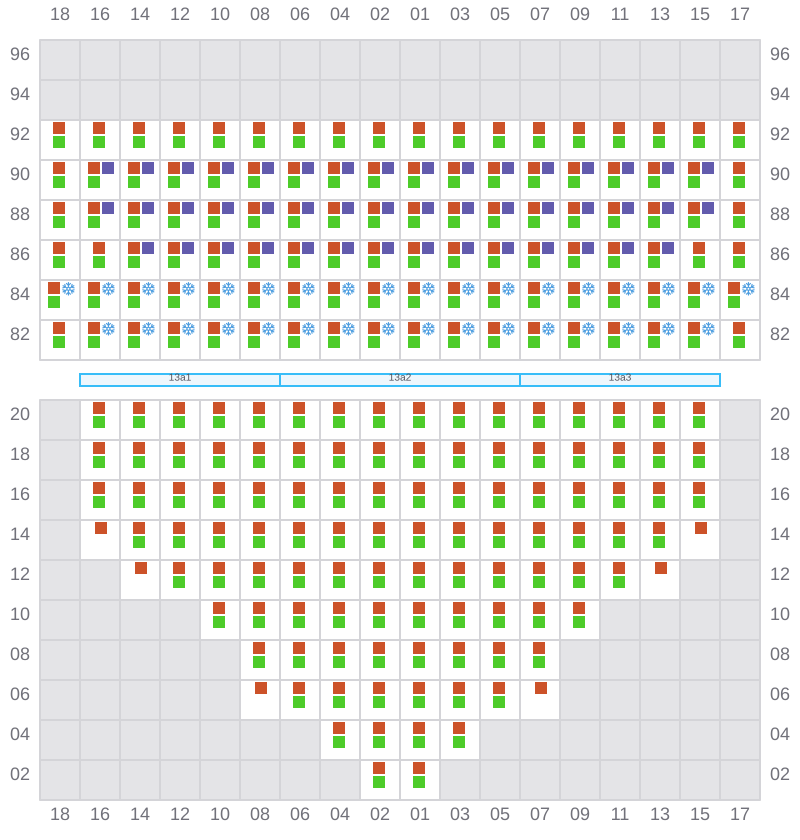

015 (014)
- ←
- ✓
017
- →
- ✓

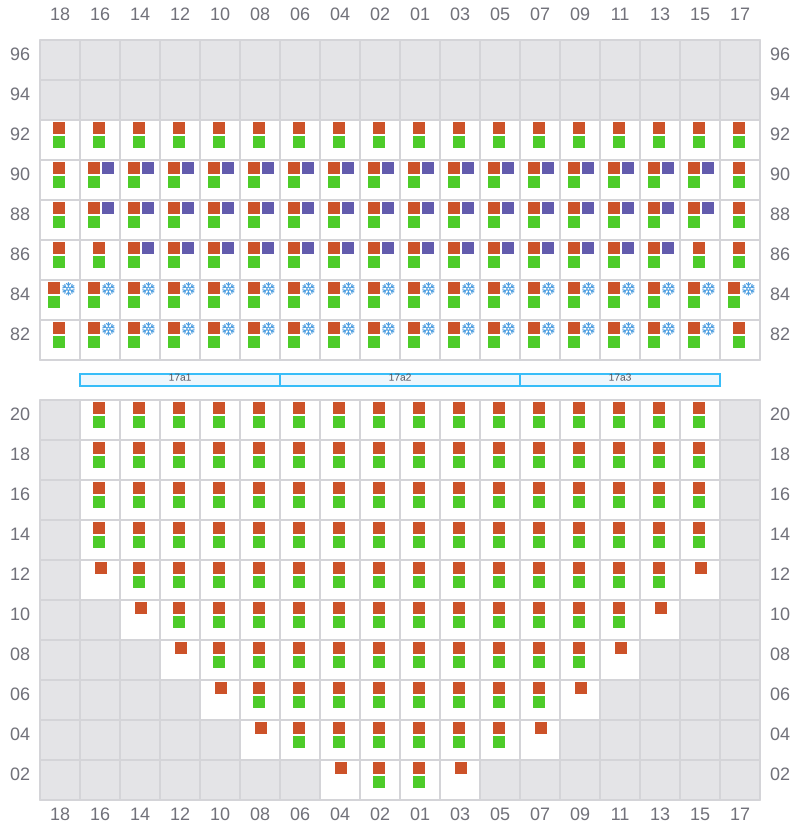

019 (018)
- ←
- ✓

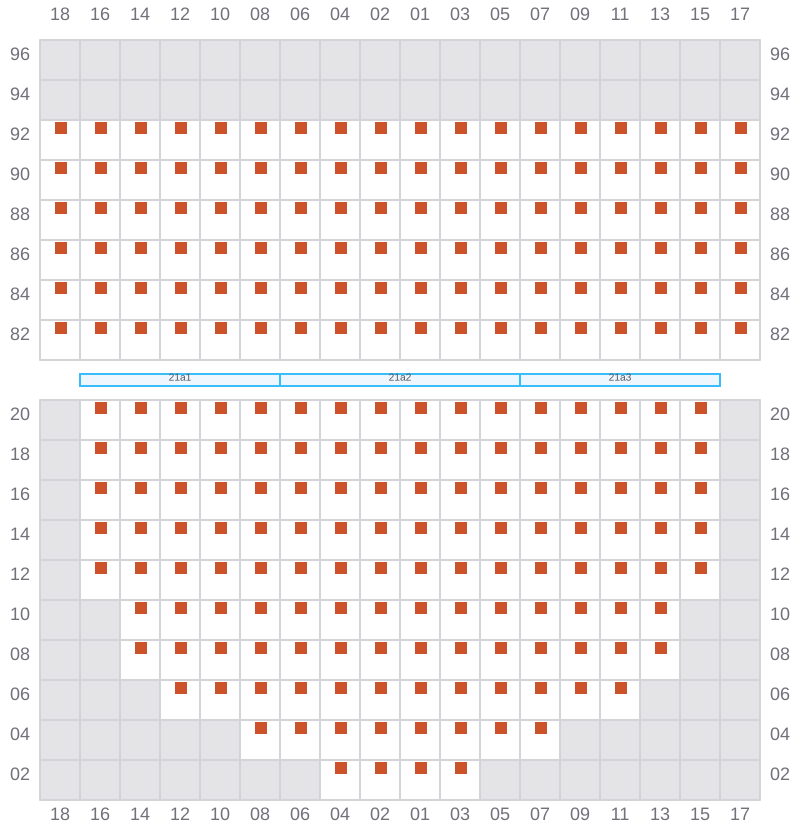

021
- →
- ✓

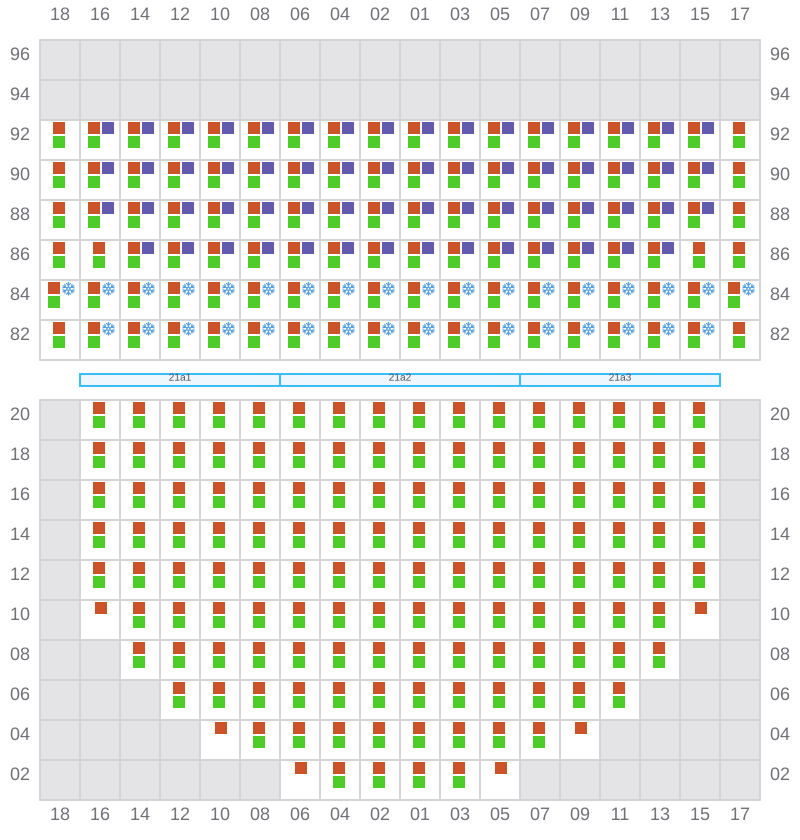

023 (022)
- ←
- ✓

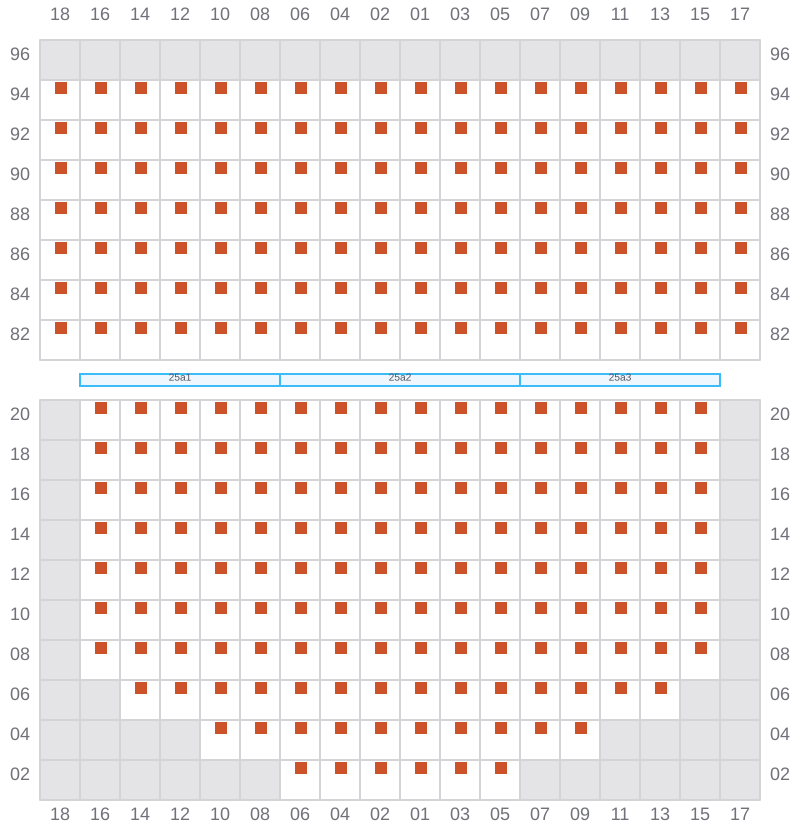

025
- →
- ✓

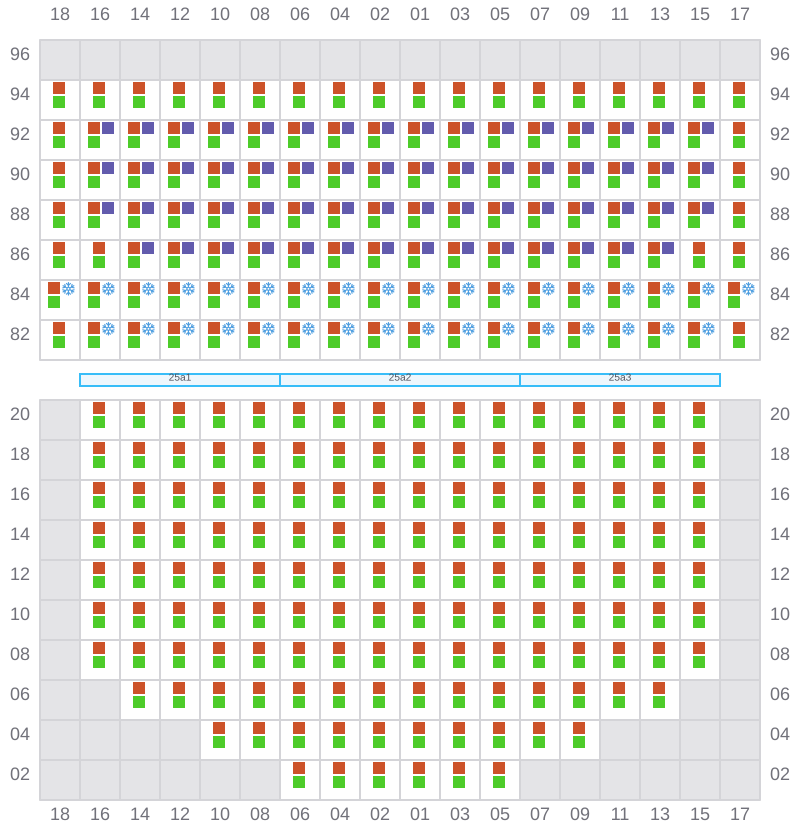

027 (026)
- ←
- ✓

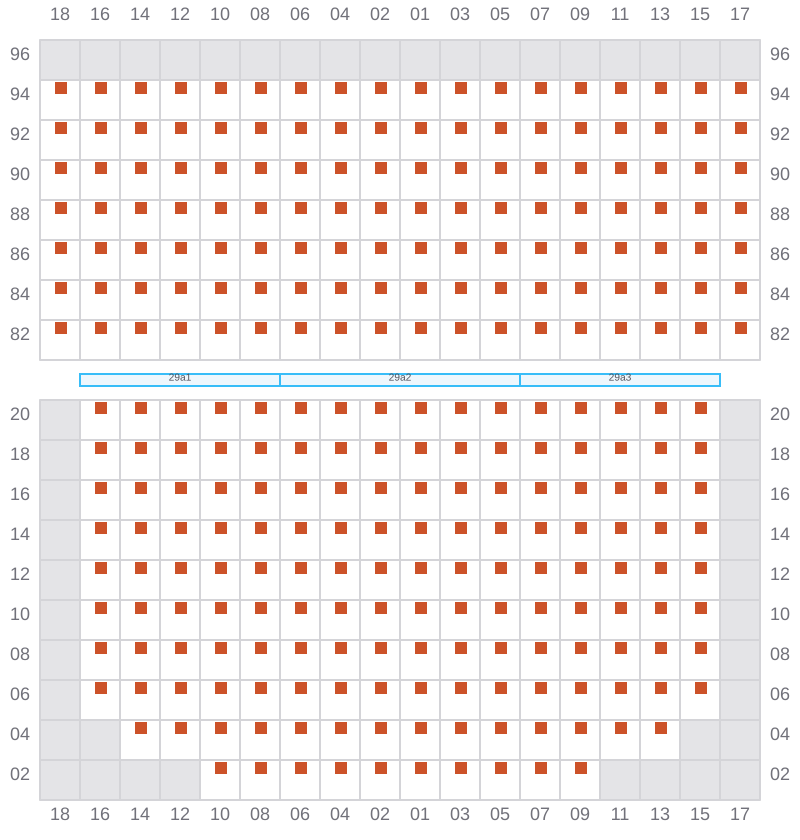

029
- →
- ✓

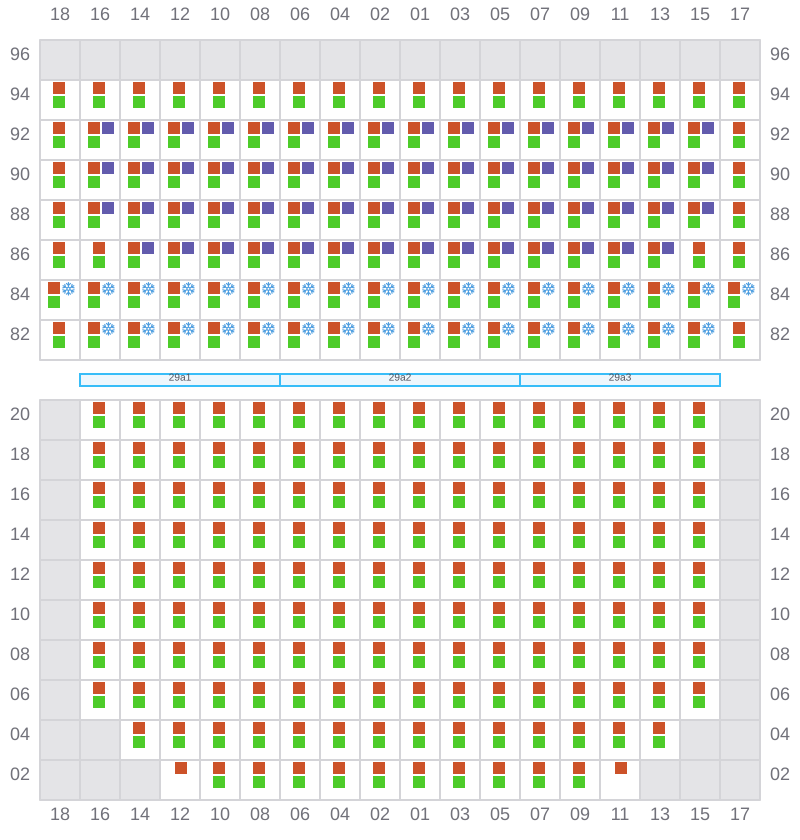

031 (030)
- ←
- ✓

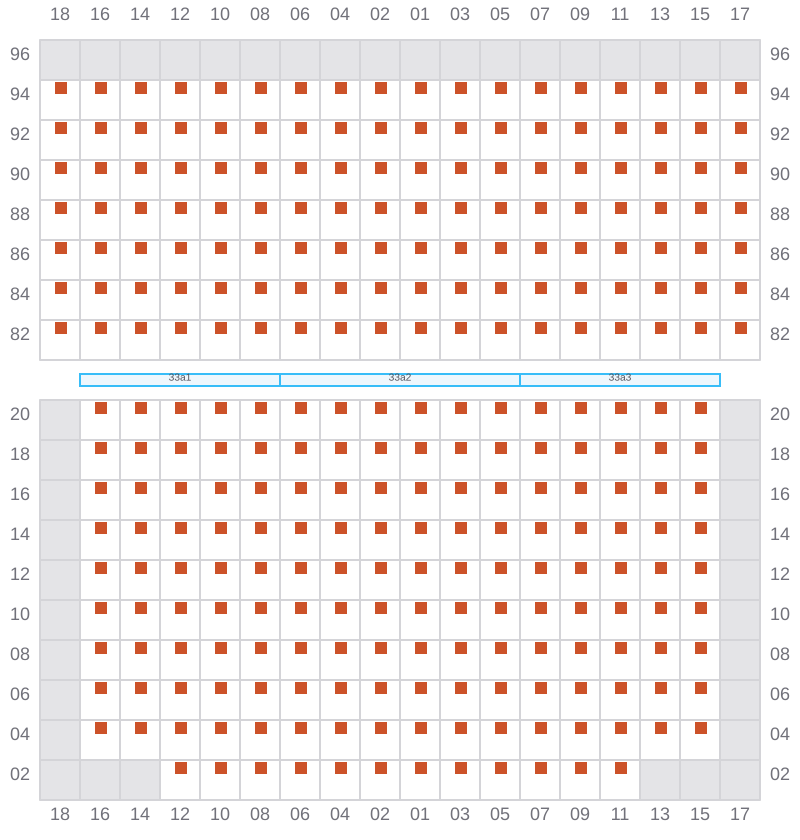

033
- →
- ✓

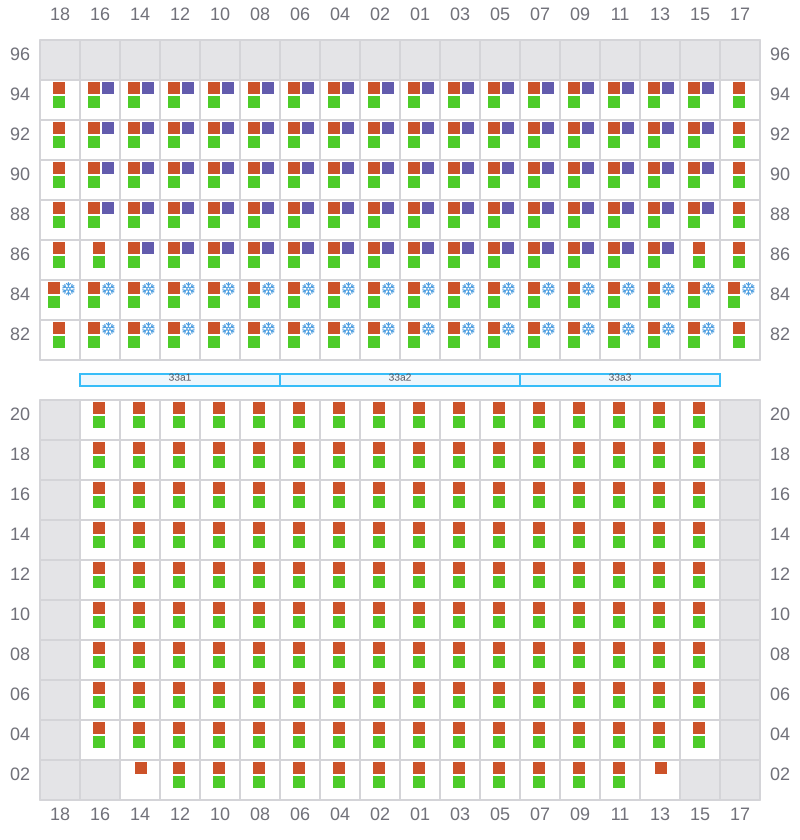

035 (034)
- ←
- ✓
037
- →
- ✓
039 (038)
- ←
- ✓
041
- →
- ✓

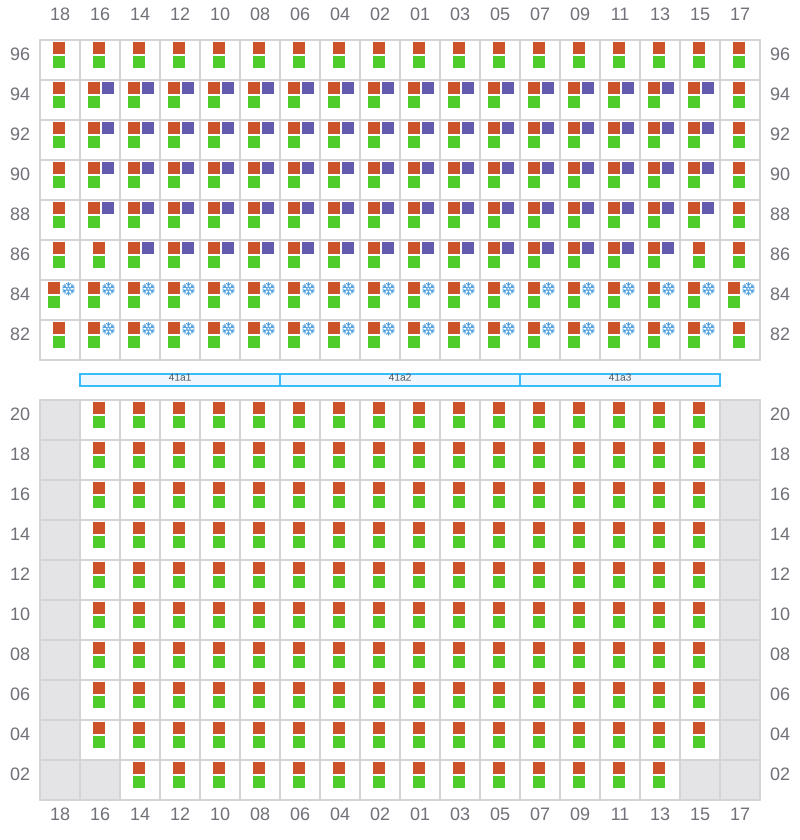

043 (042)
- ←
- ✓

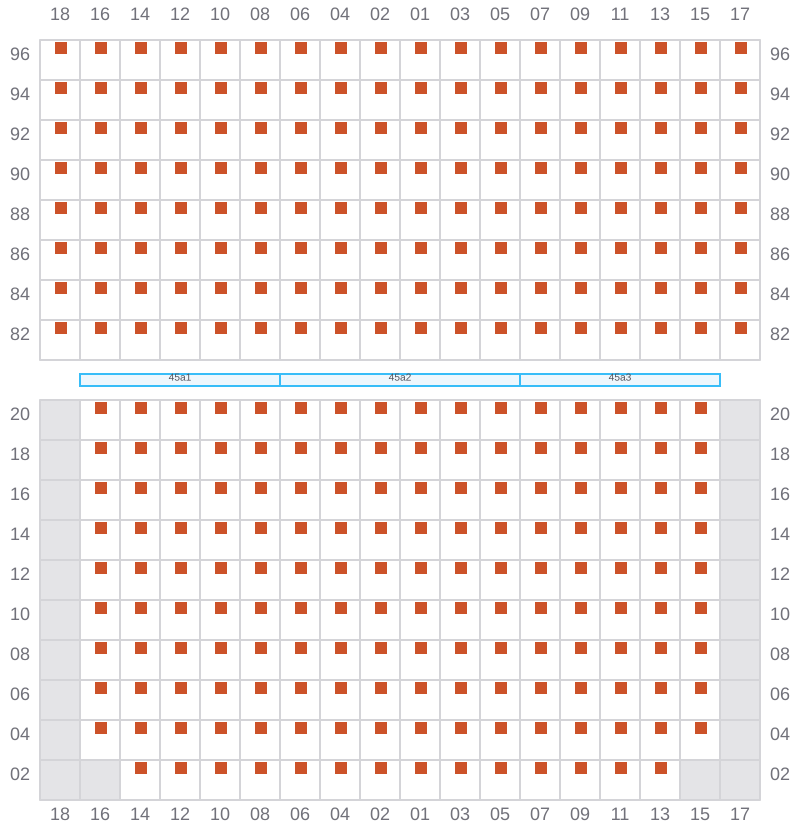

045
- →
- ✓

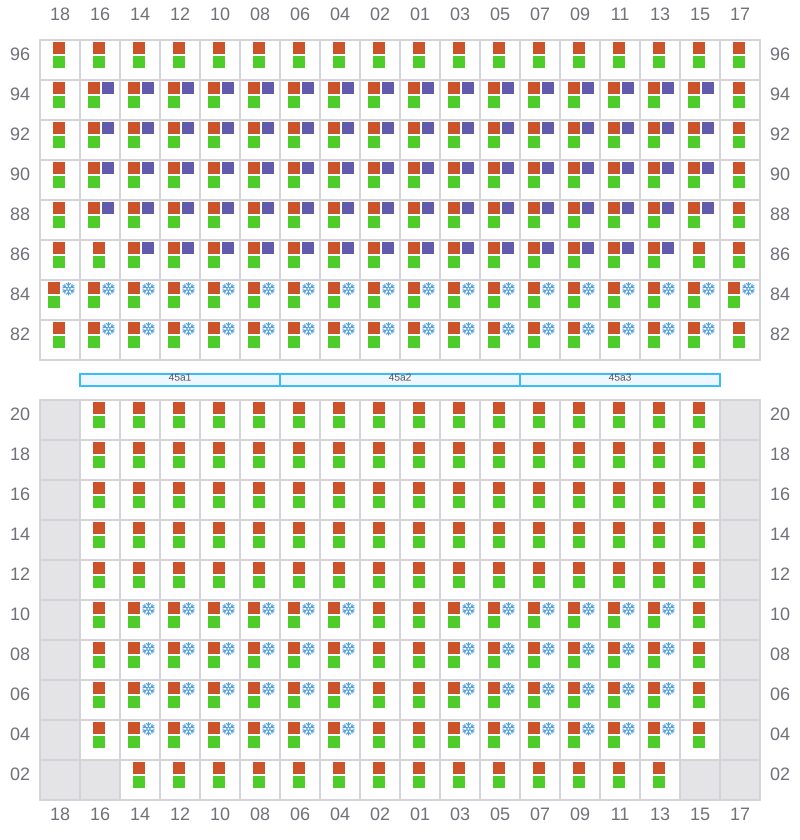

047 (046)
- ←
- ✓
049
- →
- ✓

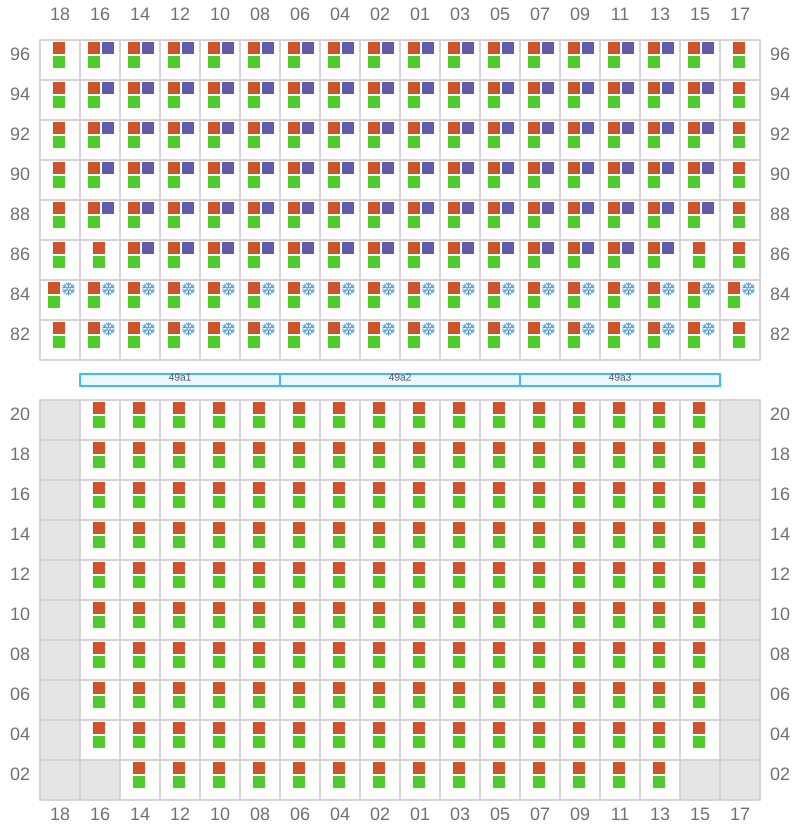

051 (050)
- ←
- ✓
053
- →
- ✓

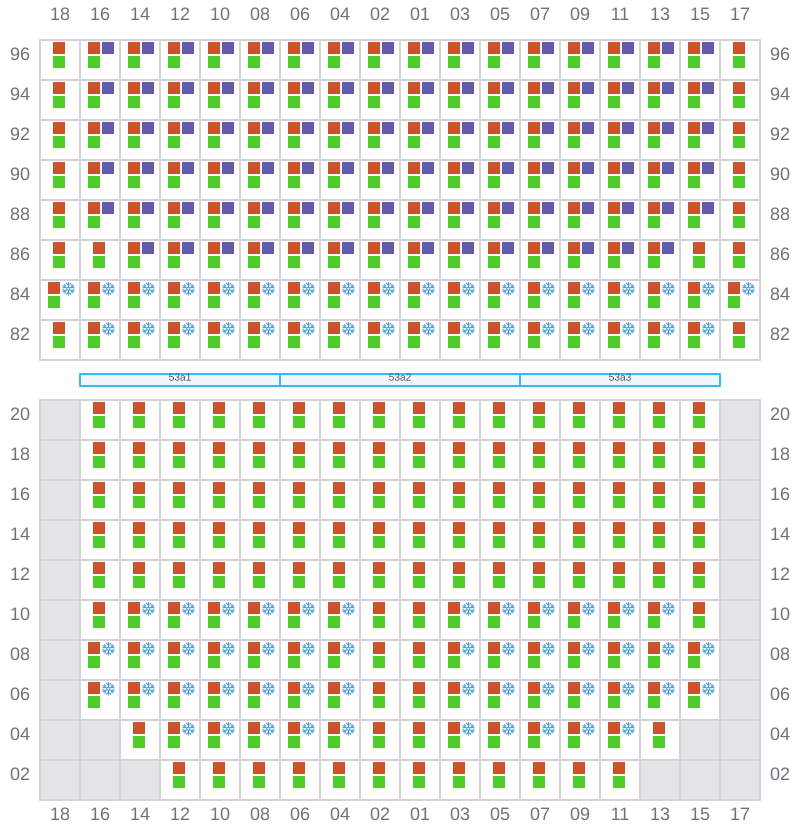

055 (054)
- ←
- ✓

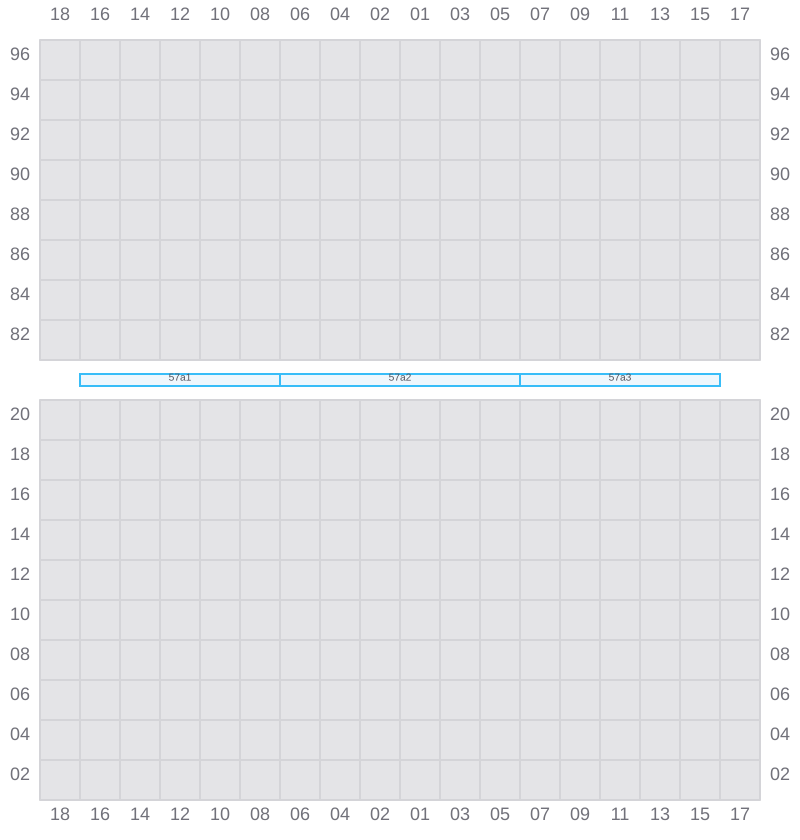

057
- →
- ✓

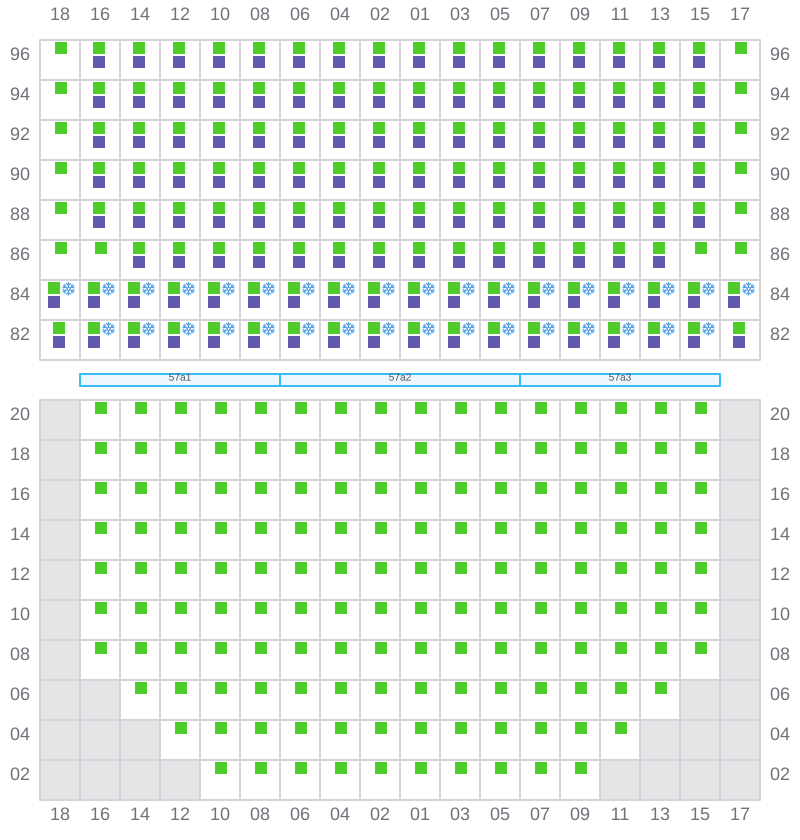

059 (058)
- ←
- ✓

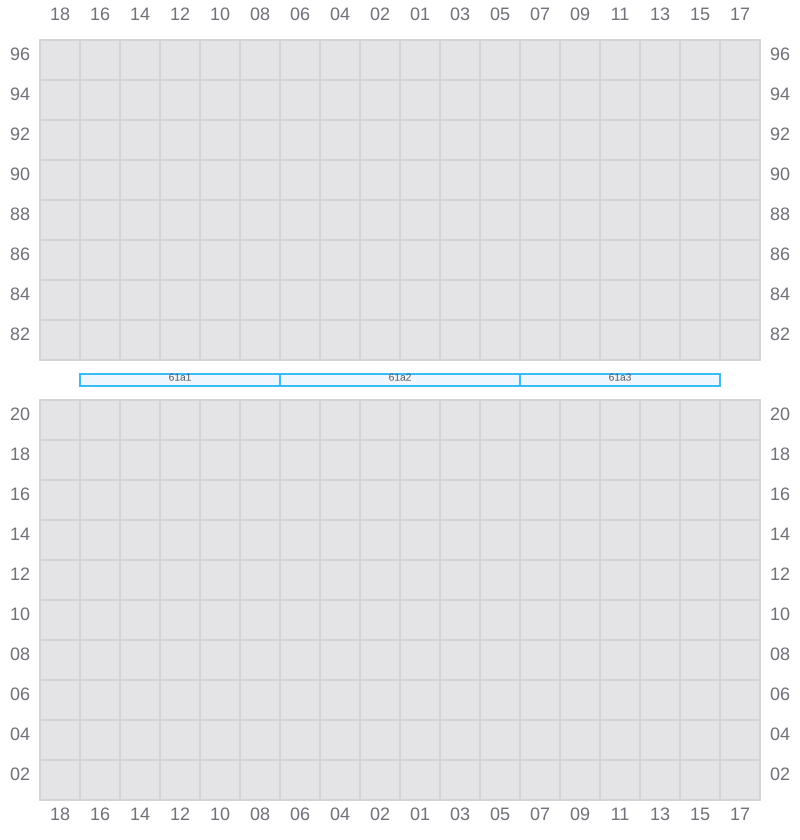

061
- →
- ✓

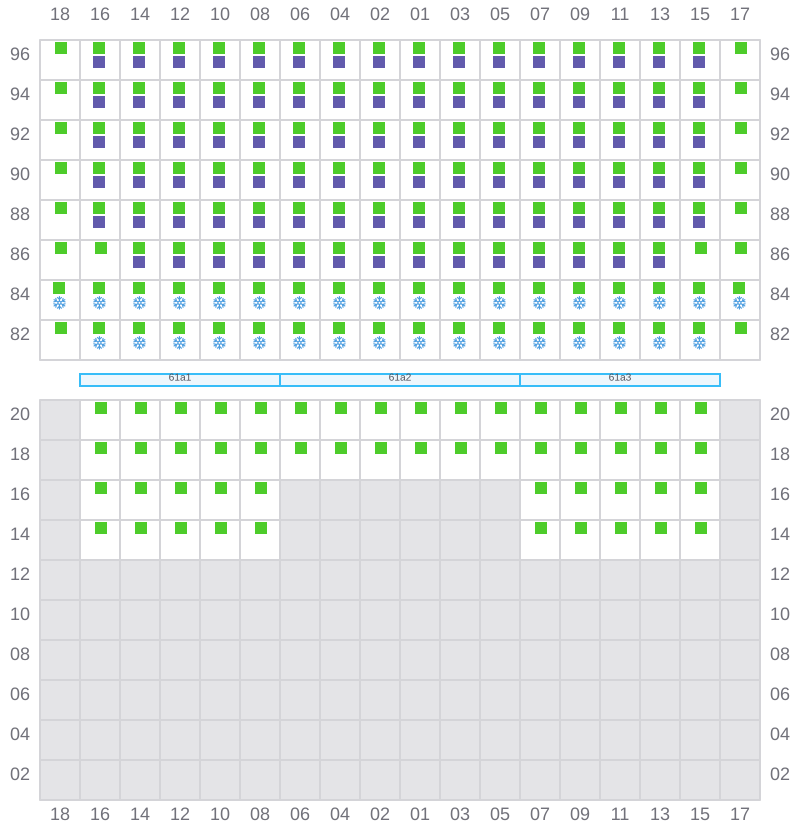

063 (062)
- ←
- ✓

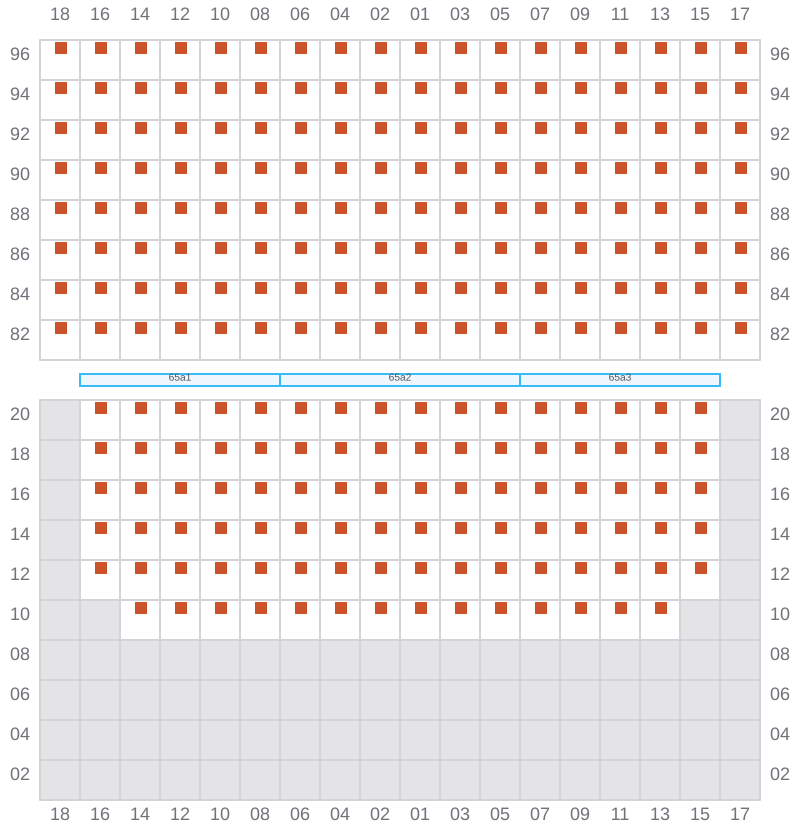

065
- →
- ✓

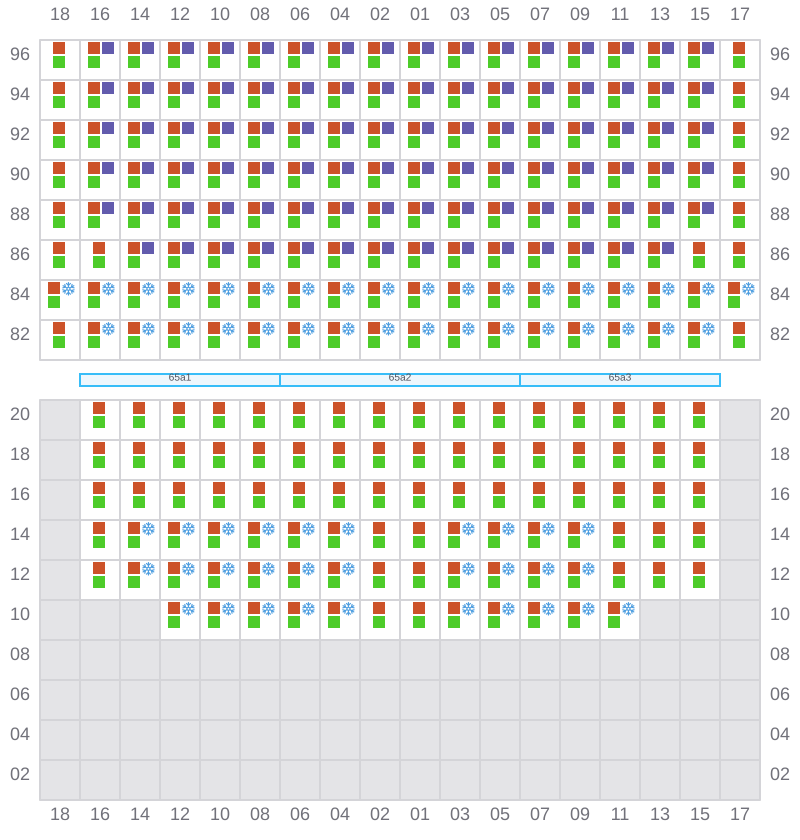

067 (066)
- ←
- ✓

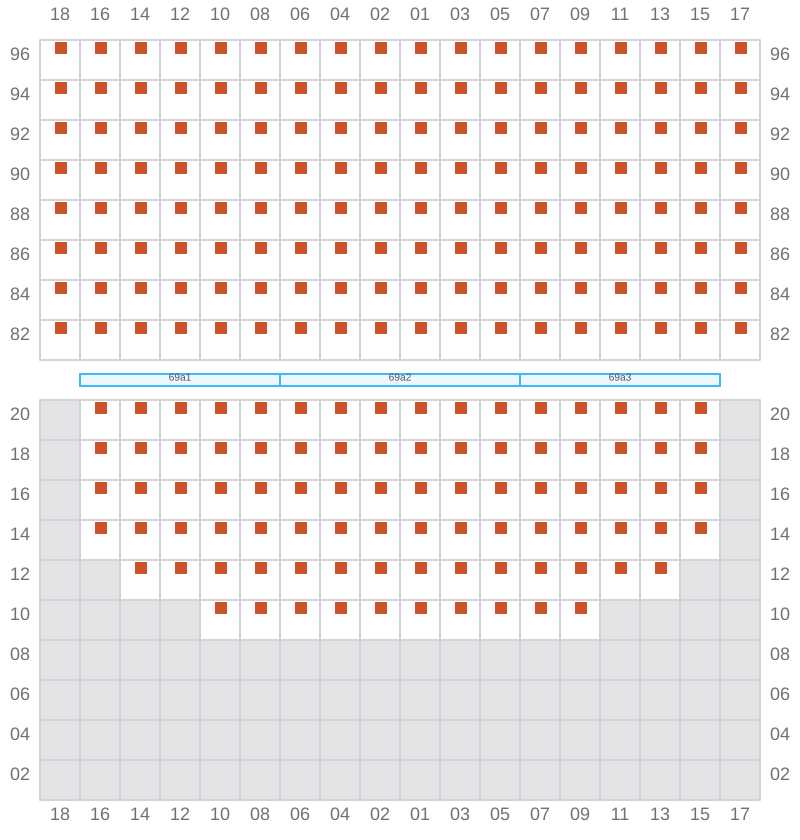

069
- →
- ✓

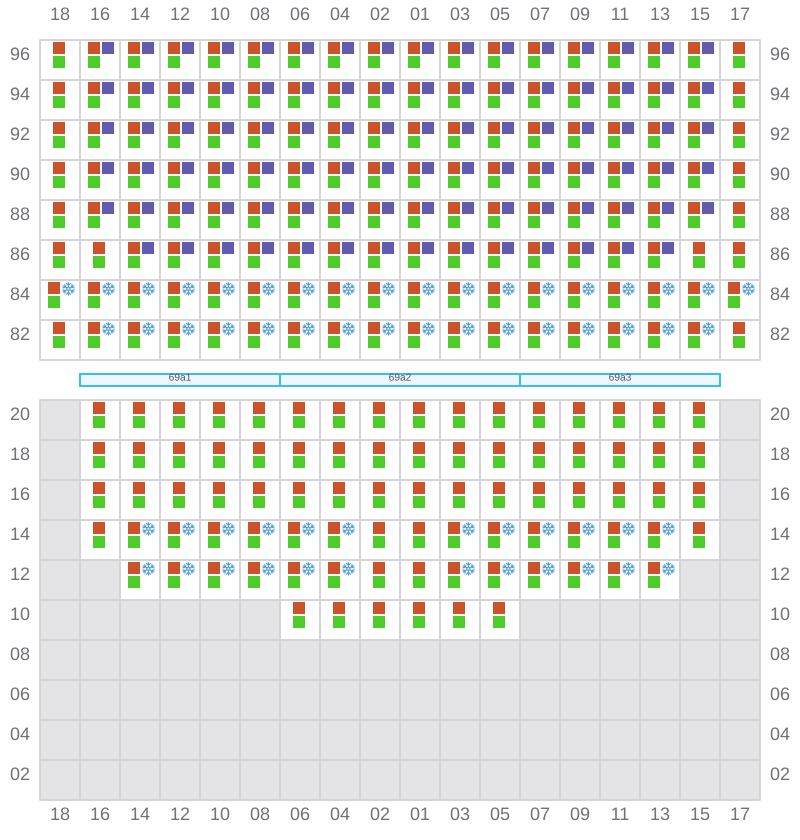

071 (070)
- ←
- ✓
073
- →
- ✓

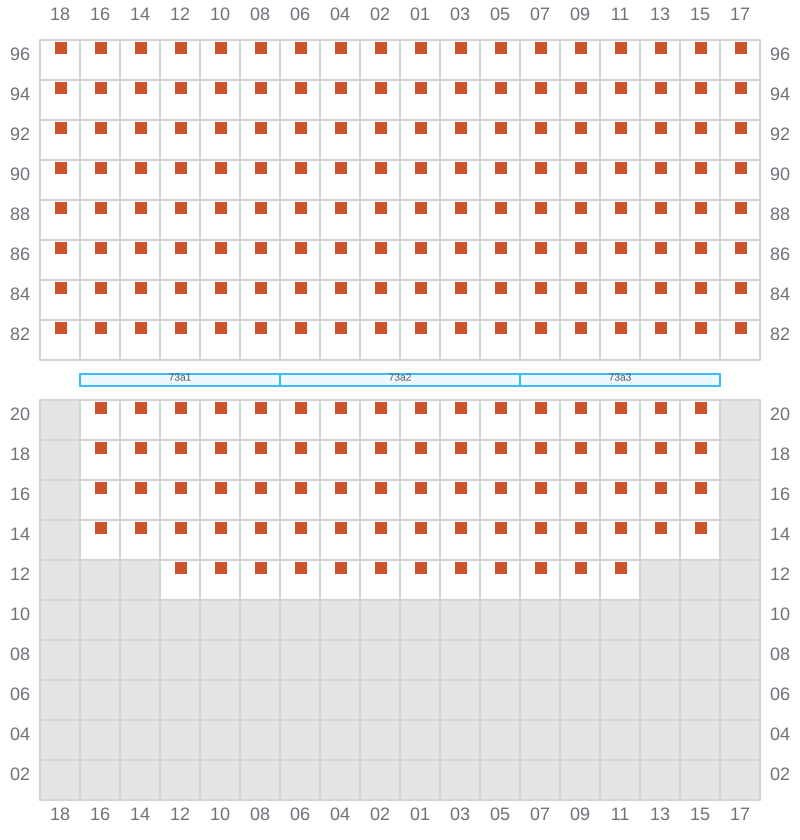

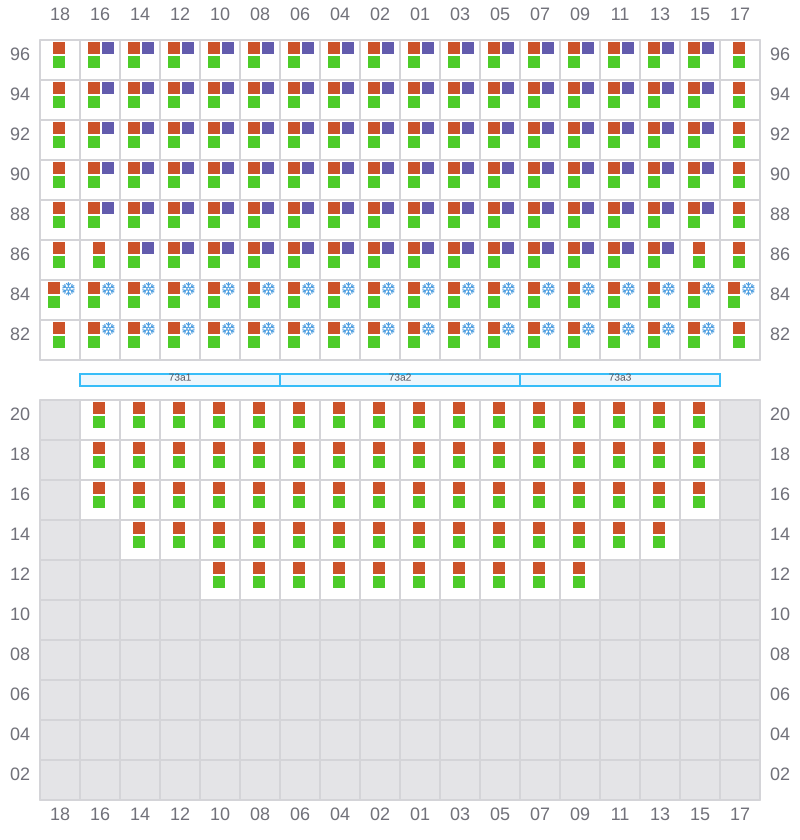

075 (074)
- ←
- ✓
077
- →
- ✓
079 (078)
- ←
- ? / ?
- ? / ?
- ✓
