ONE ARCADIA
9468310 | ZGOK7 by ********** Last update: Mon Aug 25 2025
General Info
Ship Name:ONE ARCADIA
IMO Code:9468310
Call Sign:ZGOK7
Line Operator:
Class Name for Sister Ships:NAC
Year Built:-
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):-
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,120
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

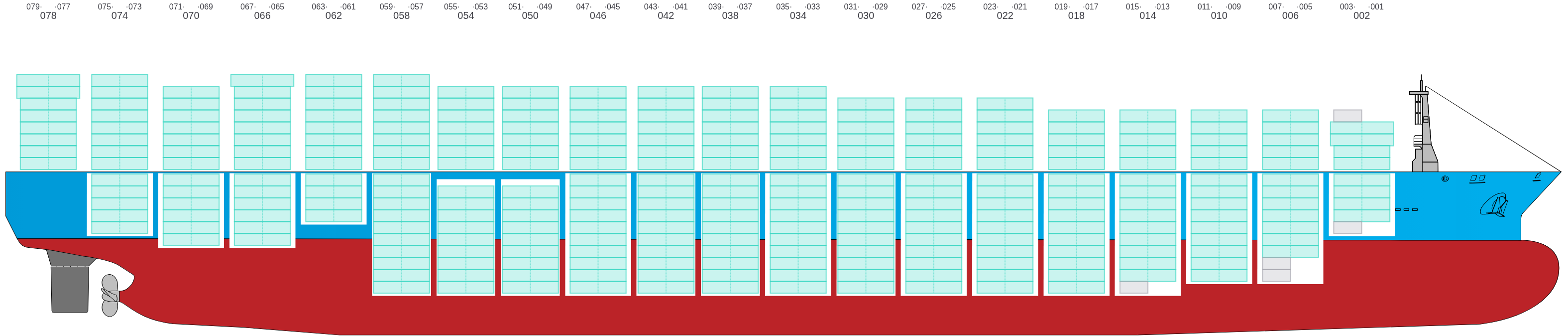

Side View
Hatch-Covers View

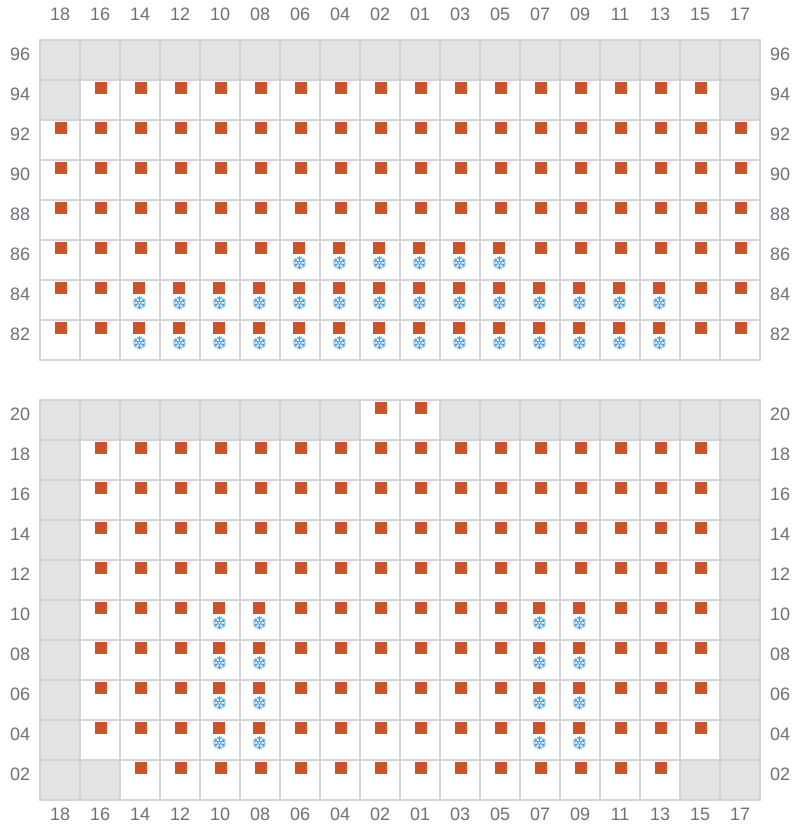

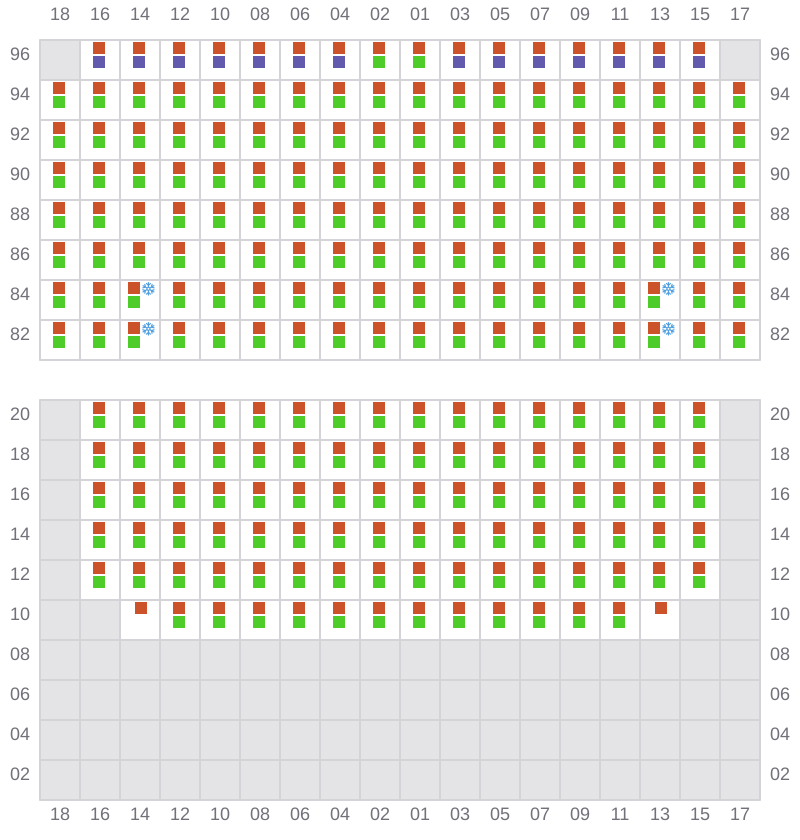

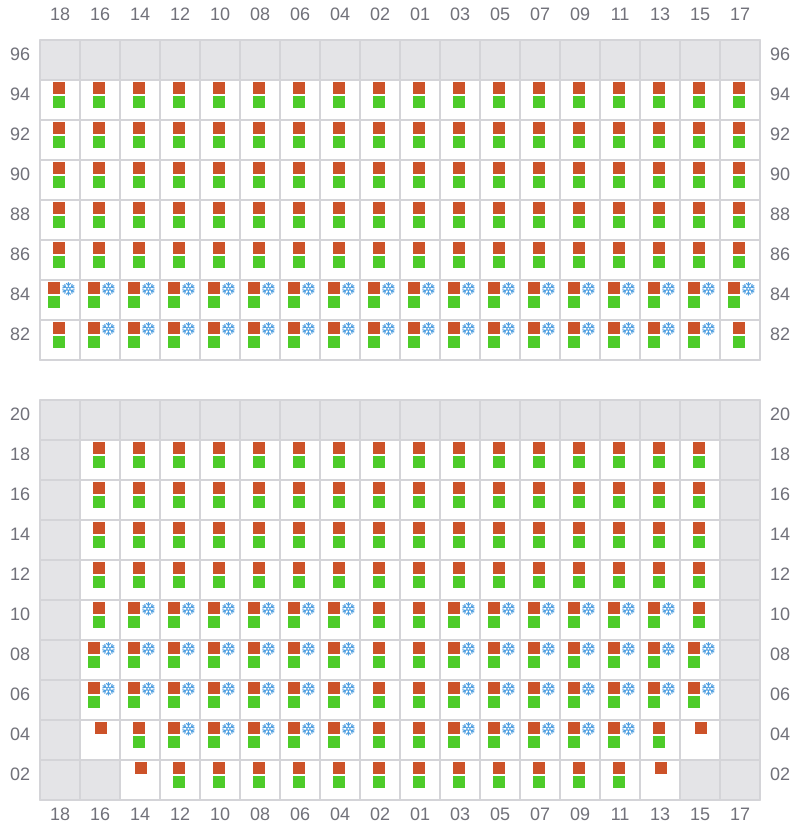

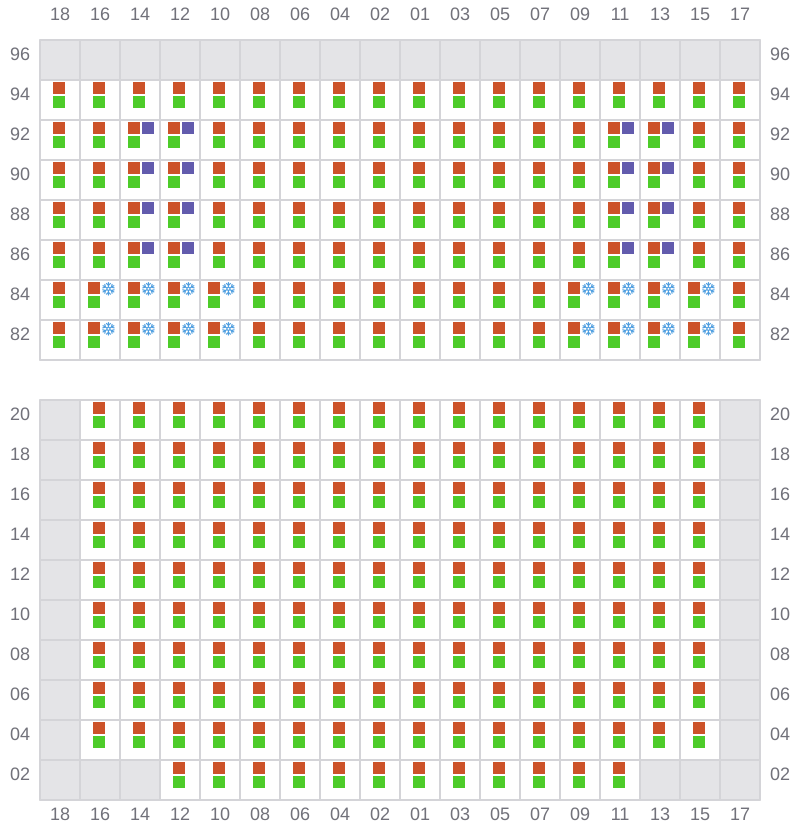

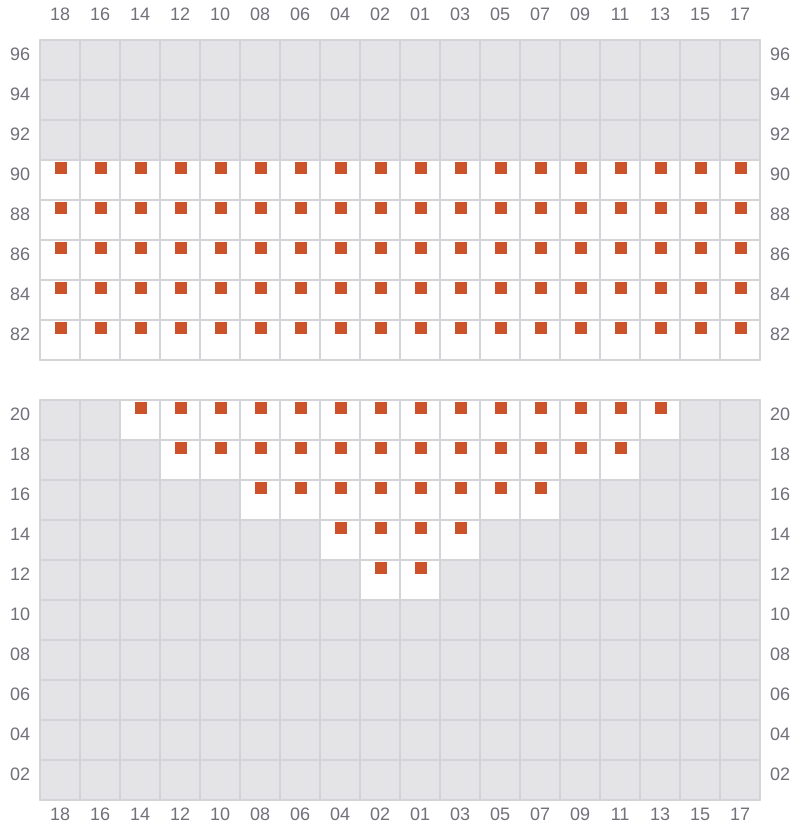

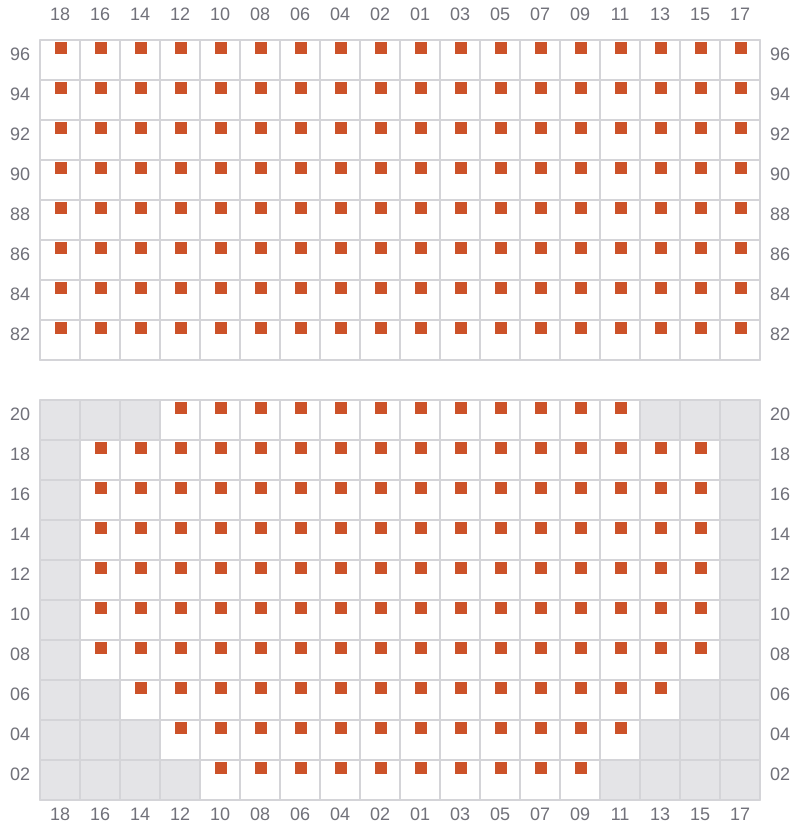

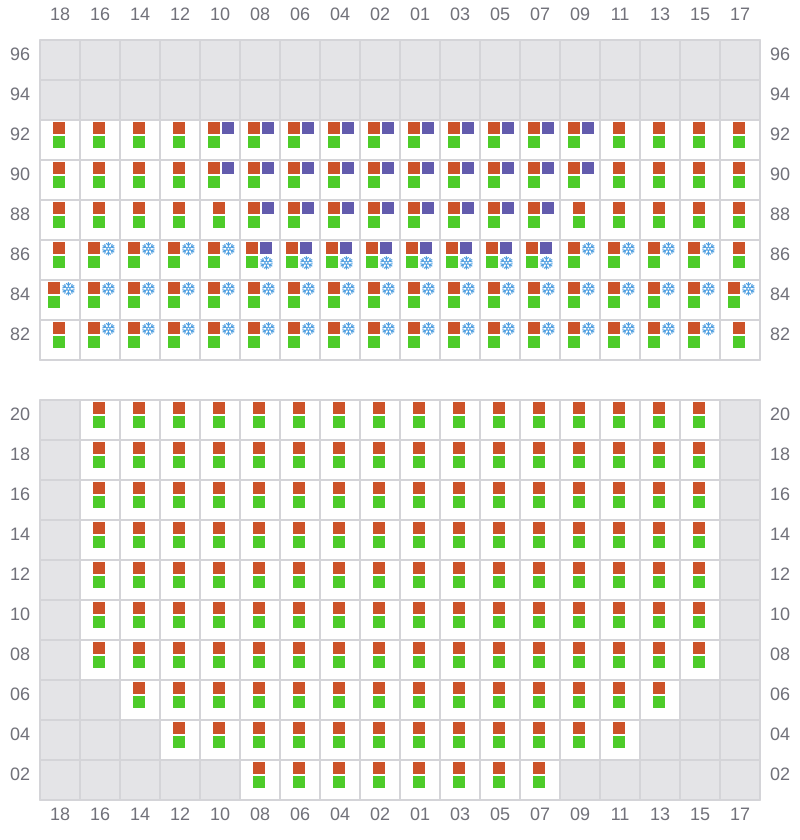

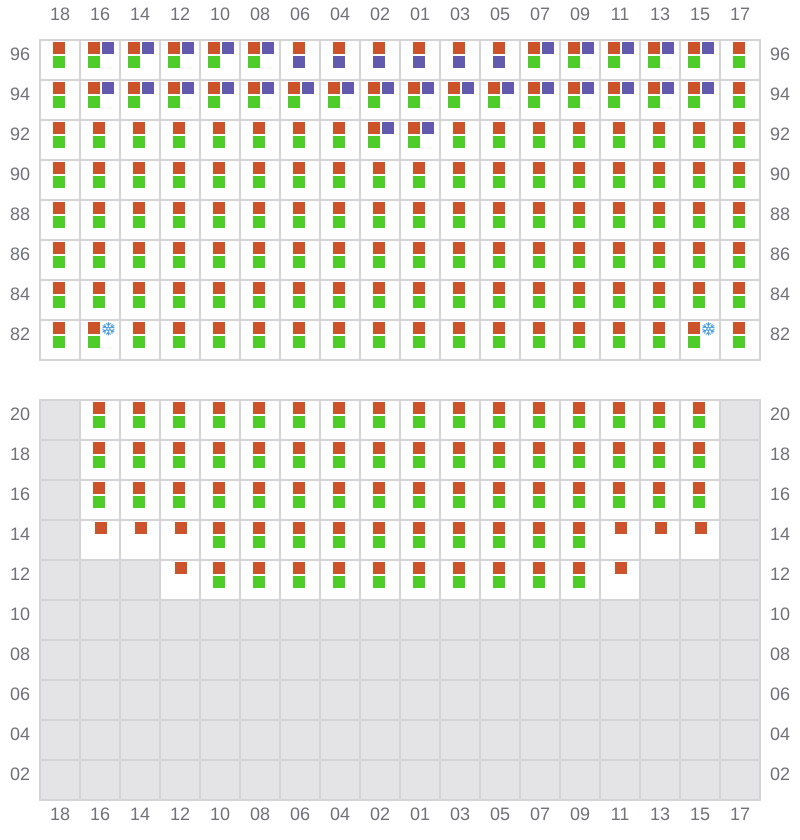

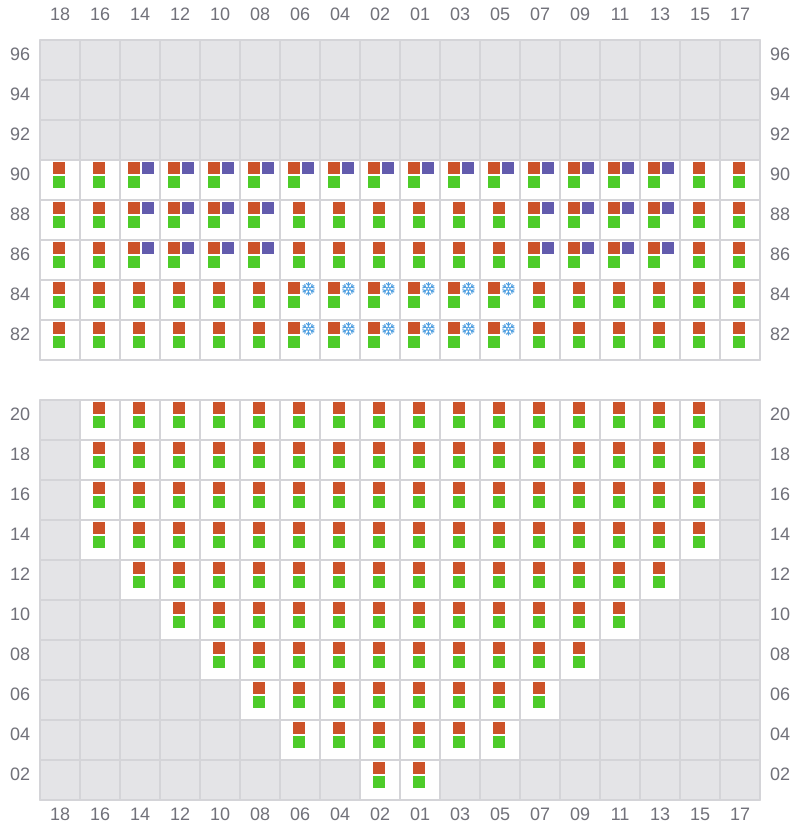

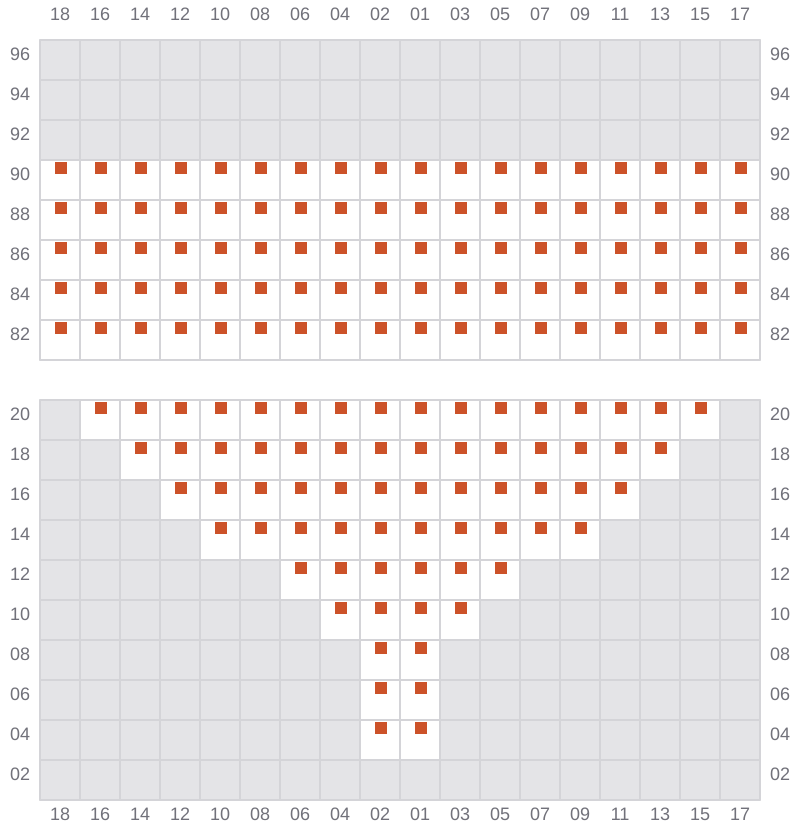

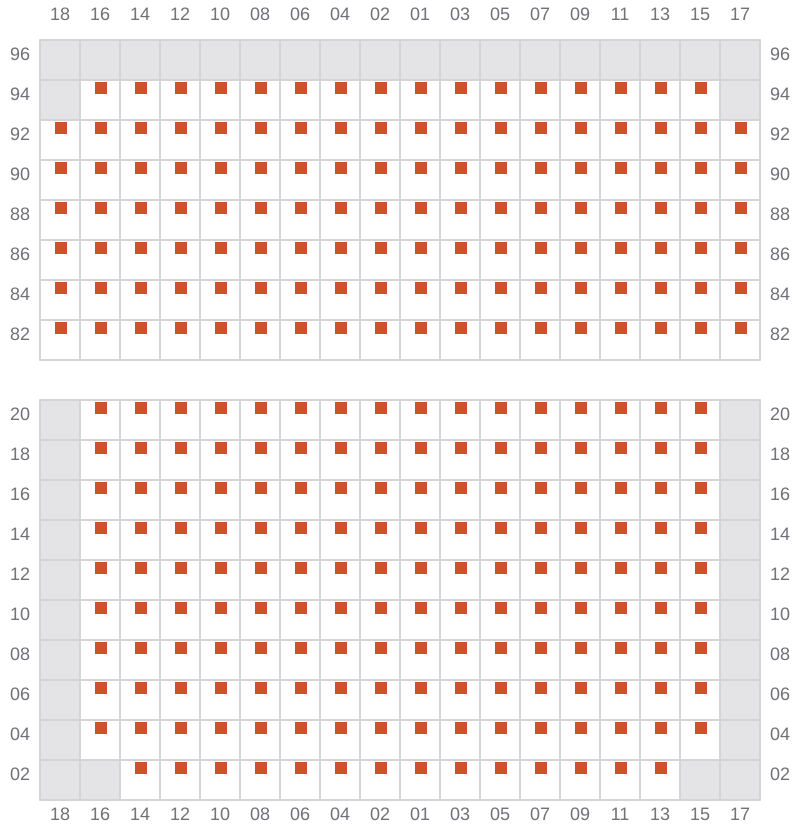

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

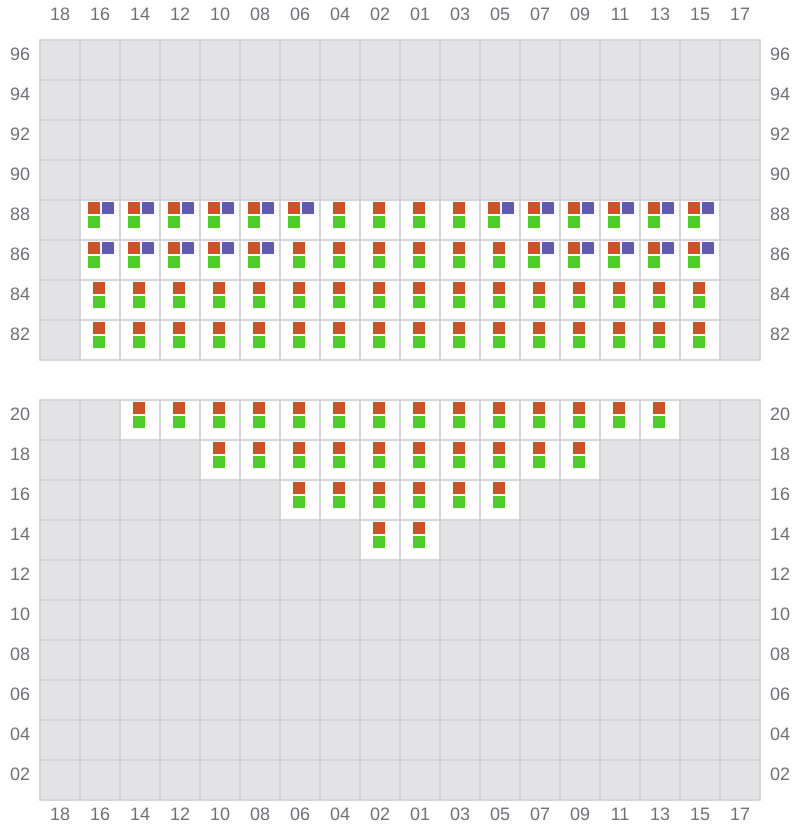

001 (002)
- →
003
- ←
005 (006)
- →
007
- ←

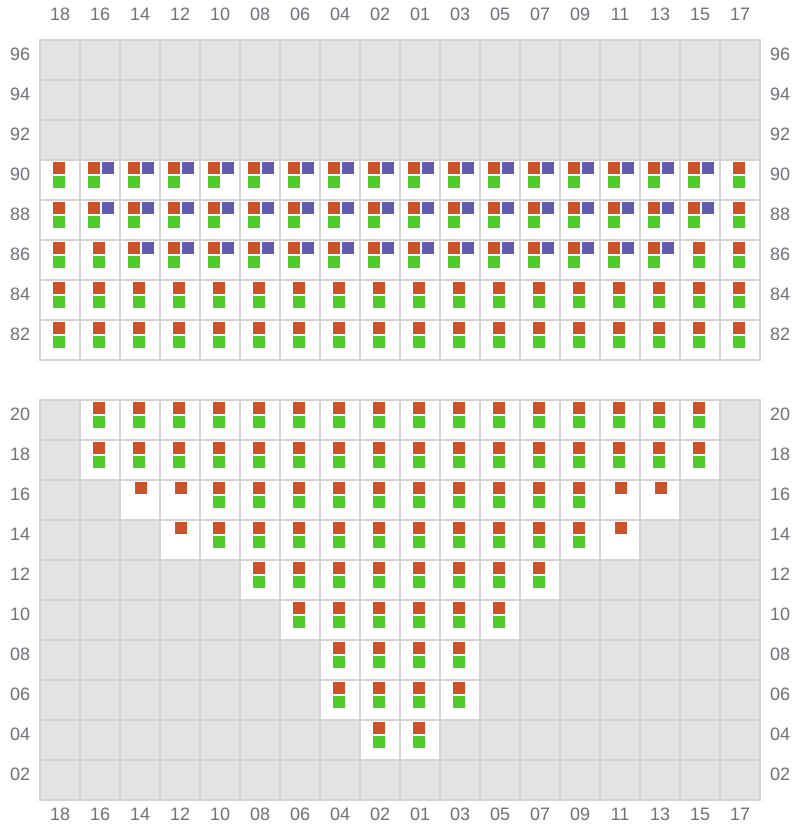

009 (010)
- →

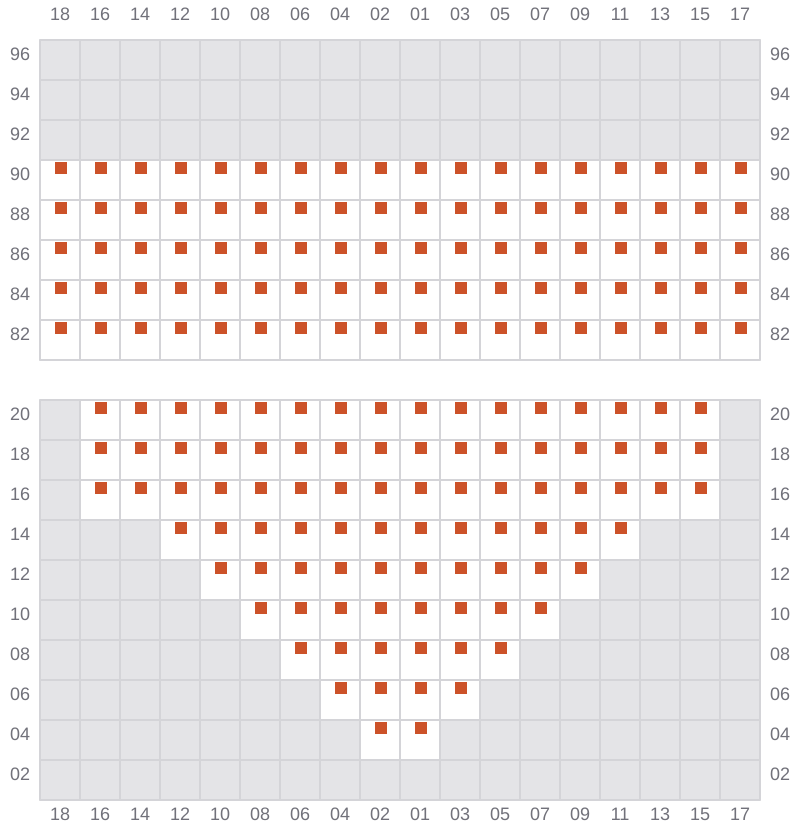

011
- ←

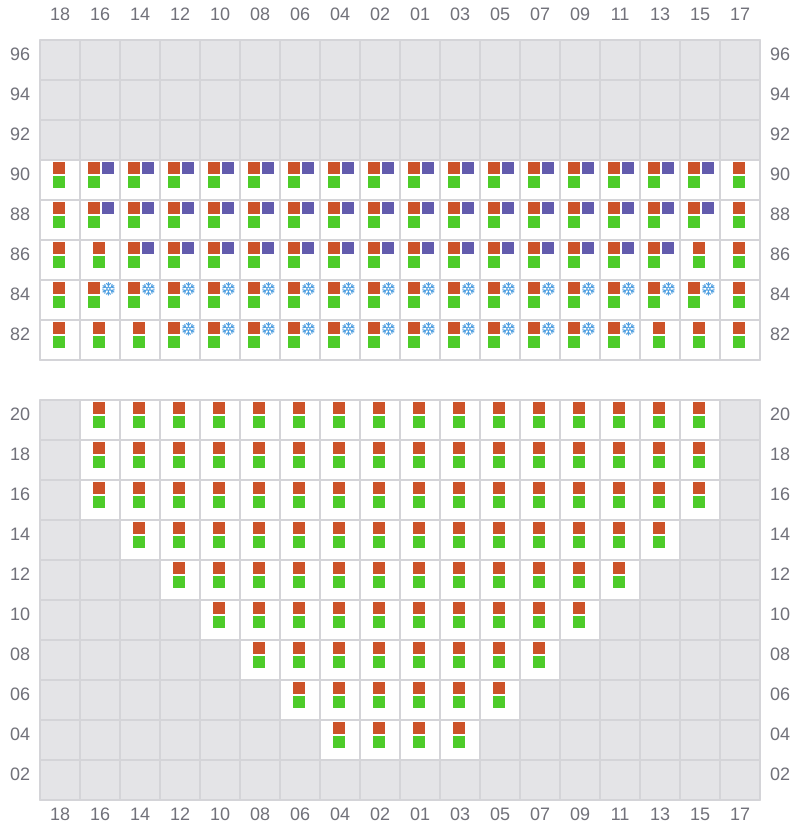

013 (014)
- →
015
- ←

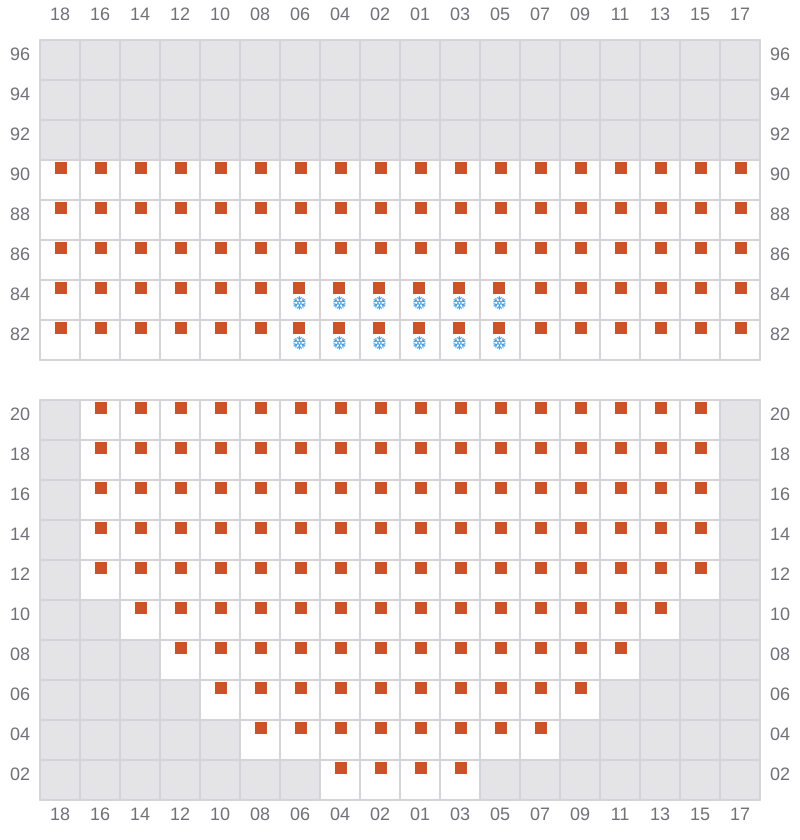

017 (018)
- →
019
- ←
021 (022)
- →

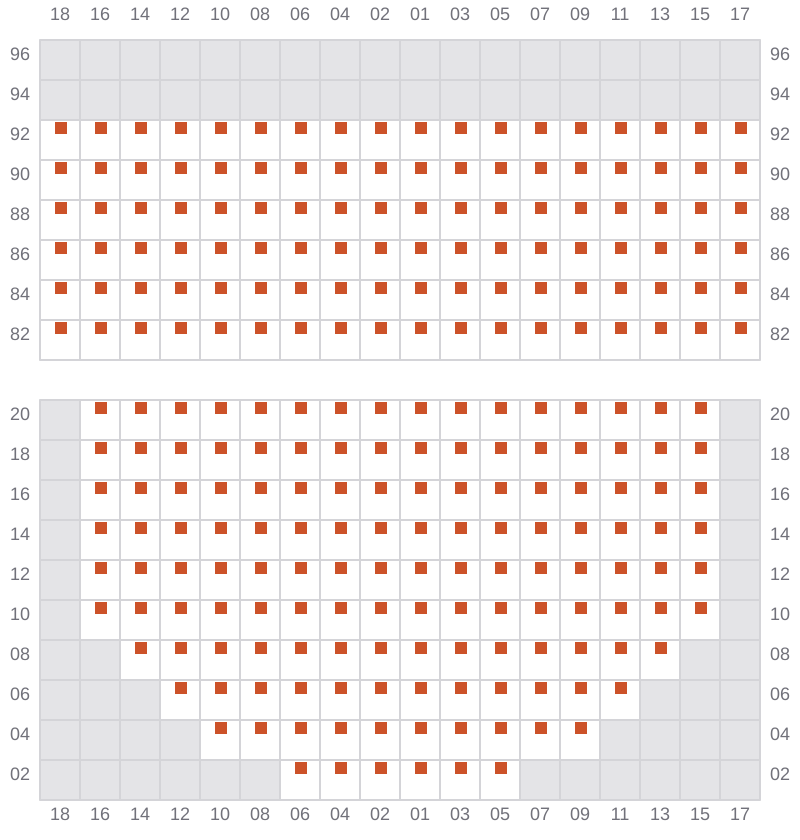

023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←

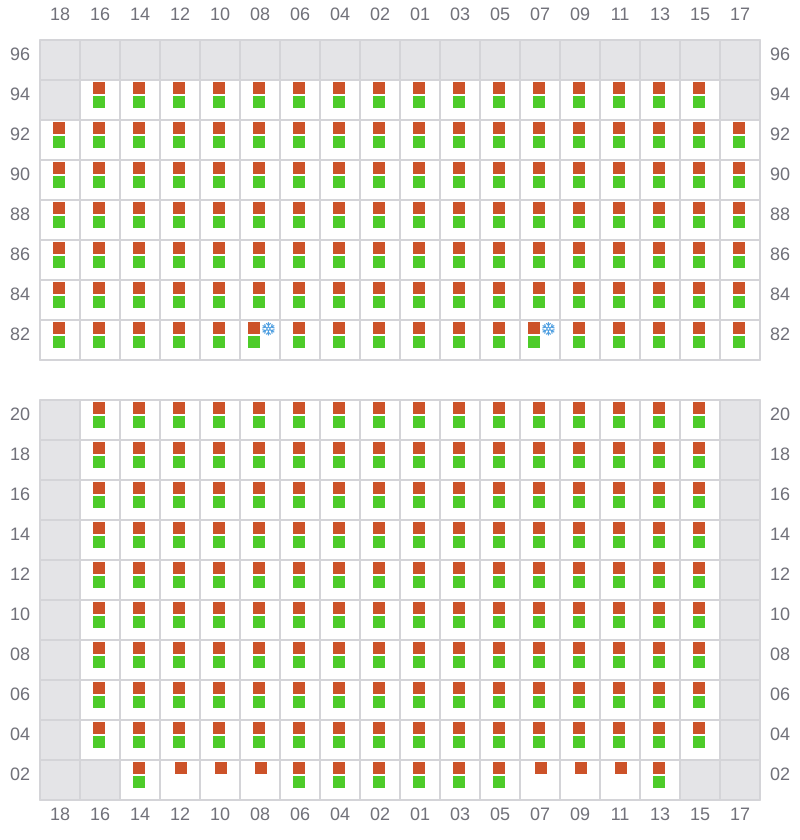

037 (038)
- →
039
- ←
041 (042)
- →
043
- ←
045 (046)
- →
047
- ←

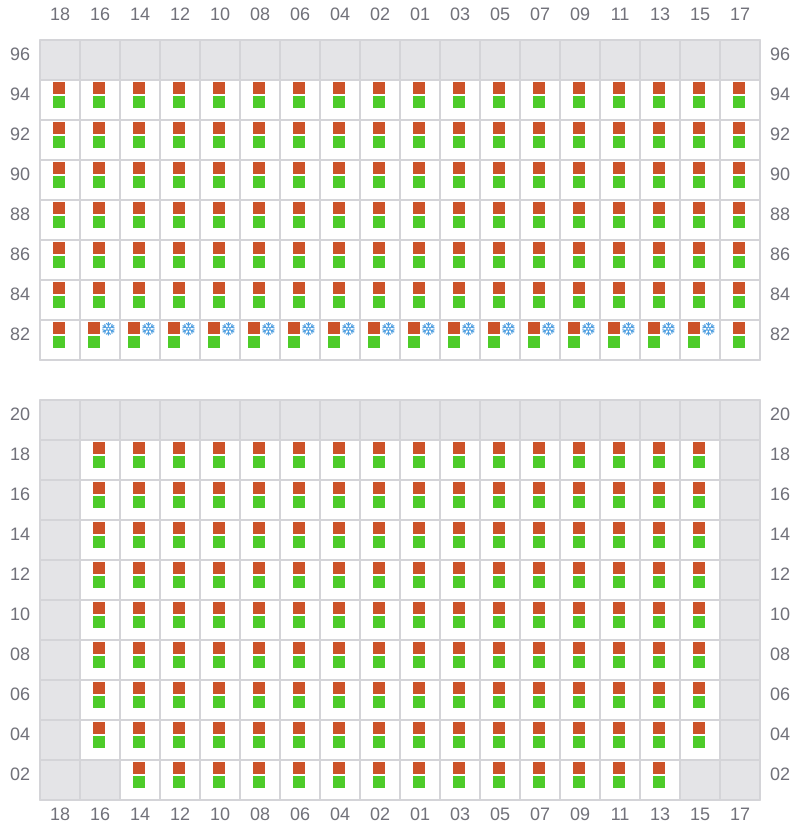

049 (050)
- →

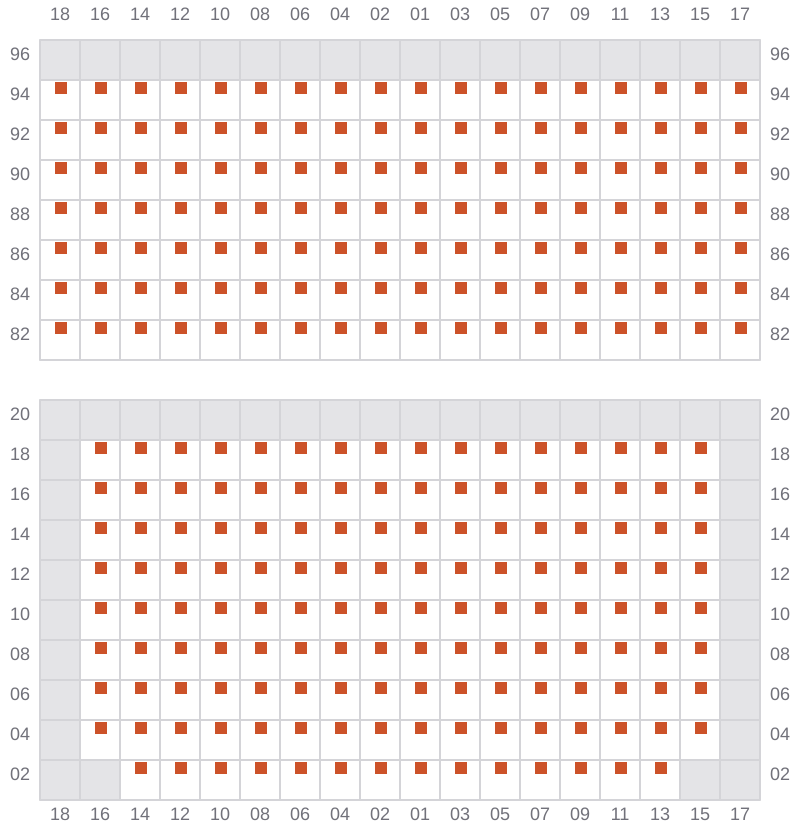

051
- ←
053 (054)
- →
055
- ←
057 (058)
- →
059
- ←

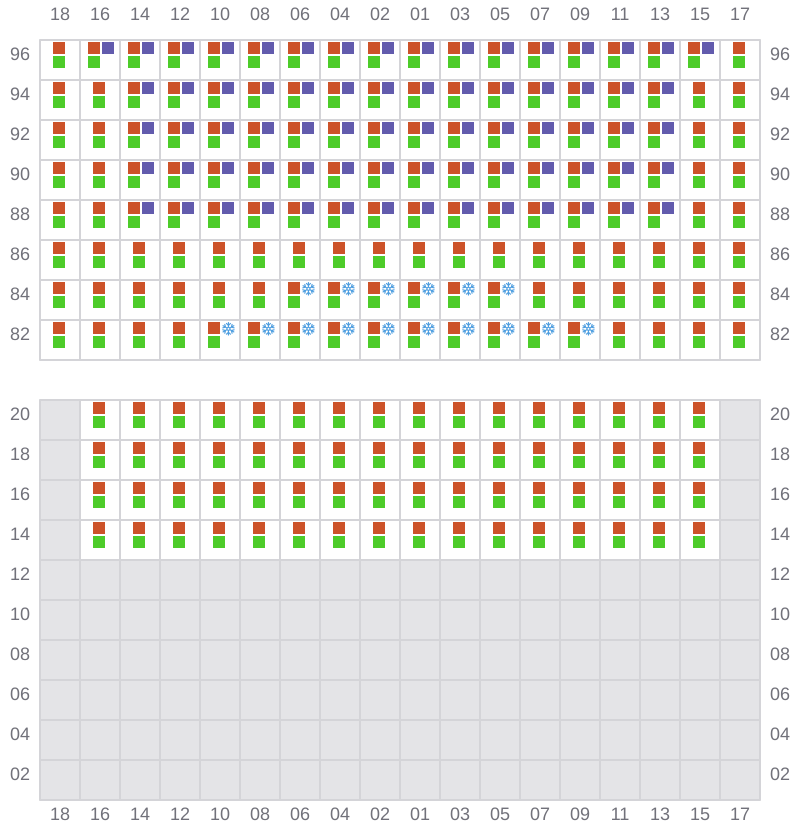

061 (062)
- →

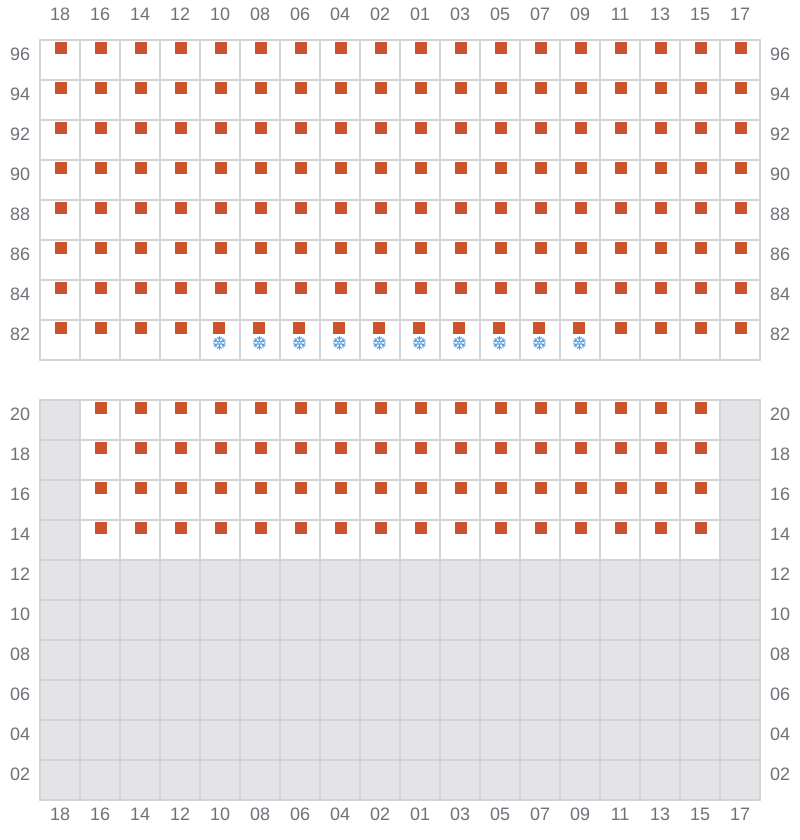

063
- ←
065 (066)
- →
067
- ←

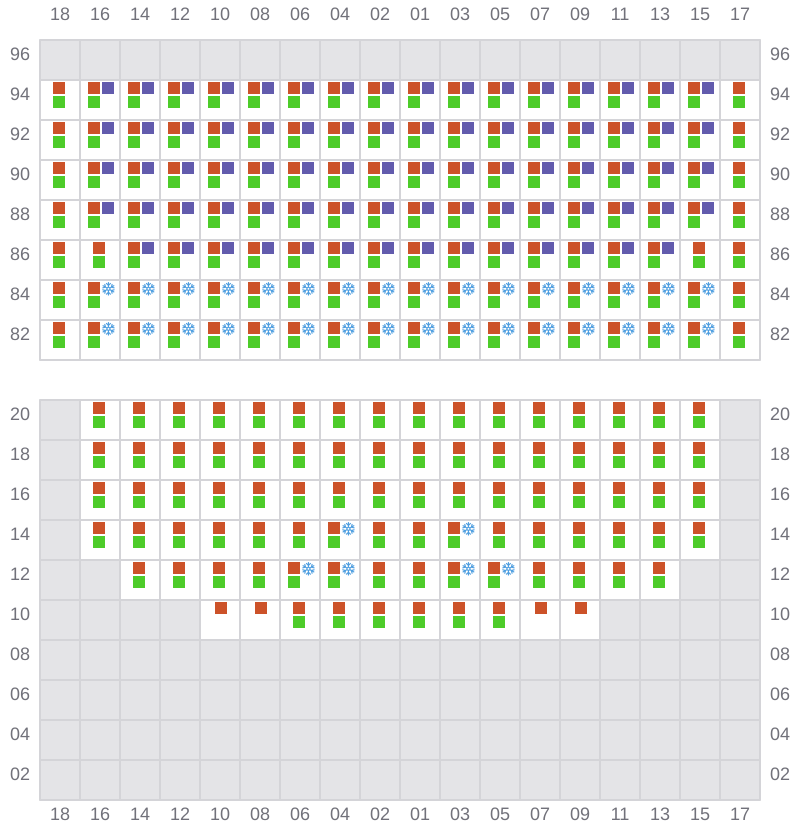

069 (070)
- →

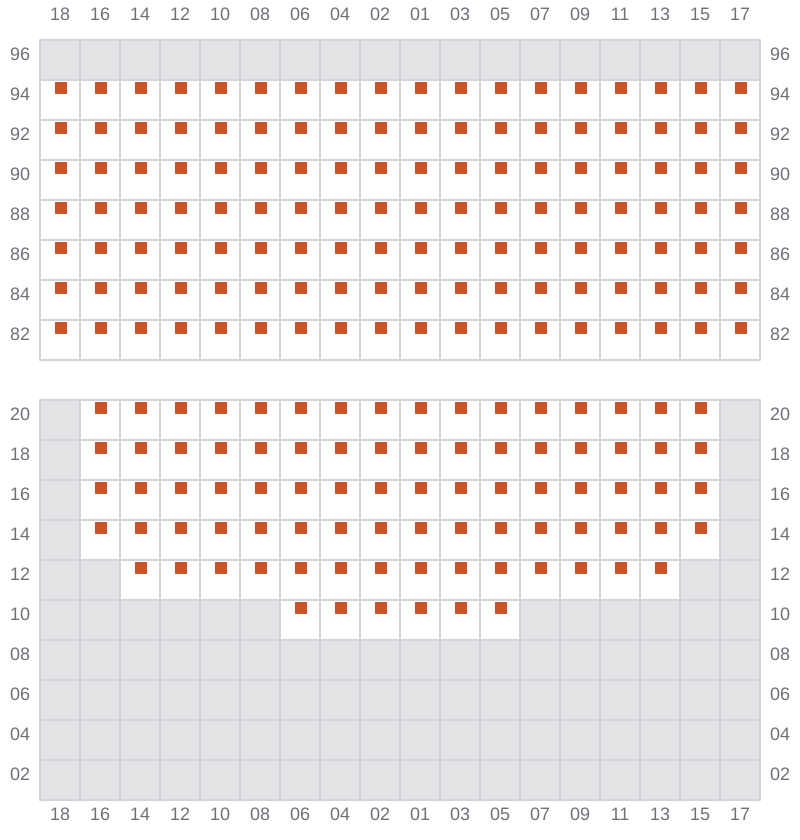

071
- ←
073 (074)
- →
075
- ←

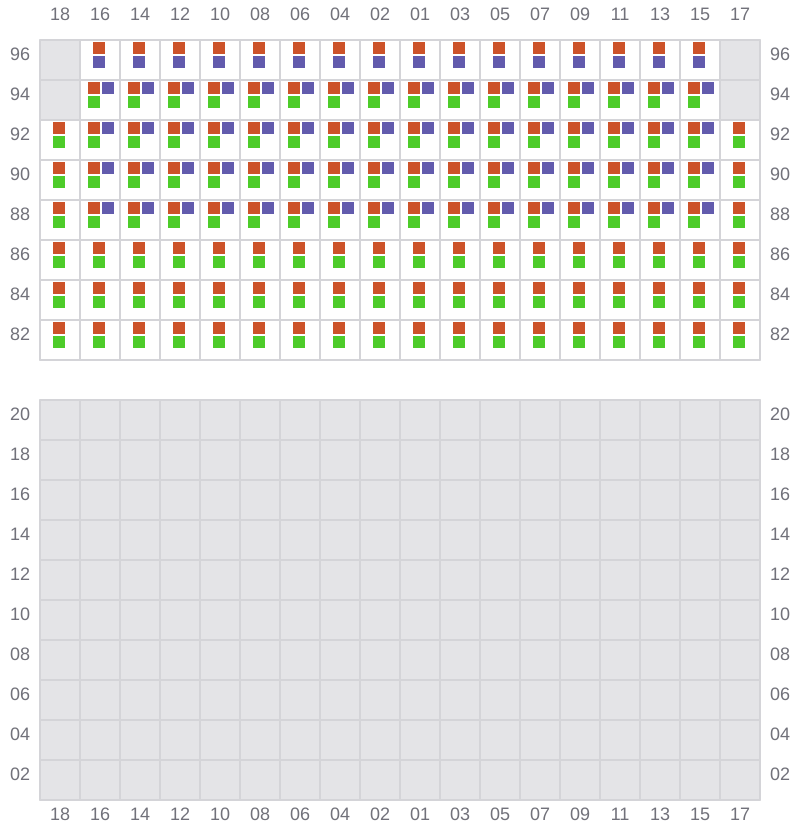

077 (078)
- → /

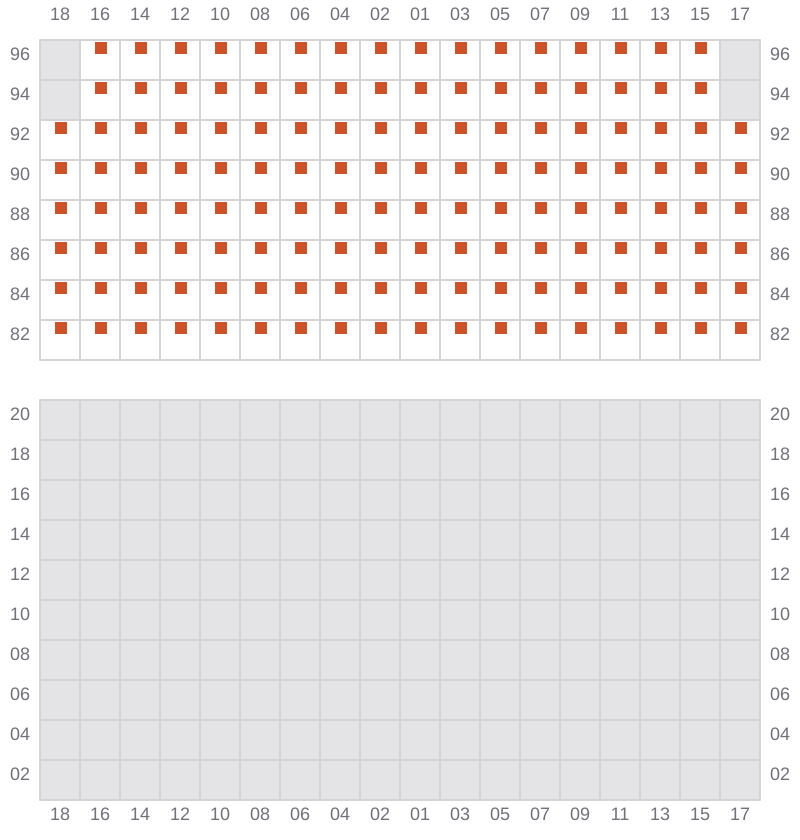

079
- ← /
