ONE BLUE JAY
9741372 | 7KDP | NYK by *********************** Last update: Mon Feb 10 2025

General Info

Ship Name:ONE BLUE JAY
IMO Code:9741372
Call Sign:7KDP
Line Operator:NYK
Class Name for Sister Ships:NBLJ
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):349.20
LOA (Length Overall):364.15
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:78
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,026

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

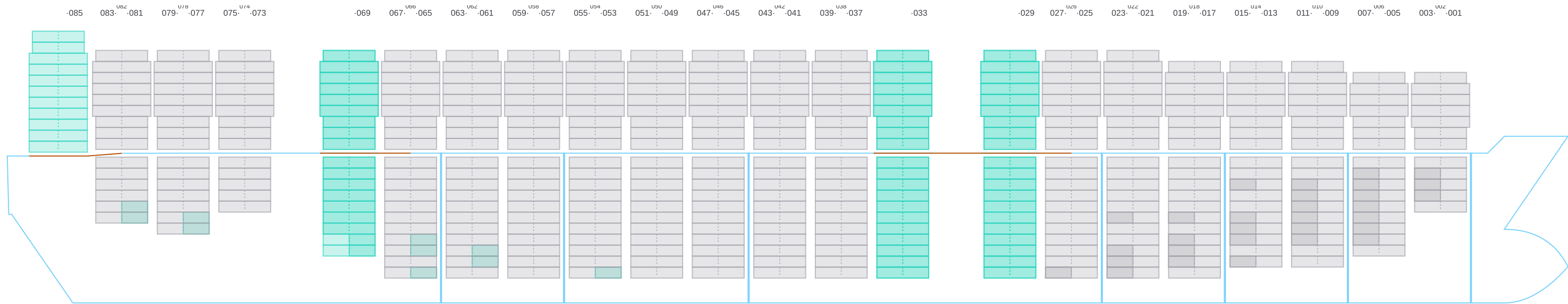

Side view of ONE BLUE JAY

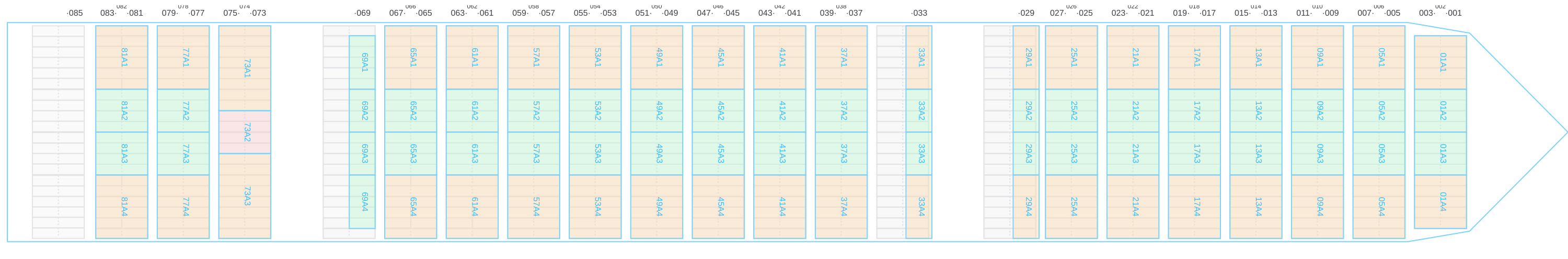

Hatch-Covers View

Deck view of ONE BLUE JAY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • →

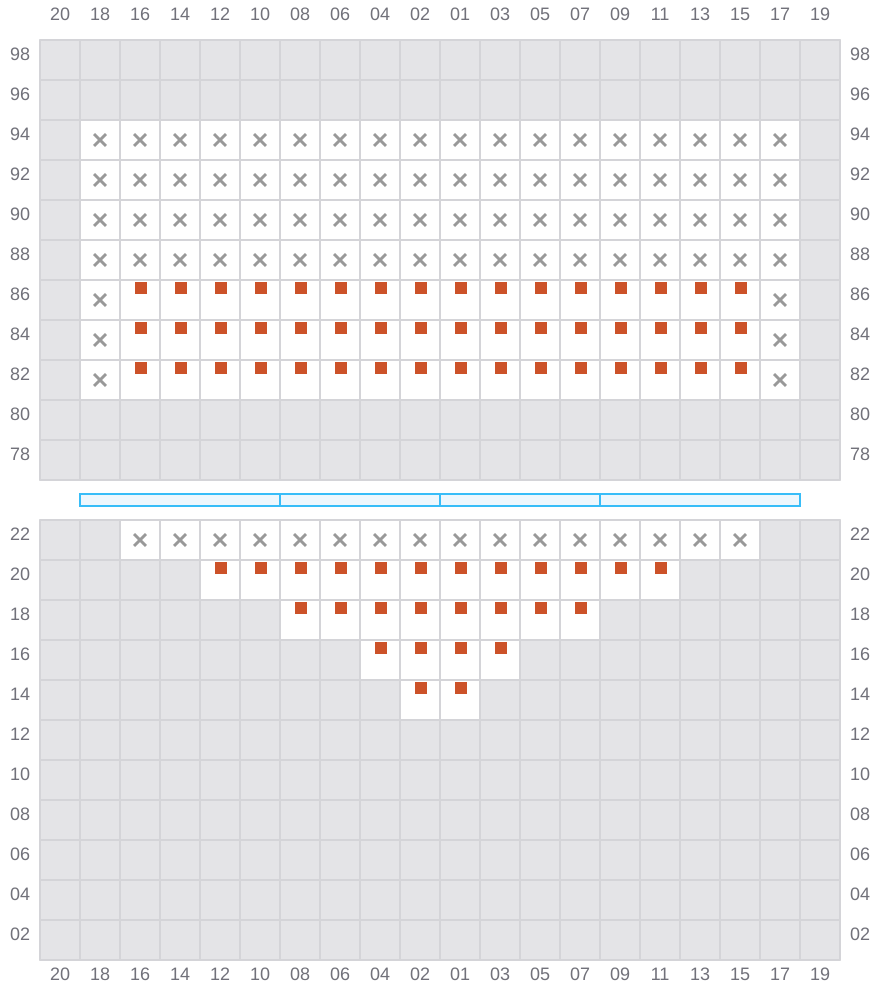

Bay 001 view and slots of ONE BLUE JAY

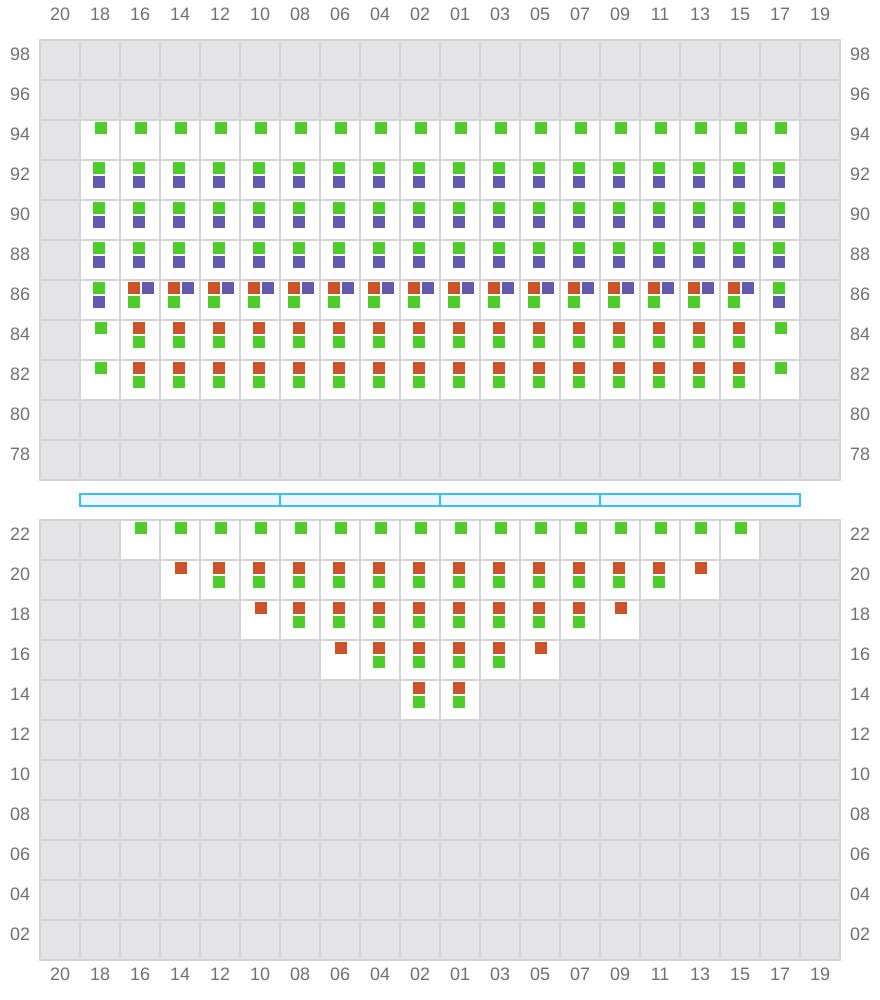

003 (002)

  • ←
  • →
Bay 003 view and slots of ONE BLUE JAY

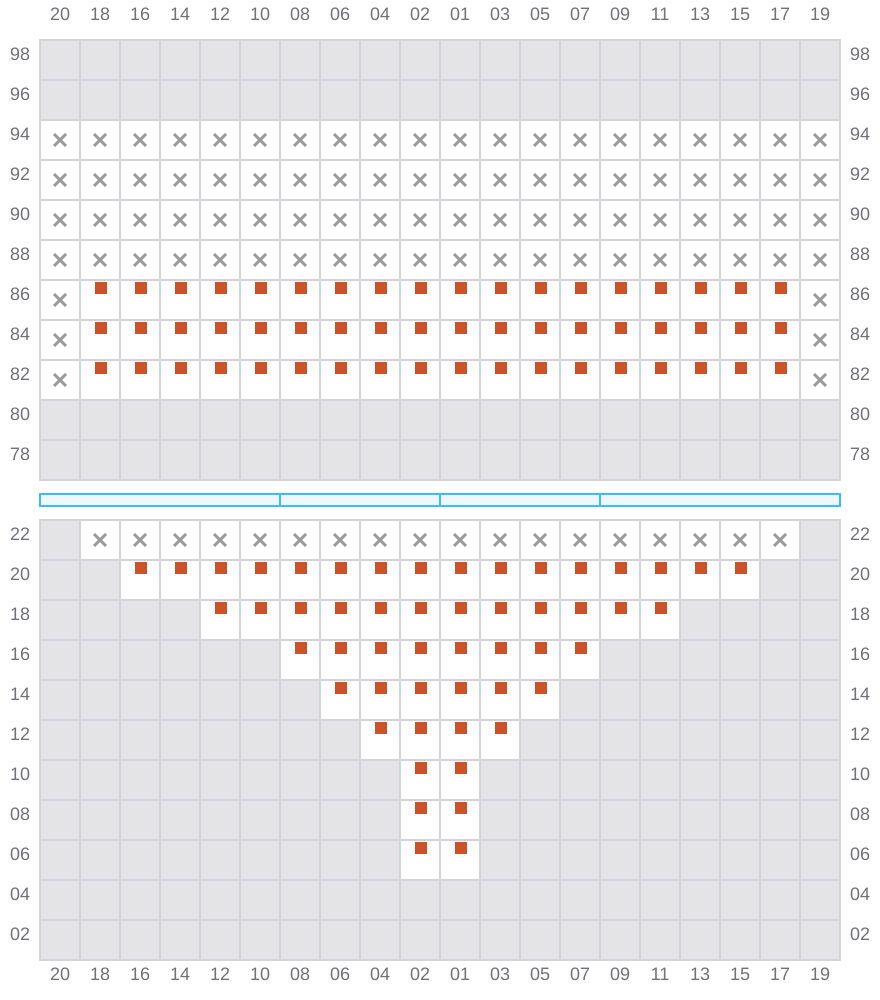

005

  • →
  • →
Bay 005 view and slots of ONE BLUE JAY

007 (006)

  • ←
  • →

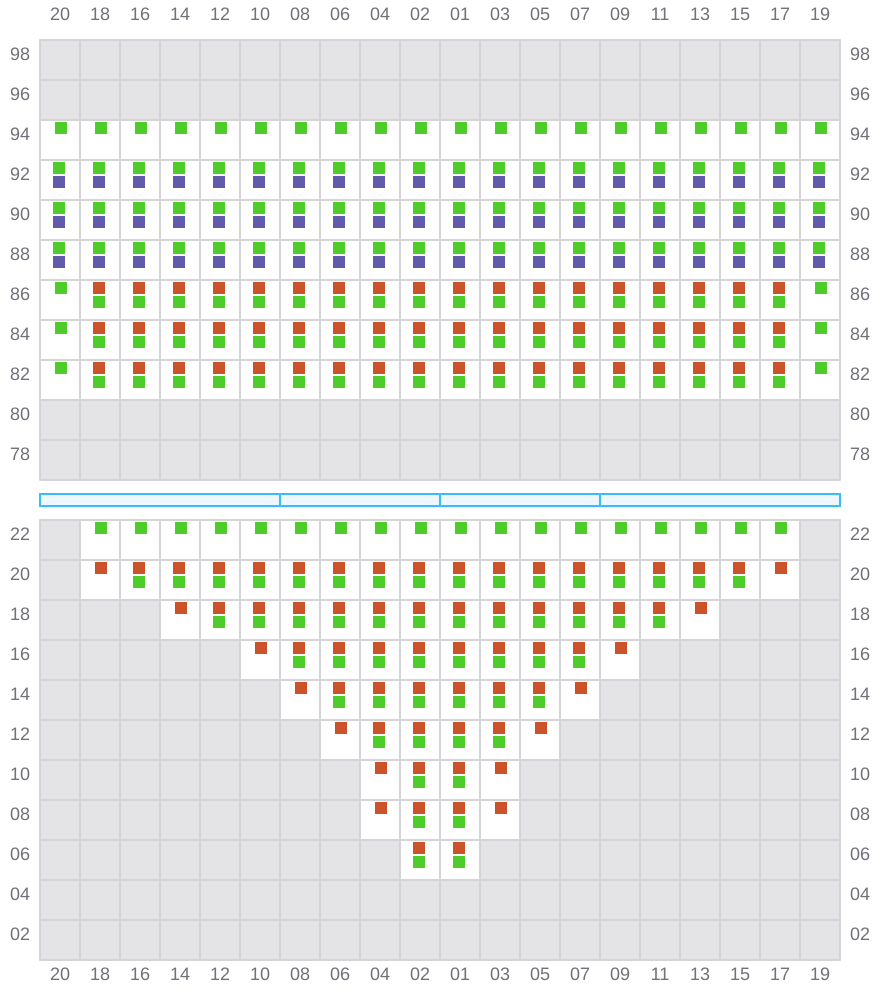

Bay 007 view and slots of ONE BLUE JAY

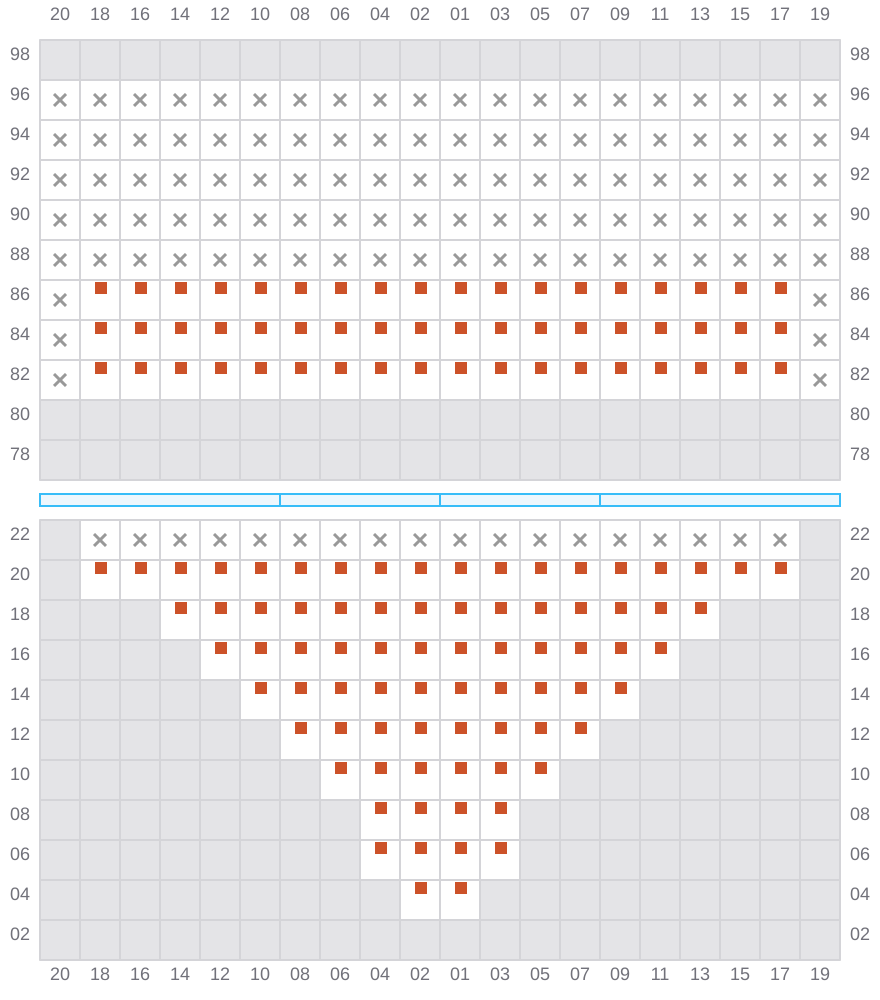

009

  • →
  • →
Bay 009 view and slots of ONE BLUE JAY

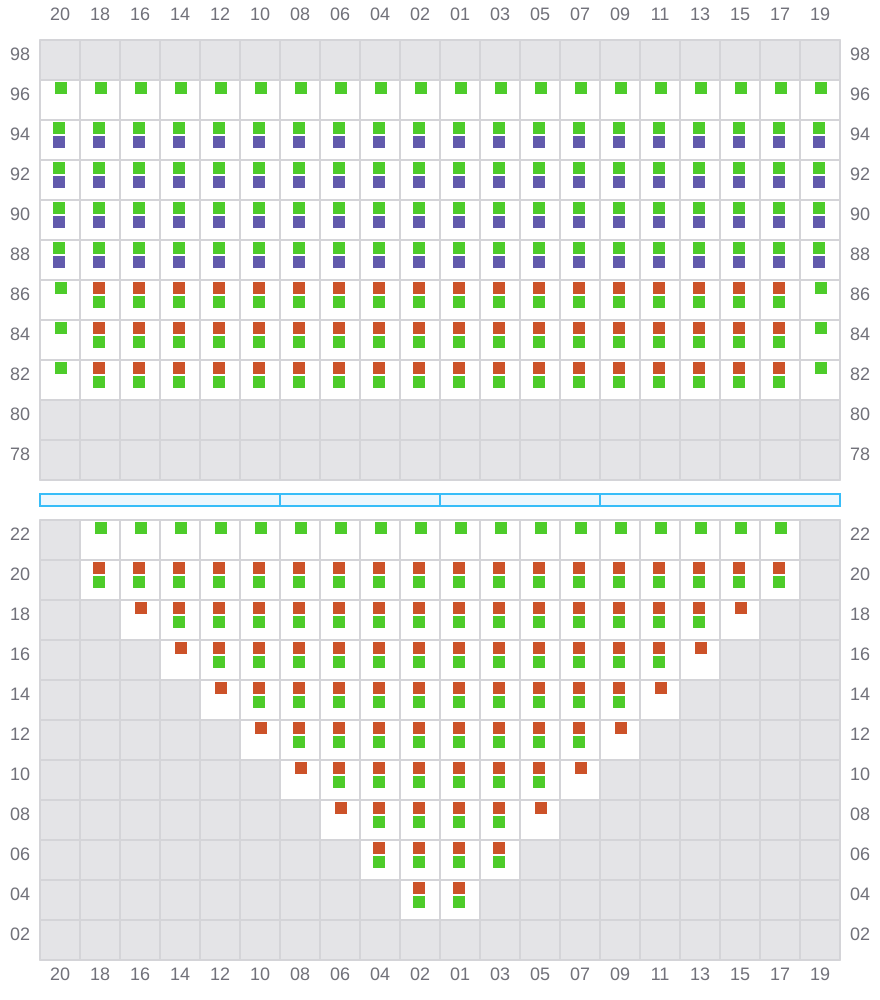

011 (010)

  • ←
  • →
Bay 011 view and slots of ONE BLUE JAY

013

  • →
  • →

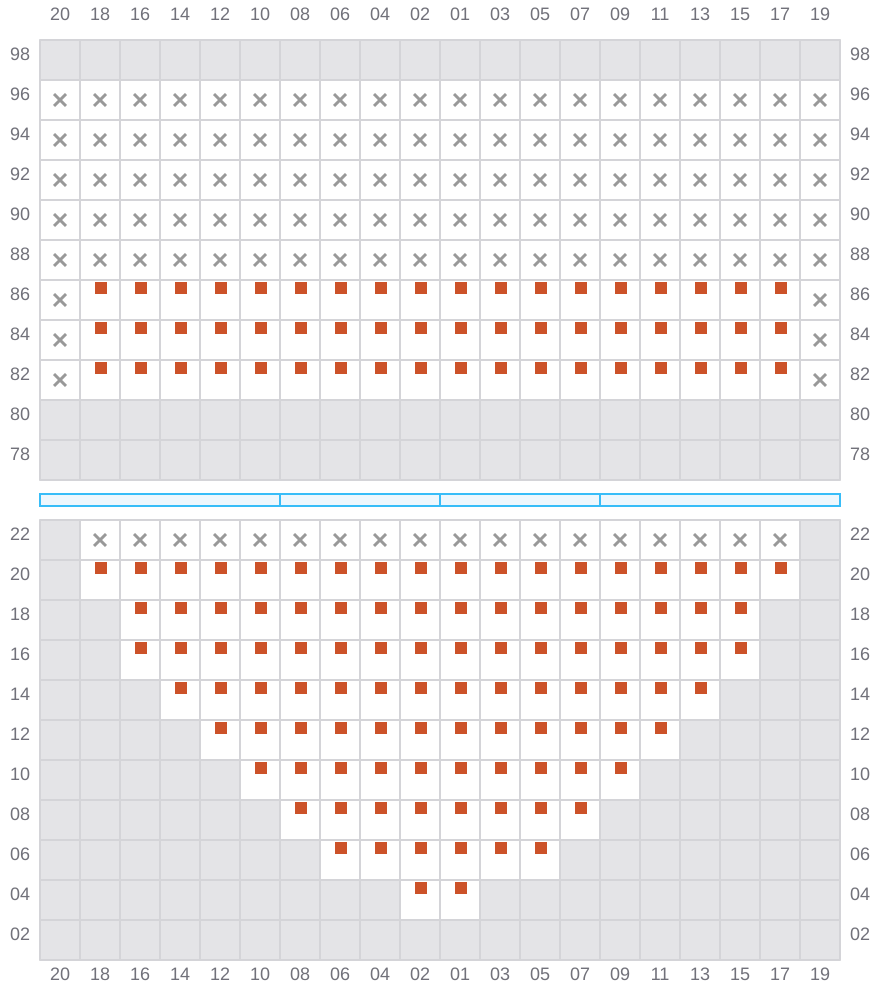

Bay 013 view and slots of ONE BLUE JAY

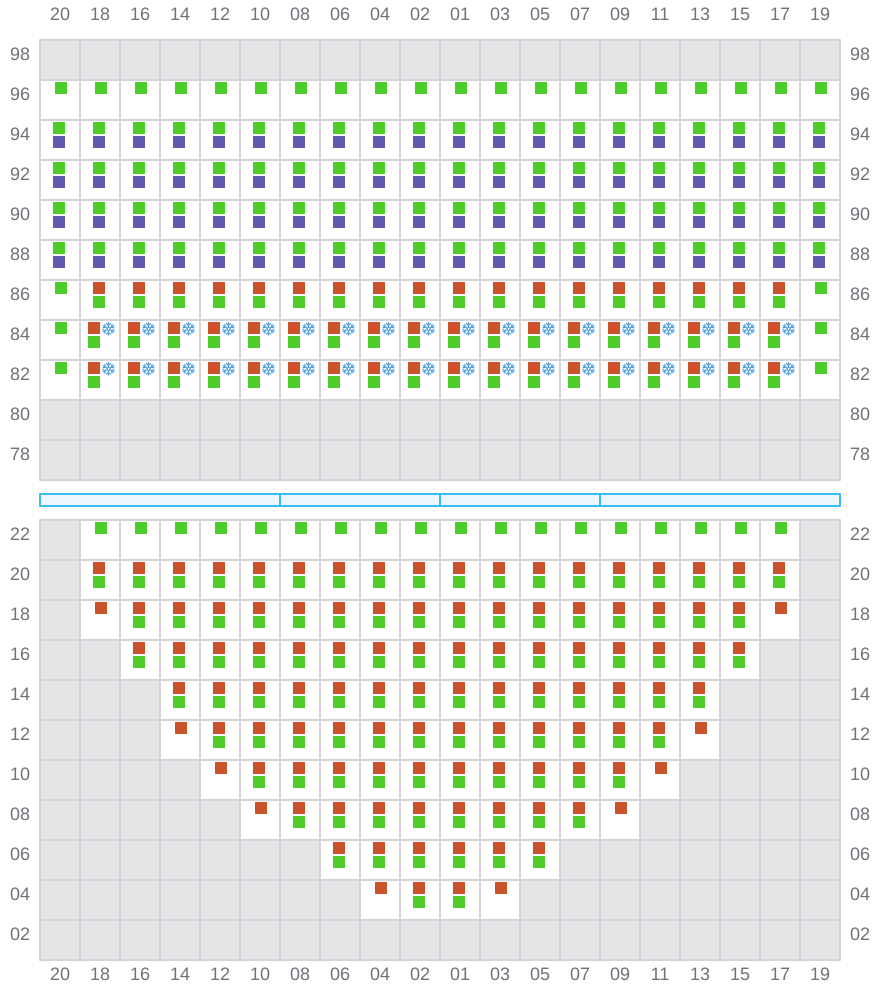

015 (014)

  • ←
  • → / ?
  • →
Bay 015 view and slots of ONE BLUE JAY

017

  • →
  • ← / ?
  • →

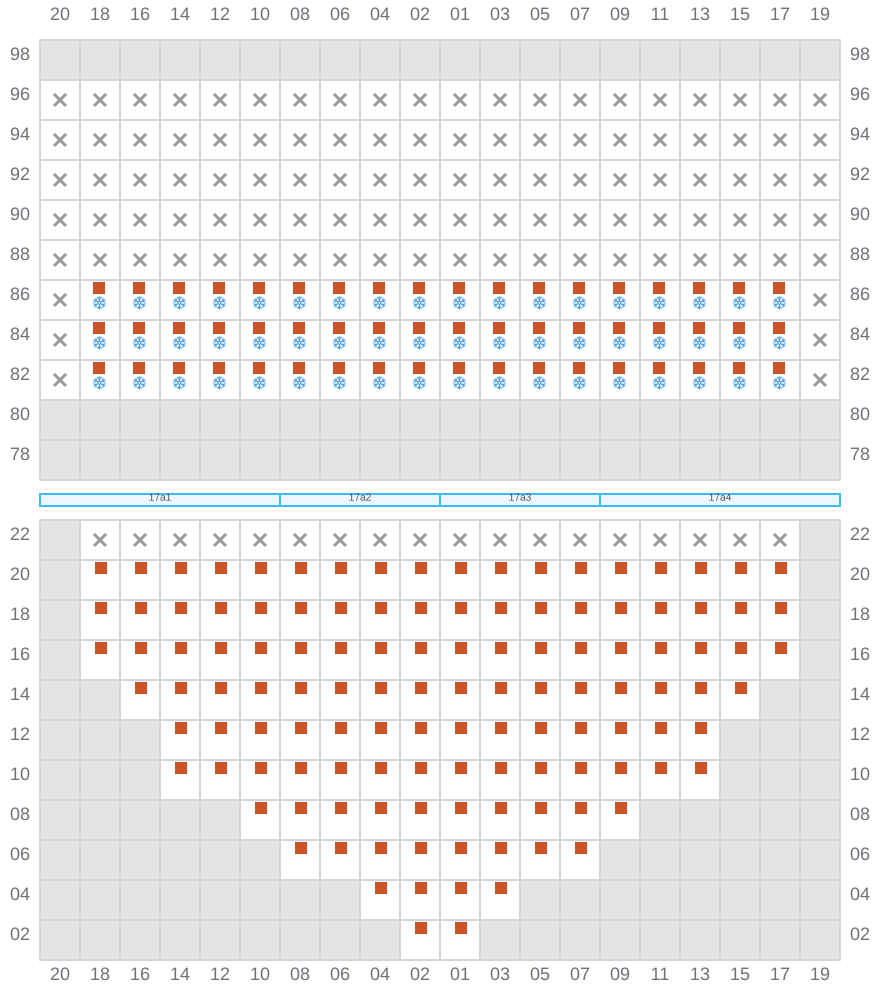

Bay 017 view and slots of ONE BLUE JAY

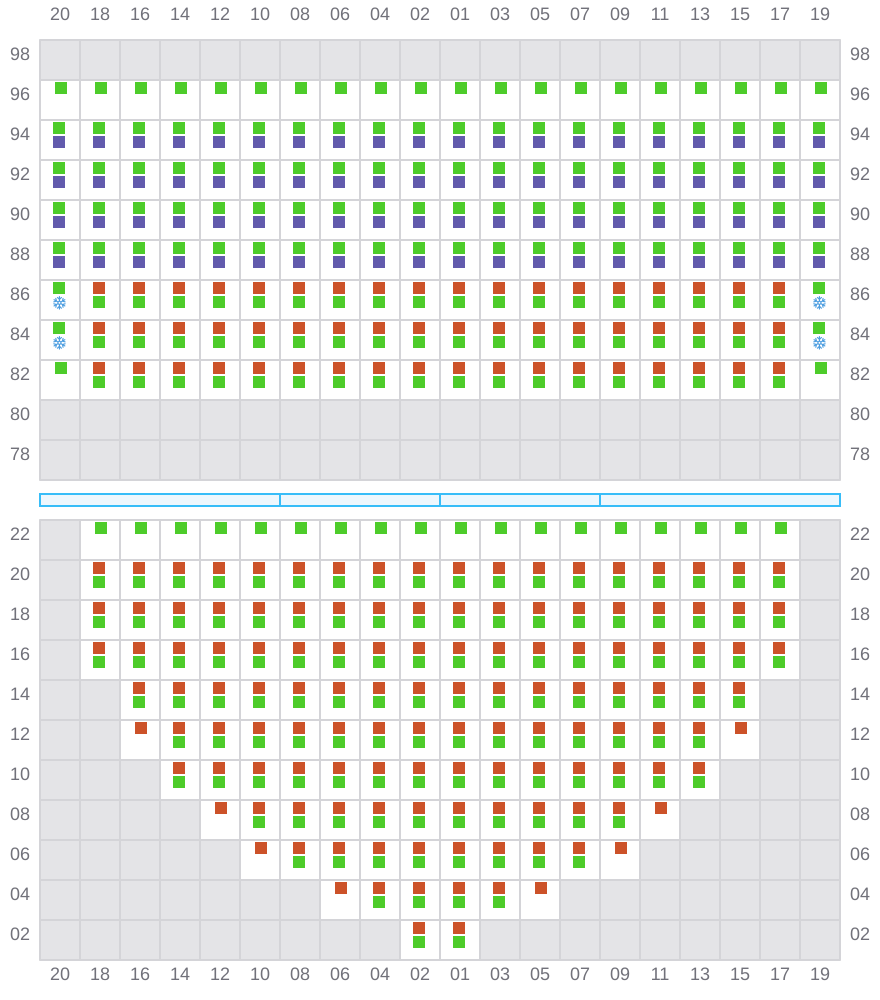

019 (018)

  • ←
  • ← / ?
  • →
Bay 019 view and slots of ONE BLUE JAY

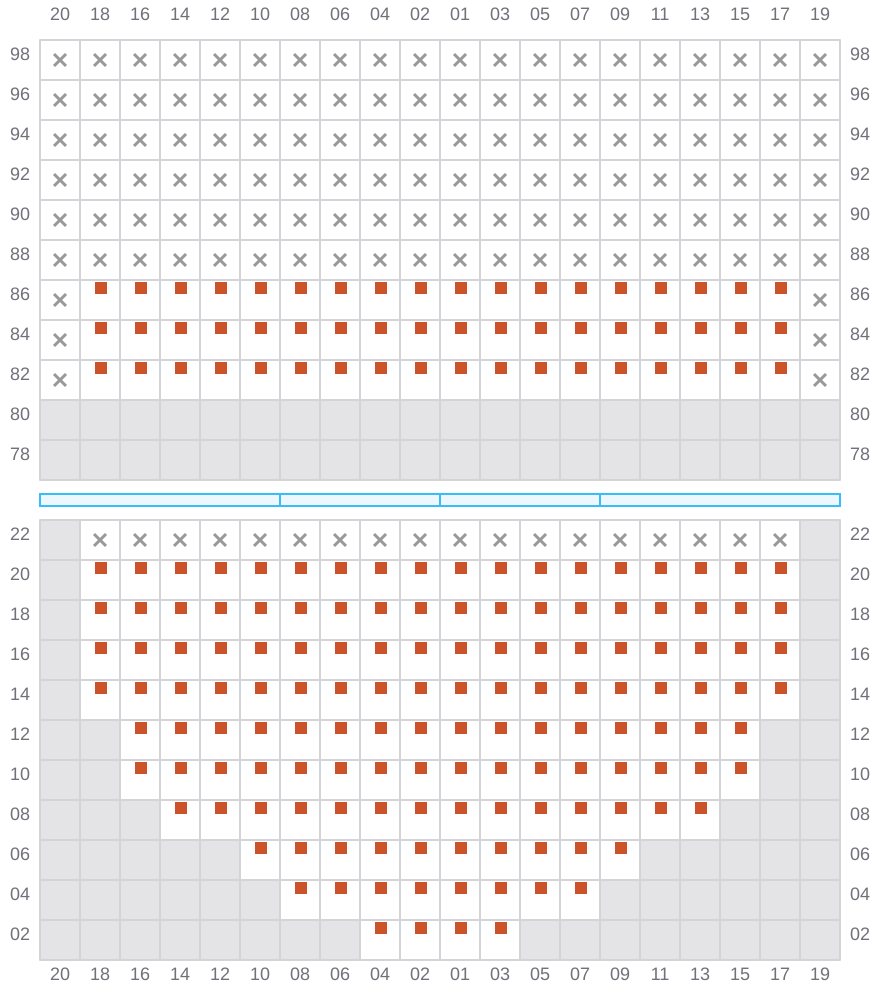

021

  • →
  • →
Bay 021 view and slots of ONE BLUE JAY

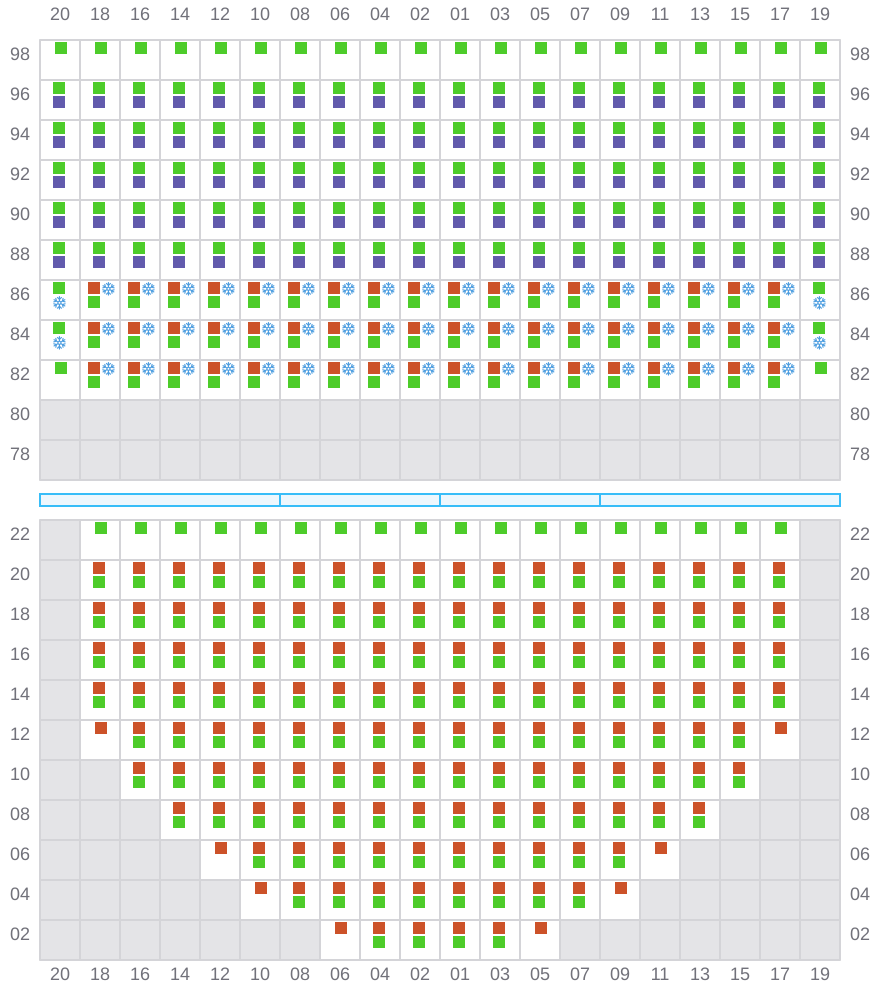

023 (022)

  • ←
  • → / ?
  • →
Bay 023 view and slots of ONE BLUE JAY

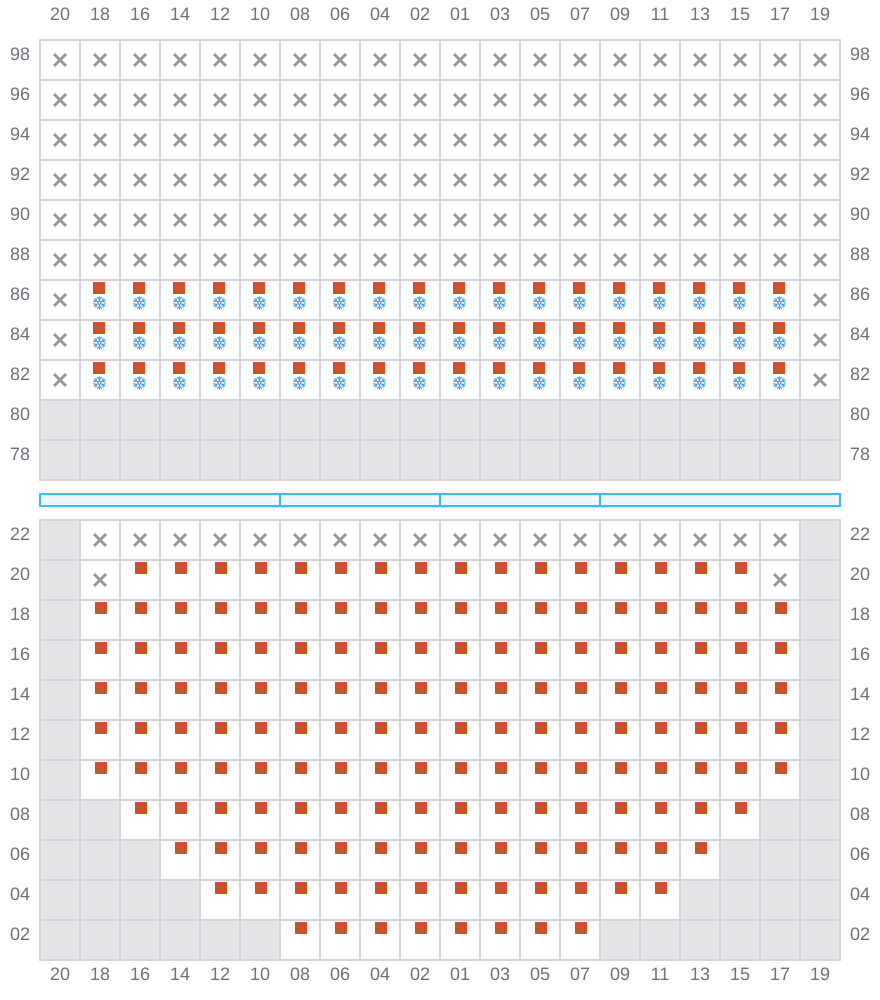

025

  • →
  • ← / ?
  • →
Bay 025 view and slots of ONE BLUE JAY

027 (026)

  • ←
  • →
Bay 027 view and slots of ONE BLUE JAY

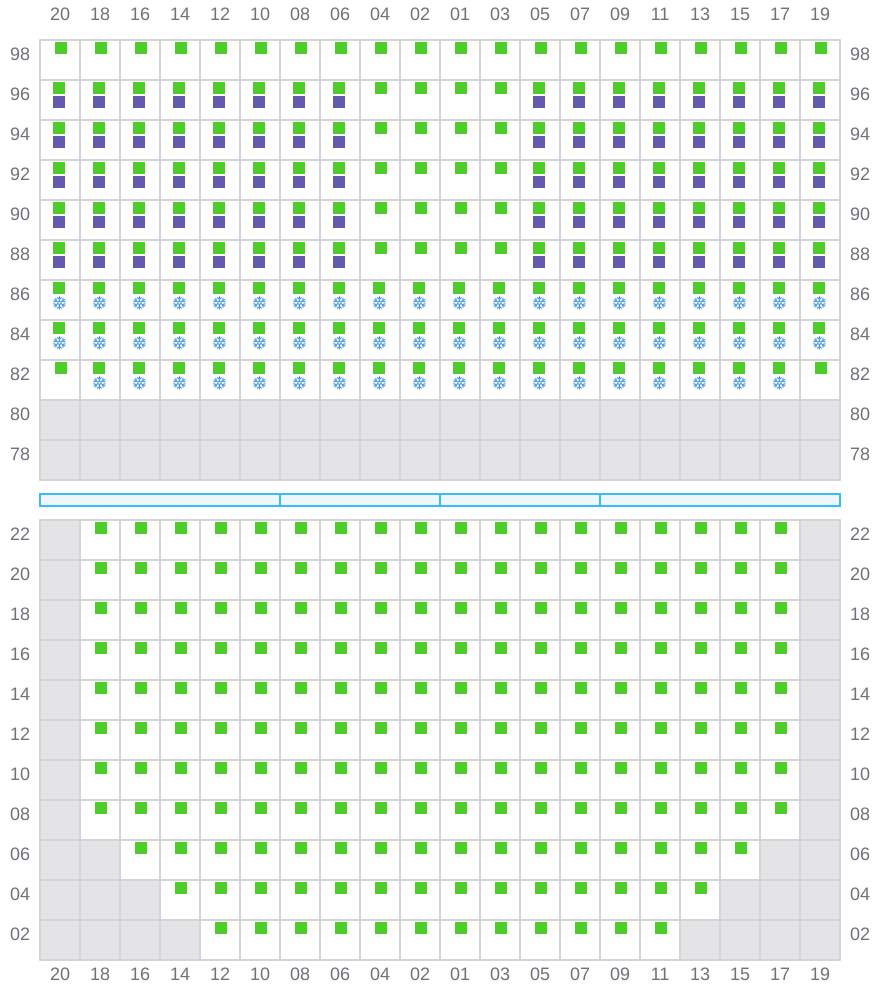

029 (030)

  • →
  • → / ?
  • →
Bay 029 view and slots of ONE BLUE JAY

031

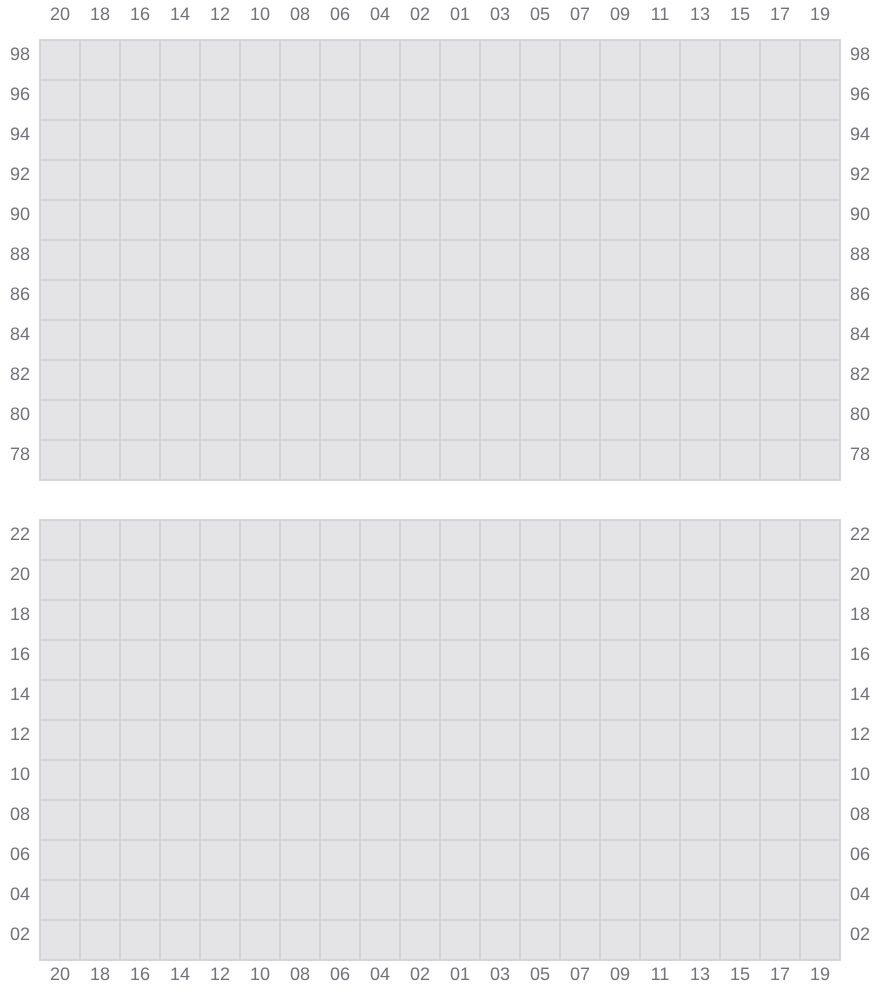

Bay 031 view and slots of ONE BLUE JAY

033 (034)

  • →
  • ← / ?
  • →

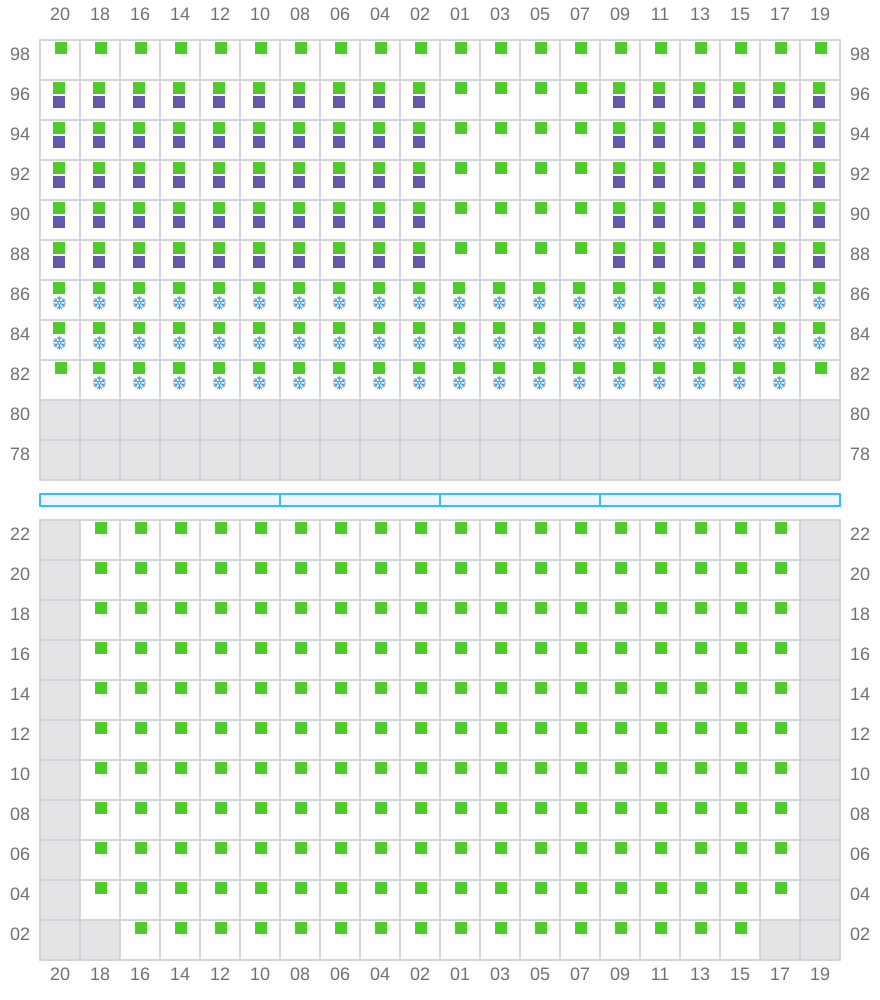

Bay 033 view and slots of ONE BLUE JAY

035

Bay 035 view and slots of ONE BLUE JAY

037

  • →
  • →
Bay 037 view and slots of ONE BLUE JAY

039 (038)

  • ←
  • → / ?
  • →

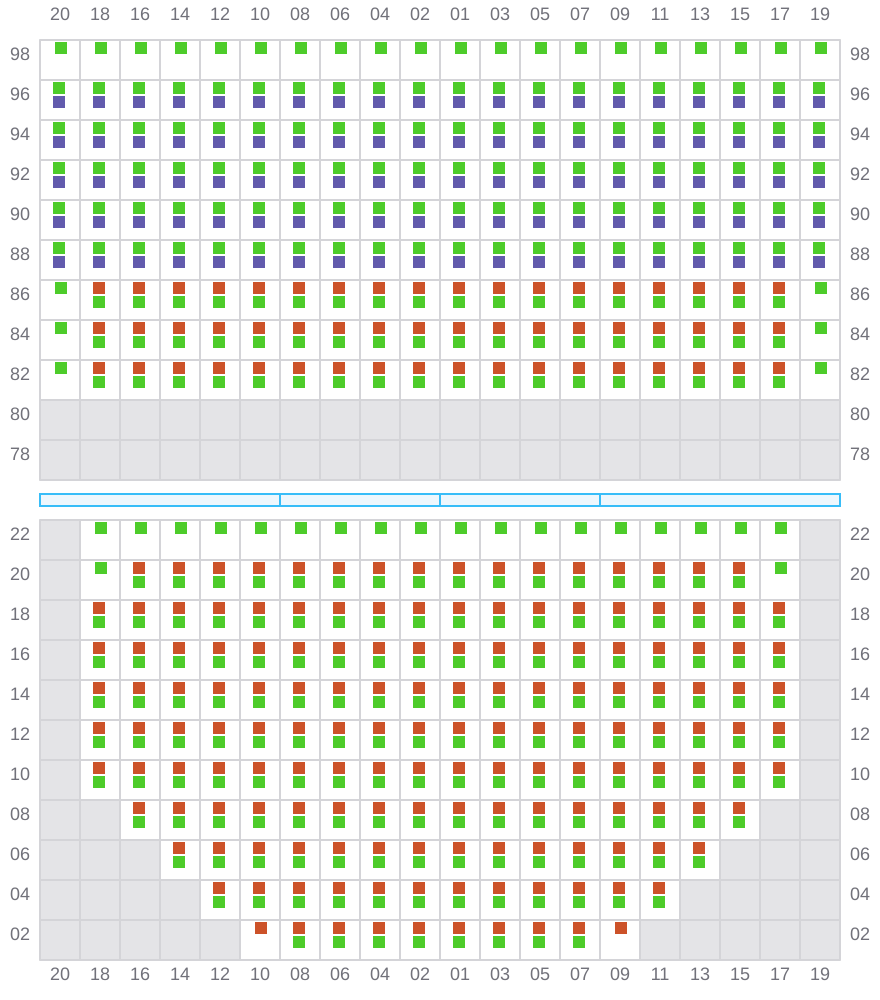

Bay 039 view and slots of ONE BLUE JAY

041

  • →
  • ← / ?
  • →
Bay 041 view and slots of ONE BLUE JAY

043 (042)

  • ←
  • →
Bay 043 view and slots of ONE BLUE JAY

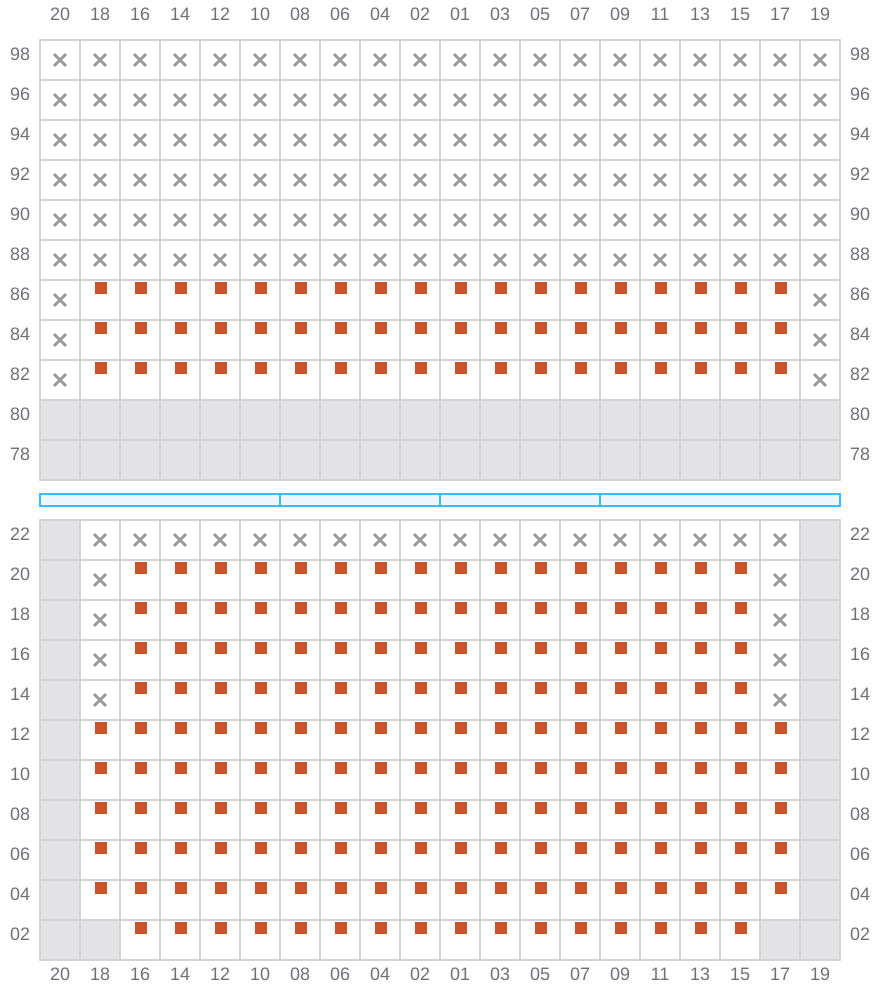

045

  • →
  • →
Bay 045 view and slots of ONE BLUE JAY

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of ONE BLUE JAY

049

  • →
  • ← / ?
  • →
Bay 049 view and slots of ONE BLUE JAY

051 (050)

  • ←
  • →
Bay 051 view and slots of ONE BLUE JAY

053

  • →
  • →

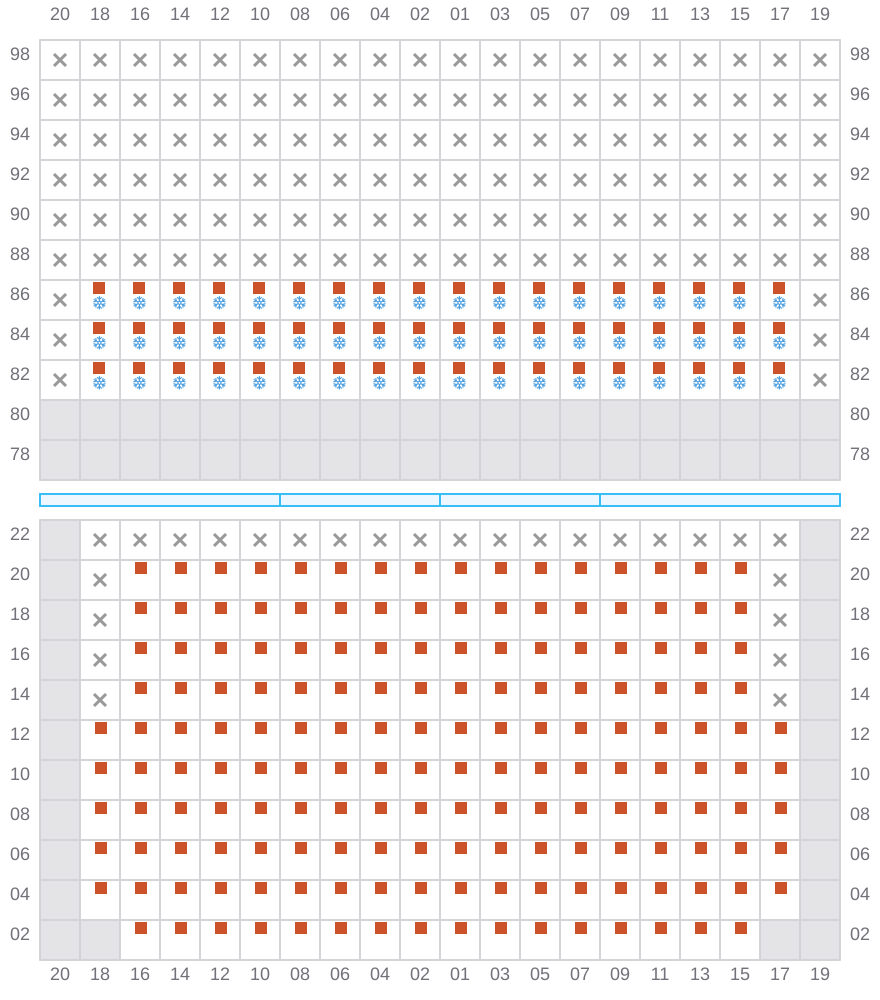

Bay 053 view and slots of ONE BLUE JAY

055 (054)

  • ←
  • → / ?
  • →

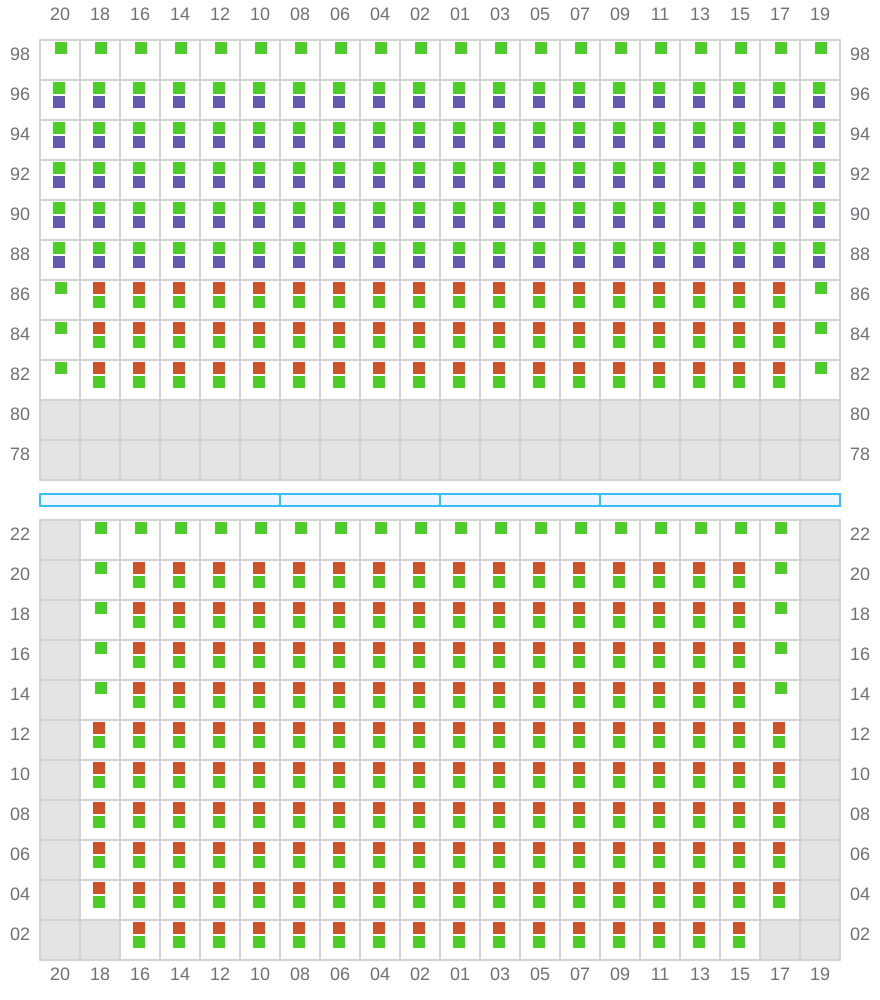

Bay 055 view and slots of ONE BLUE JAY

057

  • →
  • ← / ?
  • →
Bay 057 view and slots of ONE BLUE JAY

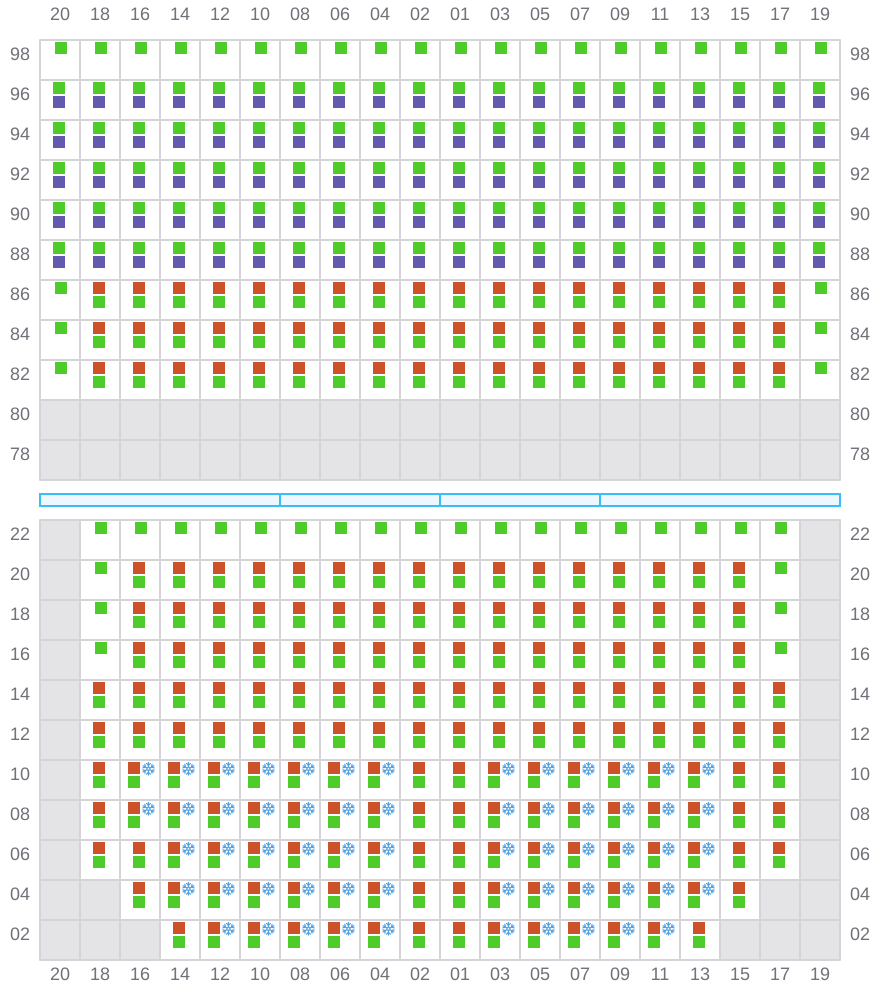

059 (058)

  • ←
  • →

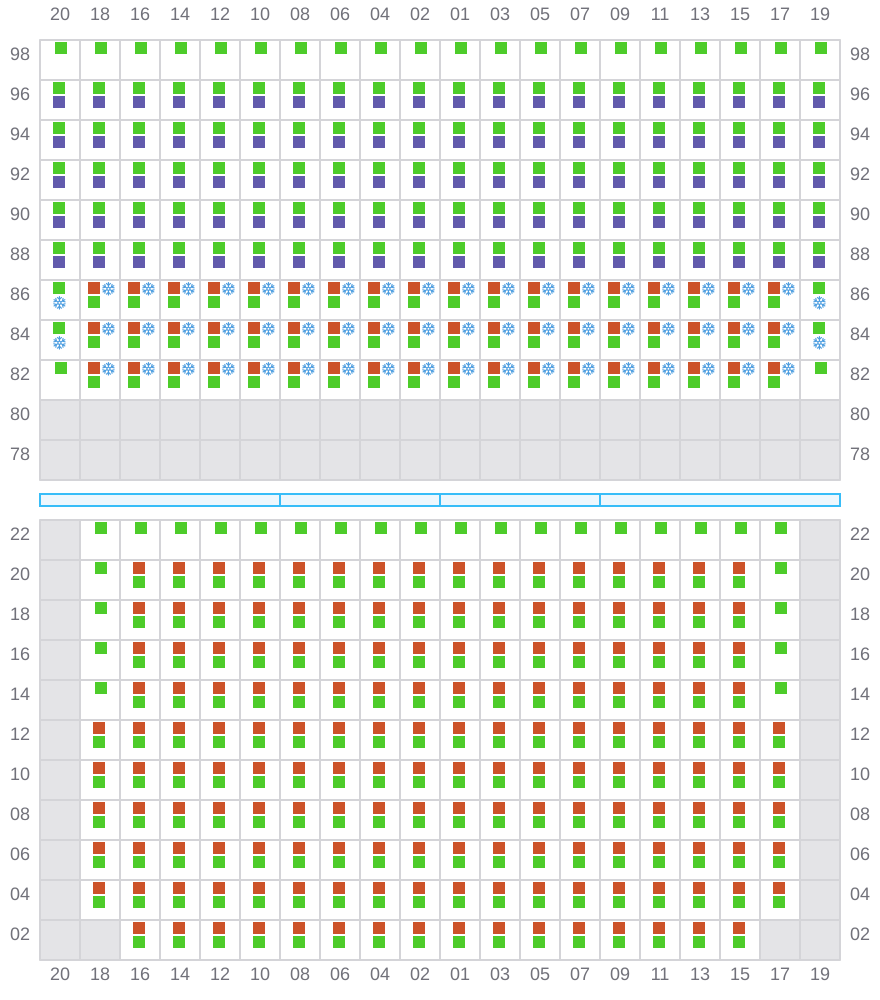

Bay 059 view and slots of ONE BLUE JAY

061

  • →
  • →

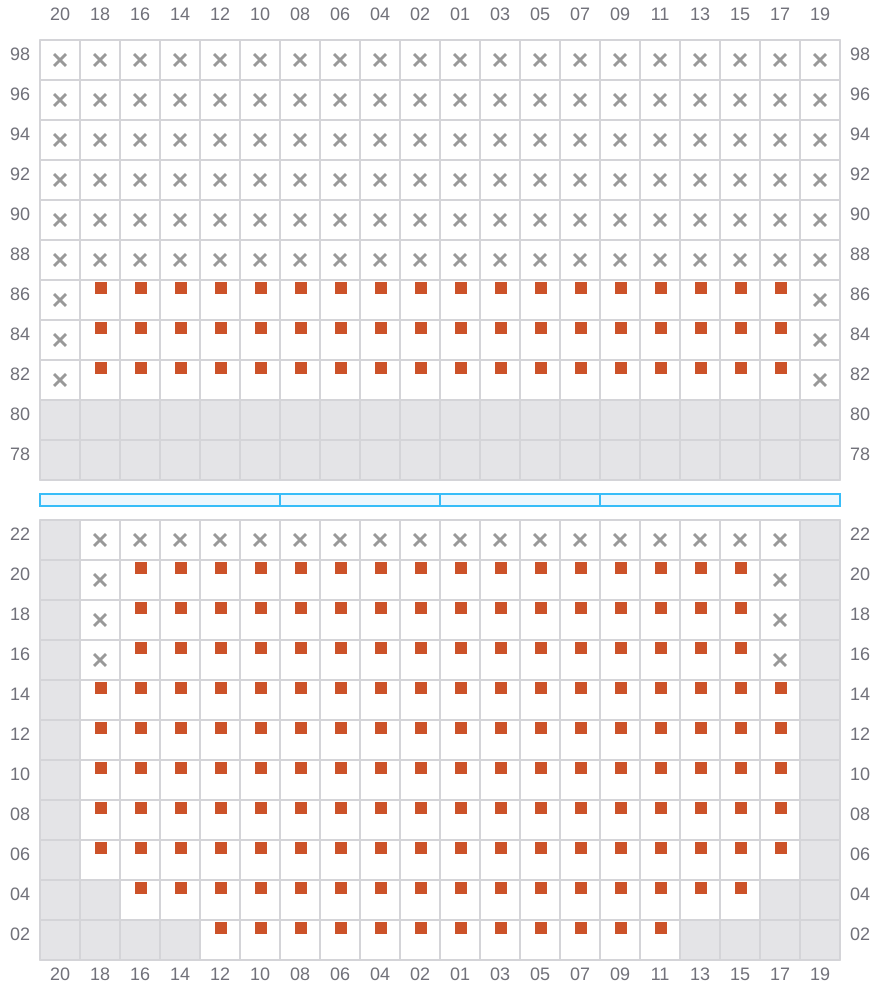

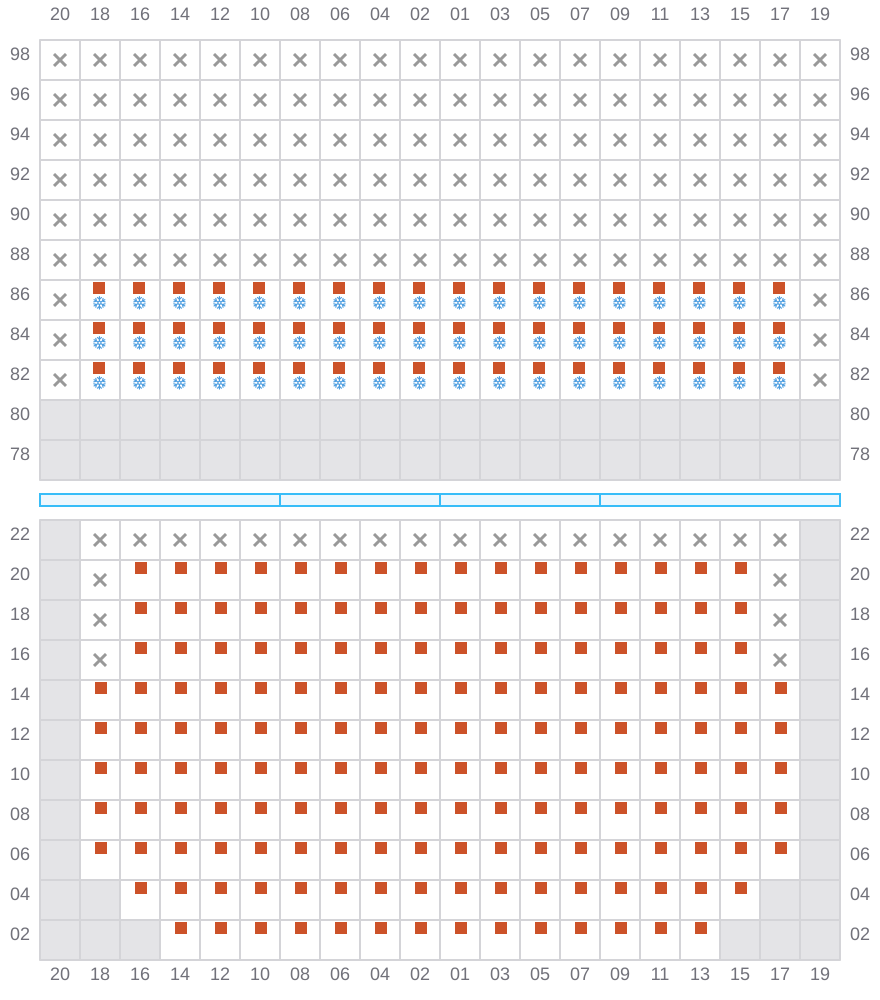

Bay 061 view and slots of ONE BLUE JAY

063 (062)

  • ←
  • → / ?
  • →
Bay 063 view and slots of ONE BLUE JAY

065

  • →
  • ← / ?
  • →
Bay 065 view and slots of ONE BLUE JAY

067 (066)

  • ←
  • →

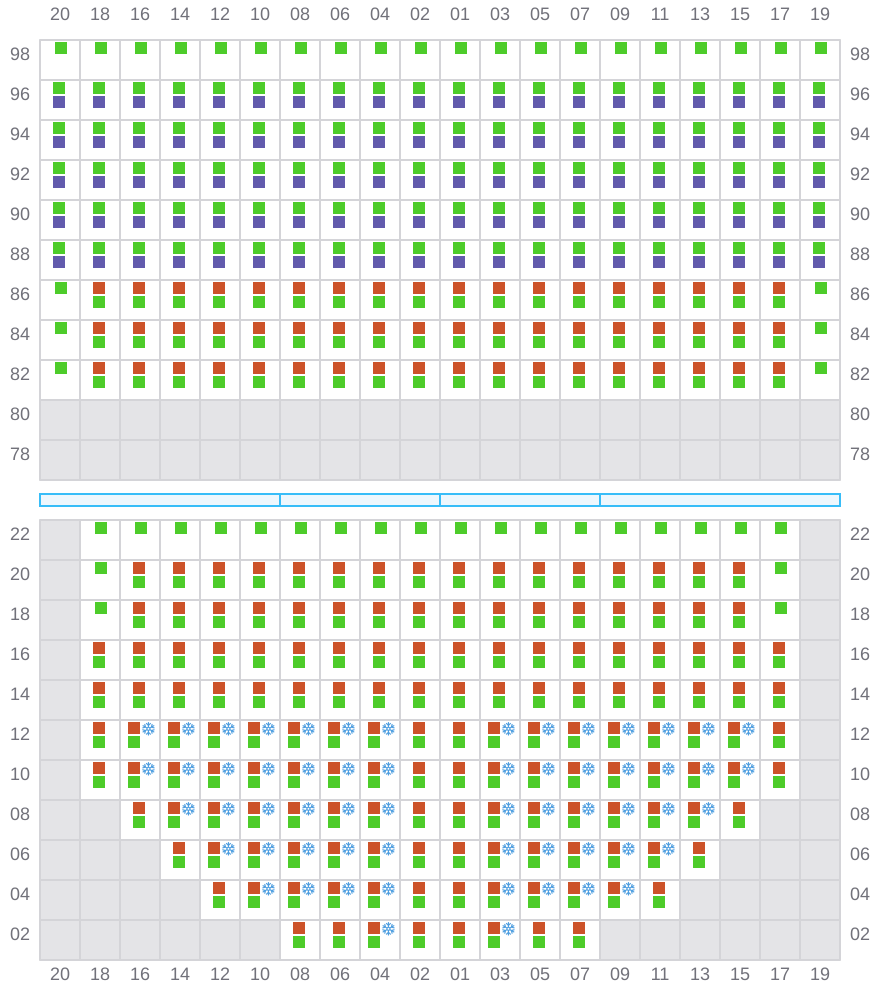

Bay 067 view and slots of ONE BLUE JAY

069 (070)

  • →
  • → / ?
  • →

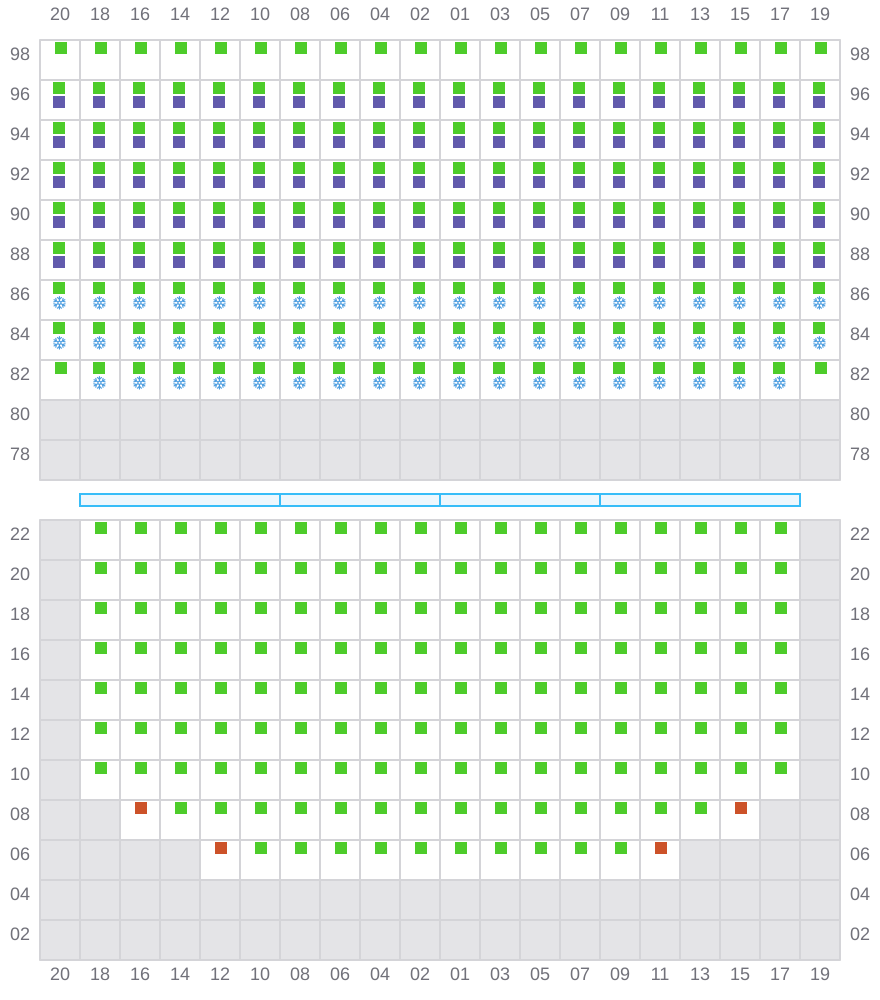

Bay 069 view and slots of ONE BLUE JAY

071

Bay 071 view and slots of ONE BLUE JAY

073

  • →
  • →

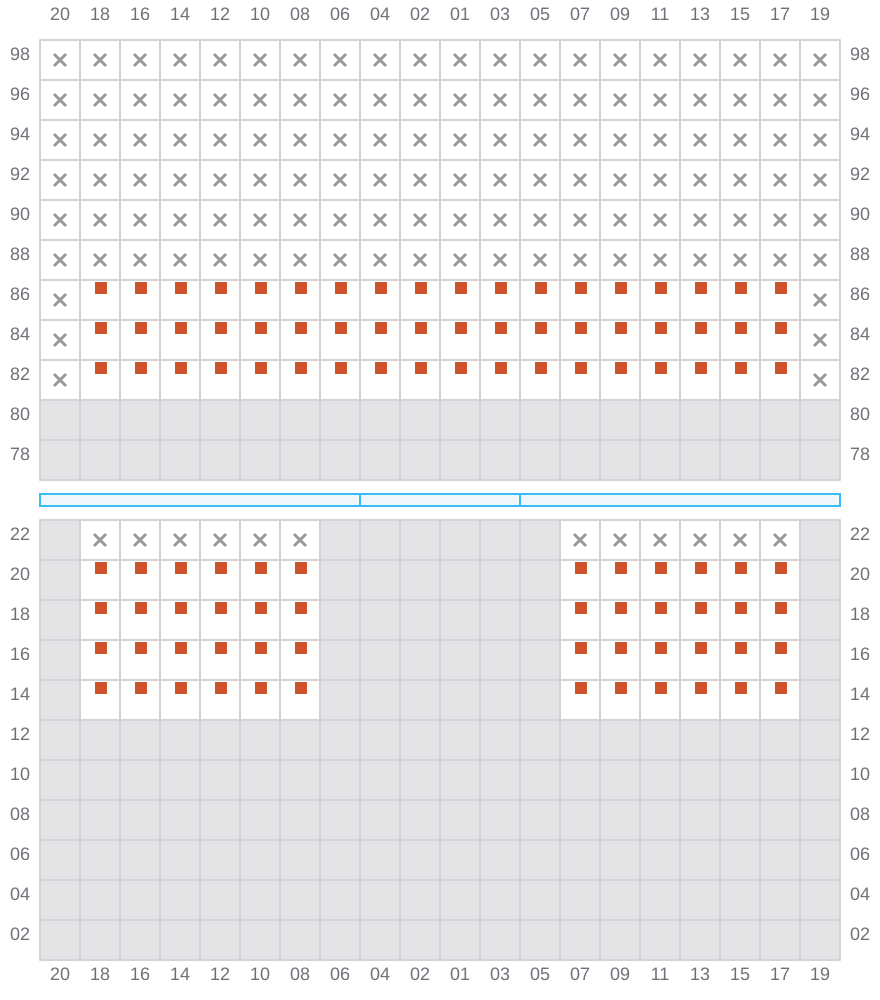

Bay 073 view and slots of ONE BLUE JAY

075 (074)

  • ←
  • → / ?
  • →

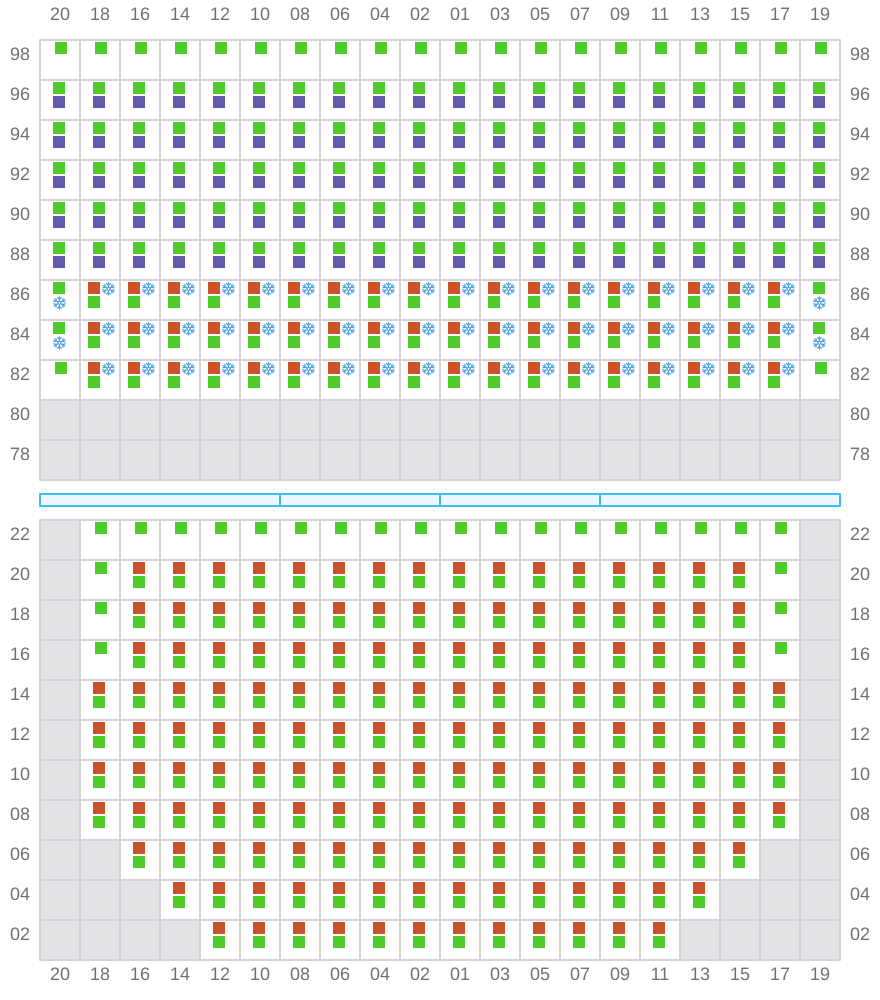

Bay 075 view and slots of ONE BLUE JAY

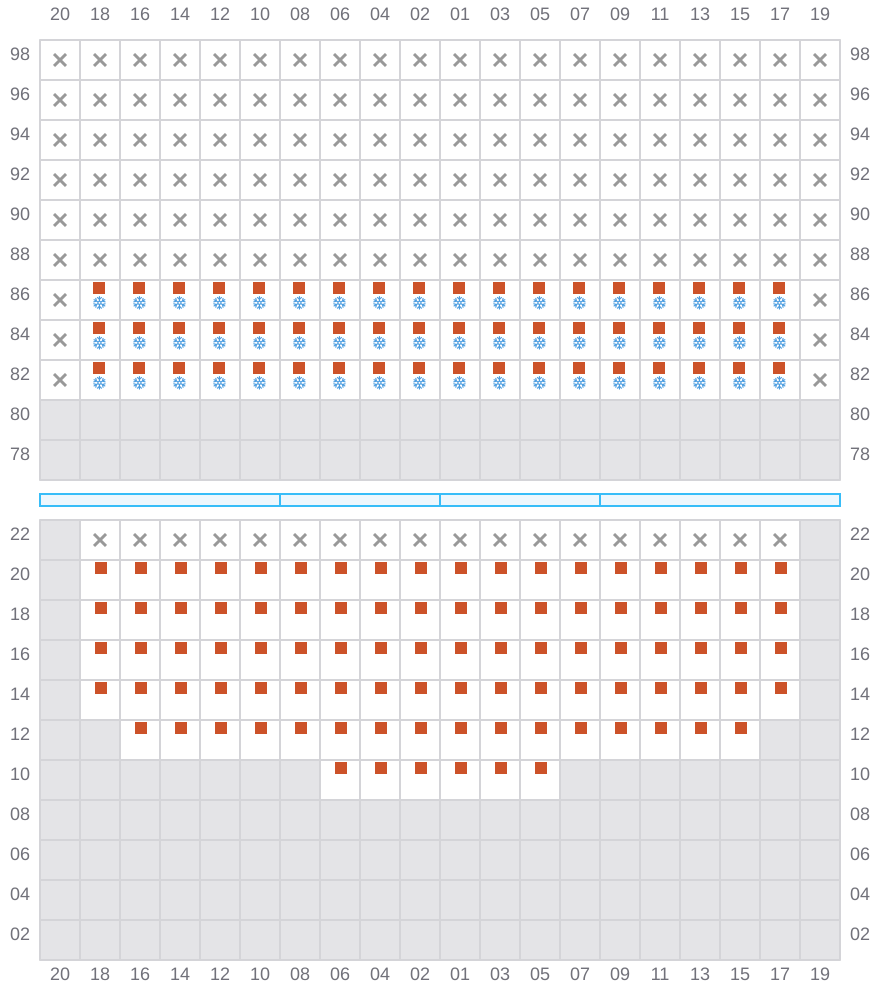

077

  • →
  • ← / ?
  • →
Bay 077 view and slots of ONE BLUE JAY

079 (078)

  • ←
  • →

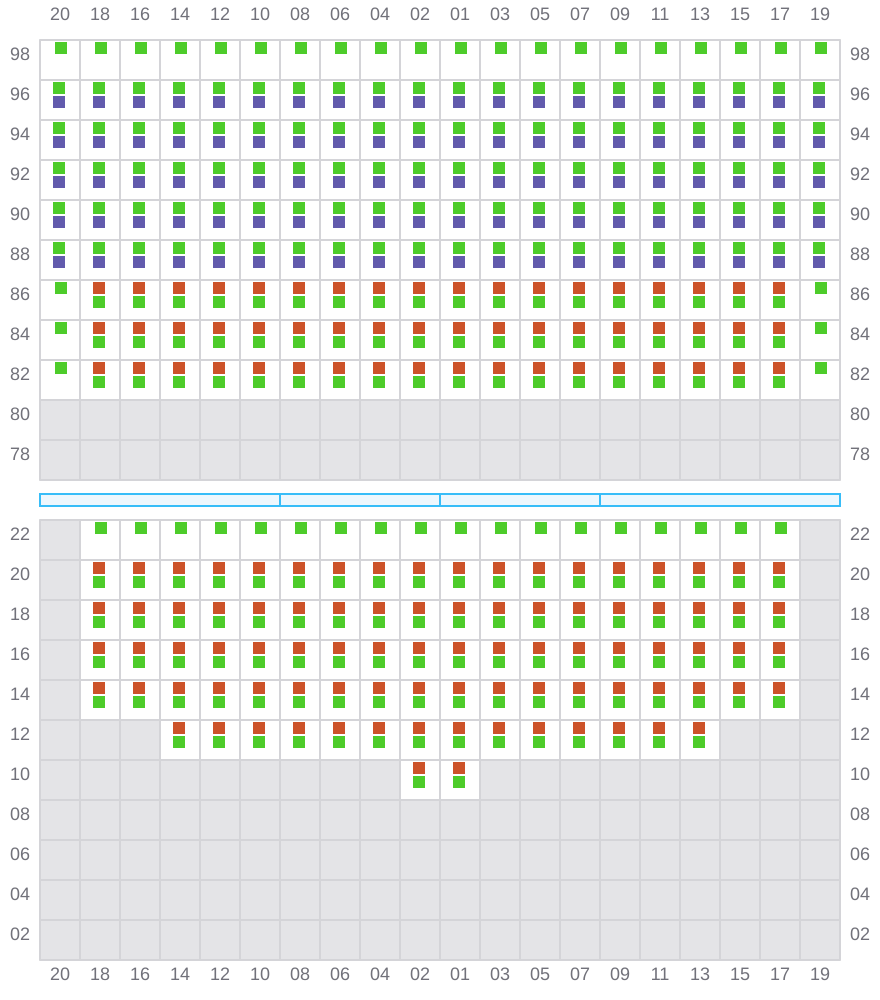

Bay 079 view and slots of ONE BLUE JAY

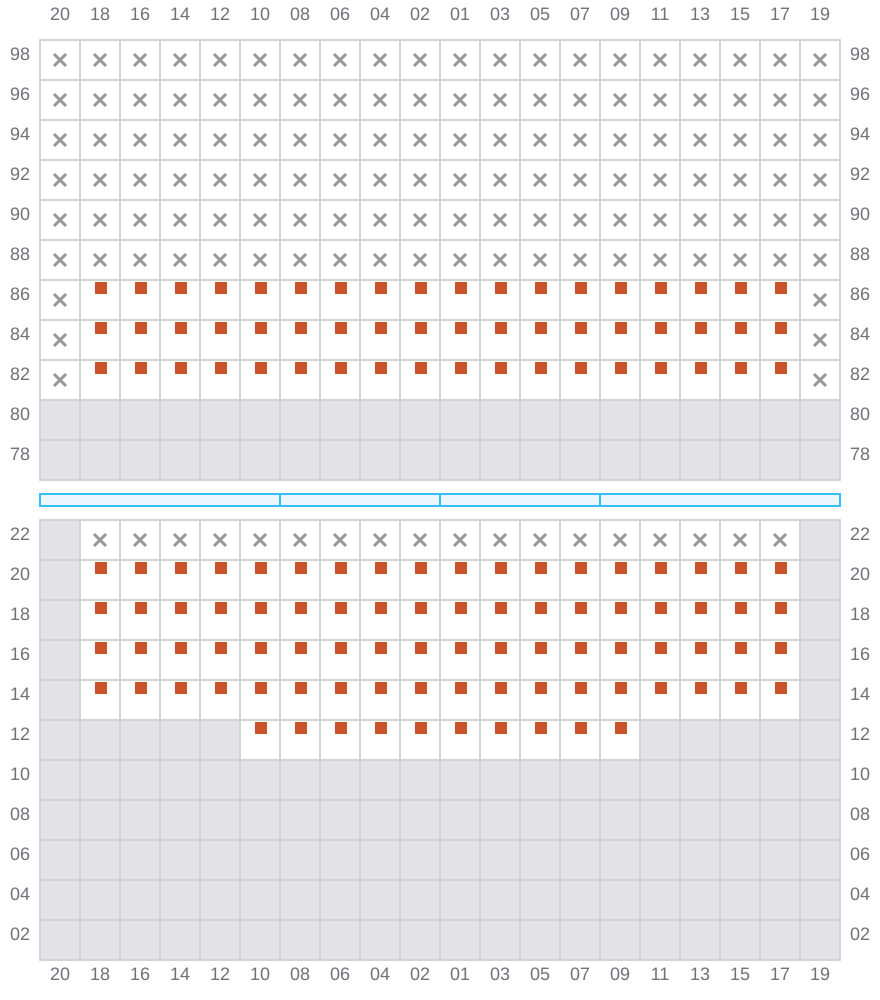

081

  • →
  • →
Bay 081 view and slots of ONE BLUE JAY

083 (082)

  • ←
  • → / ?
  • →

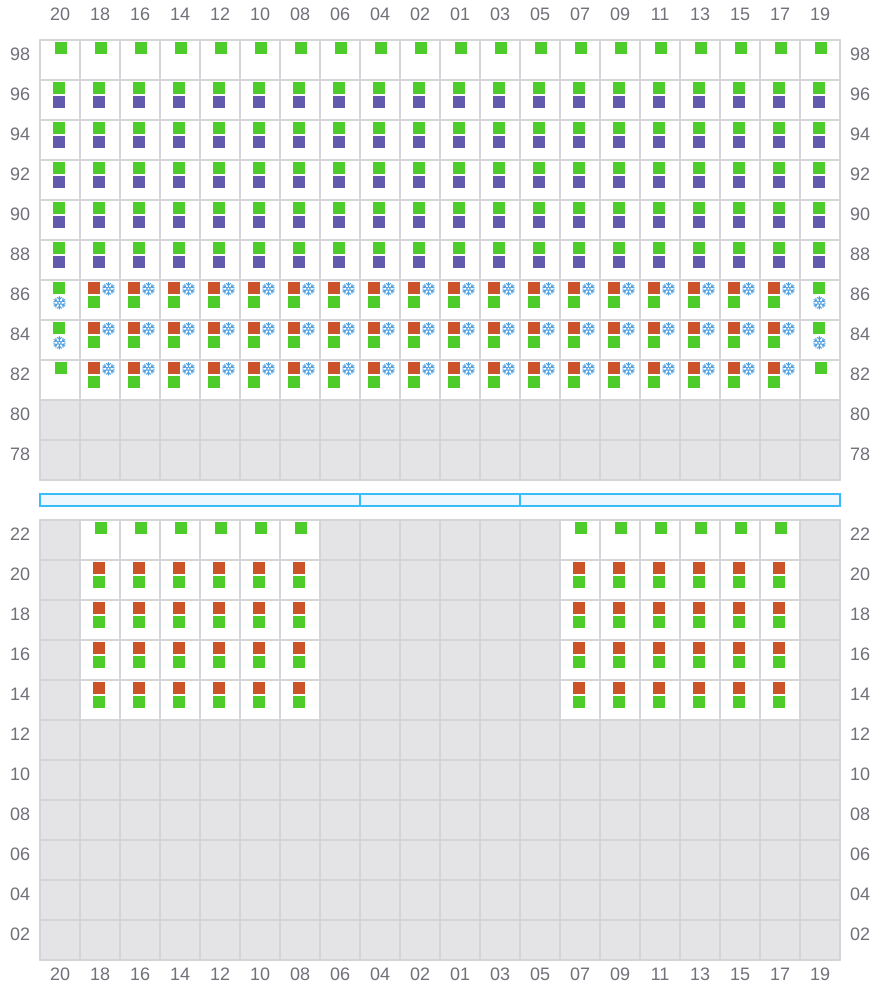

Bay 083 view and slots of ONE BLUE JAY

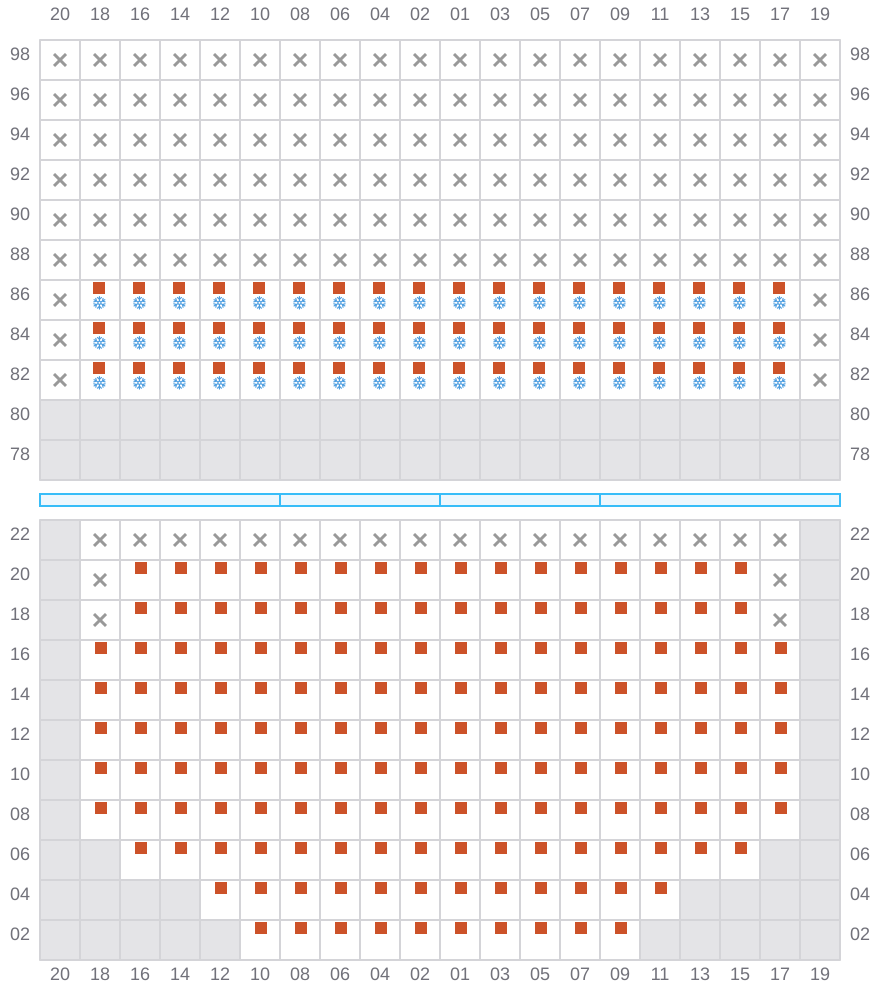

085 (086)

  • → / ?
  • ← / ?
  • → / ?

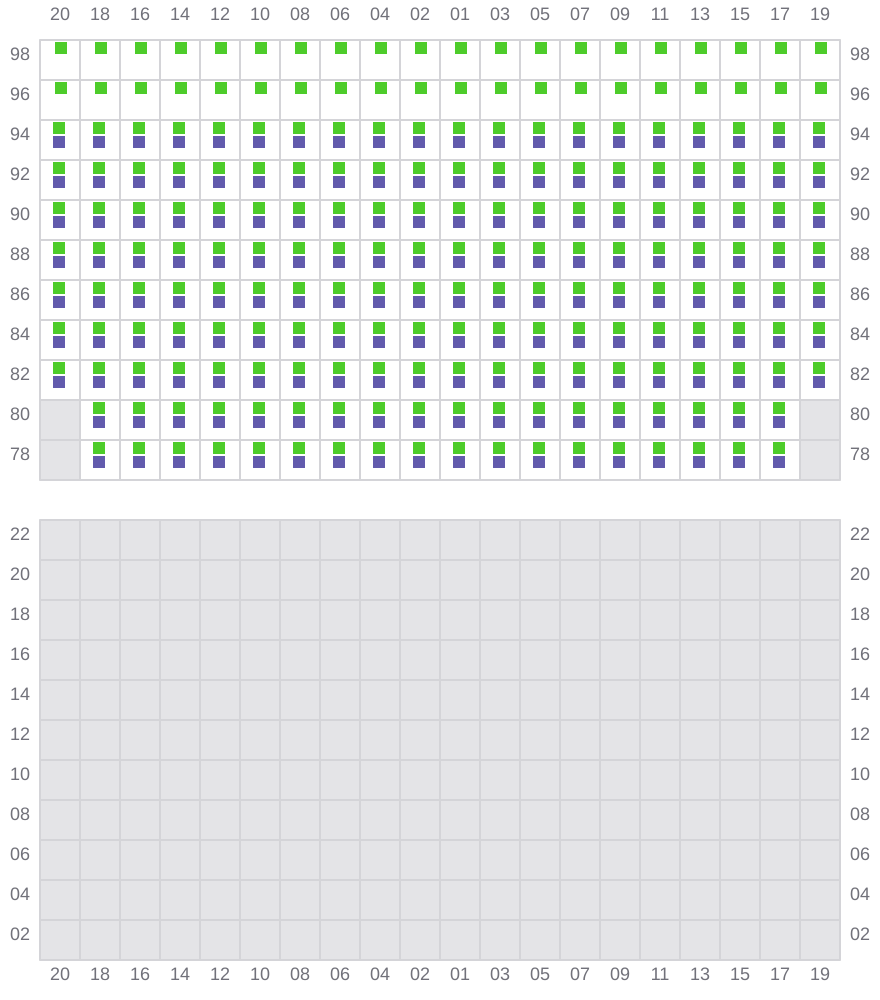

Bay 085 view and slots of ONE BLUE JAY
