ONE CYGNUS
9806081 | 7KEP | ONE by *********************** Last update: Tue Feb 11 2025

General Info

Ship Name:ONE CYGNUS
IMO Code:9806081
Call Sign:7KEP
Line Operator:ONE
Class Name for Sister Ships:OCYG
Year Built:2019
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):349.20
LOA (Length Overall):364.15
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:78
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,052

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of ONE CYGNUS

Hatch-Covers View

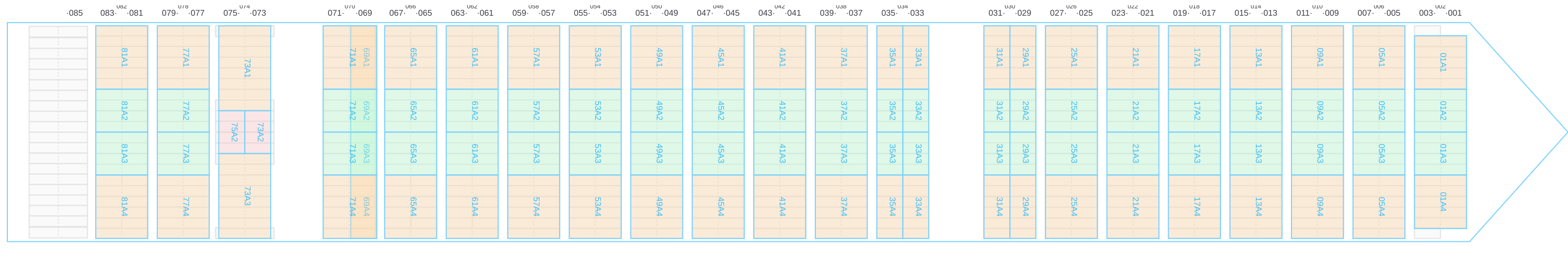

Deck view of ONE CYGNUS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • →

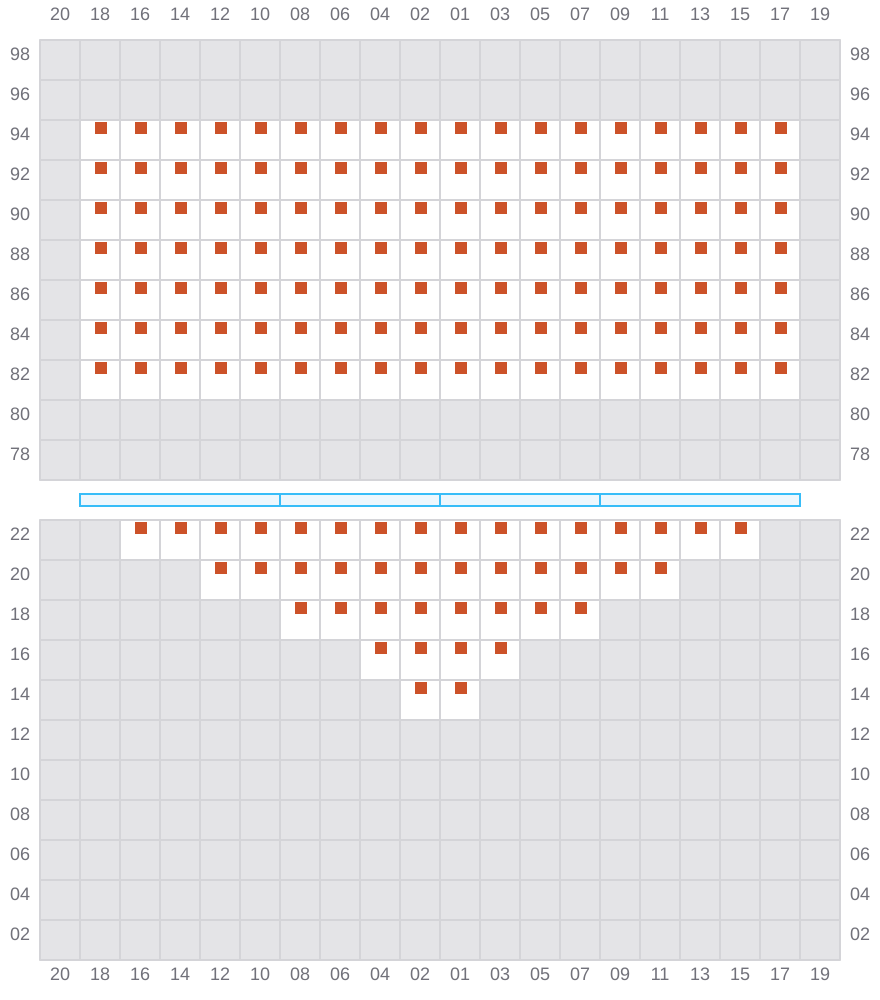

Bay 001 view and slots of ONE CYGNUS

003 (002)

  • ←
  • →

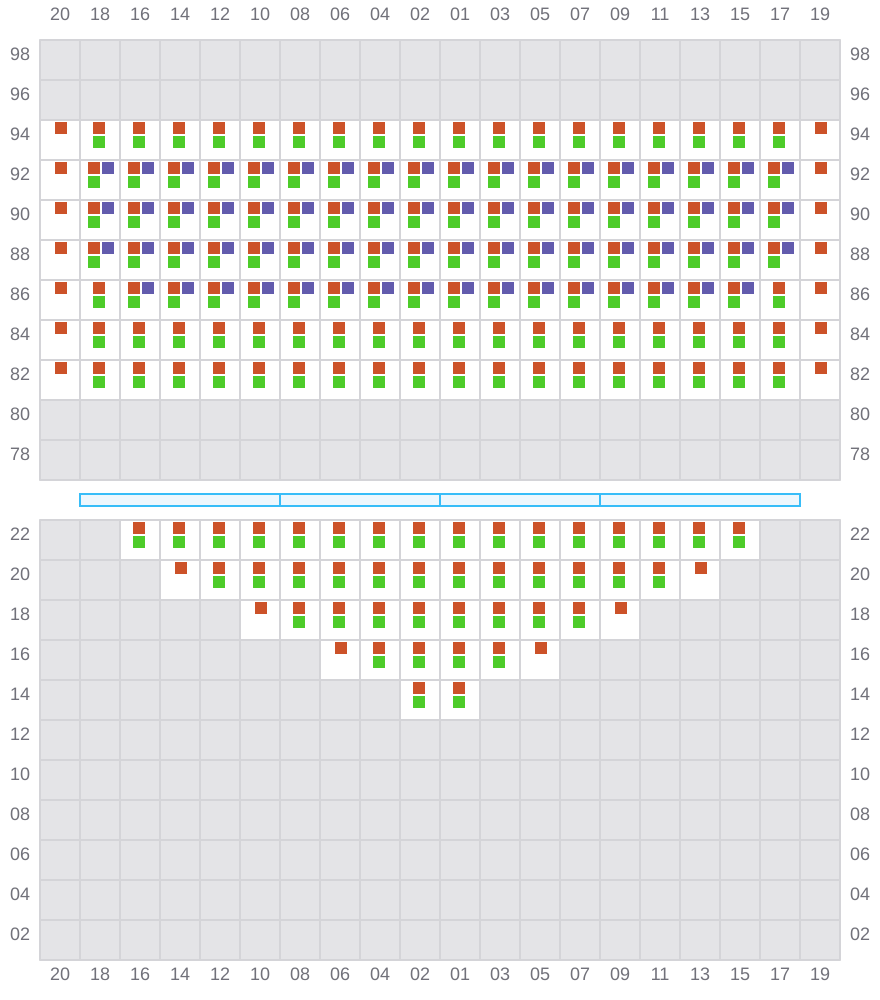

Bay 003 view and slots of ONE CYGNUS

005

  • →
  • →

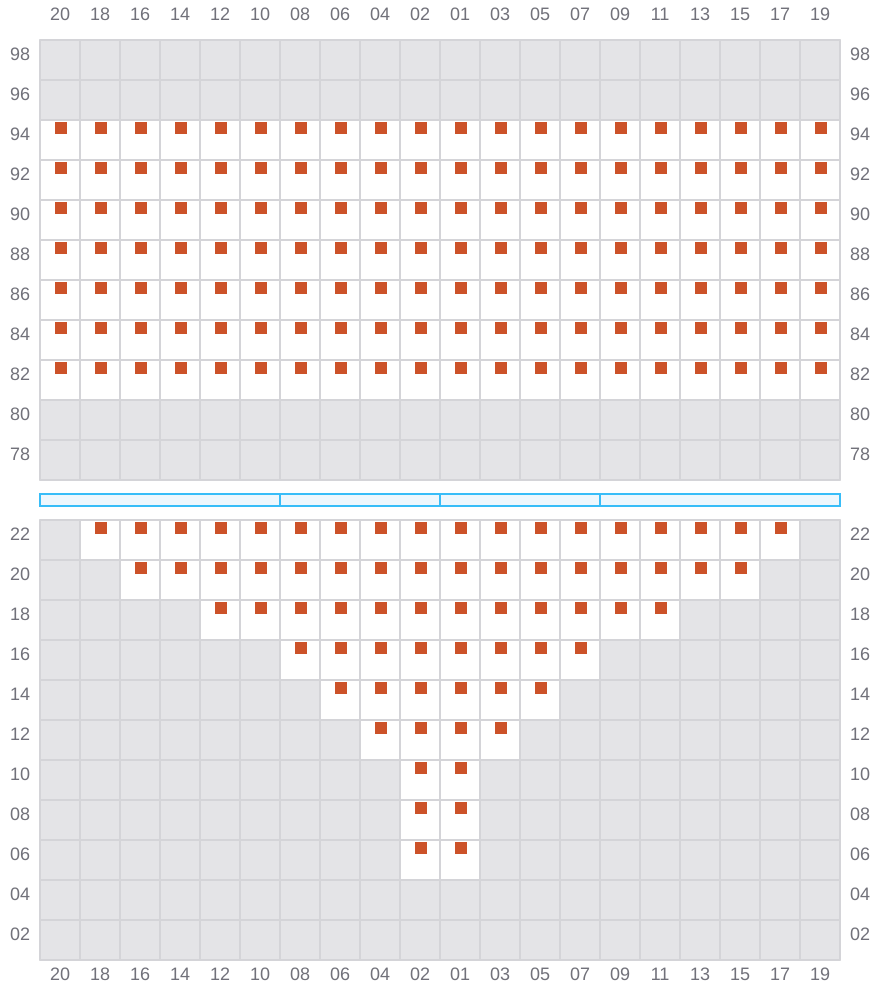

Bay 005 view and slots of ONE CYGNUS

007 (006)

  • ←
  • →

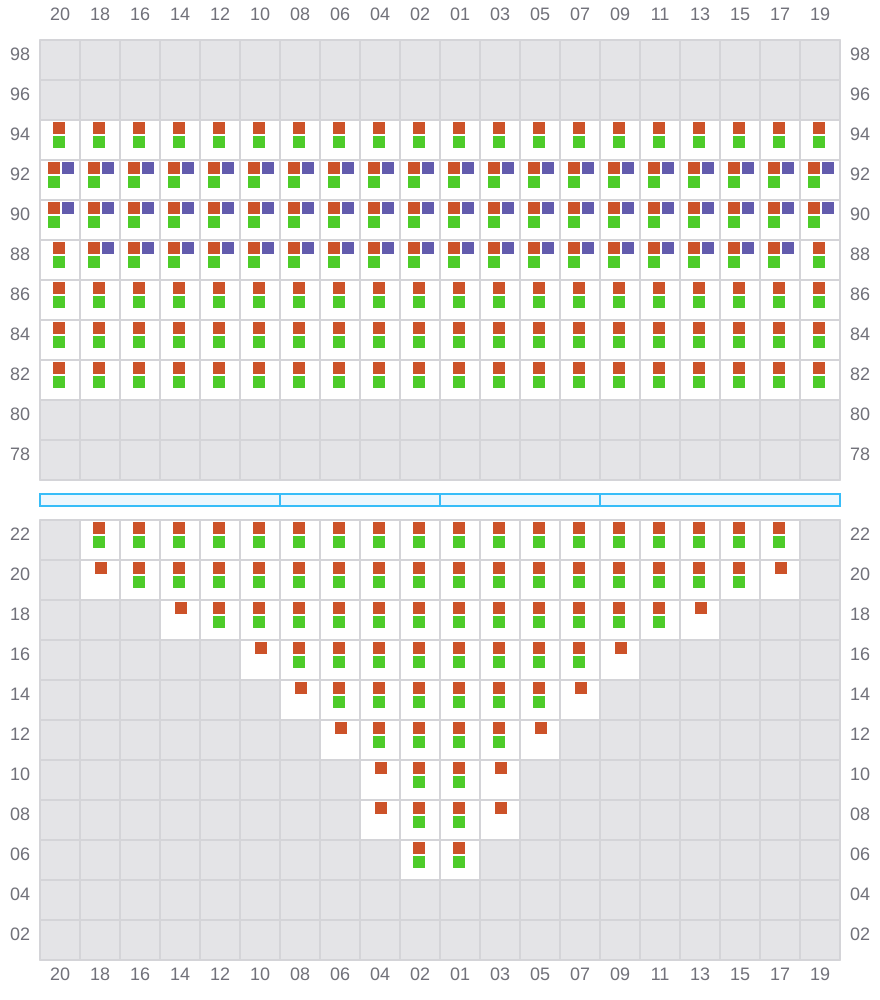

Bay 007 view and slots of ONE CYGNUS

009

  • →
  • →

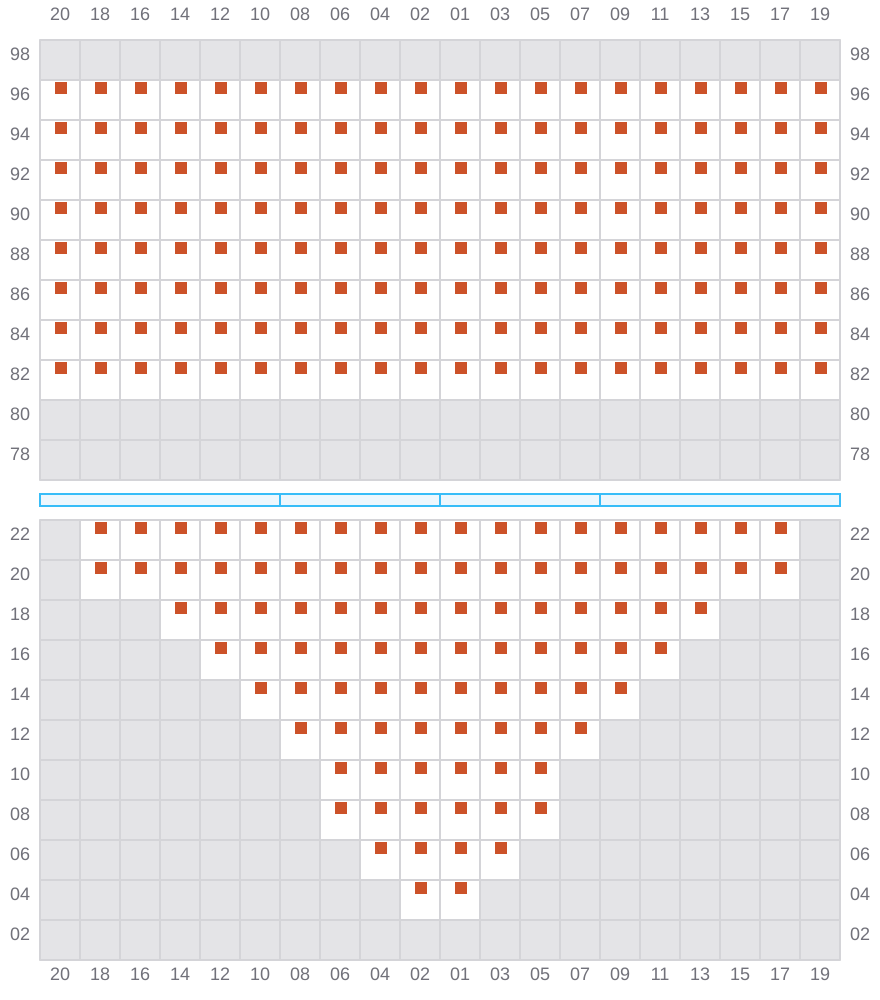

Bay 009 view and slots of ONE CYGNUS

011 (010)

  • ←
  • →

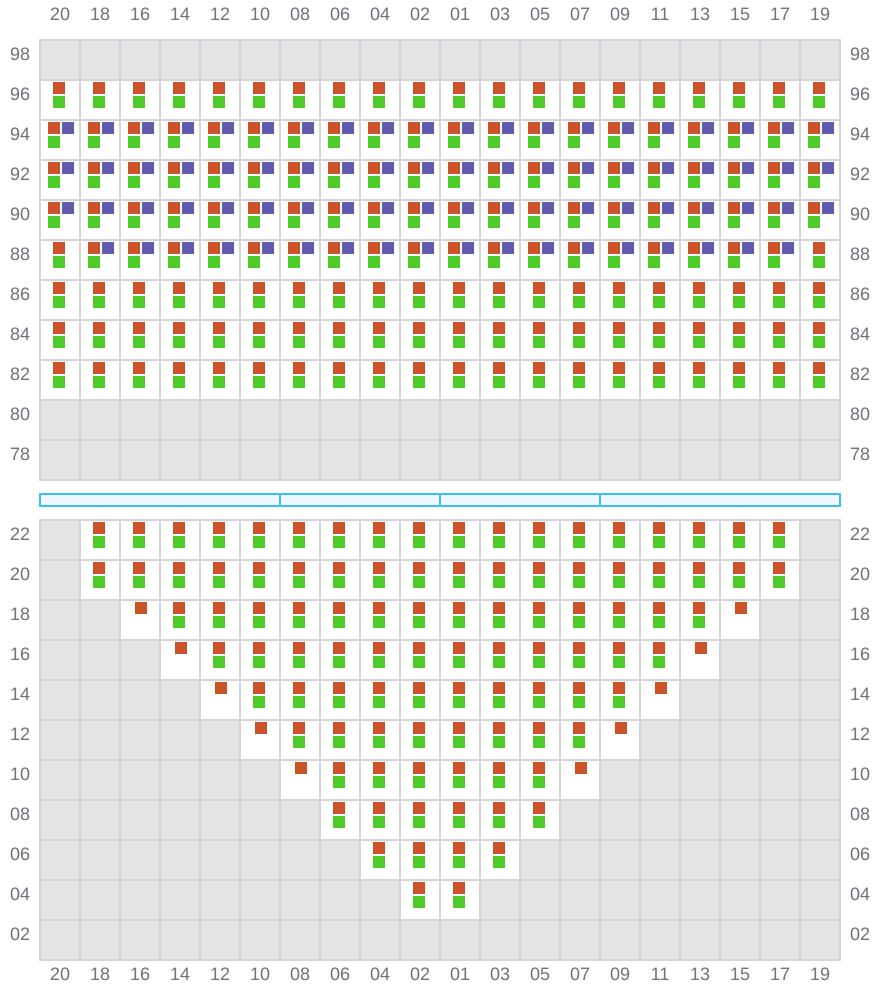

Bay 011 view and slots of ONE CYGNUS

013

  • →
  • →

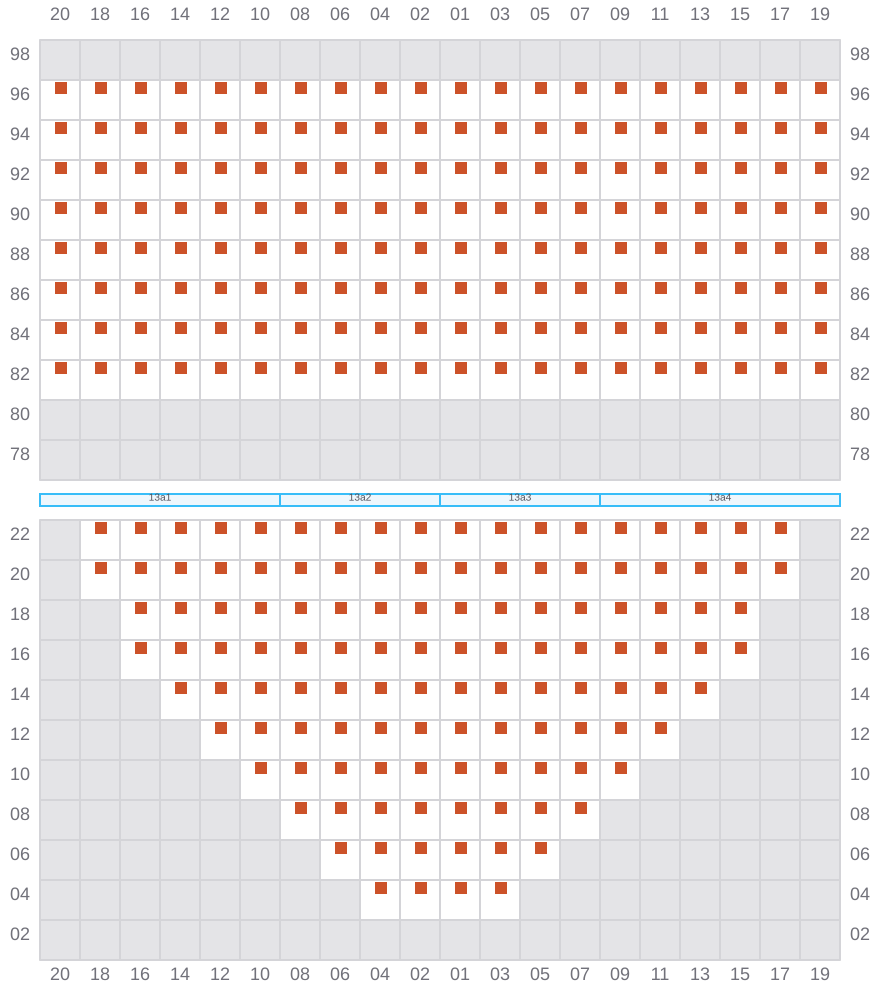

Bay 013 view and slots of ONE CYGNUS

015 (014)

  • ←
  • → / ?
  • →

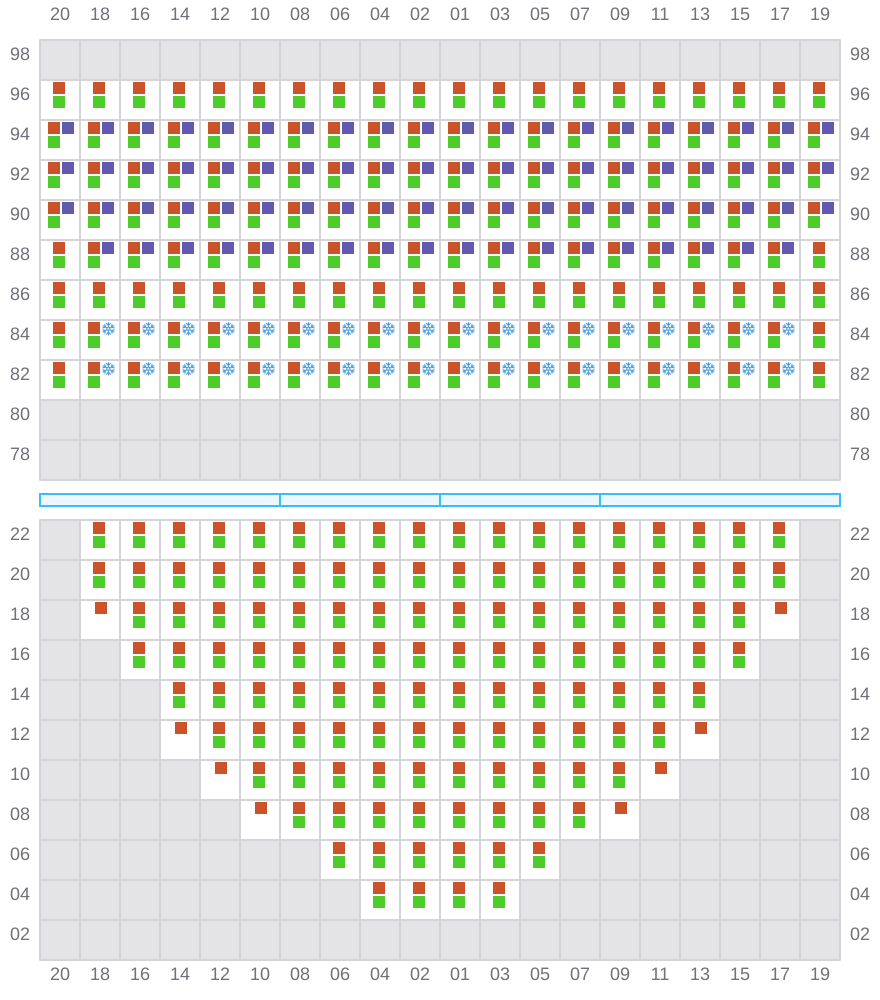

Bay 015 view and slots of ONE CYGNUS

017

  • →
  • ← / ?
  • →

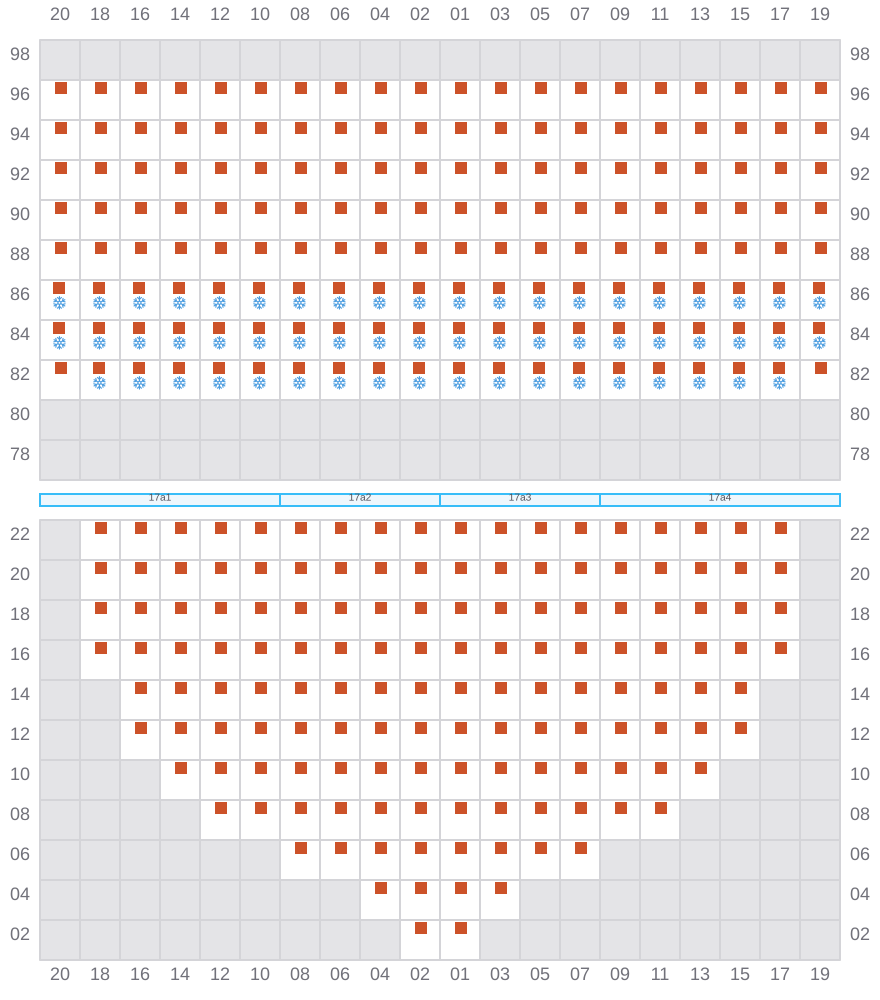

Bay 017 view and slots of ONE CYGNUS

019 (018)

  • ←
  • ← / ?
  • →

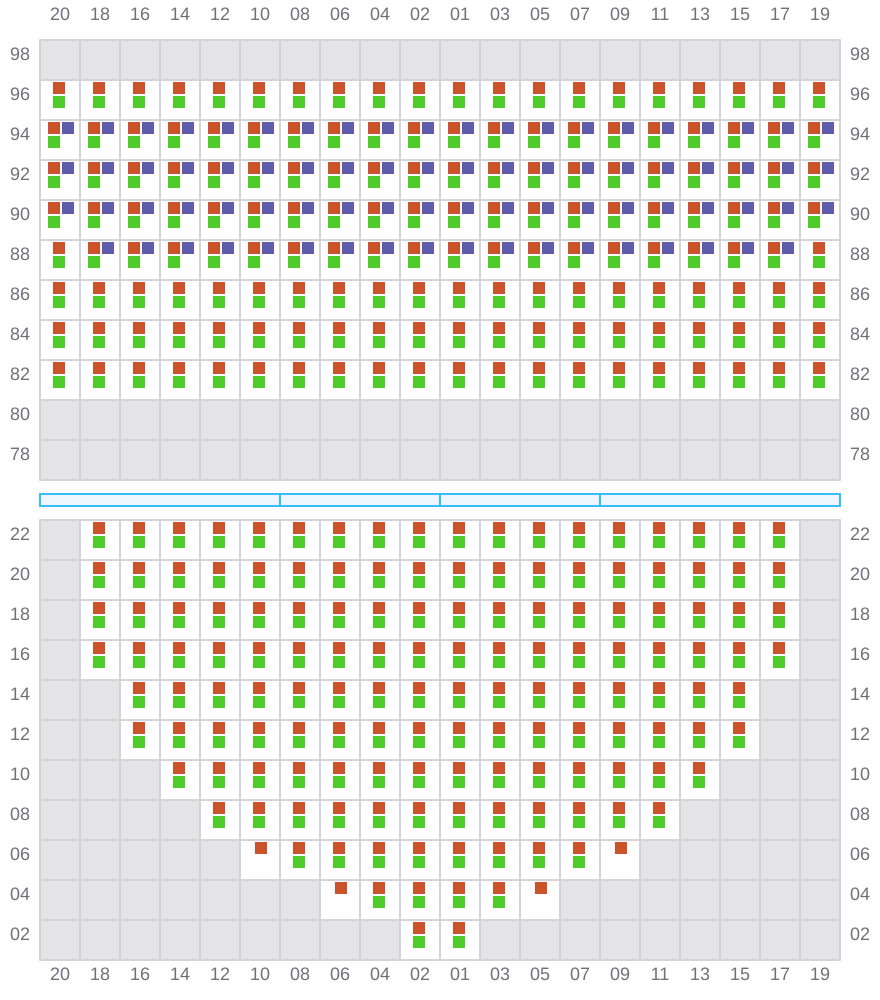

Bay 019 view and slots of ONE CYGNUS

021

  • →
  • →

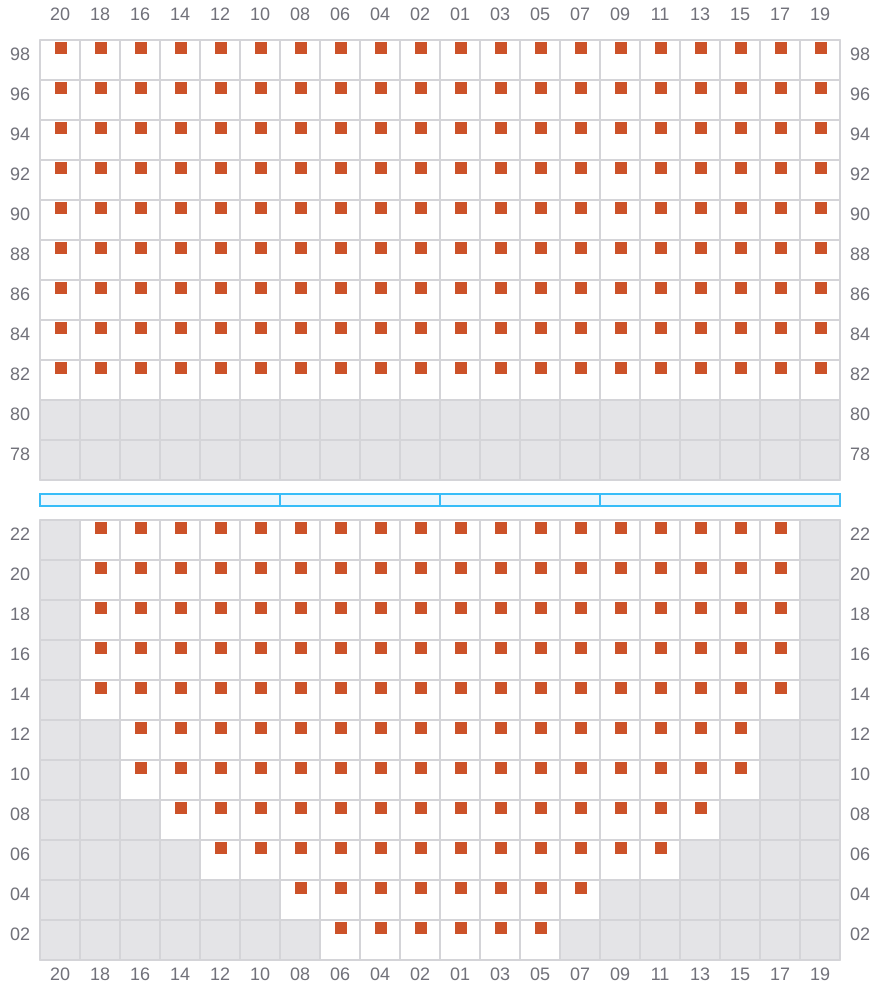

Bay 021 view and slots of ONE CYGNUS

023 (022)

  • ←
  • → / ?
  • →

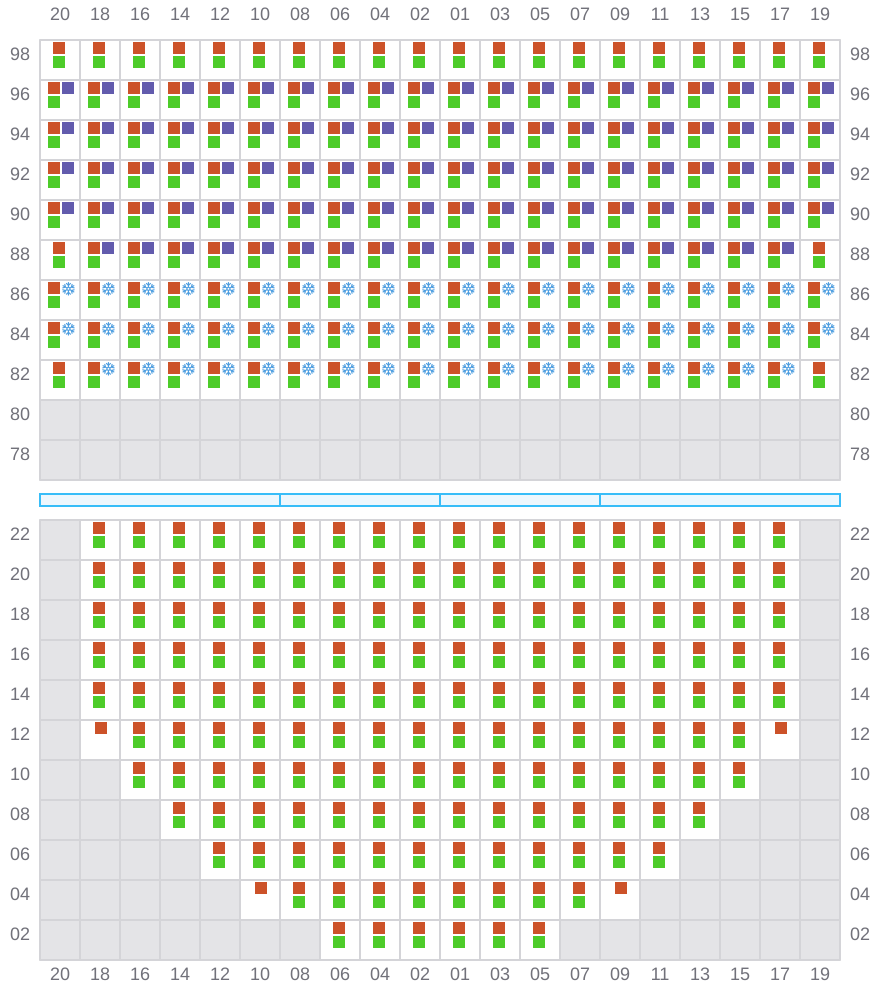

Bay 023 view and slots of ONE CYGNUS

025

  • →
  • ← / ?
  • →
Bay 025 view and slots of ONE CYGNUS

027 (026)

  • ←
  • ← / ?
  • →

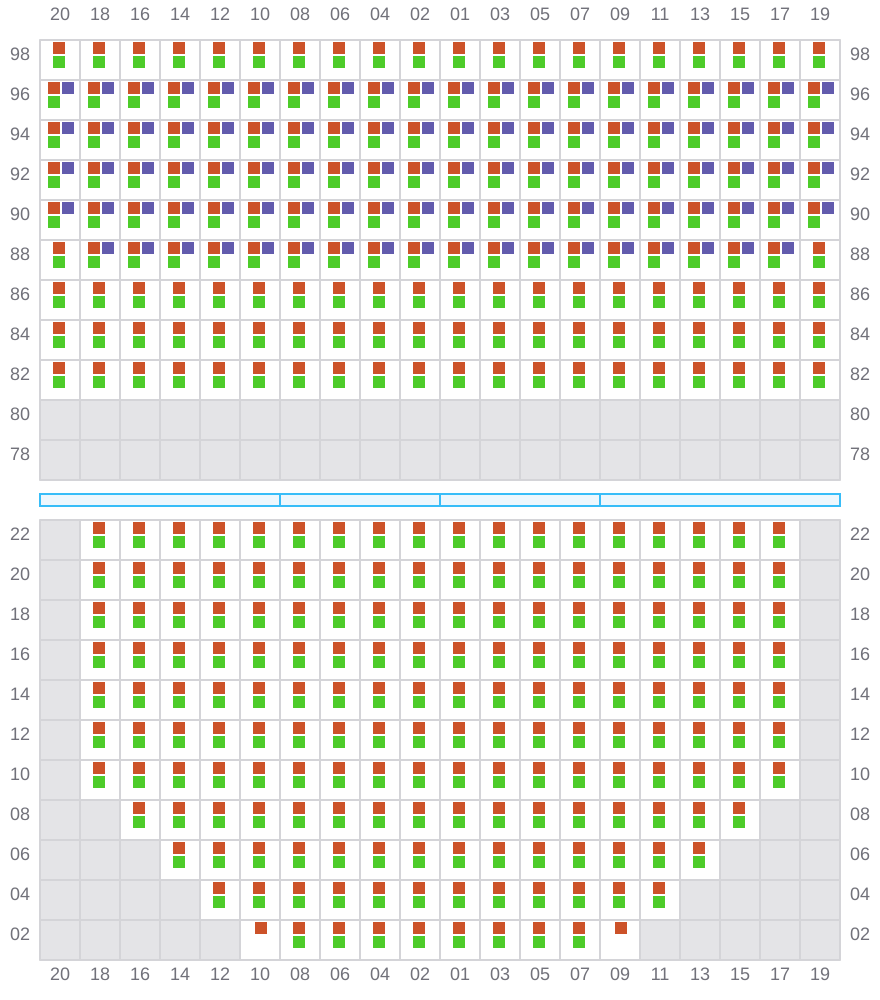

Bay 027 view and slots of ONE CYGNUS

029

  • →
  • → / ?
  • →
Bay 029 view and slots of ONE CYGNUS

031 (030)

  • ←
  • → / ?
  • →
Bay 031 view and slots of ONE CYGNUS

033

  • →
  • ← / ?
  • →
Bay 033 view and slots of ONE CYGNUS

035 (034)

  • ←
  • ← / ?
  • →

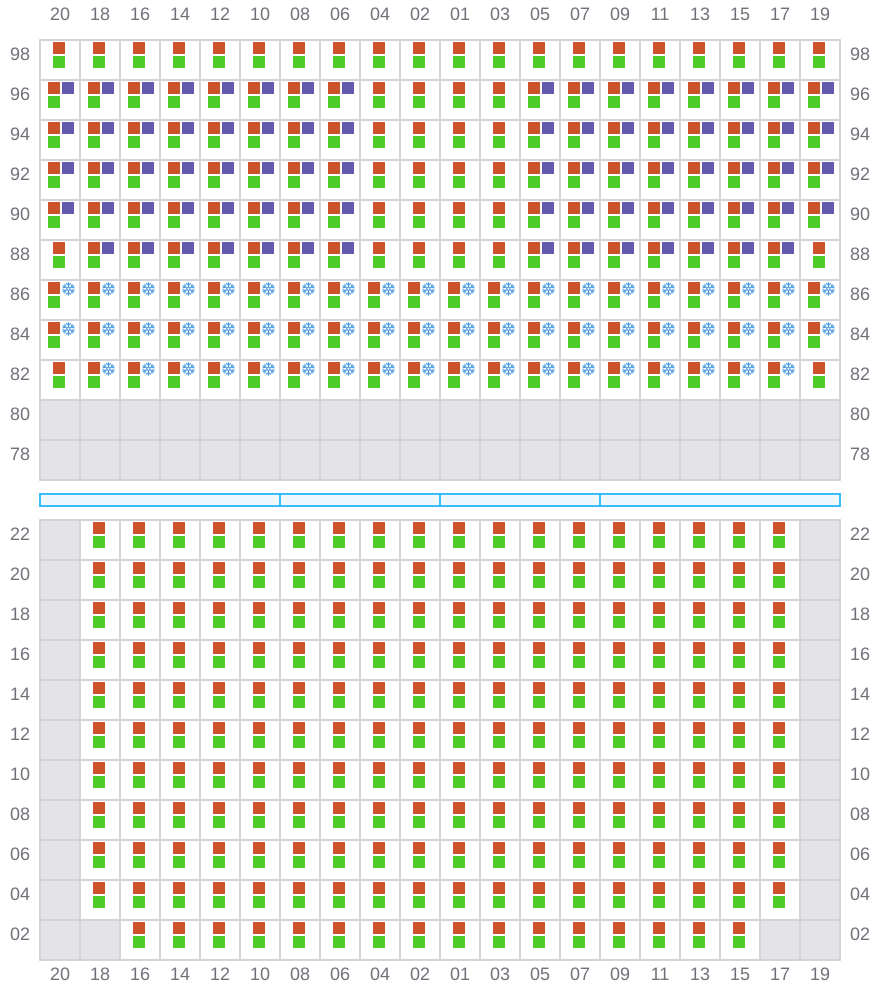

Bay 035 view and slots of ONE CYGNUS

037

  • →
  • →
Bay 037 view and slots of ONE CYGNUS

039 (038)

  • ←
  • → / ?
  • →

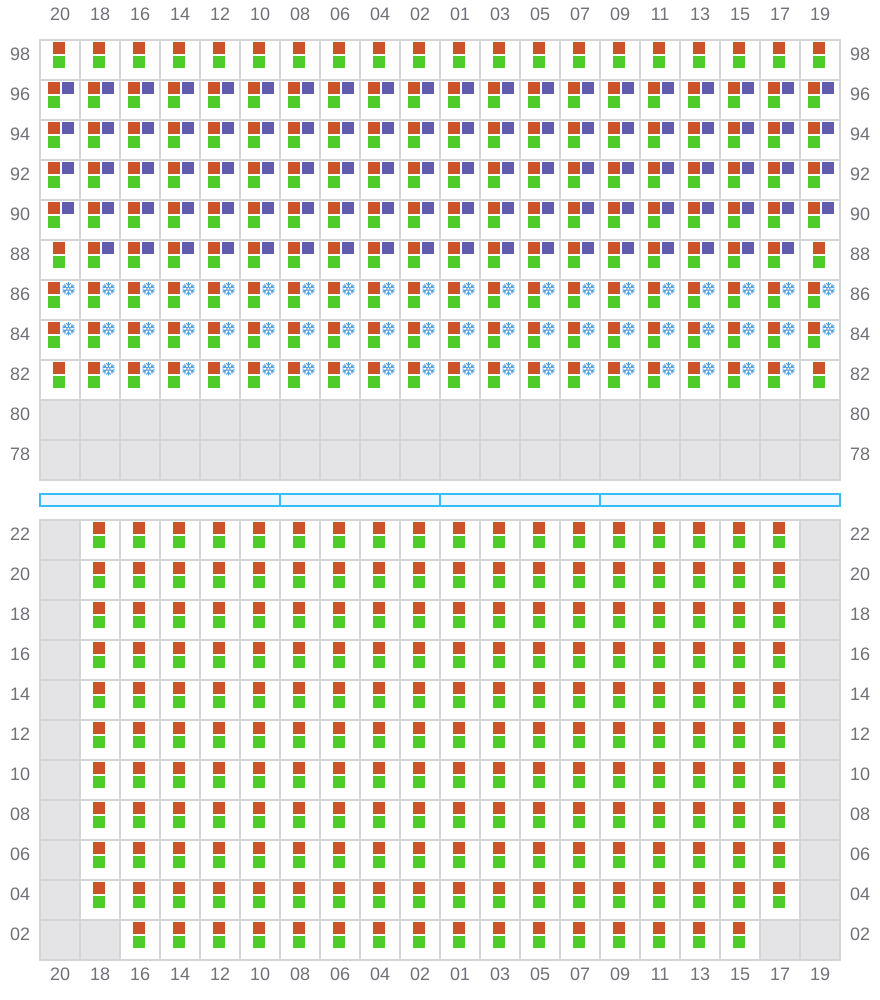

Bay 039 view and slots of ONE CYGNUS

041

  • →
  • ← / ?
  • →
Bay 041 view and slots of ONE CYGNUS

043 (042)

  • ←
  • ← / ?
  • →
Bay 043 view and slots of ONE CYGNUS

045

  • →
  • →
Bay 045 view and slots of ONE CYGNUS

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of ONE CYGNUS

049

  • →
  • ← / ?
  • →
Bay 049 view and slots of ONE CYGNUS

051 (050)

  • ←
  • ← / ?
  • →
Bay 051 view and slots of ONE CYGNUS

053

  • →
  • →
Bay 053 view and slots of ONE CYGNUS

055 (054)

  • ←
  • → / ?
  • →
Bay 055 view and slots of ONE CYGNUS

057

  • →
  • ← / ?
  • →
Bay 057 view and slots of ONE CYGNUS

059 (058)

  • ←
  • ← / →
  • →
Bay 059 view and slots of ONE CYGNUS

061

  • →
  • →

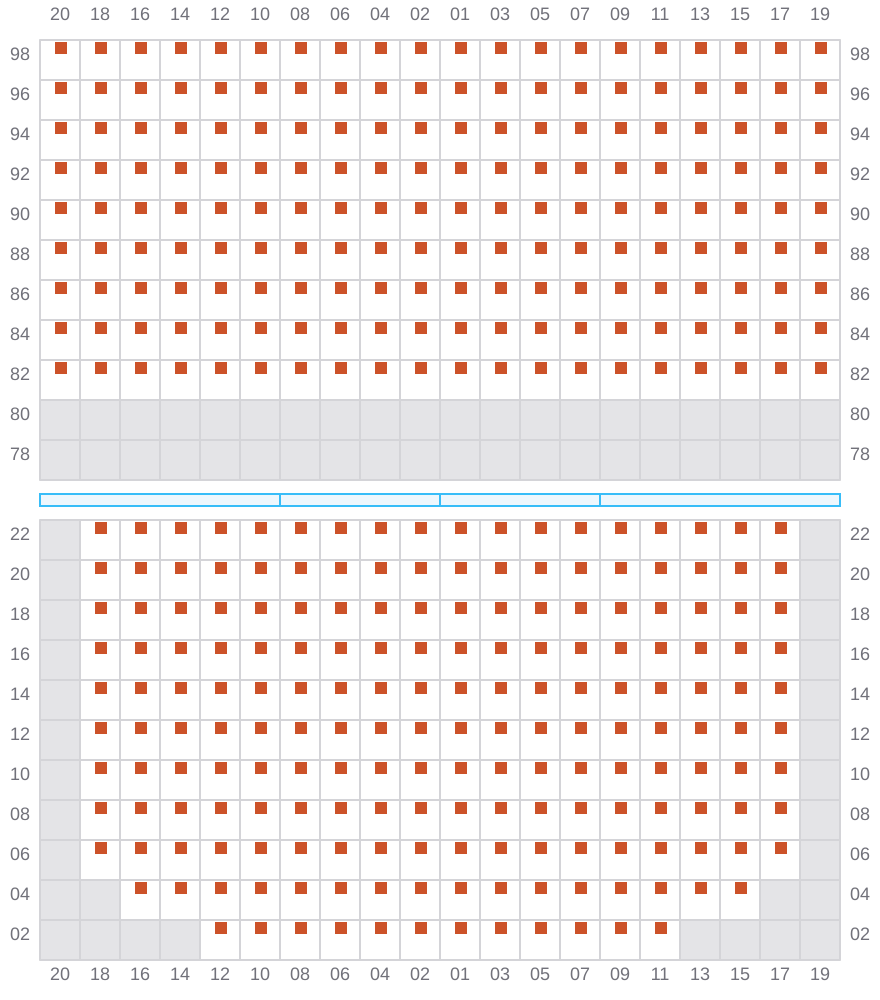

Bay 061 view and slots of ONE CYGNUS

063 (062)

  • ←
  • → / ?
  • →
Bay 063 view and slots of ONE CYGNUS

065

  • →
  • ← / ?
  • →

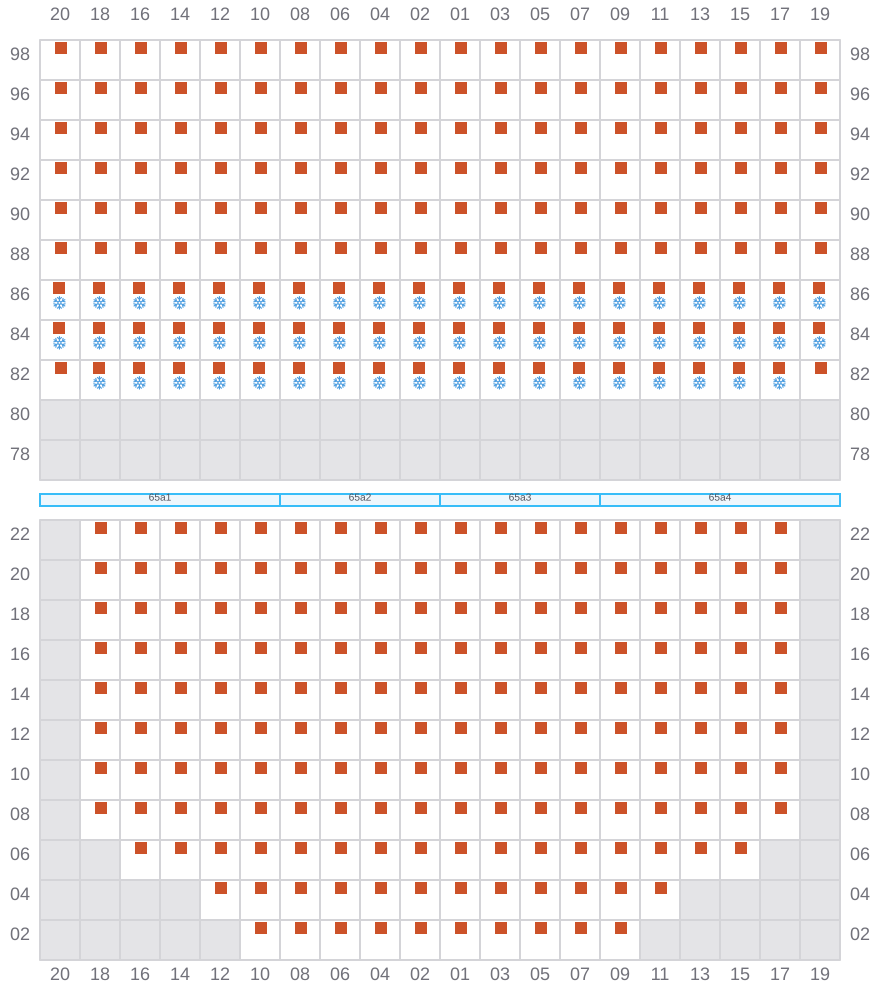

Bay 065 view and slots of ONE CYGNUS

067 (066)

  • ←
  • ← / →
  • →

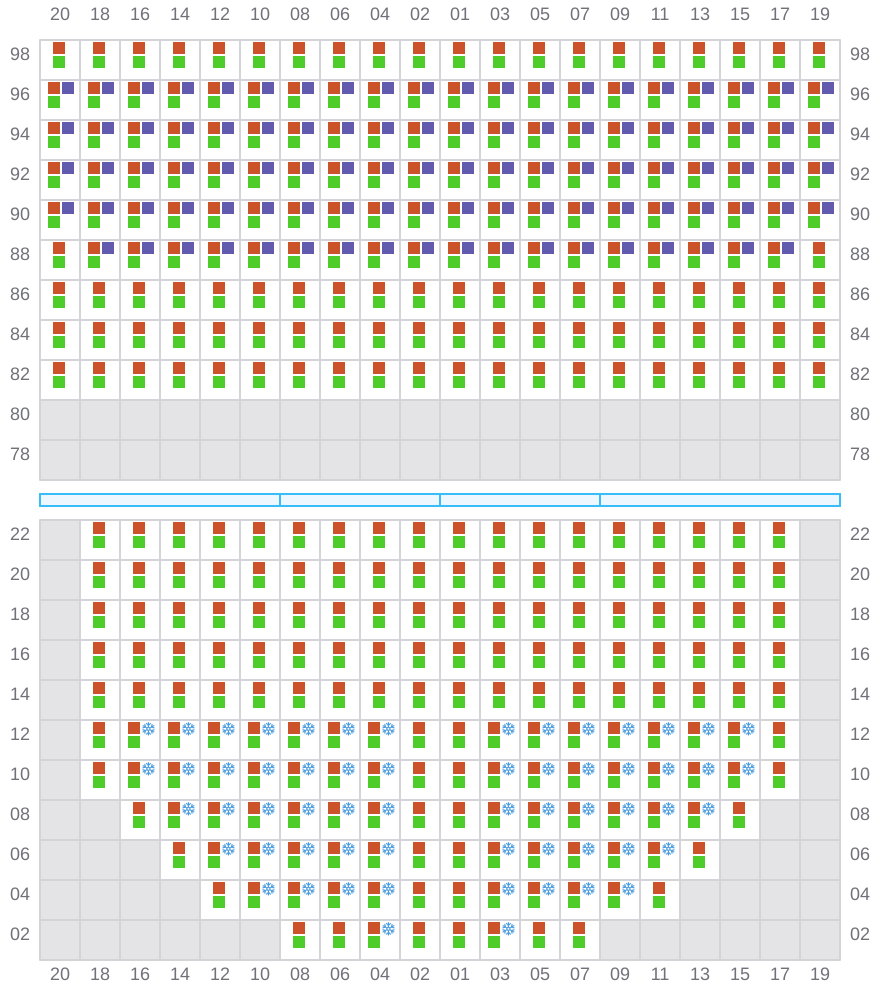

Bay 067 view and slots of ONE CYGNUS

069

  • →
  • → / ?
  • →

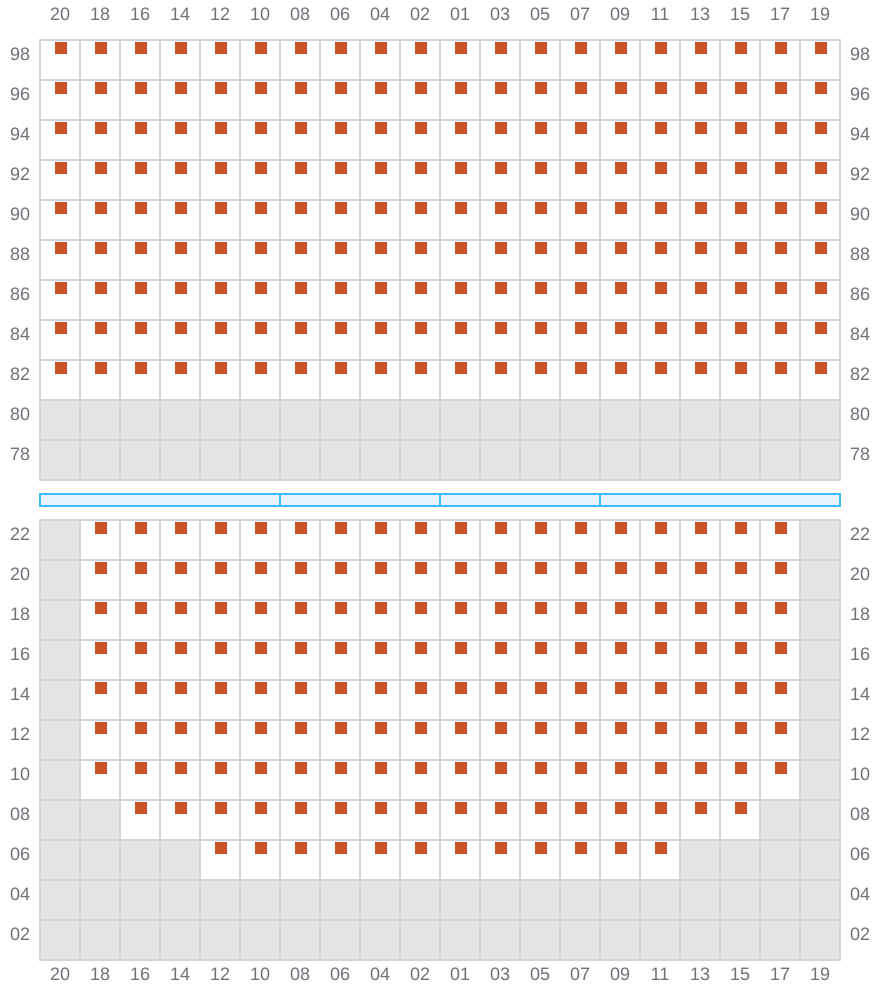

Bay 069 view and slots of ONE CYGNUS

071 (070)

  • ←
  • → / ?
  • →

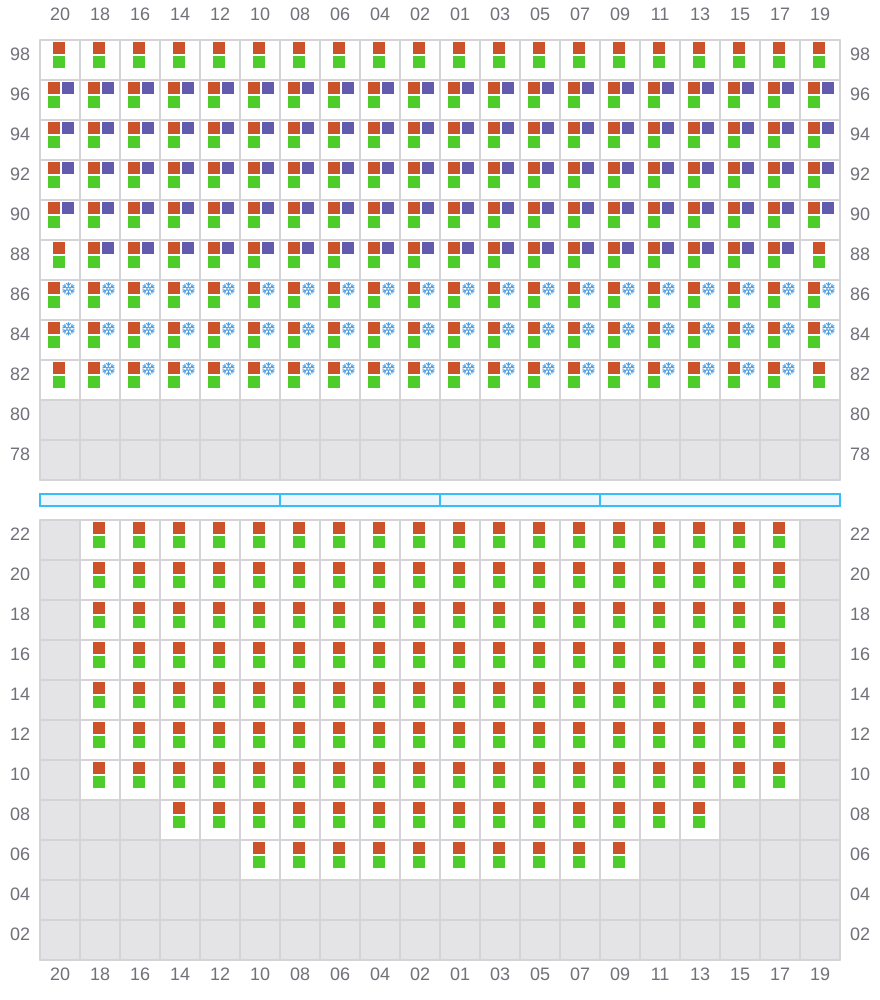

Bay 071 view and slots of ONE CYGNUS

073

  • →
  • →

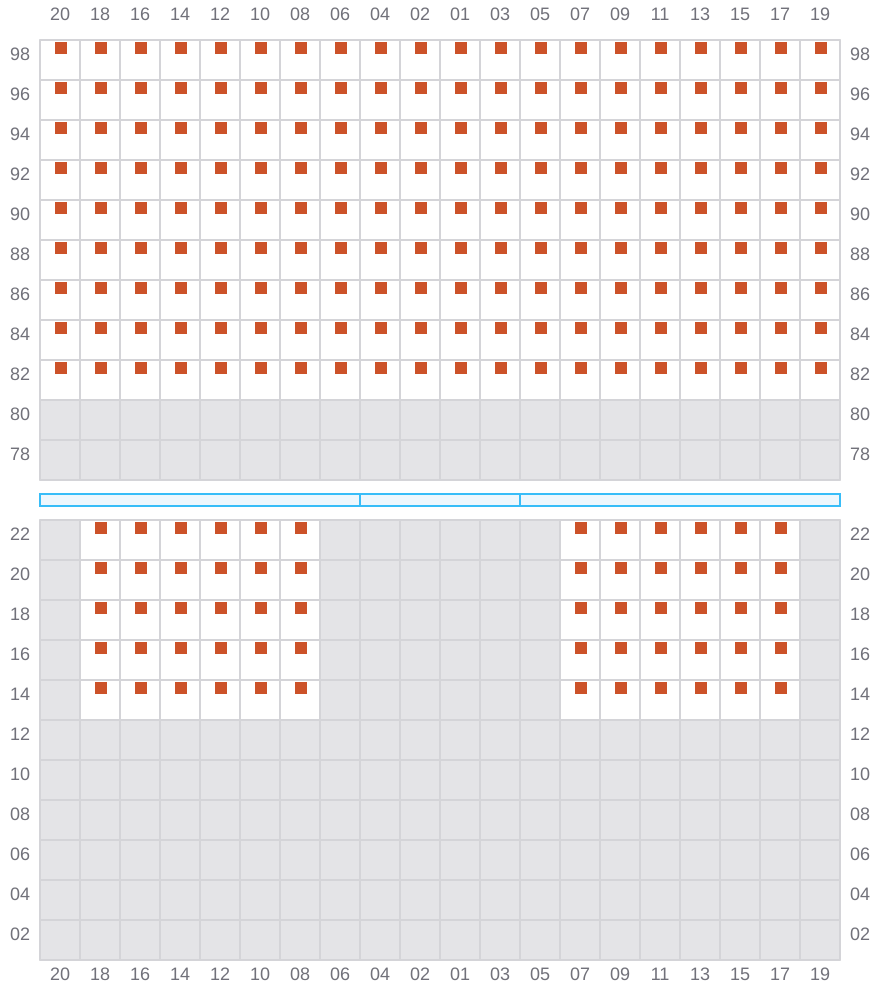

Bay 073 view and slots of ONE CYGNUS

075 (074)

  • ←
  • → / ?
  • →

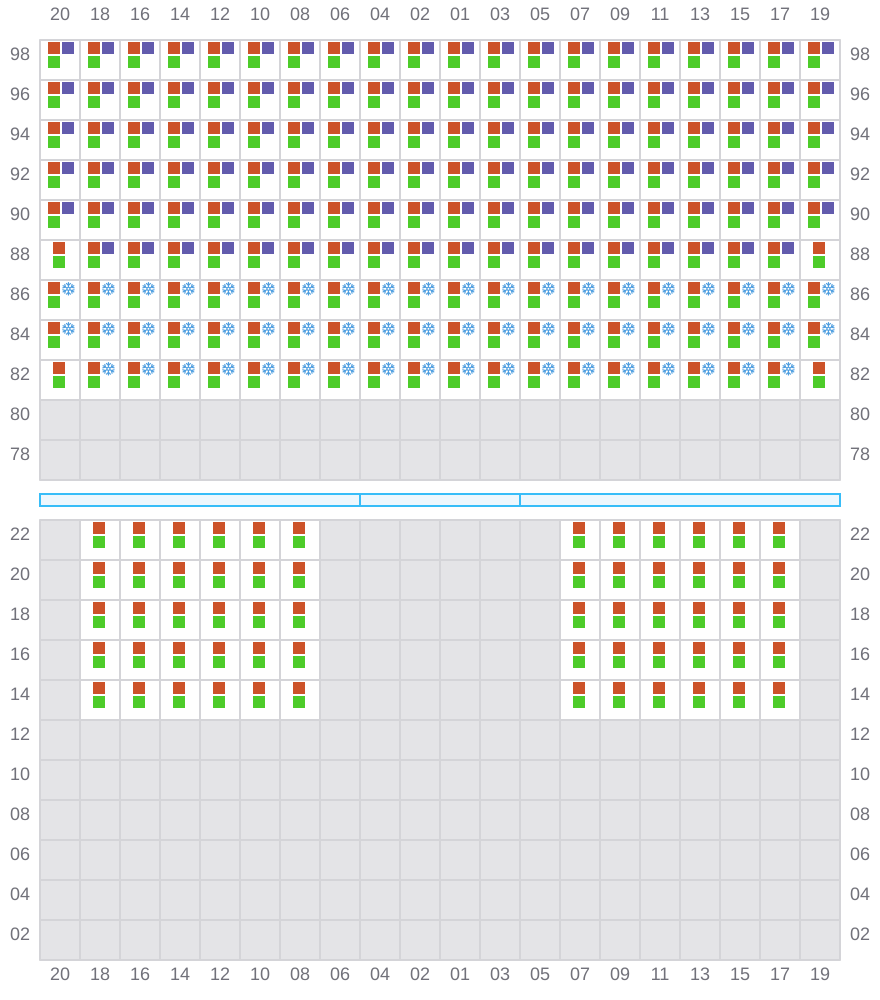

Bay 075 view and slots of ONE CYGNUS

077

  • →
  • ← / ?
  • →

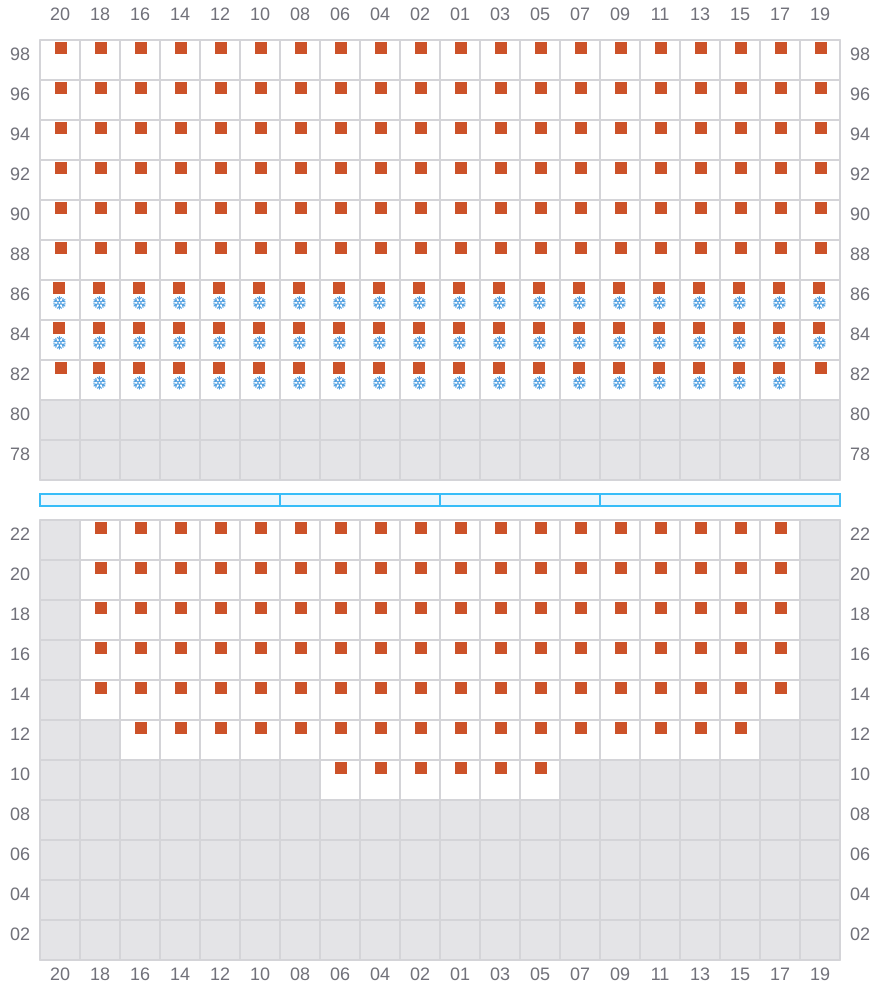

Bay 077 view and slots of ONE CYGNUS

079 (078)

  • ←
  • ← / →
  • →

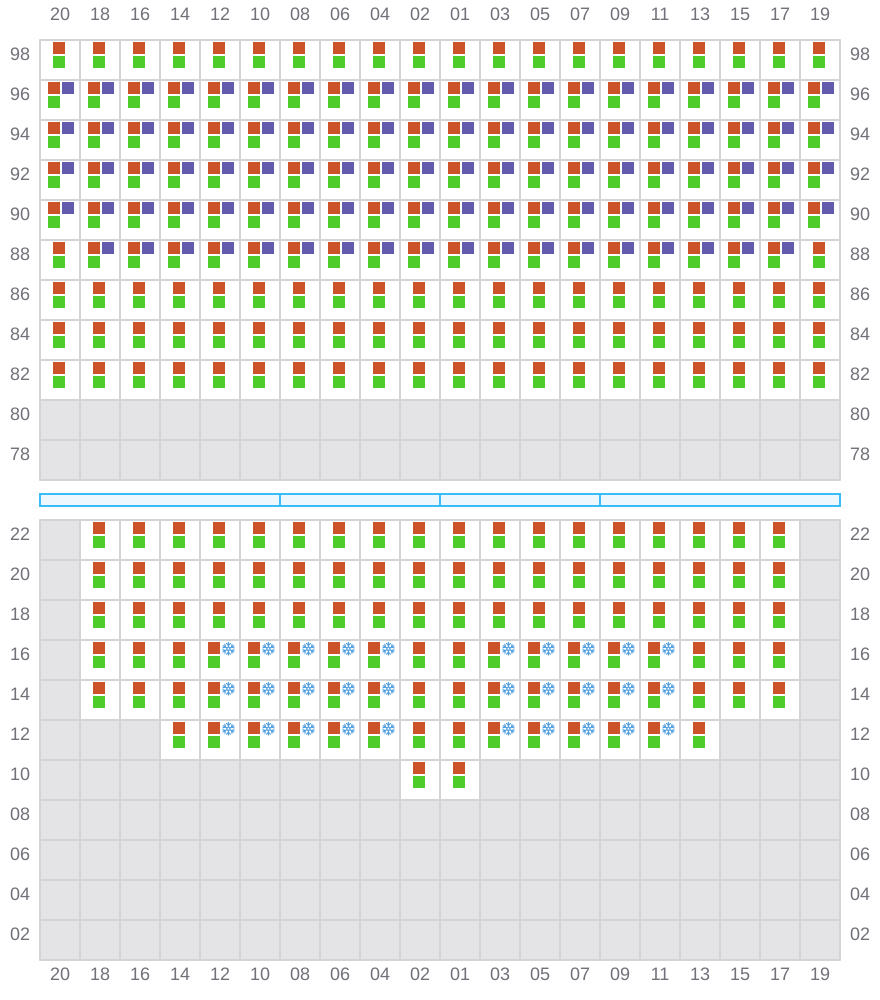

Bay 079 view and slots of ONE CYGNUS

081

  • →
  • →

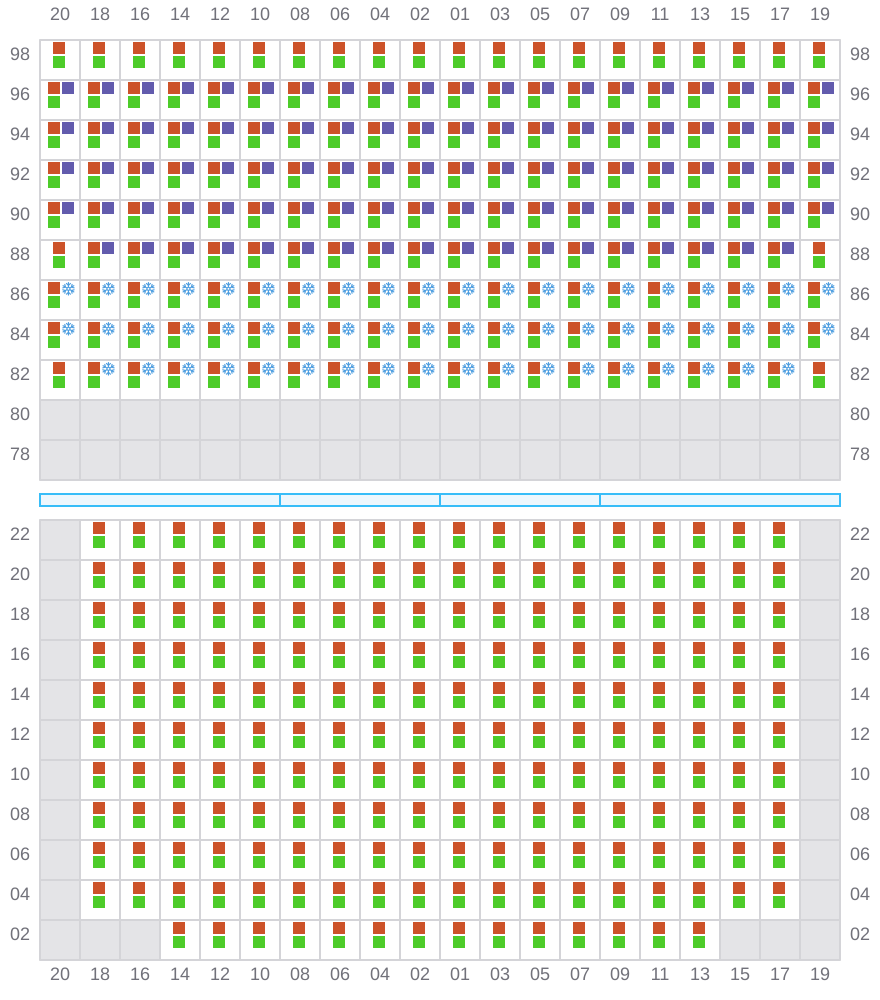

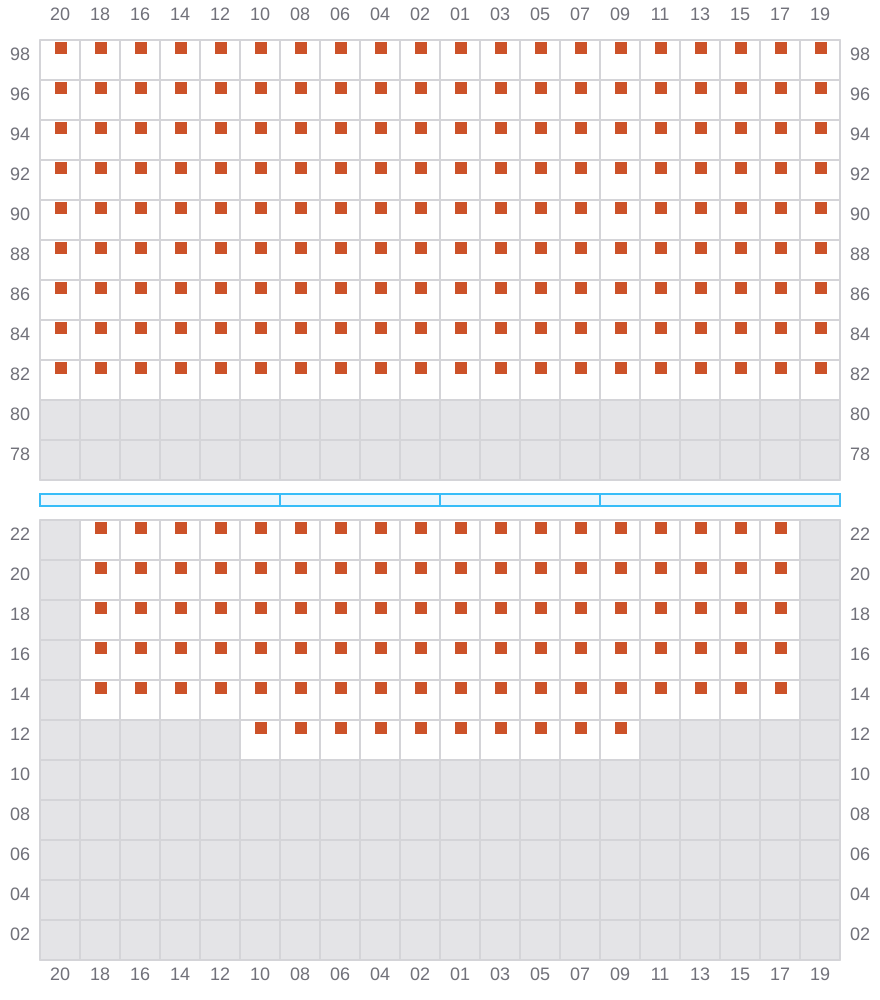

Bay 081 view and slots of ONE CYGNUS

083 (082)

  • ←
  • → / ?
  • →

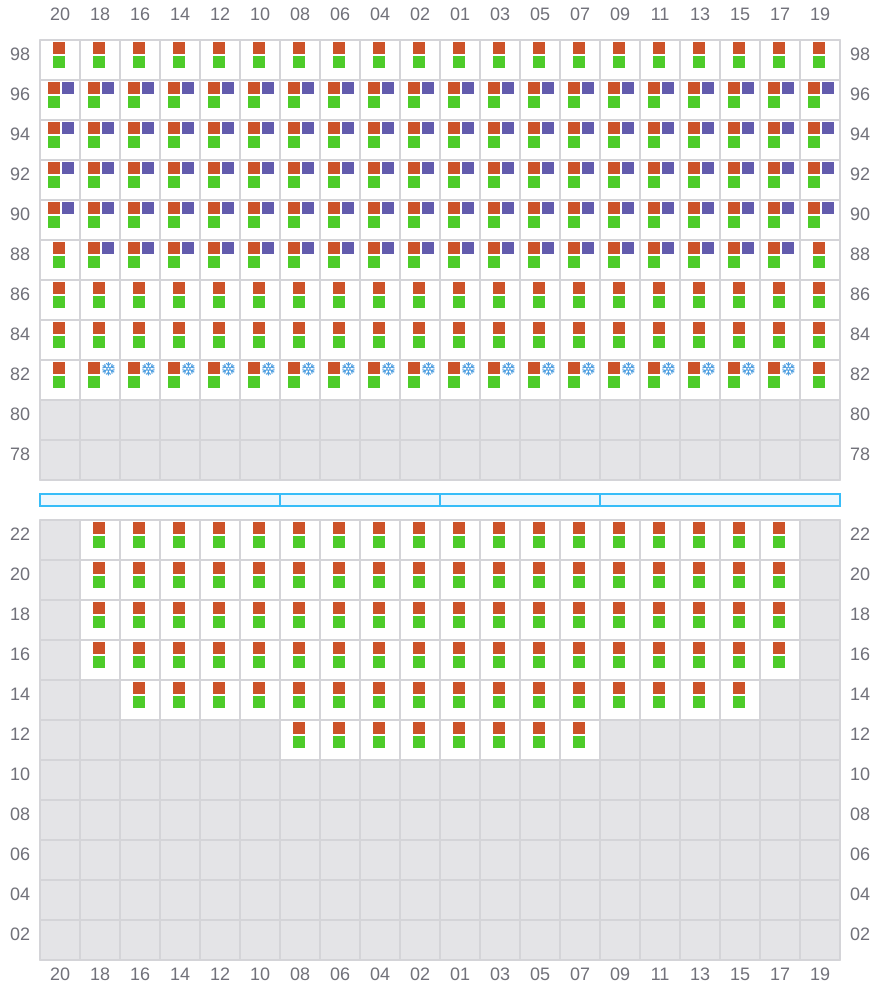

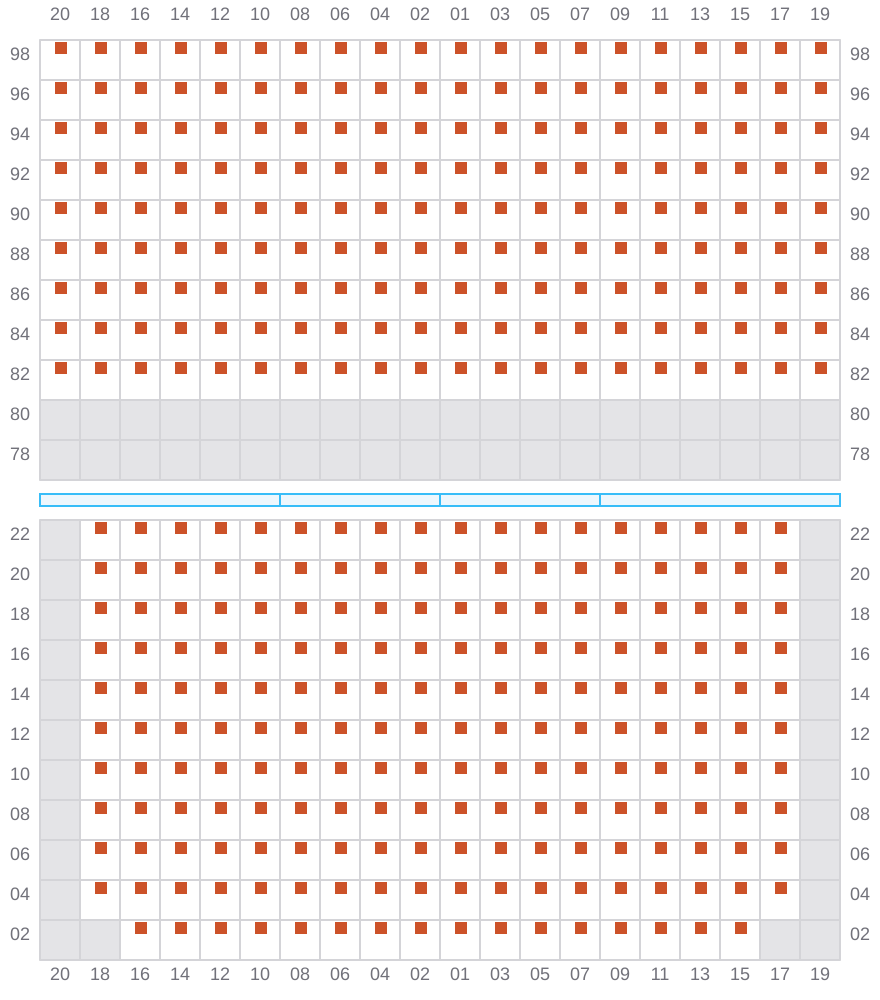

Bay 083 view and slots of ONE CYGNUS

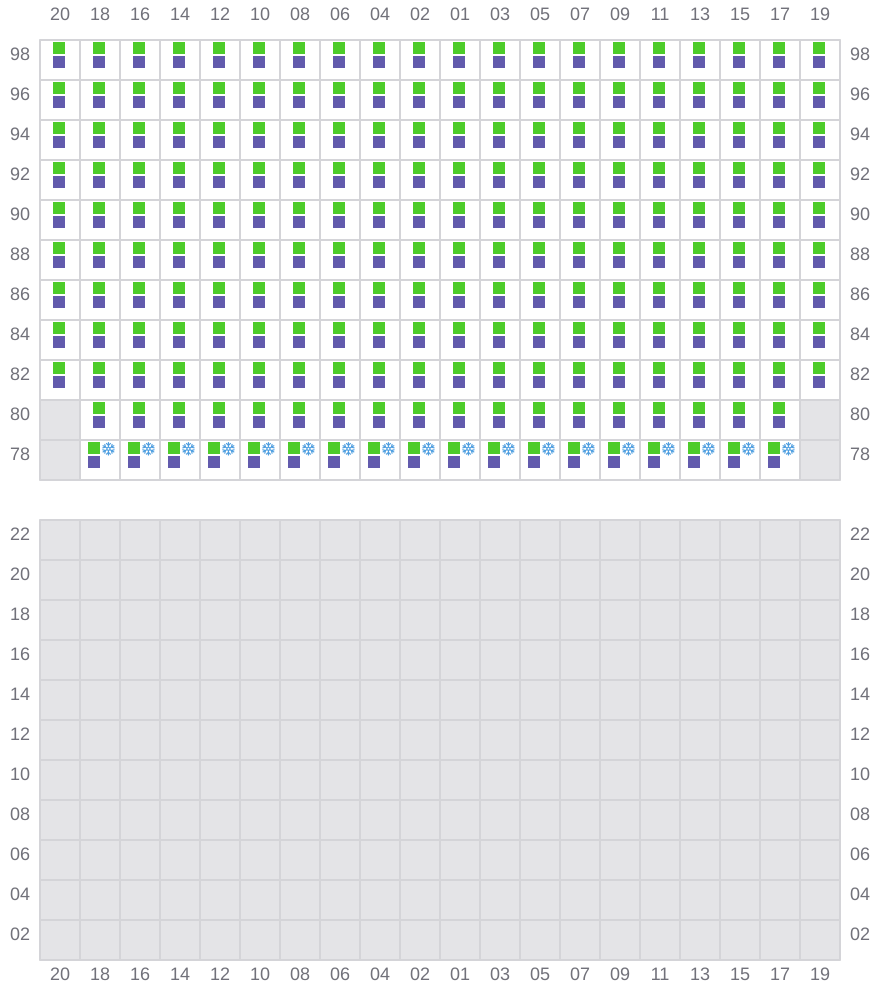

085 (086)

  • → / ?
  • ← / ?
  • → / ?
Bay 085 view and slots of ONE CYGNUS
