ONE IBIS
9741384 | 3EYE | NYK by *********************** Last update: Mon Feb 10 2025

General Info

Ship Name:ONE IBIS
IMO Code:9741384
Call Sign:3EYE
Line Operator:NYK
Class Name for Sister Ships:ONIB
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):349.20
LOA (Length Overall):364.15
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:78
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,026

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

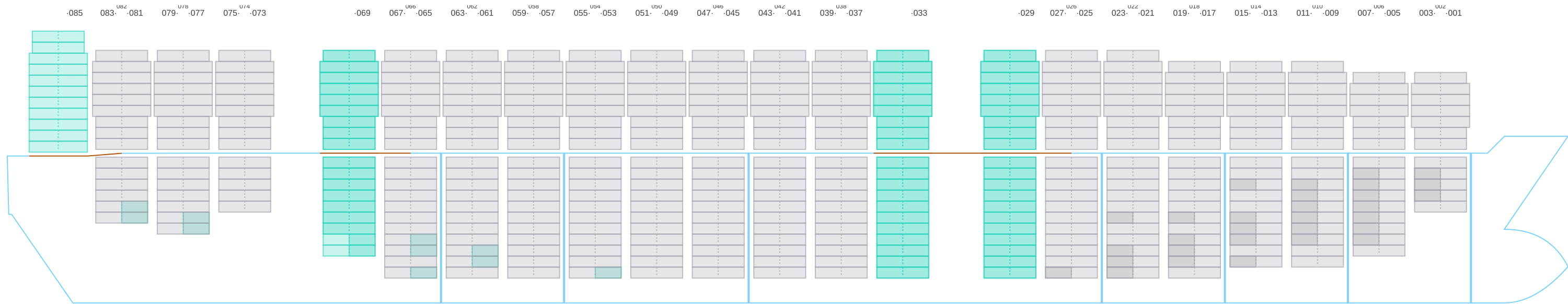

Side View

Side view of ONE IBIS

Hatch-Covers View

Deck view of ONE IBIS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • →

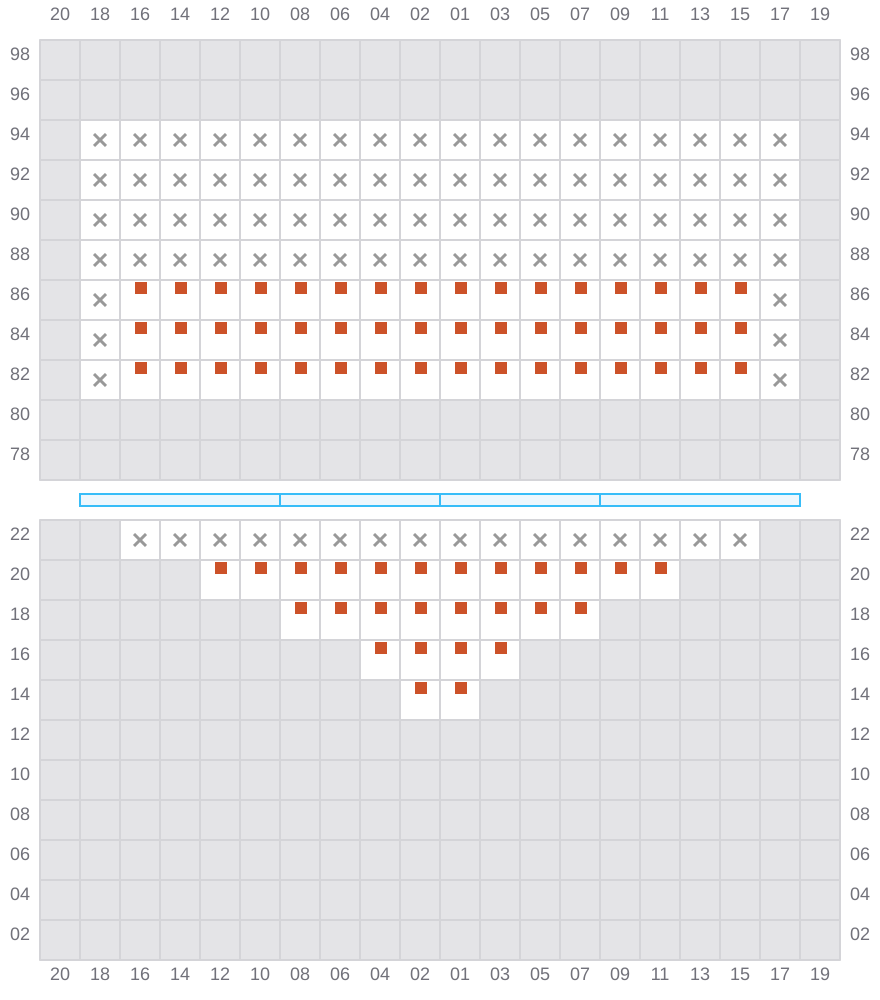

Bay 001 view and slots of ONE IBIS

003 (002)

  • ←
  • →

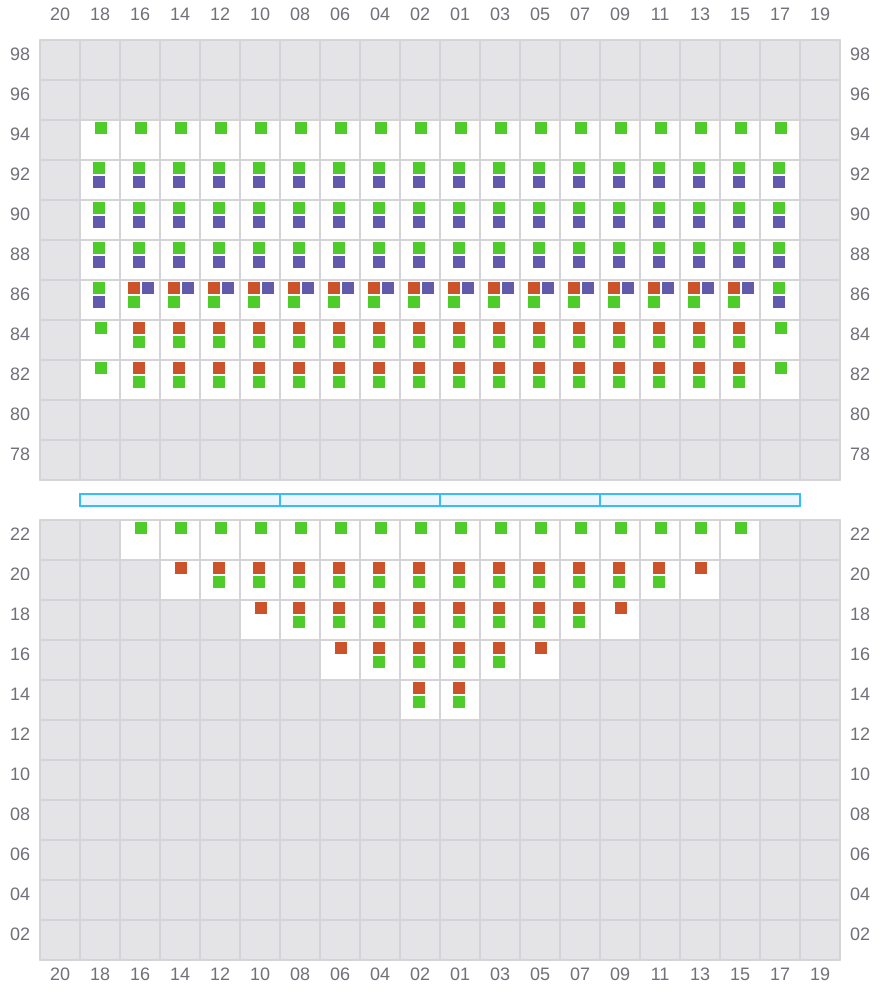

Bay 003 view and slots of ONE IBIS

005

  • →
  • →

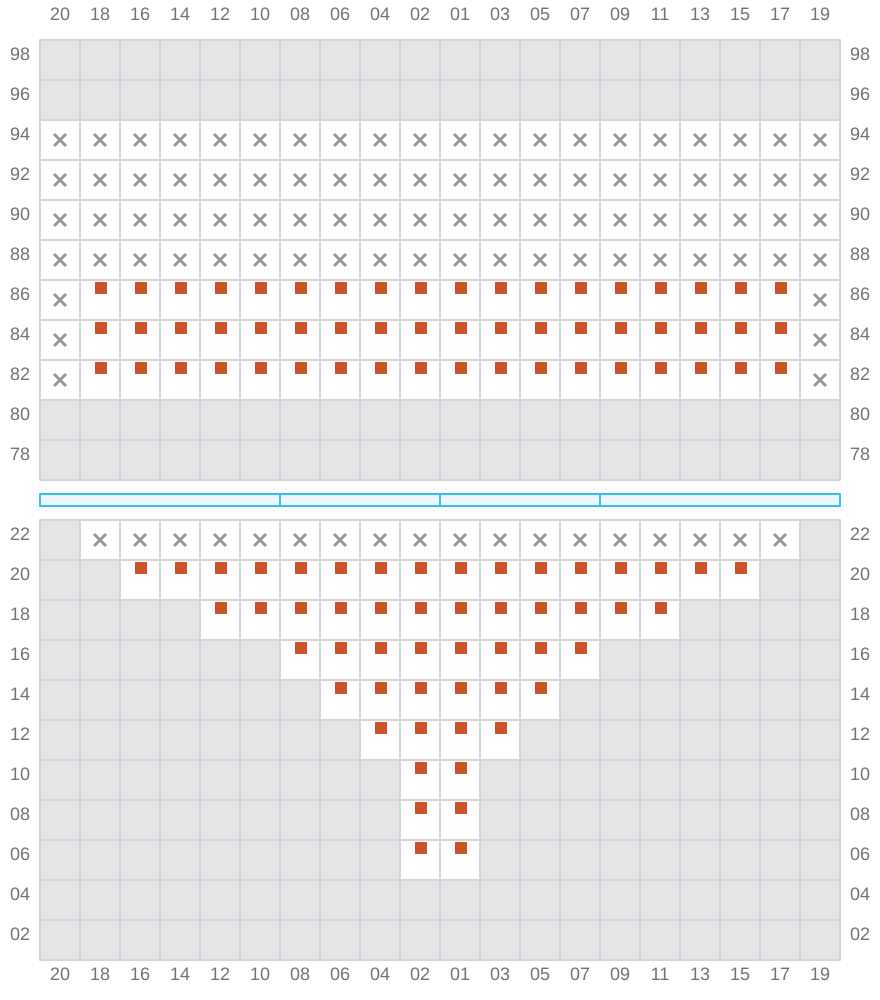

Bay 005 view and slots of ONE IBIS

007 (006)

  • ←
  • →

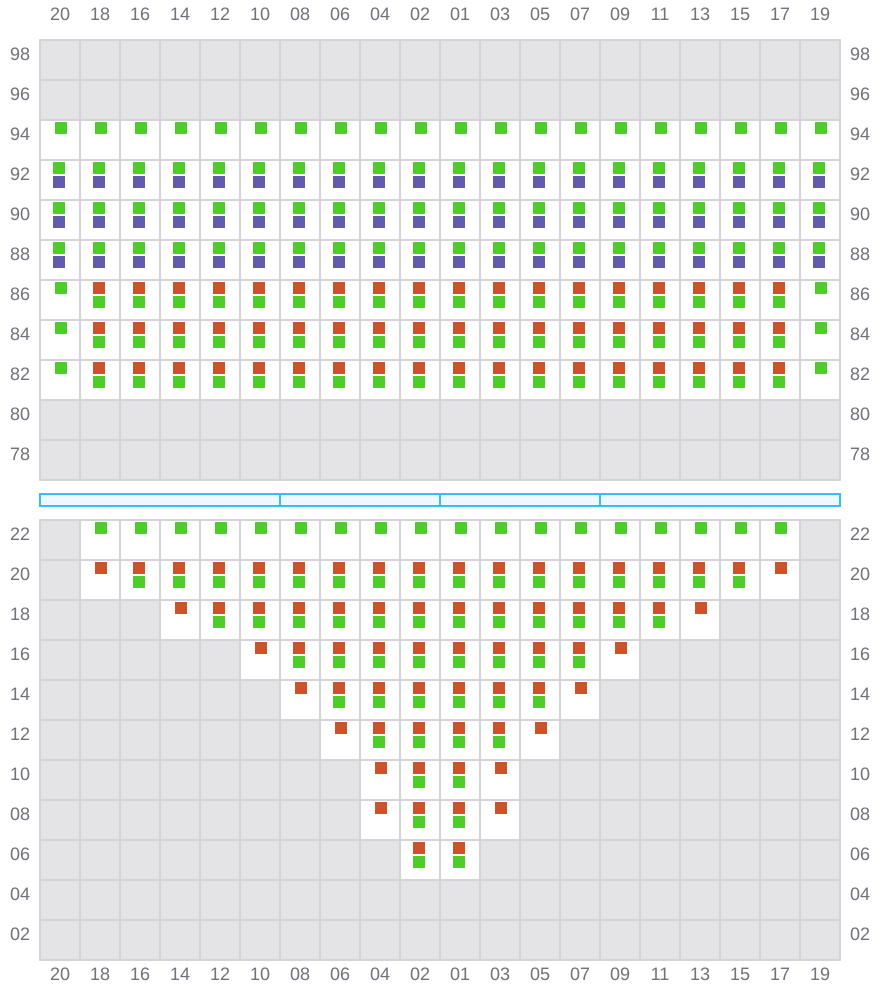

Bay 007 view and slots of ONE IBIS

009

  • →
  • →

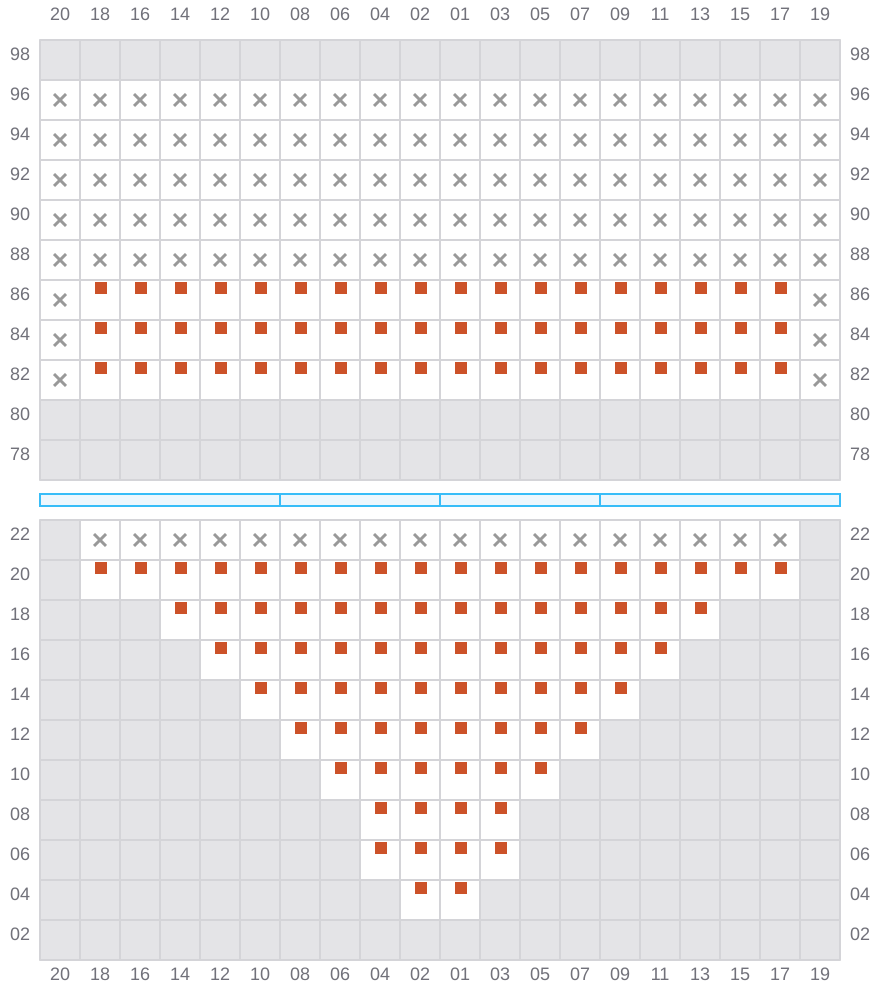

Bay 009 view and slots of ONE IBIS

011 (010)

  • ←
  • →

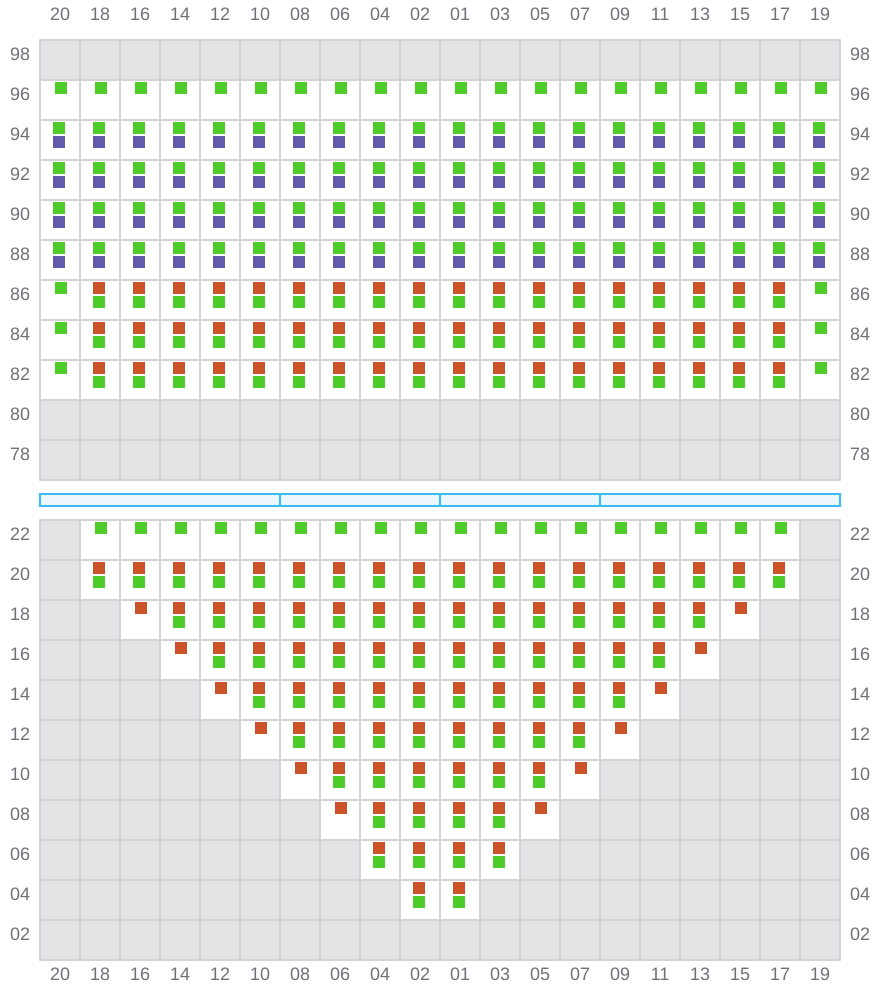

Bay 011 view and slots of ONE IBIS

013

  • →
  • →

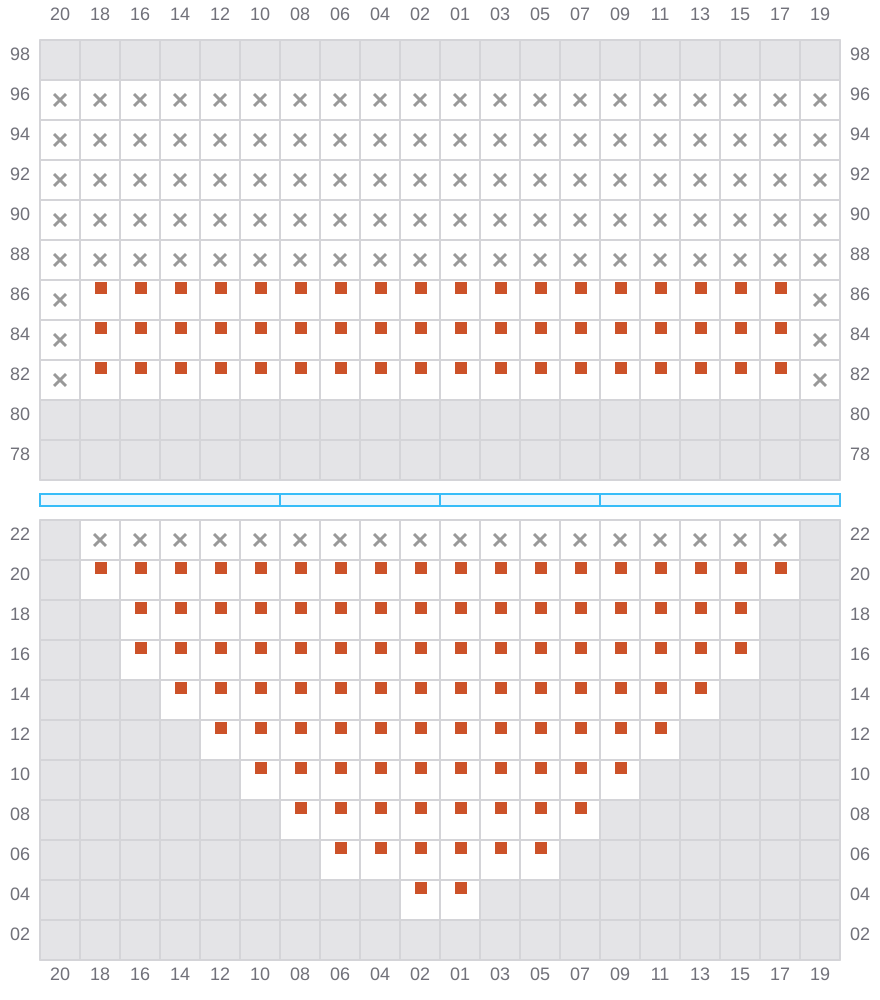

Bay 013 view and slots of ONE IBIS

015 (014)

  • ←
  • → / ?
  • →

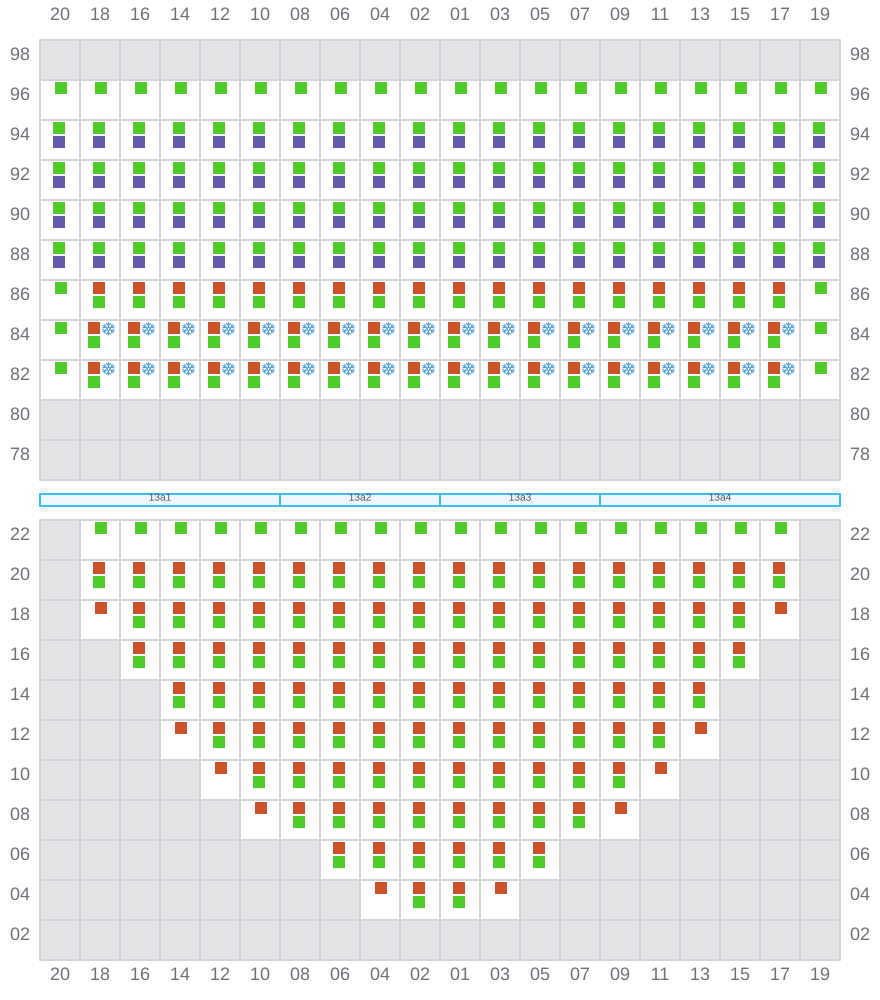

Bay 015 view and slots of ONE IBIS

017

  • →
  • ← / ?
  • →

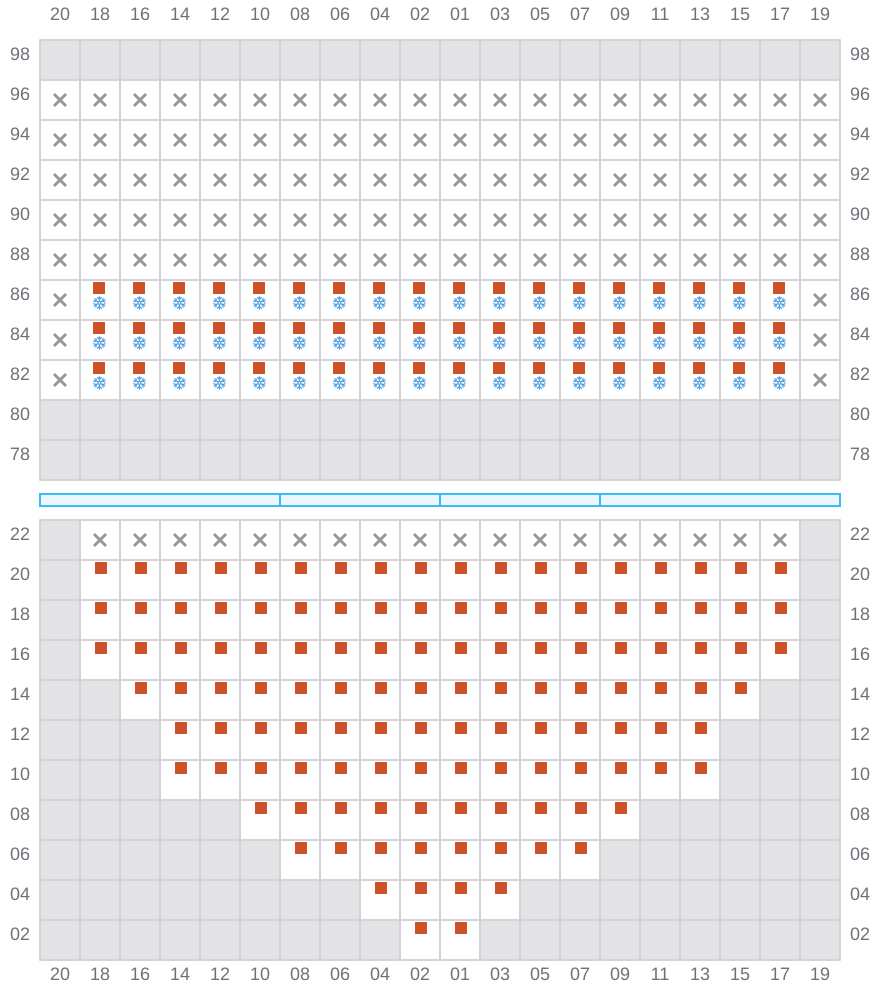

Bay 017 view and slots of ONE IBIS

019 (018)

  • ←
  • ← / ?
  • →

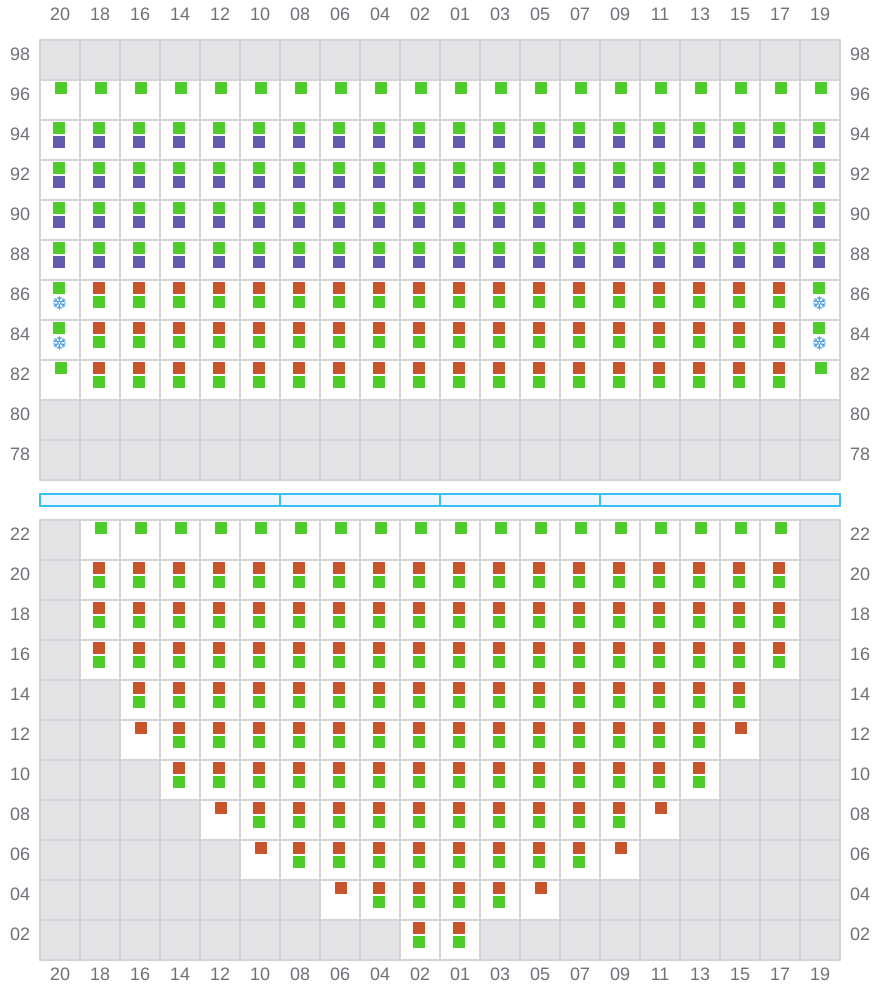

Bay 019 view and slots of ONE IBIS

021

  • →
  • →

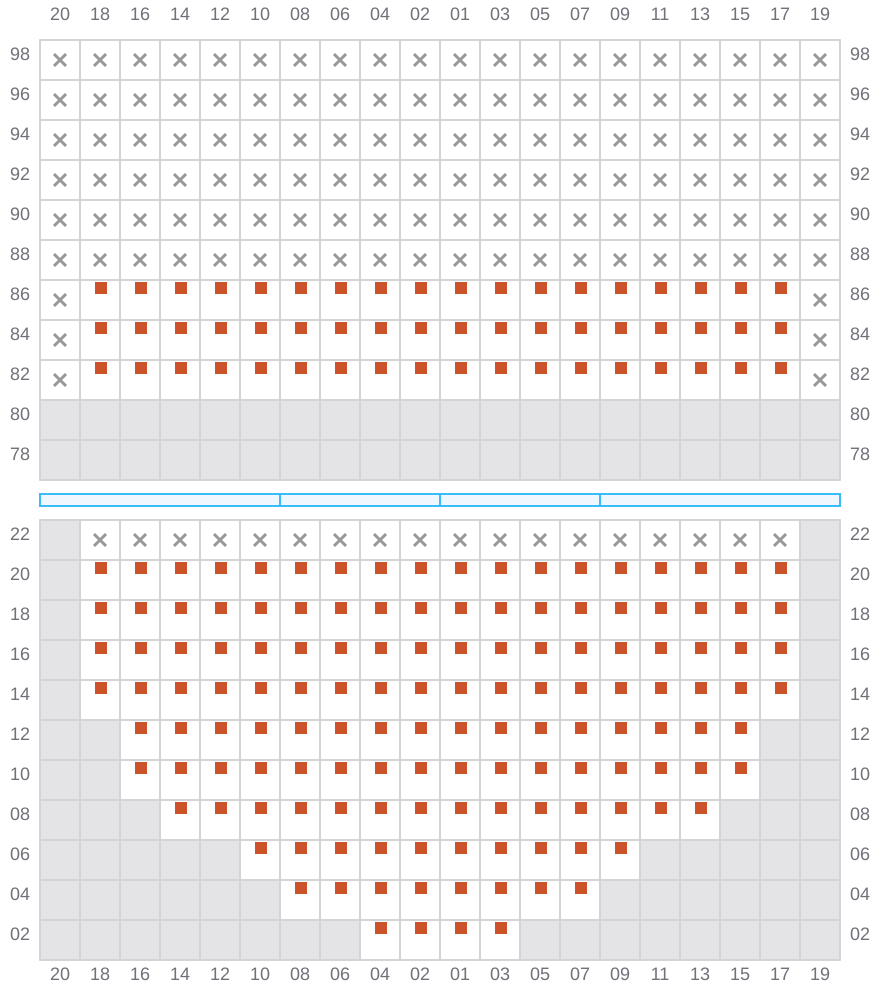

Bay 021 view and slots of ONE IBIS

023 (022)

  • ←
  • → / ?
  • →

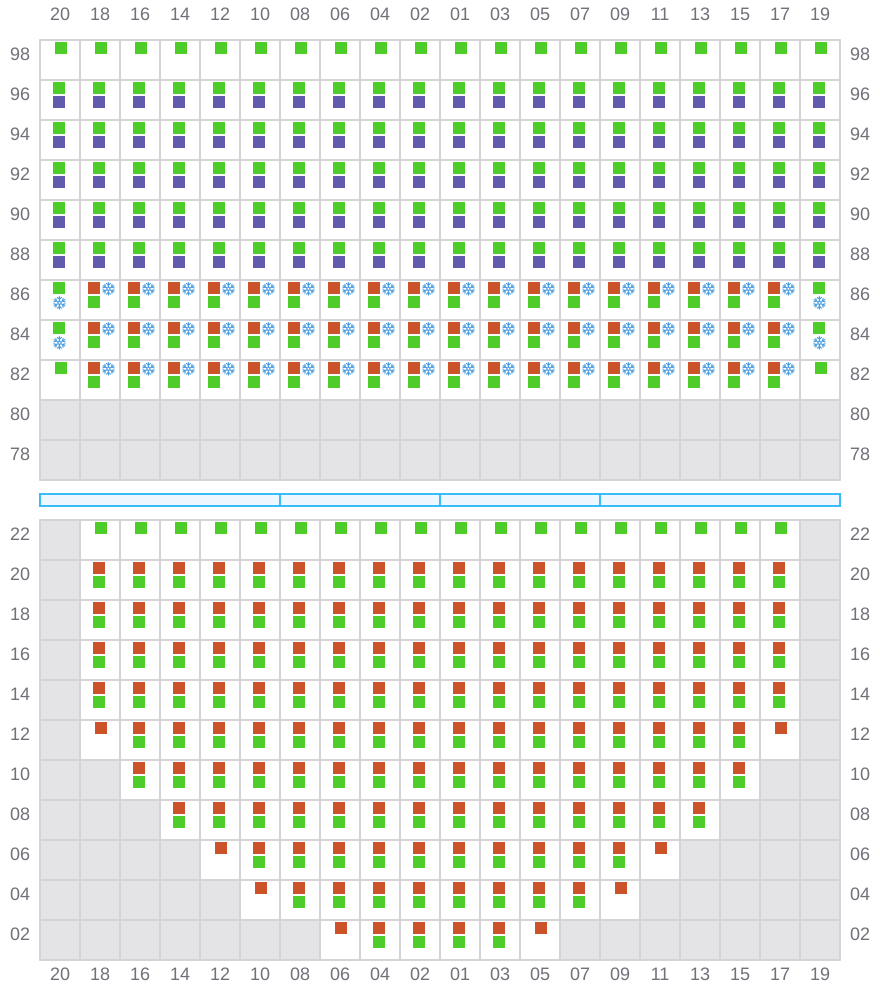

Bay 023 view and slots of ONE IBIS

025

  • →
  • ← / ?
  • →

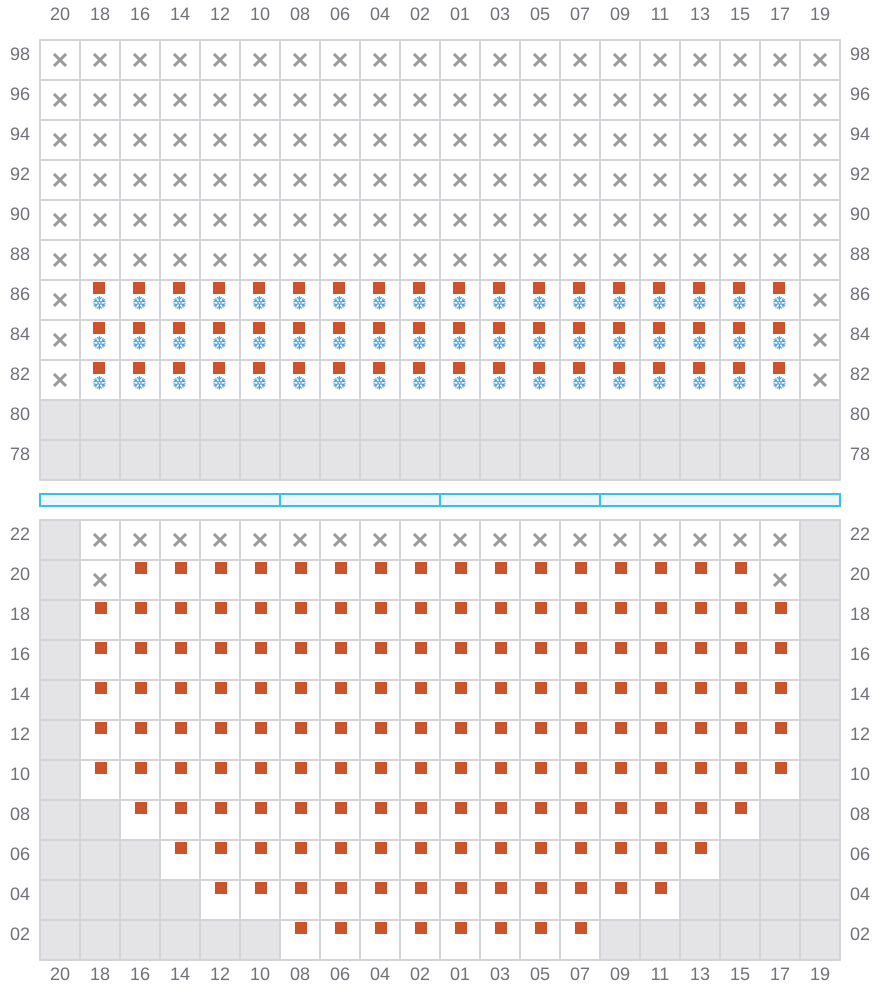

Bay 025 view and slots of ONE IBIS

027 (026)

  • ←
  • →

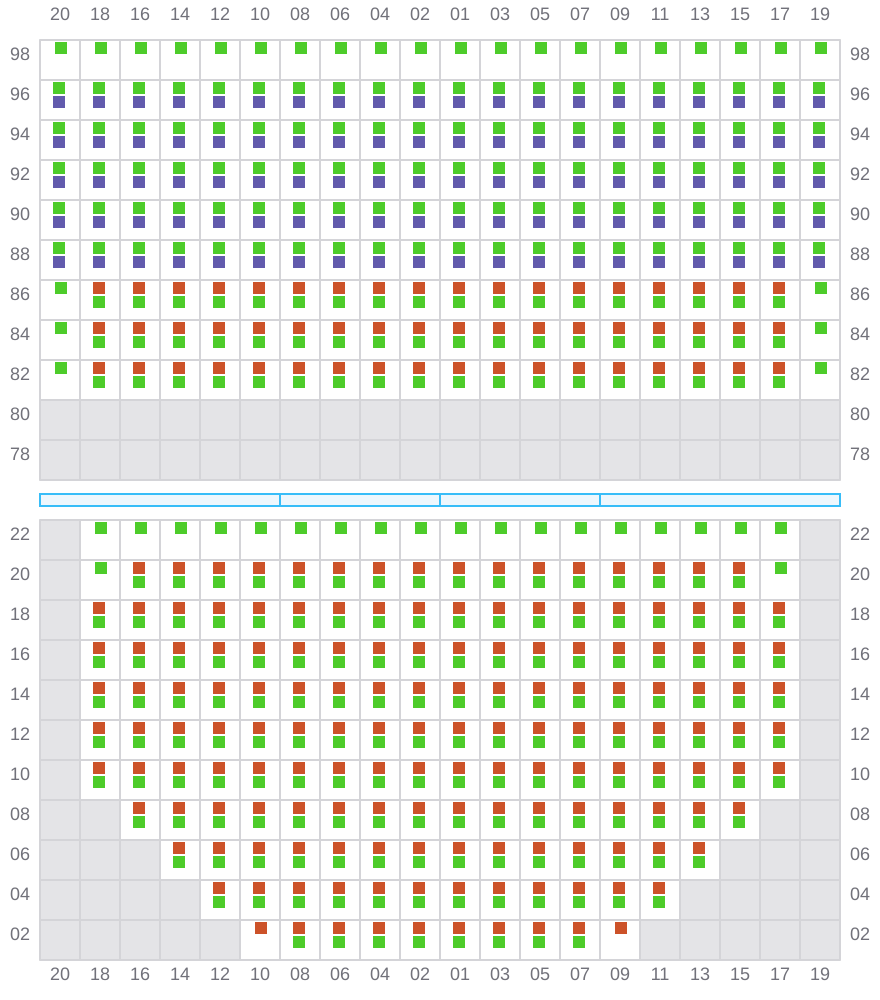

Bay 027 view and slots of ONE IBIS

029 (030)

  • →
  • → / ?
  • →

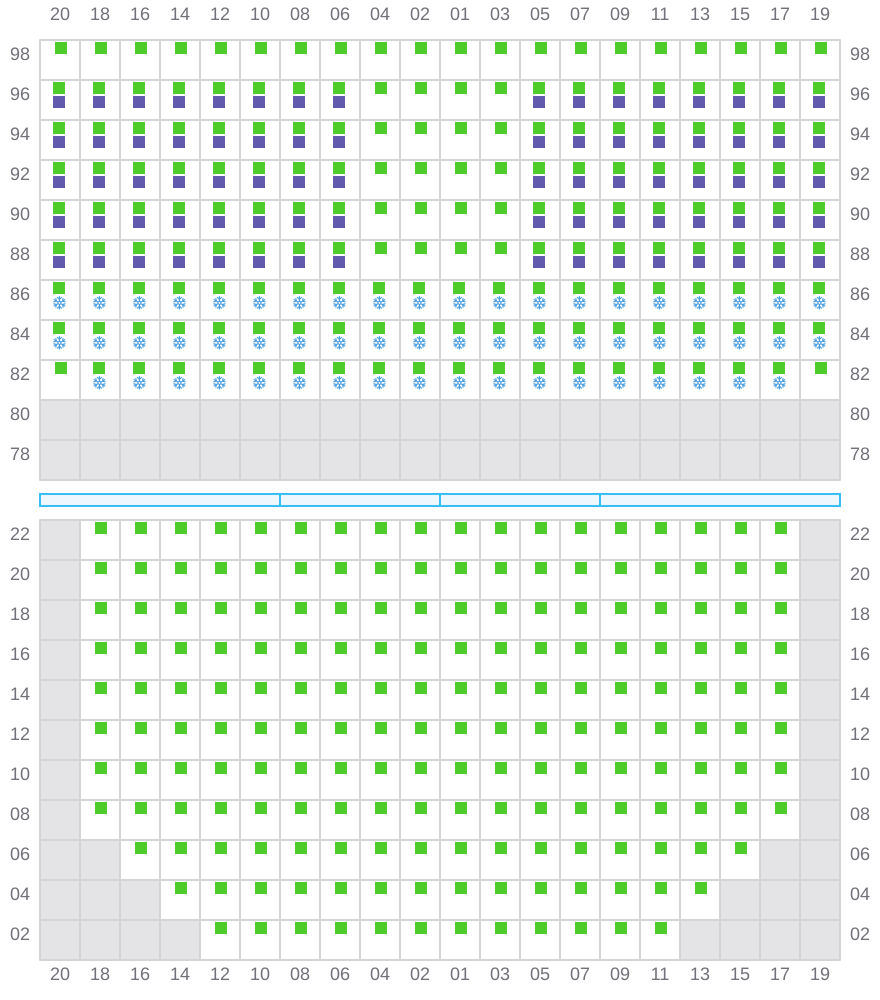

Bay 029 view and slots of ONE IBIS

031

Bay 031 view and slots of ONE IBIS

033 (034)

  • →
  • ← / ?
  • →

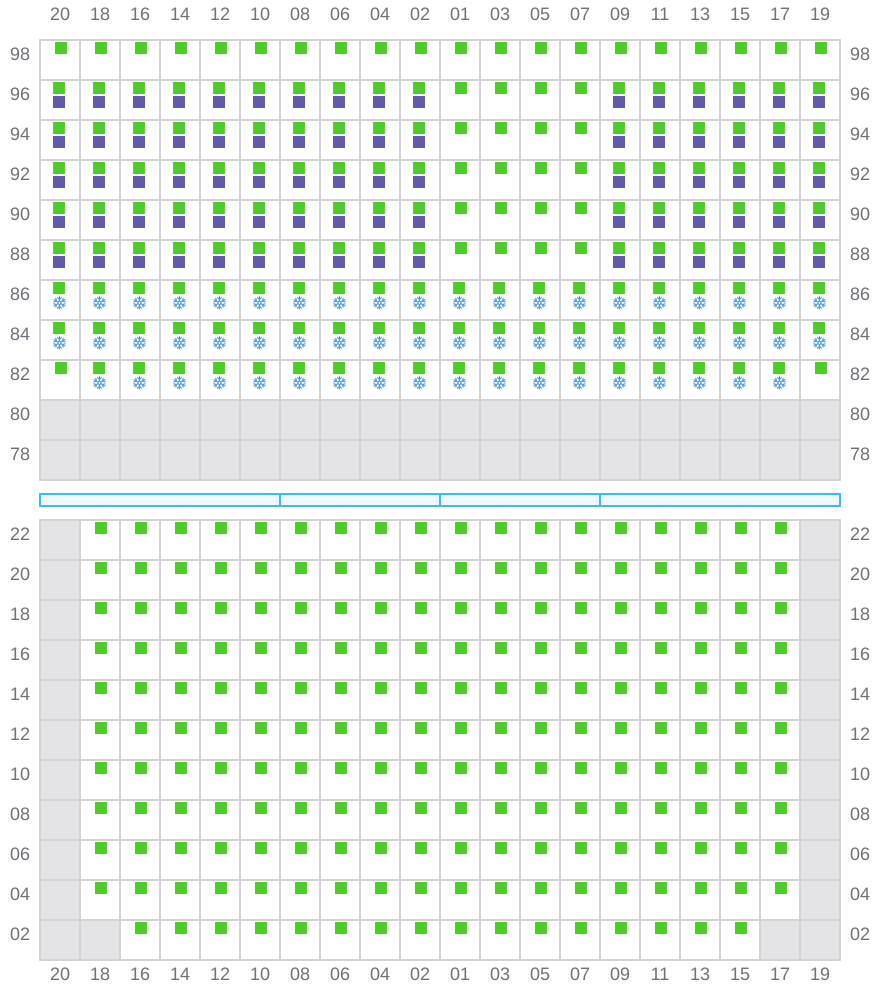

Bay 033 view and slots of ONE IBIS

035

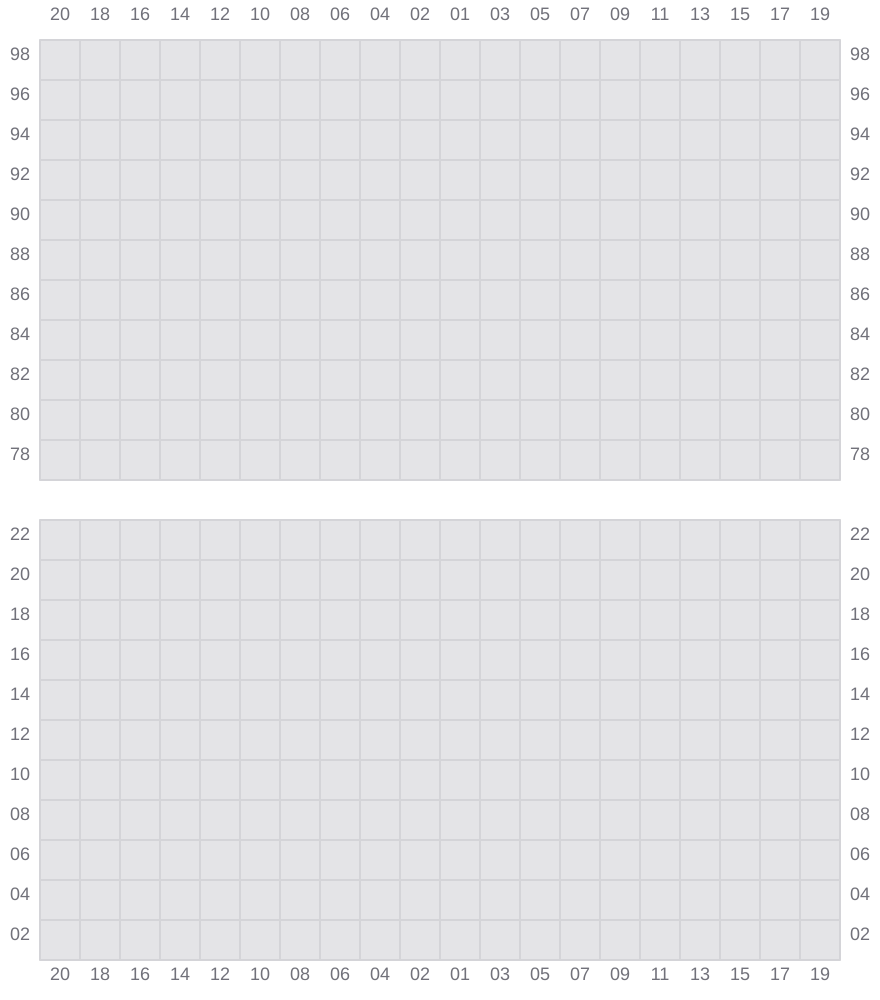

Bay 035 view and slots of ONE IBIS

037

  • →
  • →
Bay 037 view and slots of ONE IBIS

039 (038)

  • ←
  • → / ?
  • →

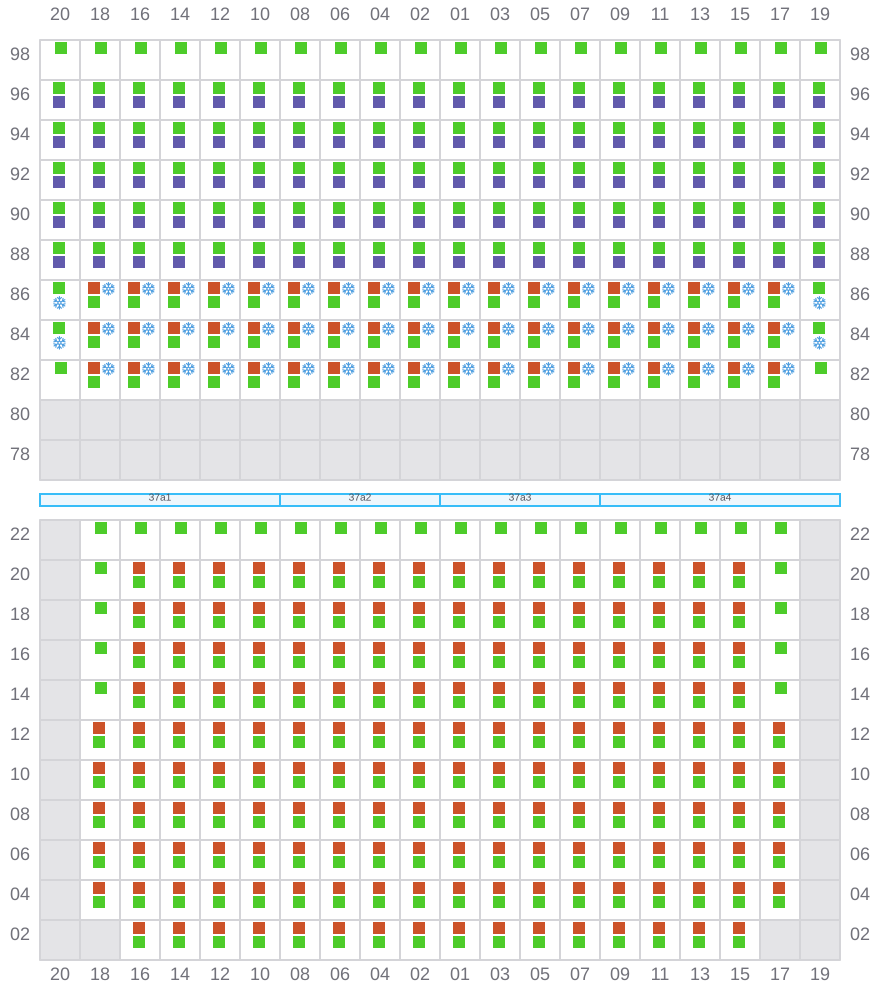

Bay 039 view and slots of ONE IBIS

041

  • →
  • ← / ?
  • →
Bay 041 view and slots of ONE IBIS

043 (042)

  • ←
  • →

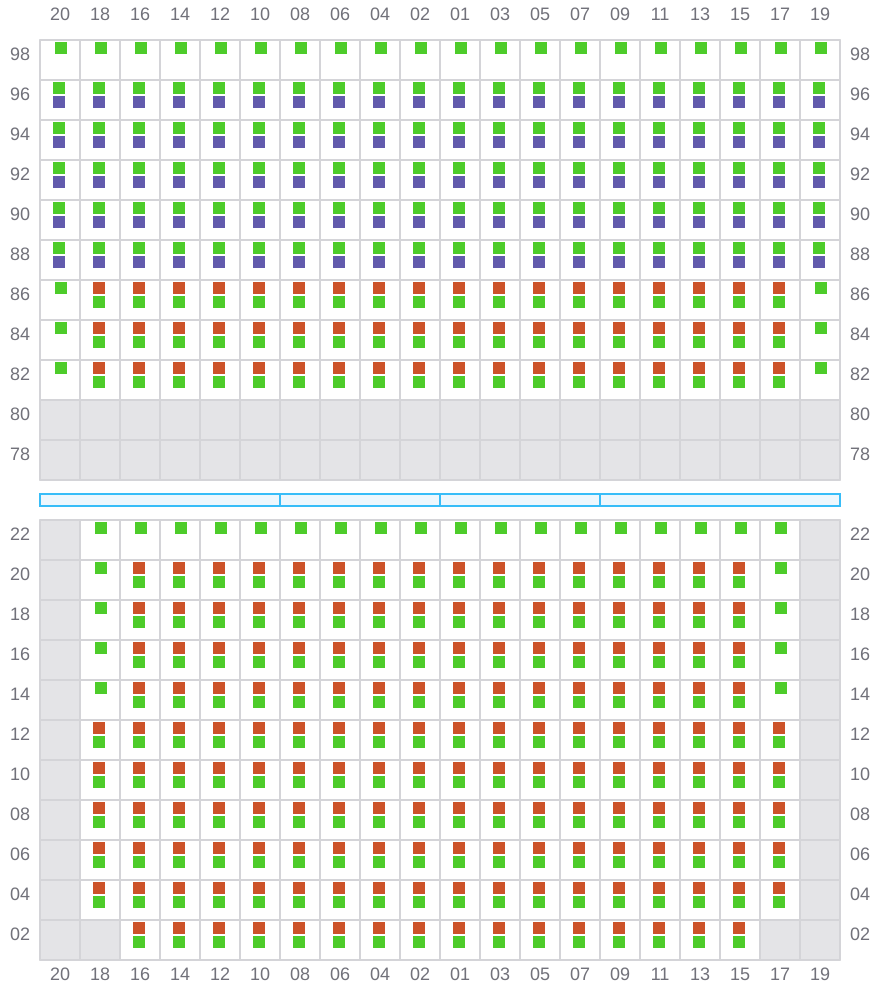

Bay 043 view and slots of ONE IBIS

045

  • →
  • →

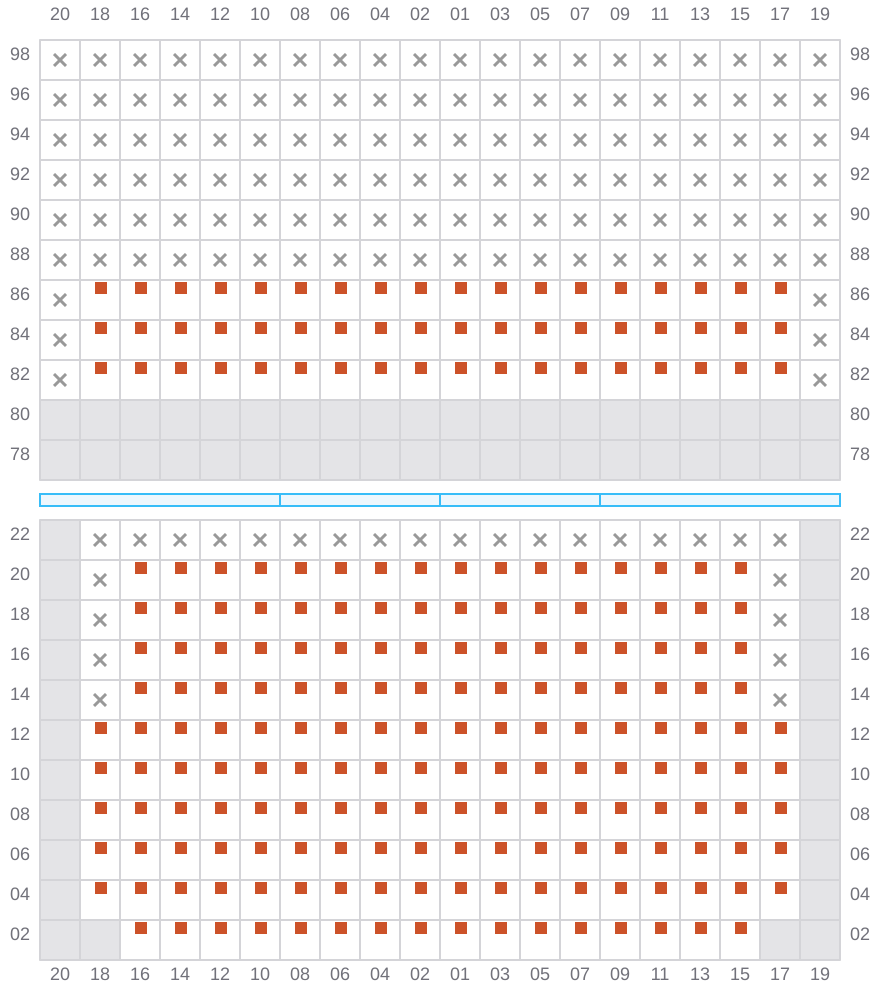

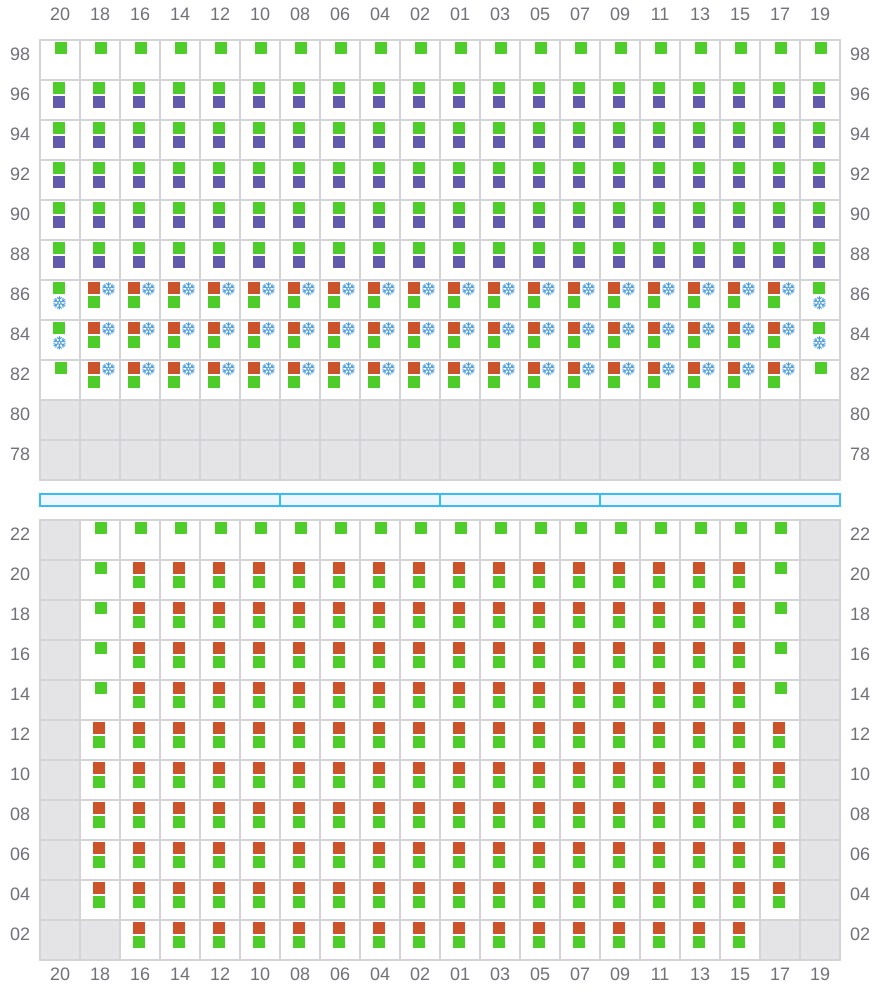

Bay 045 view and slots of ONE IBIS

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of ONE IBIS

049

  • →
  • ← / ?
  • →

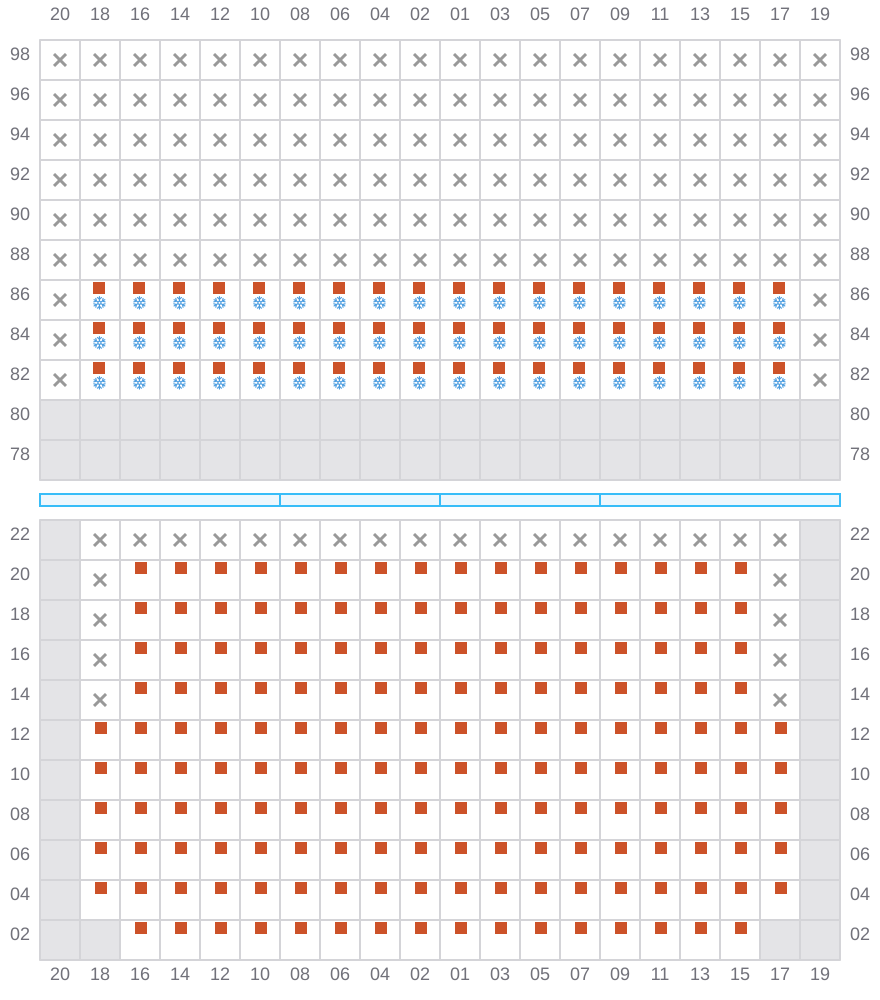

Bay 049 view and slots of ONE IBIS

051 (050)

  • ←
  • →
Bay 051 view and slots of ONE IBIS

053

  • →
  • →
Bay 053 view and slots of ONE IBIS

055 (054)

  • ←
  • → / ?
  • →
Bay 055 view and slots of ONE IBIS

057

  • →
  • ← / ?
  • →

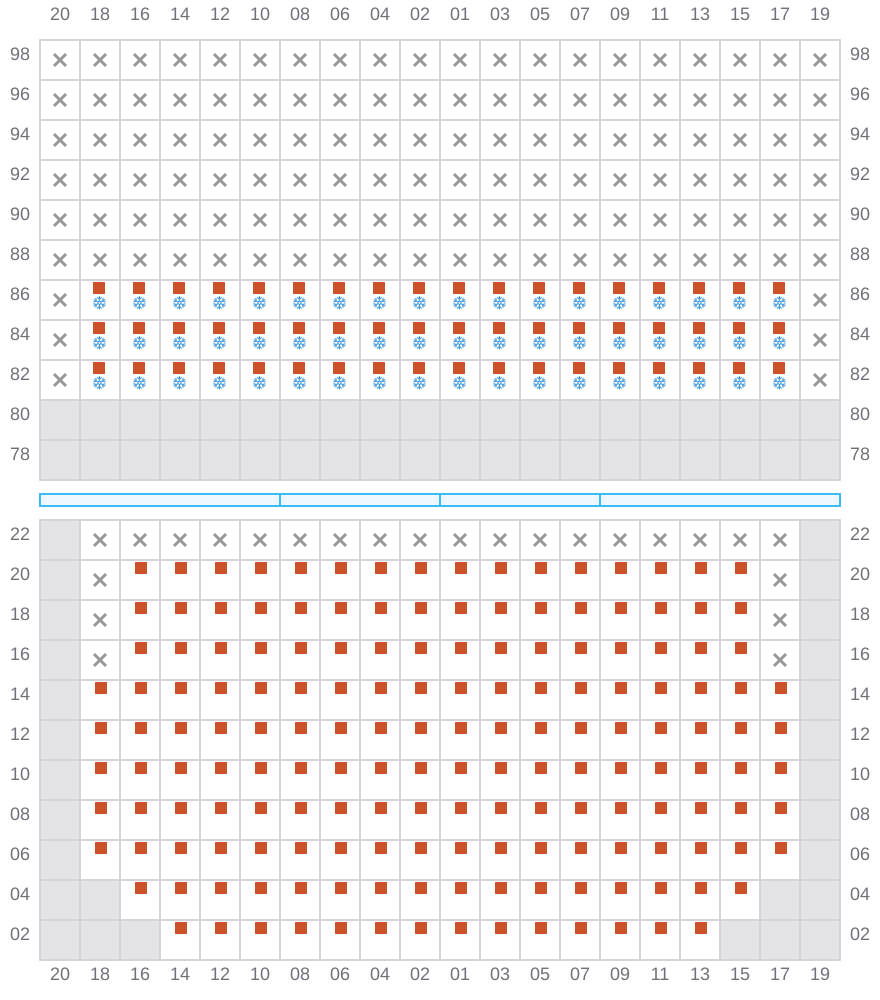

Bay 057 view and slots of ONE IBIS

059 (058)

  • ←
  • →

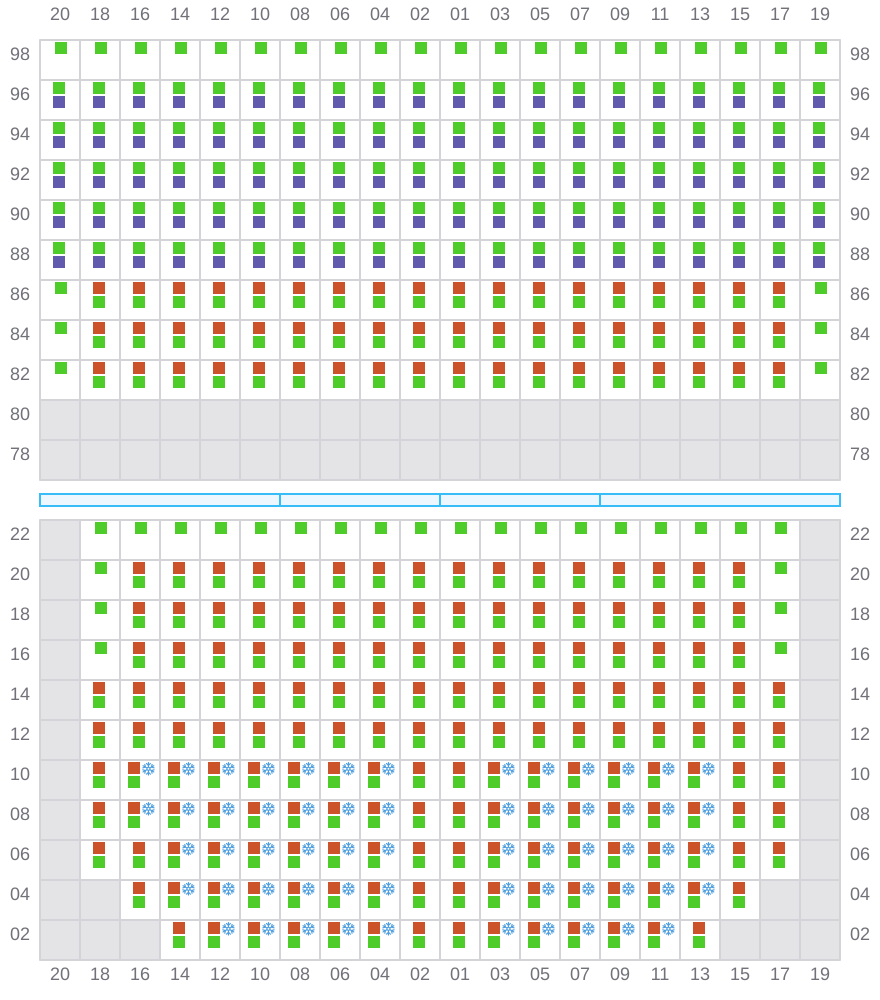

Bay 059 view and slots of ONE IBIS

061

  • →
  • →

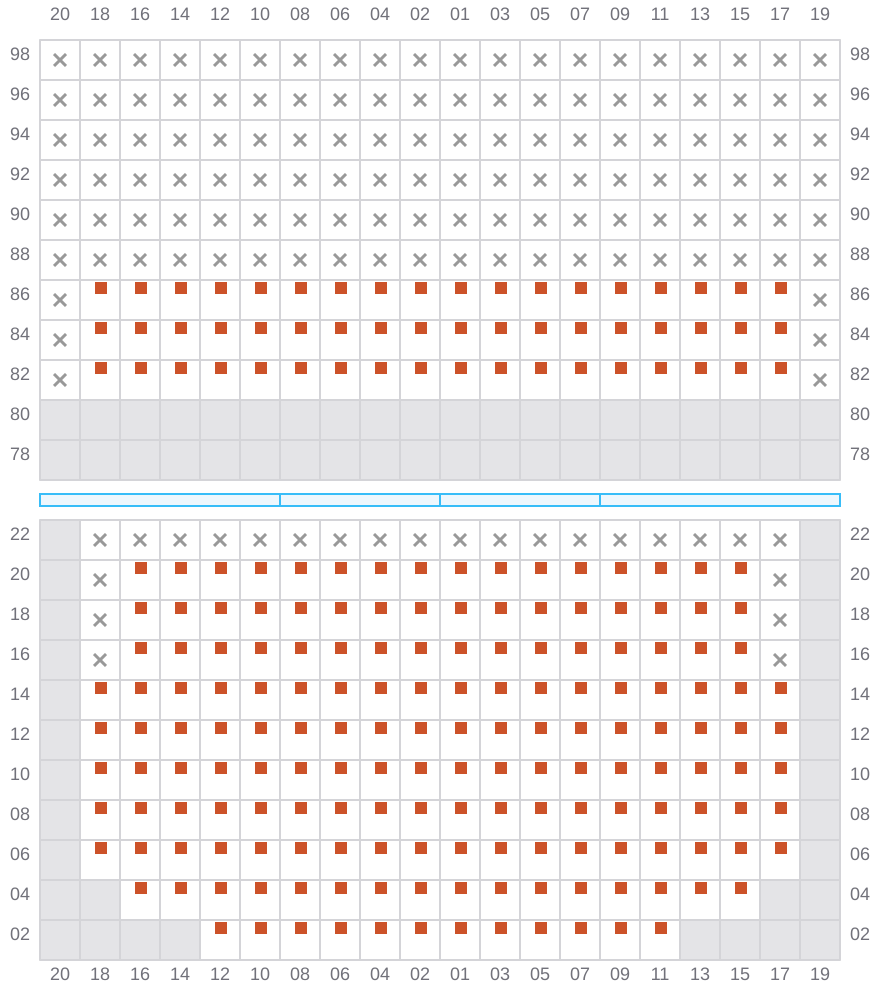

Bay 061 view and slots of ONE IBIS

063 (062)

  • ←
  • → / ?
  • →

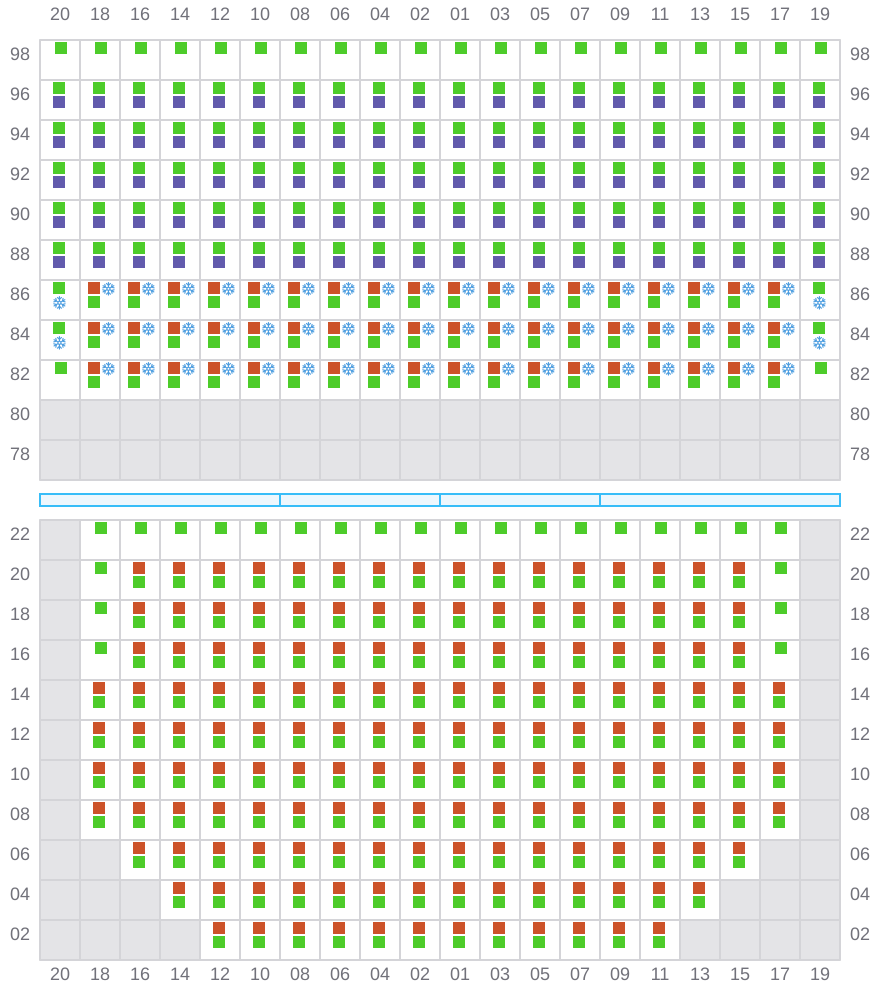

Bay 063 view and slots of ONE IBIS

065

  • →
  • ← / ?
  • →

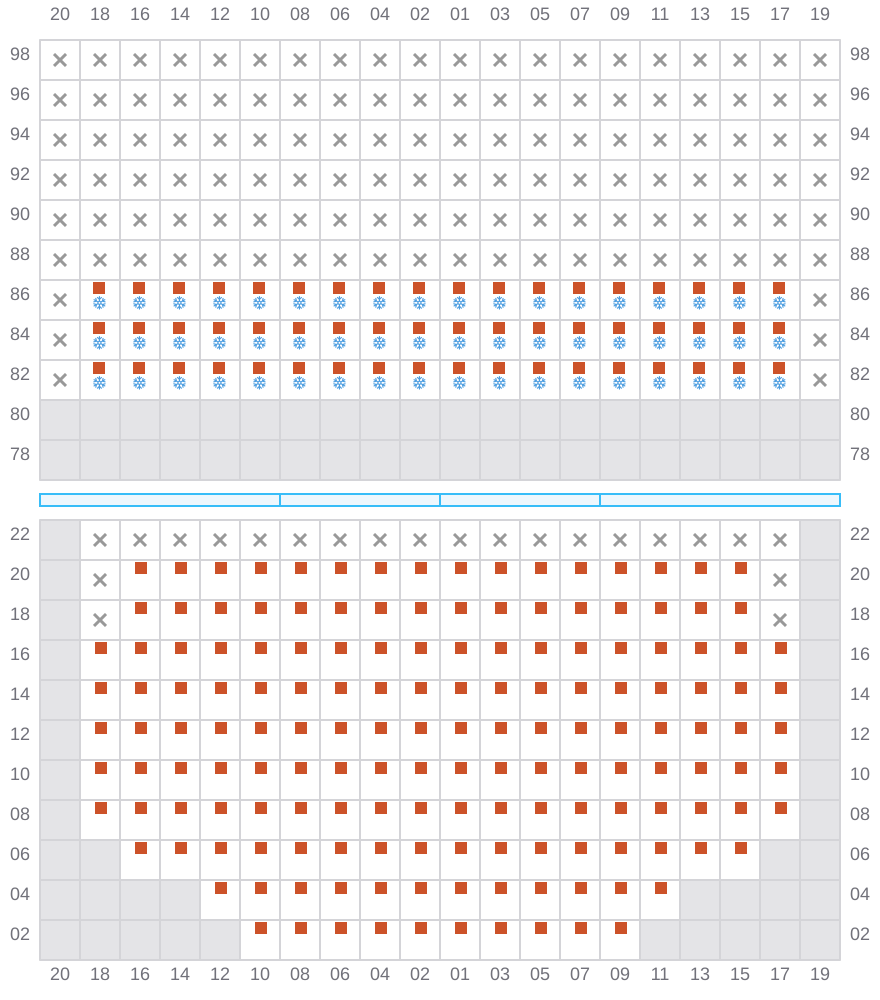

Bay 065 view and slots of ONE IBIS

067 (066)

  • ←
  • →

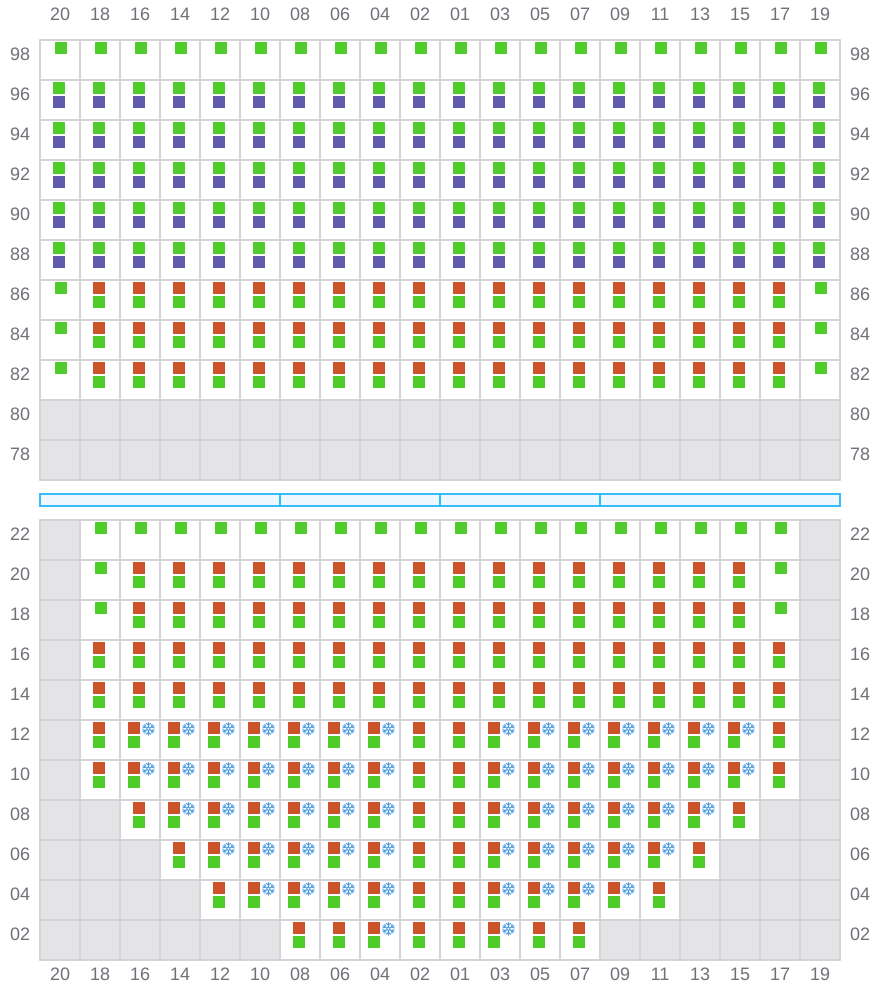

Bay 067 view and slots of ONE IBIS

069 (070)

  • →
  • → / ?
  • →

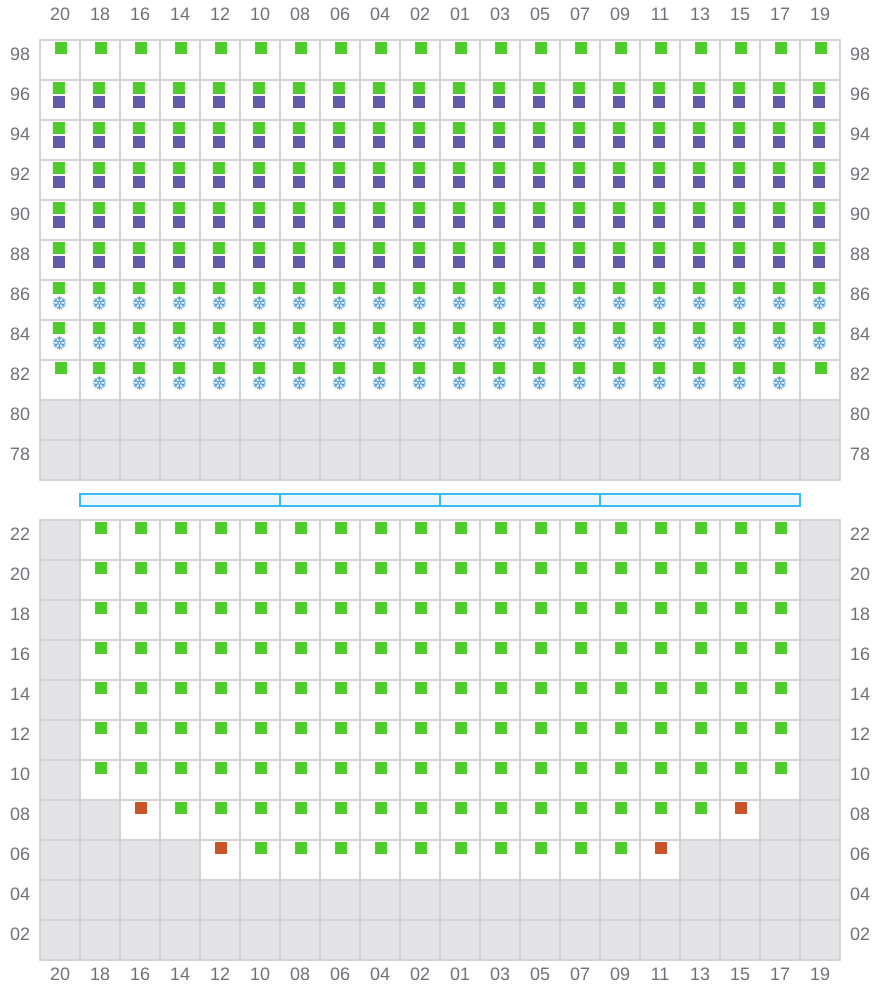

Bay 069 view and slots of ONE IBIS

071

Bay 071 view and slots of ONE IBIS

073

  • →
  • →

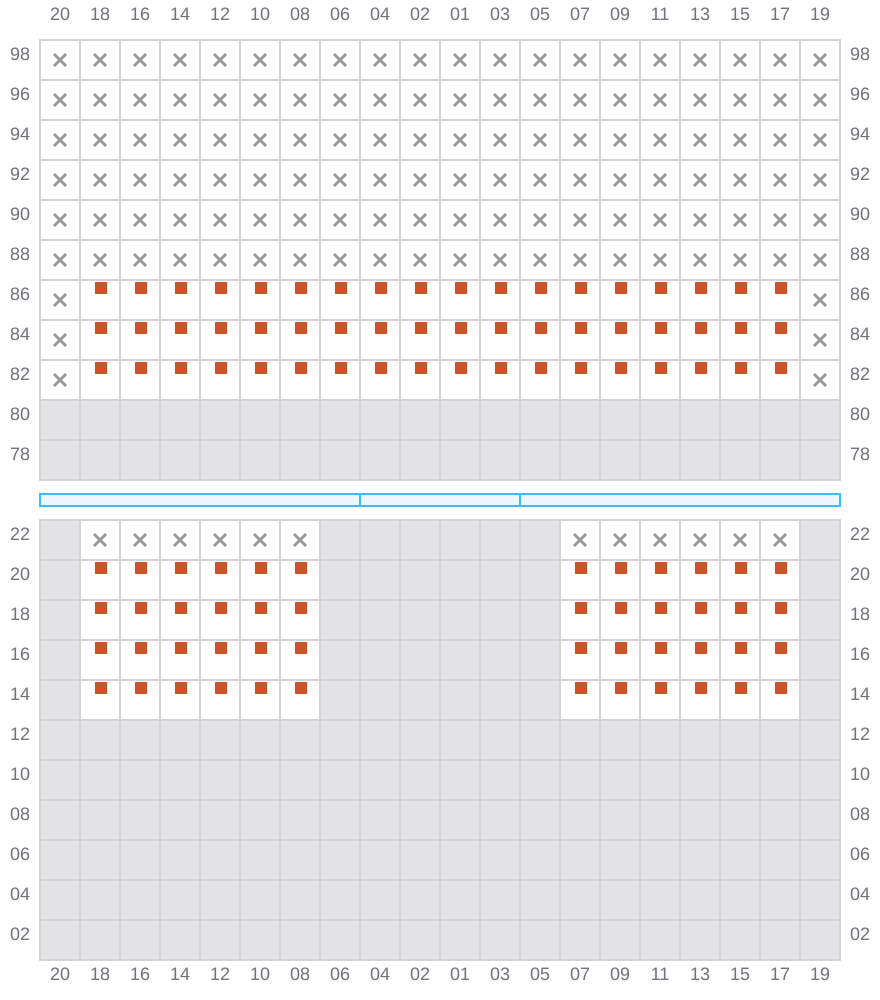

Bay 073 view and slots of ONE IBIS

075 (074)

  • ←
  • → / ?
  • →

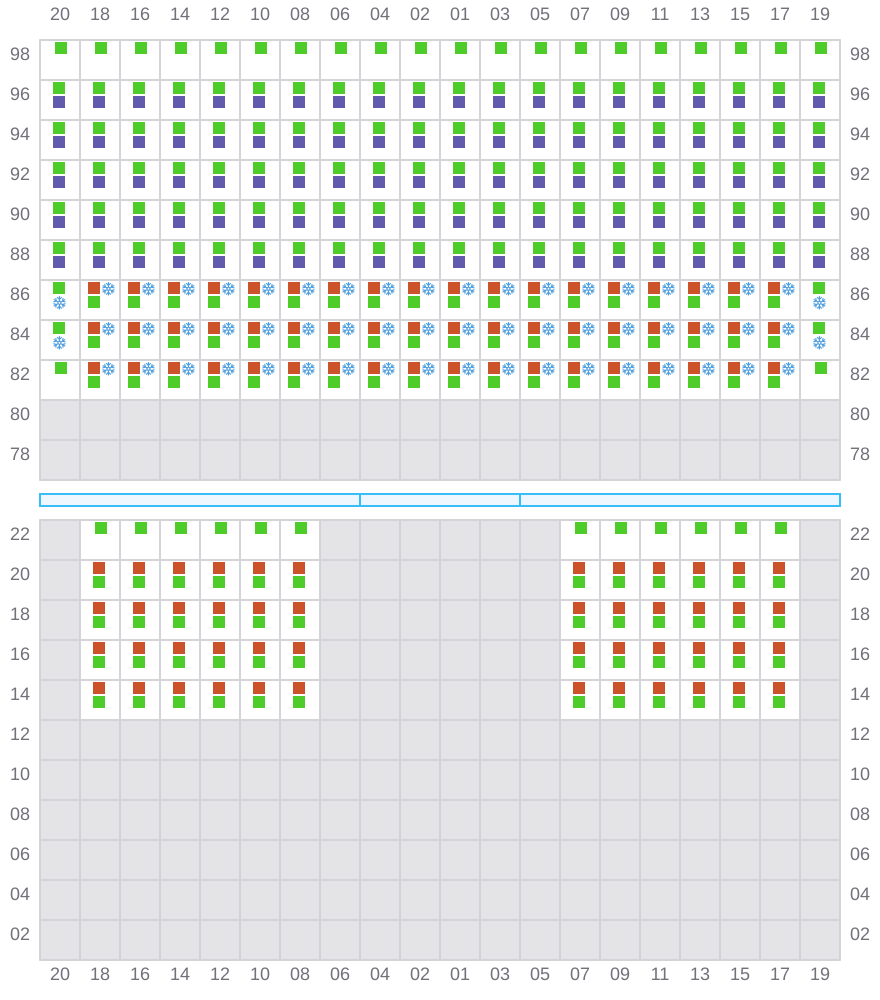

Bay 075 view and slots of ONE IBIS

077

  • →
  • ← / ?
  • →
Bay 077 view and slots of ONE IBIS

079 (078)

  • ←
  • →

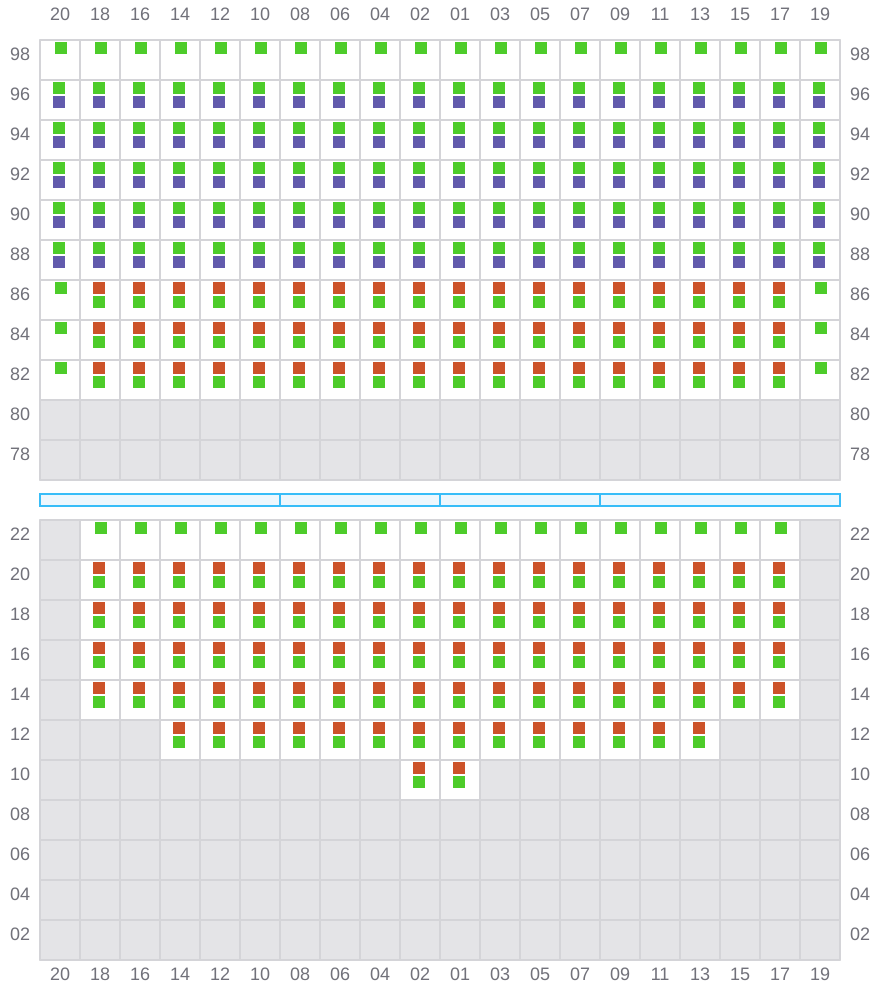

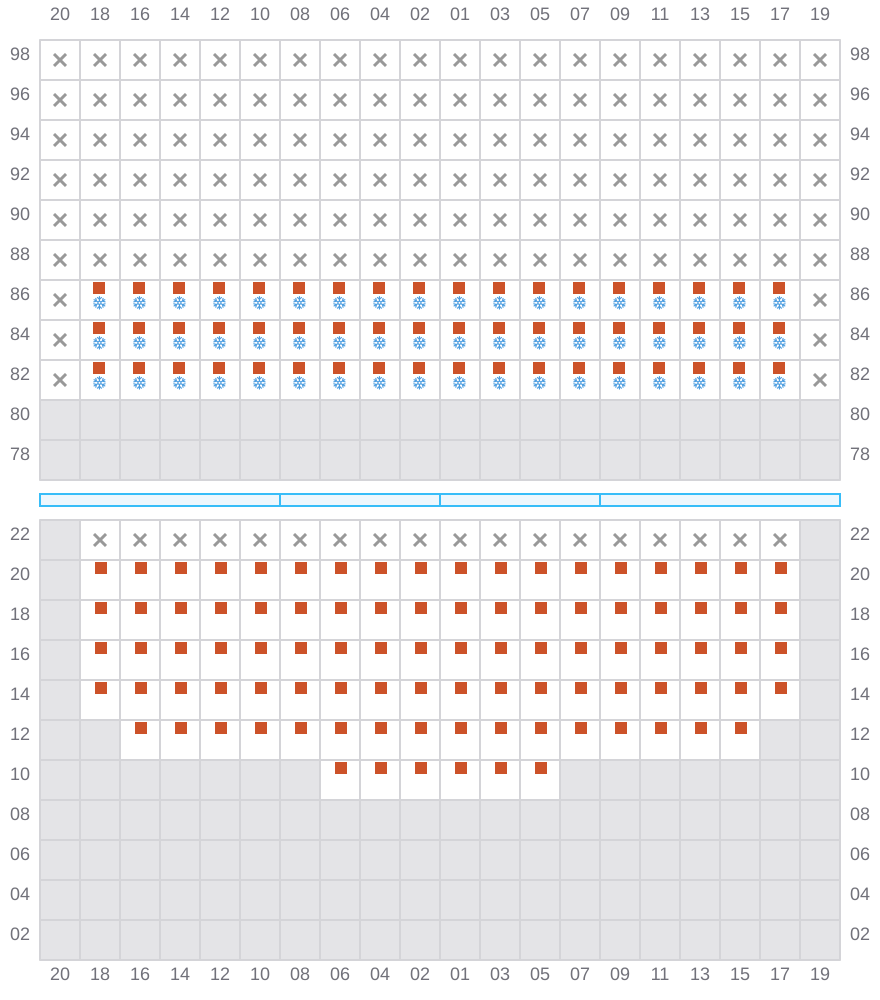

Bay 079 view and slots of ONE IBIS

081

  • →
  • →

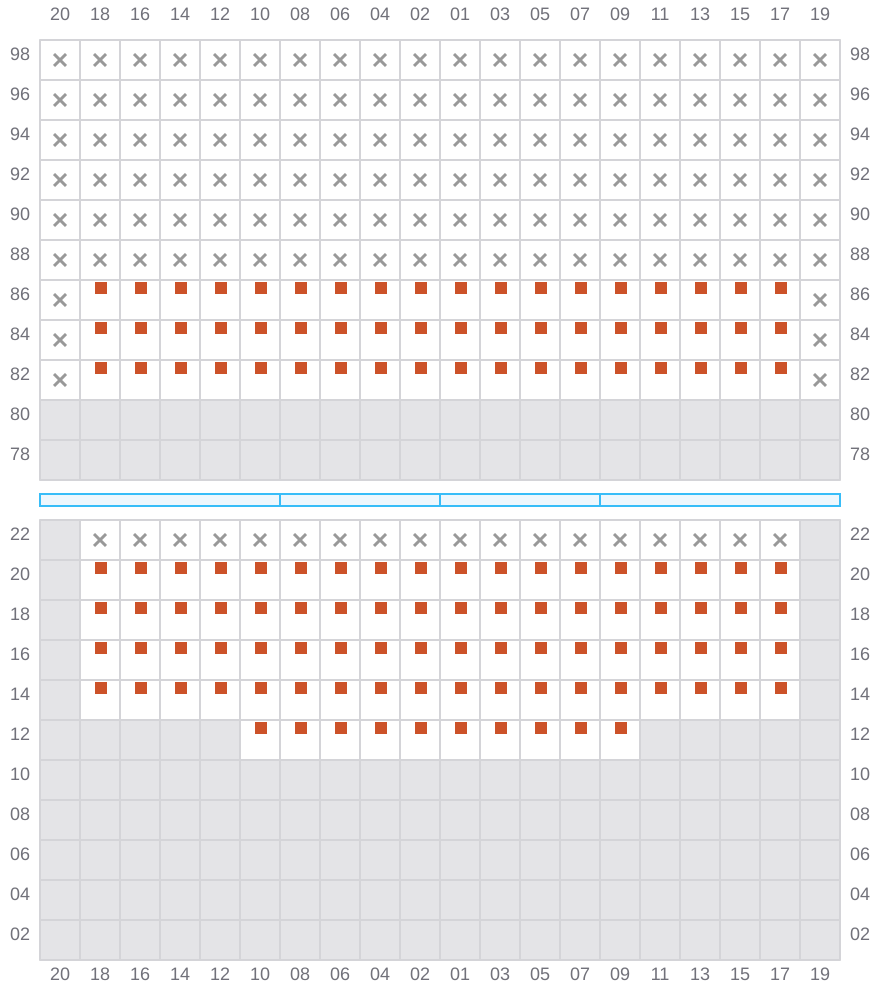

Bay 081 view and slots of ONE IBIS

083 (082)

  • ←
  • → / ?
  • →

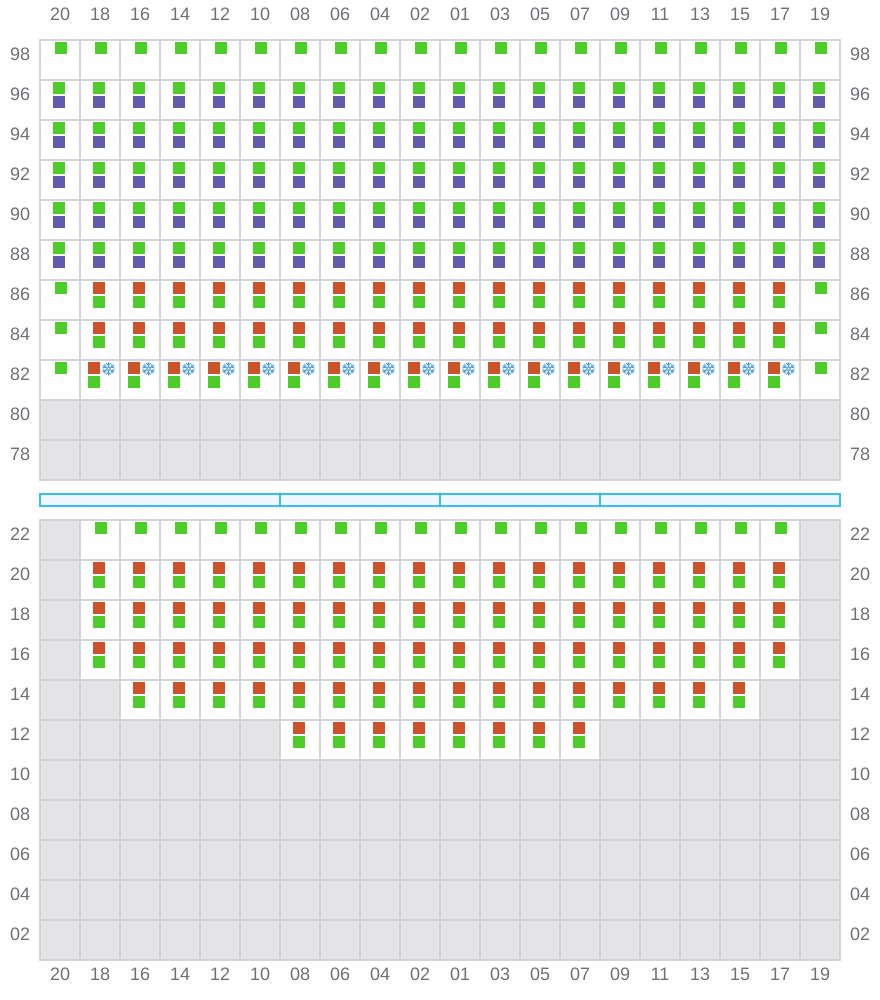

Bay 083 view and slots of ONE IBIS

085 (086)

  • → / ?
  • ← / ?
  • → / ?

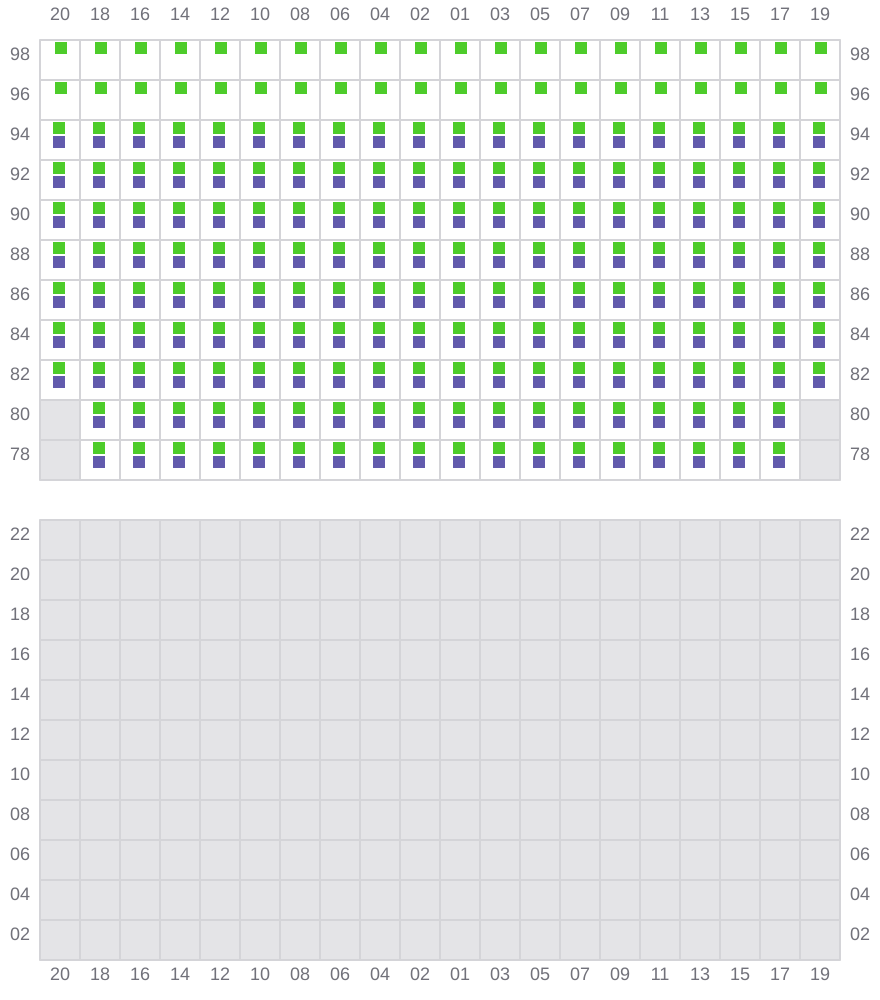

Bay 085 view and slots of ONE IBIS
