ONE MACKINAC
9689603 | 7JUR | ONE by *********************** Last update: Wed Feb 05 2025

General Info

Ship Name:ONE MACKINAC
IMO Code:9689603
Call Sign:7JUR
Line Operator:ONE
Class Name for Sister Ships:OMAC
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.00
LOA (Length Overall):365.94
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,158

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of ONE MACKINAC

Hatch-Covers View

Deck view of ONE MACKINAC

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →
  • →

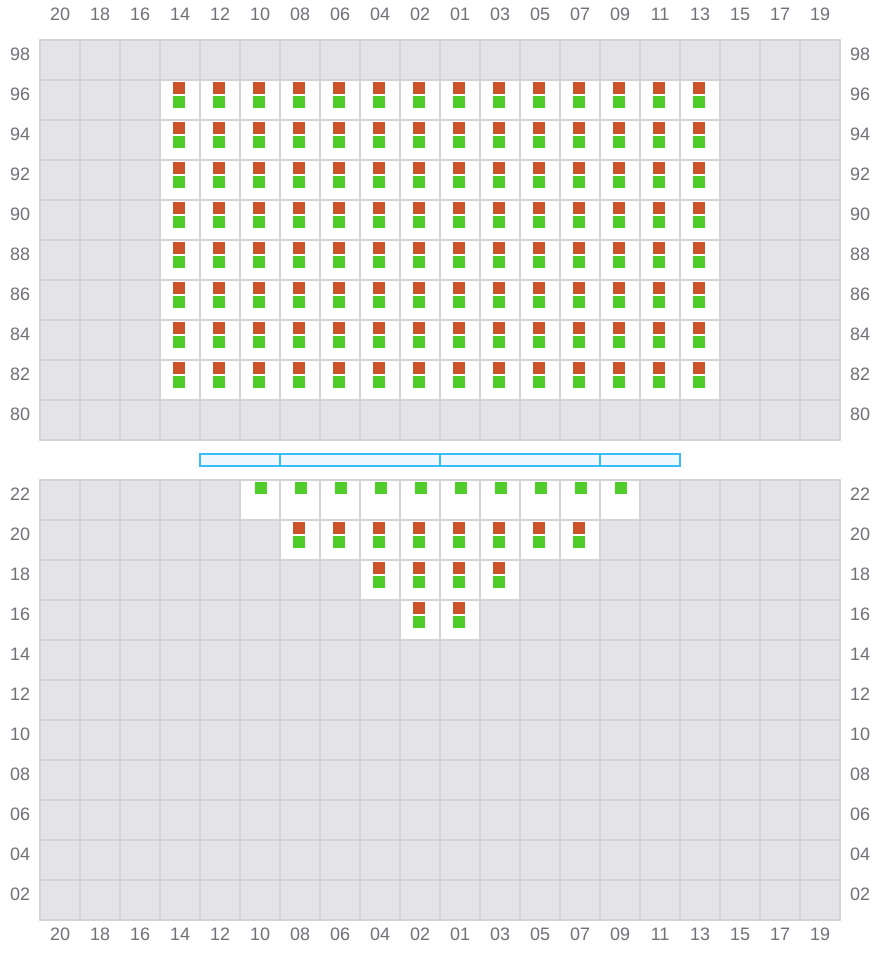

Bay 001 view and slots of ONE MACKINAC

003

  • ←
  • →

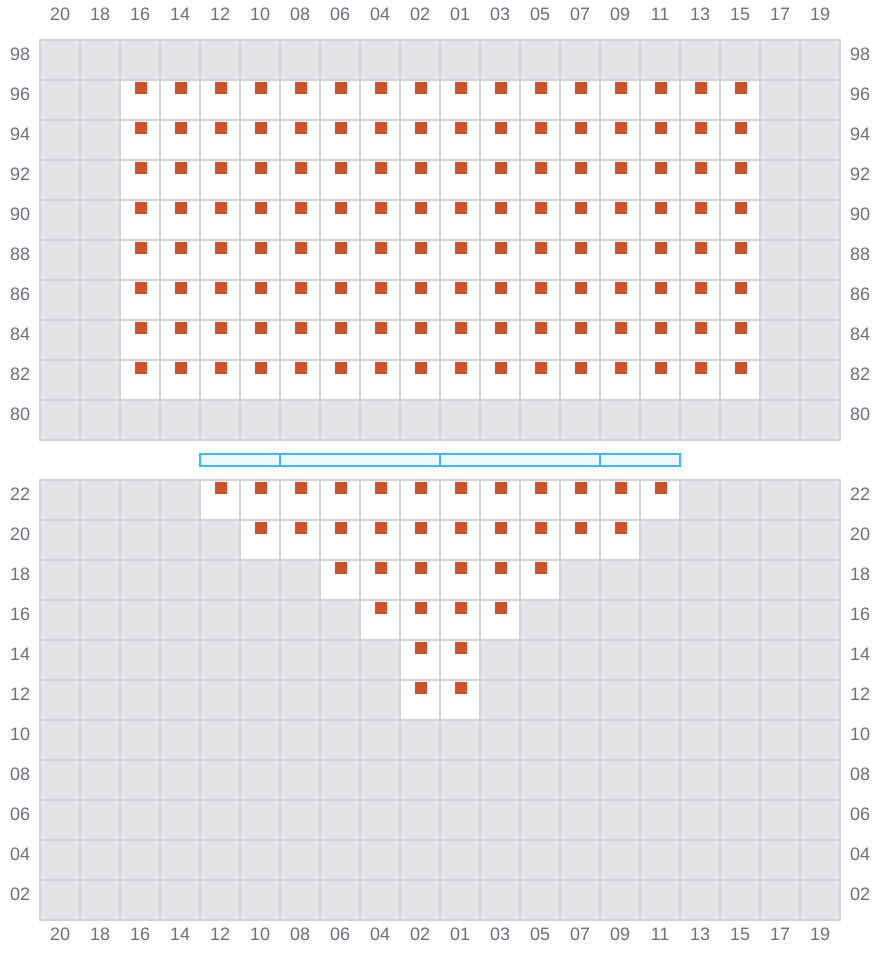

Bay 003 view and slots of ONE MACKINAC

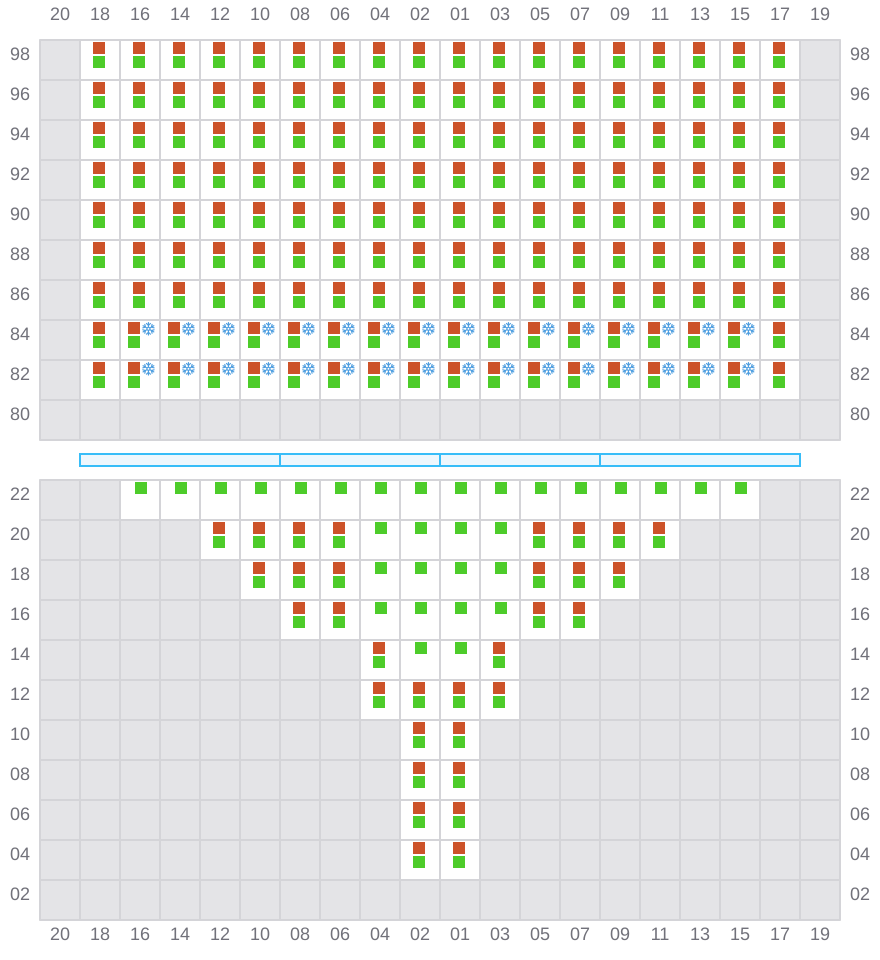

005 (006)

  • →
  • → / ?
  • →
Bay 005 view and slots of ONE MACKINAC

007

  • ←
  • → / ?
  • →

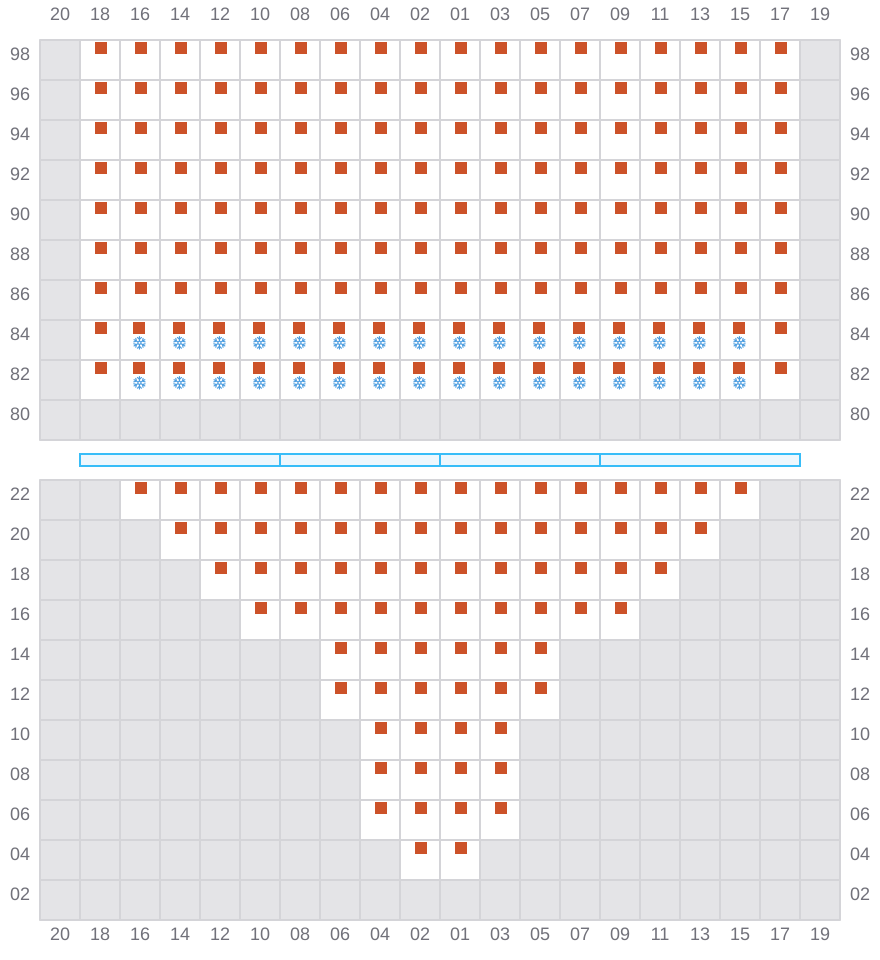

Bay 007 view and slots of ONE MACKINAC

009 (010)

  • →
  • → / ?
  • →

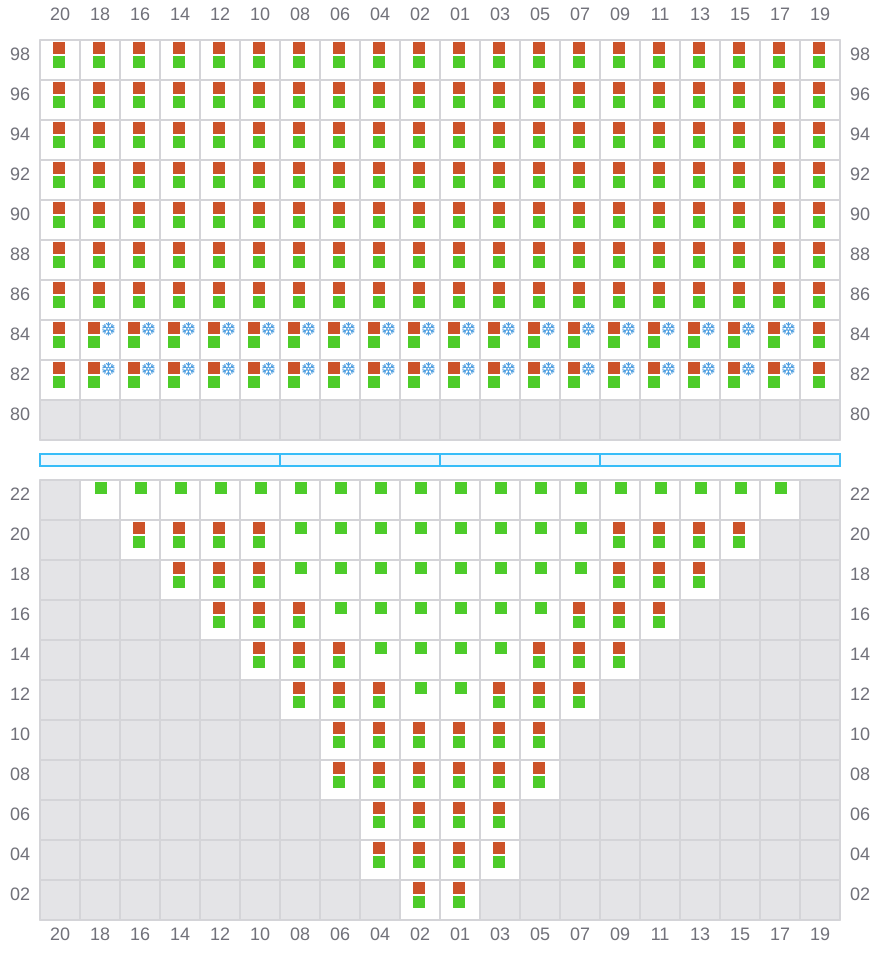

Bay 009 view and slots of ONE MACKINAC

011

  • ←
  • → / ?
  • → / ?

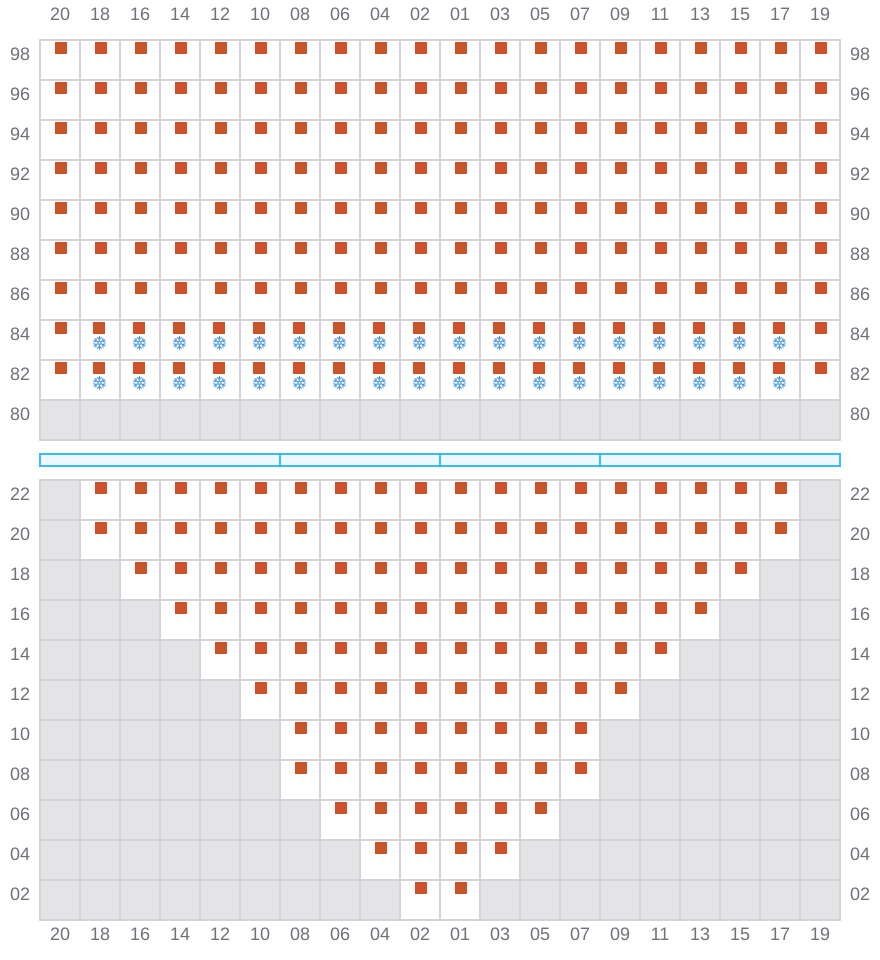

Bay 011 view and slots of ONE MACKINAC

013 (014)

  • →
  • → / ?
  • →

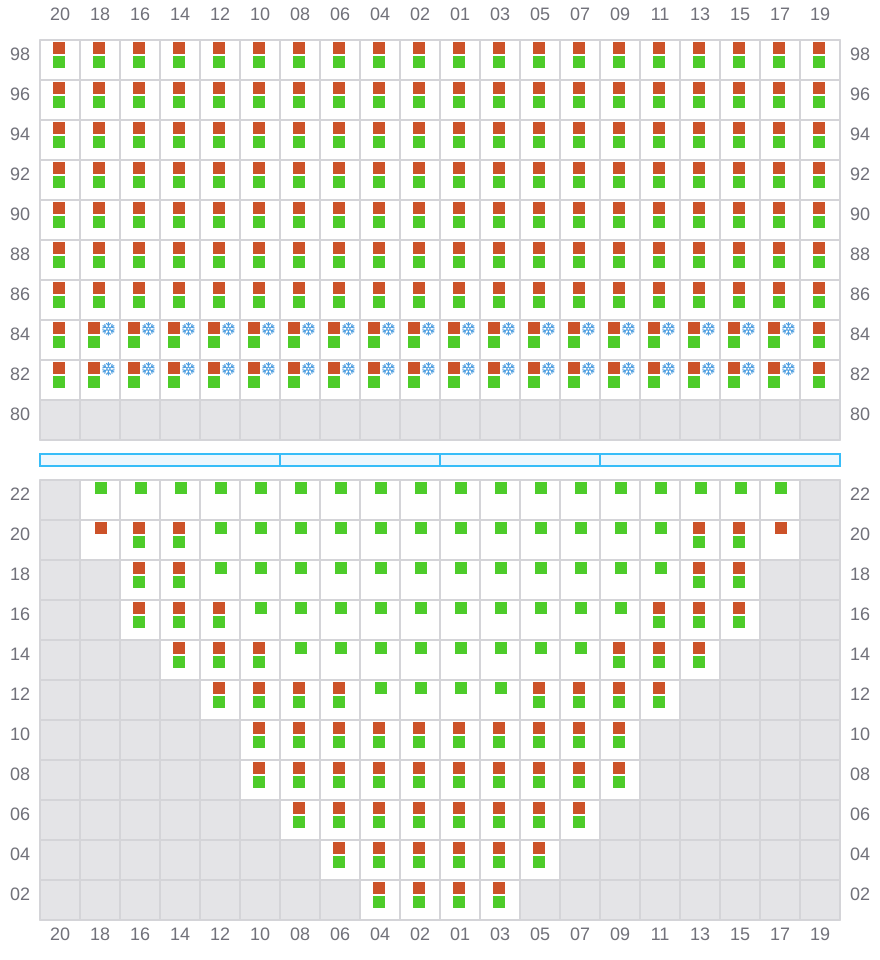

Bay 013 view and slots of ONE MACKINAC

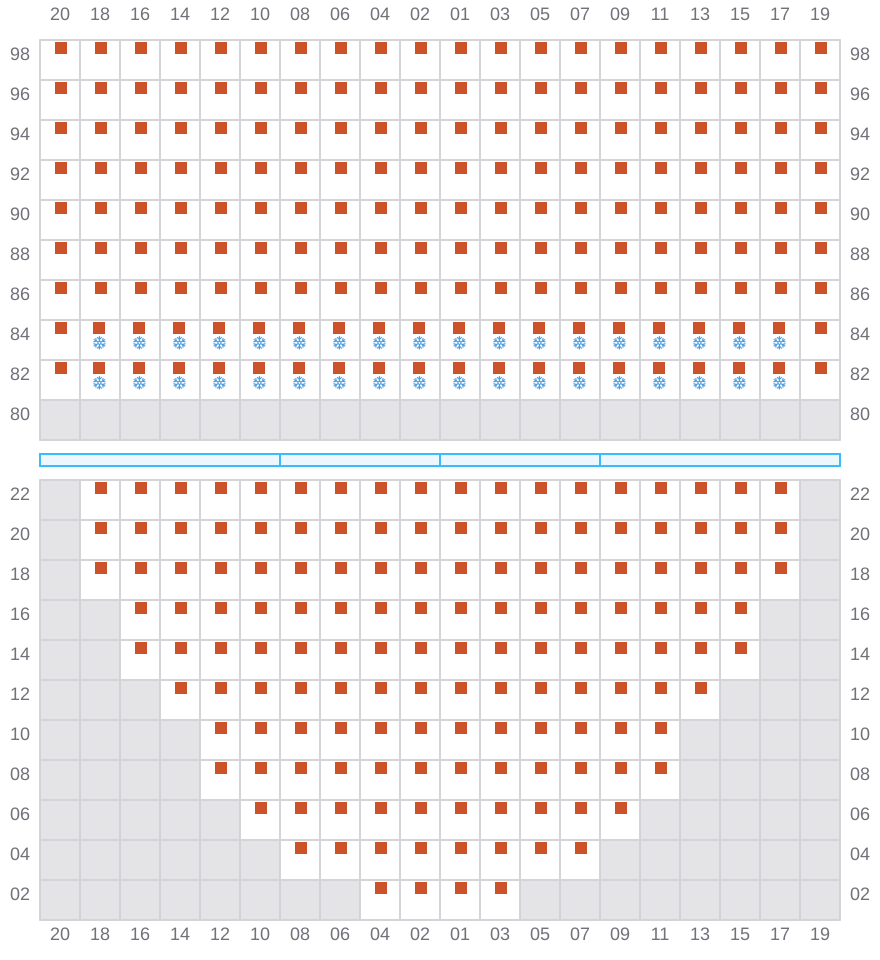

015

  • ←
  • → / ?
  • →
Bay 015 view and slots of ONE MACKINAC

017 (018)

  • →
  • → / ?
  • →

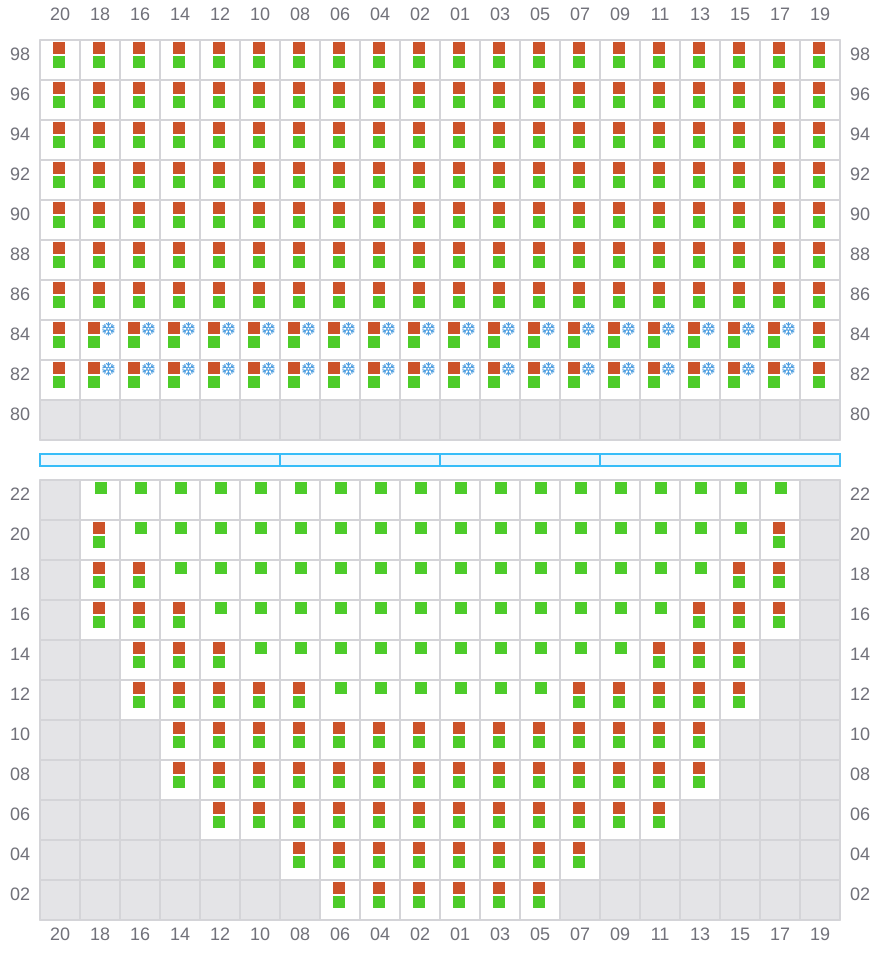

Bay 017 view and slots of ONE MACKINAC

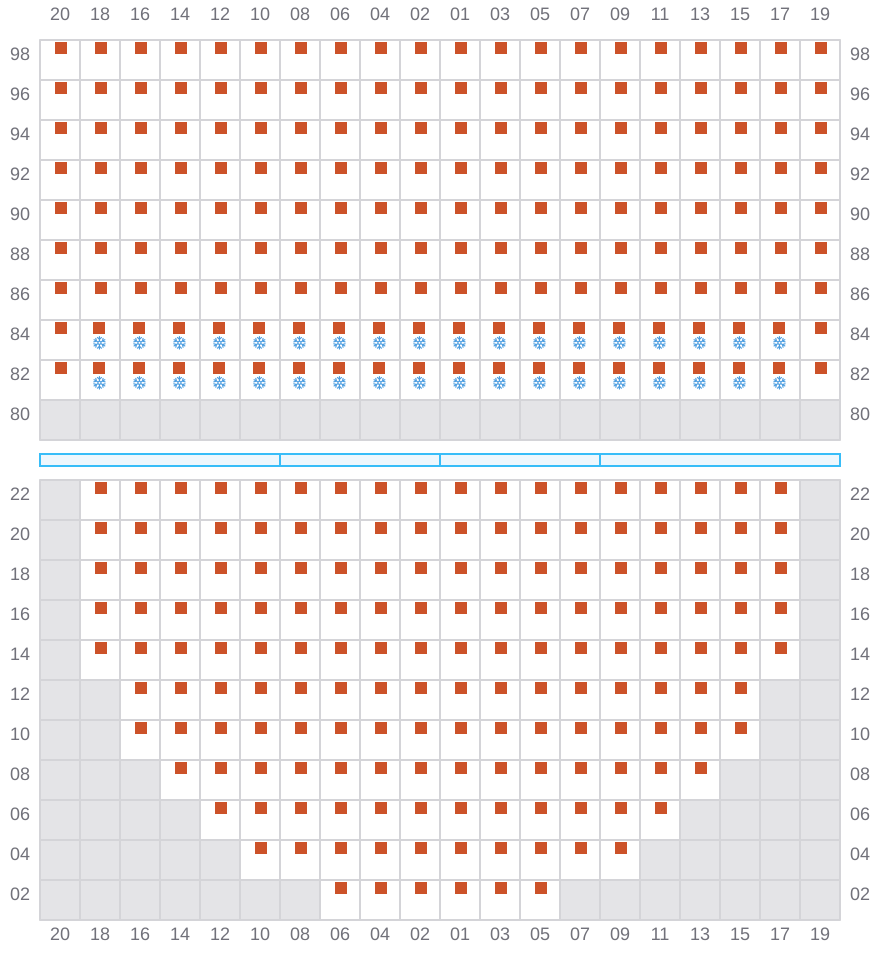

019

  • ←
  • → / ?
  • →
Bay 019 view and slots of ONE MACKINAC

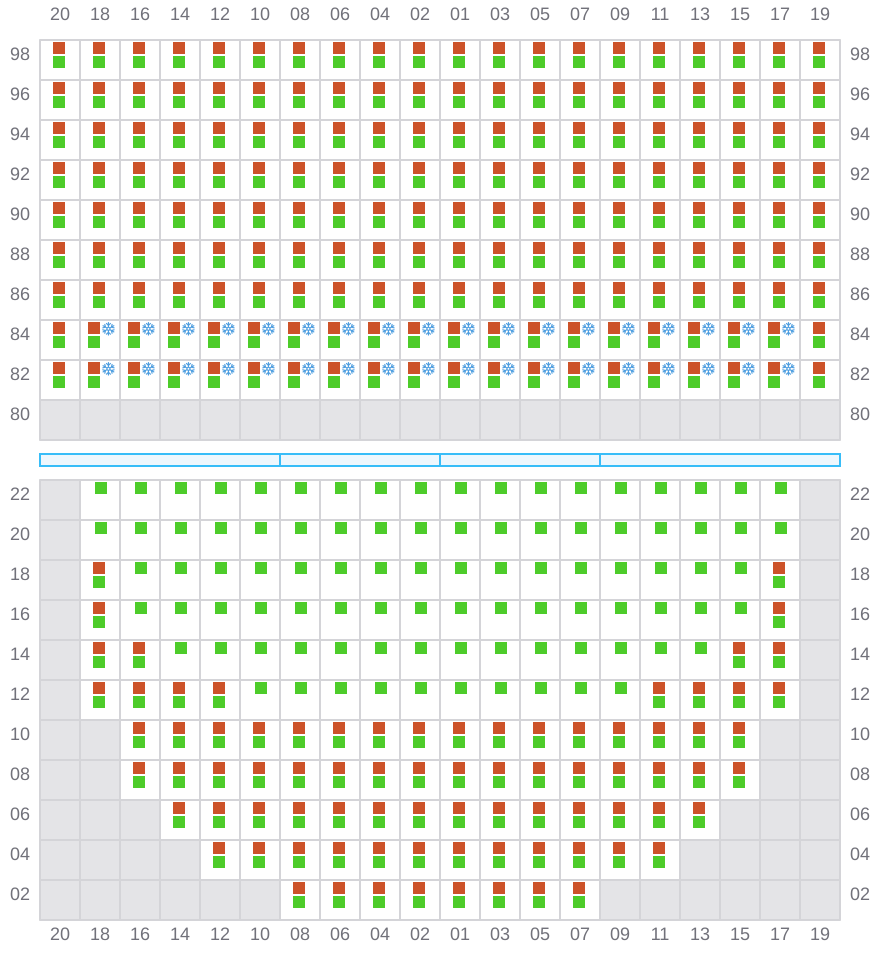

021 (022)

  • →
  • → / ?
  • →
Bay 021 view and slots of ONE MACKINAC

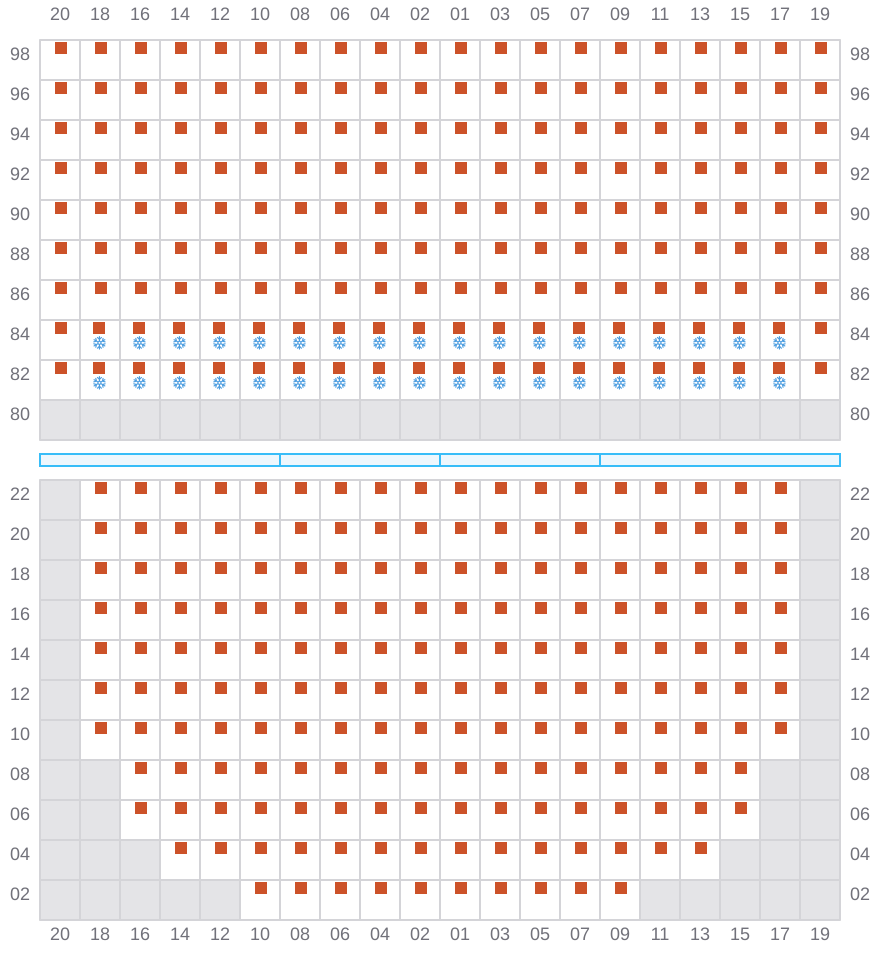

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of ONE MACKINAC

025 (026)

  • →
  • → / ?
  • →

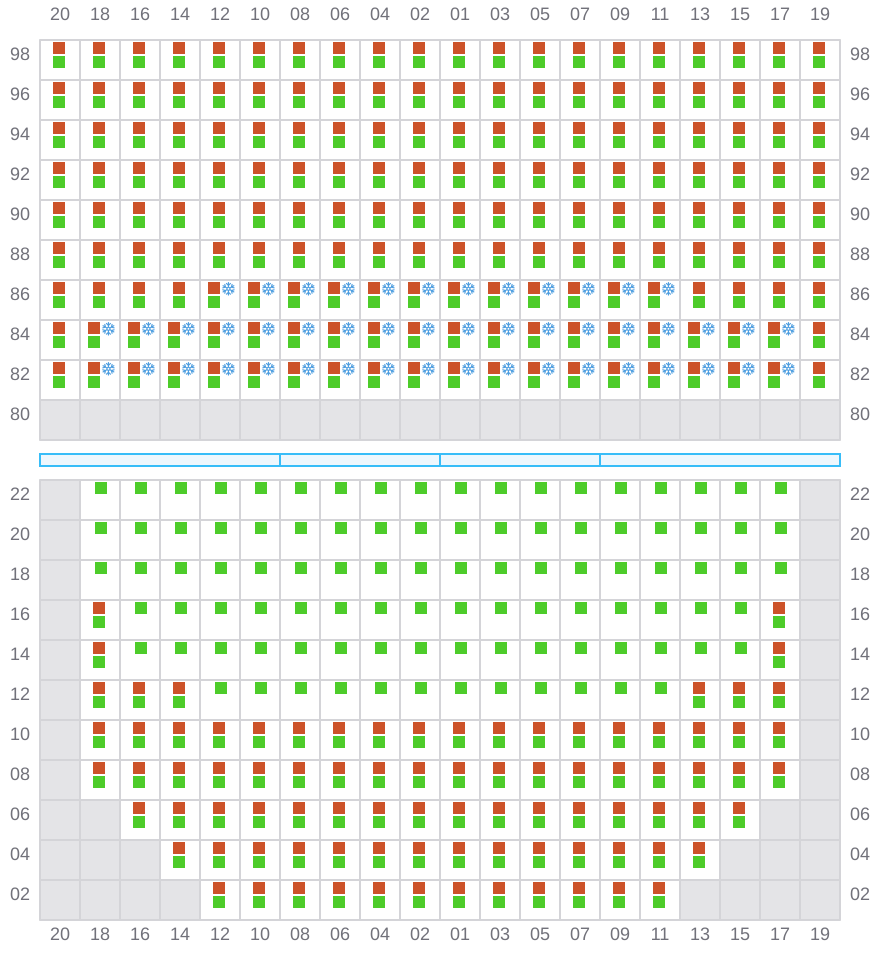

Bay 025 view and slots of ONE MACKINAC

027

  • ←
  • → / ?
  • →
Bay 027 view and slots of ONE MACKINAC

029 (030)

  • →
  • →

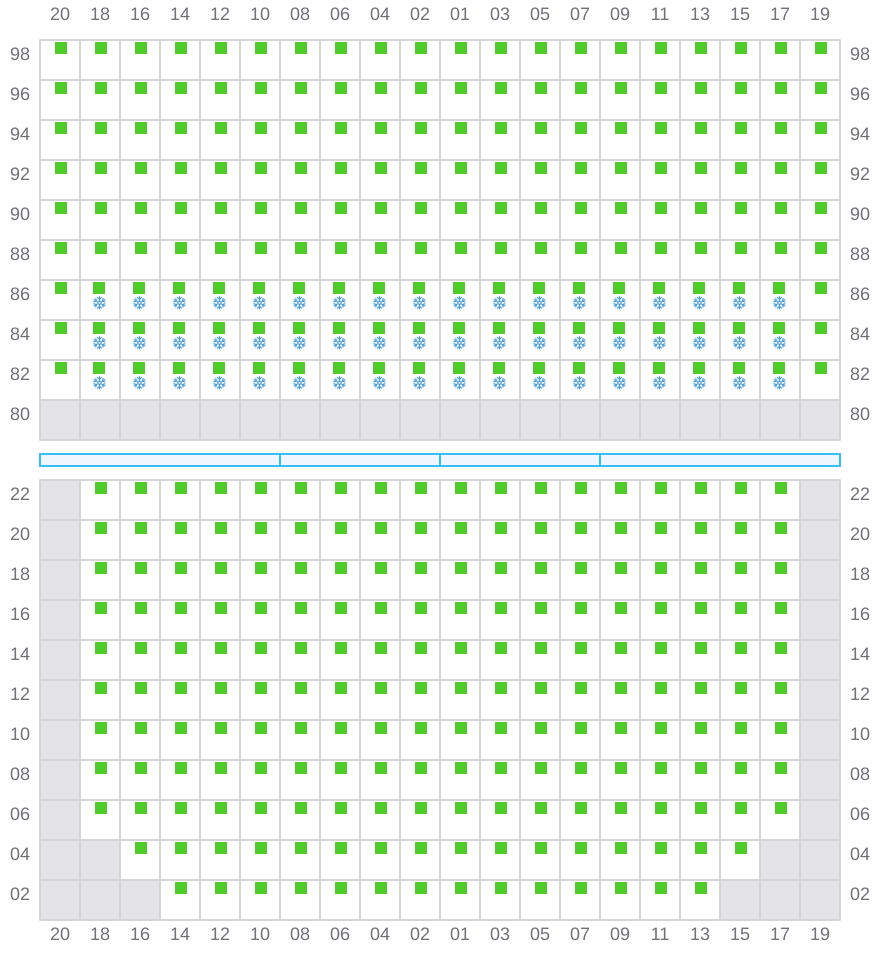

Bay 029 view and slots of ONE MACKINAC

031

Bay 031 view and slots of ONE MACKINAC

033 (034)

  • →
  • →

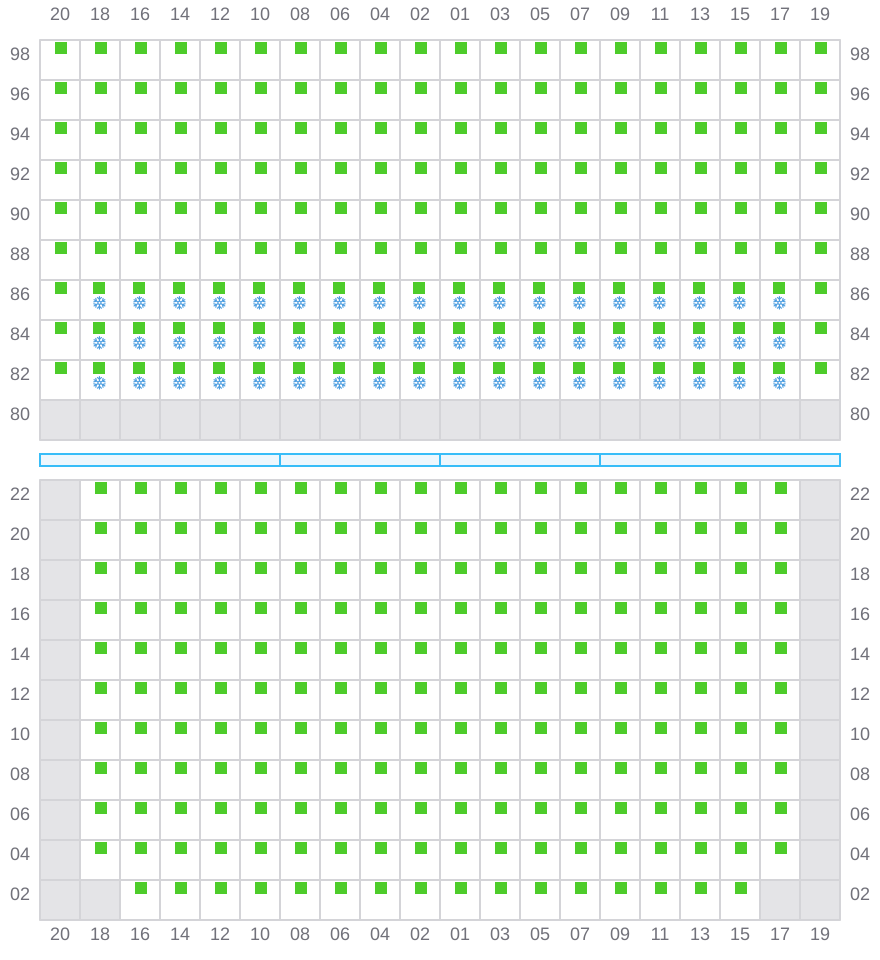

Bay 033 view and slots of ONE MACKINAC

035

Bay 035 view and slots of ONE MACKINAC

037 (038)

  • →
  • → / ?
  • →

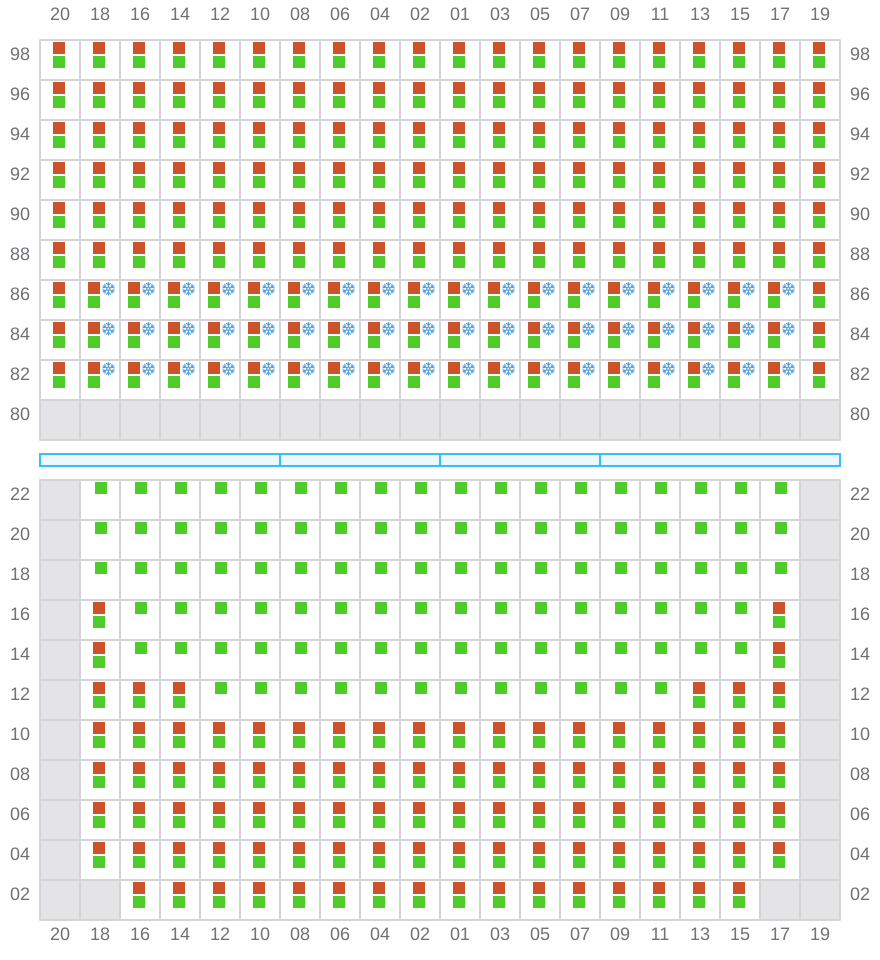

Bay 037 view and slots of ONE MACKINAC

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of ONE MACKINAC

041 (042)

  • →
  • → / ?
  • →
Bay 041 view and slots of ONE MACKINAC

043

  • ←
  • → / ?
  • →

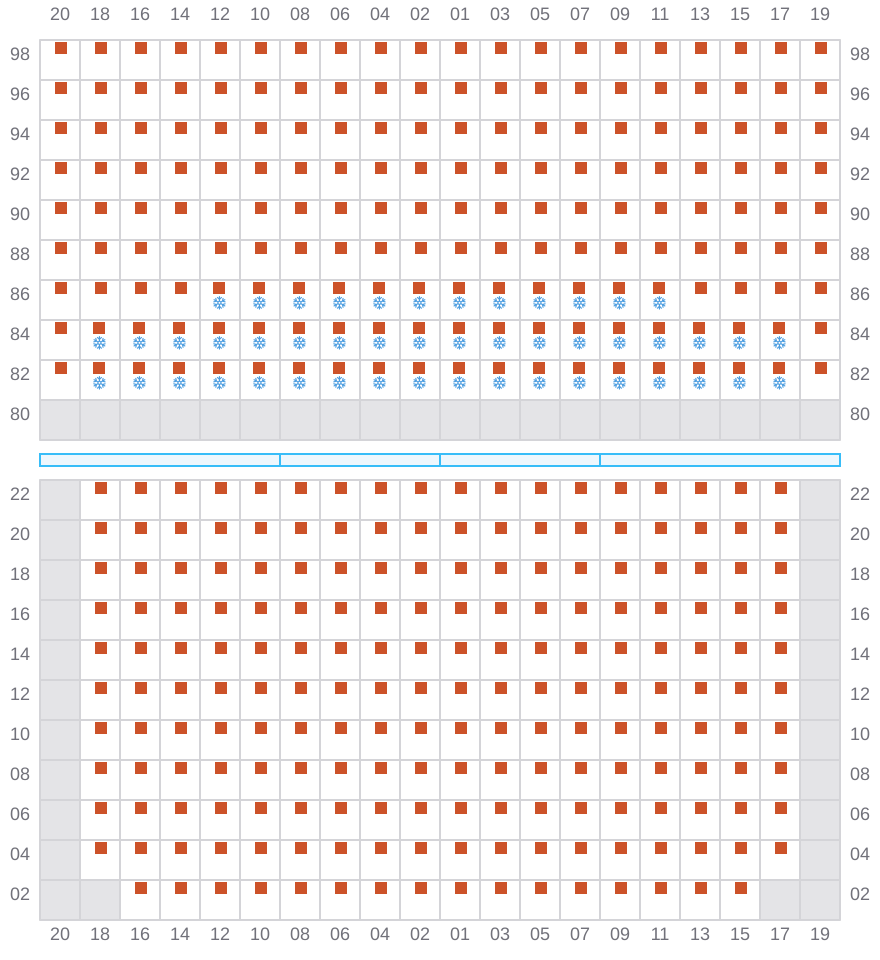

Bay 043 view and slots of ONE MACKINAC

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of ONE MACKINAC

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of ONE MACKINAC

049 (050)

  • →
  • → / ?
  • →
Bay 049 view and slots of ONE MACKINAC

051

  • ←
  • → / ?
  • →

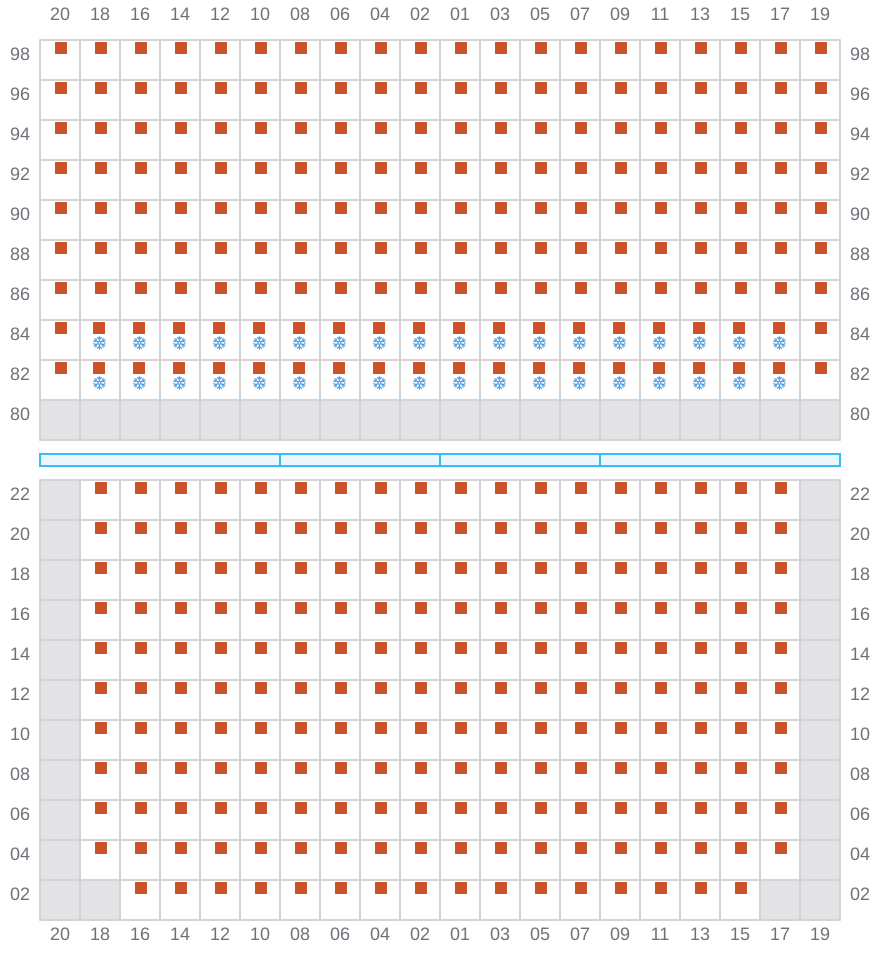

Bay 051 view and slots of ONE MACKINAC

053 (054)

  • →
  • → / ?
  • →
Bay 053 view and slots of ONE MACKINAC

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of ONE MACKINAC

057 (058)

  • →
  • → / ?
  • →
Bay 057 view and slots of ONE MACKINAC

059

  • ←
  • → / ?
  • →

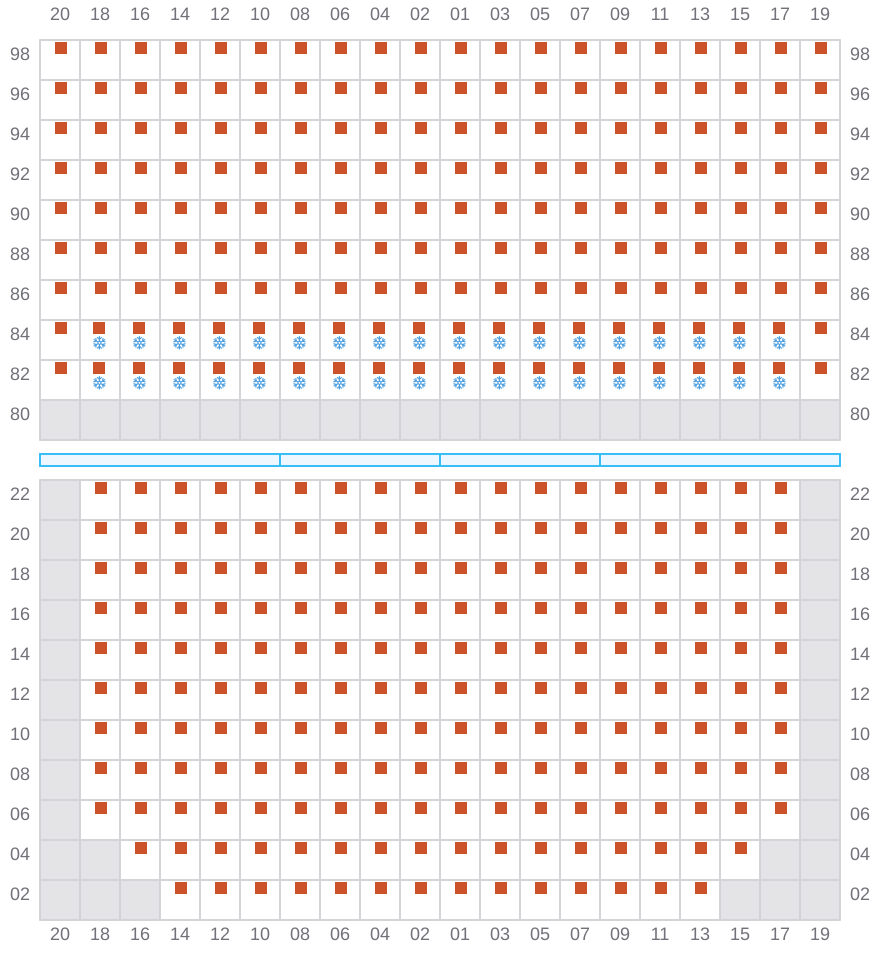

Bay 059 view and slots of ONE MACKINAC

061 (062)

  • →
  • → / ?
  • →

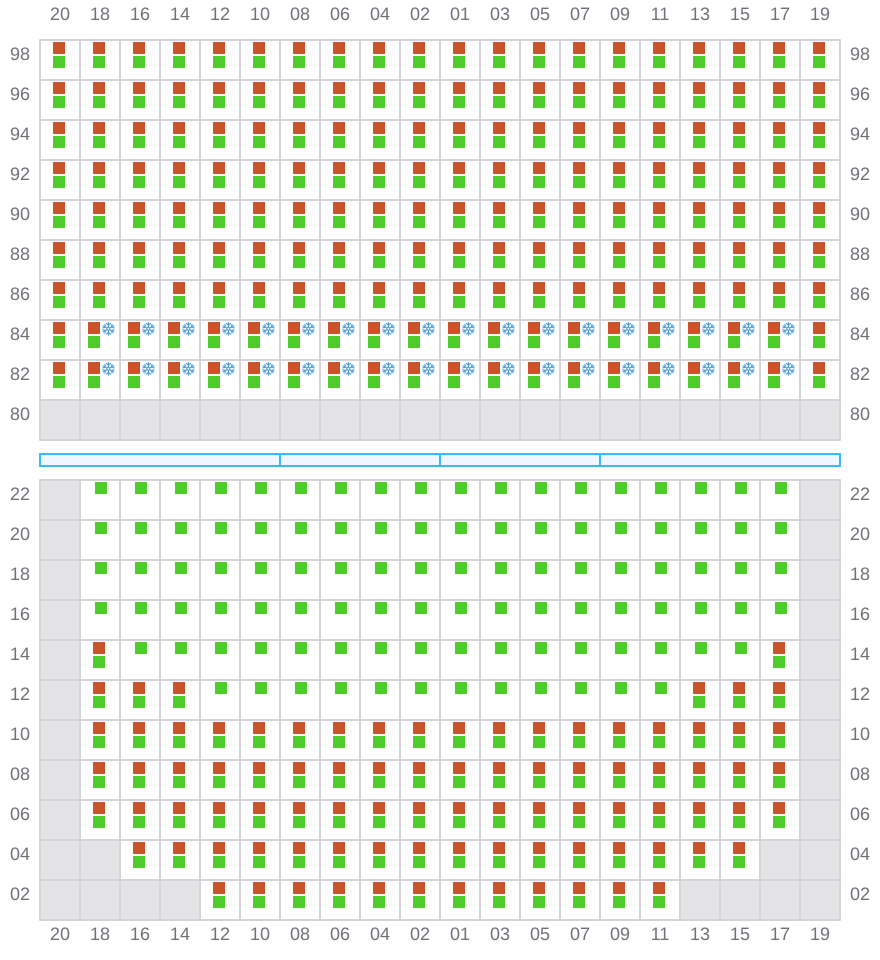

Bay 061 view and slots of ONE MACKINAC

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of ONE MACKINAC

065 (066)

  • →
  • → / ?
  • →

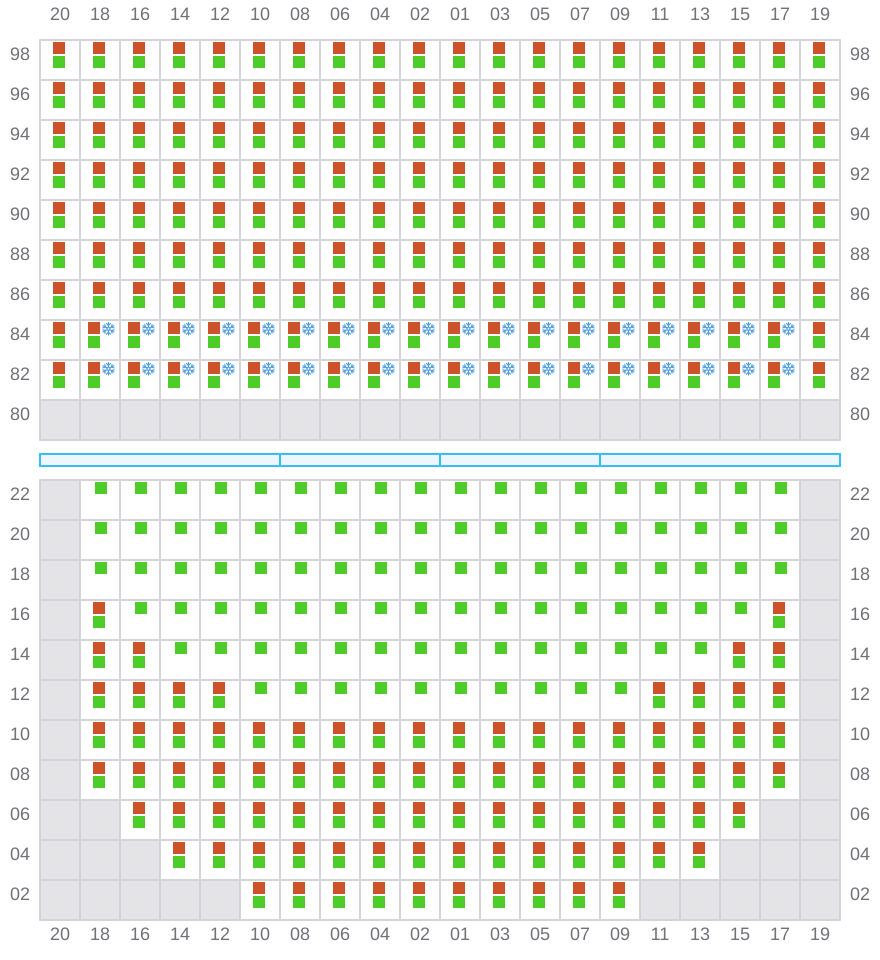

Bay 065 view and slots of ONE MACKINAC

067

  • ←
  • → / ?
  • →

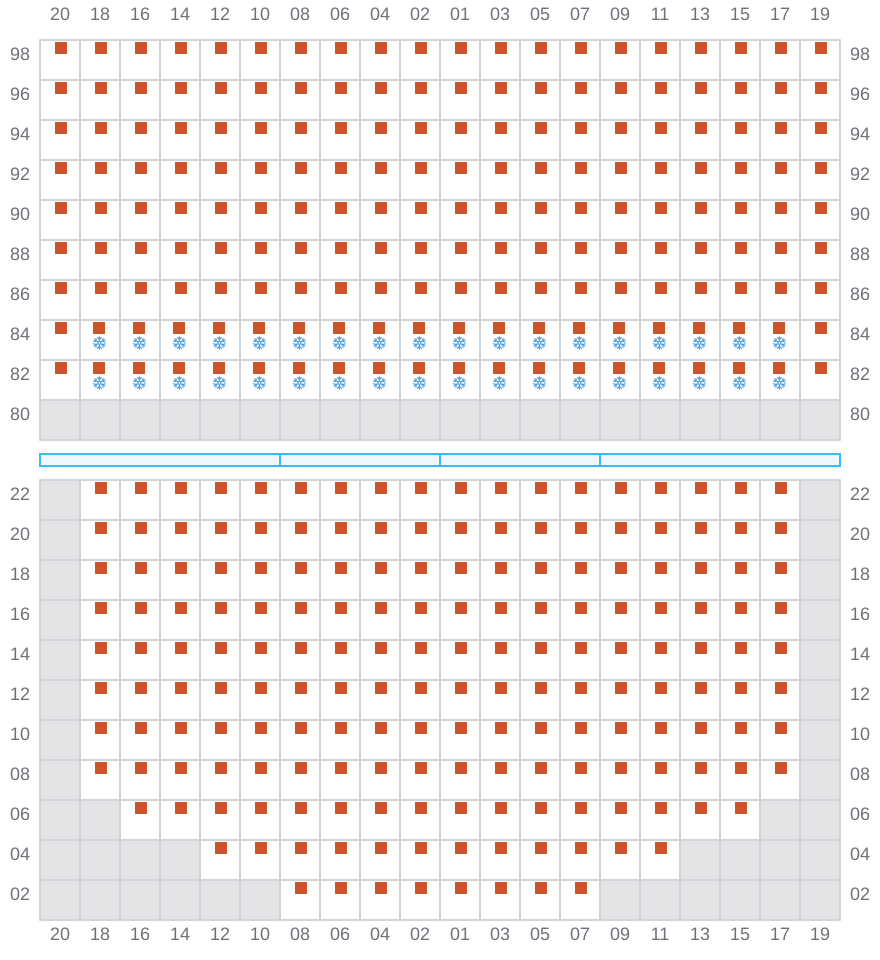

Bay 067 view and slots of ONE MACKINAC

069 (070)

  • →
  • →

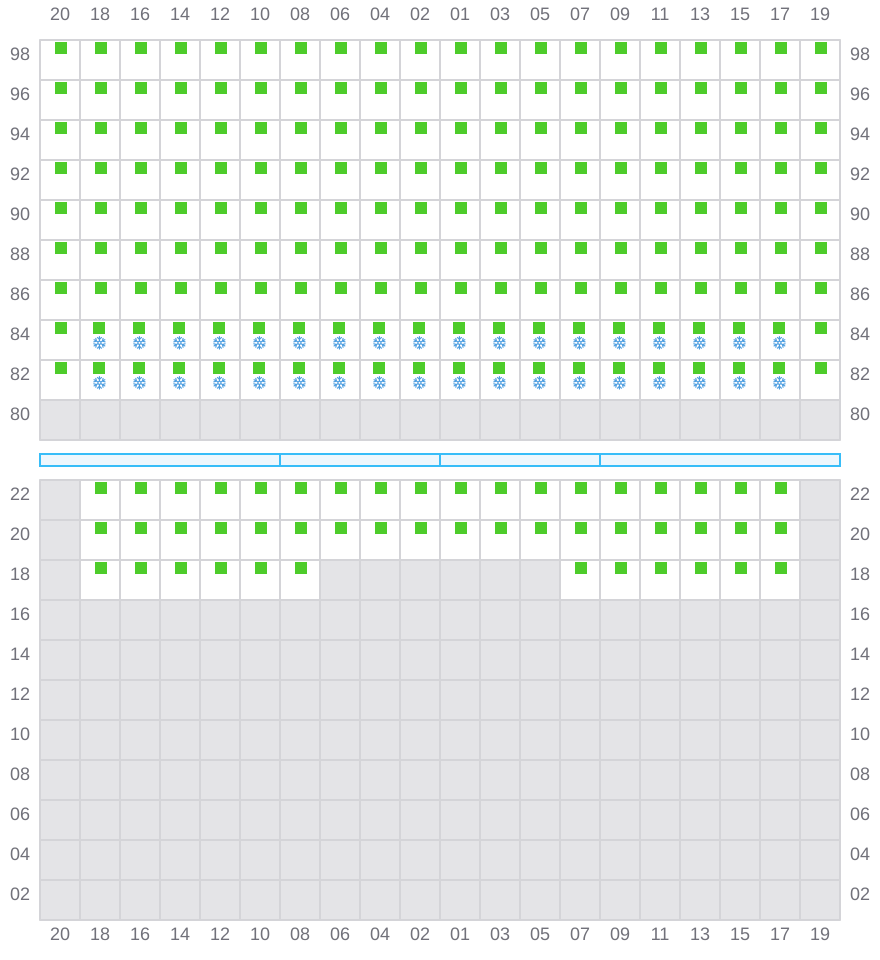

Bay 069 view and slots of ONE MACKINAC

071

Bay 071 view and slots of ONE MACKINAC

073 (074)

  • →
  • →
Bay 073 view and slots of ONE MACKINAC

075

Bay 075 view and slots of ONE MACKINAC

077 (078)

  • →
  • → / ?
  • →

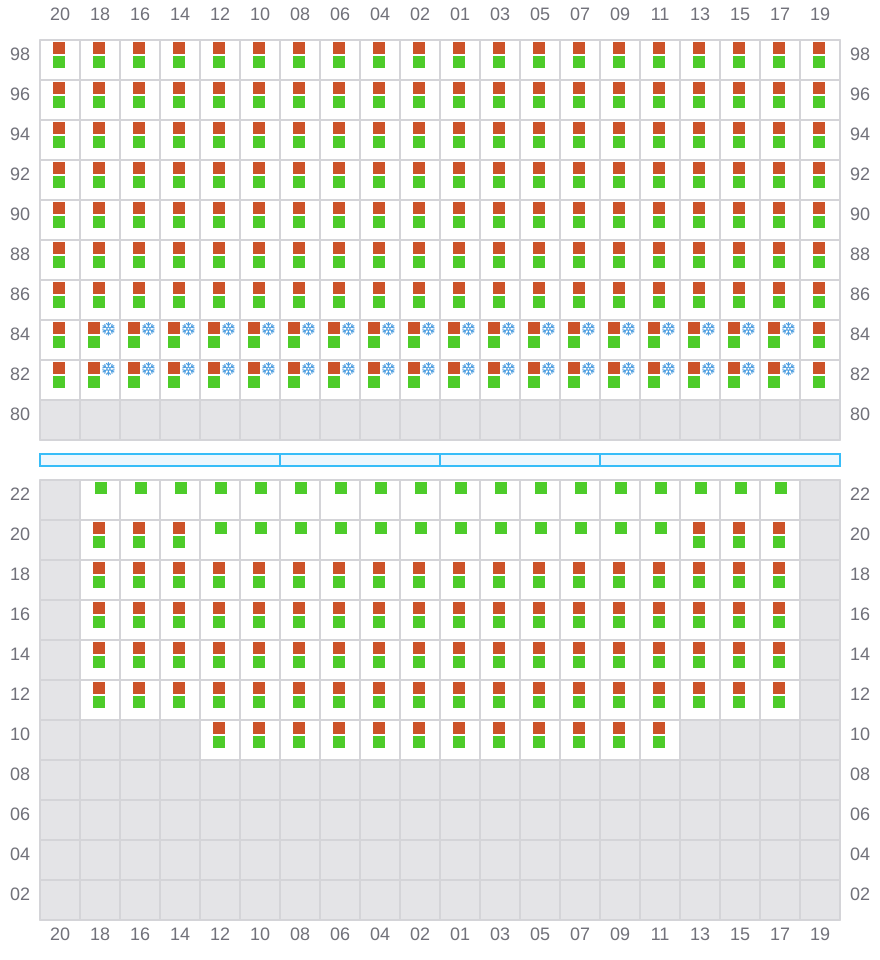

Bay 077 view and slots of ONE MACKINAC

079

  • ←
  • → / ?
  • →

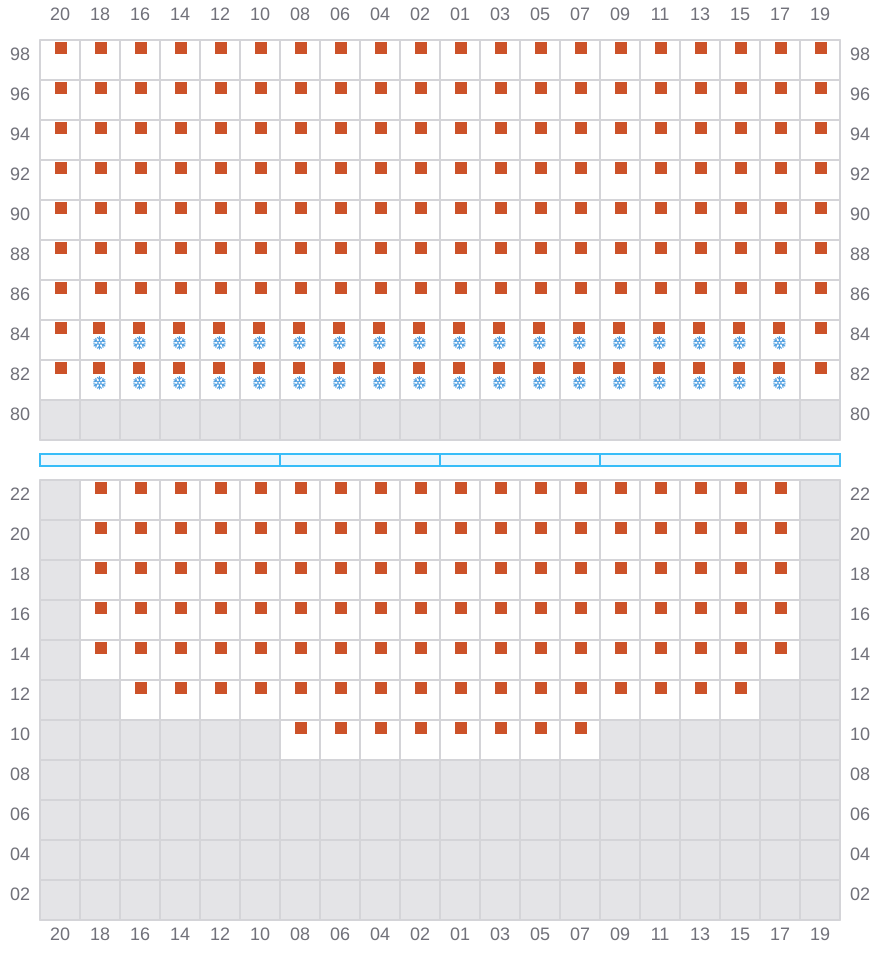

Bay 079 view and slots of ONE MACKINAC

081 (082)

  • →
  • → / ?
  • →

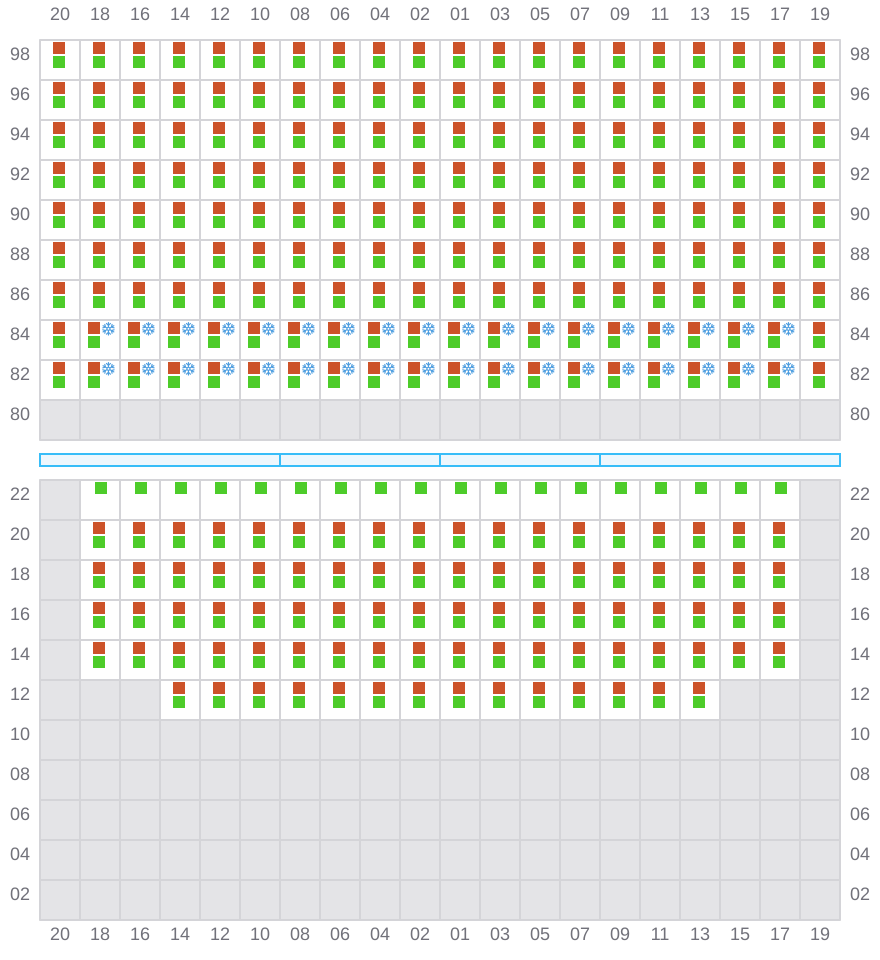

Bay 081 view and slots of ONE MACKINAC

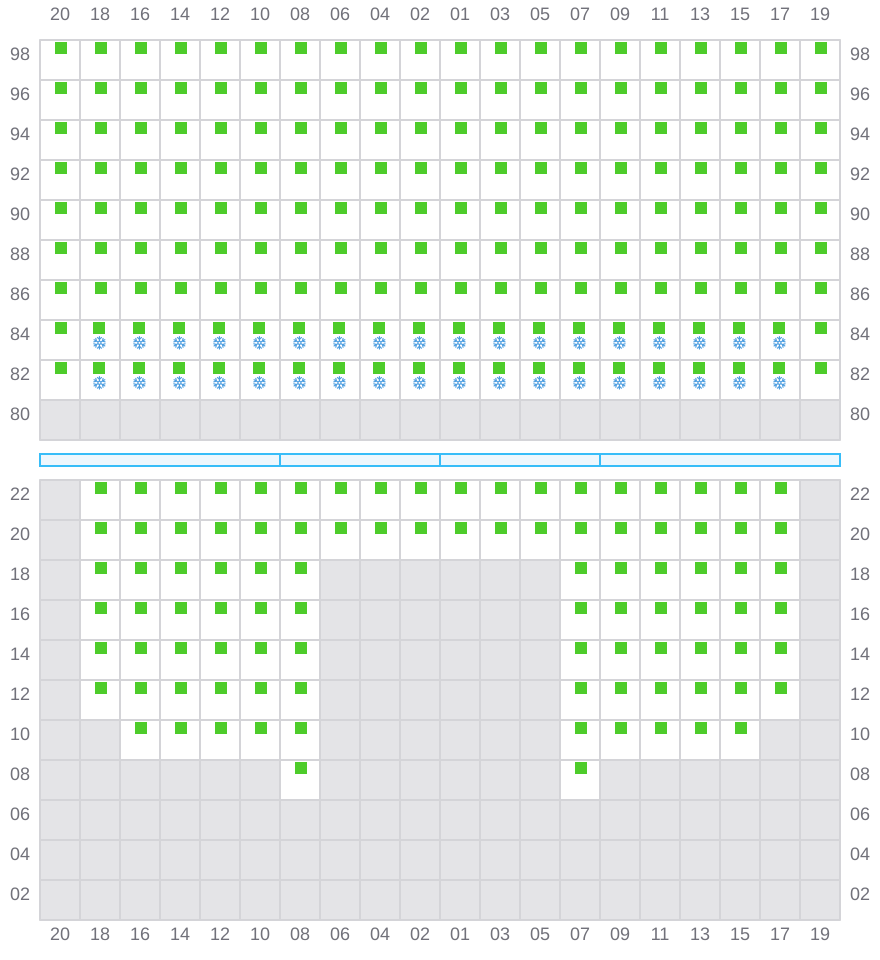

083

  • ←
  • → / ?
  • →

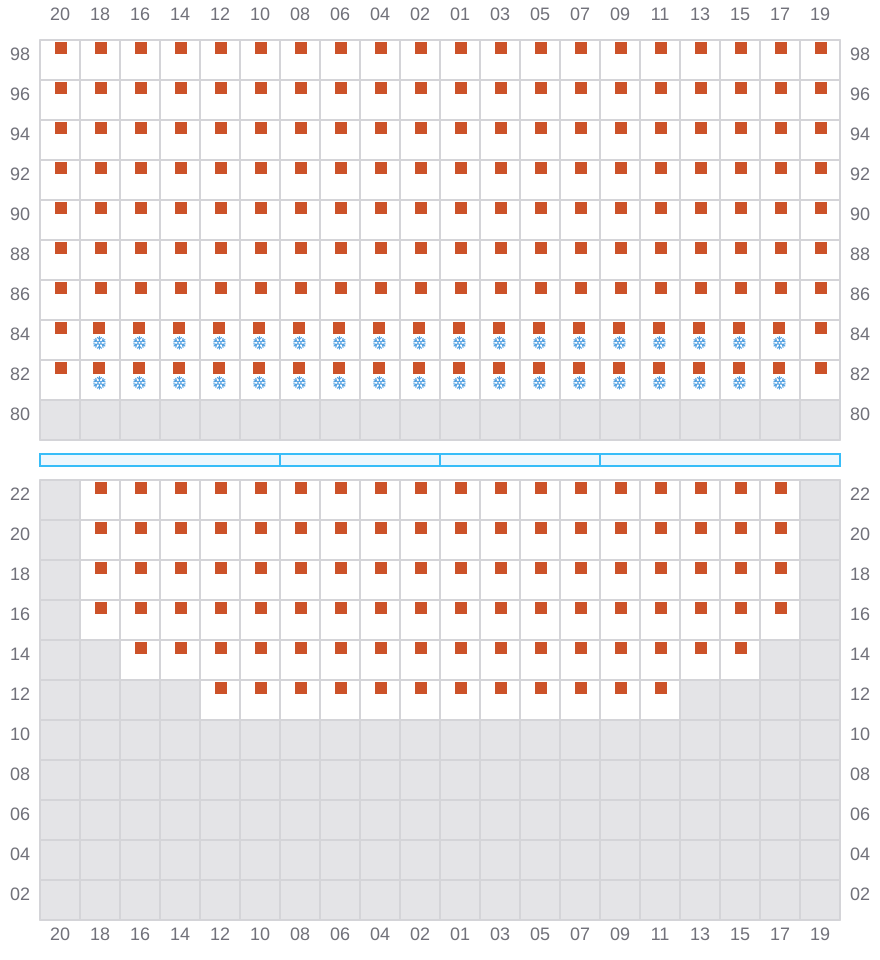

Bay 083 view and slots of ONE MACKINAC

085 (086)

  • → / ?
  • → / ?
Bay 085 view and slots of ONE MACKINAC
