ONE OWL_MB
9741449 | 7KBK | ONE by ****************************** Last update: Thu Sep 17 2026

General Info

Ship Name:ONE OWL_MB

IMO Code:9741449

Call Sign:7KBK

Line Operator:ONE

Class Name for Sister Ships:OOWL

Year Built:2017

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):349.00

LOA (Length Overall):364.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

40' Bays Location:-

Size Summary

ISO Bays:087

Max ISO Row:20

Center Line Row:No

Max Above ISO Tier:98

Min Above ISO Tier:78

Max Below ISO Tier:22

Min Below ISO Tier:02

Total TEU:14,026

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

Side view of ONE OWL_MB

Hatch-Covers View

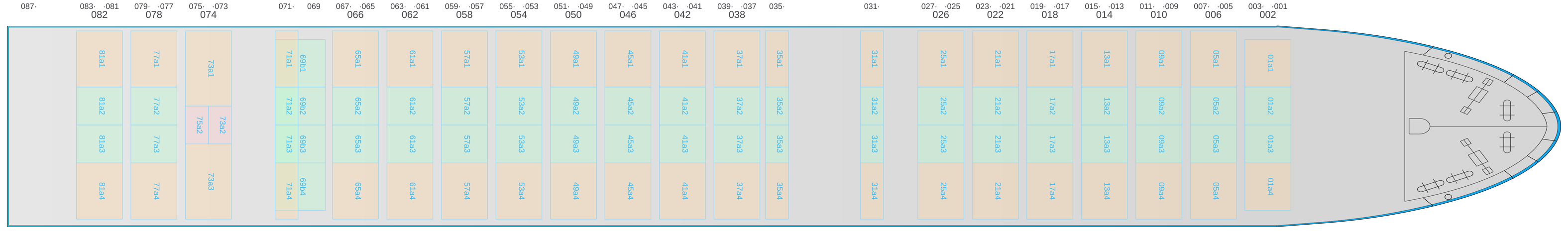

Deck view of ONE OWL_MB

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

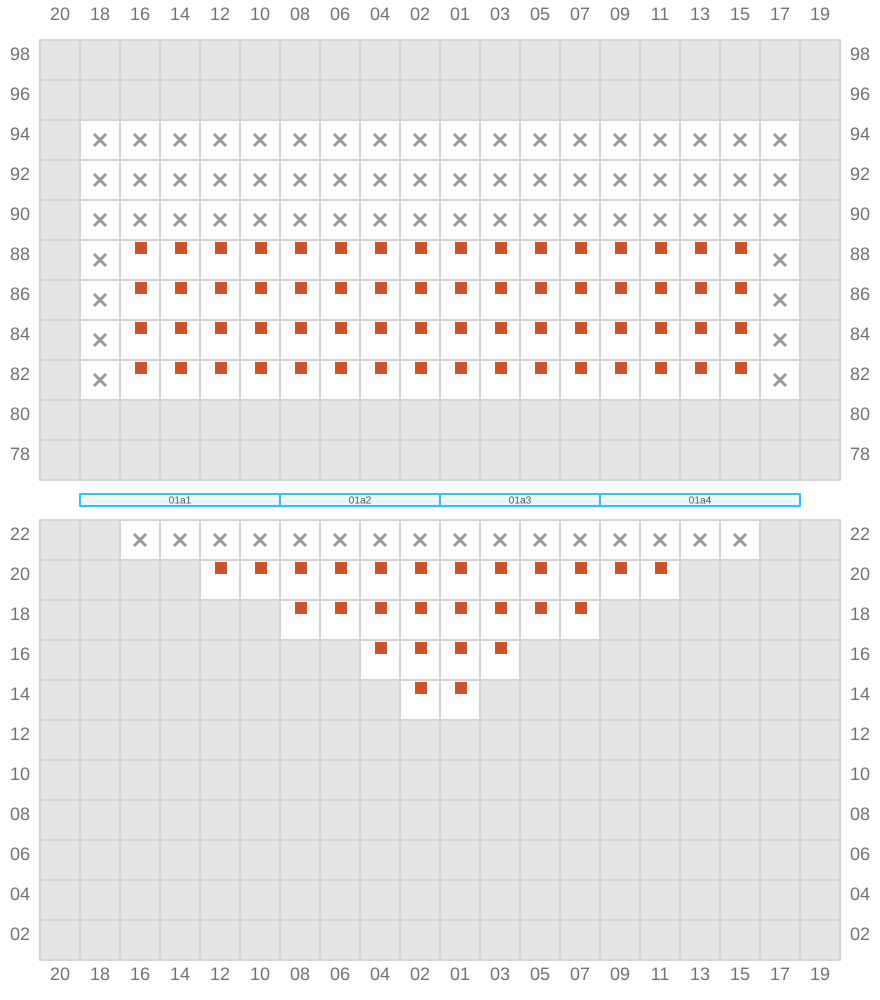

001

→

Bay 001 view and slots of ONE OWL_MB

003 (002)

←

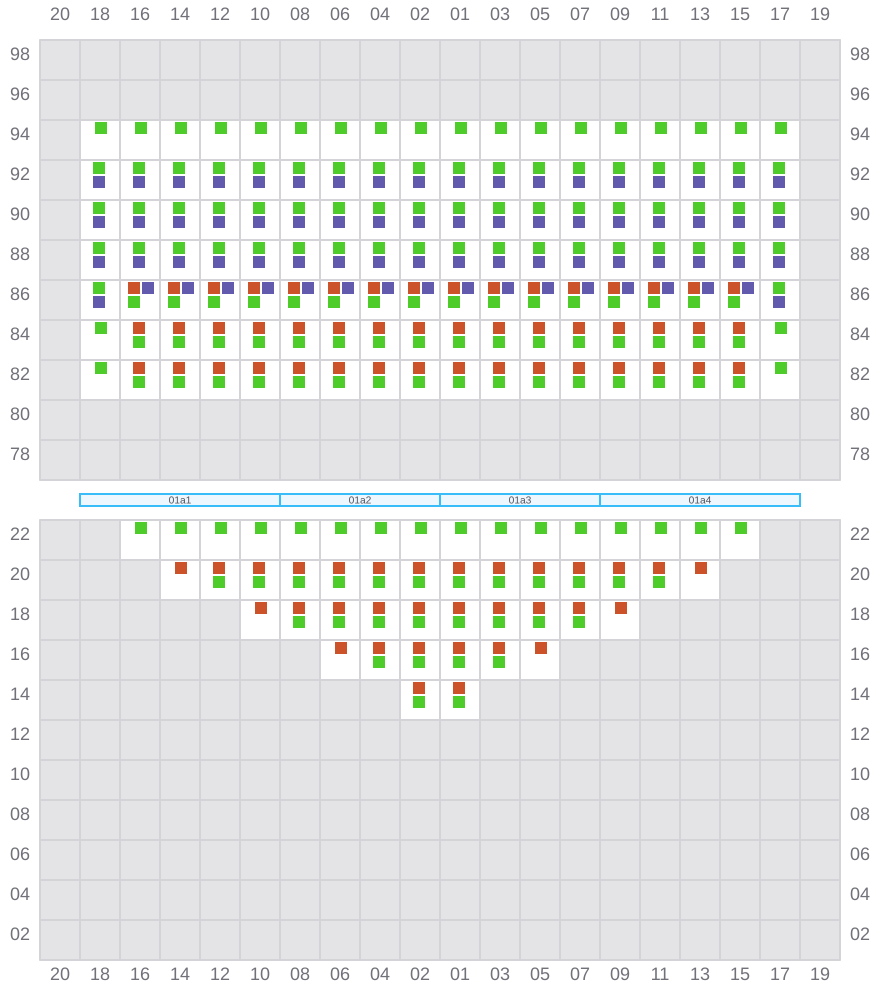

Bay 003 view and slots of ONE OWL_MB

005

→

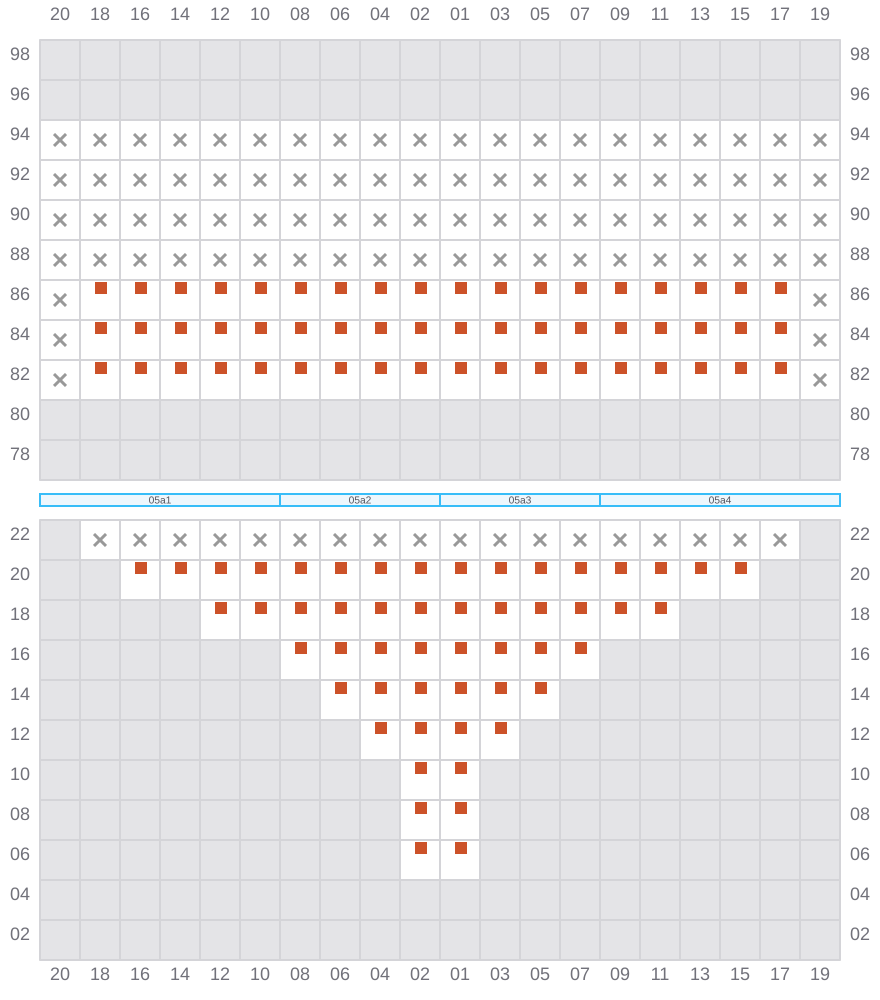

Bay 005 view and slots of ONE OWL_MB

007 (006)

←

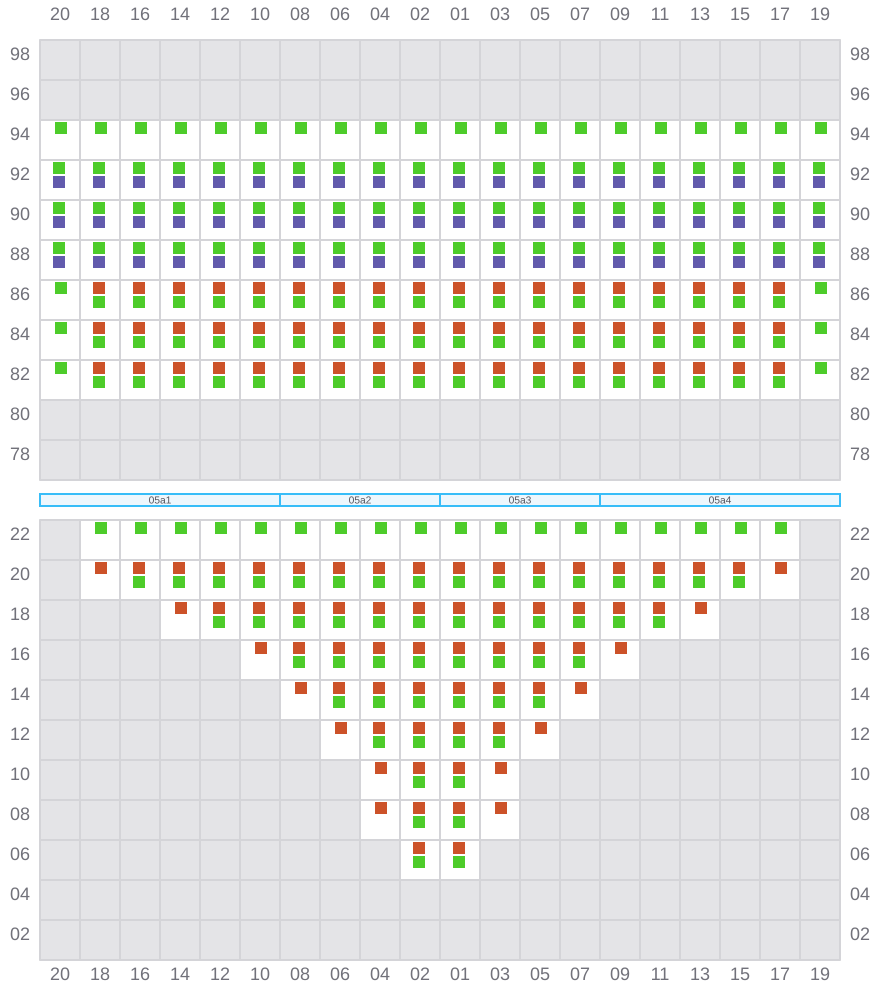

Bay 007 view and slots of ONE OWL_MB

009

→

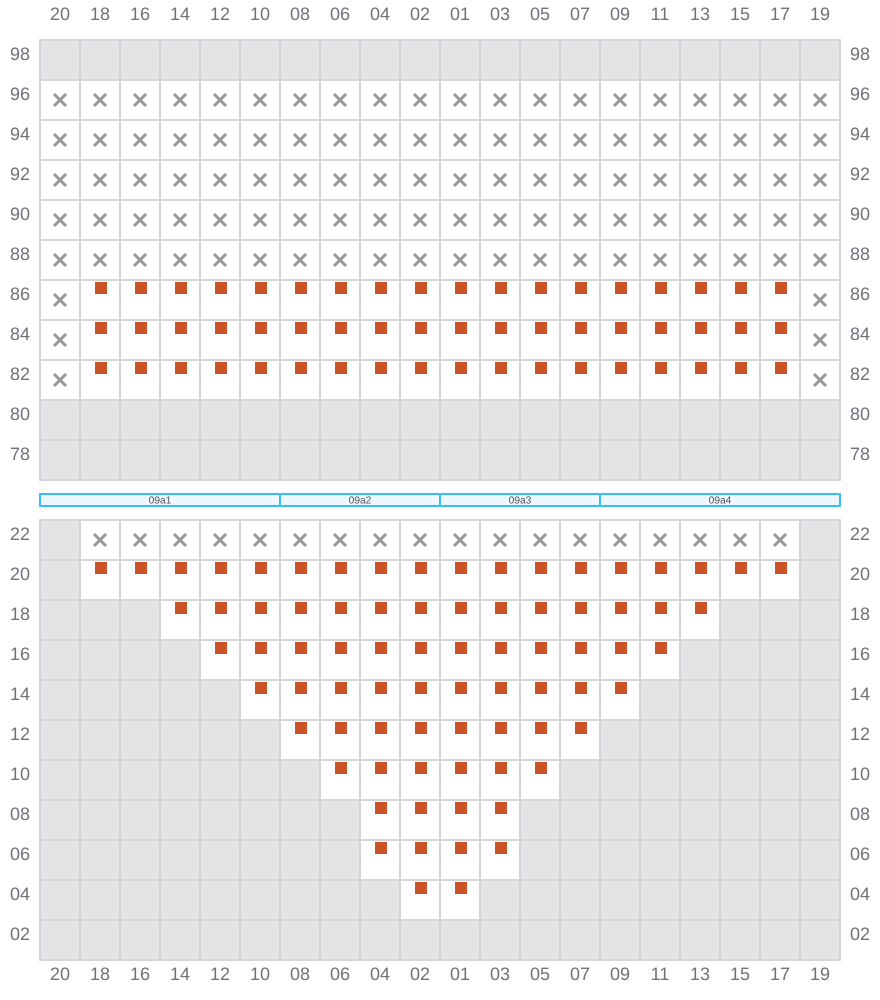

Bay 009 view and slots of ONE OWL_MB

011 (010)

←

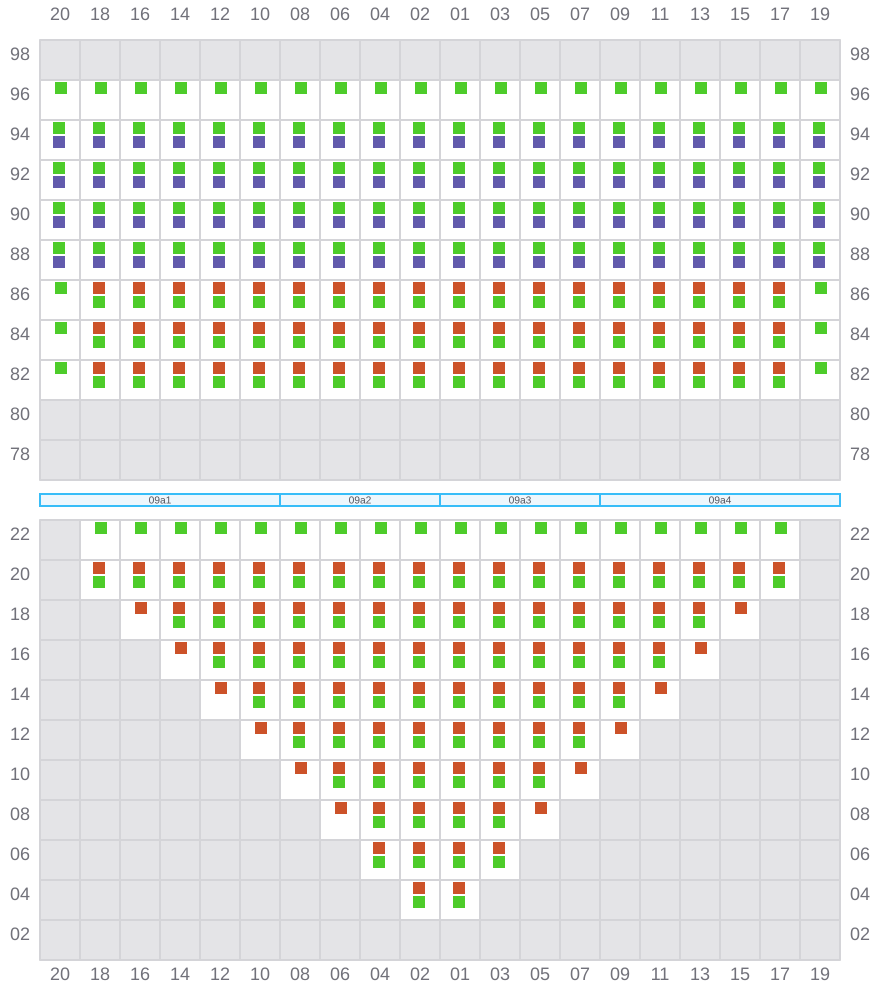

Bay 011 view and slots of ONE OWL_MB

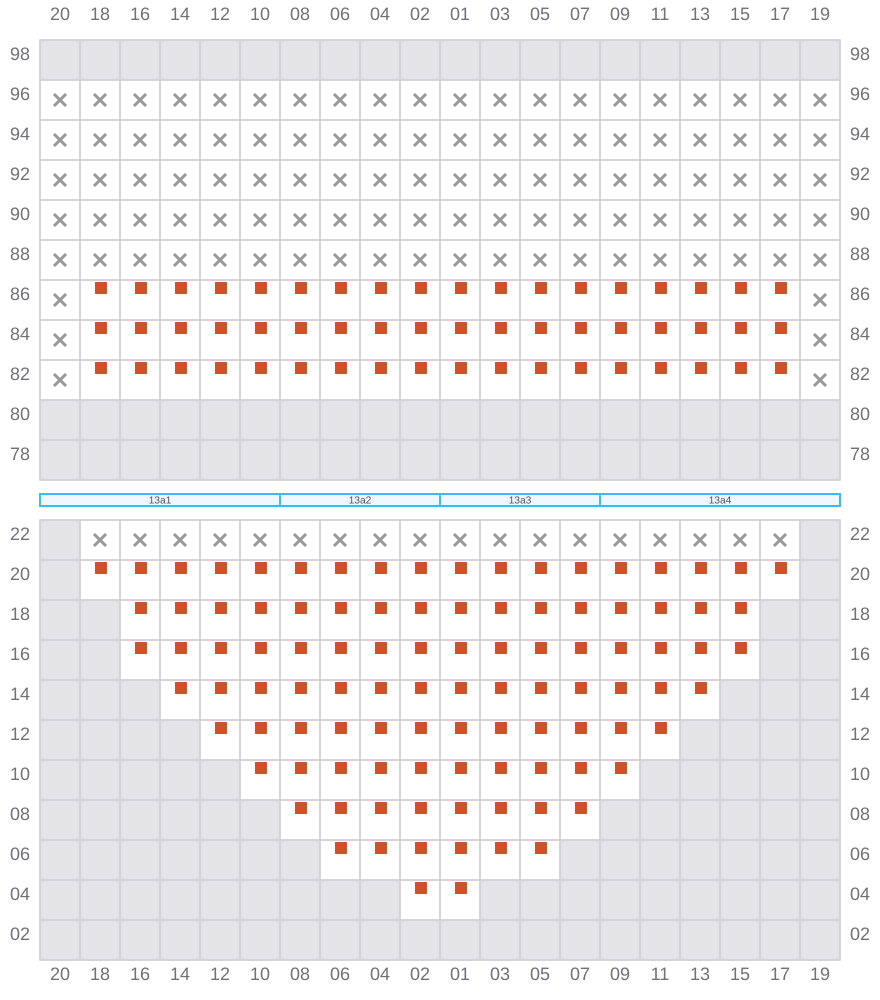

013

→

Bay 013 view and slots of ONE OWL_MB

015 (014)

←

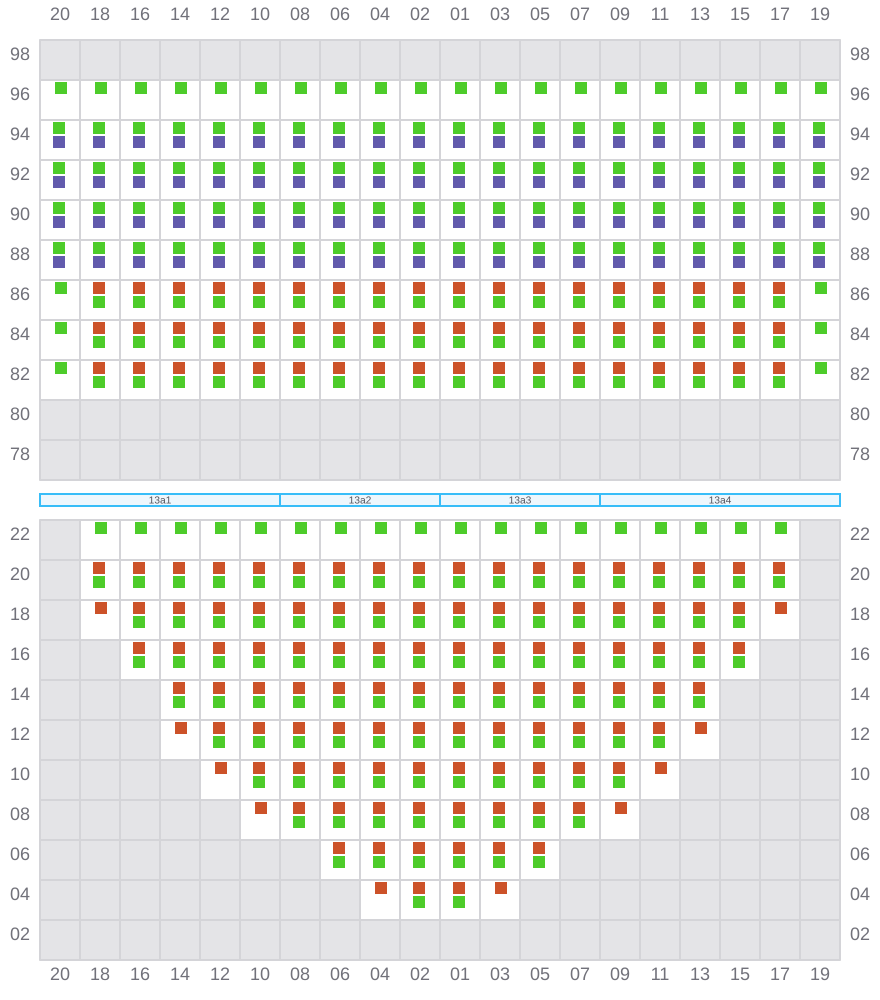

Bay 015 view and slots of ONE OWL_MB

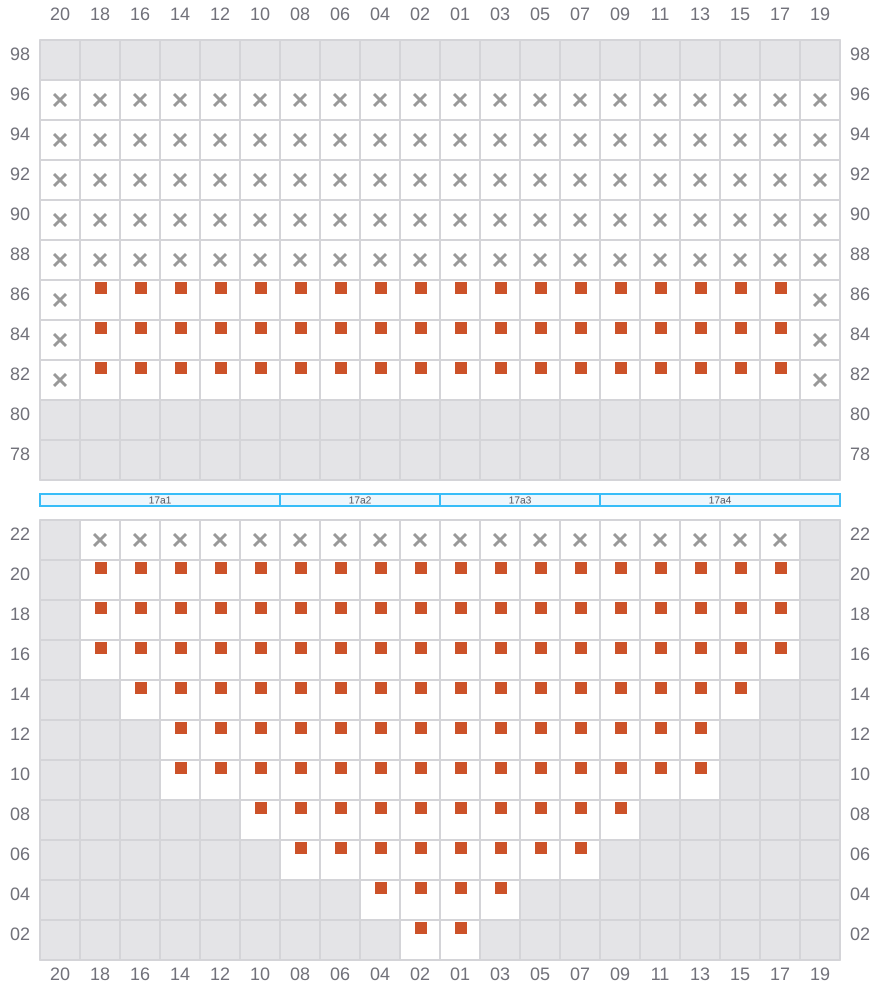

017

→
^← / _?

Bay 017 view and slots of ONE OWL_MB

019 (018)

←

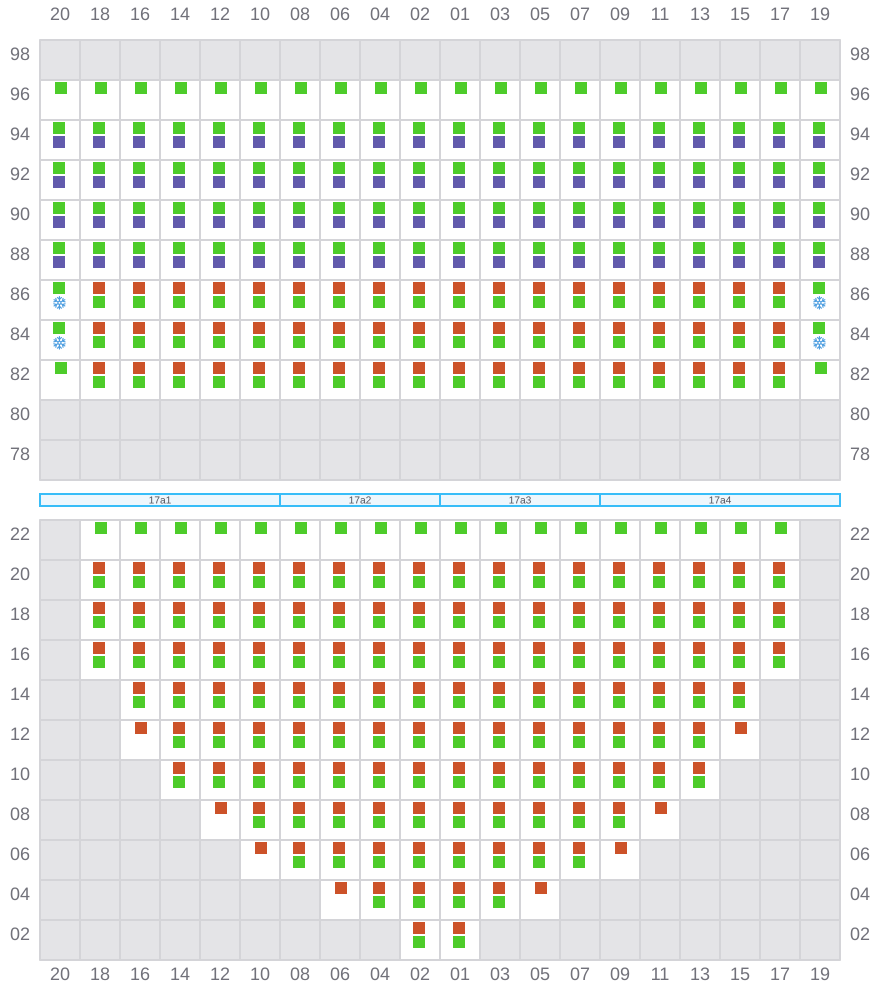

Bay 019 view and slots of ONE OWL_MB

021

→

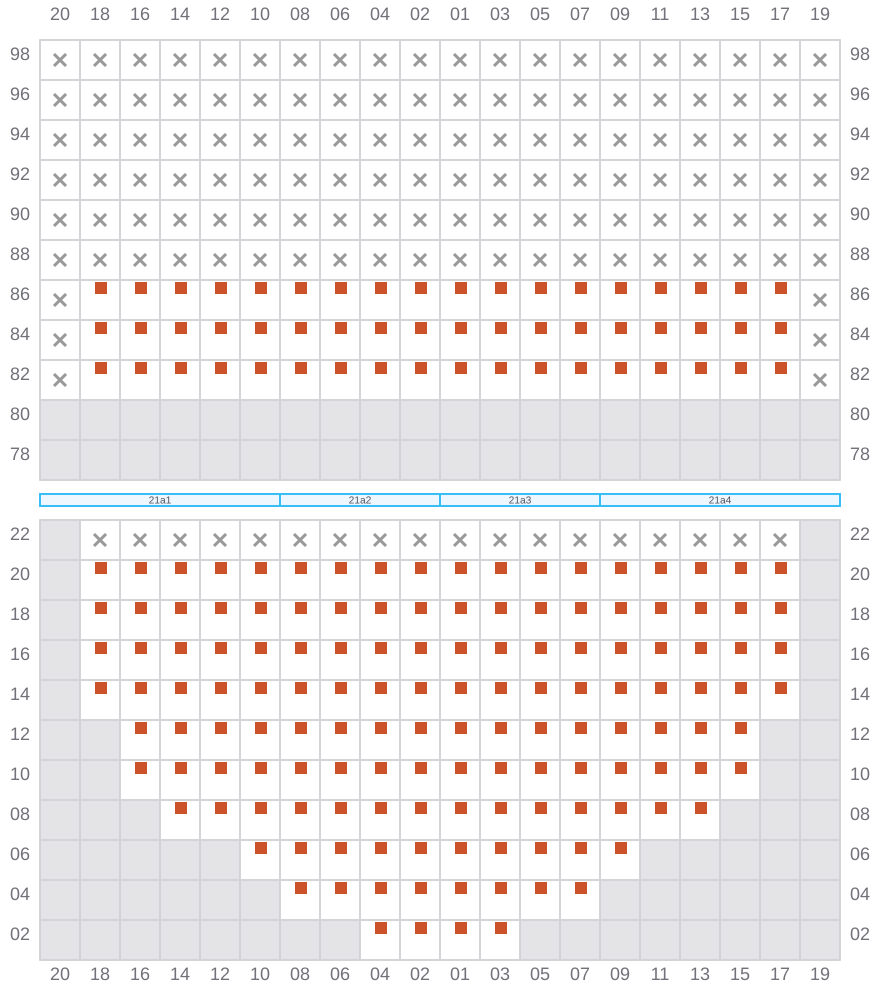

Bay 021 view and slots of ONE OWL_MB

023 (022)

←
^→ / _?

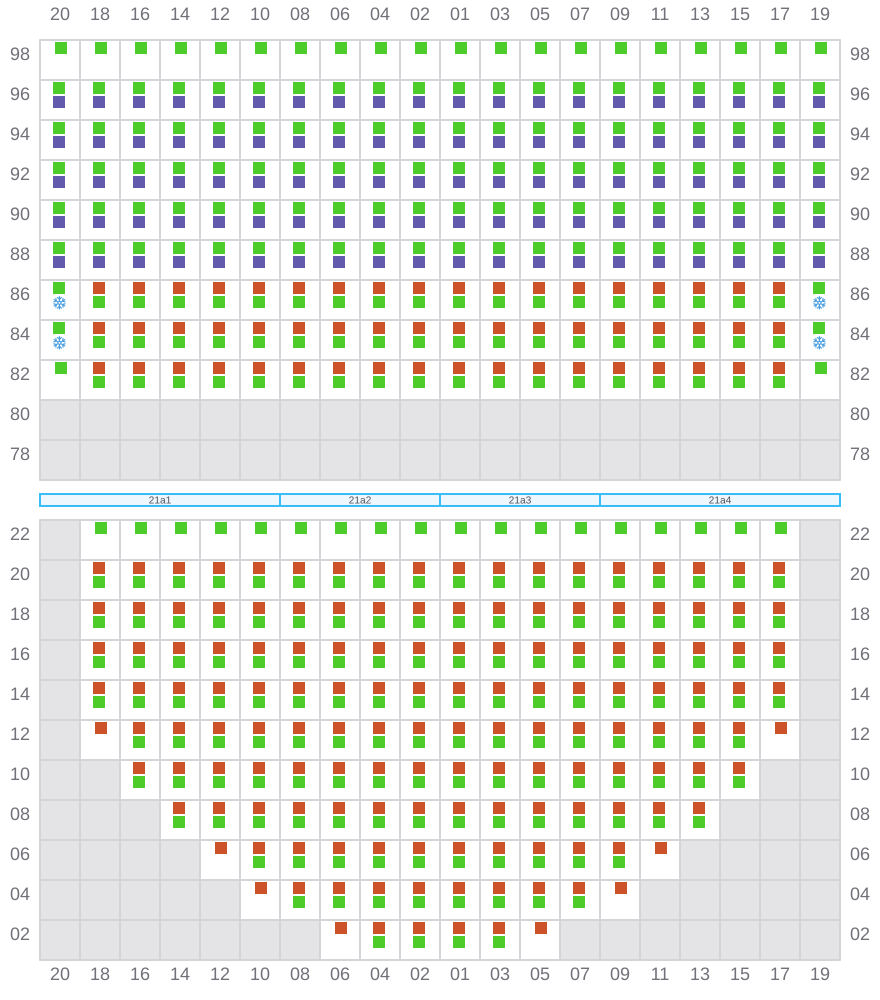

Bay 023 view and slots of ONE OWL_MB

025

→
^← / _?

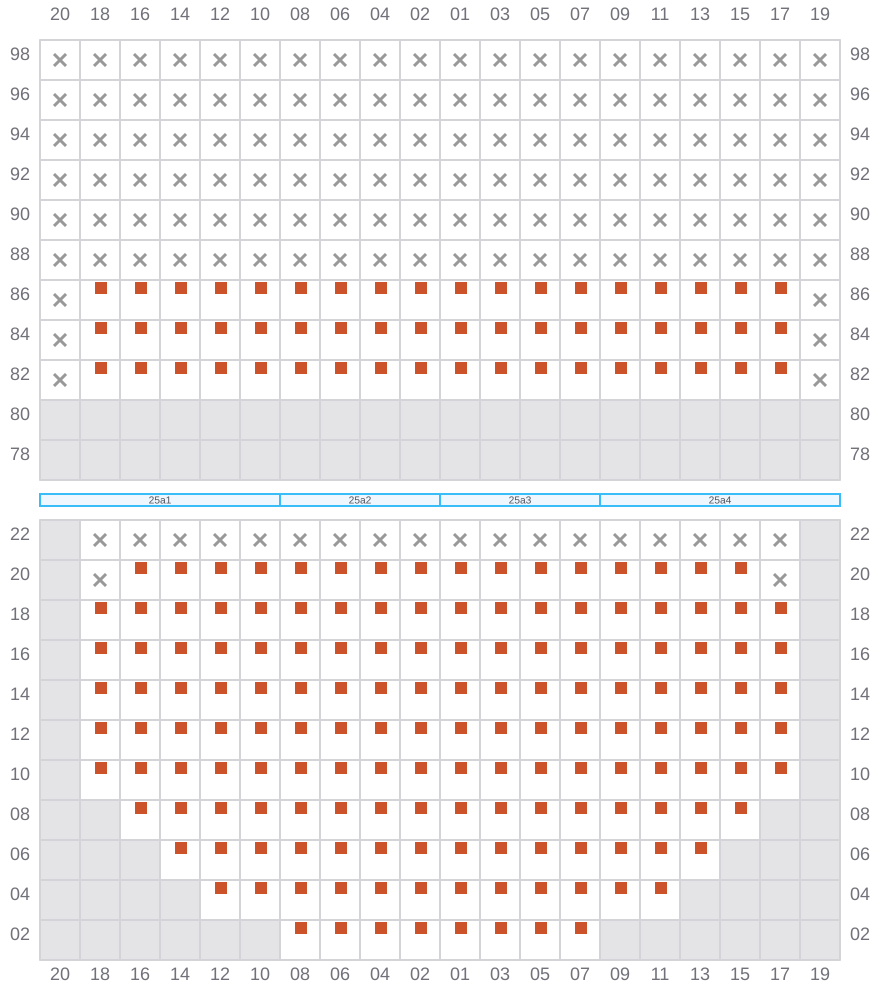

Bay 025 view and slots of ONE OWL_MB

027 (026)

←

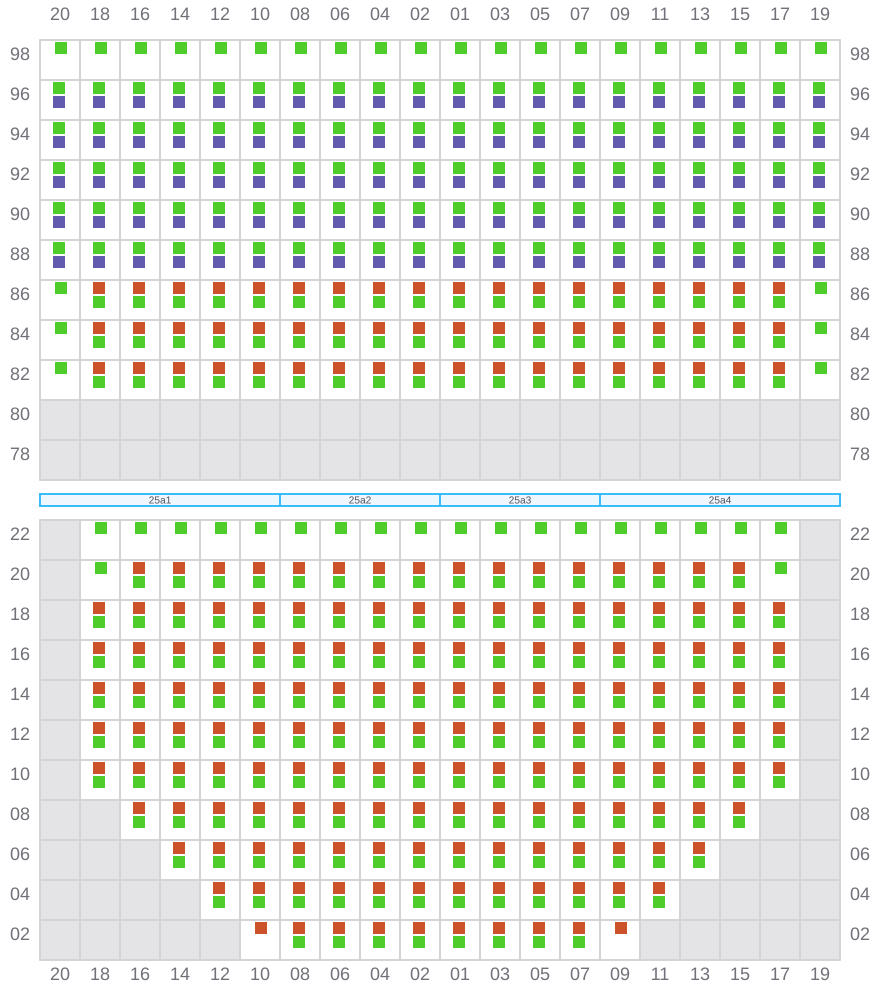

Bay 027 view and slots of ONE OWL_MB

029

Bay 029 view and slots of ONE OWL_MB

031 (030)

←
^→ / _?

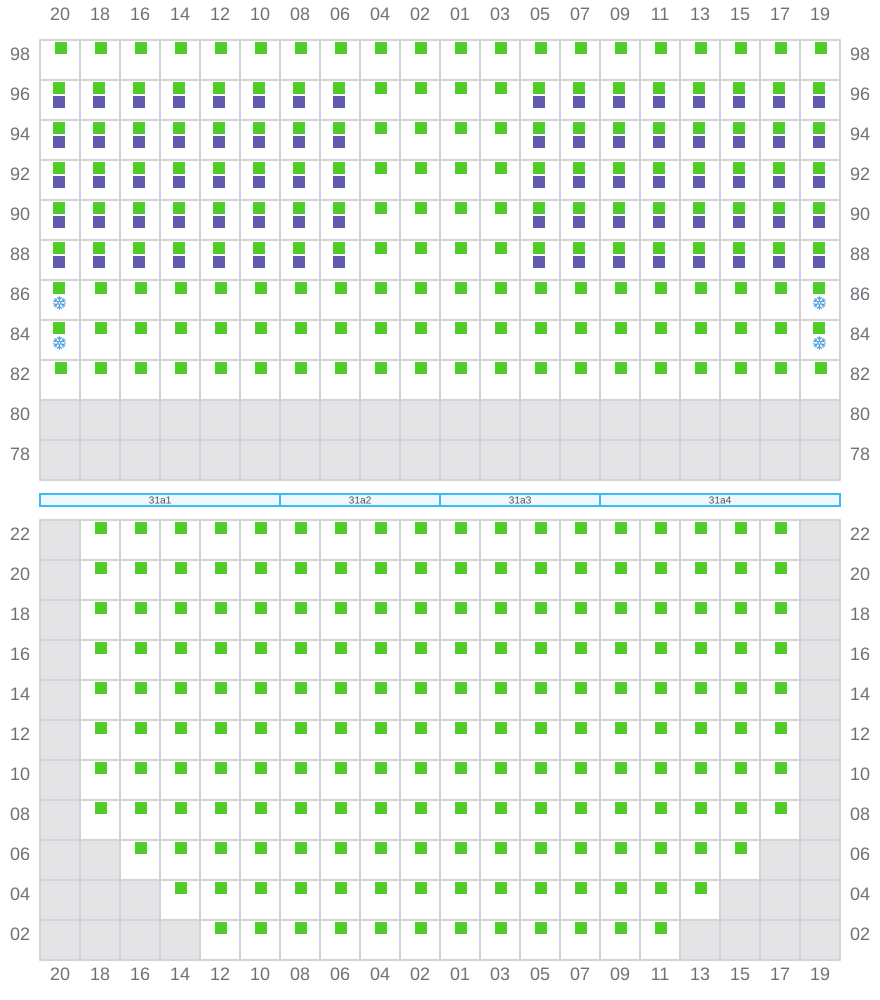

Bay 031 view and slots of ONE OWL_MB

033

Bay 033 view and slots of ONE OWL_MB

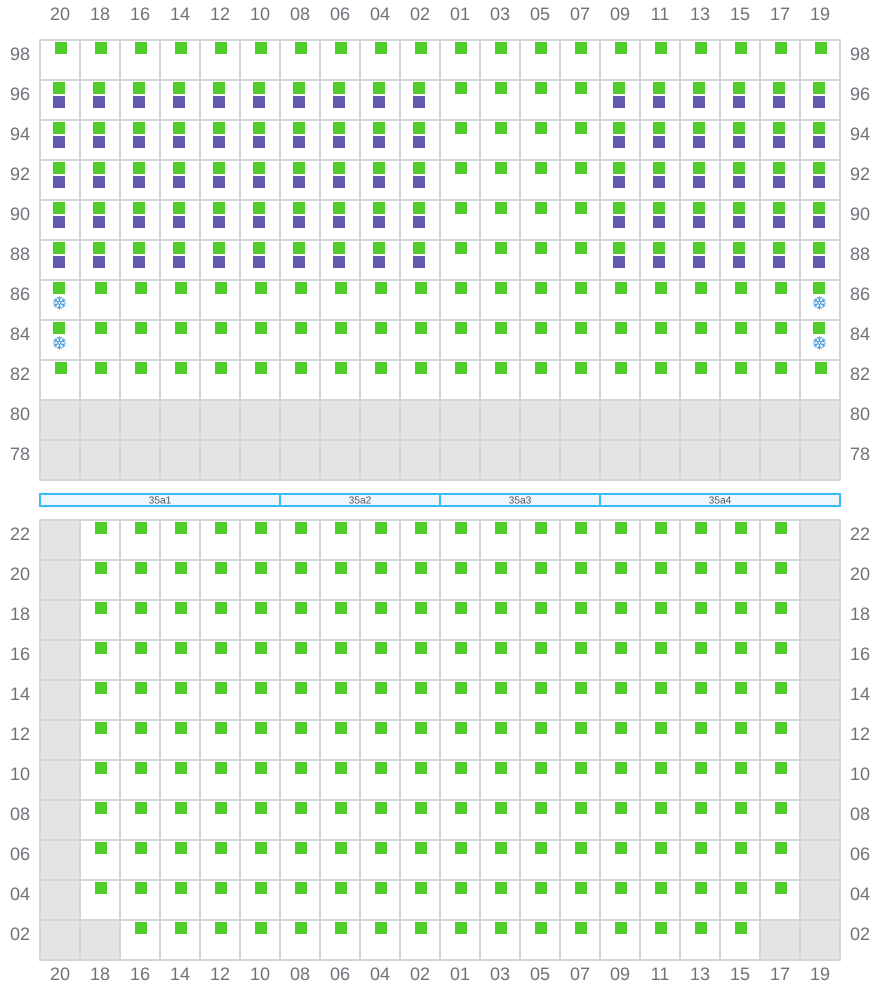

035 (034)

←
^← / _?

Bay 035 view and slots of ONE OWL_MB

037

→

Bay 037 view and slots of ONE OWL_MB

039 (038)

←
^→ / _?

Bay 039 view and slots of ONE OWL_MB

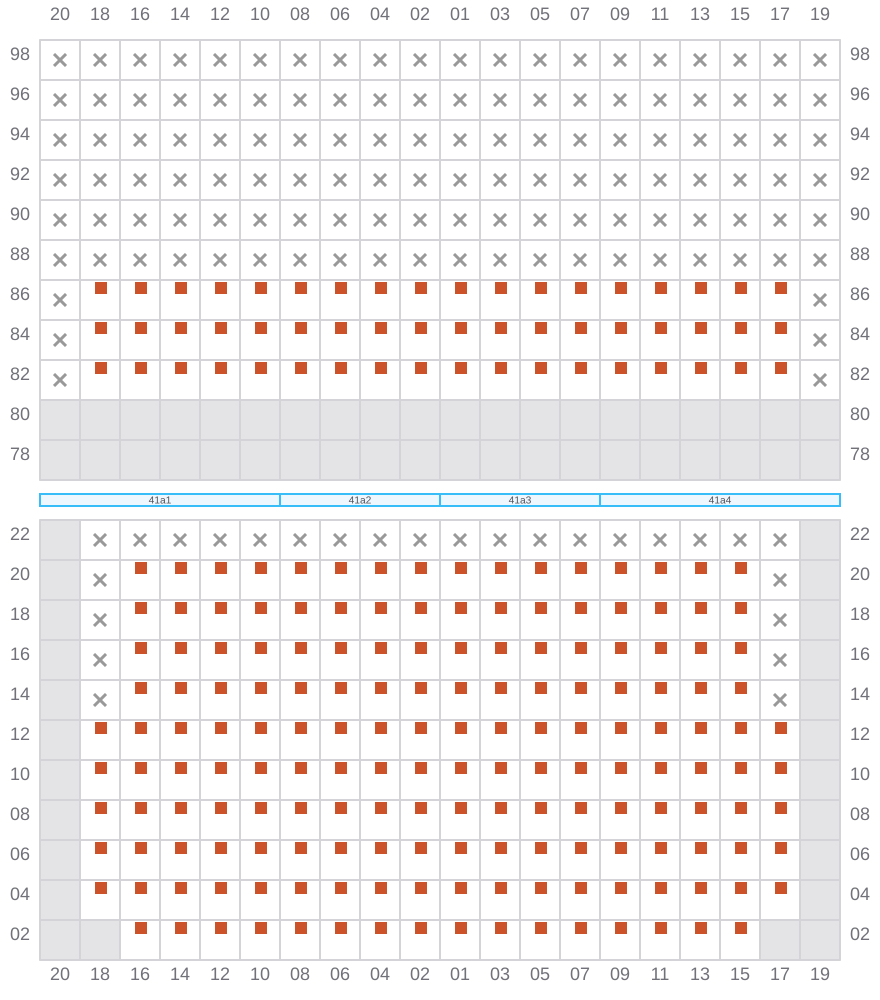

041

→
^← / _?

Bay 041 view and slots of ONE OWL_MB

043 (042)

←

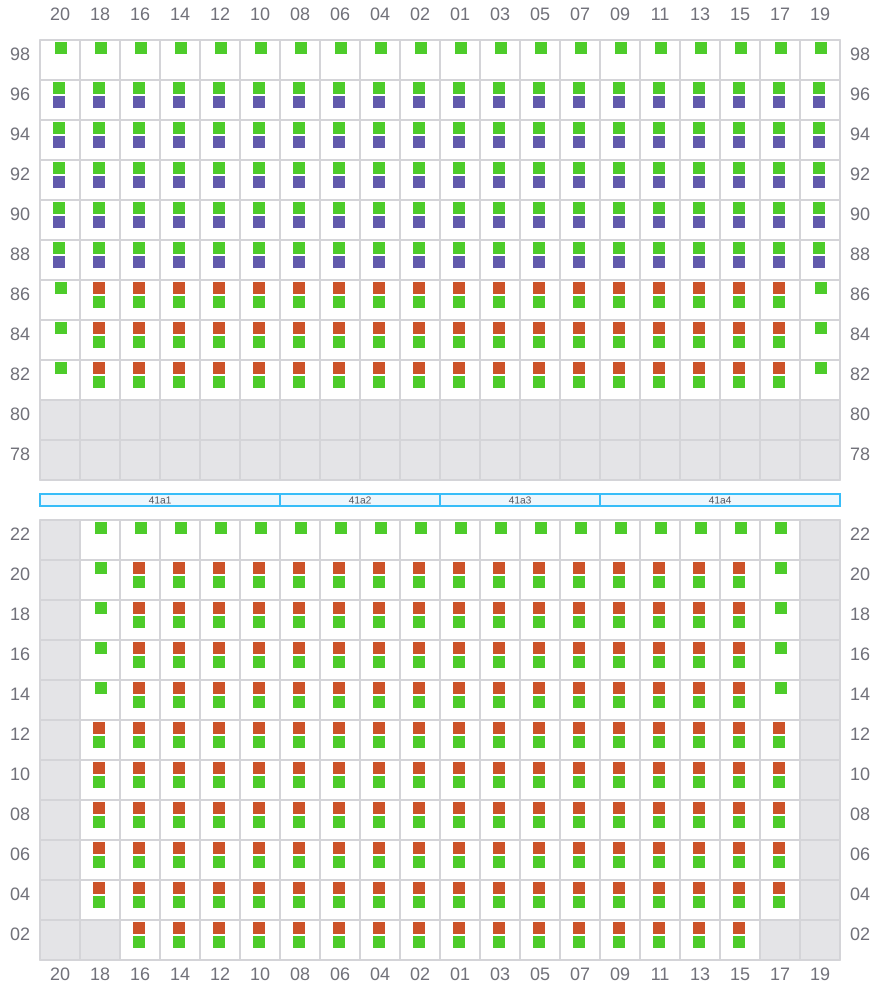

Bay 043 view and slots of ONE OWL_MB

045

→

Bay 045 view and slots of ONE OWL_MB

047 (046)

←
^→ / _?

Bay 047 view and slots of ONE OWL_MB

049

→
^← / _?

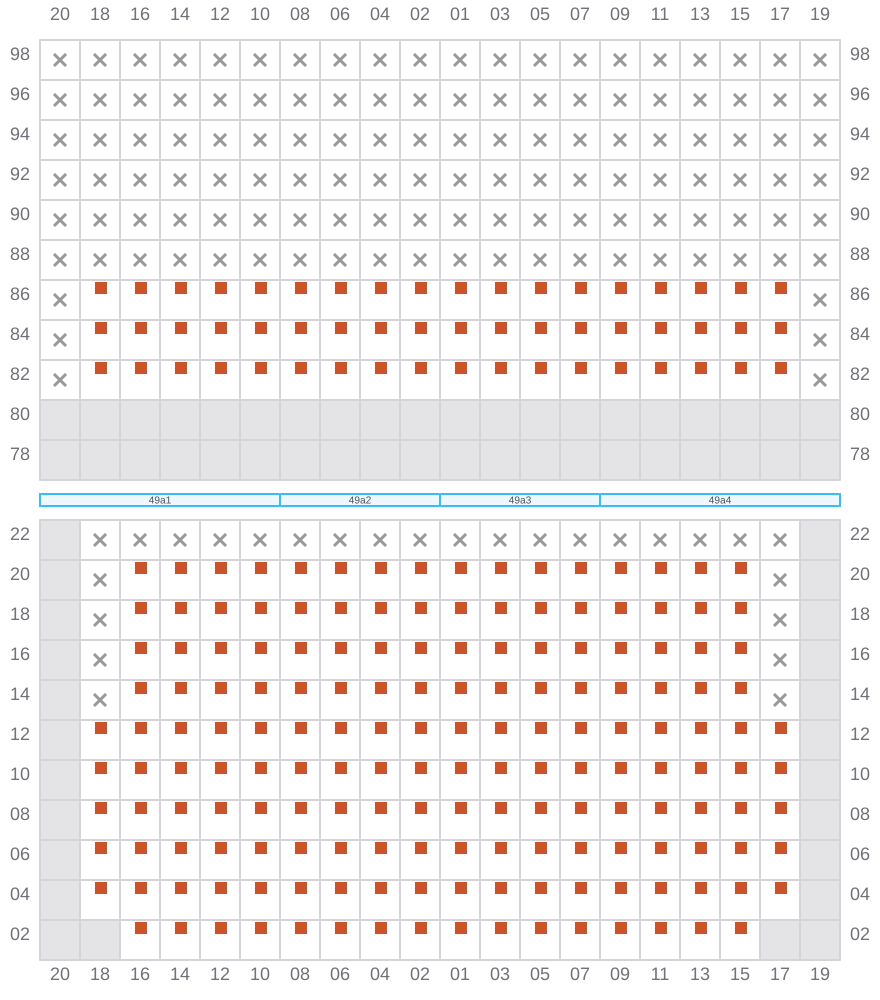

Bay 049 view and slots of ONE OWL_MB

051 (050)

←

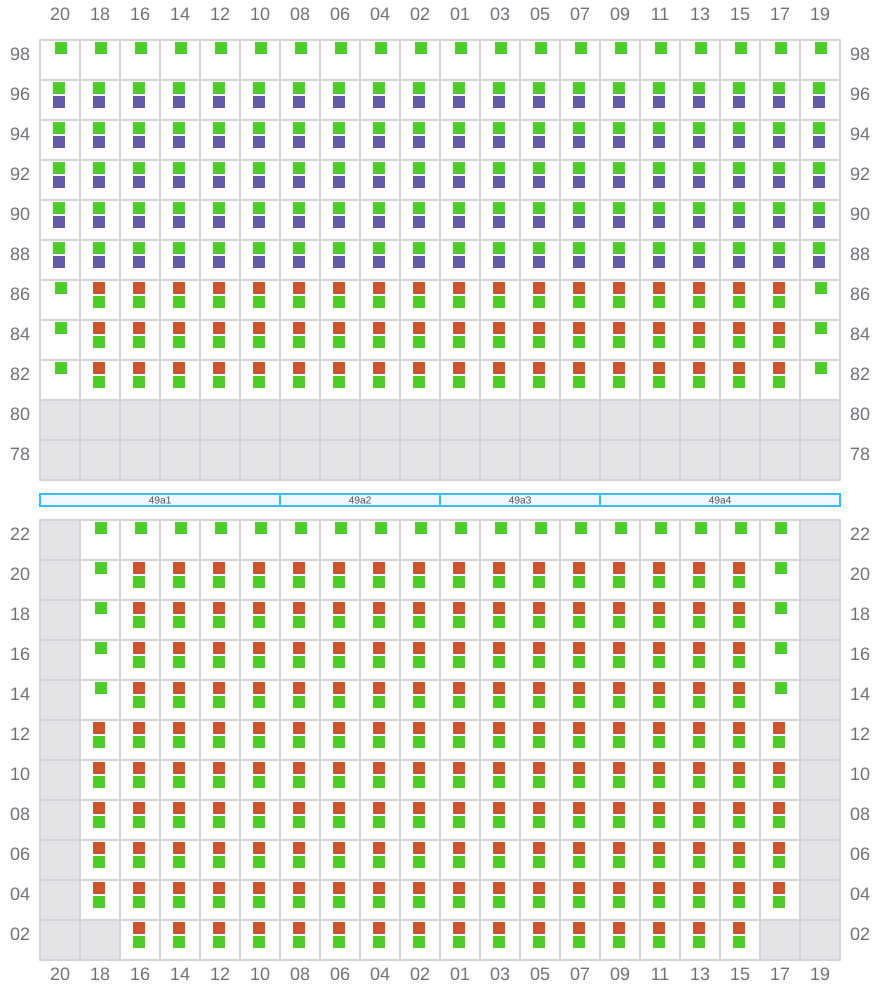

Bay 051 view and slots of ONE OWL_MB

053

→

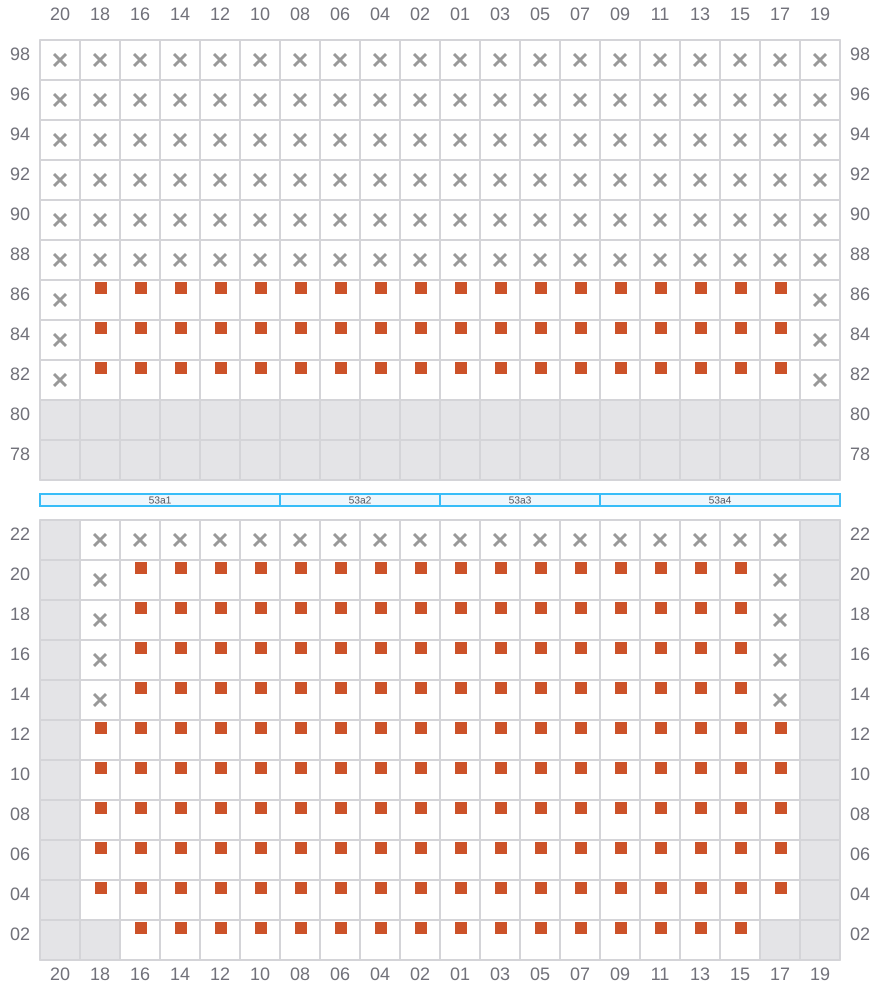

Bay 053 view and slots of ONE OWL_MB

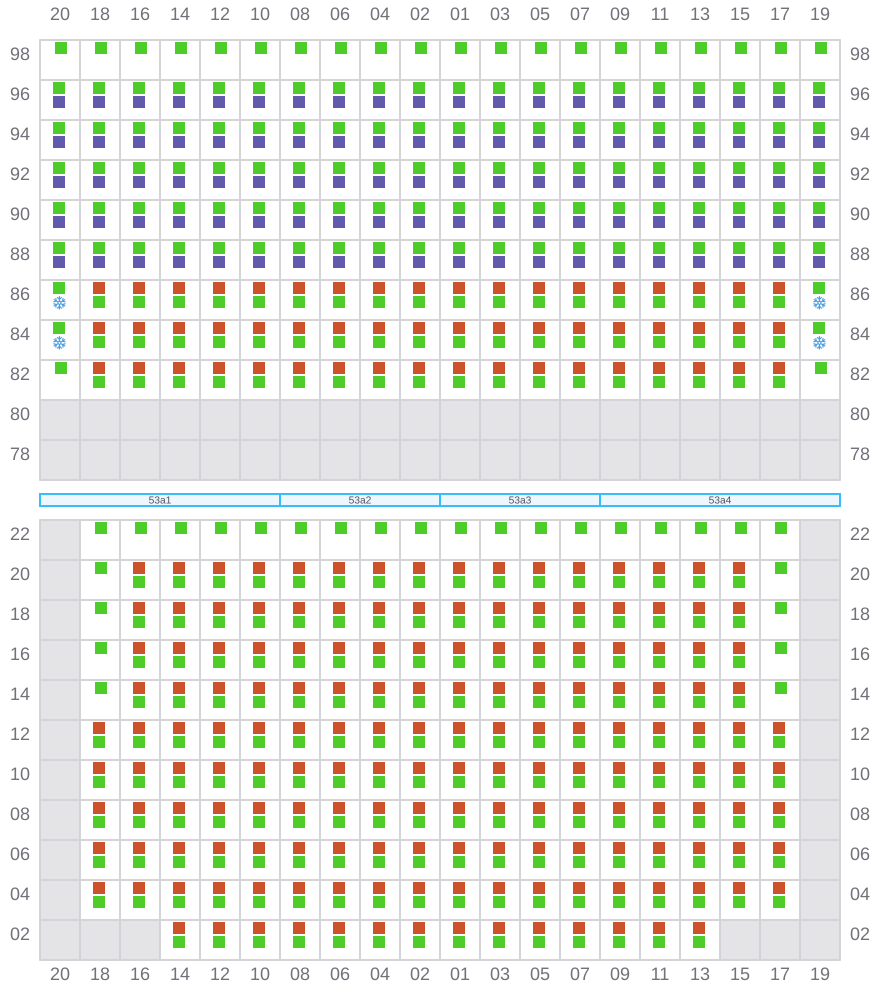

055 (054)

←
^→ / _?

Bay 055 view and slots of ONE OWL_MB

057

→
^← / _?

Bay 057 view and slots of ONE OWL_MB

059 (058)

←

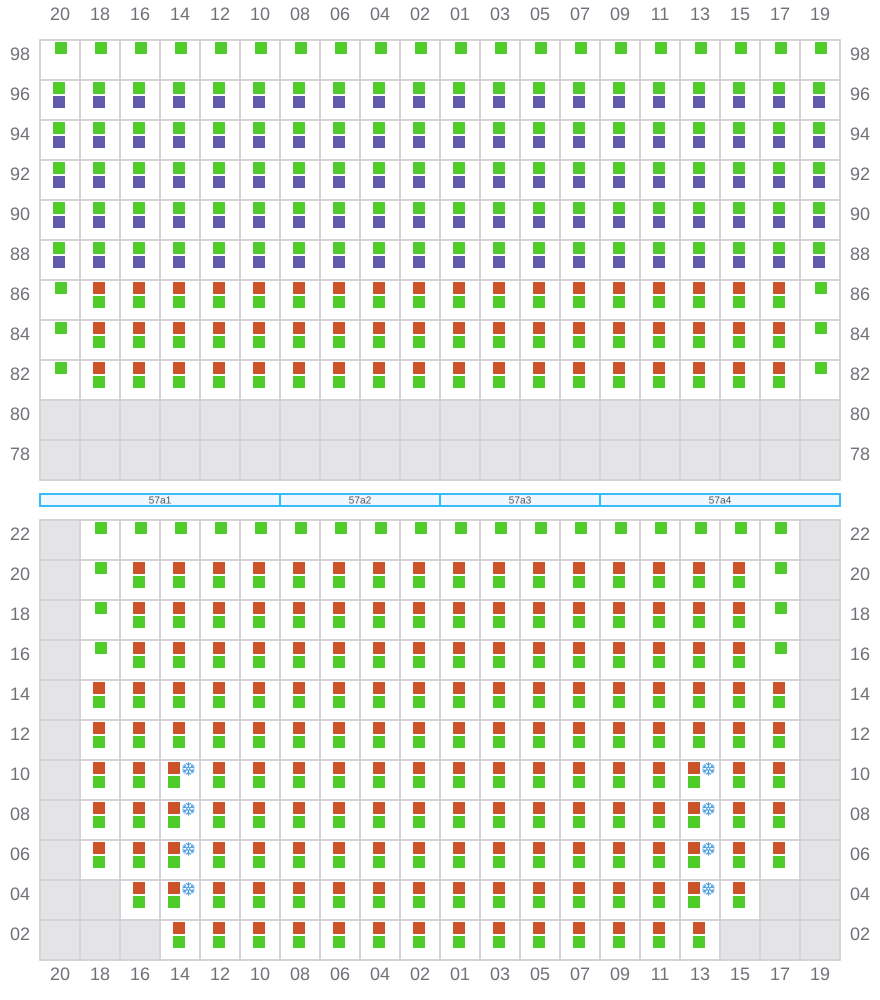

Bay 059 view and slots of ONE OWL_MB

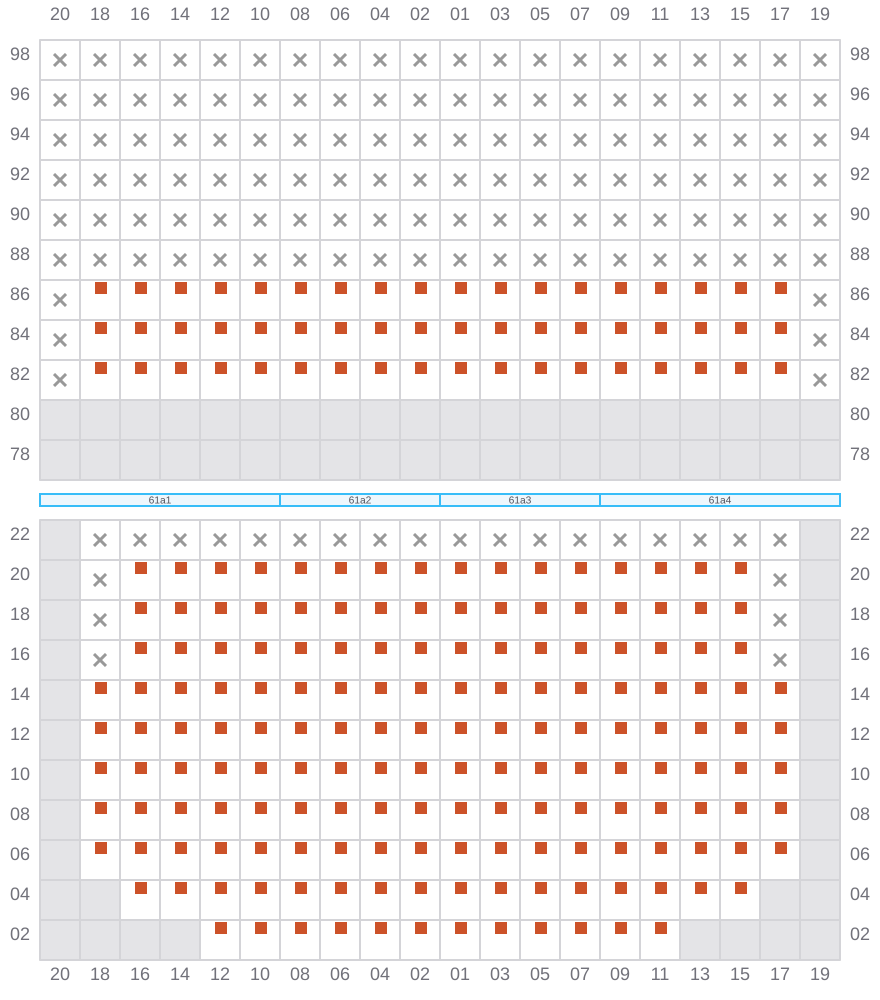

061

→

Bay 061 view and slots of ONE OWL_MB

063 (062)

←
^→ / _?

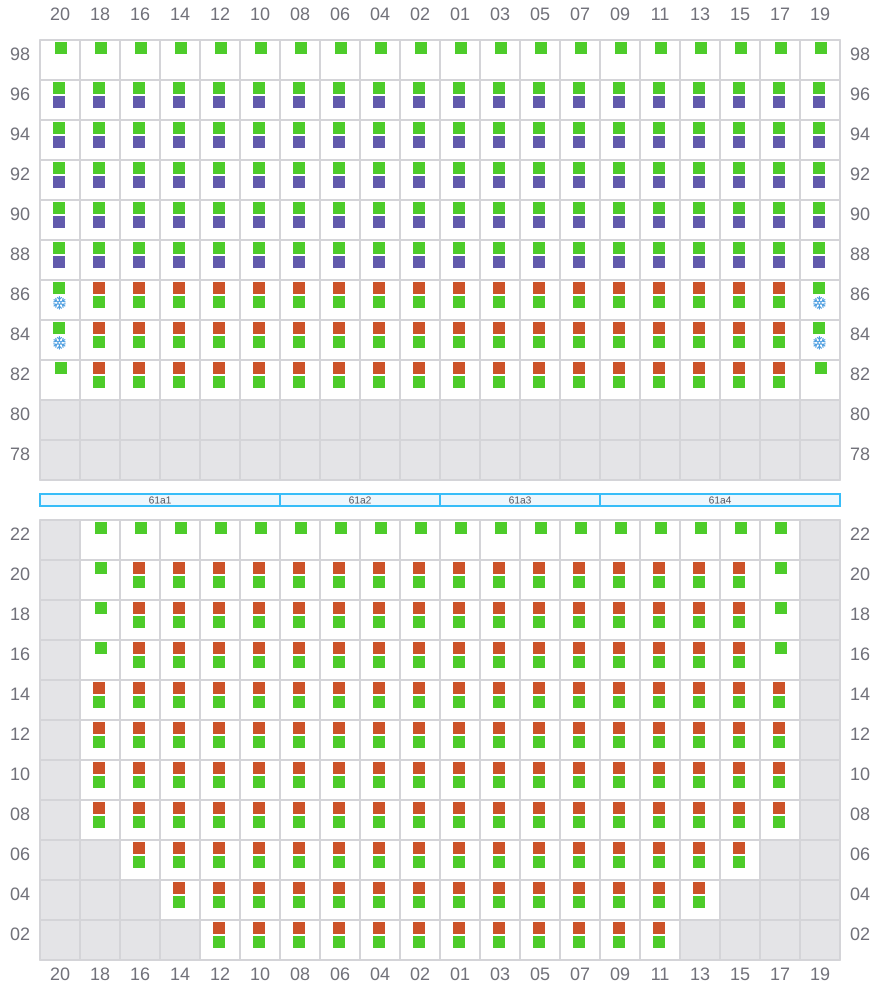

Bay 063 view and slots of ONE OWL_MB

065

→
^← / _?

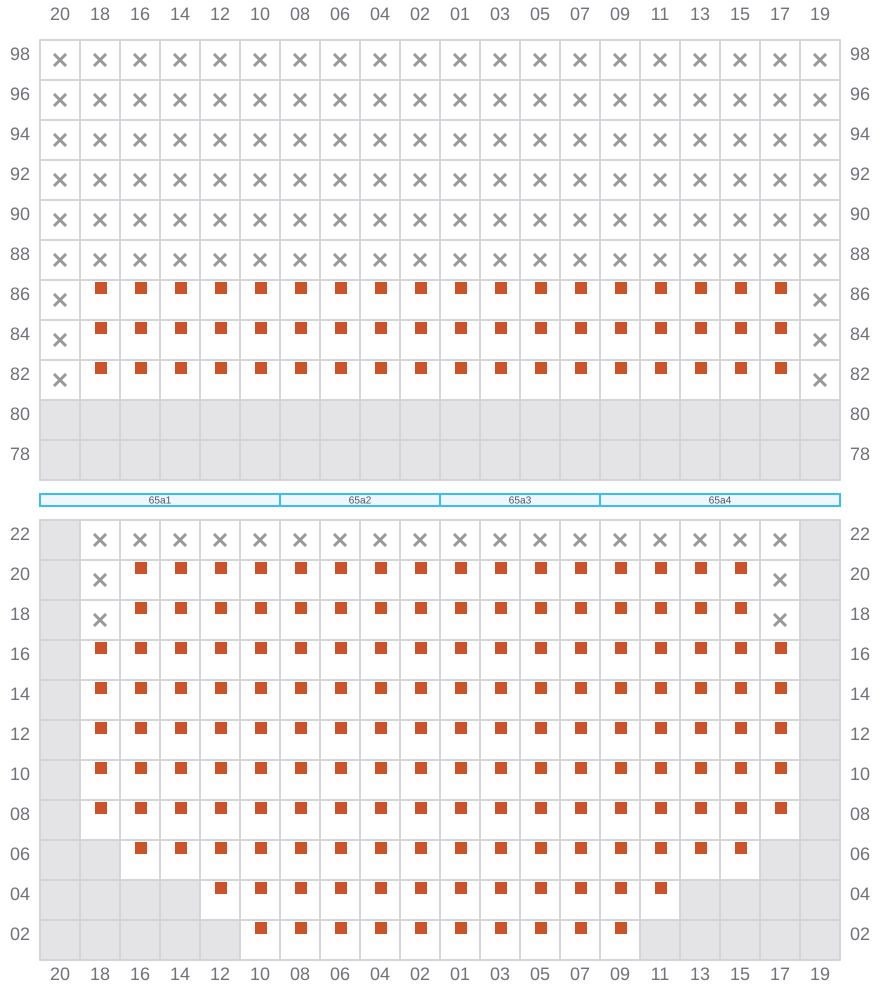

Bay 065 view and slots of ONE OWL_MB

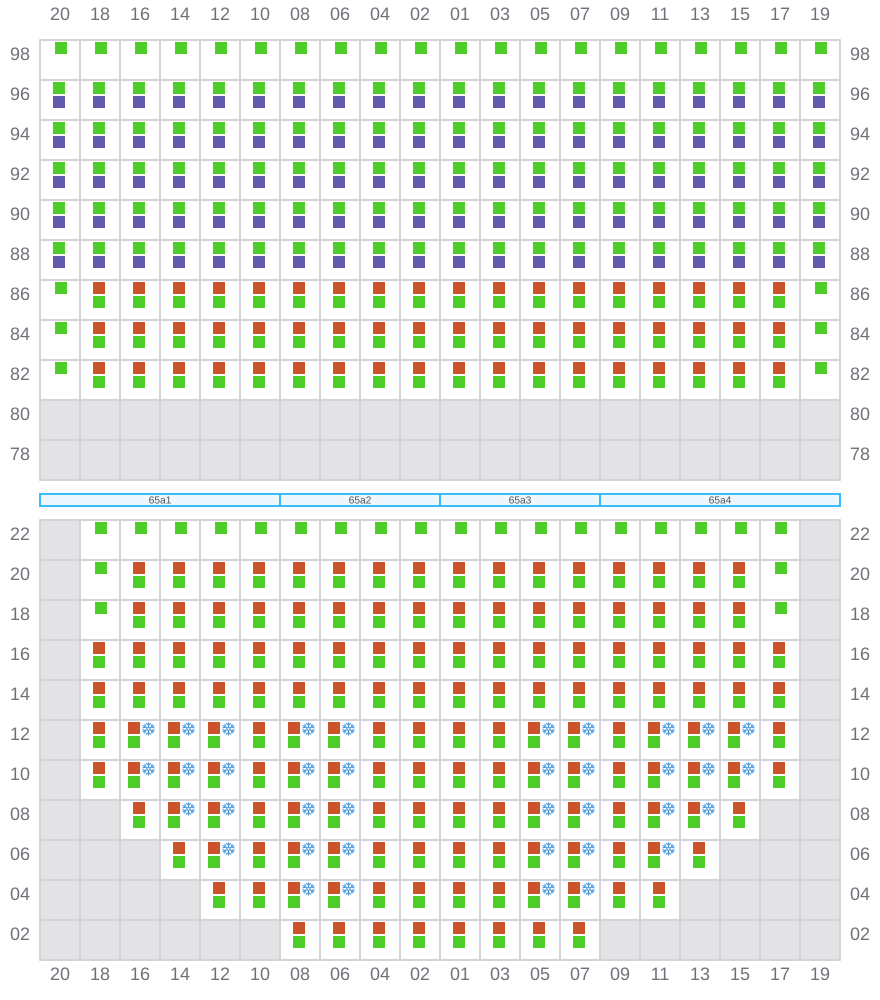

067 (066)

←

Bay 067 view and slots of ONE OWL_MB

069

^? / _→

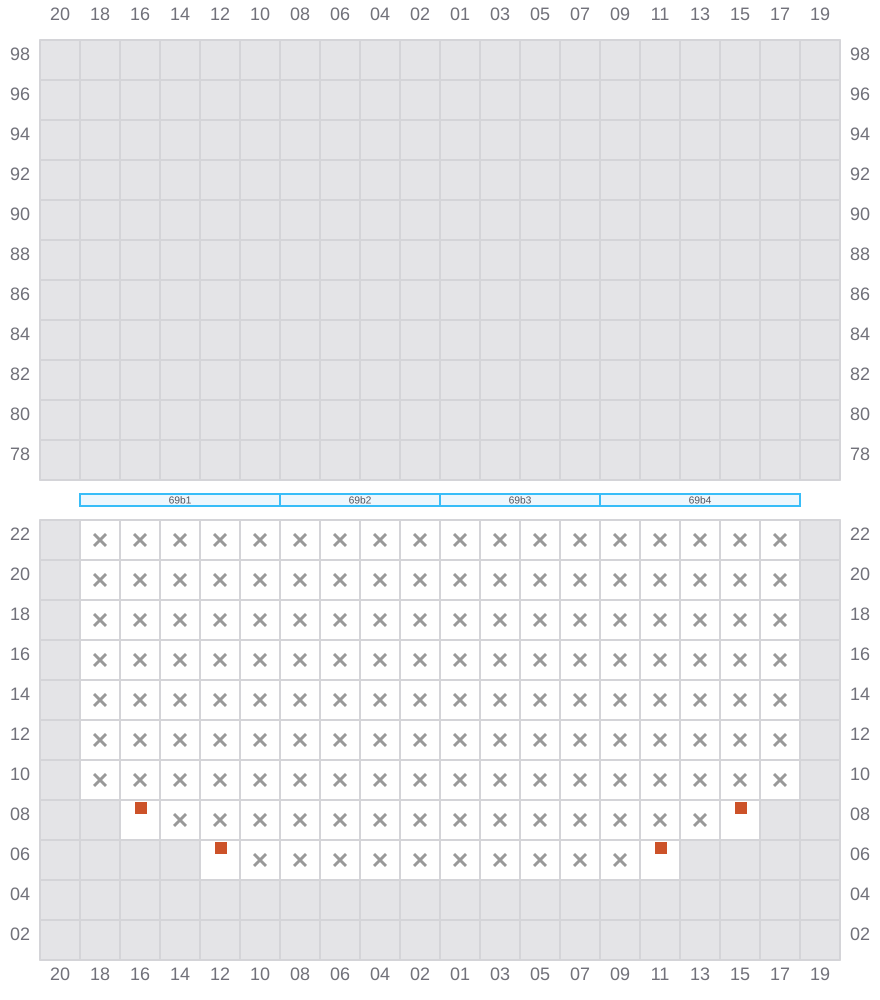

Bay 069 view and slots of ONE OWL_MB

071 (070)

←
^→ / _?

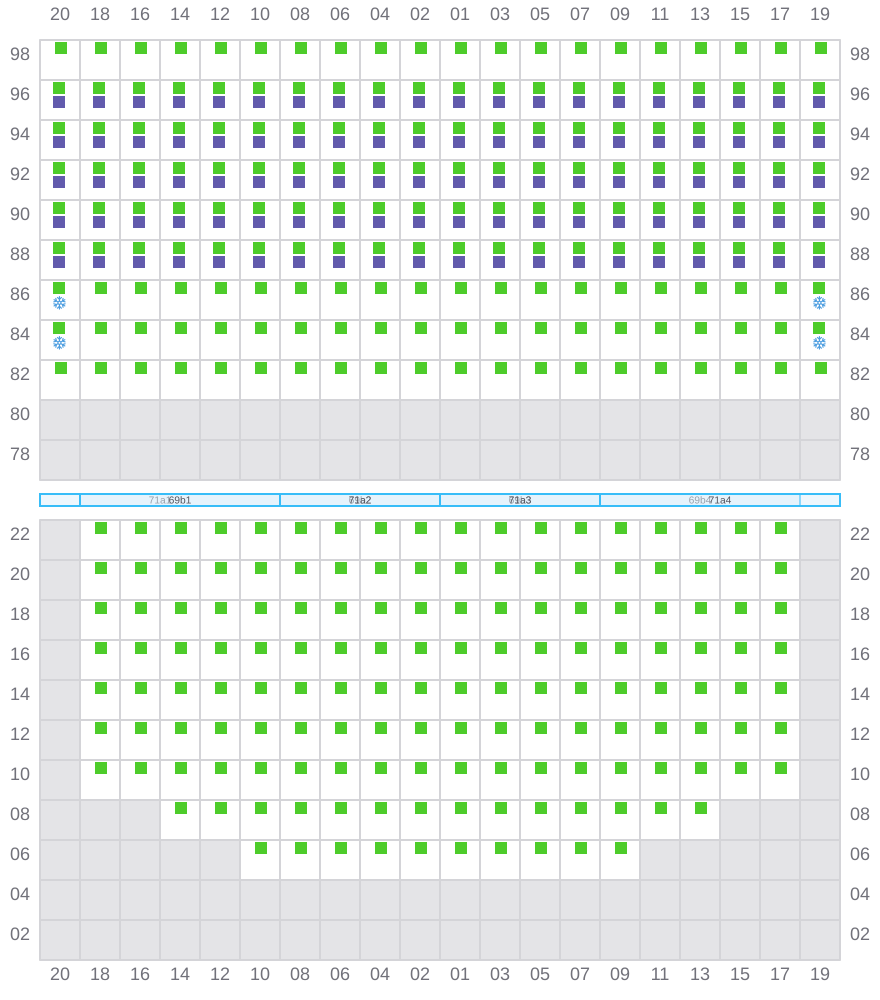

Bay 071 view and slots of ONE OWL_MB

073

→

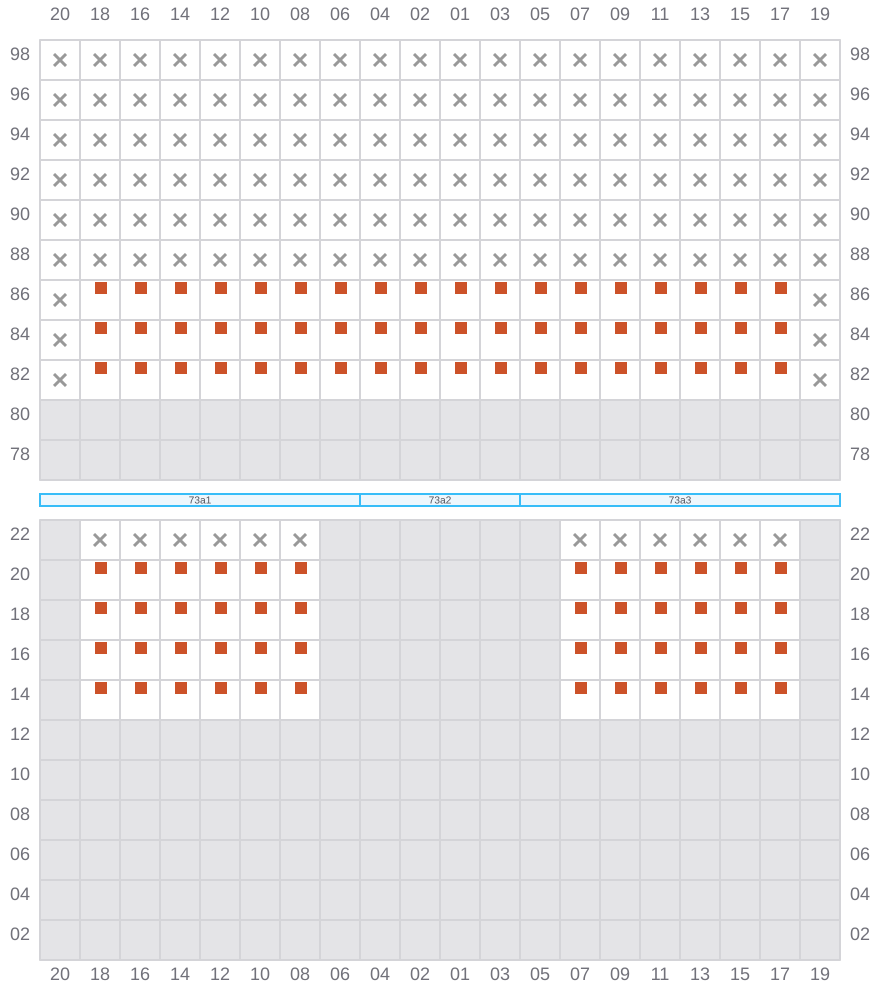

Bay 073 view and slots of ONE OWL_MB

075 (074)

←
^→ / _?

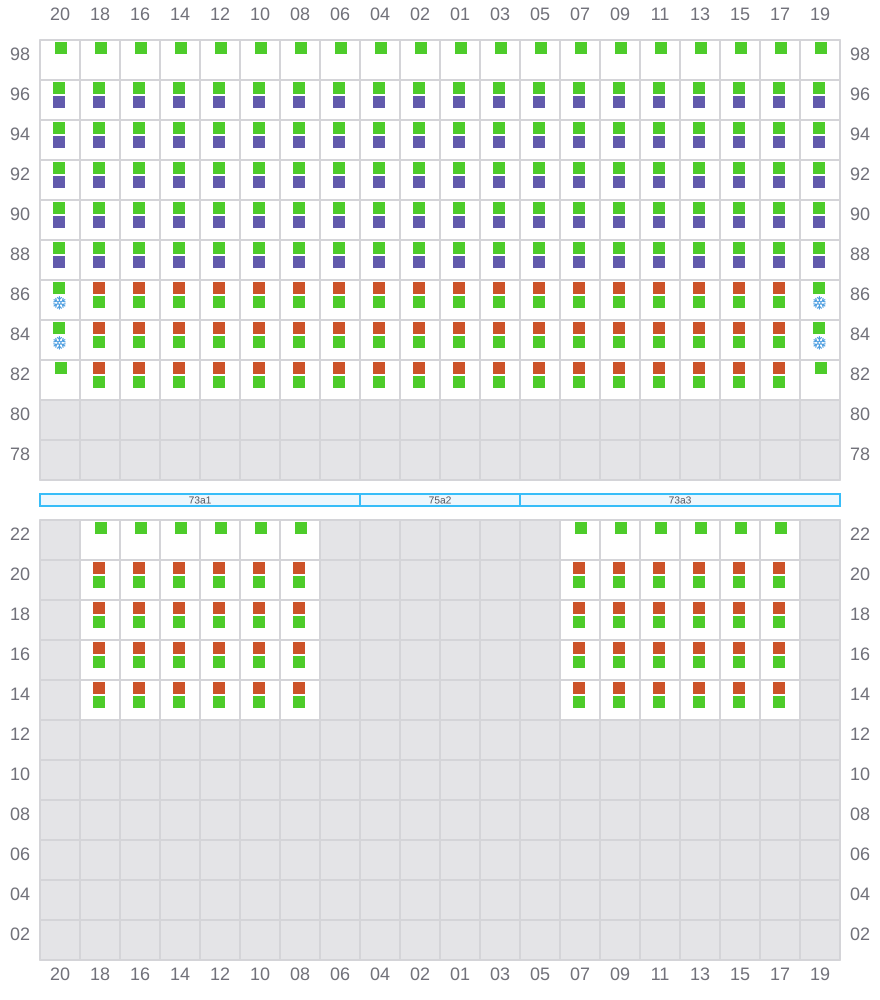

Bay 075 view and slots of ONE OWL_MB

077

→
^← / _?

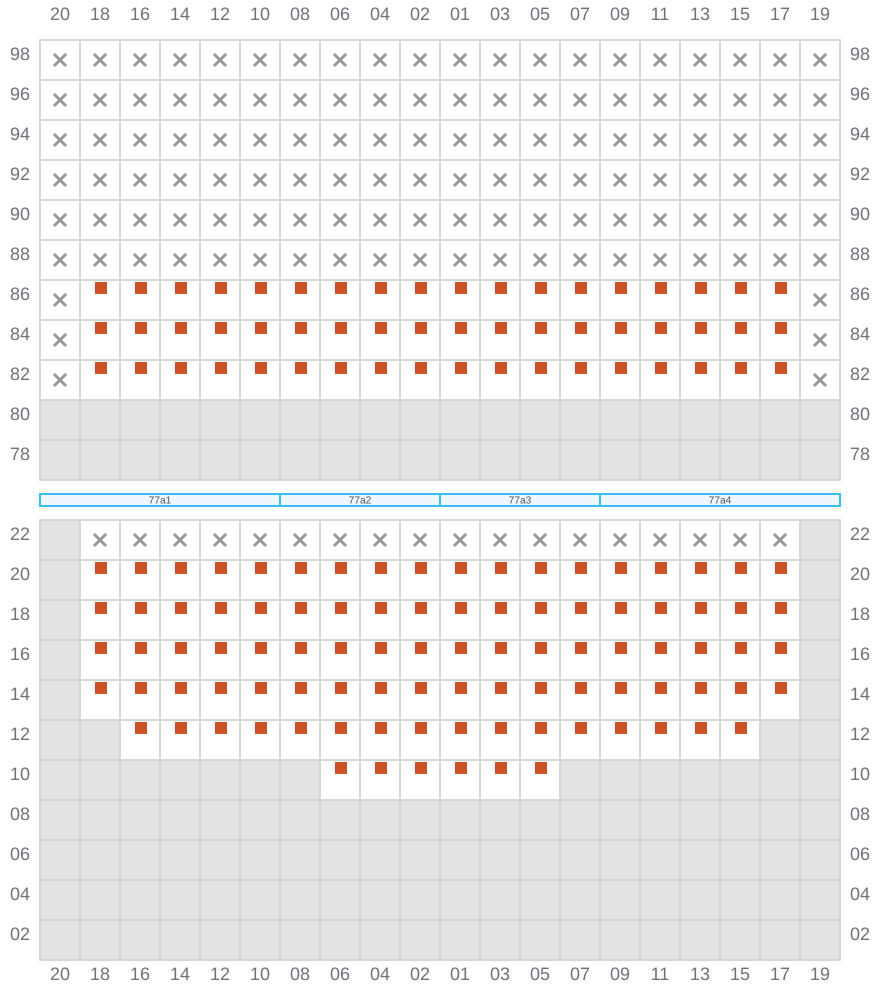

Bay 077 view and slots of ONE OWL_MB

079 (078)

←

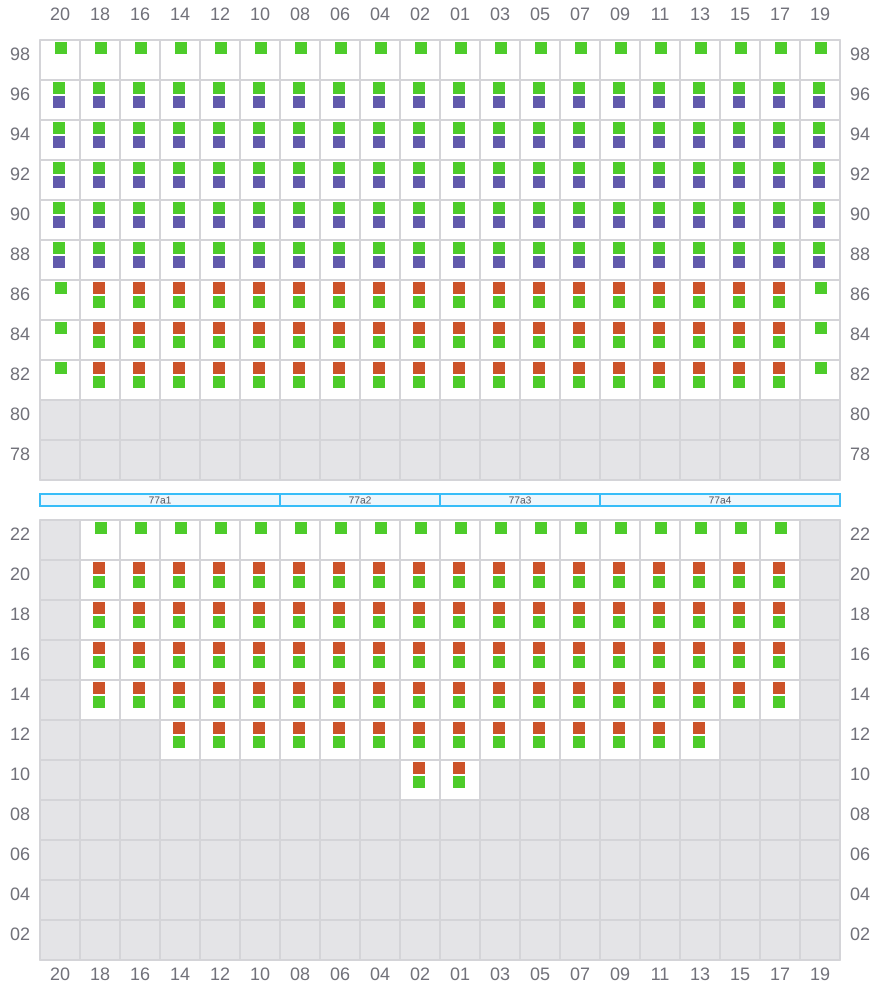

Bay 079 view and slots of ONE OWL_MB

081

→

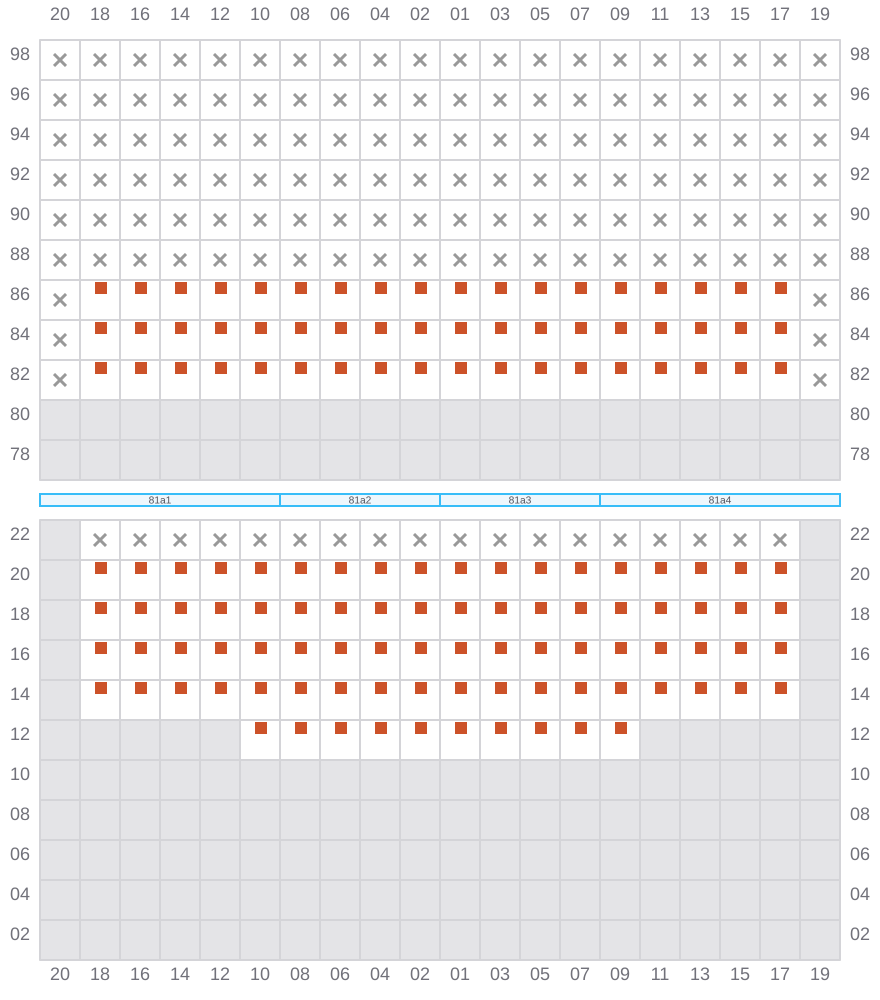

Bay 081 view and slots of ONE OWL_MB

083 (082)

←
^→ / _?

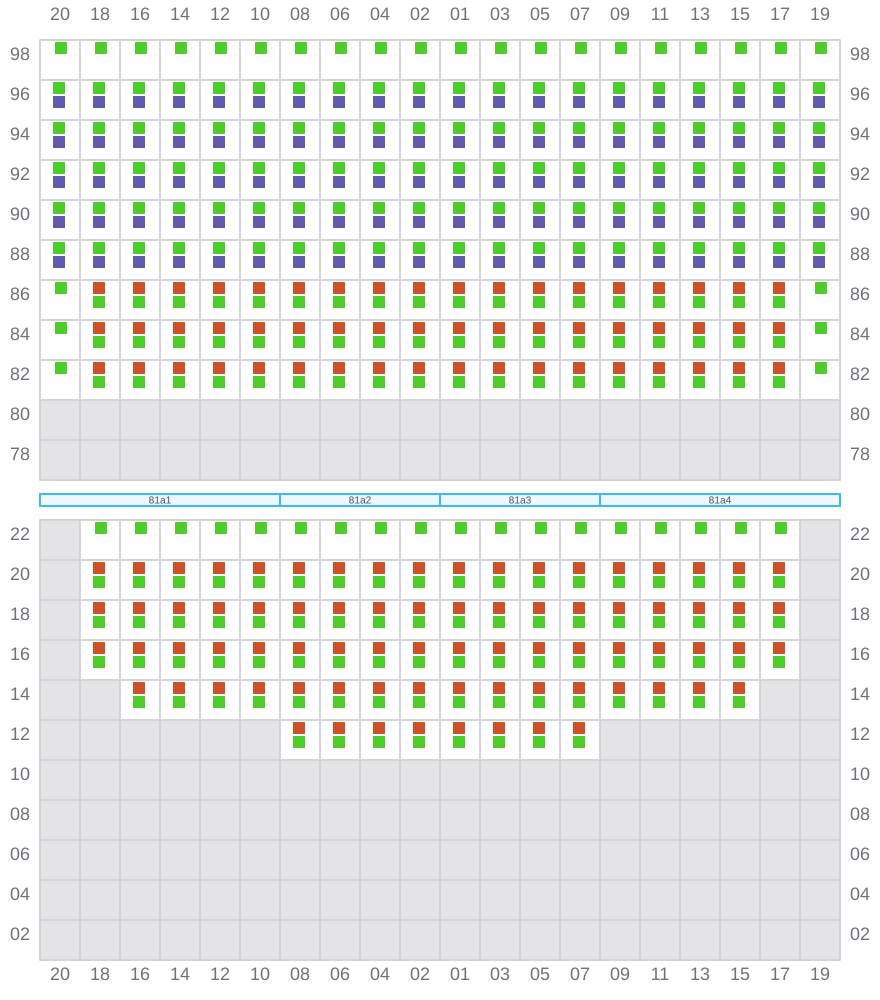

Bay 083 view and slots of ONE OWL_MB

085

Bay 085 view and slots of ONE OWL_MB

087 (086)

^← / _?
^← / _?

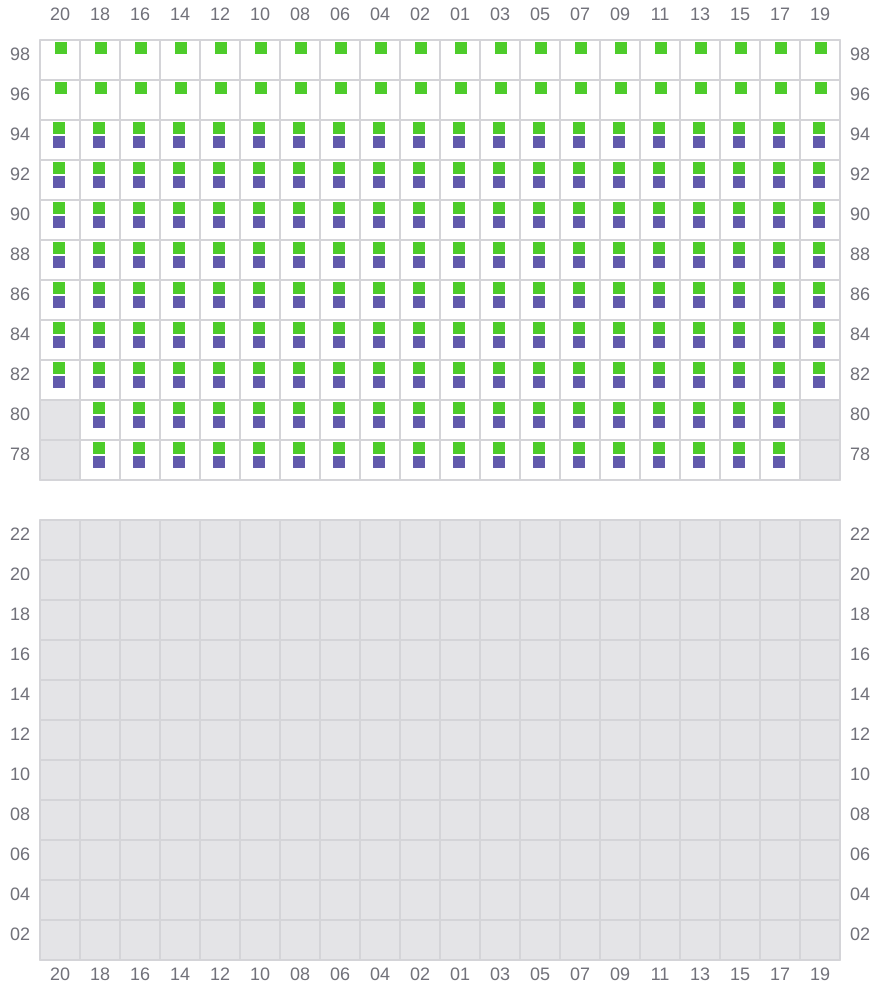

Bay 087 view and slots of ONE OWL_MB
