ONE TRADITION
9769300 | 7KML | MOL by *********************** Last update: Mon Feb 10 2025

General Info

Ship Name:ONE TRADITION

IMO Code:9769300

Call Sign:7KML

Line Operator:MOL

Class Name for Sister Ships:MTRD

Year Built:2017

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):383.00

LOA (Length Overall):399.96

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:093

Max ISO Row:22

Center Line Row:Yes

Max Above ISO Tier:98

Min Above ISO Tier:74

Max Below ISO Tier:24

Min Below ISO Tier:02

Total TEU:20,170

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Estimated

VCG Data:0%

TCG Values:Known

TCG Data:100%

Side View

Side view of ONE TRADITION

Hatch-Covers View

Deck view of ONE TRADITION

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

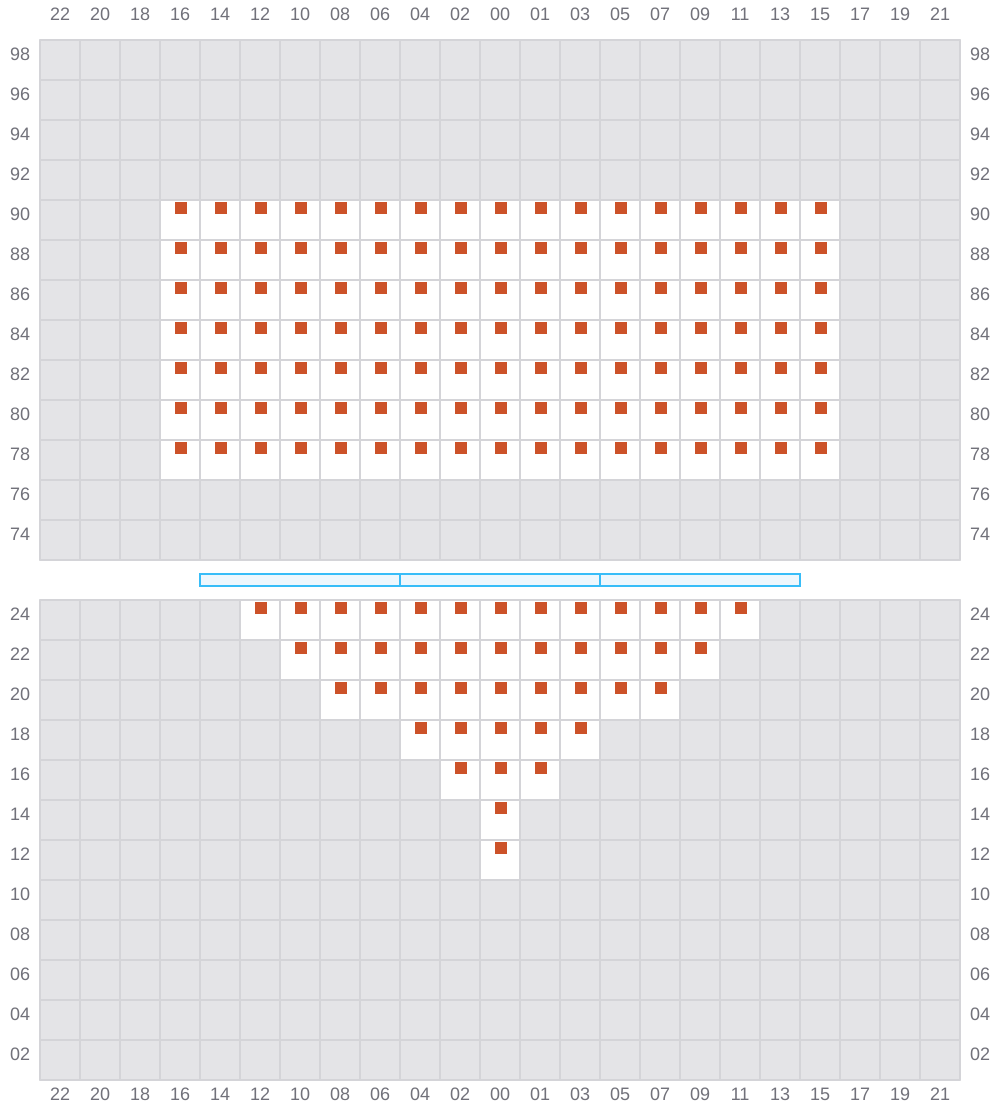

001

→
→

Bay 001 view and slots of ONE TRADITION

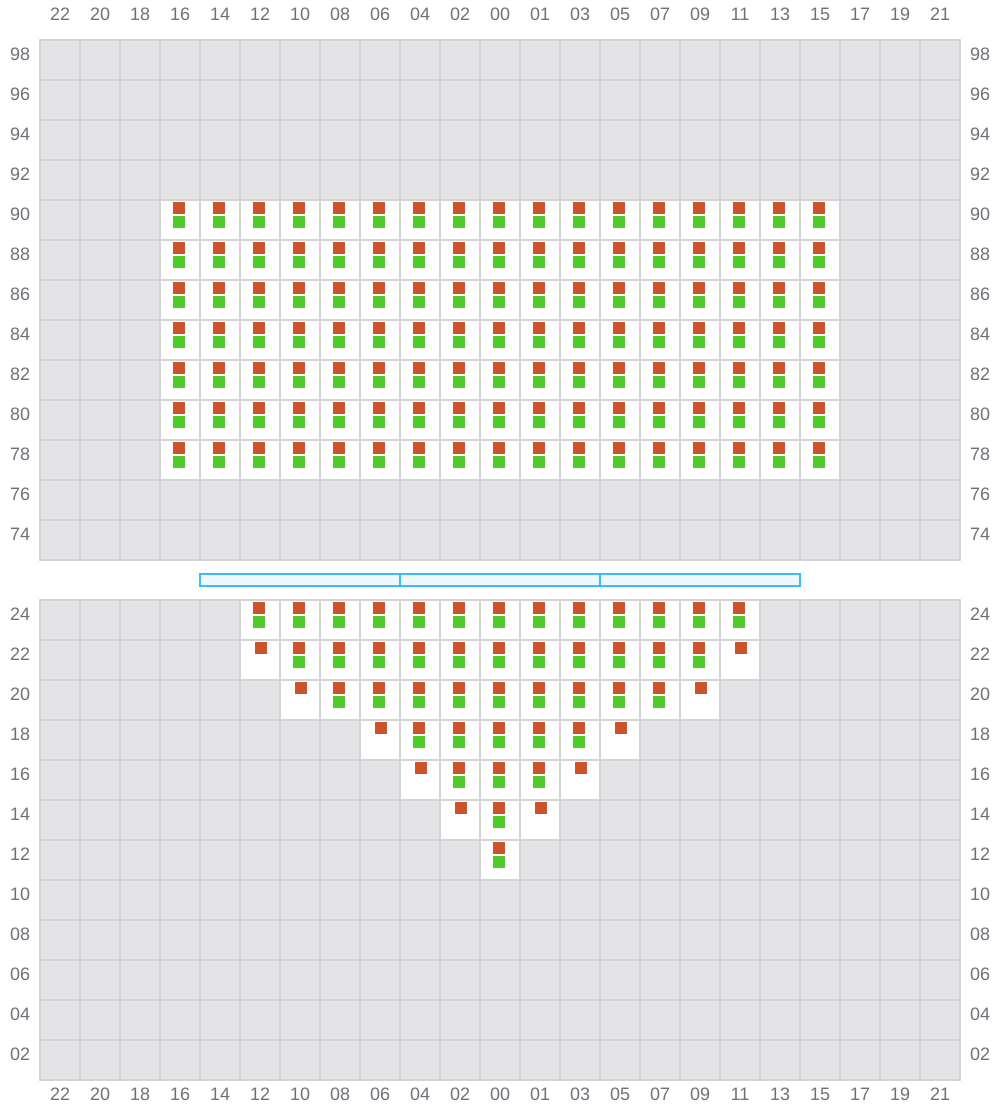

003 (002)

←
→

Bay 003 view and slots of ONE TRADITION

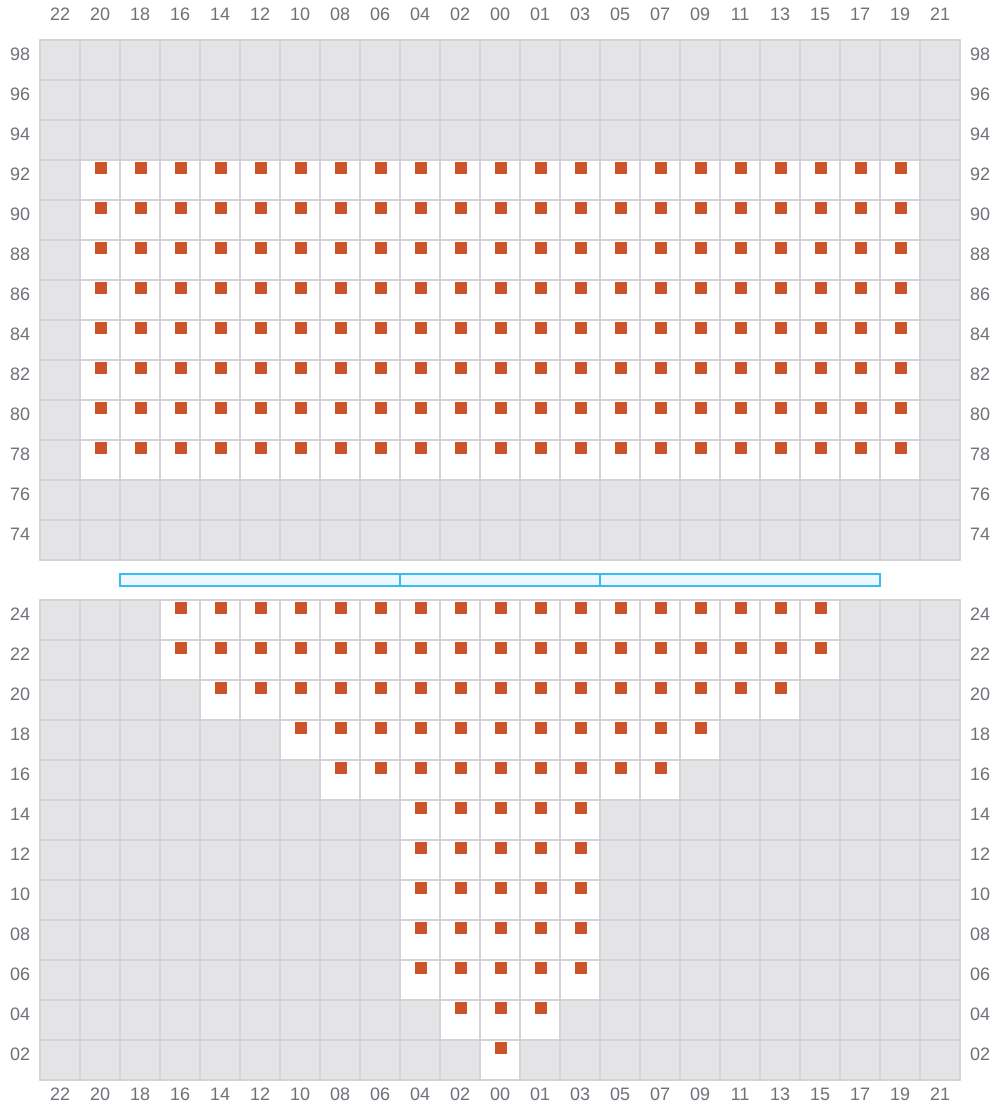

005

→
→

Bay 005 view and slots of ONE TRADITION

007 (006)

←
^→ / _?
→

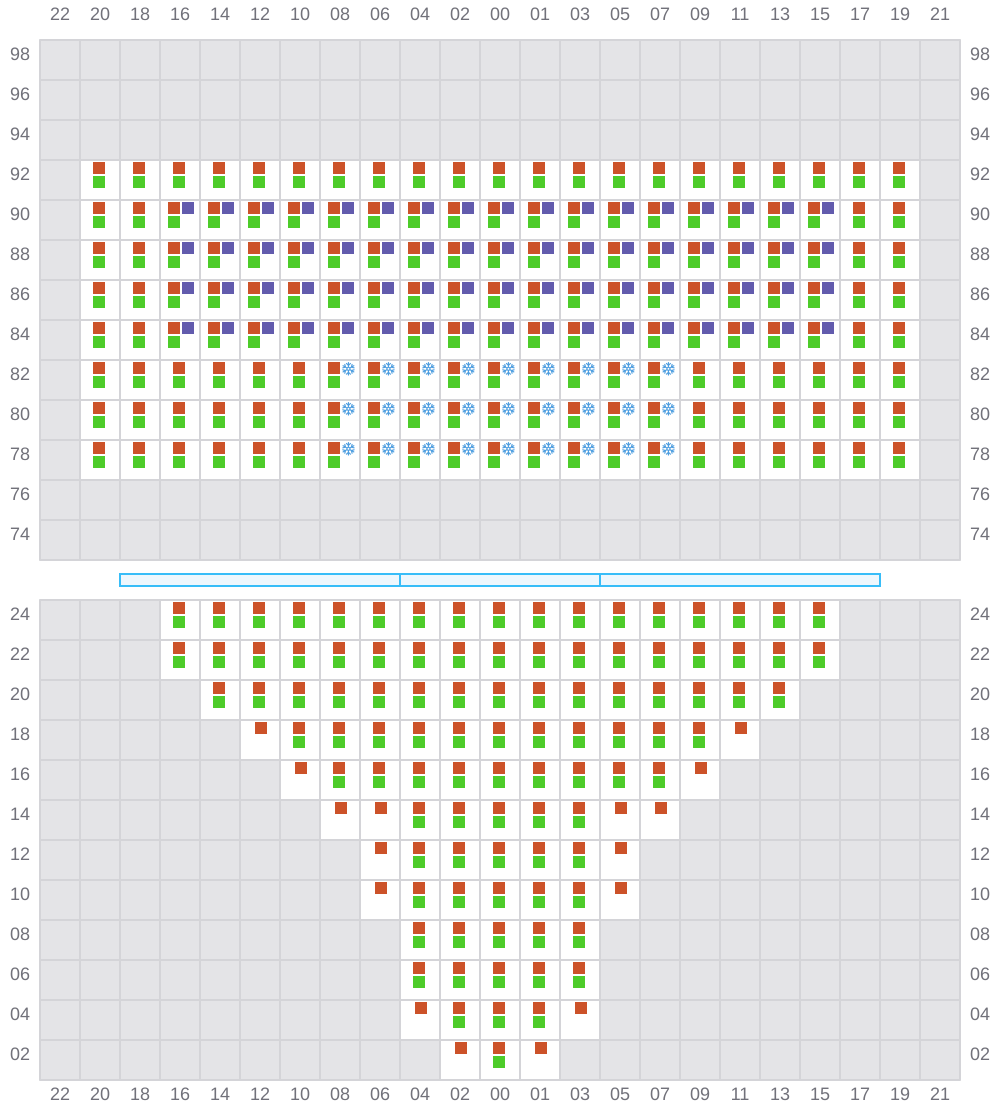

Bay 007 view and slots of ONE TRADITION

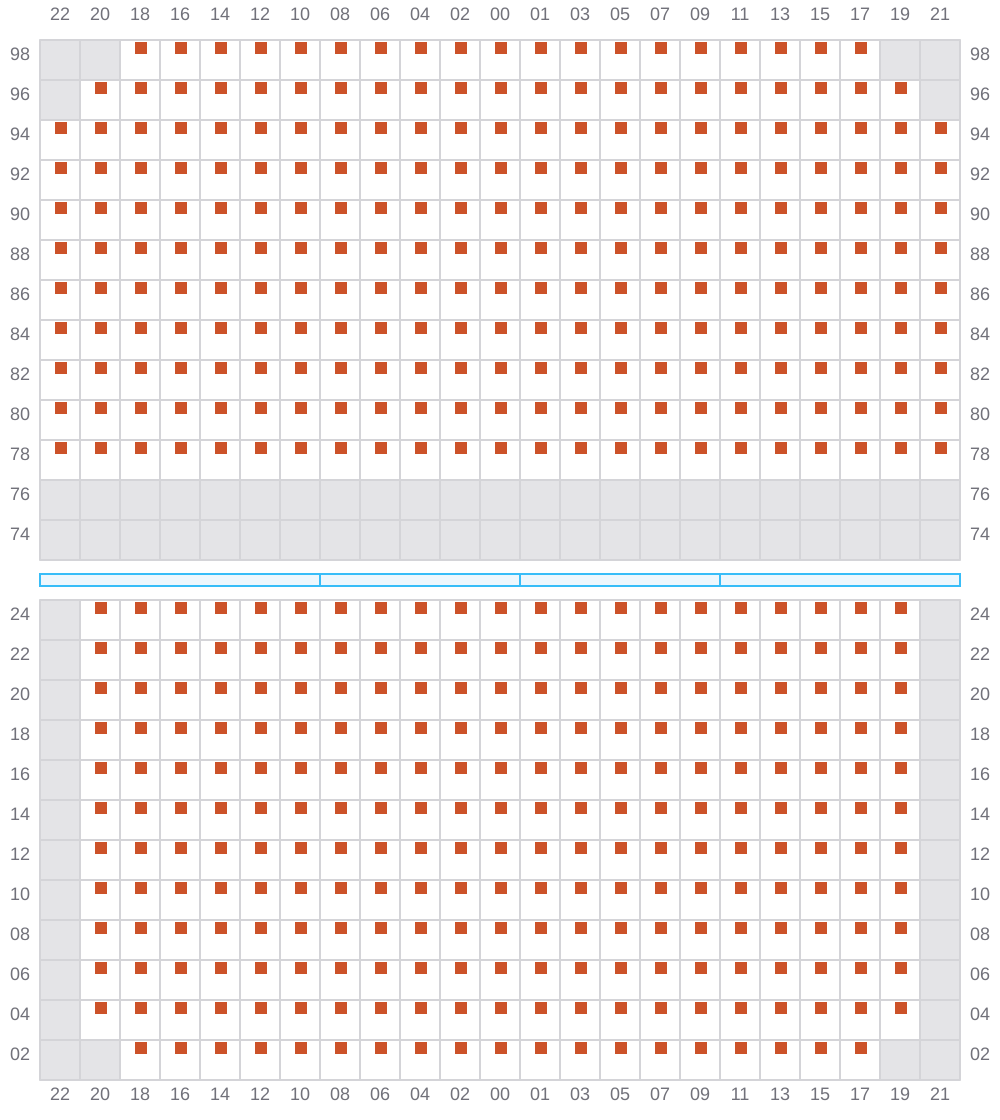

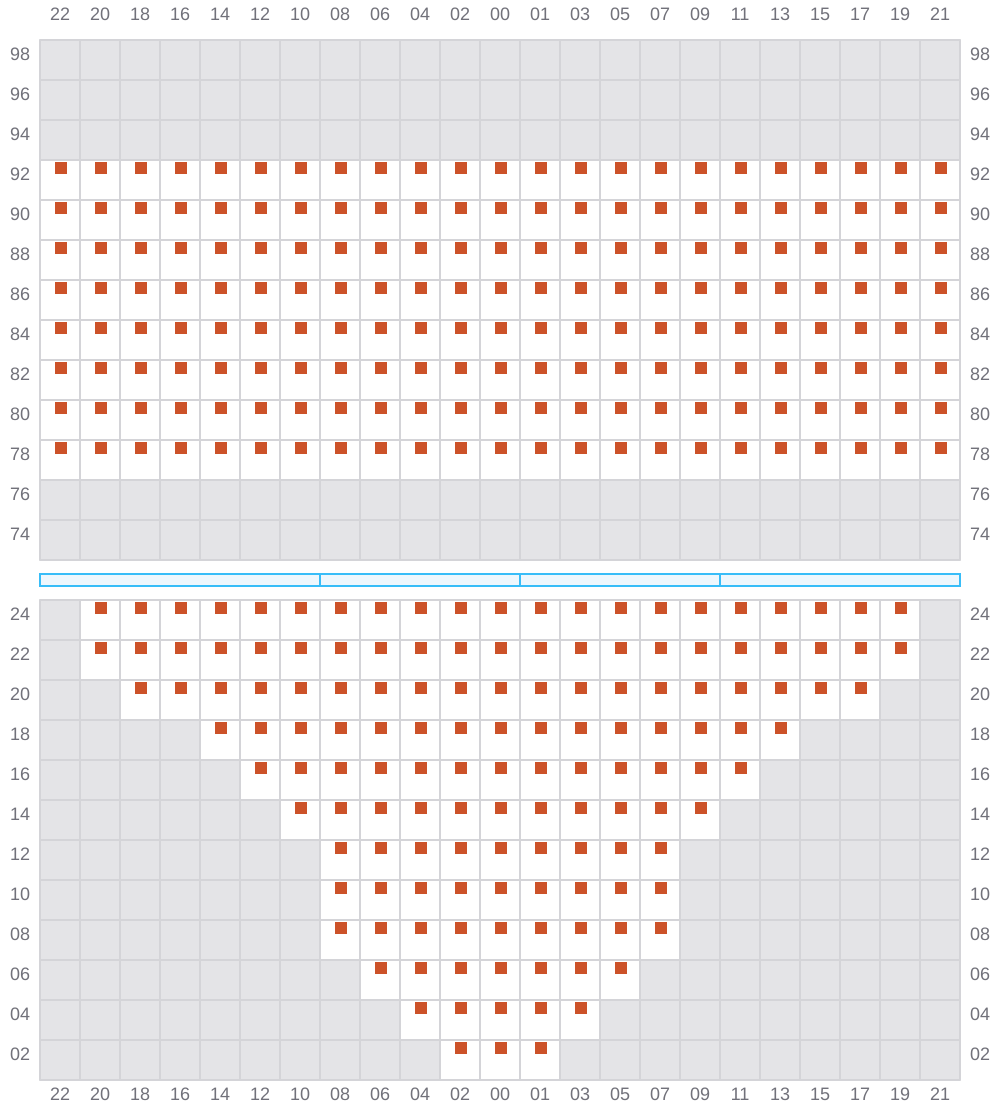

009

→
→

Bay 009 view and slots of ONE TRADITION

011 (010)

←
^→ / _?
→

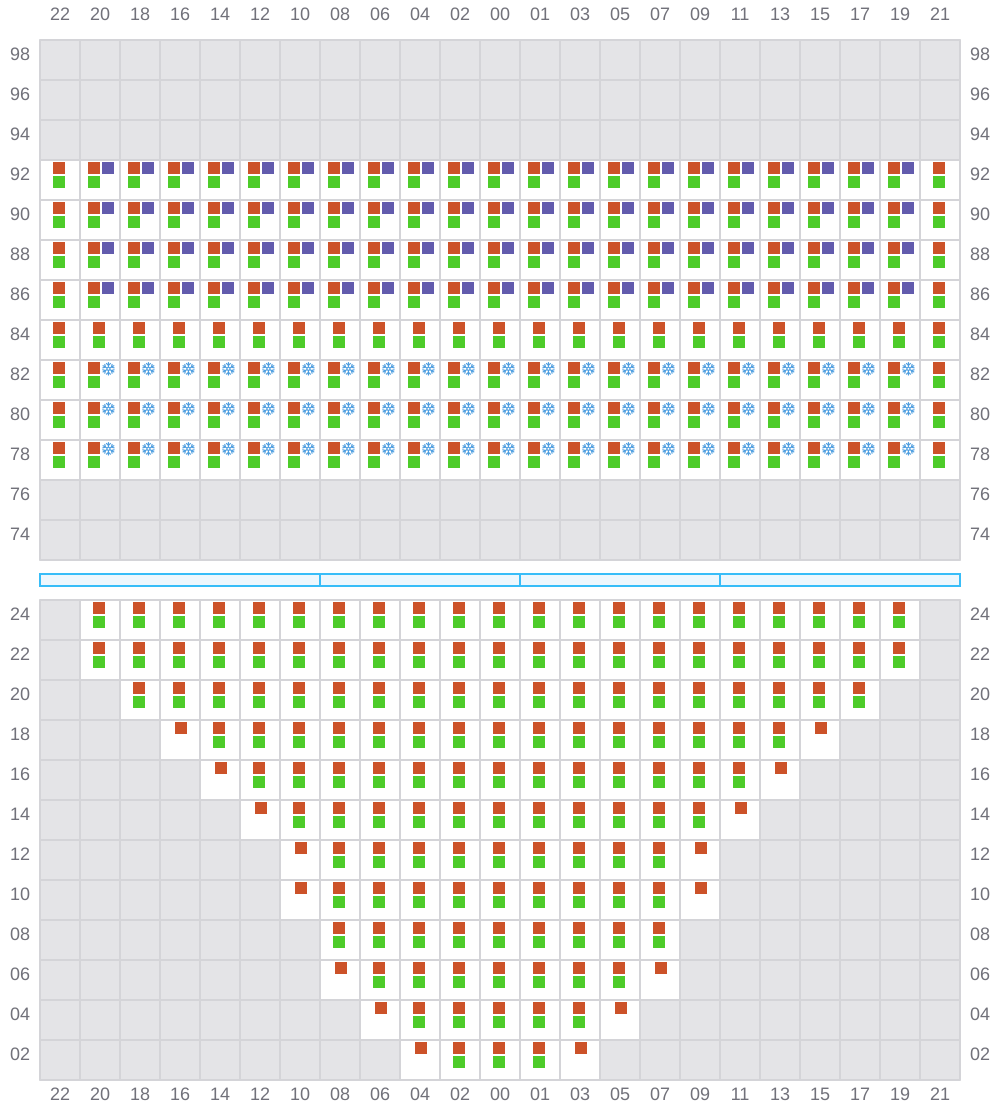

Bay 011 view and slots of ONE TRADITION

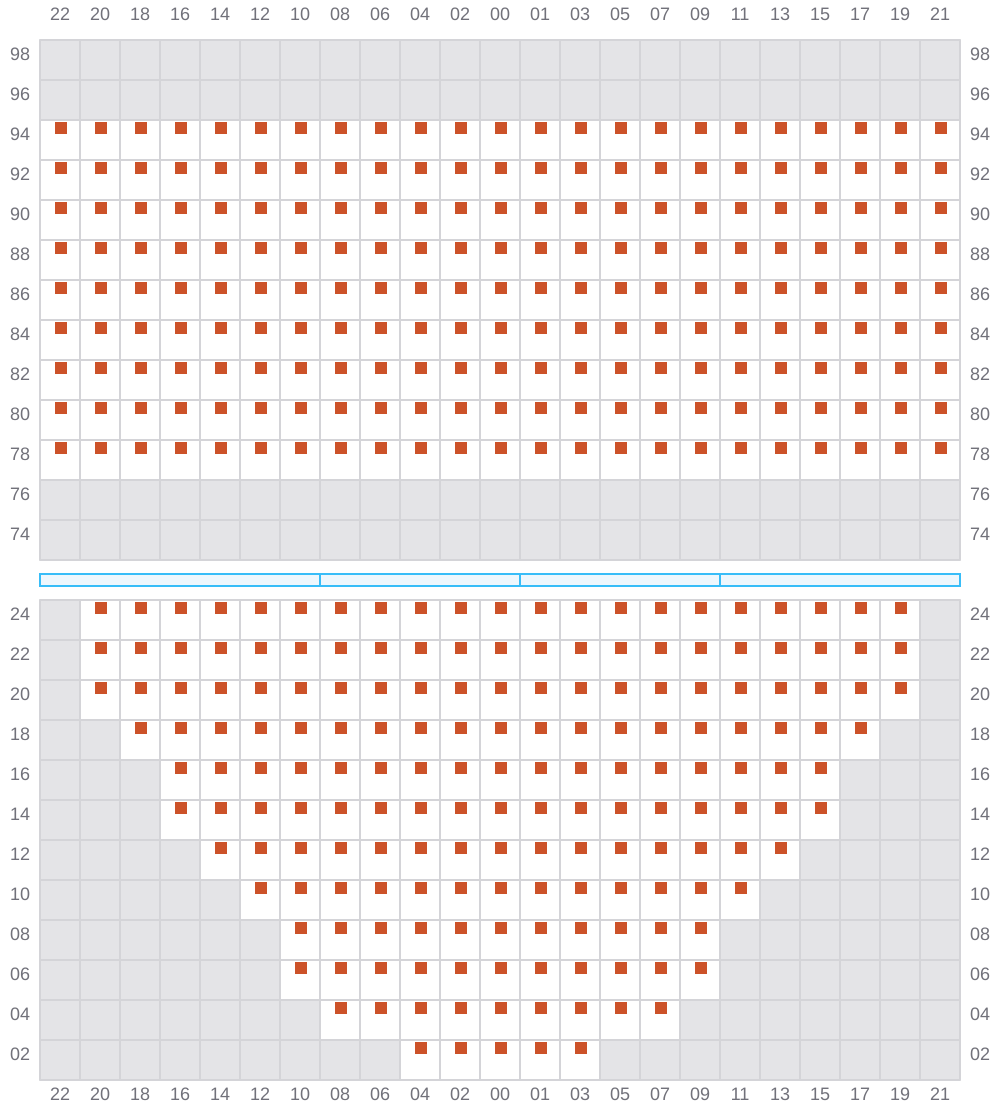

013

→
→

Bay 013 view and slots of ONE TRADITION

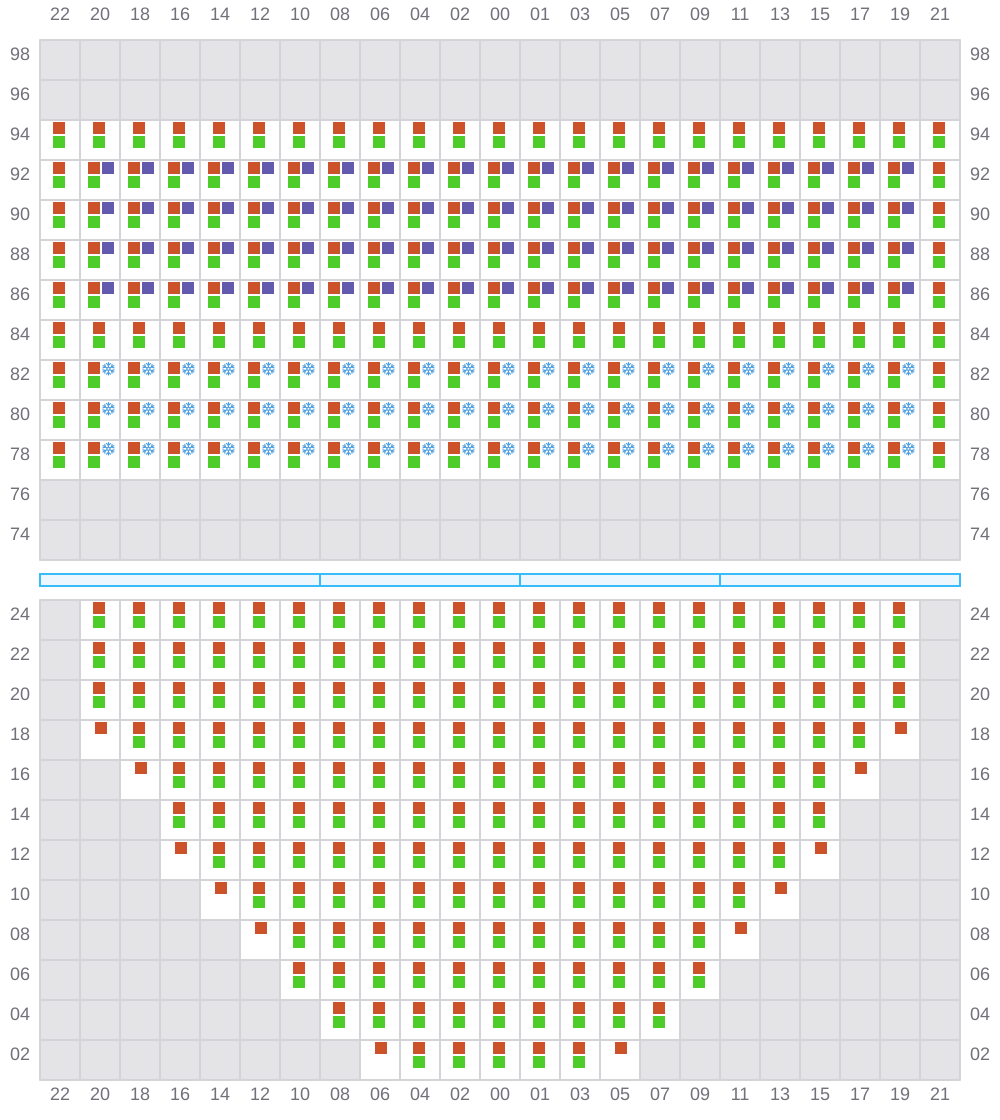

015 (014)

←
^→ / _?
→

Bay 015 view and slots of ONE TRADITION

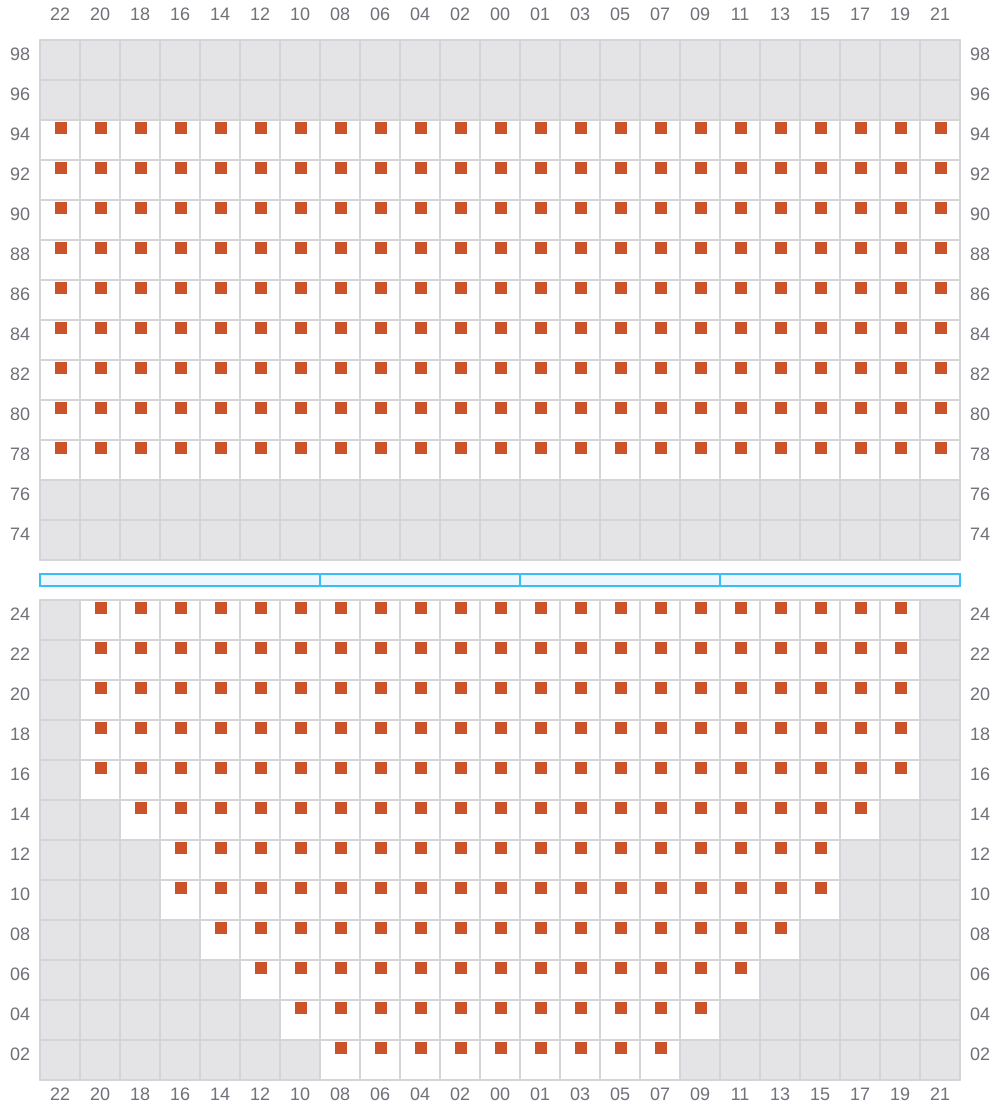

017

→
→

Bay 017 view and slots of ONE TRADITION

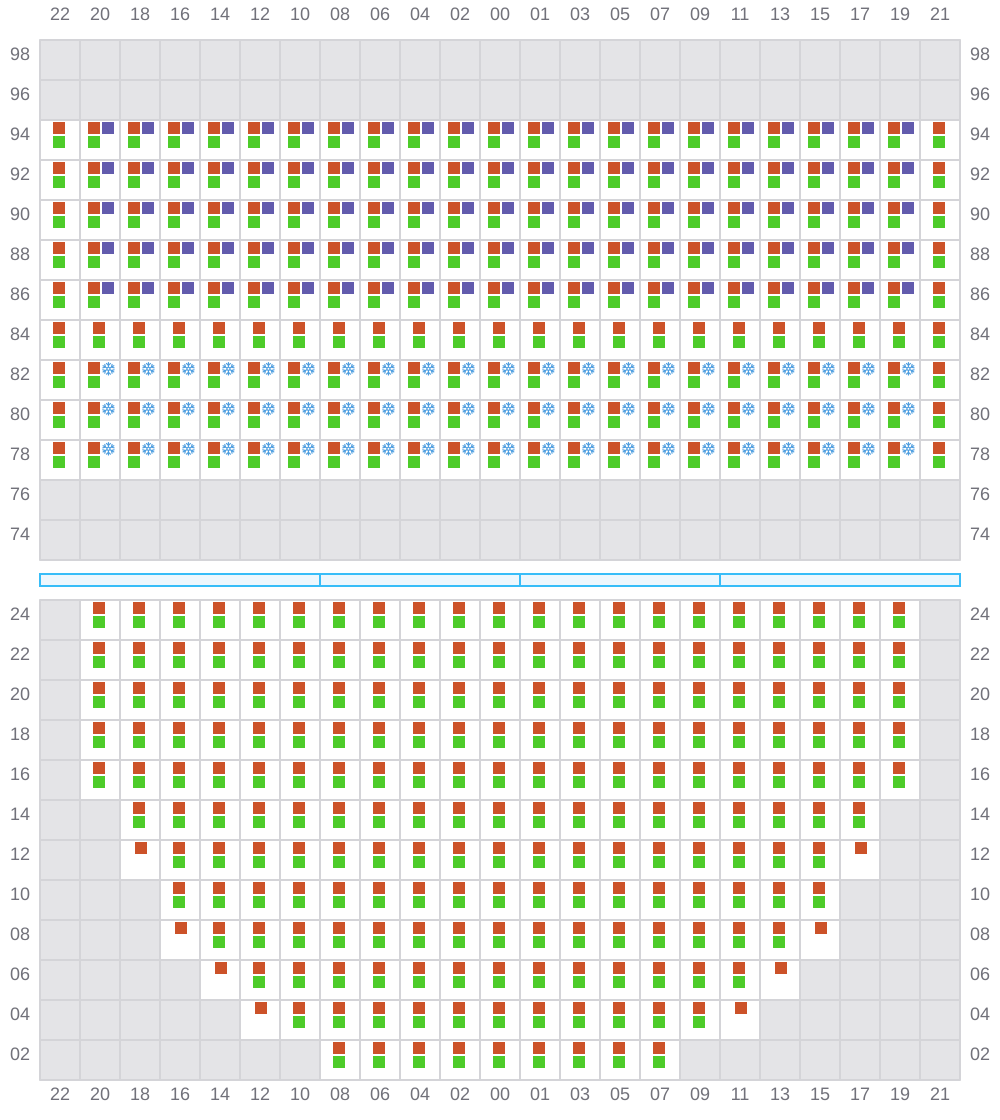

019 (018)

←
^→ / _?
→

Bay 019 view and slots of ONE TRADITION

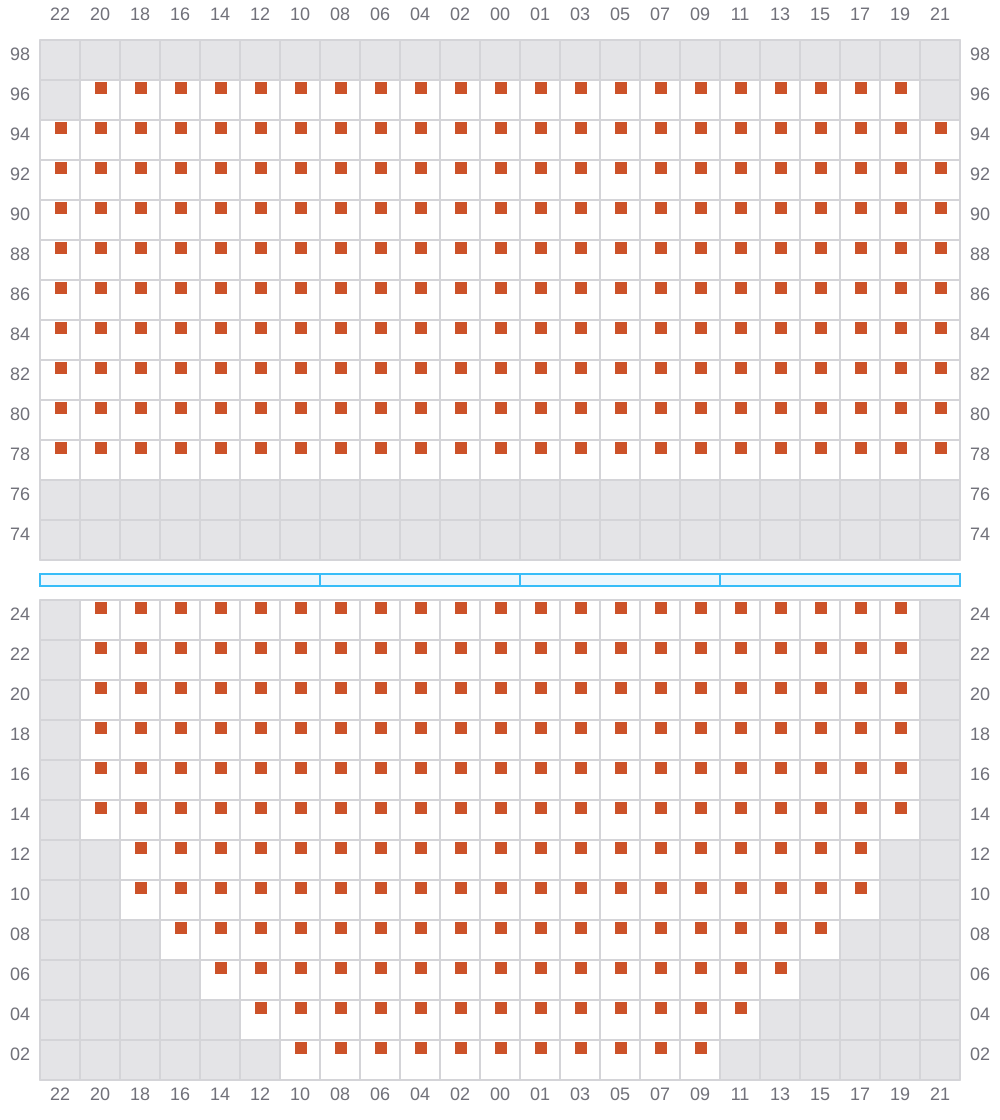

021

→
→

Bay 021 view and slots of ONE TRADITION

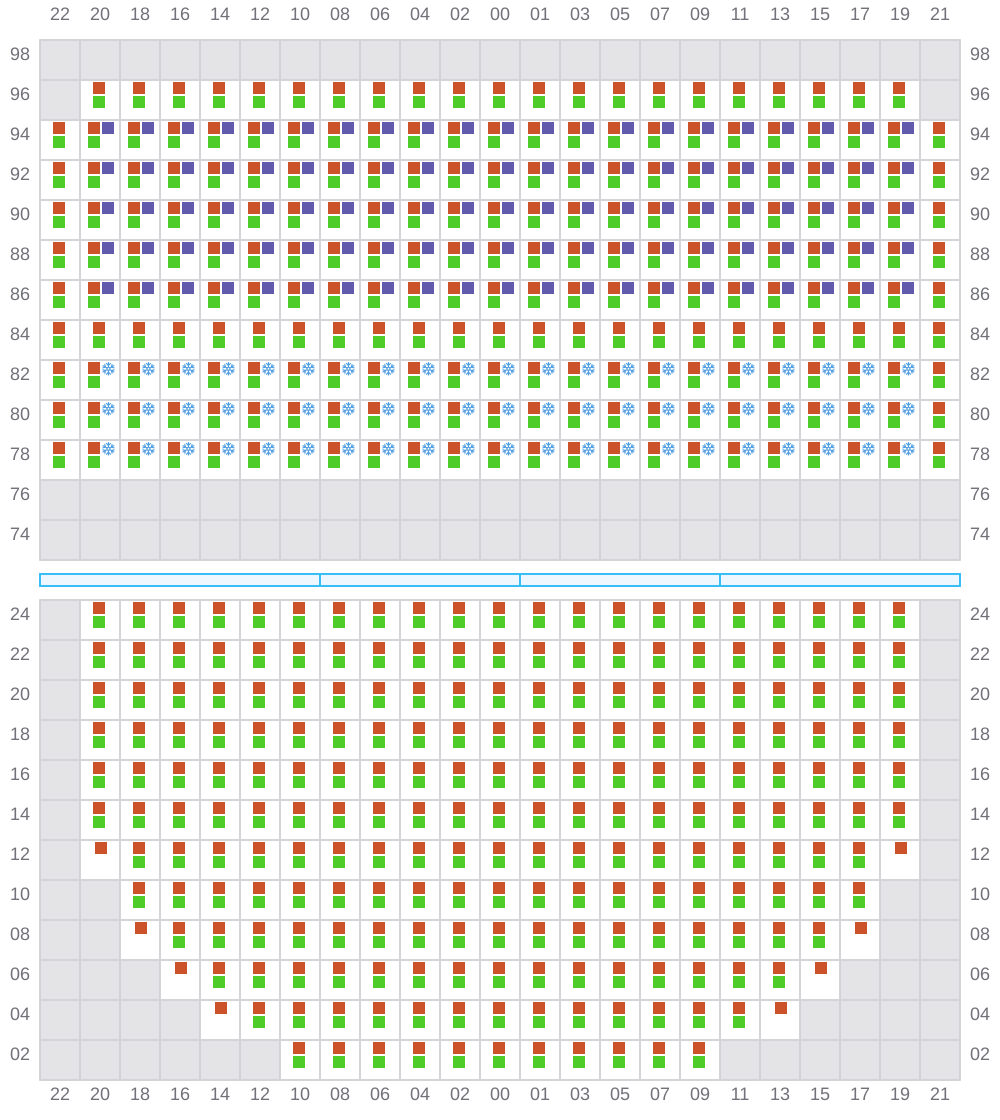

023 (022)

←
^→ / _?
→

Bay 023 view and slots of ONE TRADITION

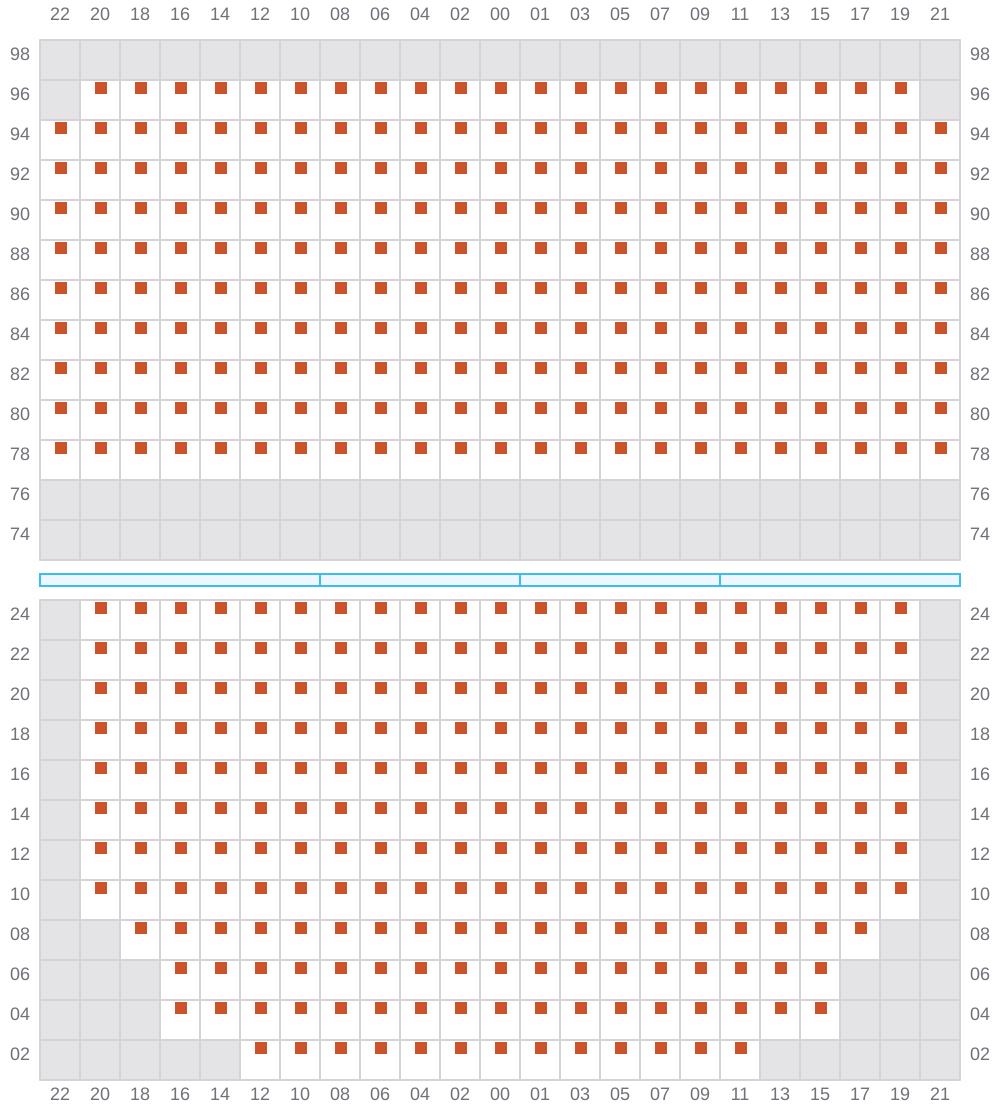

025

→
→

Bay 025 view and slots of ONE TRADITION

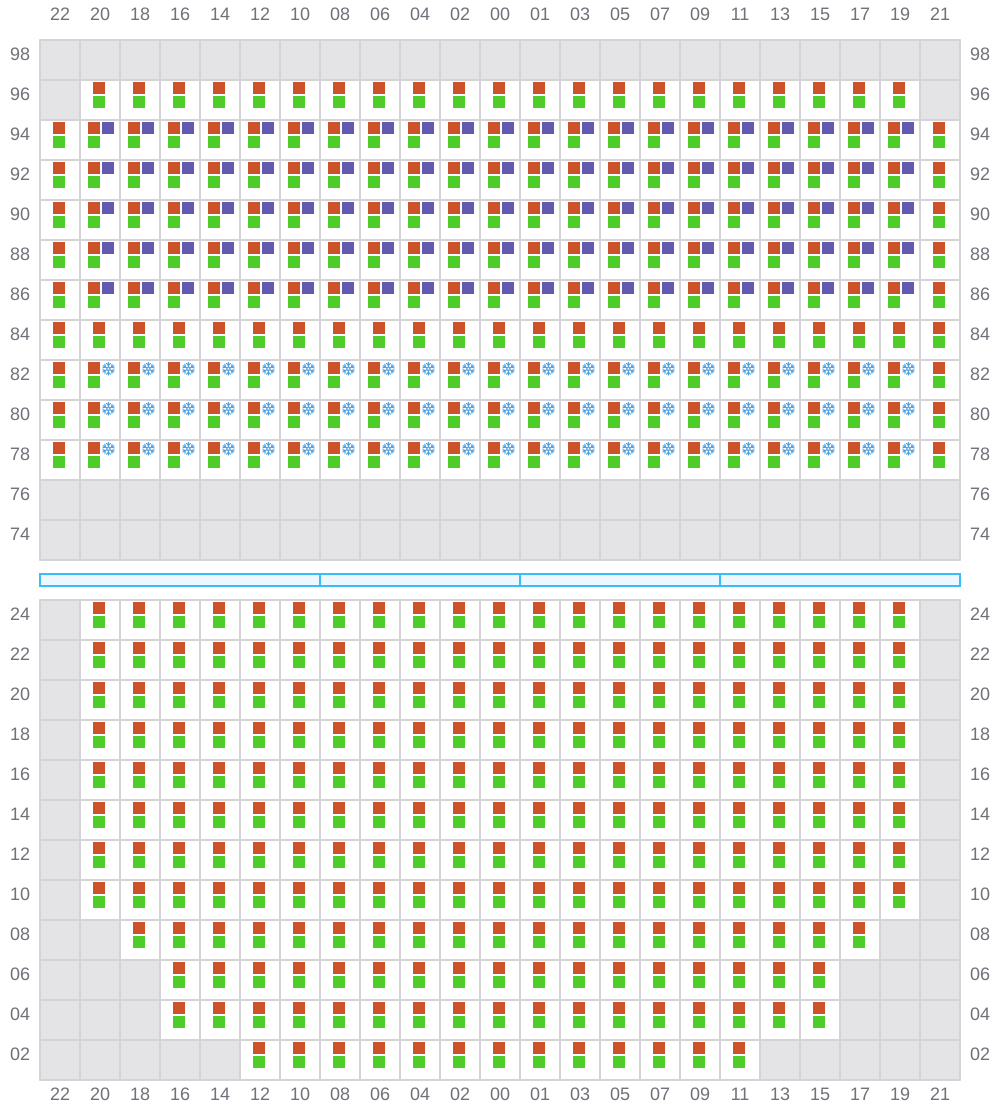

027 (026)

←
^→ / _?
→

Bay 027 view and slots of ONE TRADITION

029

→
→

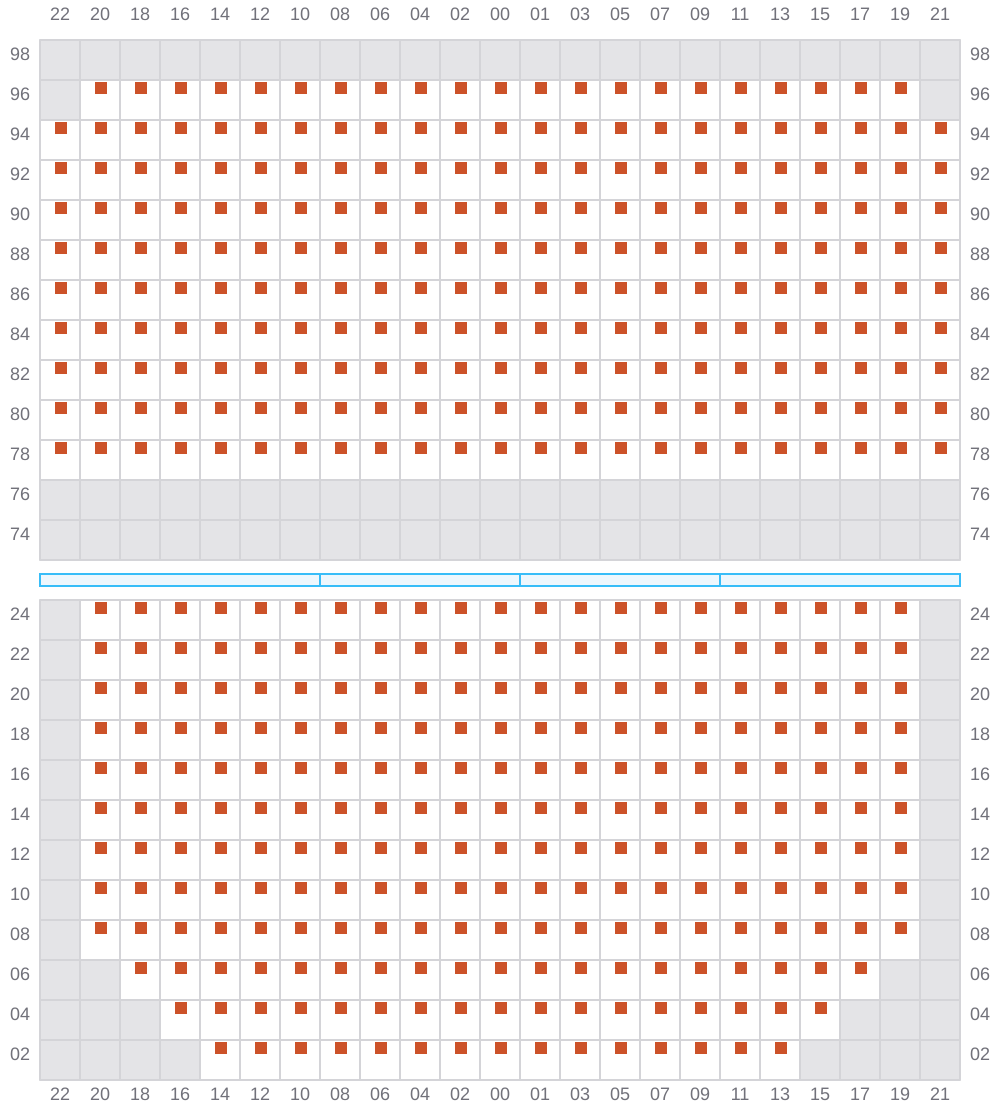

Bay 029 view and slots of ONE TRADITION

031 (030)

←
^→ / _?
→

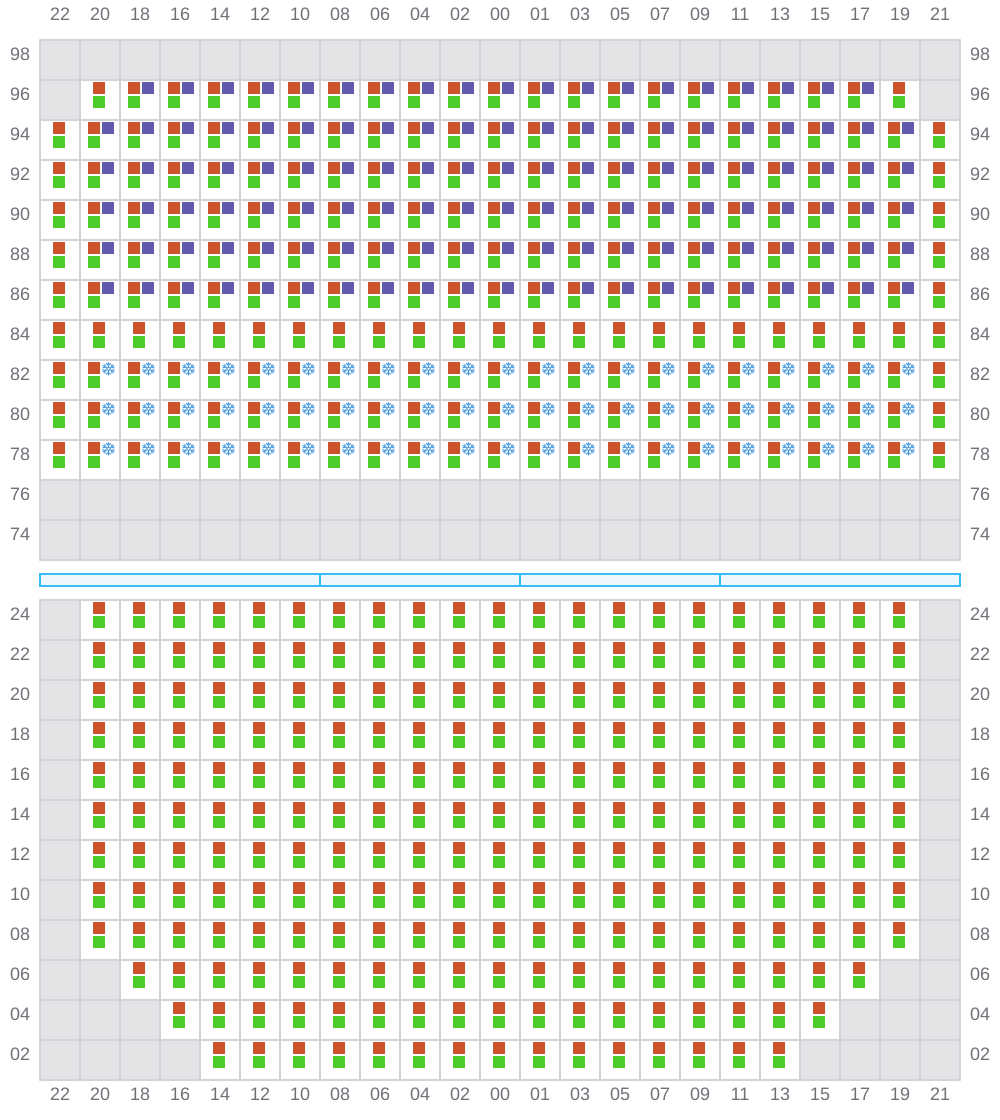

Bay 031 view and slots of ONE TRADITION

033

→
→

Bay 033 view and slots of ONE TRADITION

035 (034)

←
^→ / _?
→

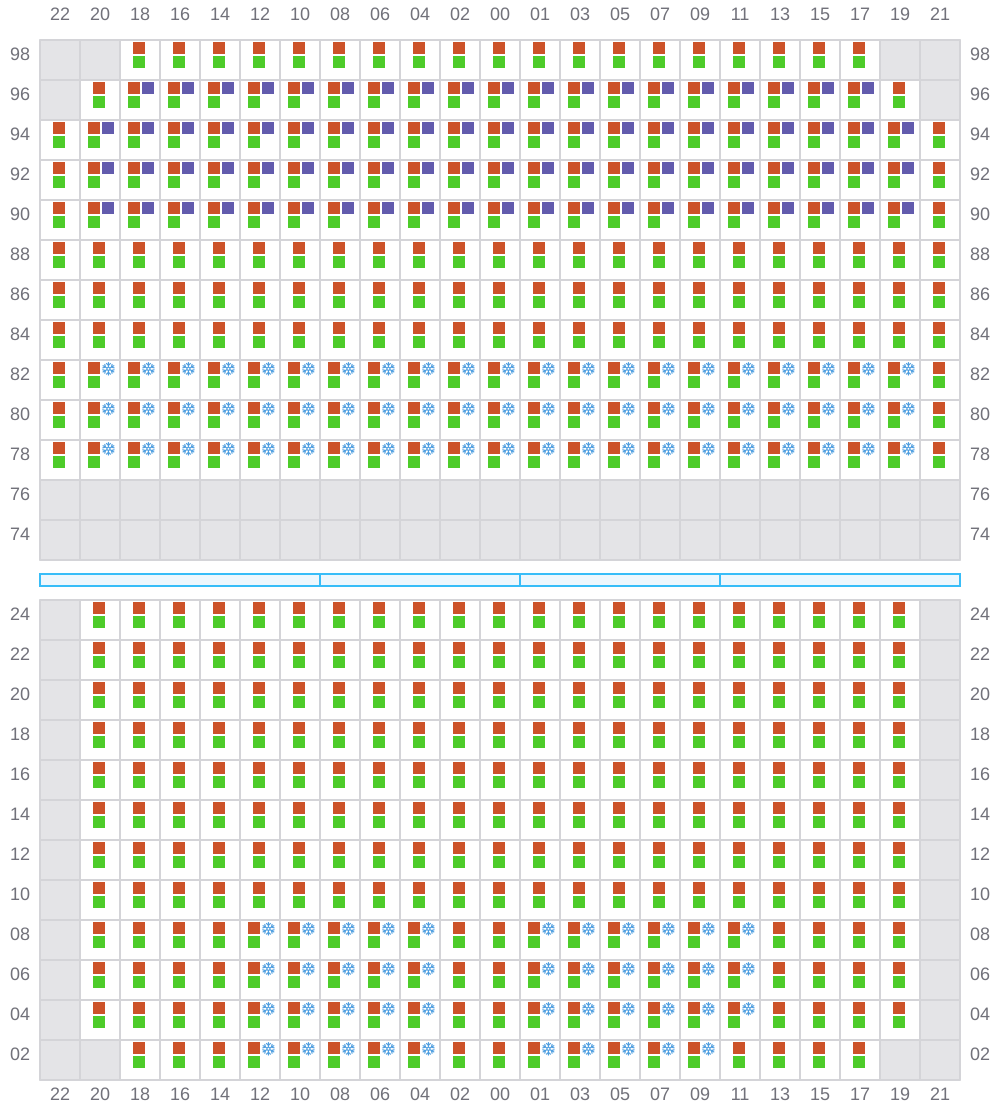

Bay 035 view and slots of ONE TRADITION

037

→
→

Bay 037 view and slots of ONE TRADITION

039 (038)

←
→
→

Bay 039 view and slots of ONE TRADITION

041

→
→

Bay 041 view and slots of ONE TRADITION

043 (042)

←
^→ / _?
→

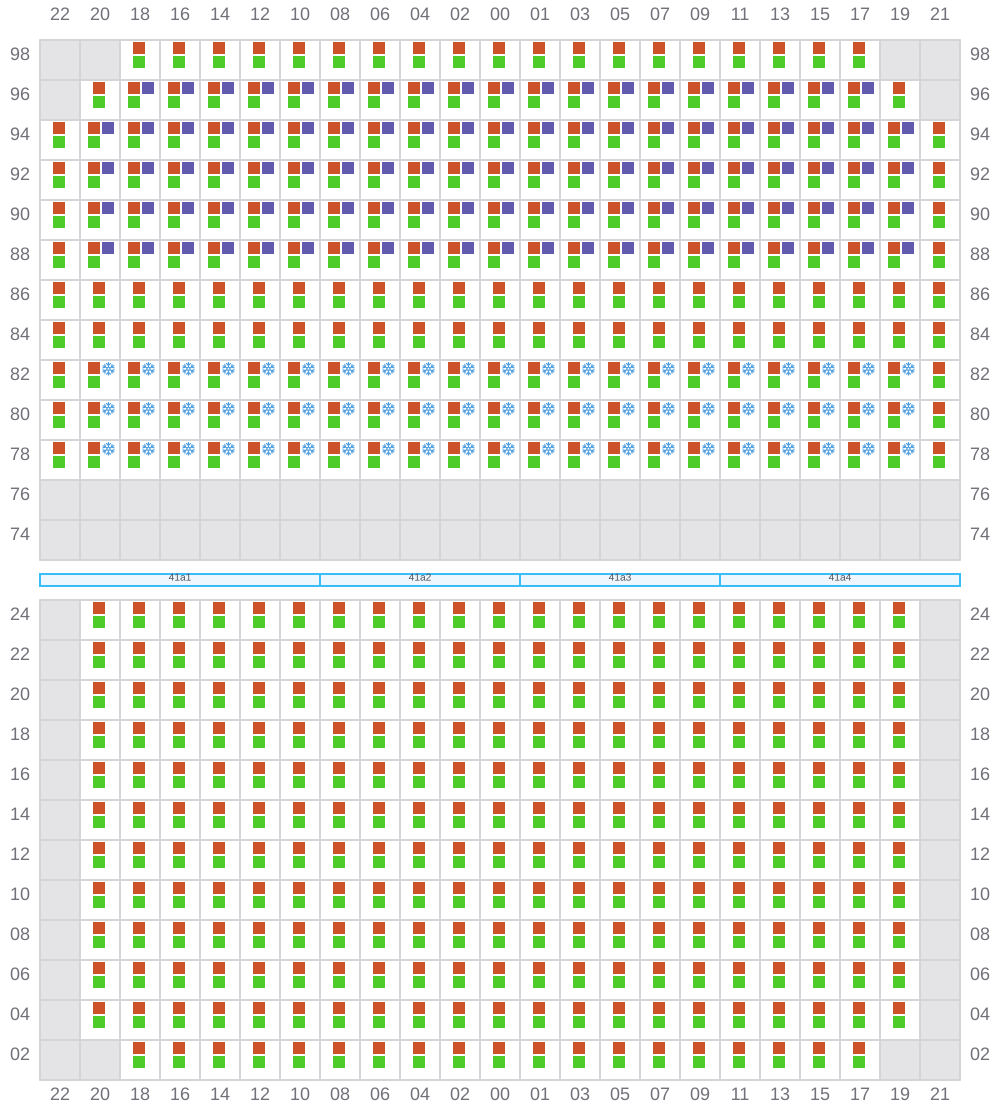

Bay 043 view and slots of ONE TRADITION

045

→
→

Bay 045 view and slots of ONE TRADITION

047 (046)

←
^→ / _?
→

Bay 047 view and slots of ONE TRADITION

049

→
→

Bay 049 view and slots of ONE TRADITION

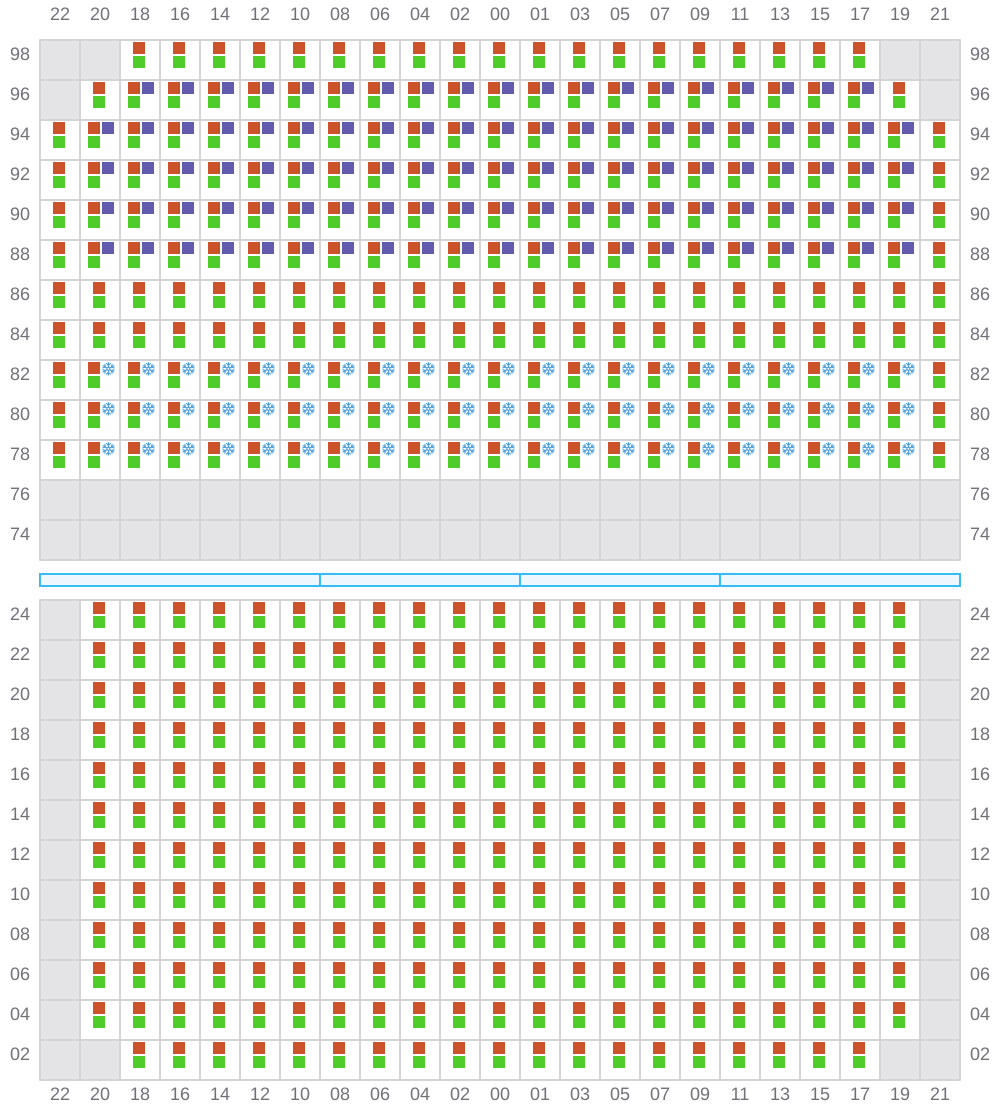

051 (050)

←
^→ / _?
→

Bay 051 view and slots of ONE TRADITION

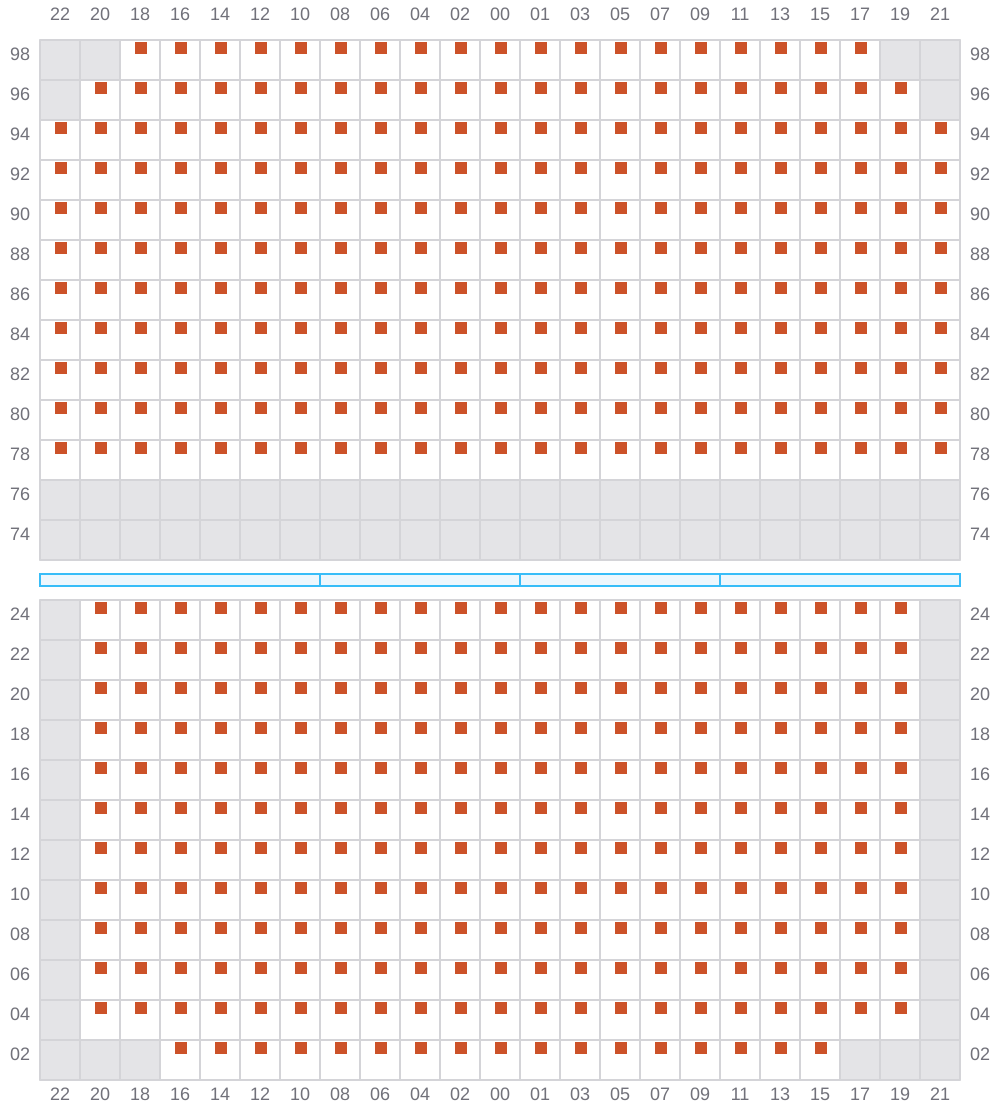

053

→
→

Bay 053 view and slots of ONE TRADITION

055 (054)

←
→
→

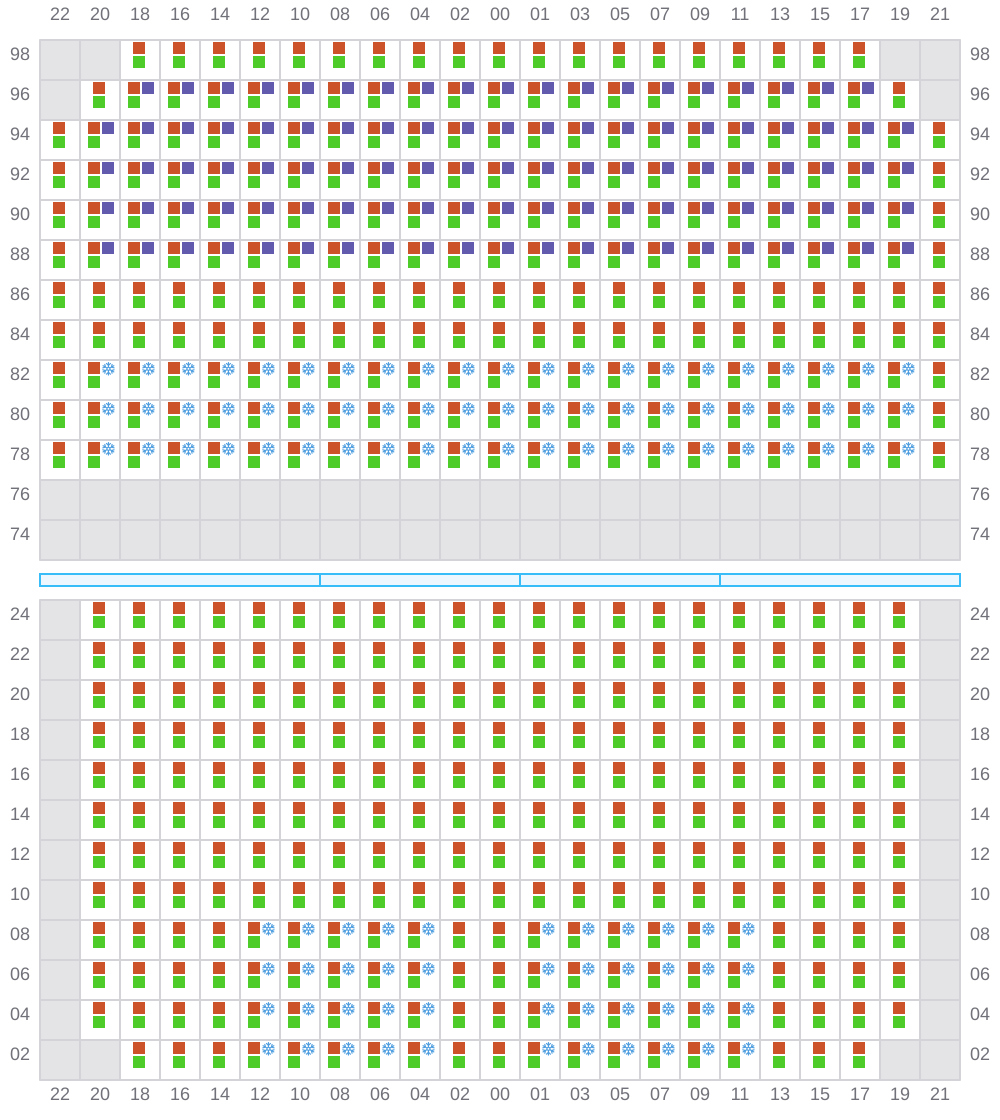

Bay 055 view and slots of ONE TRADITION

057

→
→

Bay 057 view and slots of ONE TRADITION

059 (058)

←
^→ / _?
→

Bay 059 view and slots of ONE TRADITION

061

→
→

Bay 061 view and slots of ONE TRADITION

063 (062)

←
^→ / _?
→

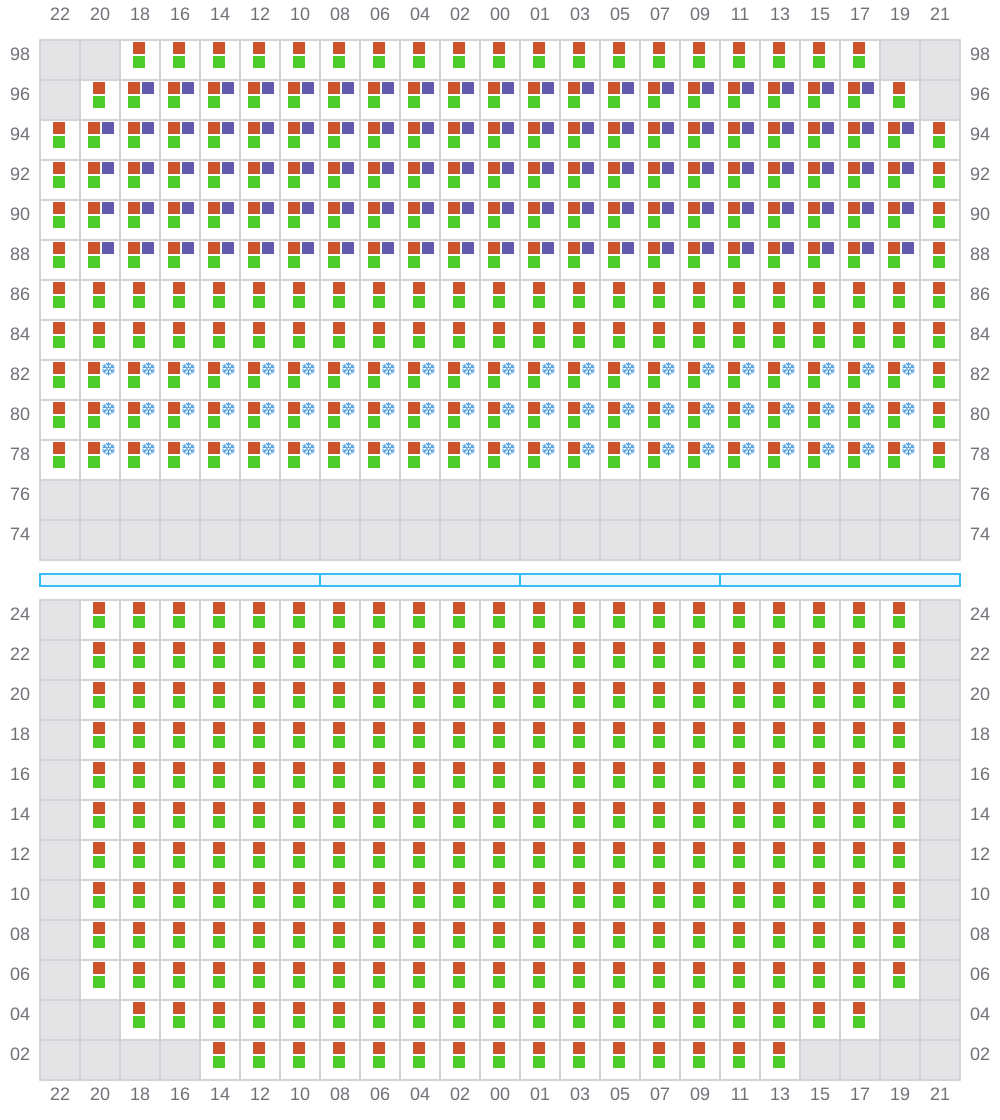

Bay 063 view and slots of ONE TRADITION

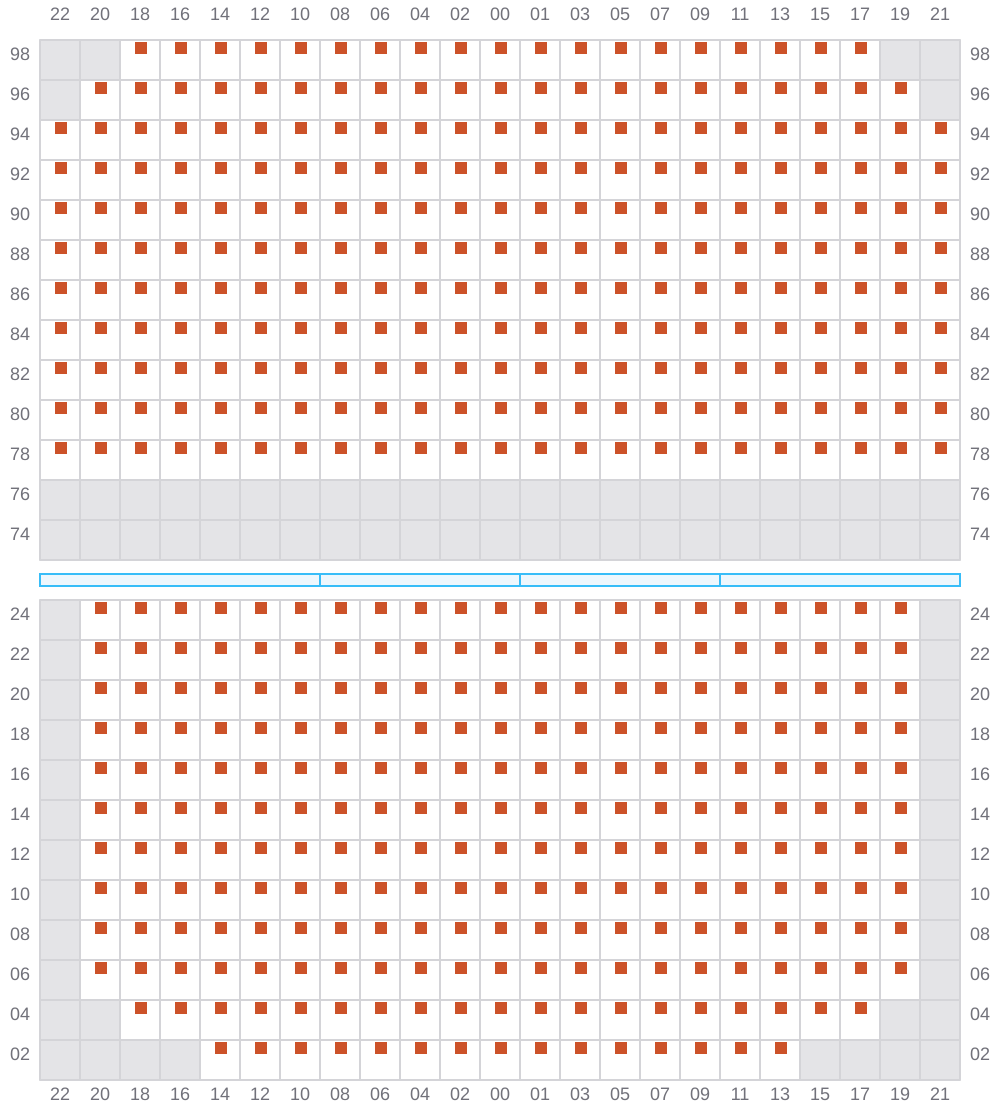

065

→
→

Bay 065 view and slots of ONE TRADITION

067 (066)

←
^→ / _?
→

Bay 067 view and slots of ONE TRADITION

069

→
→

Bay 069 view and slots of ONE TRADITION

071 (070)

←
^→ / _?
→

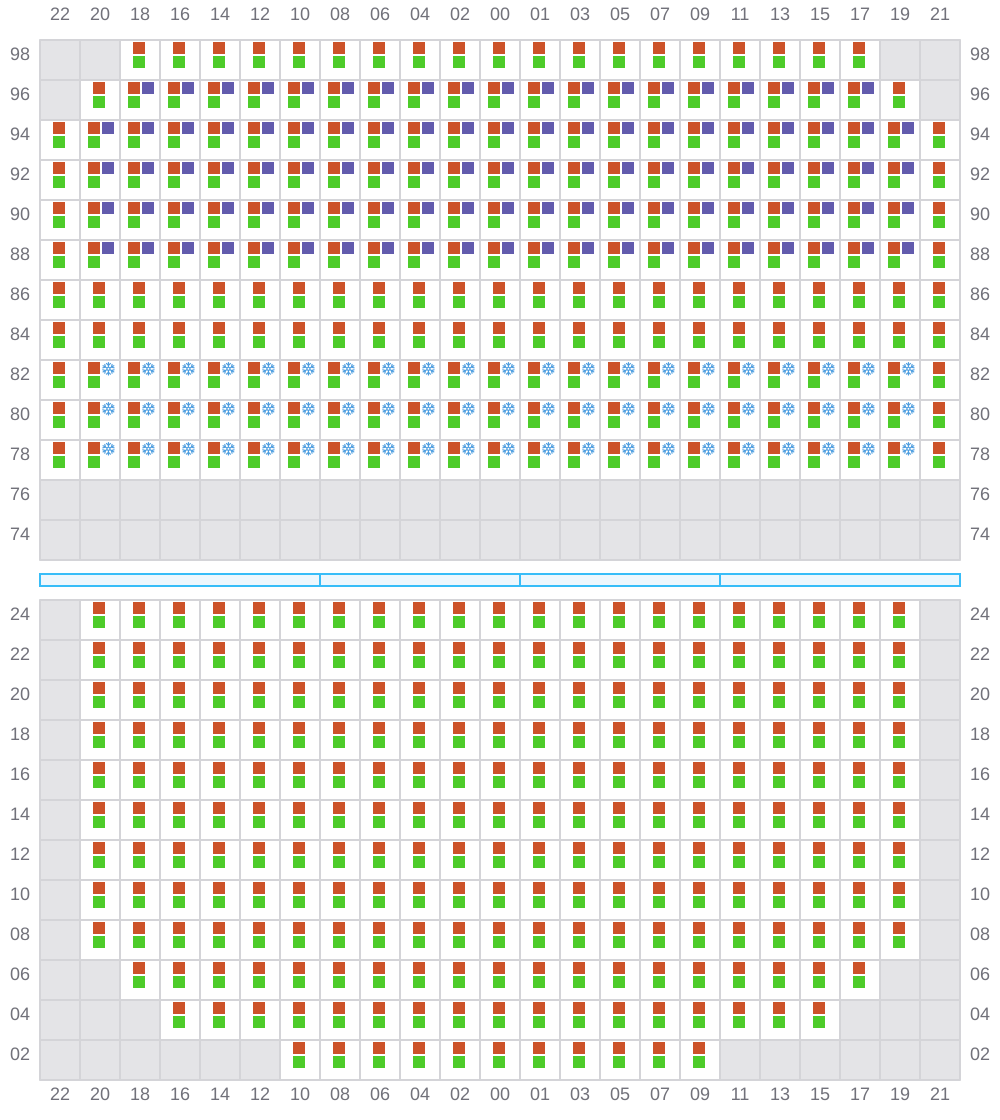

Bay 071 view and slots of ONE TRADITION

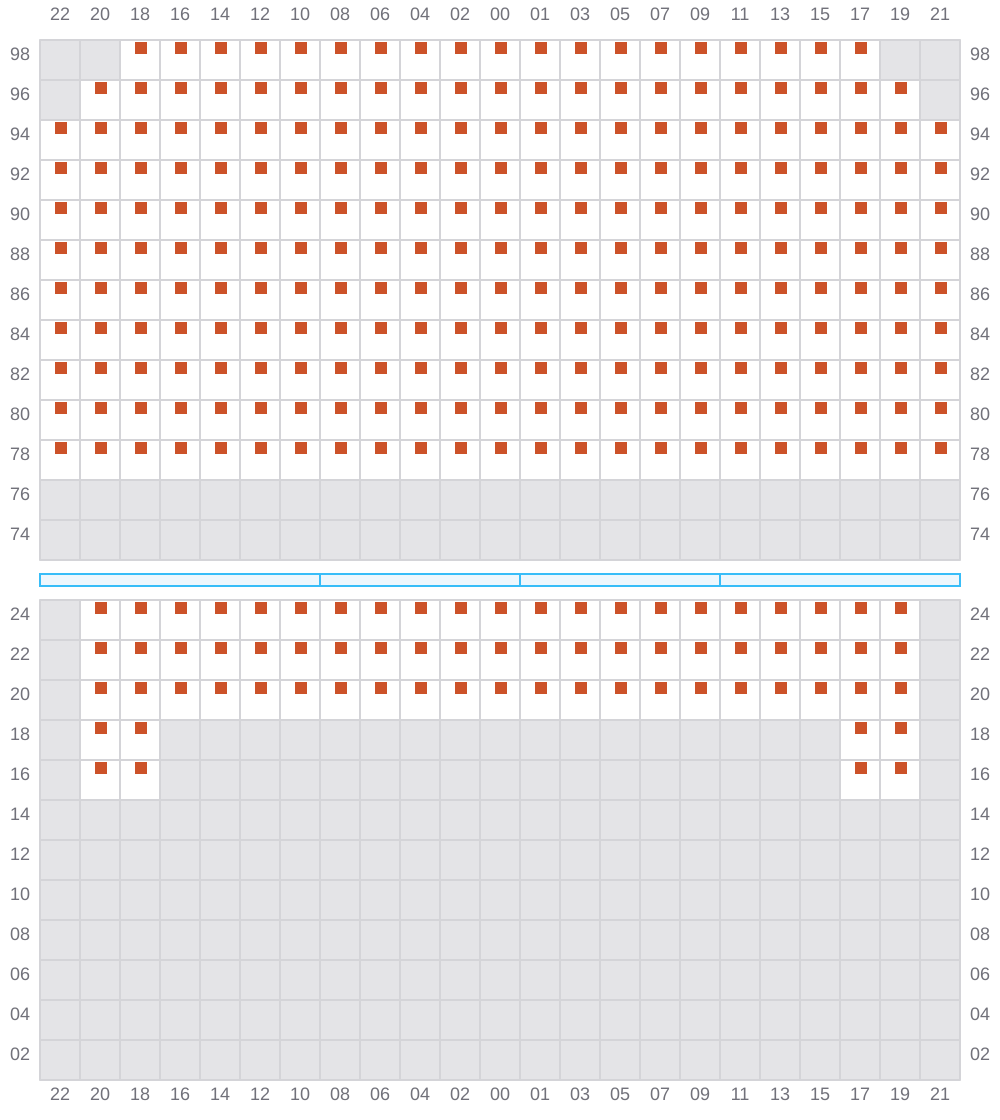

073

→
→

Bay 073 view and slots of ONE TRADITION

075 (074)

←
^→ / _?
→

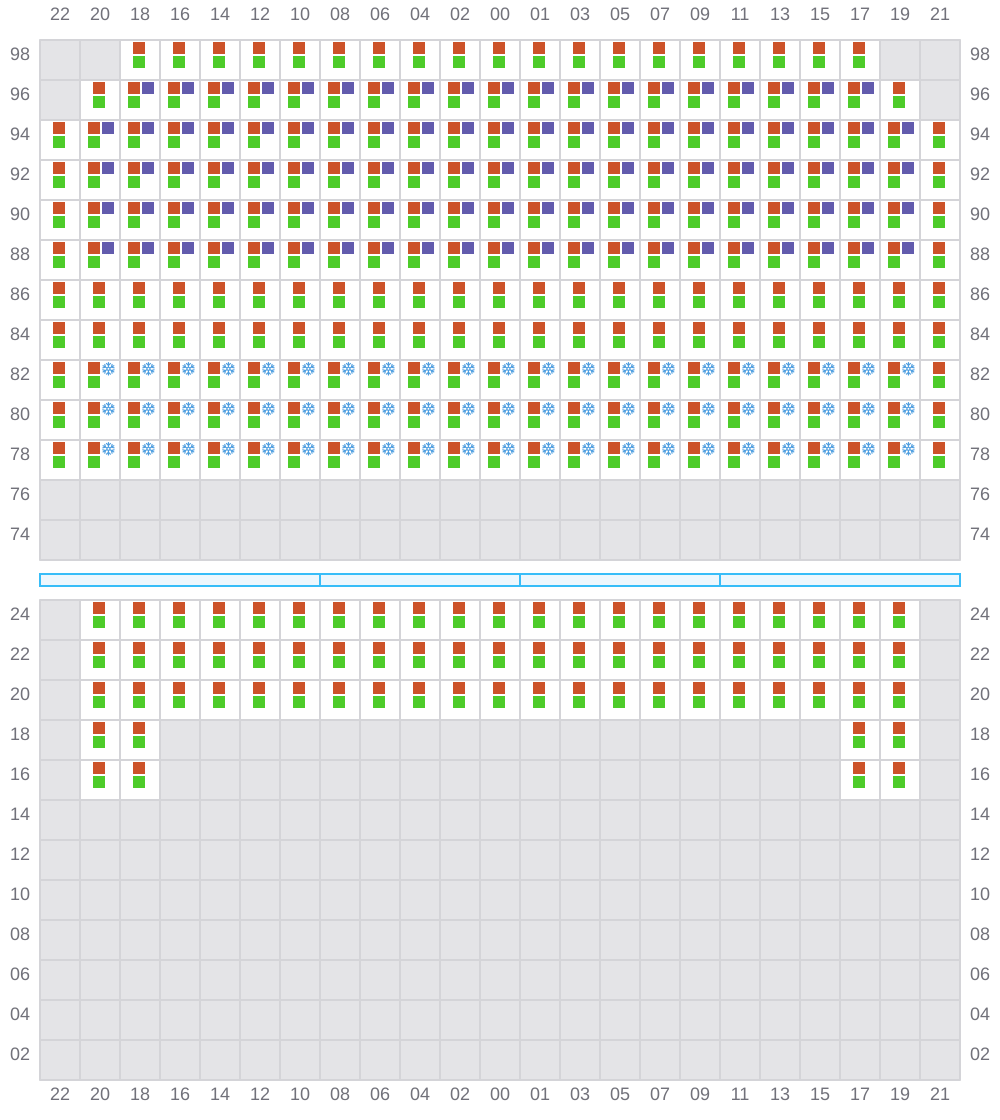

Bay 075 view and slots of ONE TRADITION

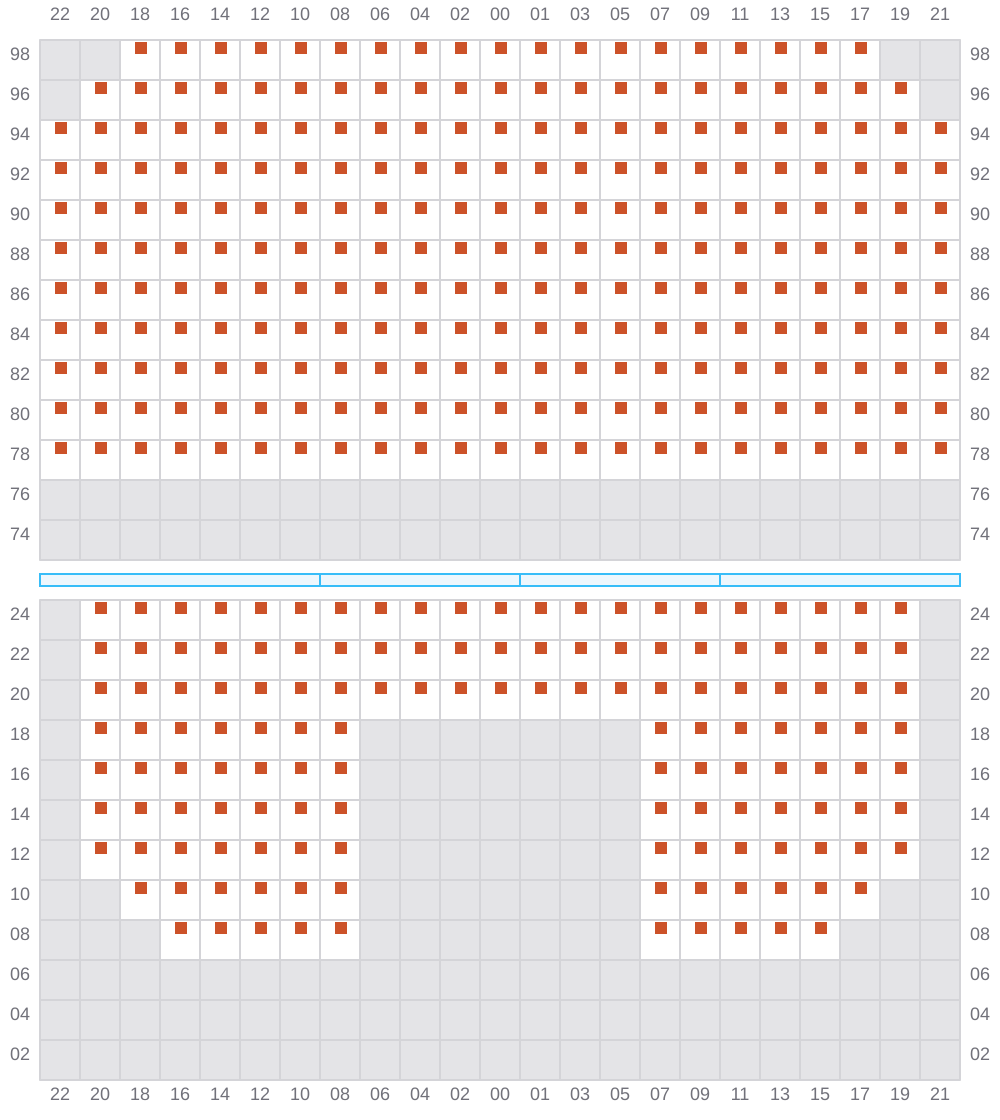

077

→
→

Bay 077 view and slots of ONE TRADITION

079 (078)

←
^→ / _?
→

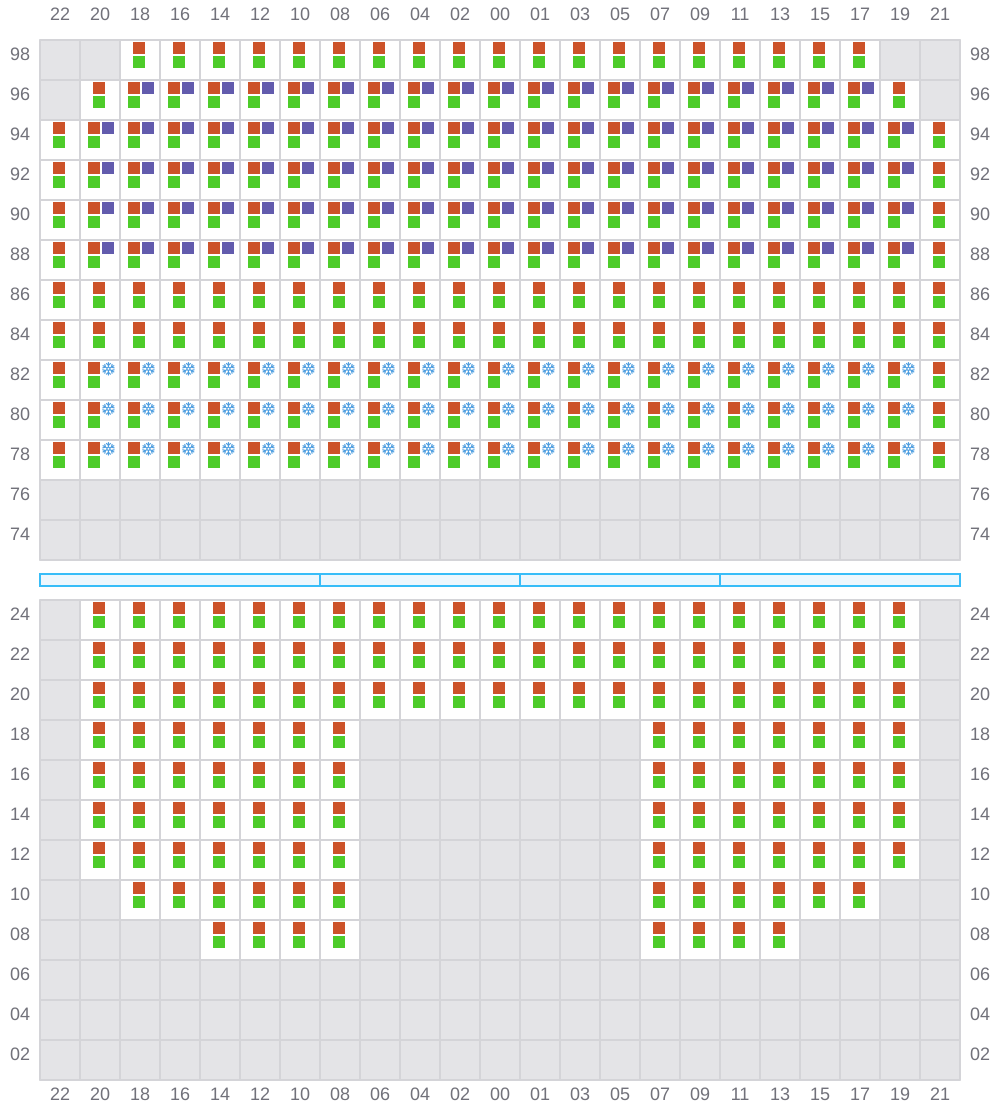

Bay 079 view and slots of ONE TRADITION

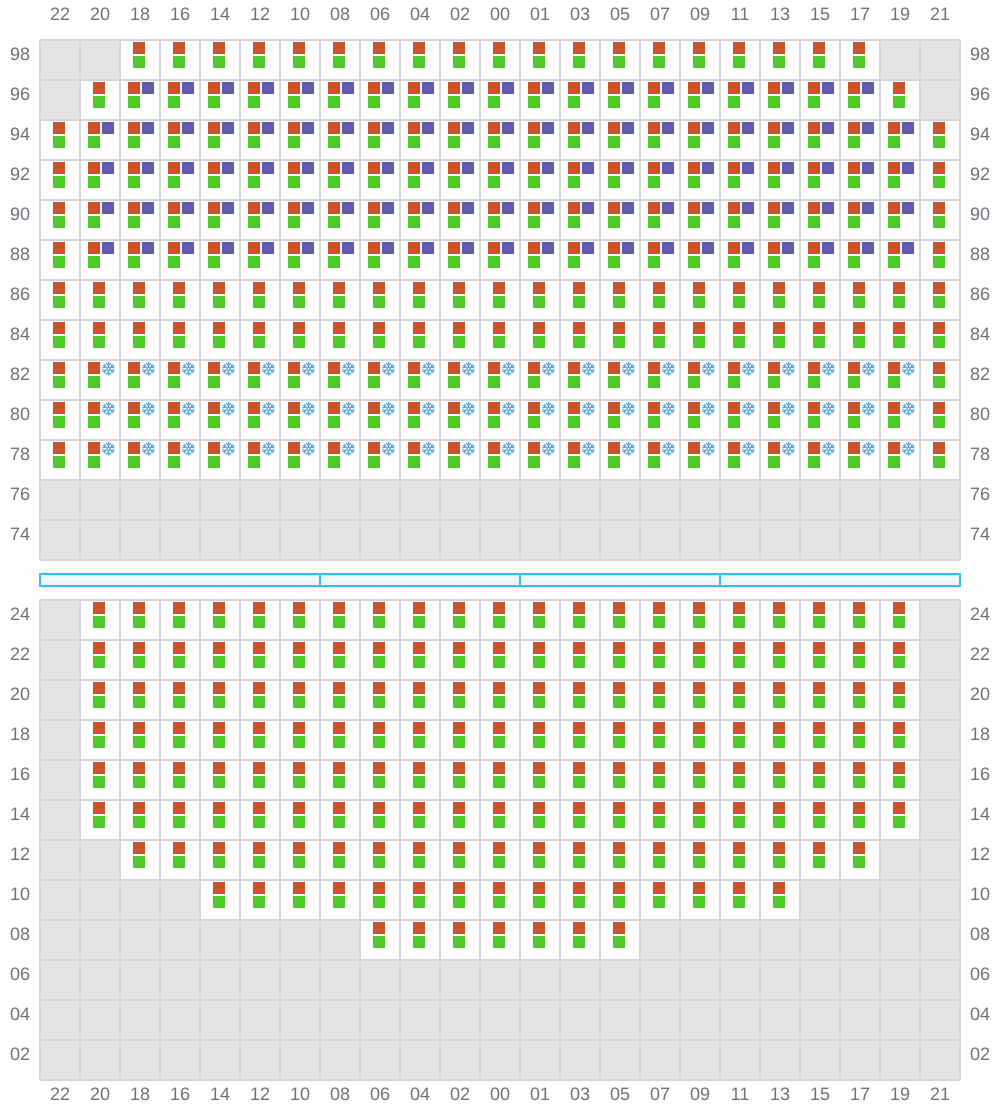

081

→
→

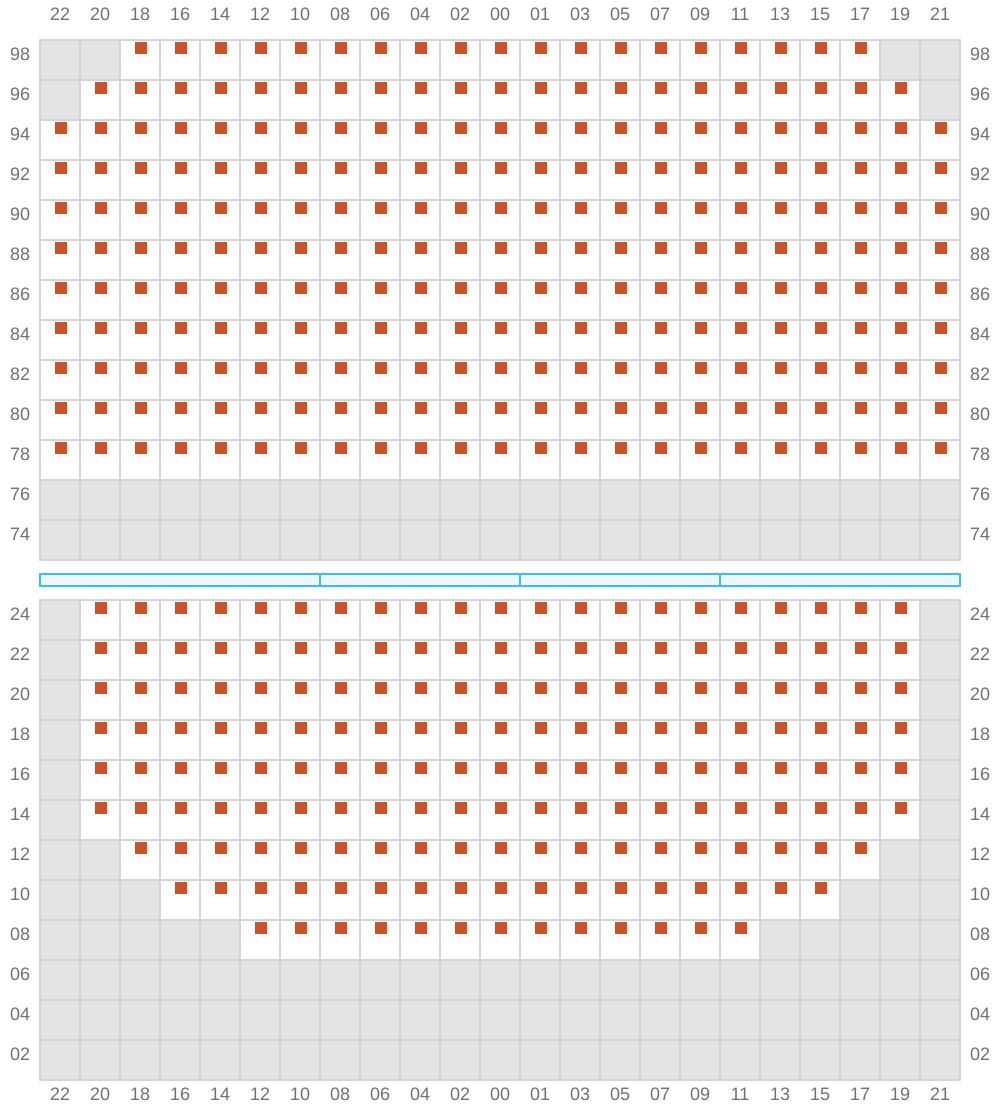

Bay 081 view and slots of ONE TRADITION

083 (082)

←
^→ / _?
→

Bay 083 view and slots of ONE TRADITION

085

→
→

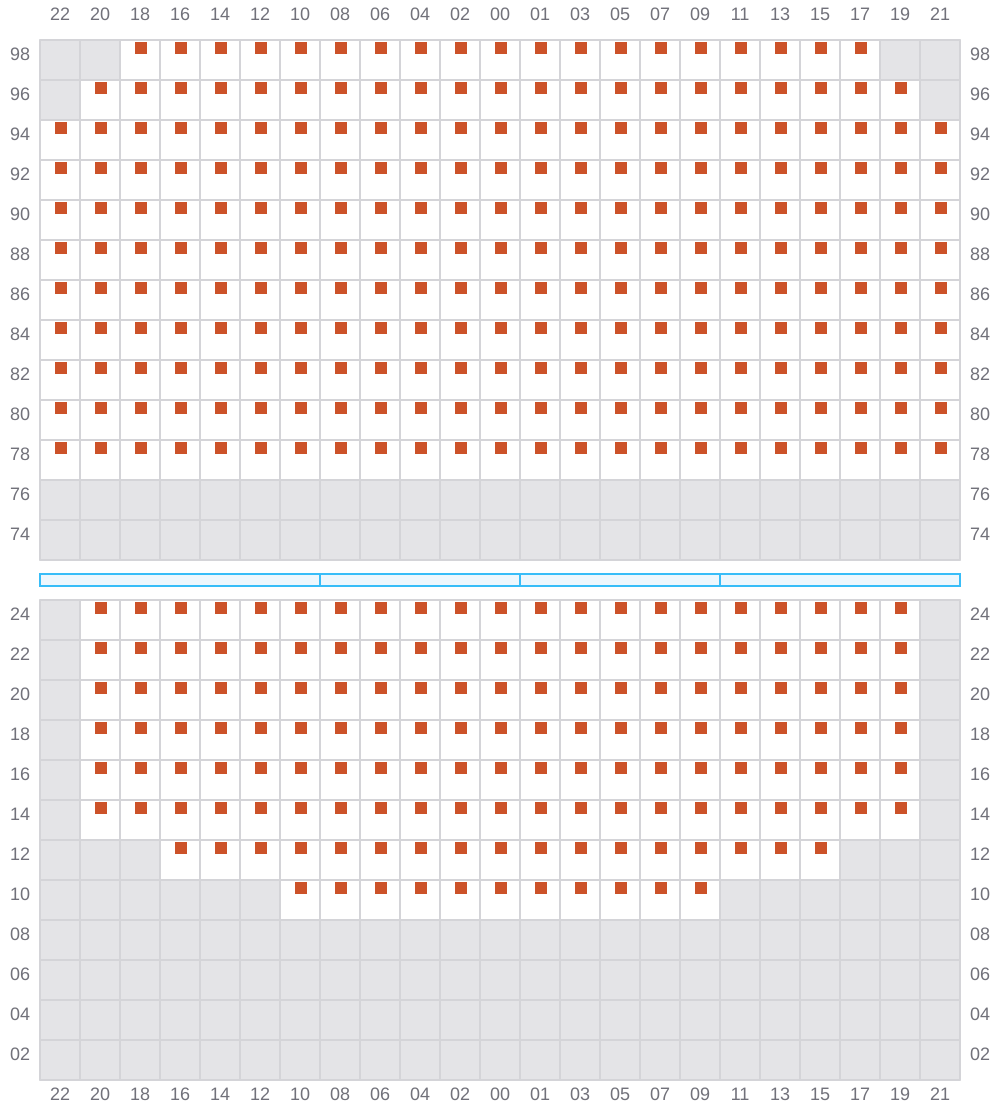

Bay 085 view and slots of ONE TRADITION

087 (086)

←
^→ / _?
→

Bay 087 view and slots of ONE TRADITION

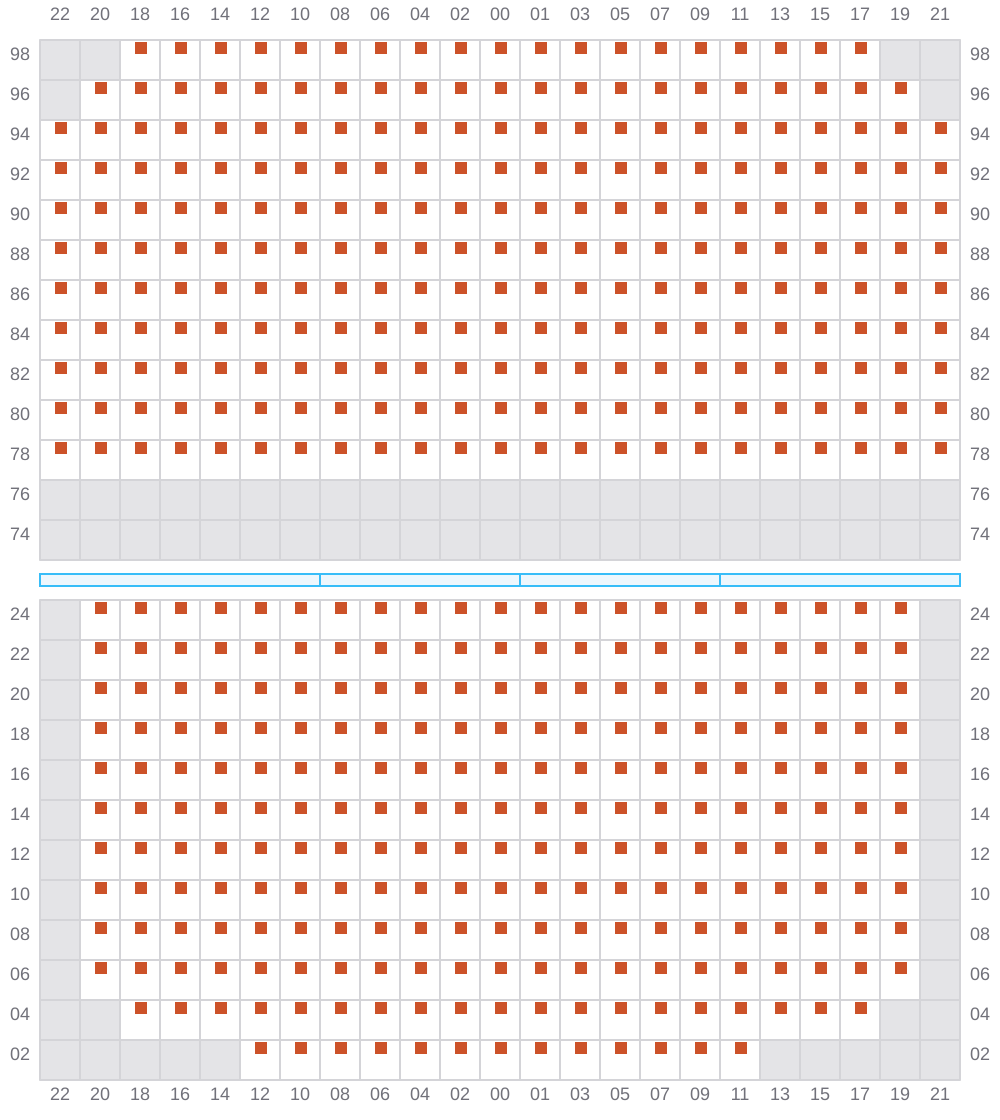

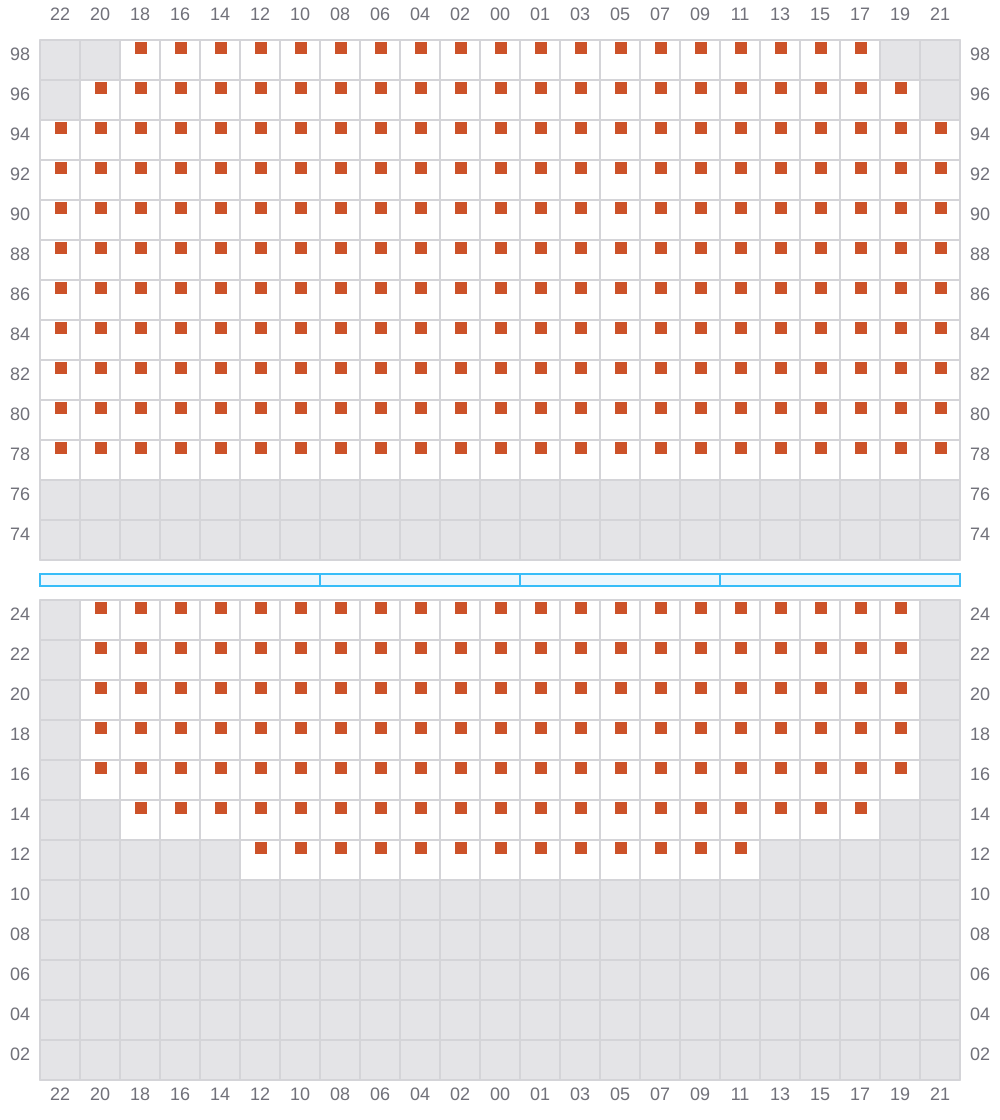

089

→
→

Bay 089 view and slots of ONE TRADITION

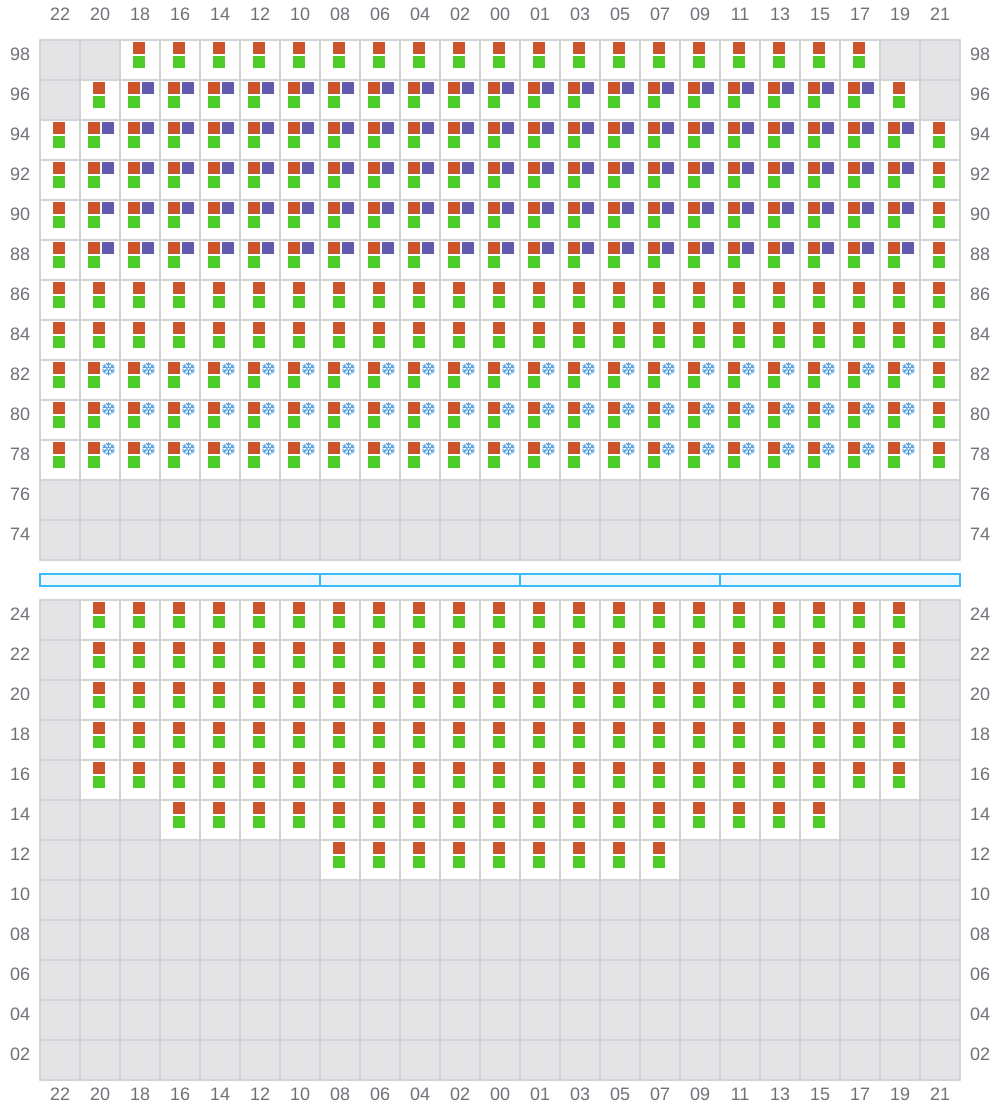

091 (090)

←
^→ / _?
→

Bay 091 view and slots of ONE TRADITION

093 (094)

^→ / _?
^→ / _?
^→ / _?

Bay 093 view and slots of ONE TRADITION
