ONE TREASURE
9773222 | 3EUO7 | ONE by *********************** Last update: Mon Feb 10 2025

General Info

Ship Name:ONE TREASURE
IMO Code:9773222
Call Sign:3EUO7
Line Operator:ONE
Class Name for Sister Ships:OTRS
Year Built:2018
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):383.40
LOA (Length Overall):399.96
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:22
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:24
Min Below ISO Tier:02
Total TEU:20,212

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

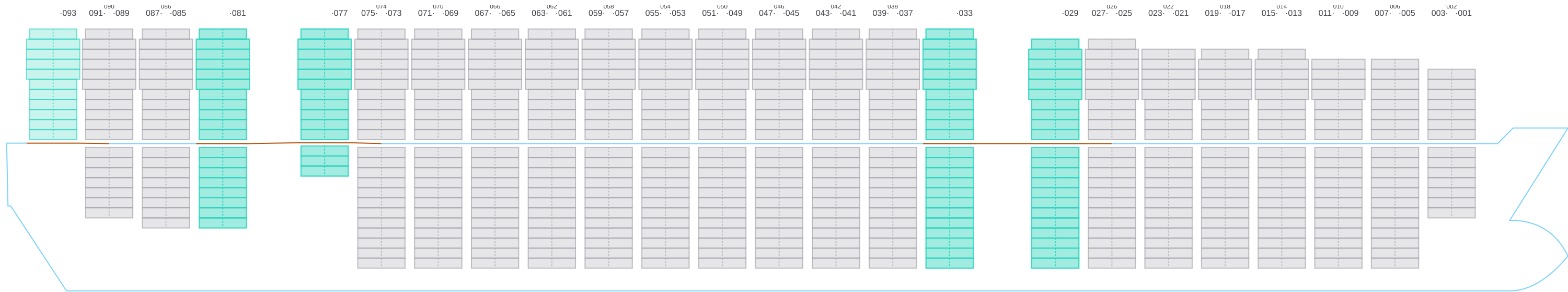

Side view of ONE TREASURE

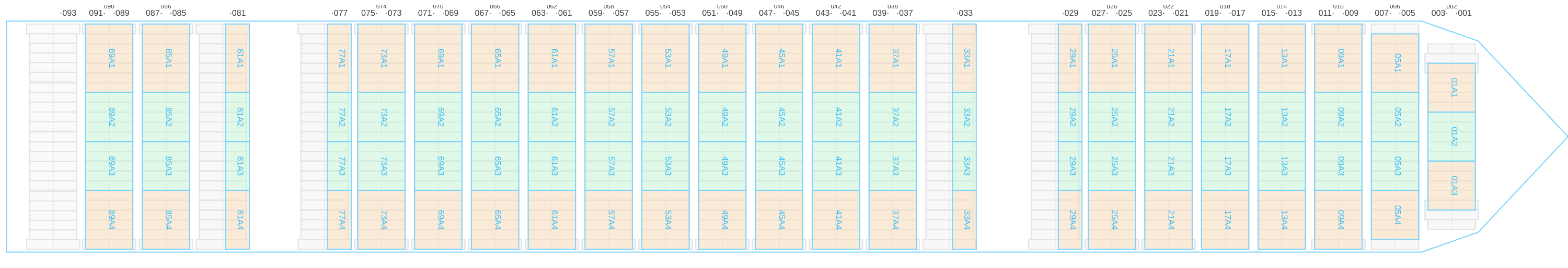

Hatch-Covers View

Deck view of ONE TREASURE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • →

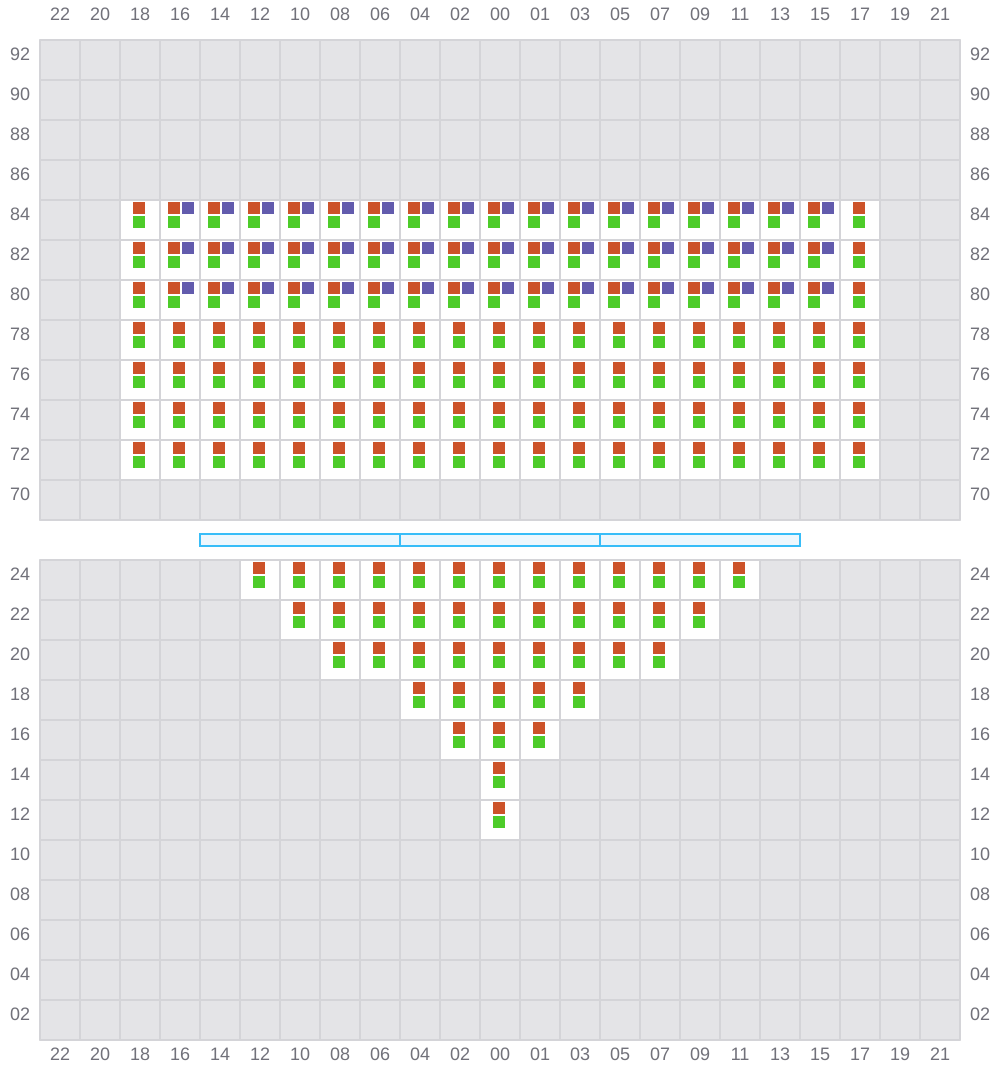

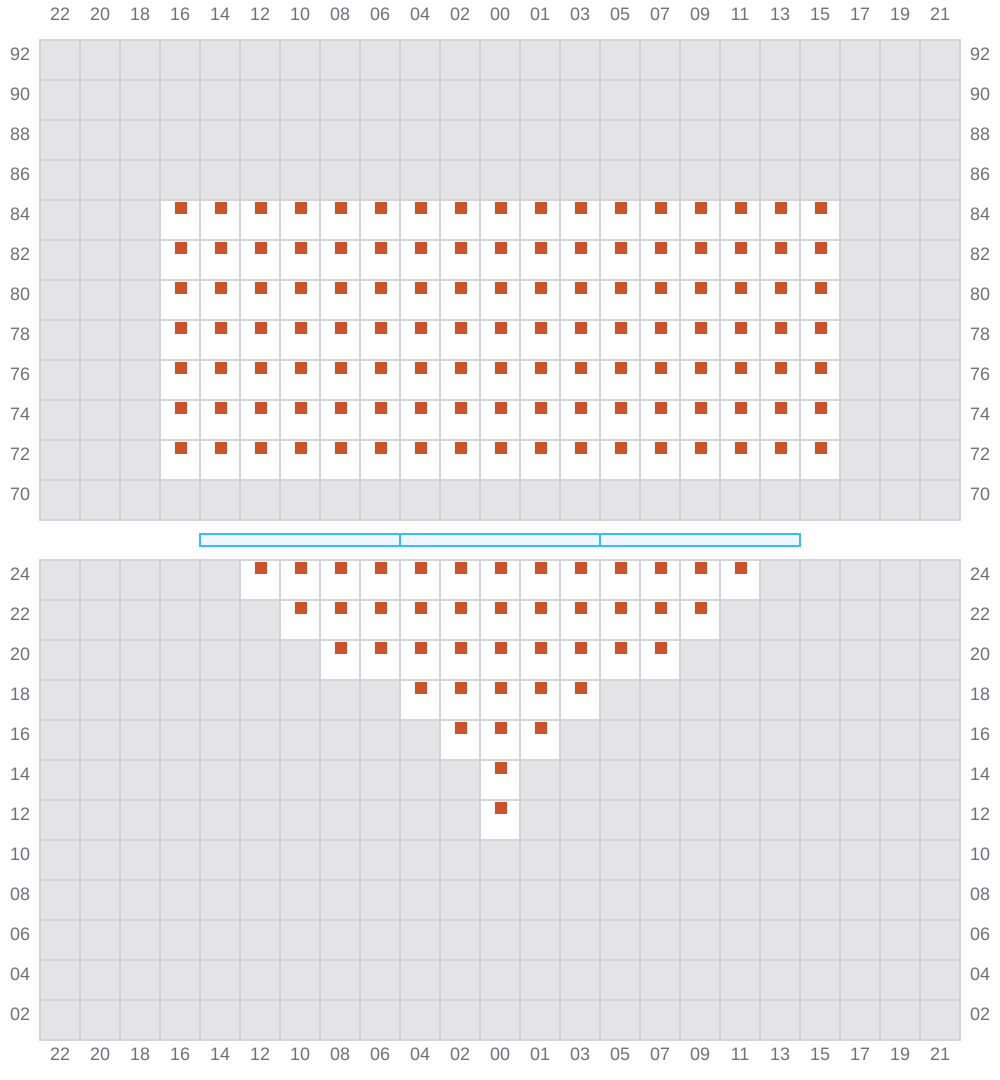

Bay 001 view and slots of ONE TREASURE

003 (002)

  • ←
  • →
Bay 003 view and slots of ONE TREASURE

005

  • →
  • →

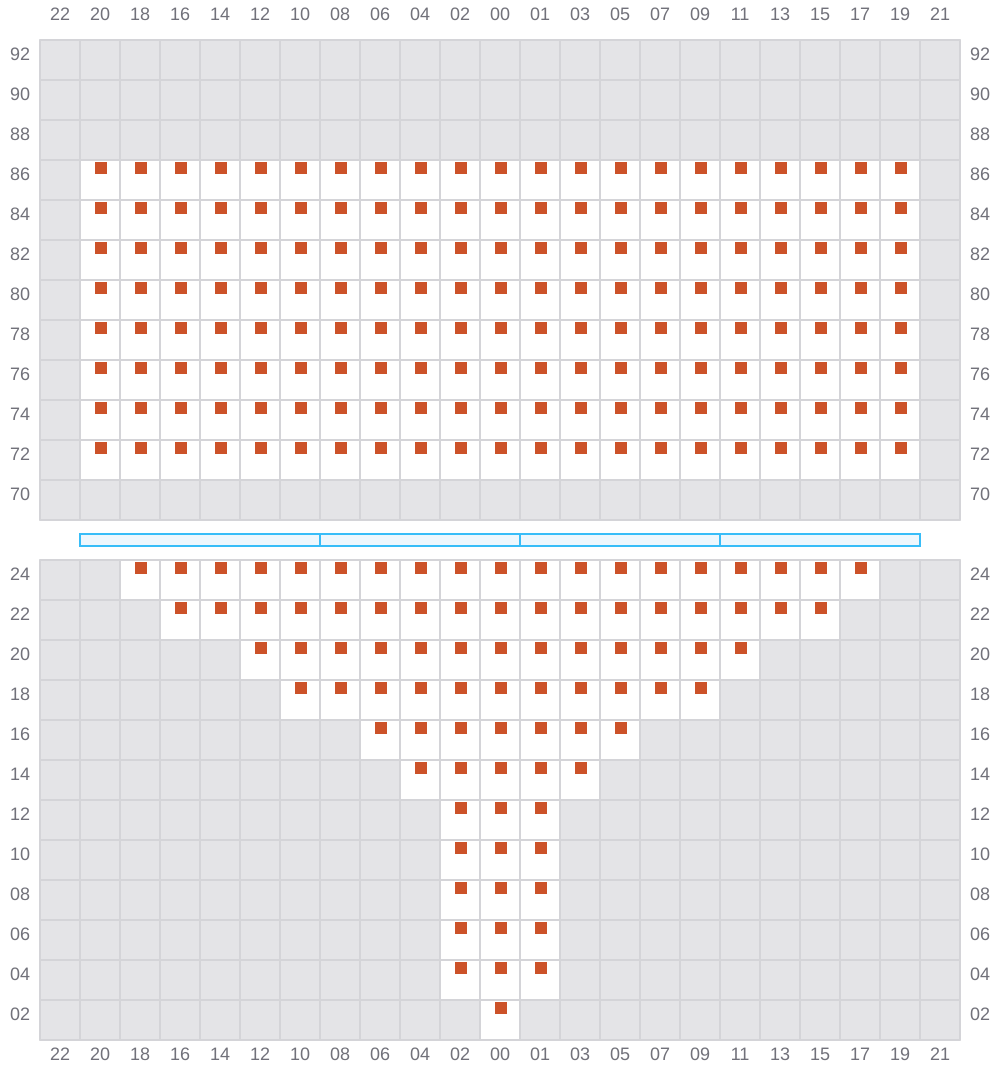

Bay 005 view and slots of ONE TREASURE

007 (006)

  • ←
  • → / ?
  • →

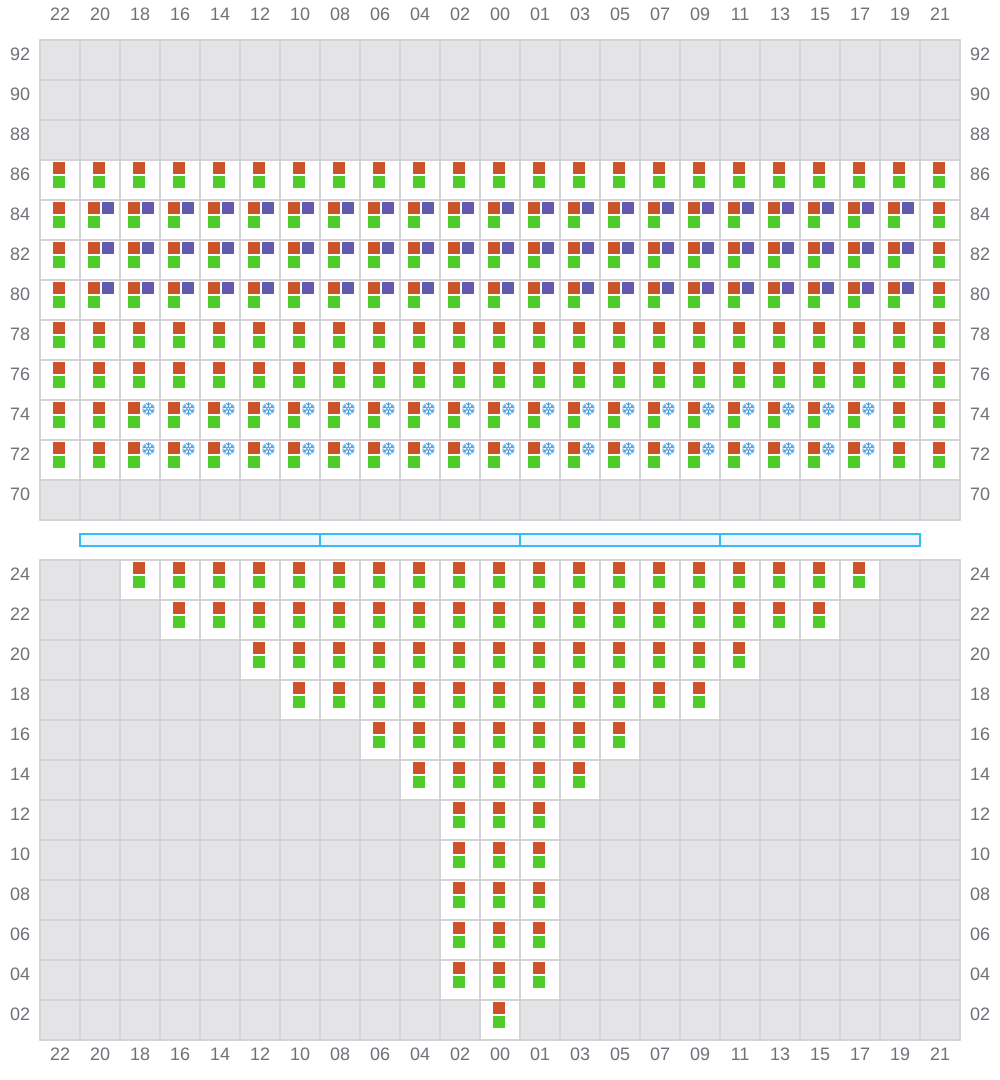

Bay 007 view and slots of ONE TREASURE

009

  • →
  • →

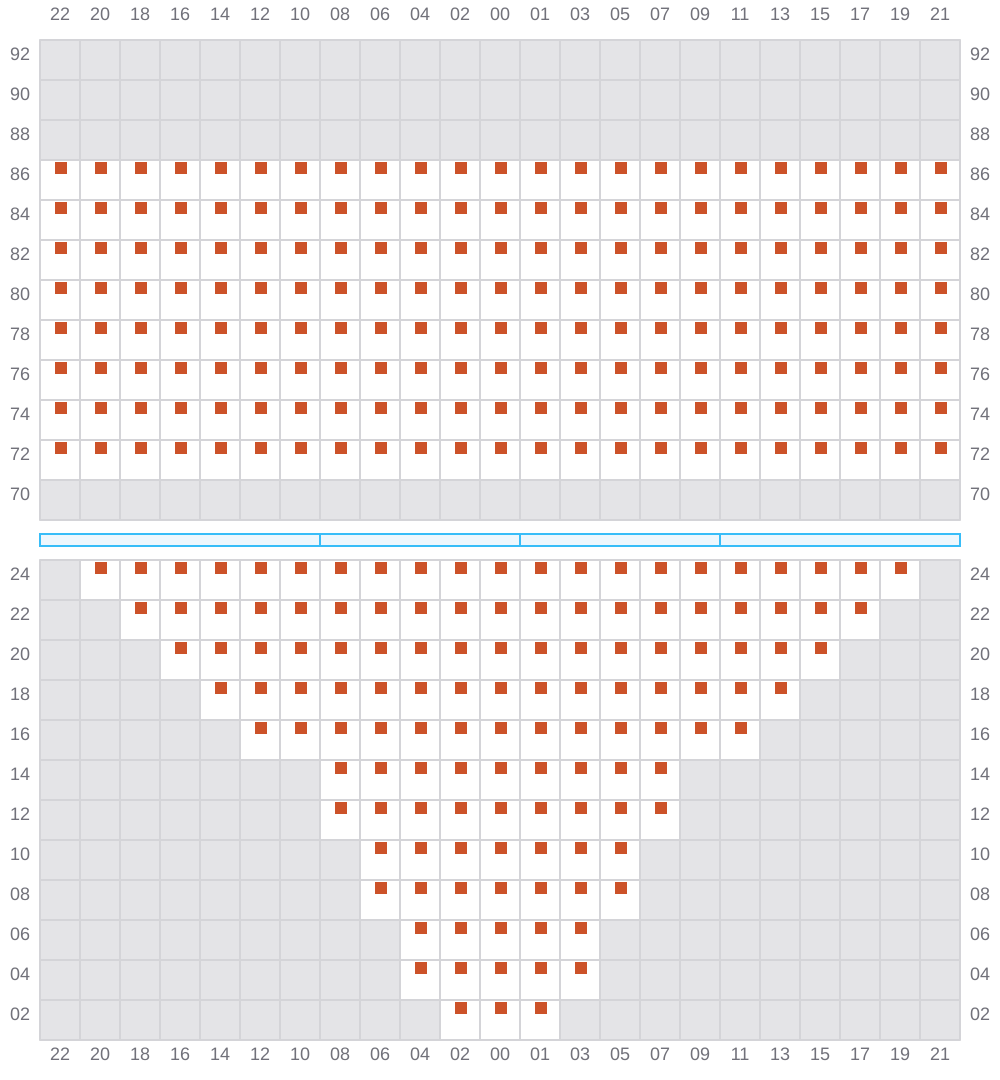

Bay 009 view and slots of ONE TREASURE

011 (010)

  • ←
  • → / ?
  • →

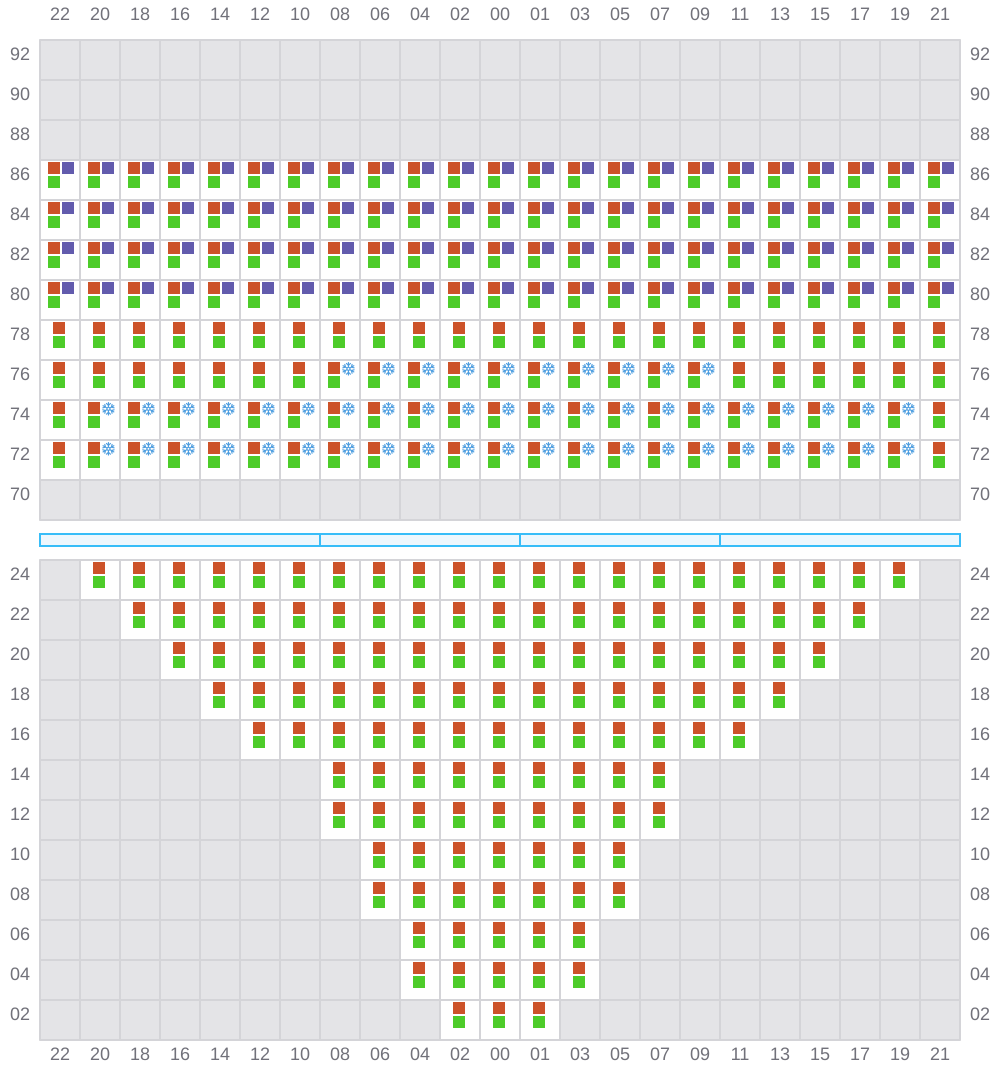

Bay 011 view and slots of ONE TREASURE

013

  • →
  • →

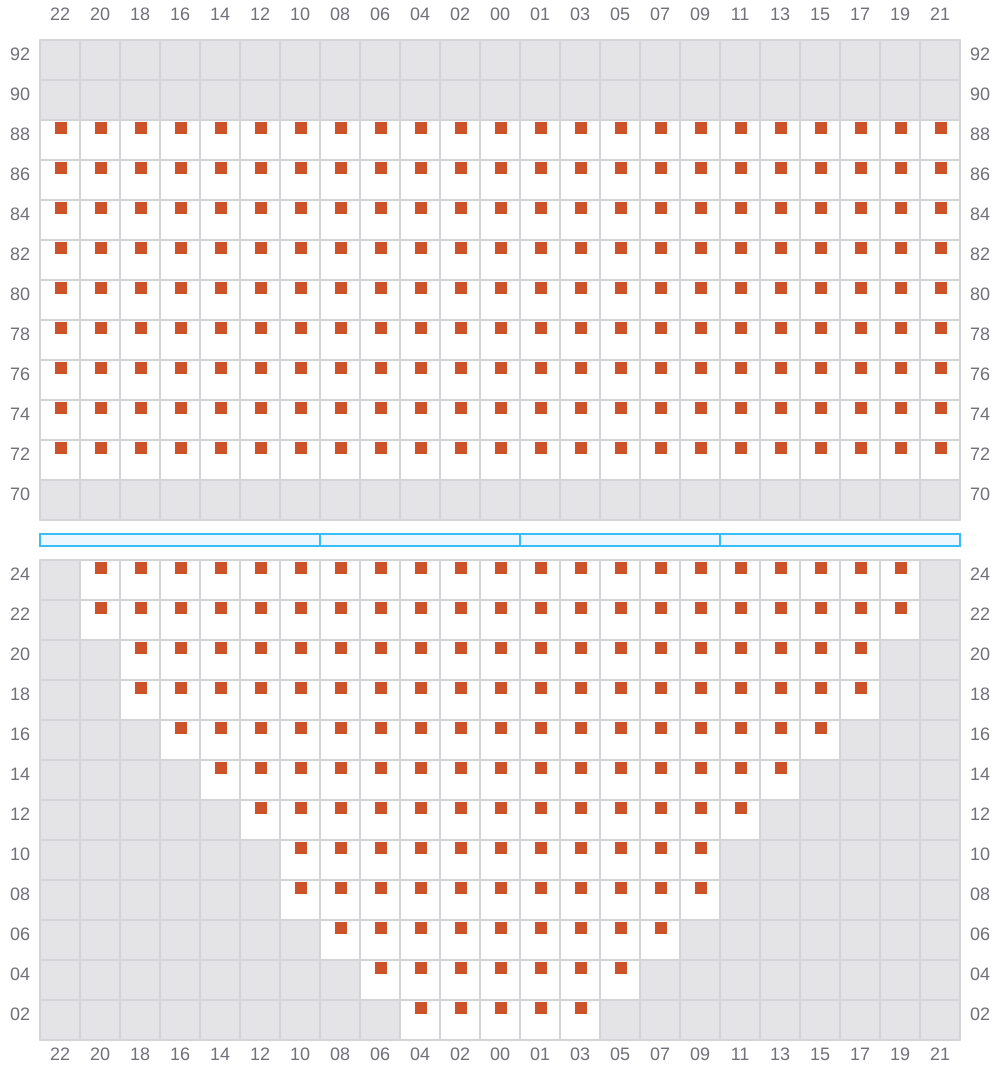

Bay 013 view and slots of ONE TREASURE

015 (014)

  • ←
  • → / ?
  • →

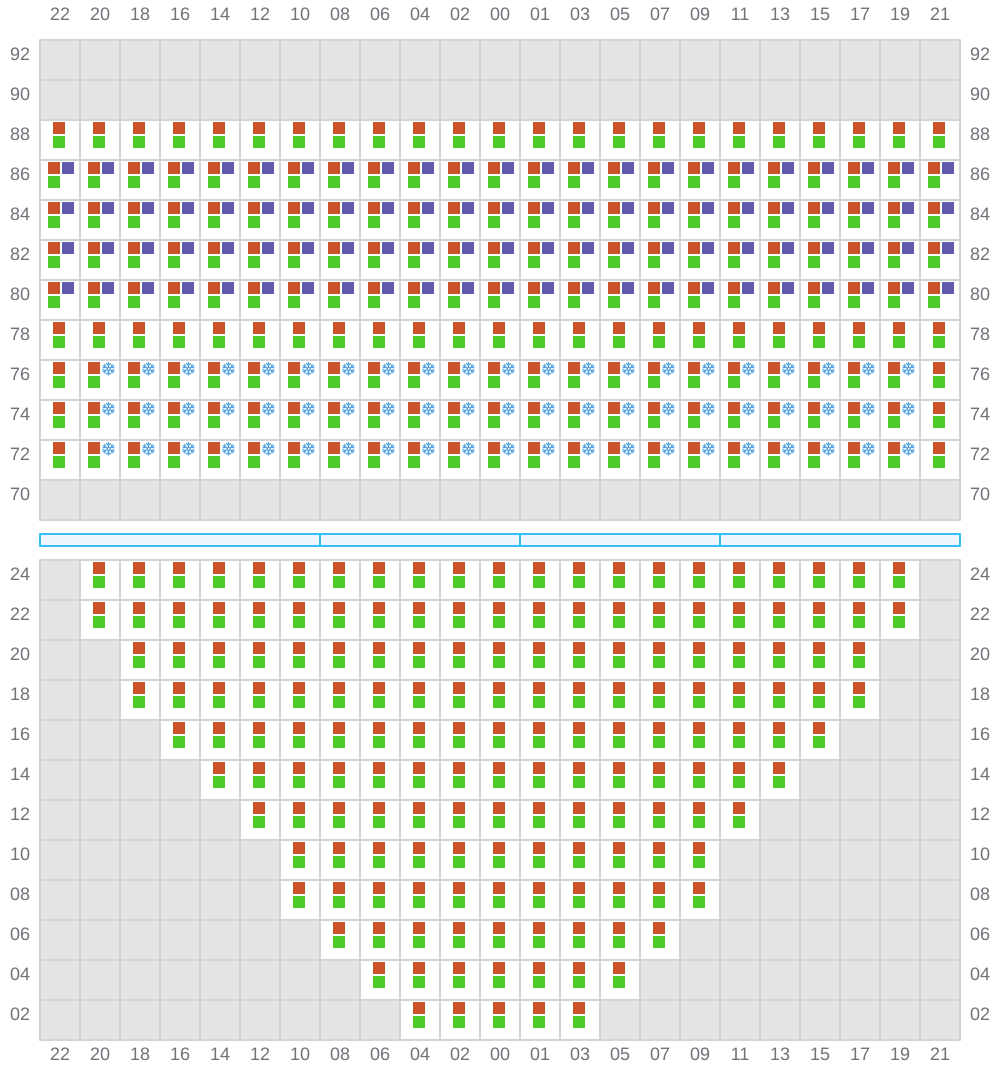

Bay 015 view and slots of ONE TREASURE

017

  • →
  • →

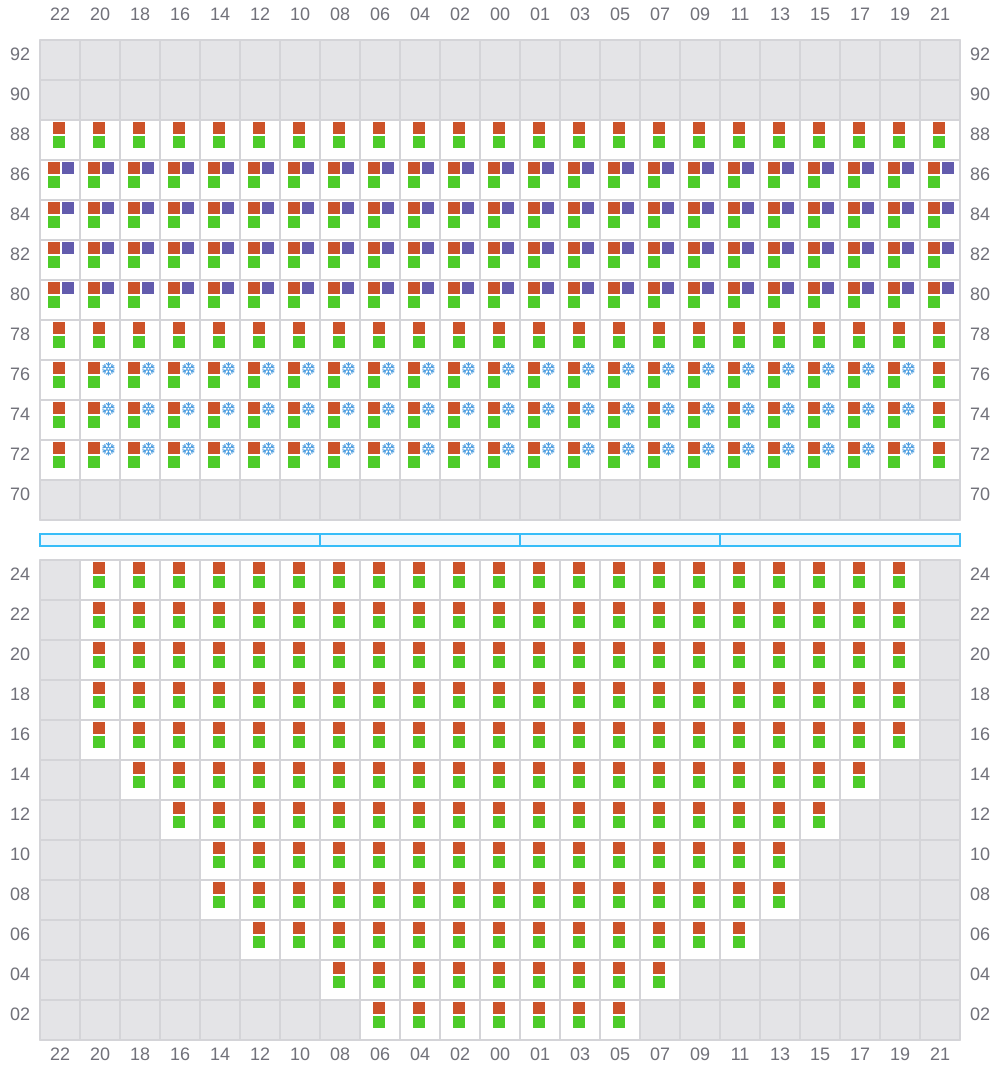

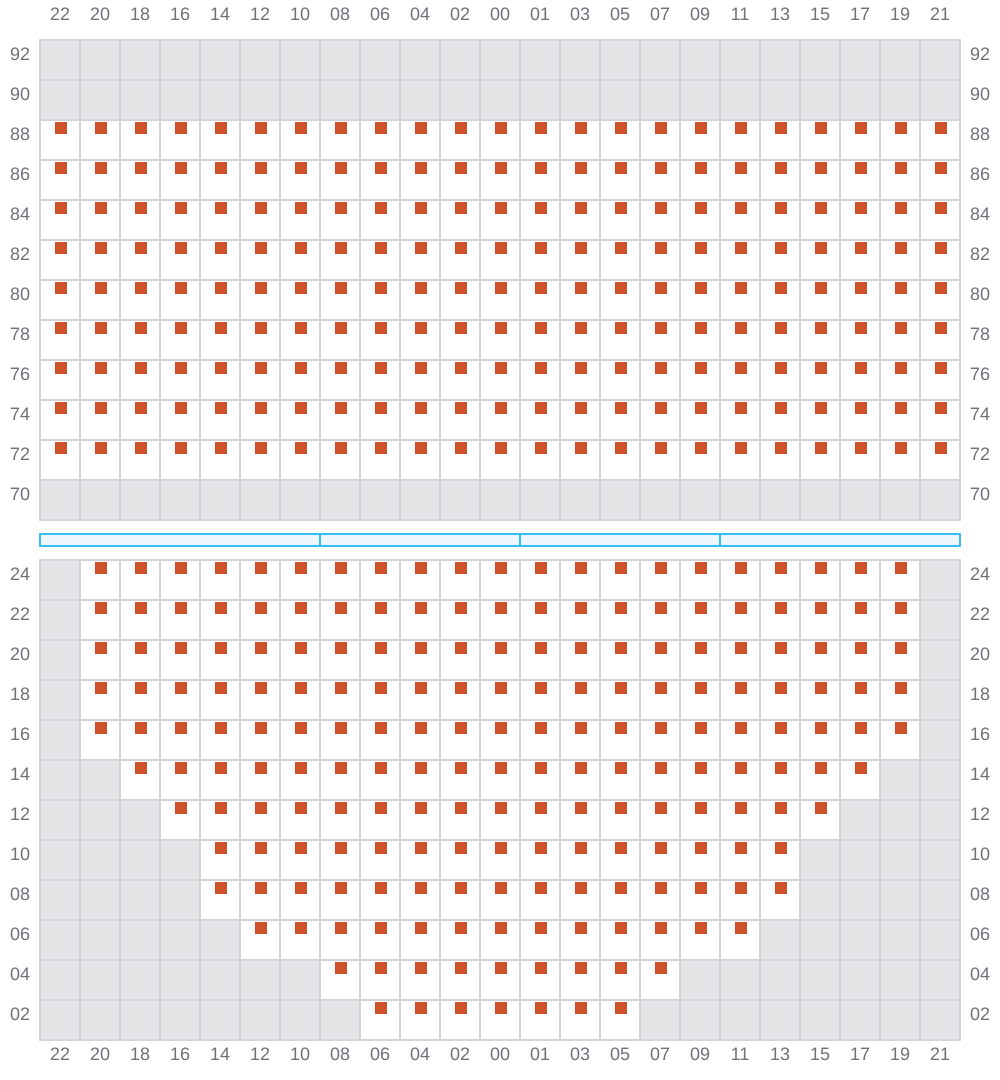

Bay 017 view and slots of ONE TREASURE

019 (018)

  • ←
  • → / ?
  • →

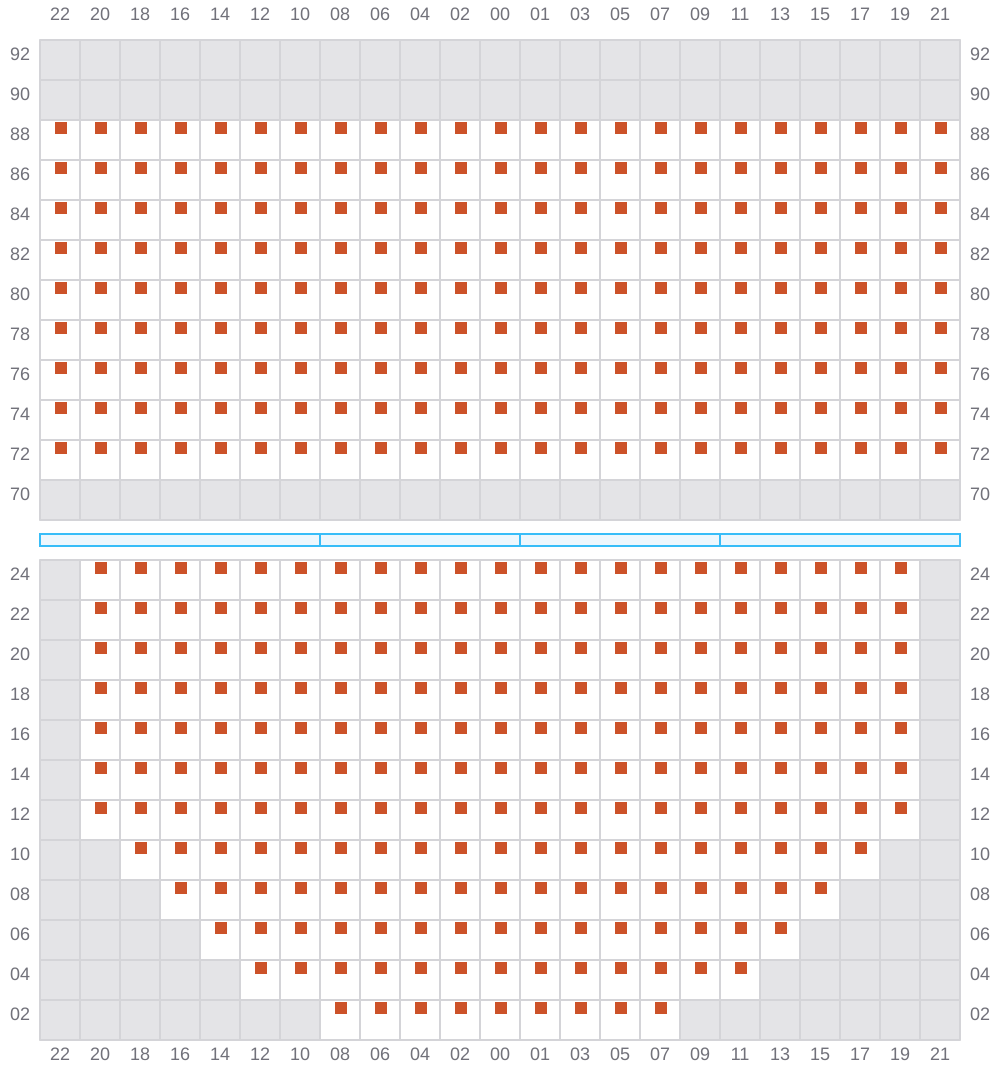

Bay 019 view and slots of ONE TREASURE

021

  • →
  • →
Bay 021 view and slots of ONE TREASURE

023 (022)

  • ←
  • → / ?
  • →

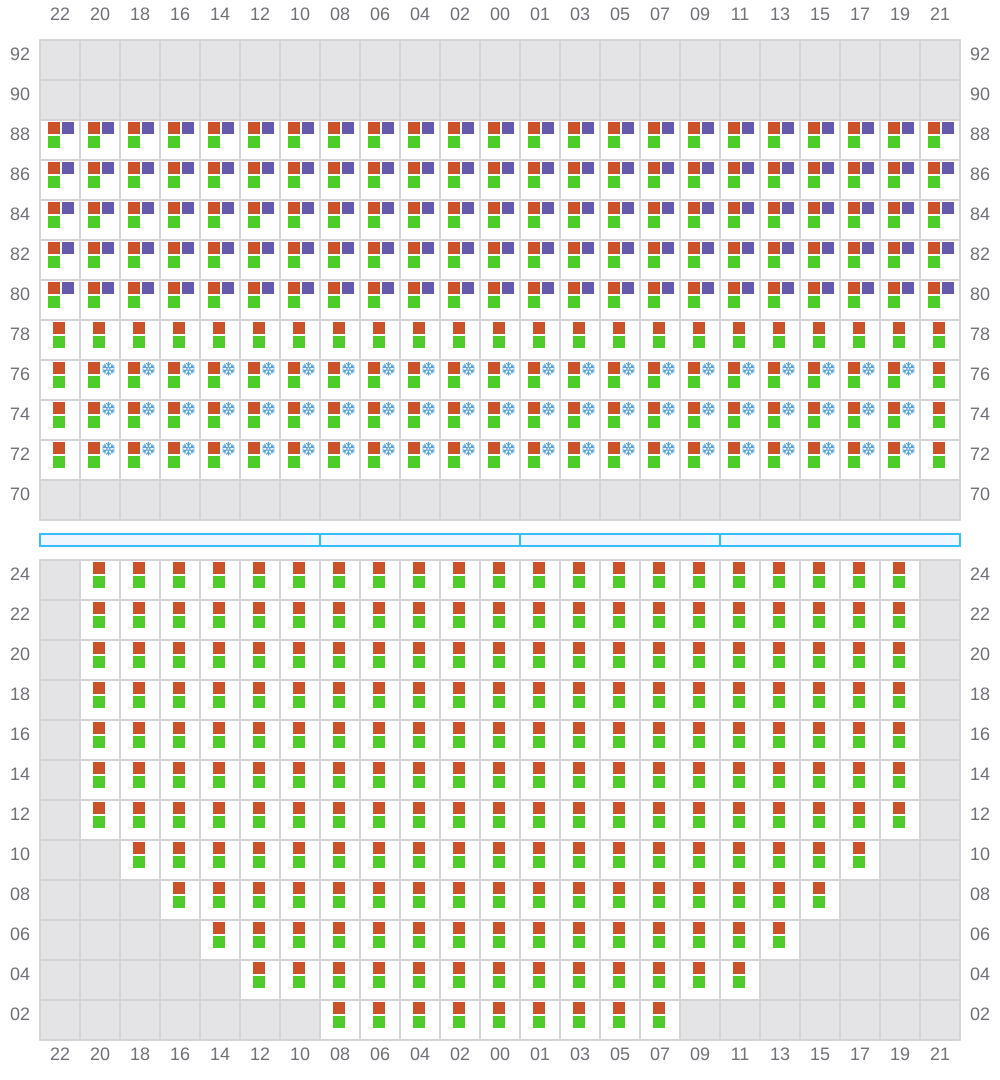

Bay 023 view and slots of ONE TREASURE

025

  • →
  • →

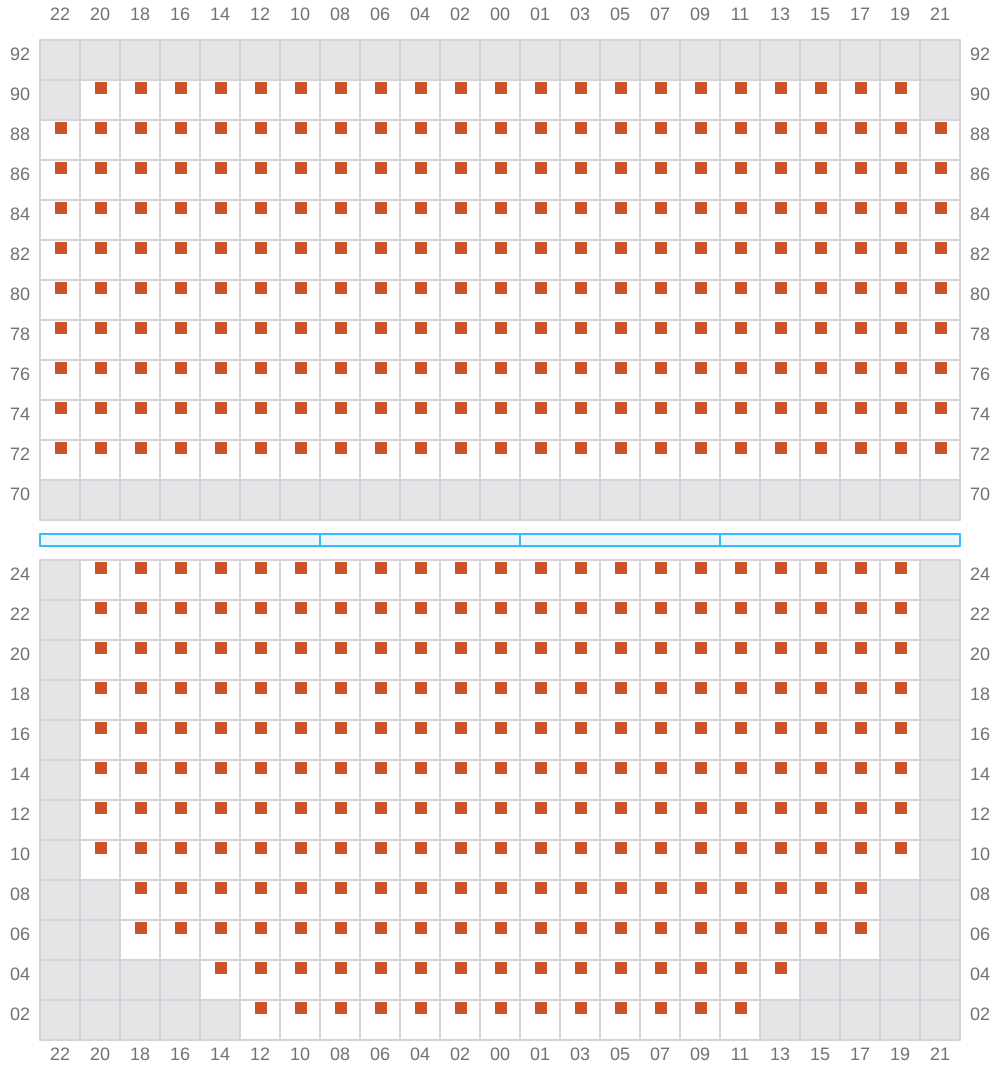

Bay 025 view and slots of ONE TREASURE

027 (026)

  • ←
  • → / ?
  • →

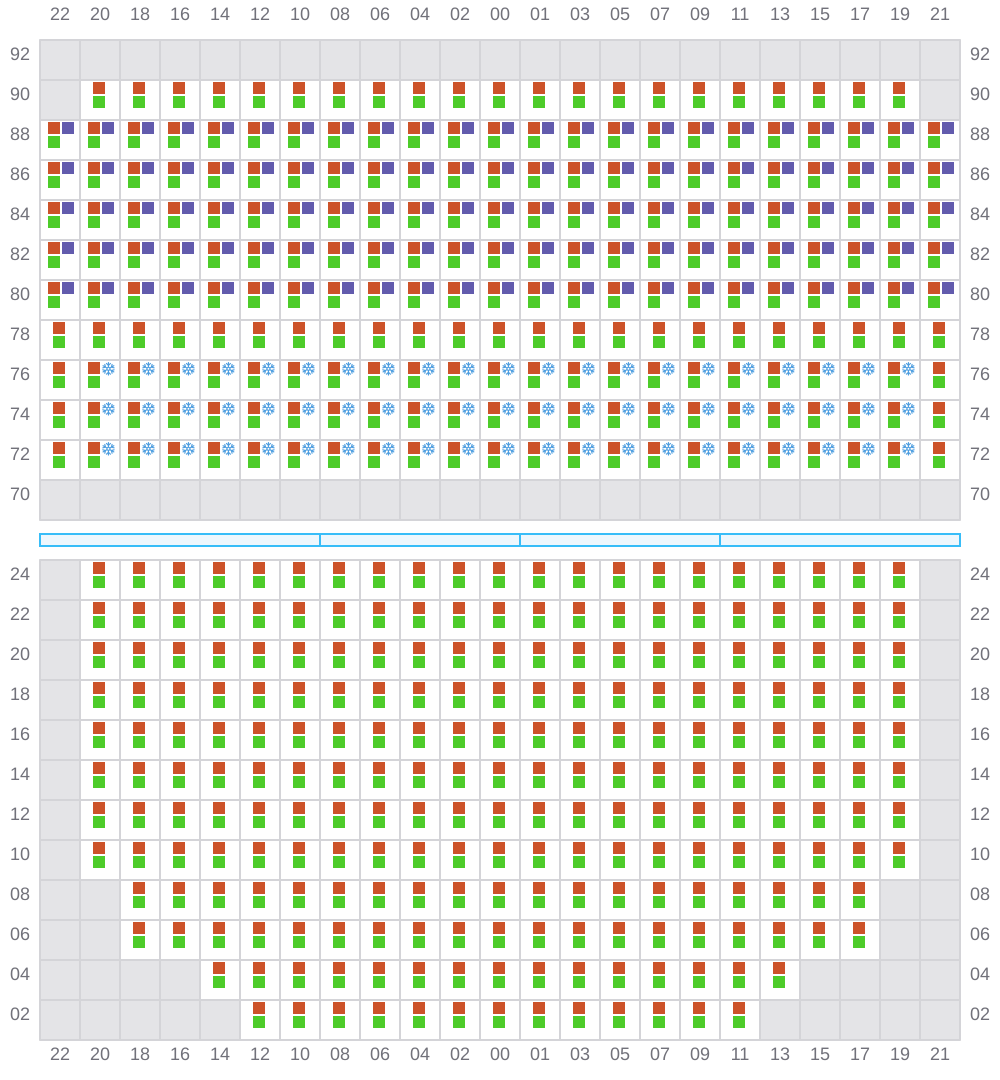

Bay 027 view and slots of ONE TREASURE

029 (030)

  • →
  • → / ?
  • →

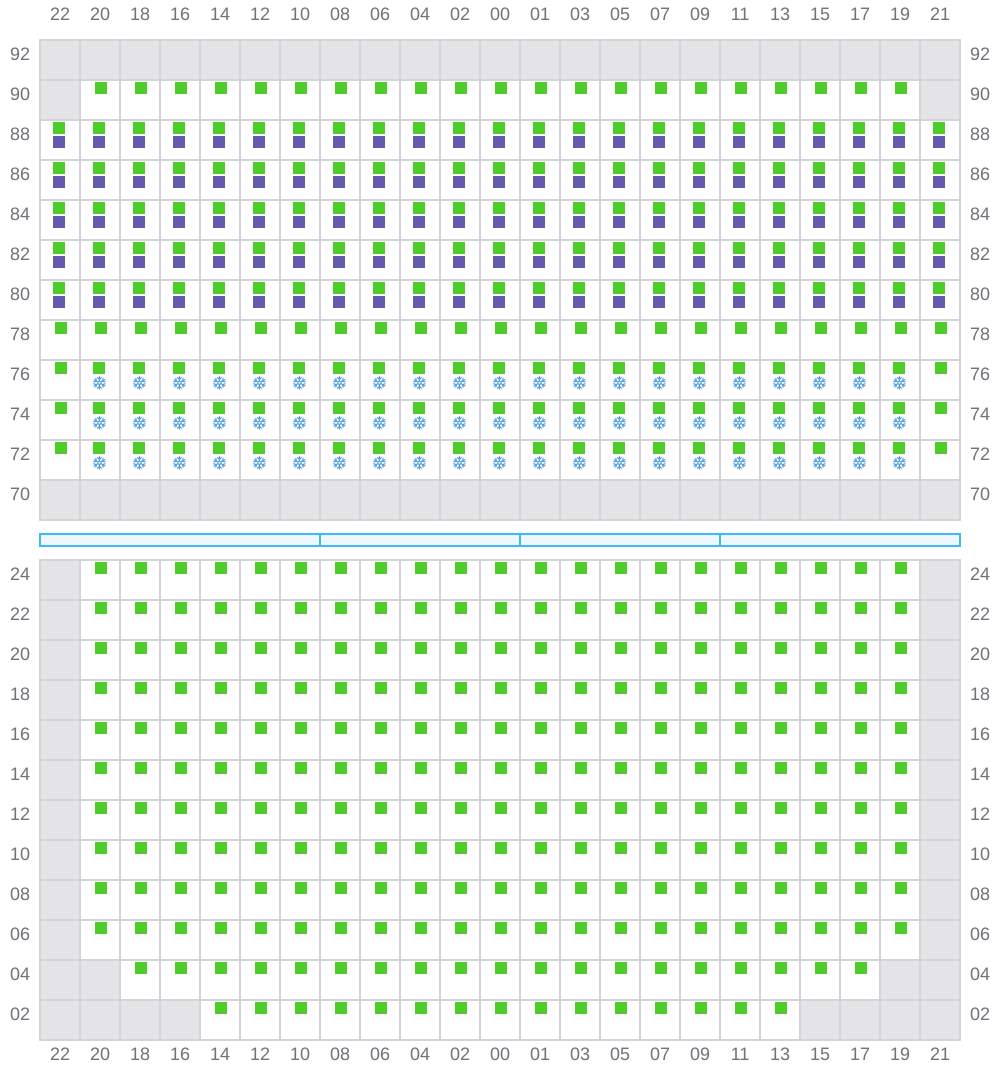

Bay 029 view and slots of ONE TREASURE

031

Bay 031 view and slots of ONE TREASURE

033 (034)

  • →
  • → / ?
  • →

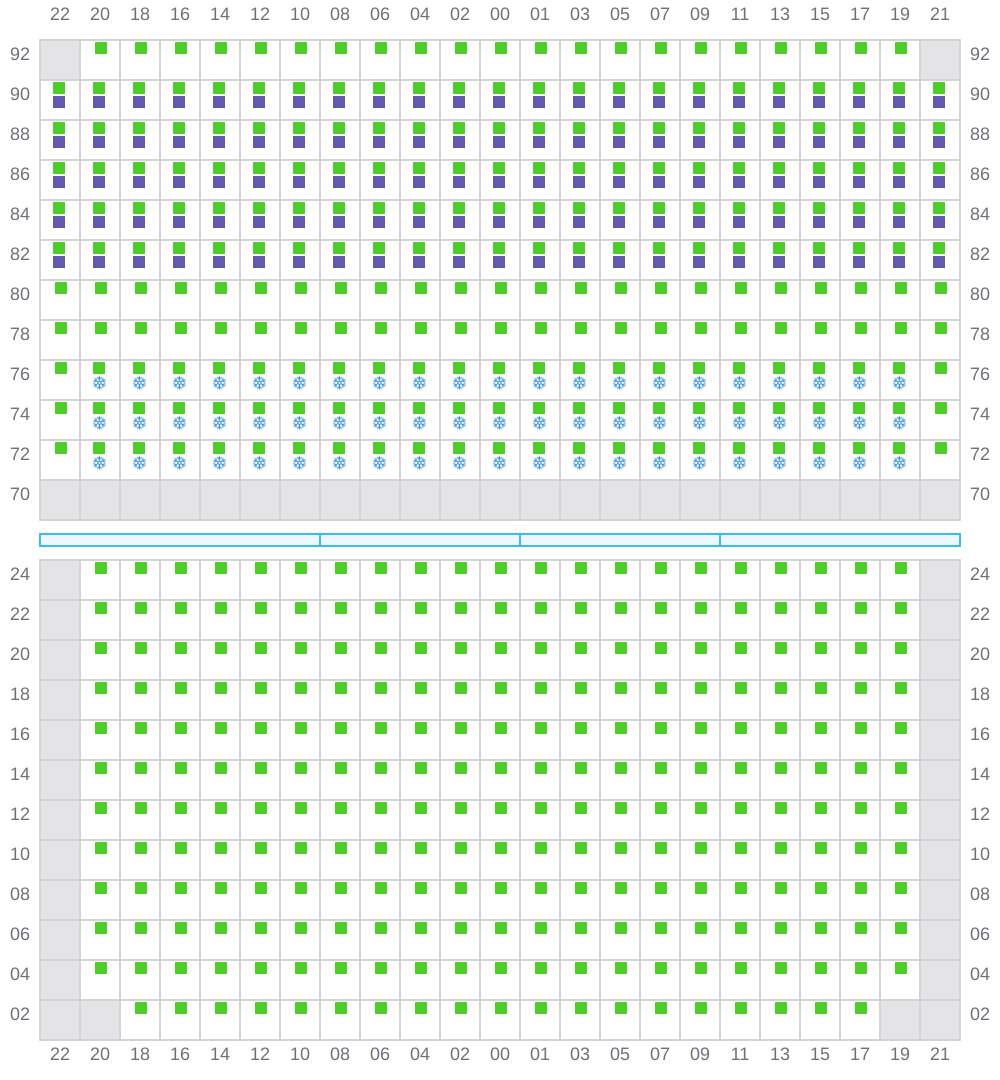

Bay 033 view and slots of ONE TREASURE

035

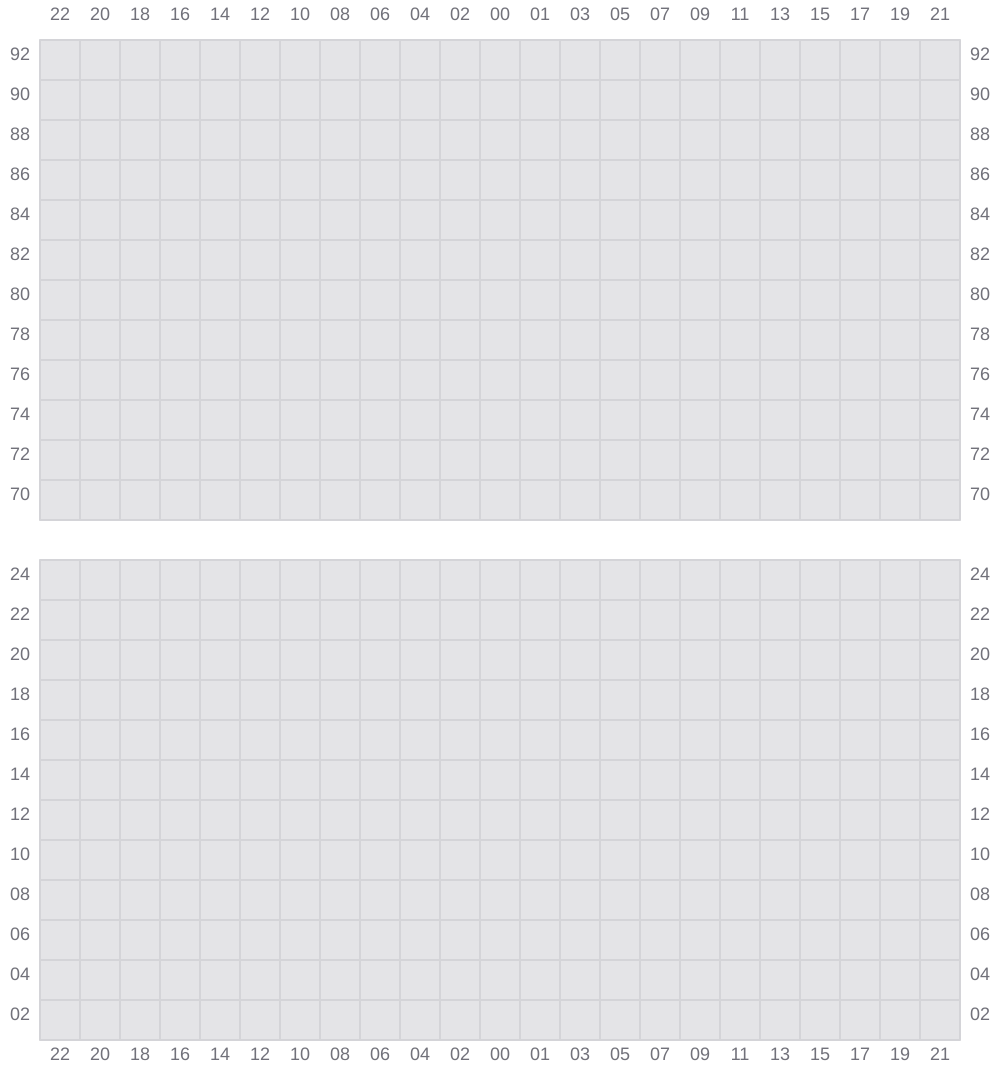

Bay 035 view and slots of ONE TREASURE

037

  • →
  • →
Bay 037 view and slots of ONE TREASURE

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of ONE TREASURE

041

  • →
  • →
Bay 041 view and slots of ONE TREASURE

043 (042)

  • ←
  • → / ?
  • →
Bay 043 view and slots of ONE TREASURE

045

  • →
  • →
Bay 045 view and slots of ONE TREASURE

047 (046)

  • ←
  • → / ?
  • →

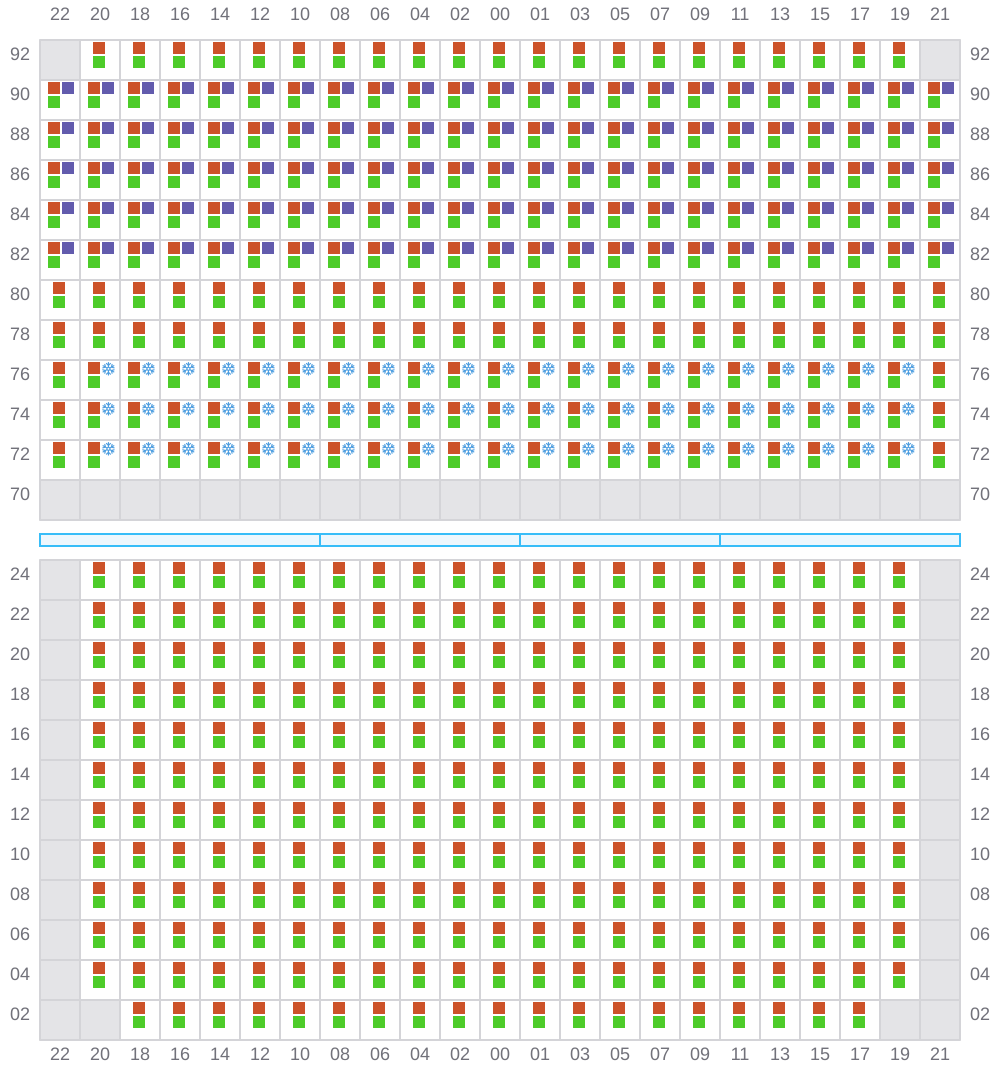

Bay 047 view and slots of ONE TREASURE

049

  • →
  • →
Bay 049 view and slots of ONE TREASURE

051 (050)

  • ←
  • → / ?
  • →
Bay 051 view and slots of ONE TREASURE

053

  • →
  • →

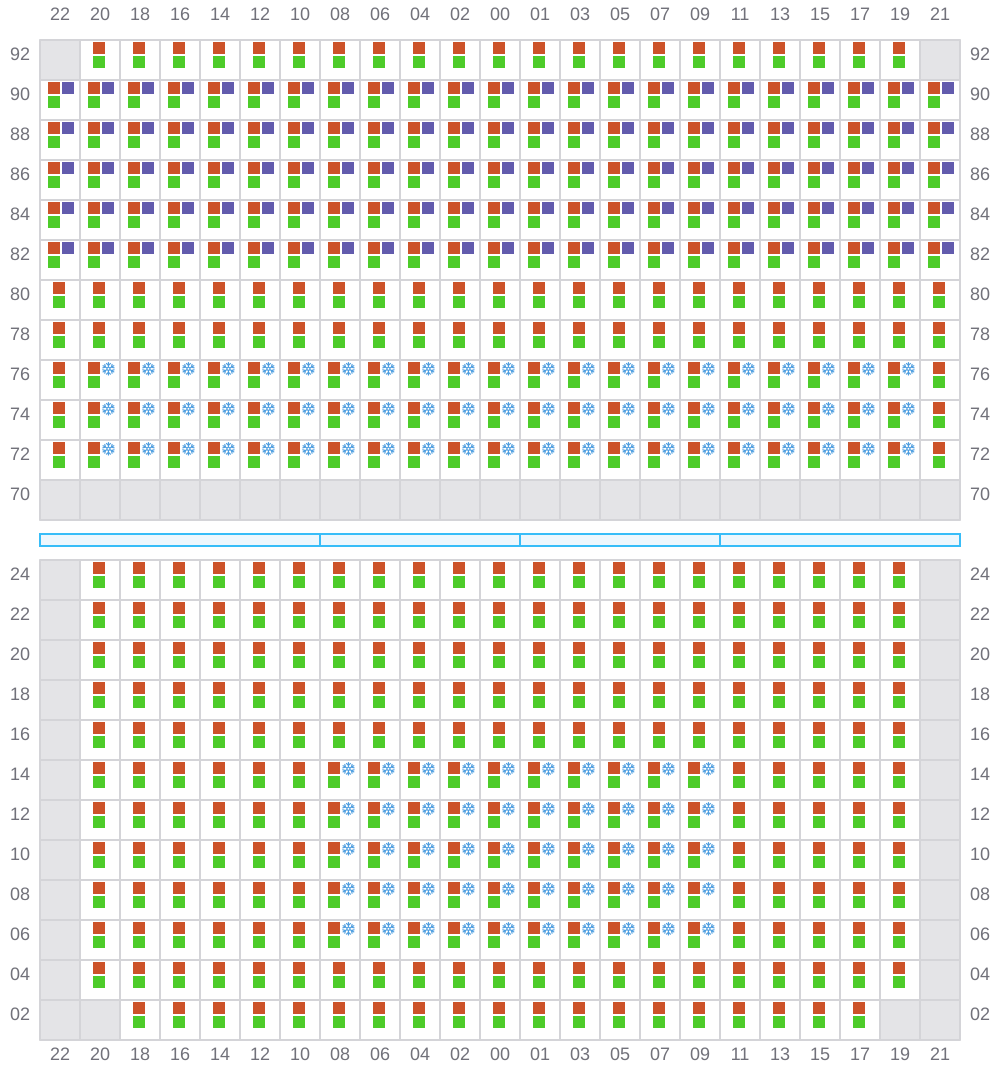

Bay 053 view and slots of ONE TREASURE

055 (054)

  • ←
  • →
  • →
Bay 055 view and slots of ONE TREASURE

057

  • →
  • →

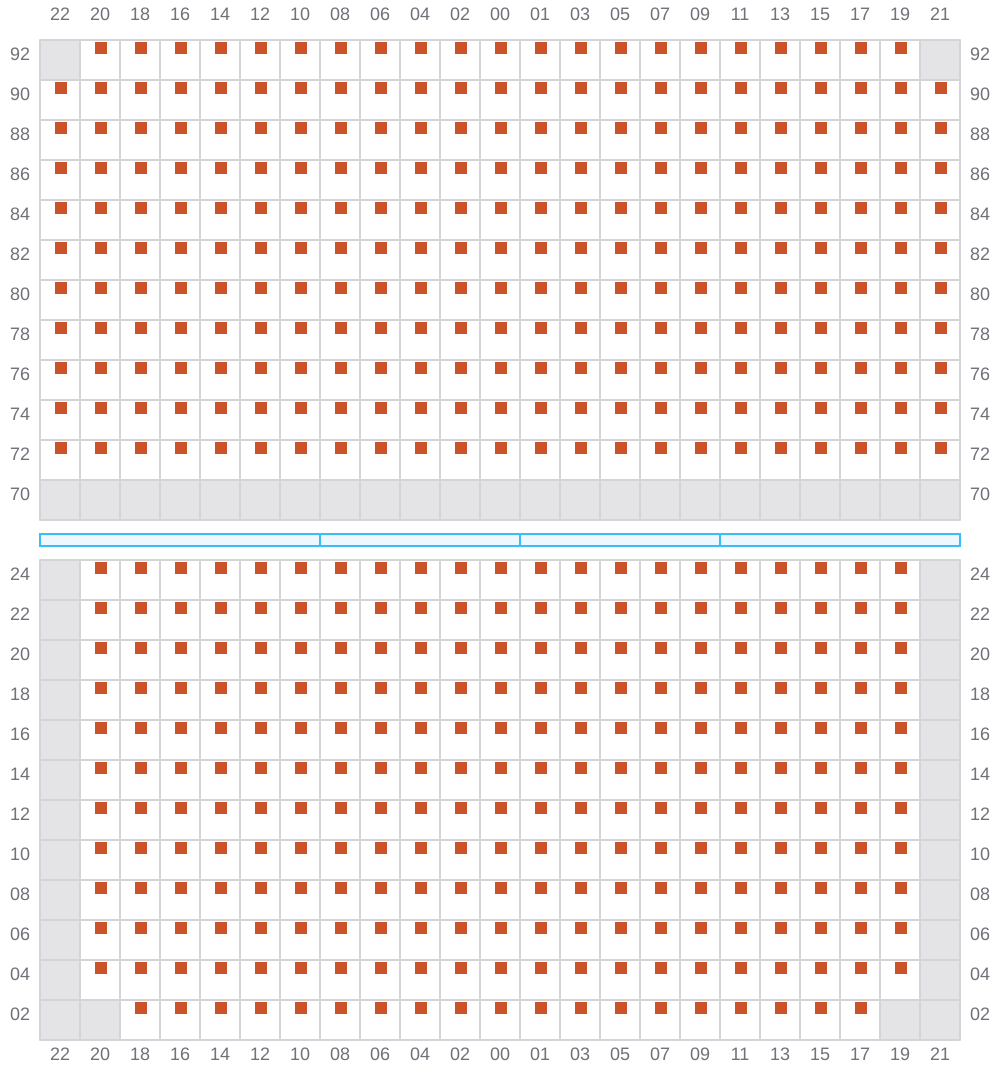

Bay 057 view and slots of ONE TREASURE

059 (058)

  • ←
  • → / ?
  • →
Bay 059 view and slots of ONE TREASURE

061

  • →
  • →

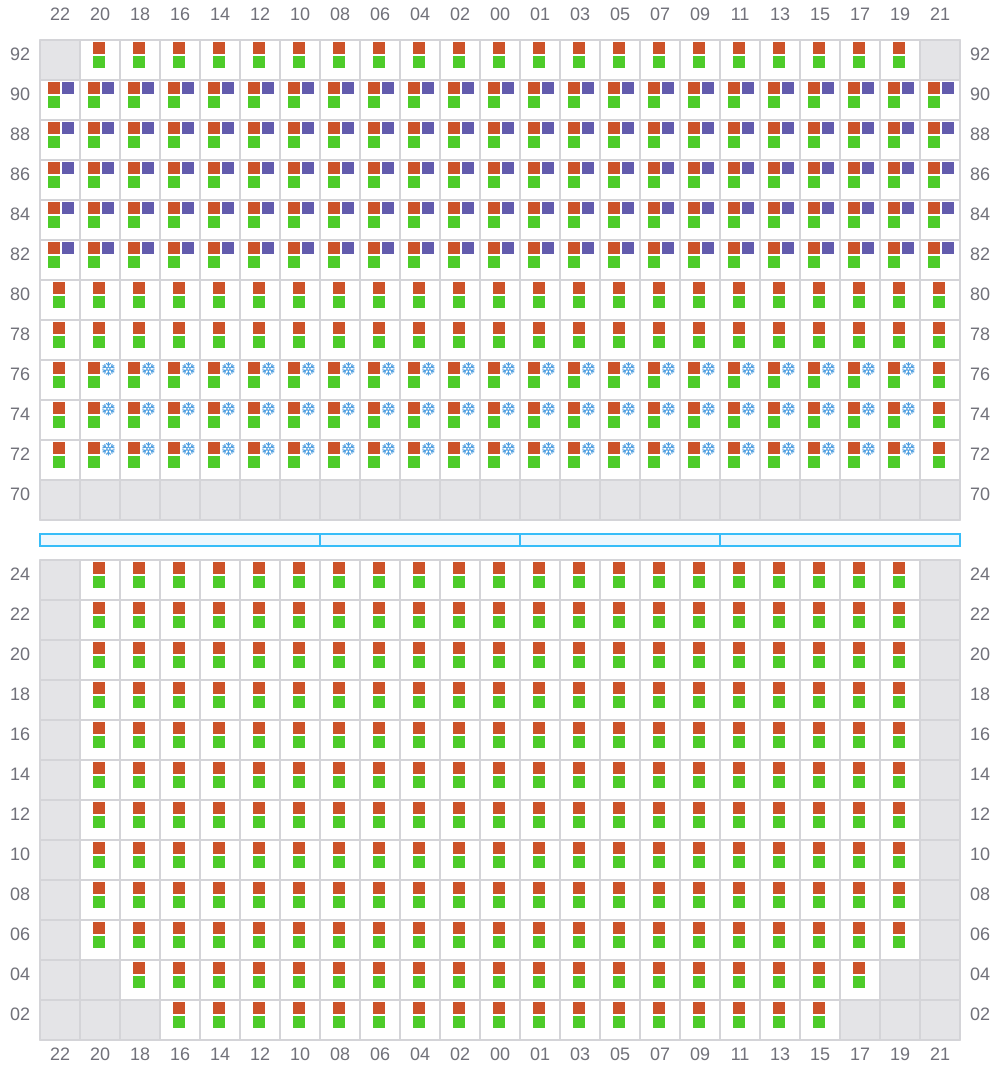

Bay 061 view and slots of ONE TREASURE

063 (062)

  • ←
  • →
  • →
Bay 063 view and slots of ONE TREASURE

065

  • →
  • →

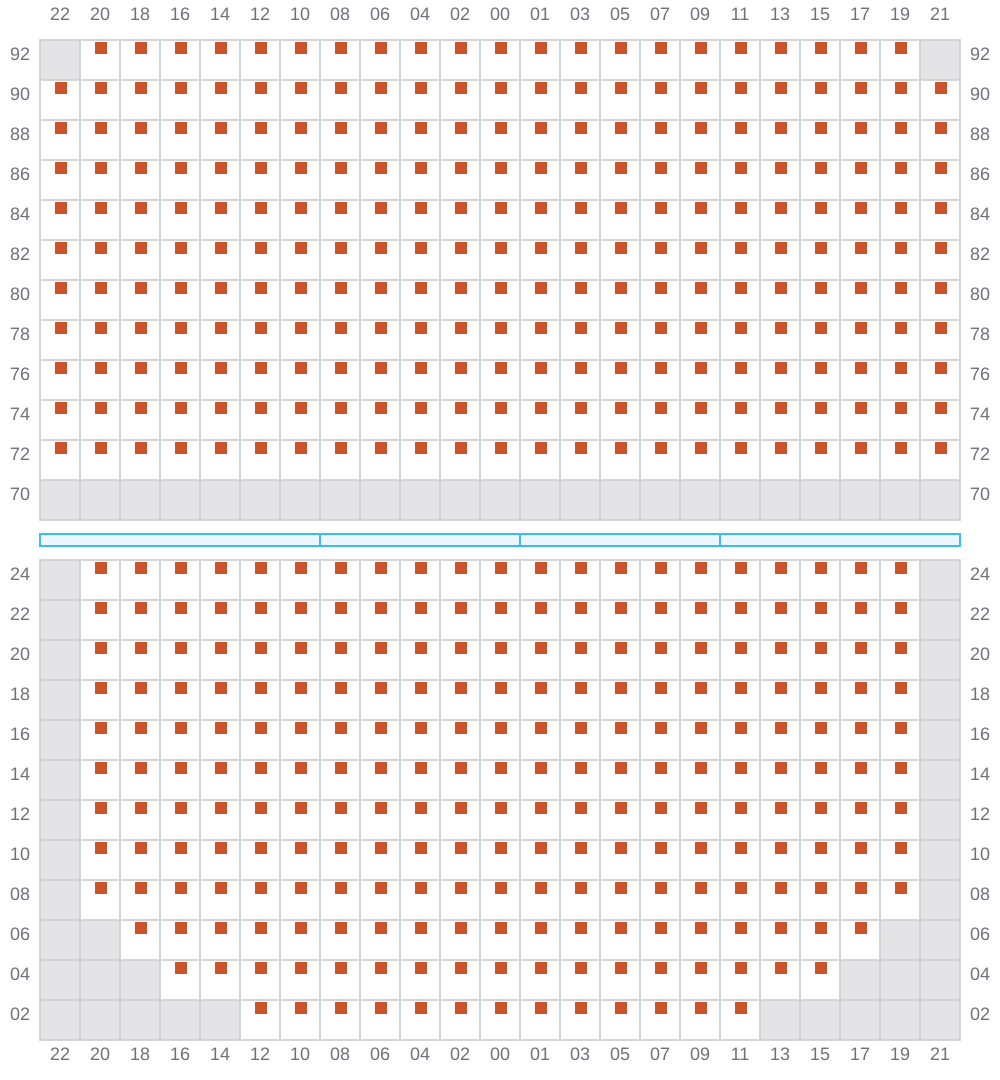

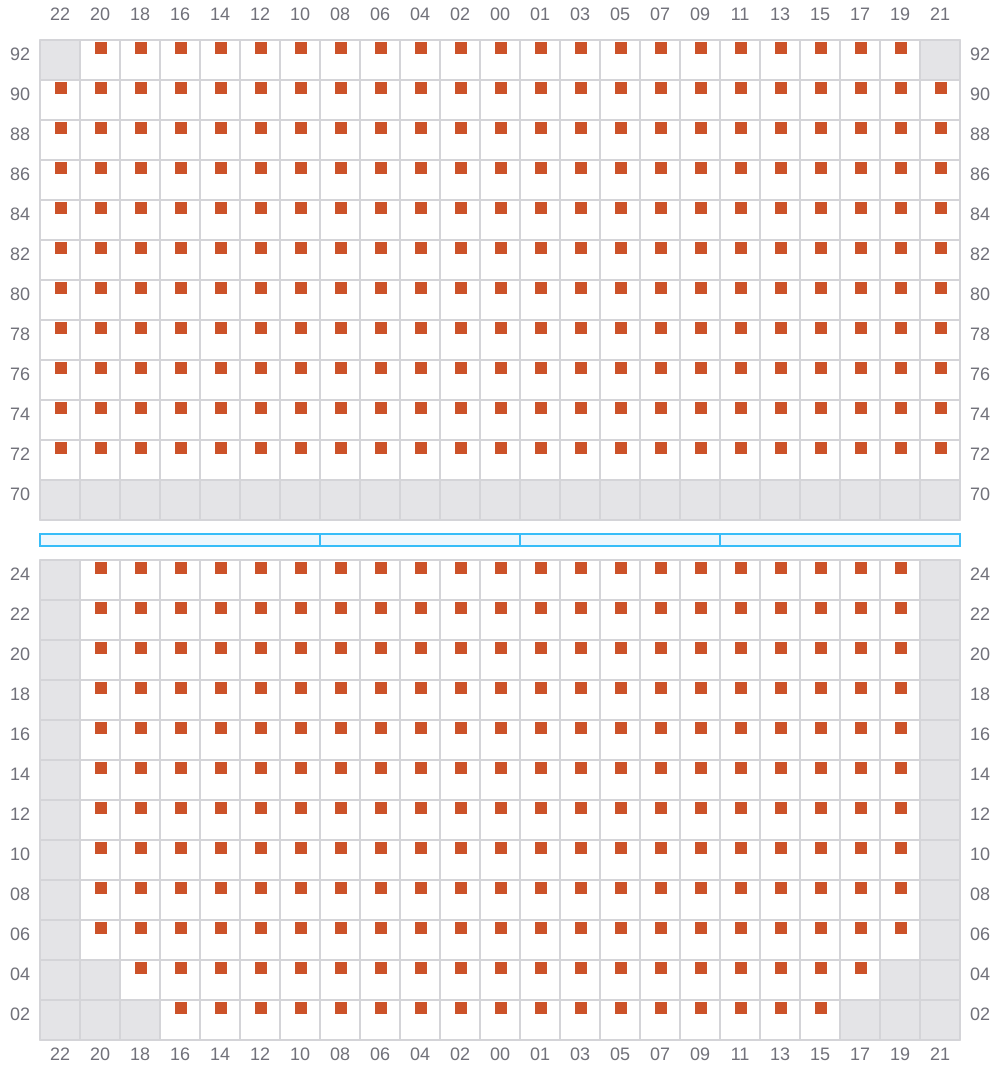

Bay 065 view and slots of ONE TREASURE

067 (066)

  • ←
  • → / ?
  • →
Bay 067 view and slots of ONE TREASURE

069

  • →
  • →
Bay 069 view and slots of ONE TREASURE

071 (070)

  • ←
  • → / ?
  • →

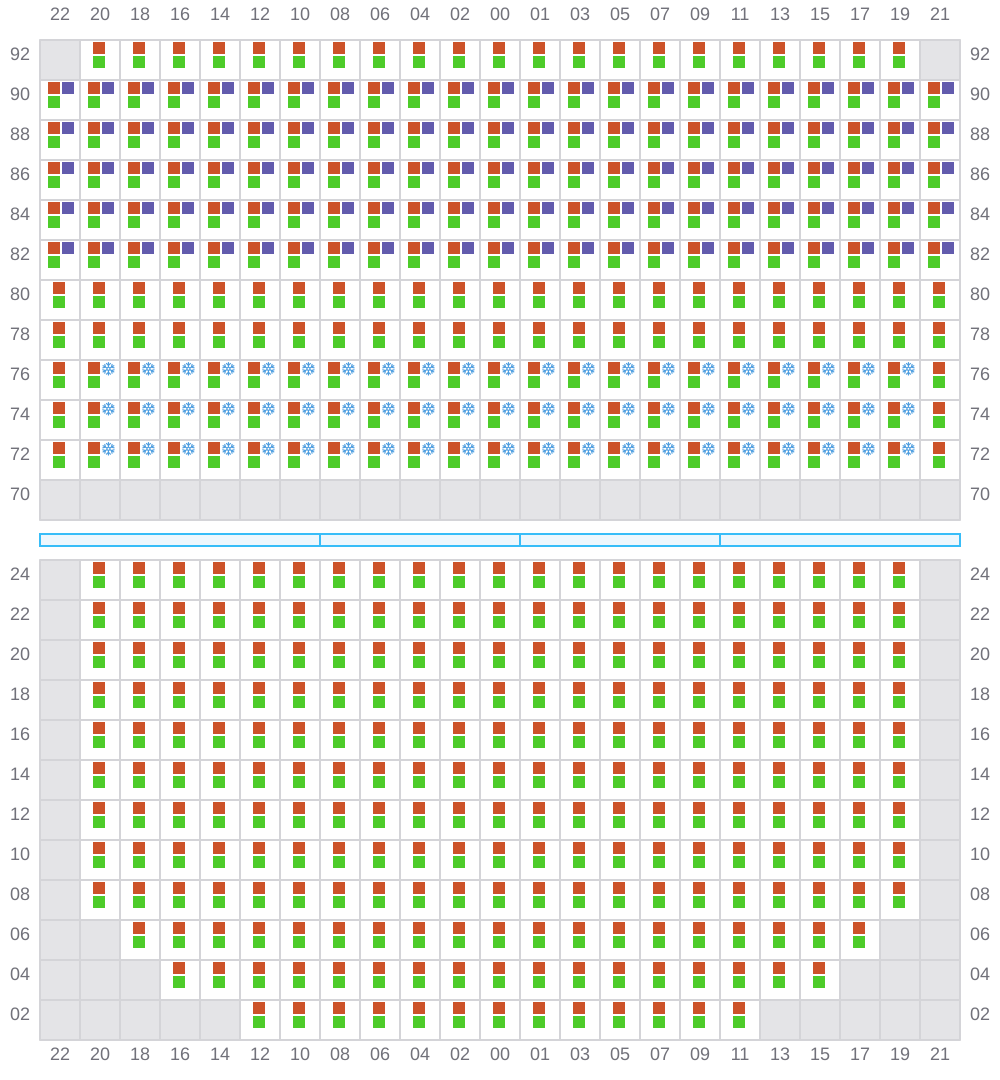

Bay 071 view and slots of ONE TREASURE

073

  • →
  • →
Bay 073 view and slots of ONE TREASURE

075 (074)

  • ←
  • → / ?
  • →
Bay 075 view and slots of ONE TREASURE

077 (078)

  • →
  • → / ?
  • →
Bay 077 view and slots of ONE TREASURE

079

Bay 079 view and slots of ONE TREASURE

081 (082)

  • →
  • → / ?
  • →

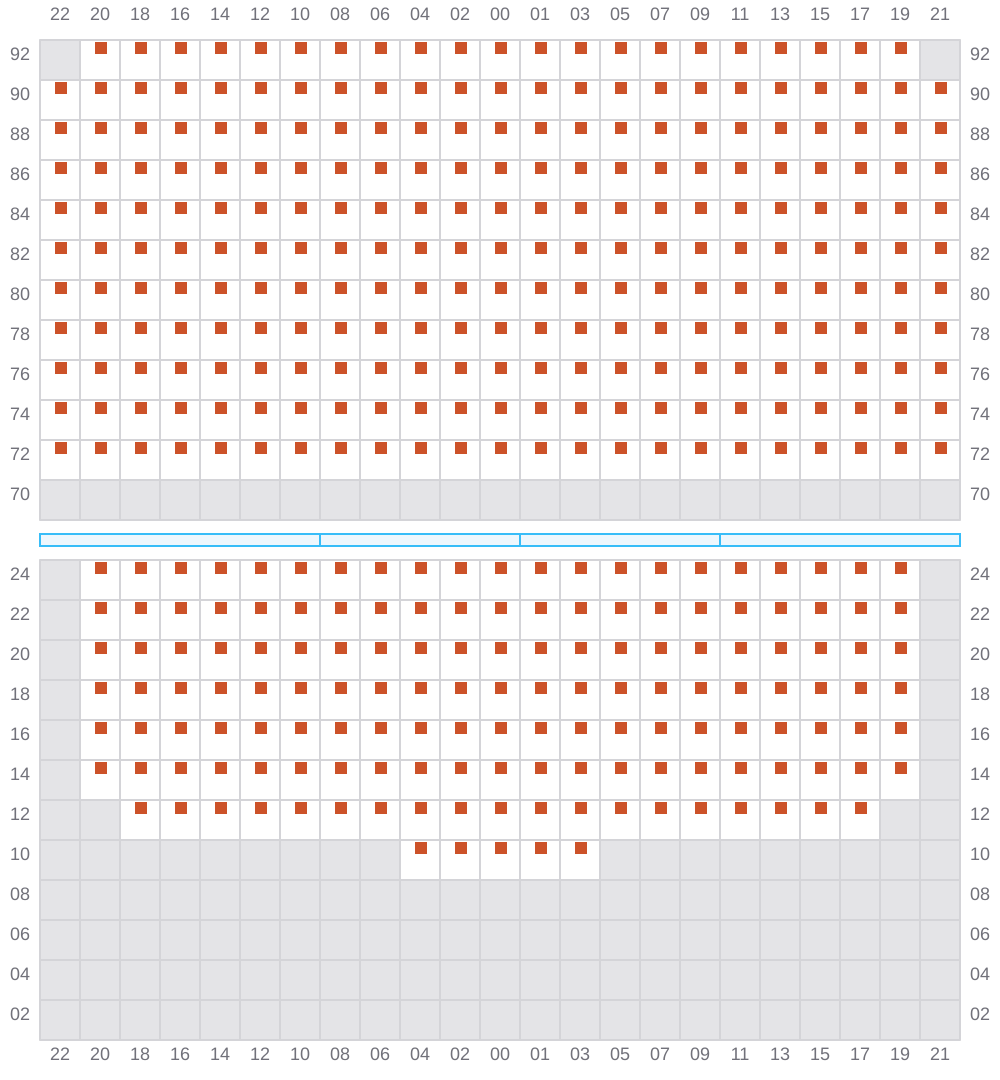

Bay 081 view and slots of ONE TREASURE

083

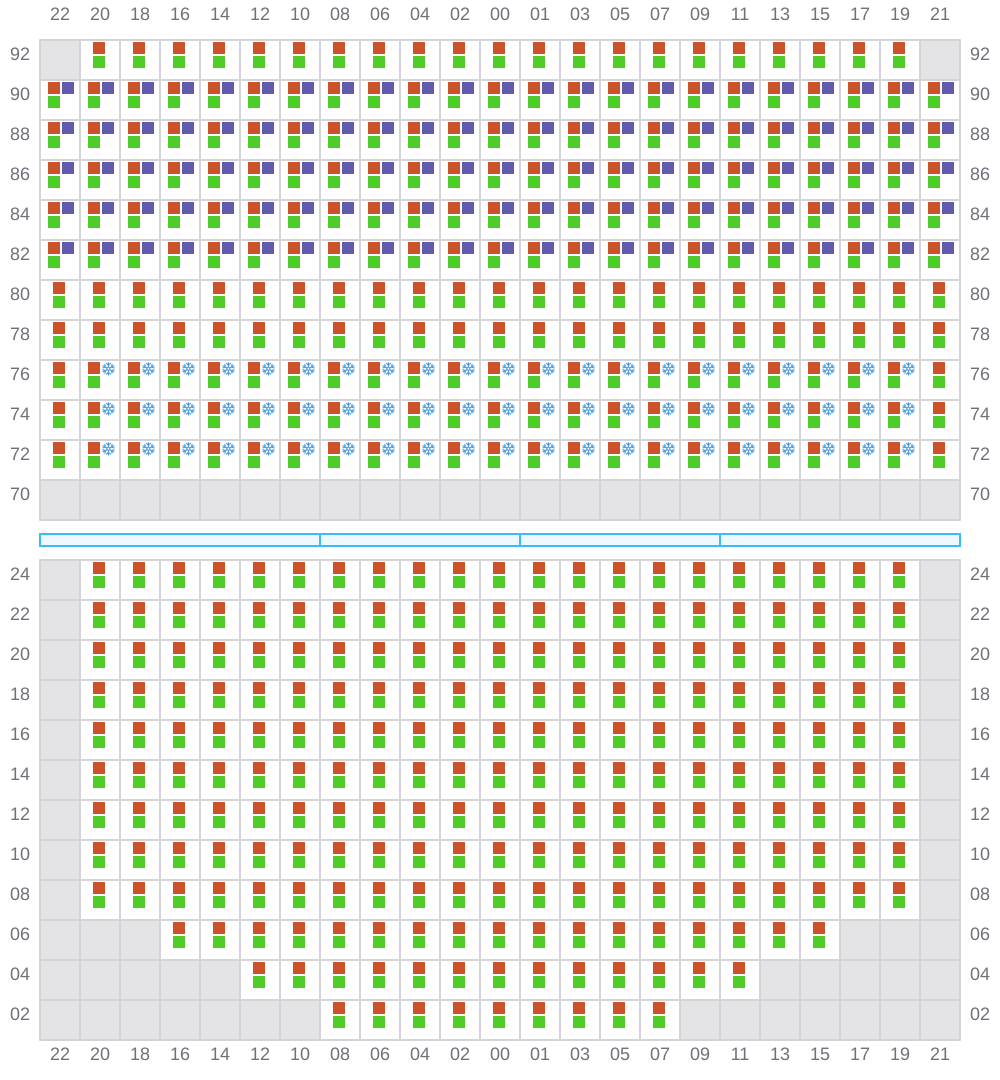

Bay 083 view and slots of ONE TREASURE

085

  • →
  • →
Bay 085 view and slots of ONE TREASURE

087 (086)

  • ←
  • → / ?
  • →

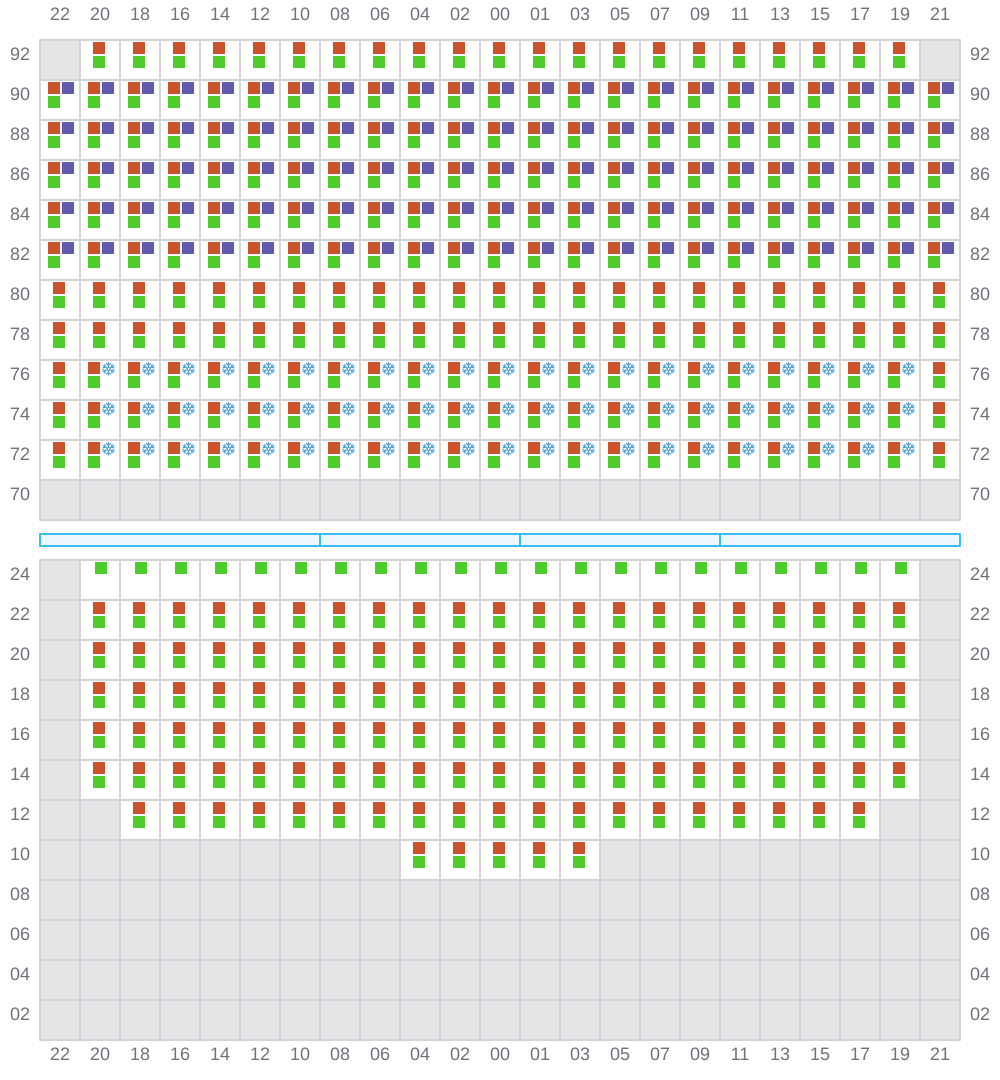

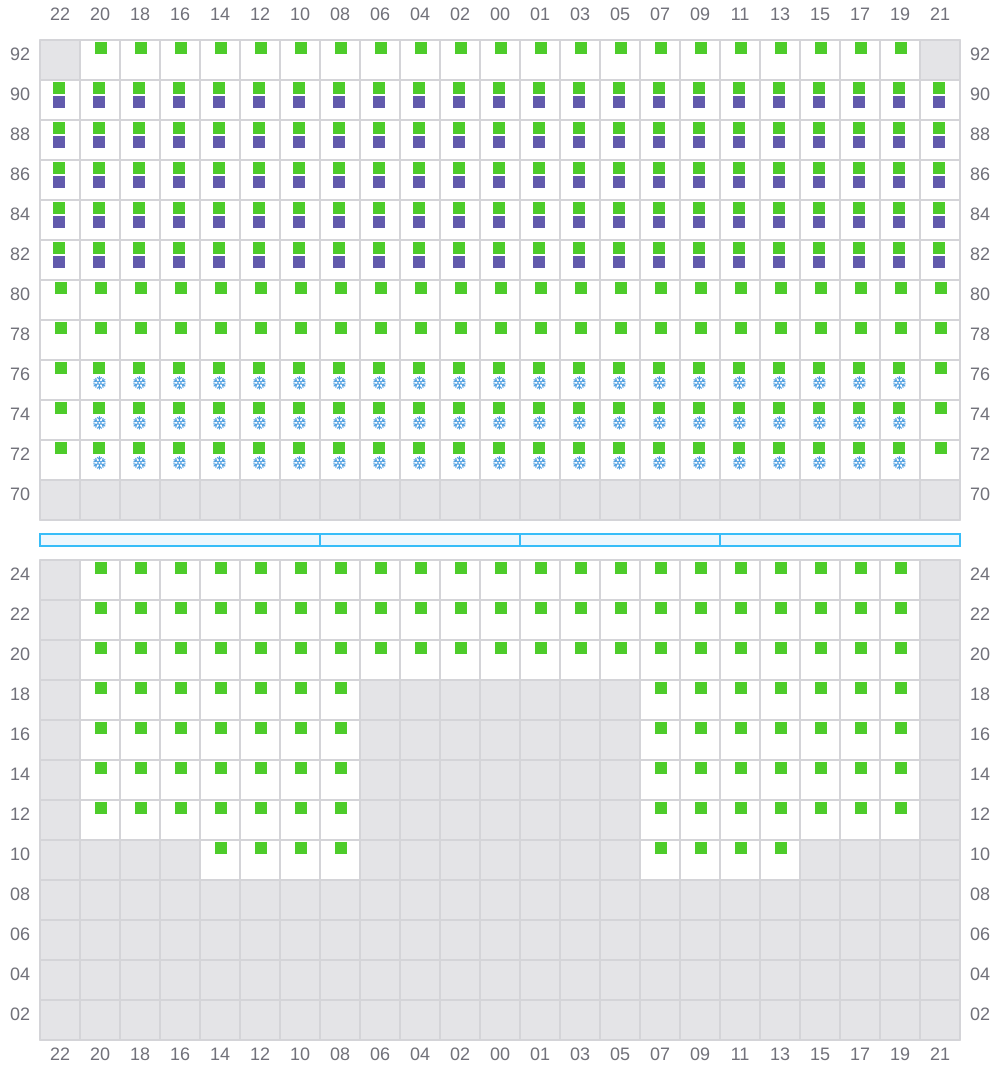

Bay 087 view and slots of ONE TREASURE

089

  • →
  • →

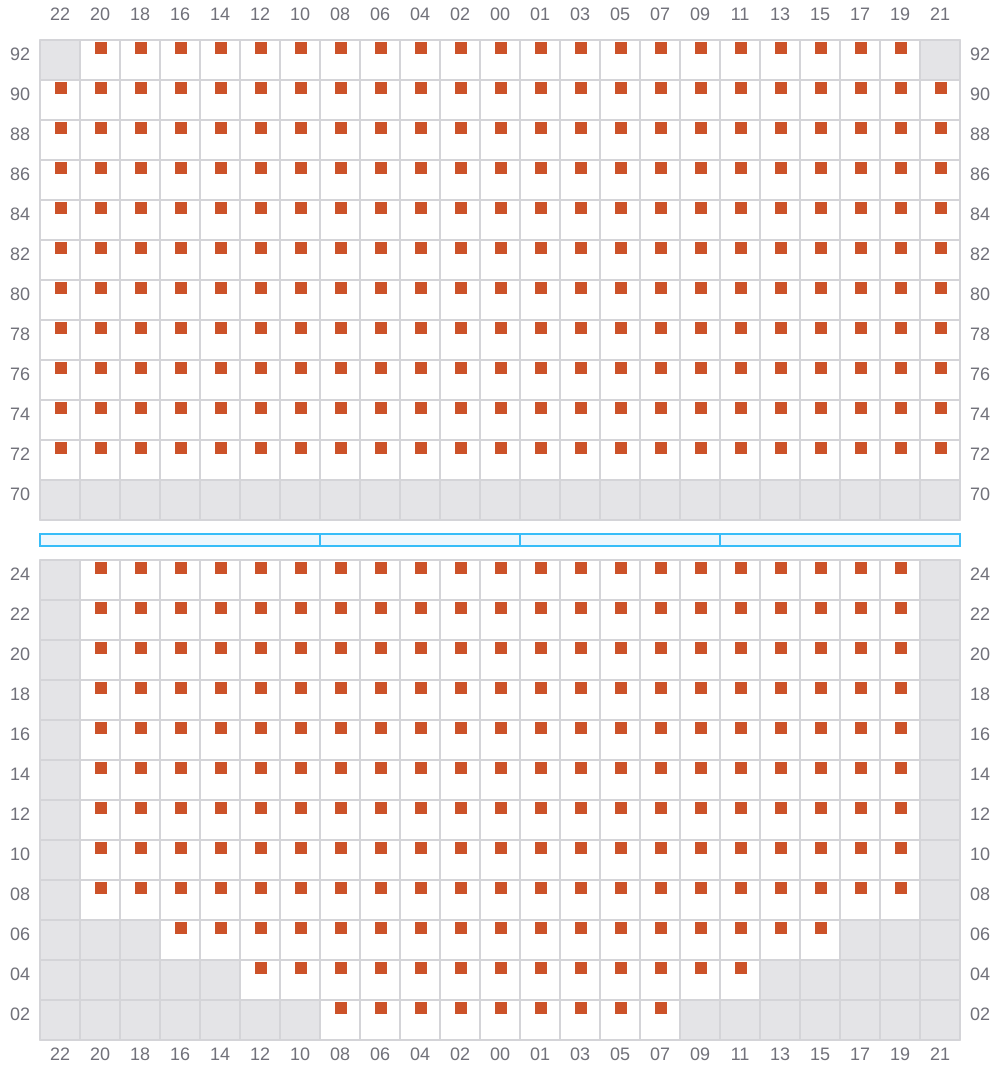

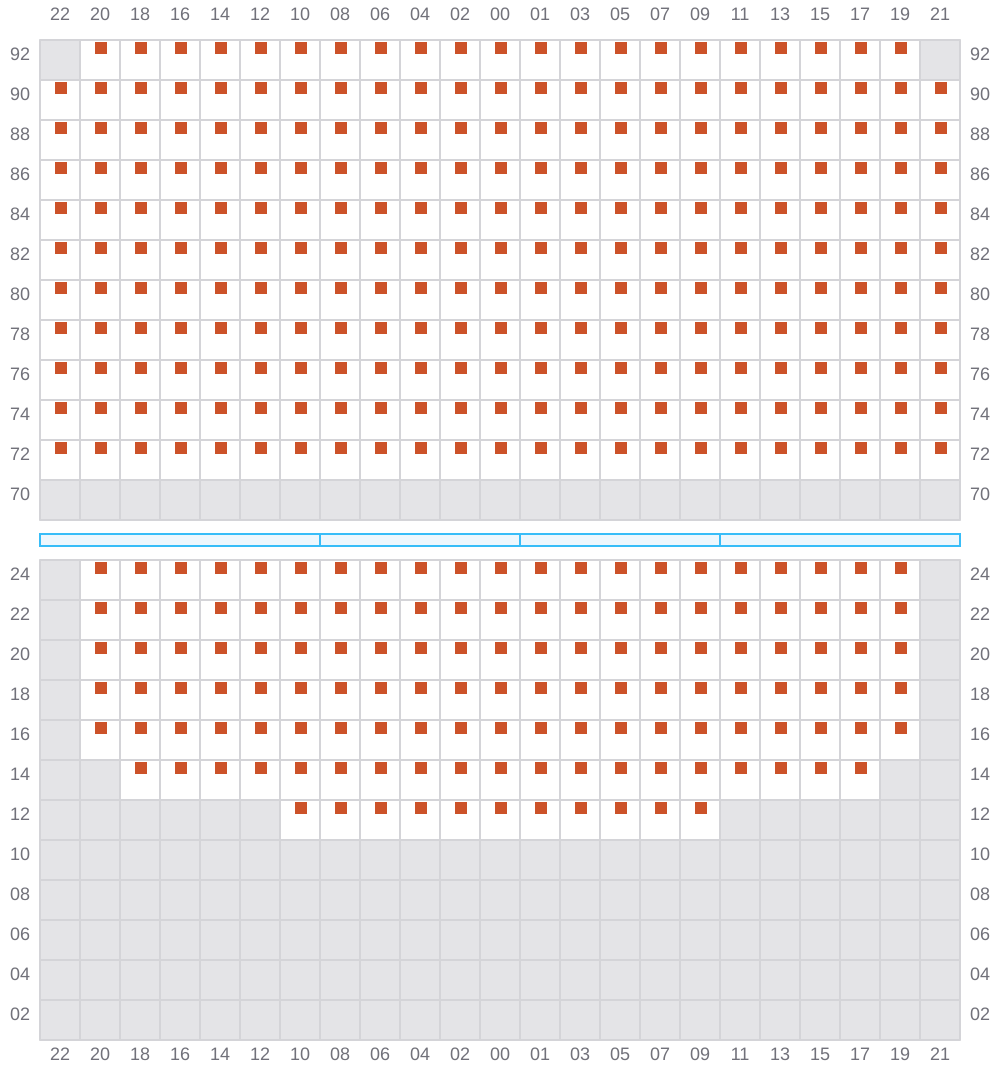

Bay 089 view and slots of ONE TREASURE

091 (090)

  • ←
  • → / ?
  • →

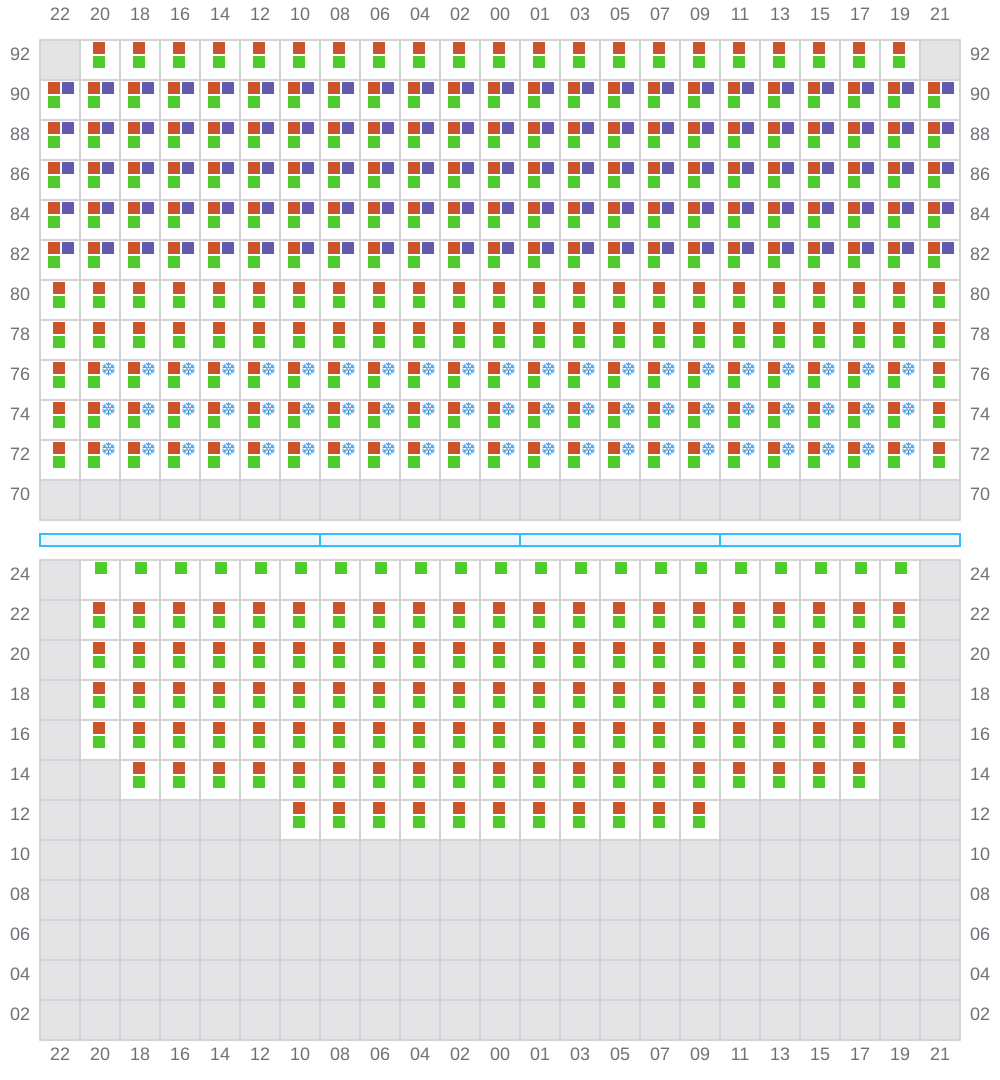

Bay 091 view and slots of ONE TREASURE

093 (094)

  • → / ?
  • → / ?
  • → / ?

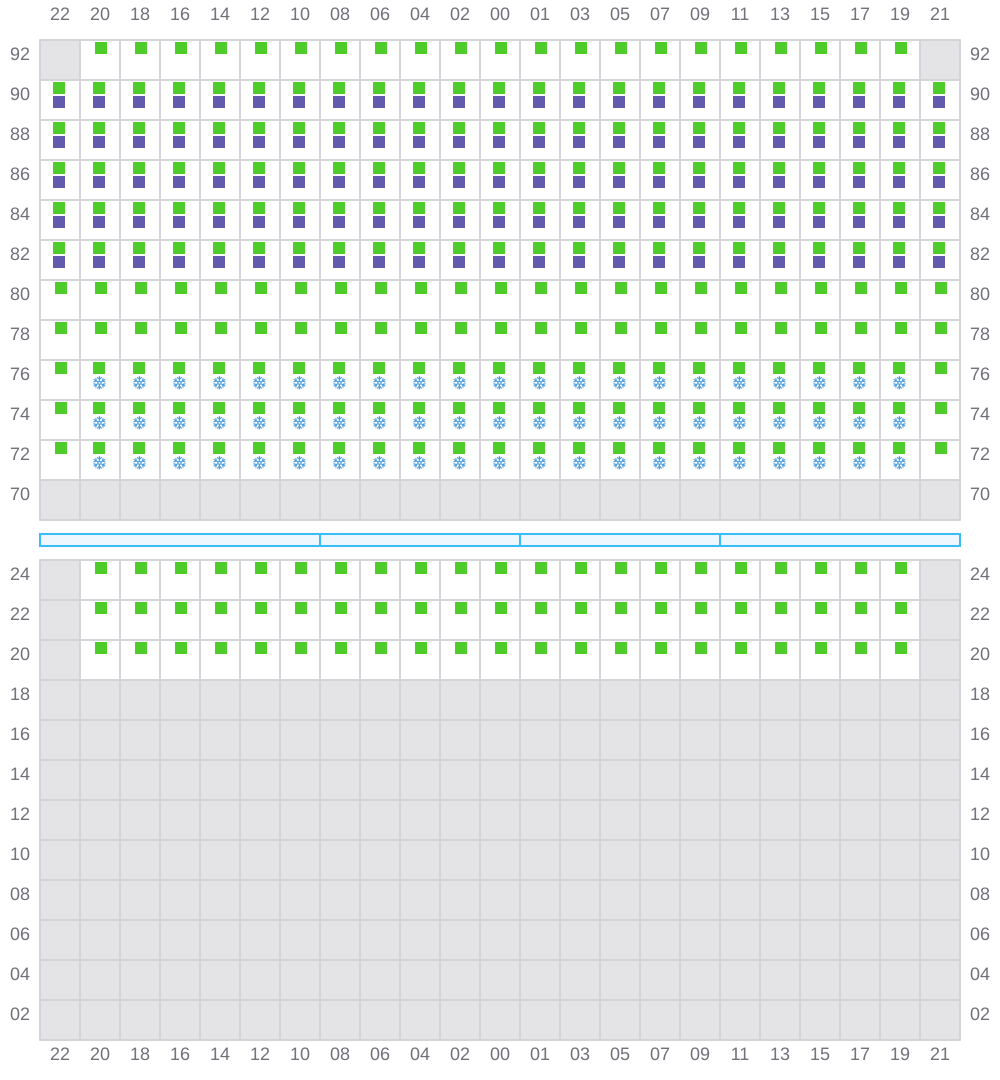

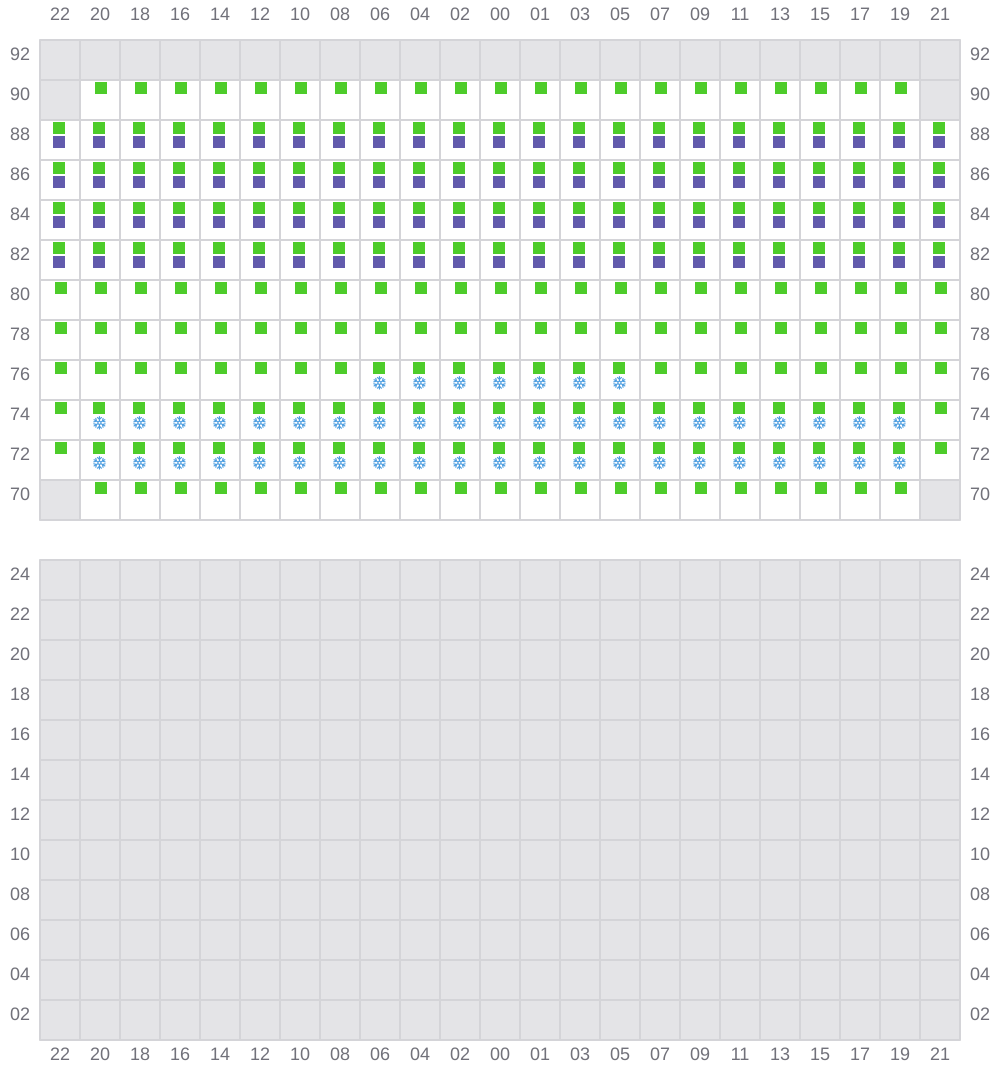

Bay 093 view and slots of ONE TREASURE
