ONE TRUST
9769283 | V7LF7 | 9769283 by *********************** Last update: Mon Feb 10 2025

General Info

Ship Name:ONE TRUST
IMO Code:9769283
Call Sign:V7LF7
Line Operator:9769283
Class Name for Sister Ships:MOL
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):383.00
LOA (Length Overall):399.96
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:22
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:74
Max Below ISO Tier:24
Min Below ISO Tier:02
Total TEU:20,170

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

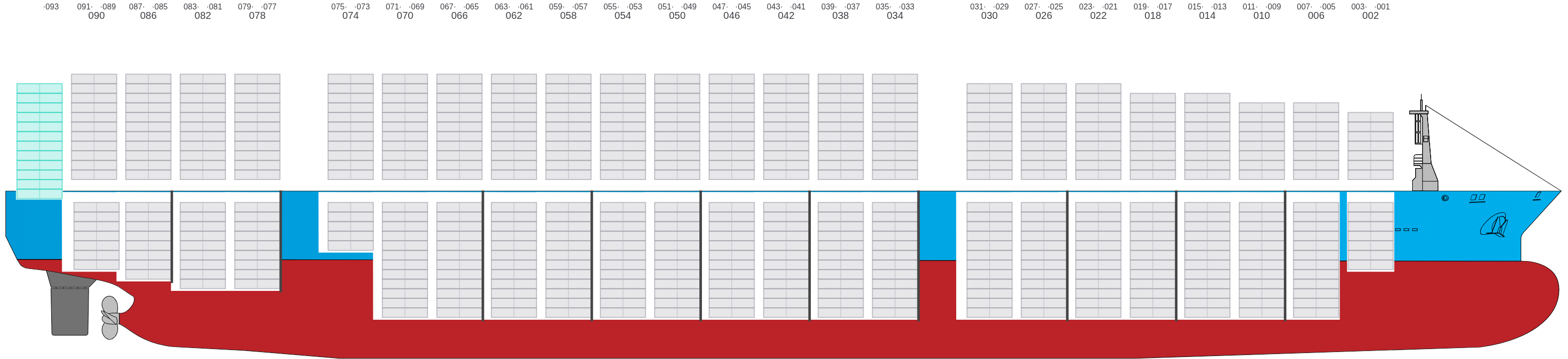

Side view of ONE TRUST

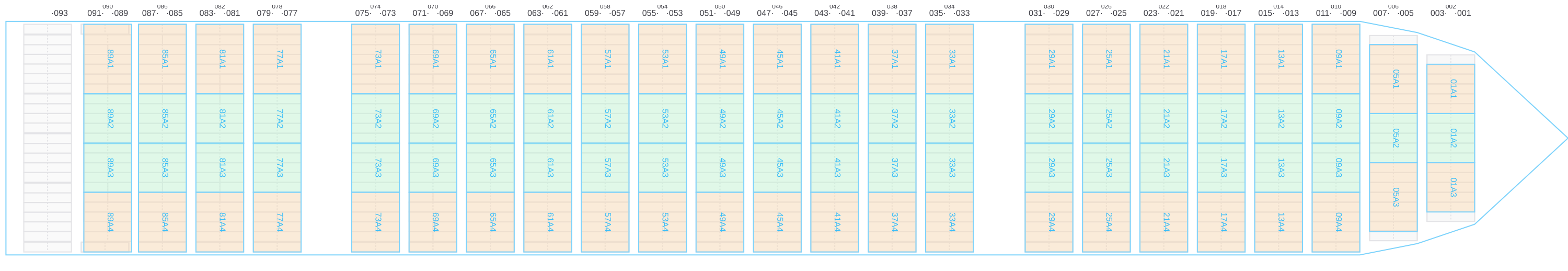

Hatch-Covers View

Deck view of ONE TRUST

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • →

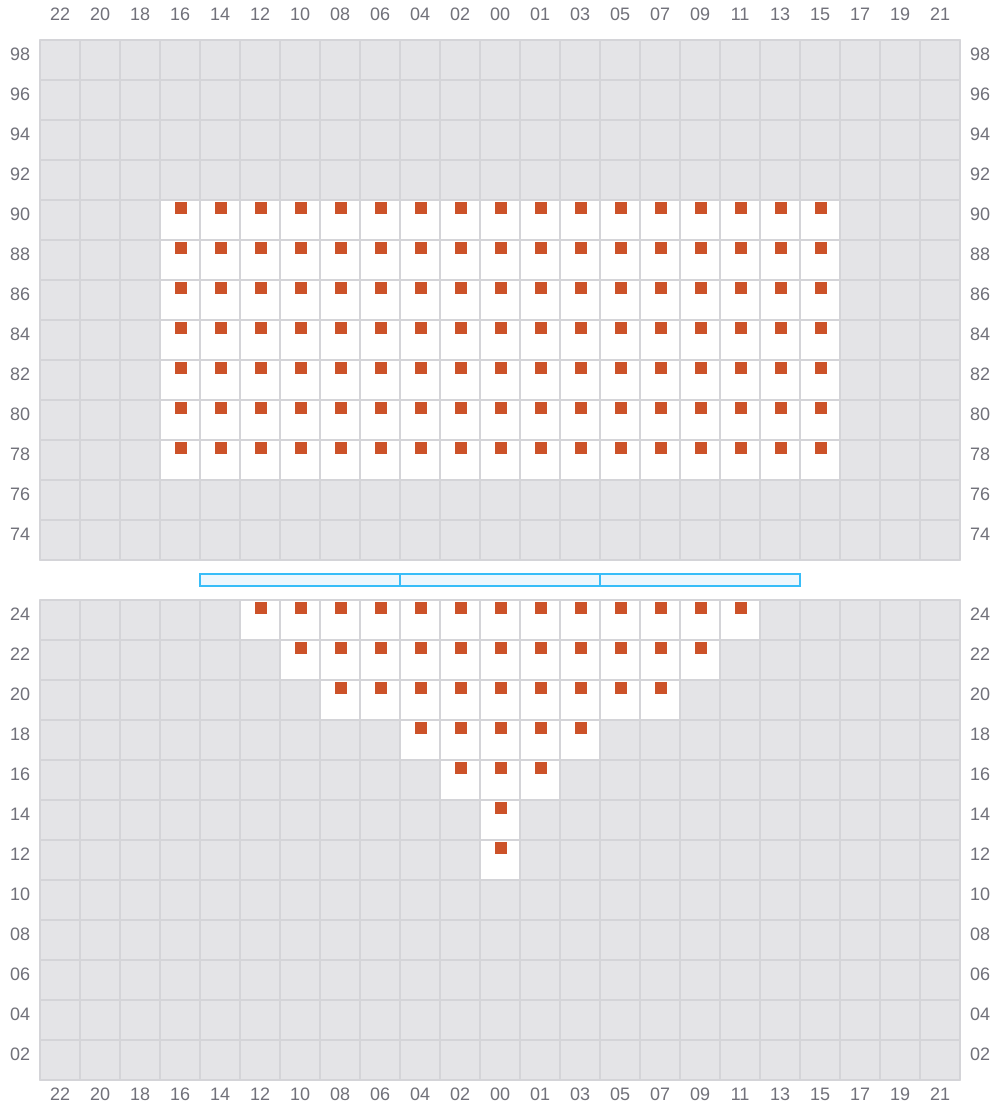

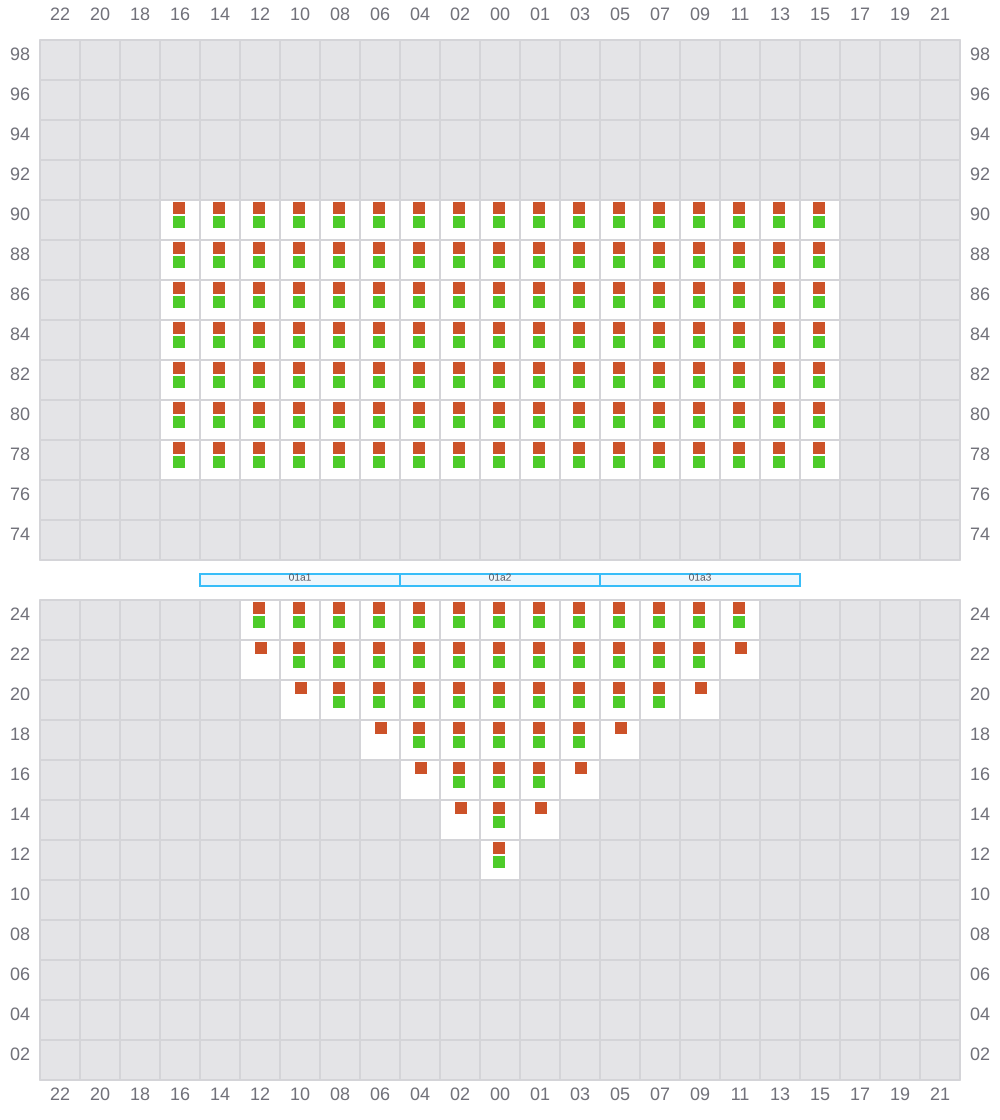

Bay 001 view and slots of ONE TRUST

003 (002)

  • ←
  • →
Bay 003 view and slots of ONE TRUST

005

  • →
  • →

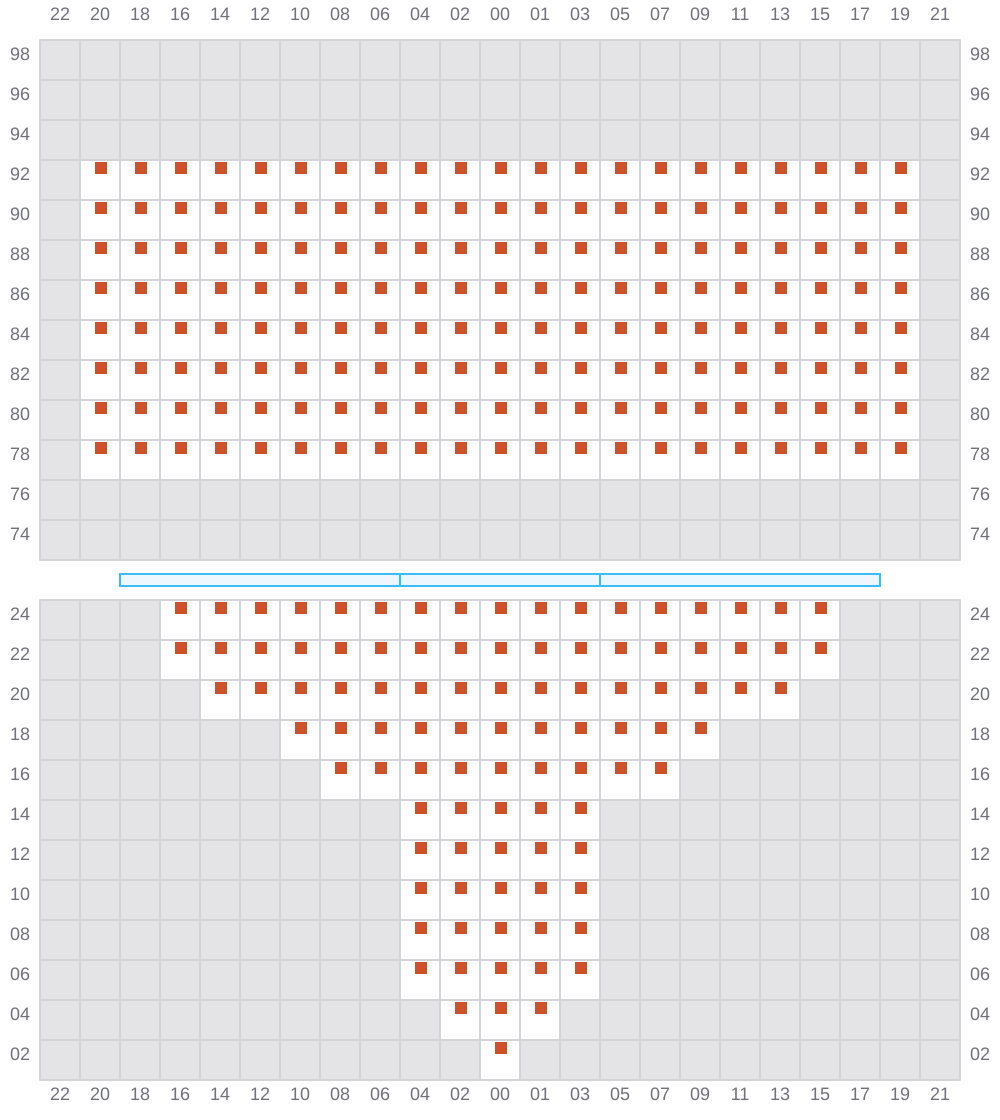

Bay 005 view and slots of ONE TRUST

007 (006)

  • ←
  • → / ?
  • →
Bay 007 view and slots of ONE TRUST

009

  • →
  • →

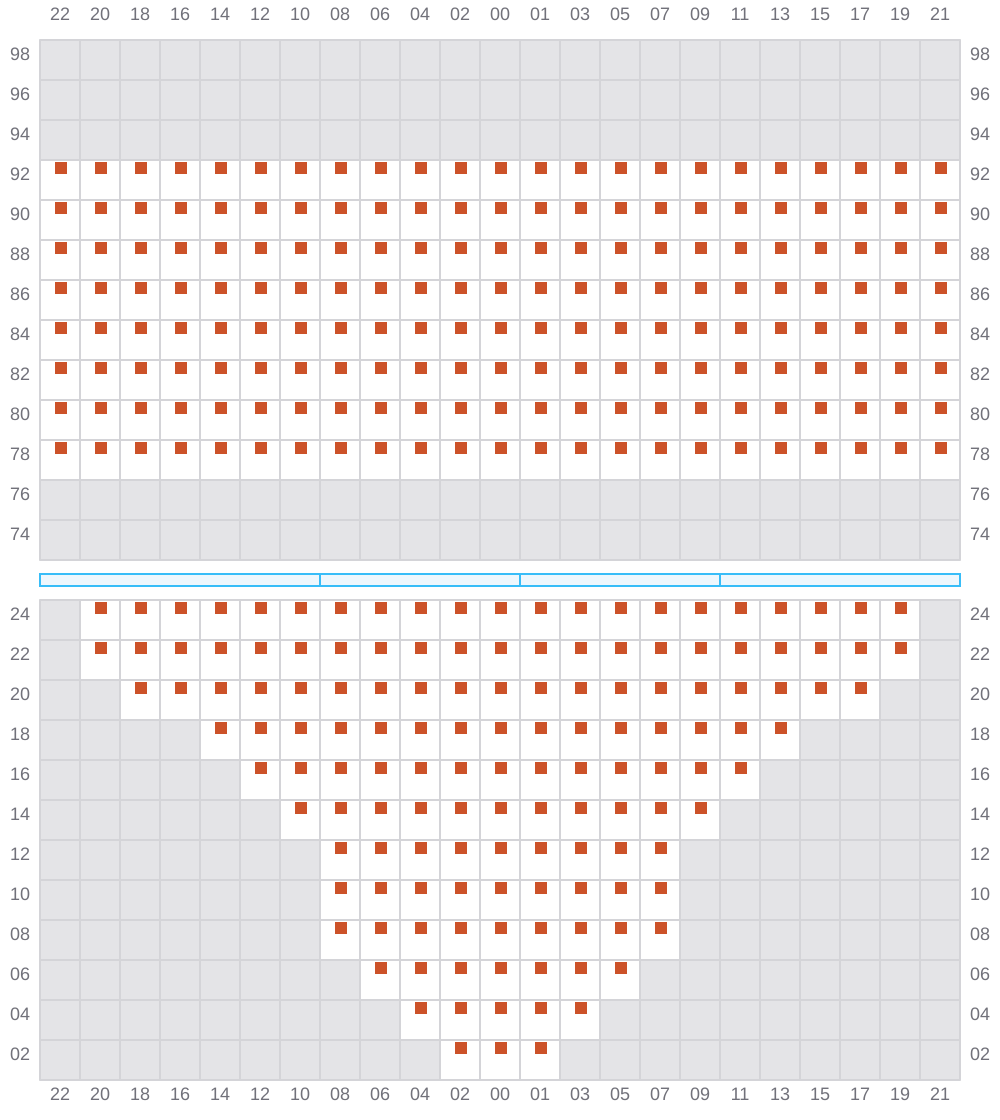

Bay 009 view and slots of ONE TRUST

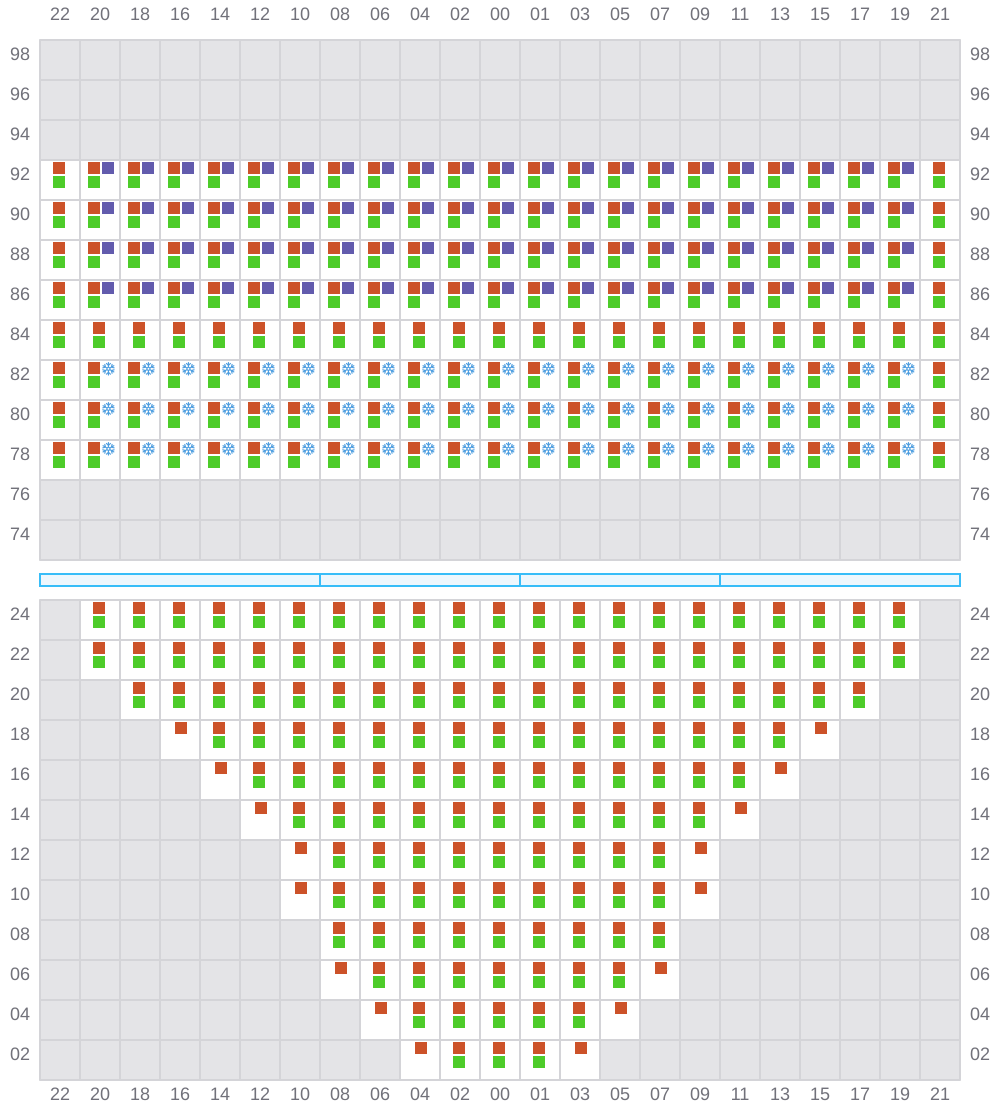

011 (010)

  • ←
  • → / ?
  • →
Bay 011 view and slots of ONE TRUST

013

  • →
  • →

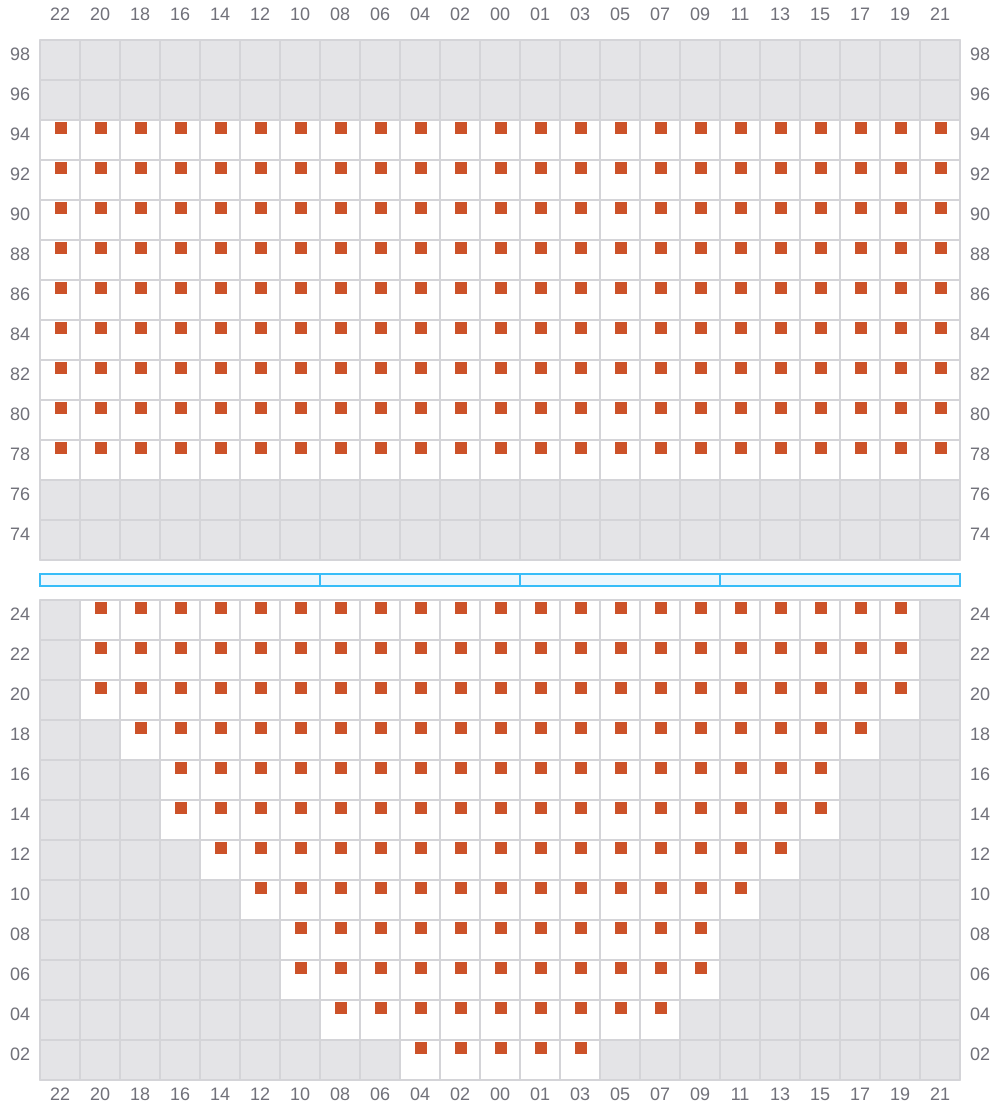

Bay 013 view and slots of ONE TRUST

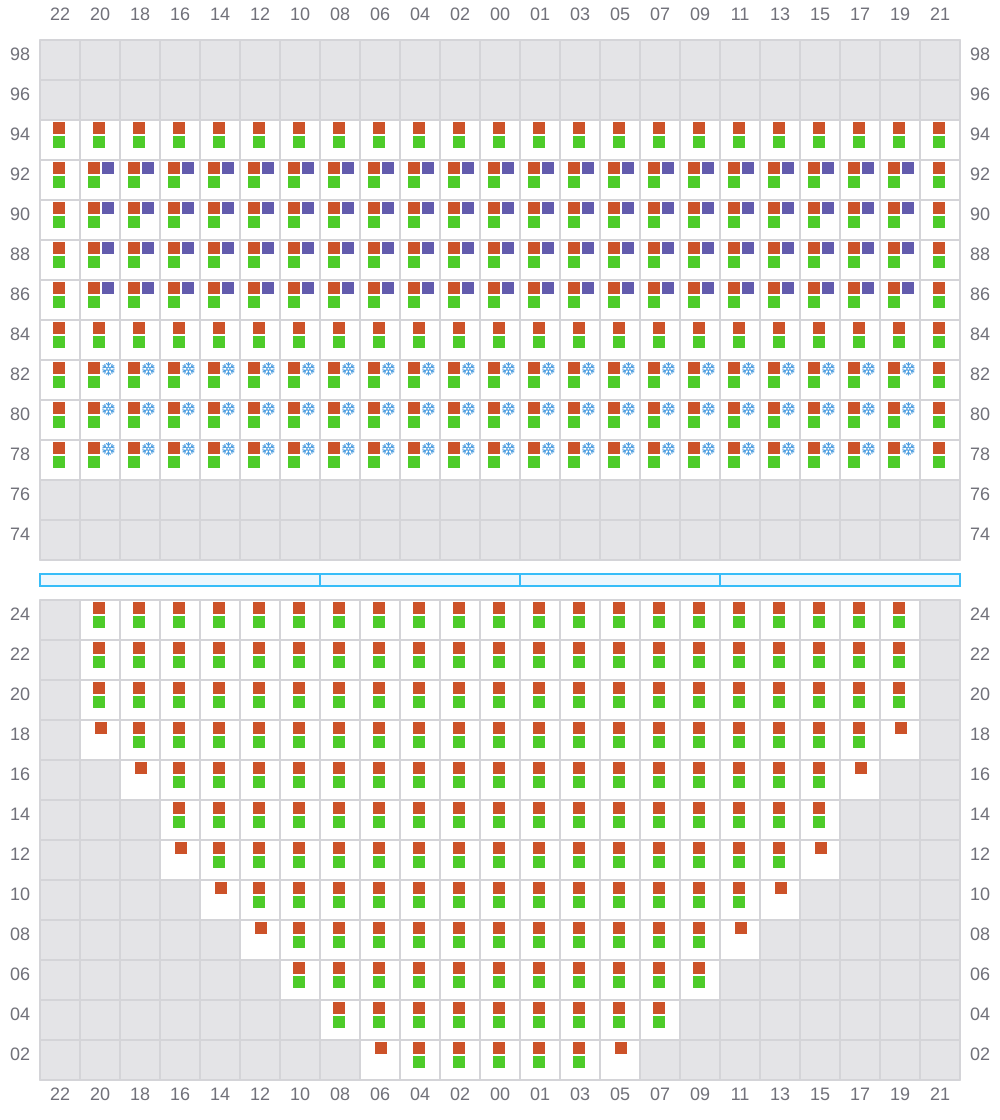

015 (014)

  • ←
  • → / ?
  • →
Bay 015 view and slots of ONE TRUST

017

  • →
  • →

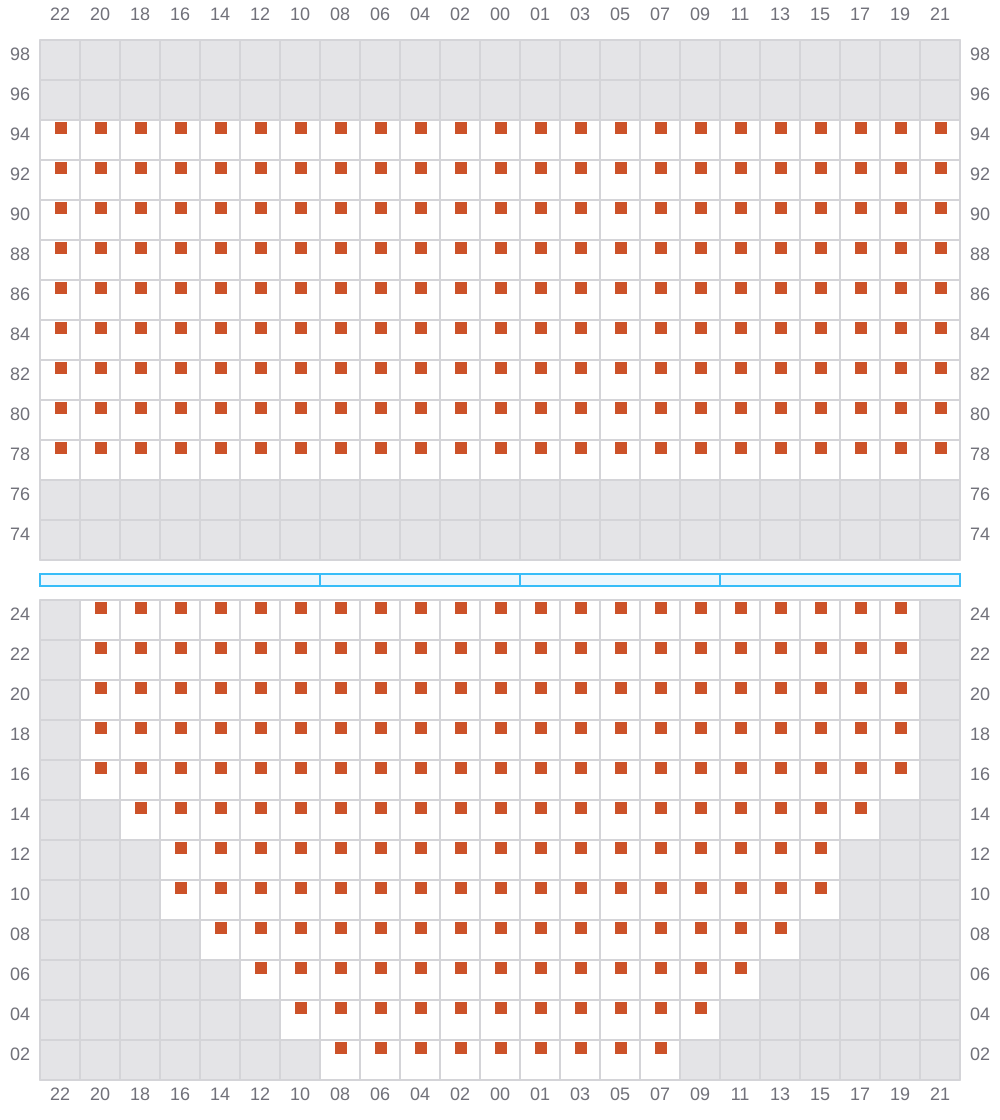

Bay 017 view and slots of ONE TRUST

019 (018)

  • ←
  • → / ?
  • →

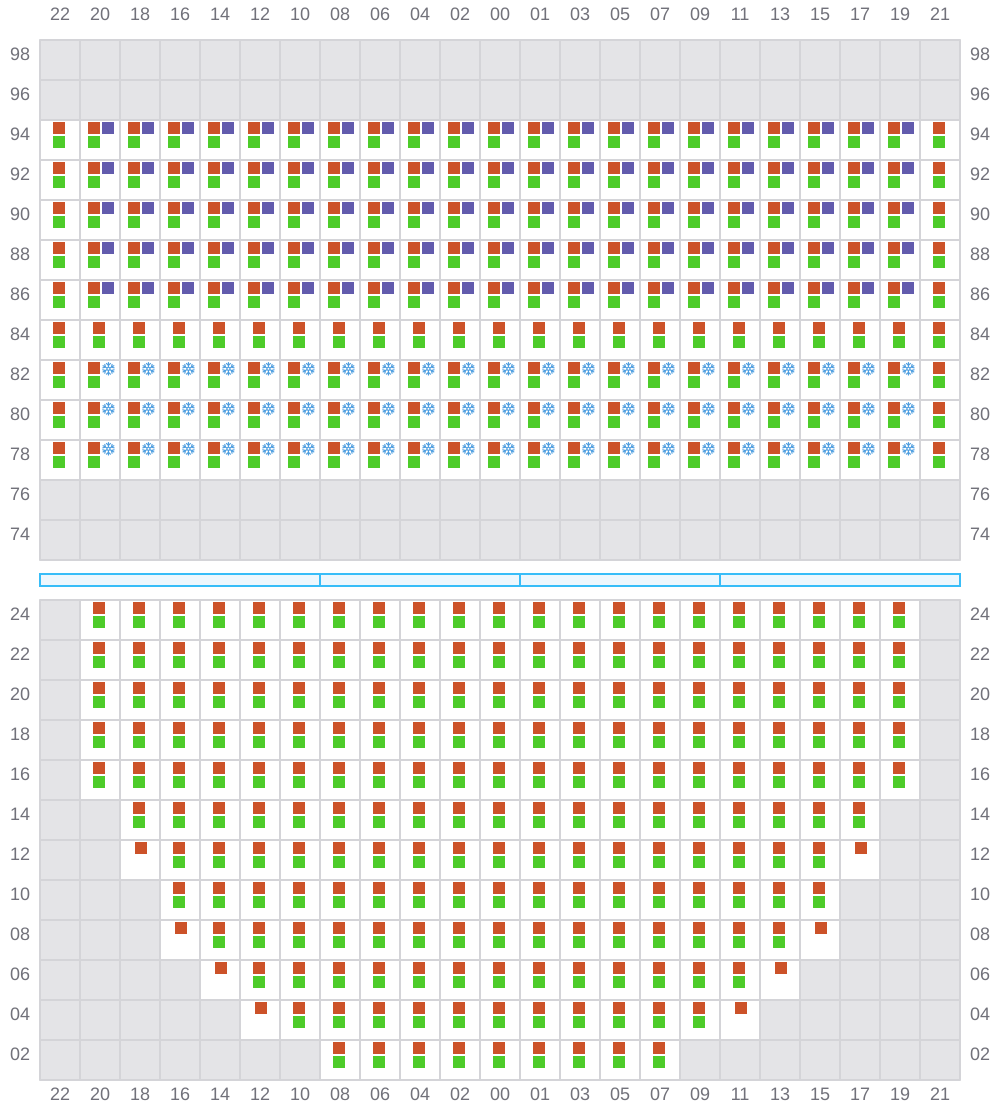

Bay 019 view and slots of ONE TRUST

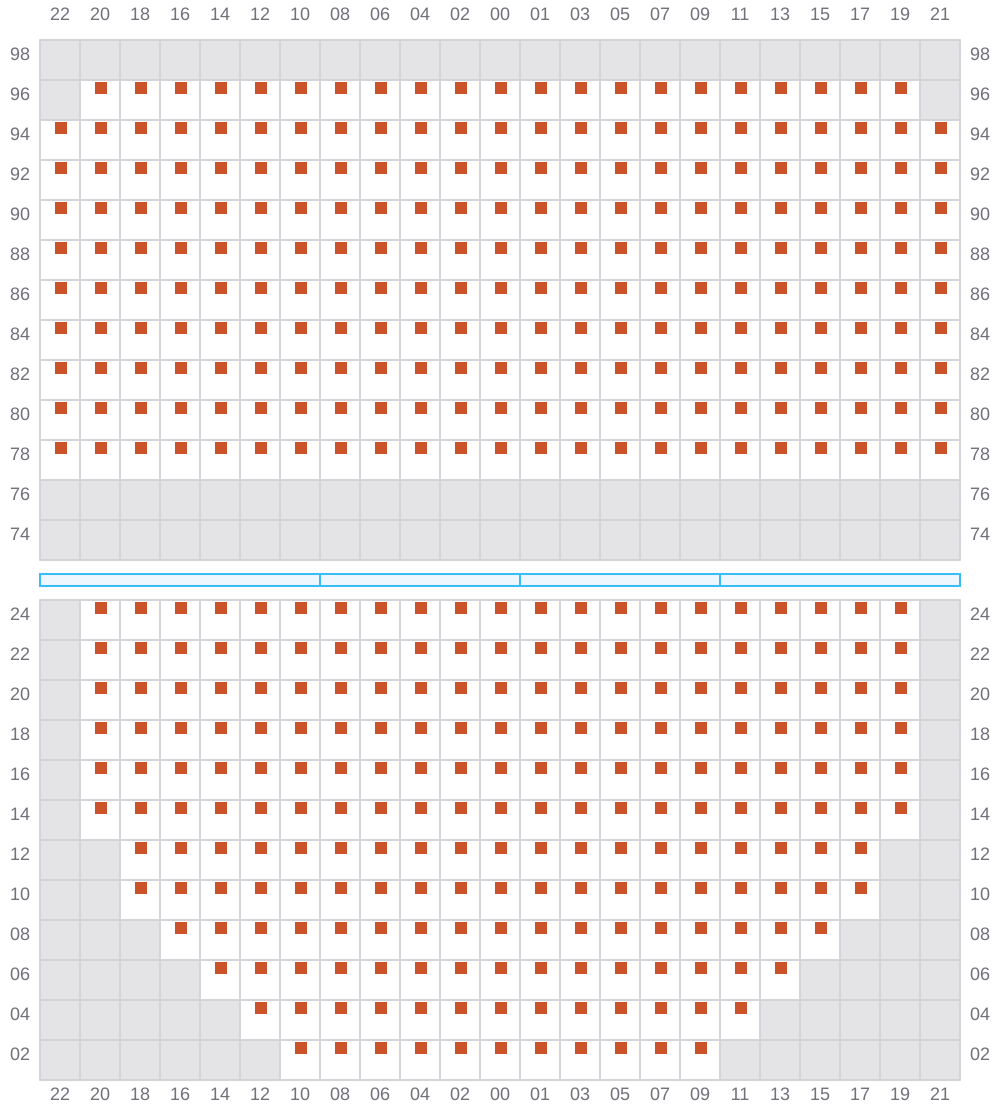

021

  • →
  • →
Bay 021 view and slots of ONE TRUST

023 (022)

  • ←
  • → / ?
  • →
Bay 023 view and slots of ONE TRUST

025

  • →
  • →
Bay 025 view and slots of ONE TRUST

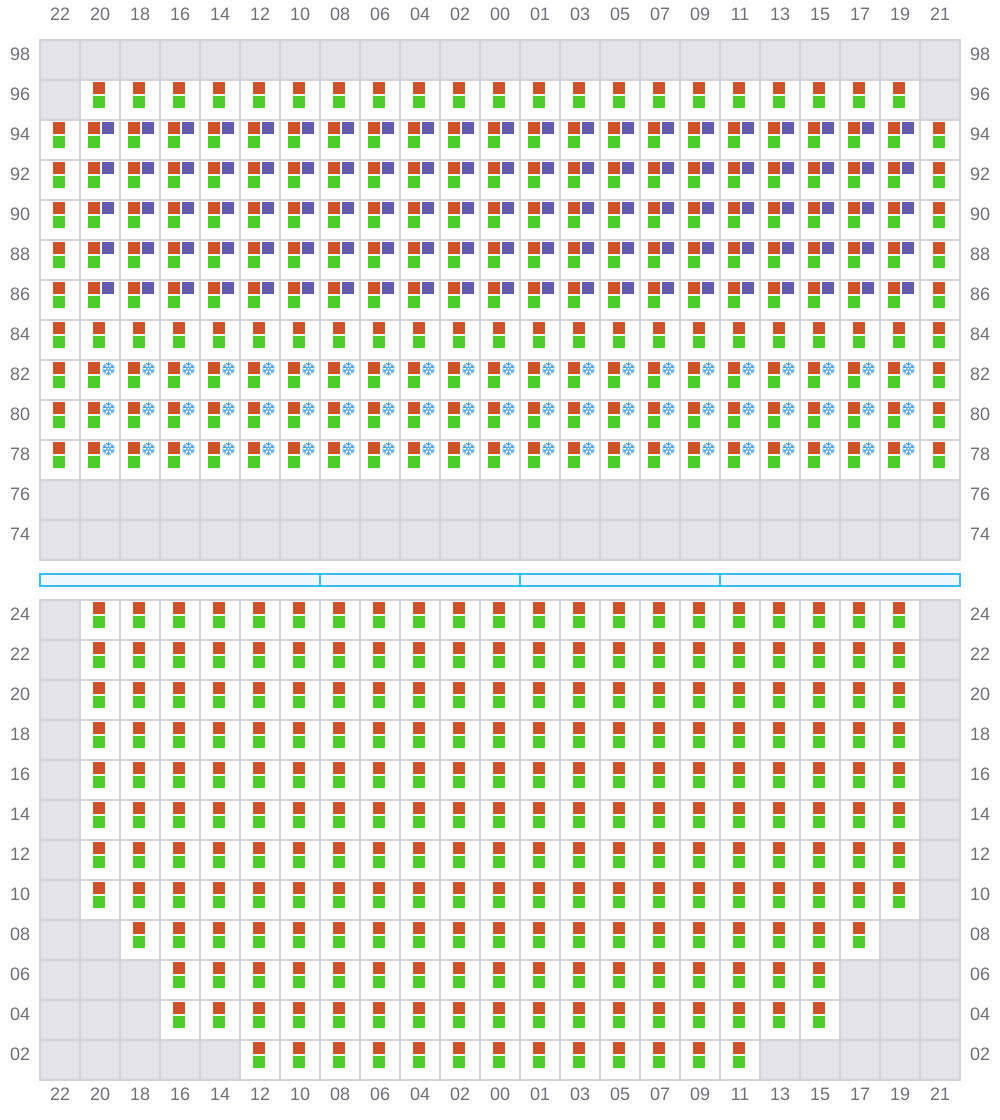

027 (026)

  • ←
  • → / ?
  • →
Bay 027 view and slots of ONE TRUST

029

  • →
  • →

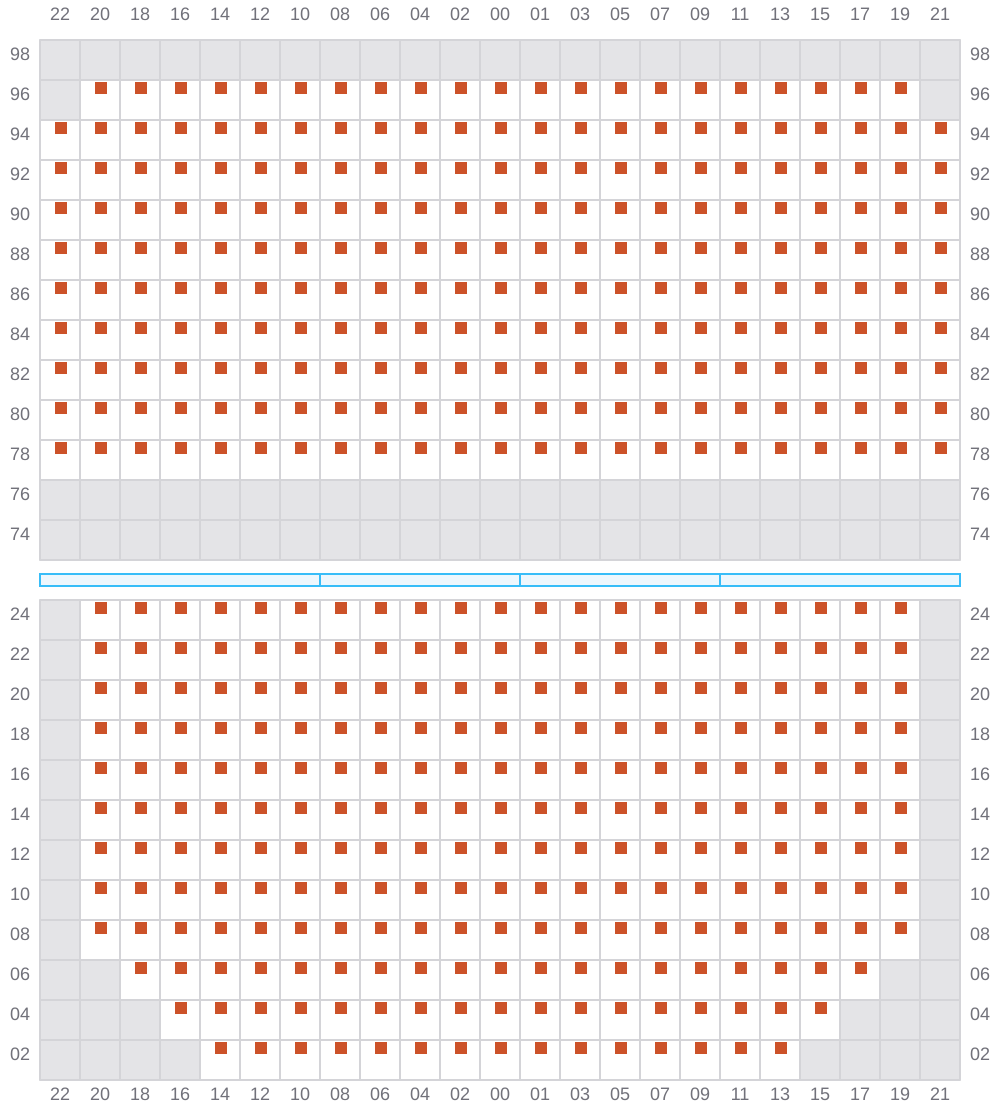

Bay 029 view and slots of ONE TRUST

031 (030)

  • ←
  • → / ?
  • →

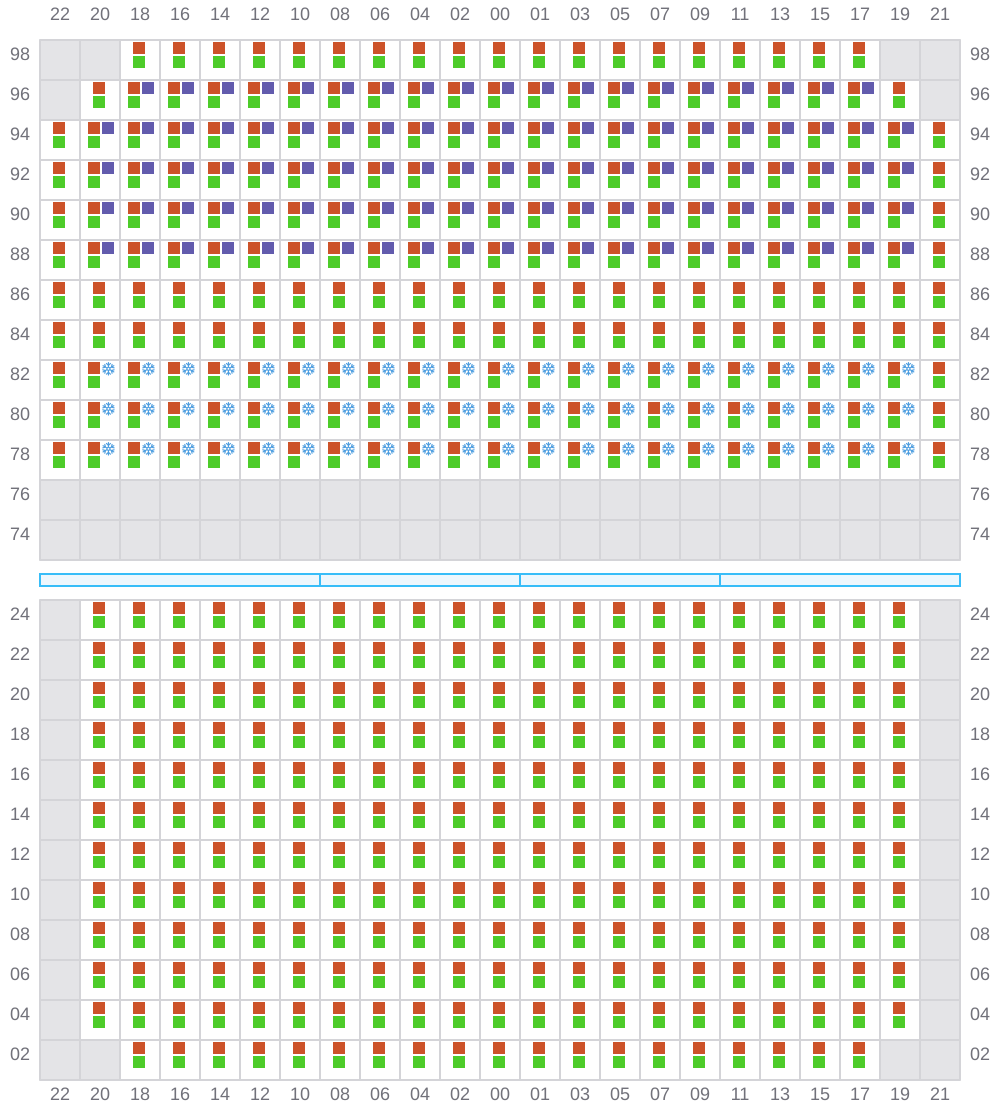

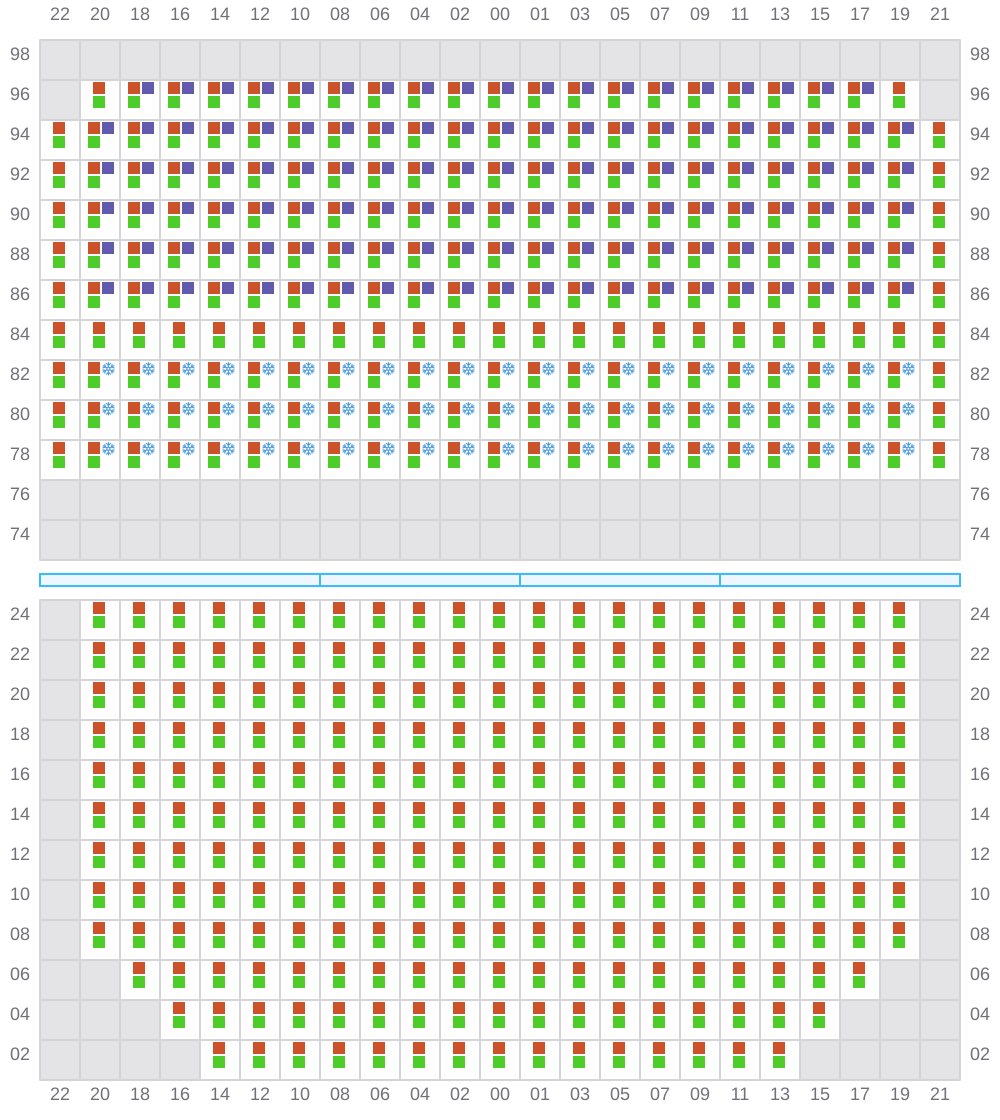

Bay 031 view and slots of ONE TRUST

033

  • →
  • →
Bay 033 view and slots of ONE TRUST

035 (034)

  • ←
  • → / ?
  • →
Bay 035 view and slots of ONE TRUST

037

  • →
  • →
Bay 037 view and slots of ONE TRUST

039 (038)

  • ←
  • →
  • →
Bay 039 view and slots of ONE TRUST

041

  • →
  • →
Bay 041 view and slots of ONE TRUST

043 (042)

  • ←
  • → / ?
  • →

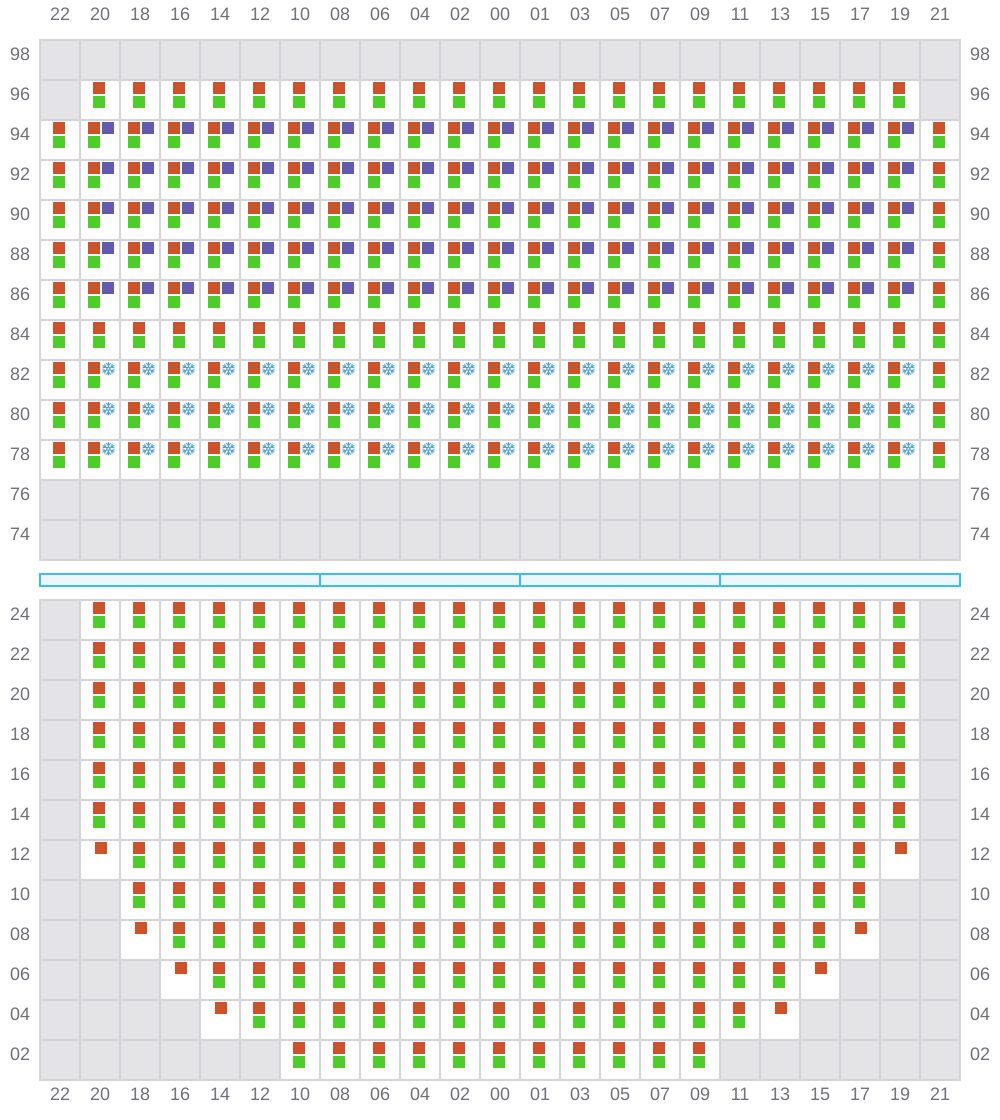

Bay 043 view and slots of ONE TRUST

045

  • →
  • →
Bay 045 view and slots of ONE TRUST

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of ONE TRUST

049

  • →
  • →
Bay 049 view and slots of ONE TRUST

051 (050)

  • ←
  • → / ?
  • →

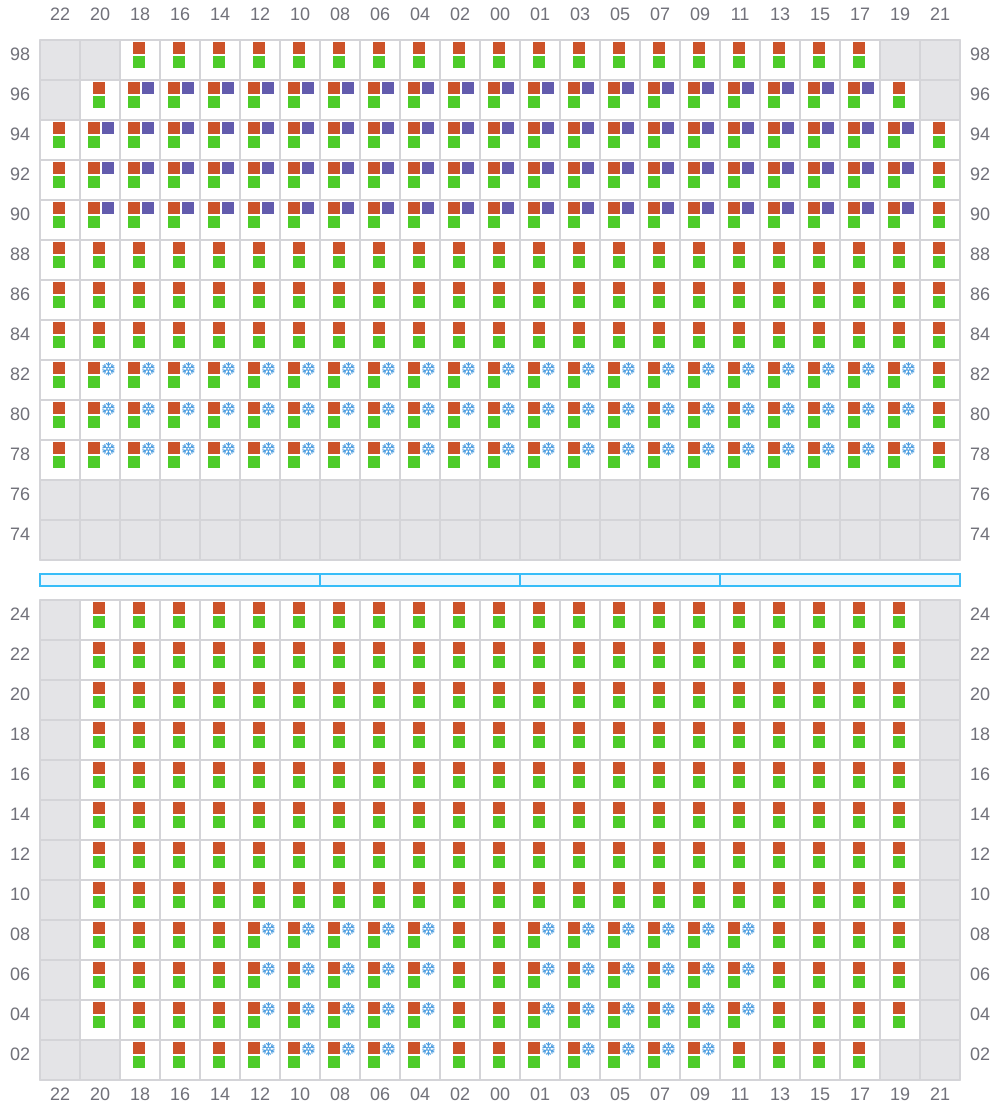

Bay 051 view and slots of ONE TRUST

053

  • →
  • →

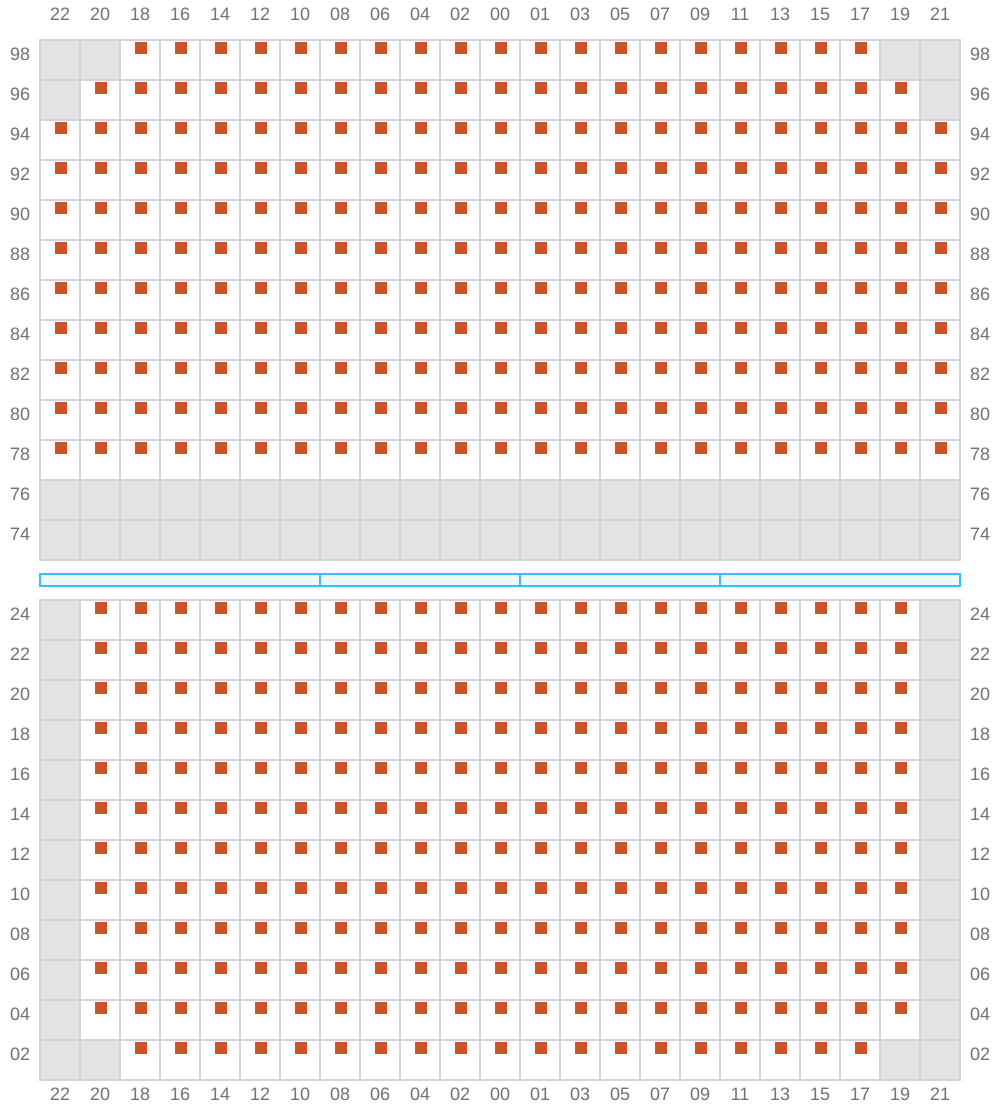

Bay 053 view and slots of ONE TRUST

055 (054)

  • ←
  • →
  • →

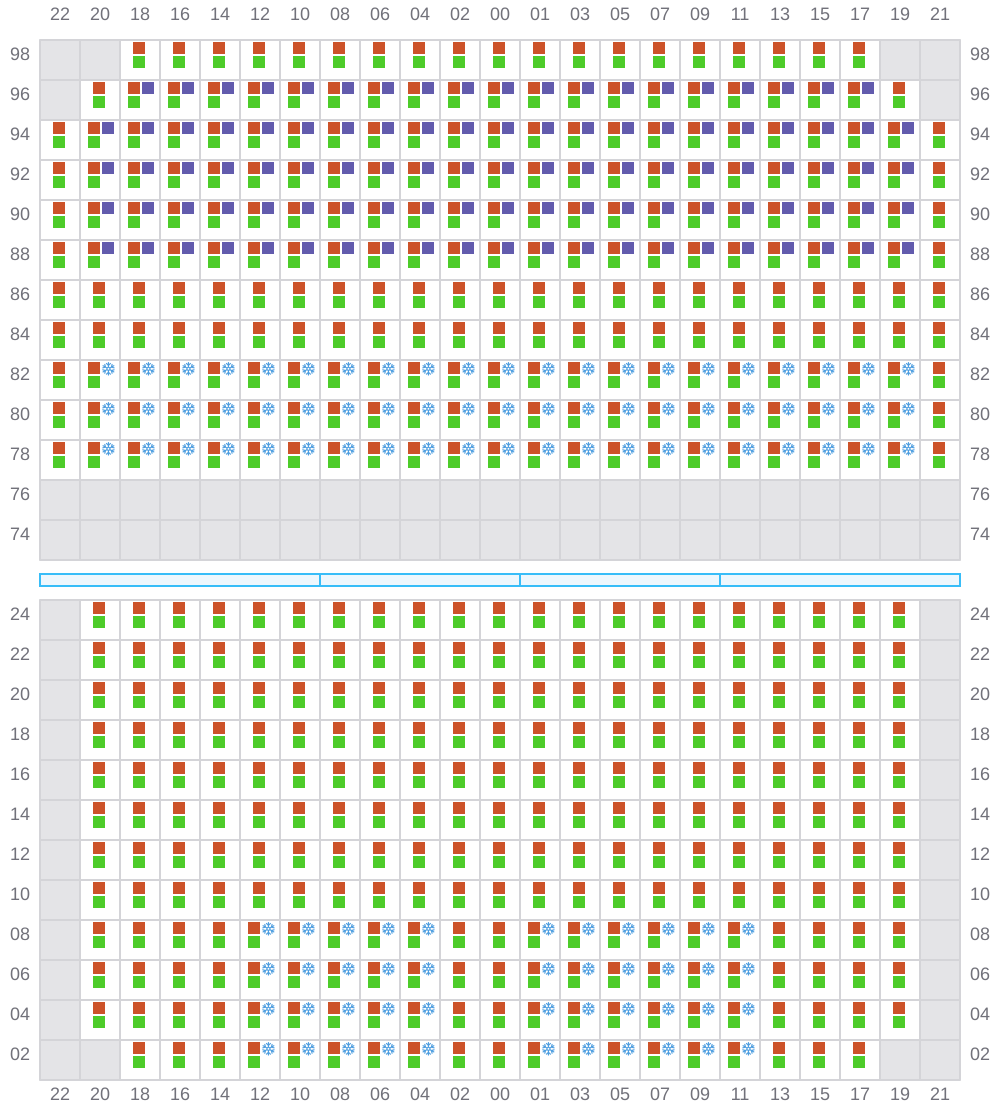

Bay 055 view and slots of ONE TRUST

057

  • →
  • →
Bay 057 view and slots of ONE TRUST

059 (058)

  • ←
  • → / ?
  • →
Bay 059 view and slots of ONE TRUST

061

  • →
  • →

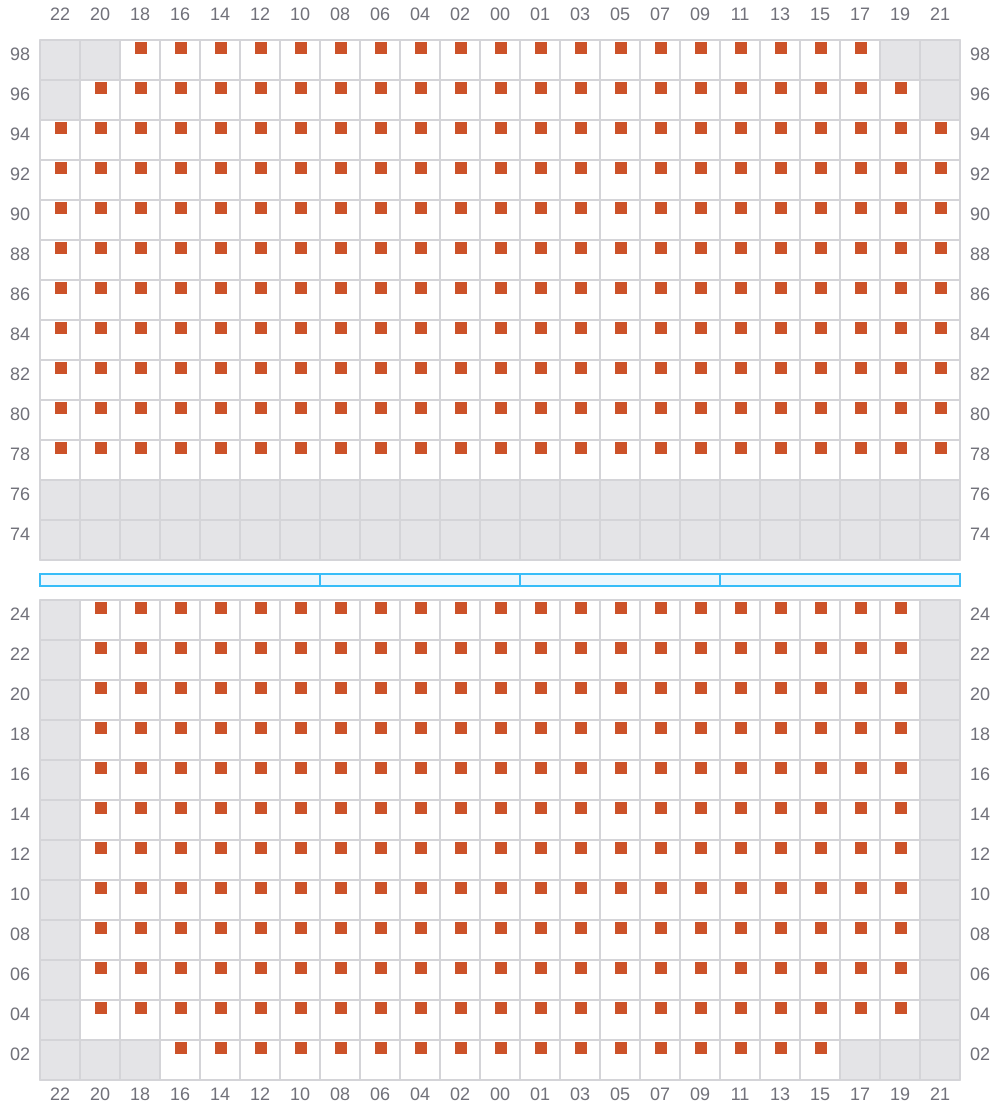

Bay 061 view and slots of ONE TRUST

063 (062)

  • ←
  • → / ?
  • →

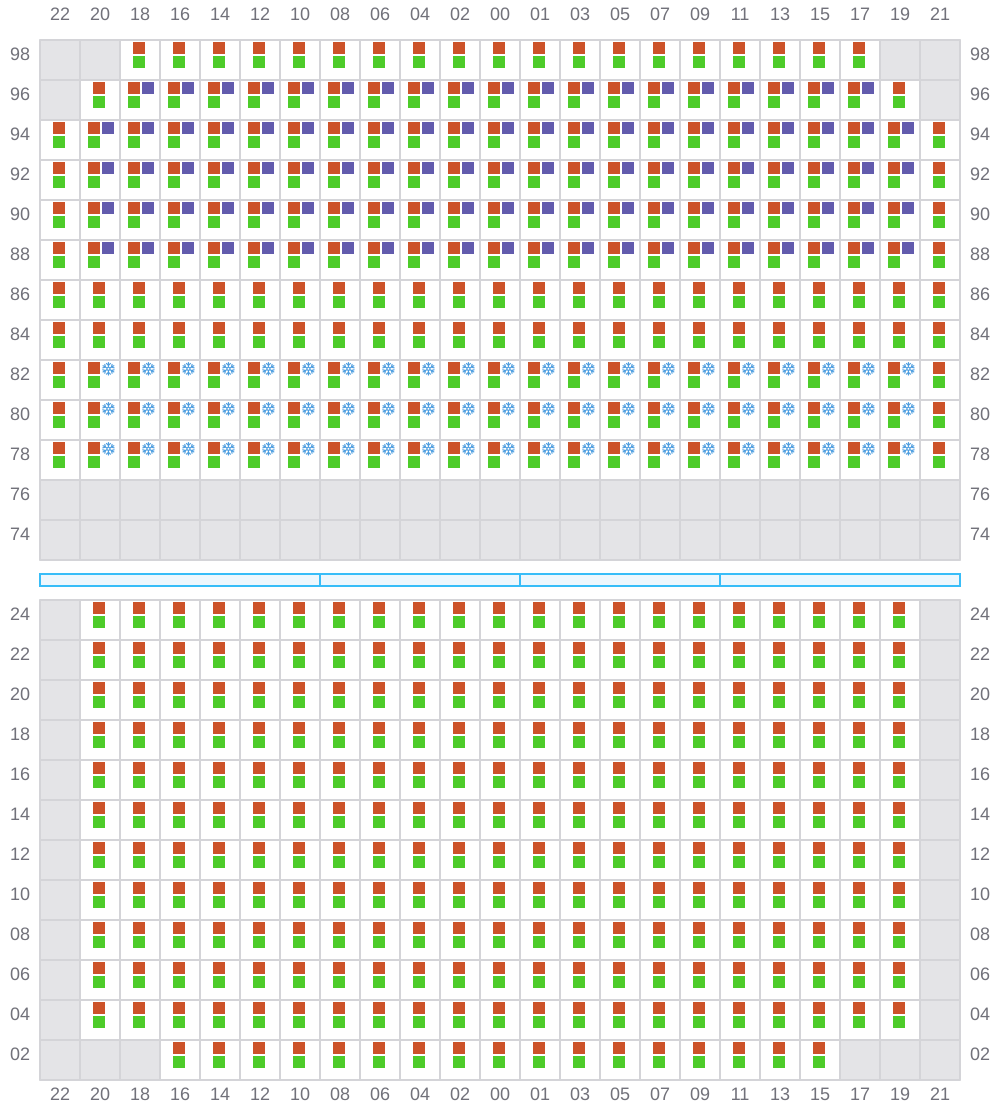

Bay 063 view and slots of ONE TRUST

065

  • →
  • →

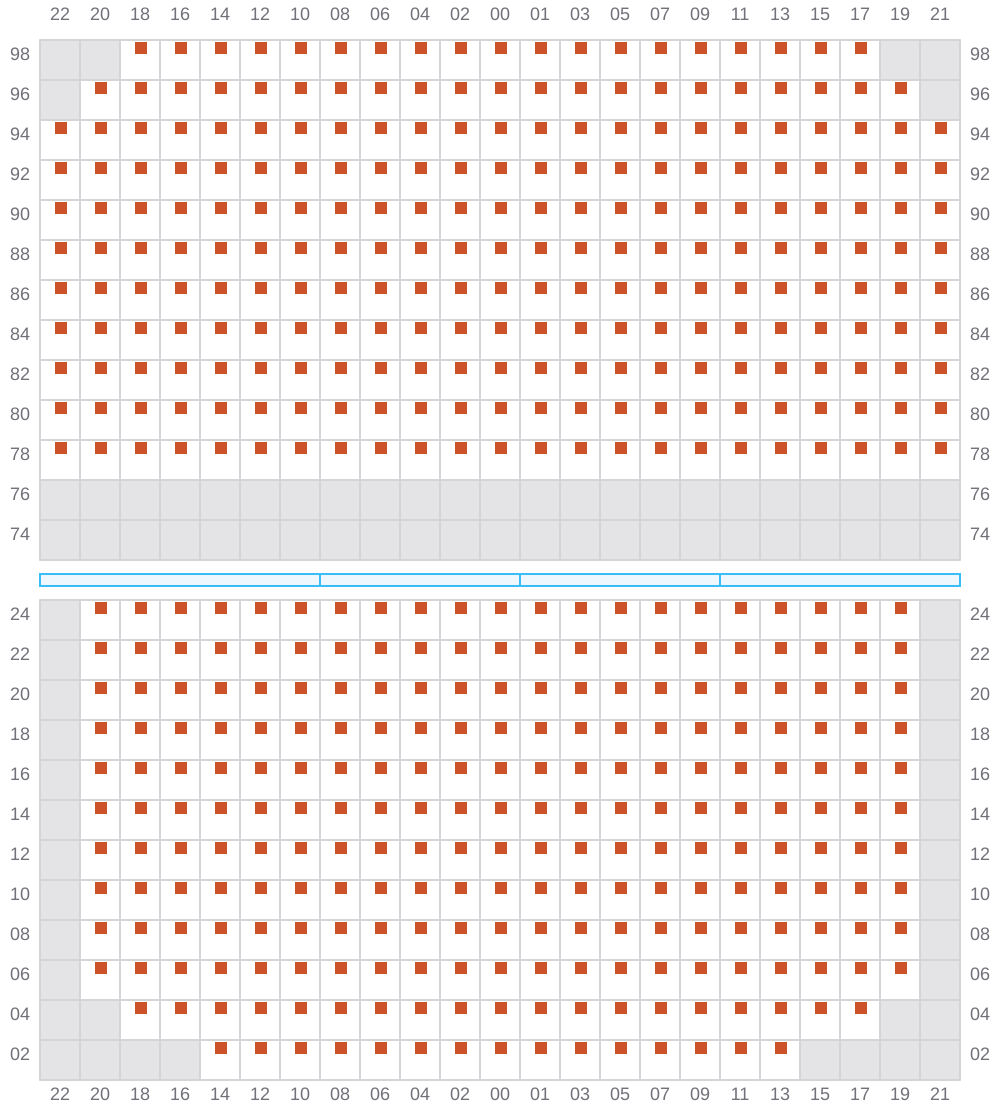

Bay 065 view and slots of ONE TRUST

067 (066)

  • ←
  • → / ?
  • →
Bay 067 view and slots of ONE TRUST

069

  • →
  • →
Bay 069 view and slots of ONE TRUST

071 (070)

  • ←
  • → / ?
  • →
Bay 071 view and slots of ONE TRUST

073

  • →
  • →
Bay 073 view and slots of ONE TRUST

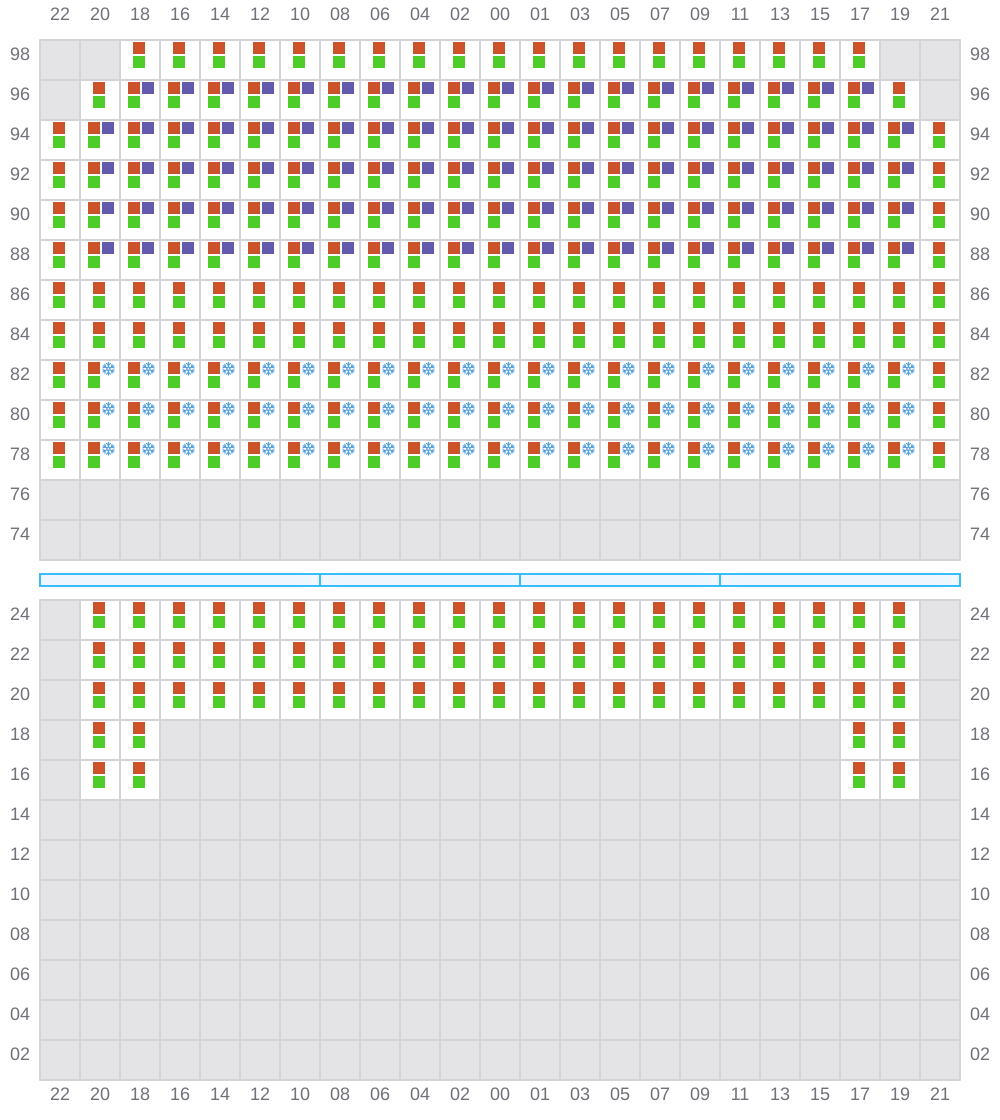

075 (074)

  • ←
  • → / ?
  • →
Bay 075 view and slots of ONE TRUST

077

  • →
  • →

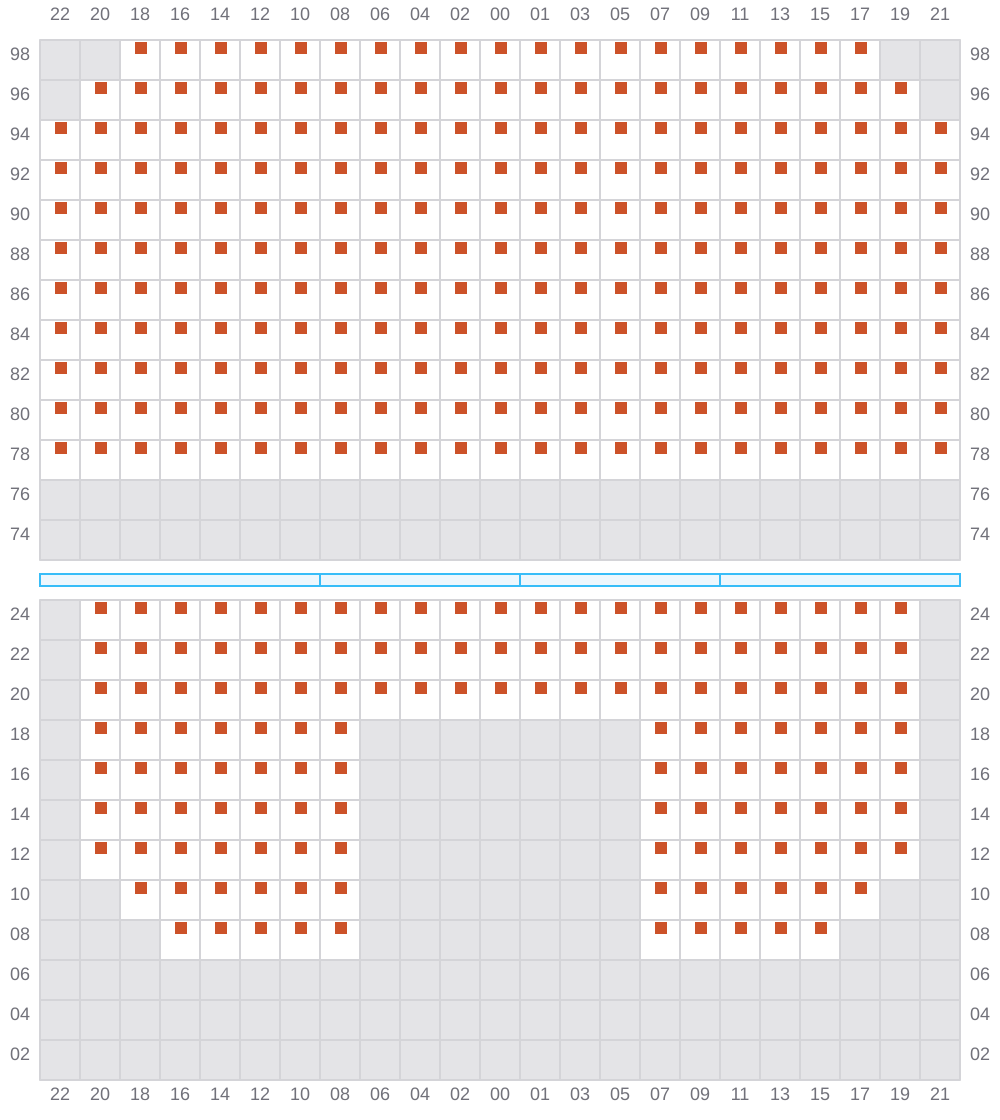

Bay 077 view and slots of ONE TRUST

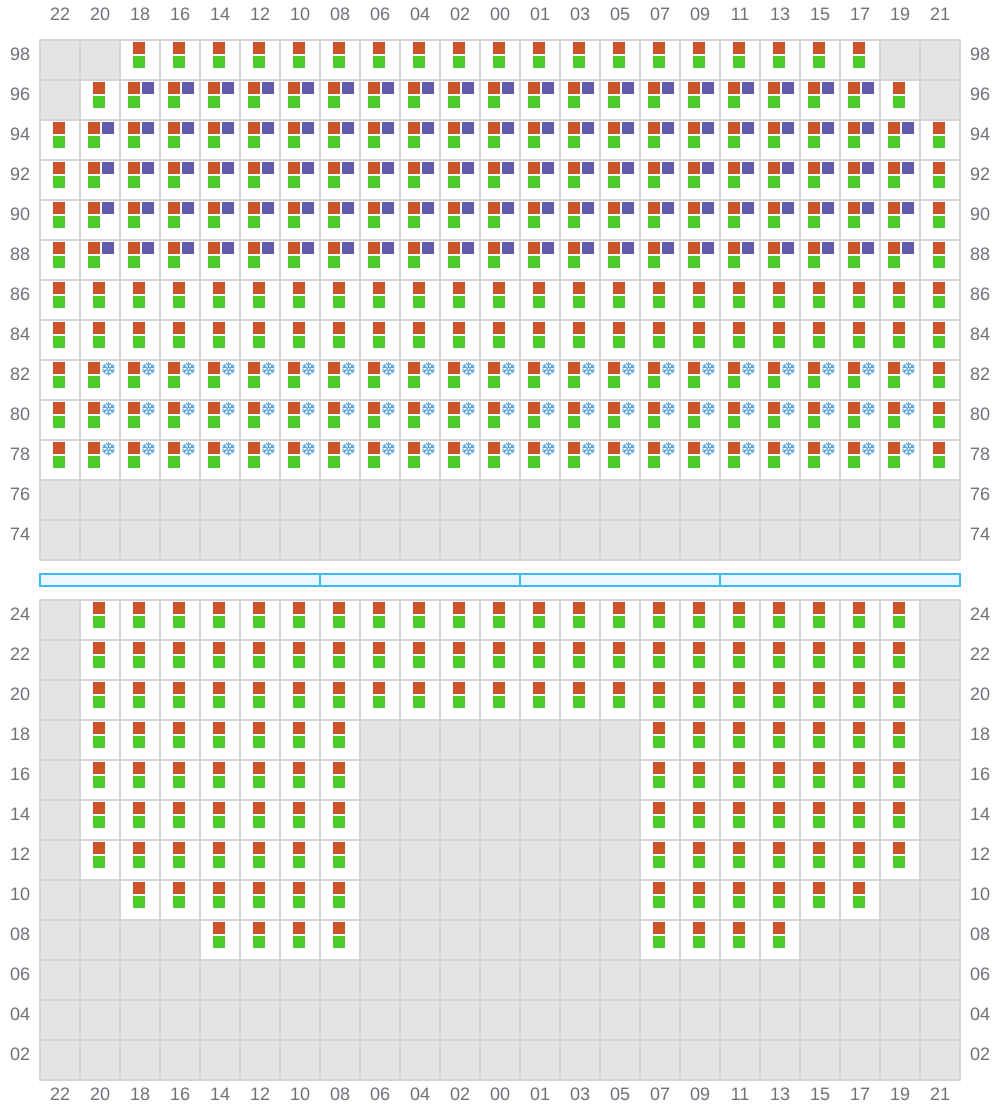

079 (078)

  • ←
  • → / ?
  • →
Bay 079 view and slots of ONE TRUST

081

  • →
  • →

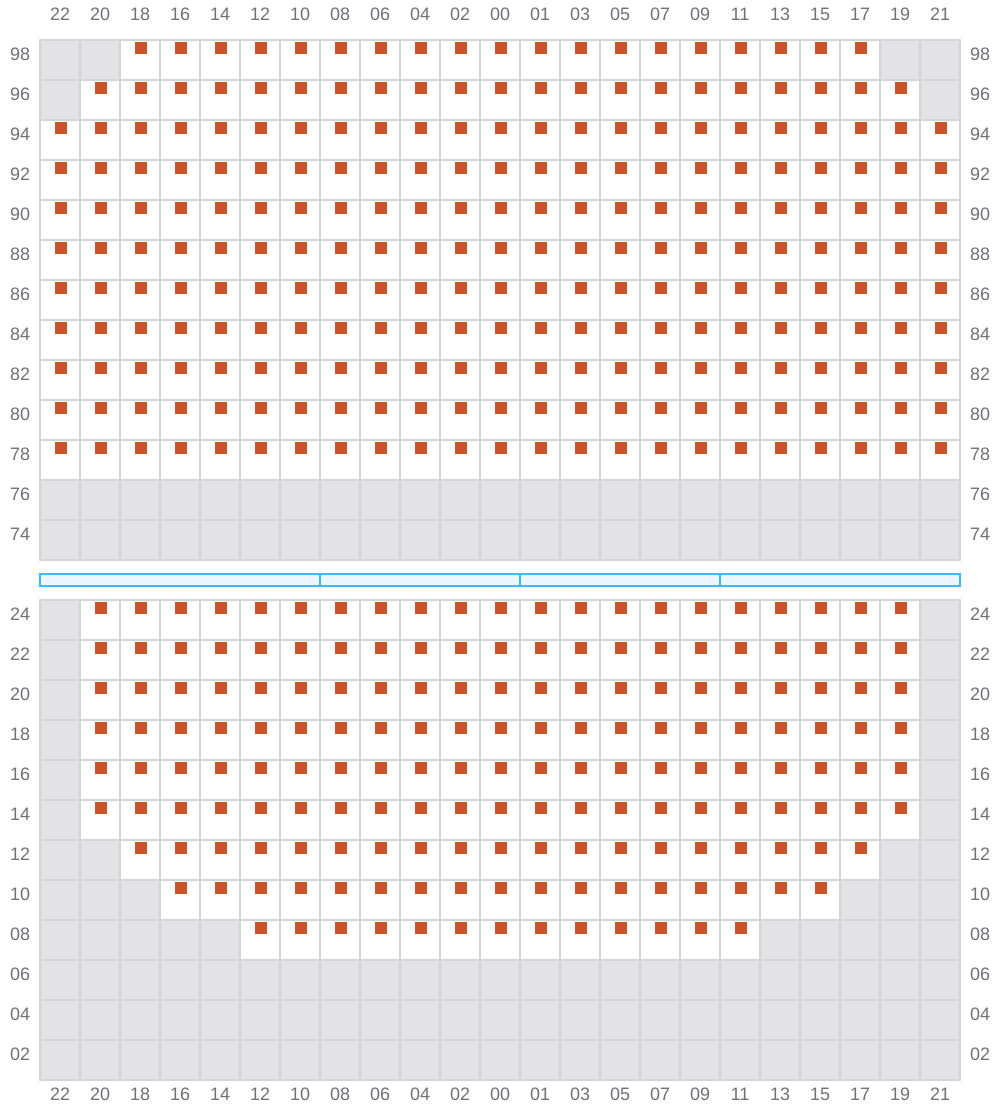

Bay 081 view and slots of ONE TRUST

083 (082)

  • ←
  • → / ?
  • →

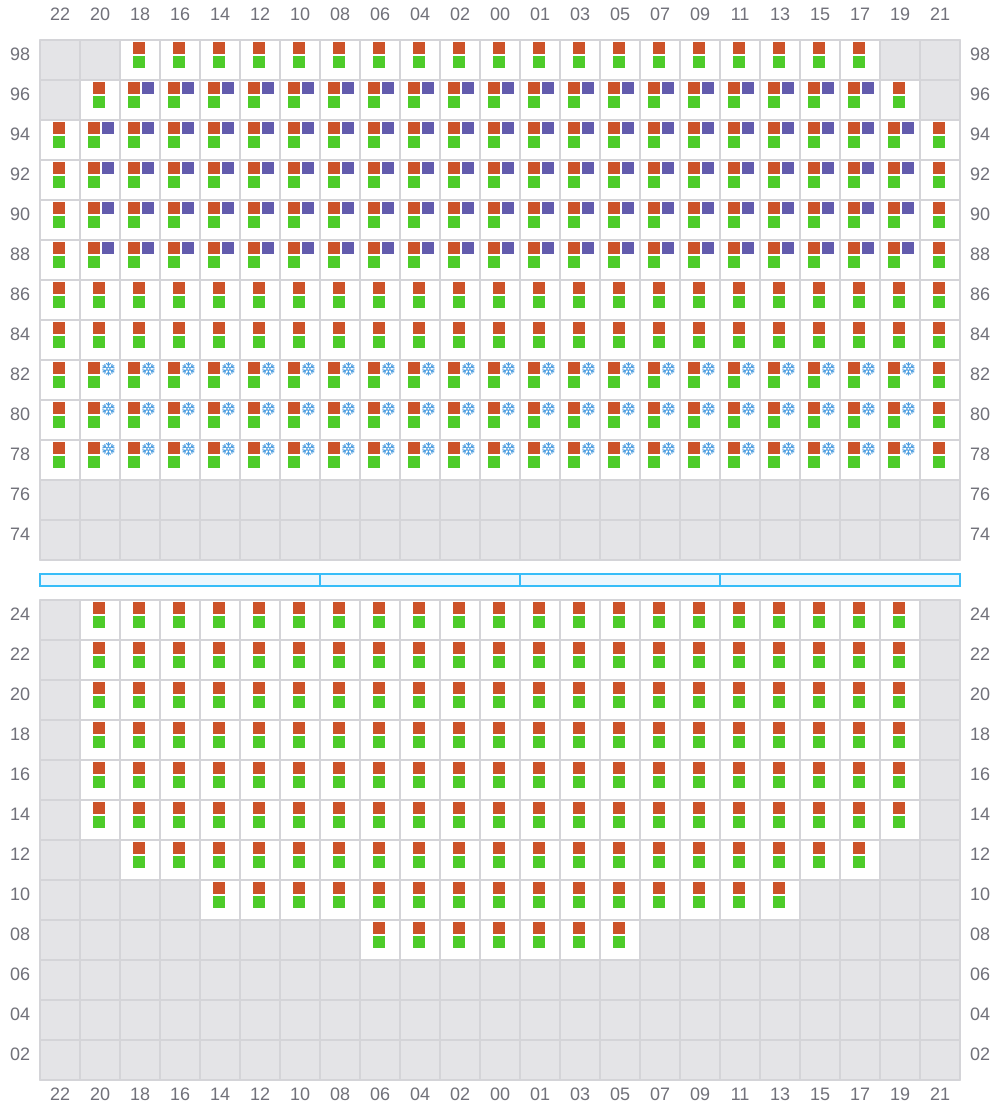

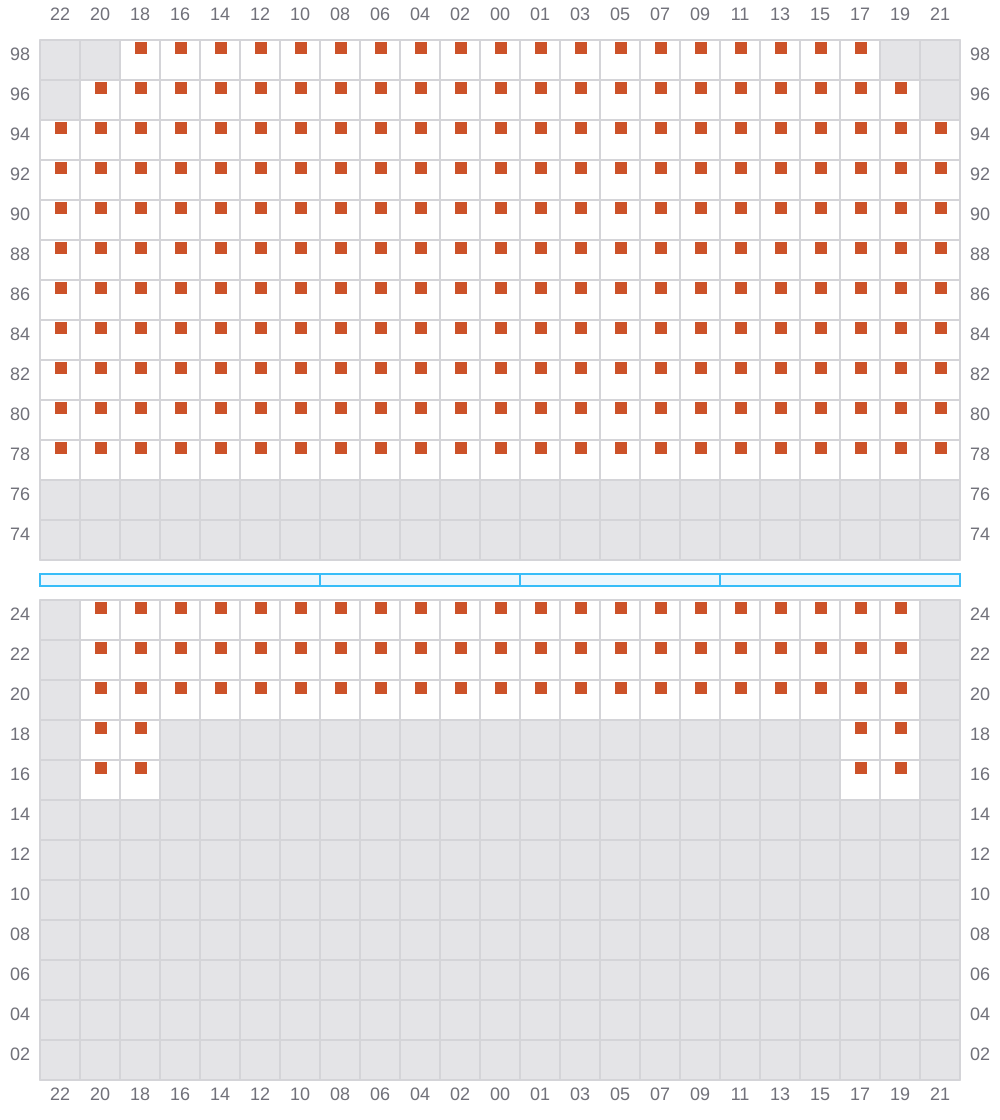

Bay 083 view and slots of ONE TRUST

085

  • →
  • →

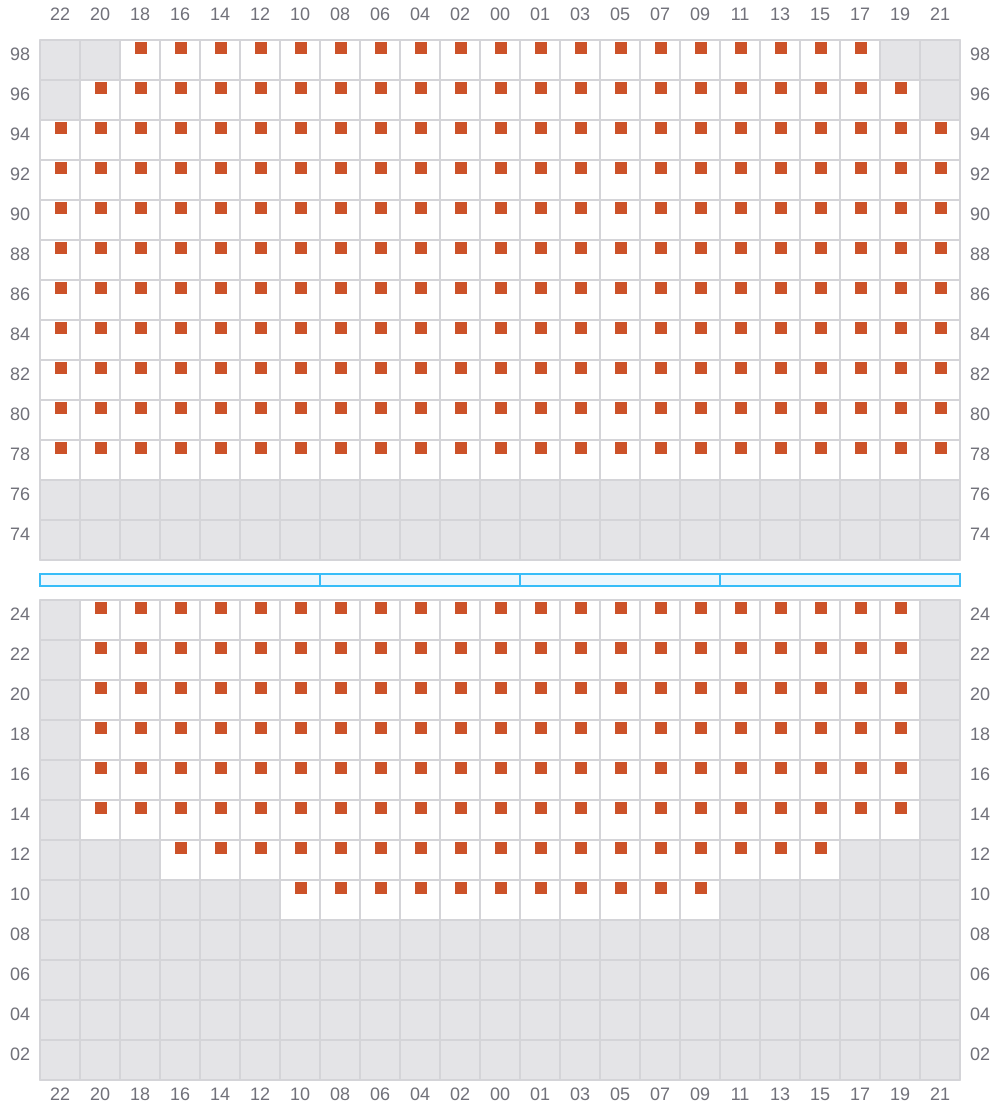

Bay 085 view and slots of ONE TRUST

087 (086)

  • ←
  • → / ?
  • →
Bay 087 view and slots of ONE TRUST

089

  • →
  • →

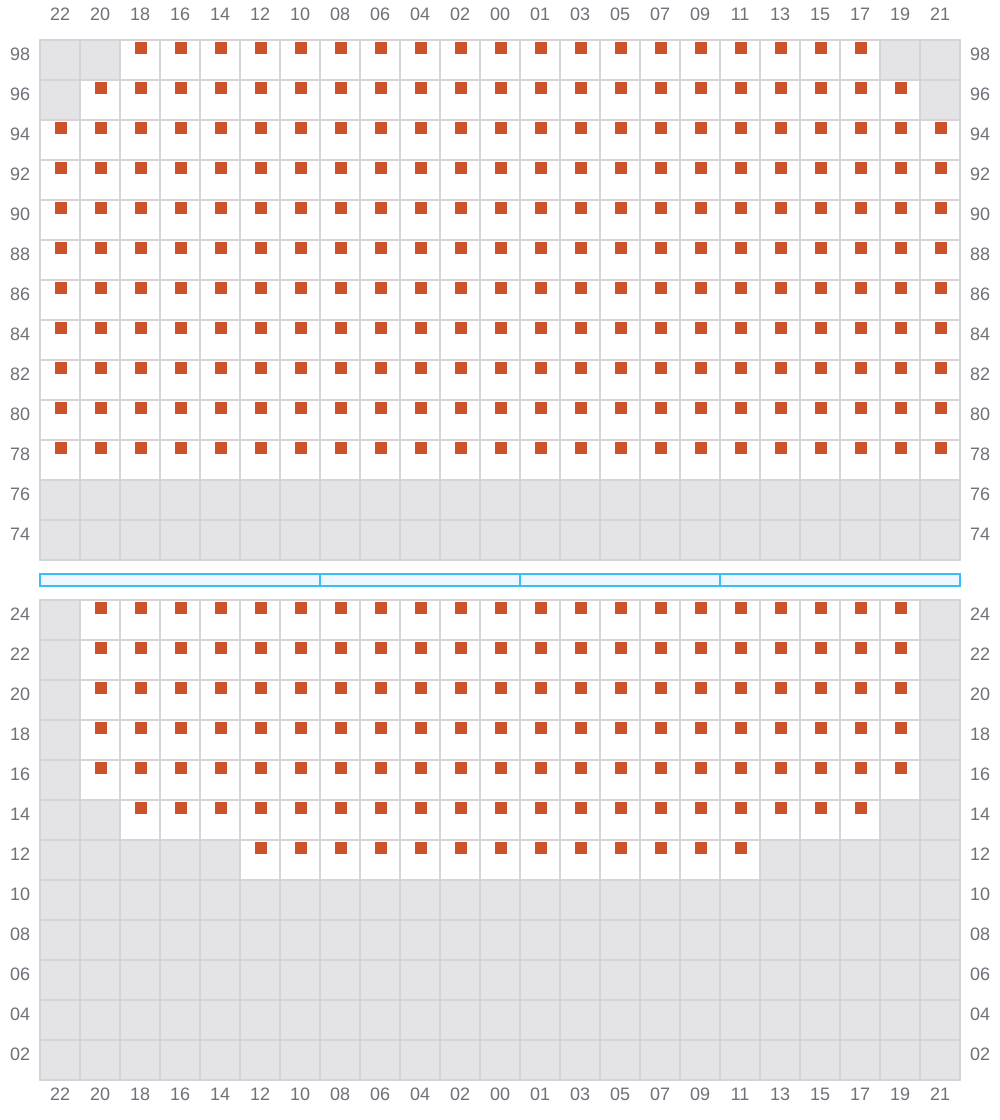

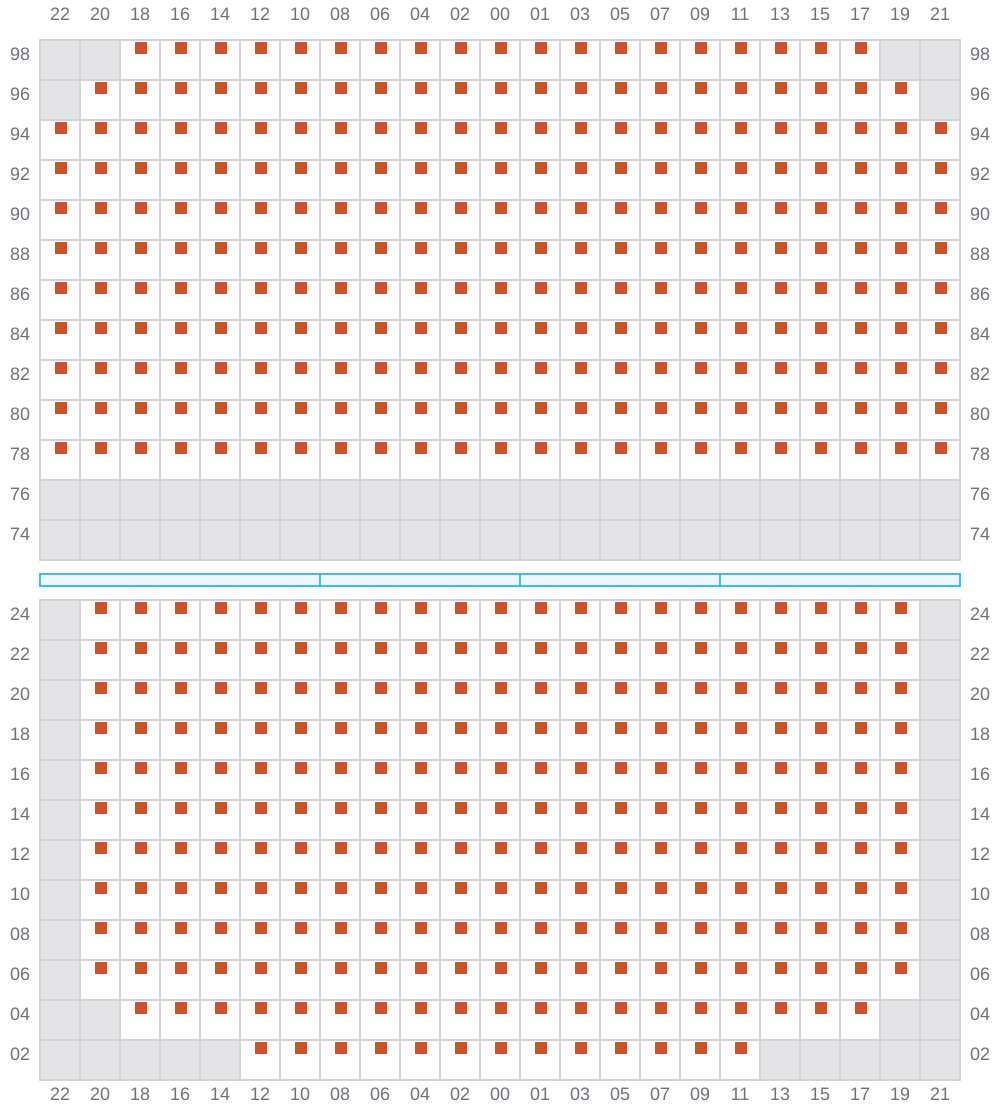

Bay 089 view and slots of ONE TRUST

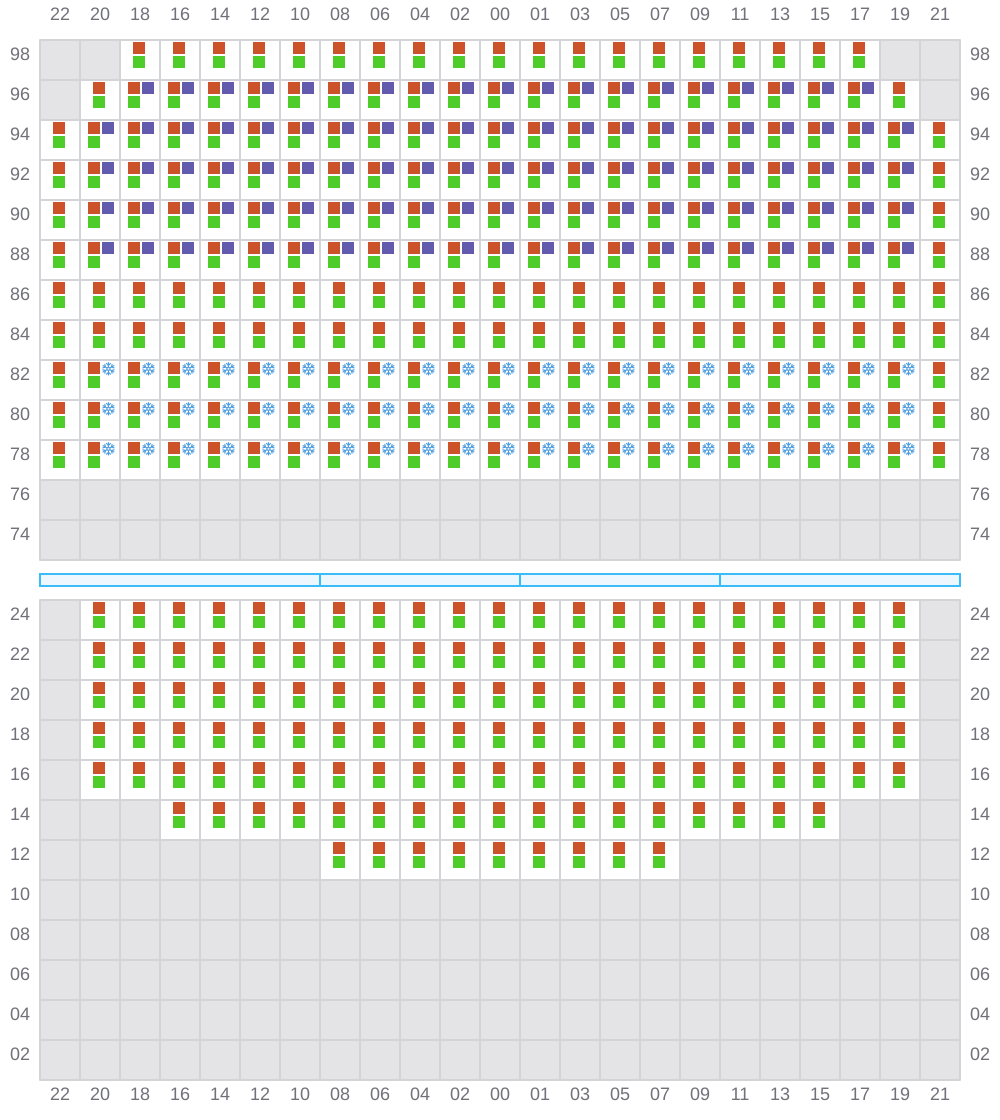

091 (090)

  • ←
  • → / ?
  • →
Bay 091 view and slots of ONE TRUST

093 (094)

  • → / ?
  • → / ?
  • → / ?

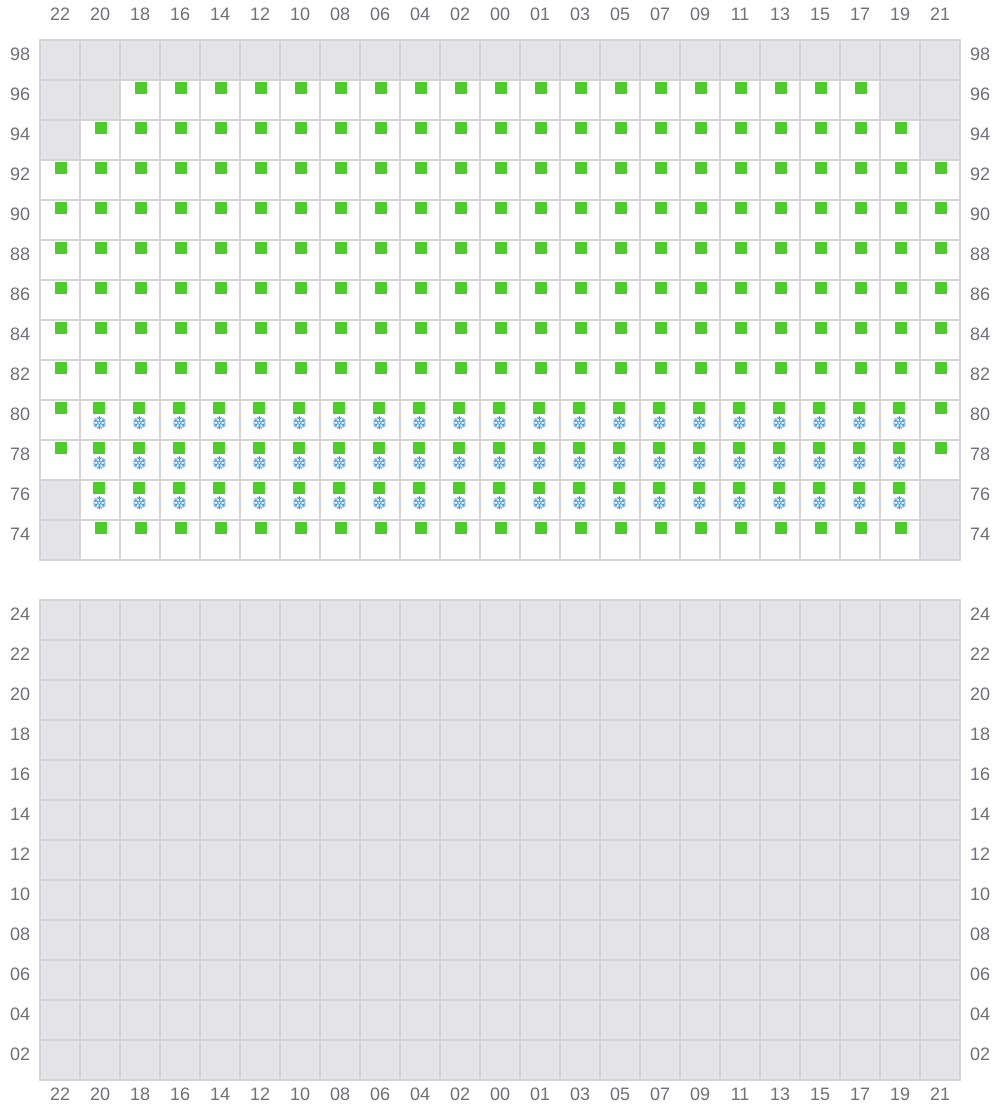

Bay 093 view and slots of ONE TRUST
