ONE TRUTH
9773210 | 3FBJ9 | MOL by *********************** Last update: Mon Feb 10 2025

General Info

Ship Name:ONE TRUTH
IMO Code:9773210
Call Sign:3FBJ9
Line Operator:MOL
Class Name for Sister Ships:MTRH
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):383.40
LOA (Length Overall):399.96
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:22
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:24
Min Below ISO Tier:02
Total TEU:20,212

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of ONE TRUTH

Hatch-Covers View

Deck view of ONE TRUTH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • →

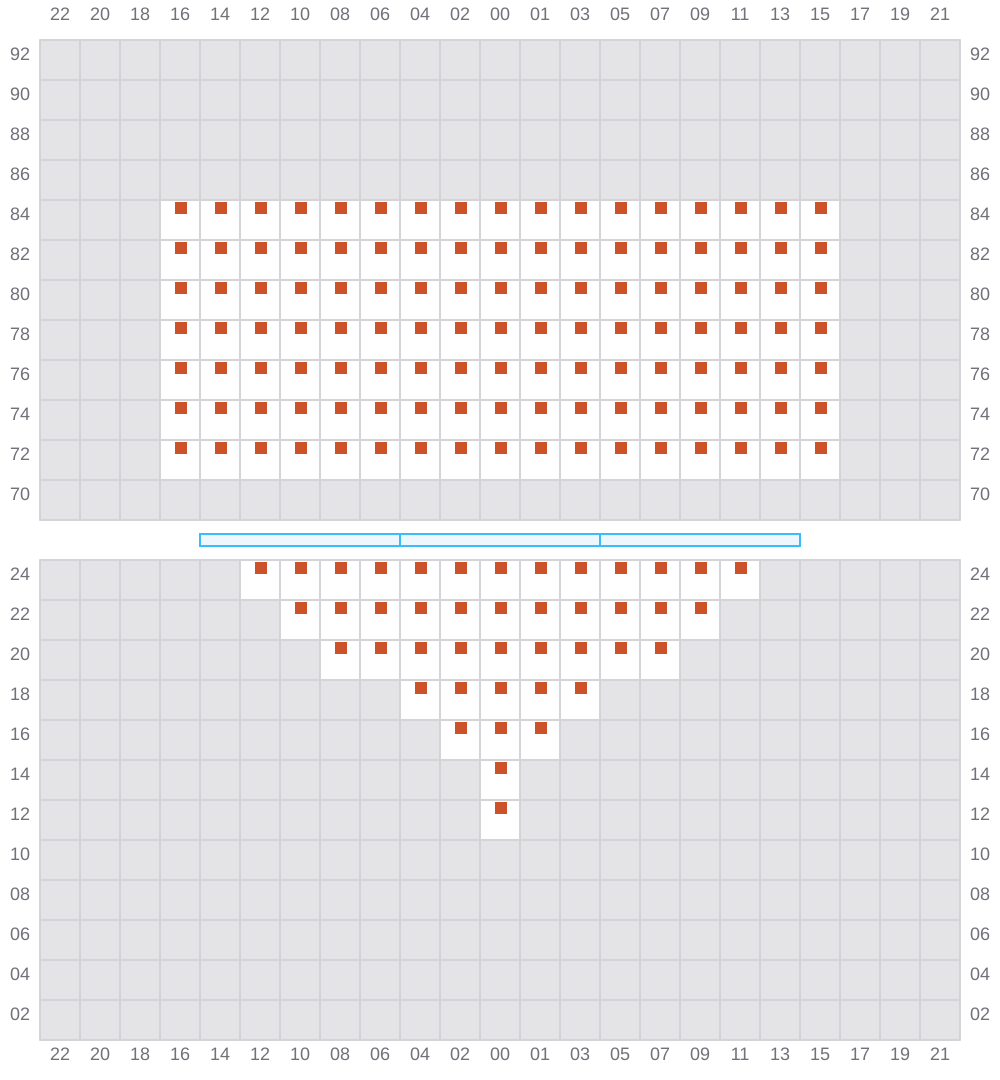

Bay 001 view and slots of ONE TRUTH

003 (002)

  • ←
  • →

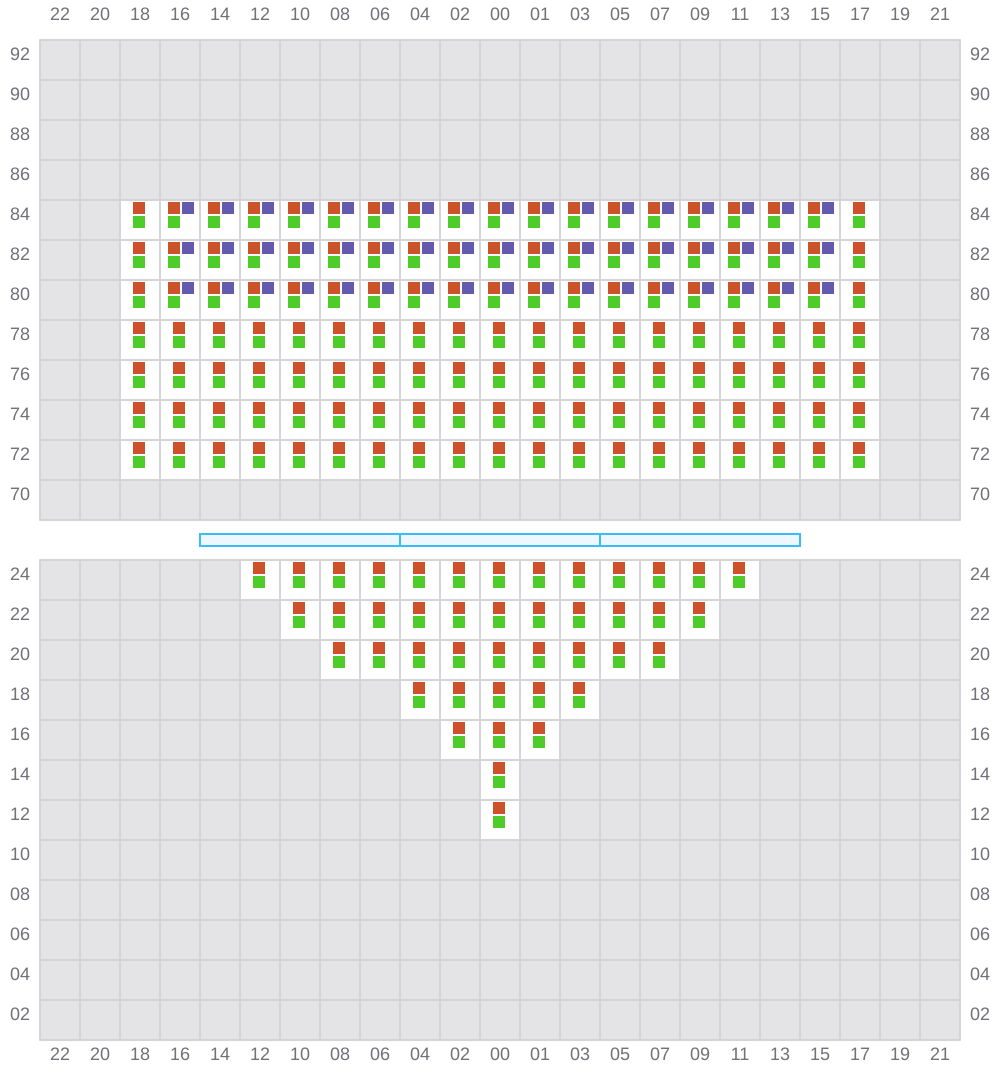

Bay 003 view and slots of ONE TRUTH

005

  • →
  • →

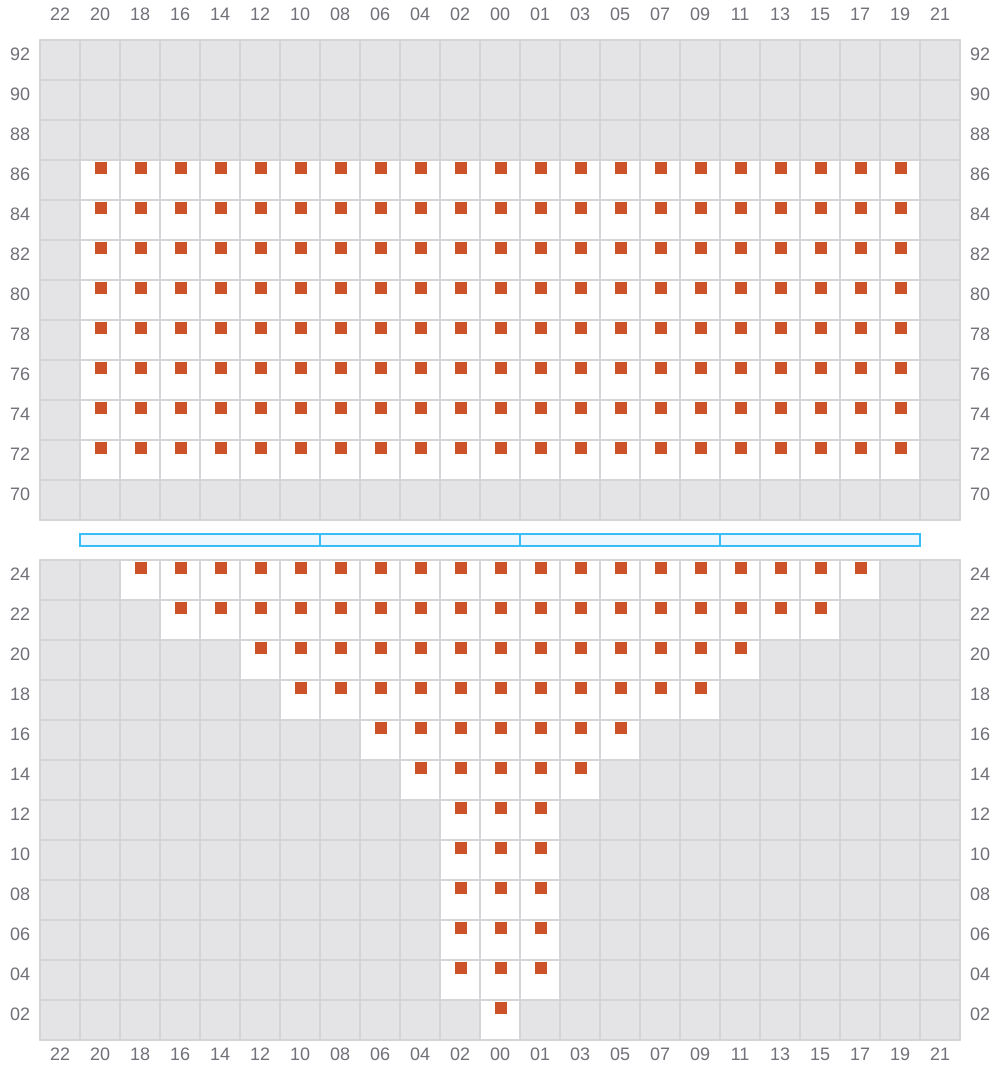

Bay 005 view and slots of ONE TRUTH

007 (006)

  • ←
  • → / ?
  • →

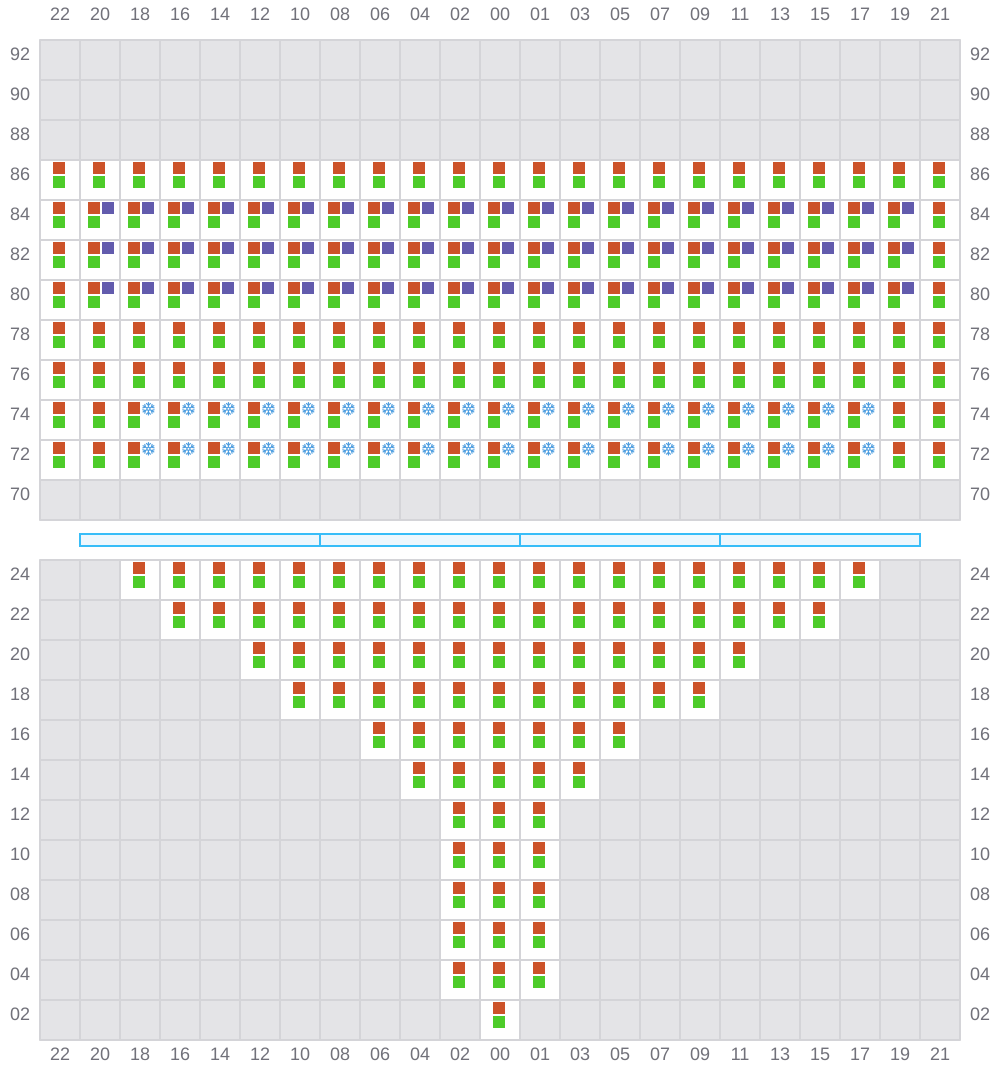

Bay 007 view and slots of ONE TRUTH

009

  • →
  • →

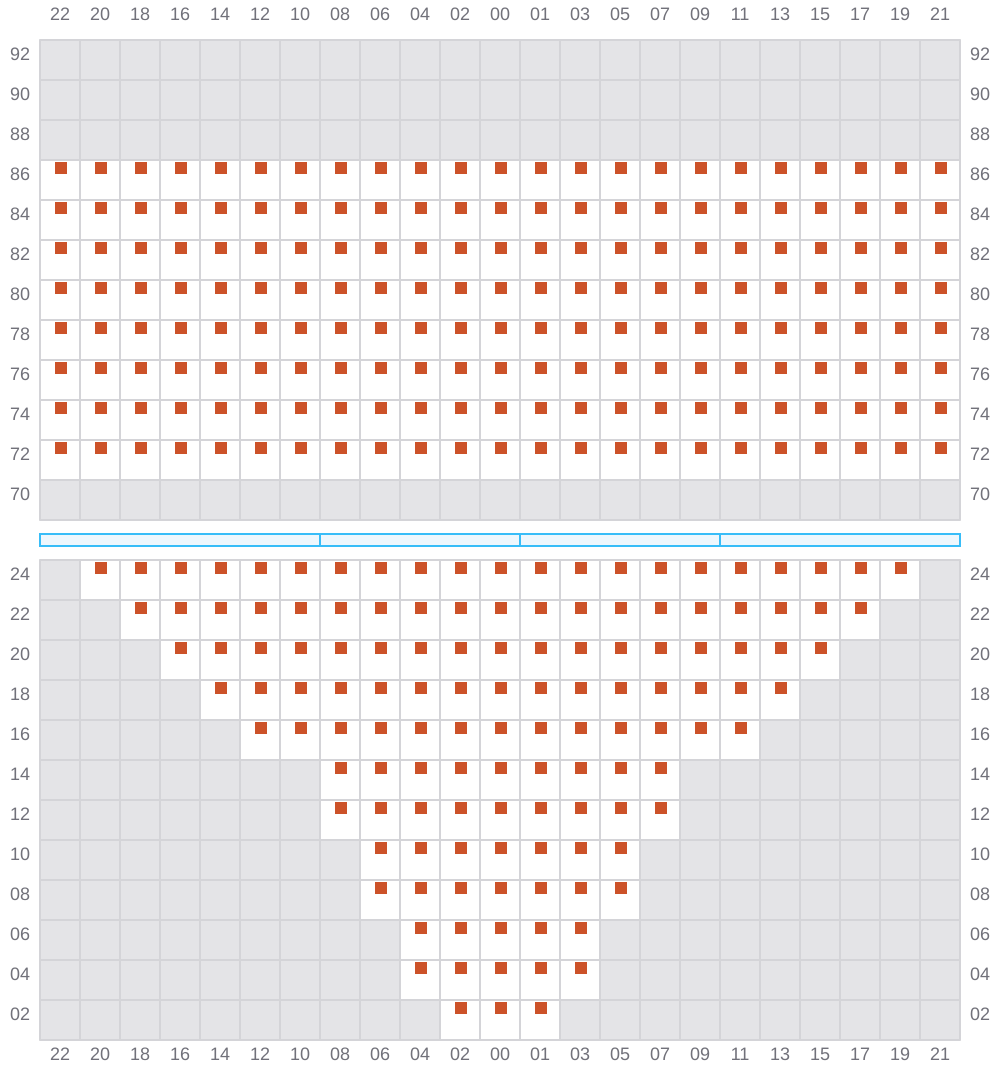

Bay 009 view and slots of ONE TRUTH

011 (010)

  • ←
  • → / ?
  • →

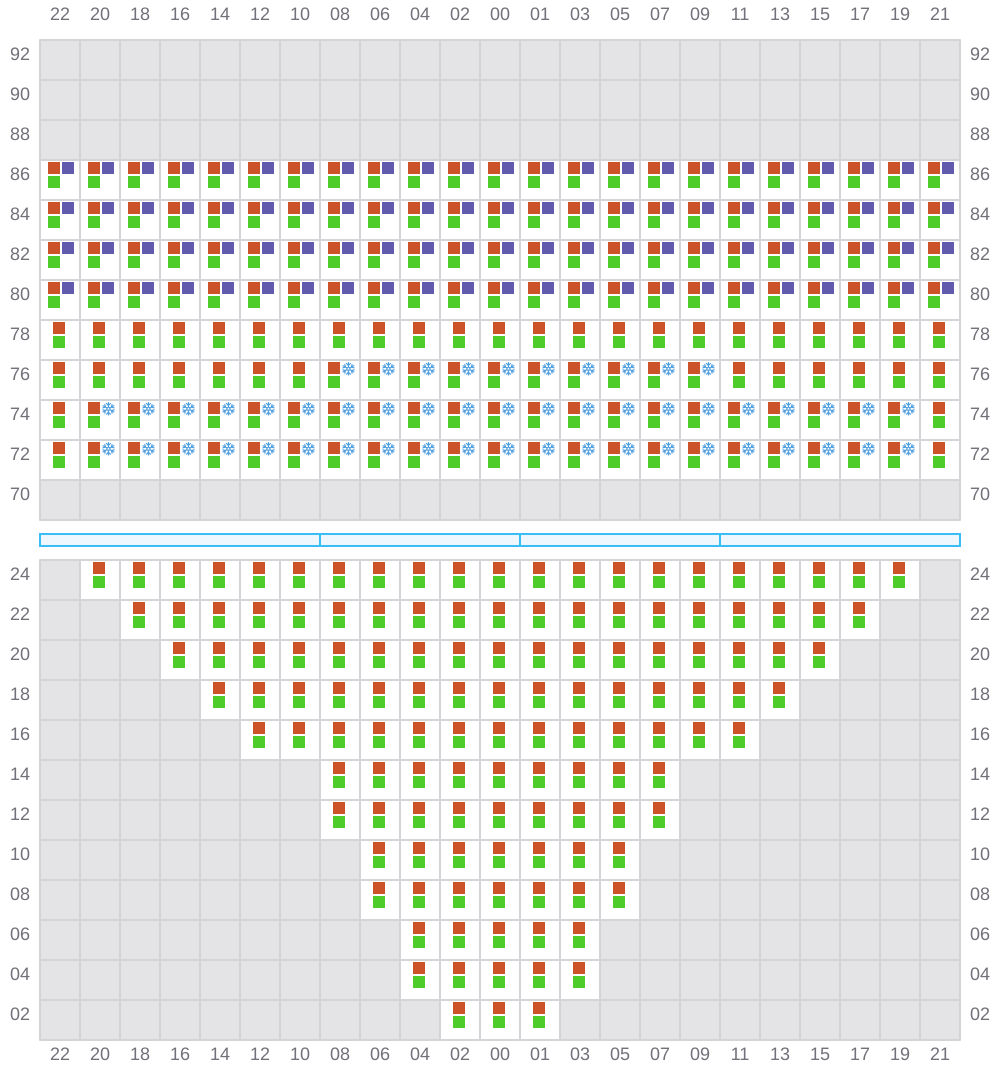

Bay 011 view and slots of ONE TRUTH

013

  • →
  • →

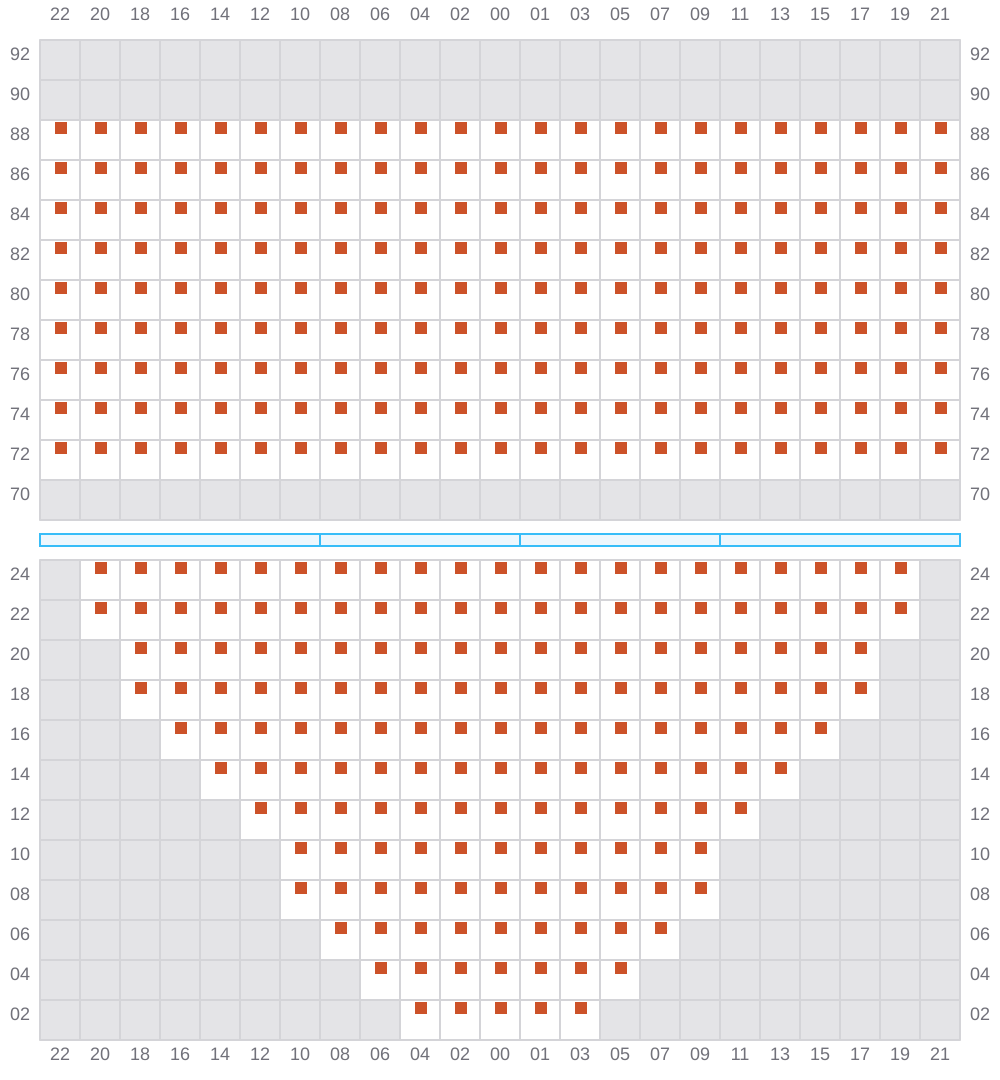

Bay 013 view and slots of ONE TRUTH

015 (014)

  • ←
  • → / ?
  • →

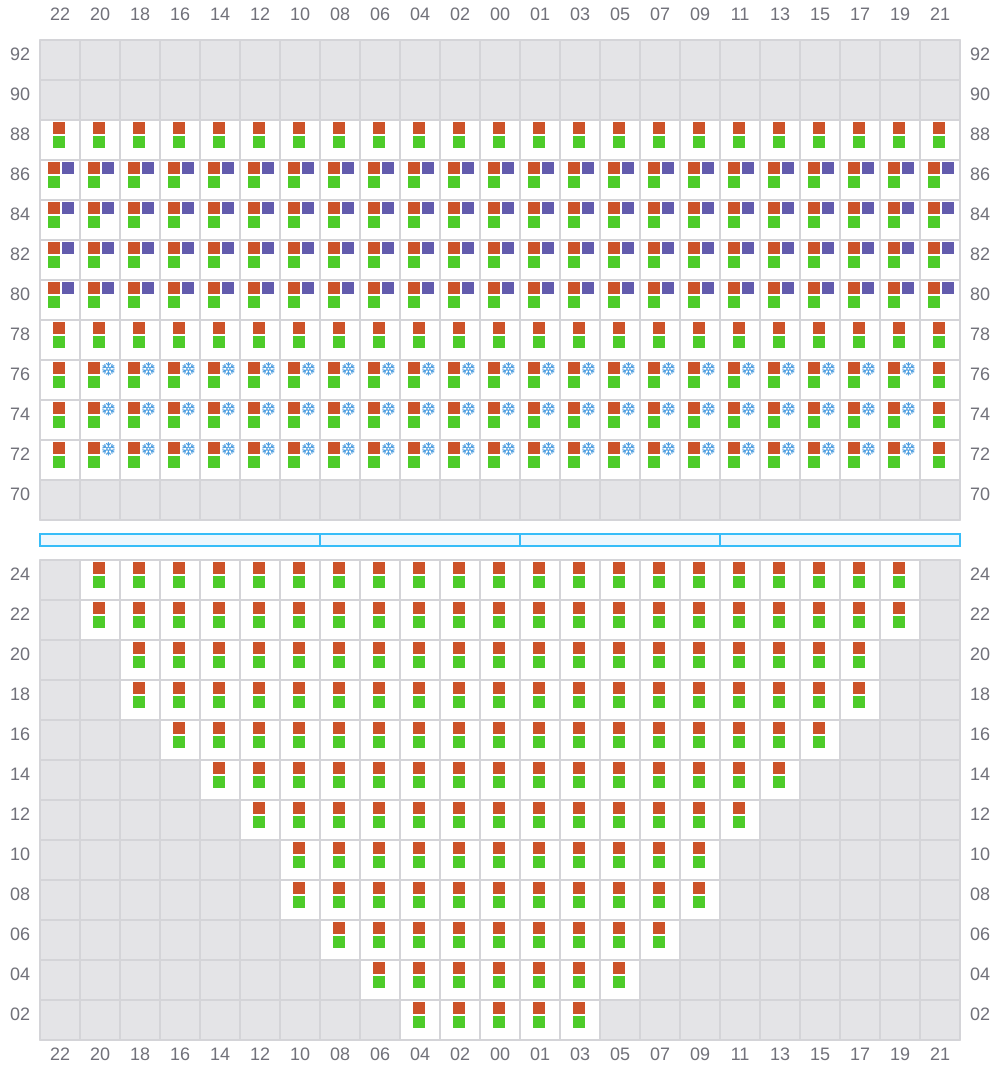

Bay 015 view and slots of ONE TRUTH

017

  • →
  • →

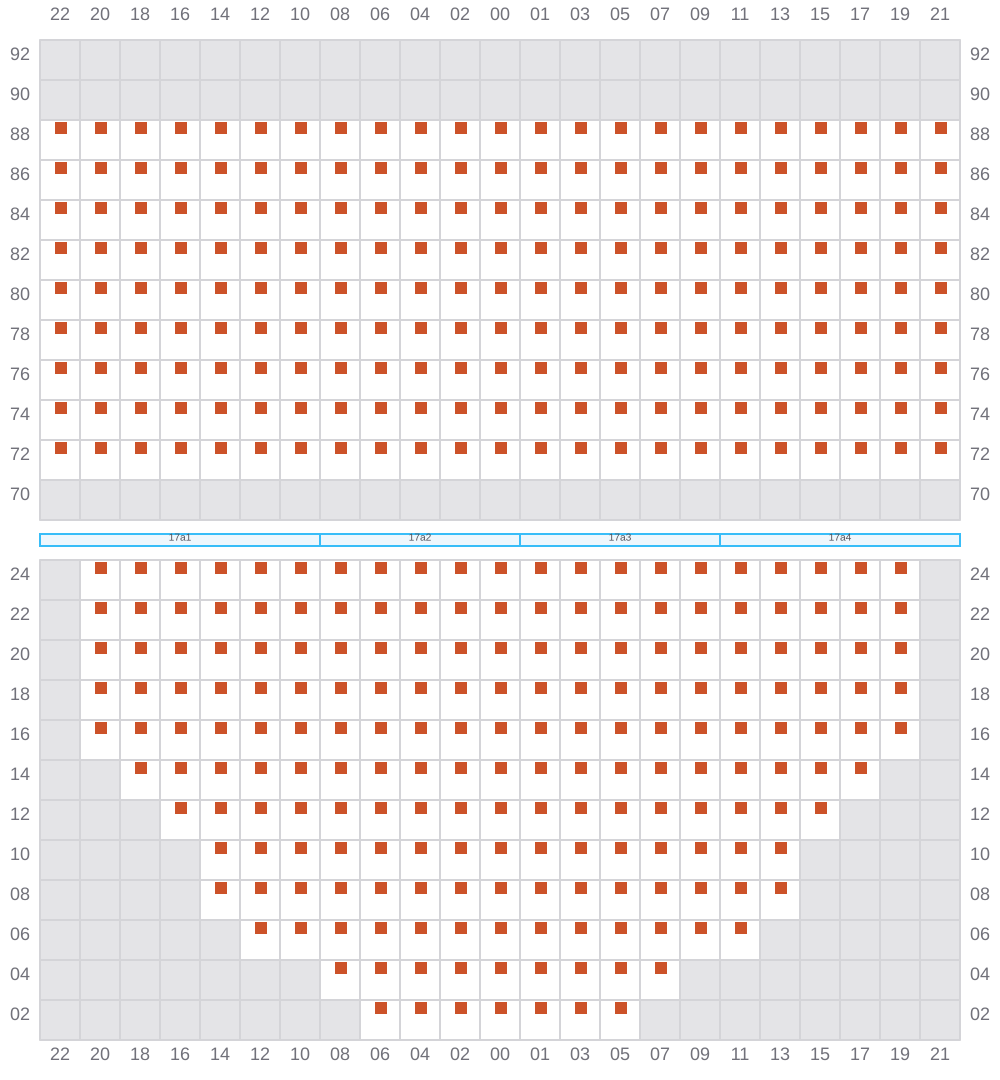

Bay 017 view and slots of ONE TRUTH

019 (018)

  • ←
  • → / ?
  • →

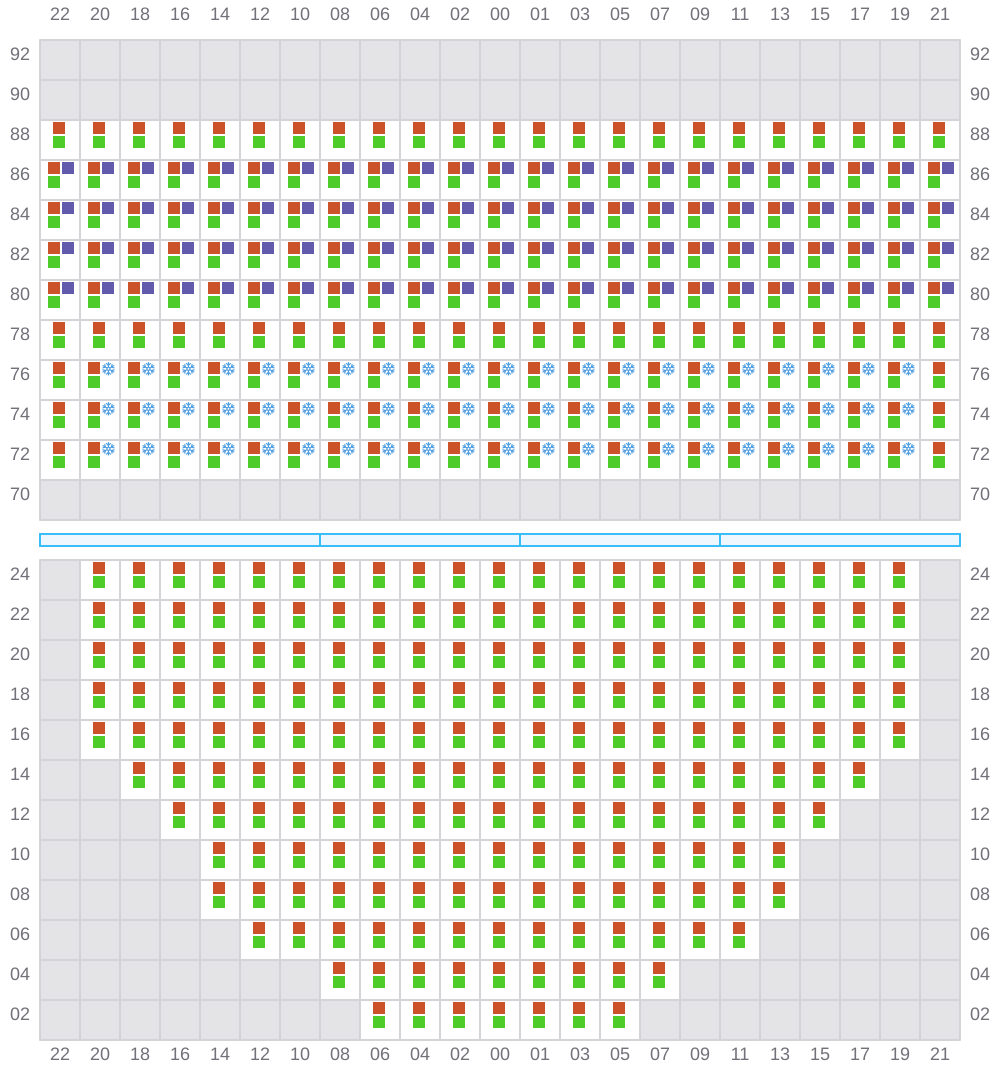

Bay 019 view and slots of ONE TRUTH

021

  • →
  • →

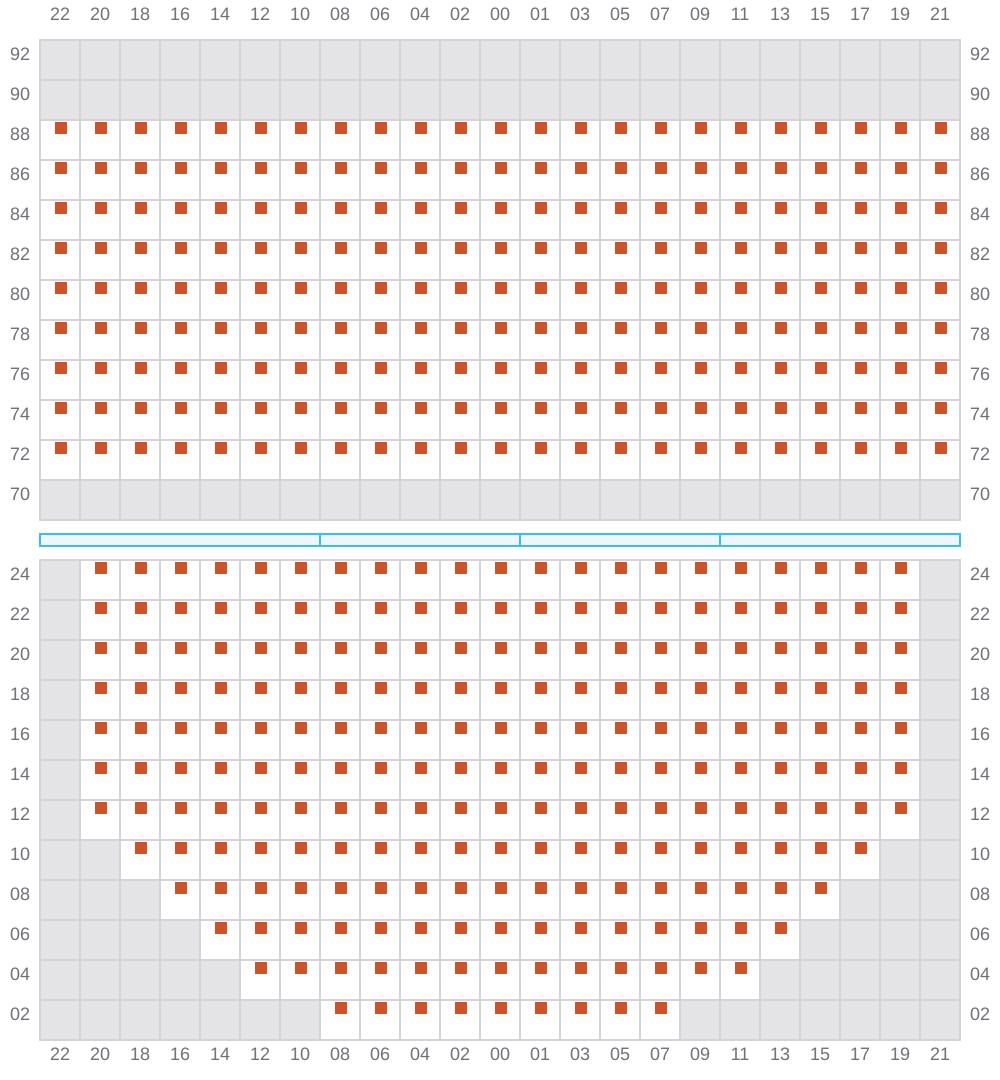

Bay 021 view and slots of ONE TRUTH

023 (022)

  • ←
  • → / ?
  • →

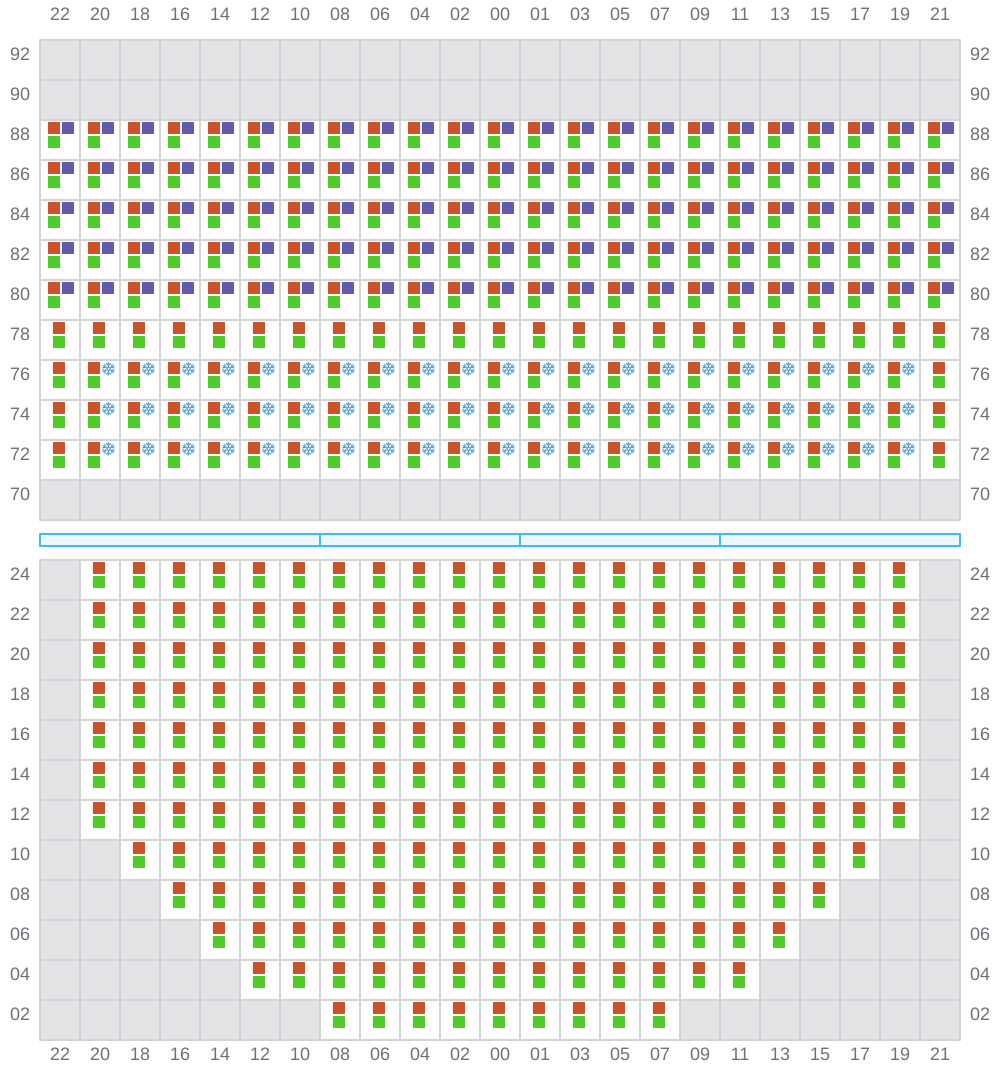

Bay 023 view and slots of ONE TRUTH

025

  • →
  • →

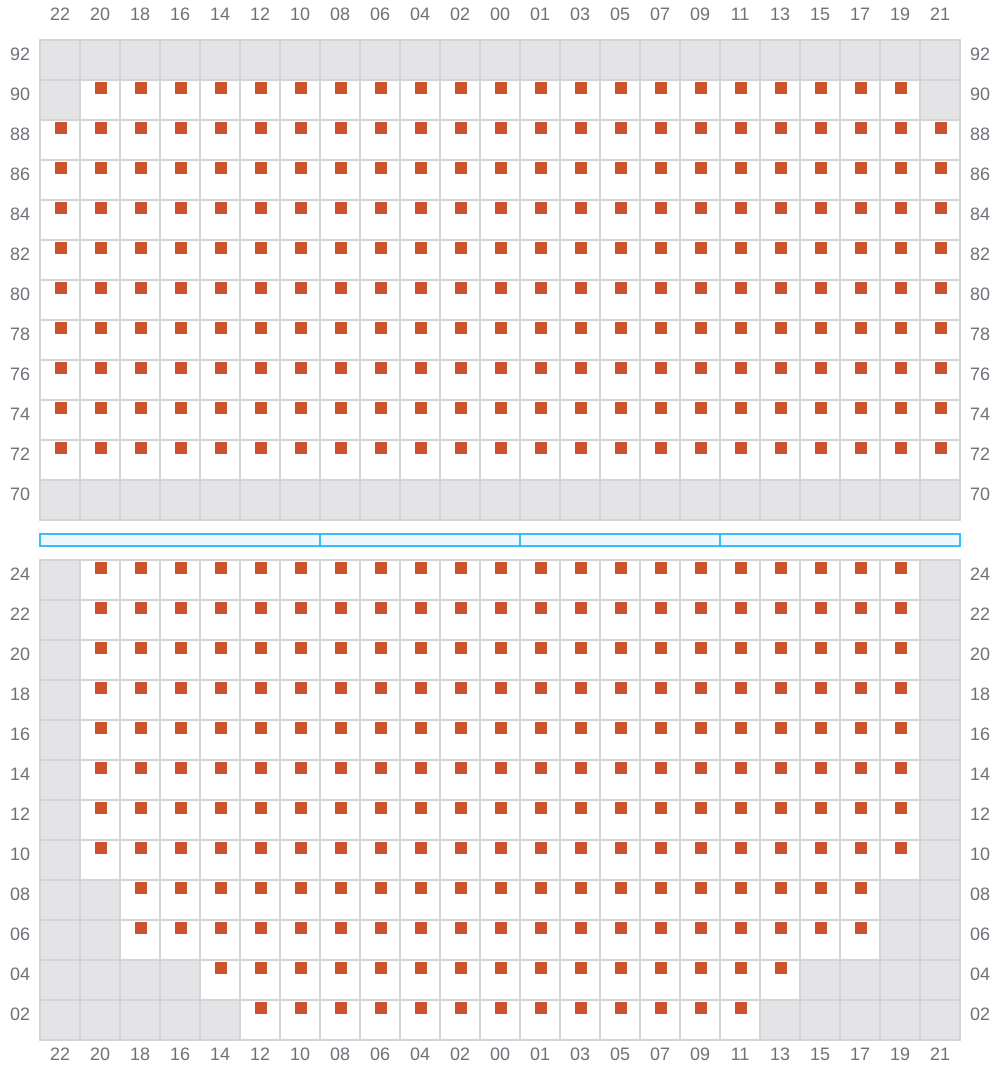

Bay 025 view and slots of ONE TRUTH

027 (026)

  • ←
  • → / ?
  • →

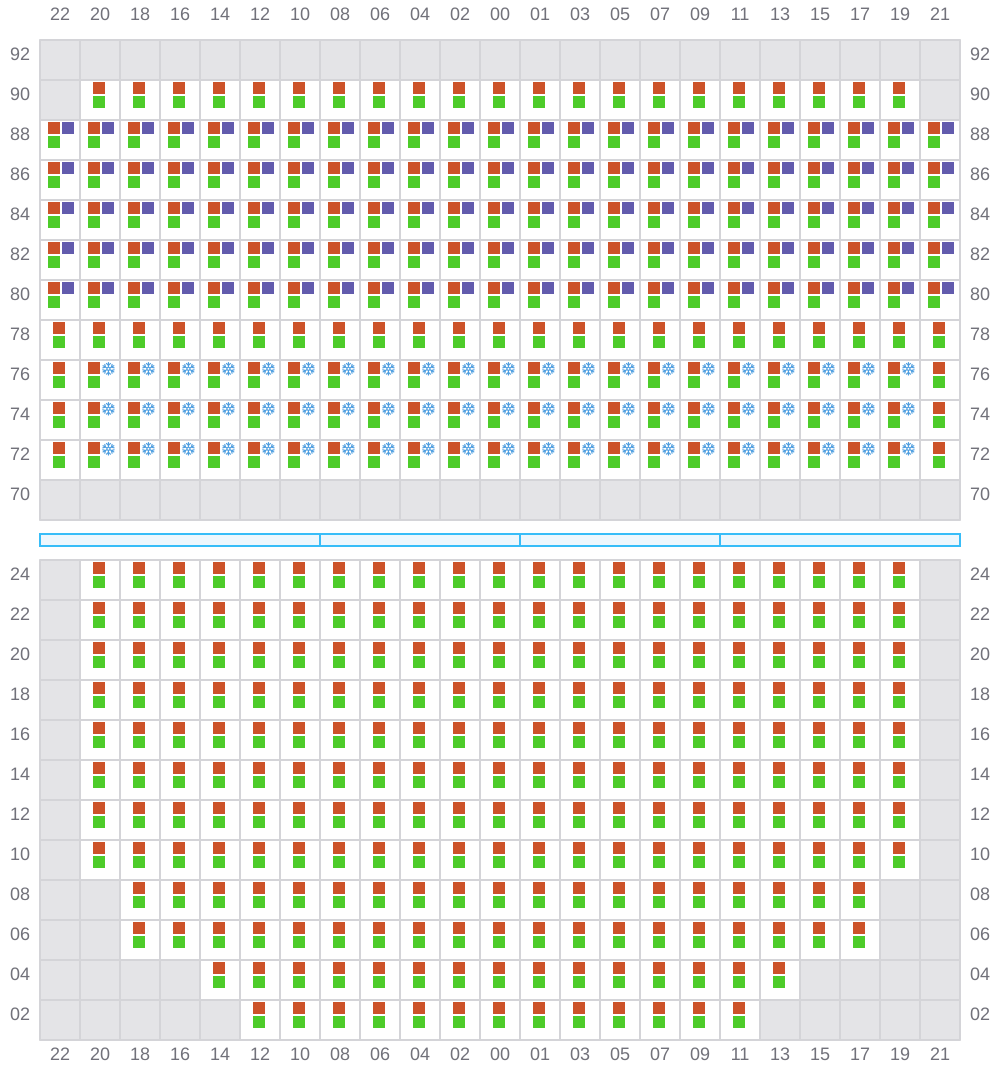

Bay 027 view and slots of ONE TRUTH

029 (030)

  • →
  • → / ?
  • →

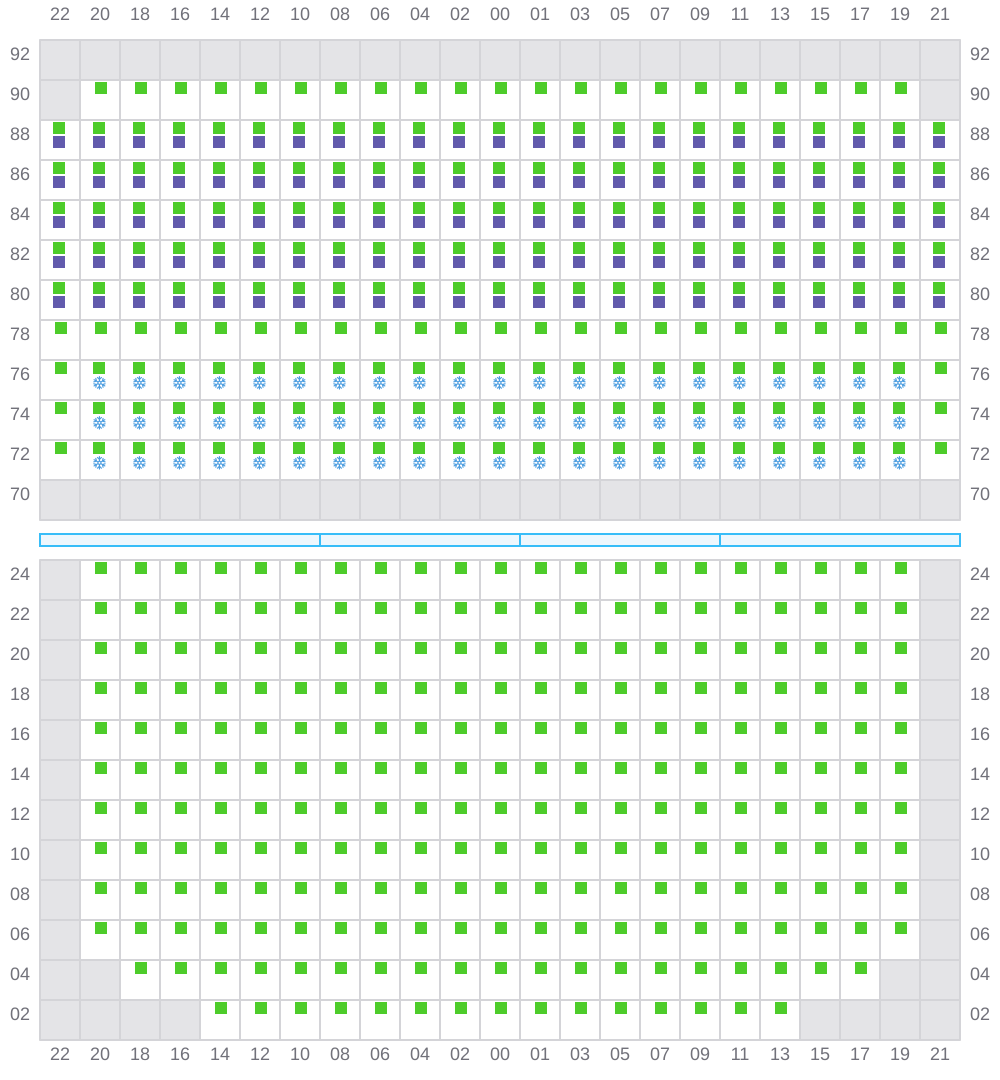

Bay 029 view and slots of ONE TRUTH

031

Bay 031 view and slots of ONE TRUTH

033 (034)

  • →
  • → / ?
  • →

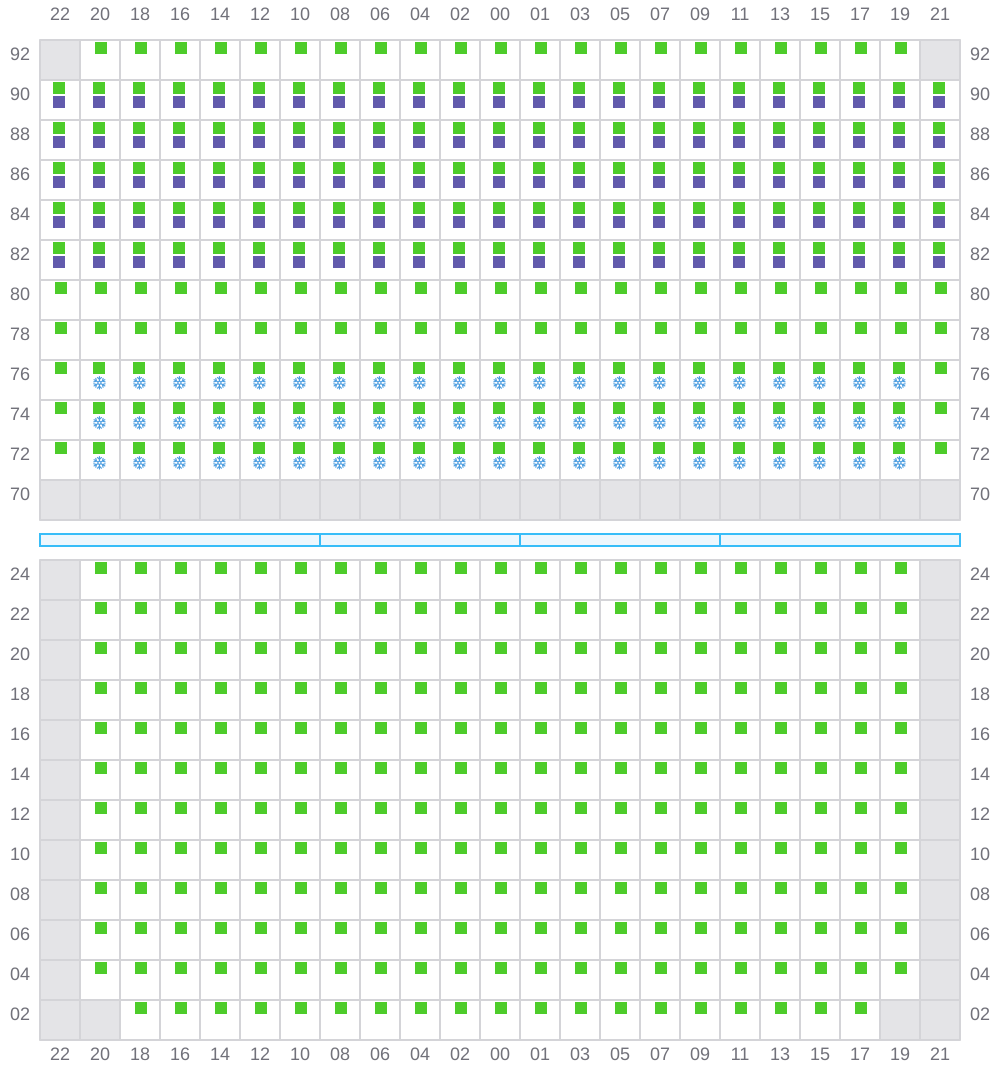

Bay 033 view and slots of ONE TRUTH

035

Bay 035 view and slots of ONE TRUTH

037

  • →
  • →
Bay 037 view and slots of ONE TRUTH

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of ONE TRUTH

041

  • →
  • →
Bay 041 view and slots of ONE TRUTH

043 (042)

  • ←
  • → / ?
  • →

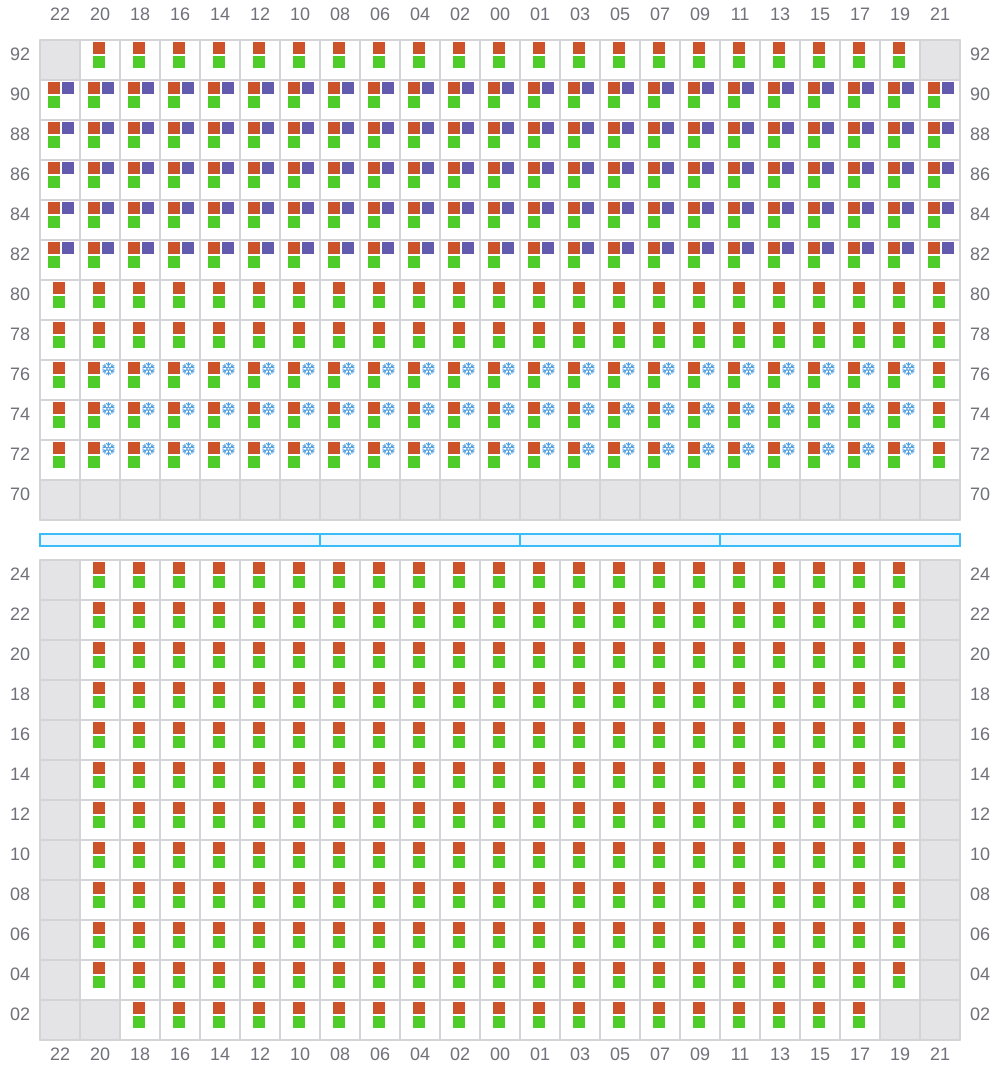

Bay 043 view and slots of ONE TRUTH

045

  • →
  • →
Bay 045 view and slots of ONE TRUTH

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of ONE TRUTH

049

  • →
  • →
Bay 049 view and slots of ONE TRUTH

051 (050)

  • ←
  • → / ?
  • →
Bay 051 view and slots of ONE TRUTH

053

  • →
  • →
Bay 053 view and slots of ONE TRUTH

055 (054)

  • ←
  • →
  • →

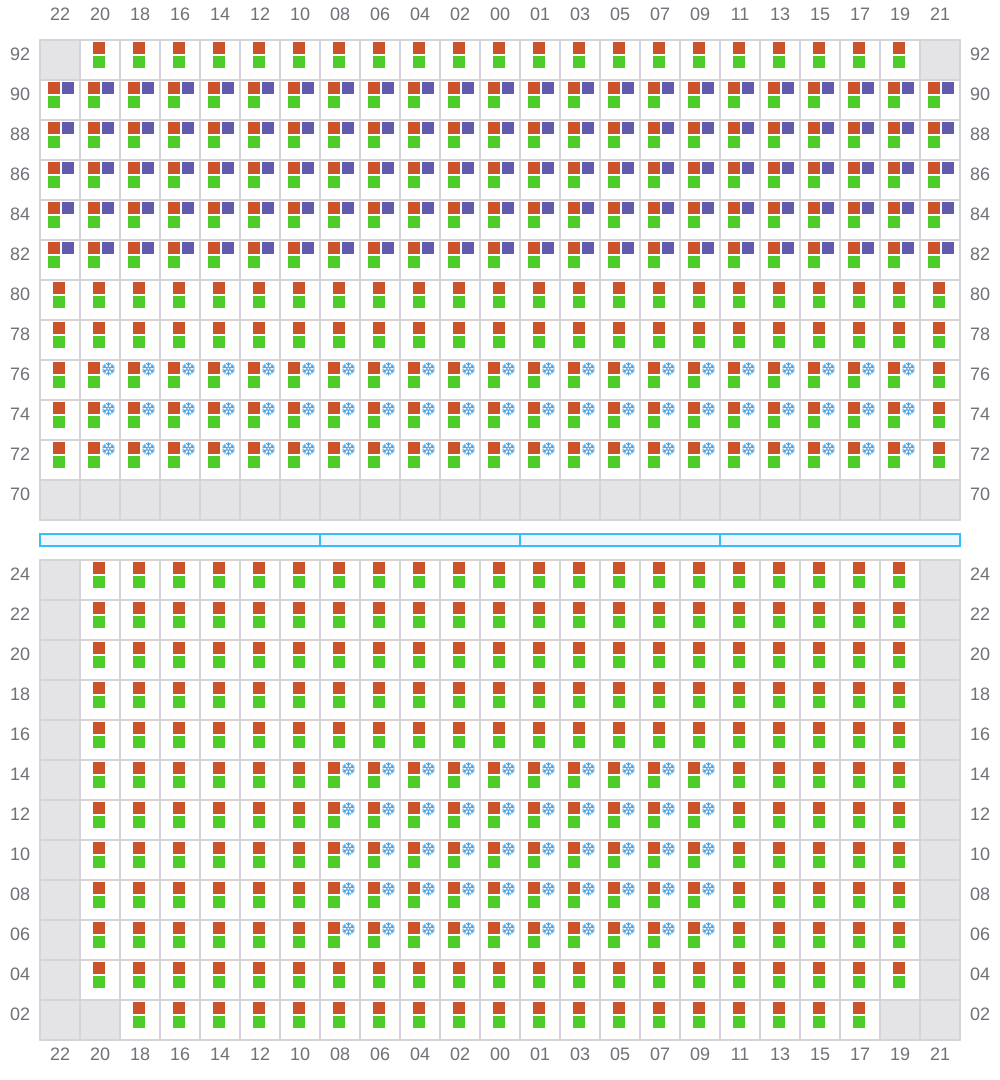

Bay 055 view and slots of ONE TRUTH

057

  • →
  • →
Bay 057 view and slots of ONE TRUTH

059 (058)

  • ←
  • → / ?
  • →
Bay 059 view and slots of ONE TRUTH

061

  • →
  • →

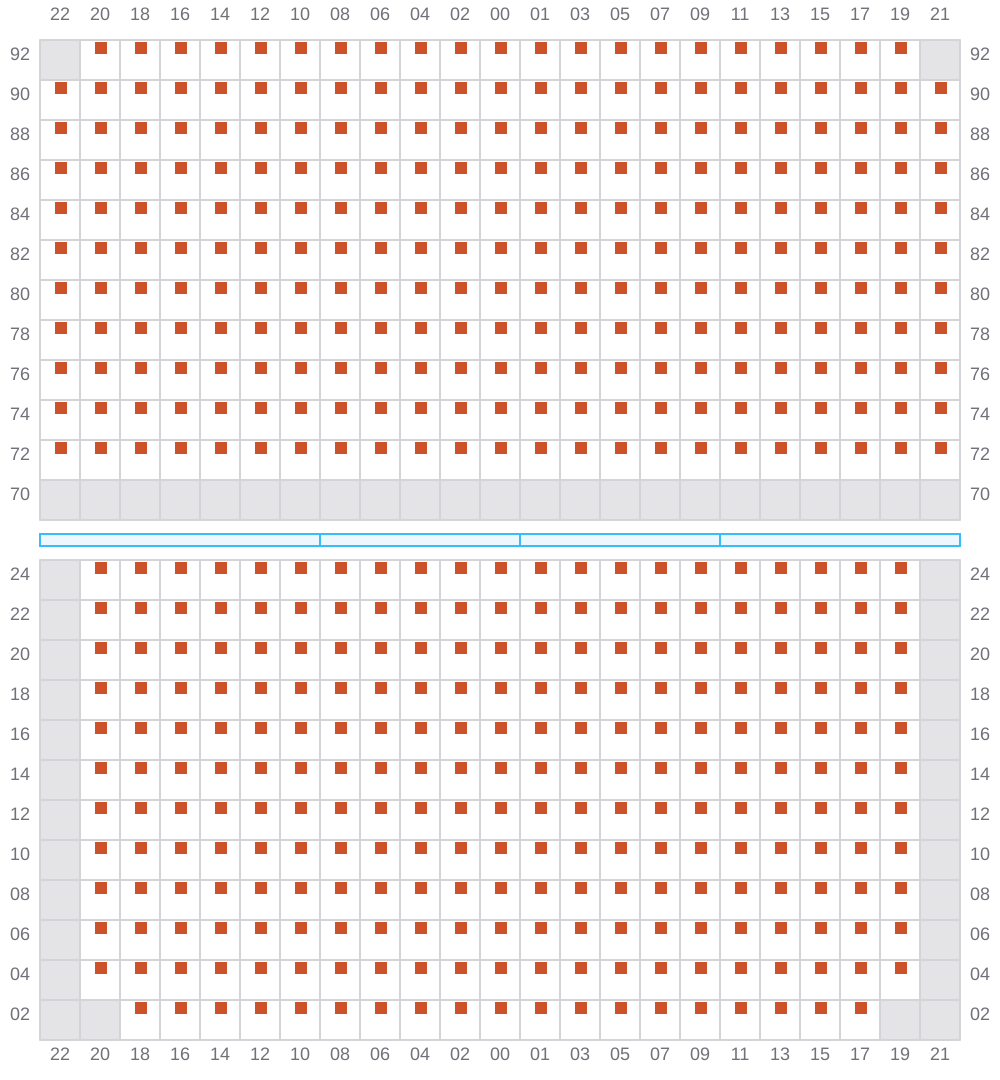

Bay 061 view and slots of ONE TRUTH

063 (062)

  • ←
  • →
  • →
Bay 063 view and slots of ONE TRUTH

065

  • →
  • →

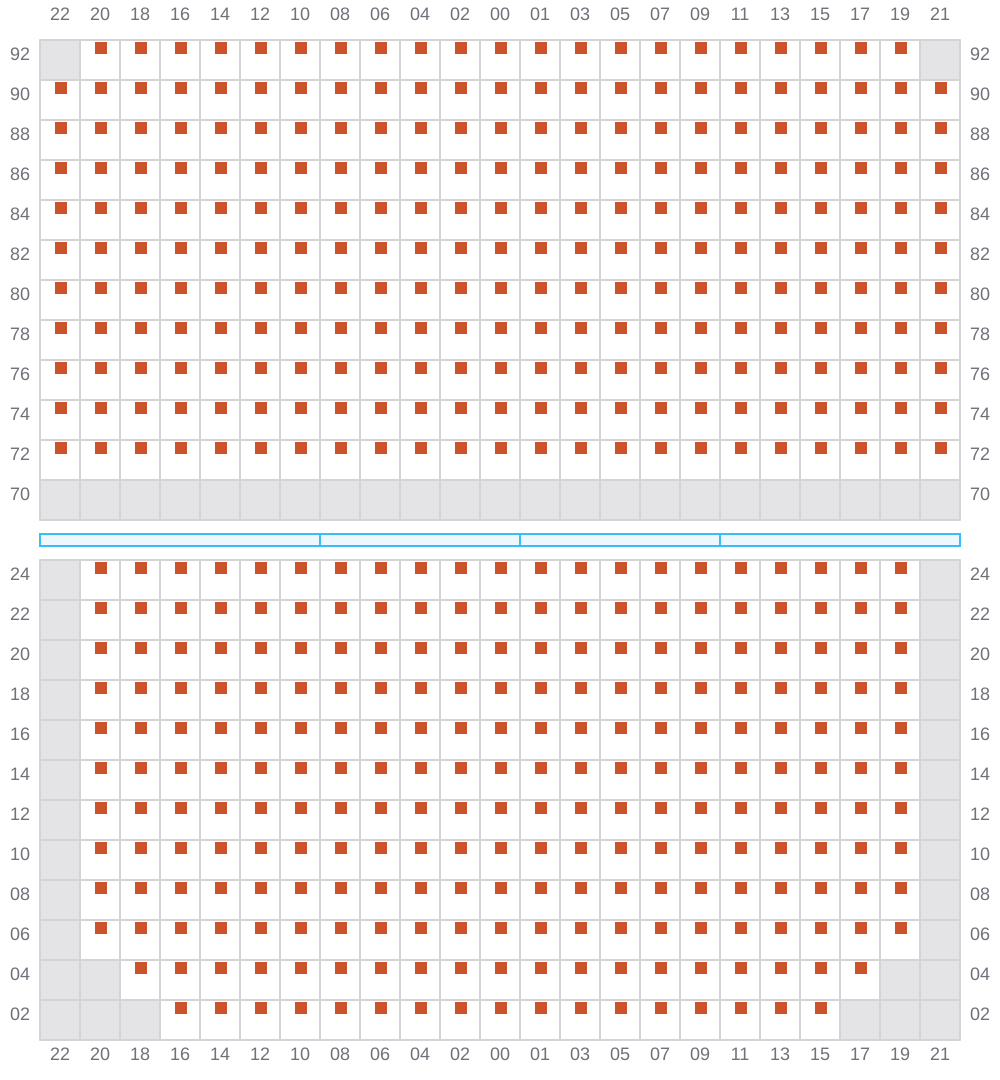

Bay 065 view and slots of ONE TRUTH

067 (066)

  • ←
  • → / ?
  • →

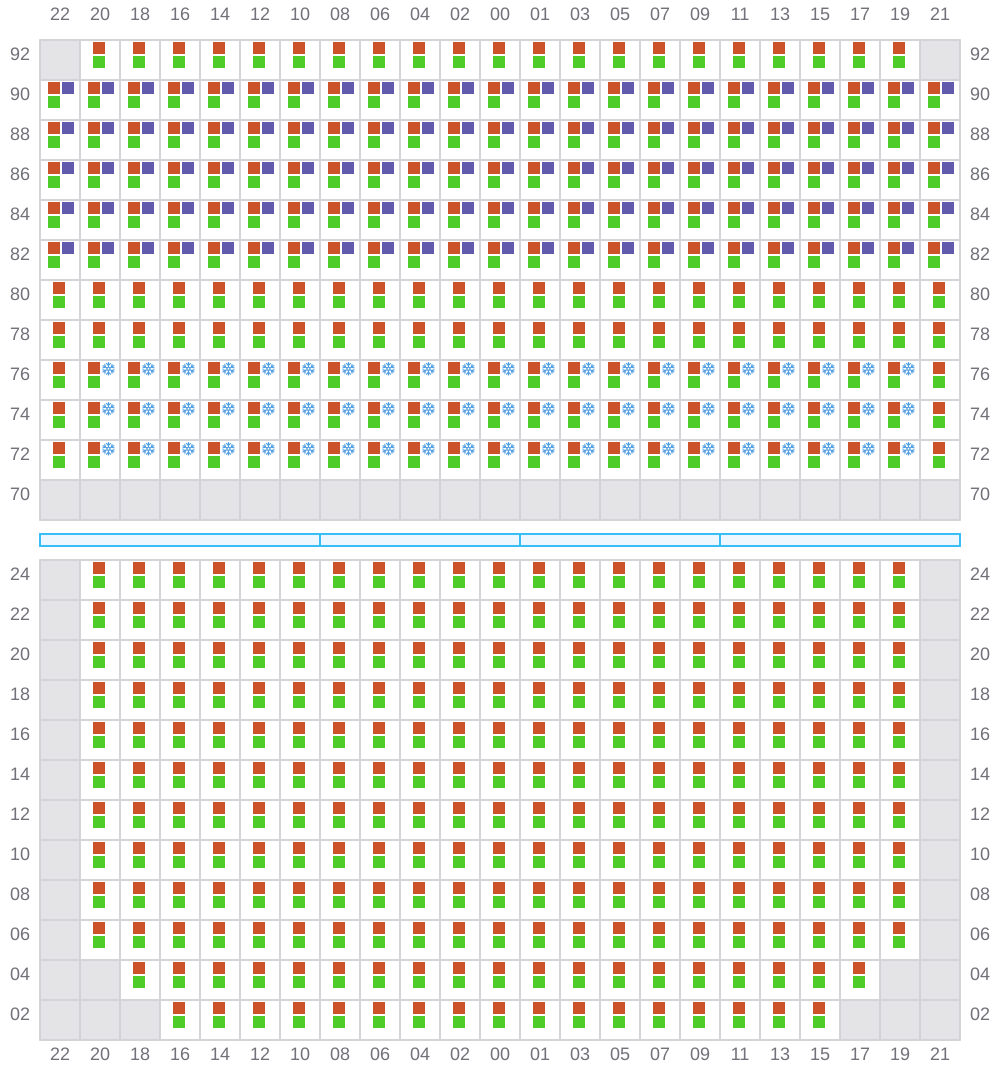

Bay 067 view and slots of ONE TRUTH

069

  • →
  • →

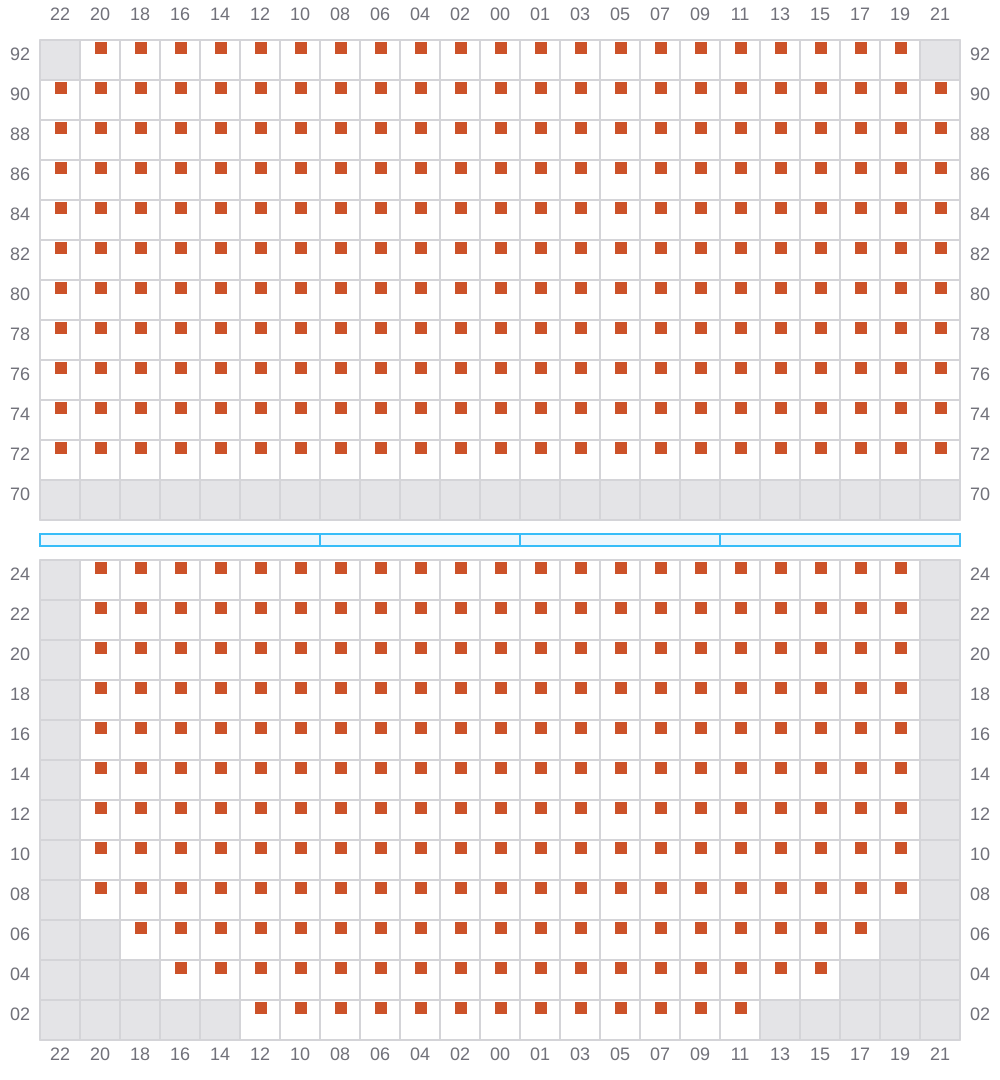

Bay 069 view and slots of ONE TRUTH

071 (070)

  • ←
  • → / ?
  • →

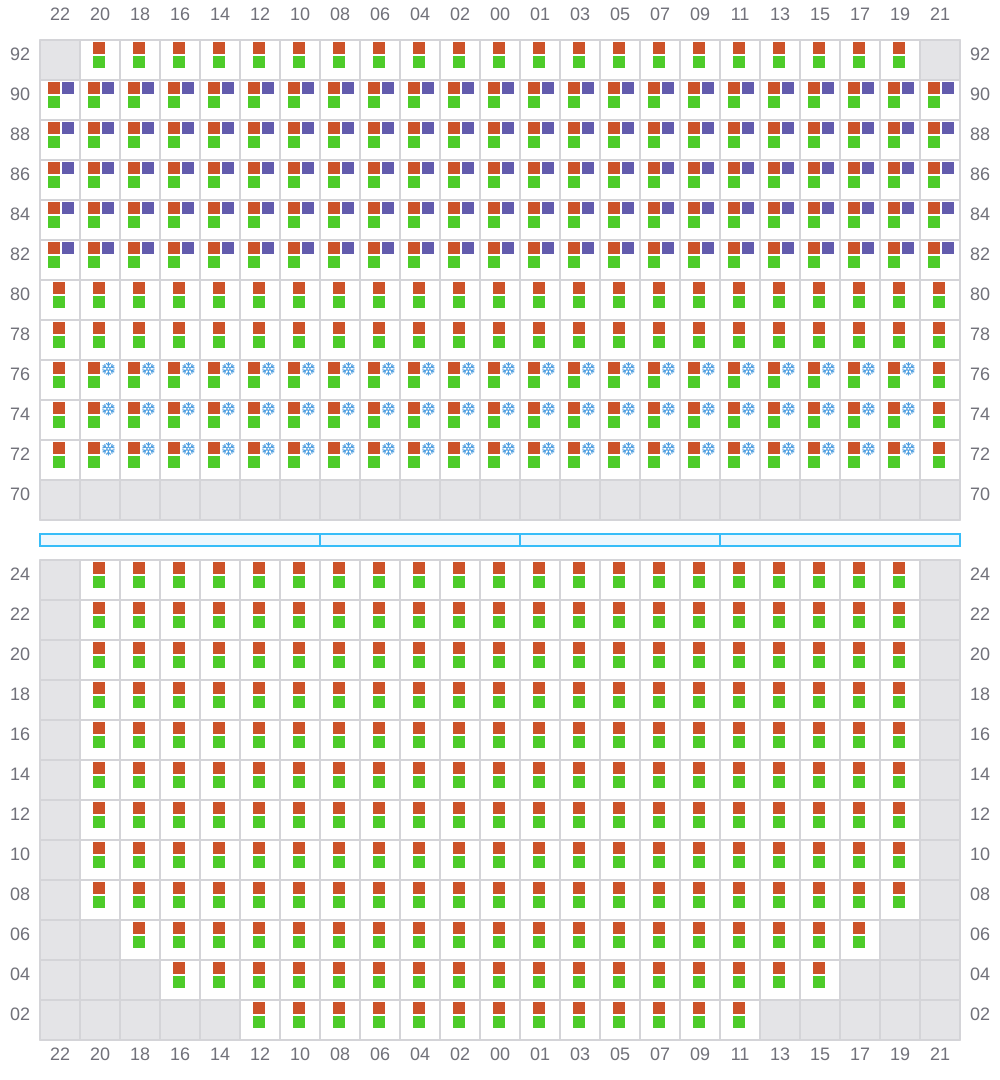

Bay 071 view and slots of ONE TRUTH

073

  • →
  • →

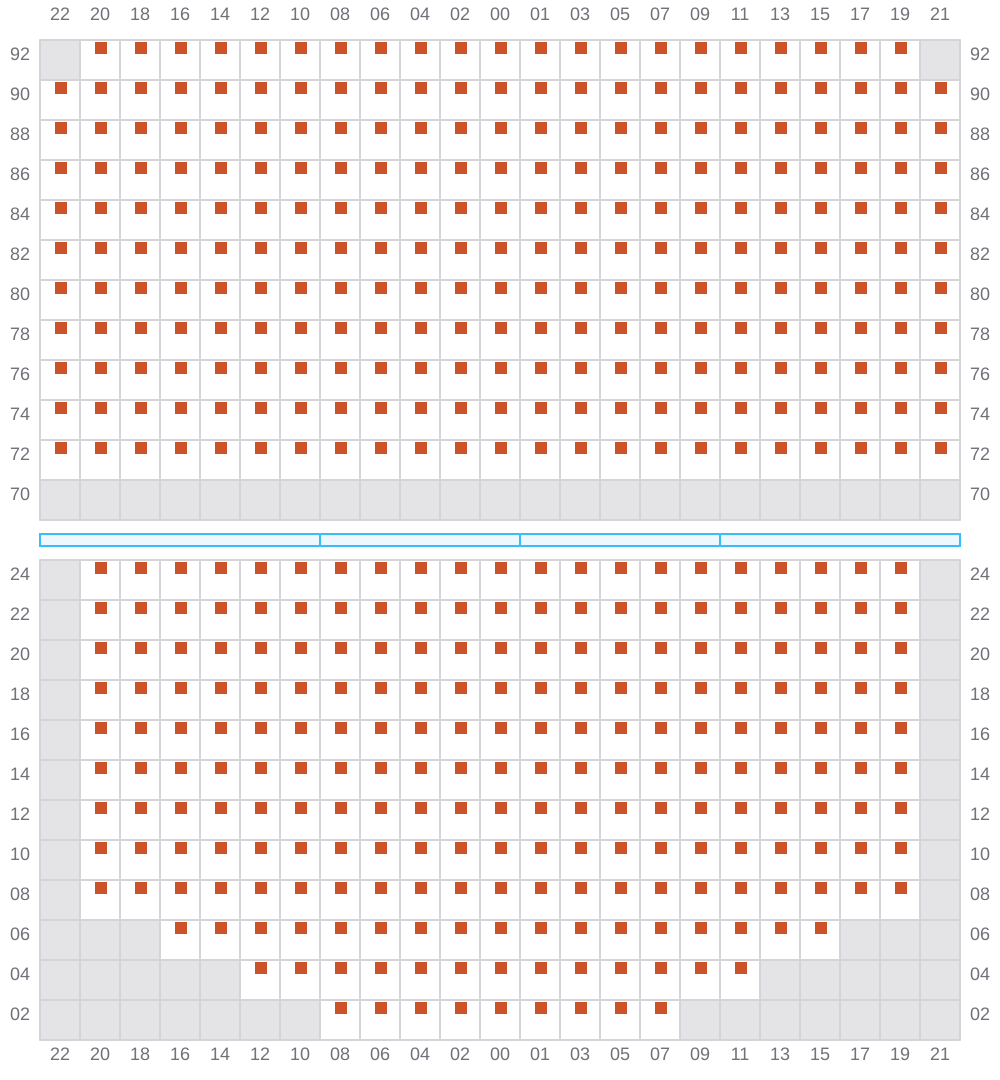

Bay 073 view and slots of ONE TRUTH

075 (074)

  • ←
  • → / ?
  • →

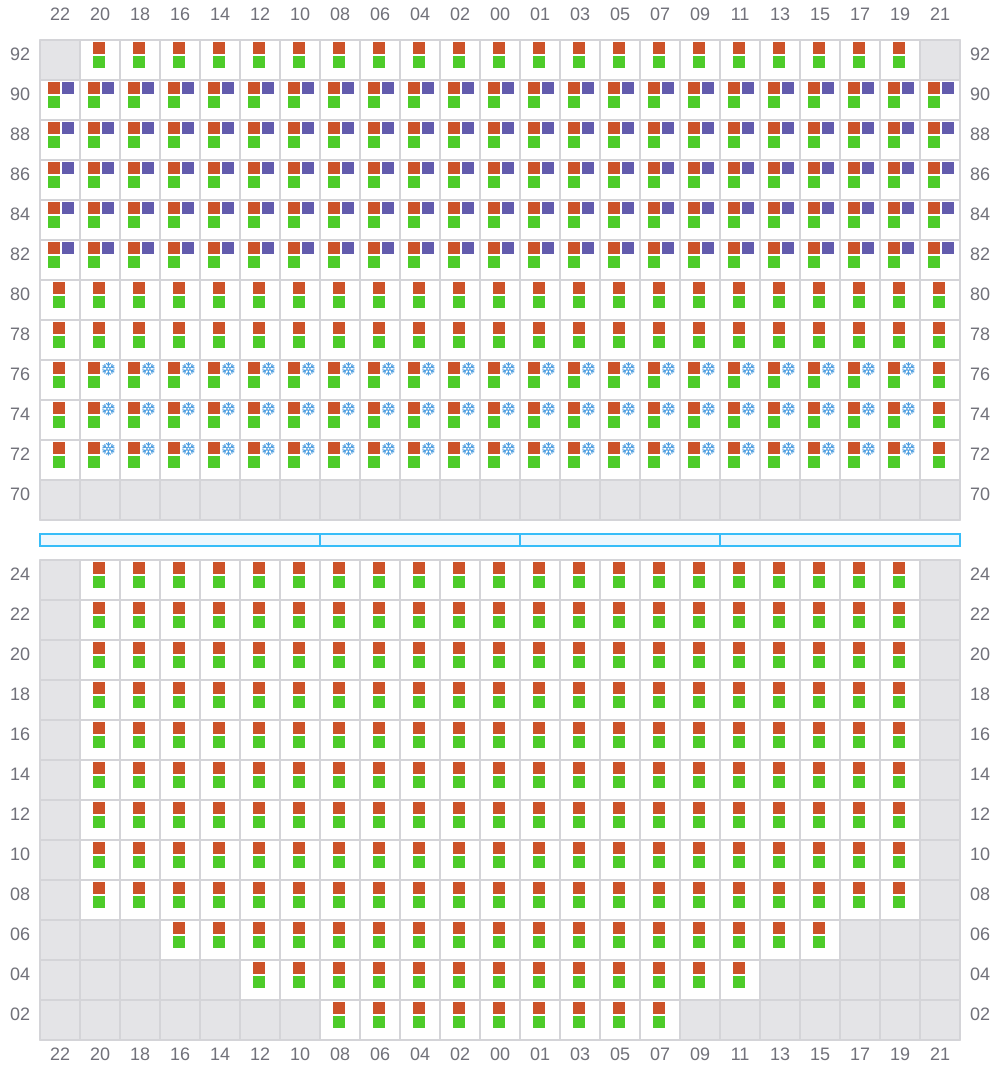

Bay 075 view and slots of ONE TRUTH

077 (078)

  • →
  • → / ?
  • →

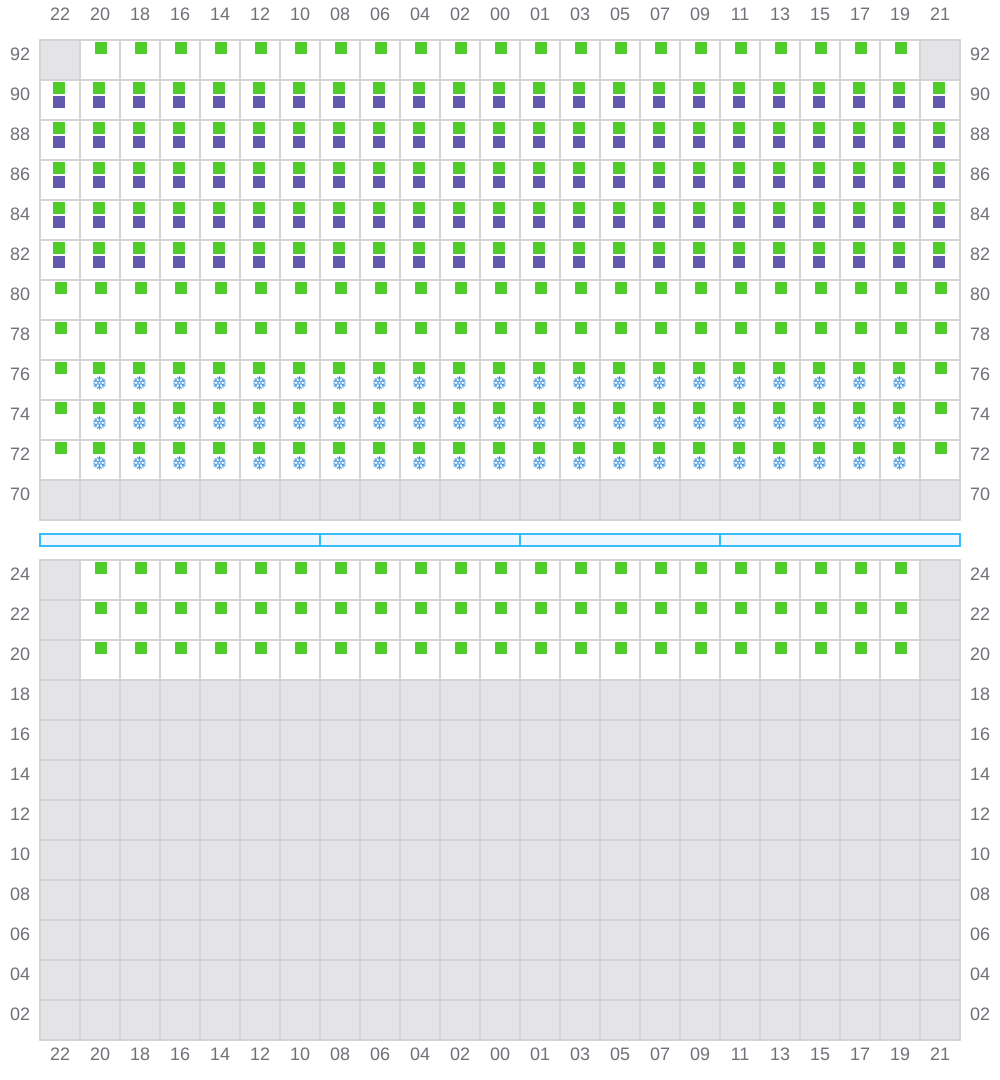

Bay 077 view and slots of ONE TRUTH

079

Bay 079 view and slots of ONE TRUTH

081 (082)

  • →
  • → / ?
  • →
Bay 081 view and slots of ONE TRUTH

083

Bay 083 view and slots of ONE TRUTH

085

  • →
  • →

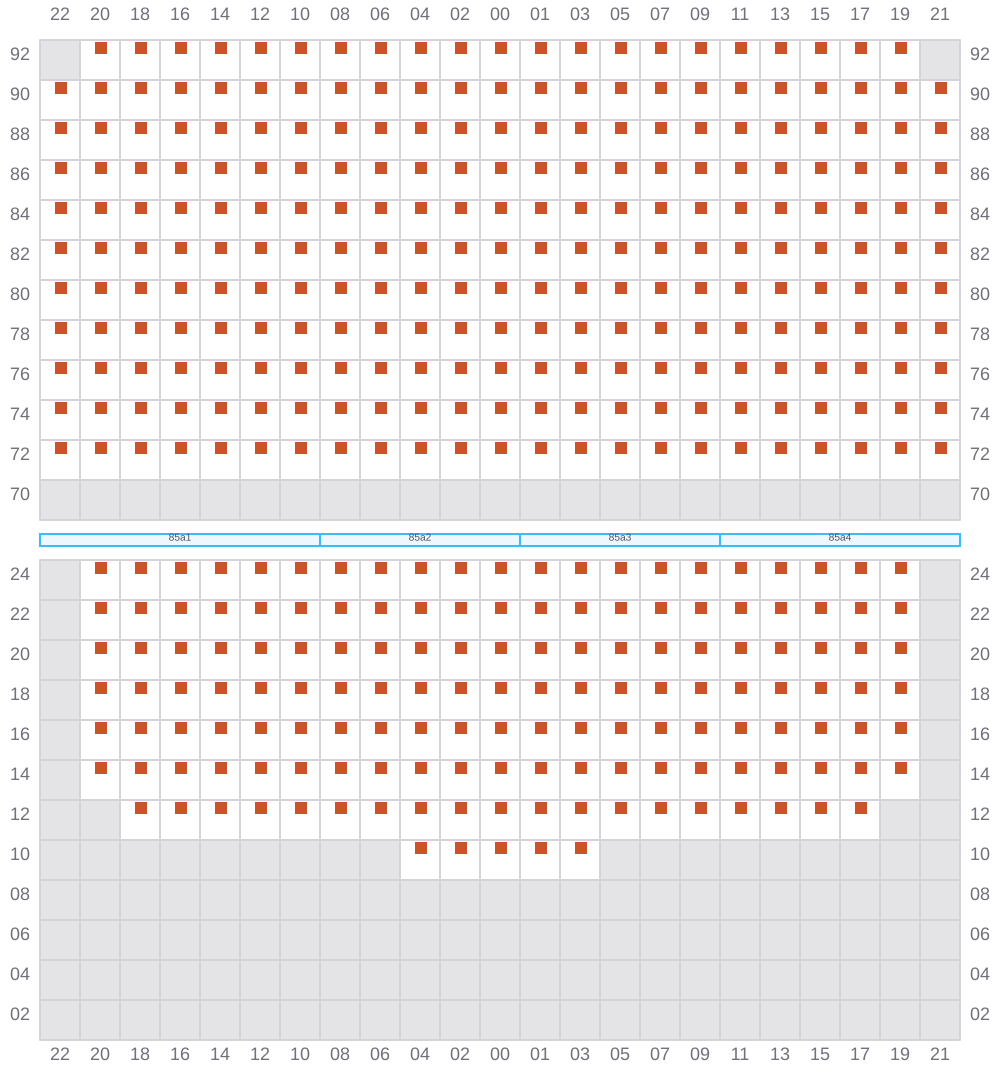

Bay 085 view and slots of ONE TRUTH

087 (086)

  • ←
  • → / ?
  • →

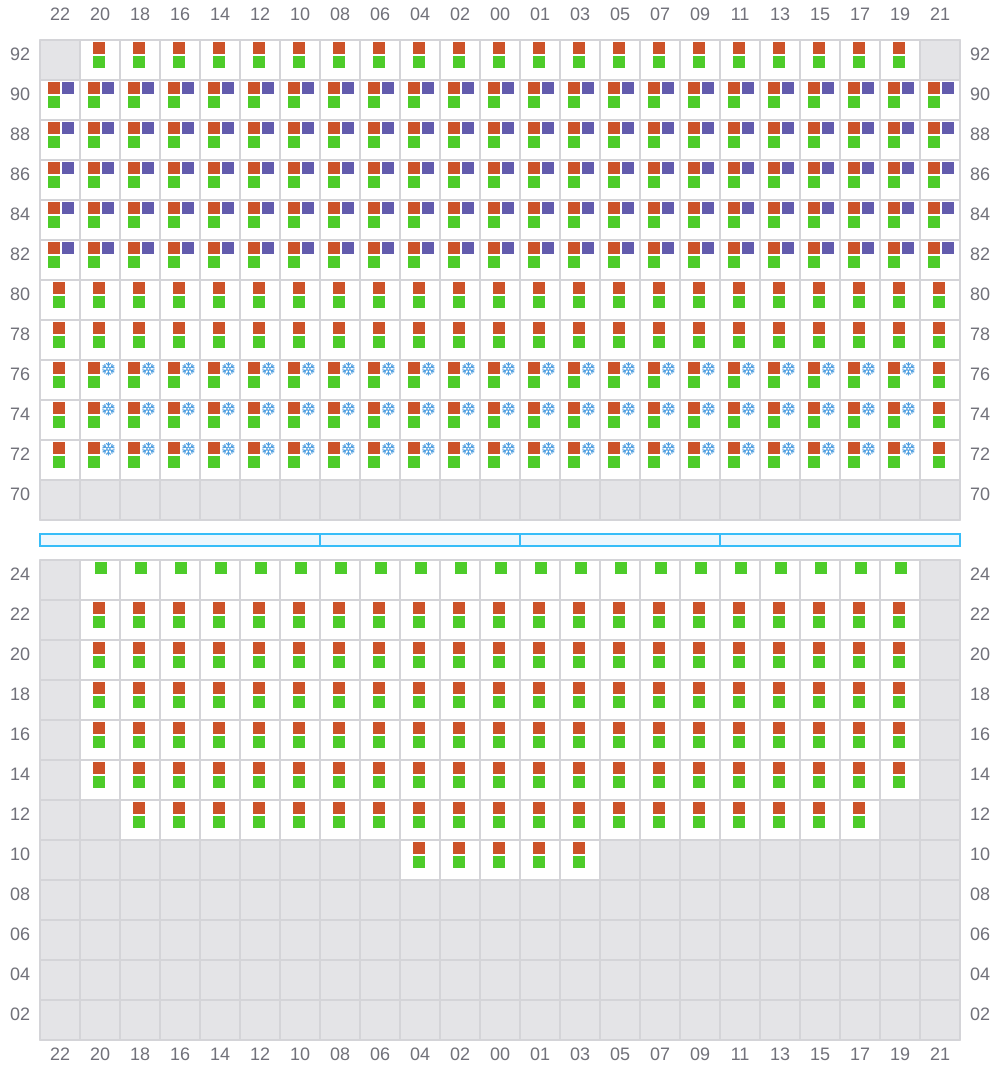

Bay 087 view and slots of ONE TRUTH

089

  • →
  • →

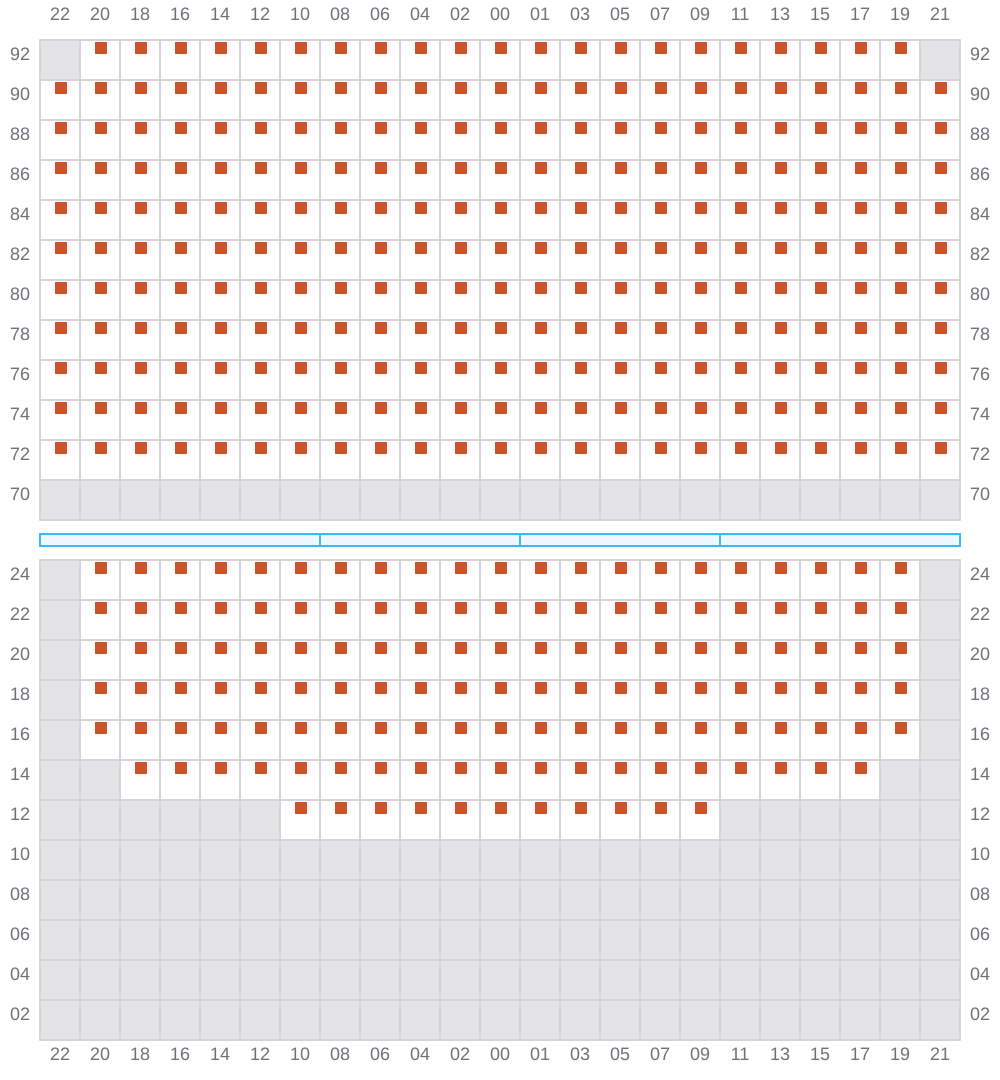

Bay 089 view and slots of ONE TRUTH

091 (090)

  • ←
  • → / ?
  • →

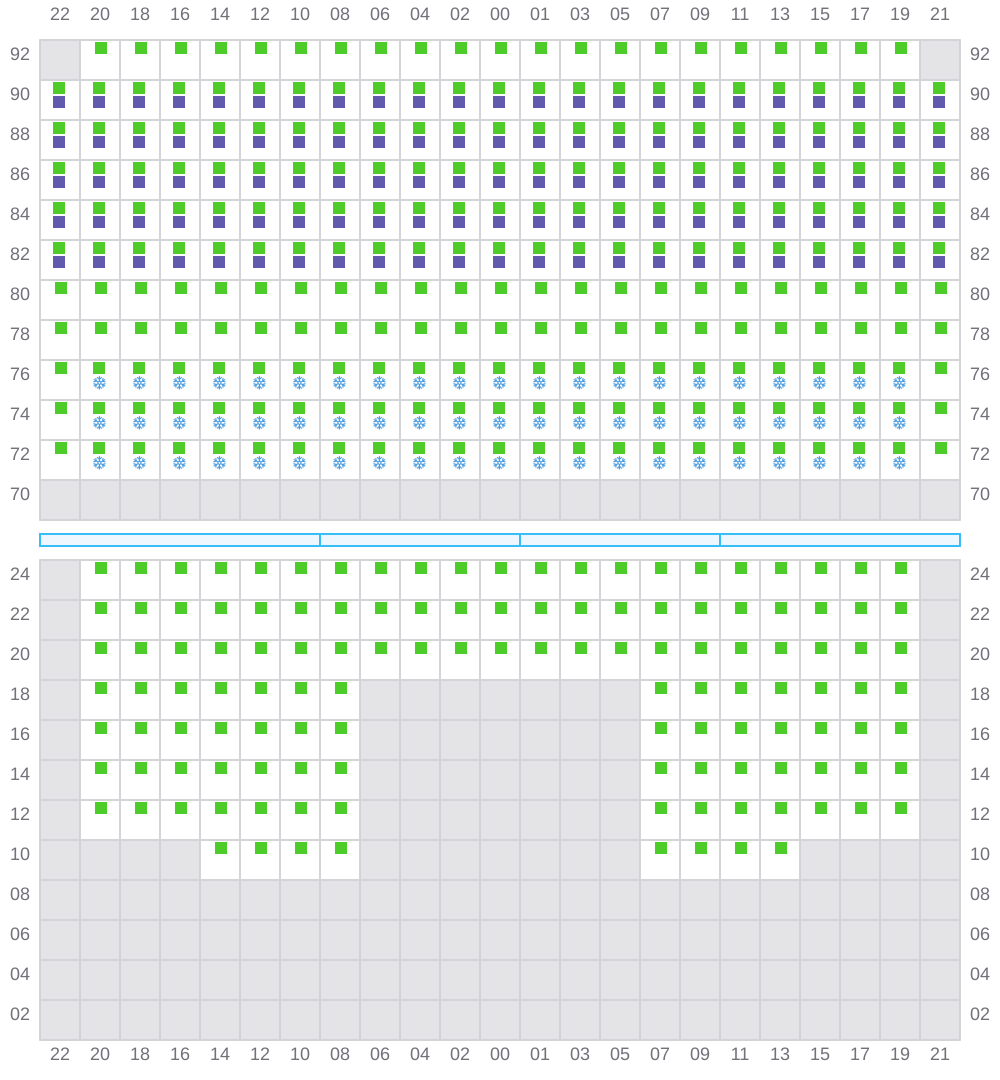

Bay 091 view and slots of ONE TRUTH

093 (094)

  • → / ?
  • → / ?
  • → / ?

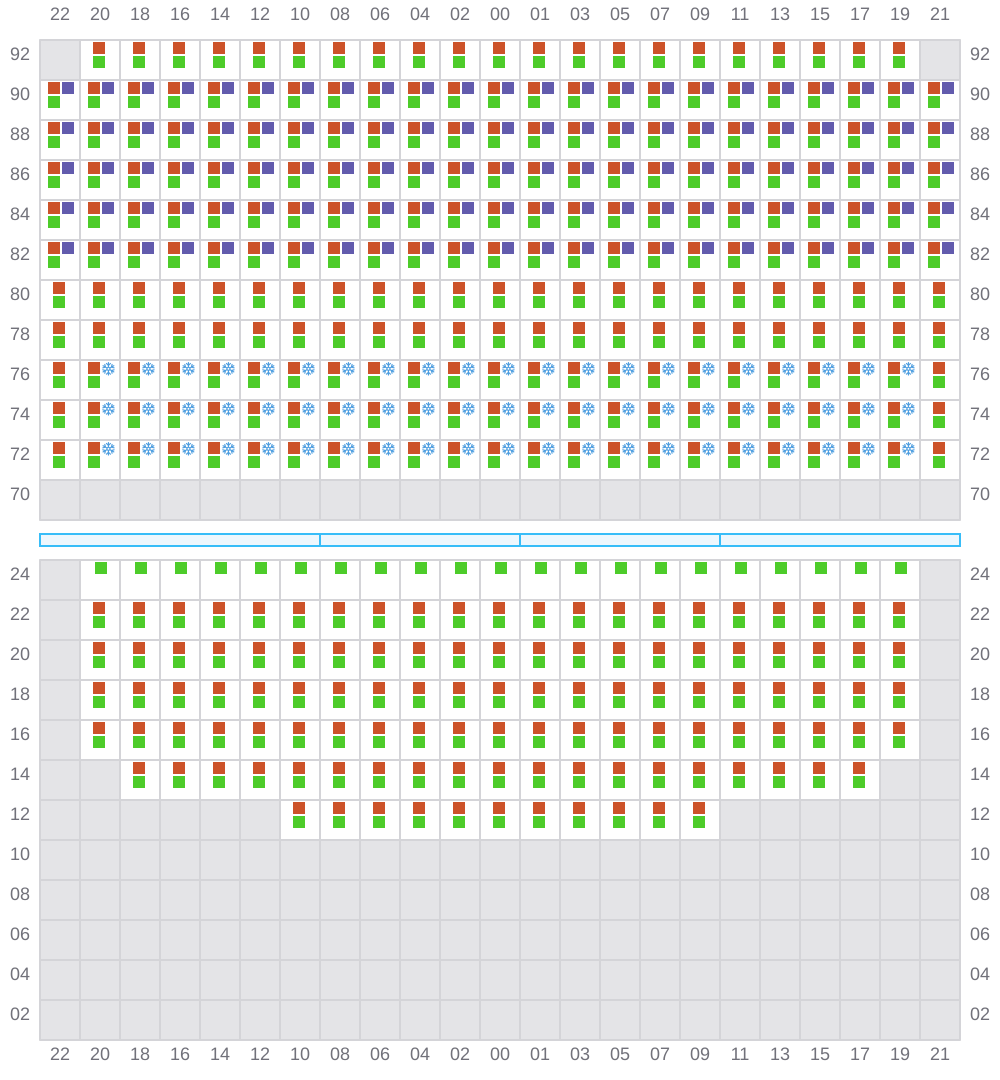

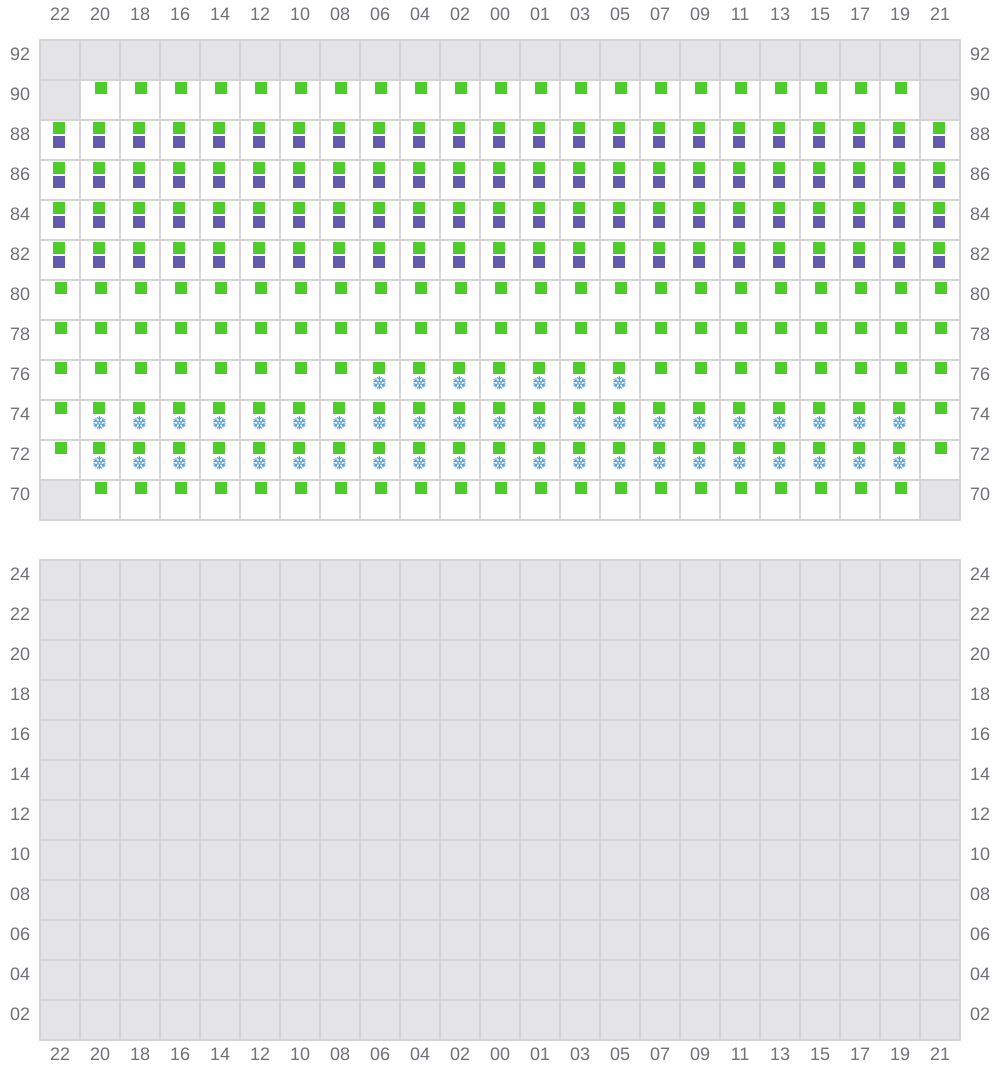

Bay 093 view and slots of ONE TRUTH
