ONTARIO EXPRESS
9290816 | ZCEU8 | CHI by ************************** Last update: Fri Jun 30 2023

General Info

Ship Name:ONTARIO EXPRESS

IMO Code:9290816

Call Sign:ZCEU8

Line Operator:CHI

Class Name for Sister Ships:LIM

Year Built:2005

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:059

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:4,045

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

Side view of ONTARIO EXPRESS

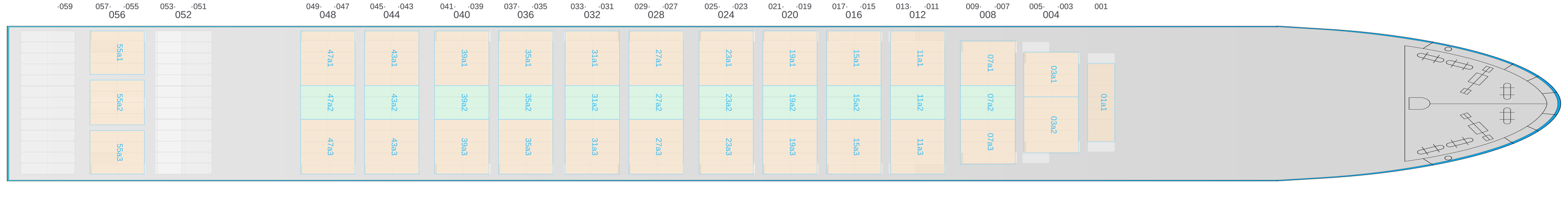

Hatch-Covers View

Deck view of ONTARIO EXPRESS

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

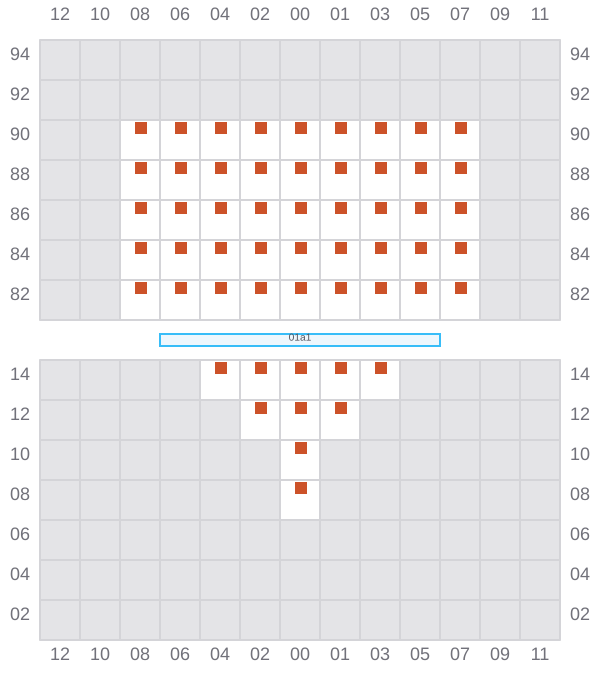

Bay 001 view and slots of ONTARIO EXPRESS

003 (004)

→

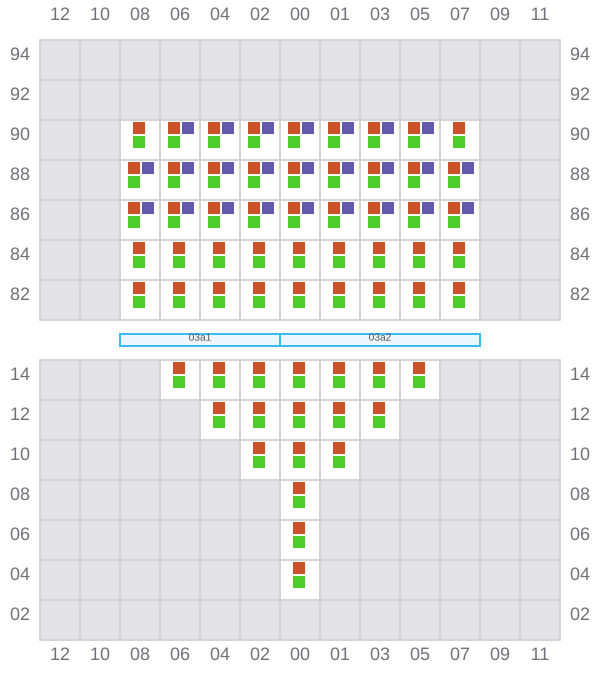

Bay 003 view and slots of ONTARIO EXPRESS

005

←
^→ / _?

Bay 005 view and slots of ONTARIO EXPRESS

007 (008)

→

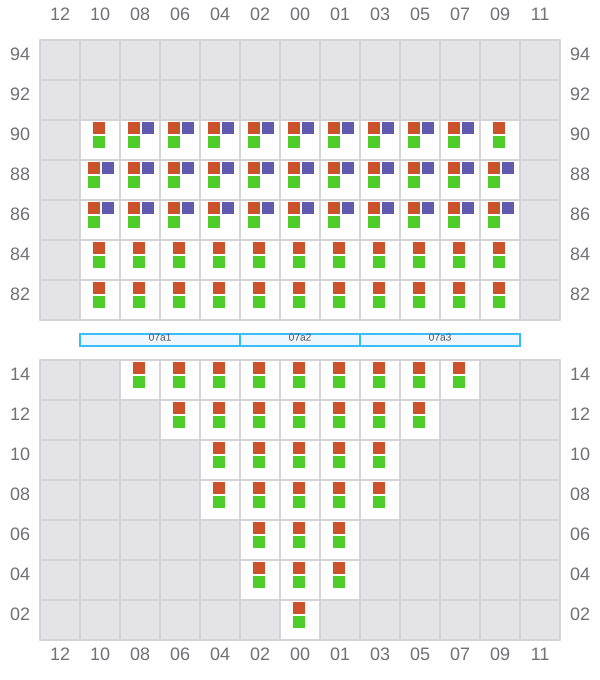

Bay 007 view and slots of ONTARIO EXPRESS

009

←
^→ / _?

Bay 009 view and slots of ONTARIO EXPRESS

011 (012)

→

Bay 011 view and slots of ONTARIO EXPRESS

013

←
→

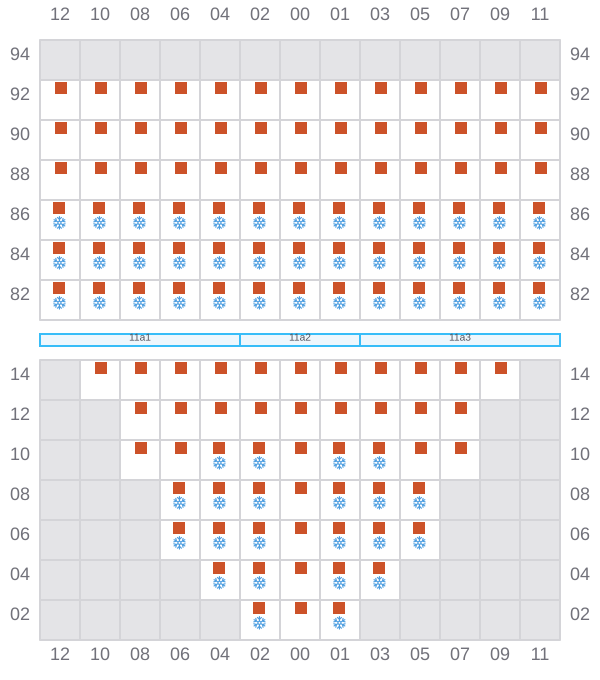

Bay 013 view and slots of ONTARIO EXPRESS

015 (016)

→

Bay 015 view and slots of ONTARIO EXPRESS

017

←
→

Bay 017 view and slots of ONTARIO EXPRESS

019 (020)

→

Bay 019 view and slots of ONTARIO EXPRESS

021

←
→

Bay 021 view and slots of ONTARIO EXPRESS

023 (024)

→

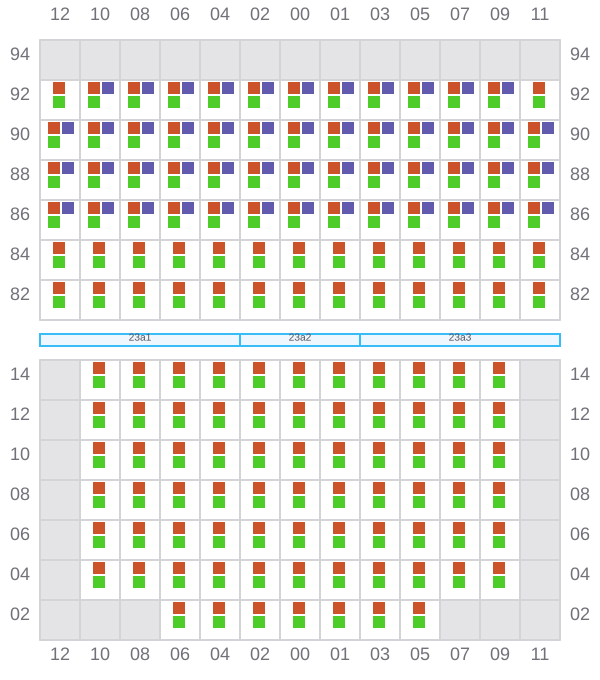

Bay 023 view and slots of ONTARIO EXPRESS

025

←
→

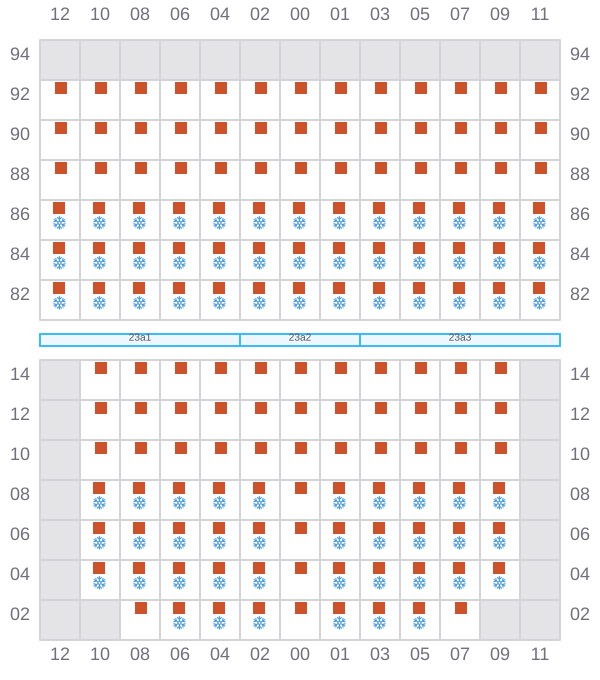

Bay 025 view and slots of ONTARIO EXPRESS

027 (028)

→

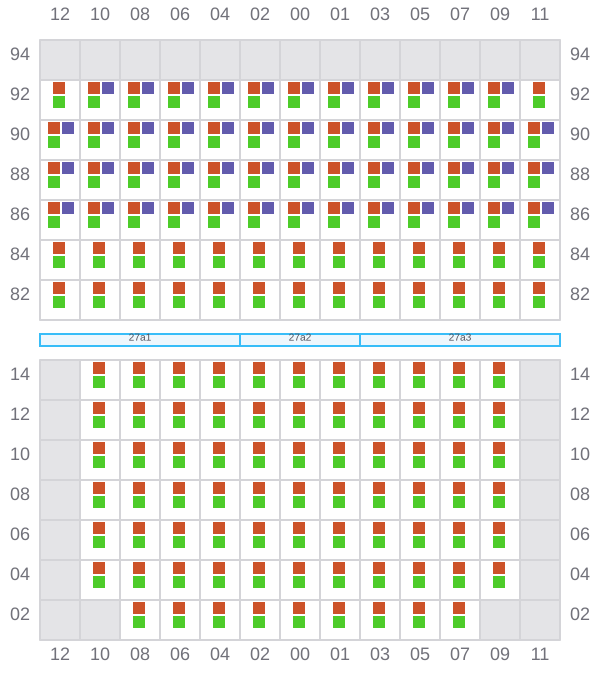

Bay 027 view and slots of ONTARIO EXPRESS

029

←
→

Bay 029 view and slots of ONTARIO EXPRESS

031 (032)

→

Bay 031 view and slots of ONTARIO EXPRESS

033

←
→

Bay 033 view and slots of ONTARIO EXPRESS

035 (036)

→

Bay 035 view and slots of ONTARIO EXPRESS

037

←
→

Bay 037 view and slots of ONTARIO EXPRESS

039 (040)

→

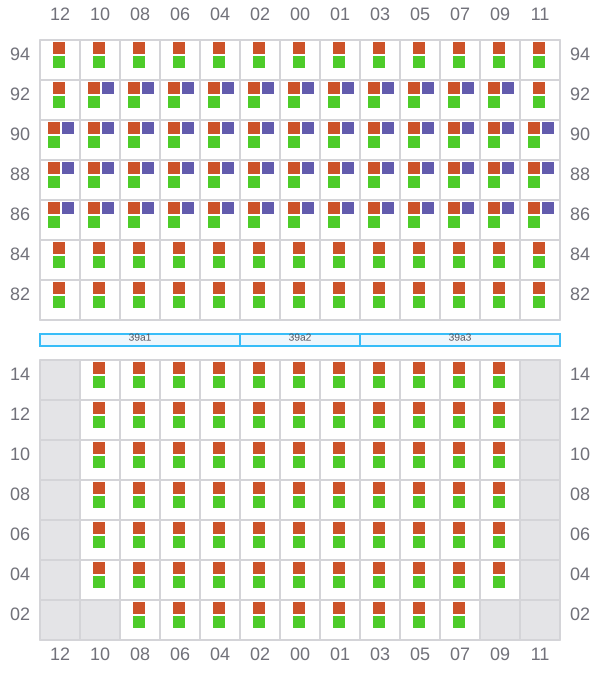

Bay 039 view and slots of ONTARIO EXPRESS

041

←
→

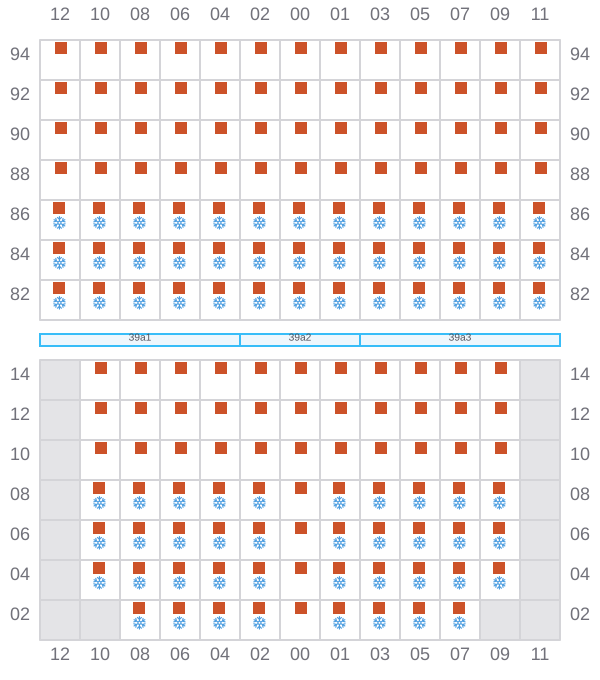

Bay 041 view and slots of ONTARIO EXPRESS

043 (044)

→

Bay 043 view and slots of ONTARIO EXPRESS

045

←
→

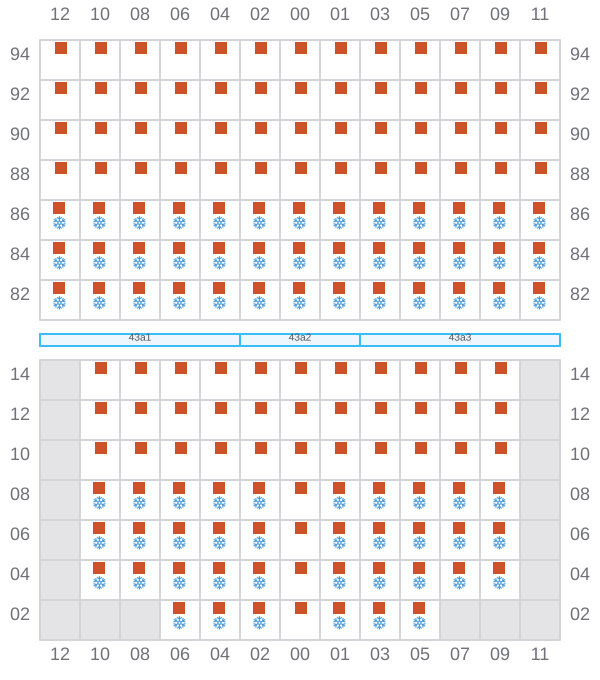

Bay 045 view and slots of ONTARIO EXPRESS

047 (048)

→

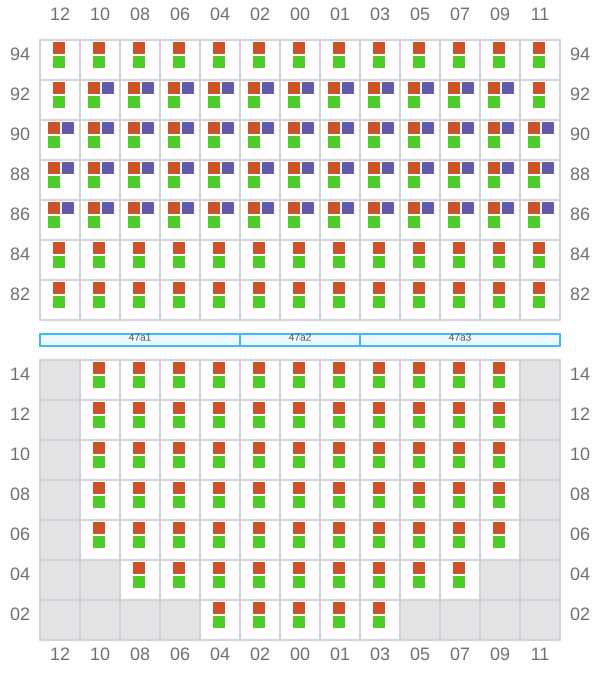

Bay 047 view and slots of ONTARIO EXPRESS

049

←
→

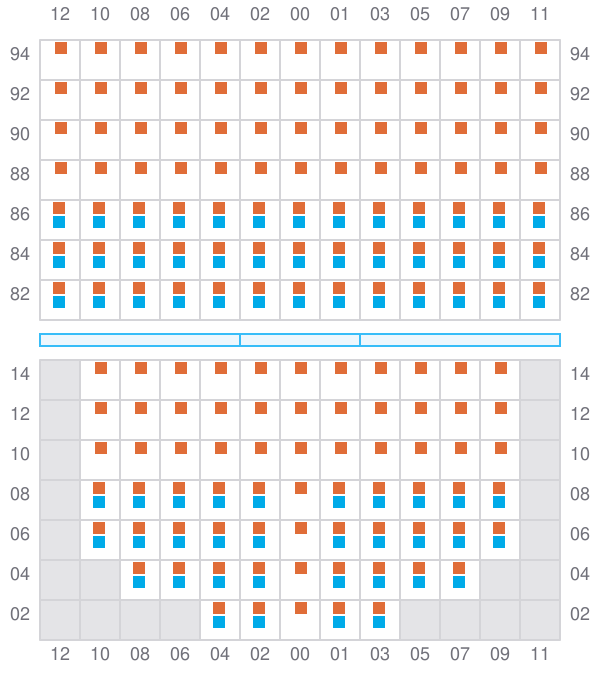

Bay 049 view and slots of ONTARIO EXPRESS

051 (052)

^→ / _?

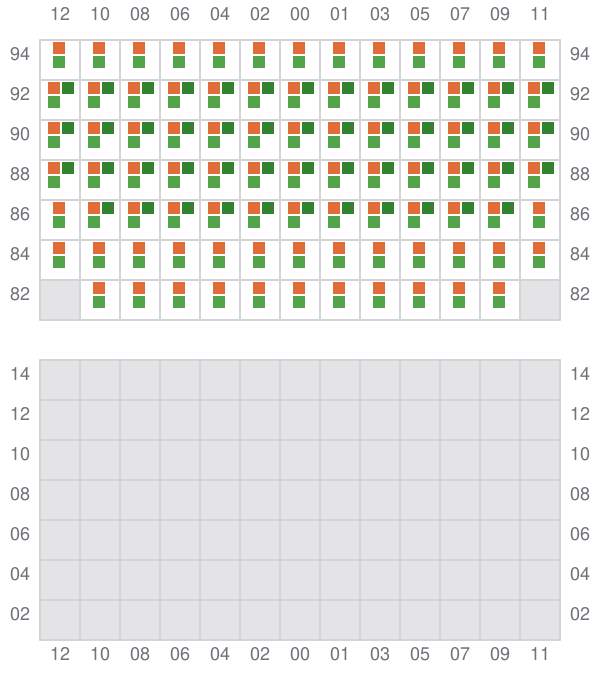

Bay 051 view and slots of ONTARIO EXPRESS

053

^← / _?
^→ / _?

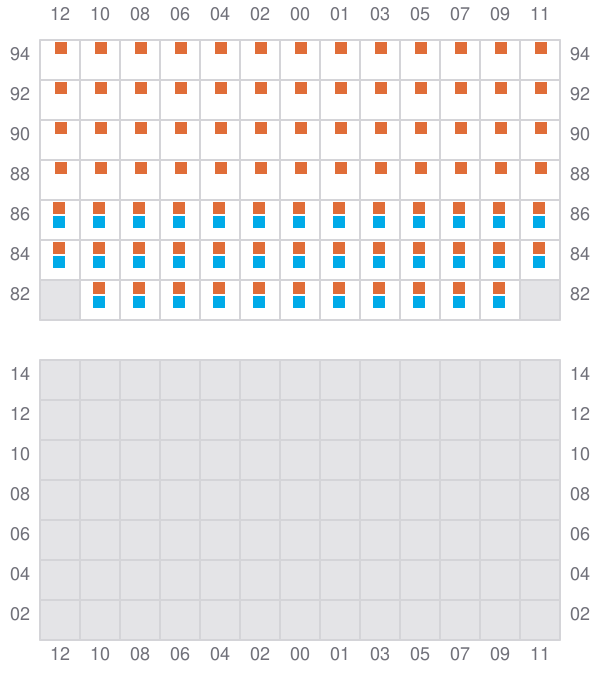

Bay 053 view and slots of ONTARIO EXPRESS

055 (056)

→

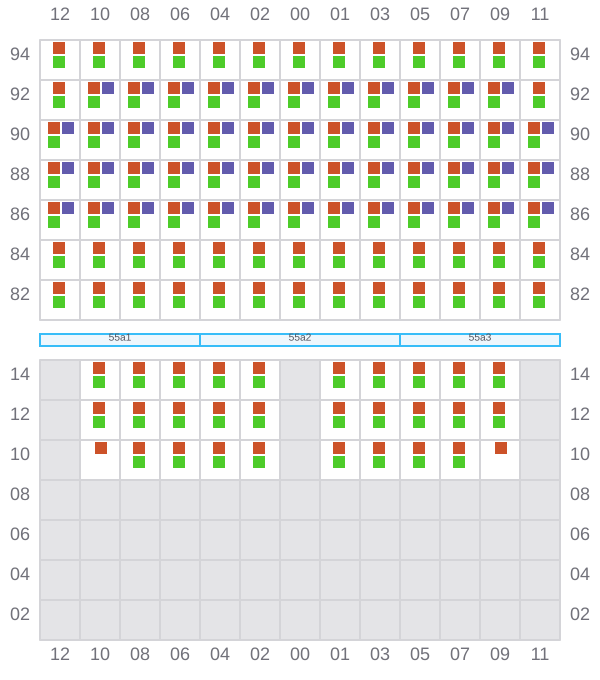

Bay 055 view and slots of ONTARIO EXPRESS

057

←
^→ / _?

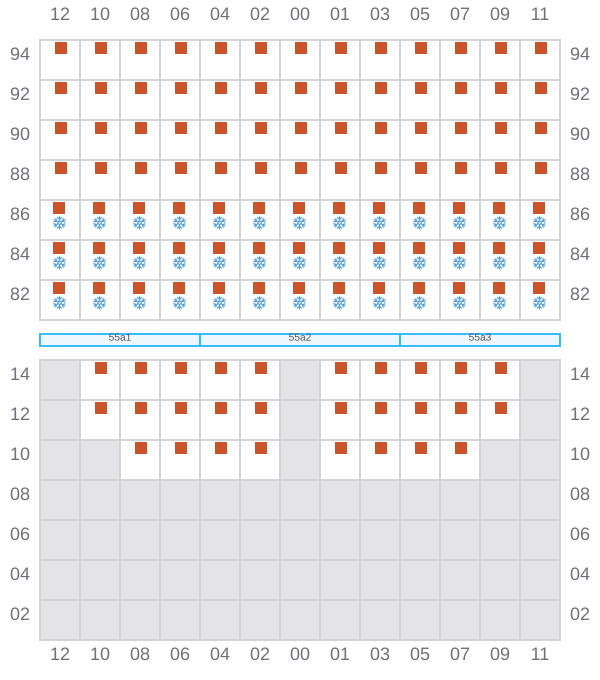

Bay 057 view and slots of ONTARIO EXPRESS

059 (060)

^→ / _?
^→ / _?

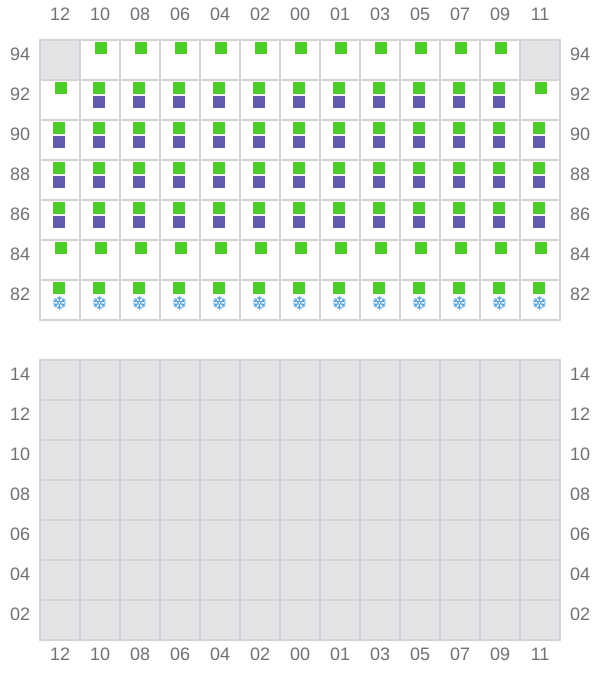

Bay 059 view and slots of ONTARIO EXPRESS
