OOCL BRAZIL
9495038 | 3FRZ3 | CMA by *********************** Last update: Mon Feb 03 2025
General Info
Ship Name:OOCL BRAZIL
IMO Code:9495038
Call Sign:3FRZ3
Line Operator:CMA
Class Name for Sister Ships:CGST
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:075
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,522
Centers of Gravity
LCG Values:Known
LCG Data:90%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

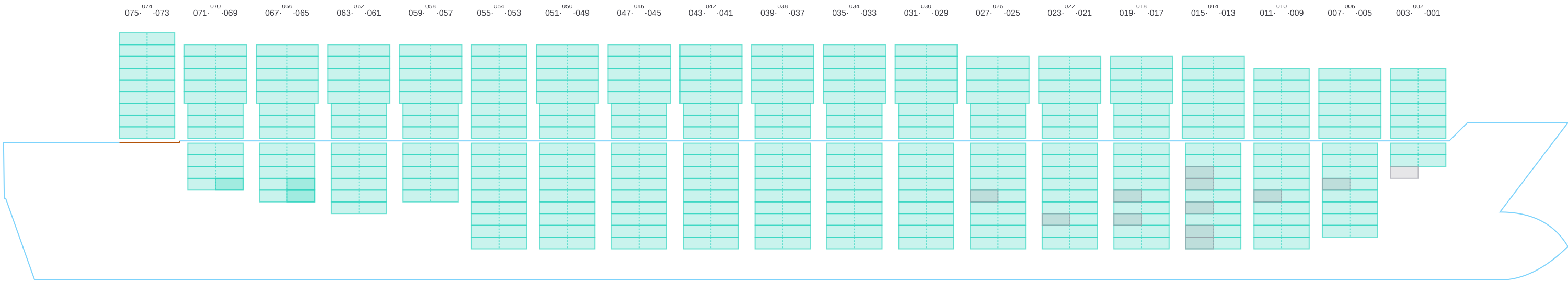

Side View

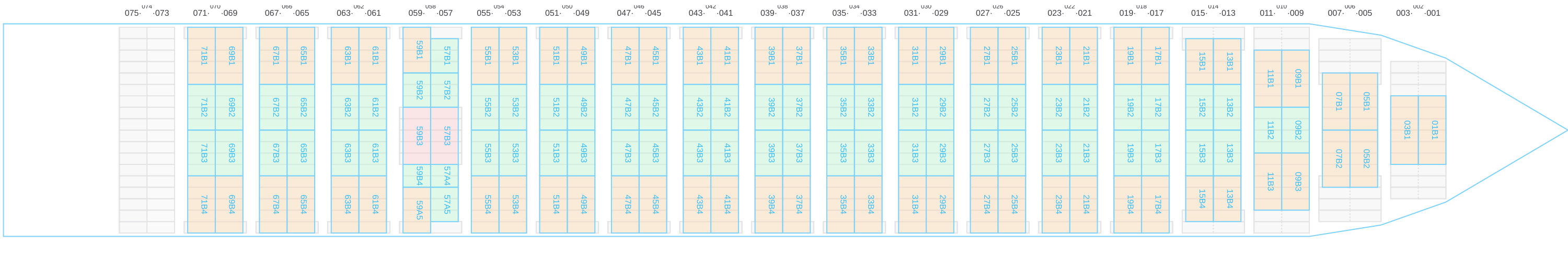

Hatch-Covers View

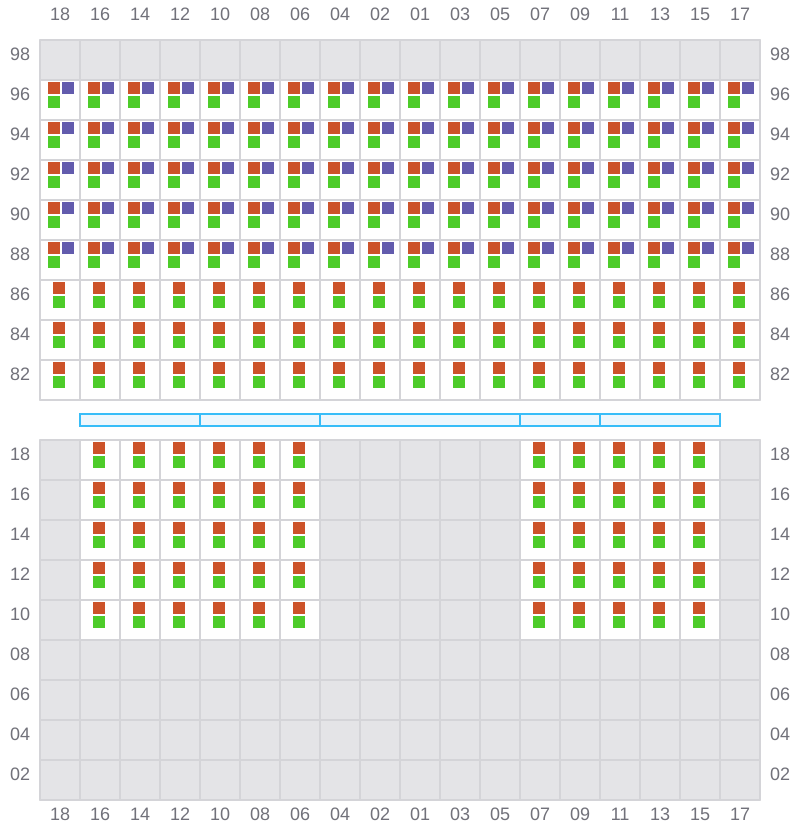

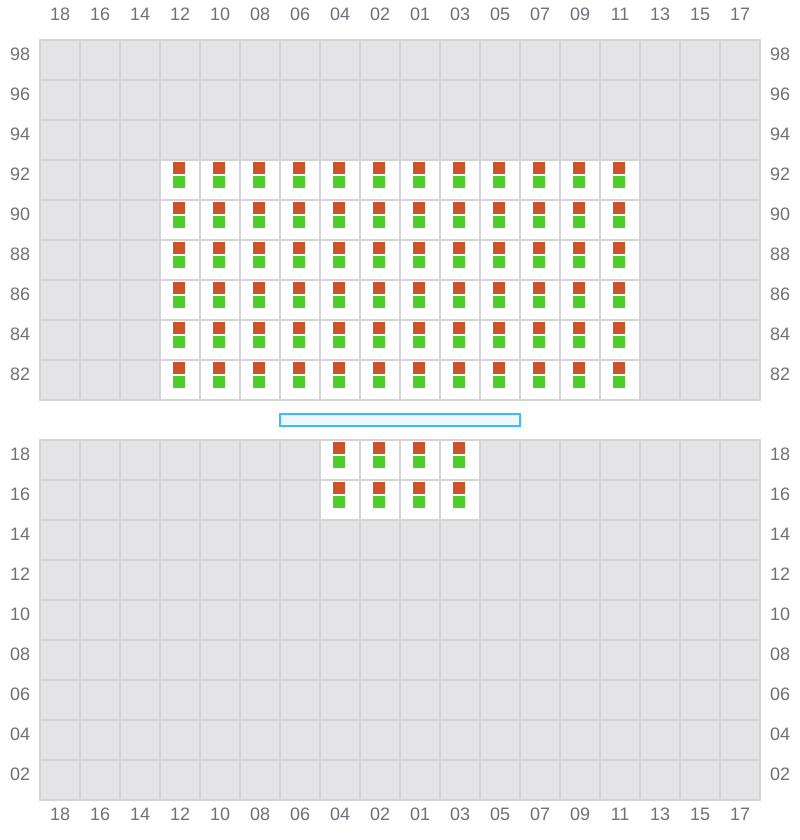

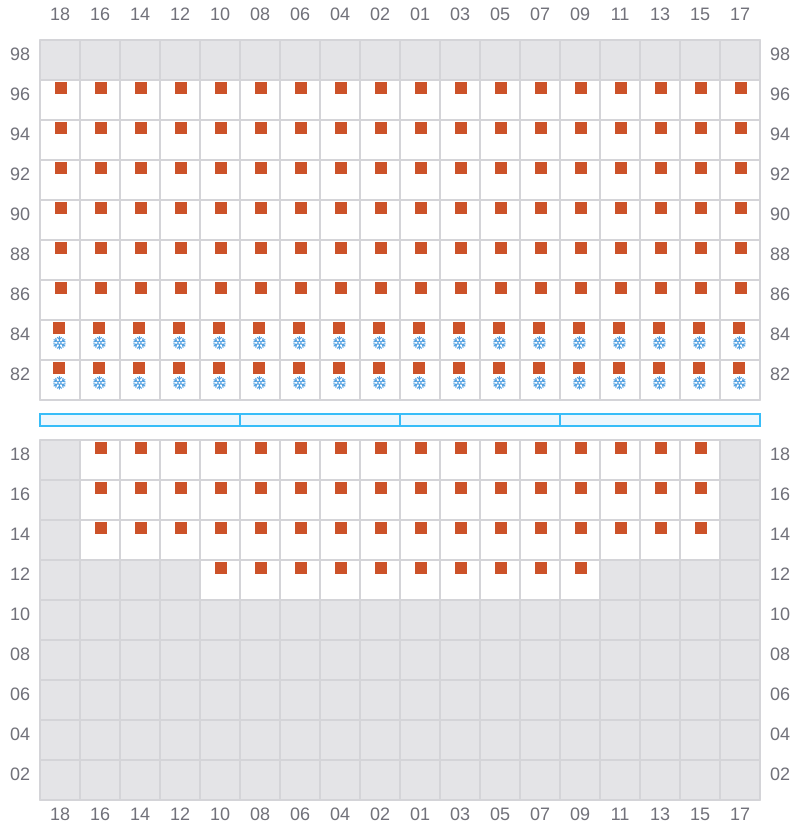

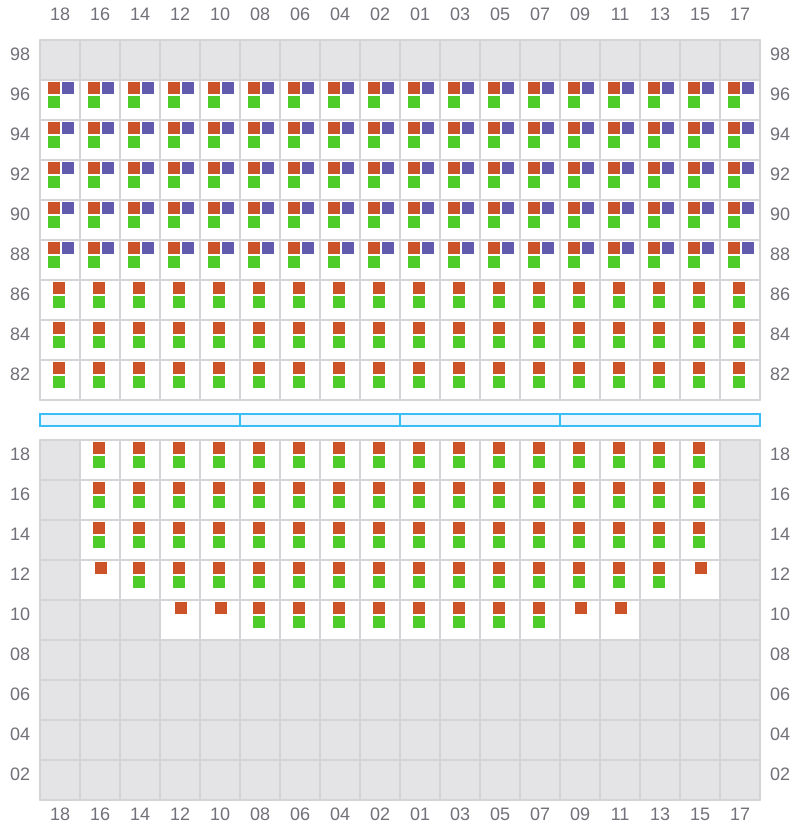

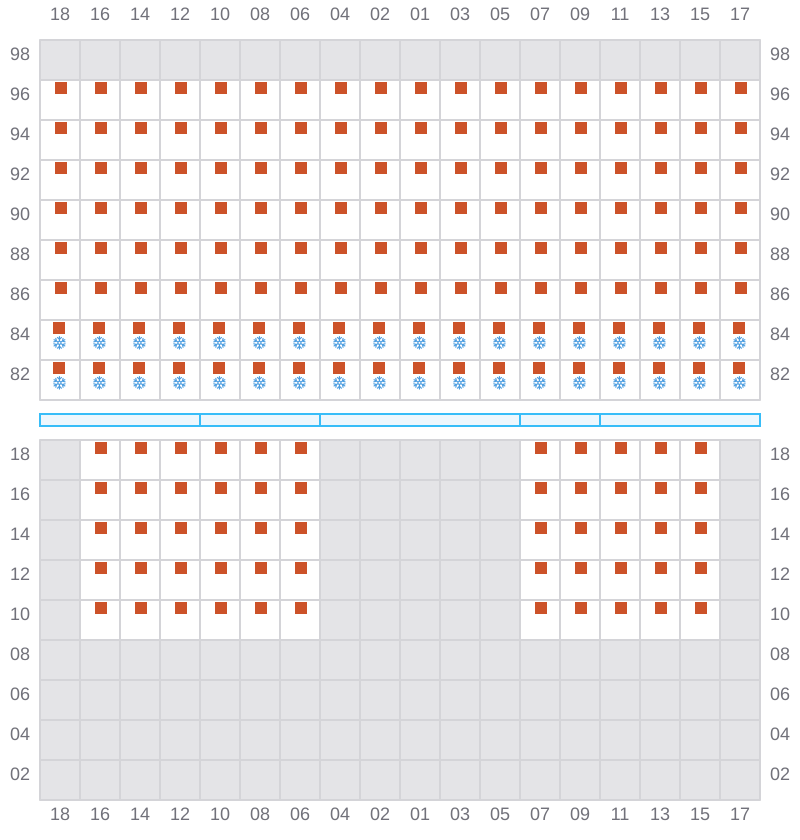

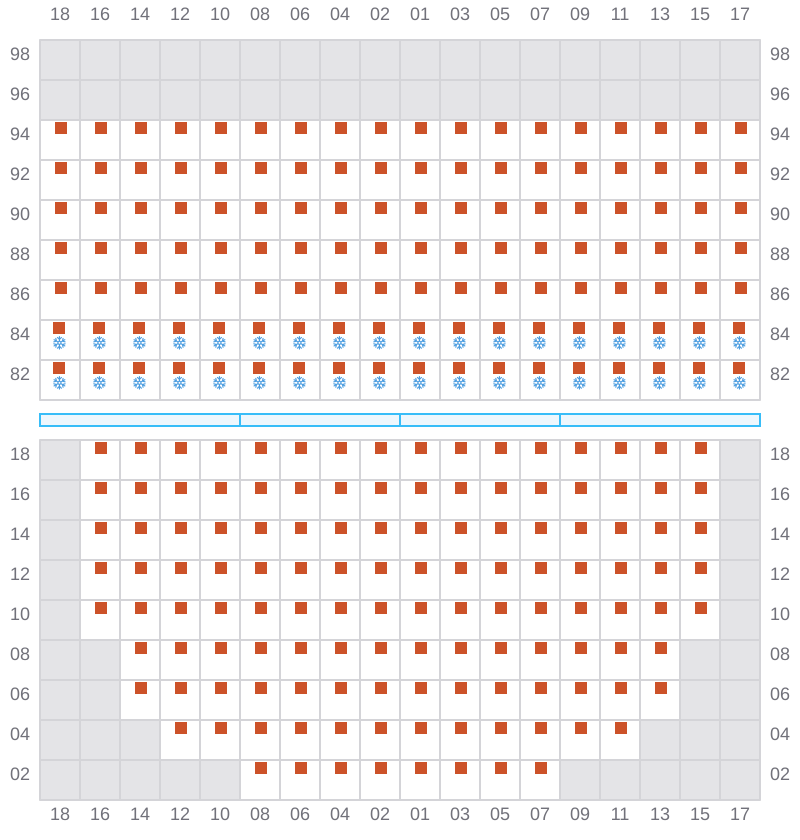

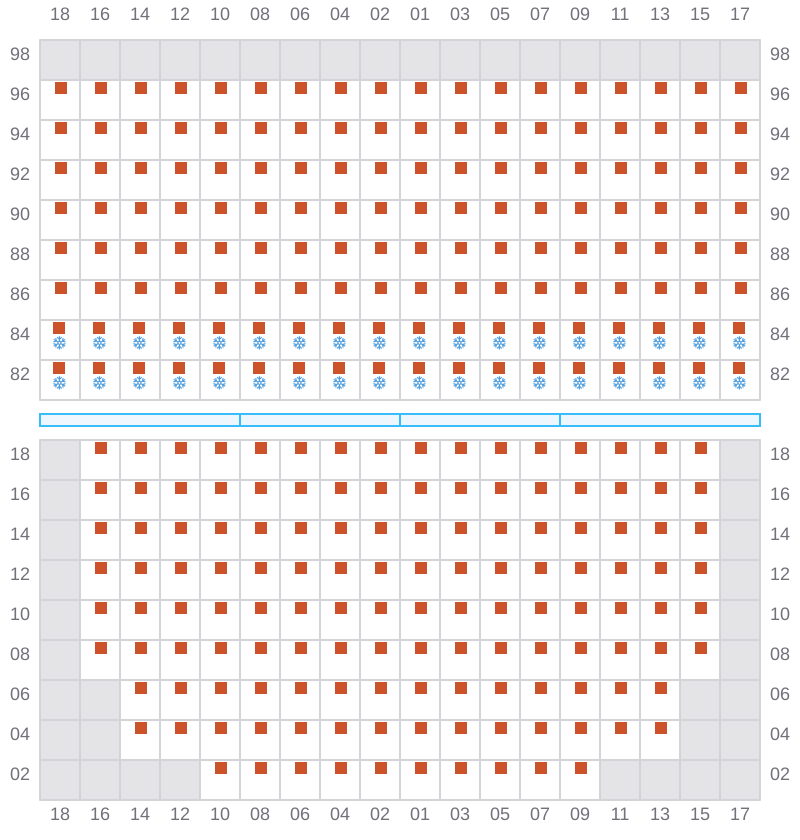

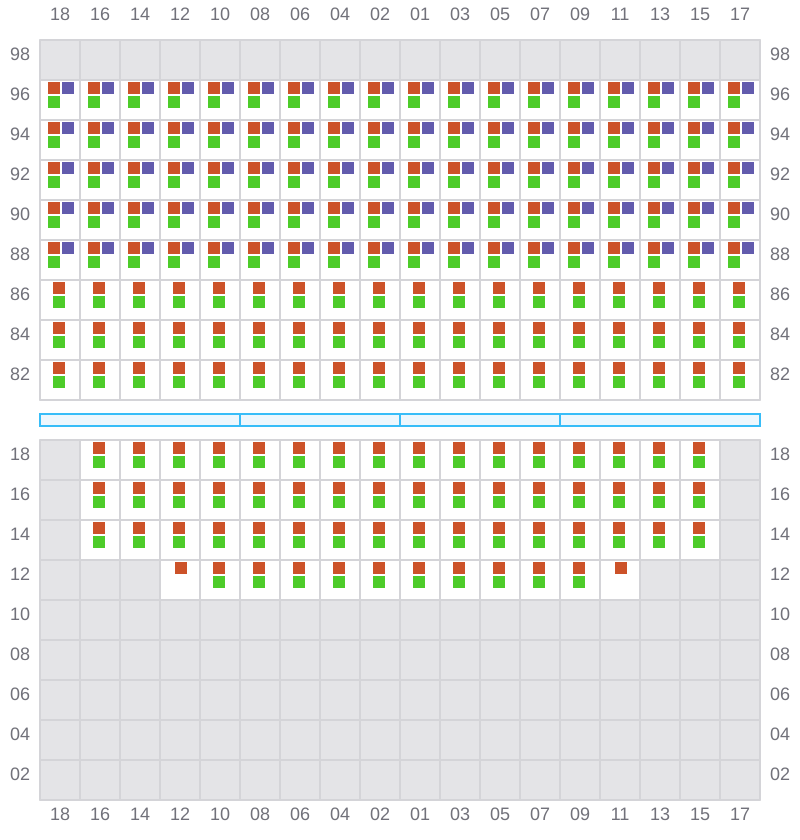

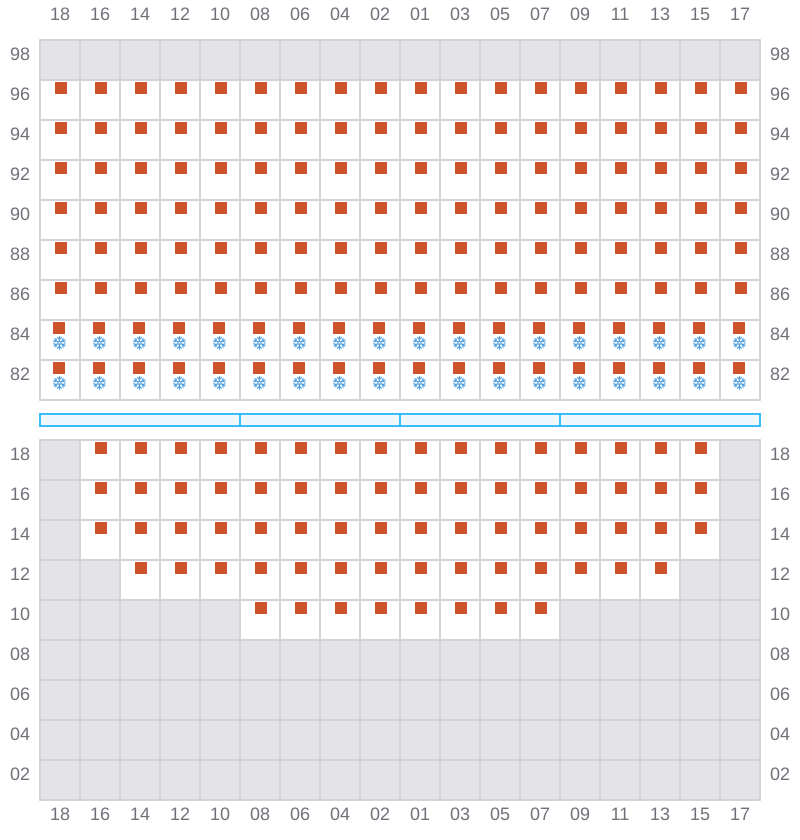

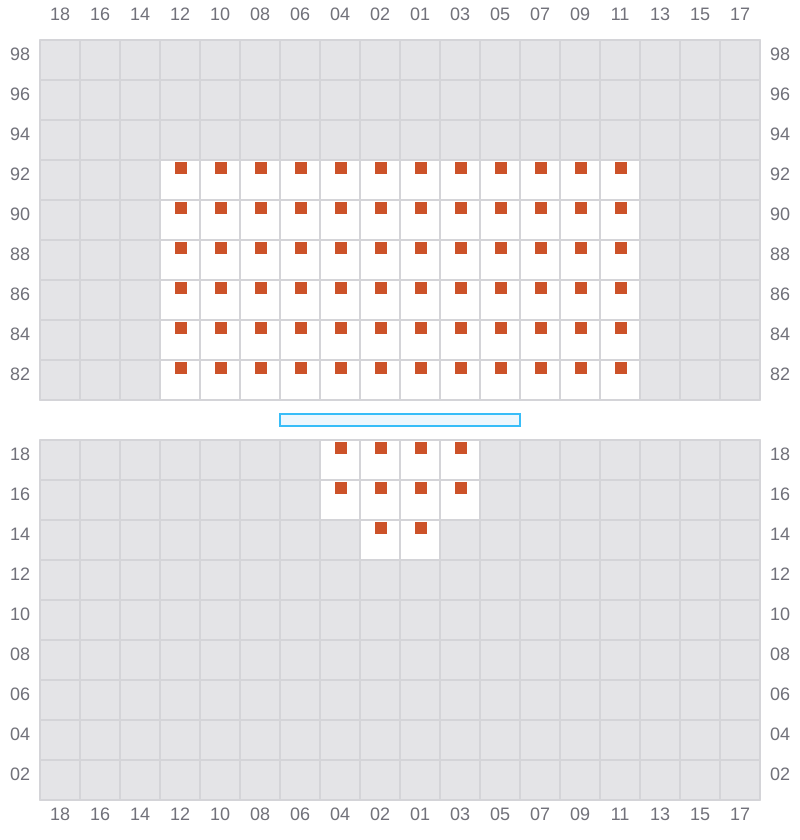

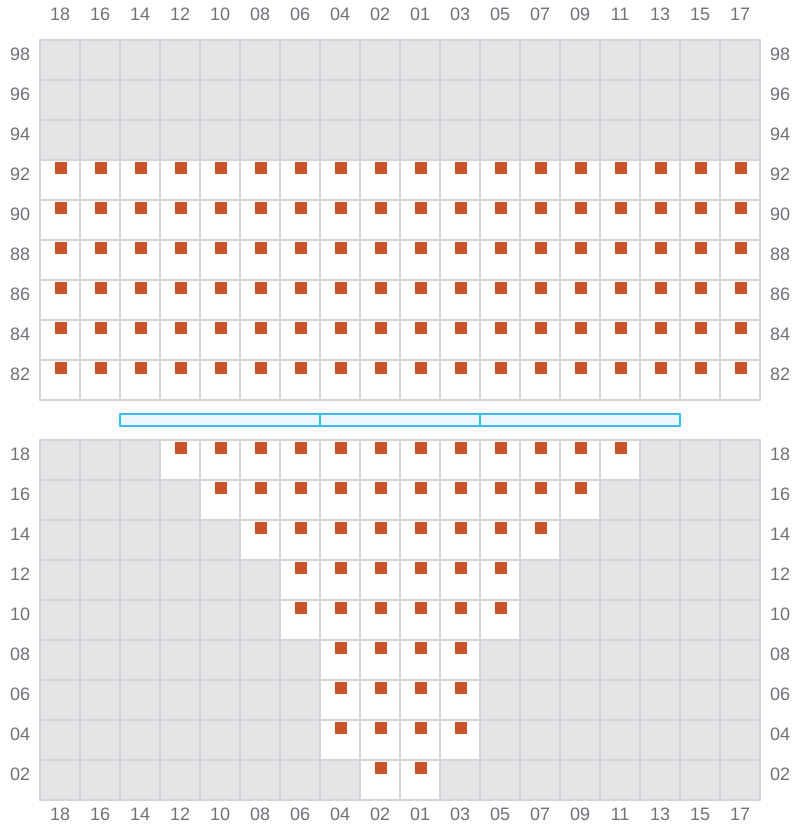

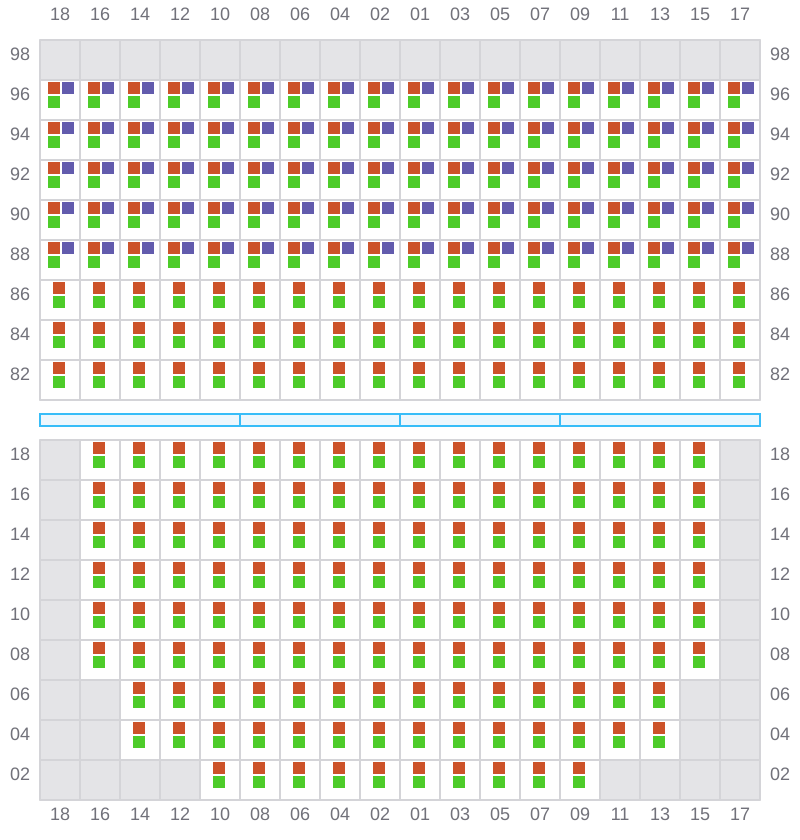

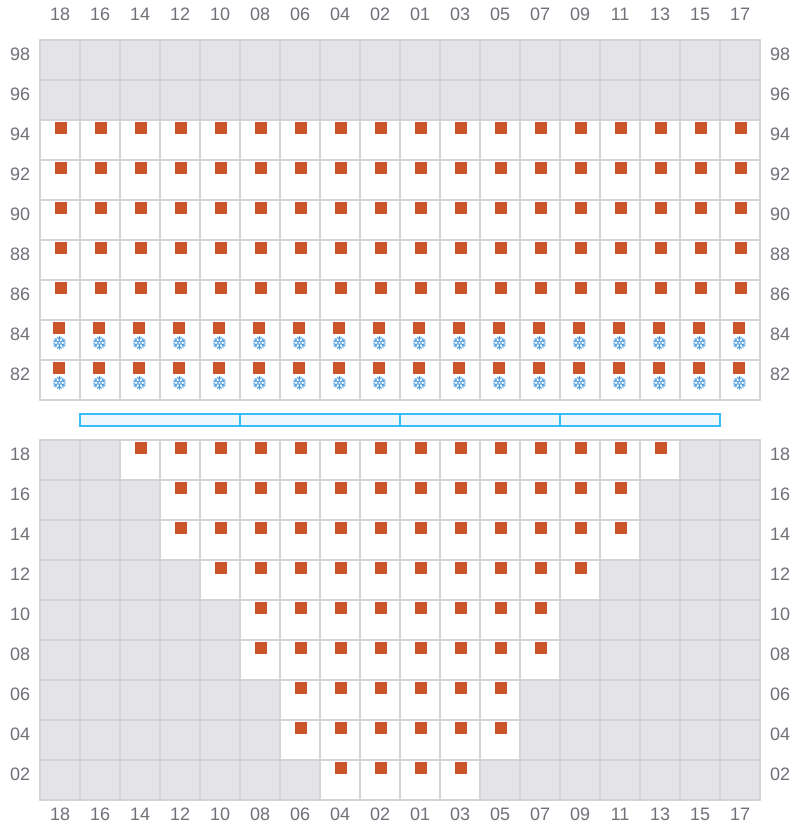

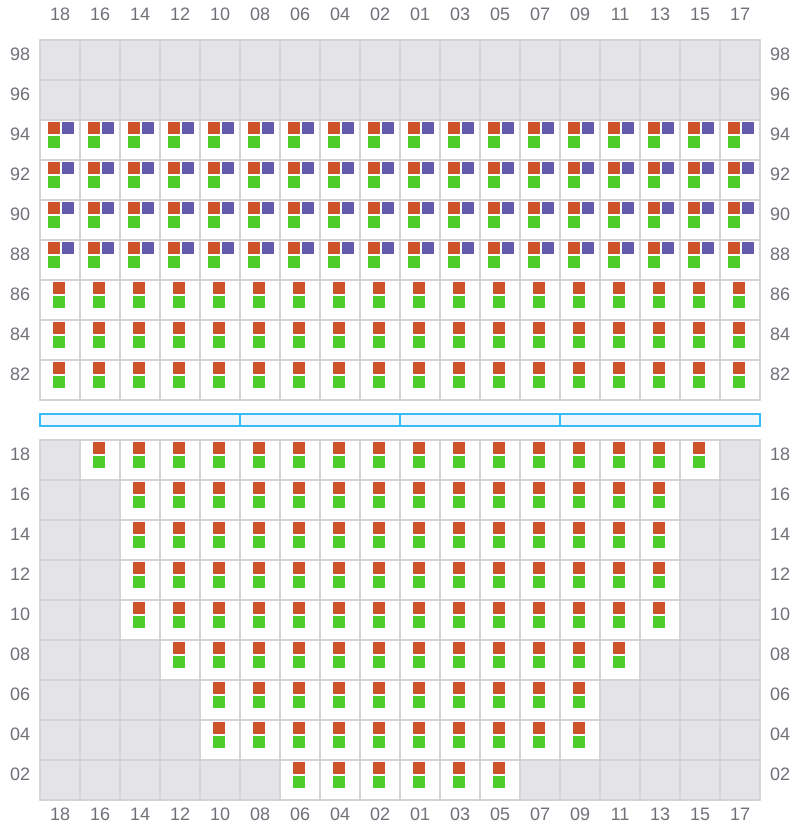

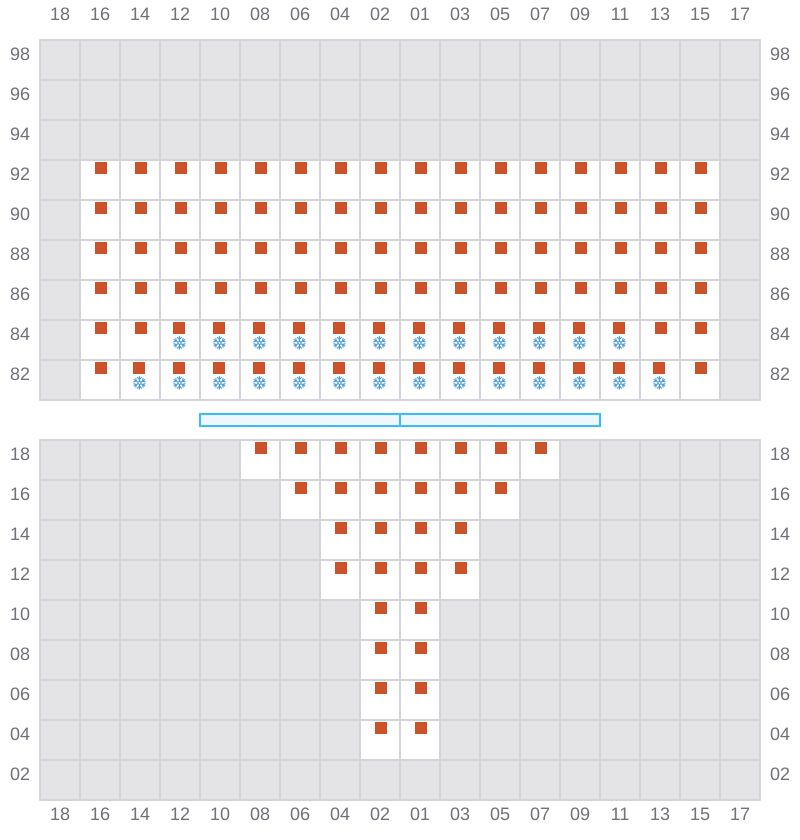

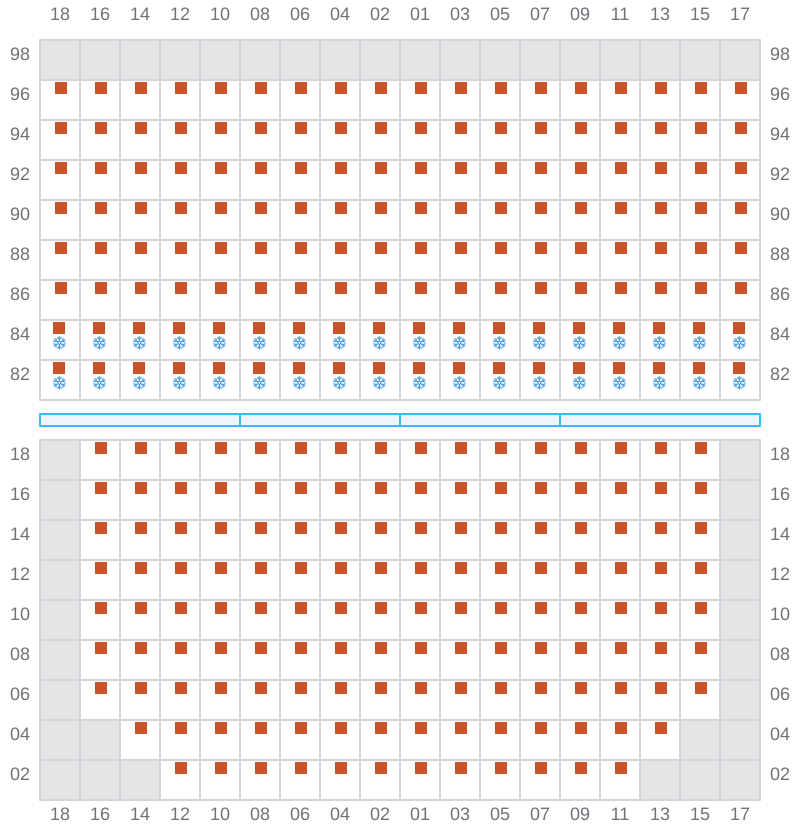

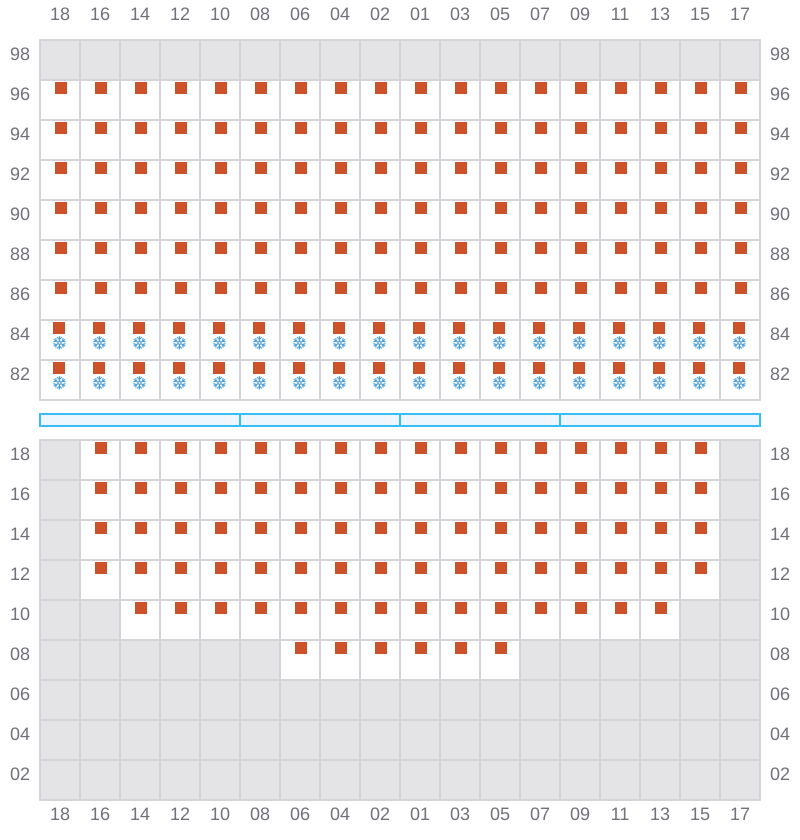

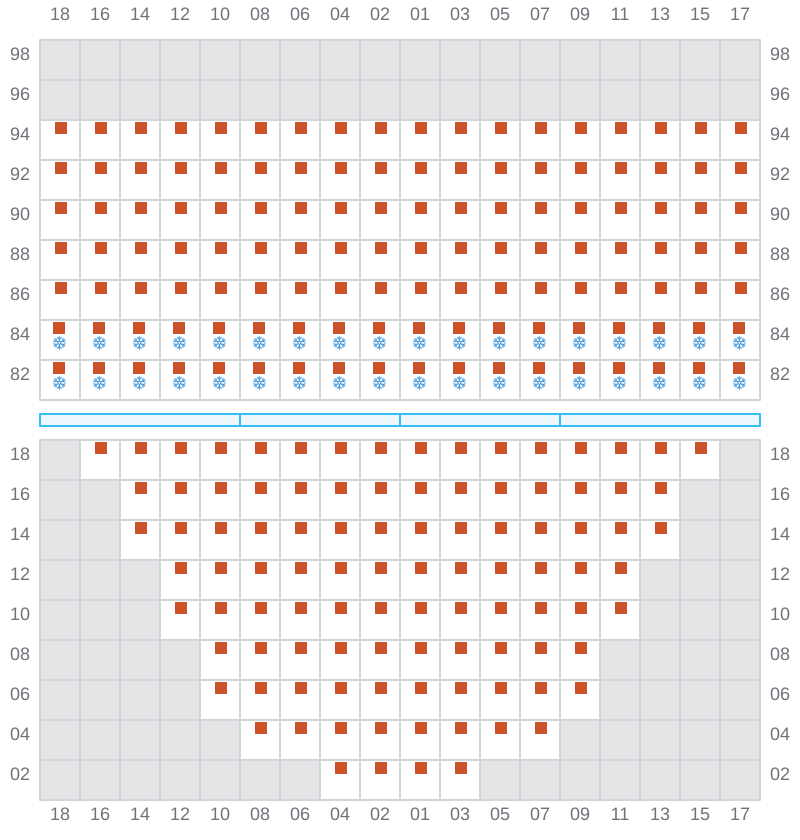

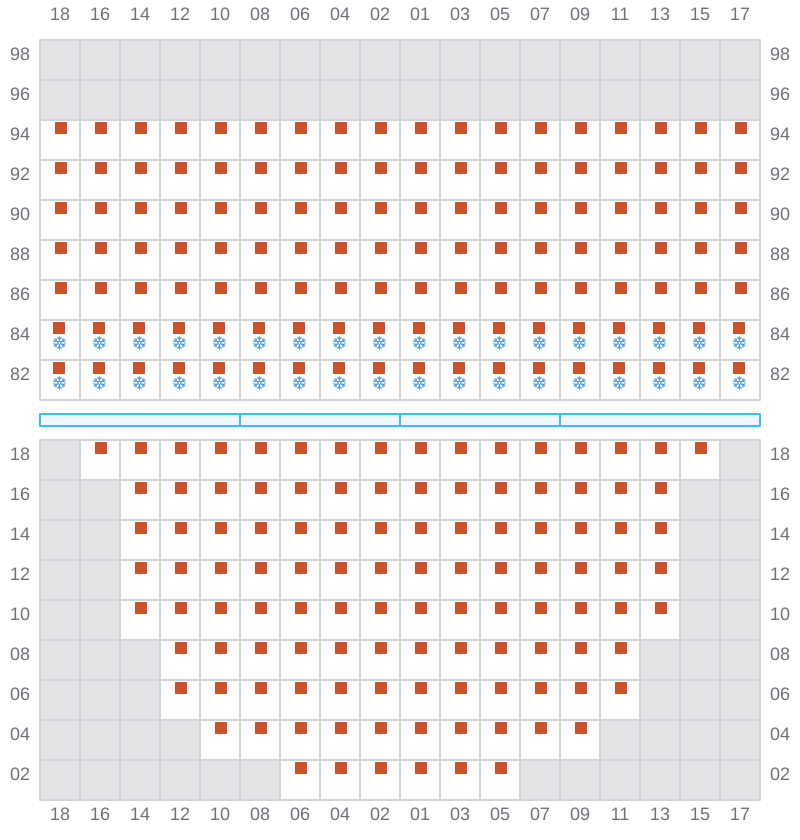

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →
- →
003
- ←
- →

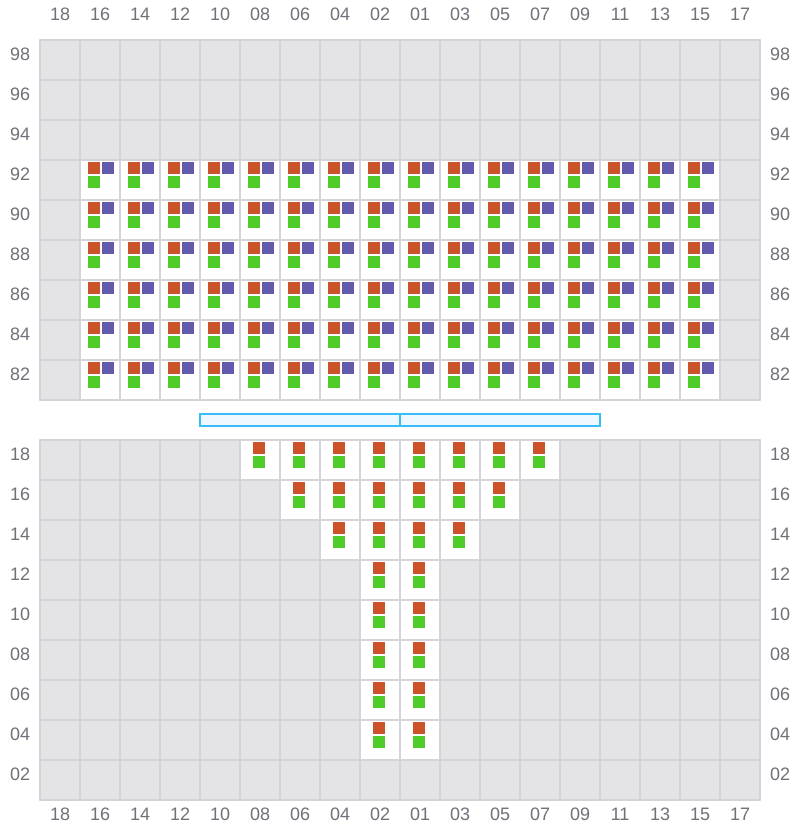

005 (006)
- →
- →
007
- ←
- → / ?
- →

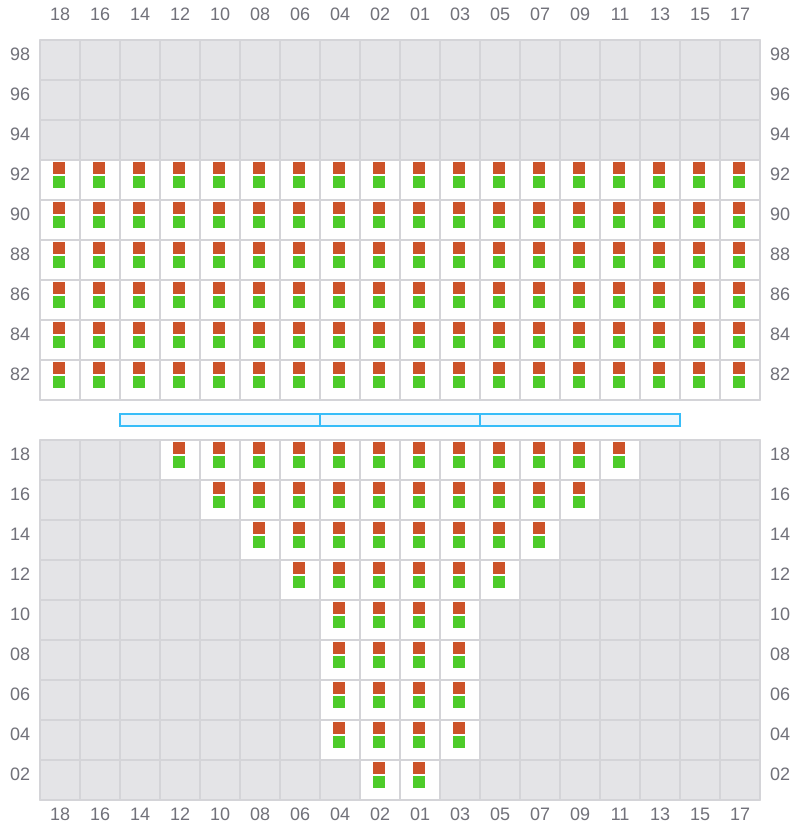

009 (010)
- →
- → / ?
- →
011
- ←
- →

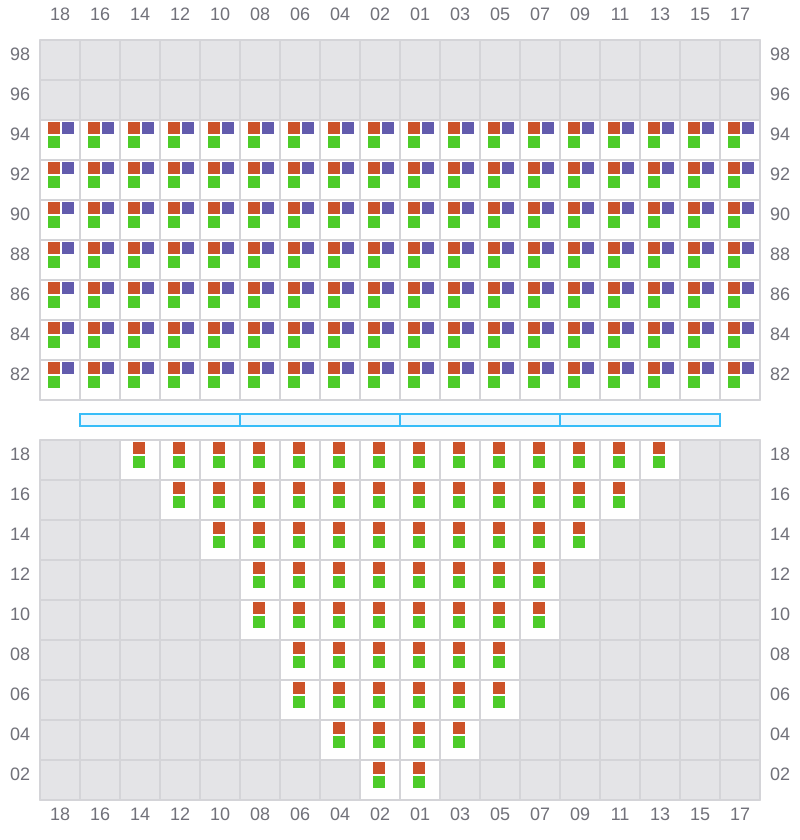

013 (014)
- →
- →
015
- ←
- → / ?
- →

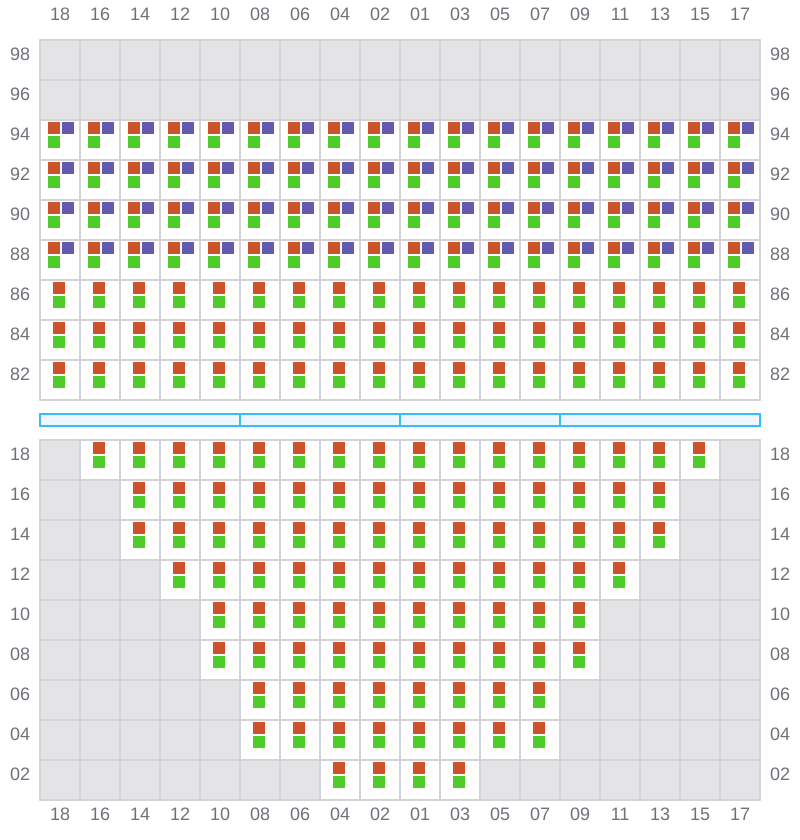

017 (018)
- →
- →
019
- ←
- → / ?
- →
021 (022)
- →
- →
023
- ←
- → / ?
- →
025 (026)
- →
- →
027
- ←
- → / ?
- →
029 (030)
- →
- →
031
- ←
- → / ?
- →
033 (034)
- →
- →
035
- ←
- → / ?
- →

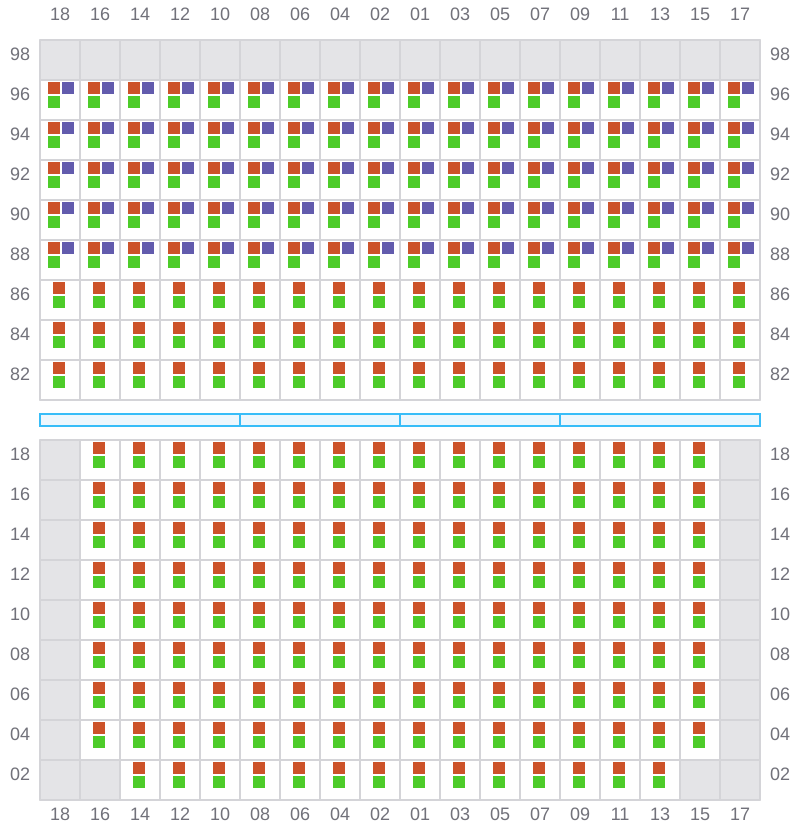

037 (038)
- →
- →
039
- ←
- → / ?
- →
041 (042)
- →
- →
043
- ←
- → / ?
- →

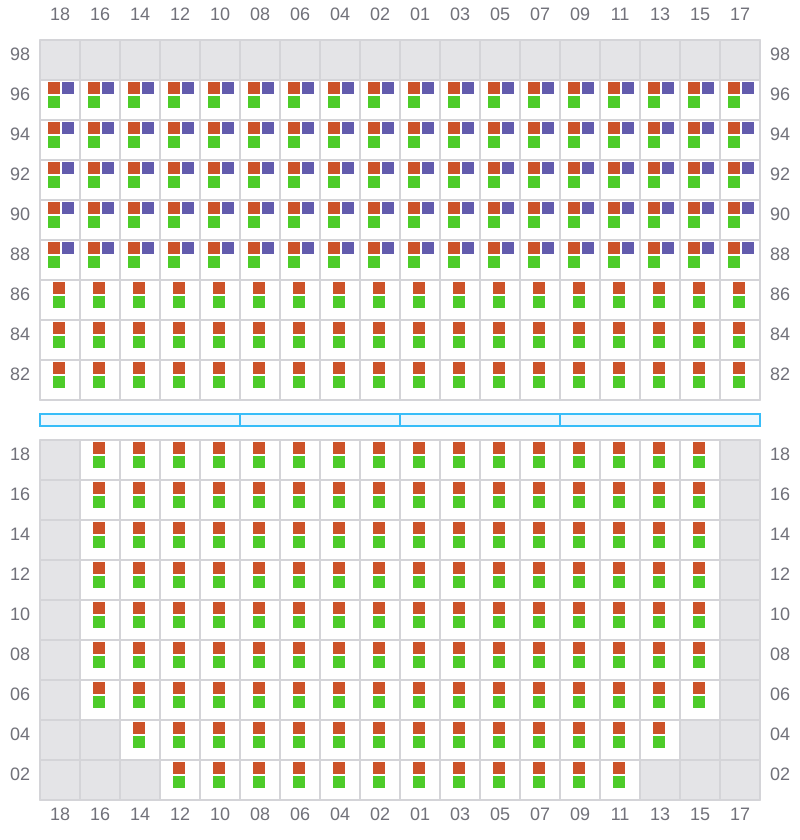

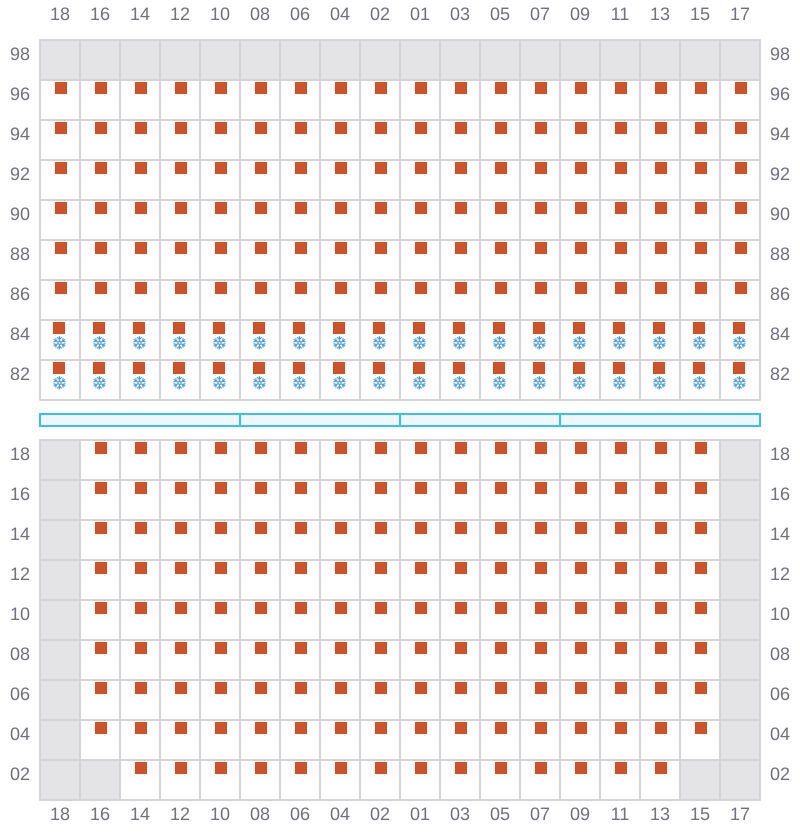

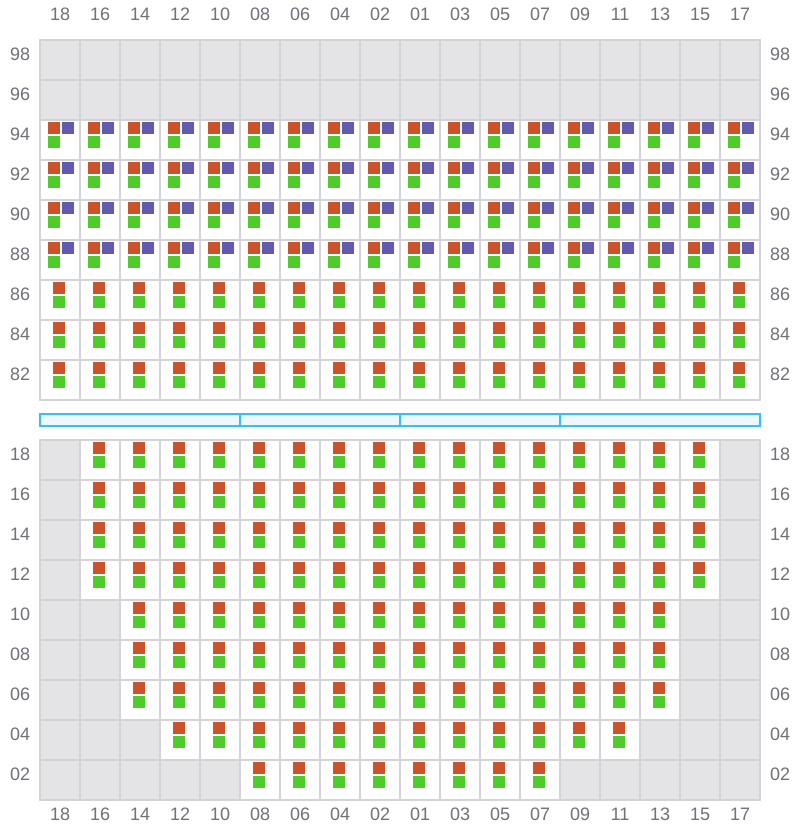

045 (046)
- →
- →
047
- ←
- → / ?
- →

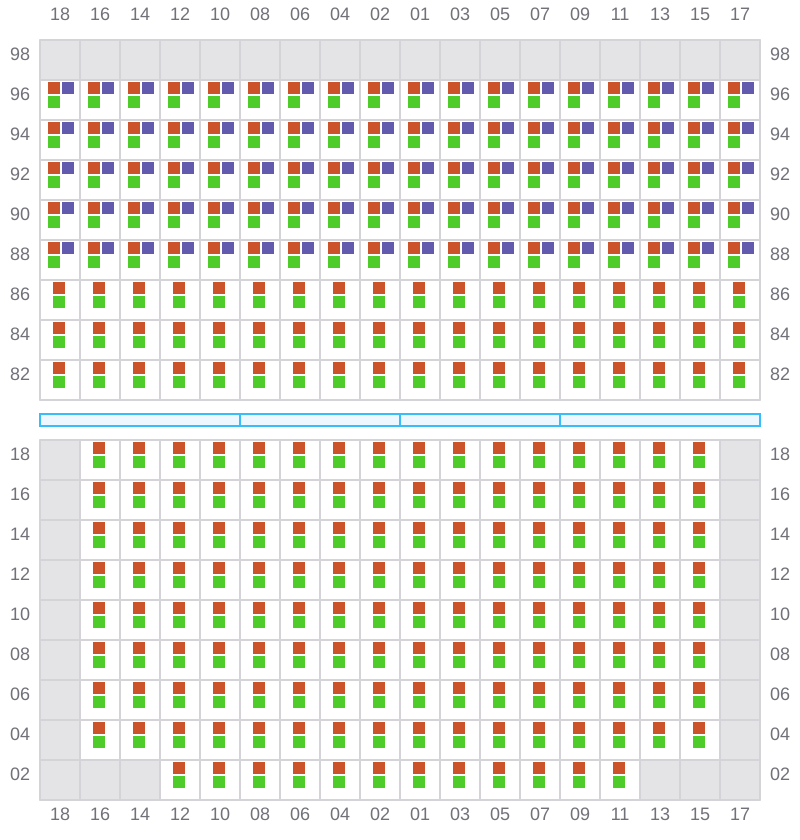

049 (050)
- →
- →

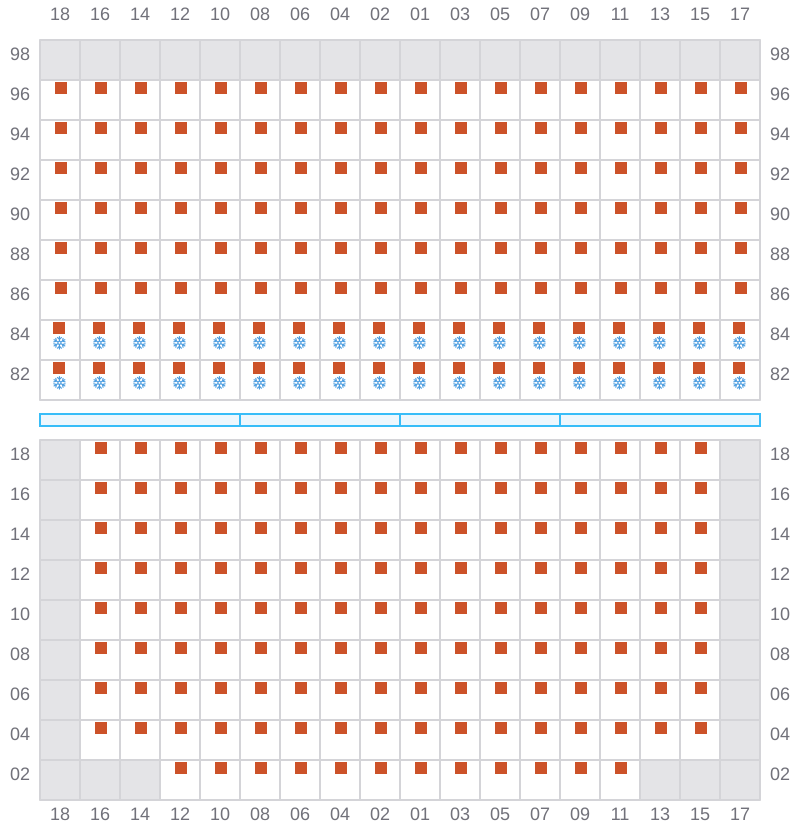

051
- ←
- → / ?
- →

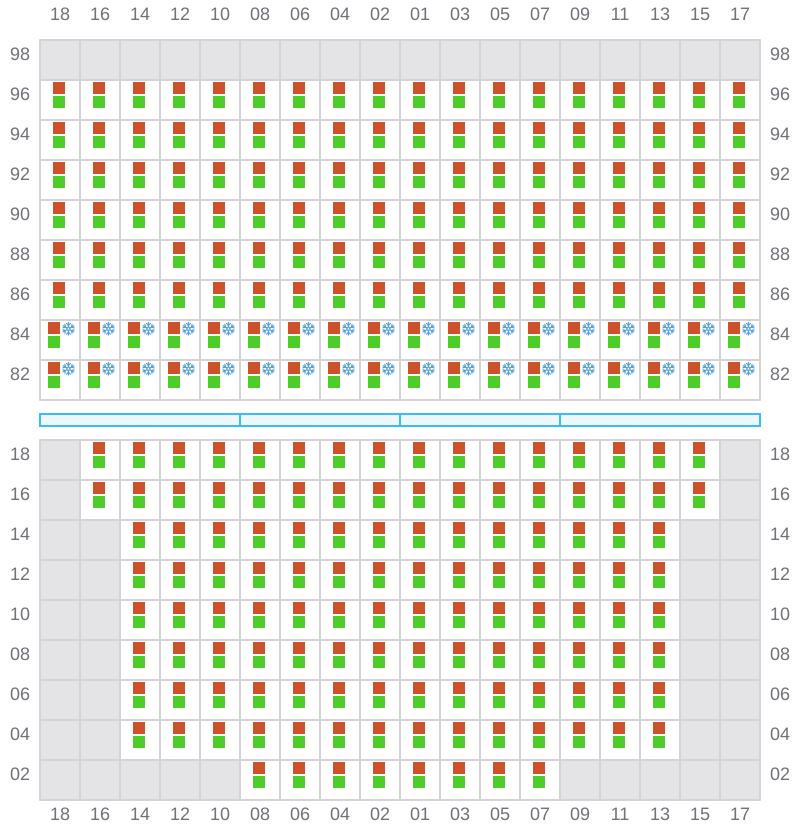

053 (054)
- →
- ← / ?
- →
055
- ←
- →
057 (058)
- →
- →
059
- ←
- → / ?
- →
061 (062)
- →
- →
063
- ←
- → / ?
- →

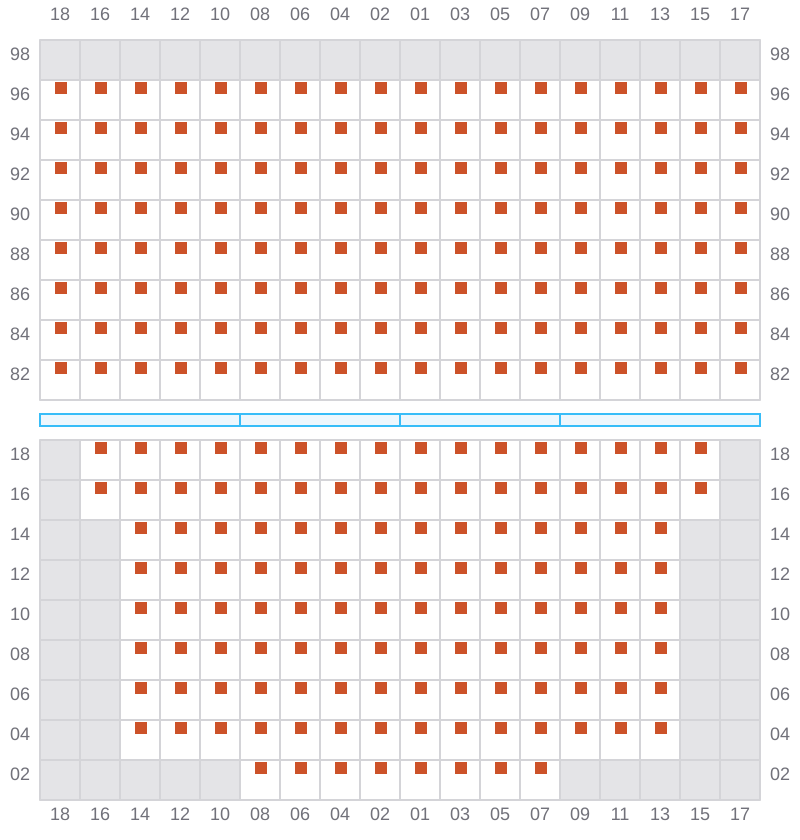

065 (066)
- →
- →
067
- ←
- → / ?
- →

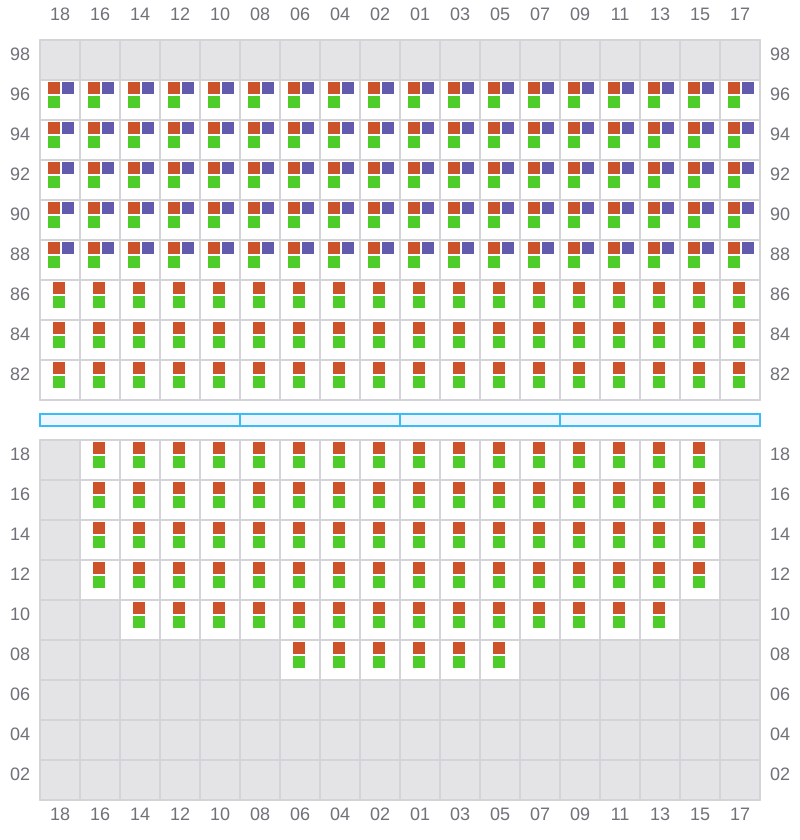

069 (070)
- →
- →
071
- ←
- → / ?
- →

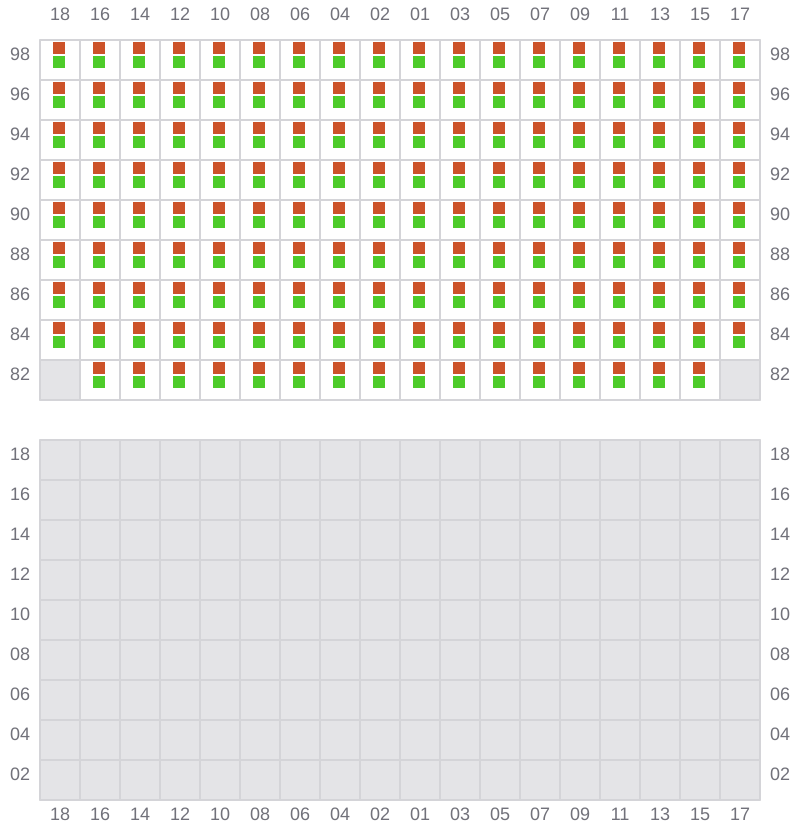

073 (074)
- → / ?
- ← / ?
- → / ?

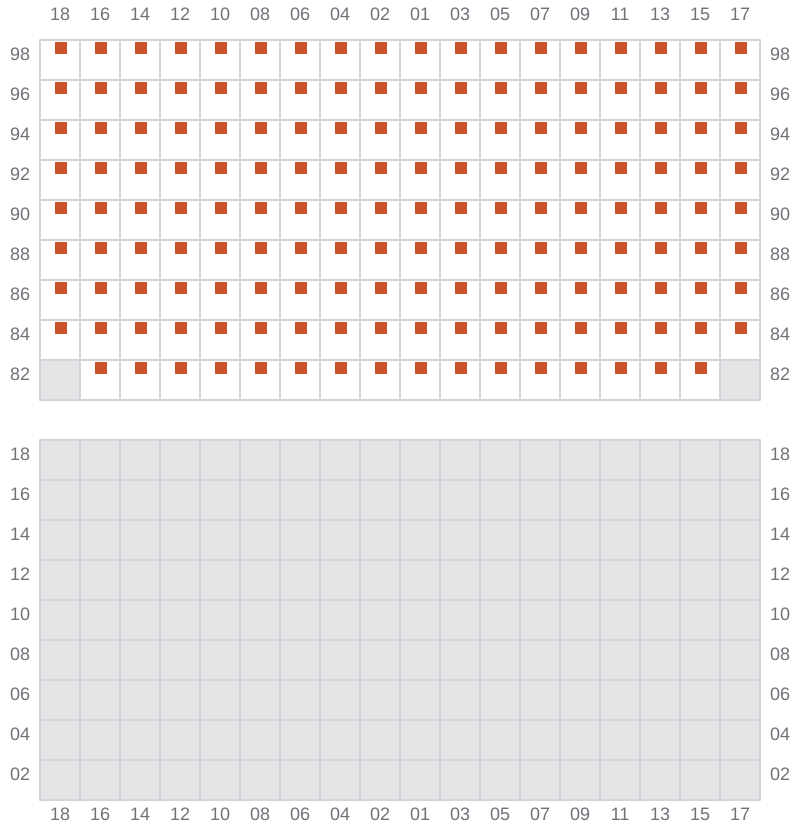

075
- ← / ?
- → / ?
