OOCL CHICAGO
9199270 | VRWQ2 | OOL by ***************************** Last update: Mon May 29 2023
General Info
Ship Name:OOCL CHICAGO
IMO Code:9199270
Call Sign:VRWQ2
Line Operator:OOL
Class Name for Sister Ships:OCHI
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,714
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

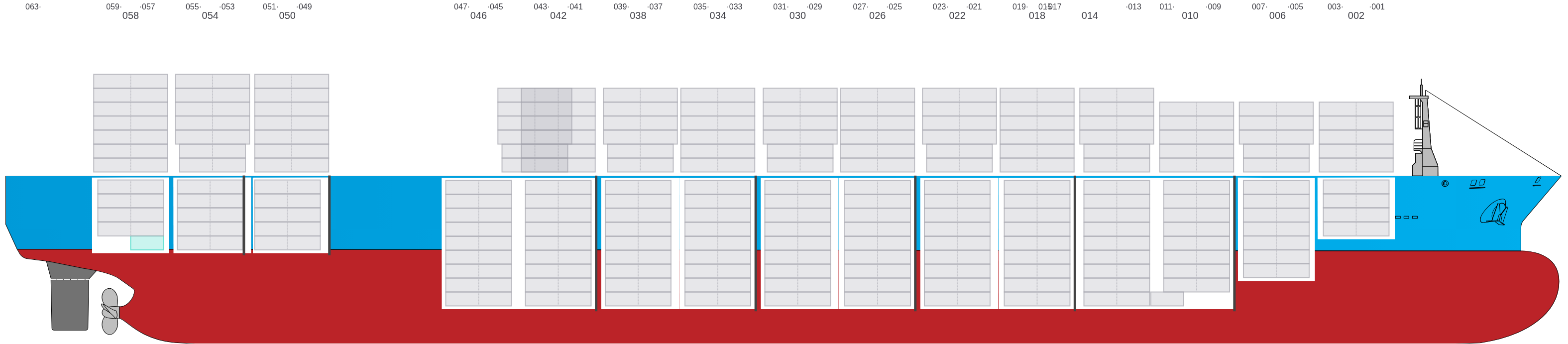

Side View
![Side view of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-sideView.png?v=1685401920598)
Hatch-Covers View
![Deck view of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-deckView.png?v=1685401920598)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

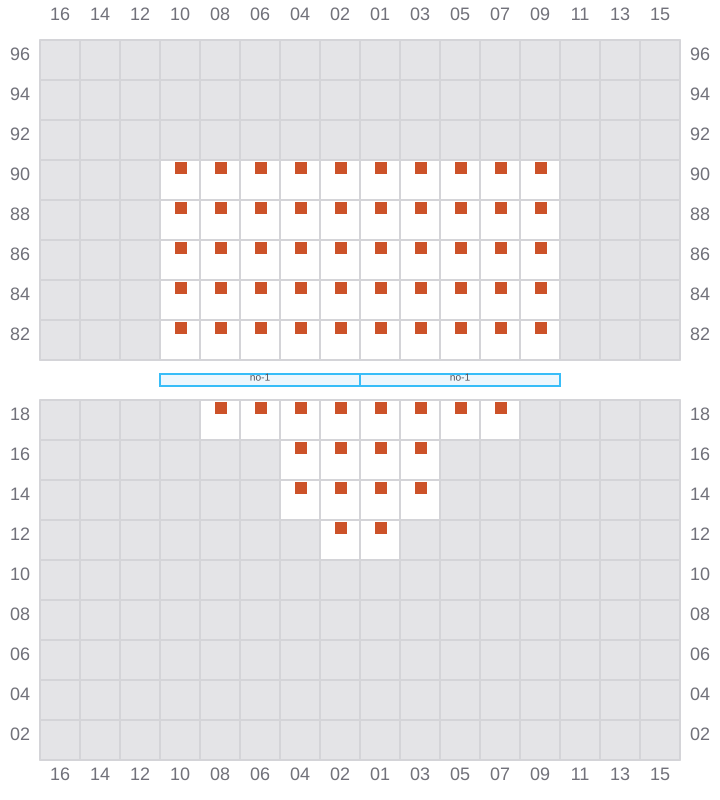

001
- →
- →
![Bay 001 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b001.png?v=1685401920598)

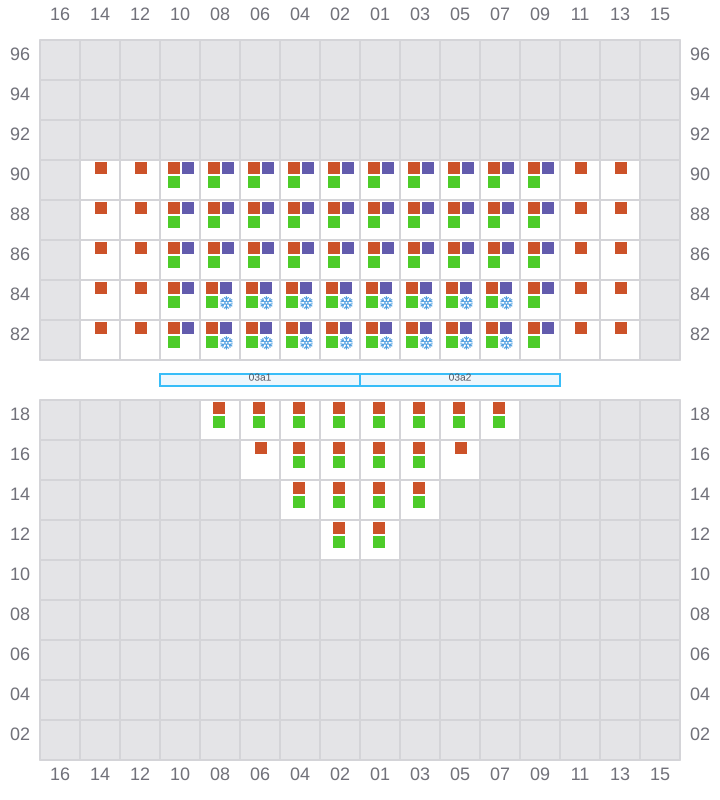

003 (002)
- ←
- → / ?
- →
![Bay 003 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b003.png?v=1685401920598)
005
- →
- ← / ?
- →
![Bay 005 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b005.png?v=1685401920598)

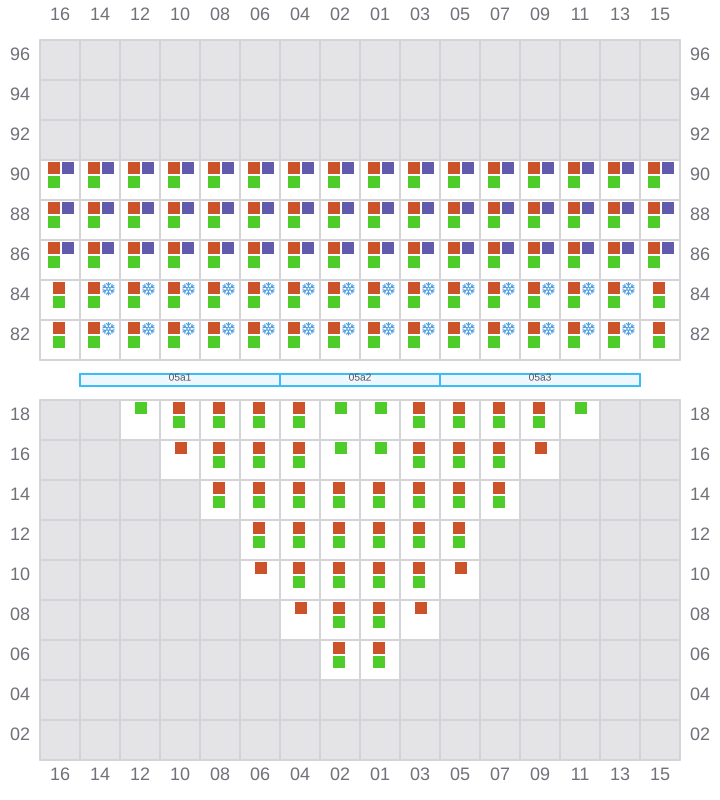

007 (006)
- ←
- → / ?
- →
![Bay 007 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b007.png?v=1685401920598)

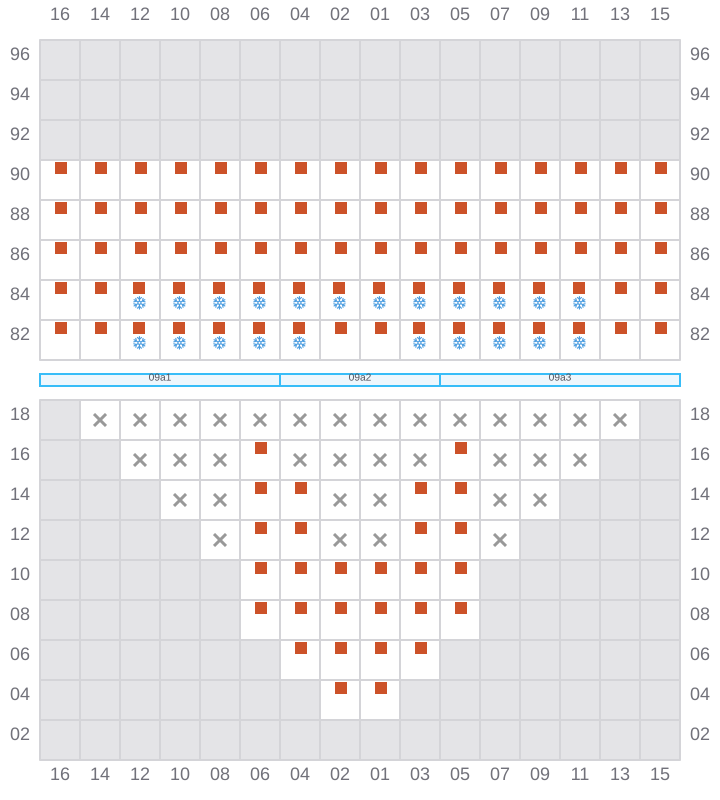

009
- →
- ← / ?
- →
![Bay 009 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b009.png?v=1685401920598)

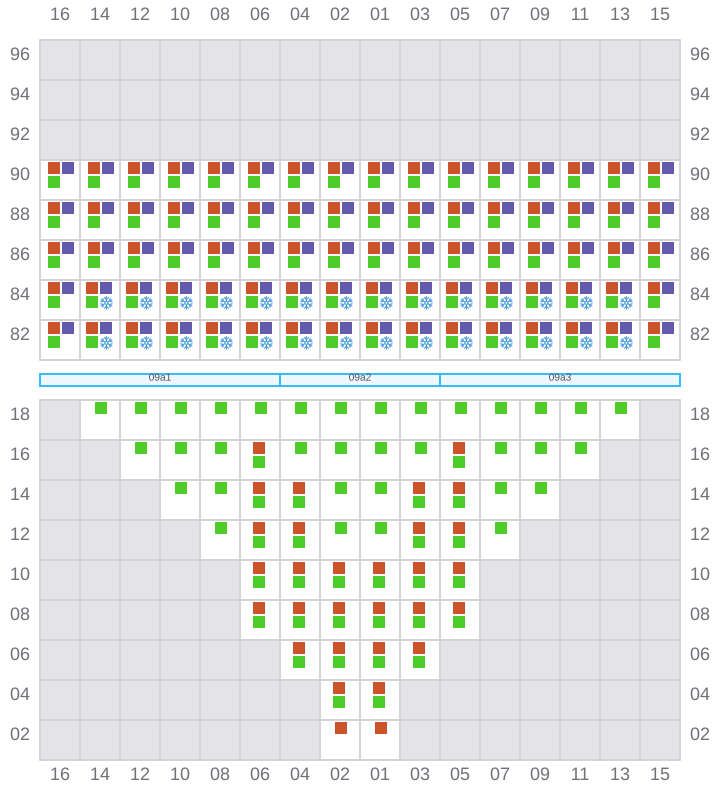

011 (010)
- ←
- → / ?
- →
![Bay 011 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b011.png?v=1685401920598)

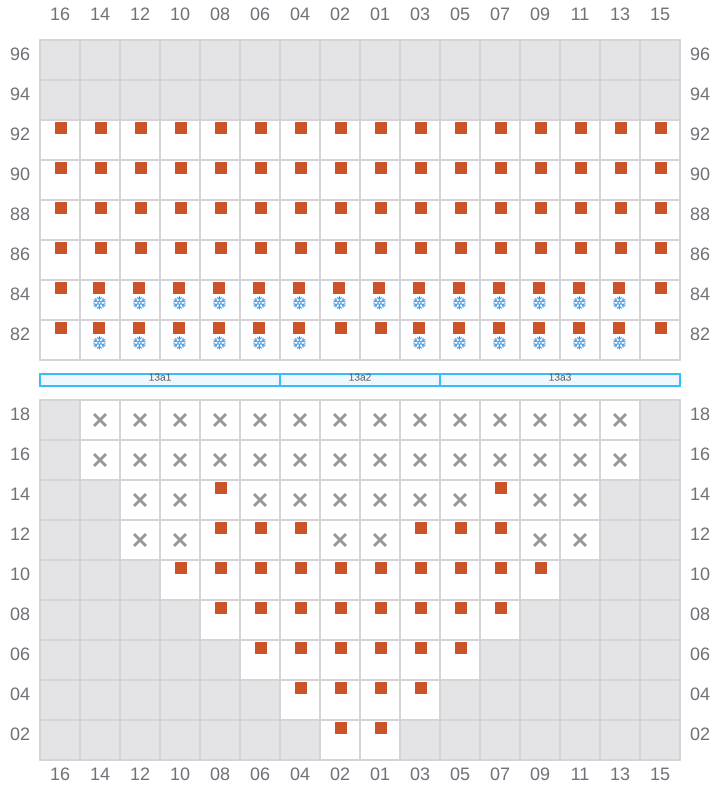

013
- →
- ← / ?
- →
![Bay 013 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b013.png?v=1685401920598)

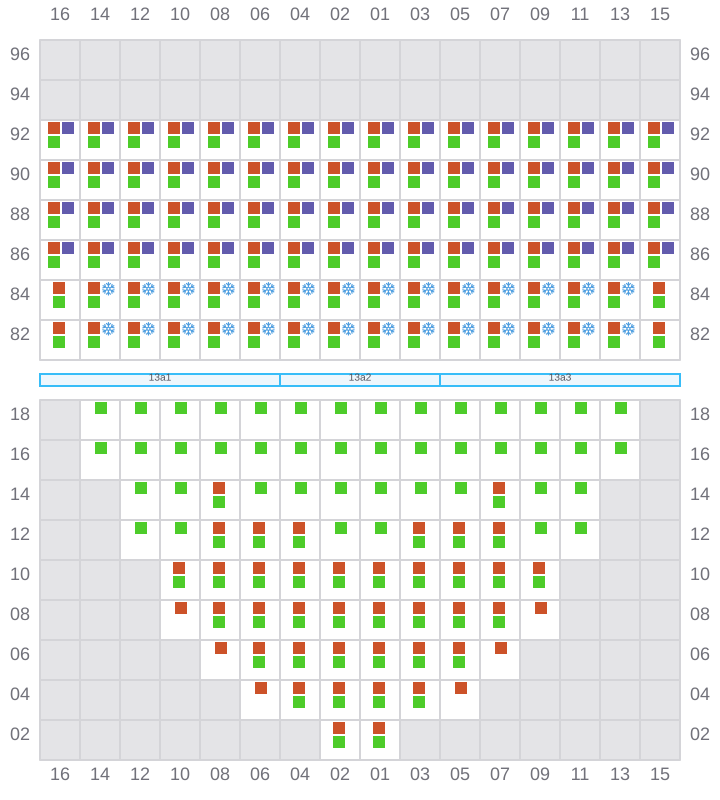

015 (014)
- ←
- → / ?
- →
![Bay 015 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b015.png?v=1685401920598)

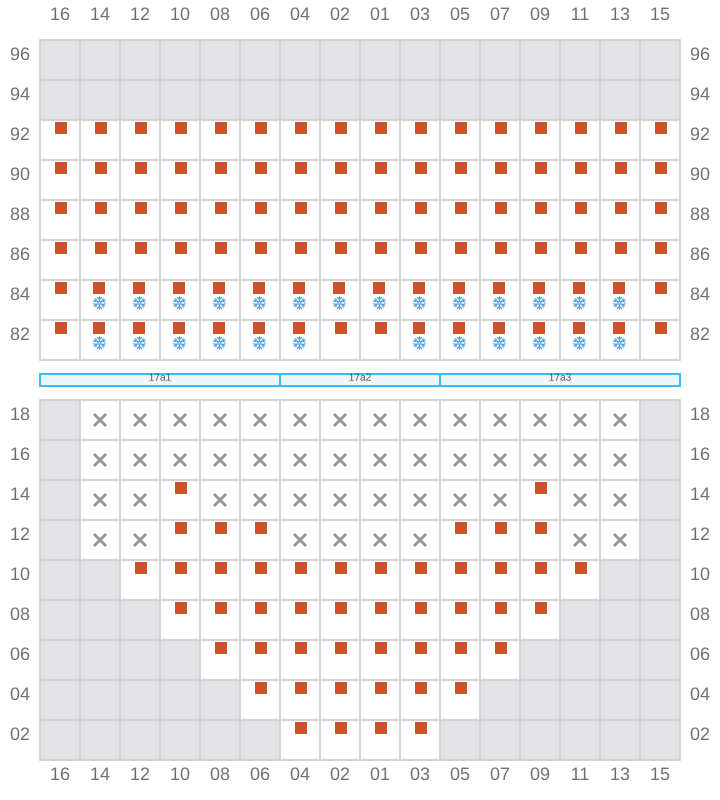

017
- →
- ← / ?
- →
![Bay 017 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b017.png?v=1685401920598)

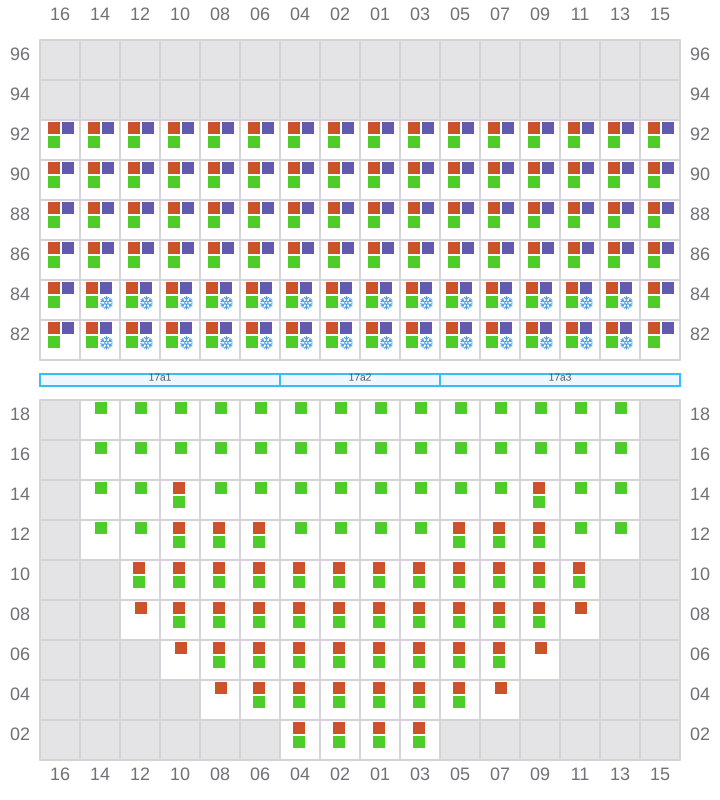

019 (018)
- ←
- → / ?
- →
![Bay 019 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b019.png?v=1685401920598)

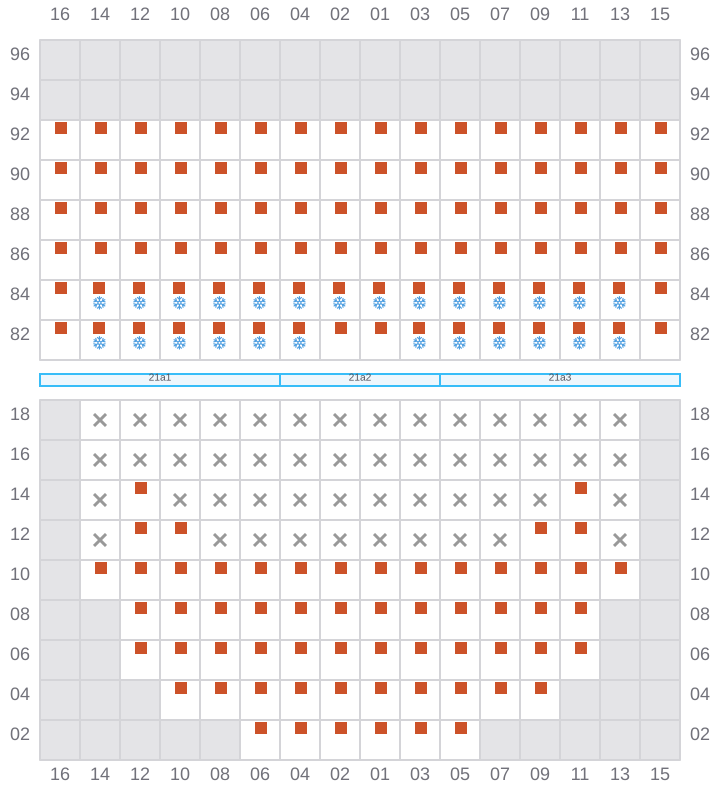

021
- →
- ←
- →
![Bay 021 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b021.png?v=1685401920598)

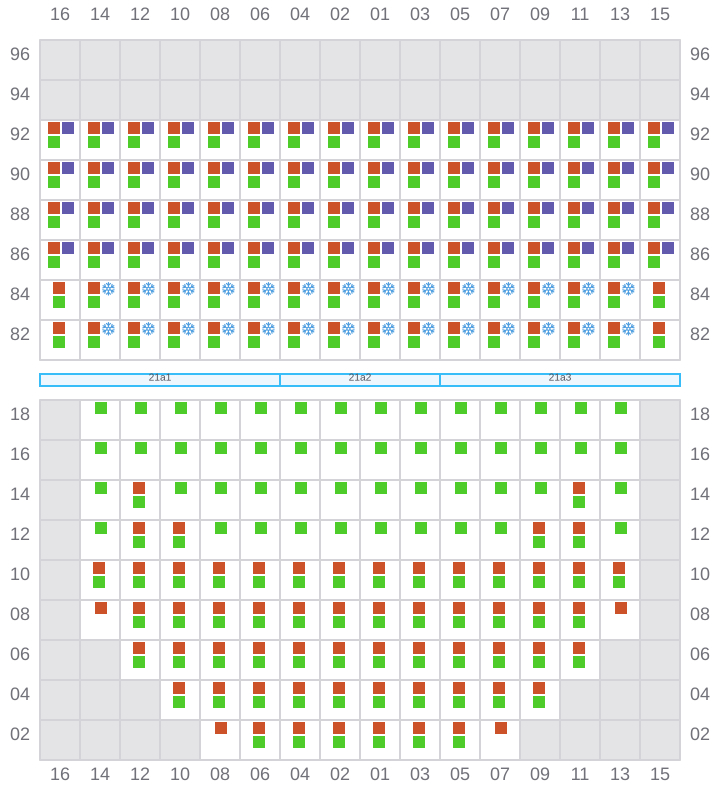

023 (022)
- ←
- → / ←
- →
![Bay 023 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b023.png?v=1685401920598)

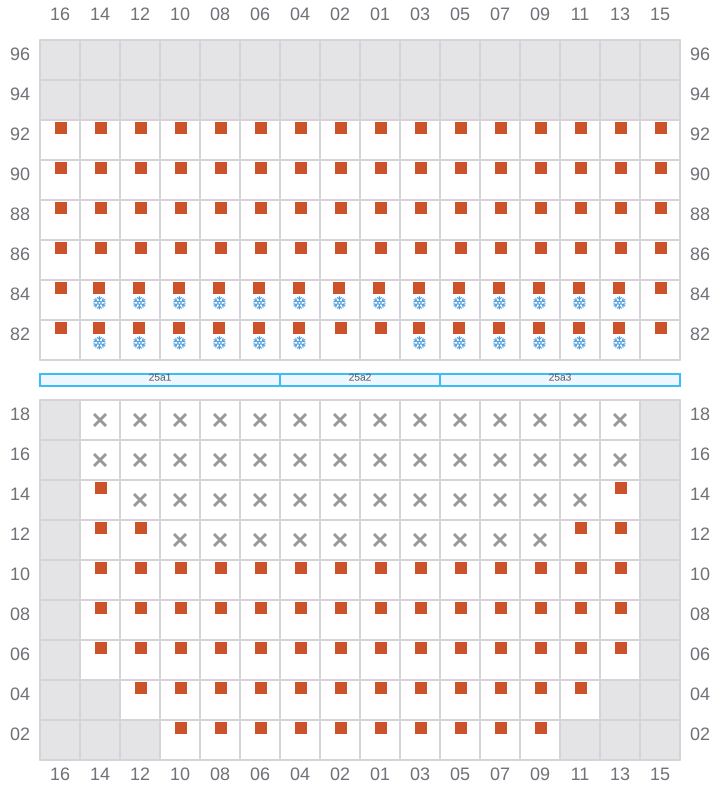

025
- →
- ← / ?
- →
![Bay 025 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b025.png?v=1685401920598)

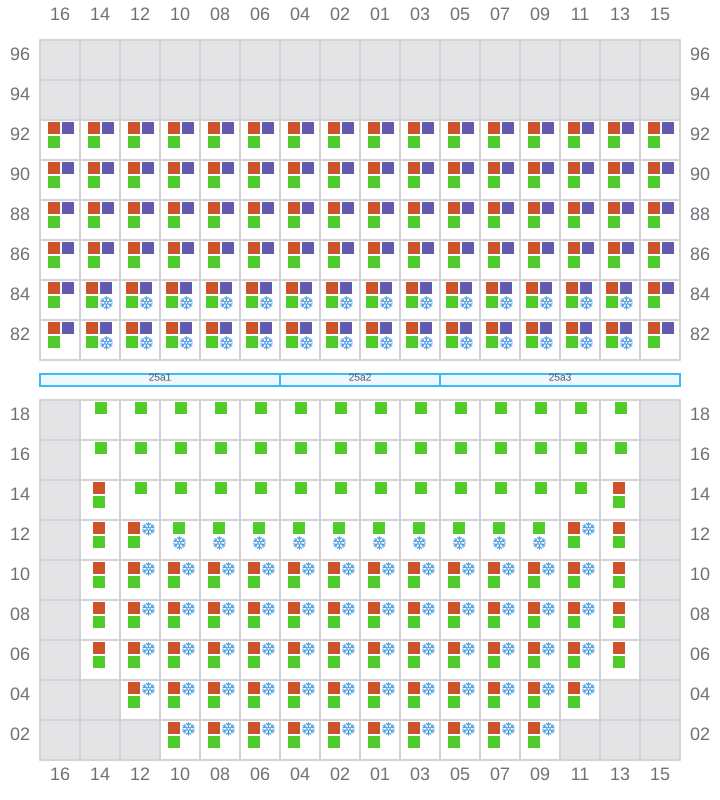

027 (026)
- ←
- →
- →
![Bay 027 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b027.png?v=1685401920598)

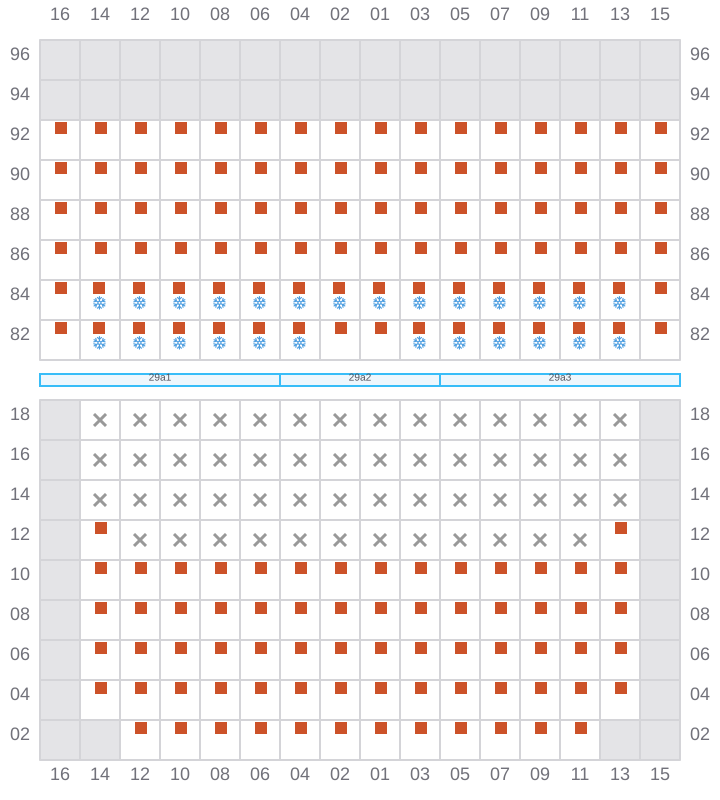

029
- →
- ←
- →
![Bay 029 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b029.png?v=1685401920598)

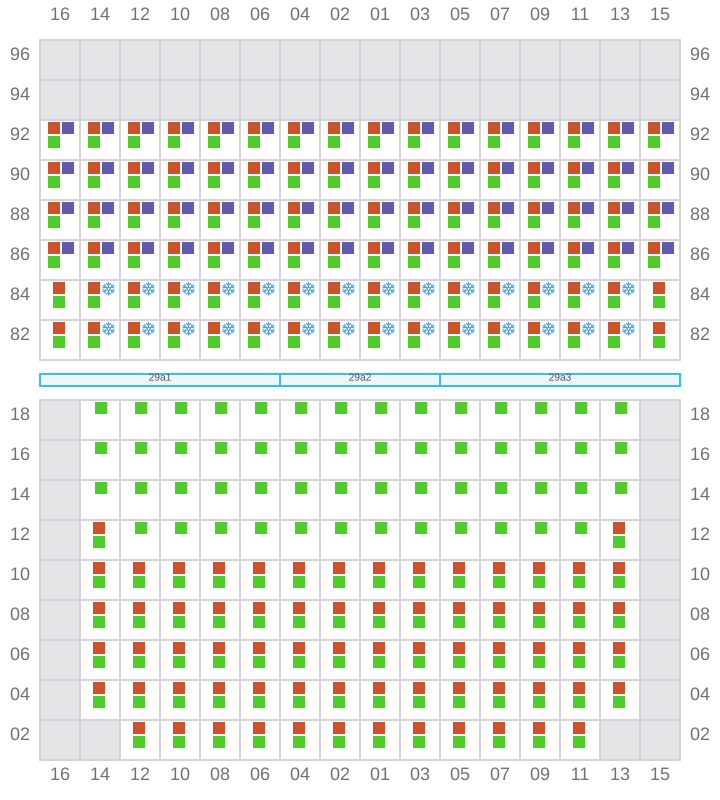

031 (030)
- ←
- → / ←
- →
![Bay 031 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b031.png?v=1685401920598)
033
- →
- ← / ?
- →
![Bay 033 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b033.png?v=1685401920598)

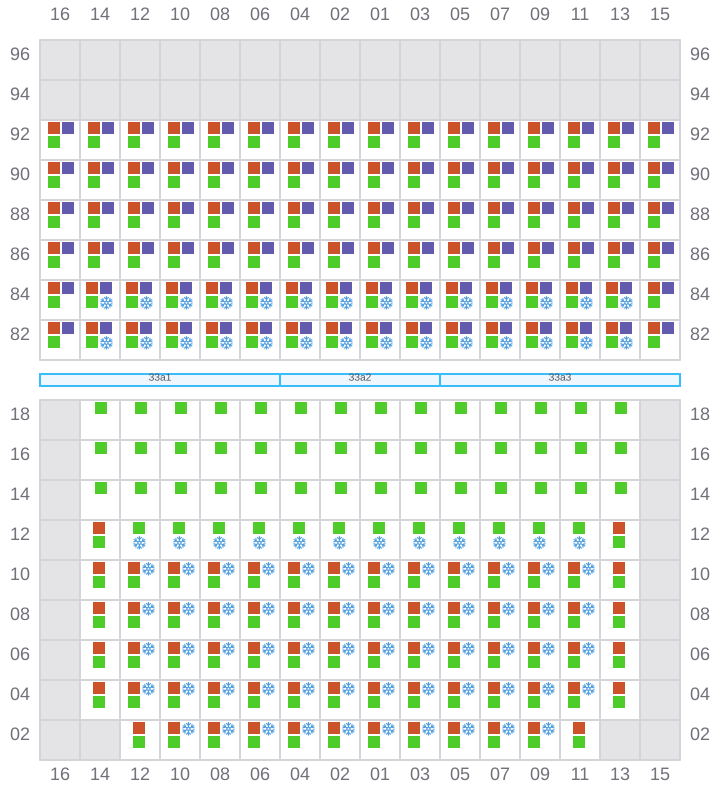

035 (034)
- ←
- →
- →
![Bay 035 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b035.png?v=1685401920598)
037
- →
- ←
- →
![Bay 037 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b037.png?v=1685401920598)

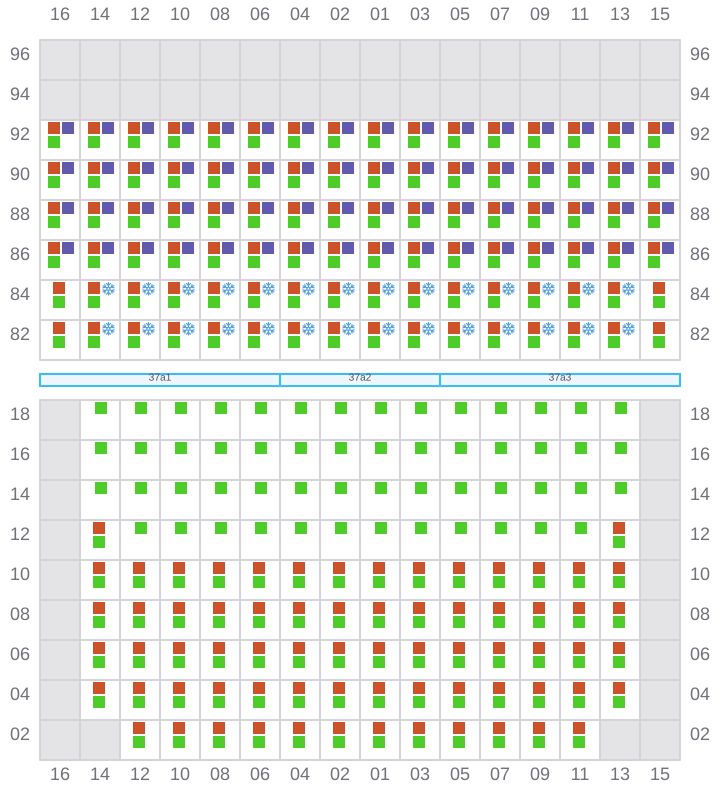

039 (038)
- ←
- → / ←
- →
![Bay 039 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b039.png?v=1685401920598)
041
- →
- ←
- →
![Bay 041 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b041.png?v=1685401920598)

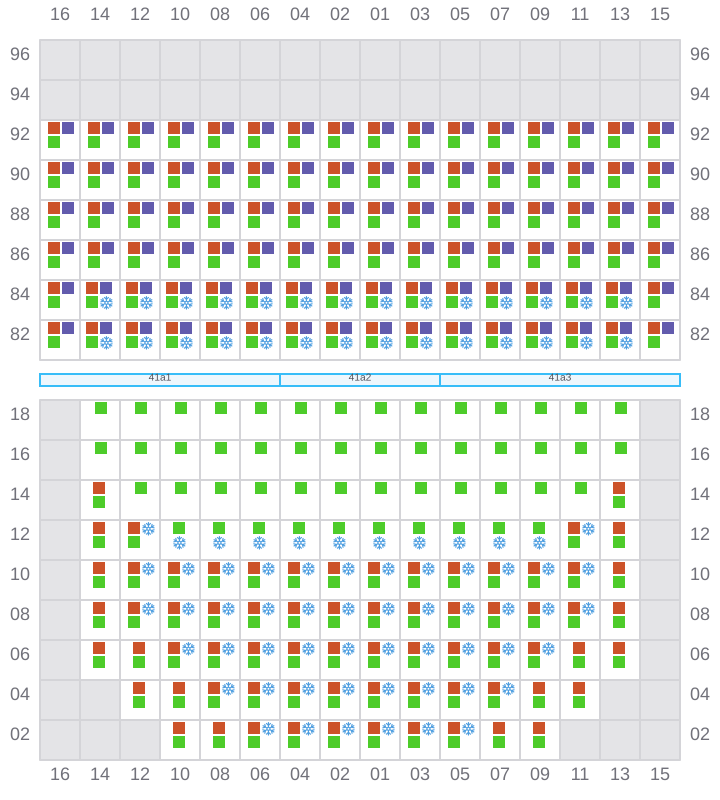

043 (042)
- ←
- → / ←
- →
![Bay 043 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b043.png?v=1685401920598)

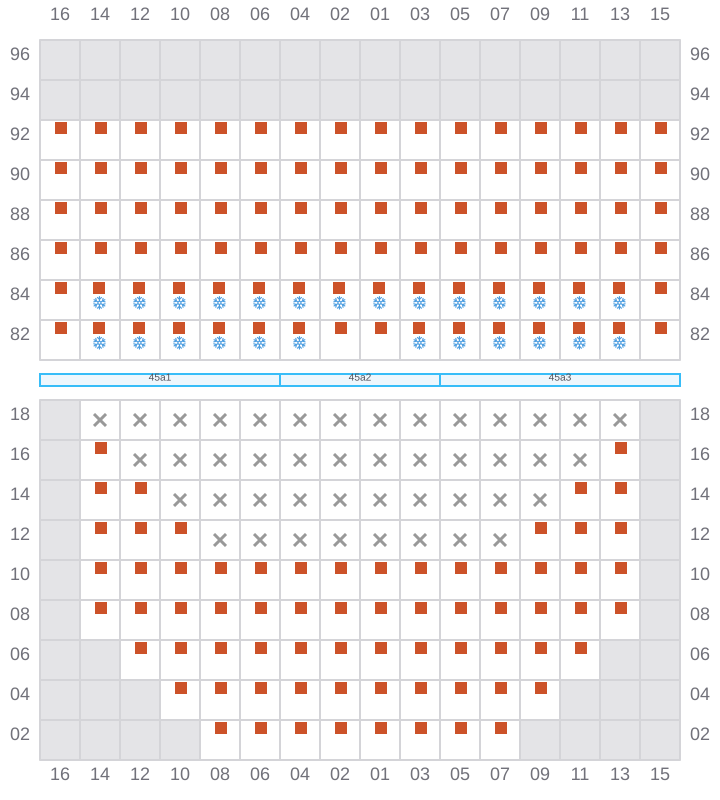

045
- →
- ←
- →
![Bay 045 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b045.png?v=1685401920598)
047 (046)
- ←
- → / ←
- →
![Bay 047 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b047.png?v=1685401920598)

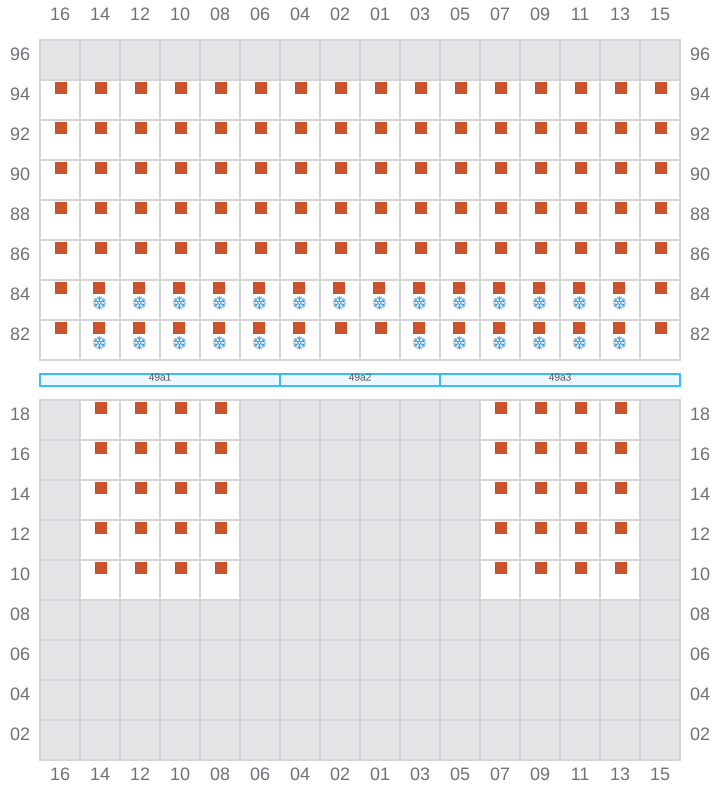

049
- →
- ←
- →
![Bay 049 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b049.png?v=1685401920598)

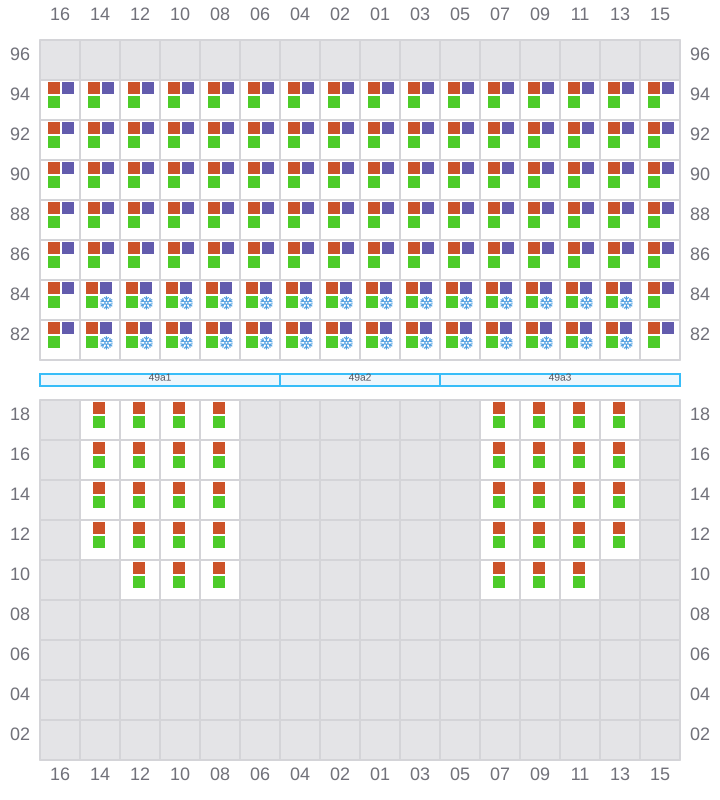

051 (050)
- ←
- → / ←
- →
![Bay 051 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b051.png?v=1685401920598)

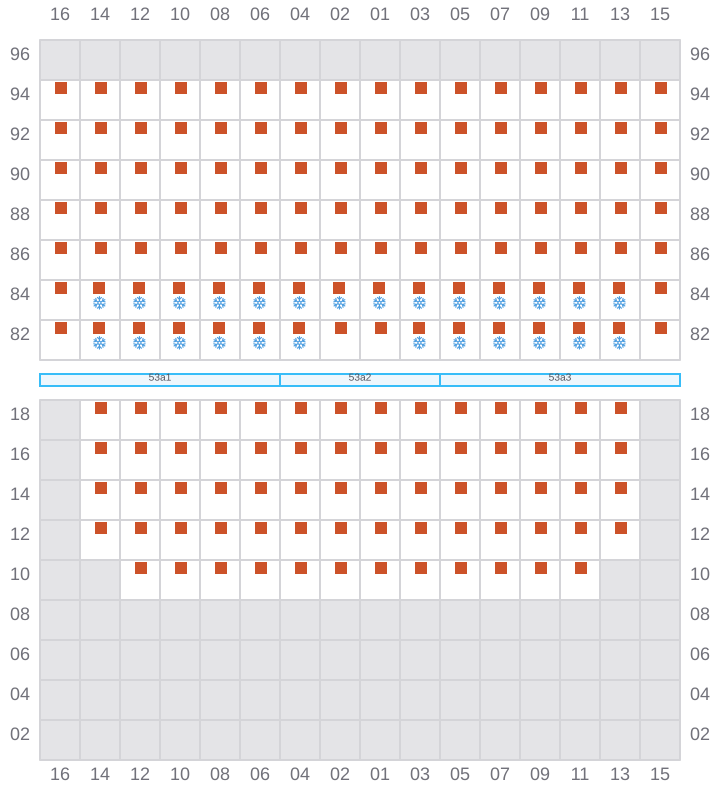

053
- →
- ←
- →
![Bay 053 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b053.png?v=1685401920598)

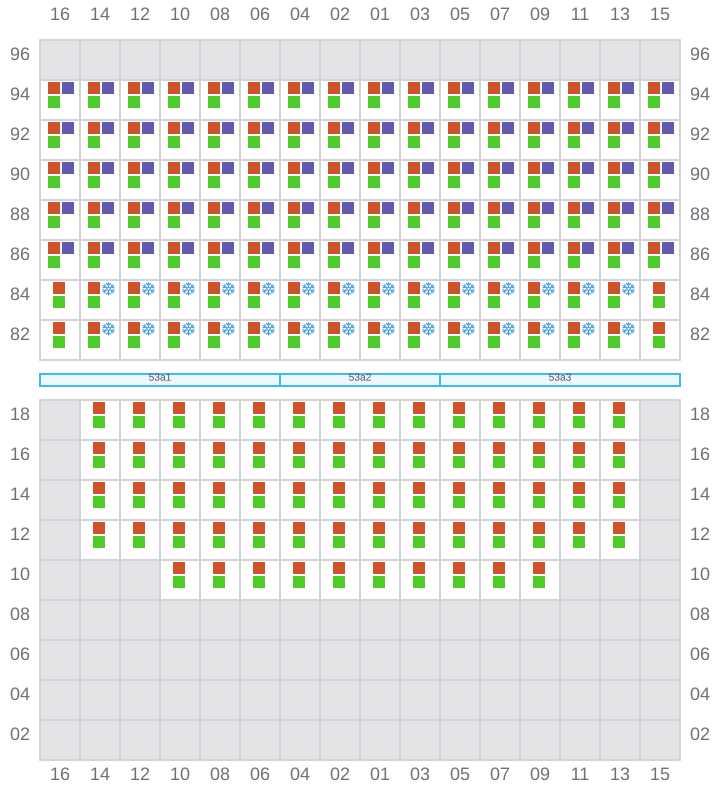

055 (054)
- ←
- → / ←
- →
![Bay 055 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b055.png?v=1685401920598)

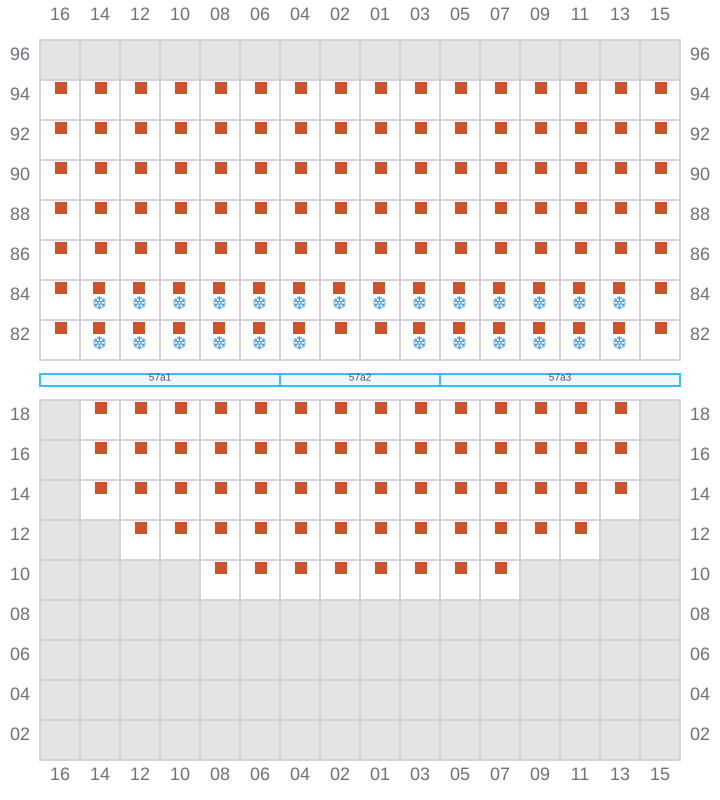

057
- →
- ←
- →
![Bay 057 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b057.png?v=1685401920598)

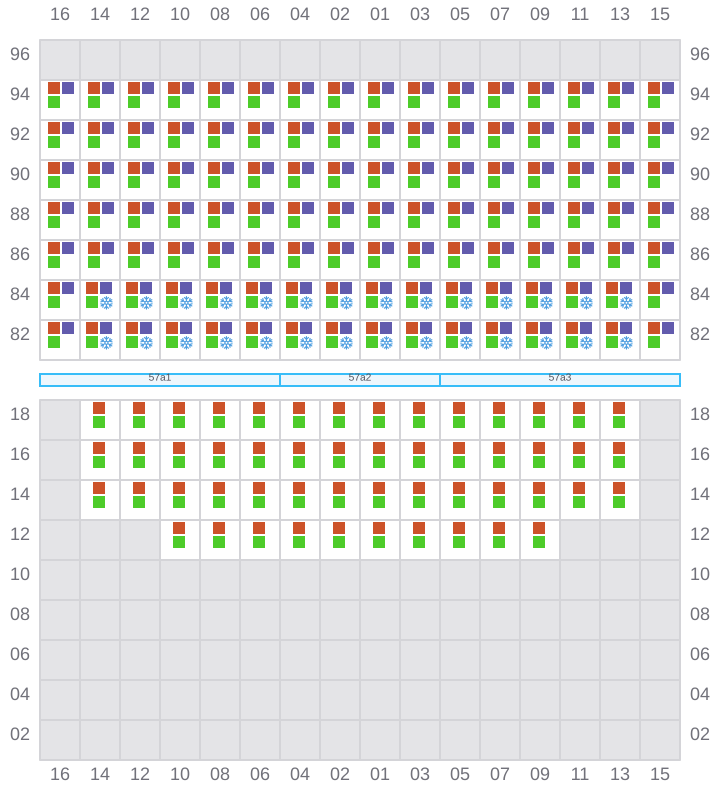

059 (058)
- ←
- → / ←
- →
![Bay 059 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b059.png?v=1685401920598)

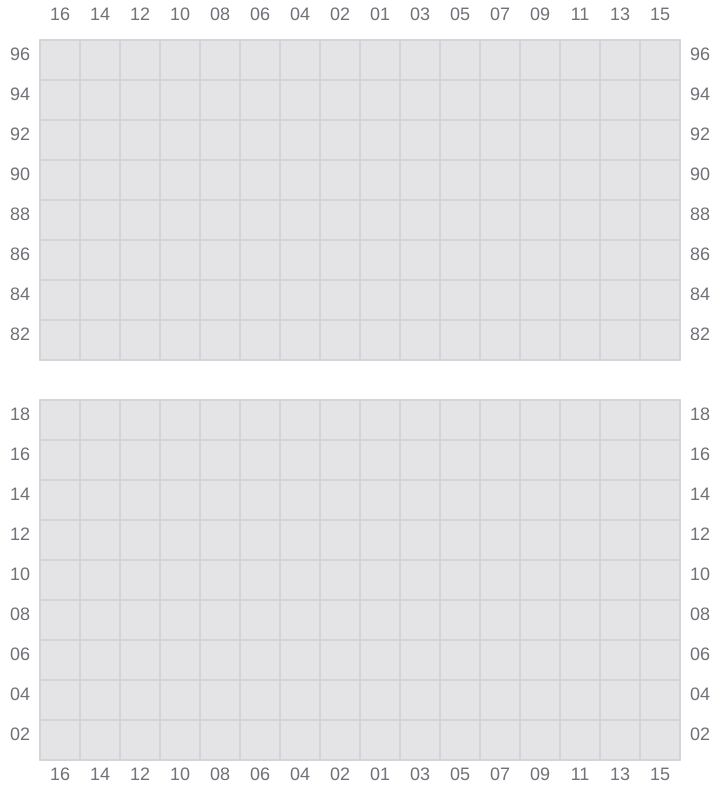

061
![Bay 061 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b061.png?v=1685401920598)

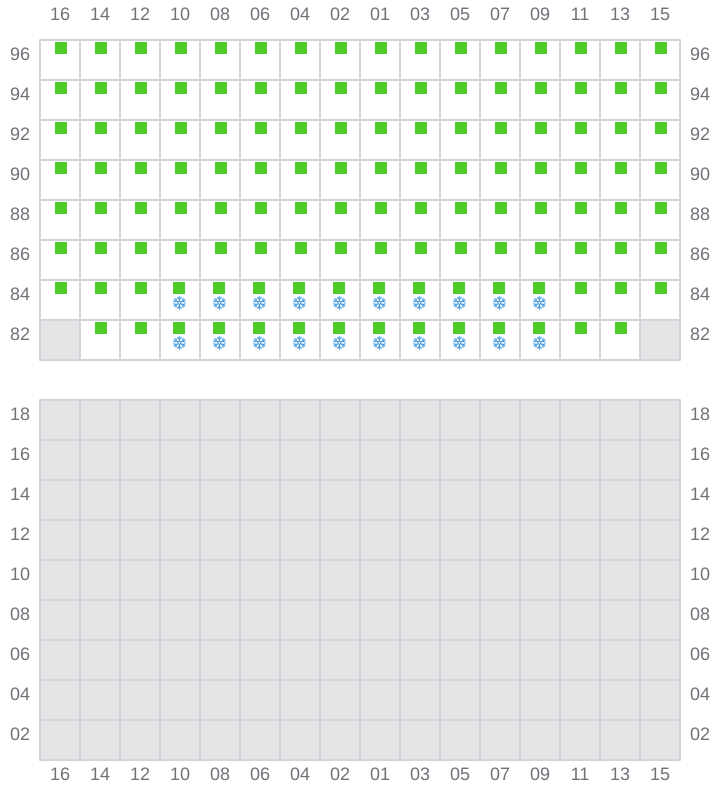

063 (062)
- ← / ?
- → / ?
- → / ?
![Bay 063 view and slots of OOCL CHICAGO](/vessel-images/6ef62f4b-7a7d-4ddf-8faa-c532c82bf6a2-b063.png?v=1685401920598)
