OOCL HAMBURG
9252008 | VRZK9 | OOL by ***************************** Last update: Mon May 29 2023

General Info

Ship Name:OOCL HAMBURG
IMO Code:9252008
Call Sign:VRZK9
Line Operator:OOL
Class Name for Sister Ships:OHAM
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:075
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,070

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

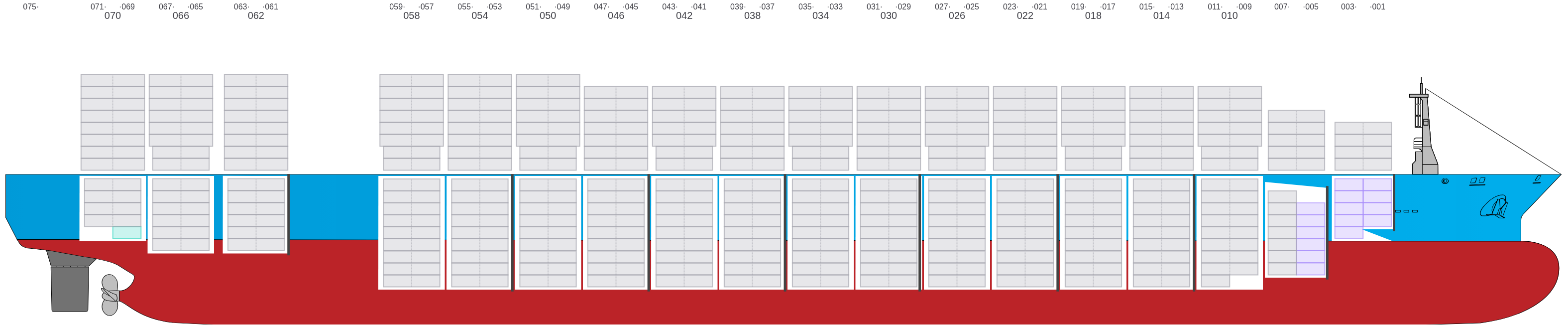

Side view of OOCL HAMBURG

Hatch-Covers View

Deck view of OOCL HAMBURG

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • → / ?
Bay 001 view and slots of OOCL HAMBURG

003 (002)

  • ← / ?

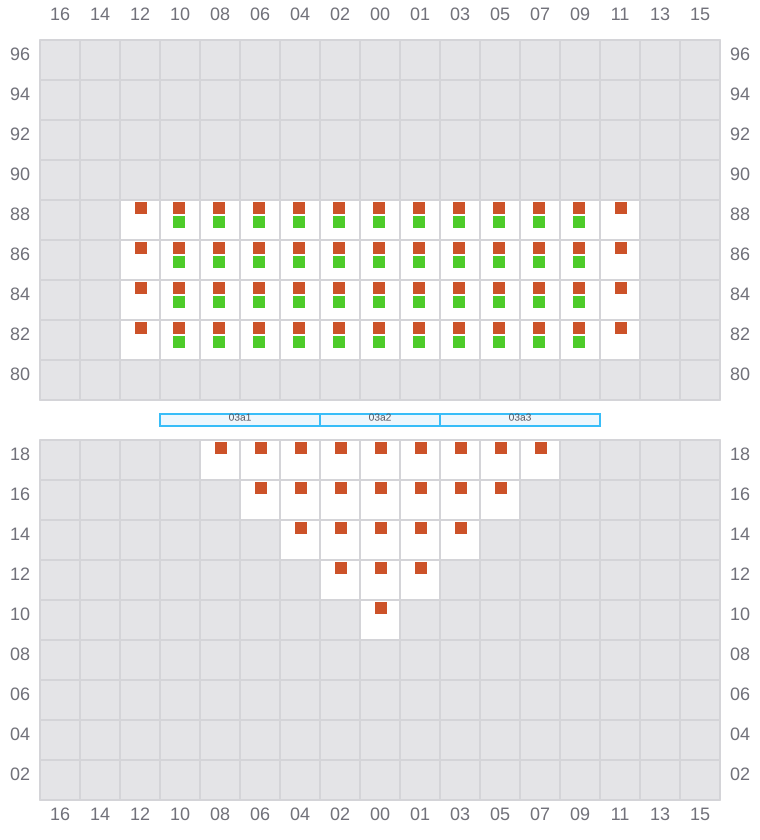

Bay 003 view and slots of OOCL HAMBURG

005

  • → / ?

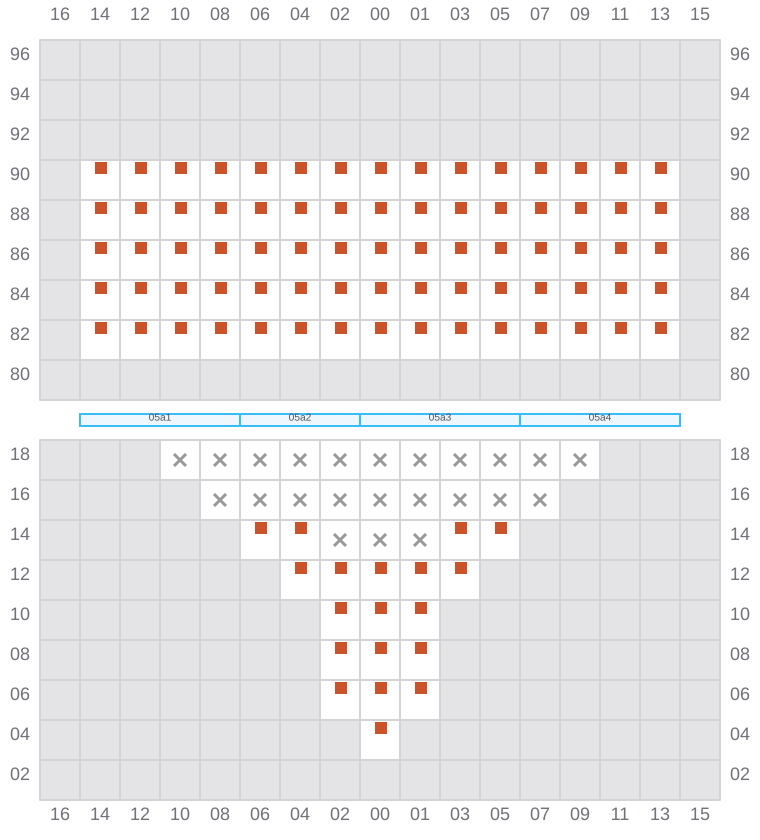

Bay 005 view and slots of OOCL HAMBURG

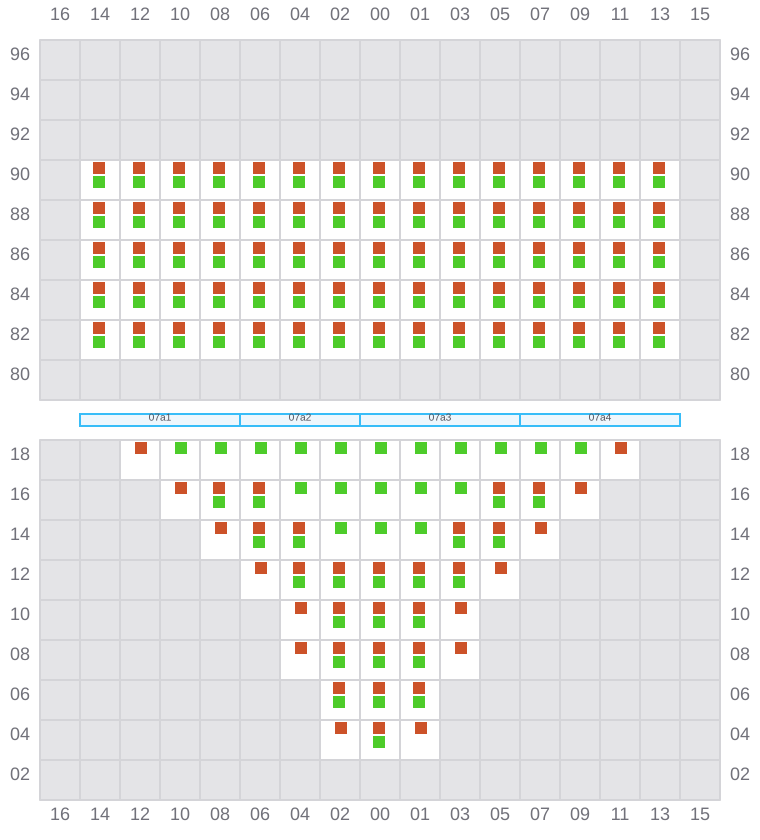

007 (006)

  • ←
Bay 007 view and slots of OOCL HAMBURG

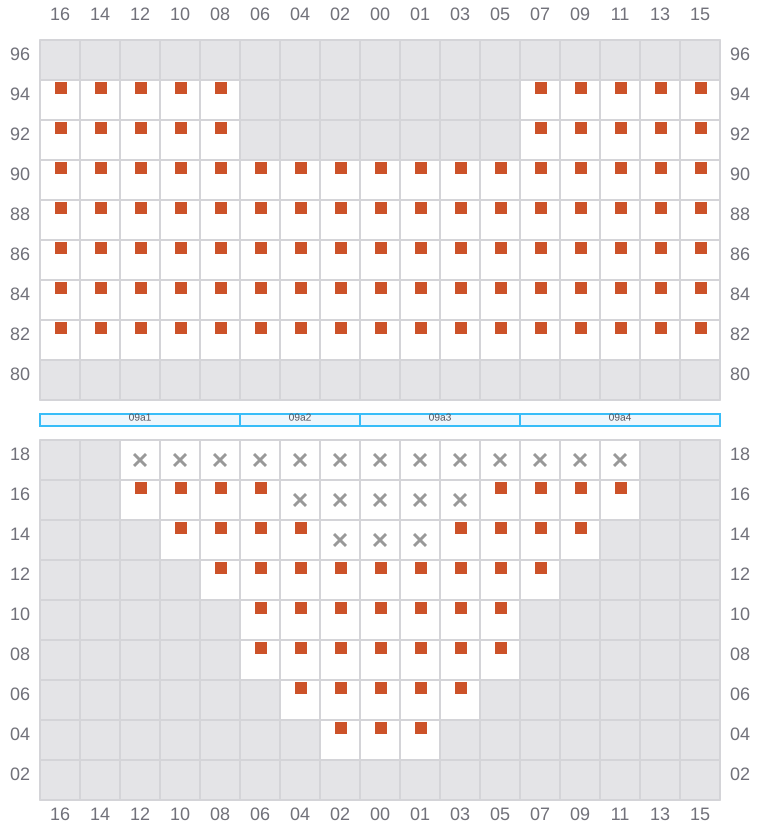

009

  • →
Bay 009 view and slots of OOCL HAMBURG

011 (010)

  • ←
  • → / ?

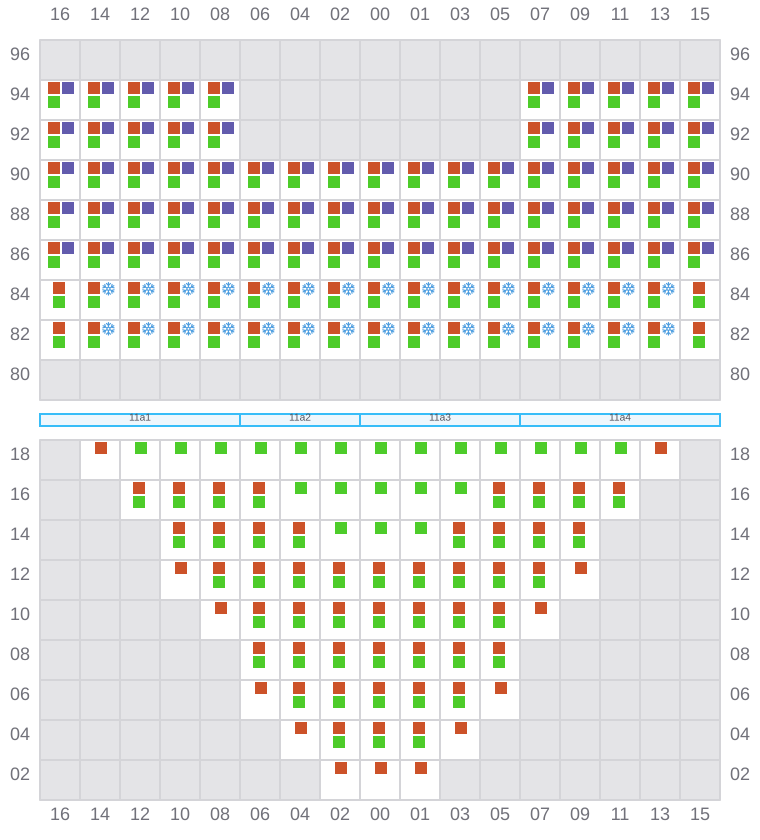

Bay 011 view and slots of OOCL HAMBURG

013

  • →
Bay 013 view and slots of OOCL HAMBURG

015 (014)

  • ←
  • → / ?

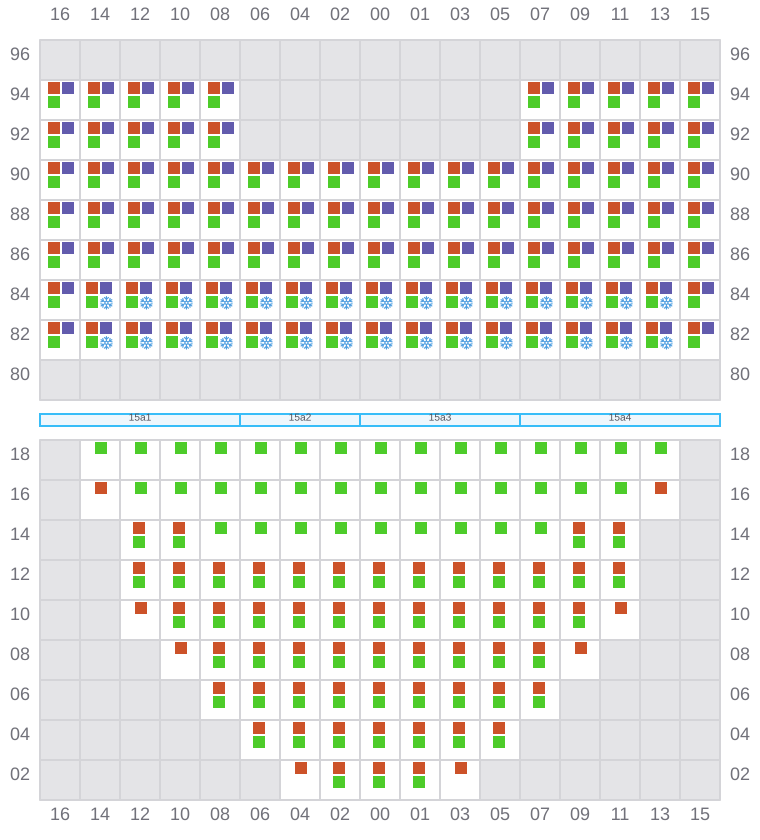

Bay 015 view and slots of OOCL HAMBURG

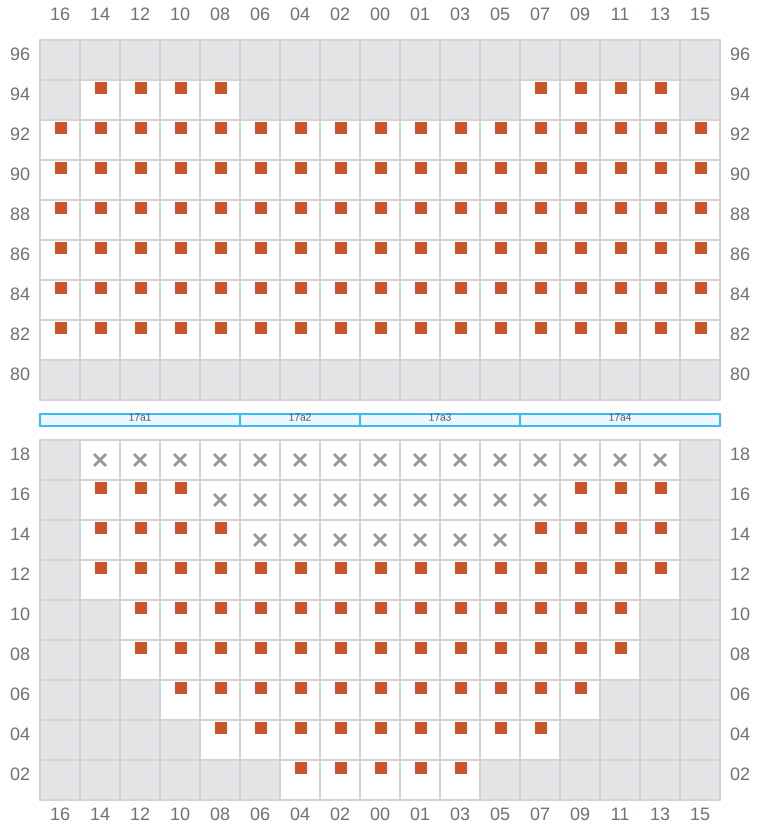

017

  • →
Bay 017 view and slots of OOCL HAMBURG

019 (018)

  • ←
  • → / ?
Bay 019 view and slots of OOCL HAMBURG

021

  • →

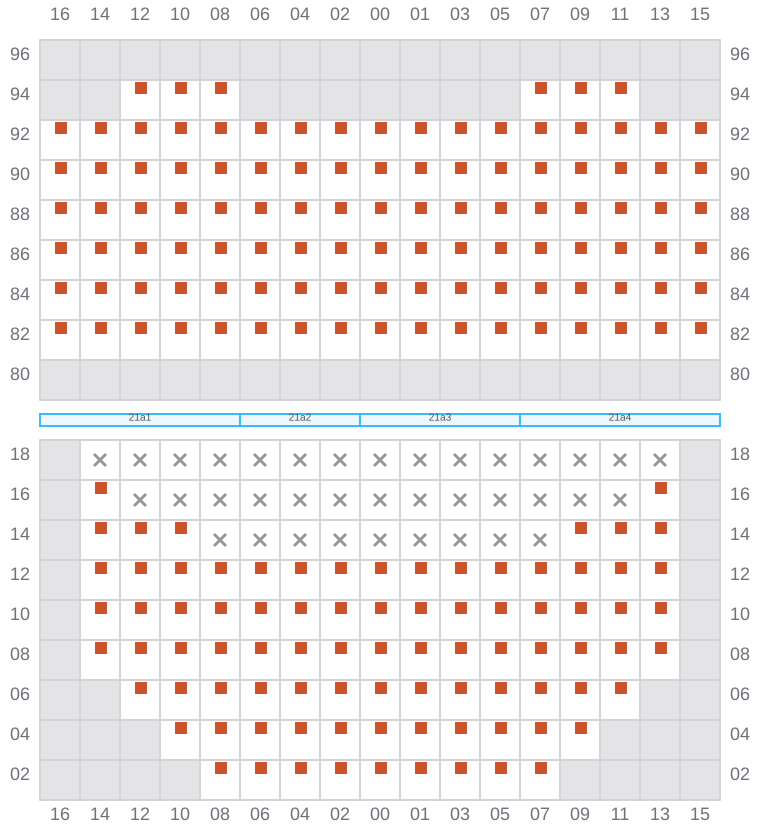

Bay 021 view and slots of OOCL HAMBURG

023 (022)

  • ←
  • → / ?

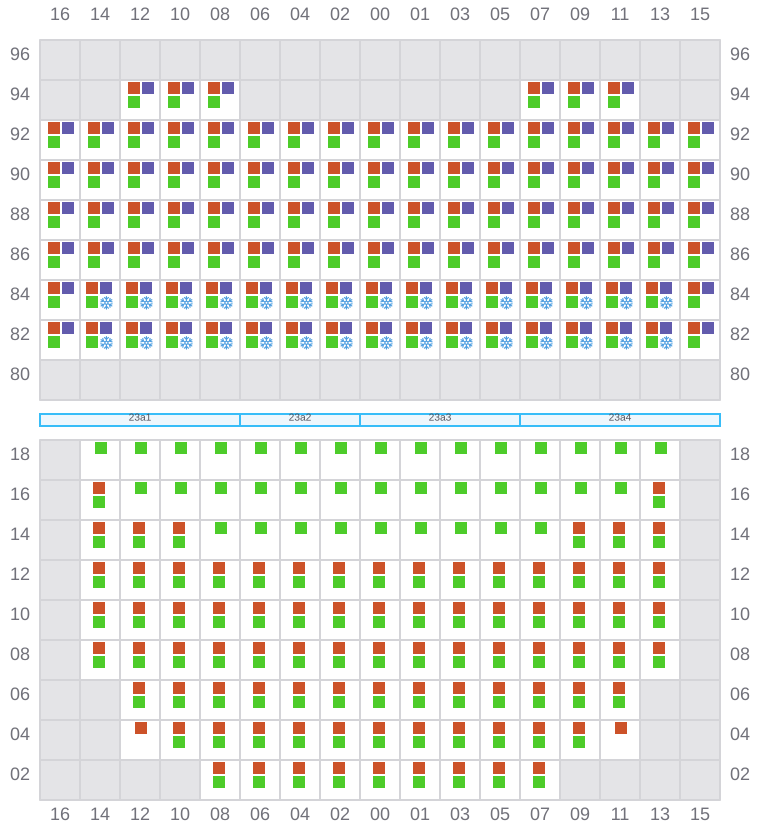

Bay 023 view and slots of OOCL HAMBURG

025

  • →

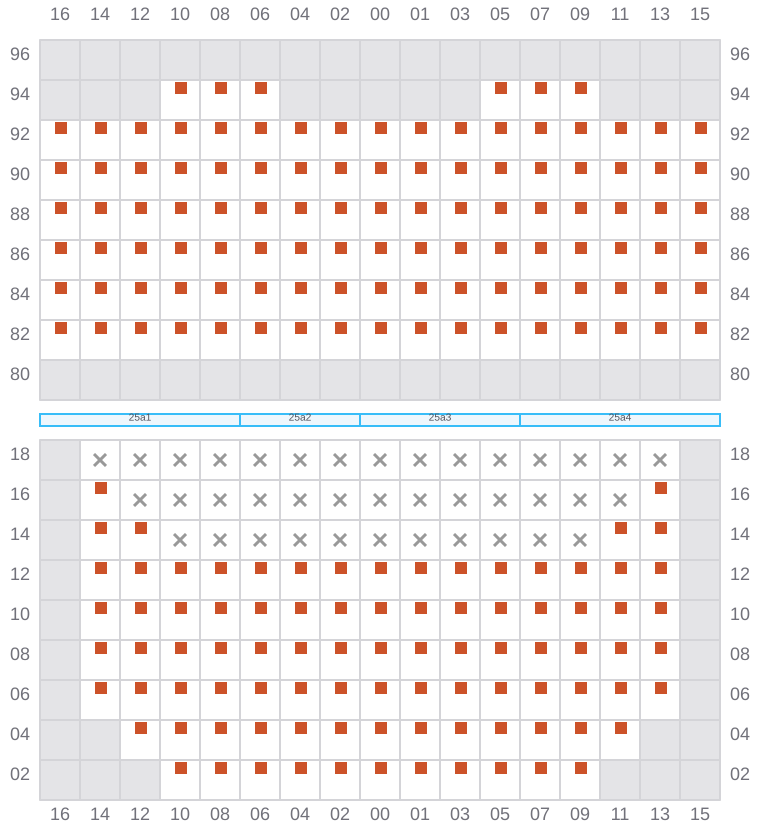

Bay 025 view and slots of OOCL HAMBURG

027 (026)

  • ←
  • → / ?

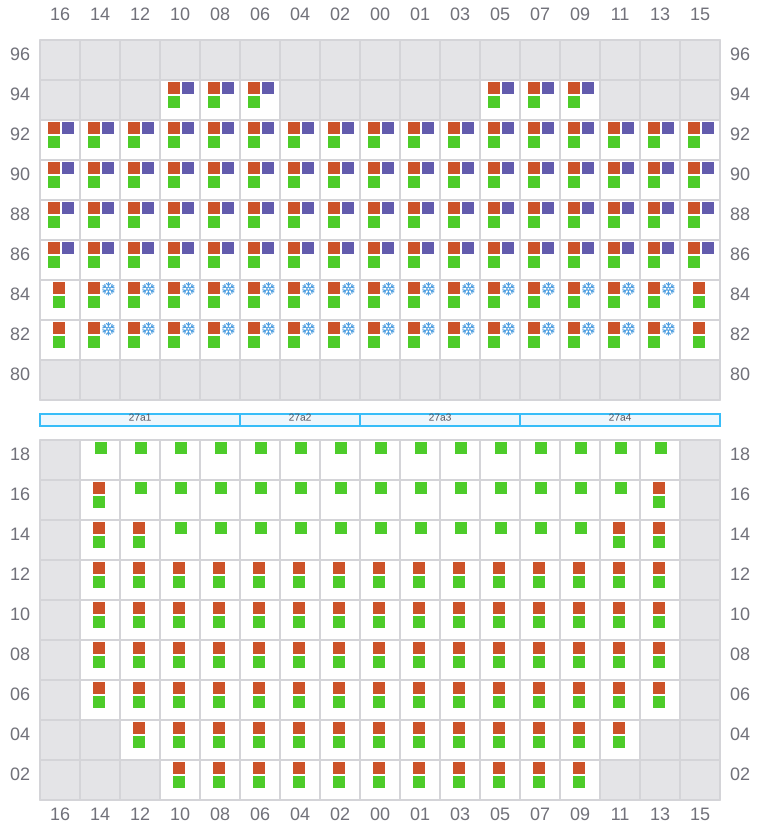

Bay 027 view and slots of OOCL HAMBURG

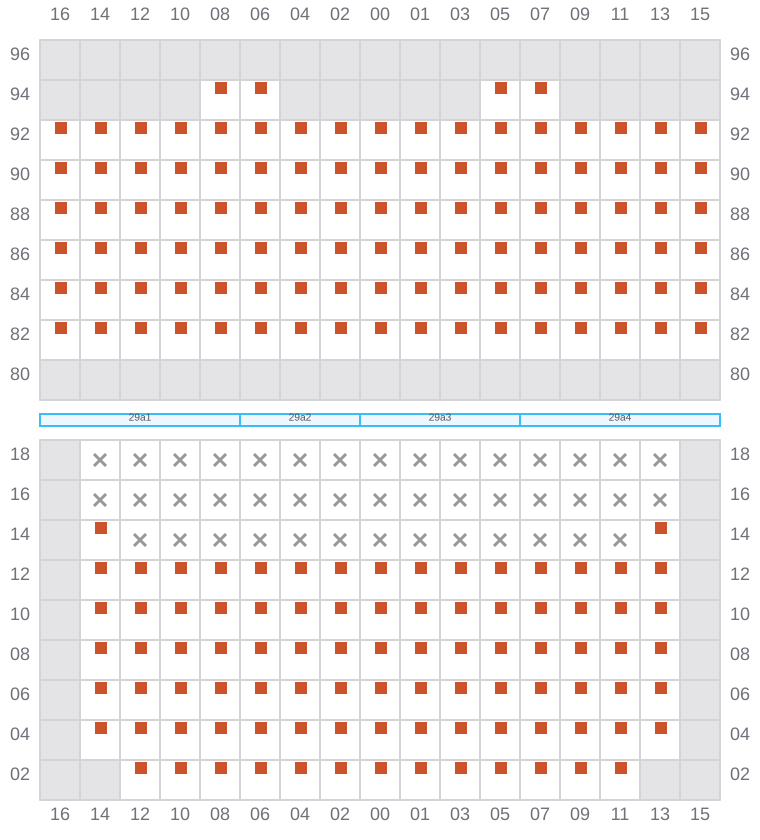

029

  • →
Bay 029 view and slots of OOCL HAMBURG

031 (030)

  • ←
  • → / ?

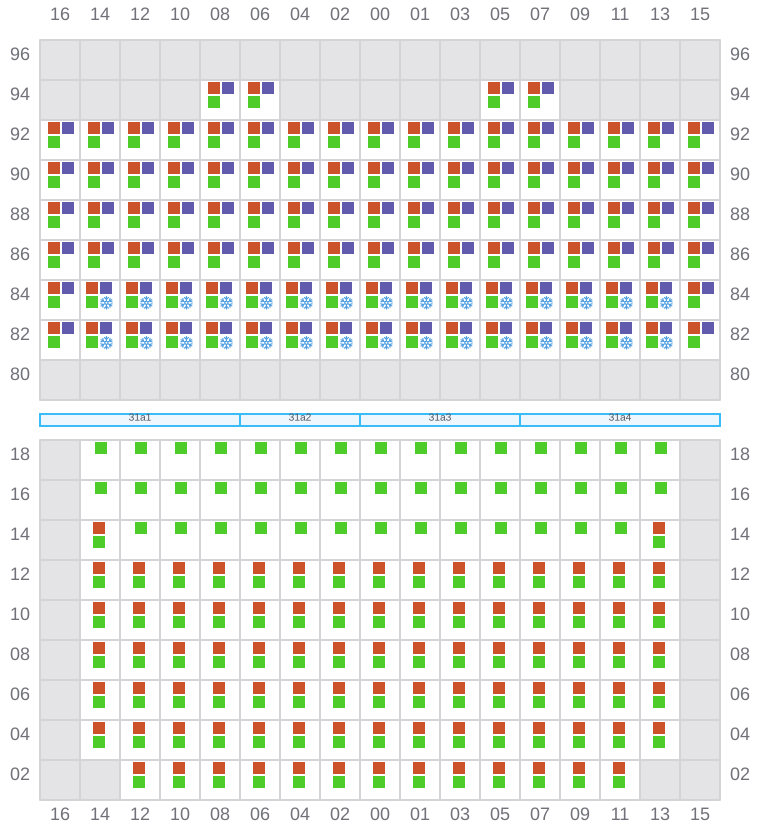

Bay 031 view and slots of OOCL HAMBURG

033

  • →
Bay 033 view and slots of OOCL HAMBURG

035 (034)

  • ←
  • →

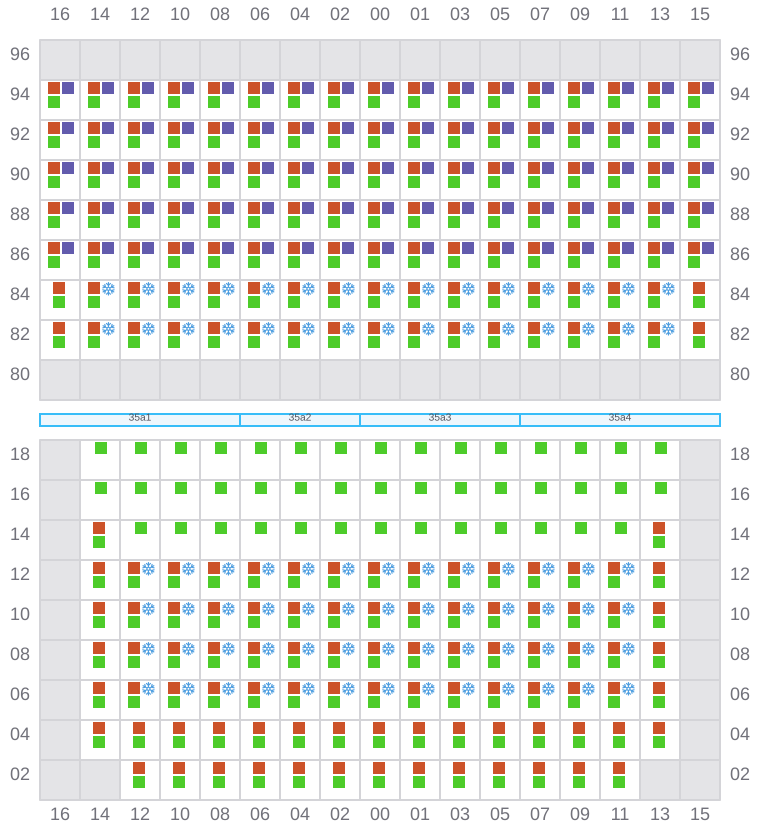

Bay 035 view and slots of OOCL HAMBURG

037

  • →

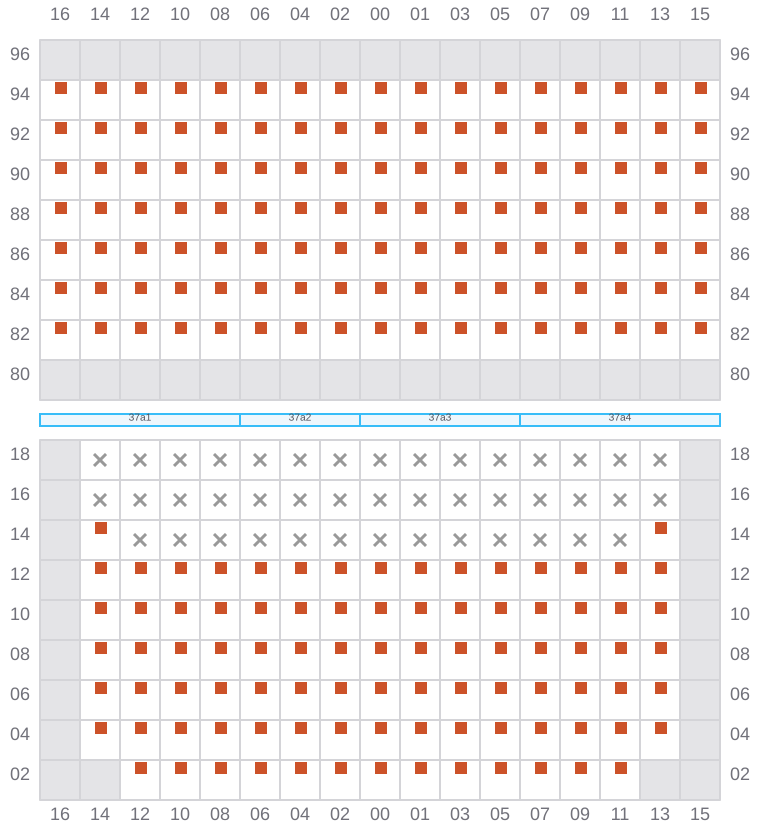

Bay 037 view and slots of OOCL HAMBURG

039 (038)

  • ←
  • → / ?

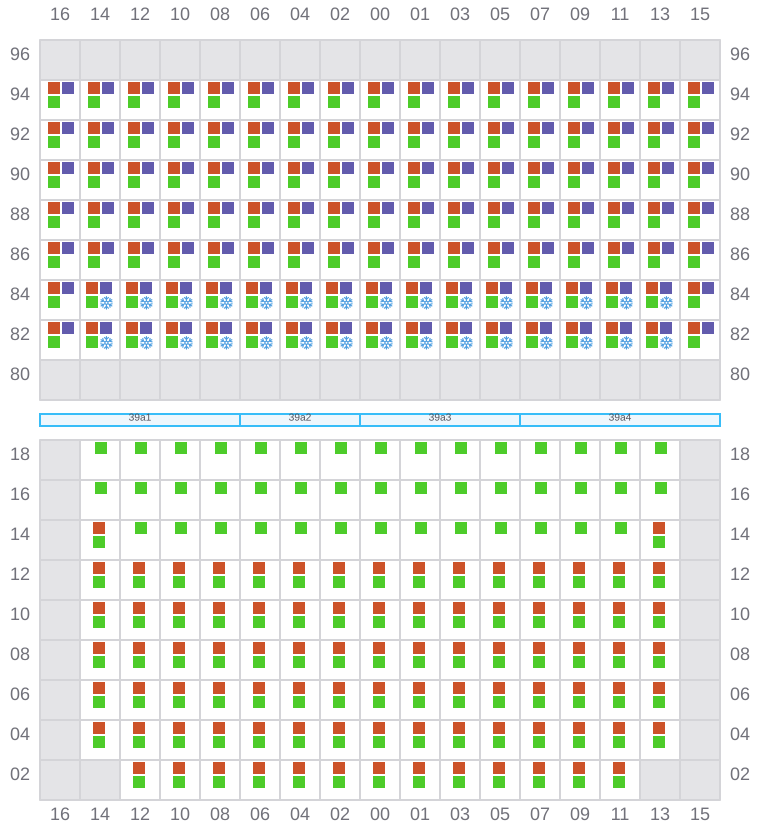

Bay 039 view and slots of OOCL HAMBURG

041

  • →
Bay 041 view and slots of OOCL HAMBURG

043 (042)

  • ←
  • →
Bay 043 view and slots of OOCL HAMBURG

045

  • →
Bay 045 view and slots of OOCL HAMBURG

047 (046)

  • ←
  • → / ?
Bay 047 view and slots of OOCL HAMBURG

049

  • →
Bay 049 view and slots of OOCL HAMBURG

051 (050)

  • ←
  • →

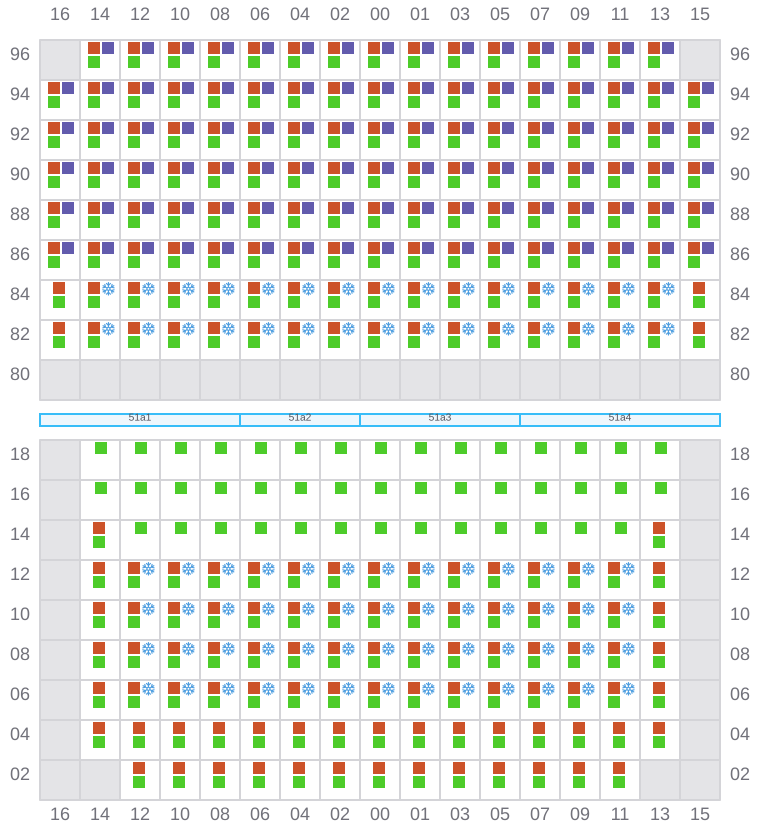

Bay 051 view and slots of OOCL HAMBURG

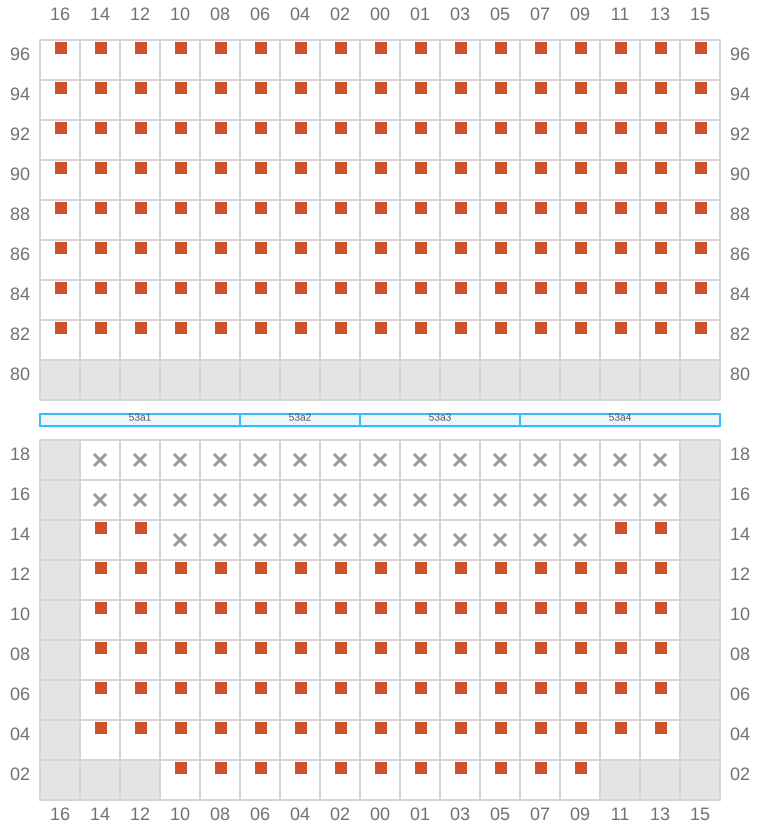

053

  • →
Bay 053 view and slots of OOCL HAMBURG

055 (054)

  • ←
  • → / ?

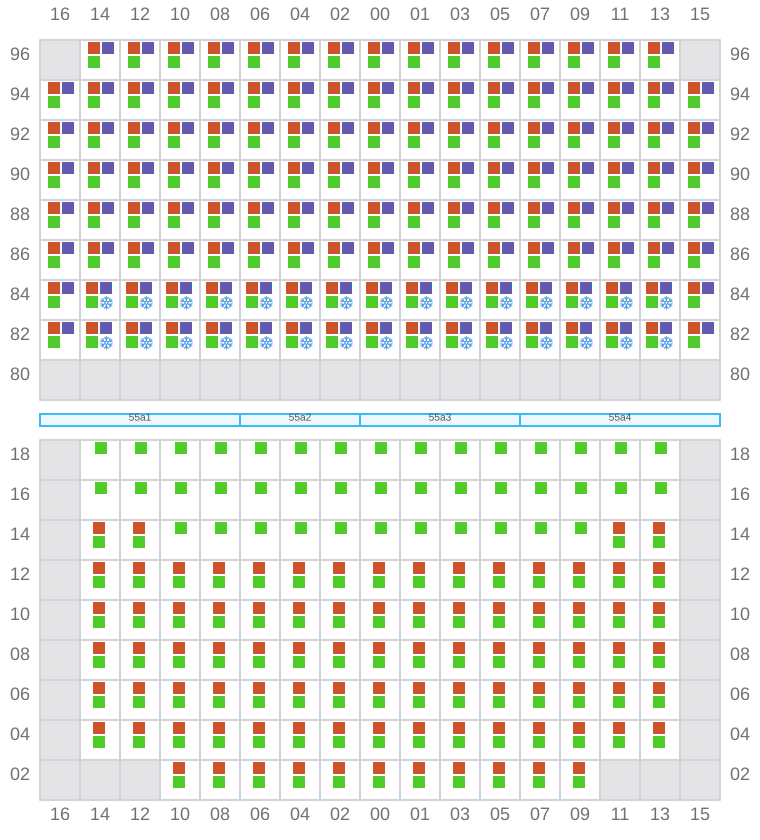

Bay 055 view and slots of OOCL HAMBURG

057

  • →
Bay 057 view and slots of OOCL HAMBURG

059 (058)

  • ←
  • →

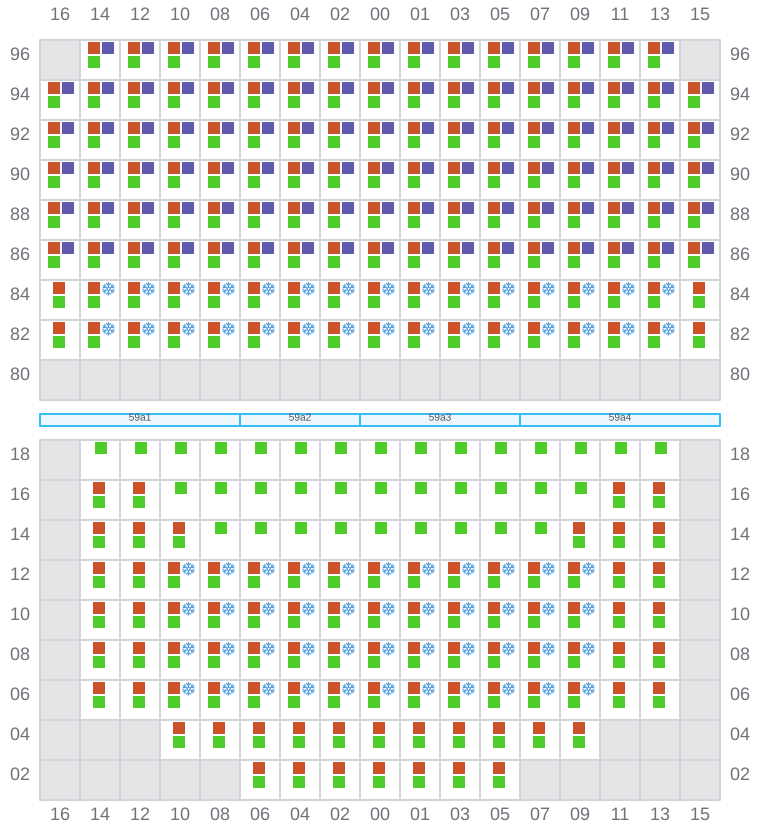

Bay 059 view and slots of OOCL HAMBURG

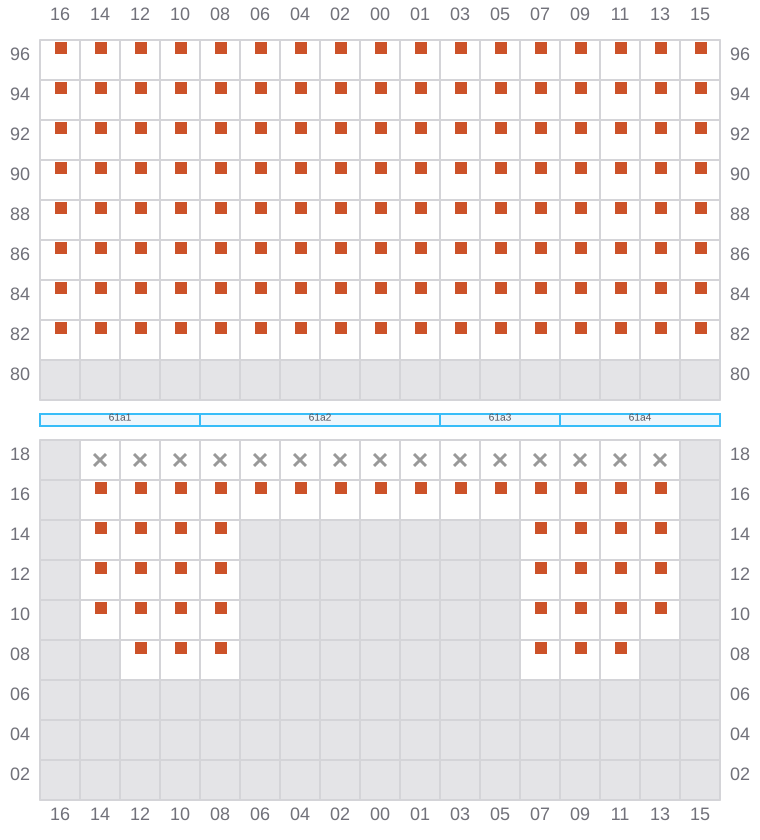

061

  • →
Bay 061 view and slots of OOCL HAMBURG

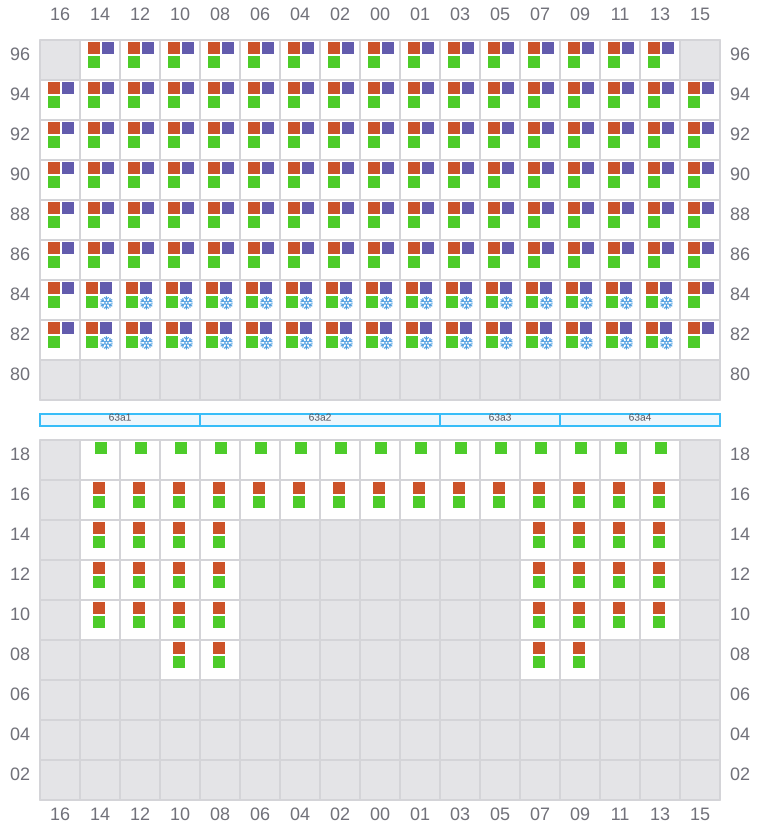

063 (062)

  • ←
  • → / ?
Bay 063 view and slots of OOCL HAMBURG

065

  • →

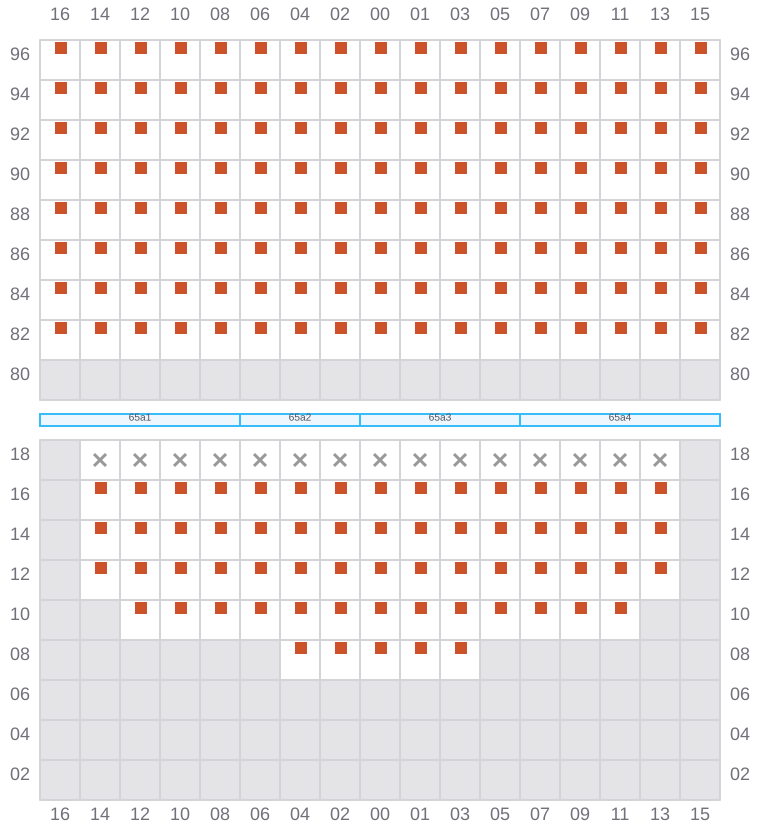

Bay 065 view and slots of OOCL HAMBURG

067 (066)

  • ←
  • → / ?
Bay 067 view and slots of OOCL HAMBURG

069

  • →
Bay 069 view and slots of OOCL HAMBURG

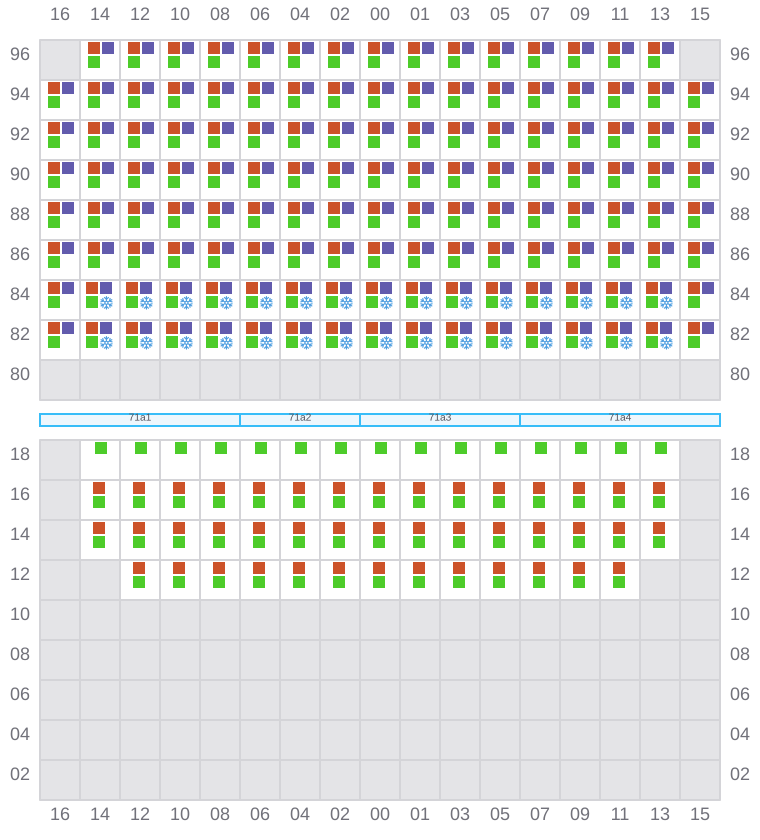

071 (070)

  • ←
  • → / ?
Bay 071 view and slots of OOCL HAMBURG

073

Bay 073 view and slots of OOCL HAMBURG

075 (074)

  • ← / ?
  • → / ?

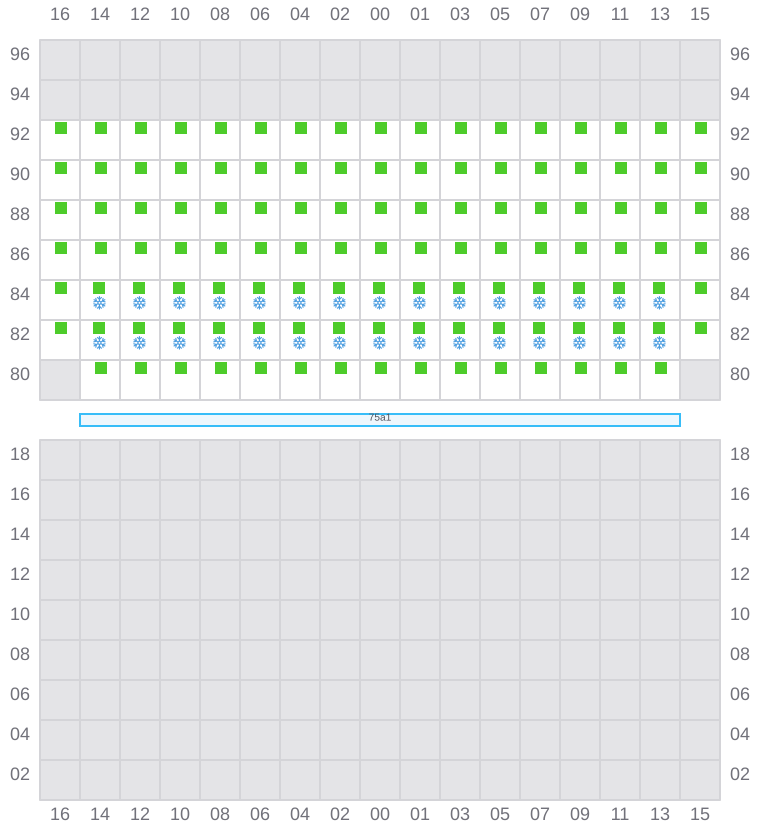

Bay 075 view and slots of OOCL HAMBURG
