OOCL MIAMI
9477892 | VRLJ4 | OOL by ***************************** Last update: Mon May 29 2023

General Info

Ship Name:OOCL MIAMI

IMO Code:9477892

Call Sign:VRLJ4

Line Operator:OOL

Class Name for Sister Ships:OMIA

Year Built:2013

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:079

Max ISO Row:16

Center Line Row:Yes

Max Above ISO Tier:98

Min Above ISO Tier:82

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:8,888

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

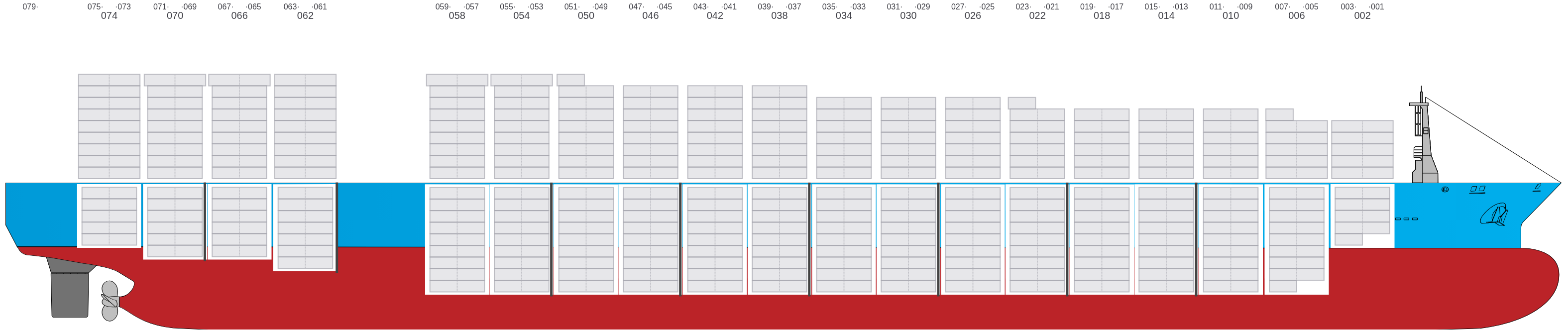

Side View

Side view of OOCL MIAMI

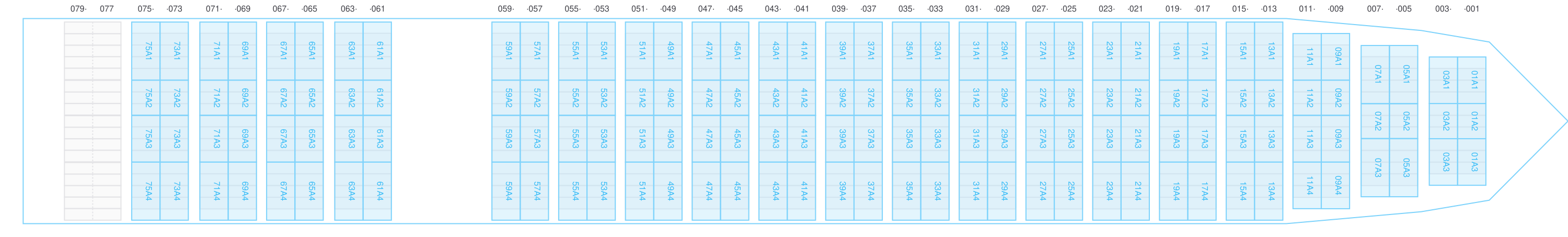

Hatch-Covers View

Deck view of OOCL MIAMI

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

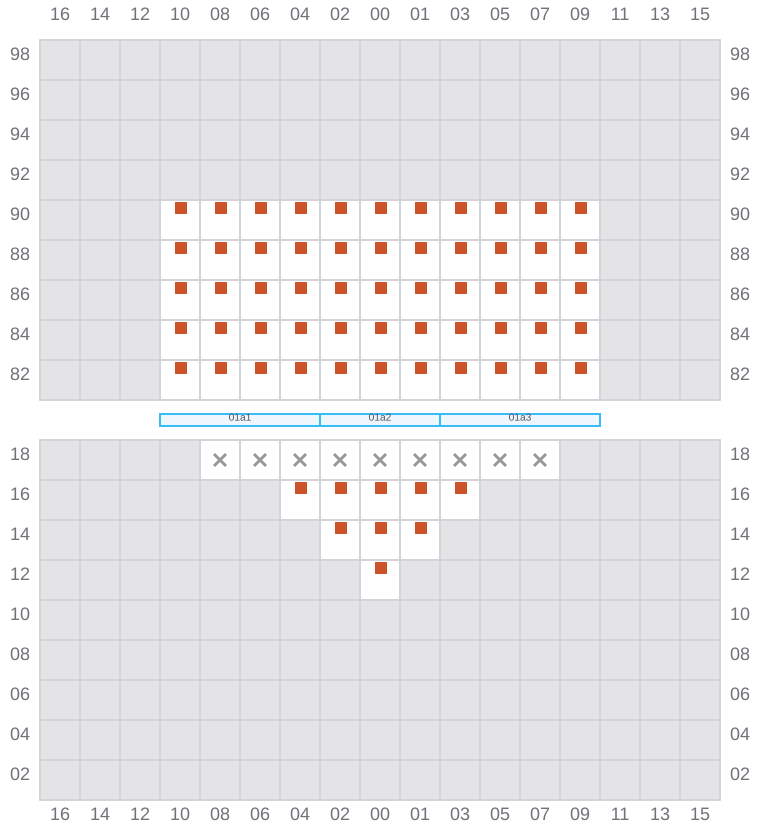

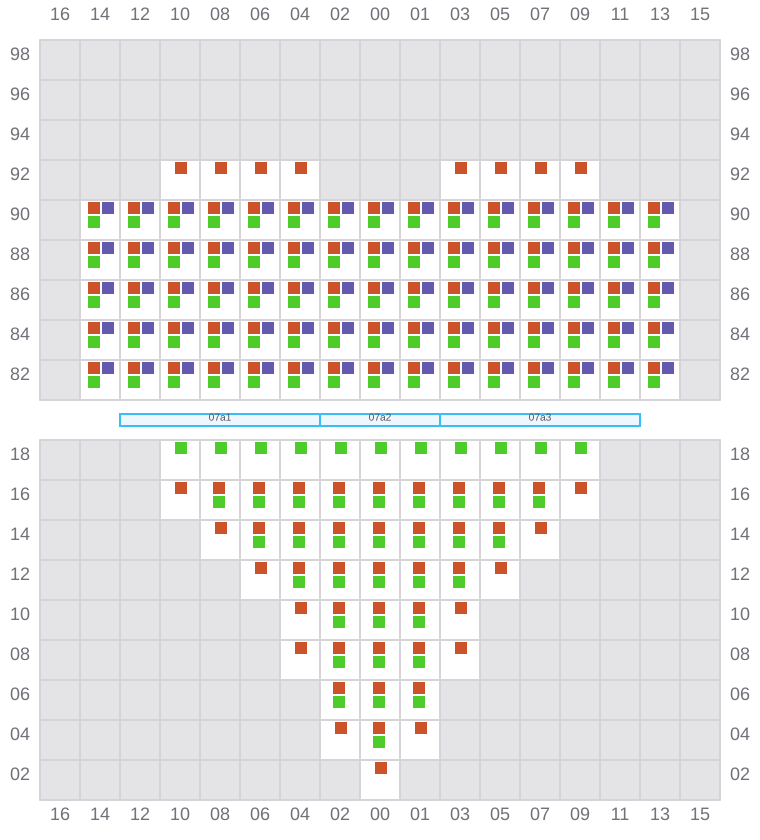

001

→
→

Bay 001 view and slots of OOCL MIAMI

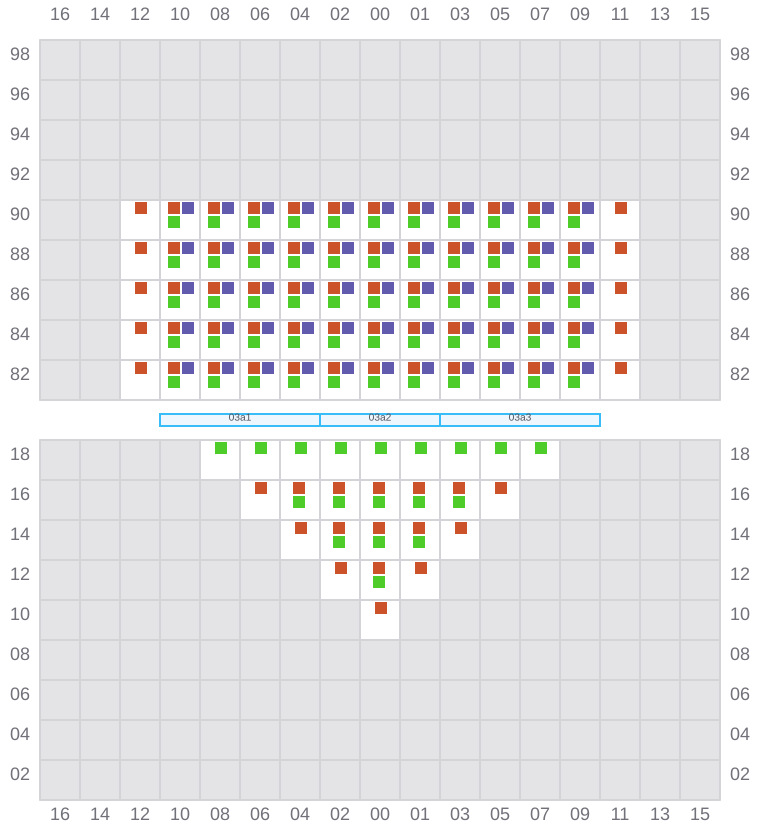

003 (002)

←
→

Bay 003 view and slots of OOCL MIAMI

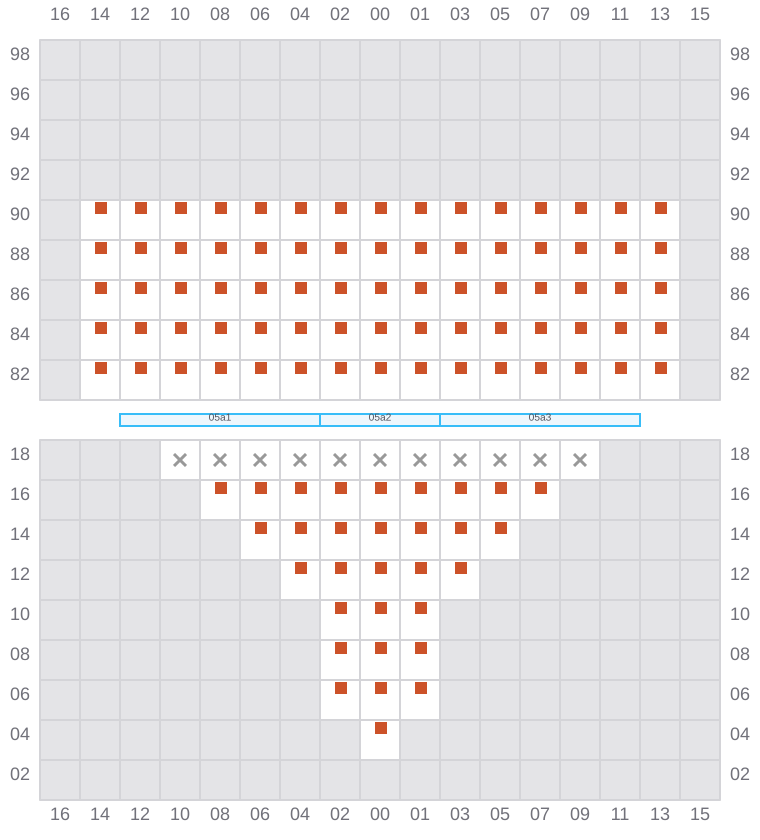

005

→
→

Bay 005 view and slots of OOCL MIAMI

007 (006)

←
→

Bay 007 view and slots of OOCL MIAMI

009

→
→

Bay 009 view and slots of OOCL MIAMI

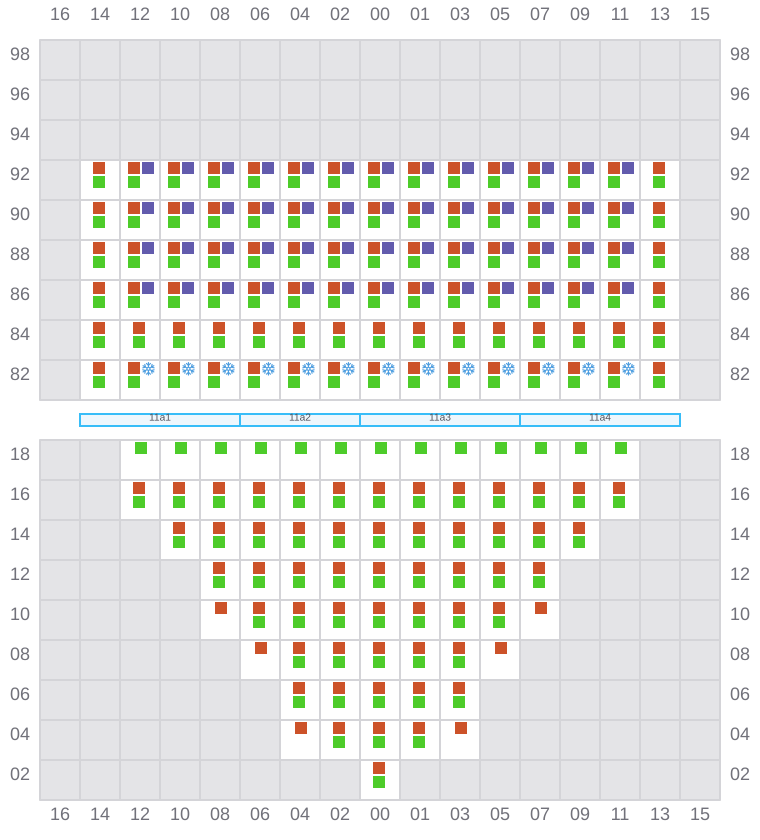

011 (010)

←
^→ / _?
→

Bay 011 view and slots of OOCL MIAMI

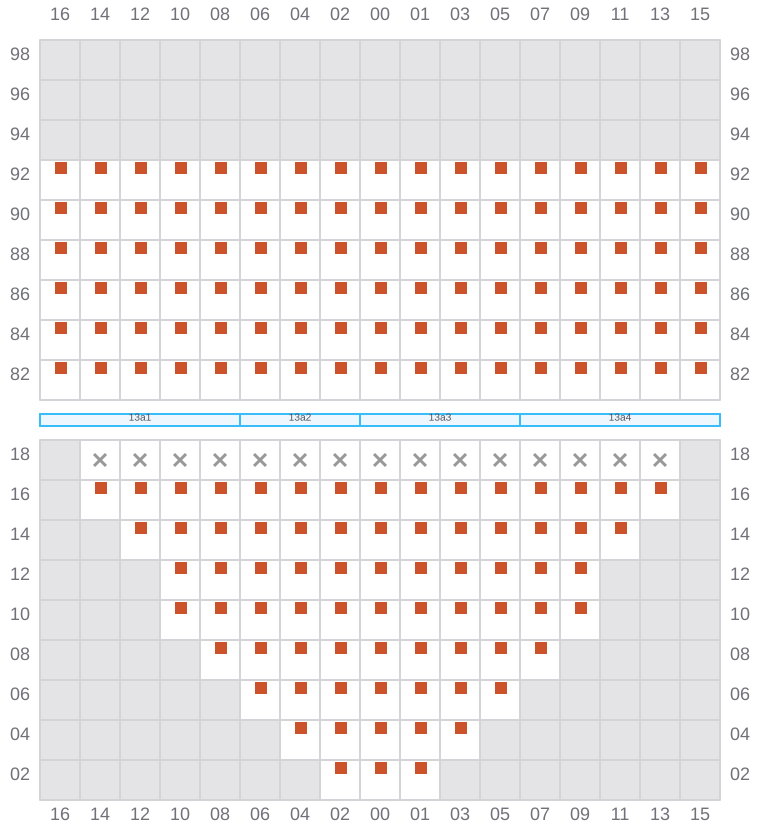

013

→
→

Bay 013 view and slots of OOCL MIAMI

015 (014)

←
^→ / _?
→

Bay 015 view and slots of OOCL MIAMI

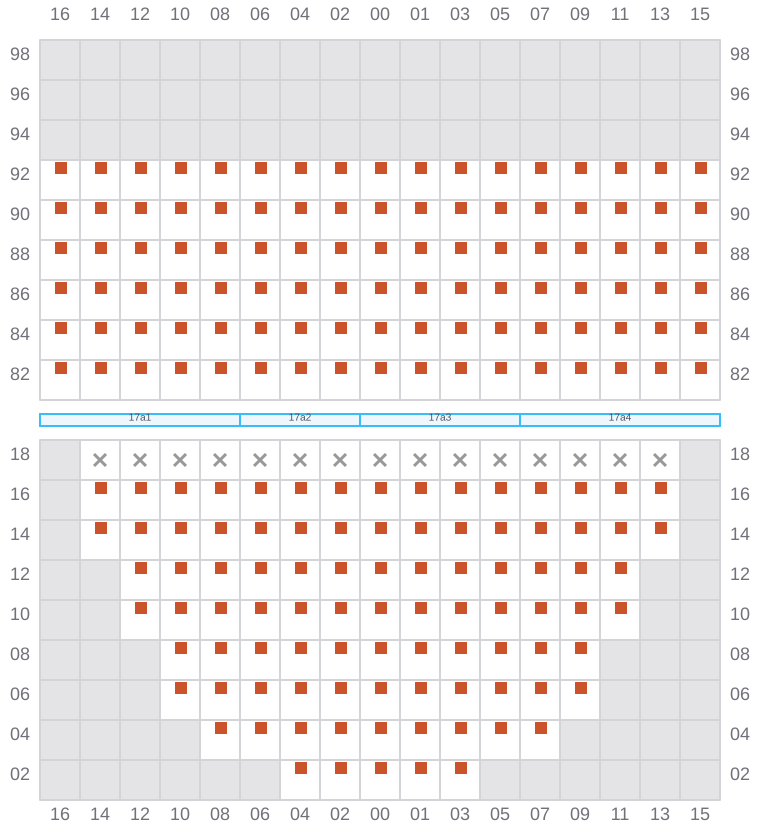

017

→
→

Bay 017 view and slots of OOCL MIAMI

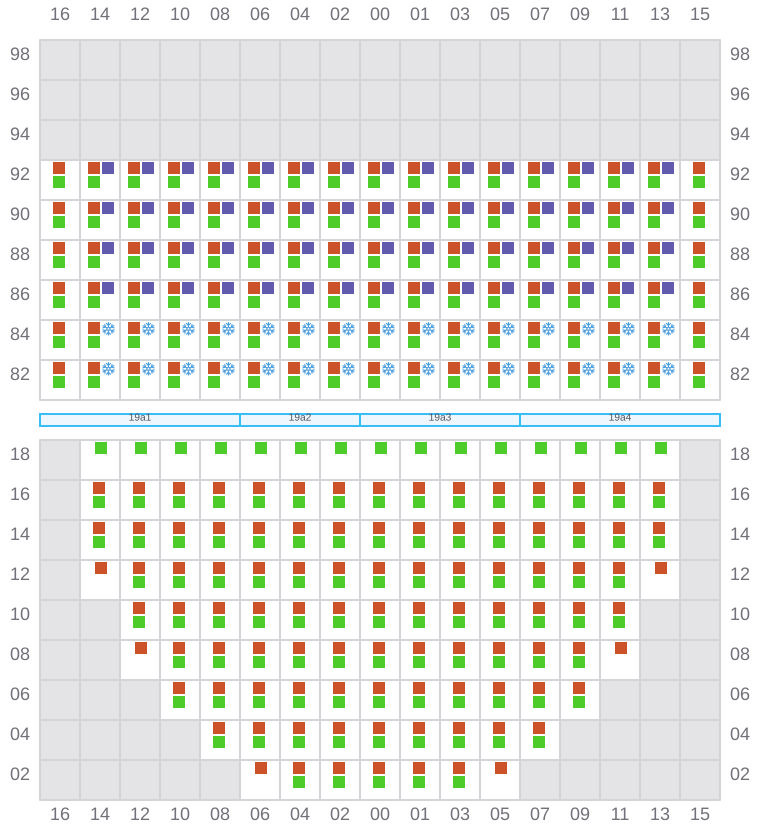

019 (018)

←
^→ / _?
→

Bay 019 view and slots of OOCL MIAMI

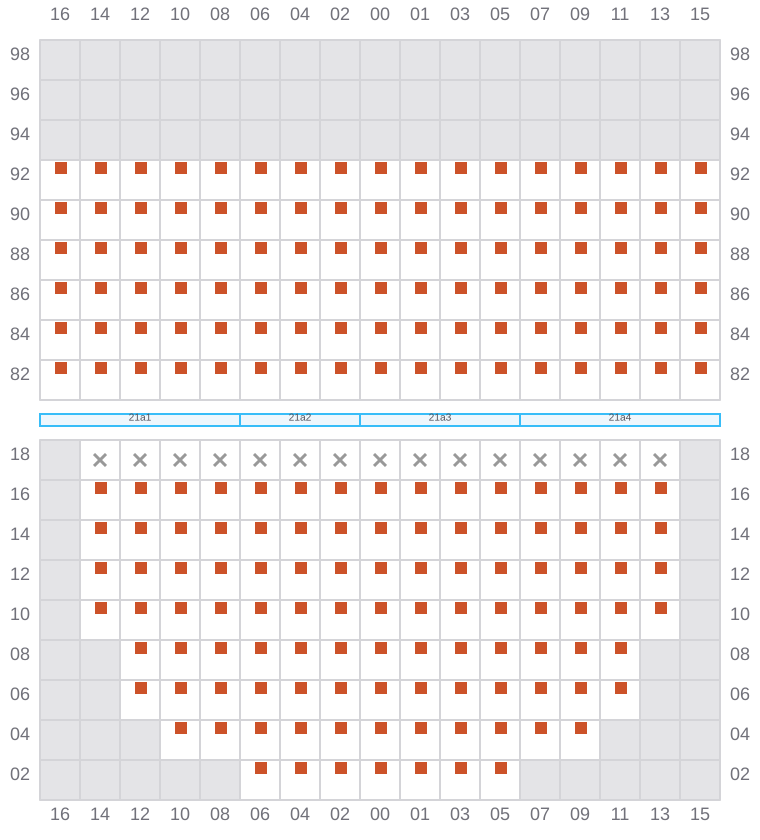

021

→
→

Bay 021 view and slots of OOCL MIAMI

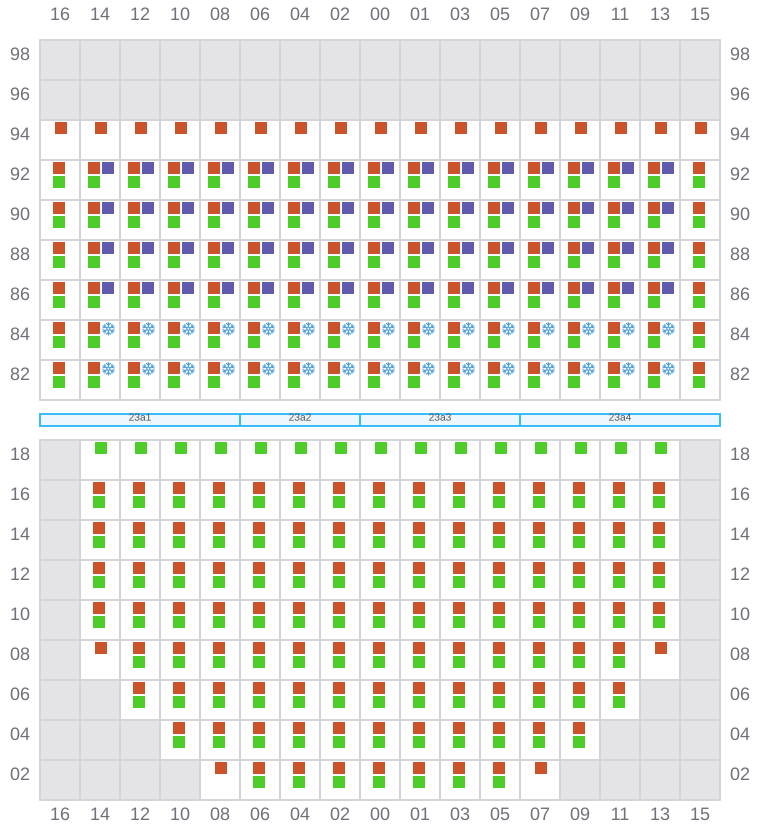

023 (022)

←
^→ / _?
→

Bay 023 view and slots of OOCL MIAMI

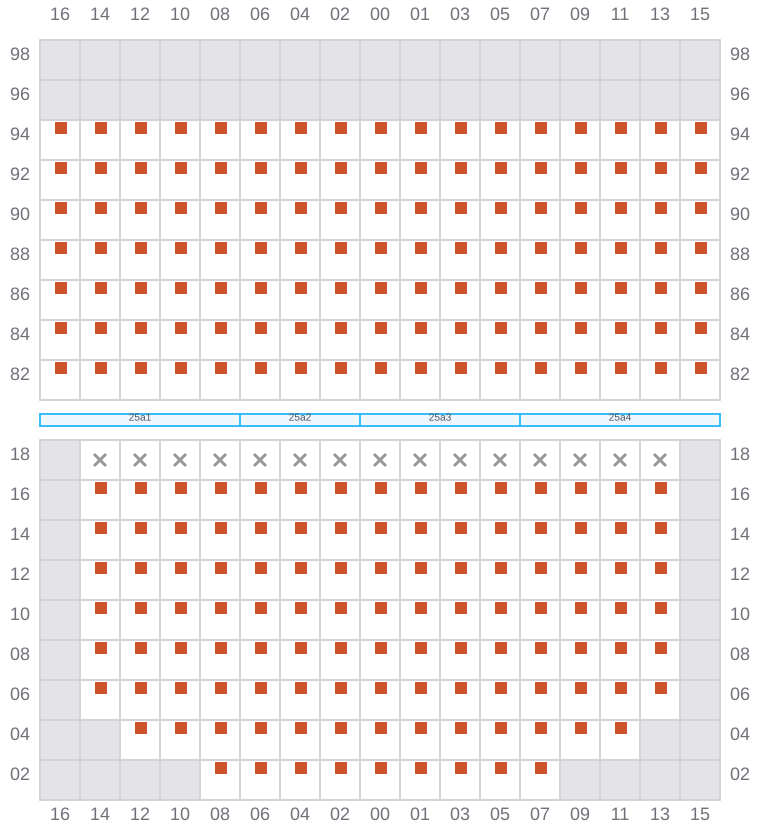

025

→
→

Bay 025 view and slots of OOCL MIAMI

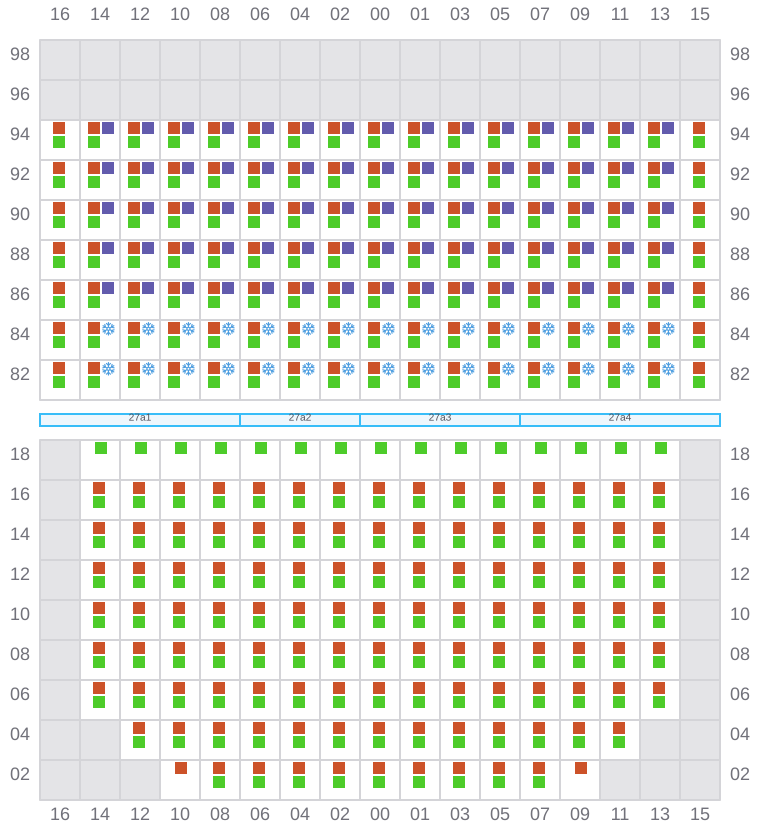

027 (026)

←
^→ / _?
→

Bay 027 view and slots of OOCL MIAMI

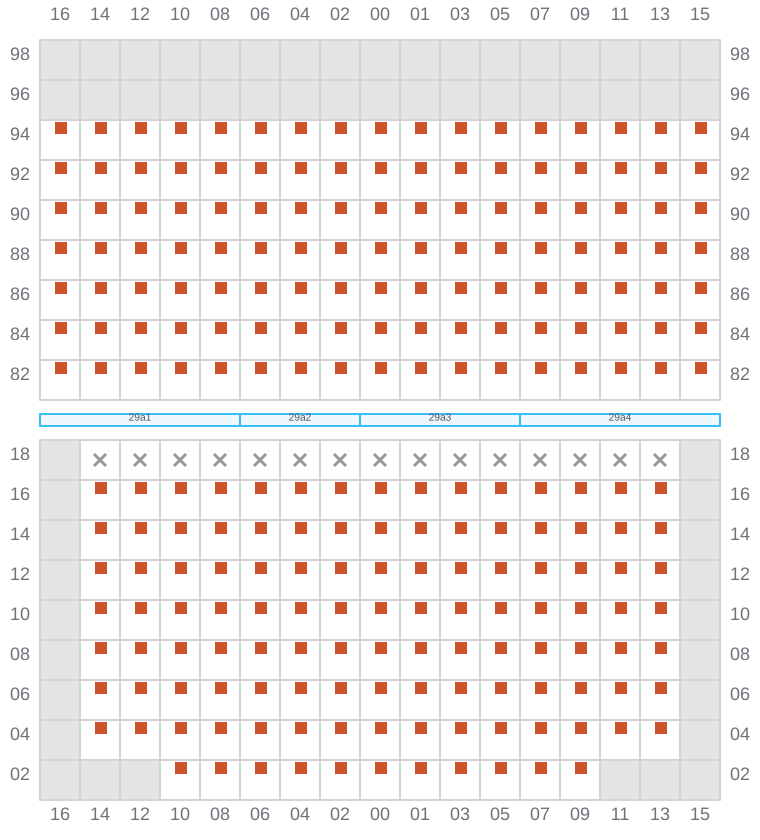

029

→
→

Bay 029 view and slots of OOCL MIAMI

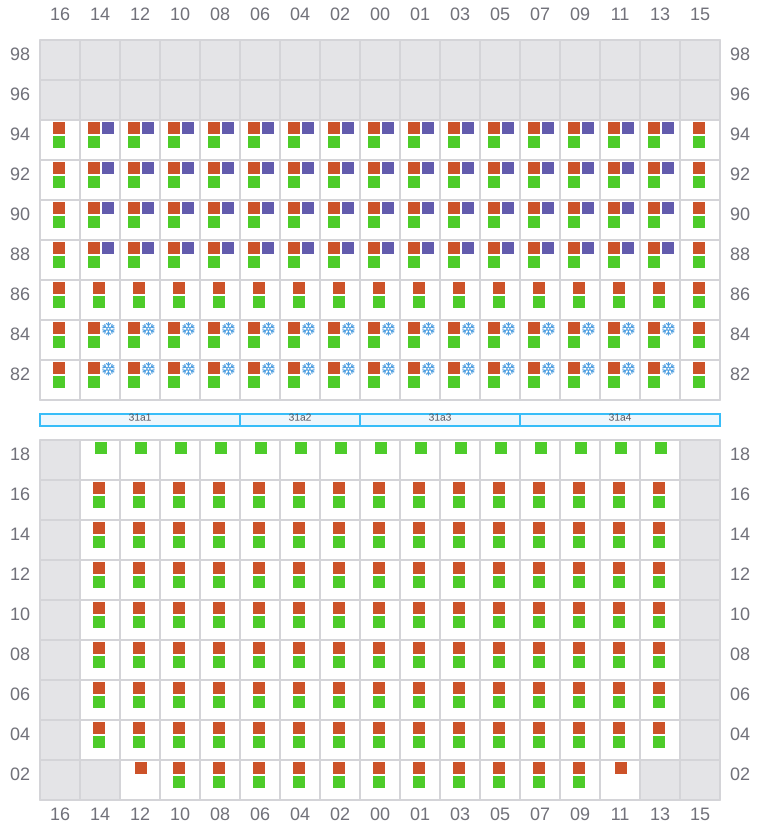

031 (030)

←
^→ / _?
→

Bay 031 view and slots of OOCL MIAMI

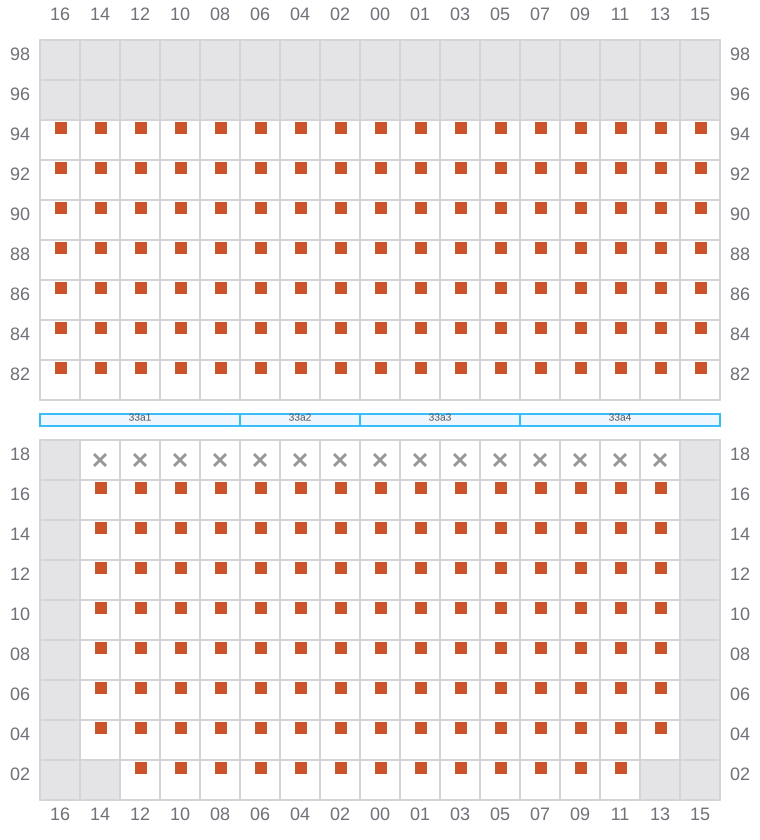

033

→
→

Bay 033 view and slots of OOCL MIAMI

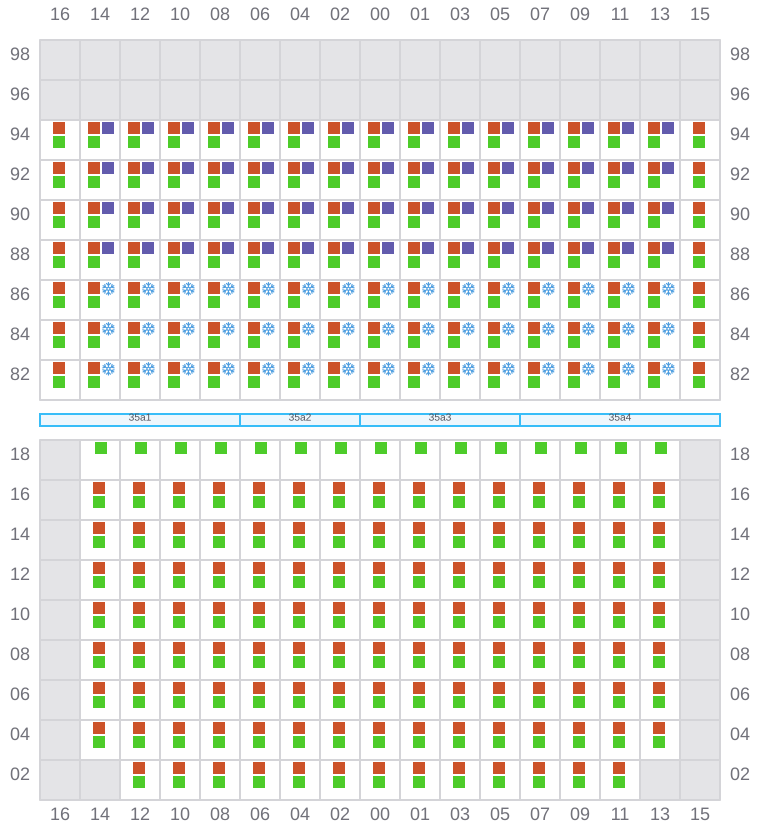

035 (034)

←
^→ / _?
→

Bay 035 view and slots of OOCL MIAMI

037

→
→

Bay 037 view and slots of OOCL MIAMI

039 (038)

←
^→ / _?
→

Bay 039 view and slots of OOCL MIAMI

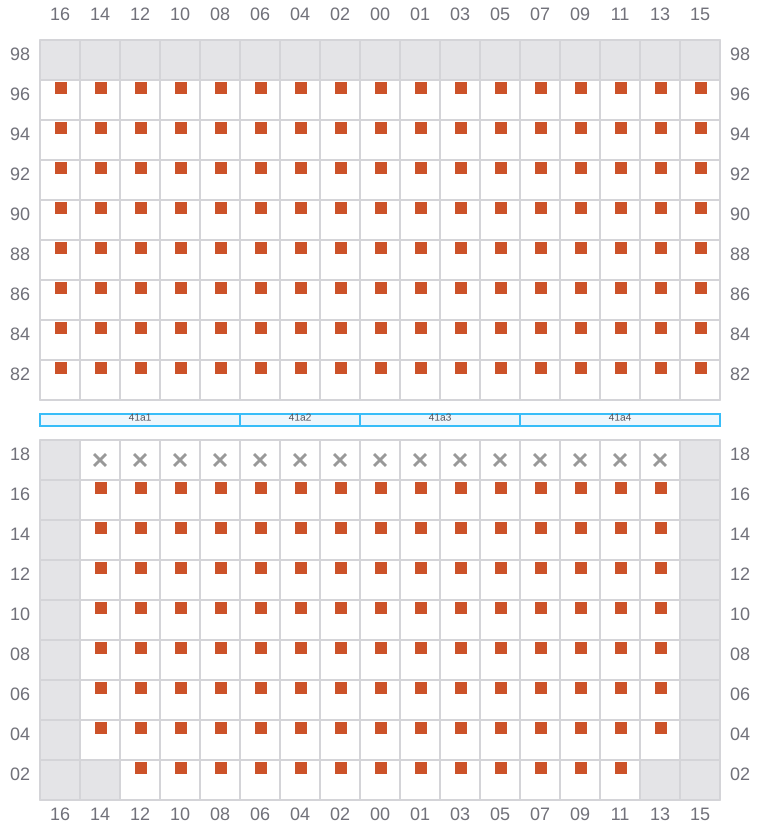

041

→
→

Bay 041 view and slots of OOCL MIAMI

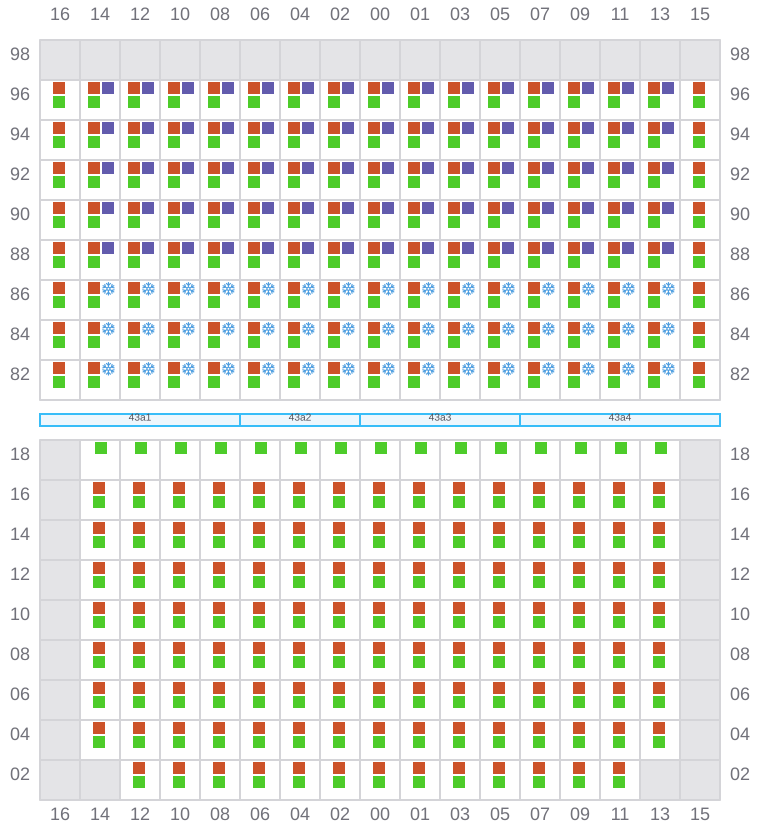

043 (042)

←
^→ / _?
→

Bay 043 view and slots of OOCL MIAMI

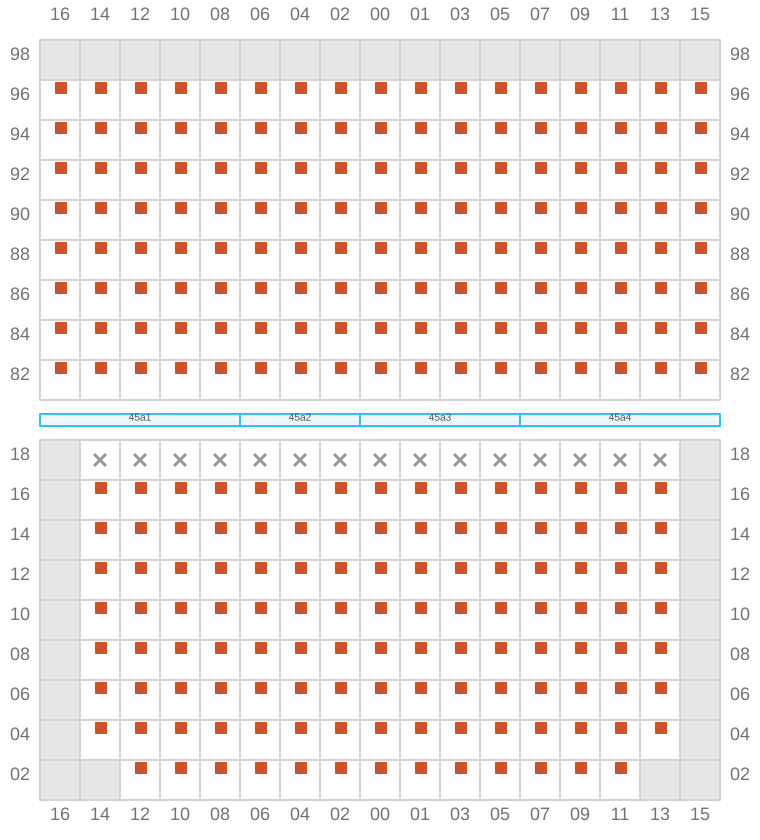

045

→
→

Bay 045 view and slots of OOCL MIAMI

047 (046)

←
^→ / _?
→

Bay 047 view and slots of OOCL MIAMI

049

→
→

Bay 049 view and slots of OOCL MIAMI

051 (050)

←
^→ / _?
→

Bay 051 view and slots of OOCL MIAMI

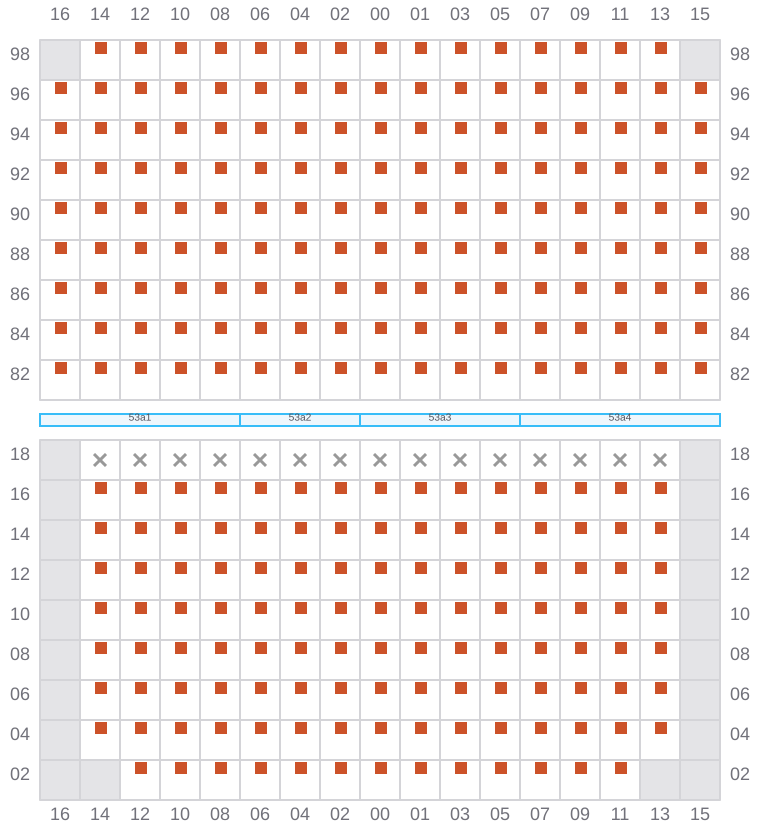

053

→
→

Bay 053 view and slots of OOCL MIAMI

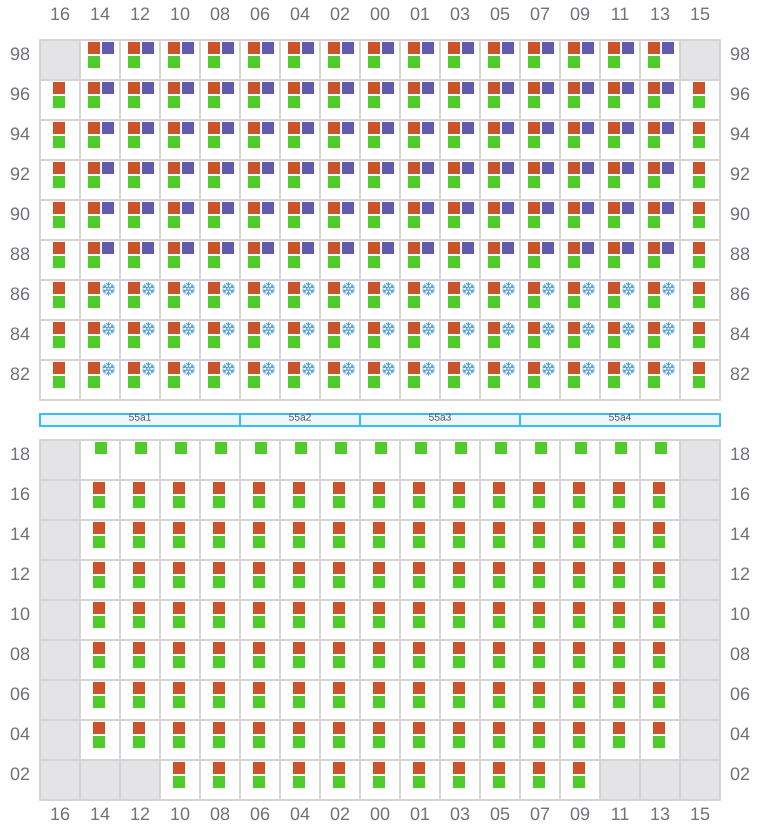

055 (054)

←
^→ / _?
→

Bay 055 view and slots of OOCL MIAMI

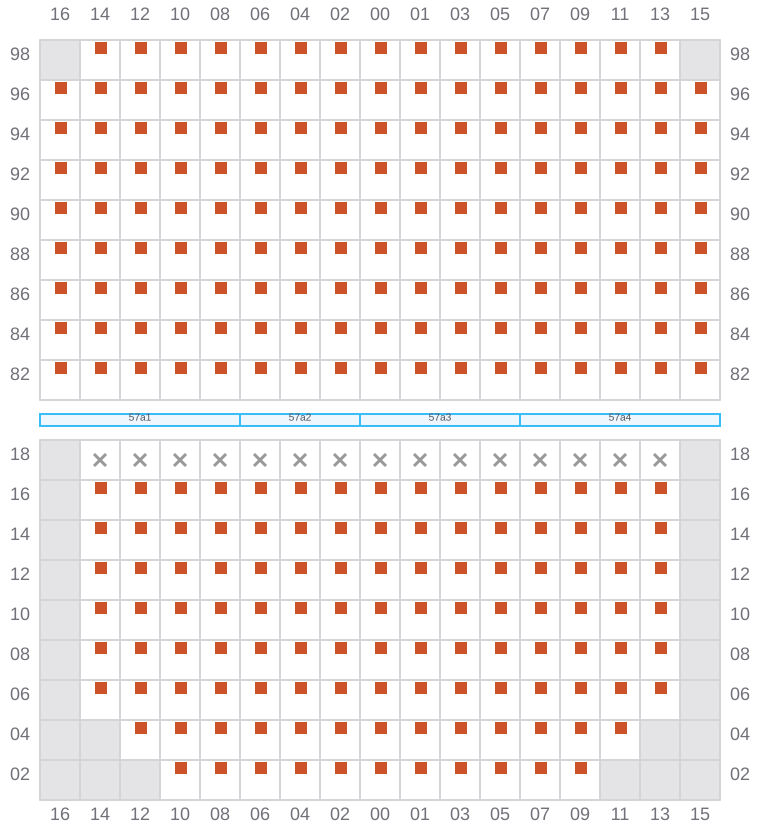

057

→
→

Bay 057 view and slots of OOCL MIAMI

059 (058)

←
^→ / _?
→

Bay 059 view and slots of OOCL MIAMI

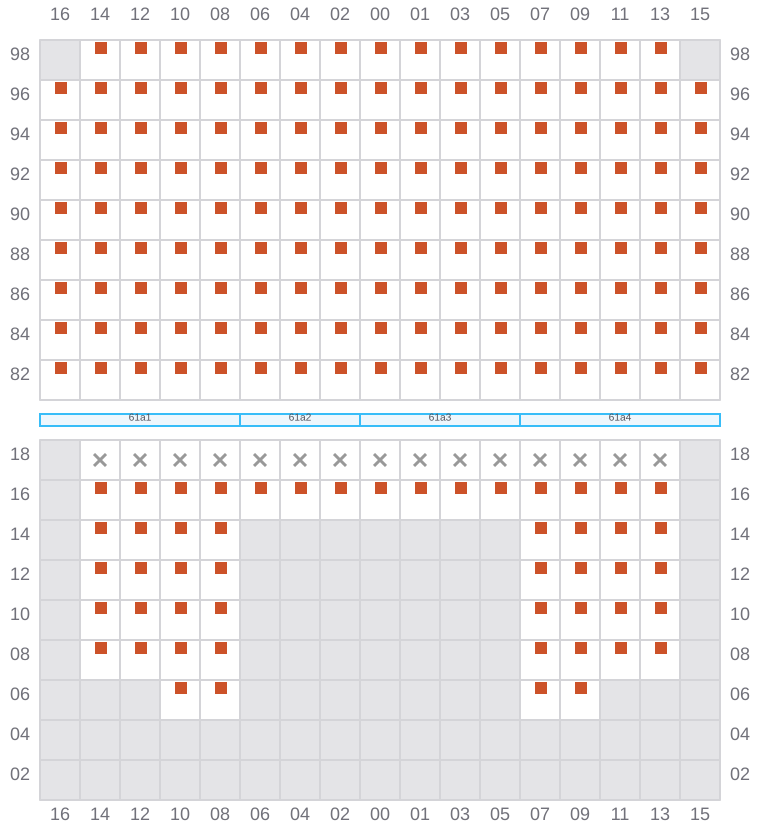

061

→
→

Bay 061 view and slots of OOCL MIAMI

063 (062)

←
^→ / _?
→

Bay 063 view and slots of OOCL MIAMI

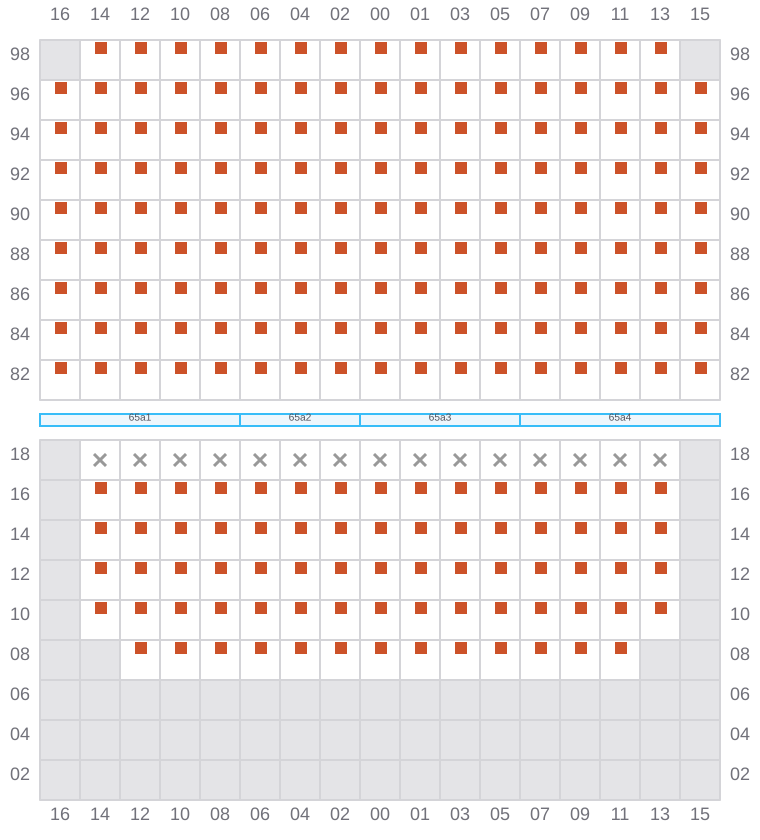

065

→
→

Bay 065 view and slots of OOCL MIAMI

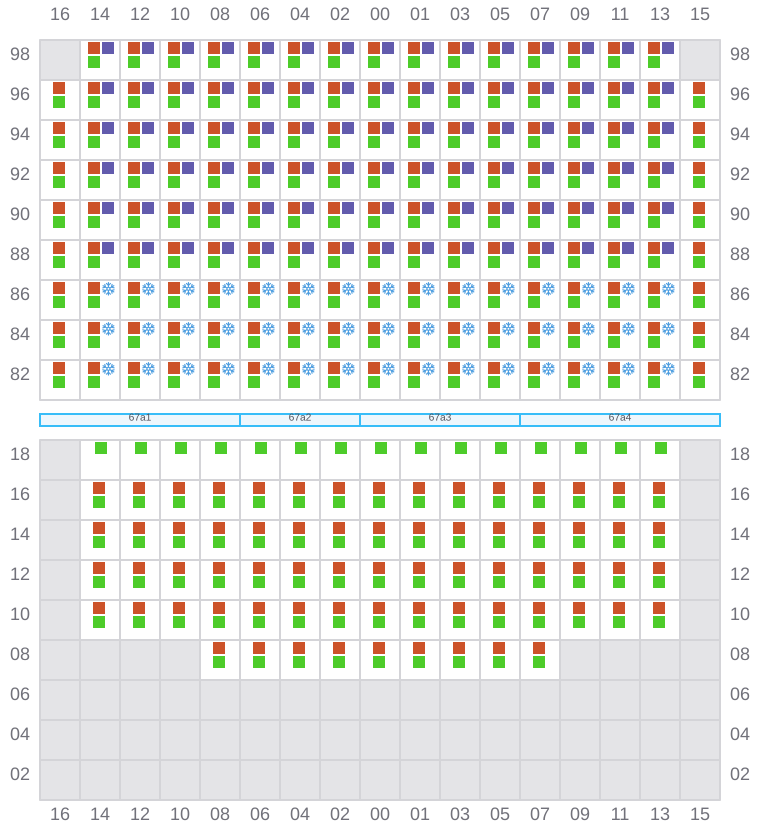

067 (066)

←
^→ / _?
→

Bay 067 view and slots of OOCL MIAMI

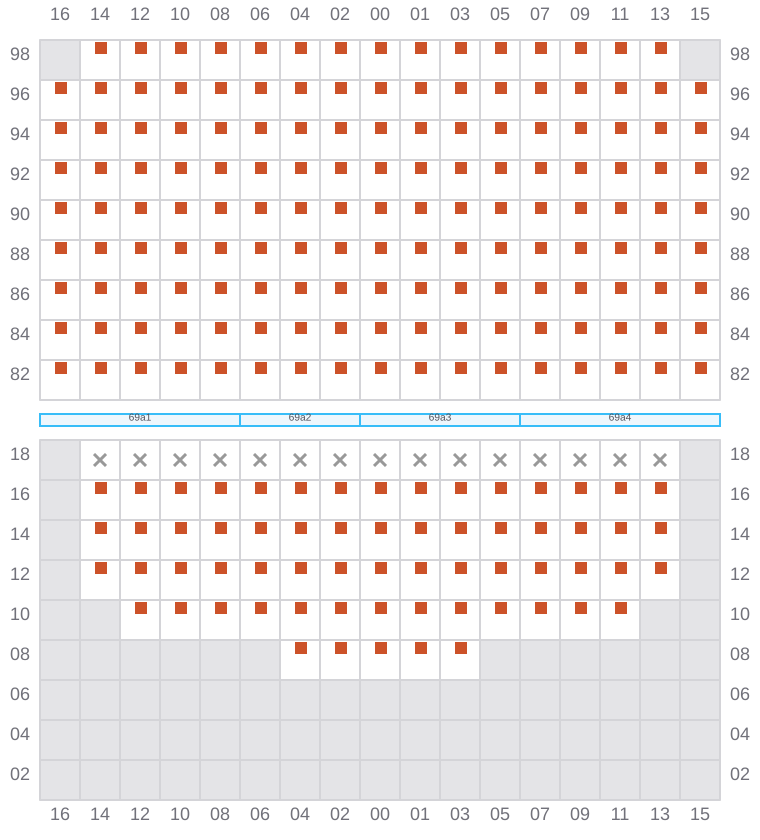

069

→
→

Bay 069 view and slots of OOCL MIAMI

071 (070)

←
^→ / _?
→

Bay 071 view and slots of OOCL MIAMI

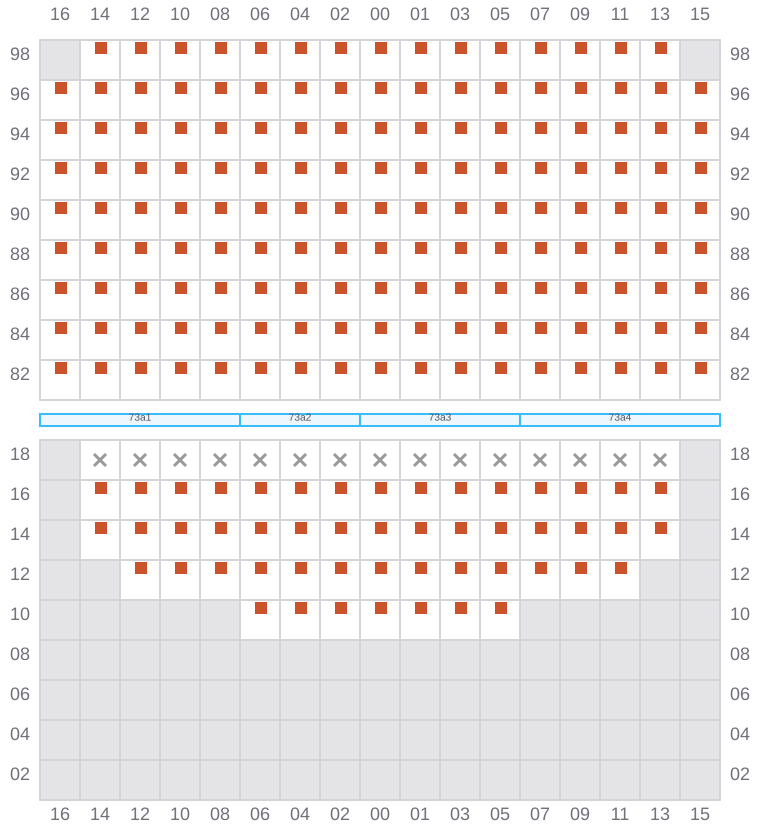

073

→
→

Bay 073 view and slots of OOCL MIAMI

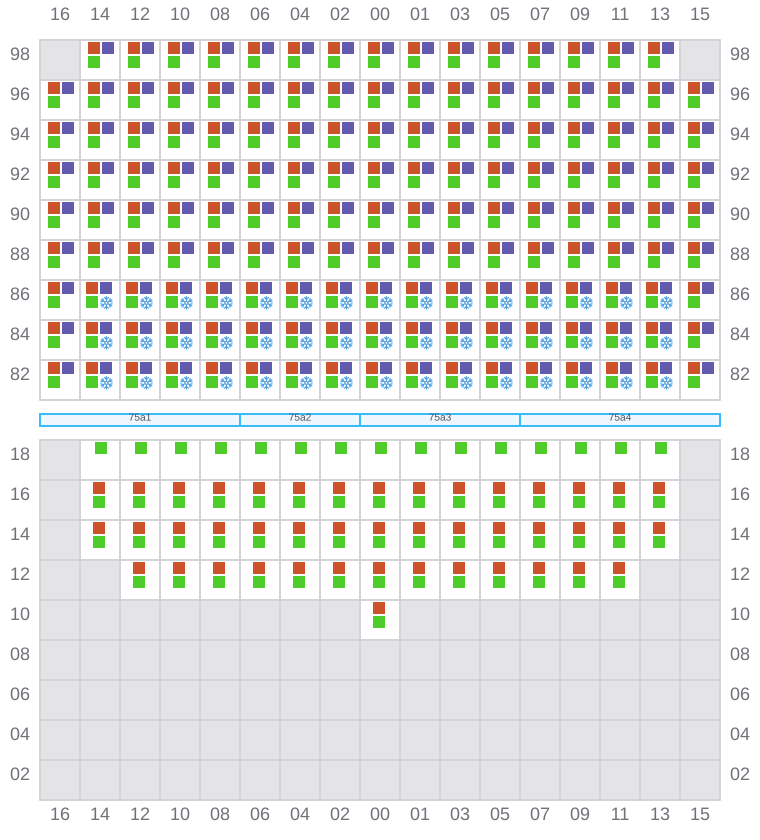

075 (074)

←
^→ / _?
→

Bay 075 view and slots of OOCL MIAMI

077

Bay 077 view and slots of OOCL MIAMI

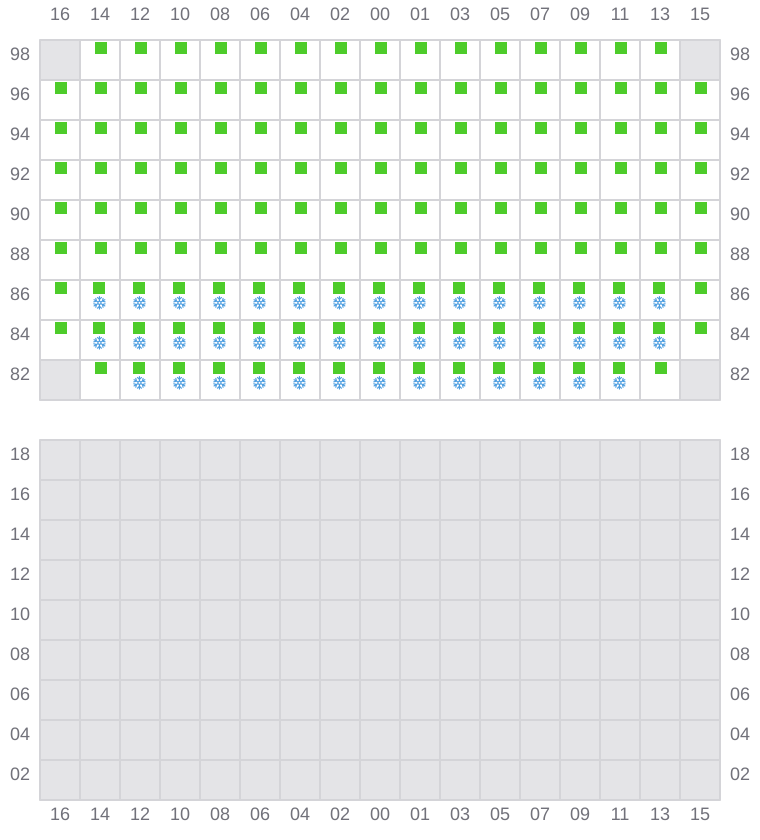

079 (078)

^← / _?
^← / _?
^→ / _?

Bay 079 view and slots of OOCL MIAMI
