PANTHER
9138276 | D5BN7 | MSK by ************************** Last update: Sun Jun 25 2023
General Info
Ship Name:PANTHER
IMO Code:9138276
Call Sign:D5BN7
Line Operator:MSK
Class Name for Sister Ships:PTH
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,560
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

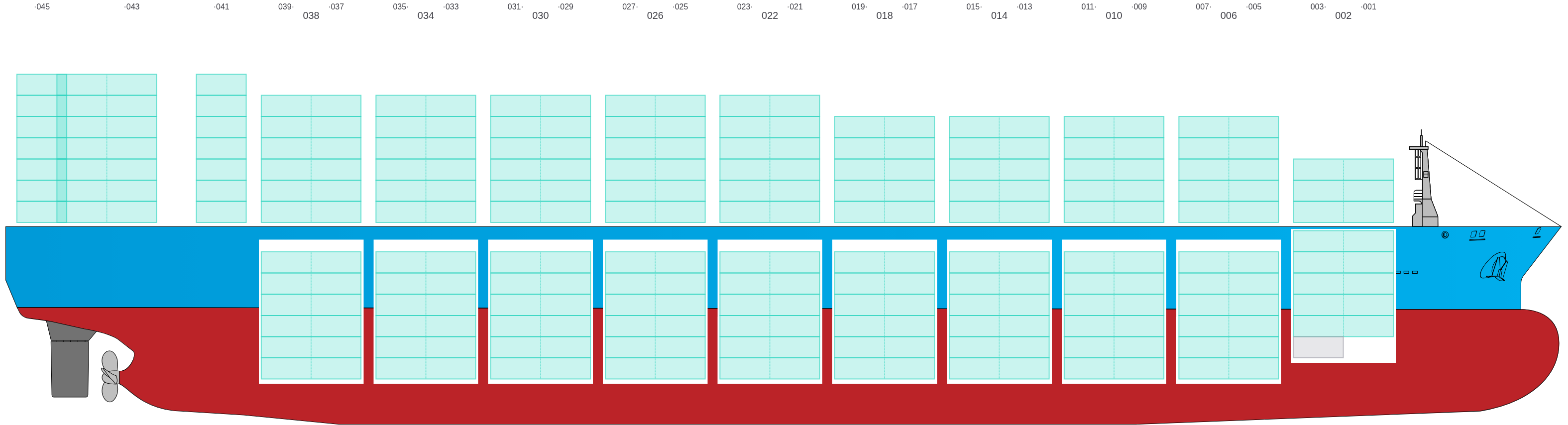

Side View
![Side view of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-sideView.png?v=1687730494379)
Hatch-Covers View
![Deck view of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-deckView.png?v=1687730494379)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

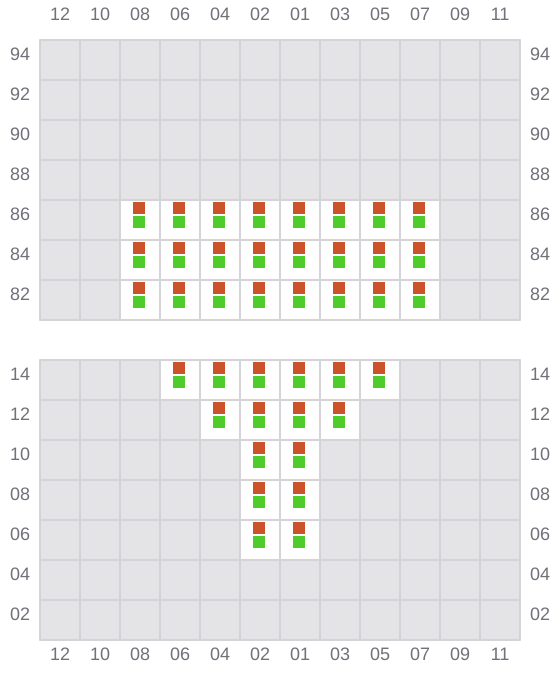

001 (002)
- →
![Bay 001 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b001.png?v=1687730494379)

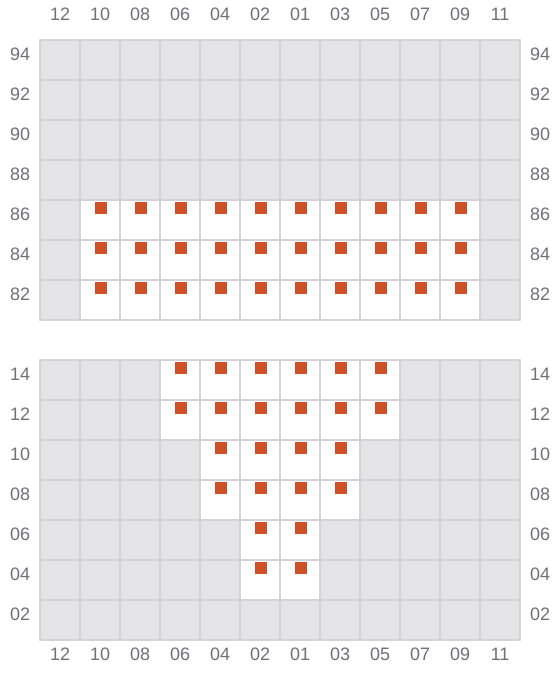

003
- ←
![Bay 003 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b003.png?v=1687730494379)

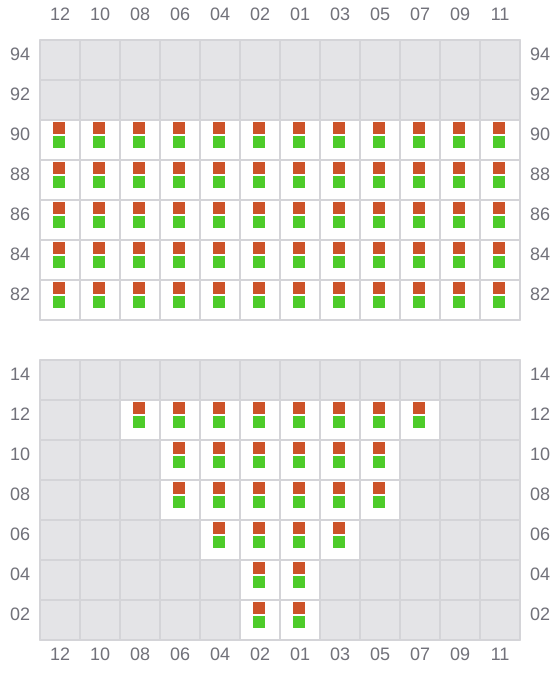

005 (006)
- →
![Bay 005 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b005.png?v=1687730494379)

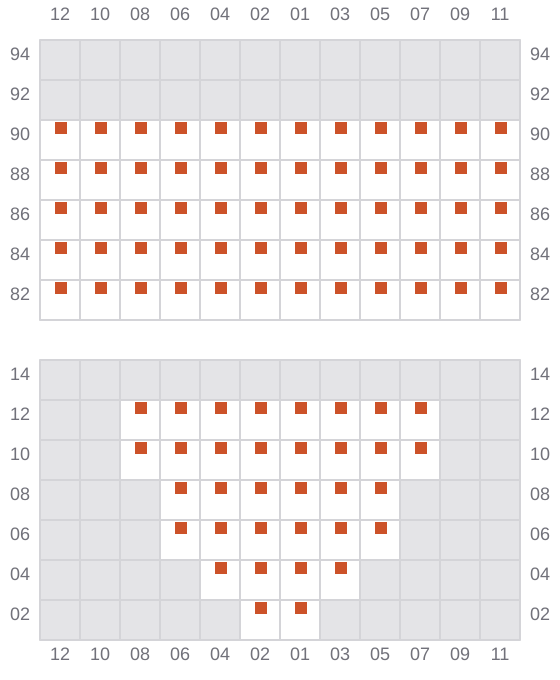

007
- ←
![Bay 007 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b007.png?v=1687730494379)

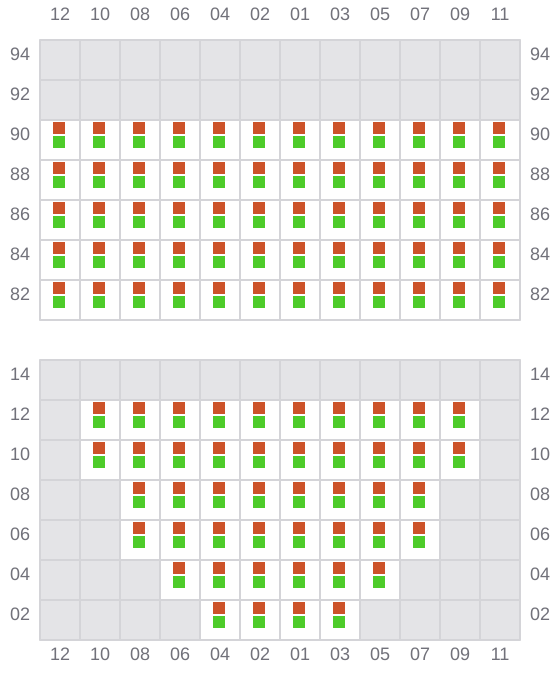

009 (010)
- →
![Bay 009 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b009.png?v=1687730494379)

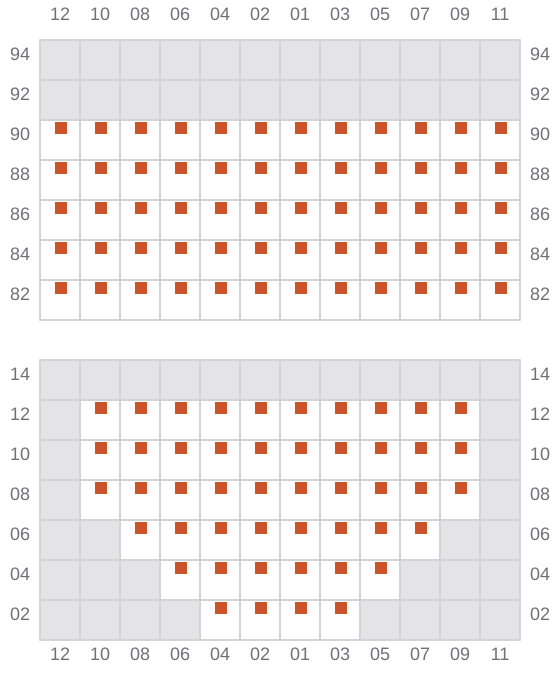

011
- ←
![Bay 011 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b011.png?v=1687730494379)

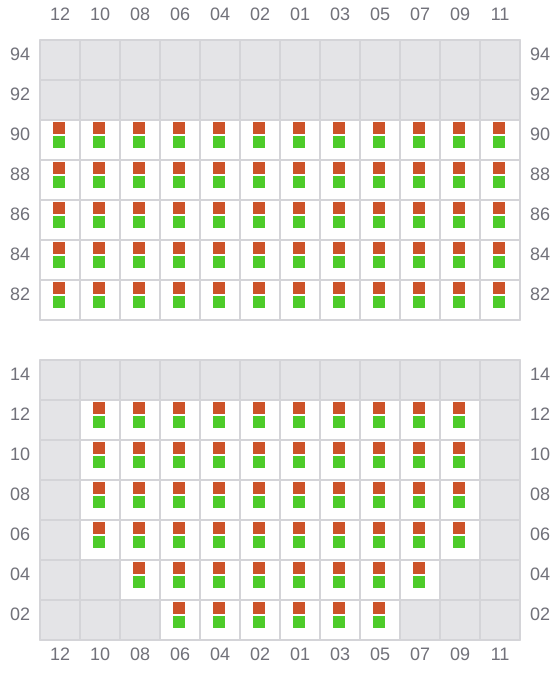

013 (014)
- →
![Bay 013 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b013.png?v=1687730494379)

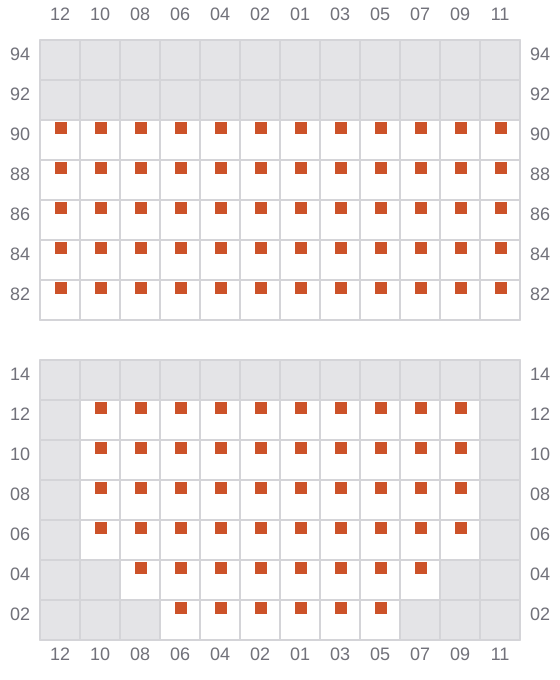

015
- ←
![Bay 015 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b015.png?v=1687730494379)

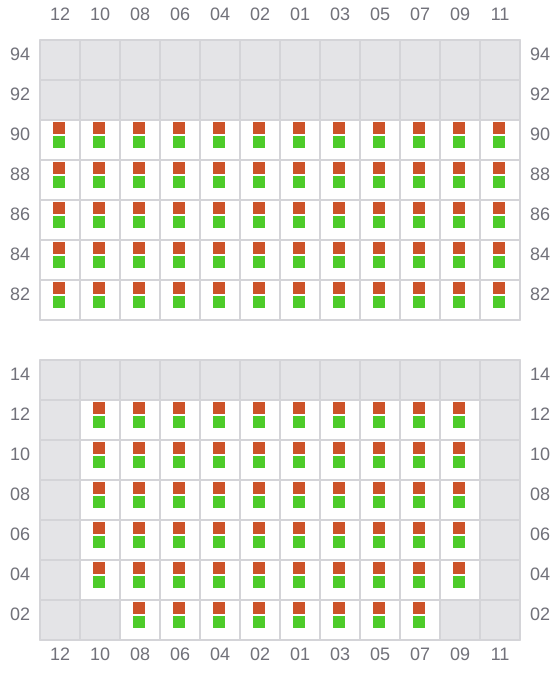

017 (018)
- →
![Bay 017 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b017.png?v=1687730494379)

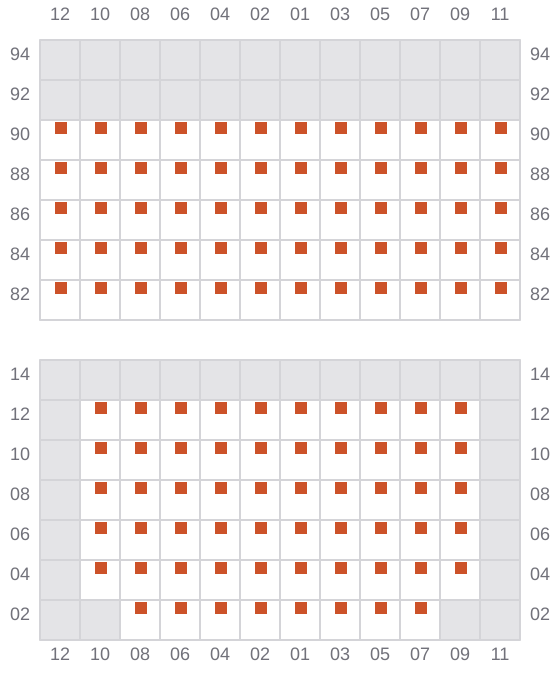

019
- ←
![Bay 019 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b019.png?v=1687730494379)

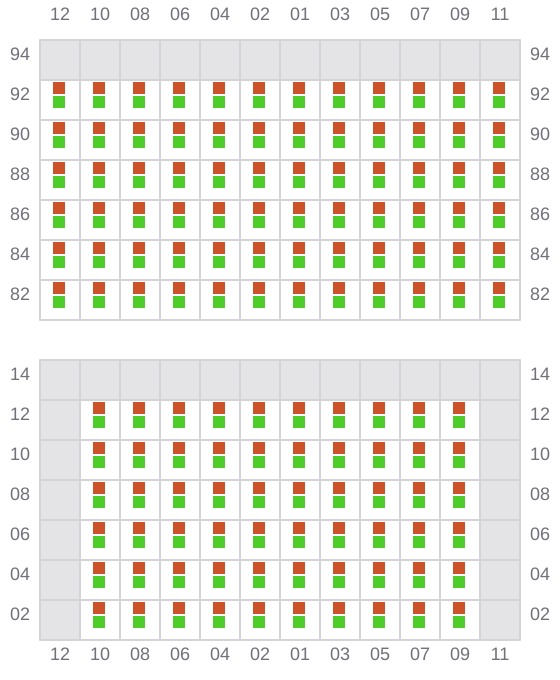

021 (022)
- →
![Bay 021 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b021.png?v=1687730494379)

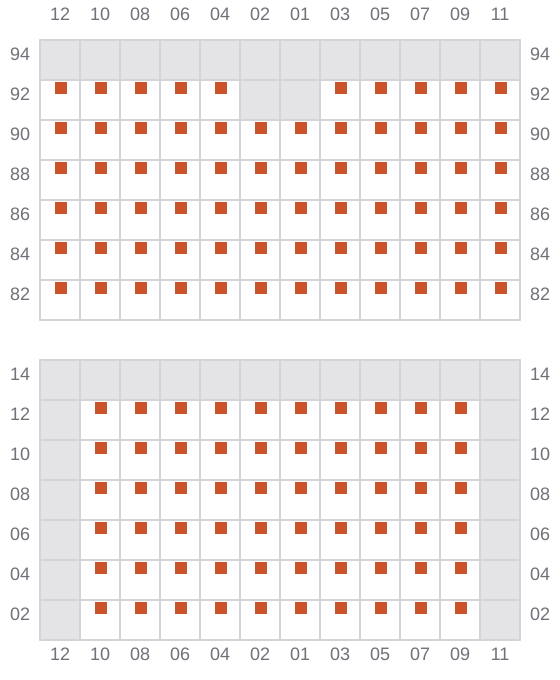

023
- ←
![Bay 023 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b023.png?v=1687730494379)
025 (026)
- →
![Bay 025 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b025.png?v=1687730494379)

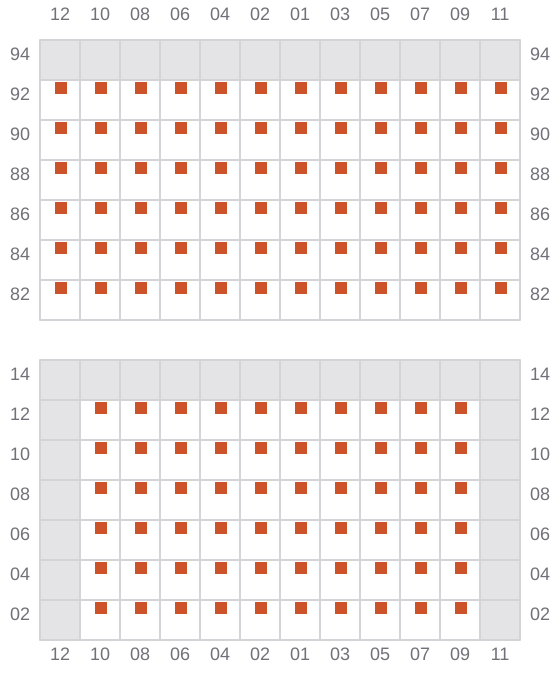

027
- ←
![Bay 027 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b027.png?v=1687730494379)

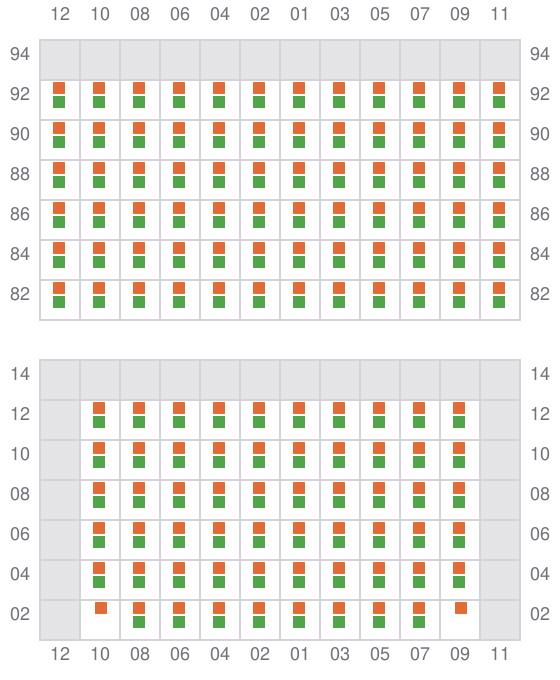

029 (030)
- →
![Bay 029 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b029.png?v=1687730494379)

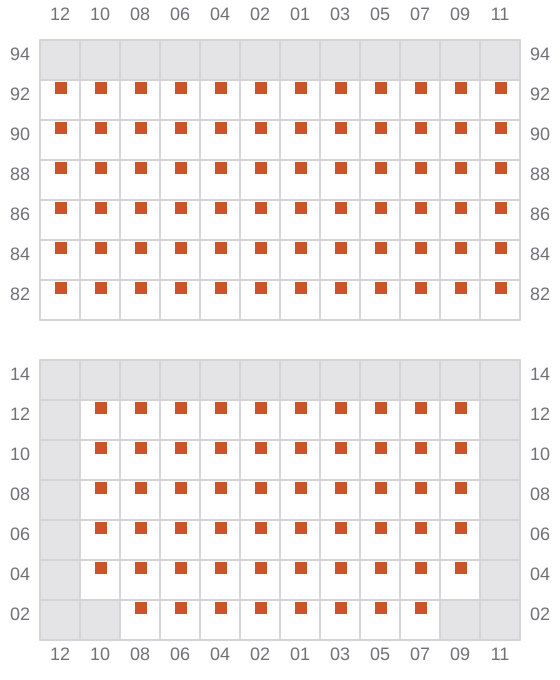

031
- ←
![Bay 031 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b031.png?v=1687730494379)

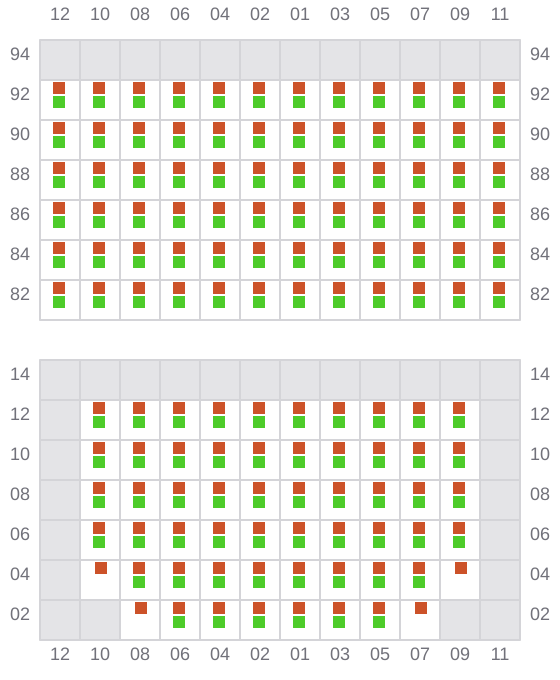

033 (034)
- →
![Bay 033 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b033.png?v=1687730494379)

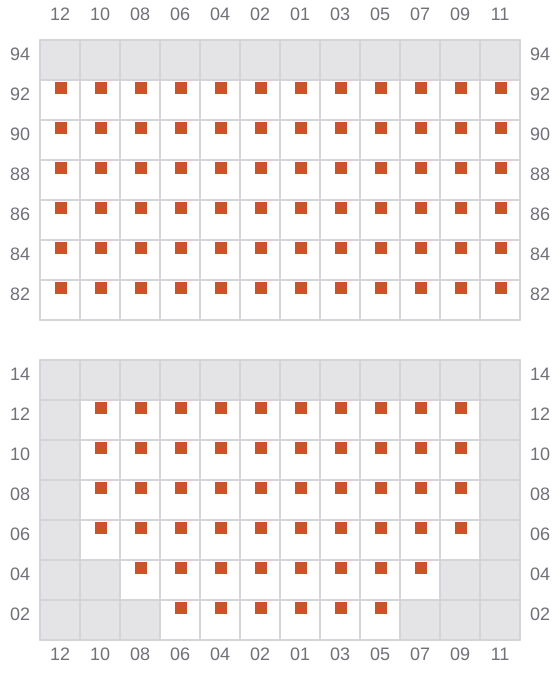

035
- ←
![Bay 035 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b035.png?v=1687730494379)

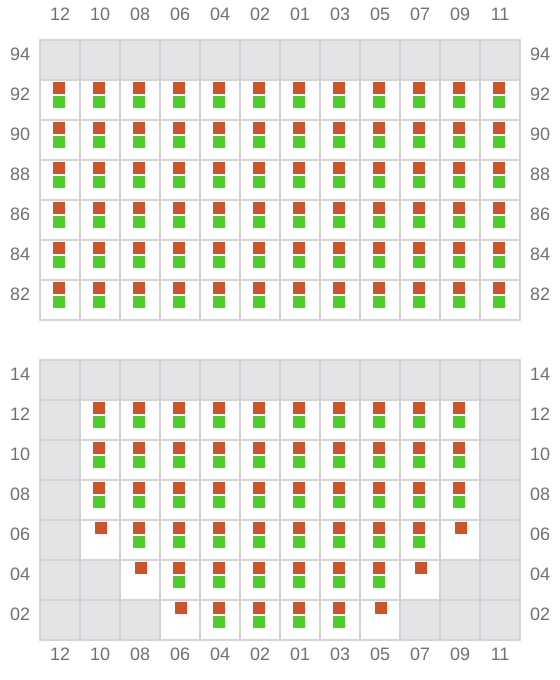

037 (038)
- →
![Bay 037 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b037.png?v=1687730494379)

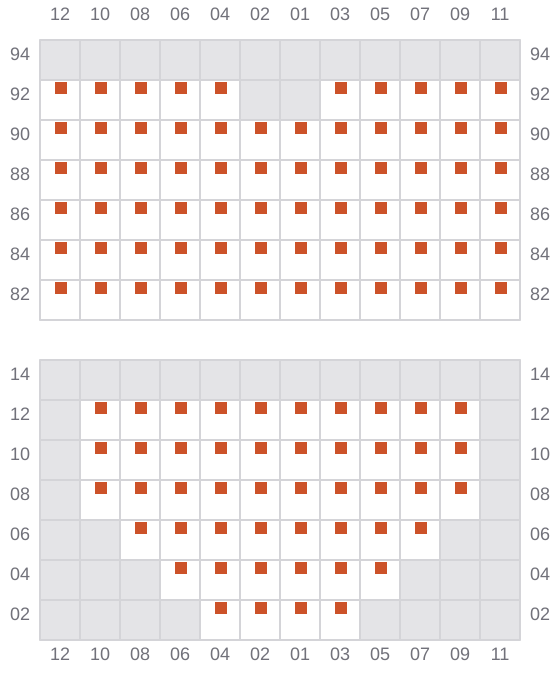

039
- ←
![Bay 039 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b039.png?v=1687730494379)

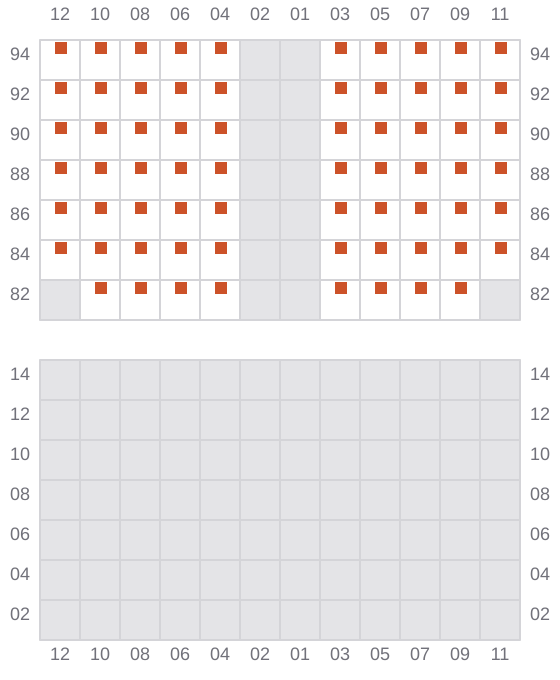

041
- → / ?
![Bay 041 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b041.png?v=1687730494379)

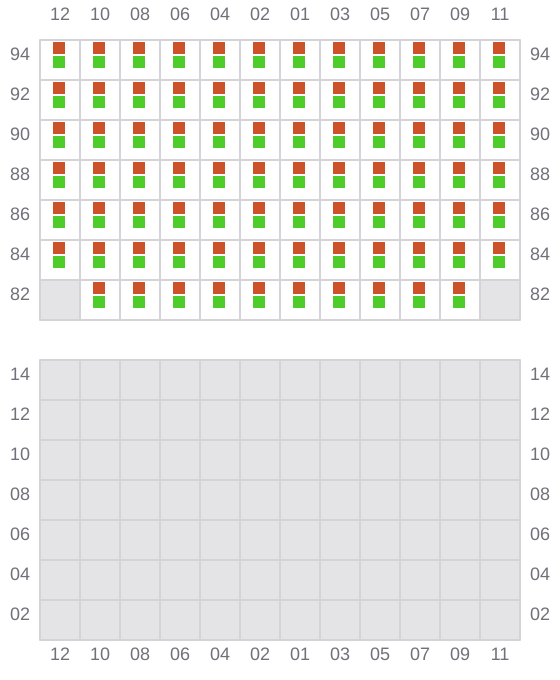

043 (044)
- → / ?
![Bay 043 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b043.png?v=1687730494379)

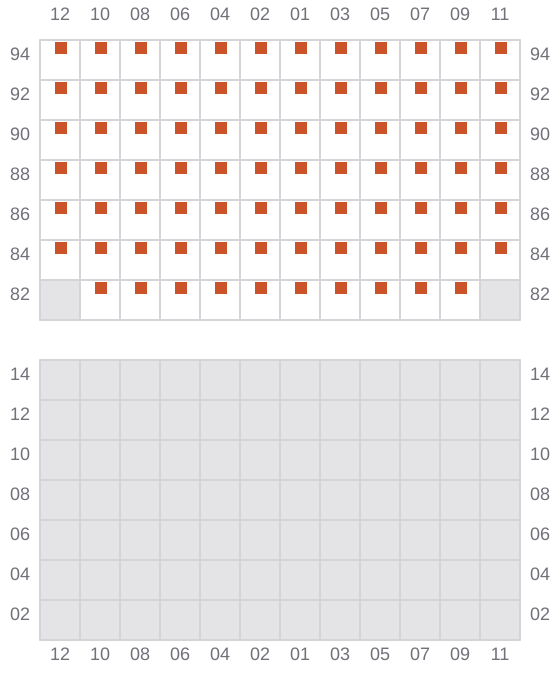

045
- → / ?
![Bay 045 view and slots of PANTHER](/vessel-images/7879b092-c424-482e-b805-60e267fbbd81-b045.png?v=1687730494379)
