PANTONIO
9440576 | CQEC7 | CMA by *********************** Last update: Thu Jan 30 2025
General Info
Ship Name:PANTONIO
IMO Code:9440576
Call Sign:CQEC7
Line Operator:CMA
Class Name for Sister Ships:FPAN
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:686
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

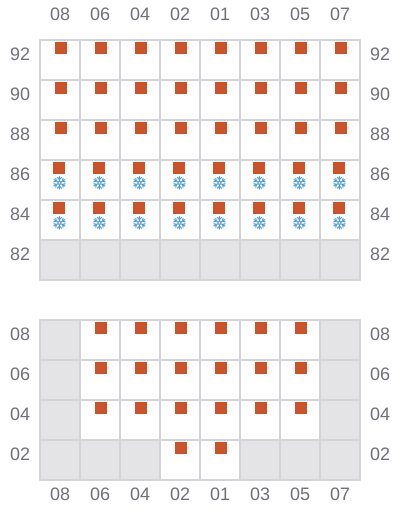

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- → / ?
- → / ?
- → / ?
003
- ← / ?
- → / ?
- →
005 (006)
- →
- → / ?
- →
007
- ←
- → / ?
- →
009 (010)
- →
- ←
- →
011
- ←
- →
013 (014)
- →
- ? / →
015
- ←
- → / ?
- →
017
019 (020)
- →
- ← / ?
- →
021
- ←
- →
023 (024)
- →
- →
025
- ←
- → / ?
- →
027 (028)
- → / ?
- → / ?
- → / ?
029
- ← / ?
- → / ?
- → / ?
