PARANAGUA EXPRESS
9786724 | 9V5294 | HLC by *********************** Last update: Mon Jun 19 2023

General Info

Ship Name:PARANAGUA EXPRESS
IMO Code:9786724
Call Sign:9V5294
Line Operator:HLC
Class Name for Sister Ships:HPAX
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):316.00
LOA (Length Overall):330.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:079
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:70
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:11,849

Centers of Gravity

LCG Values:Known
LCG Data:57%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

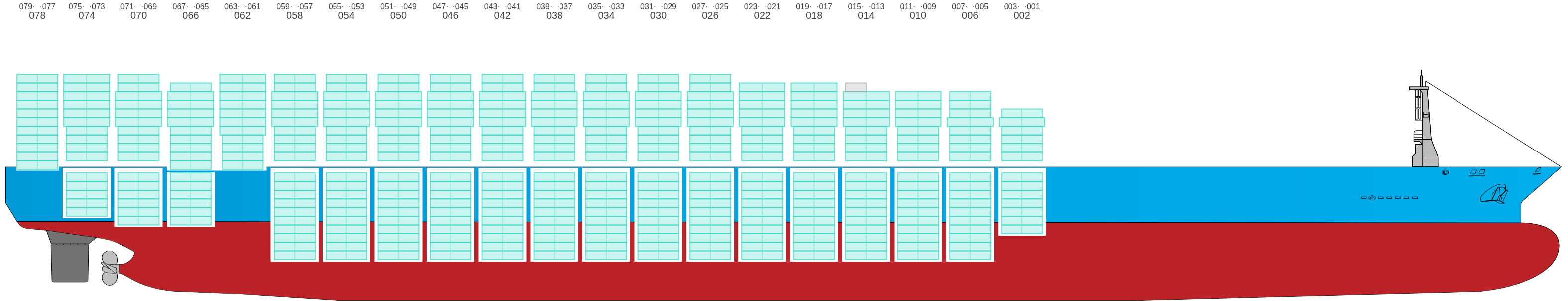

Side View

Side view of PARANAGUA EXPRESS

Hatch-Covers View

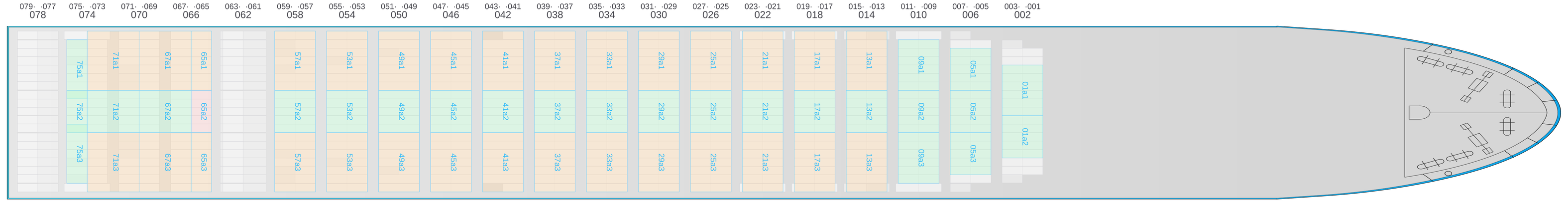

Deck view of PARANAGUA EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →

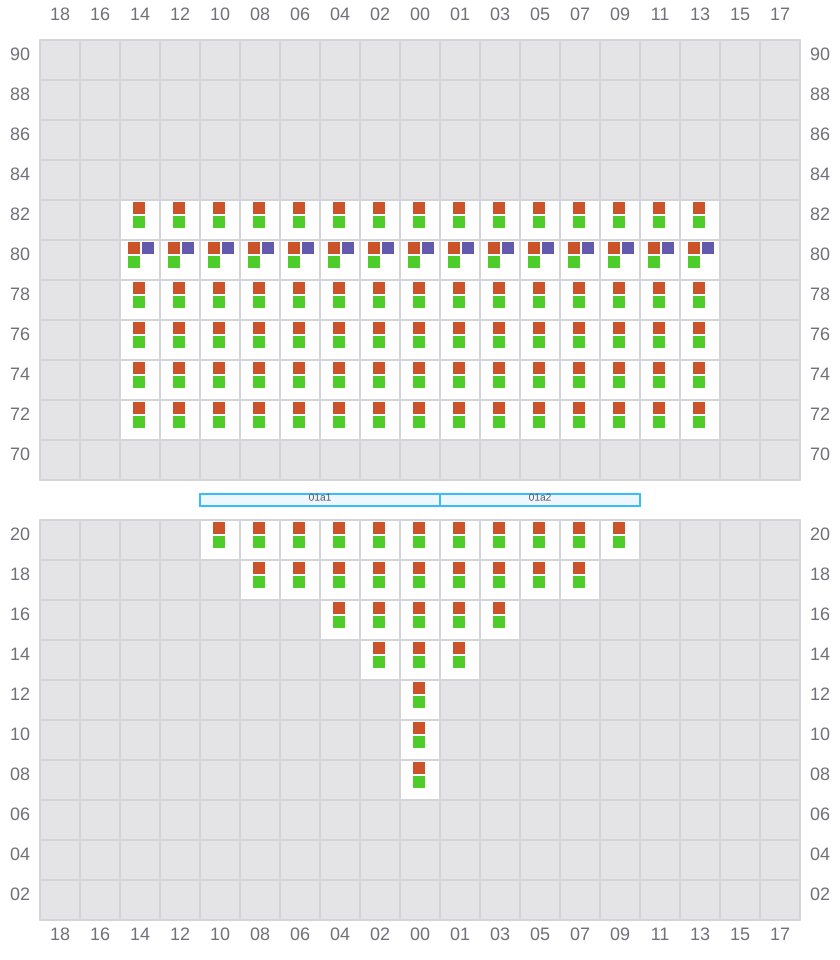

Bay 001 view and slots of PARANAGUA EXPRESS

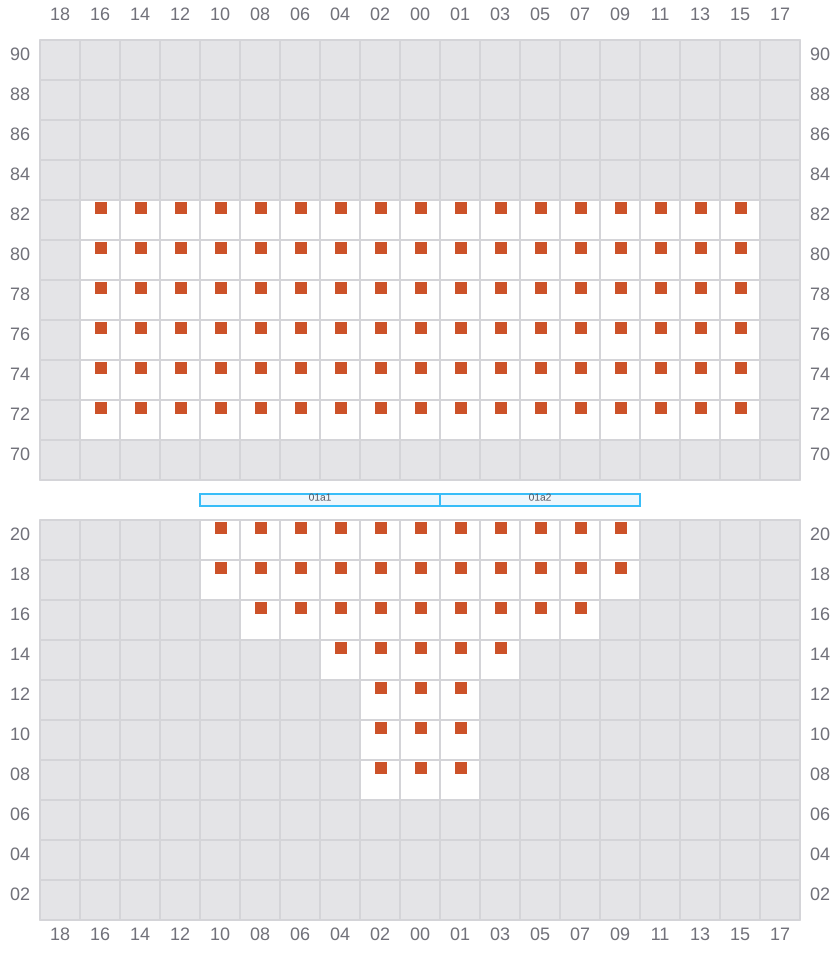

003

  • ←
  • →
  • →
Bay 003 view and slots of PARANAGUA EXPRESS

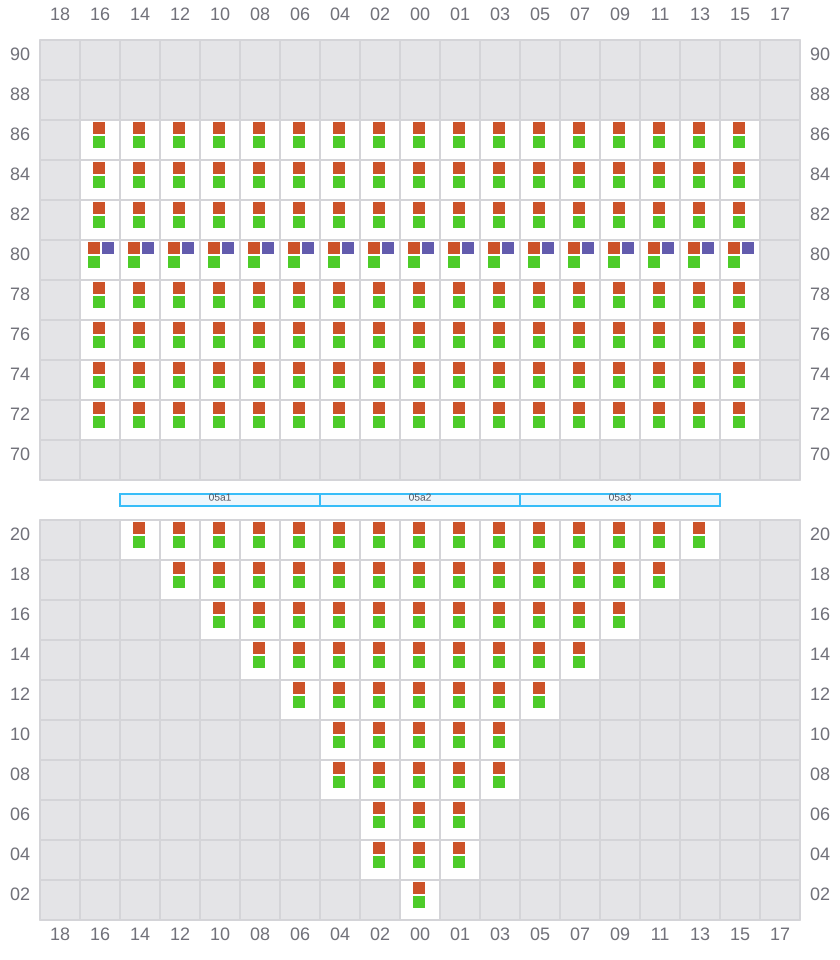

005 (006)

  • →
  • →

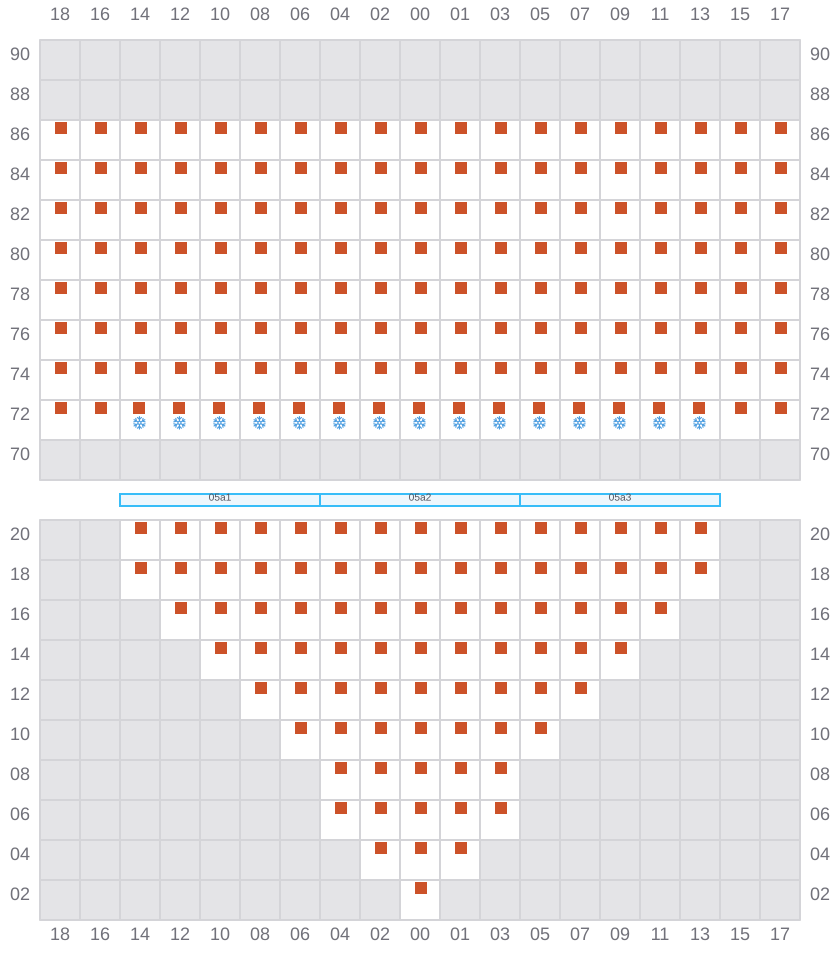

Bay 005 view and slots of PARANAGUA EXPRESS

007

  • ←
  • →
  • →
Bay 007 view and slots of PARANAGUA EXPRESS

009 (010)

  • →
  • →

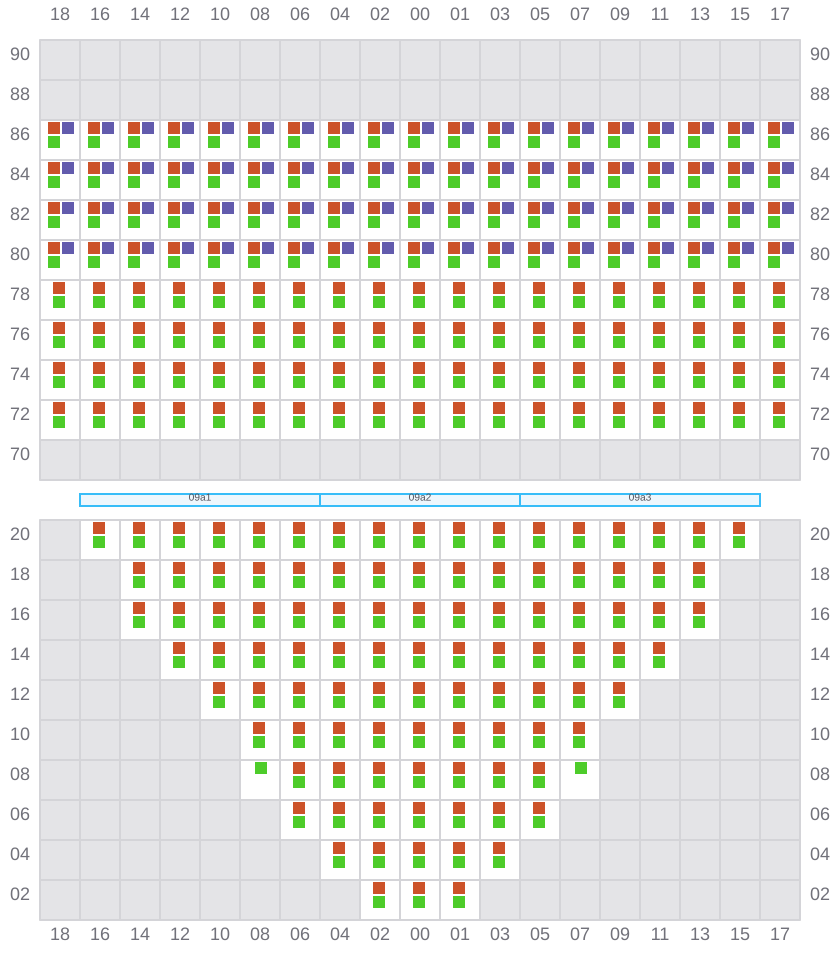

Bay 009 view and slots of PARANAGUA EXPRESS

011

  • ←
  • →
  • →

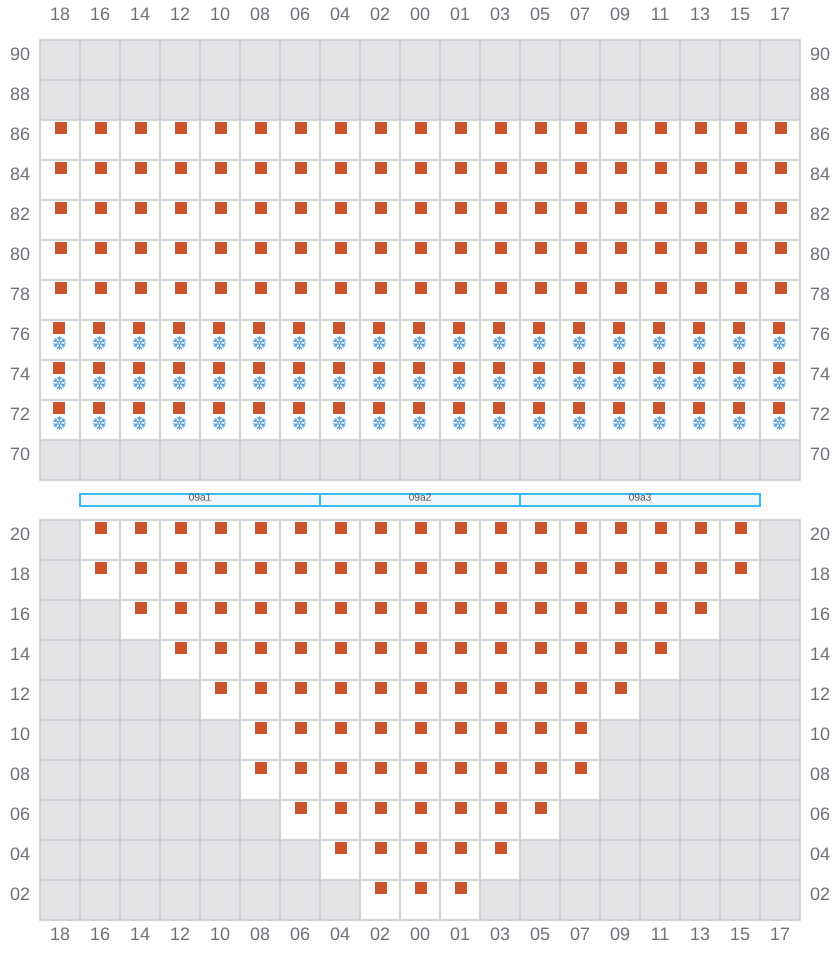

Bay 011 view and slots of PARANAGUA EXPRESS

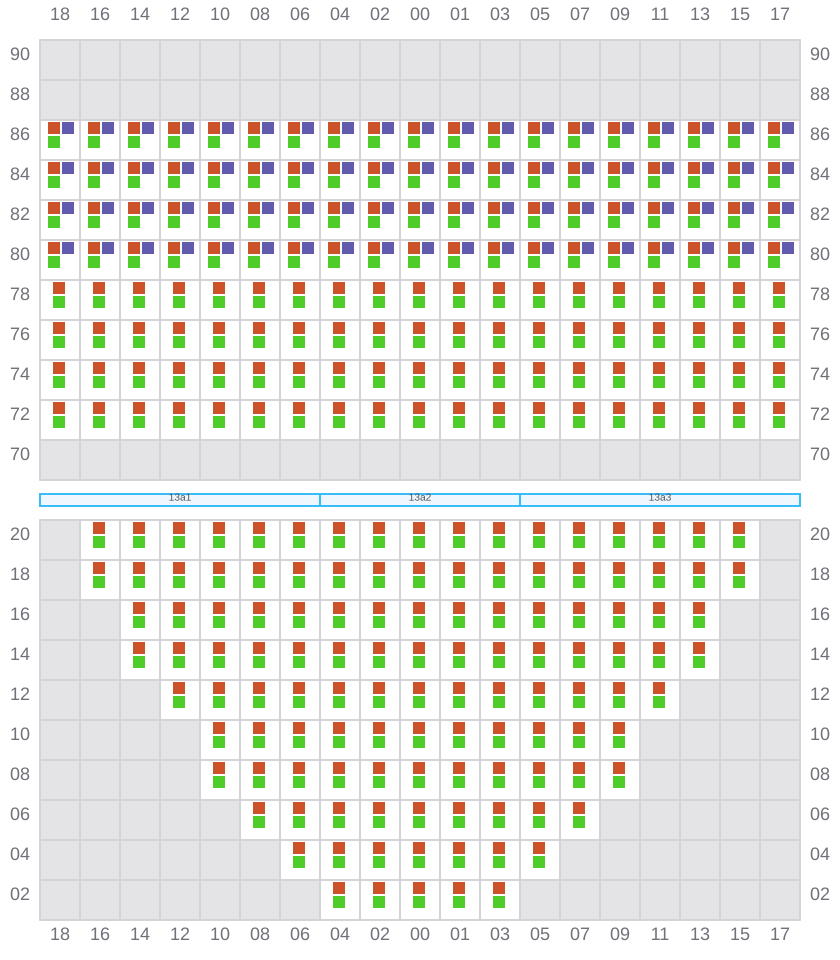

013 (014)

  • →
  • →
Bay 013 view and slots of PARANAGUA EXPRESS

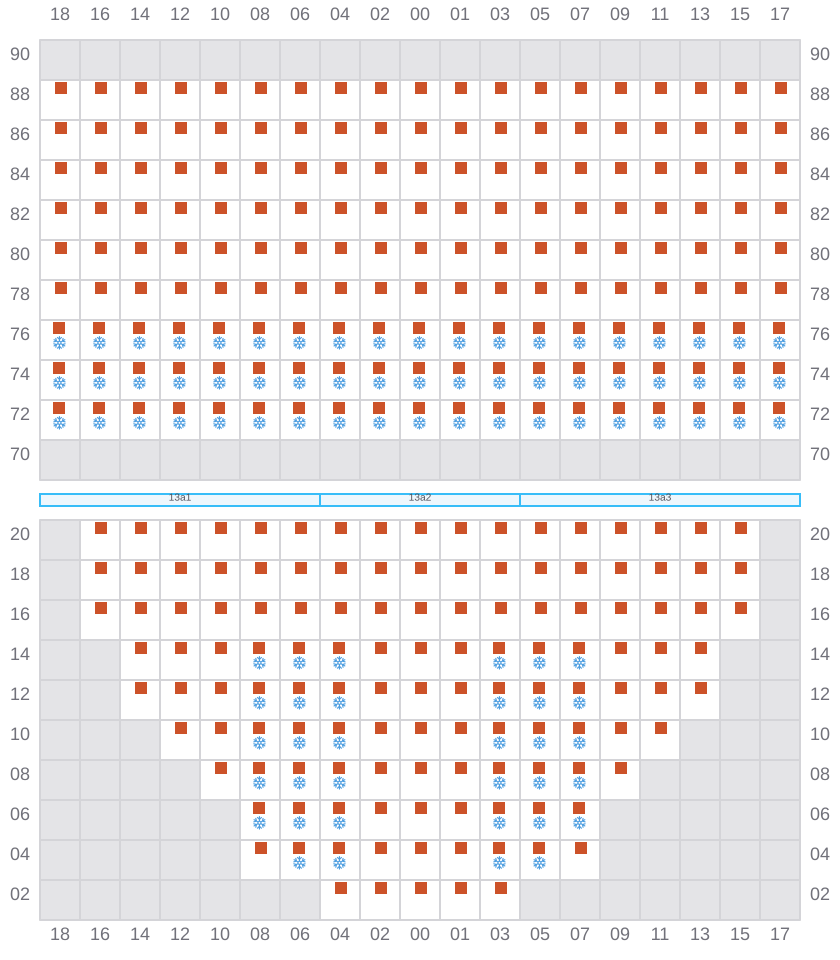

015

  • ←
  • →
  • →
Bay 015 view and slots of PARANAGUA EXPRESS

017 (018)

  • →
  • →

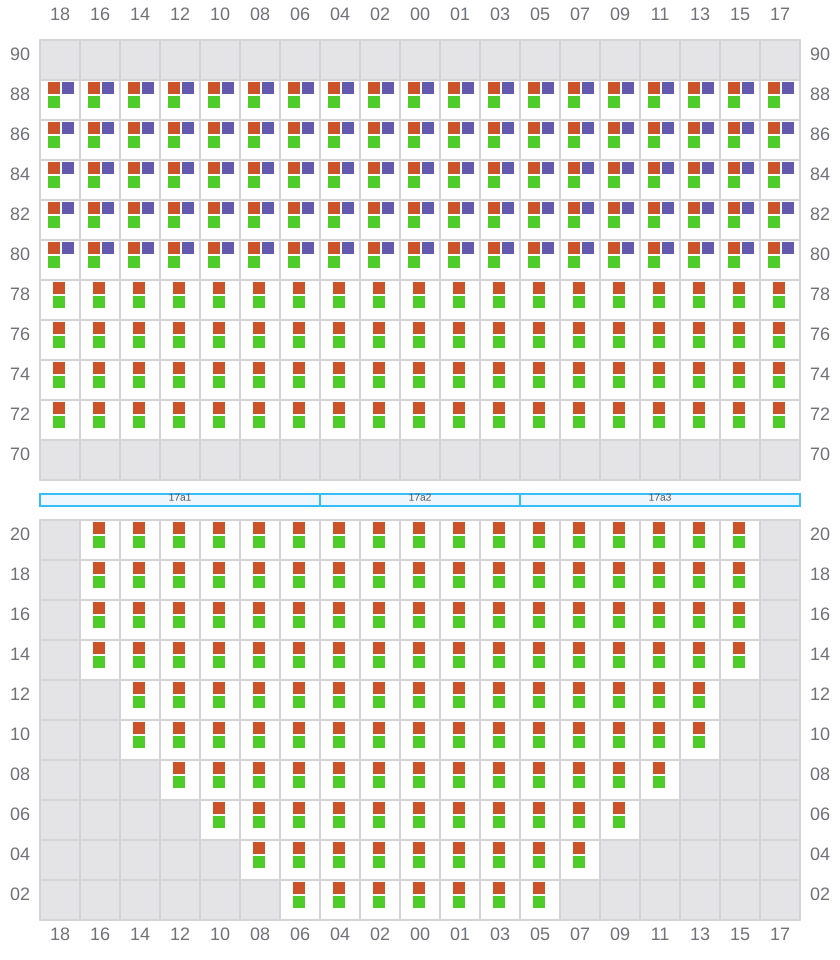

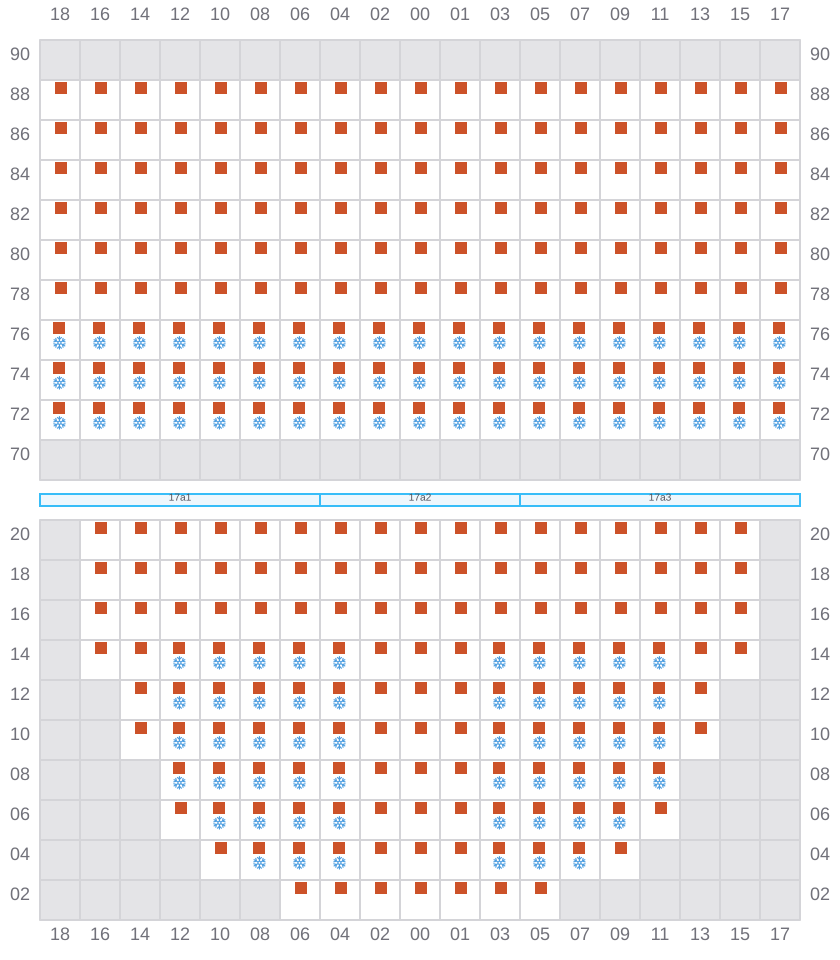

Bay 017 view and slots of PARANAGUA EXPRESS

019

  • ←
  • →
  • →
Bay 019 view and slots of PARANAGUA EXPRESS

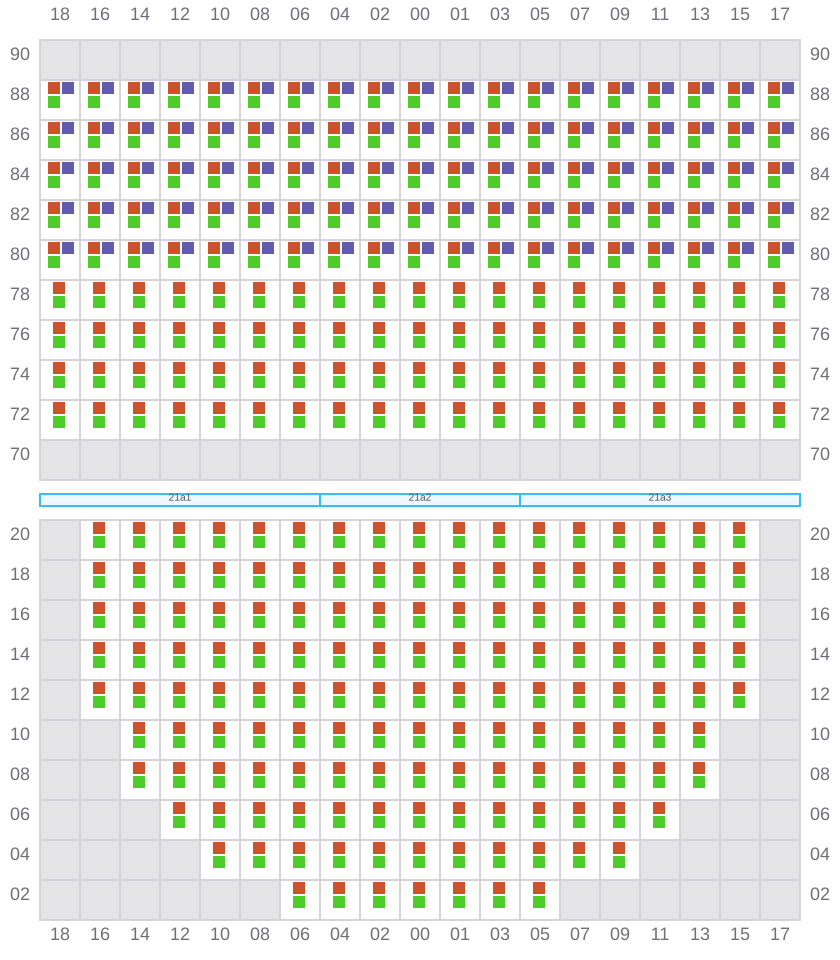

021 (022)

  • →
  • →
Bay 021 view and slots of PARANAGUA EXPRESS

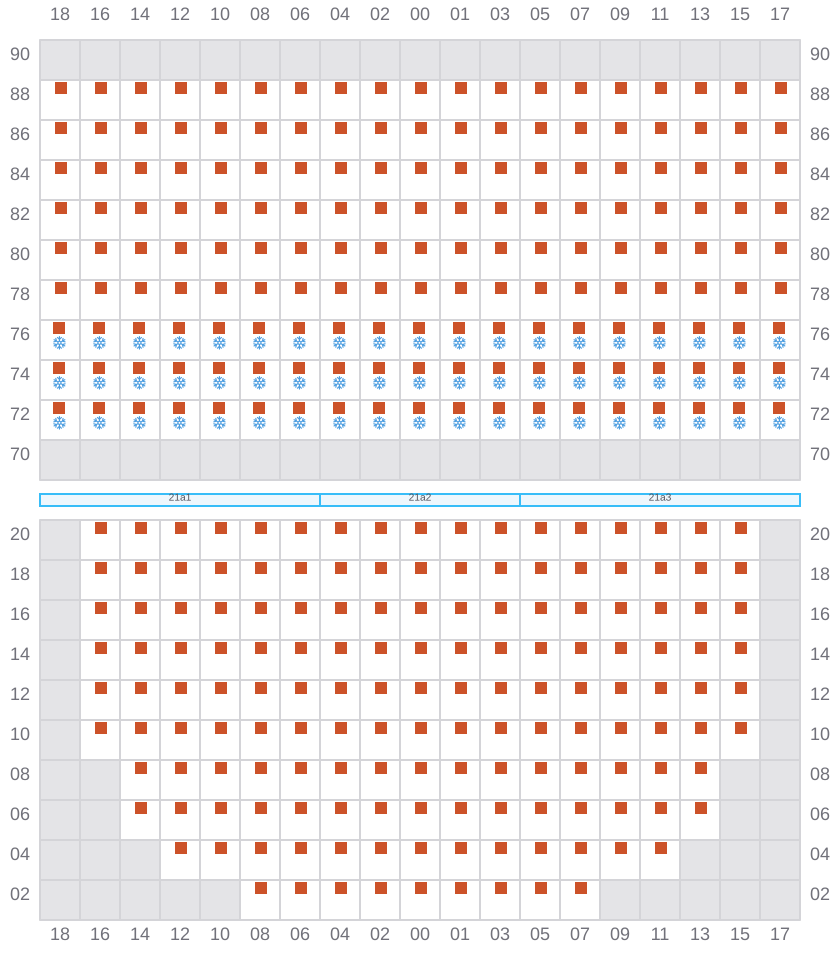

023

  • ←
  • →
  • →
Bay 023 view and slots of PARANAGUA EXPRESS

025 (026)

  • →
  • →

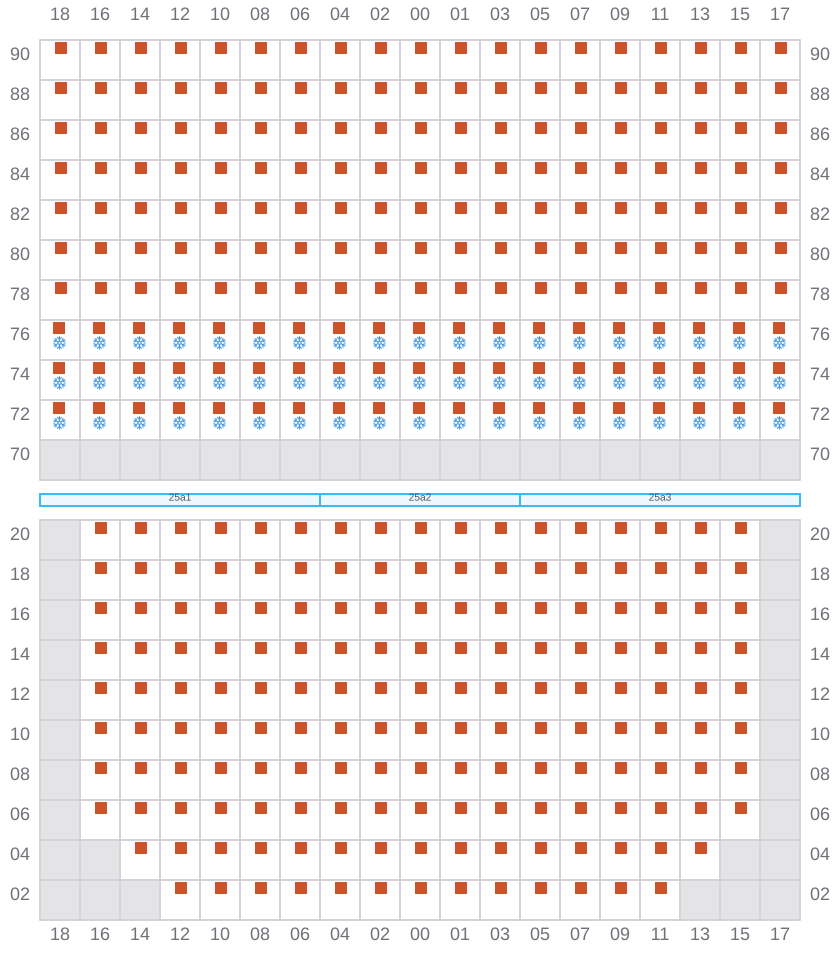

Bay 025 view and slots of PARANAGUA EXPRESS

027

  • ←
  • →
  • →
Bay 027 view and slots of PARANAGUA EXPRESS

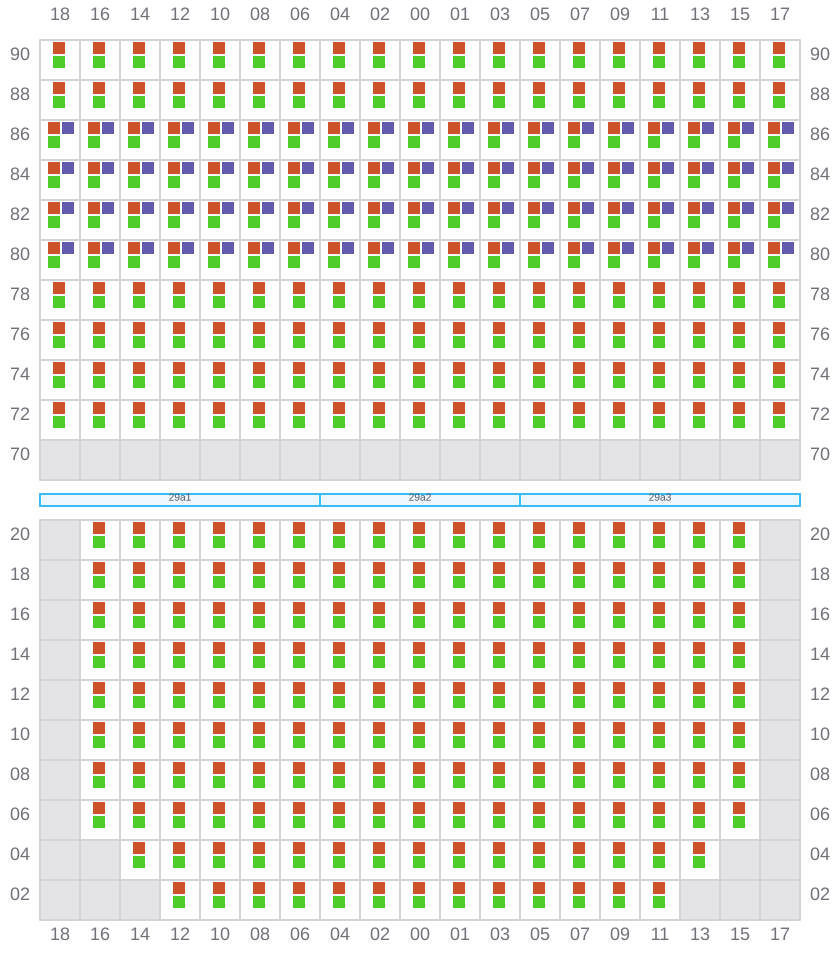

029 (030)

  • →
  • →
Bay 029 view and slots of PARANAGUA EXPRESS

031

  • ←
  • →
  • →
Bay 031 view and slots of PARANAGUA EXPRESS

033 (034)

  • →
  • →
Bay 033 view and slots of PARANAGUA EXPRESS

035

  • ←
  • →
  • →
Bay 035 view and slots of PARANAGUA EXPRESS

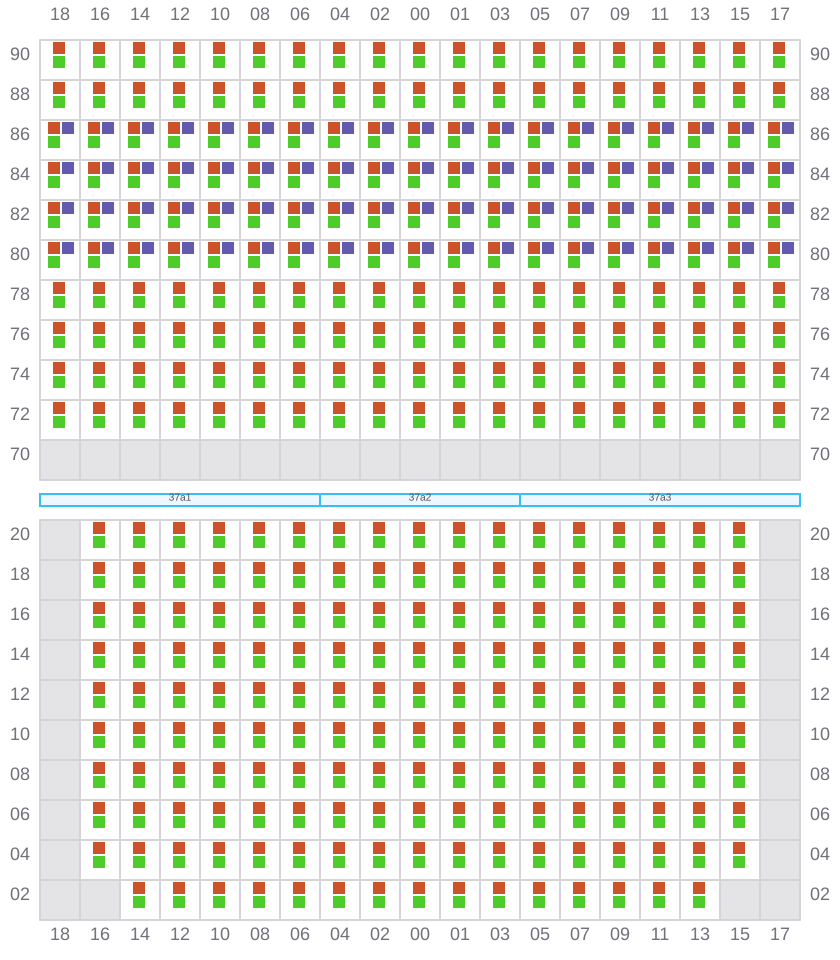

037 (038)

  • →
  • →

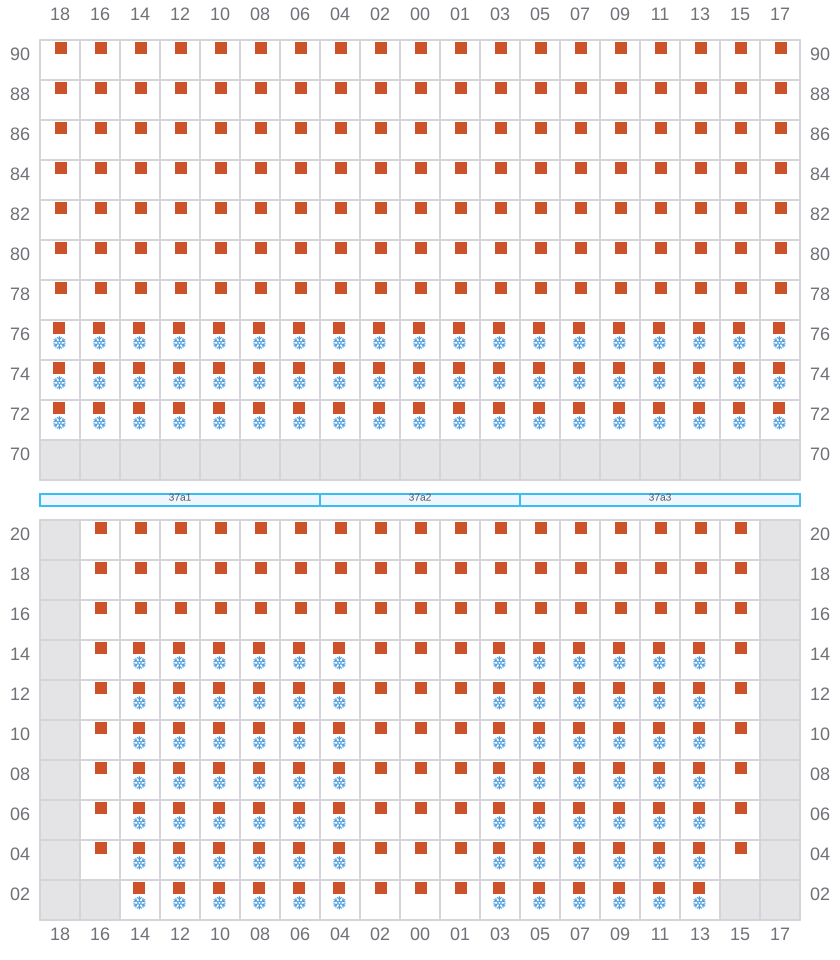

Bay 037 view and slots of PARANAGUA EXPRESS

039

  • ←
  • →
  • →
Bay 039 view and slots of PARANAGUA EXPRESS

041 (042)

  • →
  • →

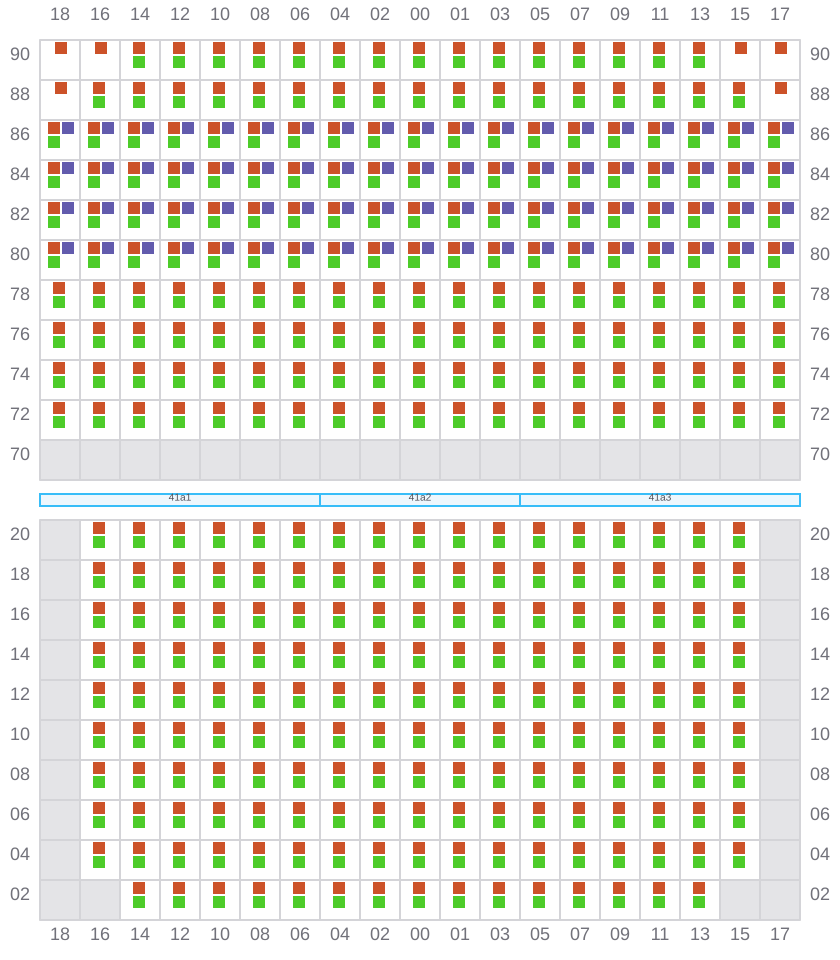

Bay 041 view and slots of PARANAGUA EXPRESS

043

  • ←
  • →
  • →
Bay 043 view and slots of PARANAGUA EXPRESS

045 (046)

  • →
  • →
Bay 045 view and slots of PARANAGUA EXPRESS

047

  • ←
  • →
  • →

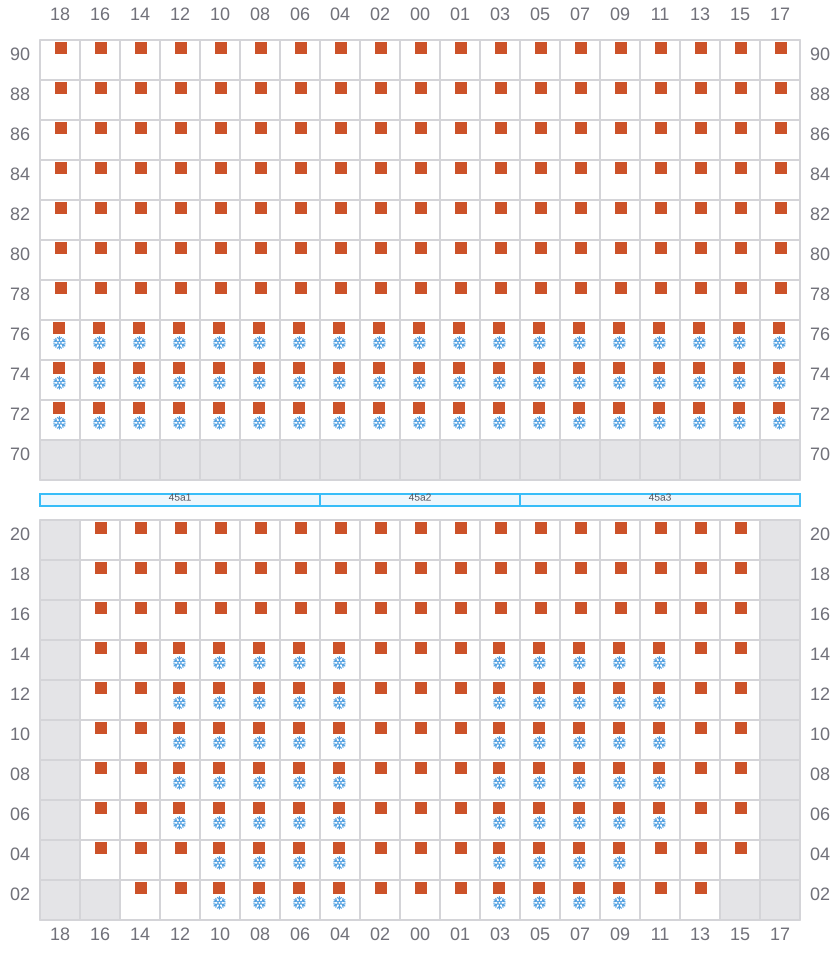

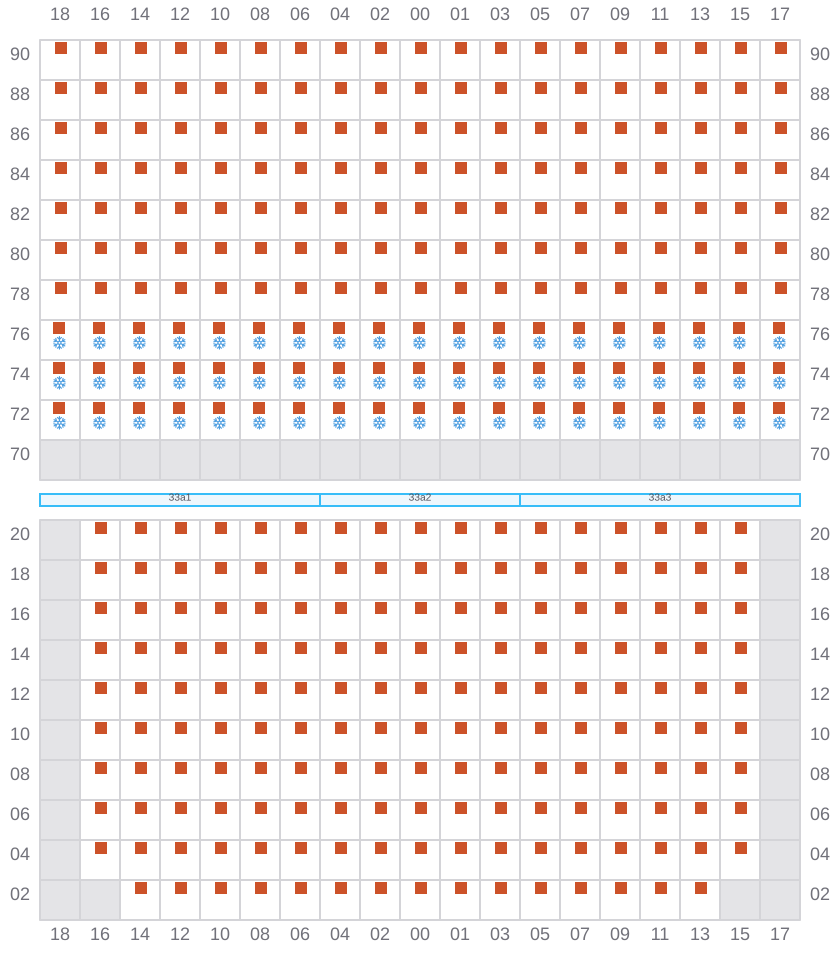

Bay 047 view and slots of PARANAGUA EXPRESS

049 (050)

  • →
  • →
Bay 049 view and slots of PARANAGUA EXPRESS

051

  • ←
  • →
  • →

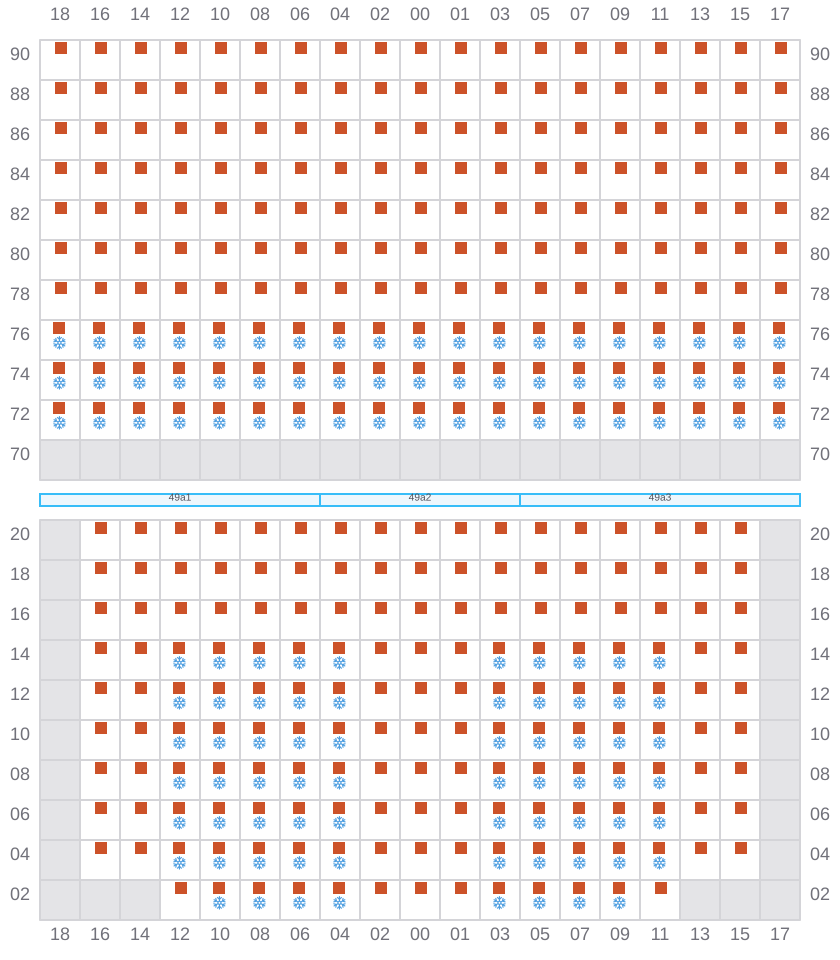

Bay 051 view and slots of PARANAGUA EXPRESS

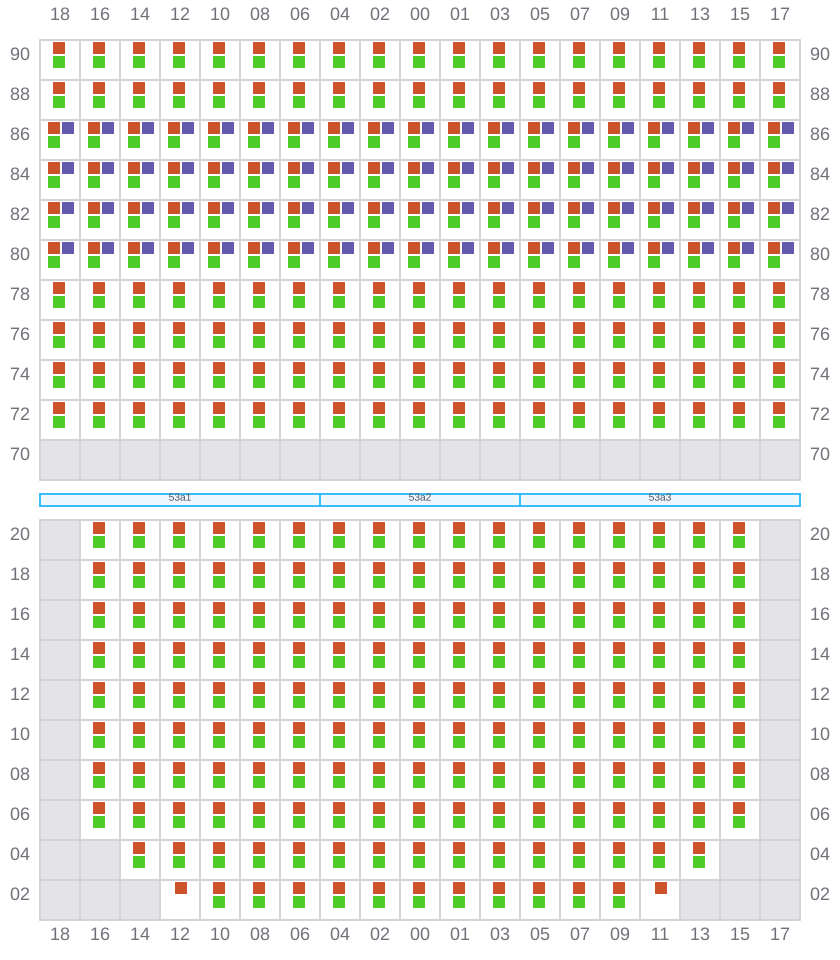

053 (054)

  • →
  • →
Bay 053 view and slots of PARANAGUA EXPRESS

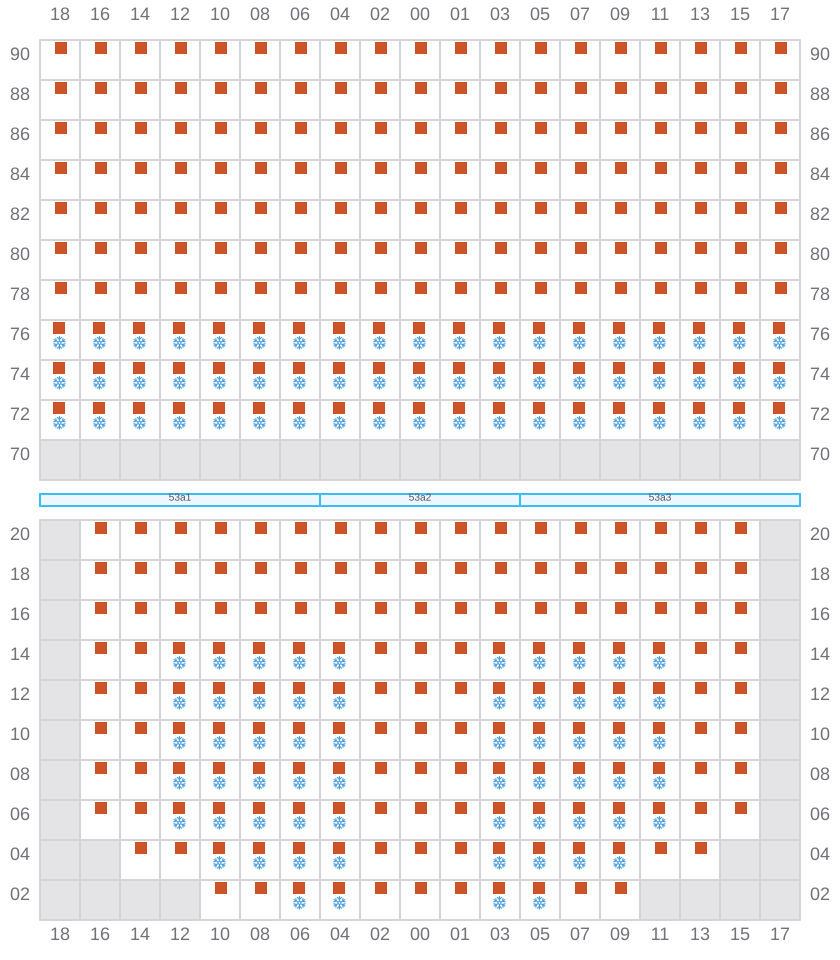

055

  • ←
  • →
  • →
Bay 055 view and slots of PARANAGUA EXPRESS

057 (058)

  • →
  • →

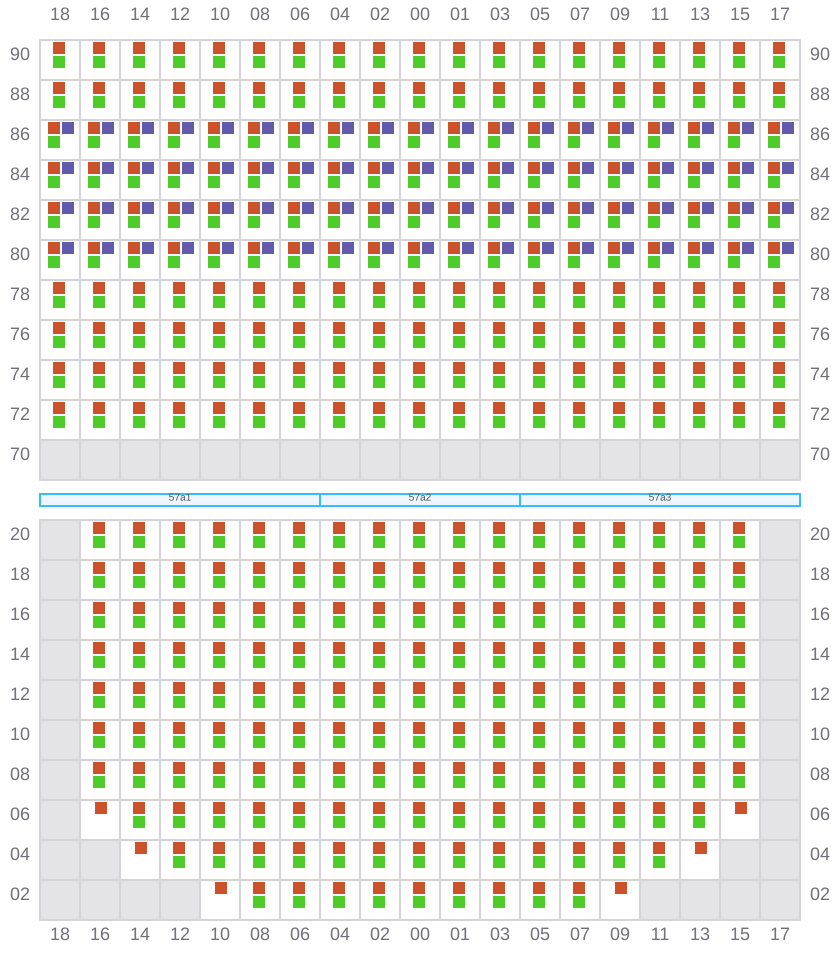

Bay 057 view and slots of PARANAGUA EXPRESS

059

  • ←
  • →
  • →

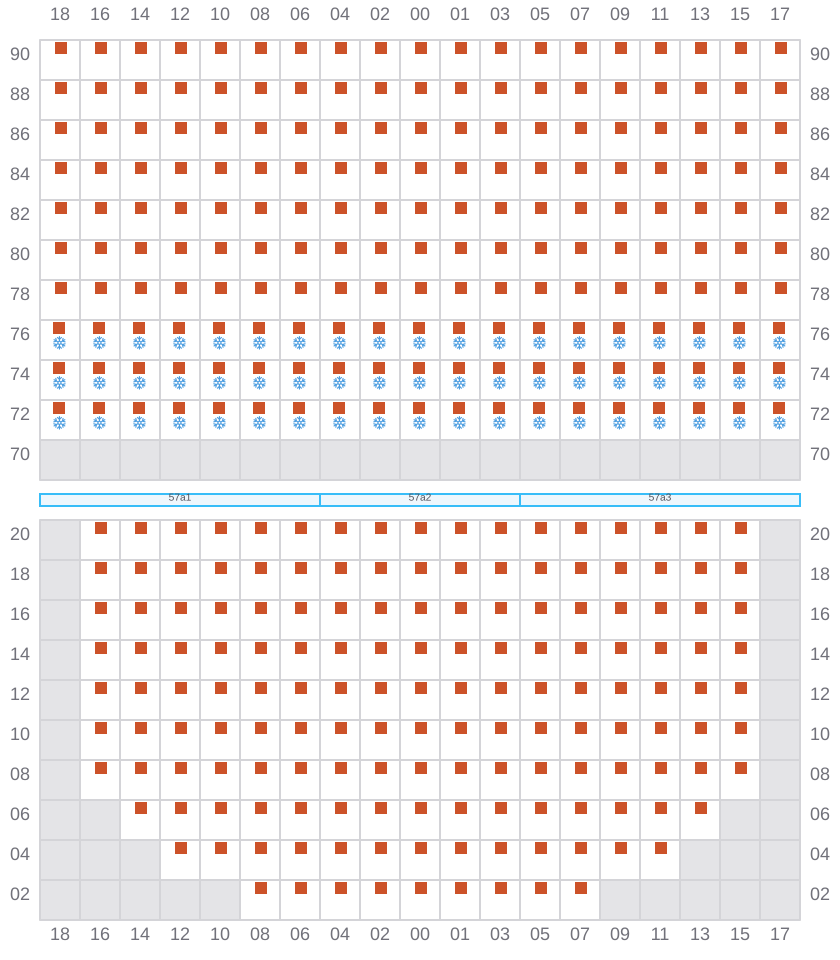

Bay 059 view and slots of PARANAGUA EXPRESS

061 (062)

  • → / ?
  • → / ?

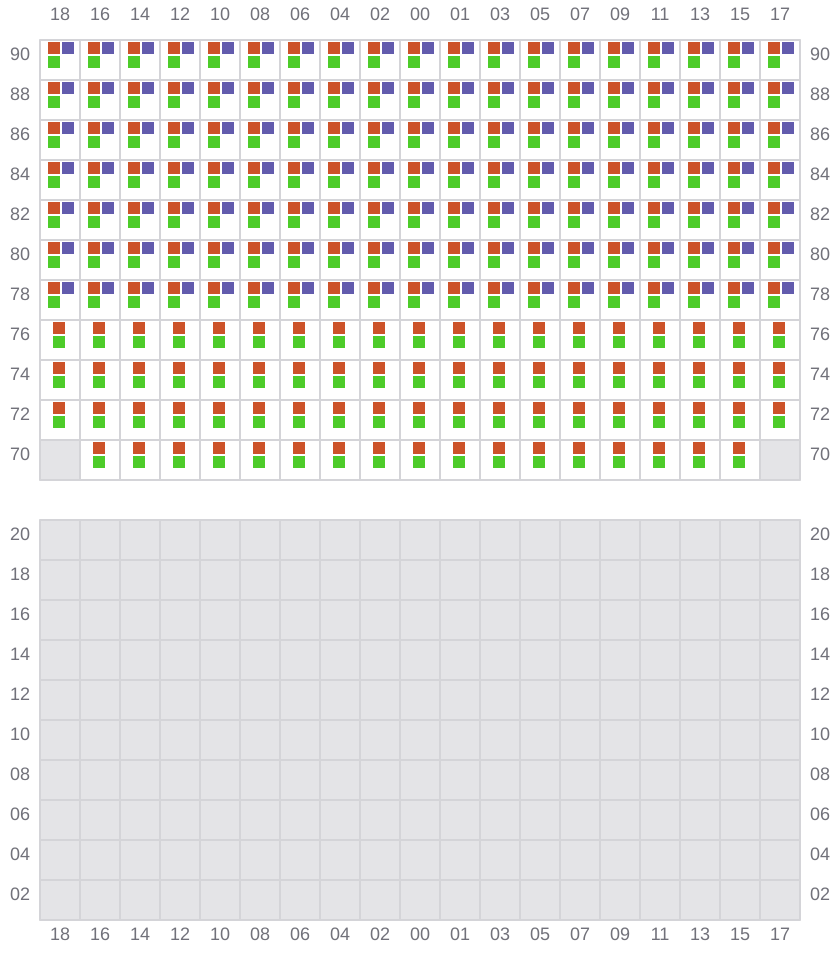

Bay 061 view and slots of PARANAGUA EXPRESS

063

  • ← / ?
  • → / ?
  • → / ?

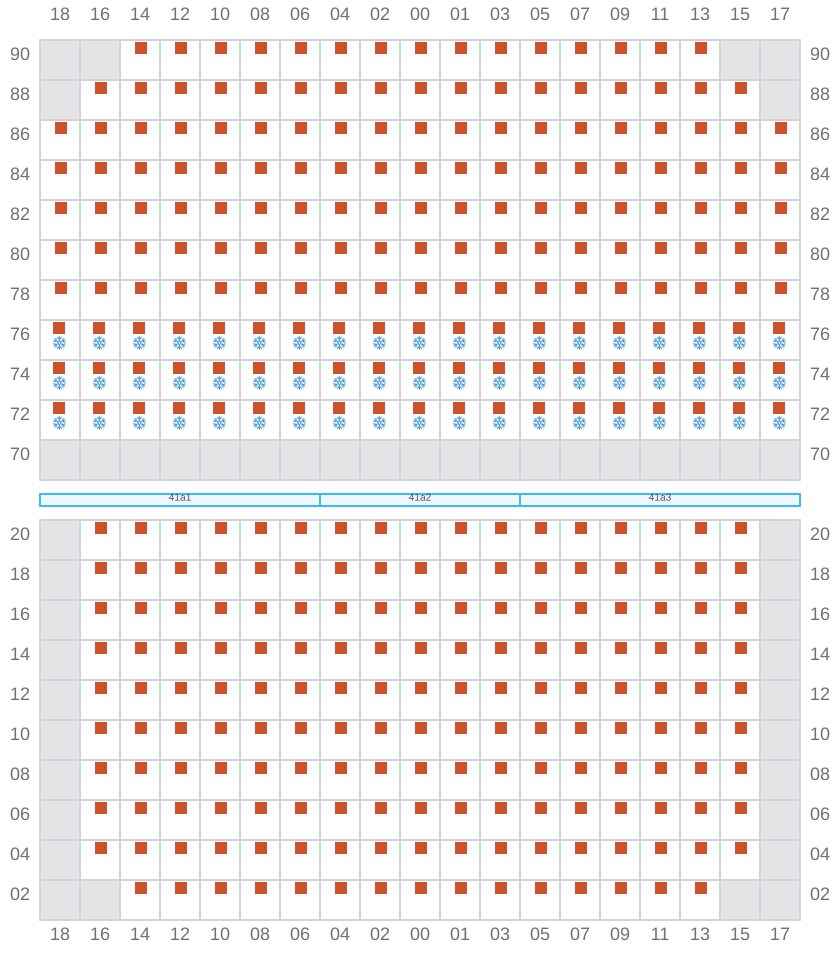

Bay 063 view and slots of PARANAGUA EXPRESS

065 (066)

  • →
  • ← / ?
  • →

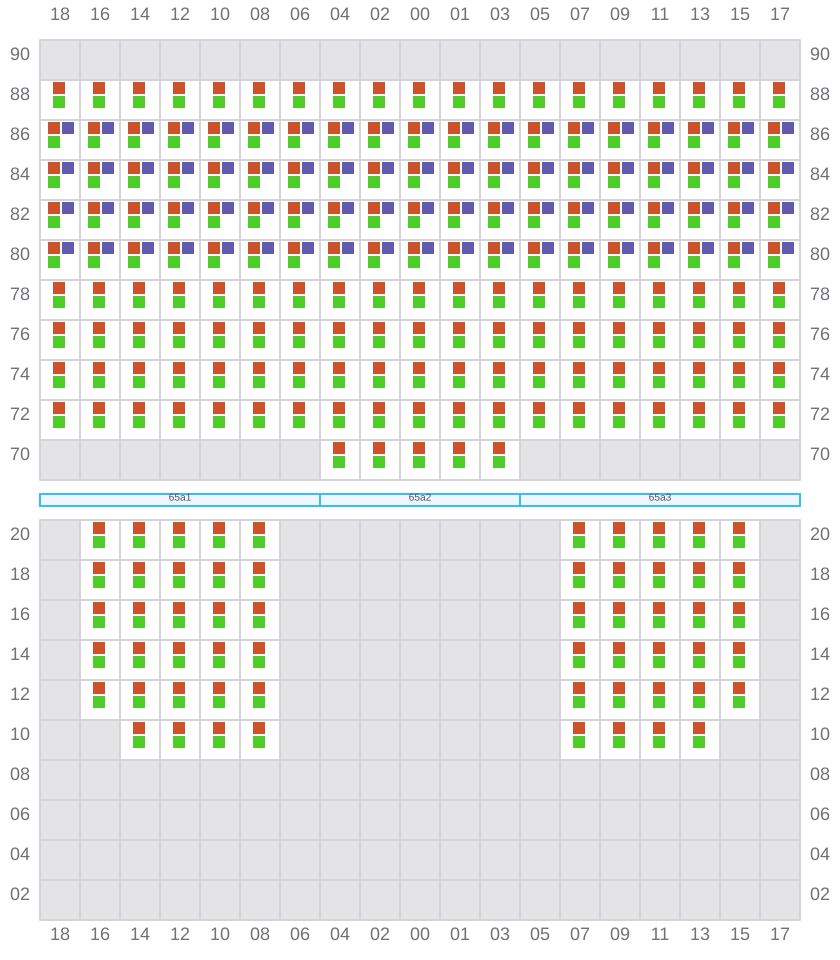

Bay 065 view and slots of PARANAGUA EXPRESS

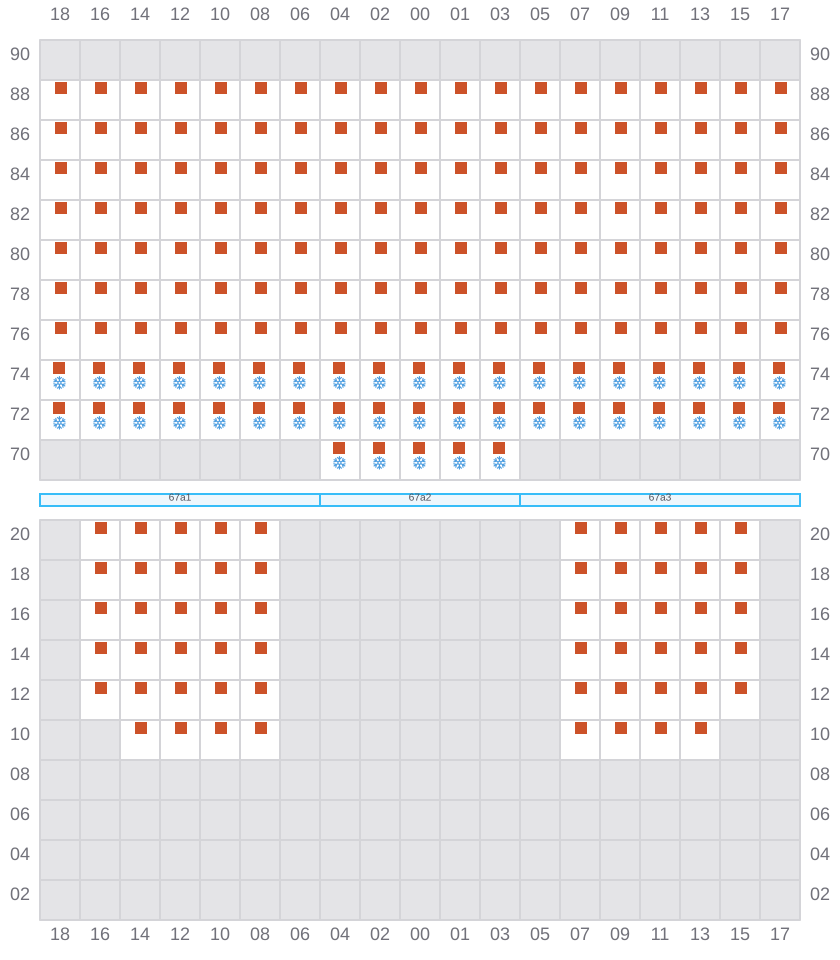

067

  • ←
  • → / ?
  • →
Bay 067 view and slots of PARANAGUA EXPRESS

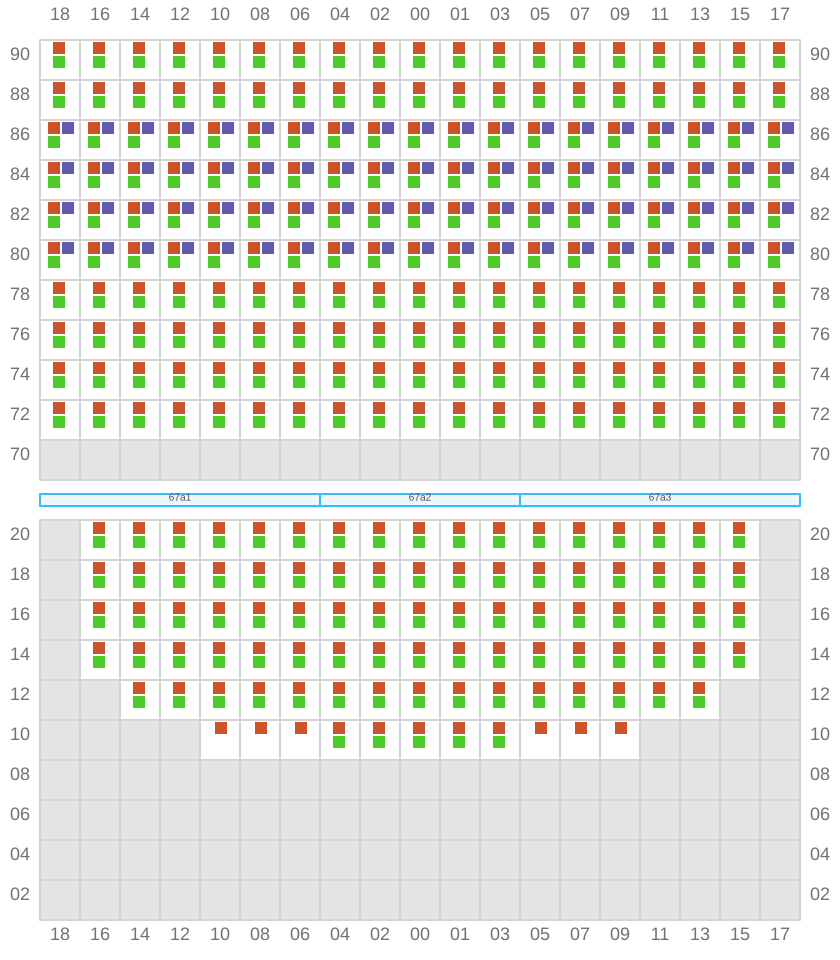

069 (070)

  • →
  • ← / →
  • →
Bay 069 view and slots of PARANAGUA EXPRESS

071

  • ←
  • → / ?
  • →

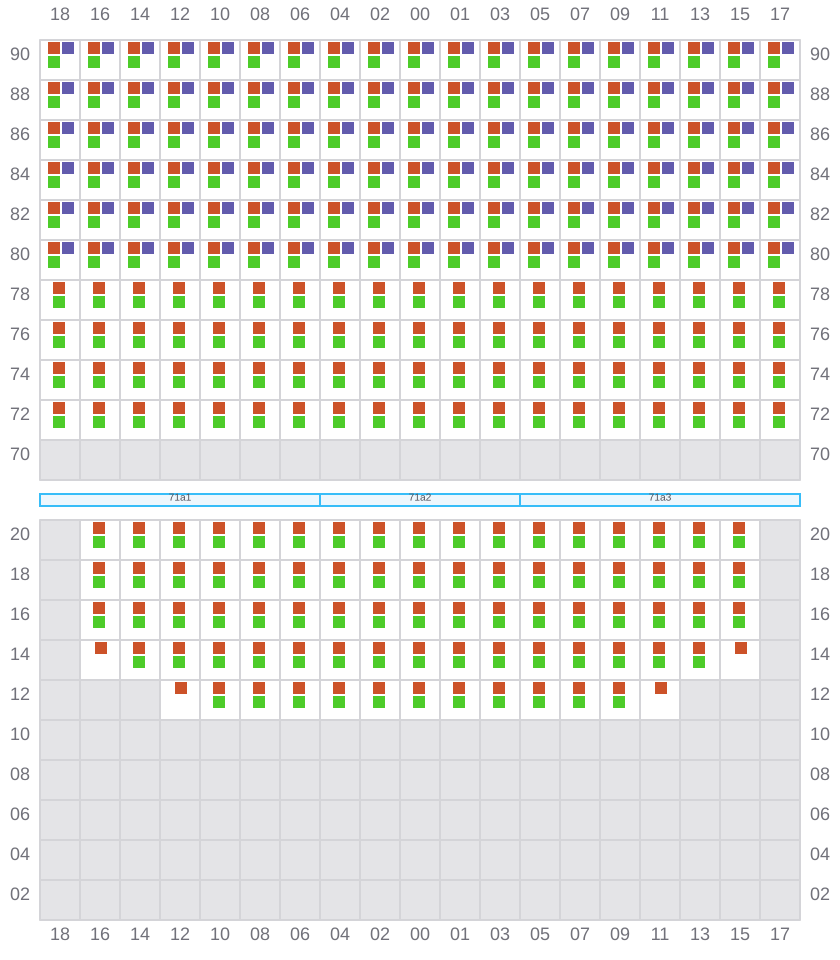

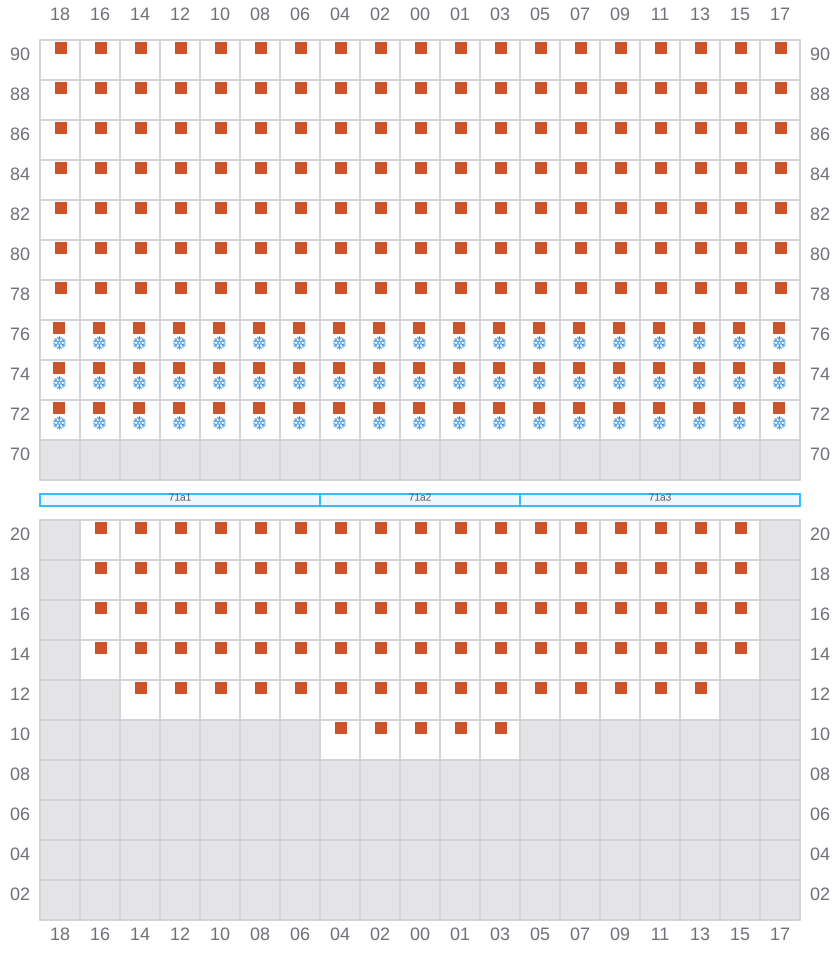

Bay 071 view and slots of PARANAGUA EXPRESS

073 (074)

  • →
  • ← / →
  • →
Bay 073 view and slots of PARANAGUA EXPRESS

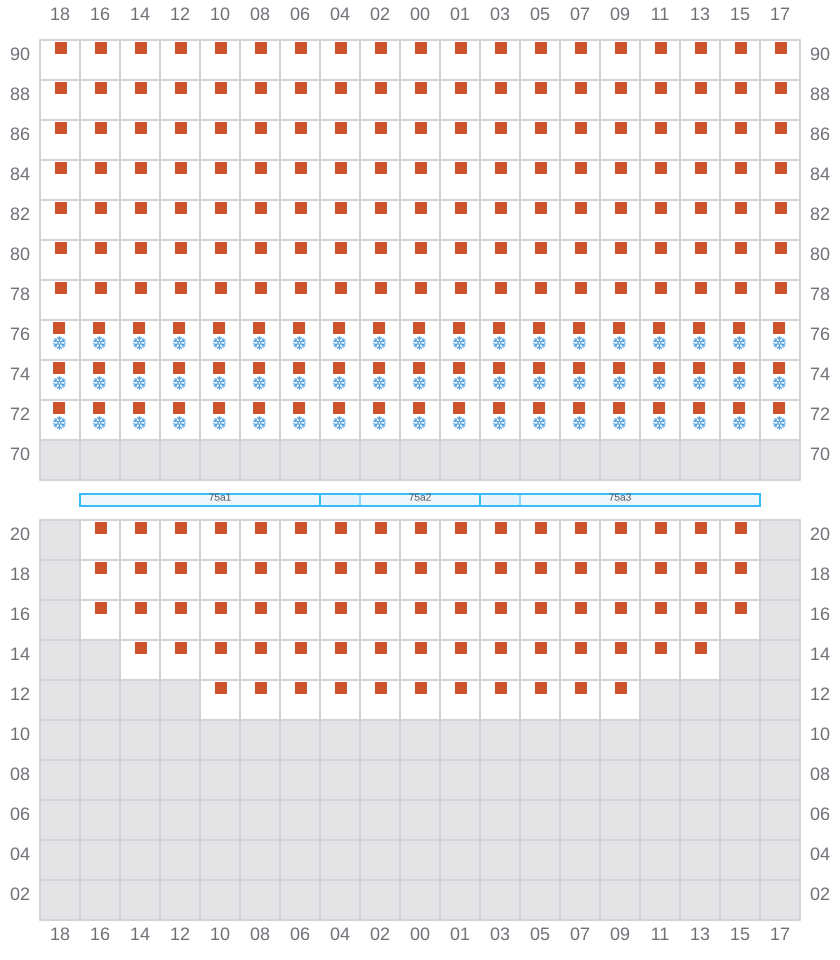

075

  • ←
  • → / ?
  • →
Bay 075 view and slots of PARANAGUA EXPRESS

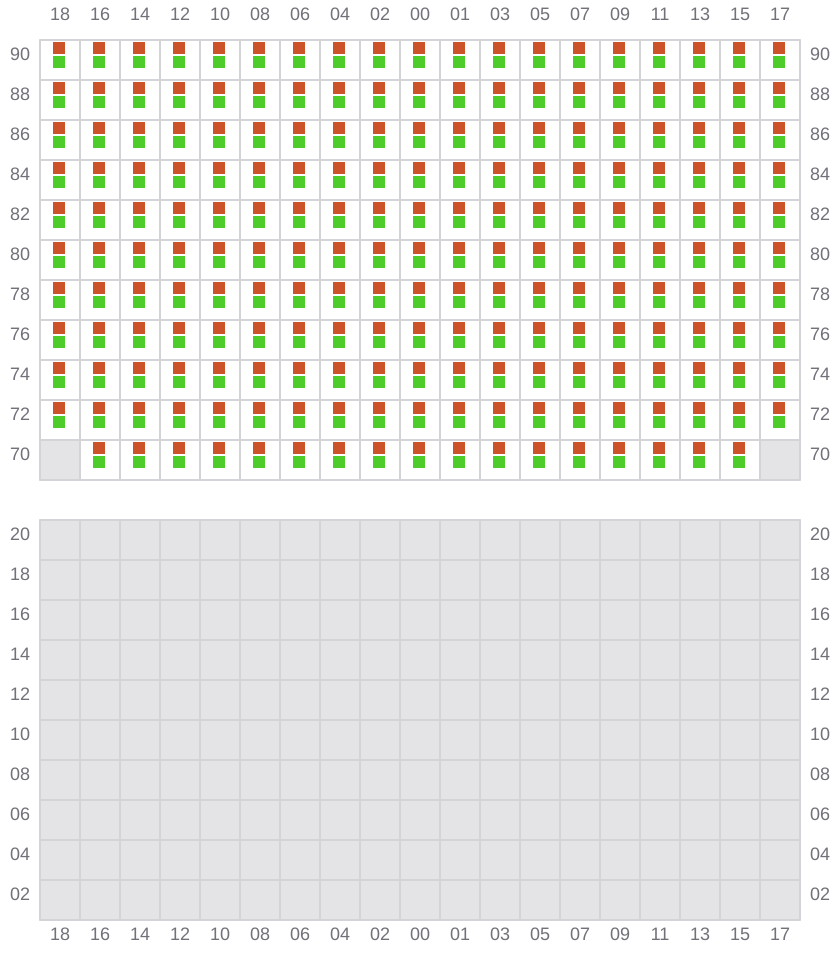

077 (078)

  • → / ?
  • ← / ?
  • → / ?
Bay 077 view and slots of PARANAGUA EXPRESS

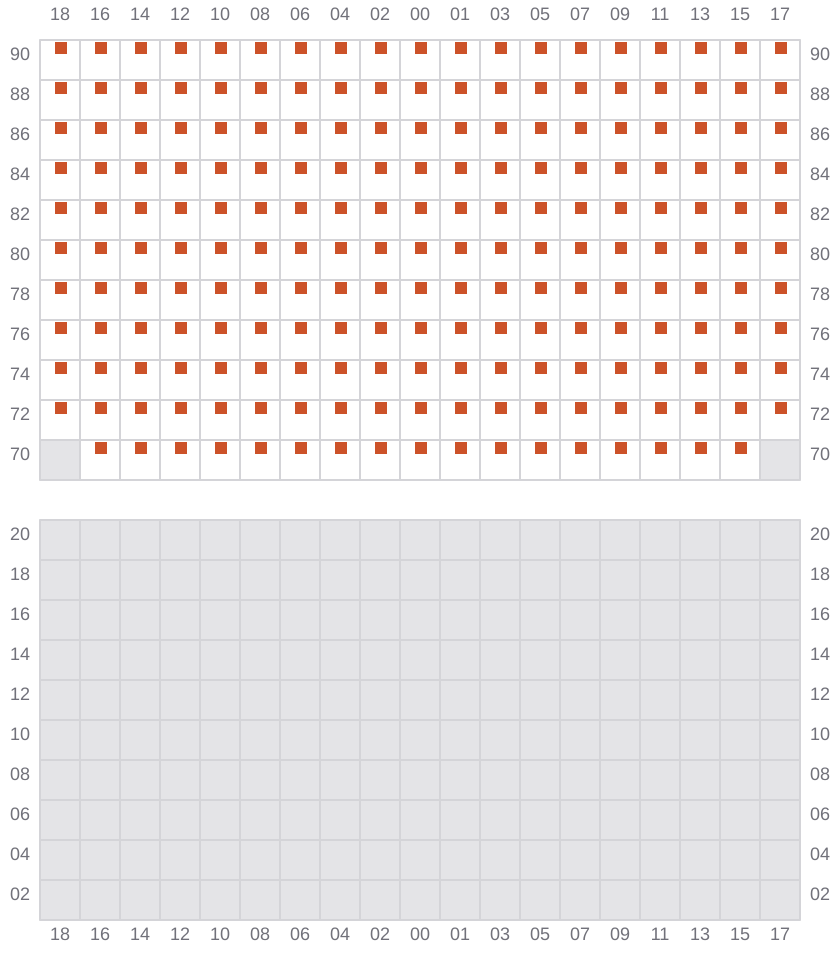

079

  • ← / ?
  • → / ?

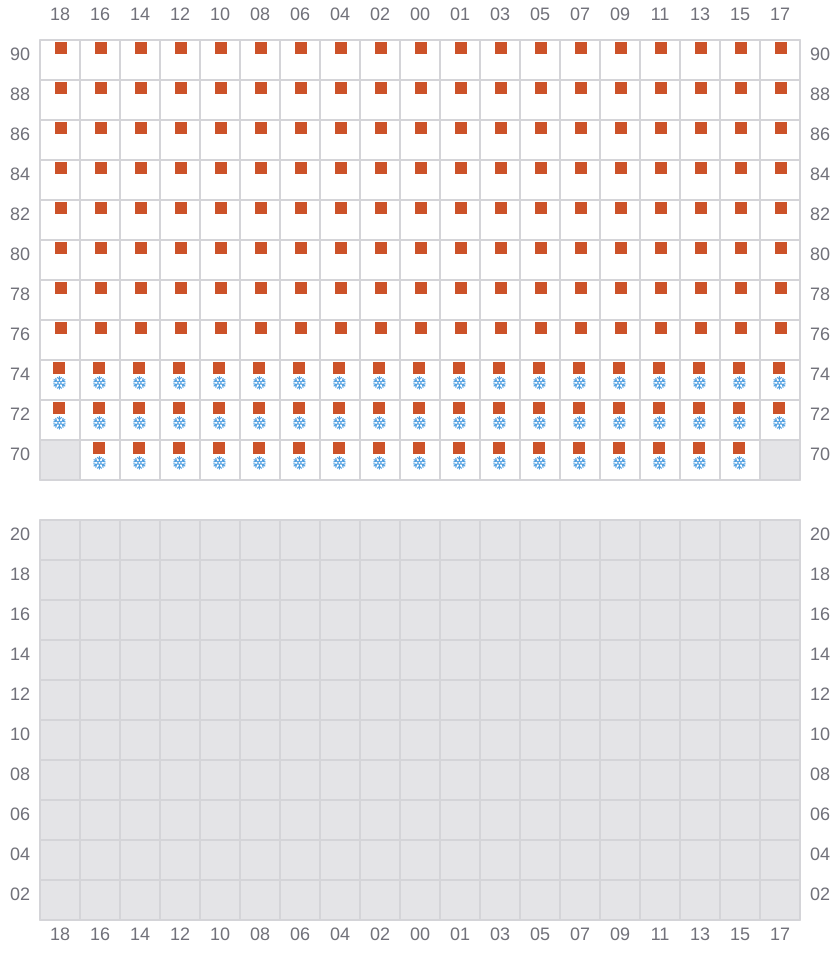

Bay 079 view and slots of PARANAGUA EXPRESS
