PEGASUS J
9355434 | V2CF5 | 9355434 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:PEGASUS J
IMO Code:9355434
Call Sign:V2CF5
Line Operator:9355434
Class Name for Sister Ships:31B
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:974

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of PEGASUS J

Hatch-Covers View

Deck view of PEGASUS J

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
Bay 001 view and slots of PEGASUS J

003

  • ←
Bay 003 view and slots of PEGASUS J

005

Bay 005 view and slots of PEGASUS J

007 (008)

  • →
Bay 007 view and slots of PEGASUS J

009

  • ←
  • →
Bay 009 view and slots of PEGASUS J

011 (012)

  • →
  • ←
Bay 011 view and slots of PEGASUS J

013

  • ←
Bay 013 view and slots of PEGASUS J

015

Bay 015 view and slots of PEGASUS J

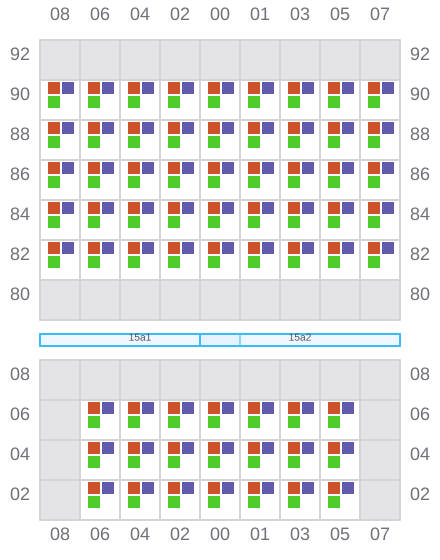

017 (018)

  • →
Bay 017 view and slots of PEGASUS J

019

  • ←
  • →
Bay 019 view and slots of PEGASUS J

021 (022)

  • →
  • ←
Bay 021 view and slots of PEGASUS J

023

  • ←
Bay 023 view and slots of PEGASUS J

025

Bay 025 view and slots of PEGASUS J

027 (028)

  • →
Bay 027 view and slots of PEGASUS J

029

  • ←
  • →
Bay 029 view and slots of PEGASUS J

031 (032)

  • → / ?
Bay 031 view and slots of PEGASUS J

033

  • ← / ?
  • → / ?
Bay 033 view and slots of PEGASUS J

035

  • ← / ?
Bay 035 view and slots of PEGASUS J
