PENANG BRIDGE
9470753 | 3FZD5 | ONE by *********************** Last update: Mon Feb 03 2025
General Info
Ship Name:PENANG BRIDGE
IMO Code:9470753
Call Sign:3FZD5
Line Operator:ONE
Class Name for Sister Ships:FPNB
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,730
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- → / ?
- →
003
- ←
- → / ?
- →
005 (006)
- →
- →
007
- ←
- → / ?
- →

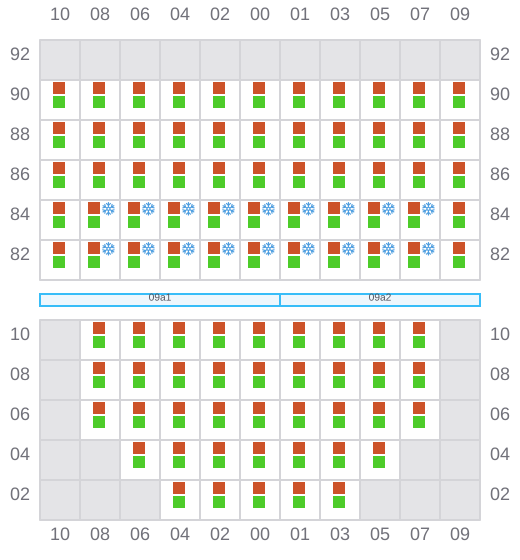

009 (010)
- →
- ← / ?
- →
011
- ←
- ← / ?
- →
013 (014)
- →
- → / ?
- →
015
- ←
- → / ?
- →

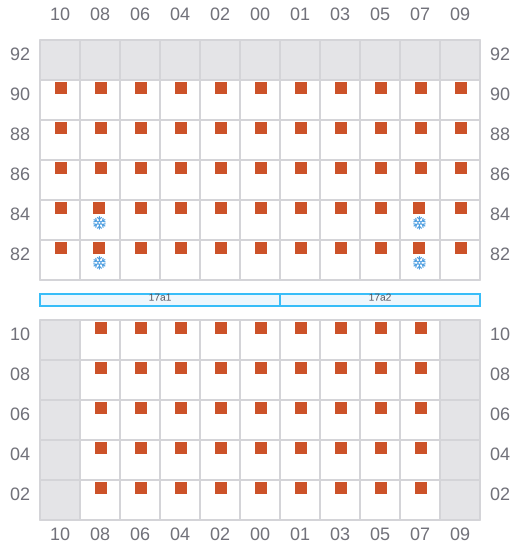

017 (018)
- →
- ← / ?
- →
019
- ←
- ← / ?
- →

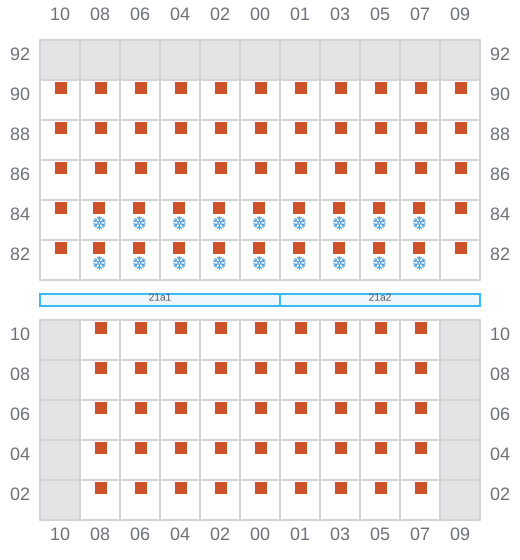

021 (022)
- →
- ← / ?
- →
023
- ←
- → / ?
- →
025 (026)
- →
- → / ?
- →
027
- ←
- → / ?
- →
029 (030)
- →
- →
031
- ←
- ← / ?
- →
033 (034)
- → / ?
- ← / ?
- → / ?
035
037 (038)
- → / ?
- → / ?
