POLAR BRASIL
9797216 | 9HA4703 | MSK by ************************** Last update: Sun Jun 25 2023

General Info

Ship Name:POLAR BRASIL
IMO Code:9797216
Call Sign:9HA4703
Line Operator:MSK
Class Name for Sister Ships:PBB
Year Built:2018
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:049
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,947

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

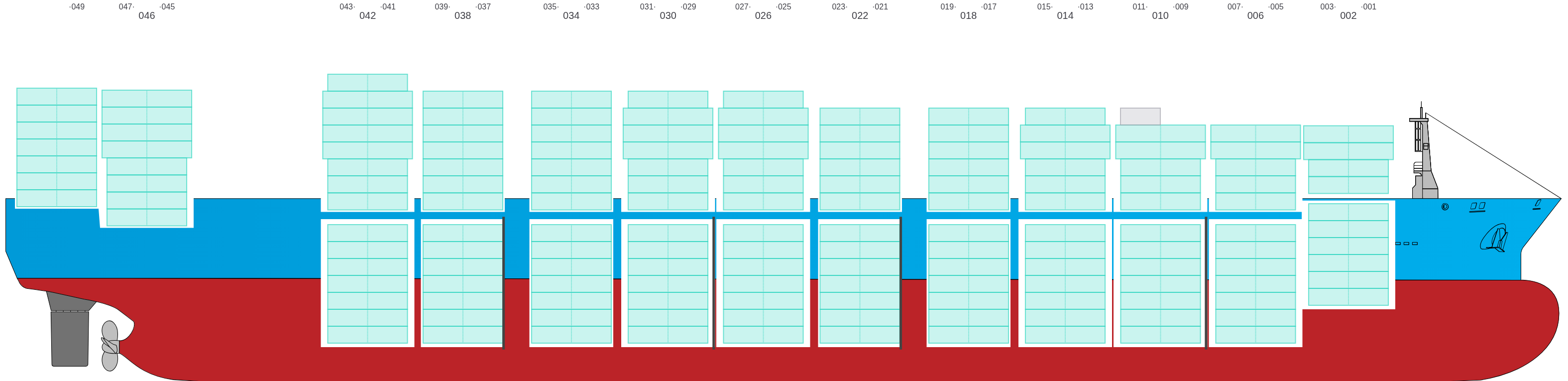

Side View

Side view of POLAR BRASIL

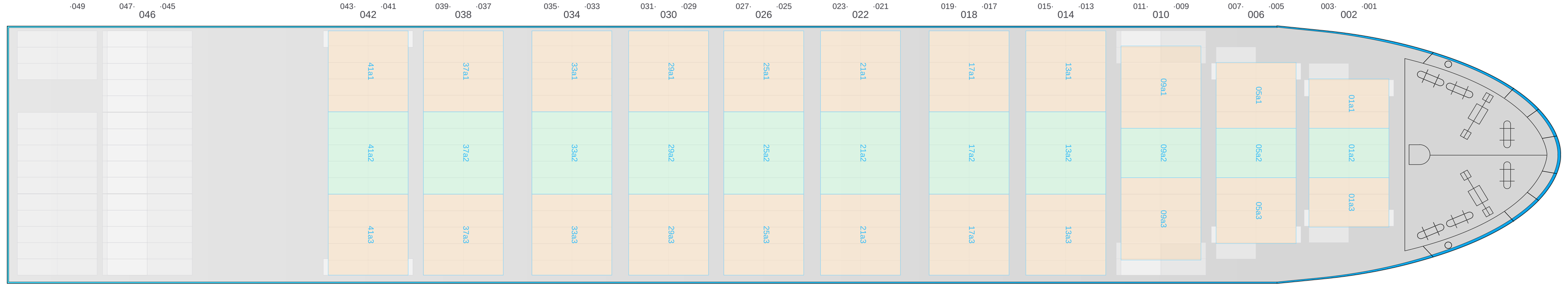

Hatch-Covers View

Deck view of POLAR BRASIL

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →
  • ← / ?

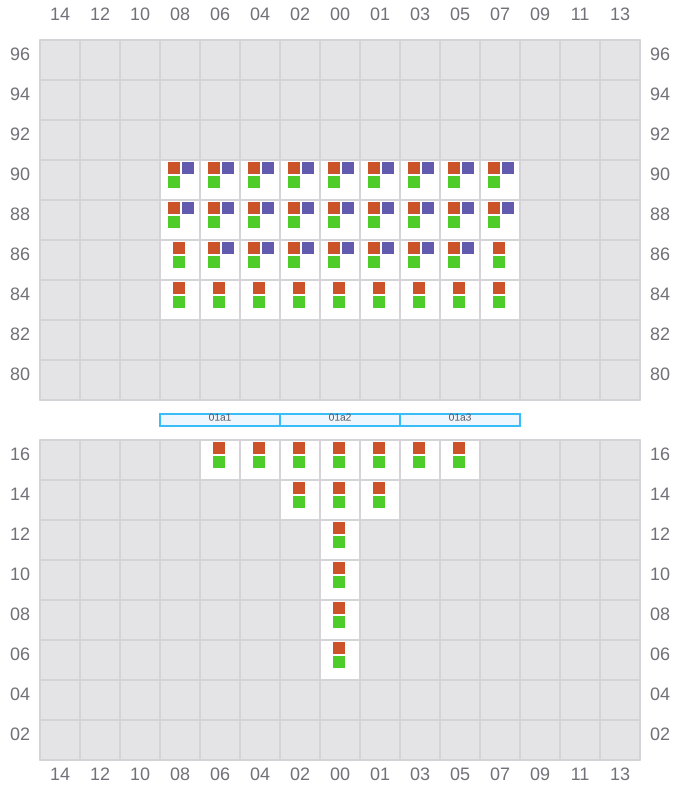

Bay 001 view and slots of POLAR BRASIL

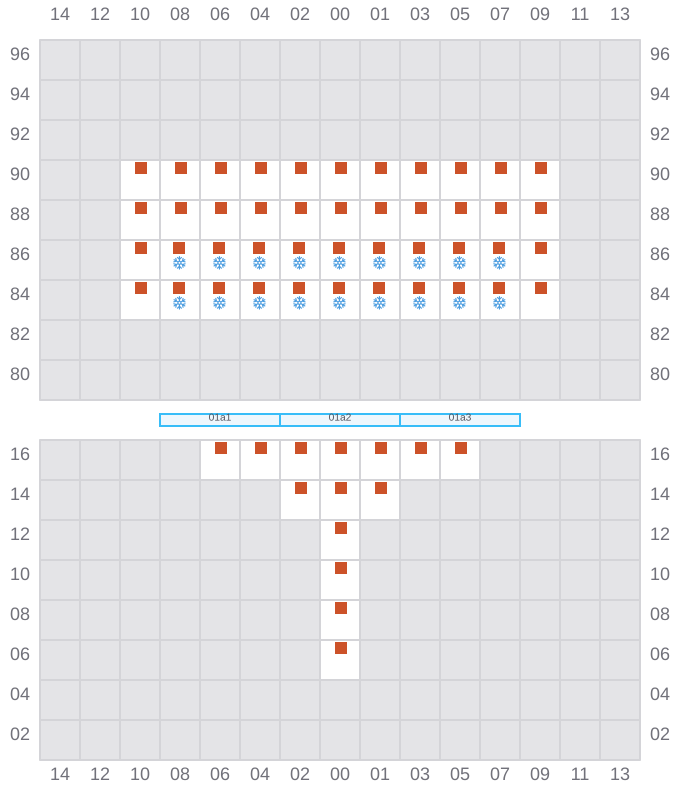

003

  • ←
  • →
Bay 003 view and slots of POLAR BRASIL

005 (006)

  • →
  • ← / ?

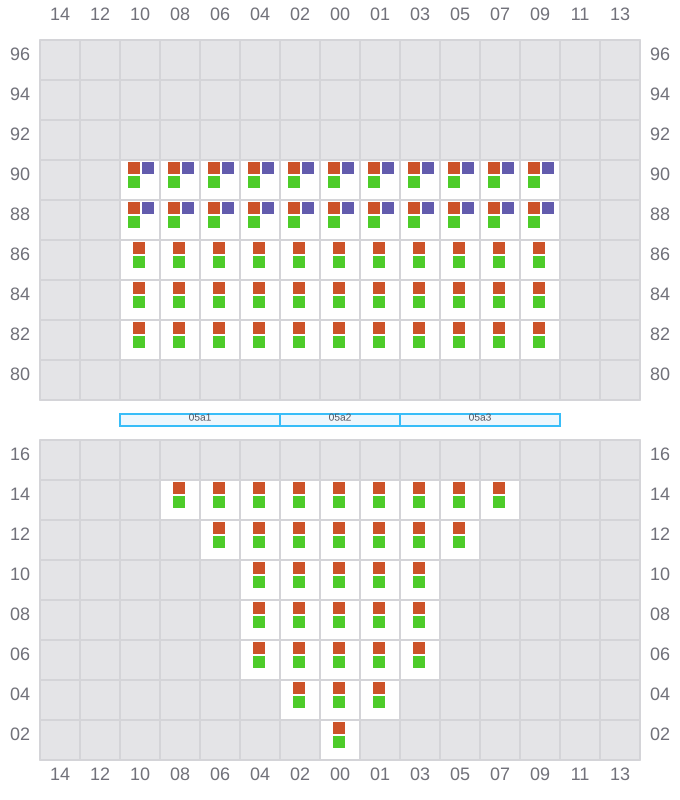

Bay 005 view and slots of POLAR BRASIL

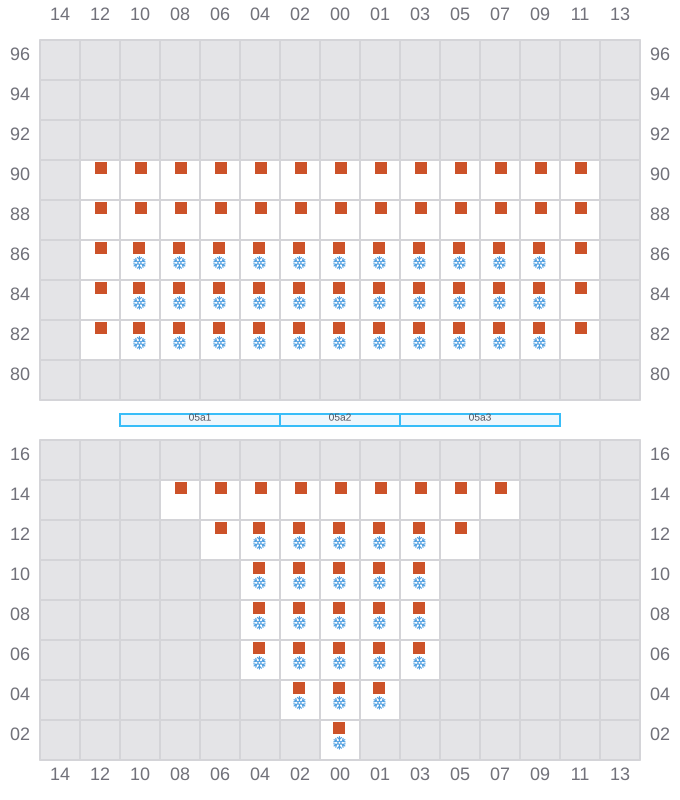

007

  • ←
  • →
Bay 007 view and slots of POLAR BRASIL

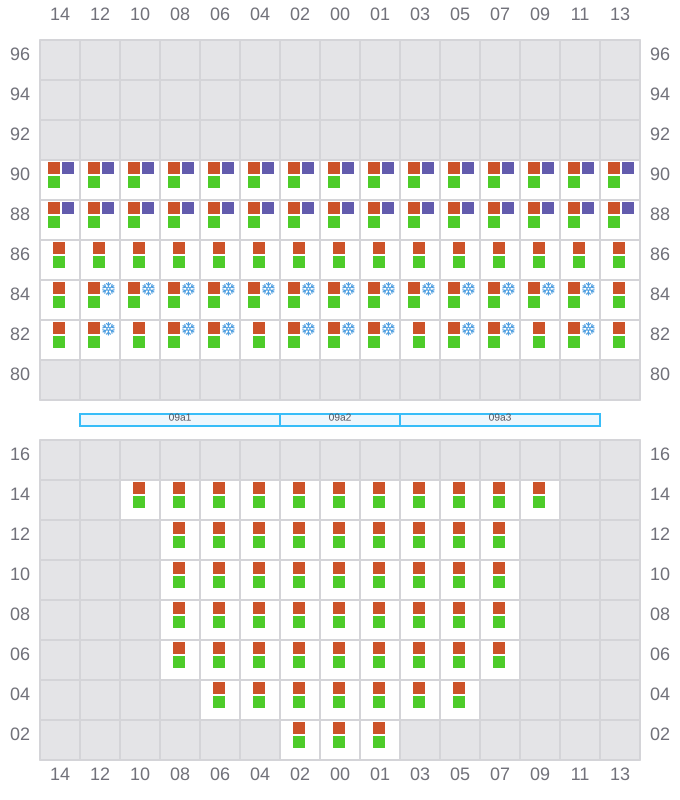

009 (010)

  • →
  • ← / ?
Bay 009 view and slots of POLAR BRASIL

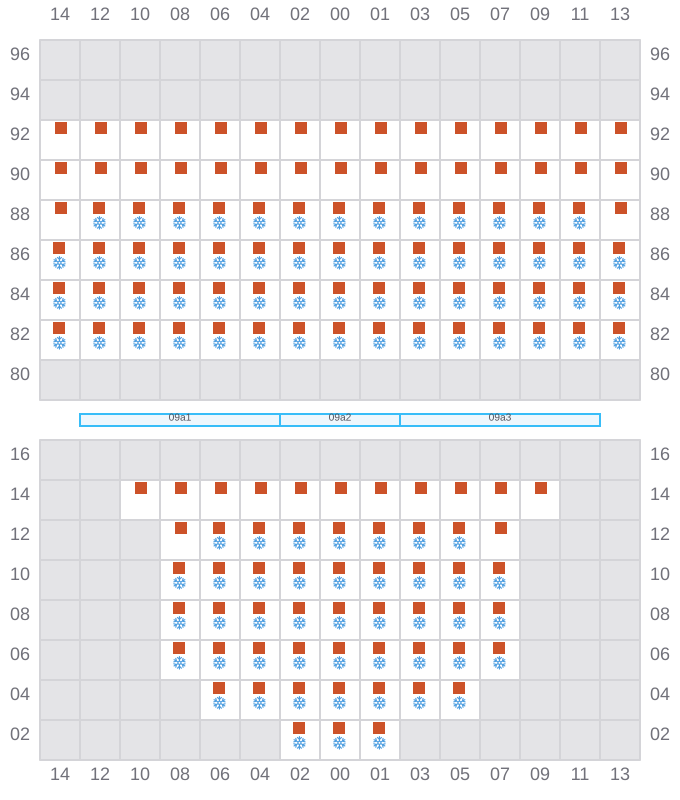

011

  • ←
  • →
Bay 011 view and slots of POLAR BRASIL

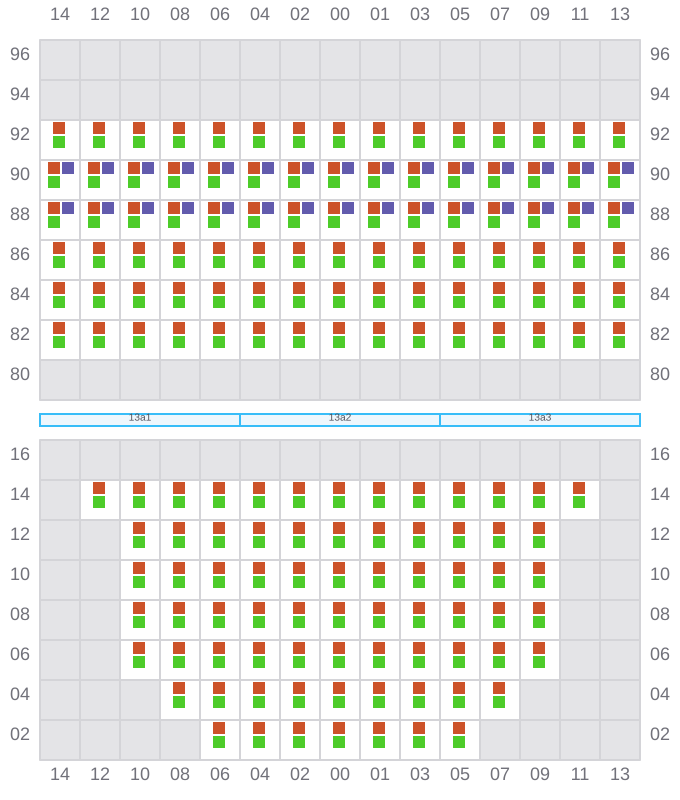

013 (014)

  • →
  • ← / ?
Bay 013 view and slots of POLAR BRASIL

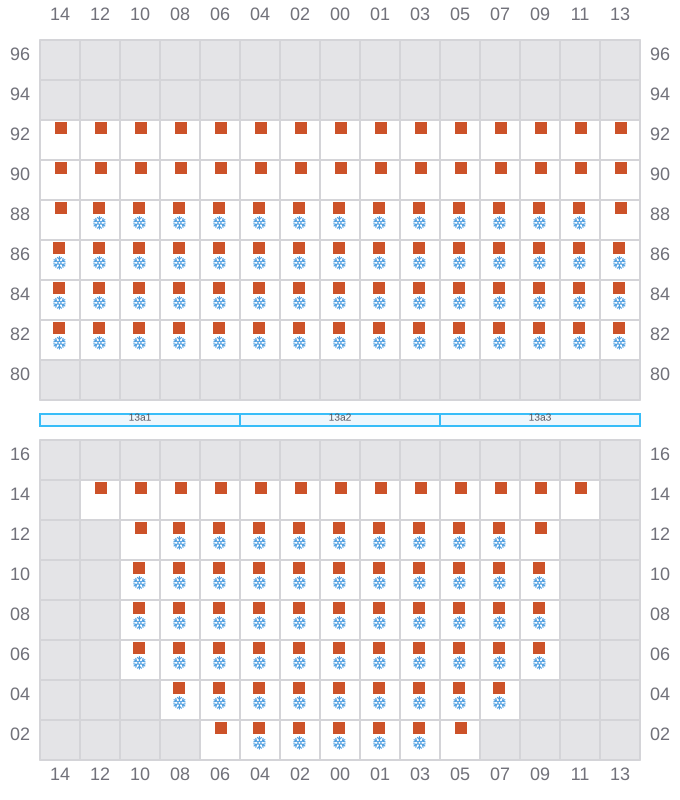

015

  • ←
  • →
Bay 015 view and slots of POLAR BRASIL

017 (018)

  • →
  • ←

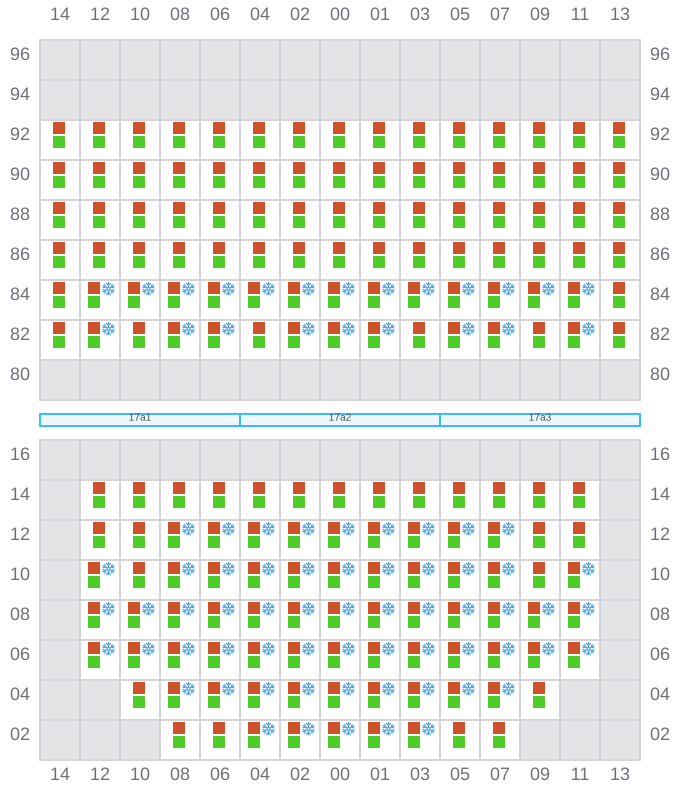

Bay 017 view and slots of POLAR BRASIL

019

  • ←
  • →

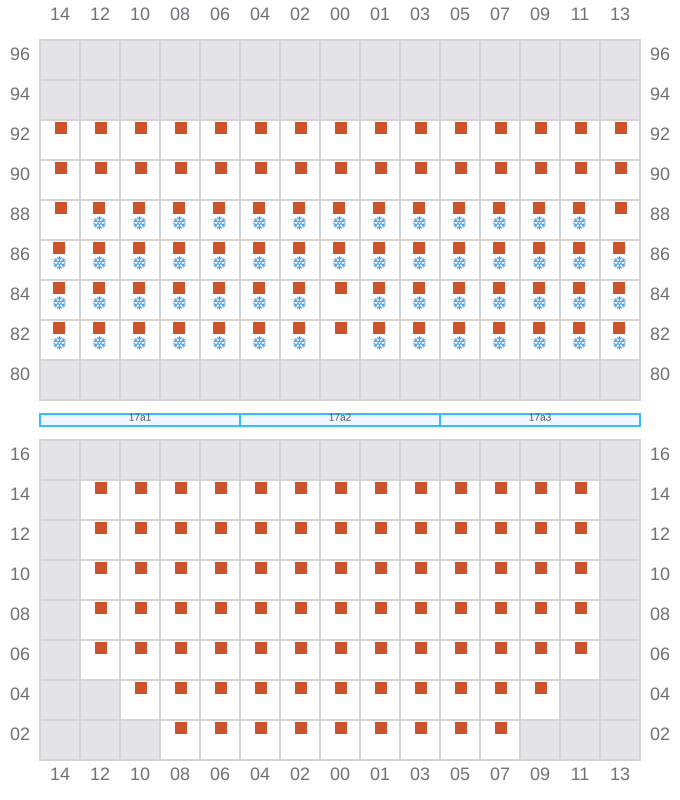

Bay 019 view and slots of POLAR BRASIL

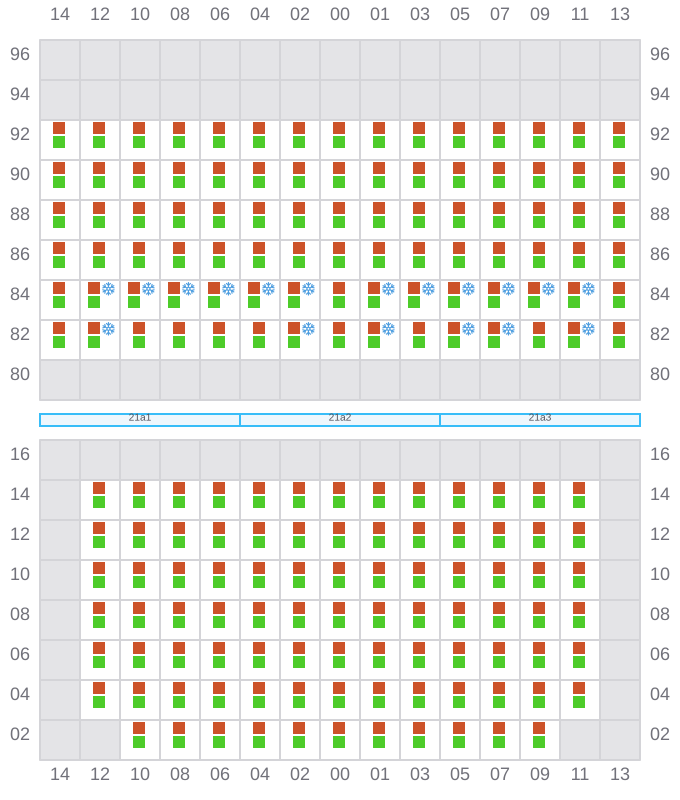

021 (022)

  • →
  • ← / ?
Bay 021 view and slots of POLAR BRASIL

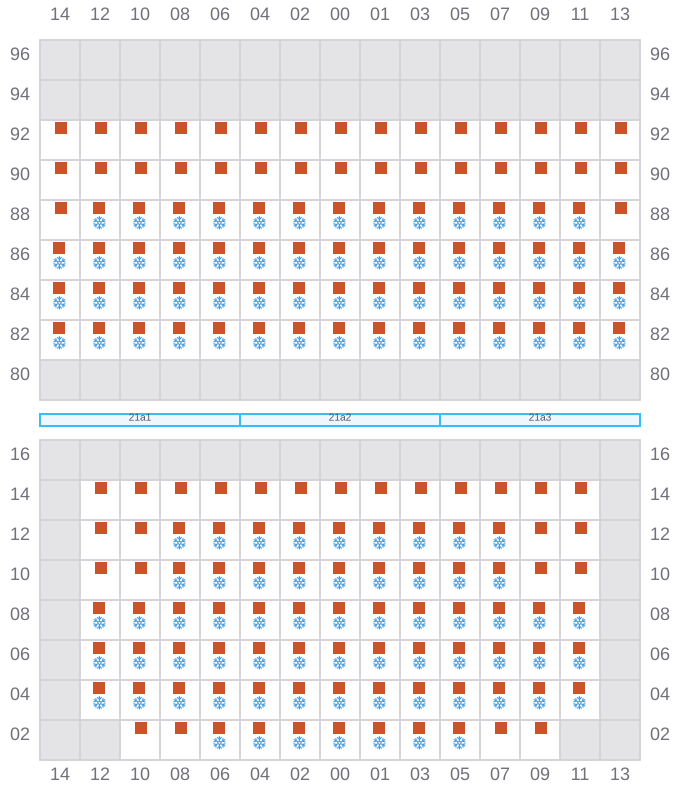

023

  • ←
  • →
Bay 023 view and slots of POLAR BRASIL

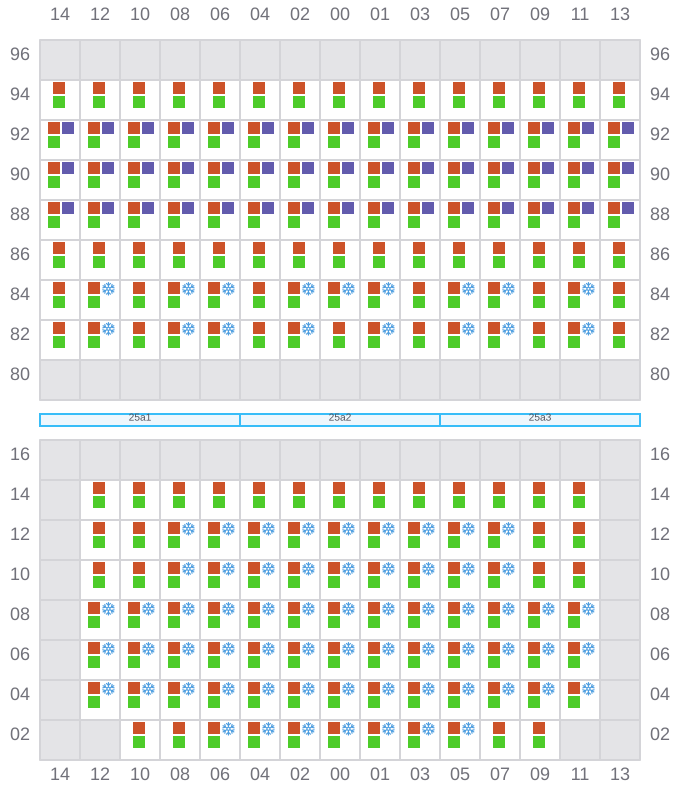

025 (026)

  • →
  • ←
Bay 025 view and slots of POLAR BRASIL

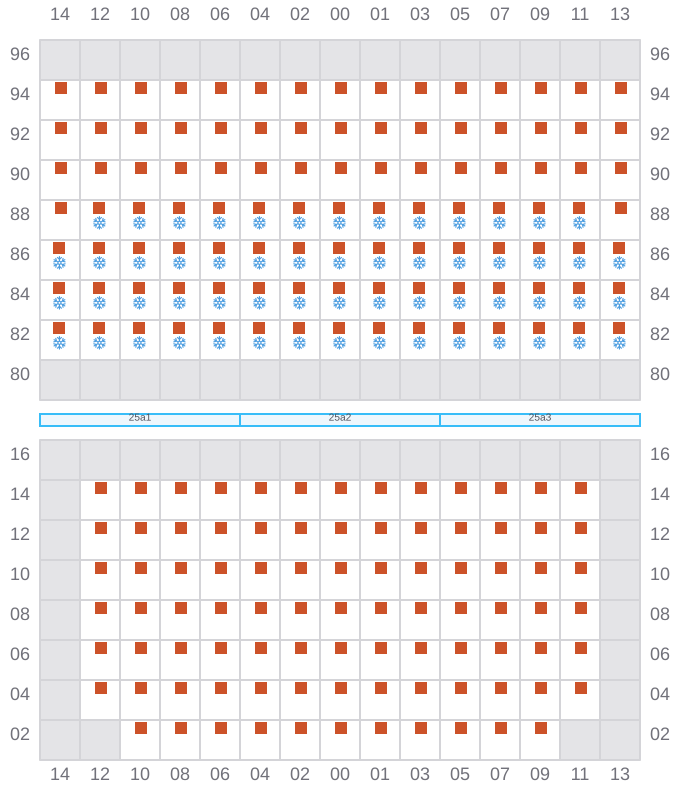

027

  • ←
  • →
Bay 027 view and slots of POLAR BRASIL

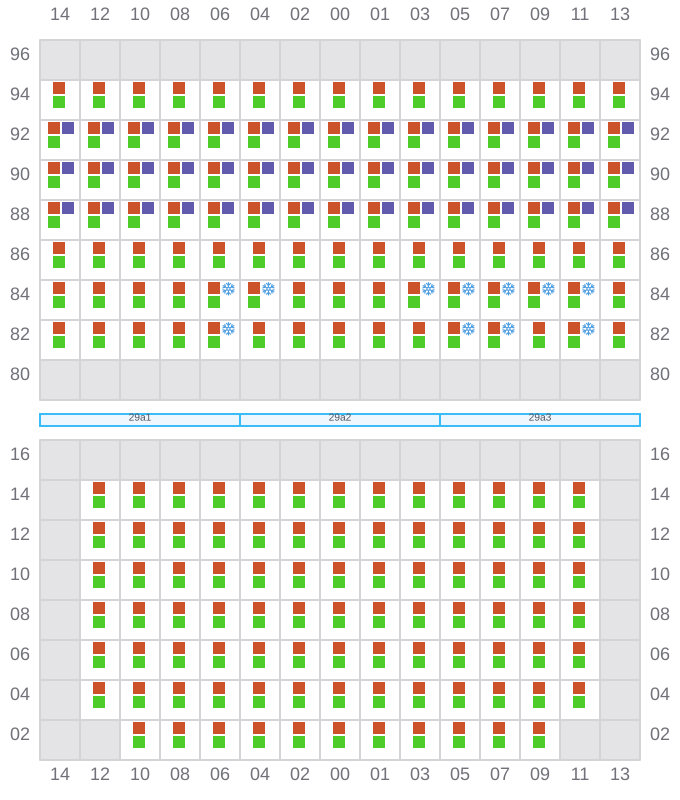

029 (030)

  • →
  • ← / ?
Bay 029 view and slots of POLAR BRASIL

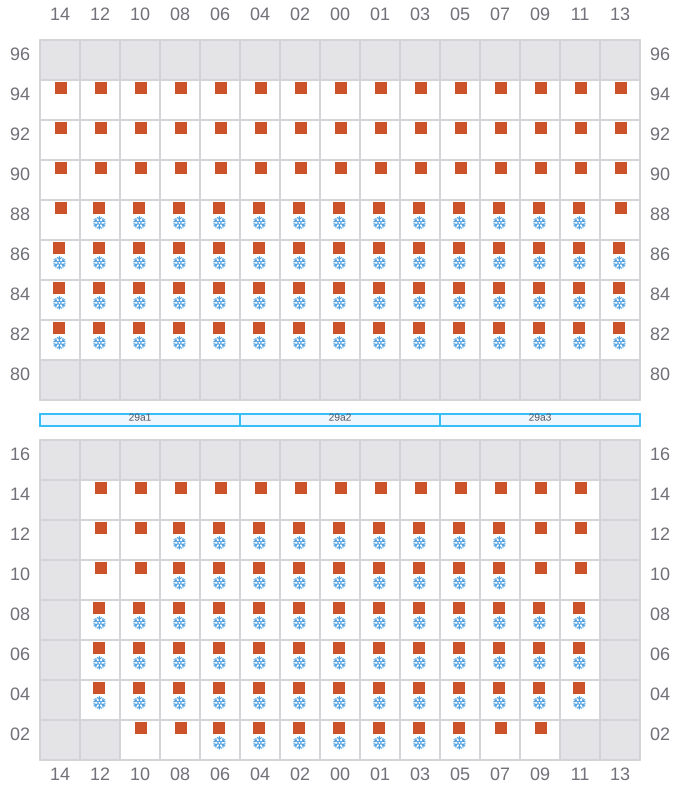

031

  • ←
  • →
Bay 031 view and slots of POLAR BRASIL

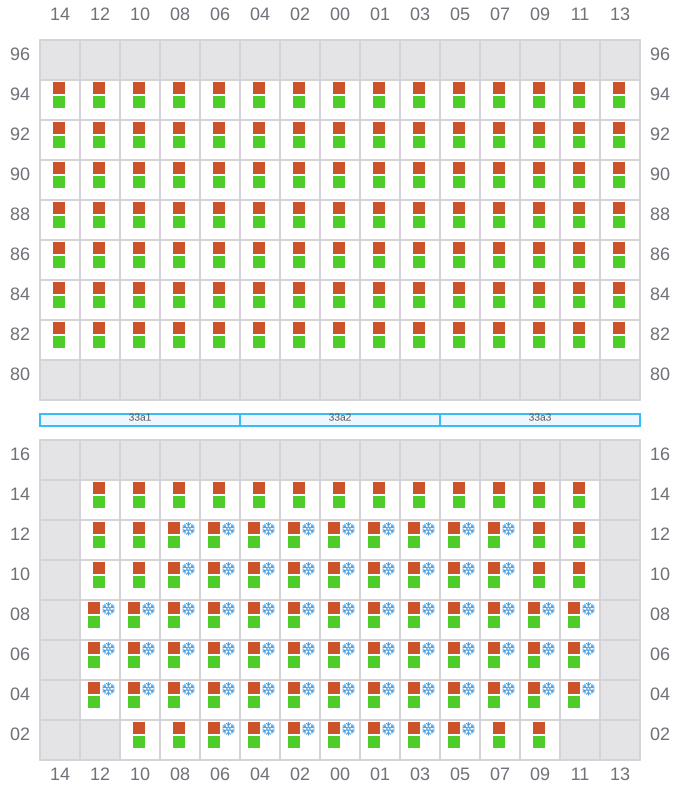

033 (034)

  • →
  • ←
Bay 033 view and slots of POLAR BRASIL

035

  • ←
  • →
Bay 035 view and slots of POLAR BRASIL

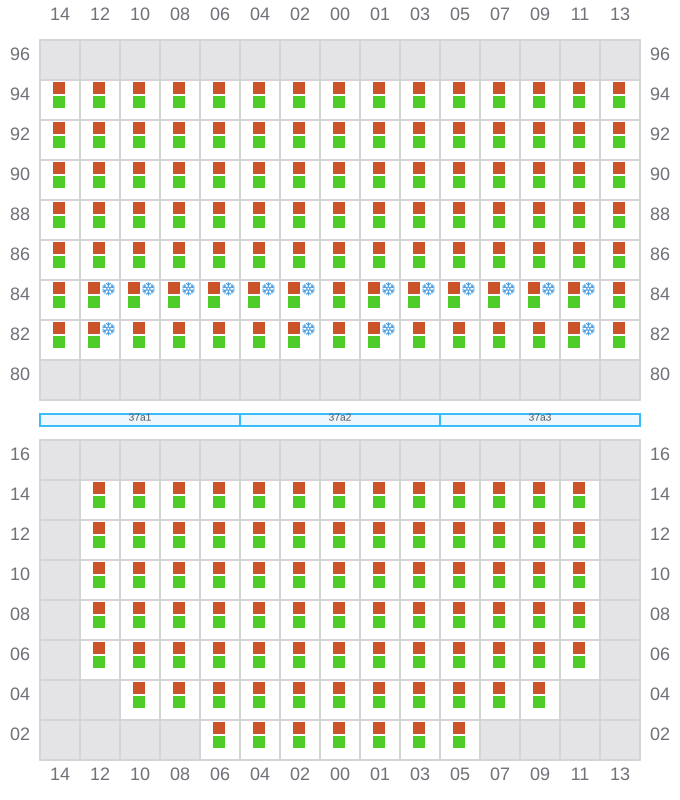

037 (038)

  • →
  • ← / ?
Bay 037 view and slots of POLAR BRASIL

039

  • ←
  • →

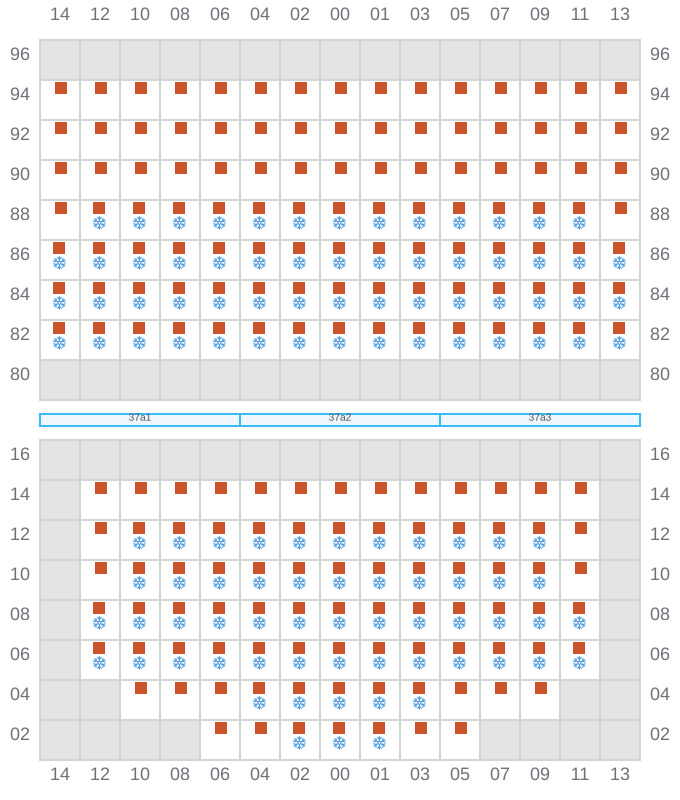

Bay 039 view and slots of POLAR BRASIL

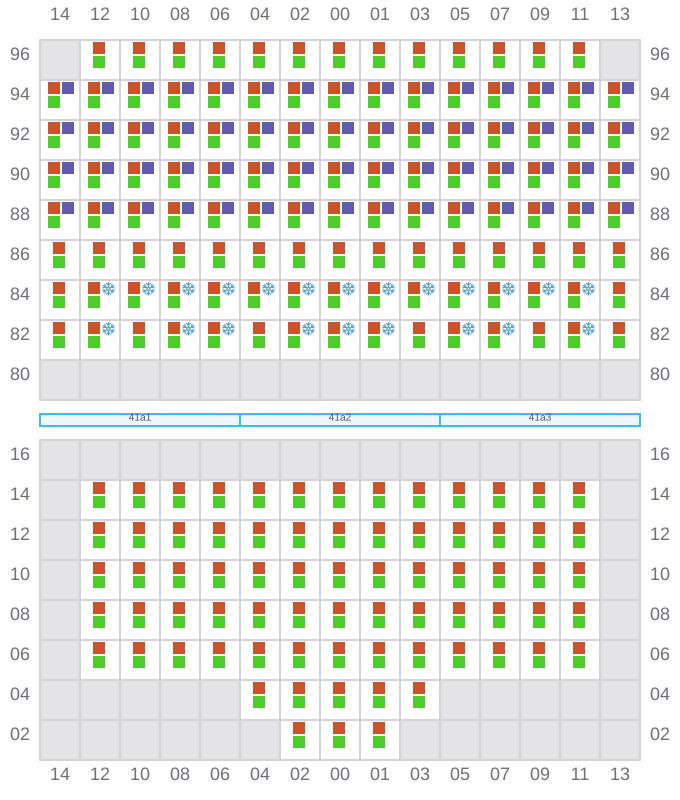

041 (042)

  • →
  • ← / ?
Bay 041 view and slots of POLAR BRASIL

043

  • ←
  • →

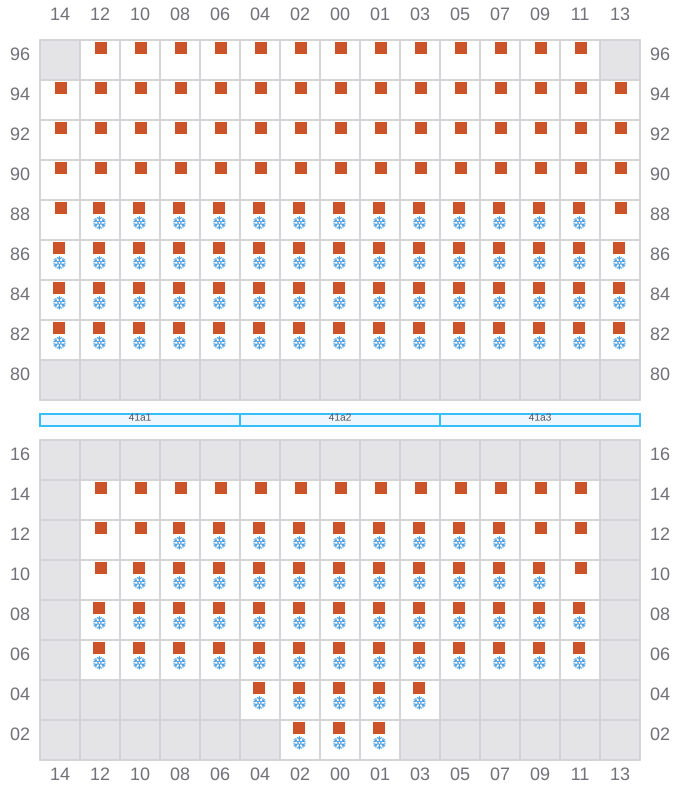

Bay 043 view and slots of POLAR BRASIL

045 (046)

  • → / ?

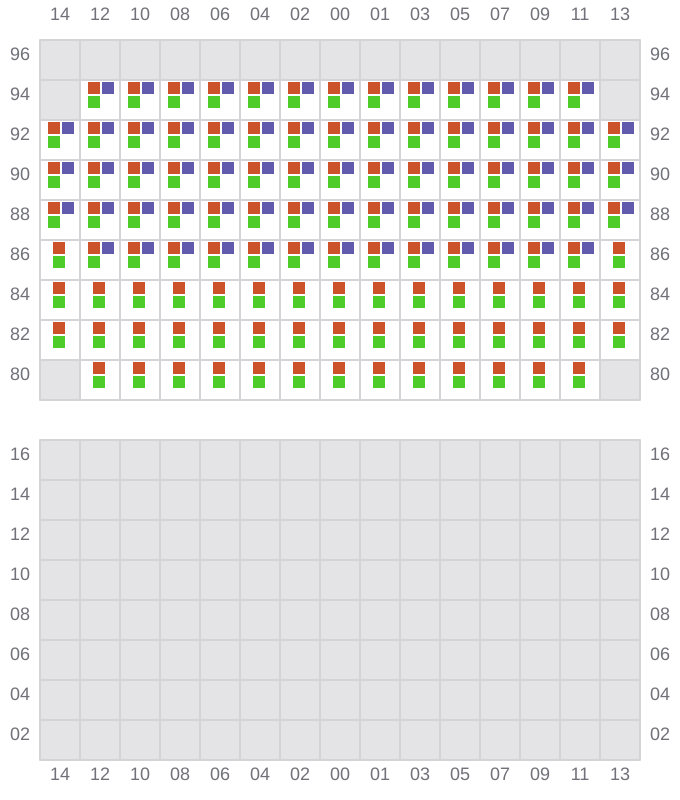

Bay 045 view and slots of POLAR BRASIL

047

  • ← / ?
  • → / ?

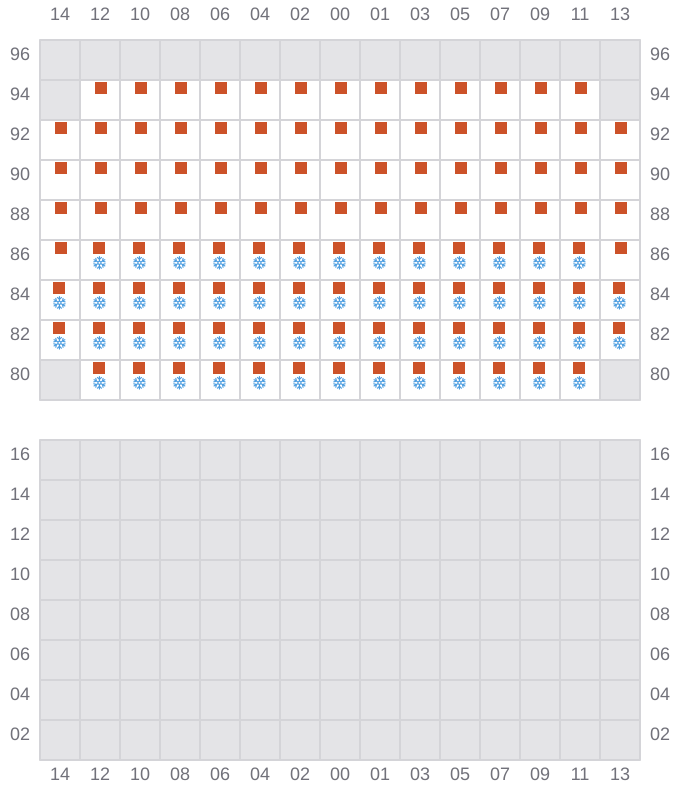

Bay 047 view and slots of POLAR BRASIL

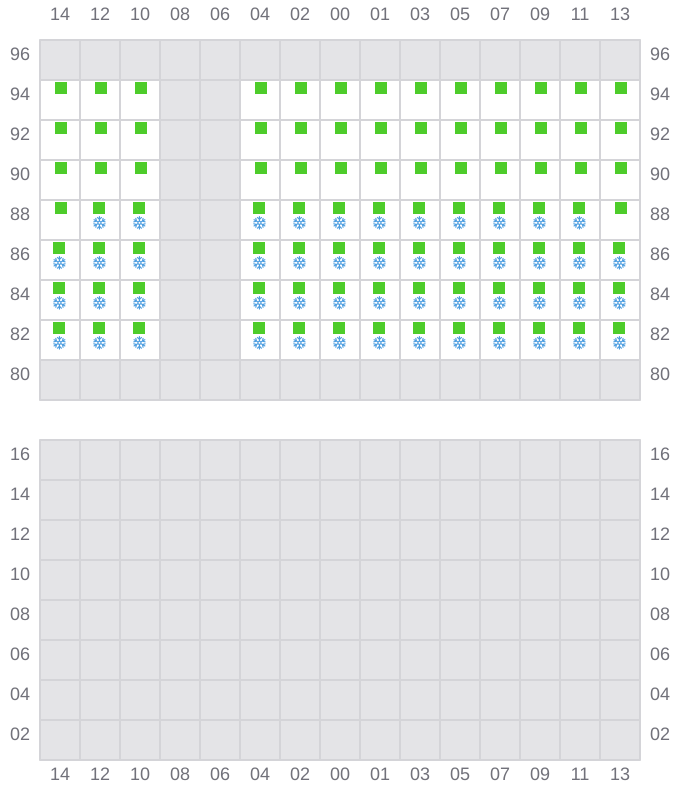

049 (050)

  • → / ?
  • → / ?
Bay 049 view and slots of POLAR BRASIL
