POLAR COLOMBIA
9786762 | 9V6726 | MSK by ************************** Last update: Sun Jun 25 2023
General Info
Ship Name:POLAR COLOMBIA
IMO Code:9786762
Call Sign:9V6726
Line Operator:MSK
Class Name for Sister Ships:PCA
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:049
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,947
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

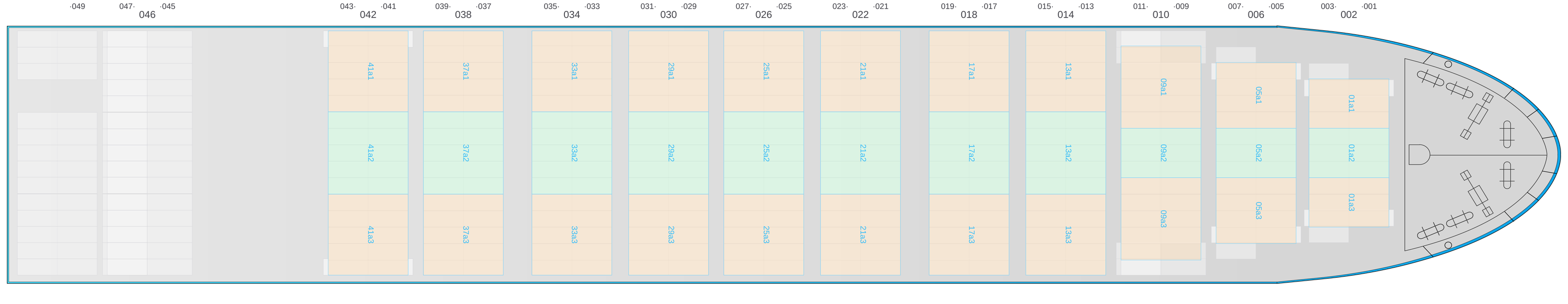

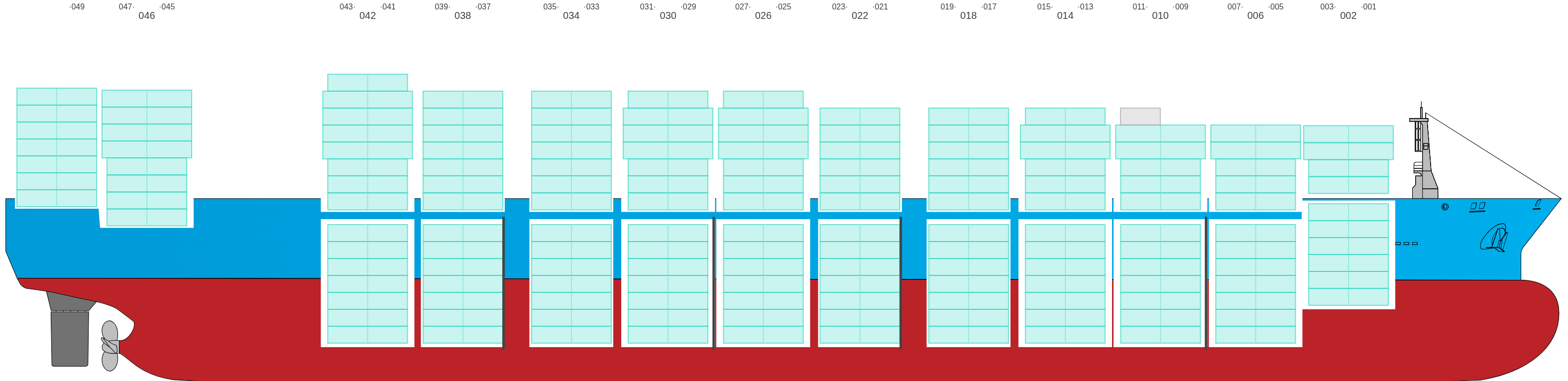

Side View
Hatch-Covers View

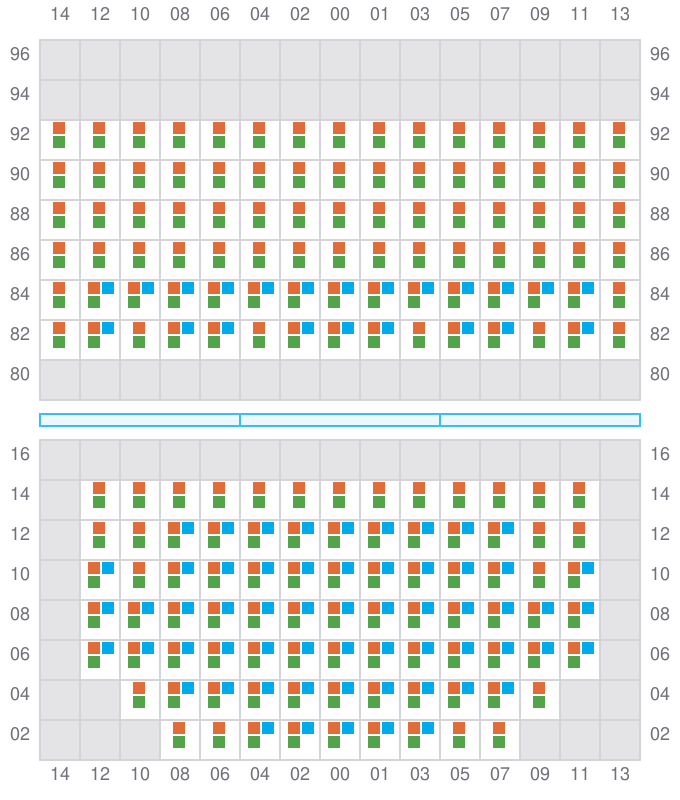

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

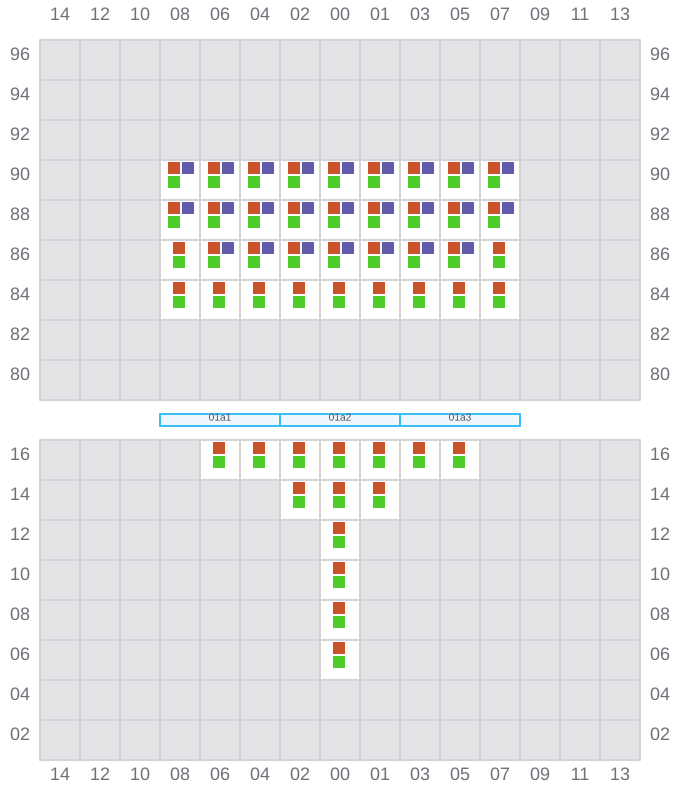

001 (002)
- →
- ← / ?

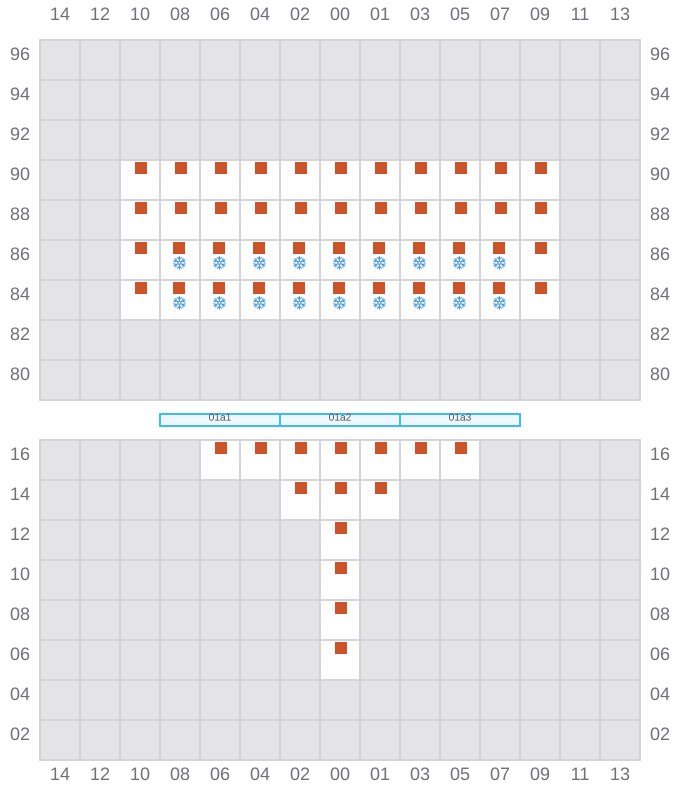

003
- ←
- →

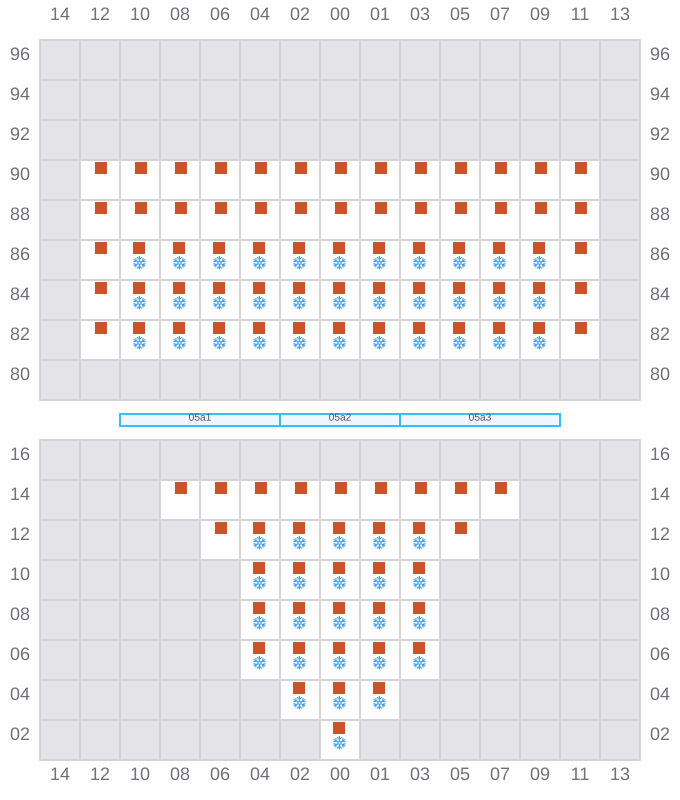

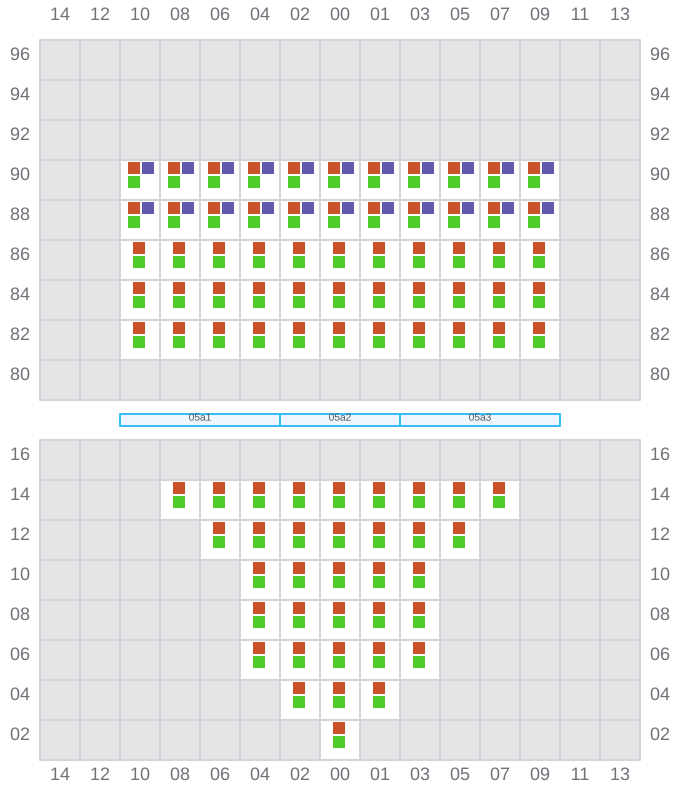

005 (006)
- →
- ← / ?
007
- ←
- →

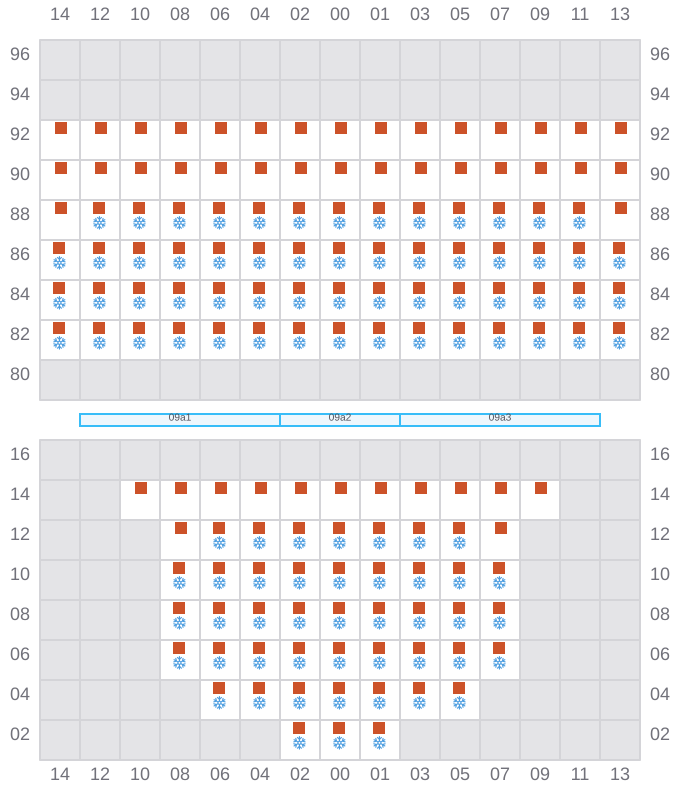

009 (010)
- →
- ← / ?
011
- ←
- →

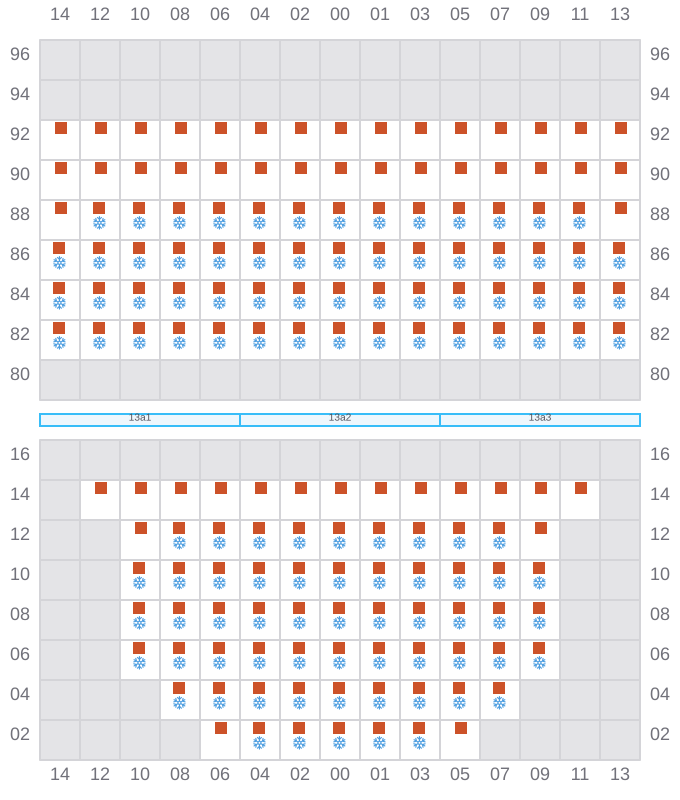

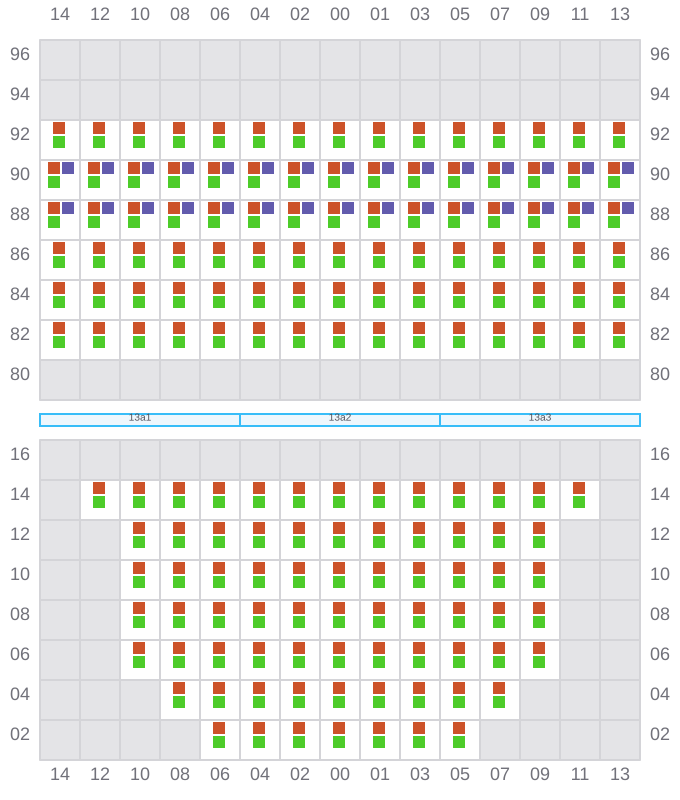

013 (014)
- →
- ← / ?
015
- ←
- →

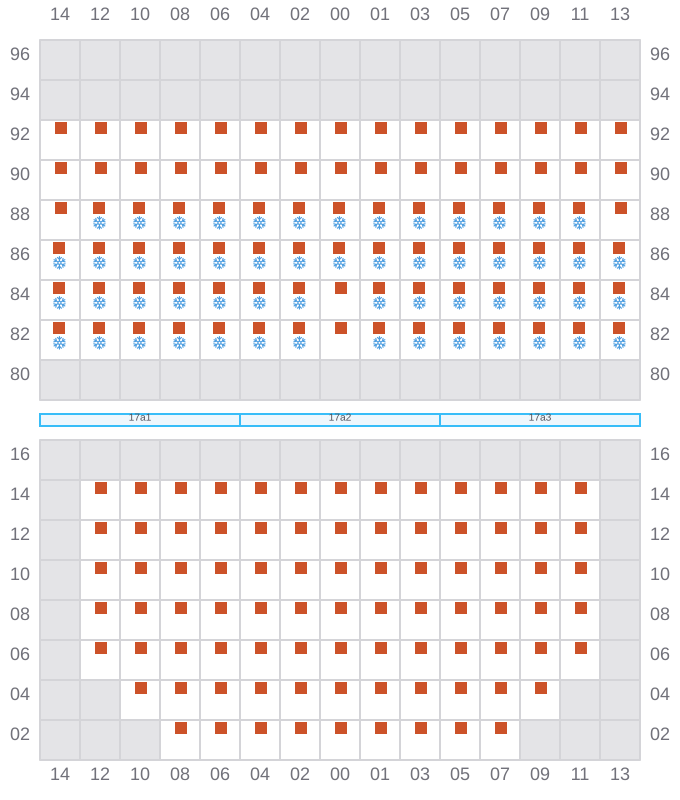

017 (018)
- →
- ←
019
- ←
- →

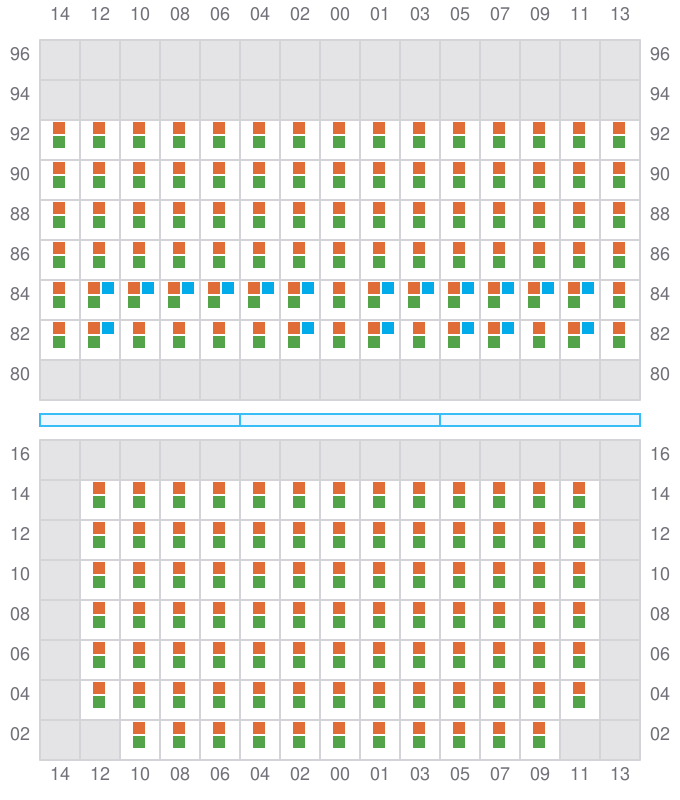

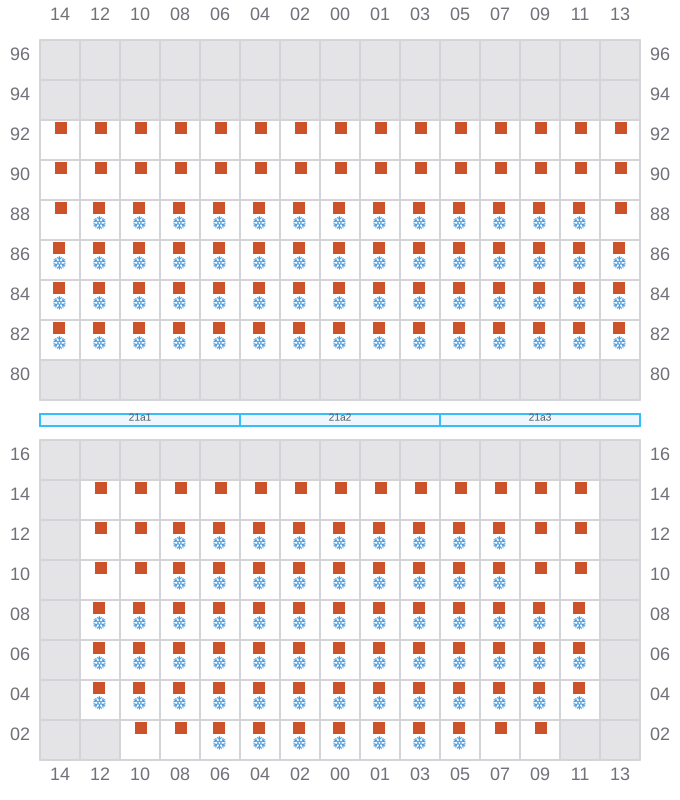

021 (022)
- →
- ← / ?
023
- ←
- →

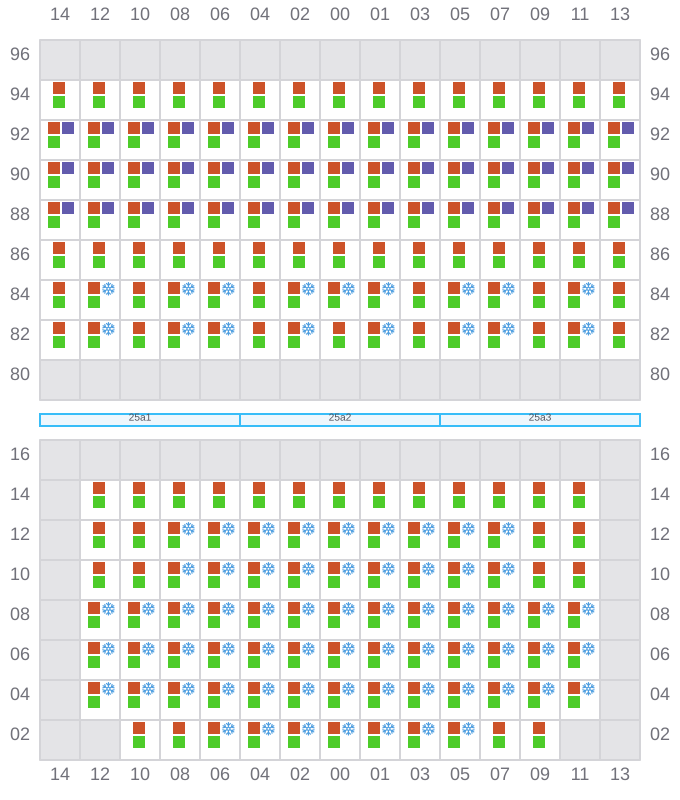

025 (026)
- →
- ←
027
- ←
- →

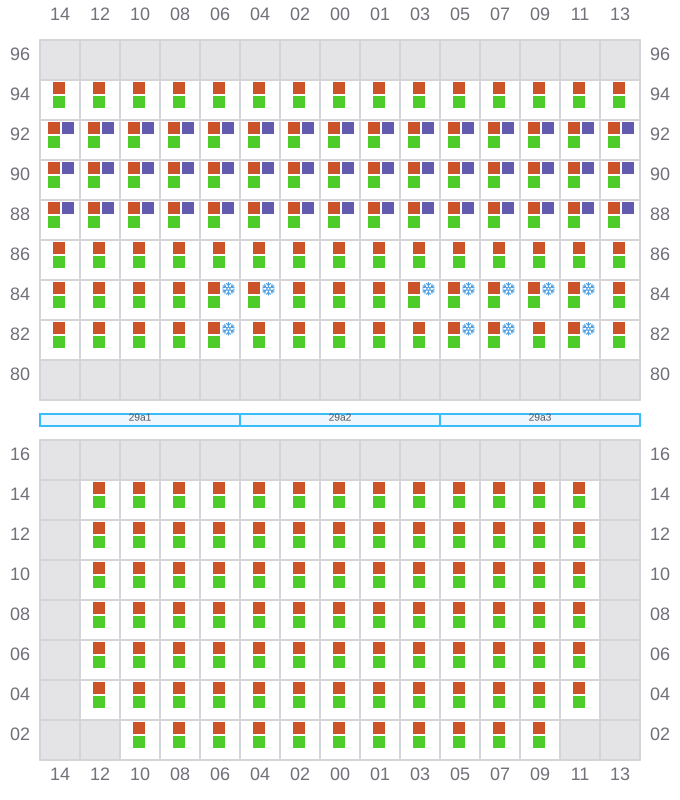

029 (030)
- →
- ← / ?

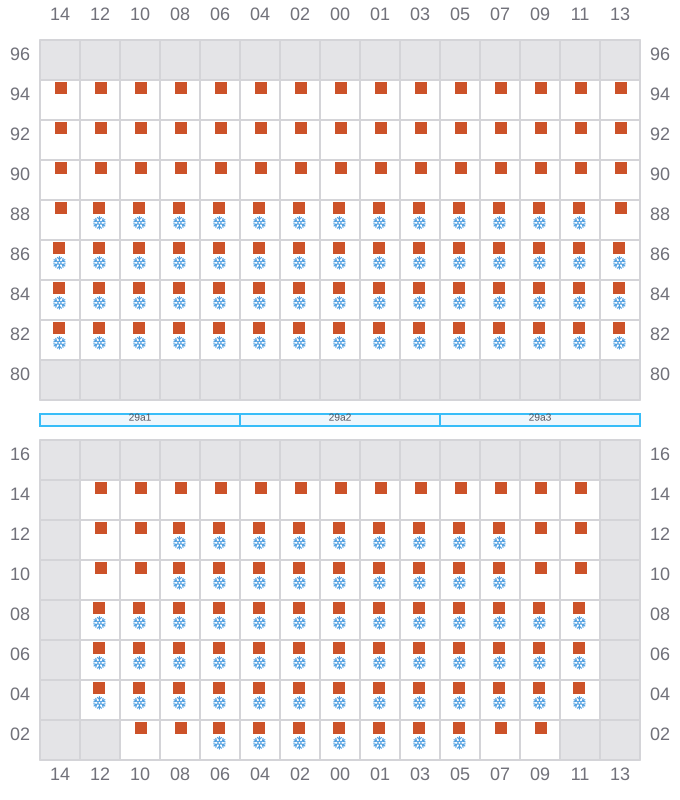

031
- ←
- →

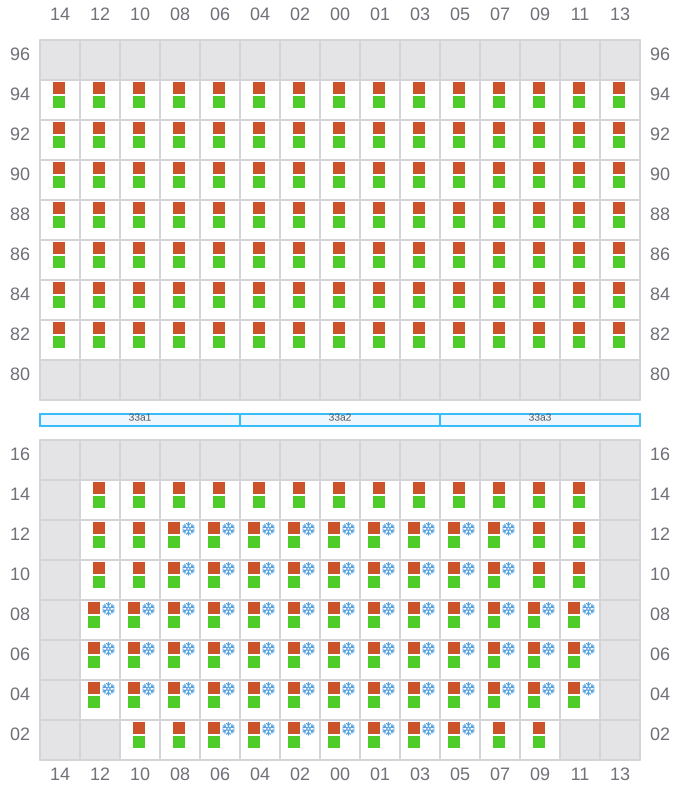

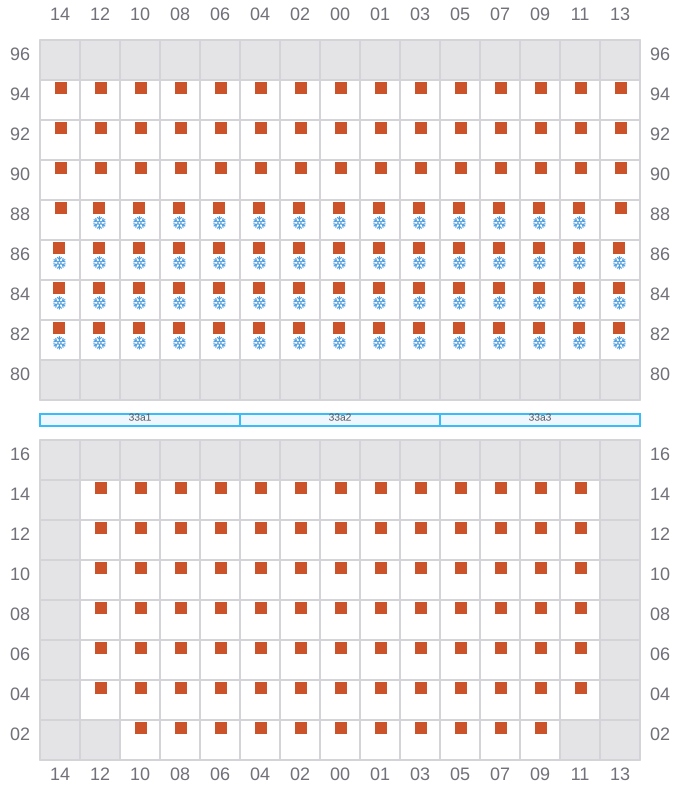

033 (034)
- →
- ←
035
- ←
- →

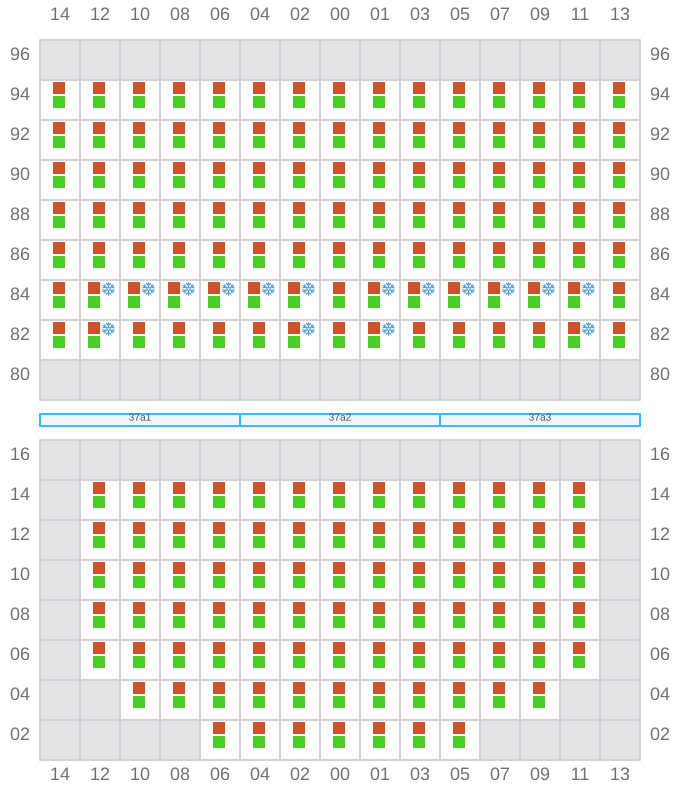

037 (038)
- →
- ← / ?

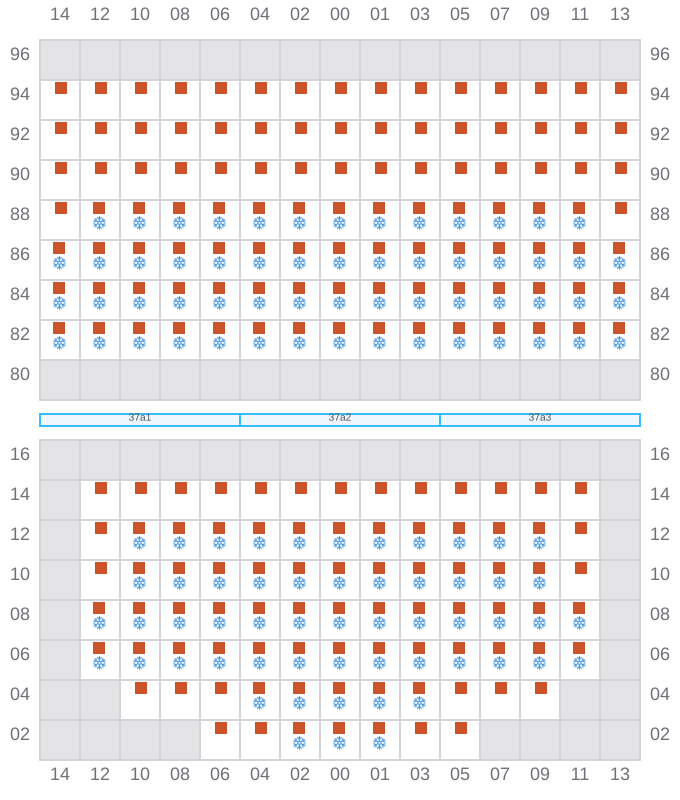

039
- ←
- →

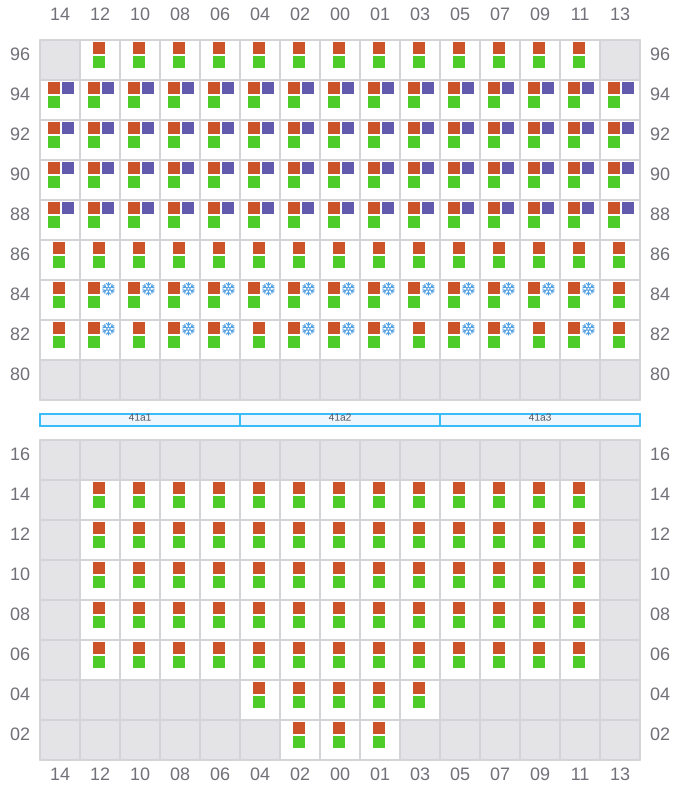

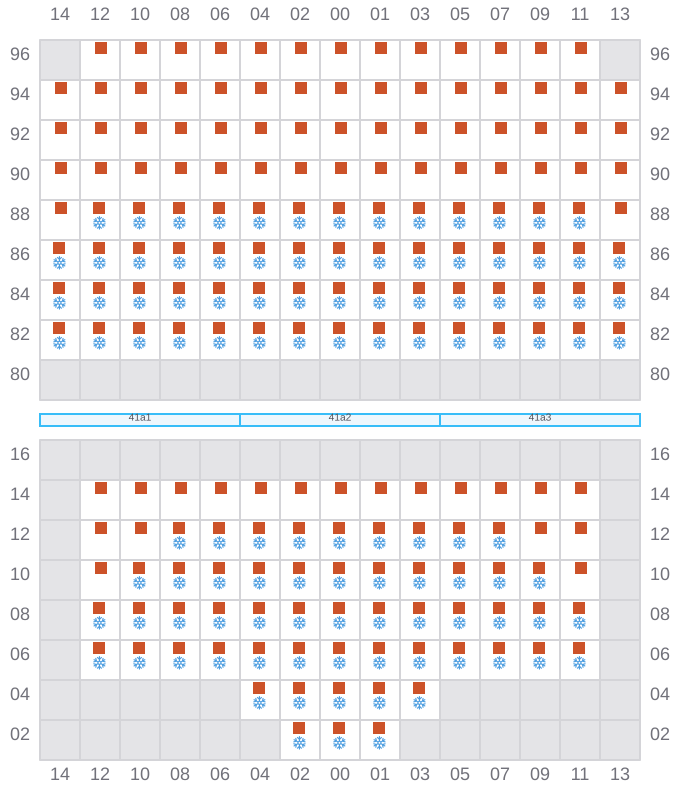

041 (042)
- →
- ← / ?
043
- ←
- →

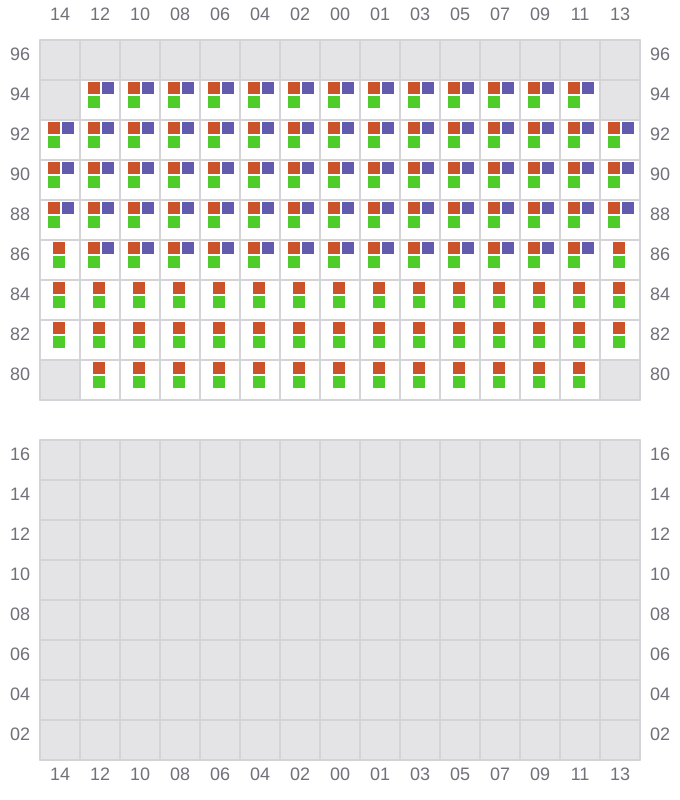

045 (046)
- → / ?

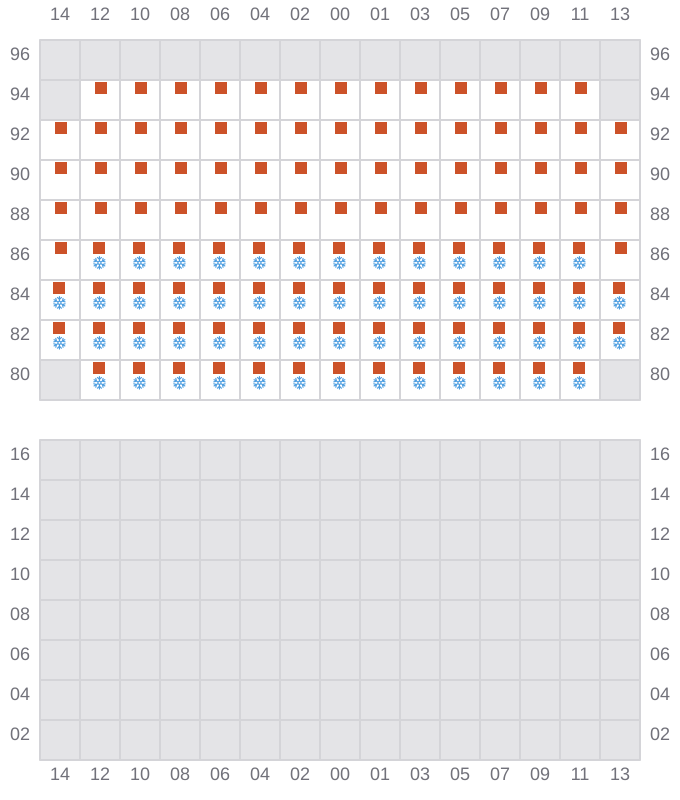

047
- ← / ?
- → / ?

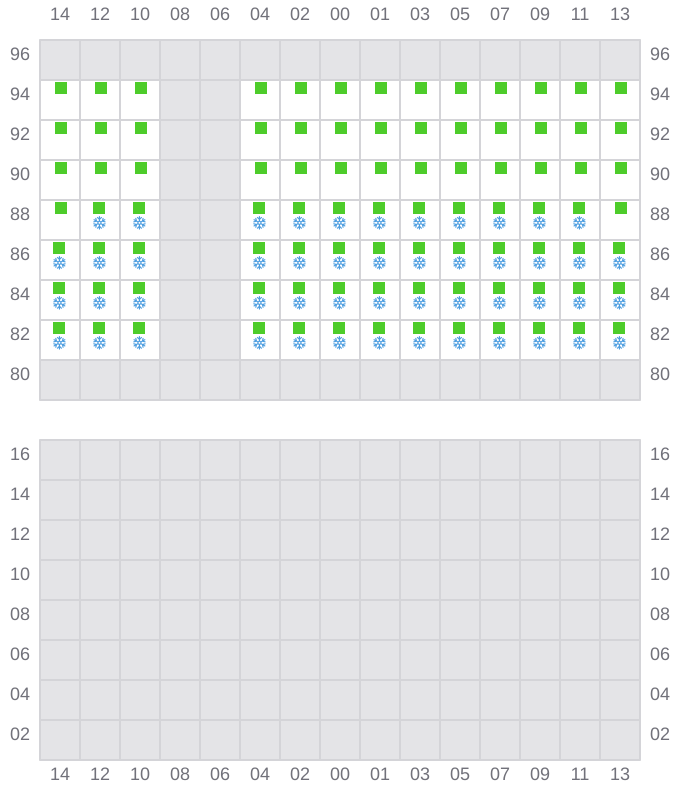

049 (050)
- → / ?
- → / ?
