POLAR PERU
9797199 | D5QB7 | MSK by ************************** Last update: Sat Jun 24 2023

General Info

Ship Name:POLAR PERU
IMO Code:9797199
Call Sign:D5QB7
Line Operator:MSK
Class Name for Sister Ships:PPU
Year Built:2018
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:049
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,947

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

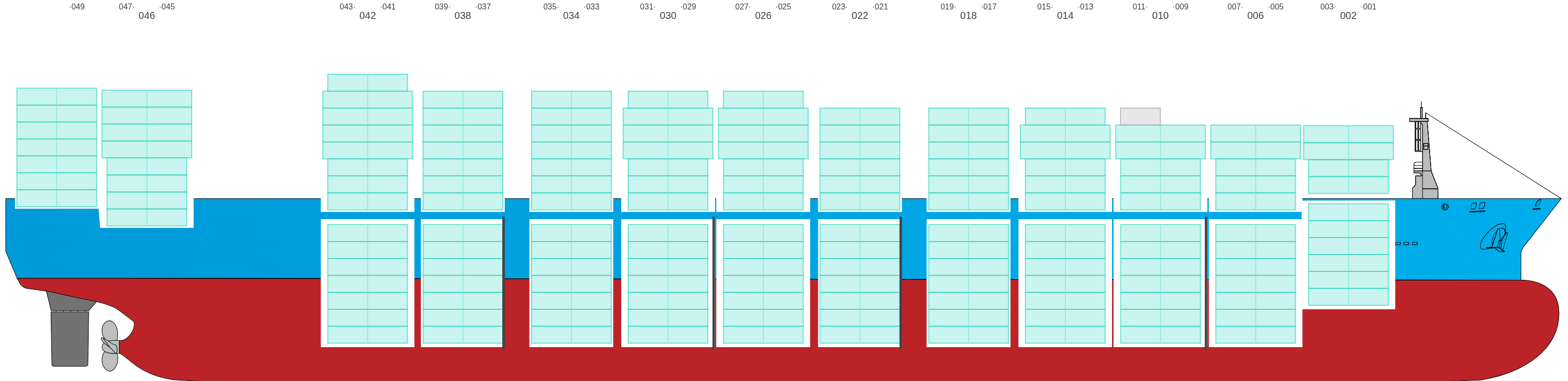

Side view of POLAR PERU

Hatch-Covers View

Deck view of POLAR PERU

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

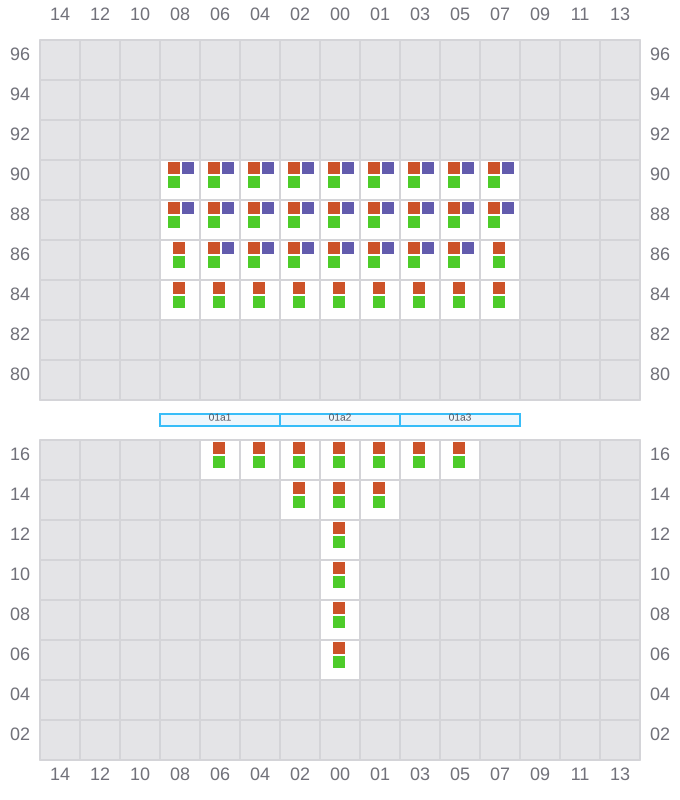

001 (002)

  • / ?
Bay 001 view and slots of POLAR PERU

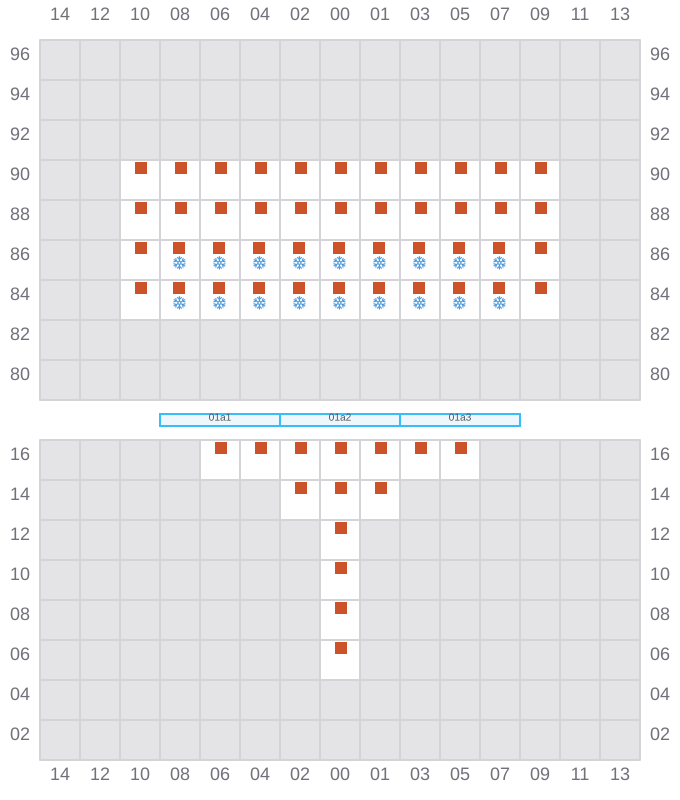

003

Bay 003 view and slots of POLAR PERU

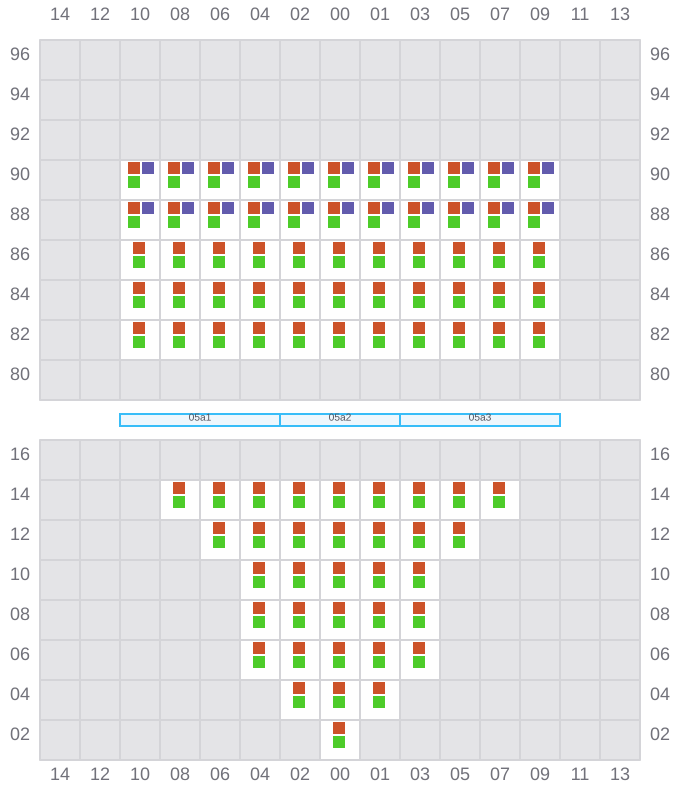

005 (006)

  • / ?
Bay 005 view and slots of POLAR PERU

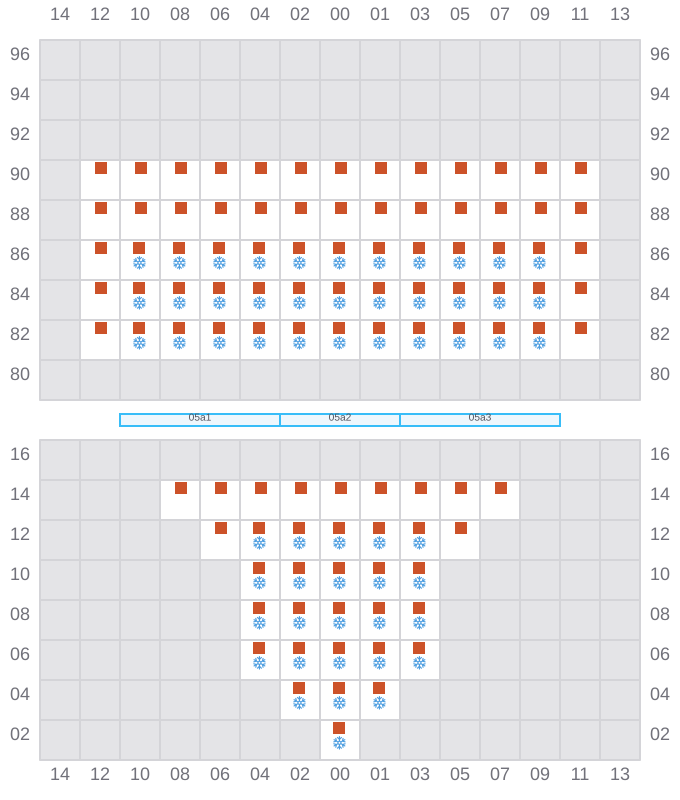

007

Bay 007 view and slots of POLAR PERU

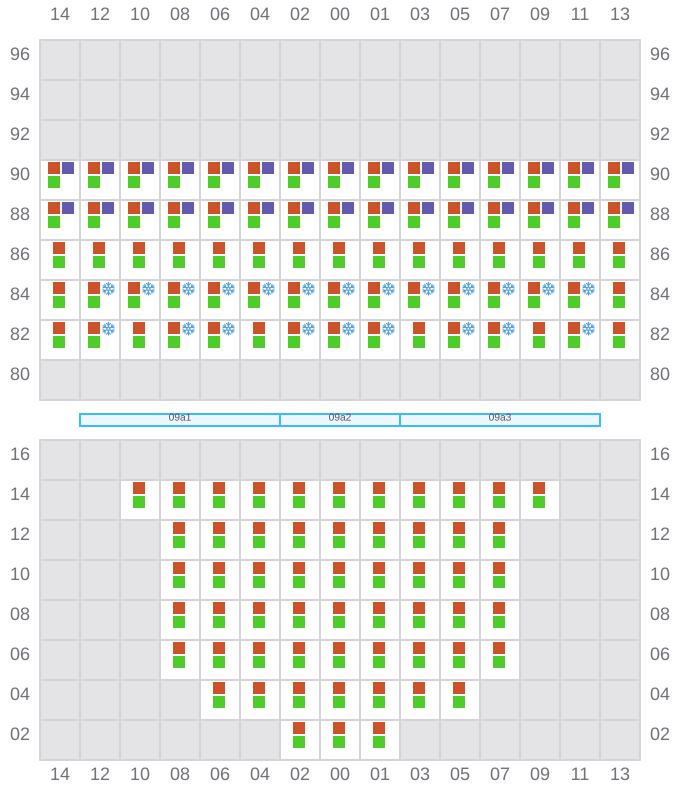

009 (010)

  • / ?
Bay 009 view and slots of POLAR PERU

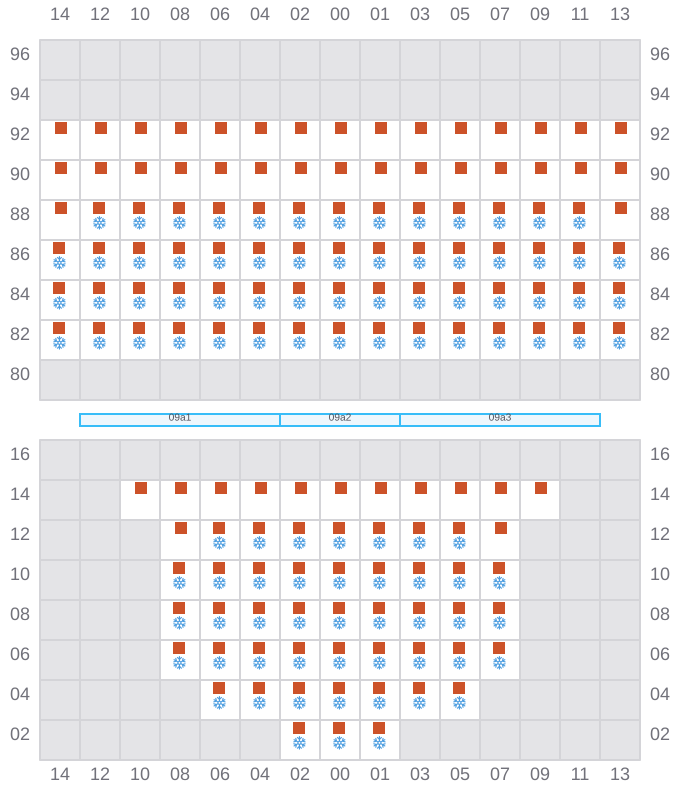

011

Bay 011 view and slots of POLAR PERU

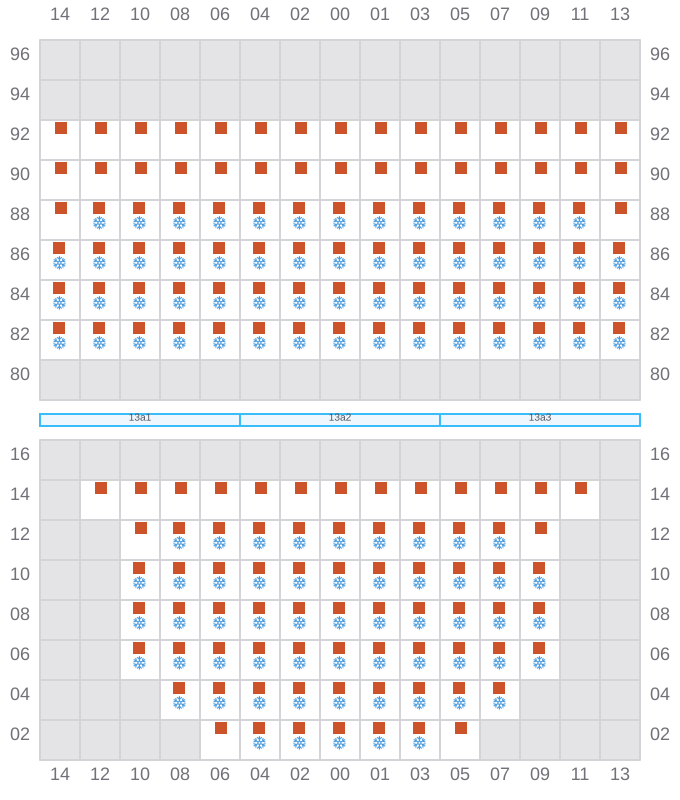

013 (014)

  • / ?

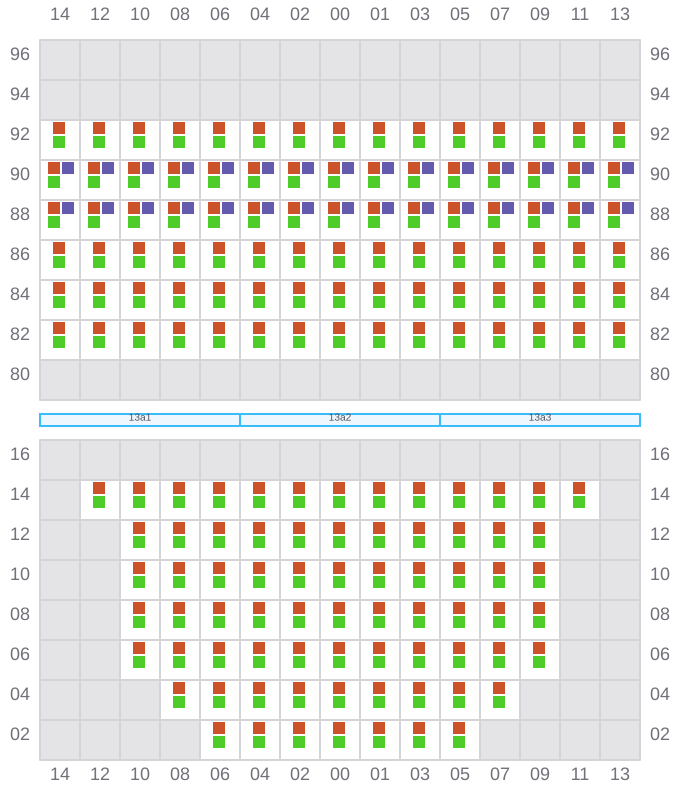

Bay 013 view and slots of POLAR PERU

015

Bay 015 view and slots of POLAR PERU

017 (018)

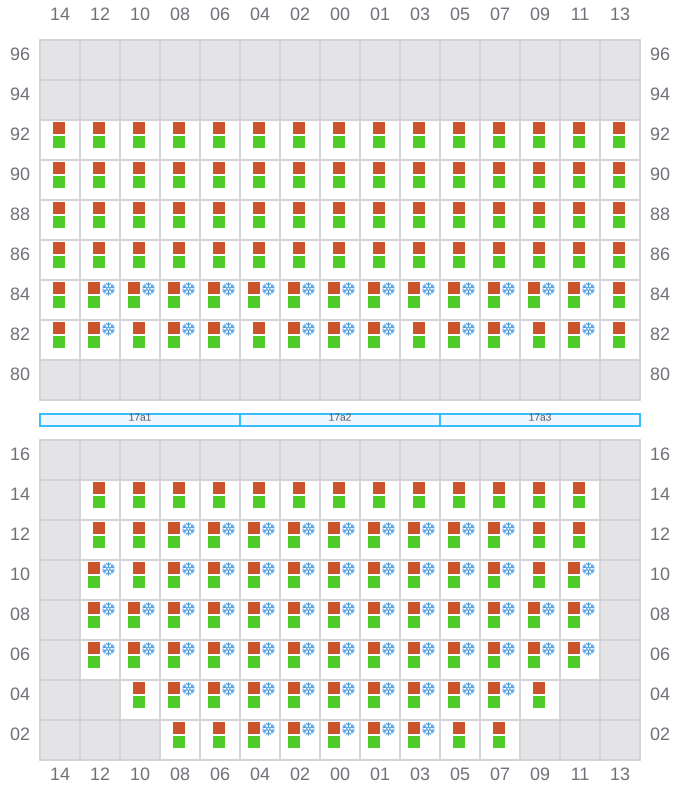

Bay 017 view and slots of POLAR PERU

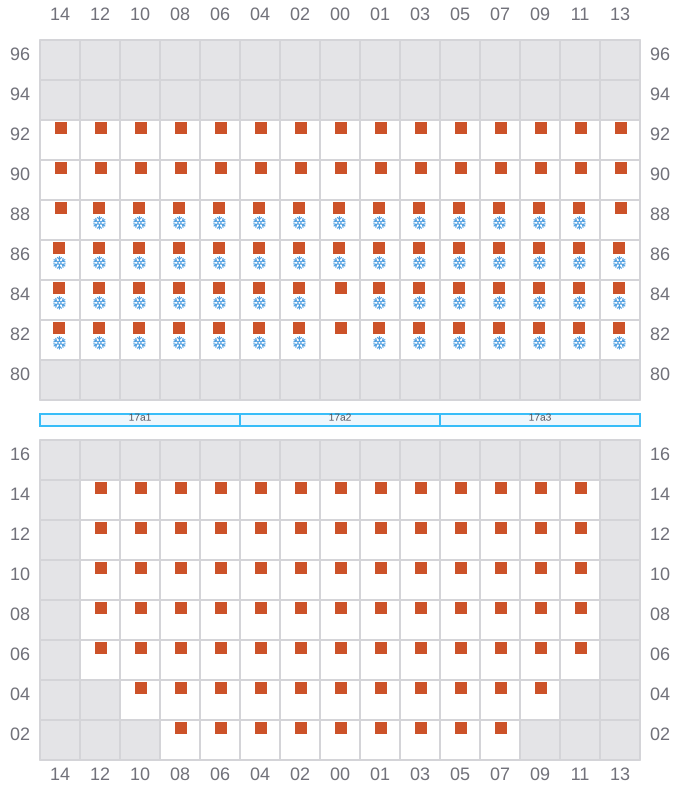

019

Bay 019 view and slots of POLAR PERU

021 (022)

  • / ?

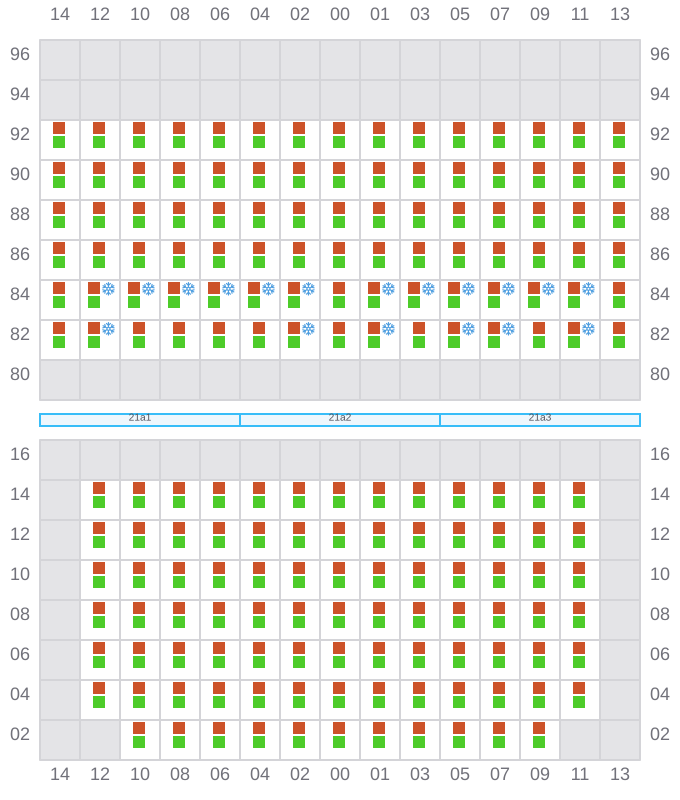

Bay 021 view and slots of POLAR PERU

023

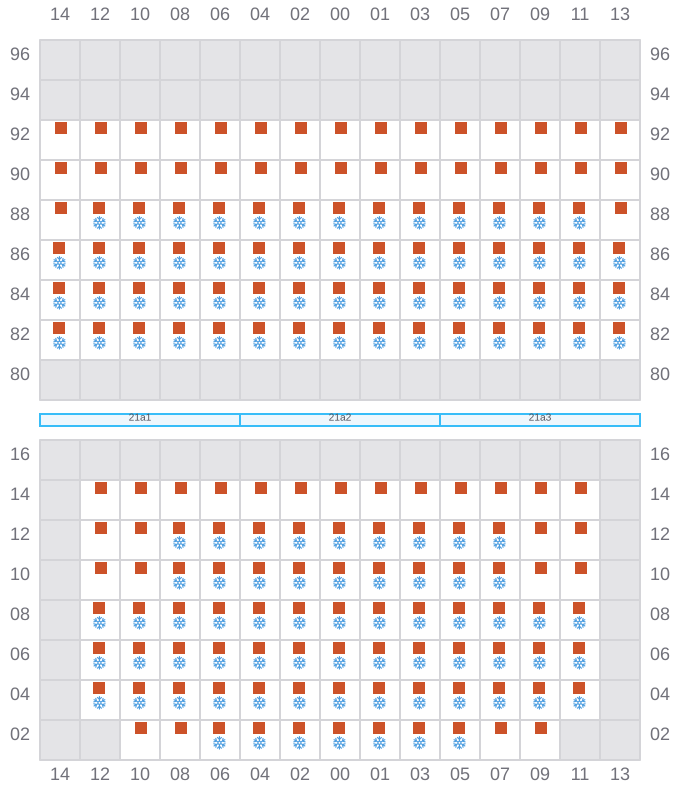

Bay 023 view and slots of POLAR PERU

025 (026)

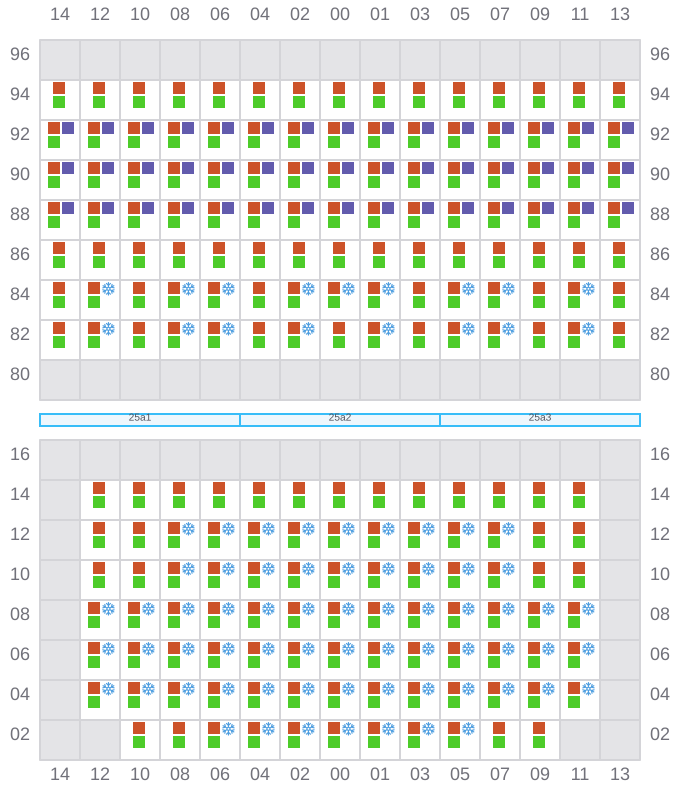

Bay 025 view and slots of POLAR PERU

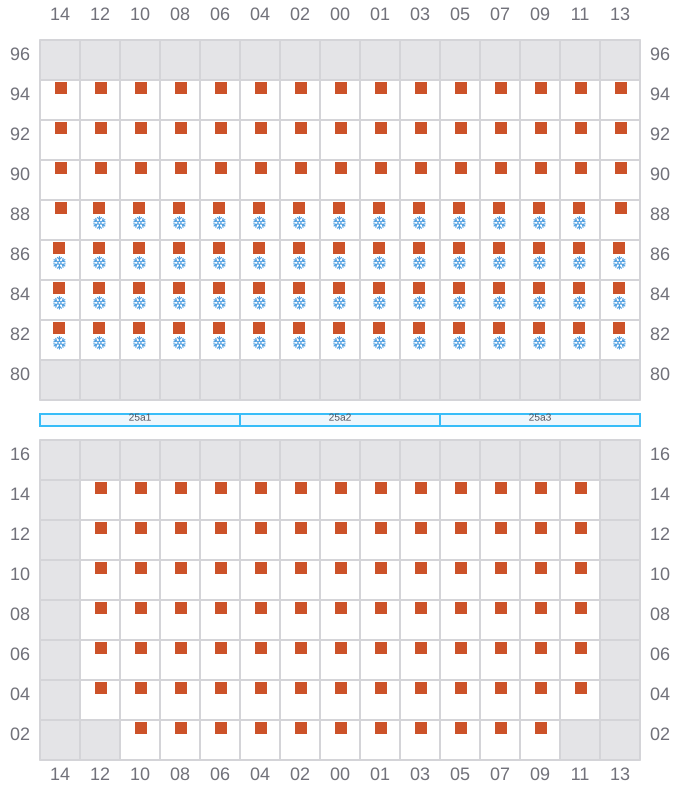

027

Bay 027 view and slots of POLAR PERU

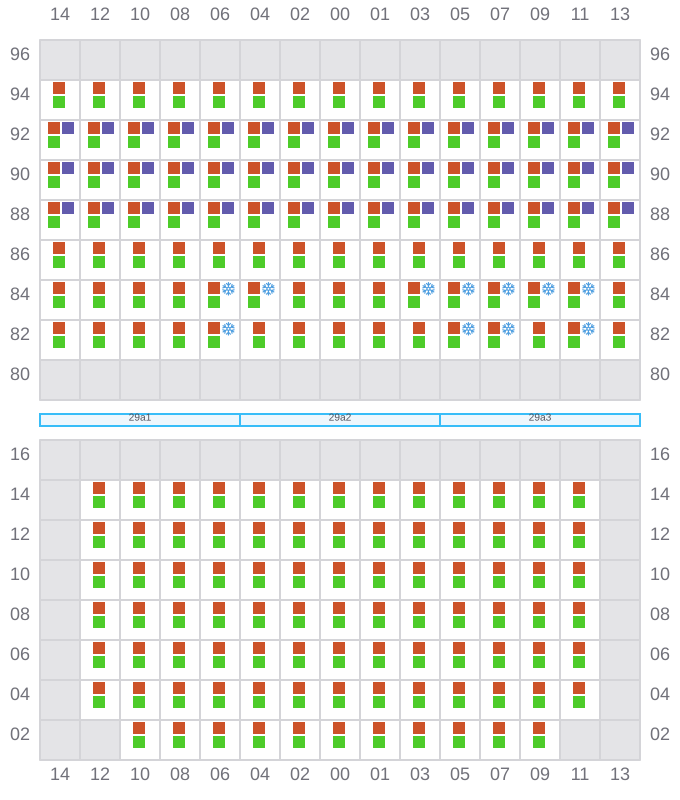

029 (030)

  • / ?
Bay 029 view and slots of POLAR PERU

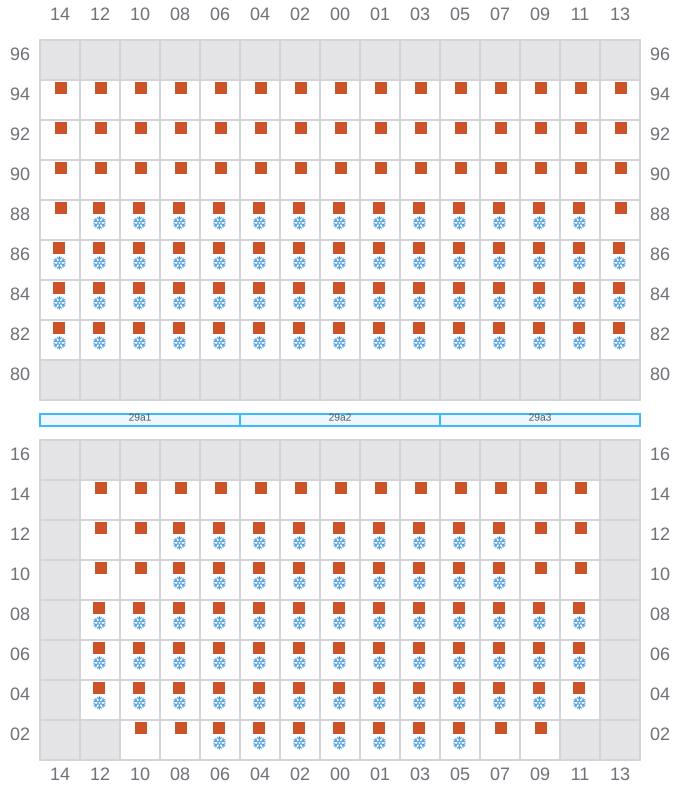

031

Bay 031 view and slots of POLAR PERU

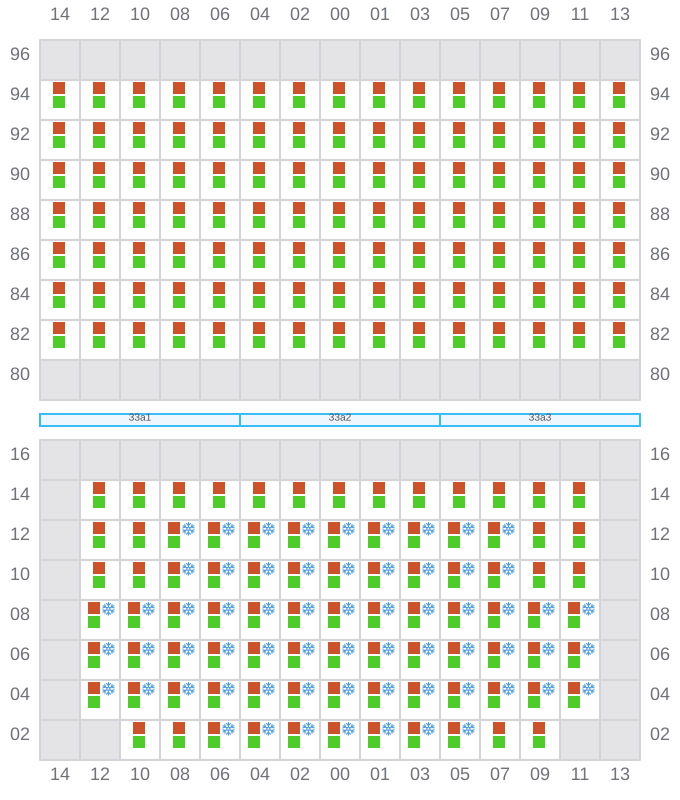

033 (034)

Bay 033 view and slots of POLAR PERU

035

Bay 035 view and slots of POLAR PERU

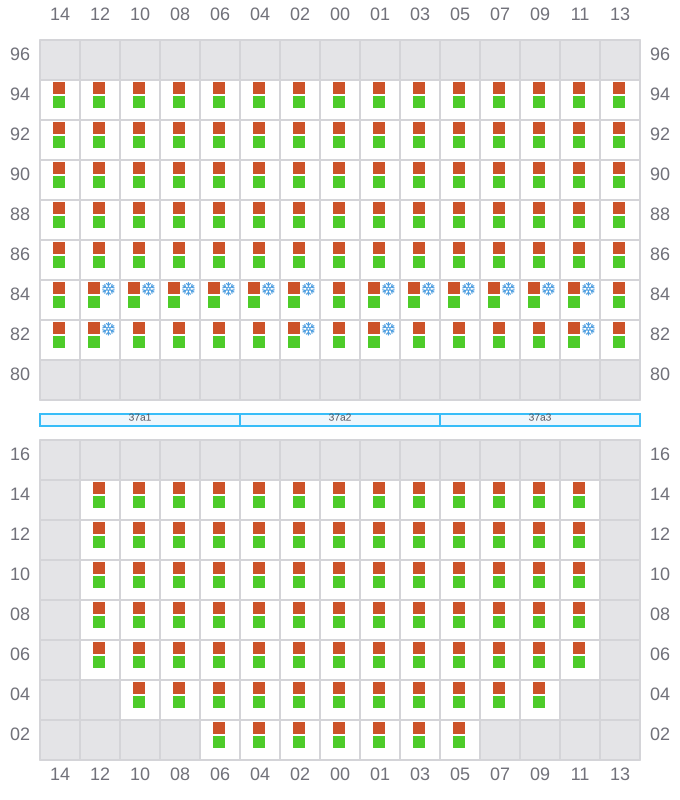

037 (038)

  • / ?
Bay 037 view and slots of POLAR PERU

039

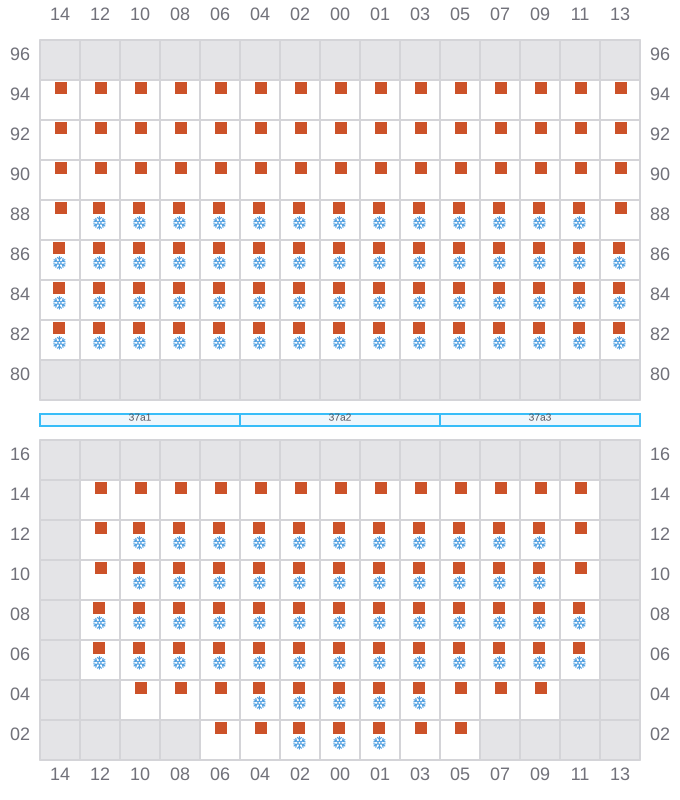

Bay 039 view and slots of POLAR PERU

041 (042)

  • / ?

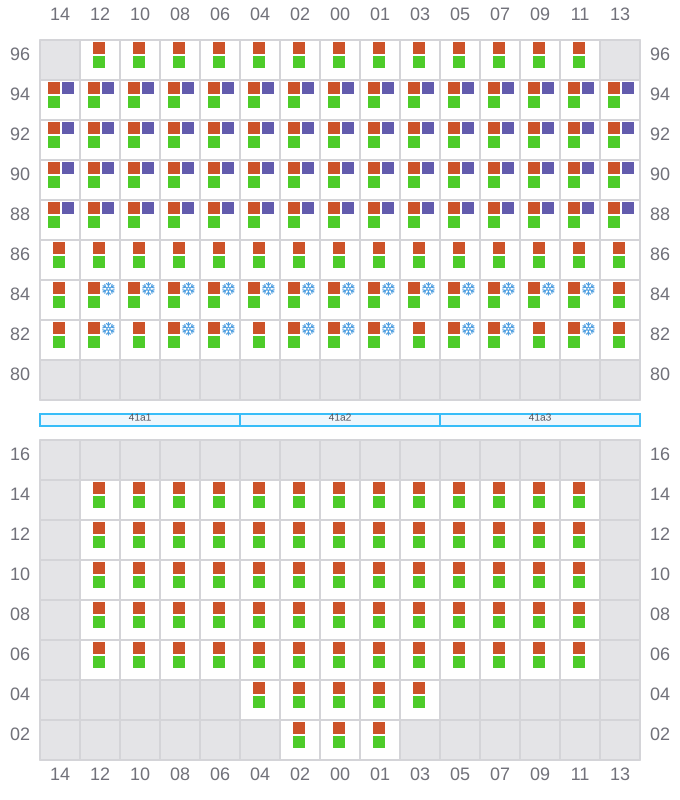

Bay 041 view and slots of POLAR PERU

043

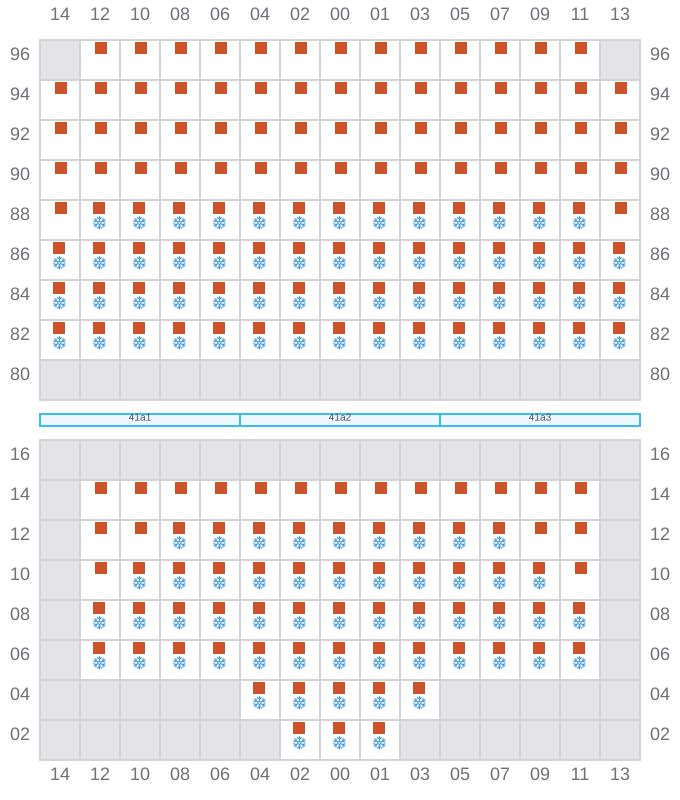

Bay 043 view and slots of POLAR PERU

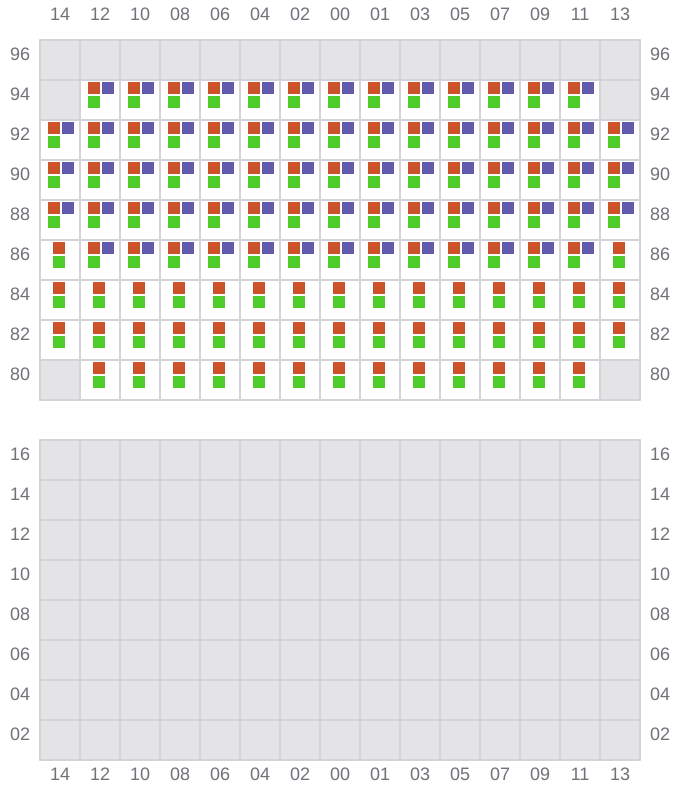

045 (046)

Bay 045 view and slots of POLAR PERU

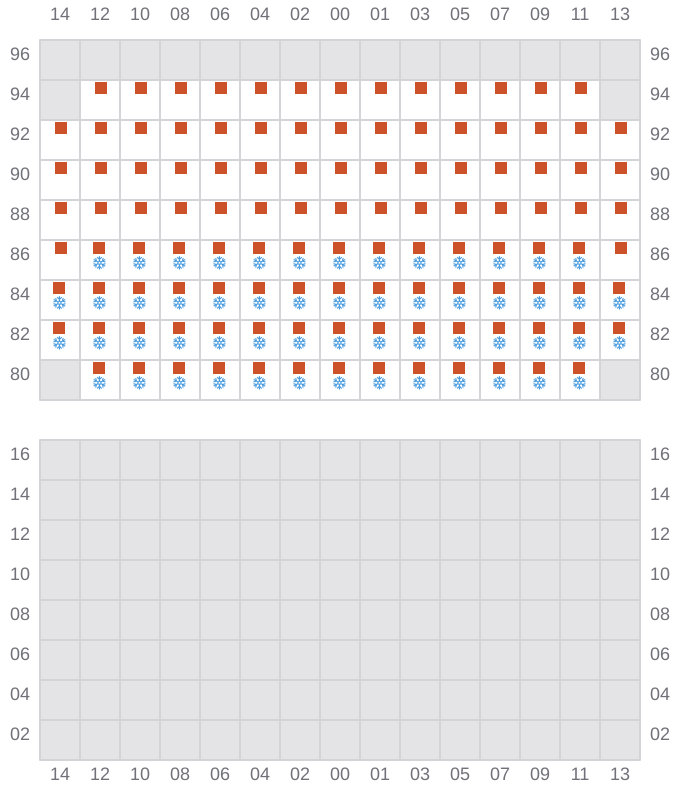

047

  • / ?
Bay 047 view and slots of POLAR PERU

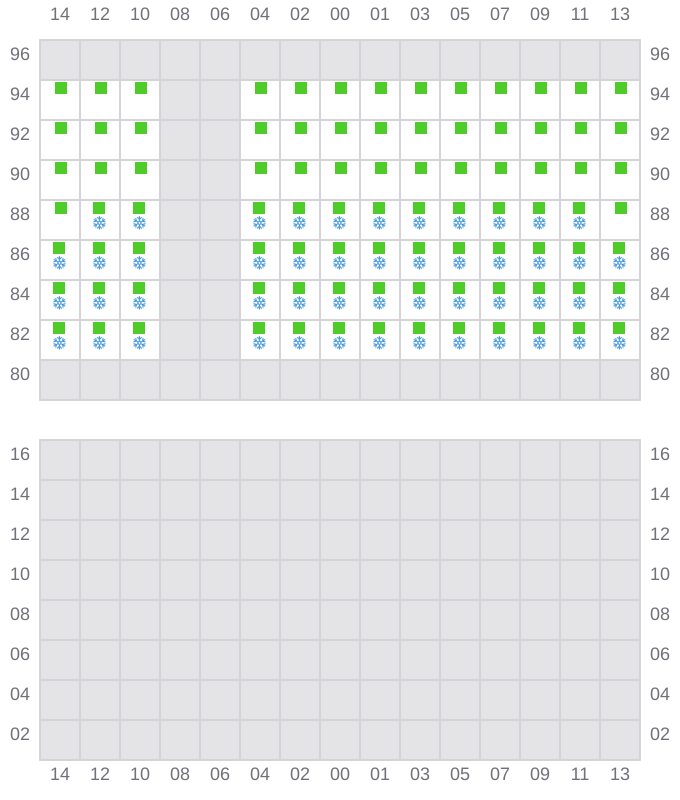

049 (050)

  • / ?
Bay 049 view and slots of POLAR PERU
