POLONIA
9219379 | A8OI5 | CSAV by ************************** Last update: Thu Jun 22 2023
General Info
Ship Name:POLONIA
IMO Code:9219379
Call Sign:A8OI5
Line Operator:CSAV
Class Name for Sister Ships:CS23
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,096
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

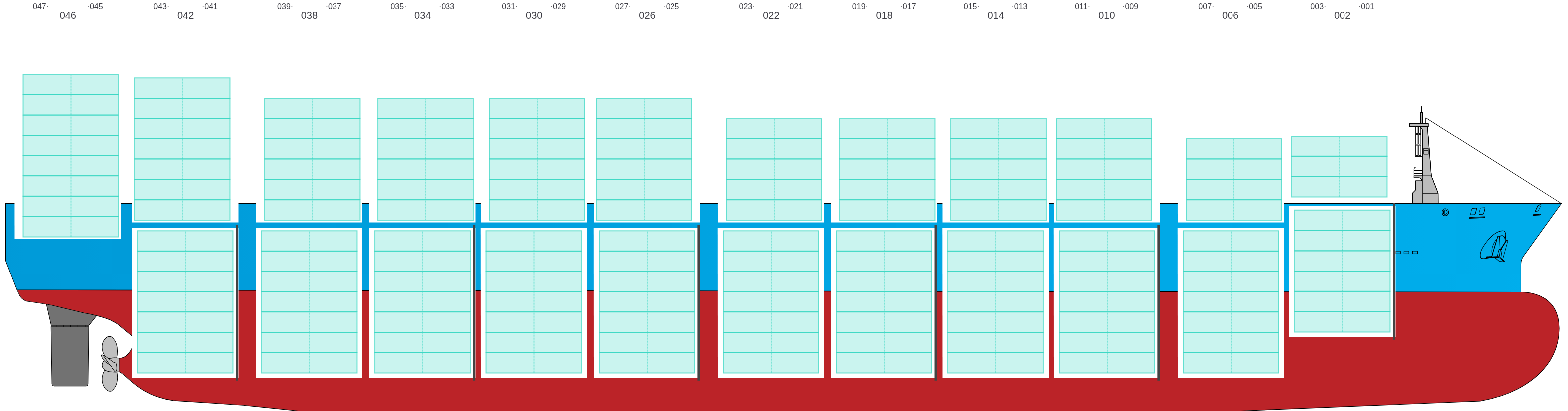

Side View
![Side view of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-sideView.png?v=1687459755309)
Hatch-Covers View
![Deck view of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-deckView.png?v=1687459755309)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

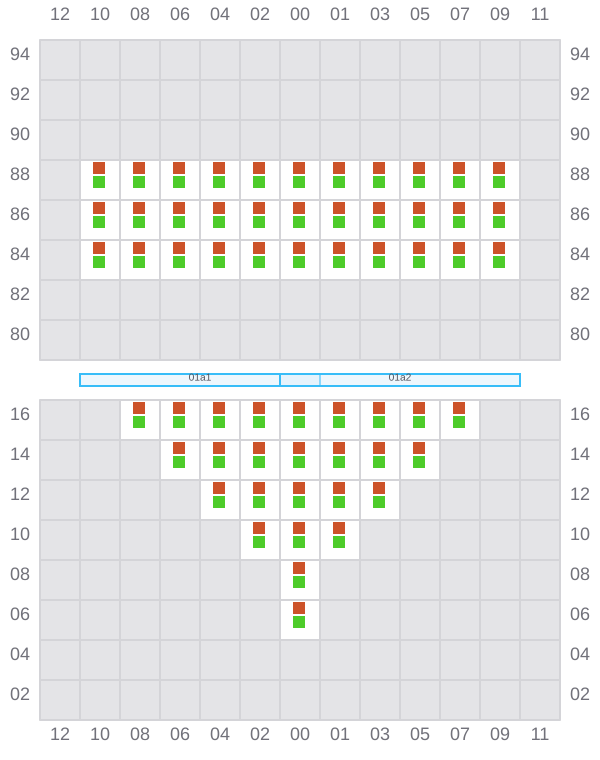

001 (002)
- →
![Bay 001 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b001.png?v=1687459755309)

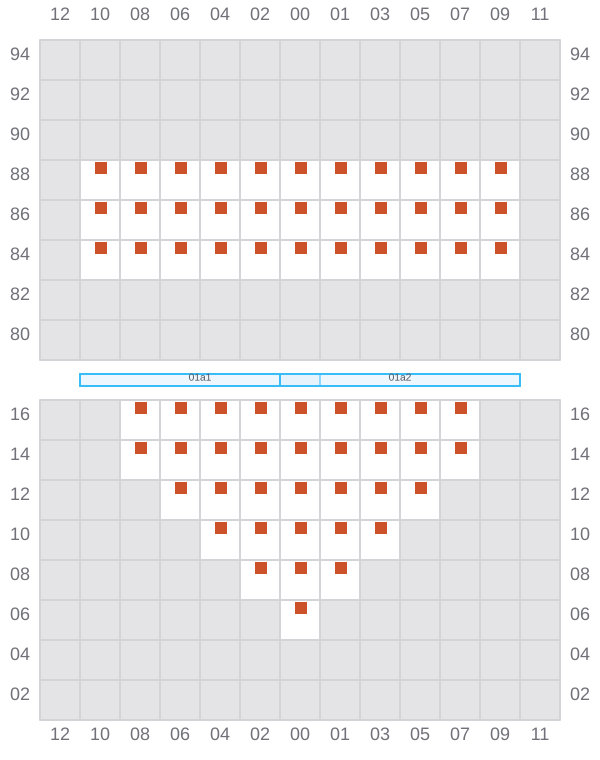

003
- ←
![Bay 003 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b003.png?v=1687459755309)

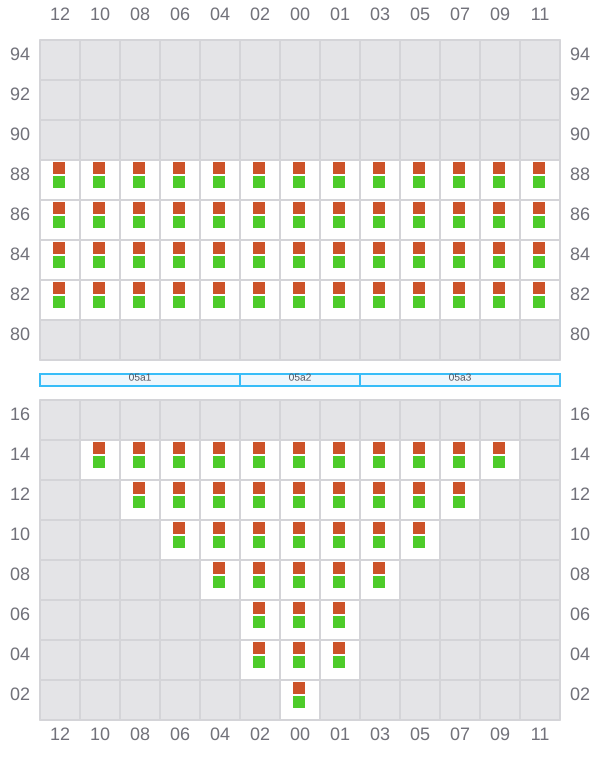

005 (006)
- →
![Bay 005 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b005.png?v=1687459755309)
007
- ←
![Bay 007 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b007.png?v=1687459755309)

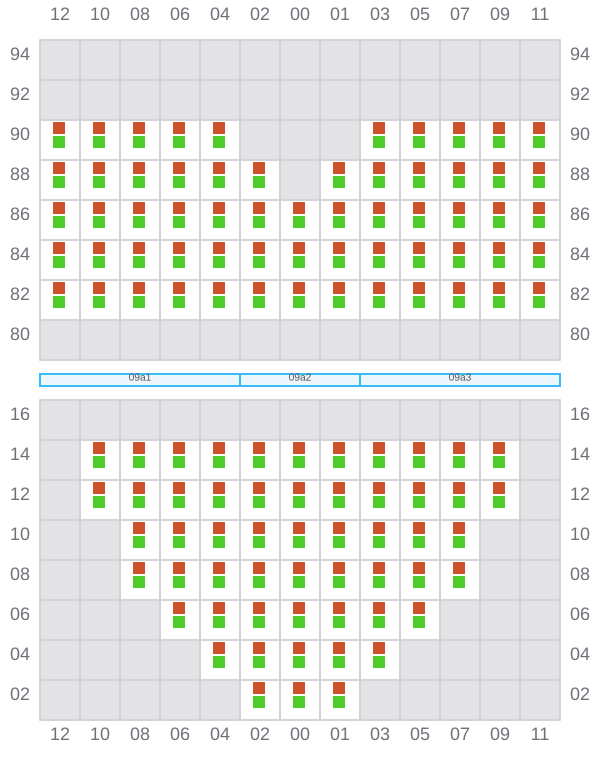

009 (010)
- →
![Bay 009 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b009.png?v=1687459755309)

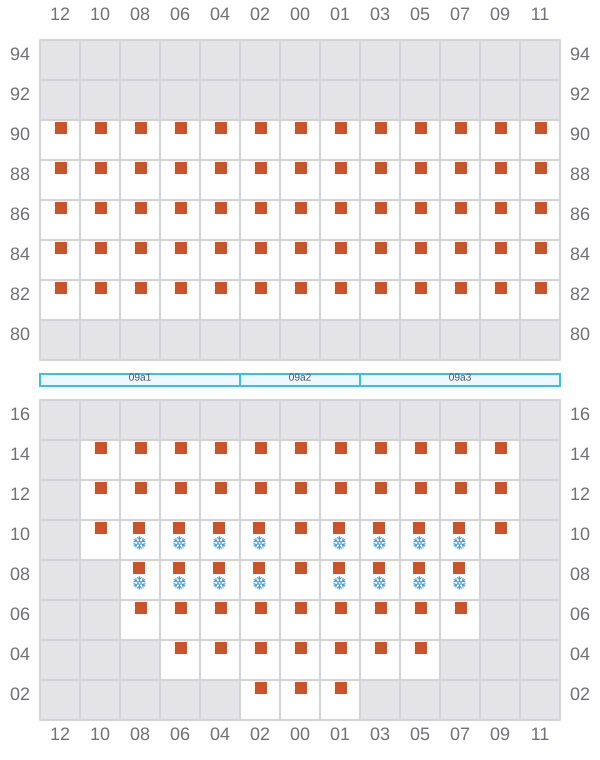

011
- ←
- ? / →
![Bay 011 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b011.png?v=1687459755309)

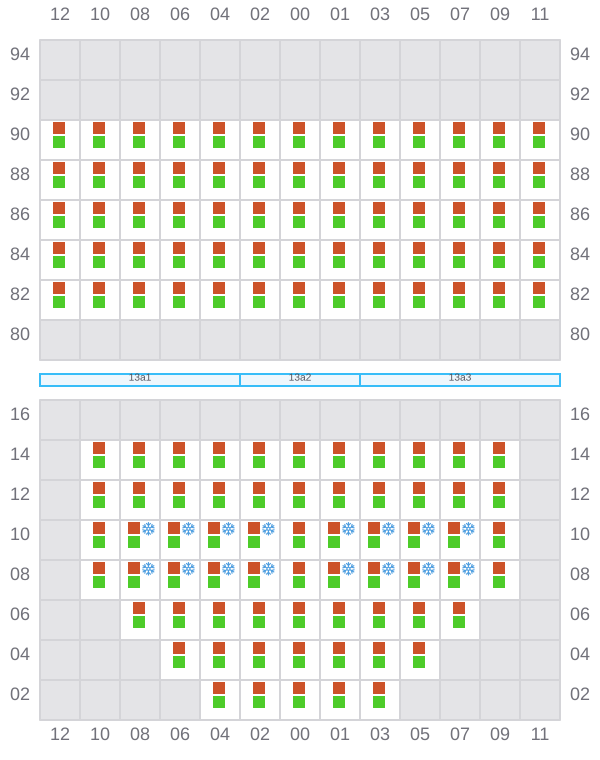

013 (014)
- →
- ? / ←
![Bay 013 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b013.png?v=1687459755309)

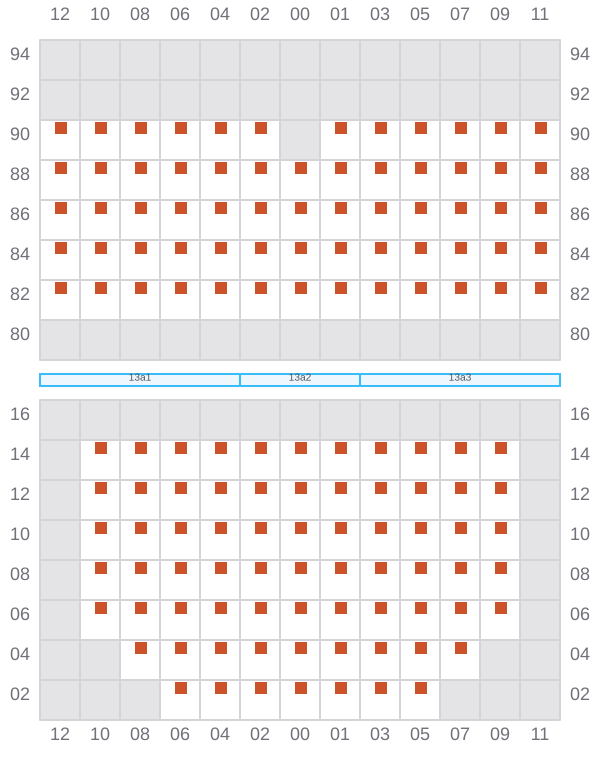

015
- ←
- → / ?
![Bay 015 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b015.png?v=1687459755309)

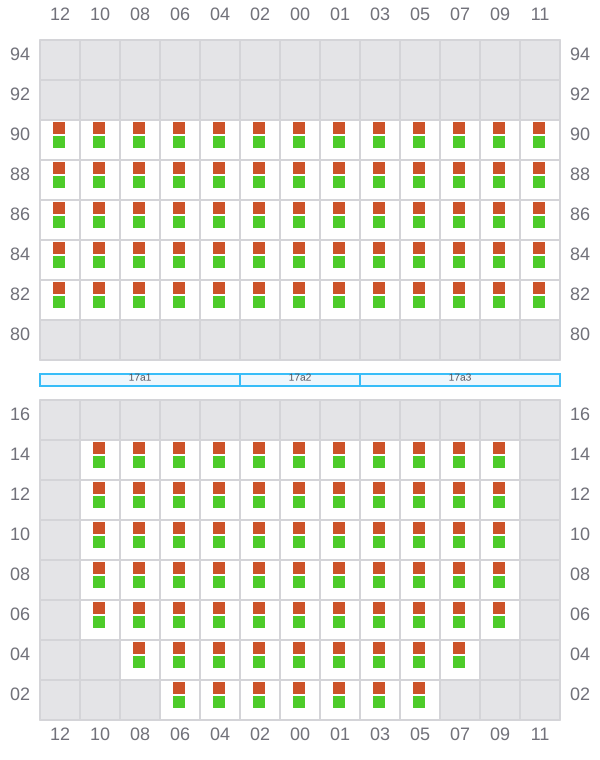

017 (018)
- →
![Bay 017 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b017.png?v=1687459755309)

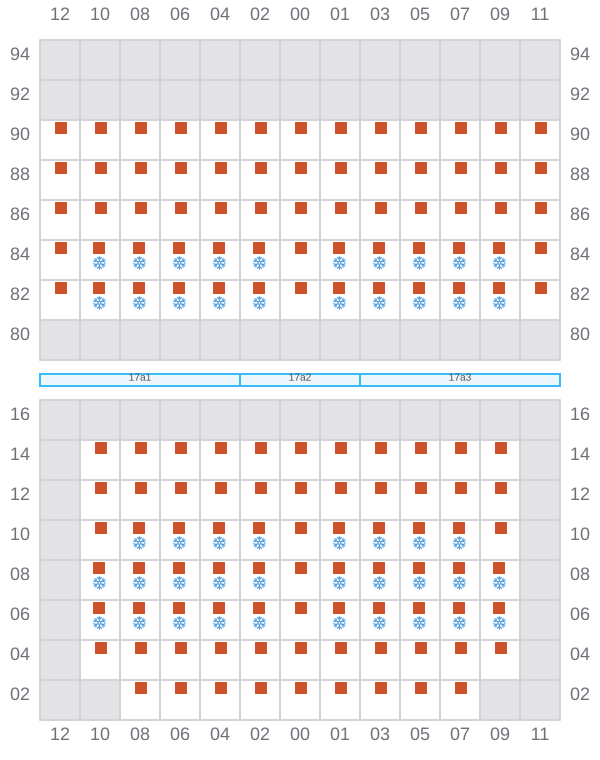

019
- ←
- →
![Bay 019 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b019.png?v=1687459755309)

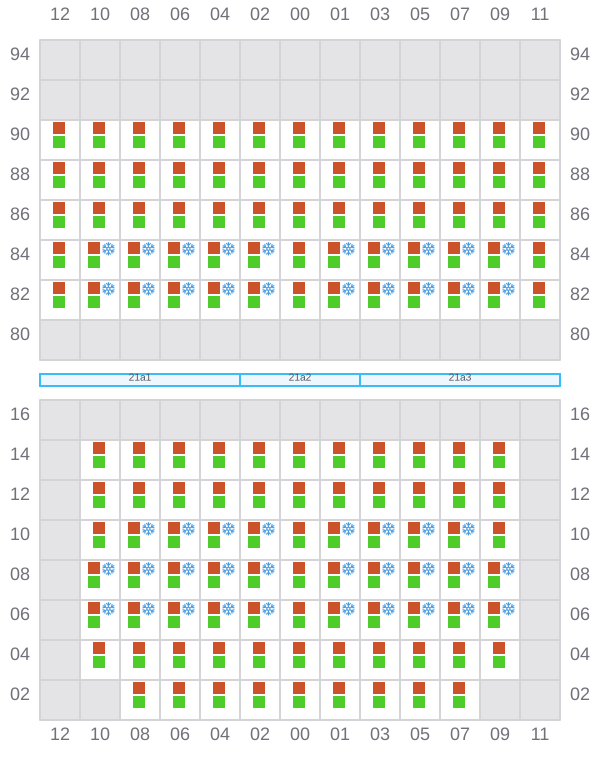

021 (022)
- →
- ←
![Bay 021 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b021.png?v=1687459755309)

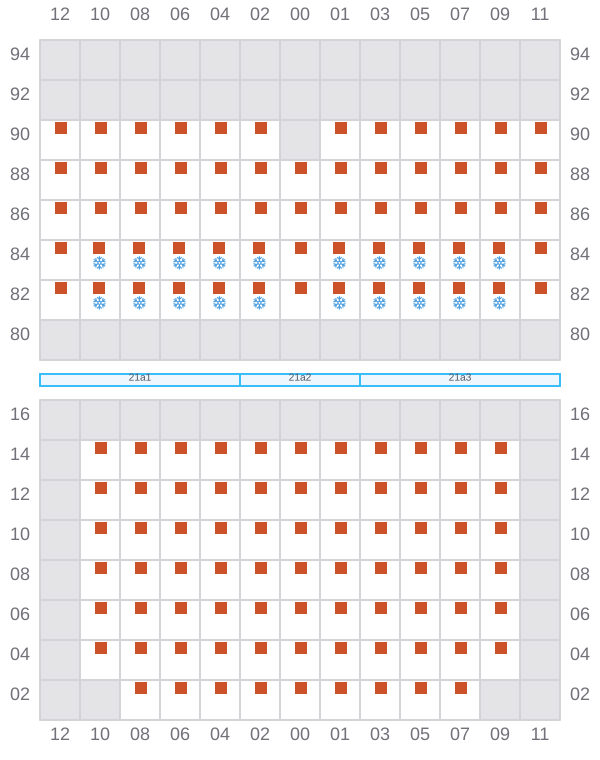

023
- ←
- → / ?
![Bay 023 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b023.png?v=1687459755309)

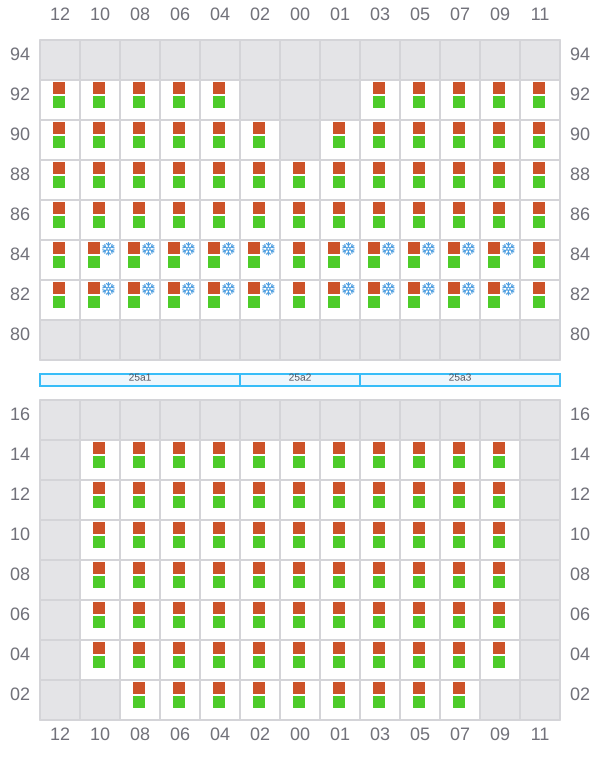

025 (026)
- →
- ← / ?
![Bay 025 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b025.png?v=1687459755309)

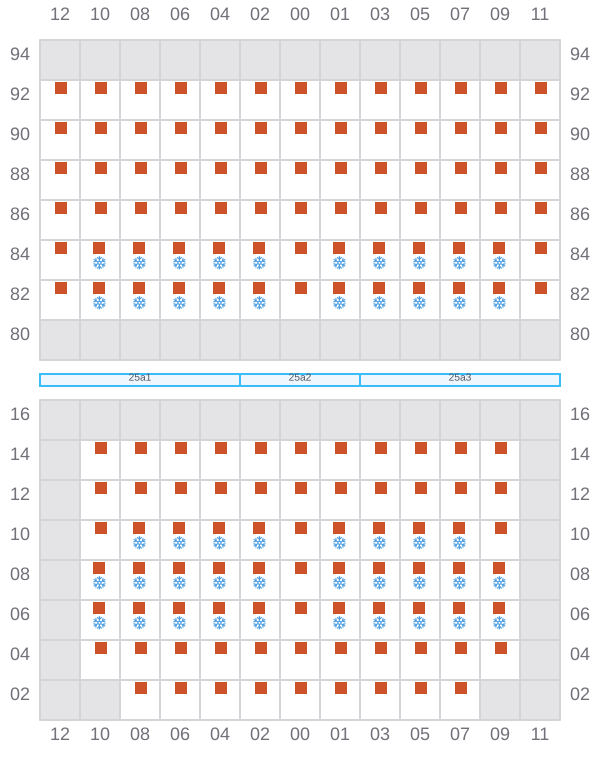

027
- ←
- →
![Bay 027 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b027.png?v=1687459755309)

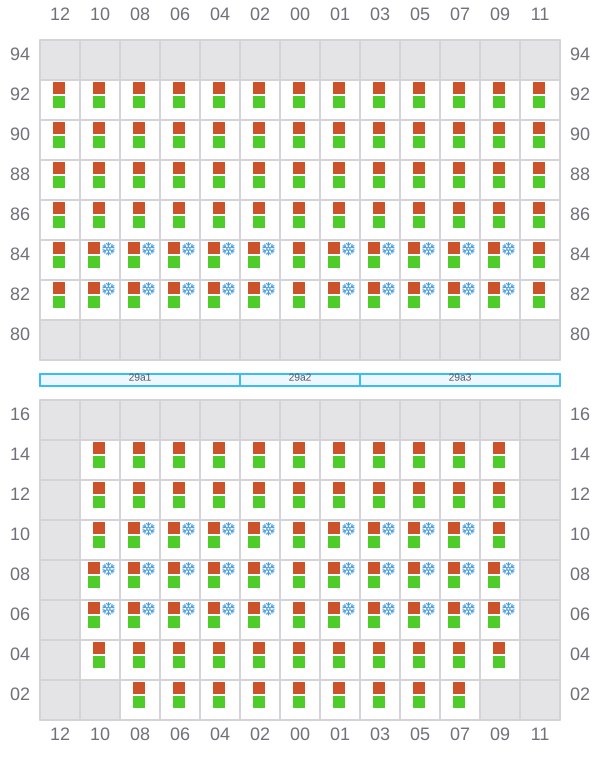

029 (030)
- →
- ←
![Bay 029 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b029.png?v=1687459755309)

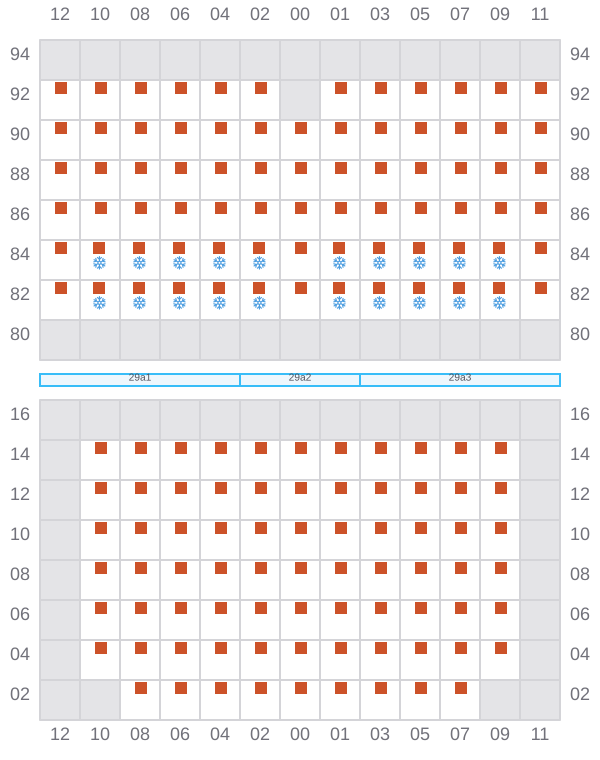

031
- ←
- → / ?
![Bay 031 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b031.png?v=1687459755309)

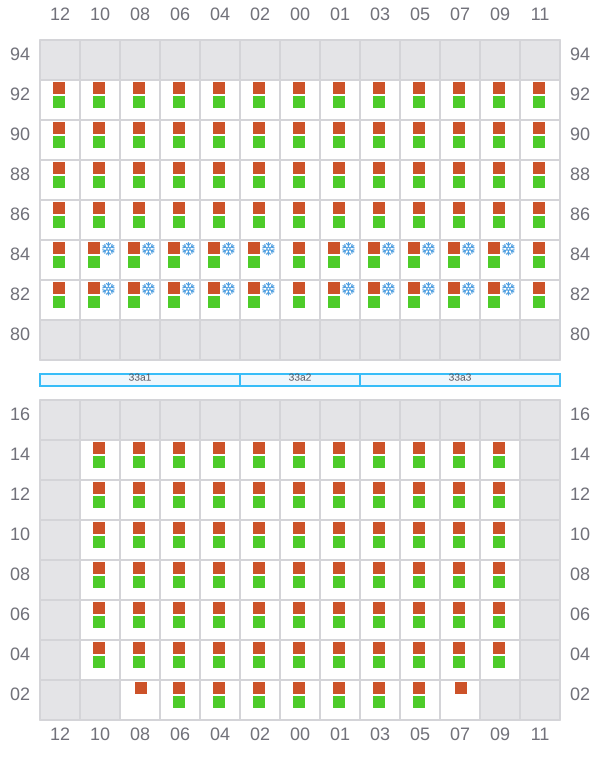

033 (034)
- →
- ← / ?
![Bay 033 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b033.png?v=1687459755309)
035
- ←
- →
![Bay 035 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b035.png?v=1687459755309)

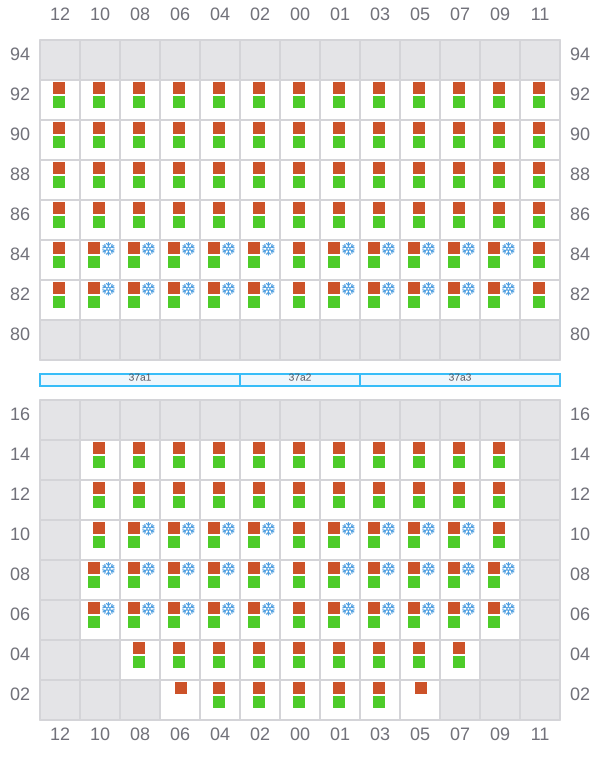

037 (038)
- →
- ←
![Bay 037 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b037.png?v=1687459755309)
039
- ←
- → / ?
![Bay 039 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b039.png?v=1687459755309)

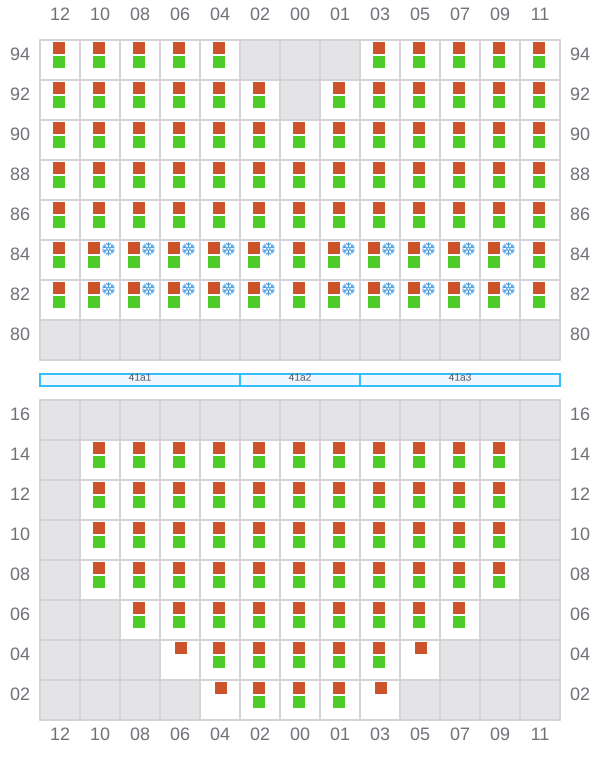

041 (042)
- →
- ← / ?
![Bay 041 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b041.png?v=1687459755309)

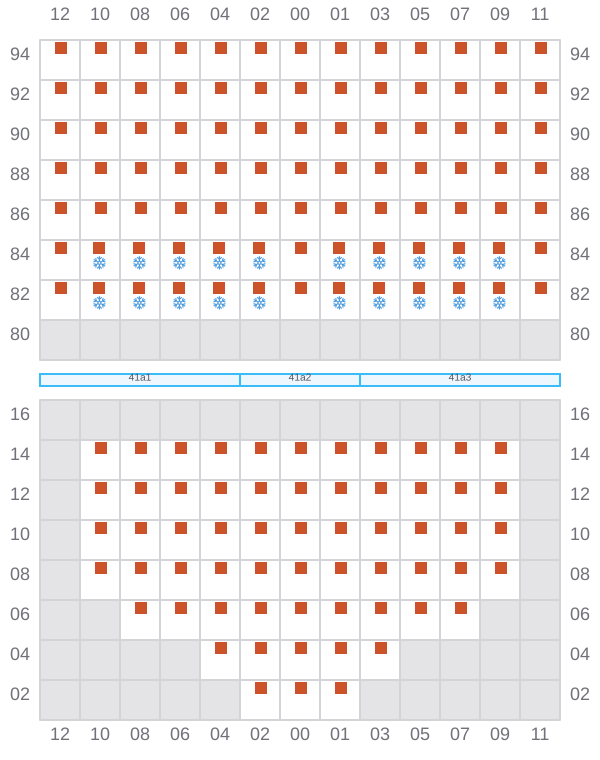

043
- ←
- → / ?
![Bay 043 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b043.png?v=1687459755309)

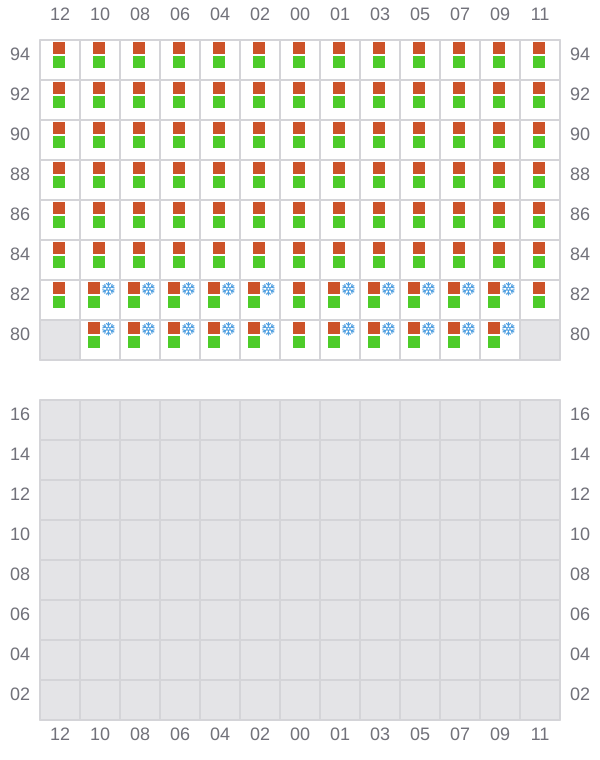

045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b045.png?v=1687459755309)

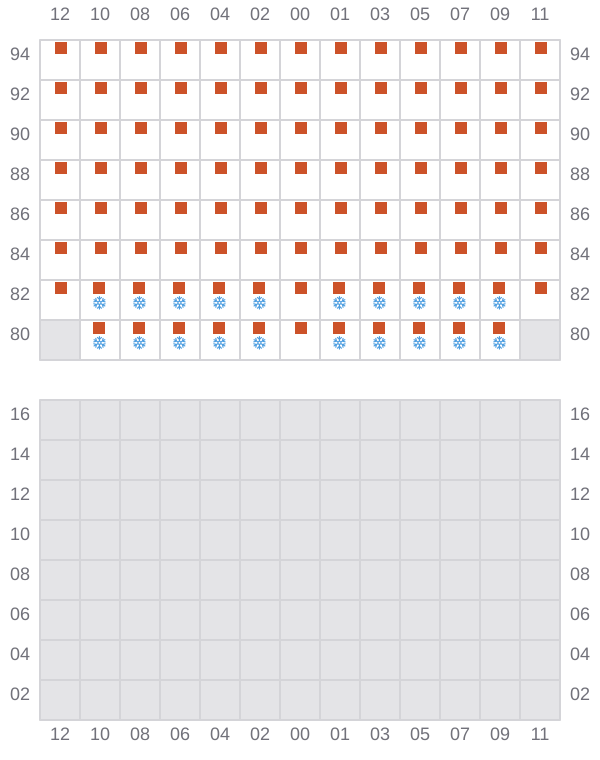

047
- ← / ?
- → / ?
![Bay 047 view and slots of POLONIA](/vessel-images/94f8583a-aa35-40da-b383-5fce0d7613f2-b047.png?v=1687459755309)
