PORTO KAGIO
9261451 | 5LBC6 | COSTAMARE SHIPPING CO SA by ************************** Last update: Wed Mar 05 2025
General Info
Ship Name:PORTO KAGIO
IMO Code:9261451
Call Sign:5LBC6
Line Operator:COSTAMARE SHIPPING CO SA
Class Name for Sister Ships:
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.28
Stern to AFT PP:0.00
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:065
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:4,360
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

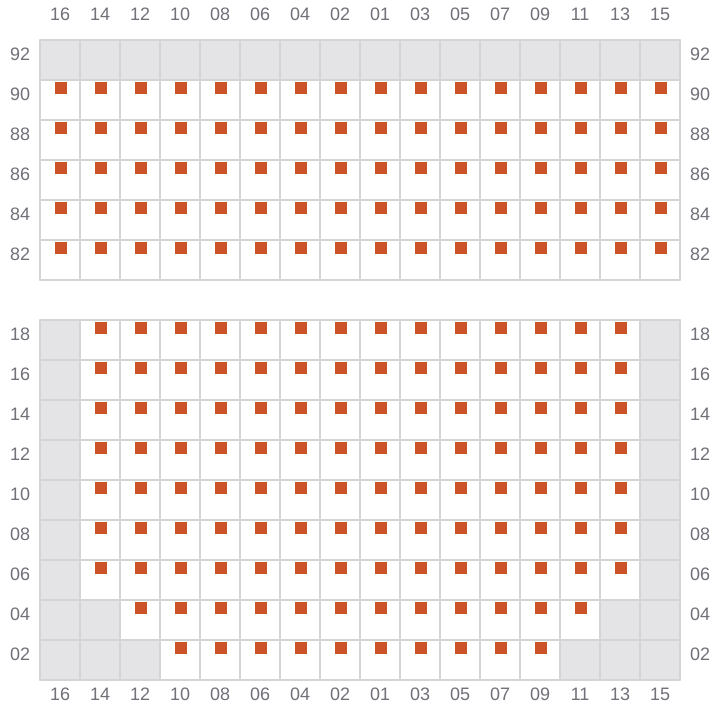

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
003 (004)
- →
005
- ←
007 (008)
- →
009
- ←
011 (012)
- →
013
- ←
015 (016)
- →
017
- ←
019 (020)
- →
021
- ←
023 (024)
- →
025
- ←
027 (028)
- →
029
- ←
031 (032)
- →
033
- ←
035 (036)
- →
037
- ←
039 (040)
- →
041
- ←
043 (044)
- →
045
- ←
047 (048)
- →
049
- ←
051 (052)
- →
053
- ←
055 (056)
- →
057
- ←
059 (060)
- →
061
- ←
063 (064)
- → /
065
- ← /
