PORTO
9481520 | A8UN3 | 9481520 by ******************** Last update: Thu Apr 10 2025
General Info
Ship Name:PORTO
IMO Code:9481520
Call Sign:A8UN3
Line Operator:9481520
Class Name for Sister Ships:50X
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):213.02
LOA (Length Overall):225.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,798
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001
- →
003 (002)
- ←
- → / ?
005
- →
007 (006)
- ←
- → / ?
009
- →
011 (010)
- ←
- → / ?
013
- →
015 (014)
- ←
- → / ?
017
- →
019 (018)
- ←
- → / ?
021
- →
023 (022)
- ←
- → / ?
025
- →
027 (026)
- ←
- → / ?
029
- →
031 (030)
- ←
- → / ?
033
- →
035 (034)
- ←
- → / ?
037
- →
039 (038)
- ←
- → / ?
041
- →
- ← / ?
043 (042)
- ←
045
047
- → / ?

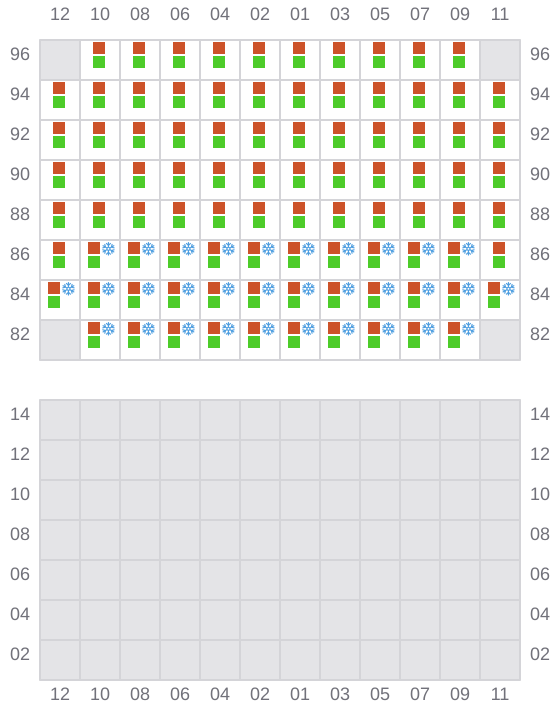

049 (048)
- ← / ?
- → / ?
