PRESIDENT TRUMAN
9538658 | WPTC | CMA by *********************** Last update: Tue Feb 04 2025

General Info

Ship Name:PRESIDENT TRUMAN
IMO Code:9538658
Call Sign:WPTC
Line Operator:CMA
Class Name for Sister Ships:CGTR
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):285.97
LOA (Length Overall):299.95
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,552

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of PRESIDENT TRUMAN

Hatch-Covers View

Deck view of PRESIDENT TRUMAN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →
Bay 001 view and slots of PRESIDENT TRUMAN

003

  • ←
  • →
Bay 003 view and slots of PRESIDENT TRUMAN

005 (006)

  • →
  • →
Bay 005 view and slots of PRESIDENT TRUMAN

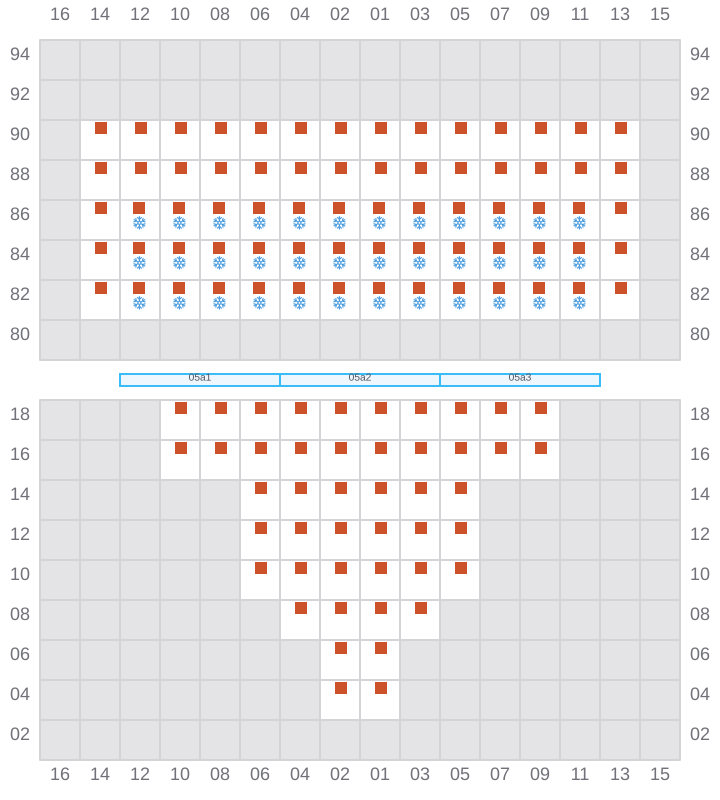

007

  • ←
  • → / ?
  • →
Bay 007 view and slots of PRESIDENT TRUMAN

009 (010)

  • →
  • →
Bay 009 view and slots of PRESIDENT TRUMAN

011

  • ←
  • → / ?
  • →
Bay 011 view and slots of PRESIDENT TRUMAN

013 (014)

  • →
  • →
Bay 013 view and slots of PRESIDENT TRUMAN

015

  • ←
  • → / ?
  • →
Bay 015 view and slots of PRESIDENT TRUMAN

017 (018)

  • →
  • →
Bay 017 view and slots of PRESIDENT TRUMAN

019

  • ←
  • → / ?
  • →
Bay 019 view and slots of PRESIDENT TRUMAN

021 (022)

  • →
  • →
Bay 021 view and slots of PRESIDENT TRUMAN

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of PRESIDENT TRUMAN

025 (026)

  • →
  • →
Bay 025 view and slots of PRESIDENT TRUMAN

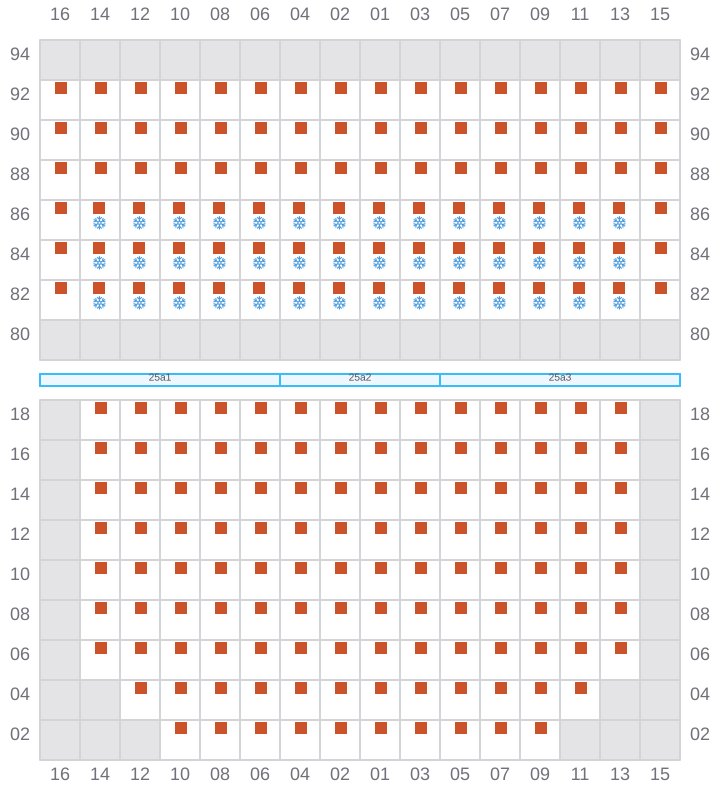

027

  • ←
  • → / ?
  • →
Bay 027 view and slots of PRESIDENT TRUMAN

029 (030)

  • →
  • →
Bay 029 view and slots of PRESIDENT TRUMAN

031

  • ←
  • → / ?
  • →
Bay 031 view and slots of PRESIDENT TRUMAN

033 (034)

  • →
  • →
Bay 033 view and slots of PRESIDENT TRUMAN

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of PRESIDENT TRUMAN

037 (038)

  • →
  • →
Bay 037 view and slots of PRESIDENT TRUMAN

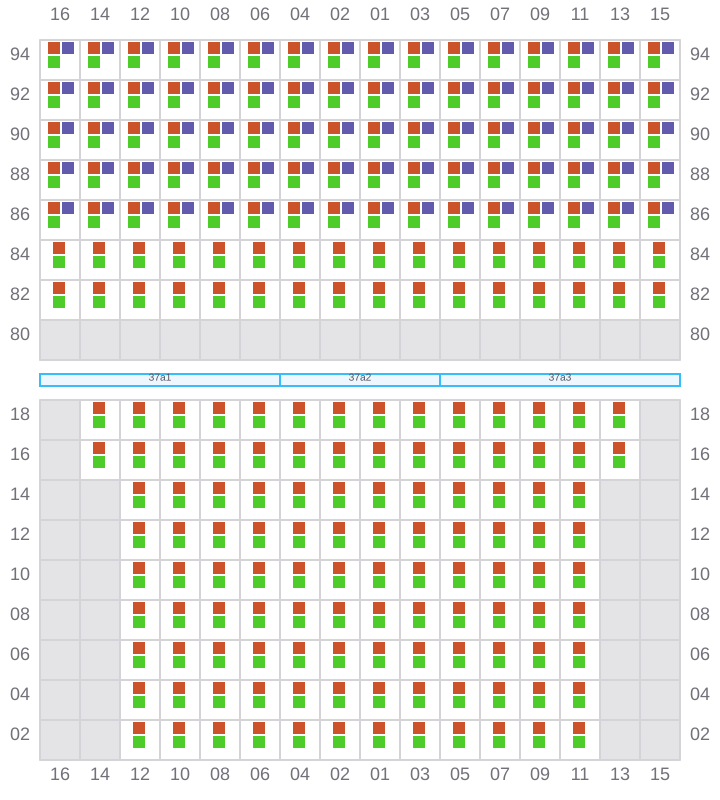

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of PRESIDENT TRUMAN

041 (042)

  • →
  • →
Bay 041 view and slots of PRESIDENT TRUMAN

043

  • ←
  • → / ?
  • →
Bay 043 view and slots of PRESIDENT TRUMAN

045 (046)

  • →
  • →
Bay 045 view and slots of PRESIDENT TRUMAN

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of PRESIDENT TRUMAN

049 (050)

  • →
  • →
Bay 049 view and slots of PRESIDENT TRUMAN

051

  • ←
  • → / ?
  • →
Bay 051 view and slots of PRESIDENT TRUMAN

053 (054)

  • →
  • →
Bay 053 view and slots of PRESIDENT TRUMAN

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of PRESIDENT TRUMAN

057 (058)

  • →
  • →
Bay 057 view and slots of PRESIDENT TRUMAN

059

  • ←
  • → / ?
  • →
Bay 059 view and slots of PRESIDENT TRUMAN

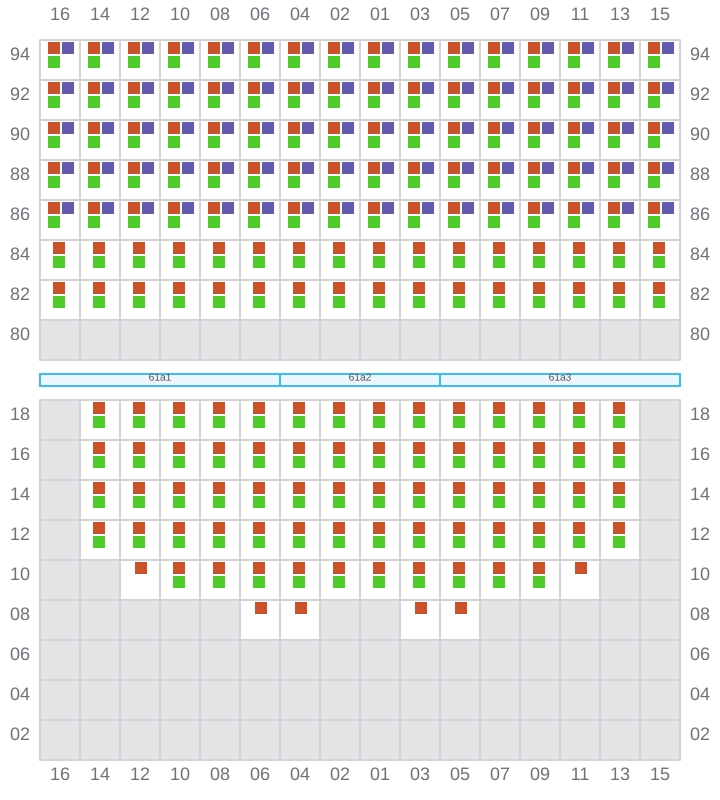

061 (062)

  • →
  • →
Bay 061 view and slots of PRESIDENT TRUMAN

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of PRESIDENT TRUMAN

065 (066)

  • →
  • →
Bay 065 view and slots of PRESIDENT TRUMAN

067

  • ←
  • → / ?
  • →
Bay 067 view and slots of PRESIDENT TRUMAN

069 (070)

  • → / ?
  • ← / ?
  • → / ?
Bay 069 view and slots of PRESIDENT TRUMAN
