PUSAN C
9307229 | C4NK2 | DANAOS SHIPPING CO LTD by ************************** Last update: Thu Nov 20 2025

General Info

Ship Name:PUSAN C
IMO Code:9307229
Call Sign:C4NK2
Line Operator:DANAOS SHIPPING CO LTD
Class Name for Sister Ships:PSC
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):336.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:00
Total TEU:9,604

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

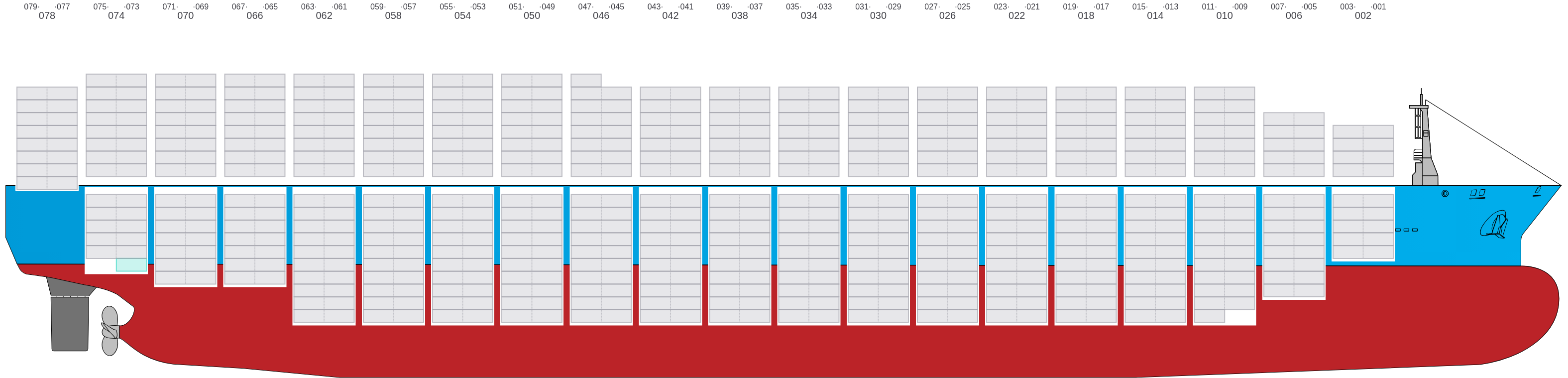

Side view of PUSAN C

Hatch-Covers View

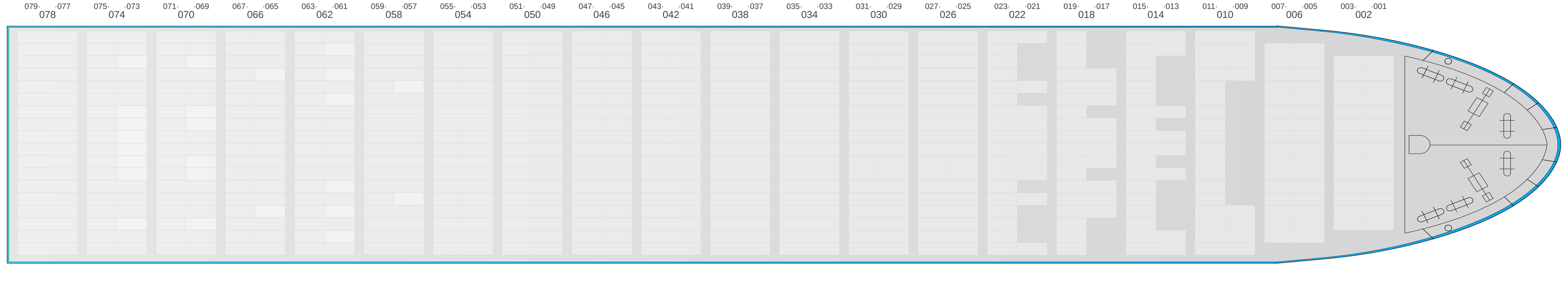

Deck view of PUSAN C

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • ✓

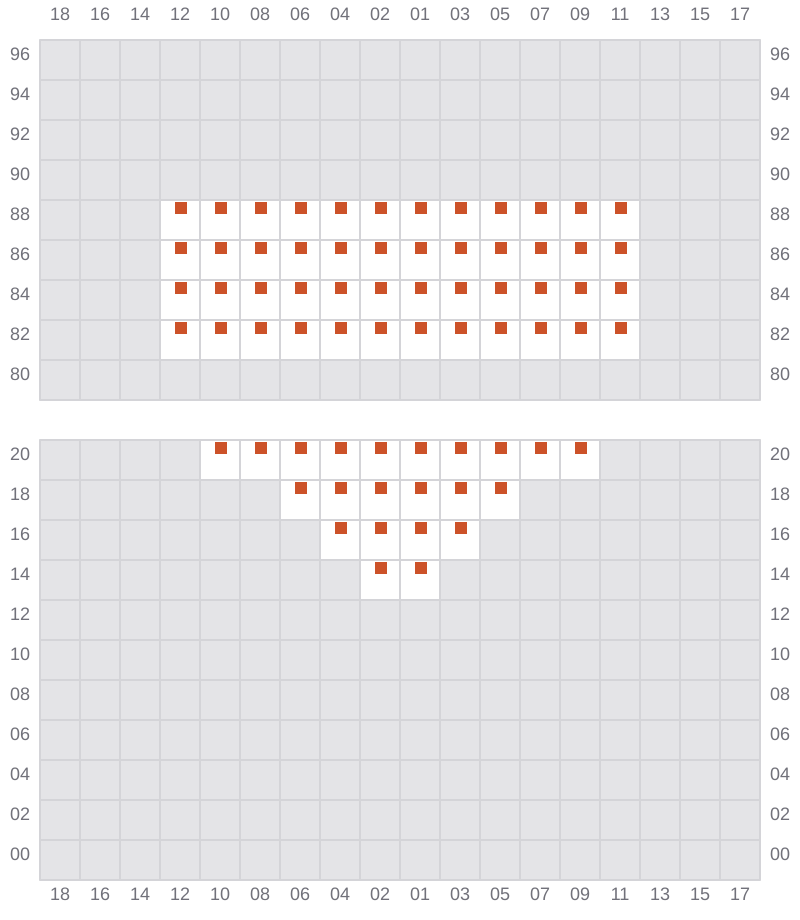

Bay 001 view and slots of PUSAN C

003 (002)

  • ←
  • ✓

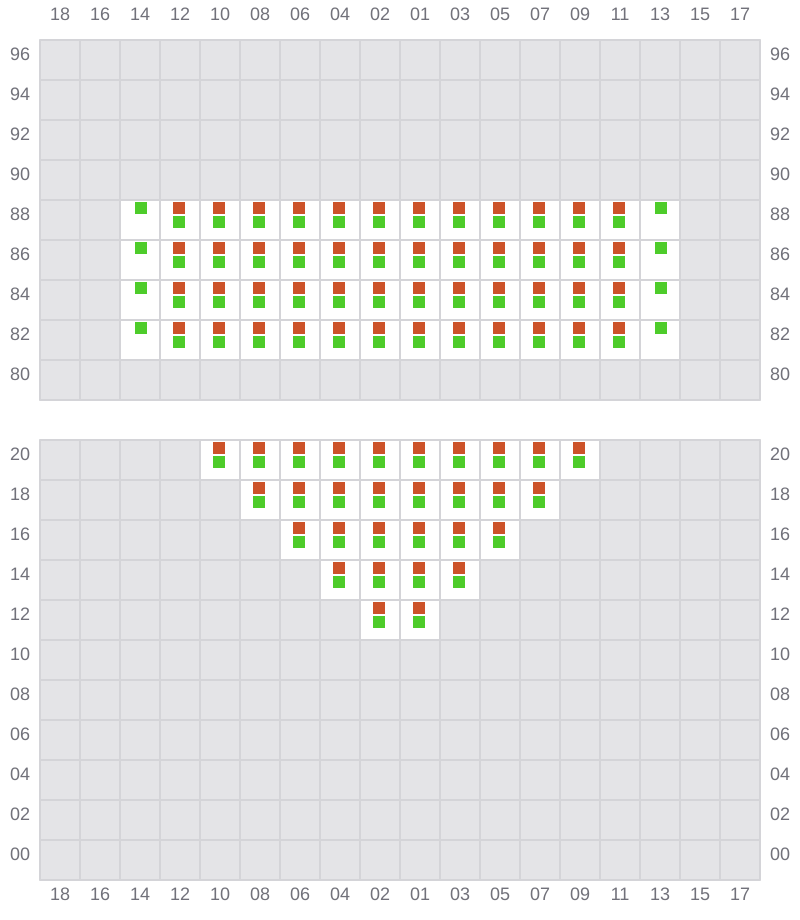

Bay 003 view and slots of PUSAN C

005

  • →
  • ✓

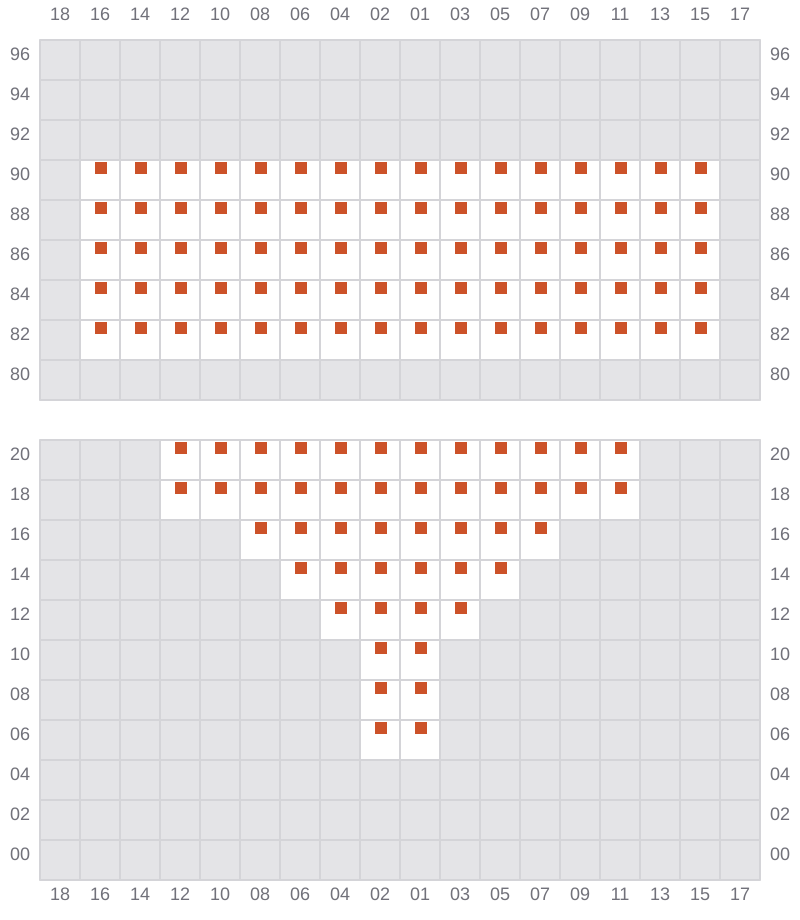

Bay 005 view and slots of PUSAN C

007 (006)

  • ←
  • ✓

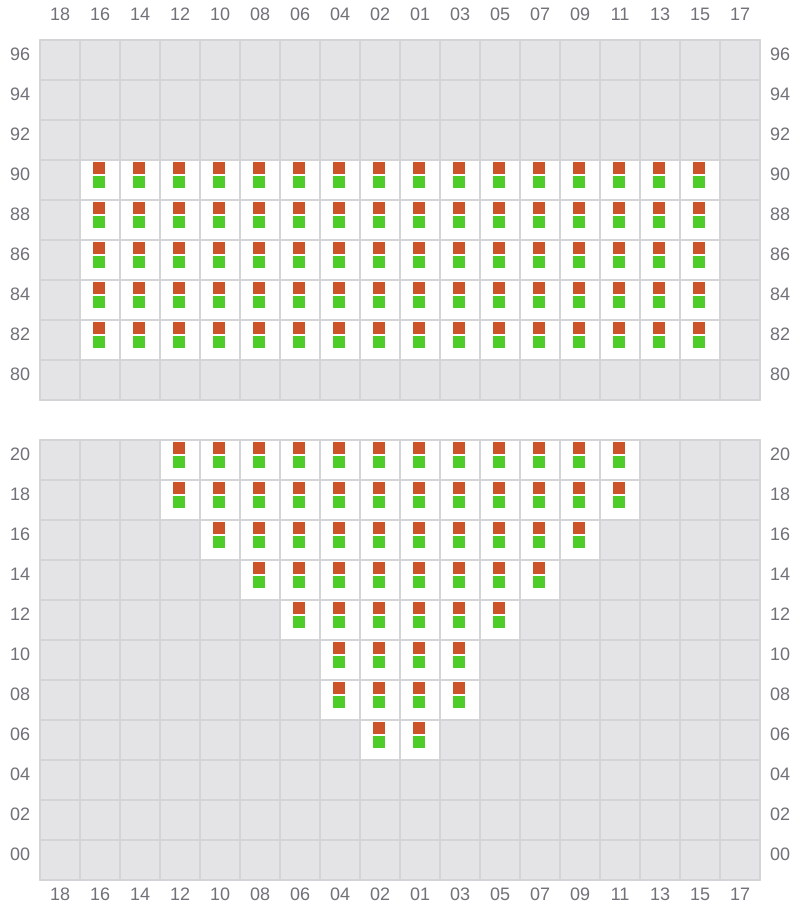

Bay 007 view and slots of PUSAN C

009

  • →
  • ✓

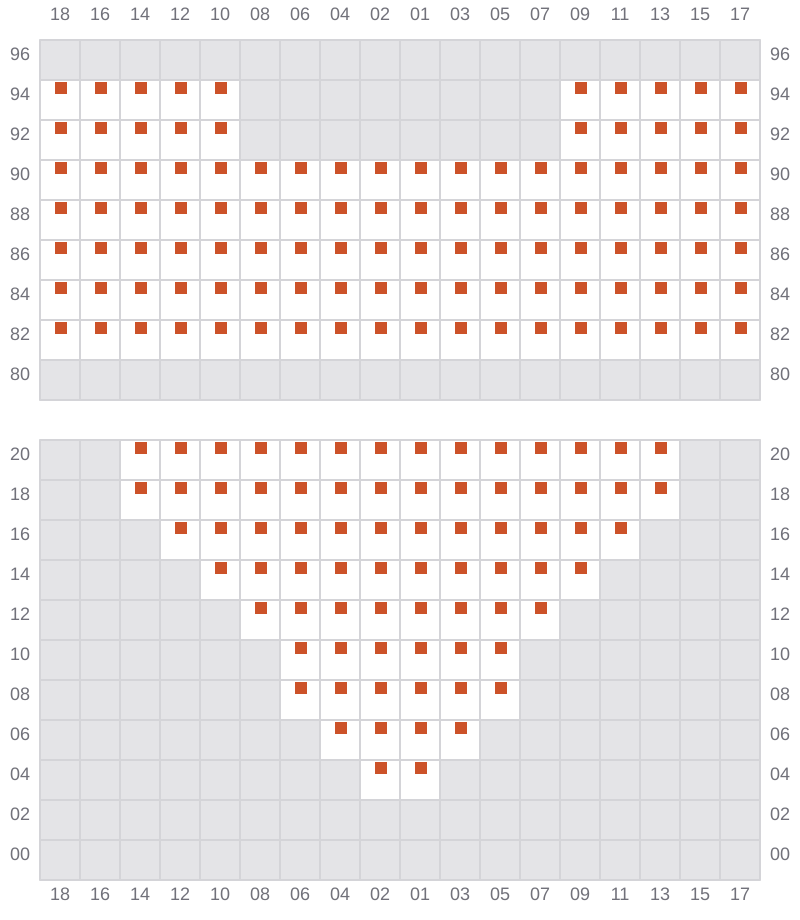

Bay 009 view and slots of PUSAN C

011 (010)

  • ←
  • ✓

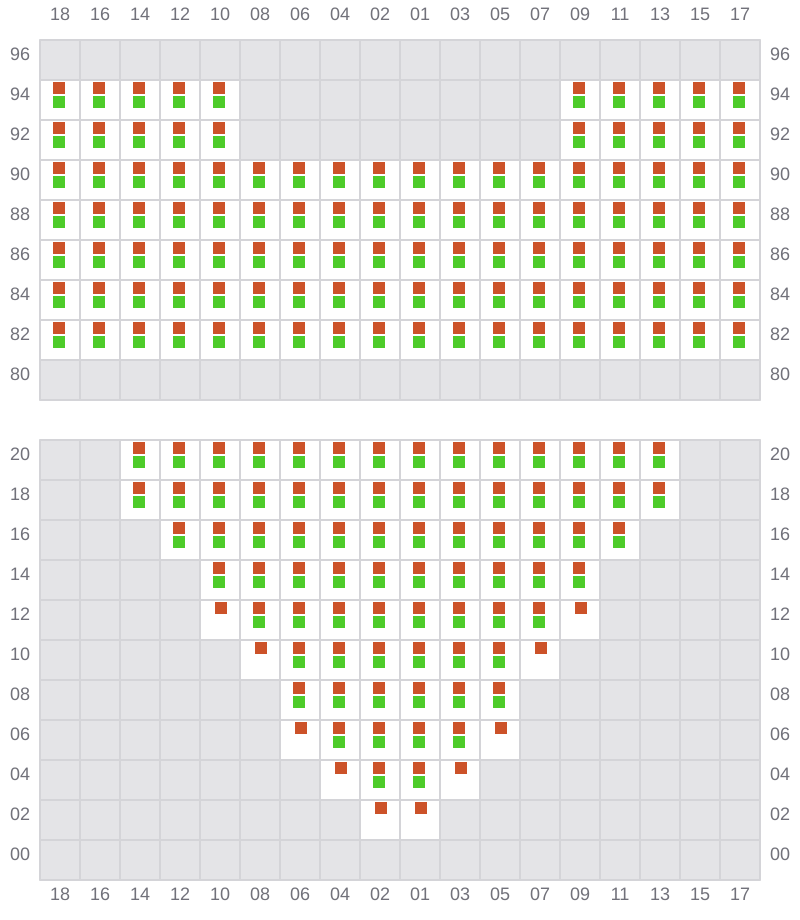

Bay 011 view and slots of PUSAN C

013

  • →
  • ✓

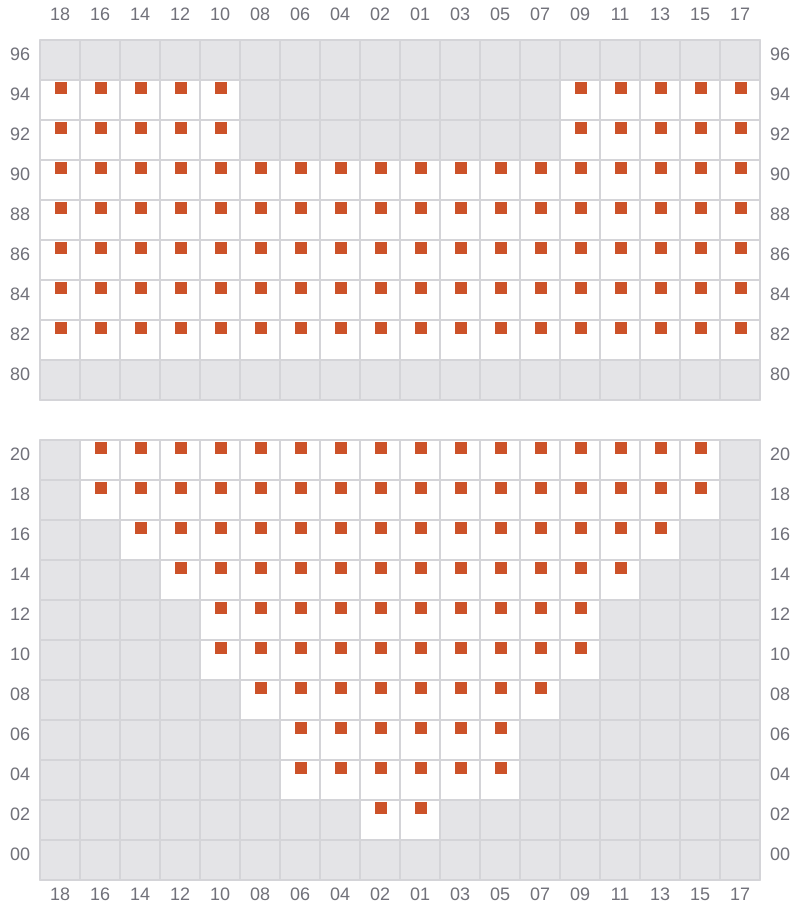

Bay 013 view and slots of PUSAN C

015 (014)

  • ←
  • ✓

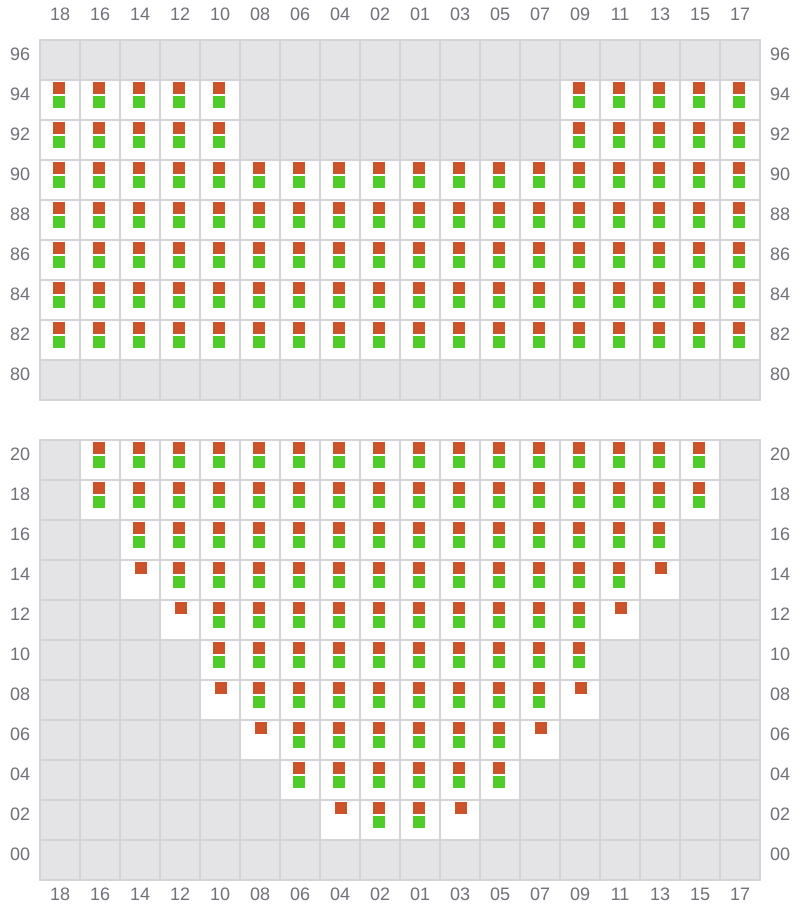

Bay 015 view and slots of PUSAN C

017

  • →
  • ✓

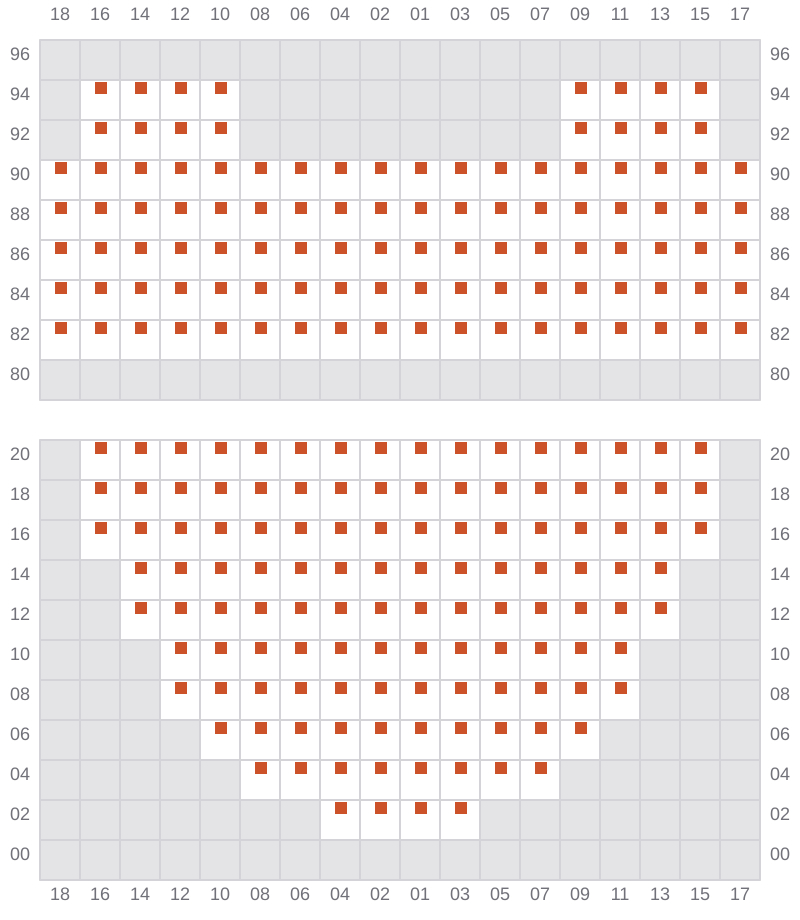

Bay 017 view and slots of PUSAN C

019 (018)

  • ←
  • ✓

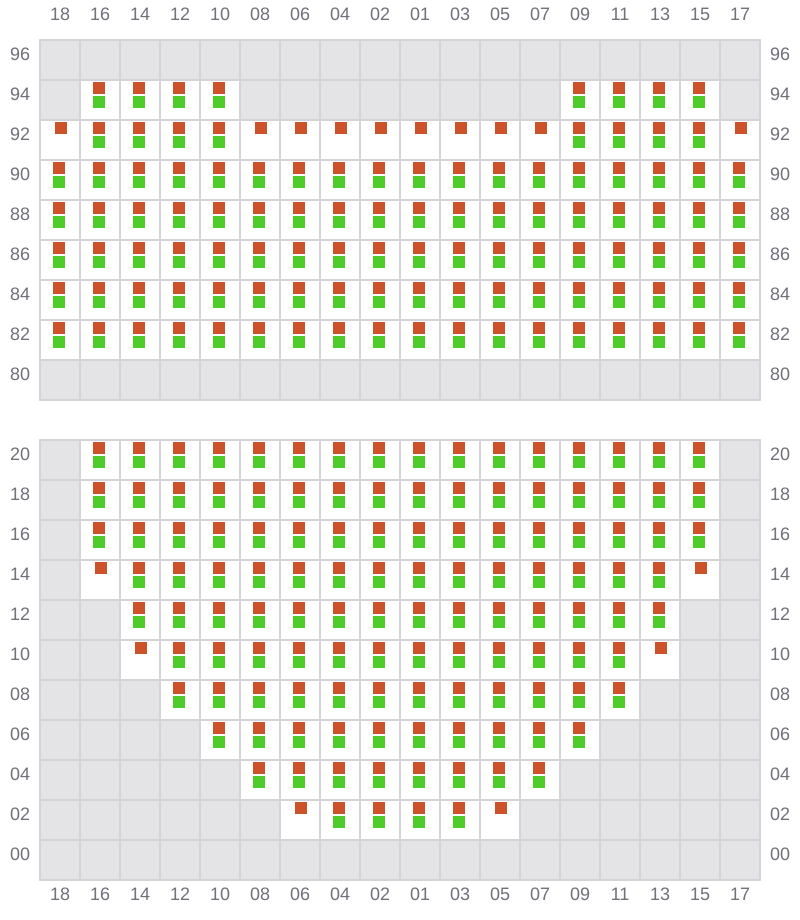

Bay 019 view and slots of PUSAN C

021

  • →
  • ✓

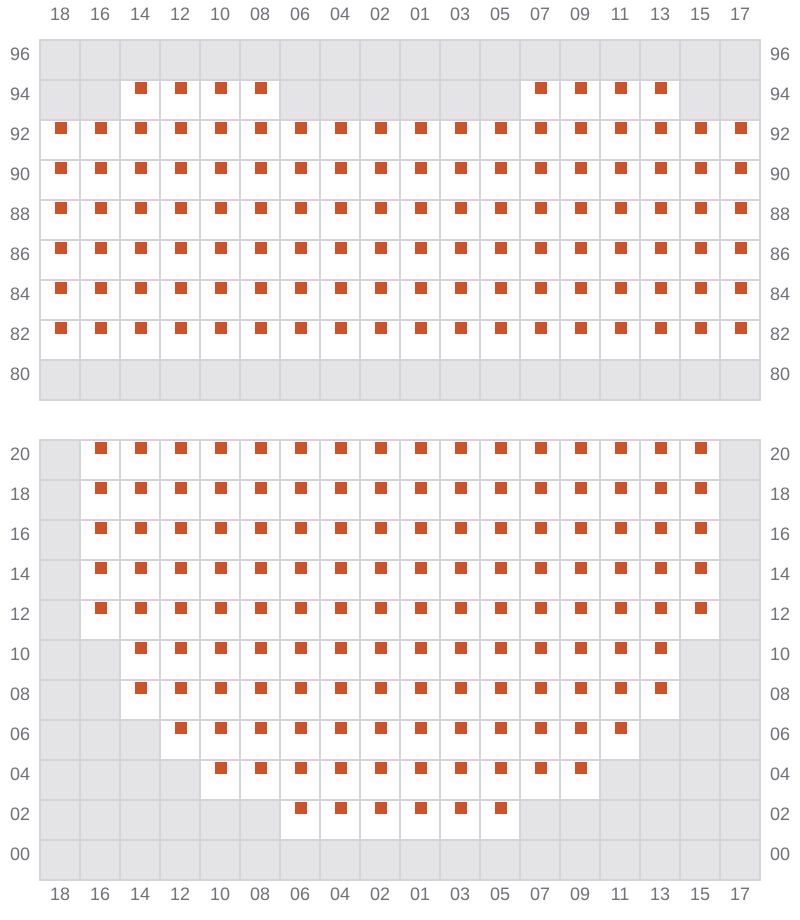

Bay 021 view and slots of PUSAN C

023 (022)

  • ←
  • ✓

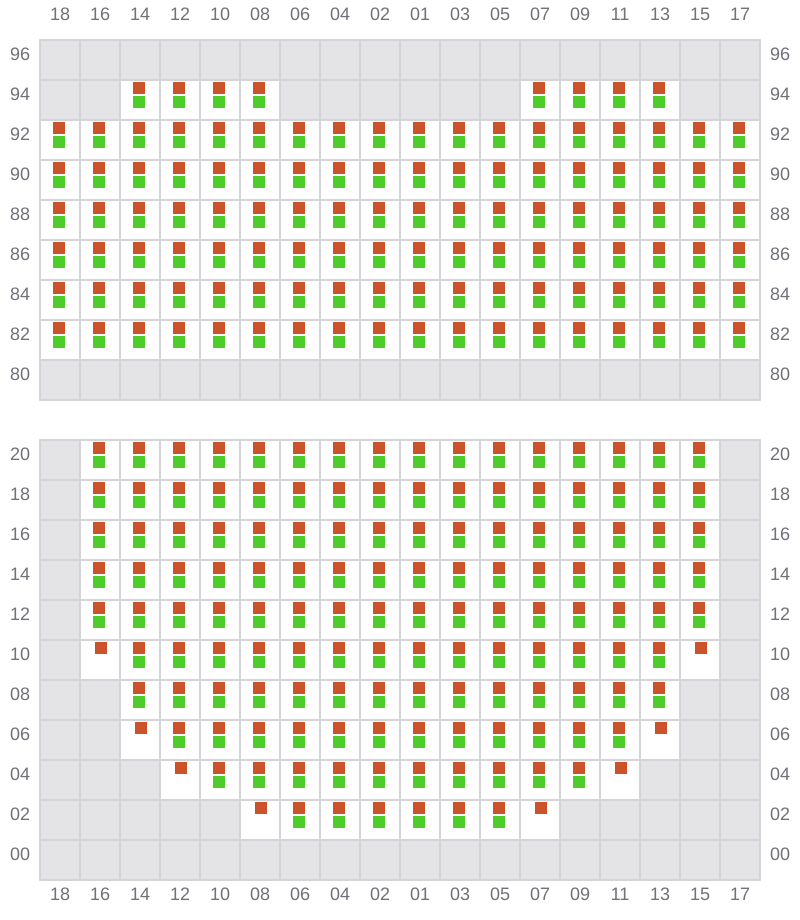

Bay 023 view and slots of PUSAN C

025

  • →
  • ✓

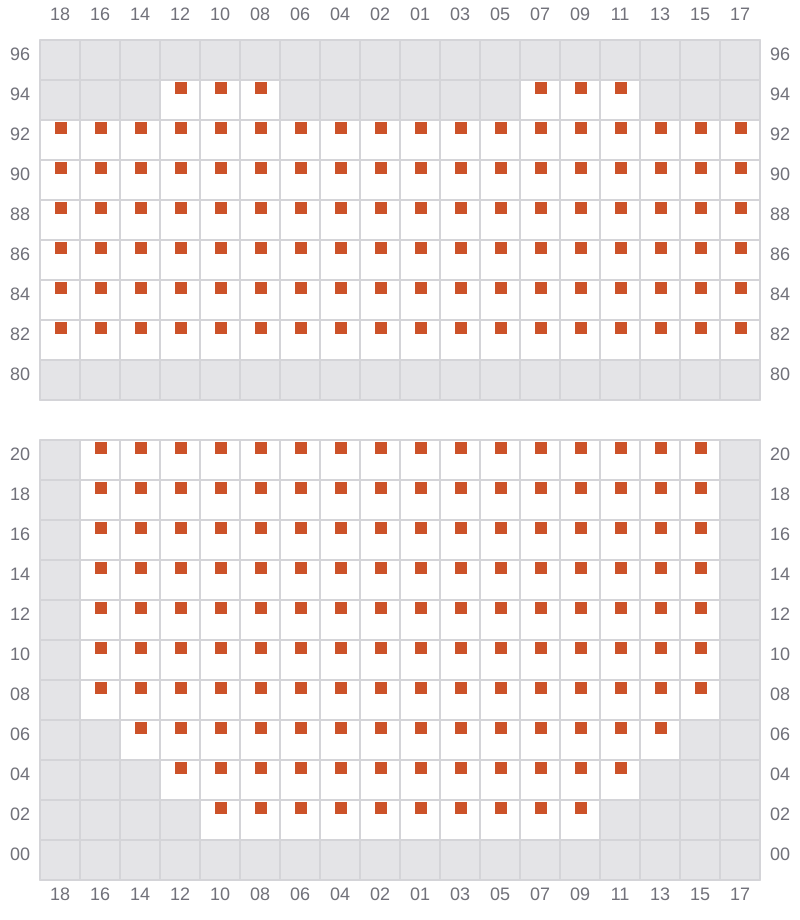

Bay 025 view and slots of PUSAN C

027 (026)

  • ←
  • ✓

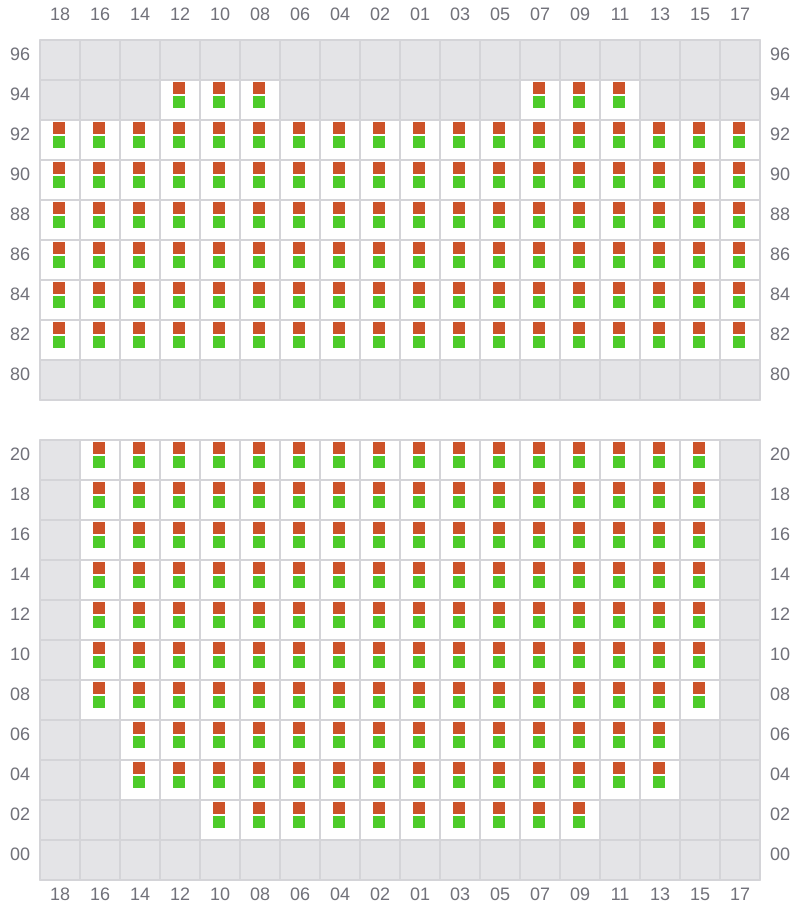

Bay 027 view and slots of PUSAN C

029

  • →
  • ✓

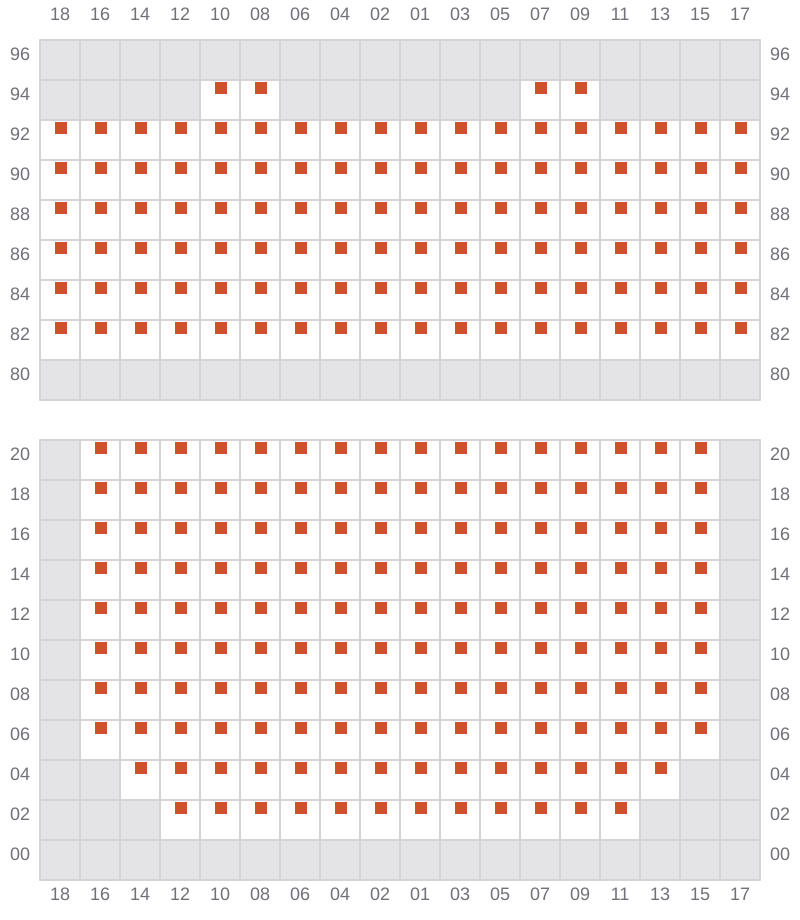

Bay 029 view and slots of PUSAN C

031 (030)

  • ←
  • ✓

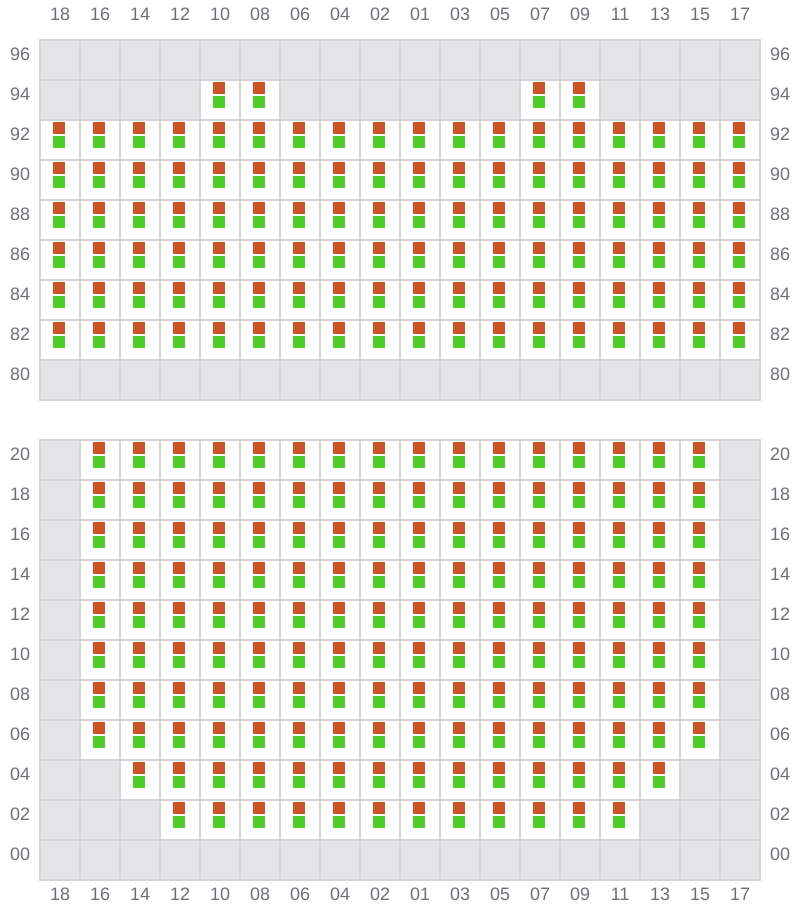

Bay 031 view and slots of PUSAN C

033

  • →
  • ✓
Bay 033 view and slots of PUSAN C

035 (034)

  • ←
  • ✓
Bay 035 view and slots of PUSAN C

037

  • →
  • ✓
Bay 037 view and slots of PUSAN C

039 (038)

  • ←
  • ✓
Bay 039 view and slots of PUSAN C

041

  • →
  • ✓

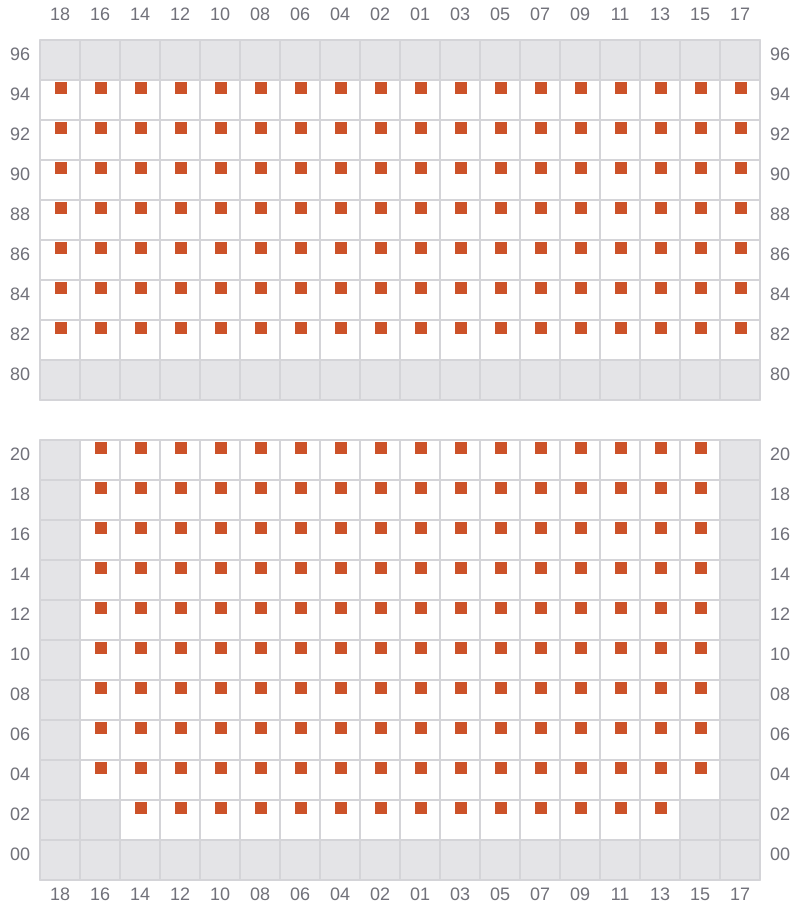

Bay 041 view and slots of PUSAN C

043 (042)

  • ←
  • ✓

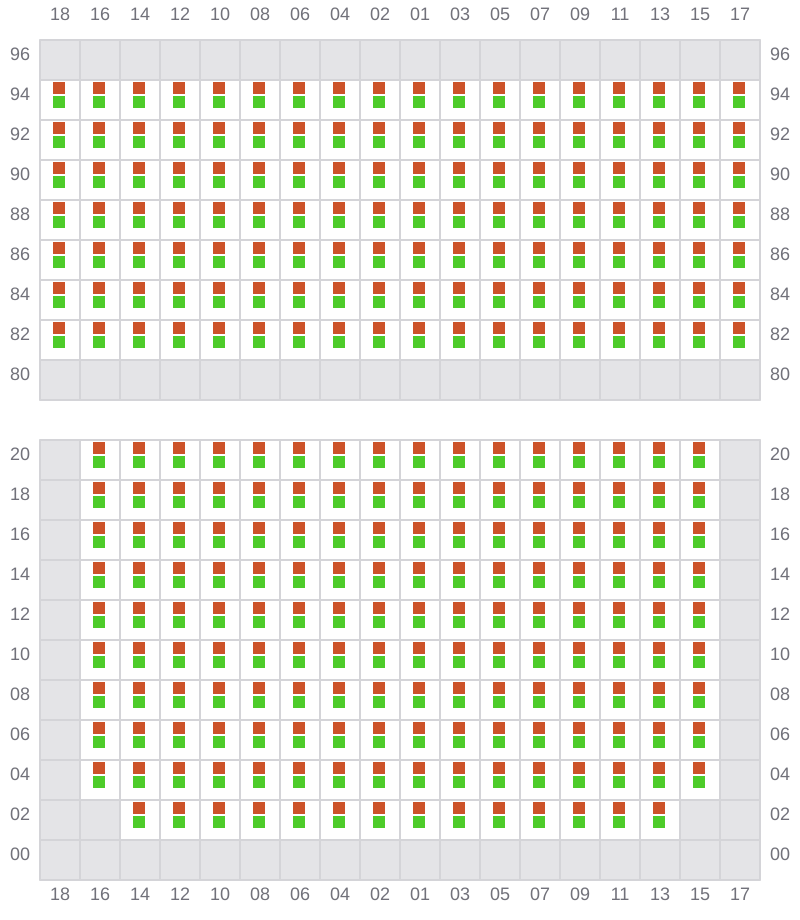

Bay 043 view and slots of PUSAN C

045

  • →
  • ✓
Bay 045 view and slots of PUSAN C

047 (046)

  • ←
  • ✓

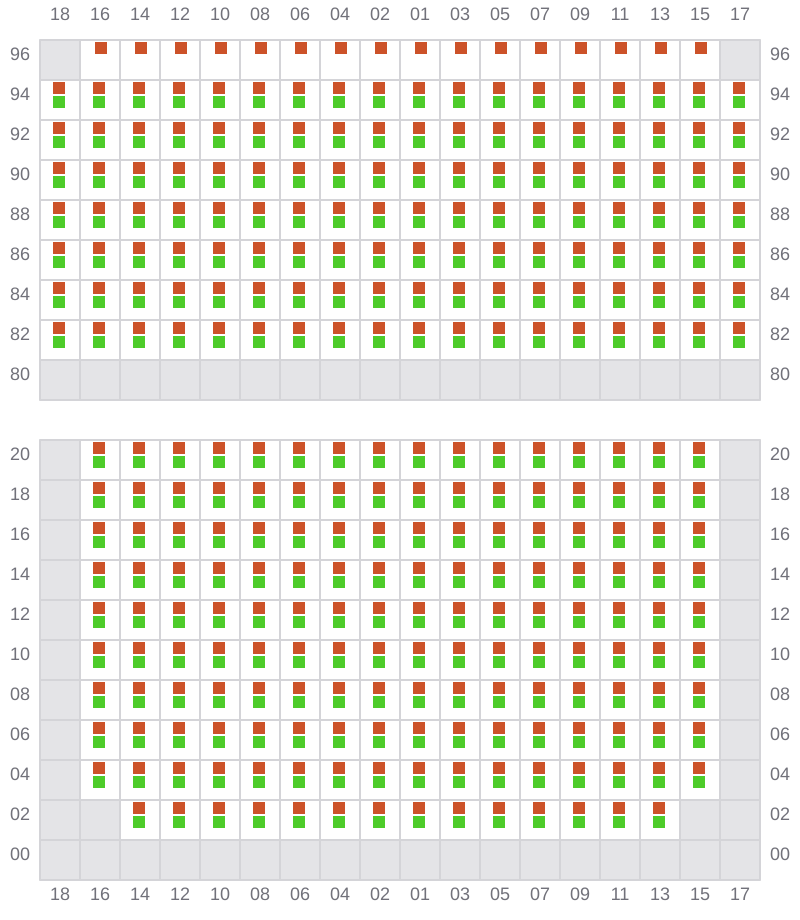

Bay 047 view and slots of PUSAN C

049

  • →
  • ✓

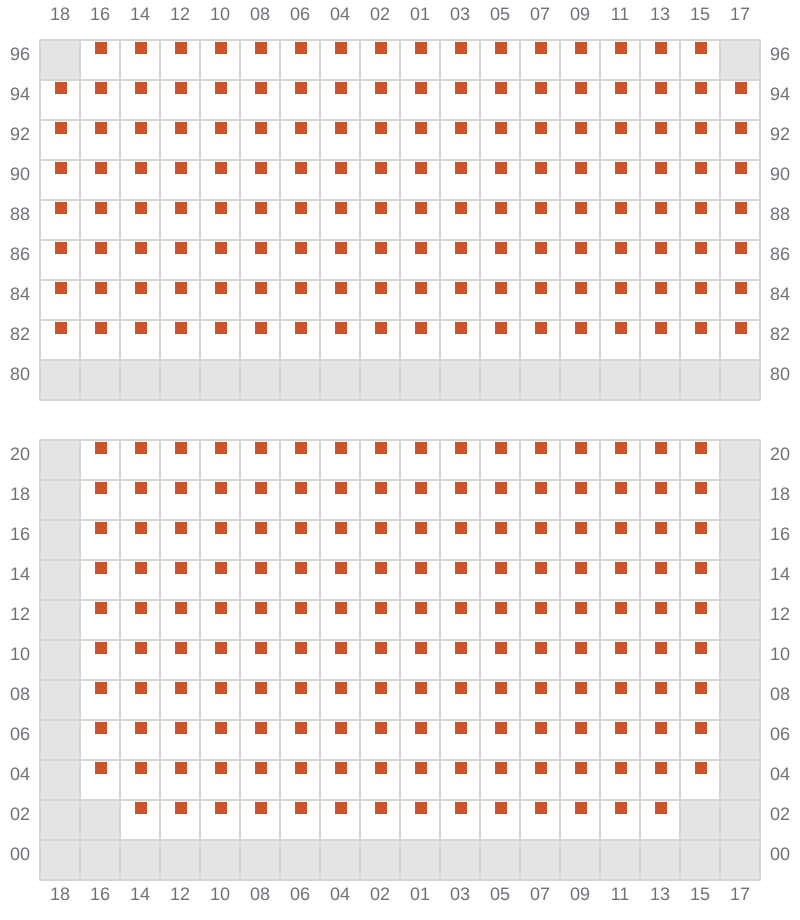

Bay 049 view and slots of PUSAN C

051 (050)

  • ←
  • ✓

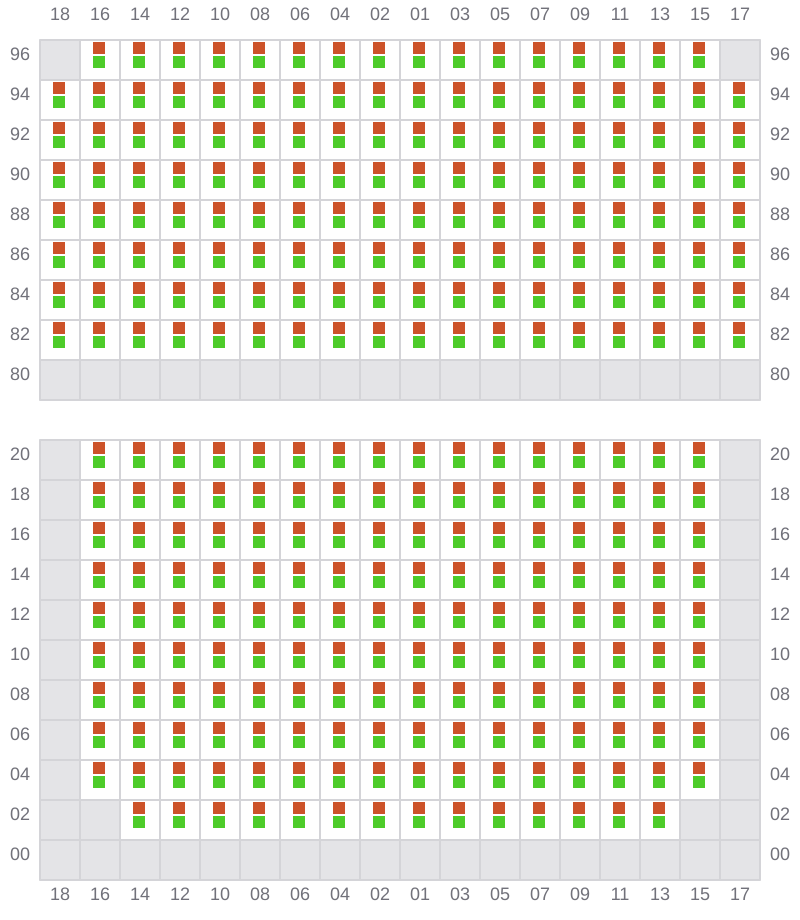

Bay 051 view and slots of PUSAN C

053

  • →
  • ✓

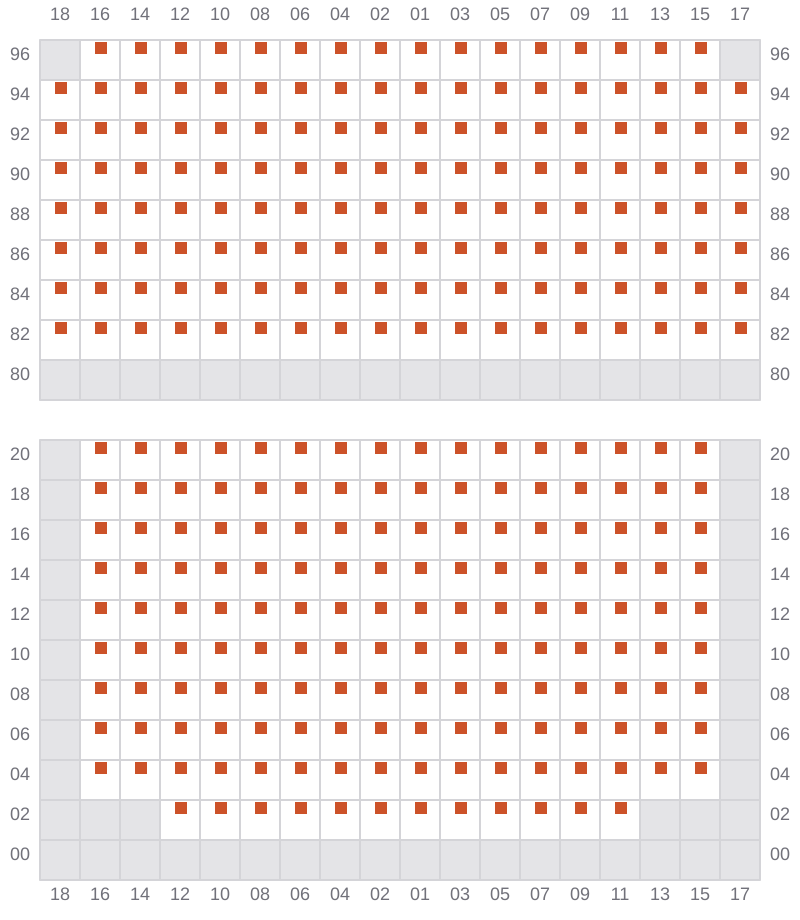

Bay 053 view and slots of PUSAN C

055 (054)

  • ←
  • ✓

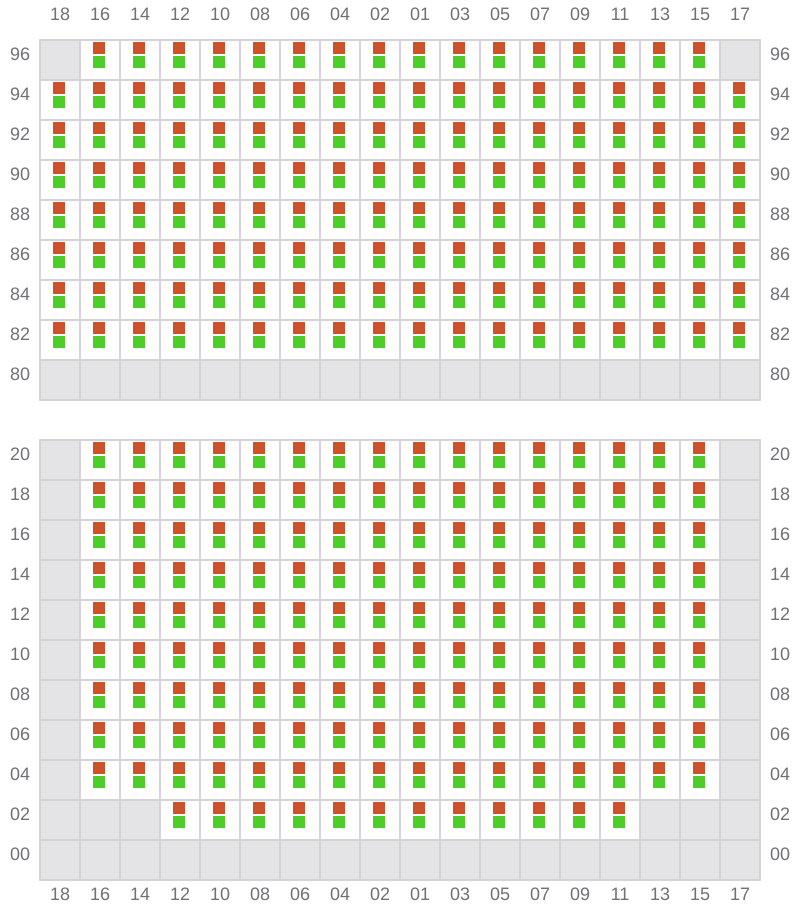

Bay 055 view and slots of PUSAN C

057

  • →
  • ✓

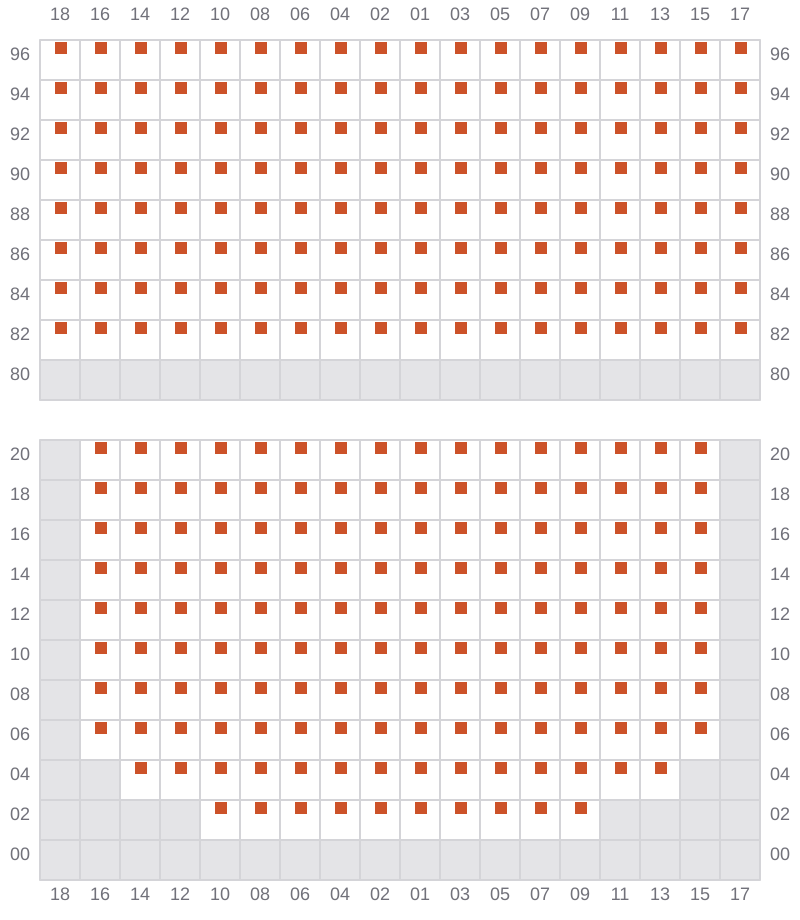

Bay 057 view and slots of PUSAN C

059 (058)

  • ←
  • ✓

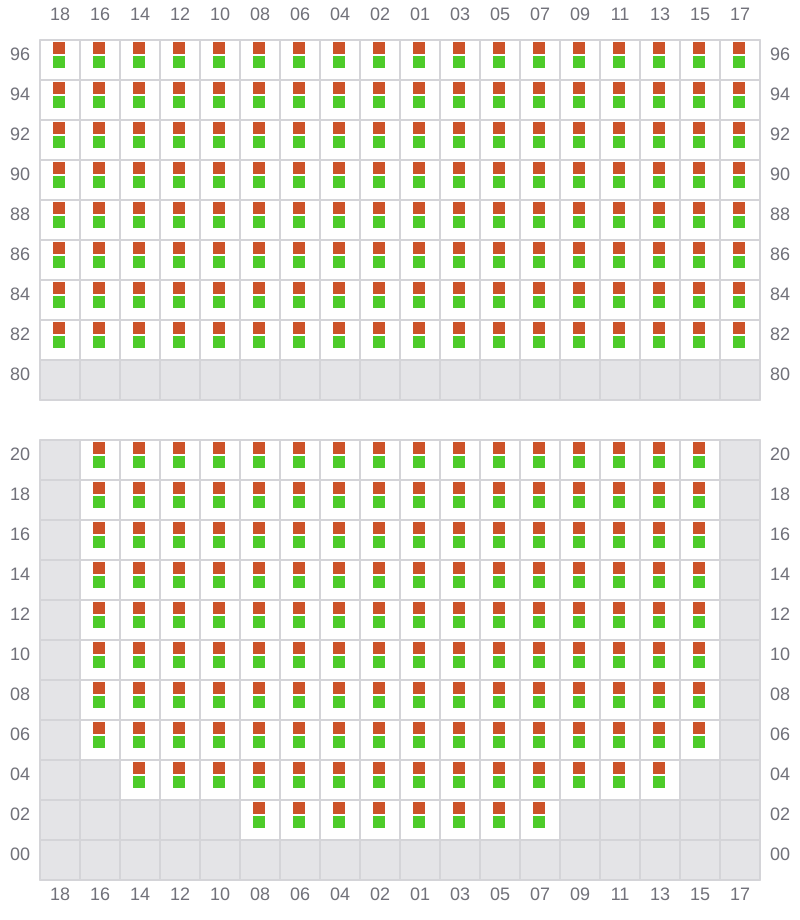

Bay 059 view and slots of PUSAN C

061

  • →
  • ✓

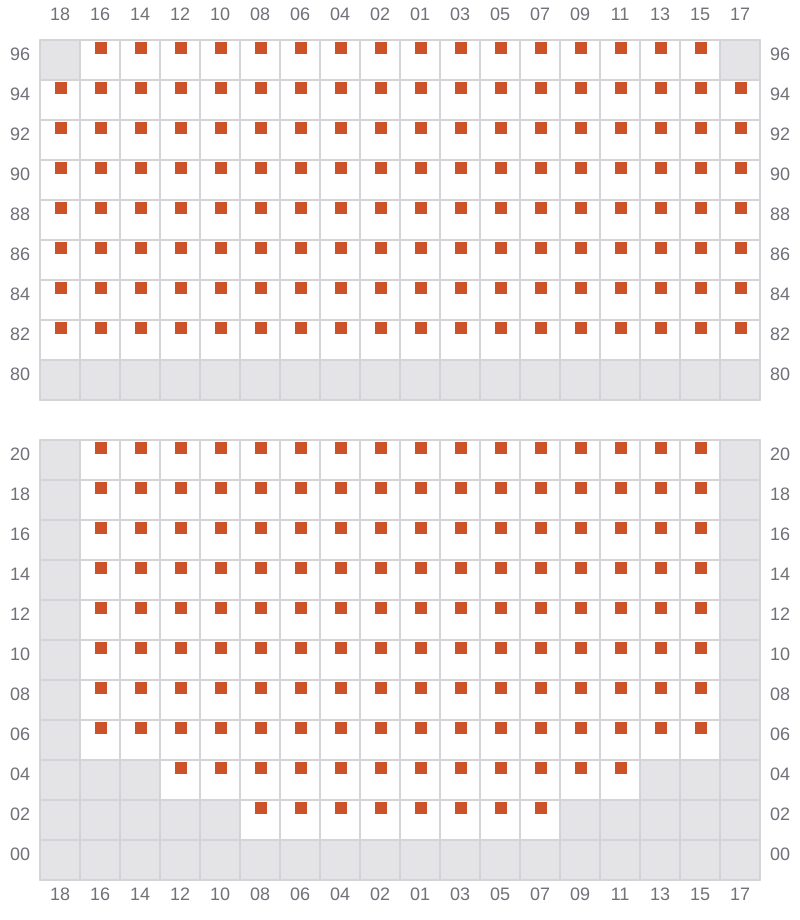

Bay 061 view and slots of PUSAN C

063 (062)

  • ←
  • ✓

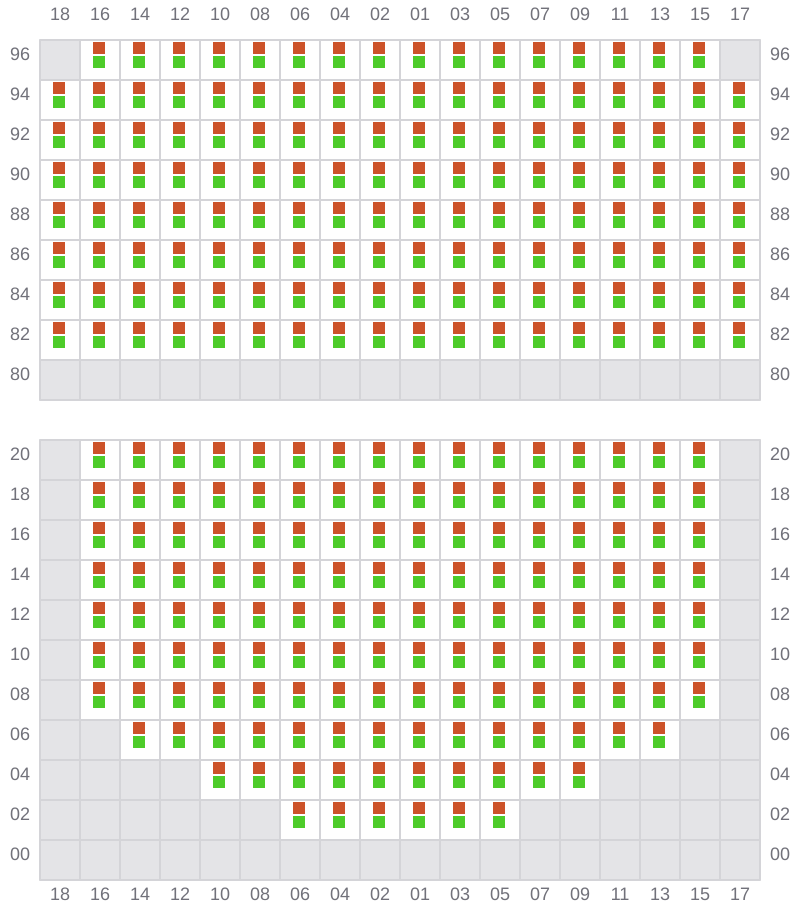

Bay 063 view and slots of PUSAN C

065

  • →
  • ✓
Bay 065 view and slots of PUSAN C

067 (066)

  • ←
  • ✓

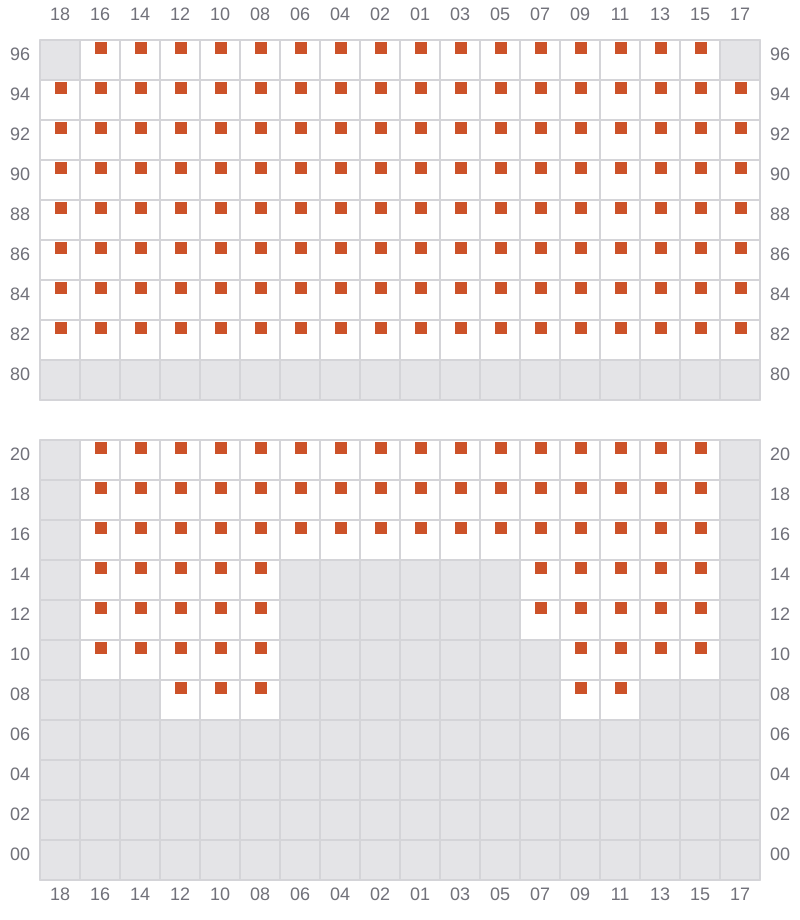

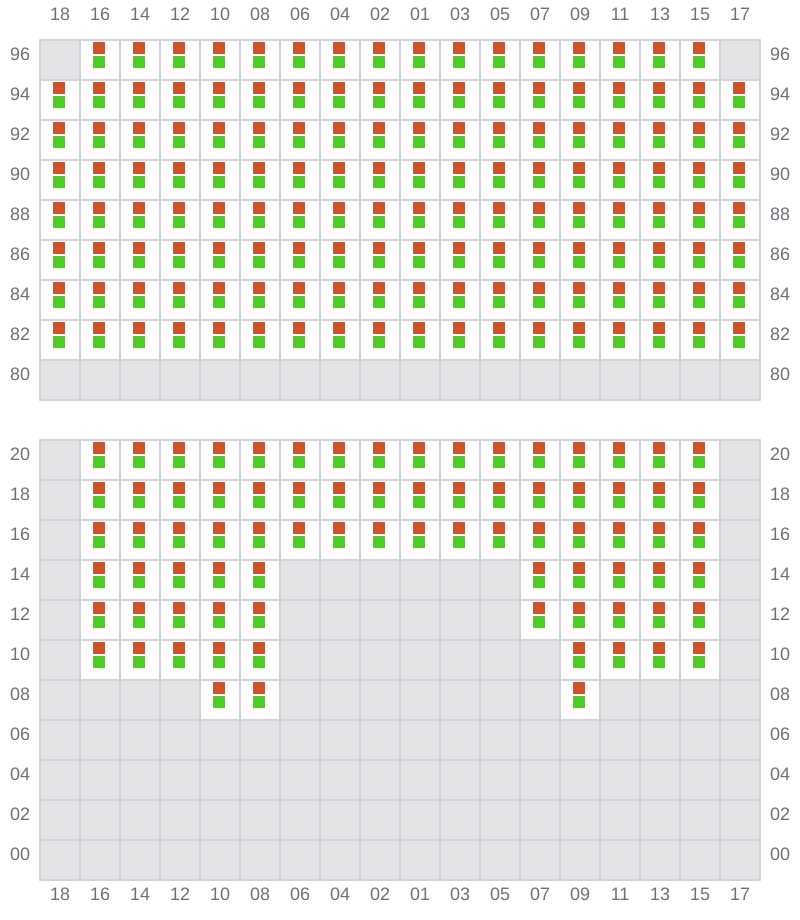

Bay 067 view and slots of PUSAN C

069

  • →
  • ✓

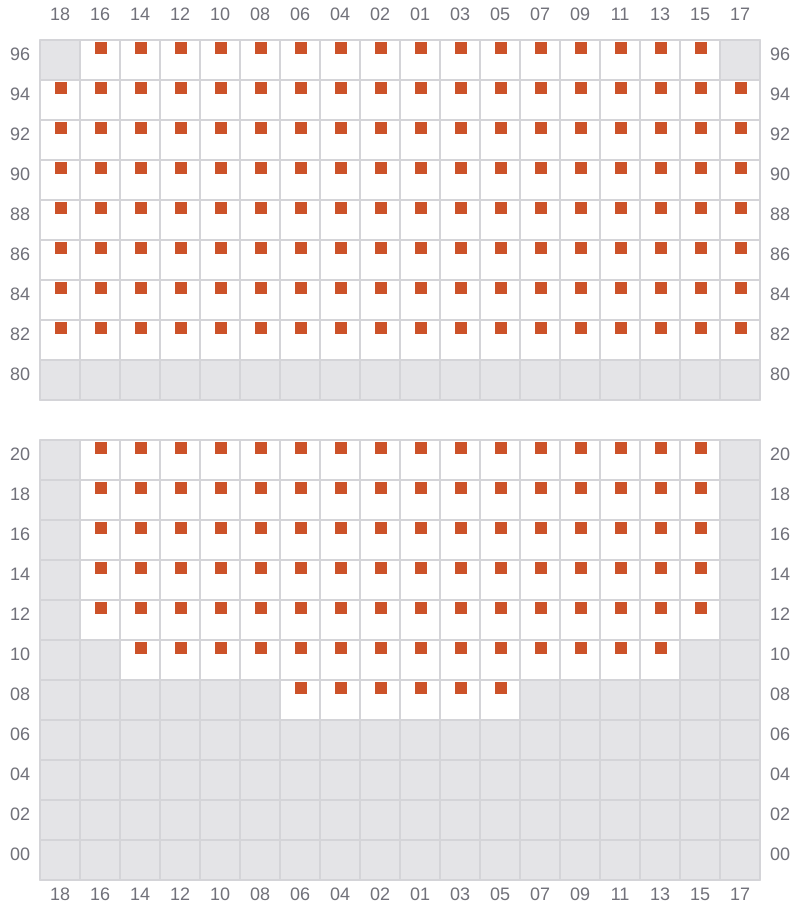

Bay 069 view and slots of PUSAN C

071 (070)

  • ←
  • ✓

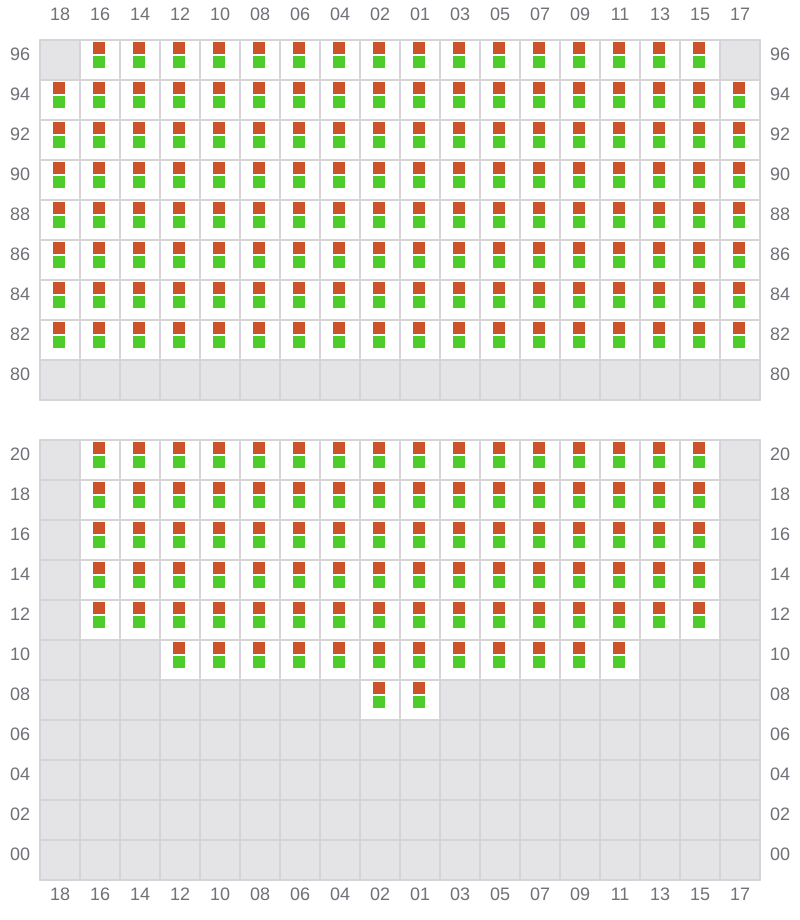

Bay 071 view and slots of PUSAN C

073

  • →
  • ✓

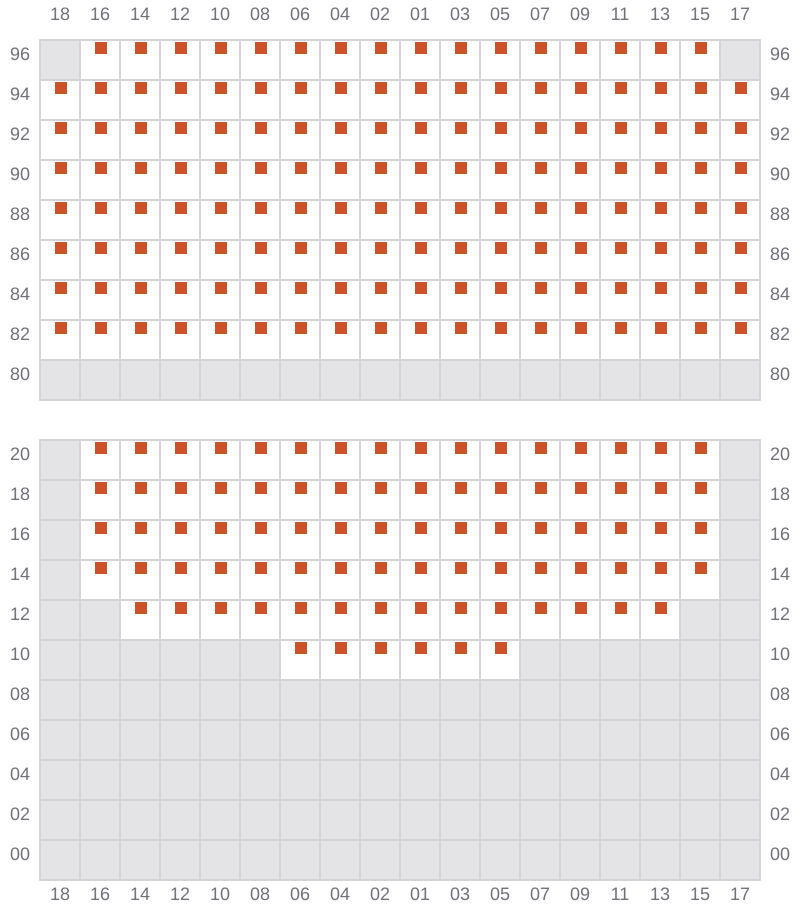

Bay 073 view and slots of PUSAN C

075 (074)

  • ←
  • ✓
Bay 075 view and slots of PUSAN C

077

  • →
  • ✓

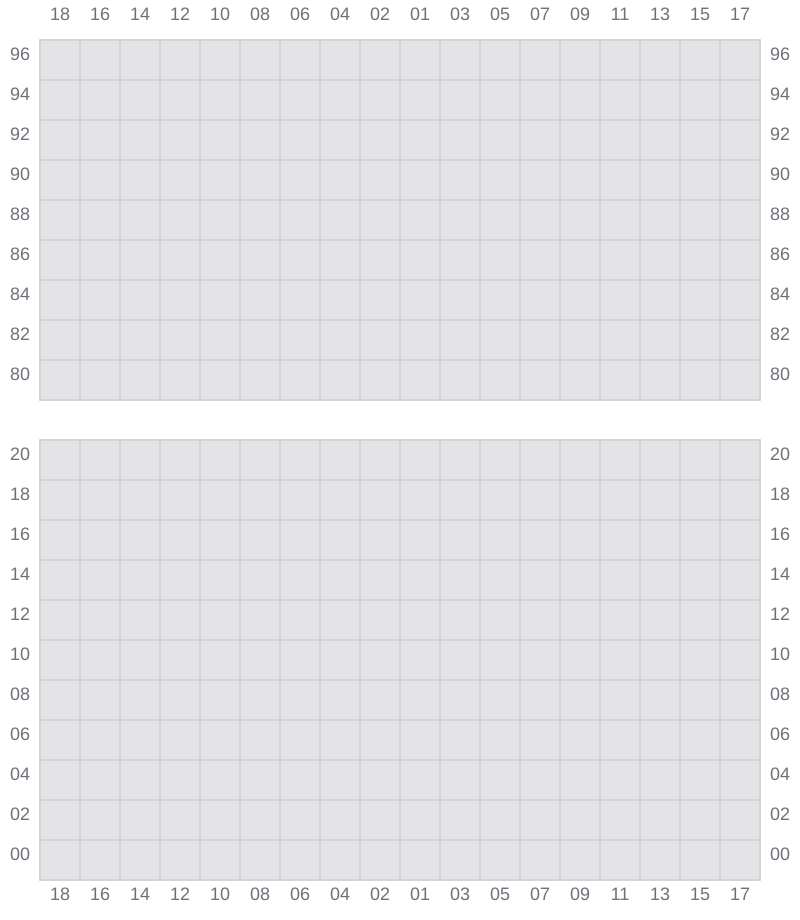

Bay 077 view and slots of PUSAN C

079 (078)

  • ←
  • ? / ?
  • ? / ?
  • ✓

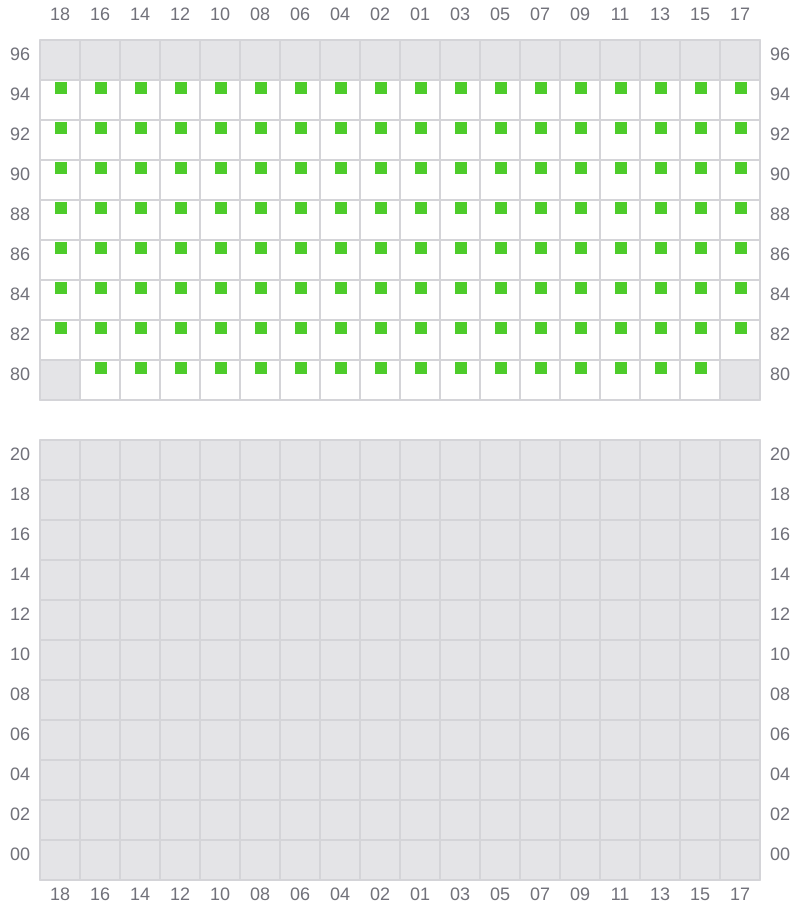

Bay 079 view and slots of PUSAN C
