QING YUN HE
9214513 | BOMW | 9214513 by ********* Last update: Wed May 08 2024

General Info

Ship Name:QING YUN HE
IMO Code:9214513
Call Sign:BOMW
Line Operator:9214513
Class Name for Sister Ships:QING YUN HE
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,702

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of QING YUN HE

Hatch-Covers View

Deck view of QING YUN HE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

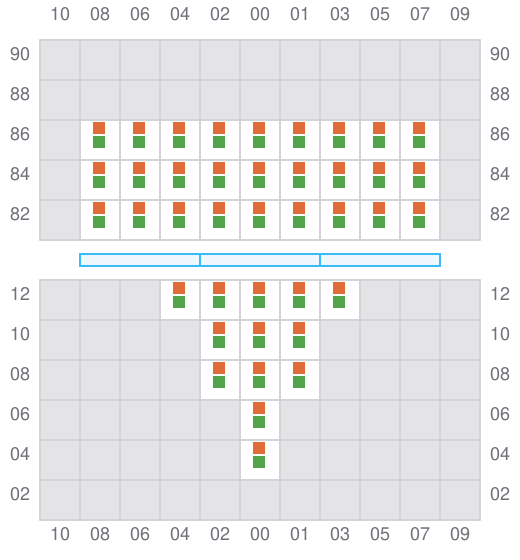

001 (002)

  • →
Bay 001 view and slots of QING YUN HE

003

  • ←

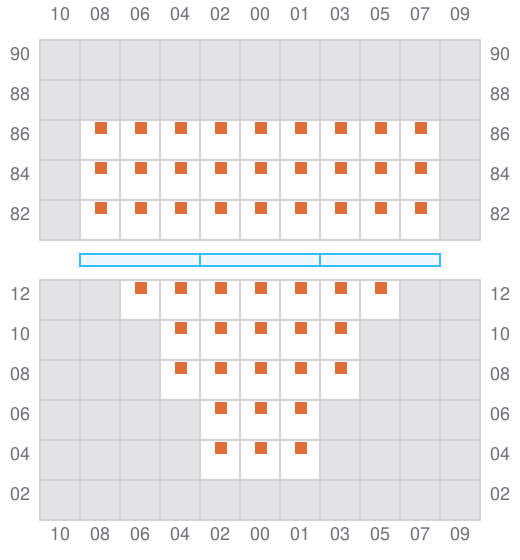

Bay 003 view and slots of QING YUN HE

005 (006)

  • →
Bay 005 view and slots of QING YUN HE

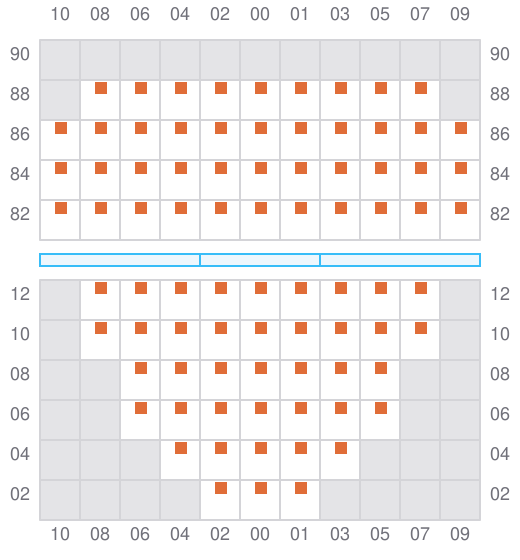

007

  • ←
Bay 007 view and slots of QING YUN HE

009 (010)

  • →

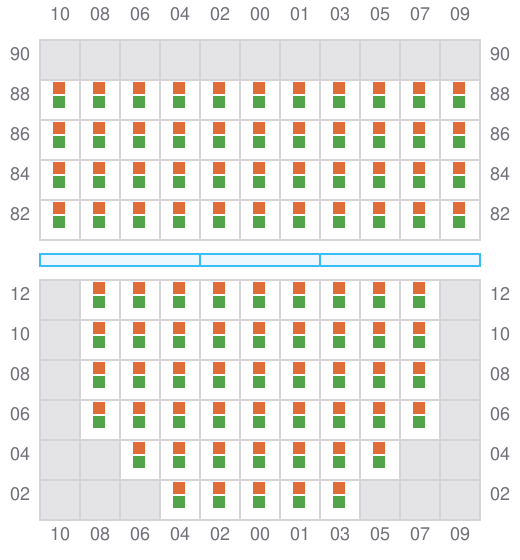

Bay 009 view and slots of QING YUN HE

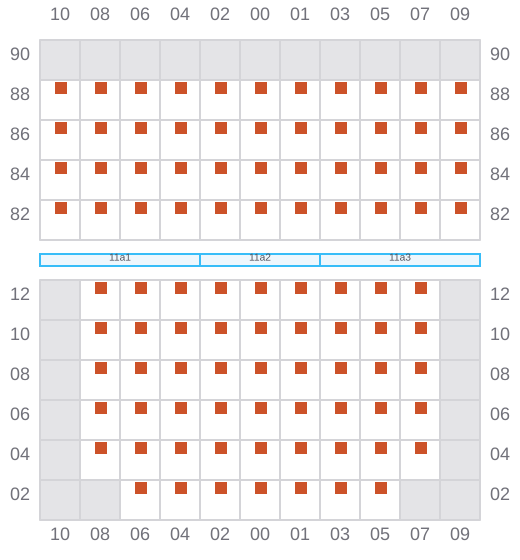

011

  • ←
Bay 011 view and slots of QING YUN HE

013 (014)

  • →
Bay 013 view and slots of QING YUN HE

015

  • ←
Bay 015 view and slots of QING YUN HE

017 (018)

  • →

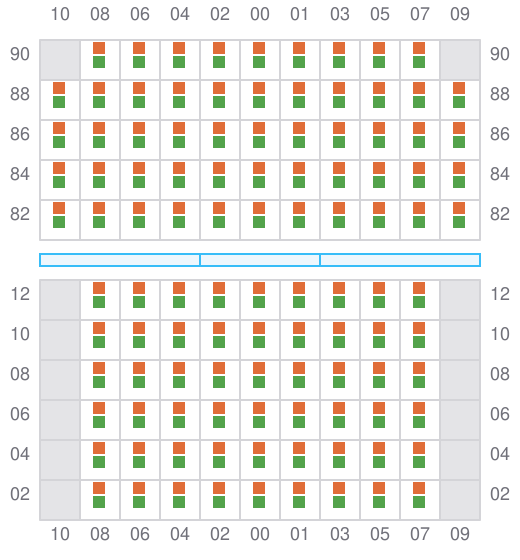

Bay 017 view and slots of QING YUN HE

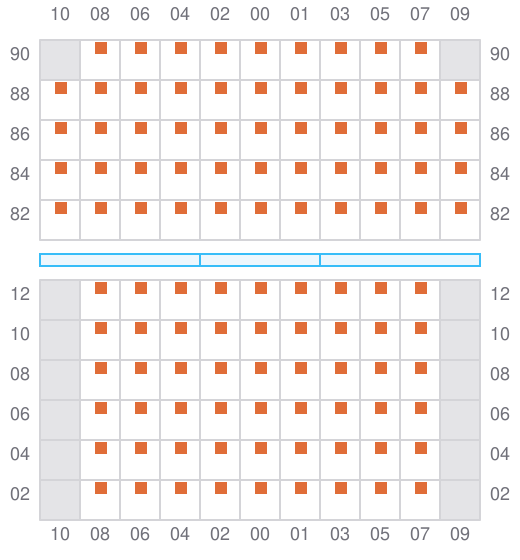

019

  • ←
Bay 019 view and slots of QING YUN HE

021 (022)

  • →

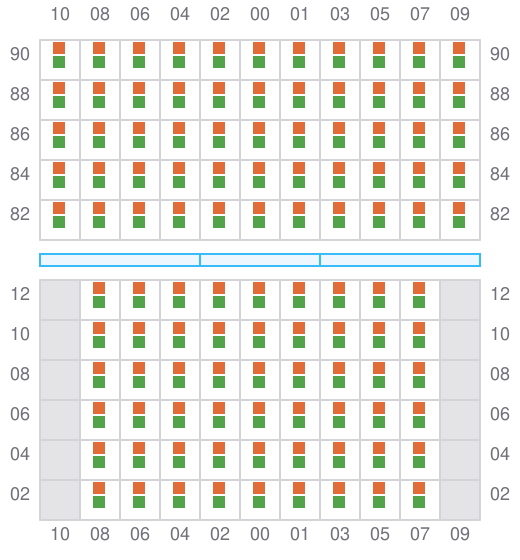

Bay 021 view and slots of QING YUN HE

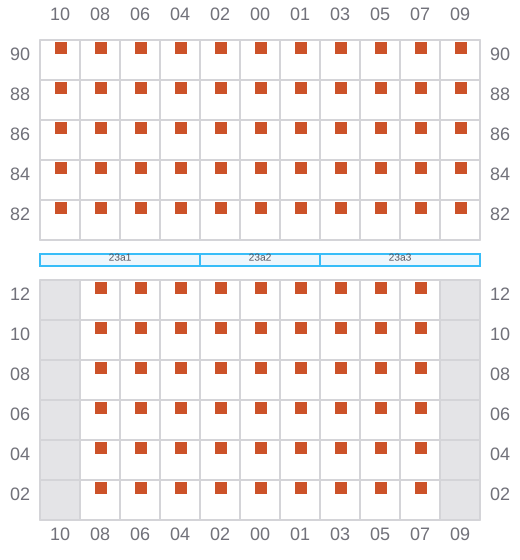

023

  • ←
Bay 023 view and slots of QING YUN HE

025 (026)

  • →

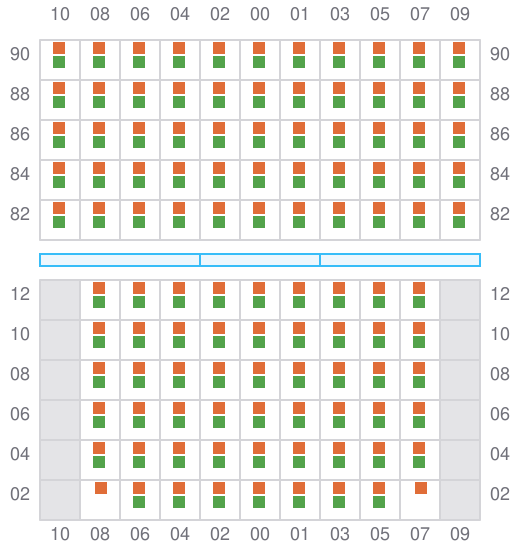

Bay 025 view and slots of QING YUN HE

027

  • ←

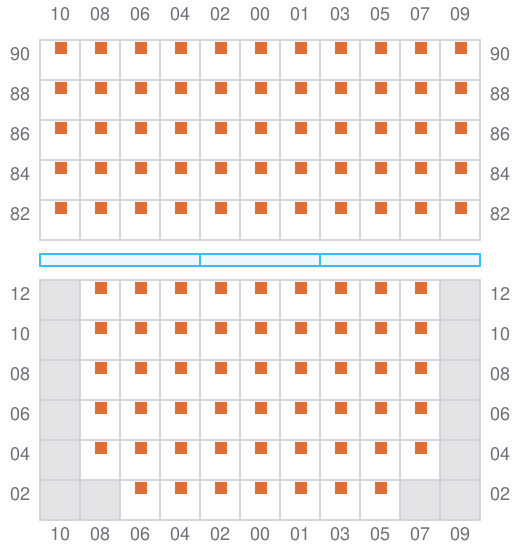

Bay 027 view and slots of QING YUN HE

029 (030)

  • →

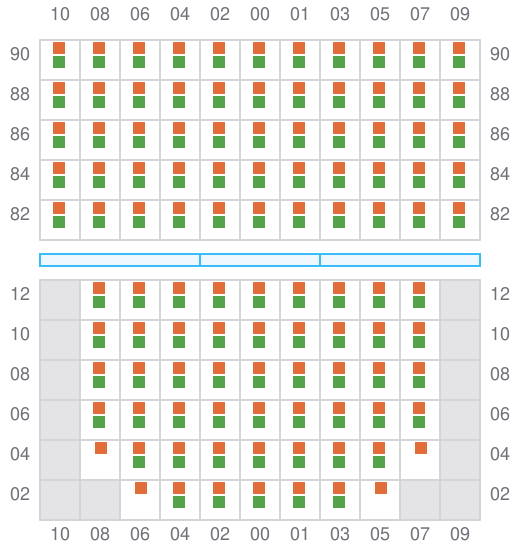

Bay 029 view and slots of QING YUN HE

031

  • ←

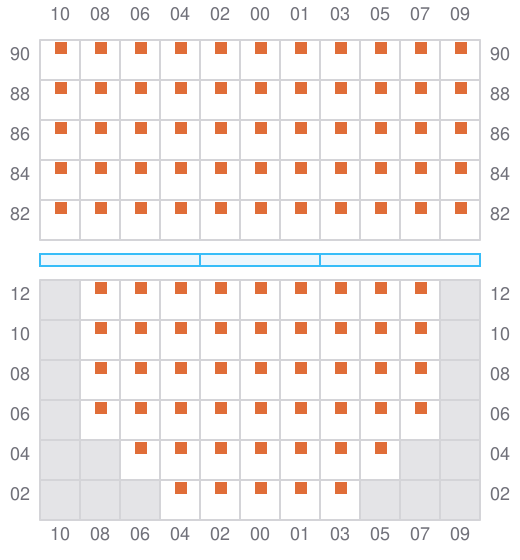

Bay 031 view and slots of QING YUN HE

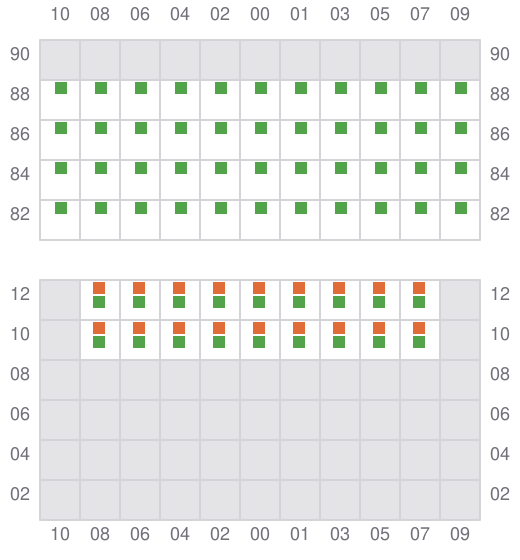

033 (034)

  • →
Bay 033 view and slots of QING YUN HE

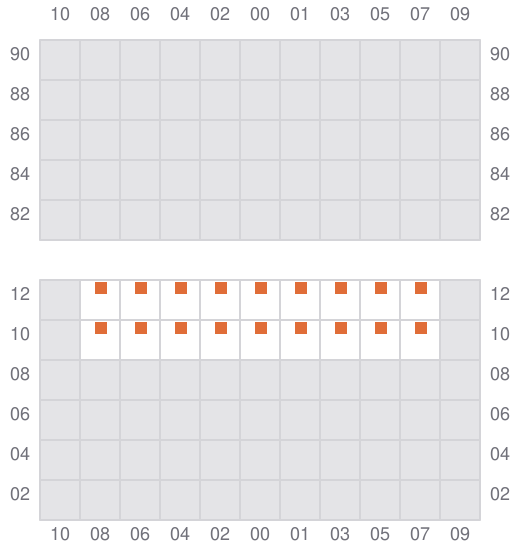

035

  • ? / ←
Bay 035 view and slots of QING YUN HE

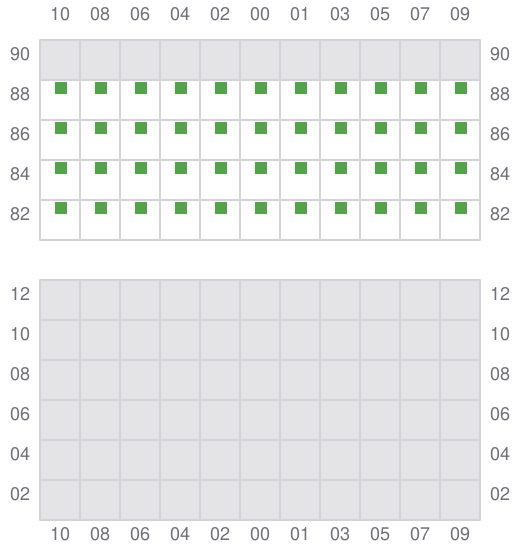

037 (038)

  • → / ?
Bay 037 view and slots of QING YUN HE
