QINGDAO TOWER
9233832 | D5DN9 | MSC by ************************** Last update: Mon Jun 19 2023

General Info

Ship Name:QINGDAO TOWER
IMO Code:9233832
Call Sign:D5DN9
Line Operator:MSC
Class Name for Sister Ships:QDT
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,253

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

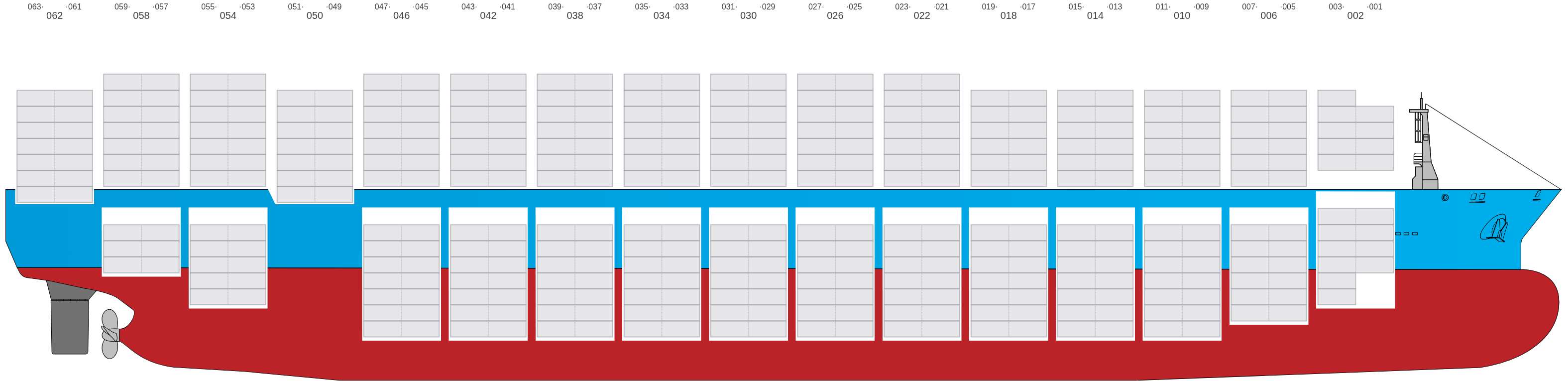

Side View

Side view of QINGDAO TOWER

Hatch-Covers View

Deck view of QINGDAO TOWER

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

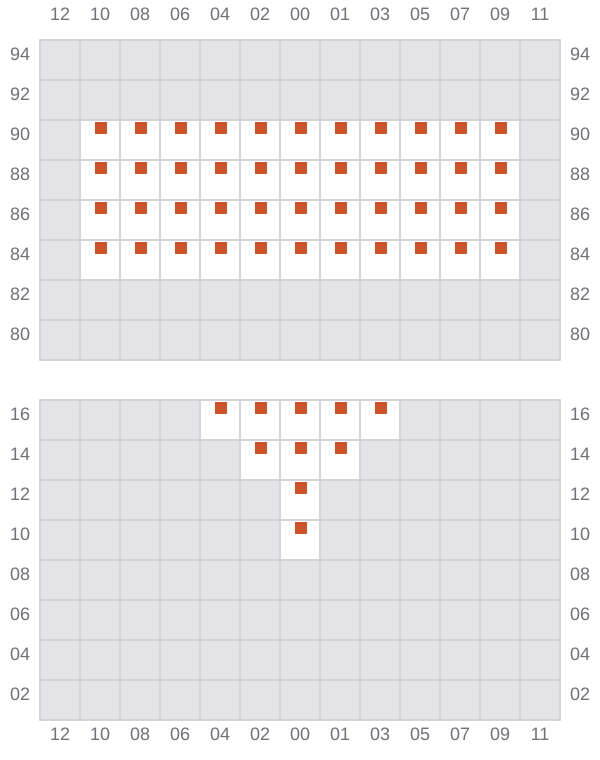

Bay 001 view and slots of QINGDAO TOWER

003 (002)

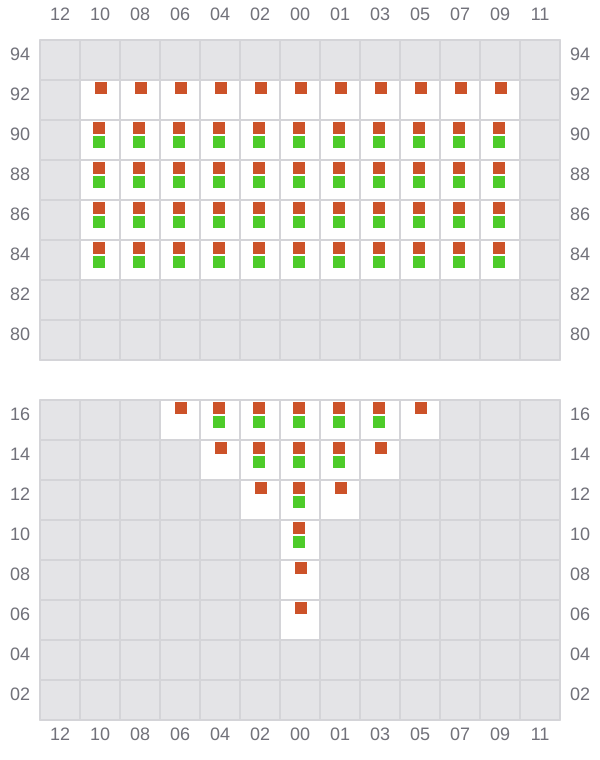

Bay 003 view and slots of QINGDAO TOWER

005

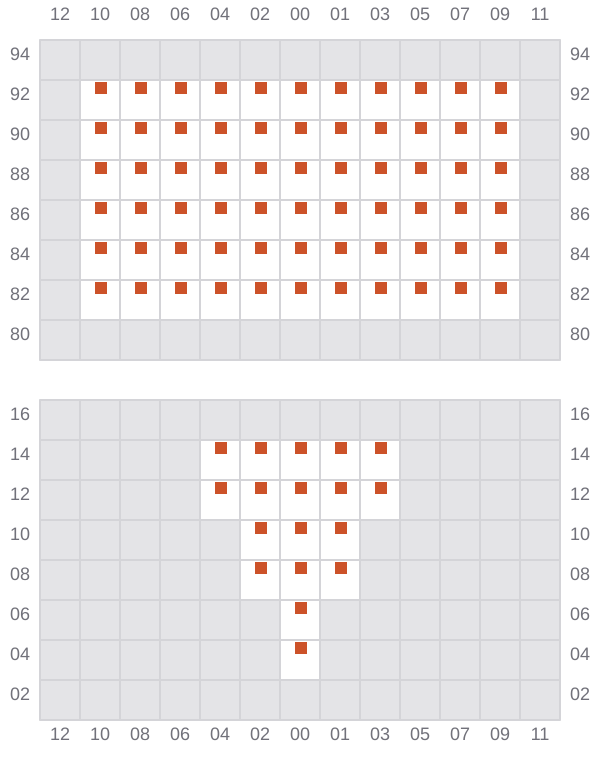

Bay 005 view and slots of QINGDAO TOWER

007 (006)

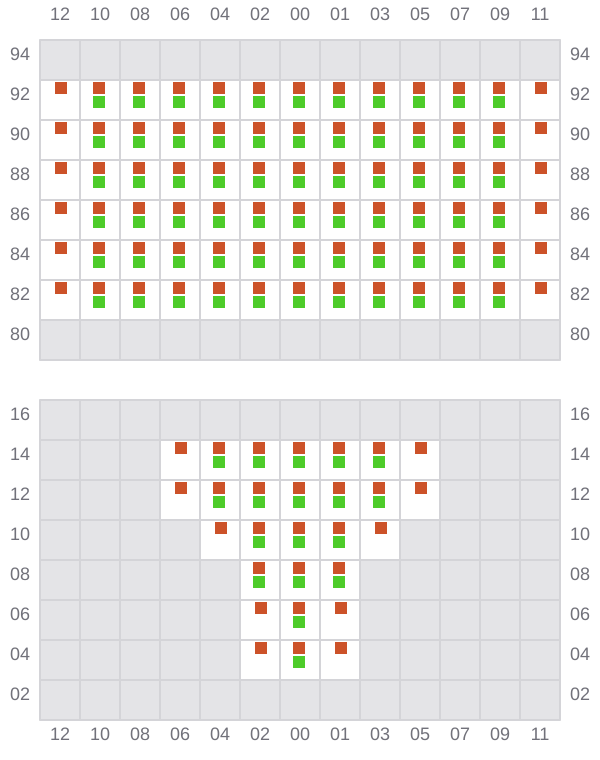

Bay 007 view and slots of QINGDAO TOWER

009

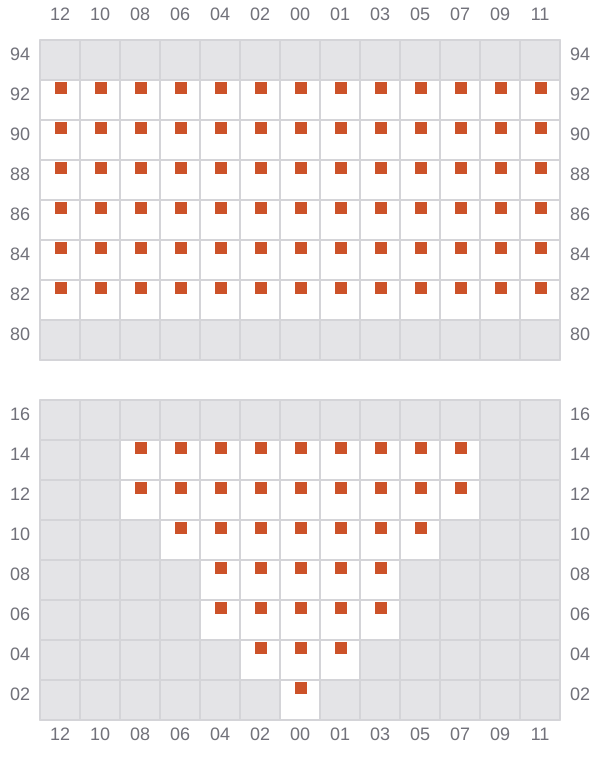

Bay 009 view and slots of QINGDAO TOWER

011 (010)

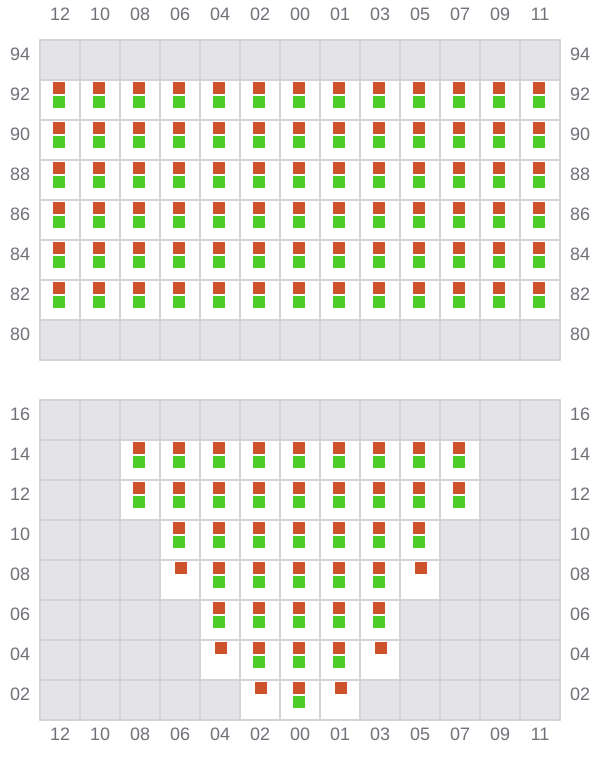

Bay 011 view and slots of QINGDAO TOWER

013

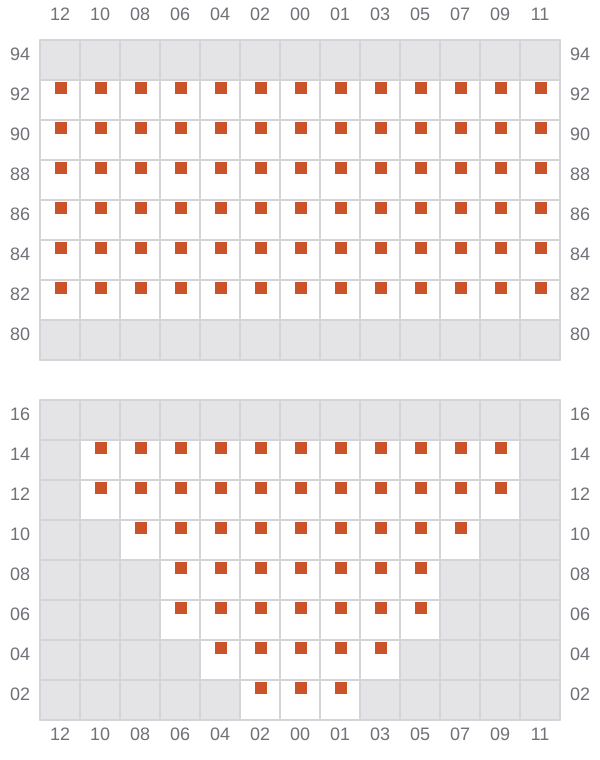

Bay 013 view and slots of QINGDAO TOWER

015 (014)

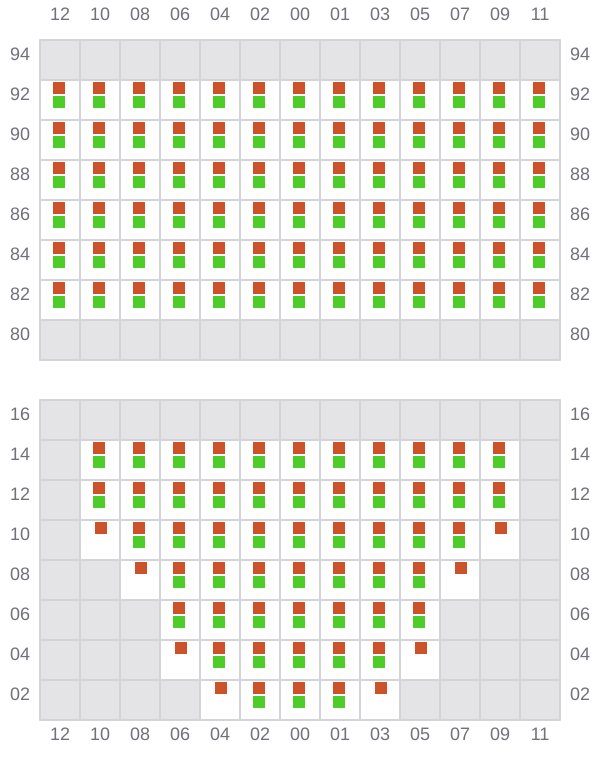

Bay 015 view and slots of QINGDAO TOWER

017

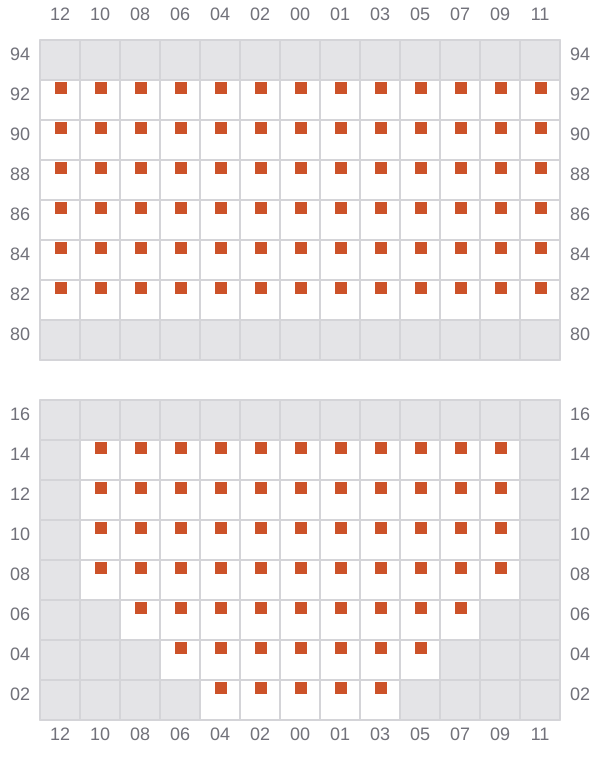

Bay 017 view and slots of QINGDAO TOWER

019 (018)

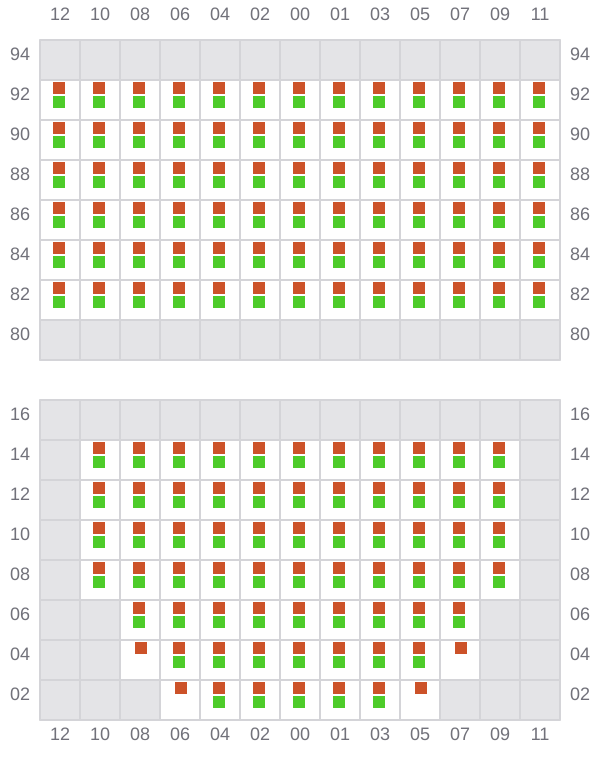

Bay 019 view and slots of QINGDAO TOWER

021

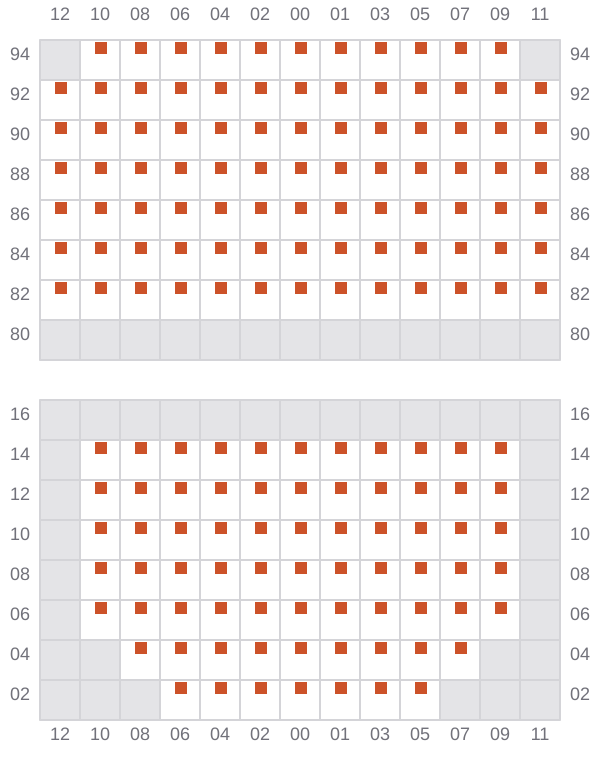

Bay 021 view and slots of QINGDAO TOWER

023 (022)

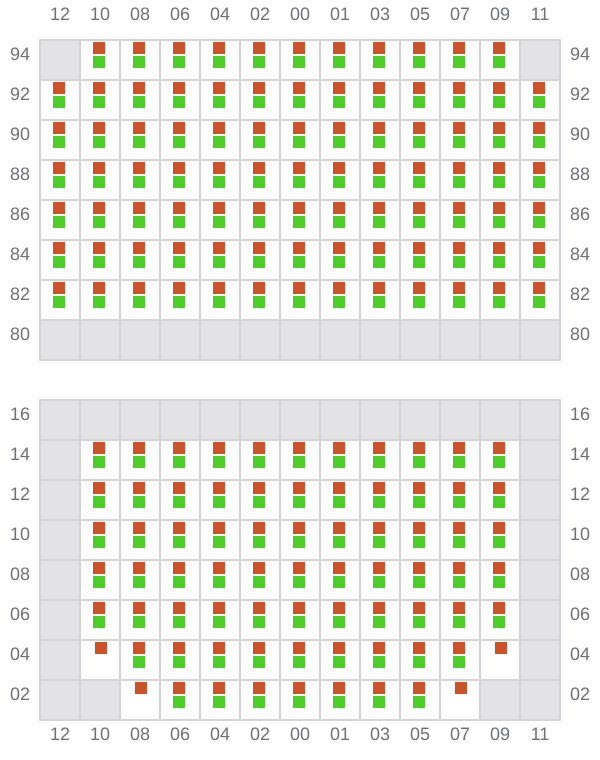

Bay 023 view and slots of QINGDAO TOWER

025

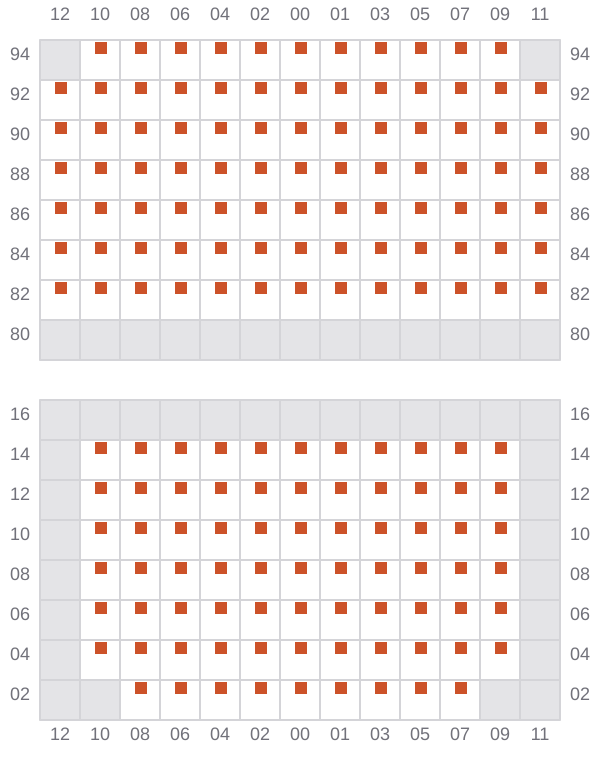

Bay 025 view and slots of QINGDAO TOWER

027 (026)

Bay 027 view and slots of QINGDAO TOWER

029

Bay 029 view and slots of QINGDAO TOWER

031 (030)

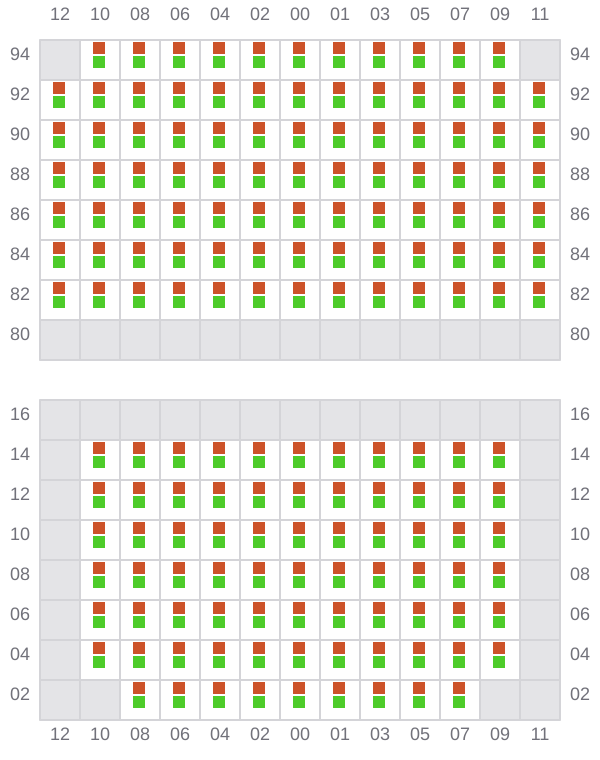

Bay 031 view and slots of QINGDAO TOWER

033

Bay 033 view and slots of QINGDAO TOWER

035 (034)

Bay 035 view and slots of QINGDAO TOWER

037

Bay 037 view and slots of QINGDAO TOWER

039 (038)

Bay 039 view and slots of QINGDAO TOWER

041

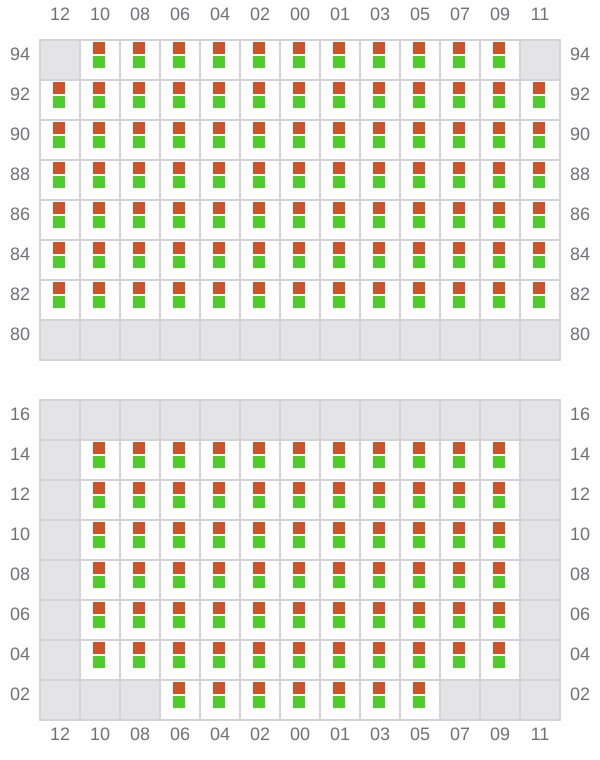

Bay 041 view and slots of QINGDAO TOWER

043 (042)

Bay 043 view and slots of QINGDAO TOWER

045

Bay 045 view and slots of QINGDAO TOWER

047 (046)

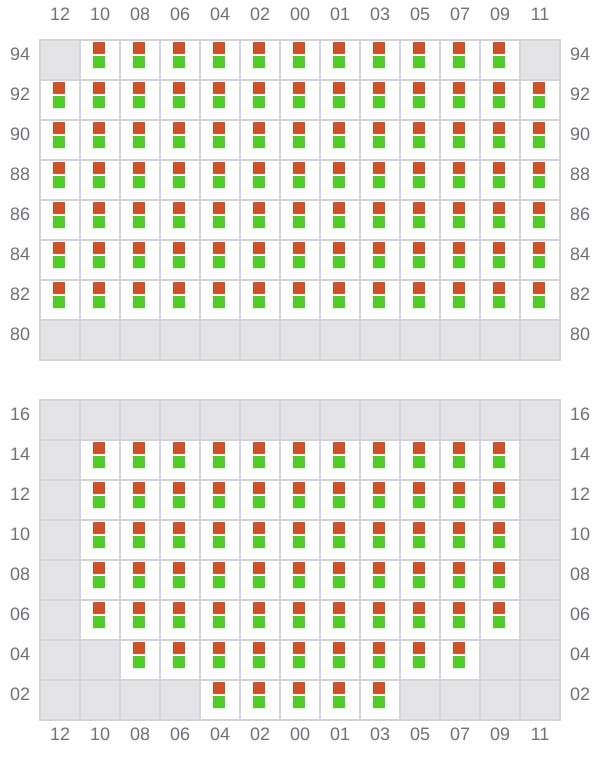

Bay 047 view and slots of QINGDAO TOWER

049

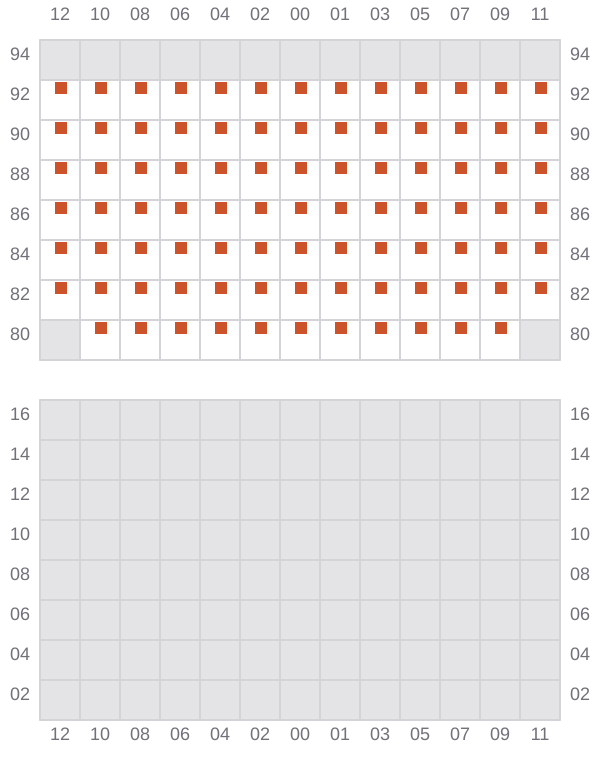

Bay 049 view and slots of QINGDAO TOWER

051 (050)

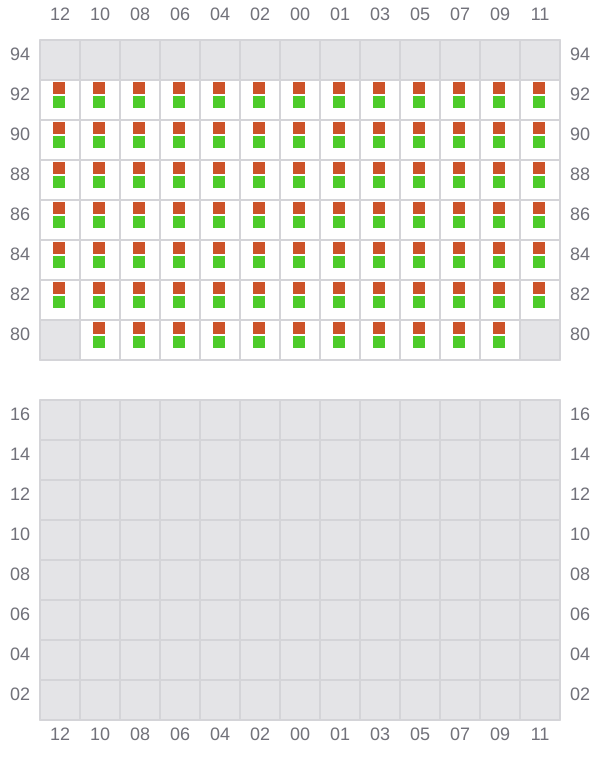

Bay 051 view and slots of QINGDAO TOWER

053

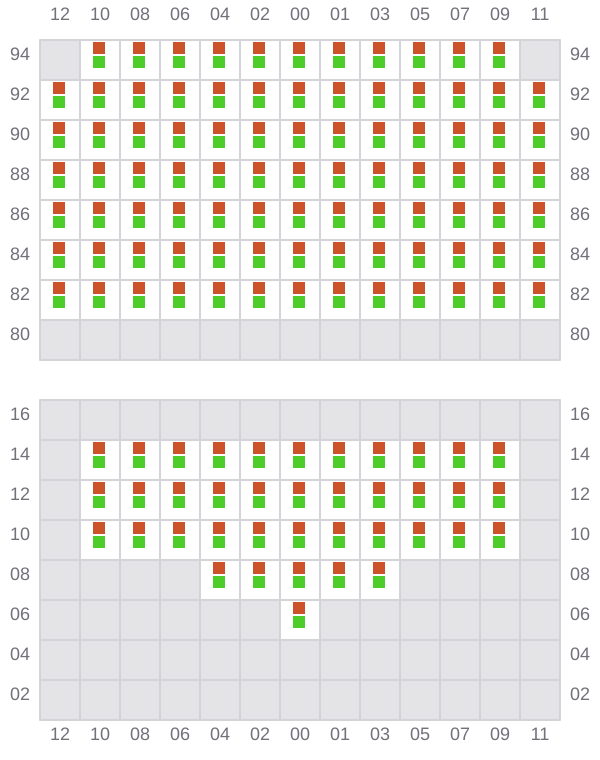

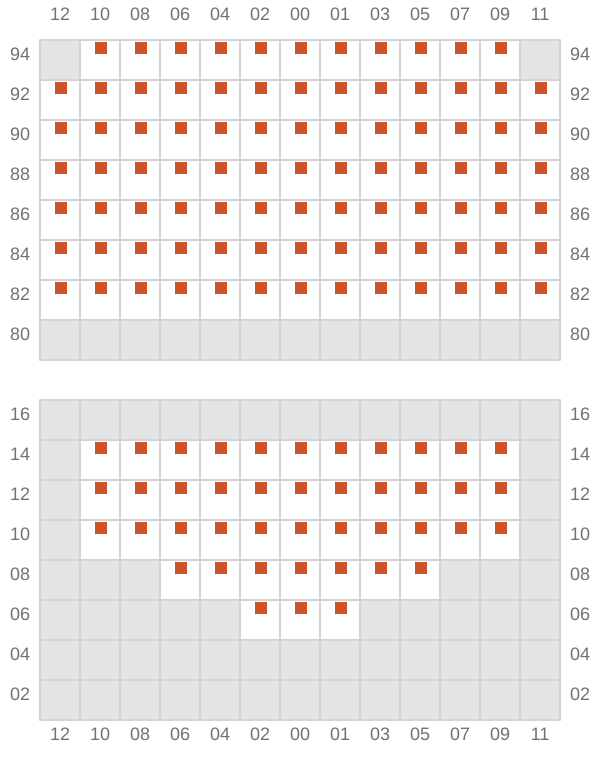

Bay 053 view and slots of QINGDAO TOWER

055 (054)

Bay 055 view and slots of QINGDAO TOWER

057

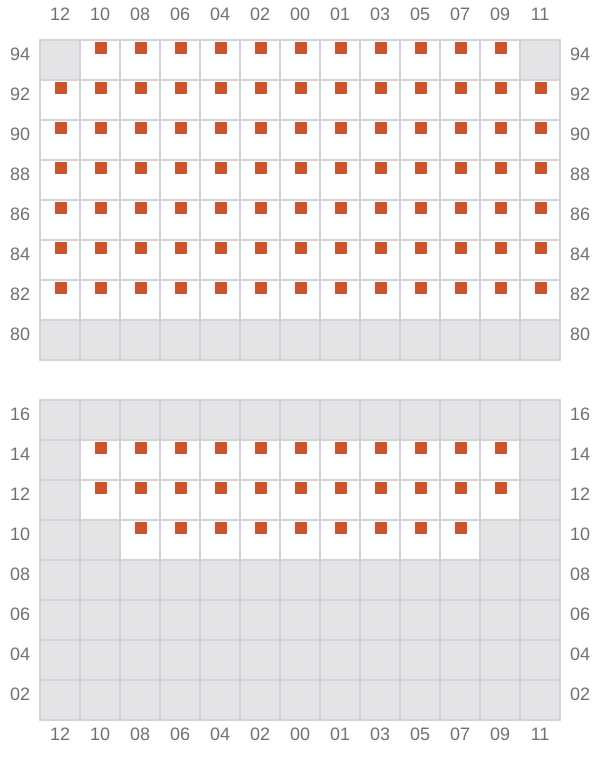

Bay 057 view and slots of QINGDAO TOWER

059 (058)

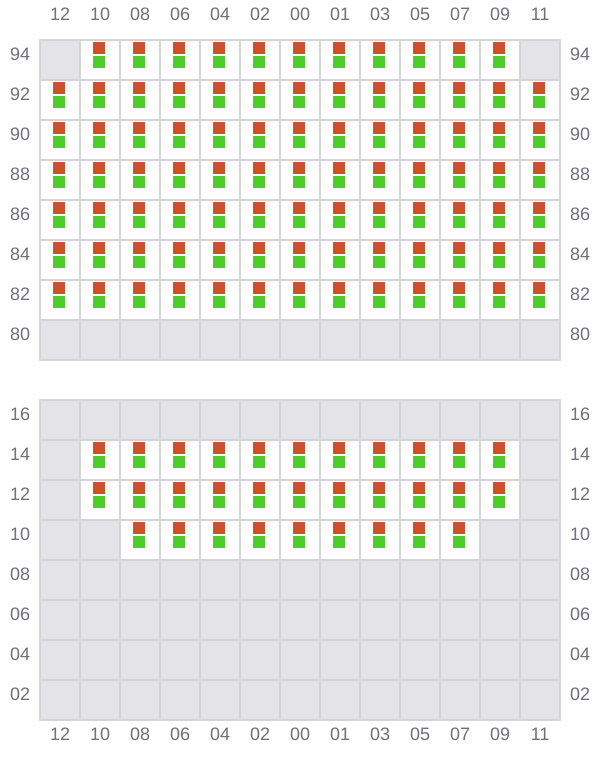

Bay 059 view and slots of QINGDAO TOWER

061

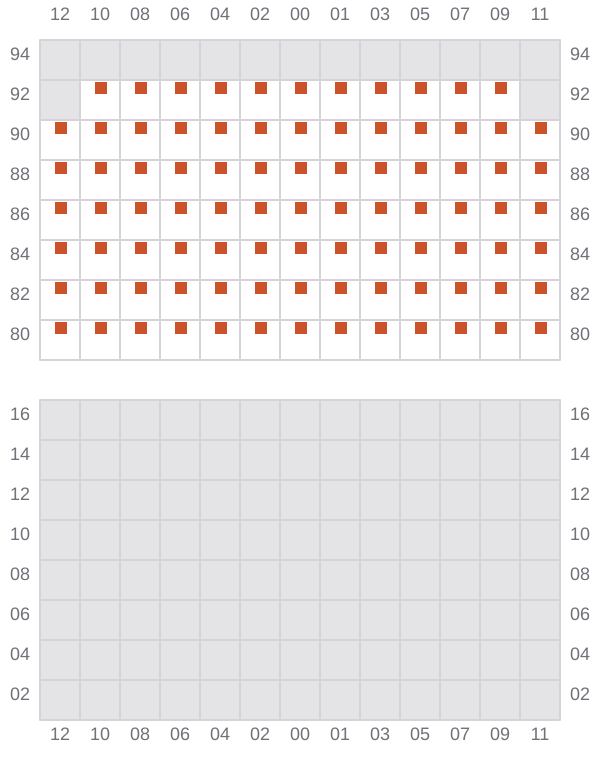

Bay 061 view and slots of QINGDAO TOWER

063 (062)

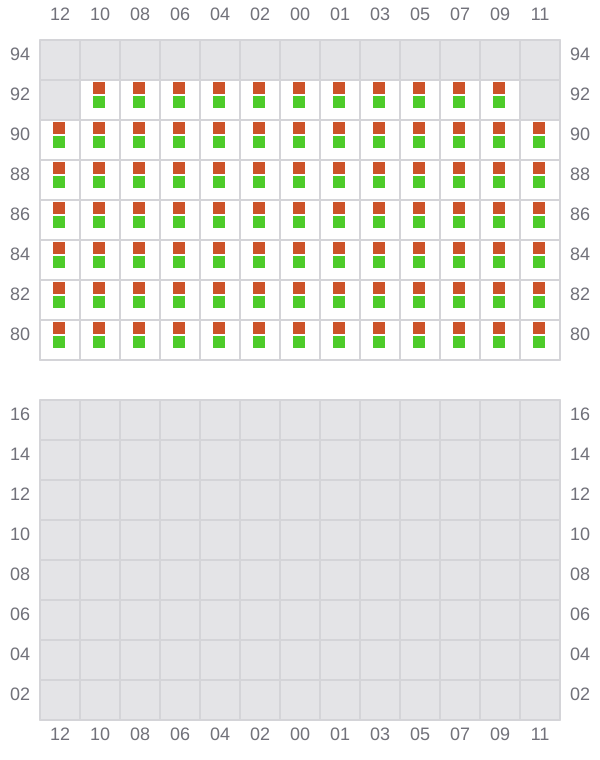

Bay 063 view and slots of QINGDAO TOWER
