QUEEN ESTHER
9700251 | 5LCT5 | PAI by ************************** Last update: Thu Jun 29 2023

General Info

Ship Name:QUEEN ESTHER

IMO Code:9700251

Call Sign:5LCT5

Line Operator:PAI

Class Name for Sister Ships:QER

Year Built:2016

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:039

Max ISO Row:12

Center Line Row:No

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:12

Min Below ISO Tier:02

Total TEU:2,194

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

Side view of QUEEN ESTHER

Hatch-Covers View

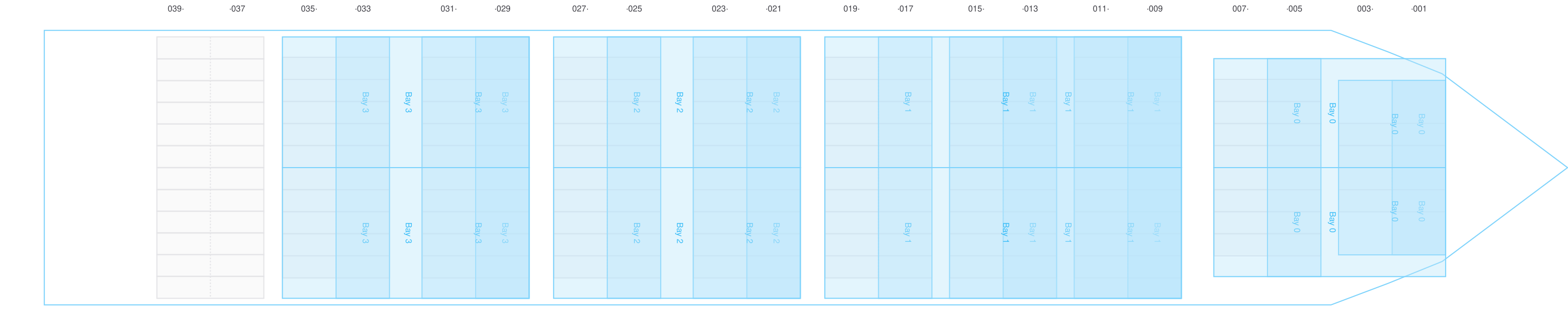

Deck view of QUEEN ESTHER

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

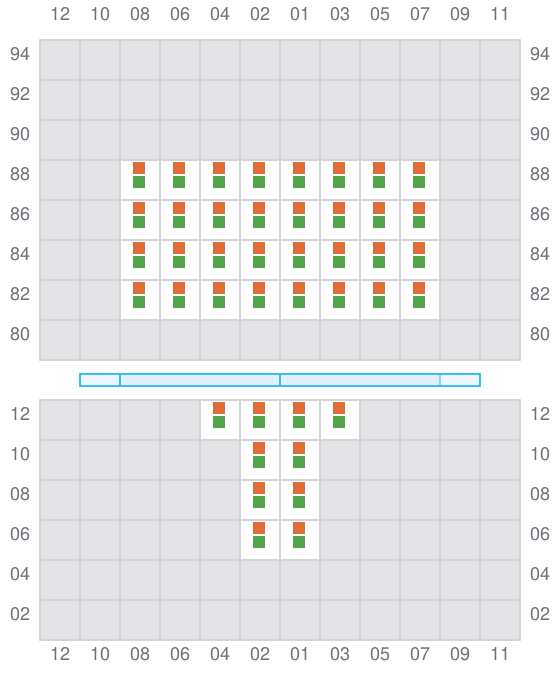

Bay 001 view and slots of QUEEN ESTHER

003

←

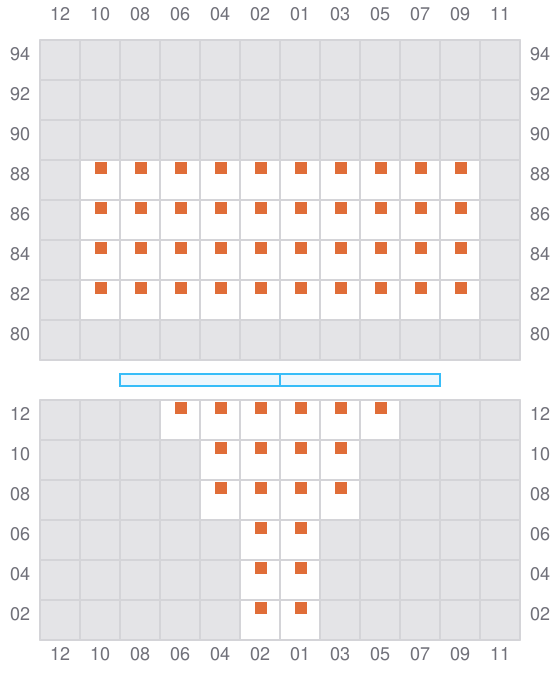

Bay 003 view and slots of QUEEN ESTHER

005 (006)

→

Bay 005 view and slots of QUEEN ESTHER

007

←

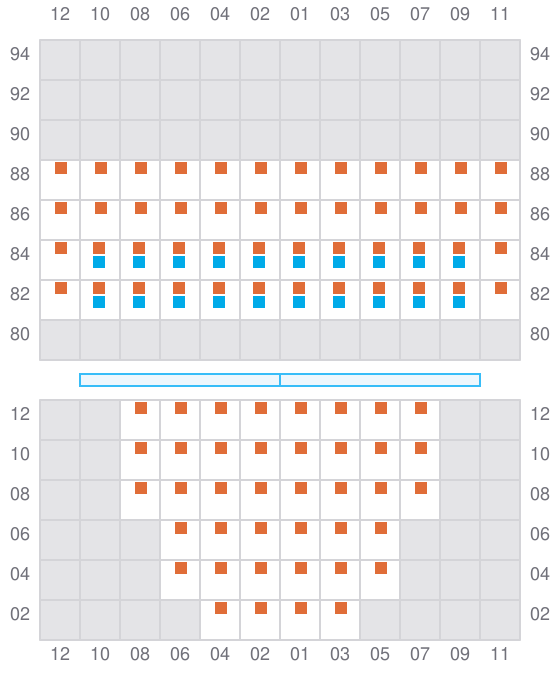

Bay 007 view and slots of QUEEN ESTHER

009 (010)

→

Bay 009 view and slots of QUEEN ESTHER

011

←

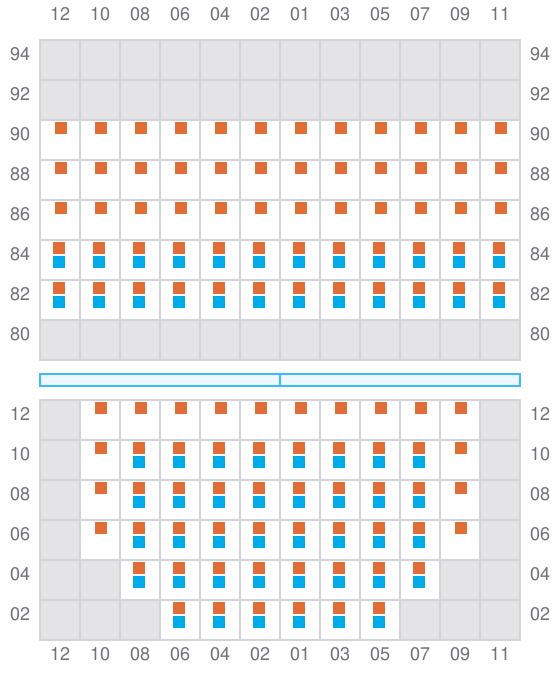

Bay 011 view and slots of QUEEN ESTHER

013 (014)

→

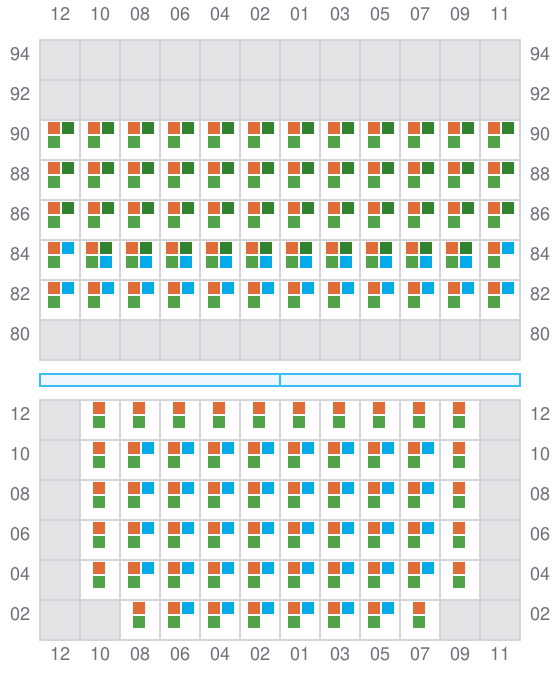

Bay 013 view and slots of QUEEN ESTHER

015

←

Bay 015 view and slots of QUEEN ESTHER

017 (018)

→

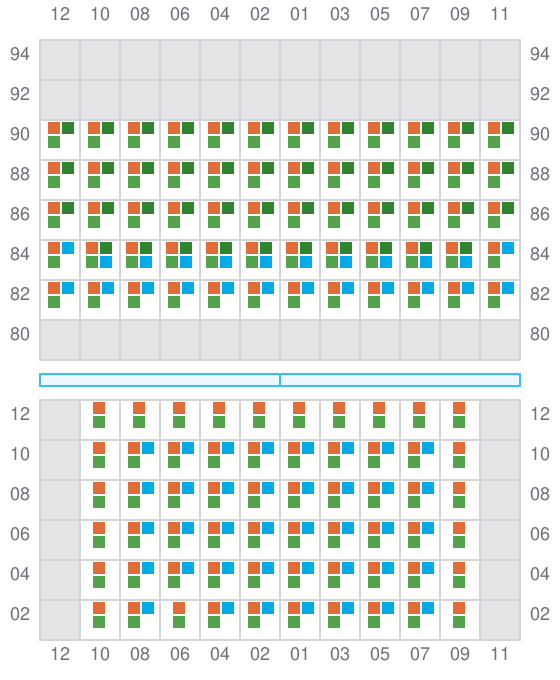

Bay 017 view and slots of QUEEN ESTHER

019

←

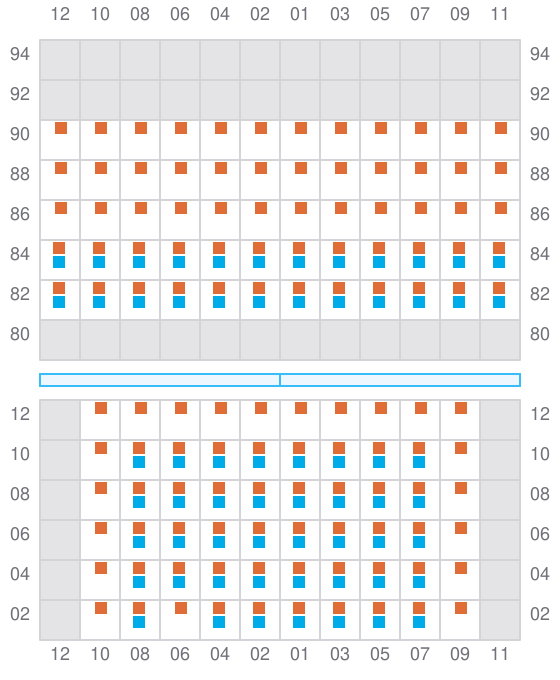

Bay 019 view and slots of QUEEN ESTHER

021 (022)

→

Bay 021 view and slots of QUEEN ESTHER

023

←

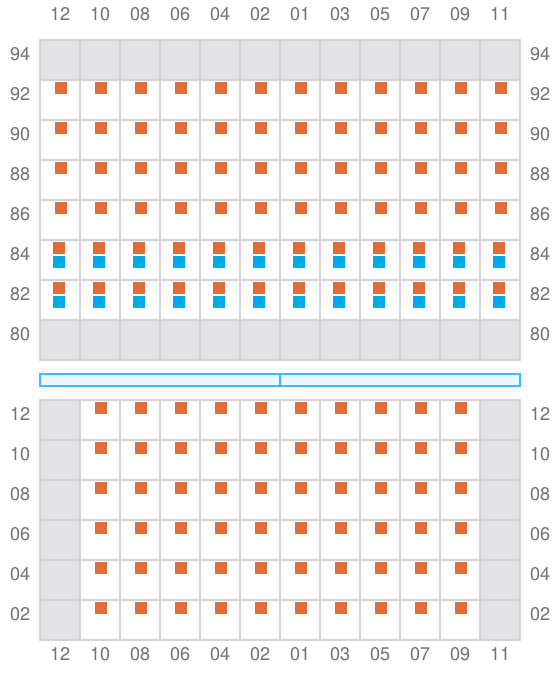

Bay 023 view and slots of QUEEN ESTHER

025 (026)

→

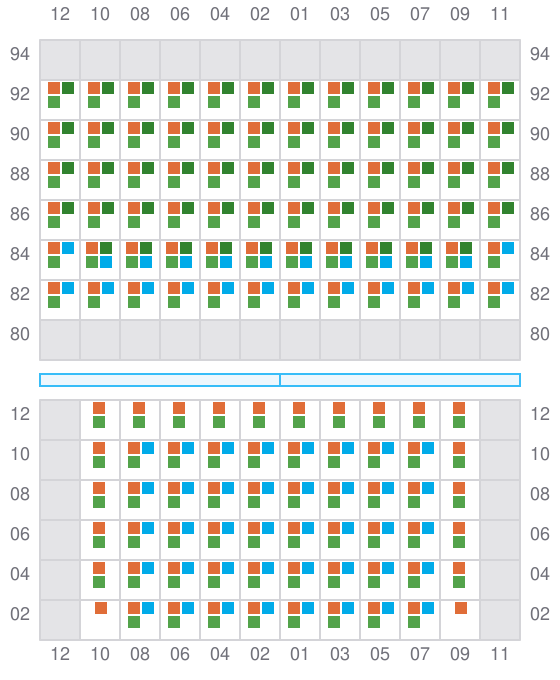

Bay 025 view and slots of QUEEN ESTHER

027

←

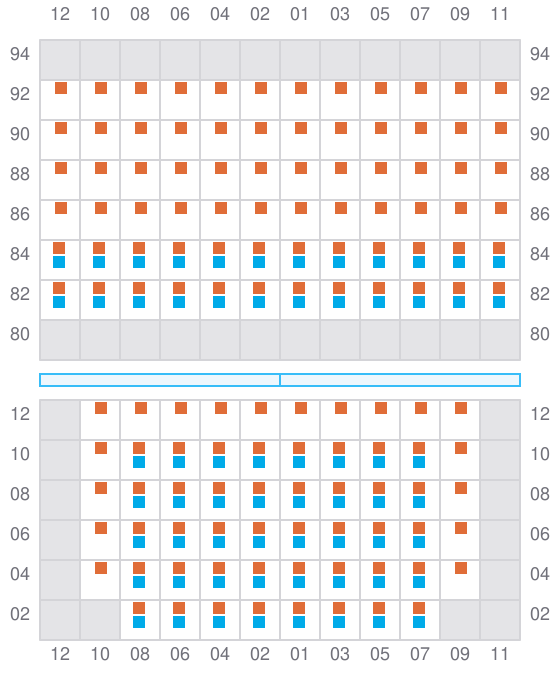

Bay 027 view and slots of QUEEN ESTHER

029 (030)

→

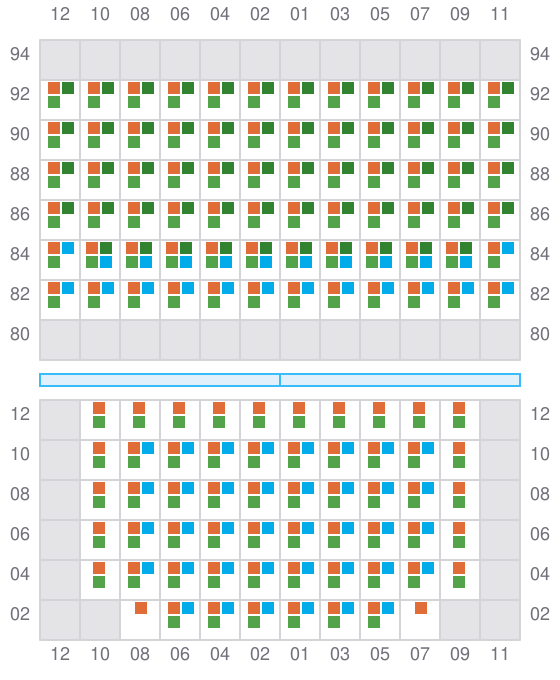

Bay 029 view and slots of QUEEN ESTHER

031

←

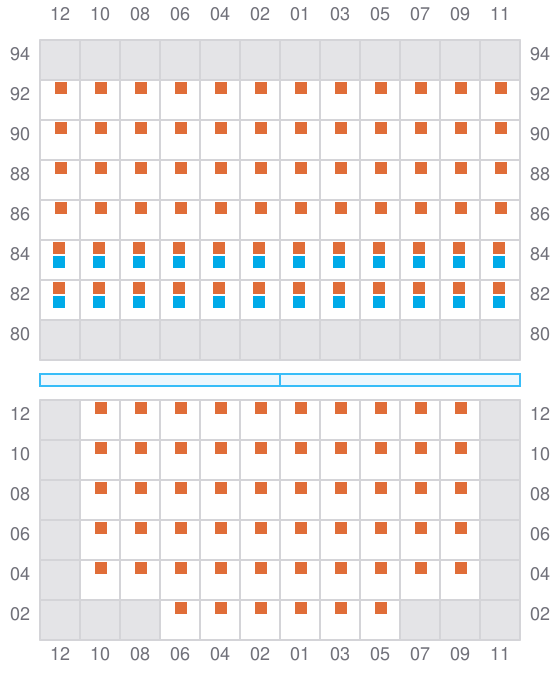

Bay 031 view and slots of QUEEN ESTHER

033 (034)

→

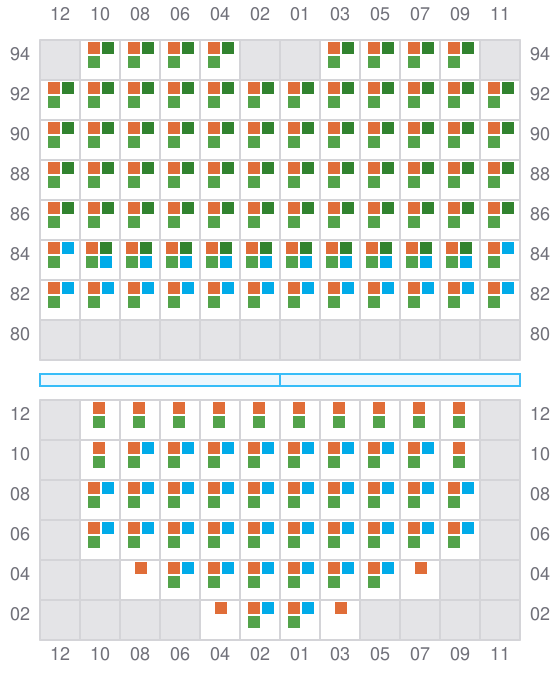

Bay 033 view and slots of QUEEN ESTHER

035

←

Bay 035 view and slots of QUEEN ESTHER

037 (038)

^→ / _?

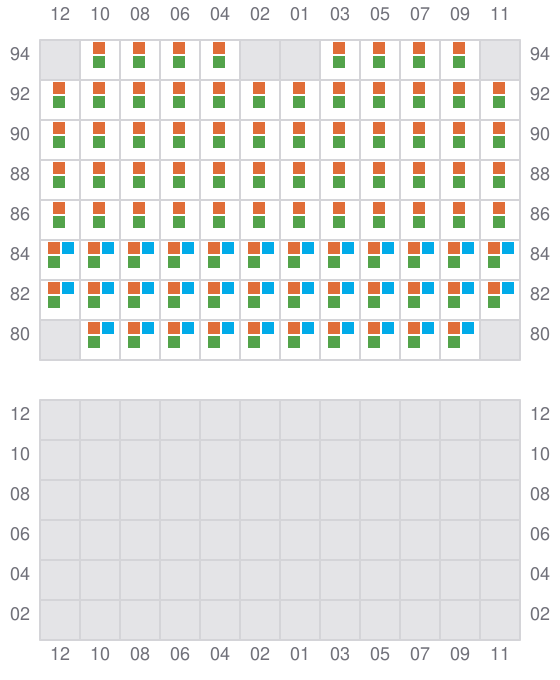

Bay 037 view and slots of QUEEN ESTHER

039

^← / _?

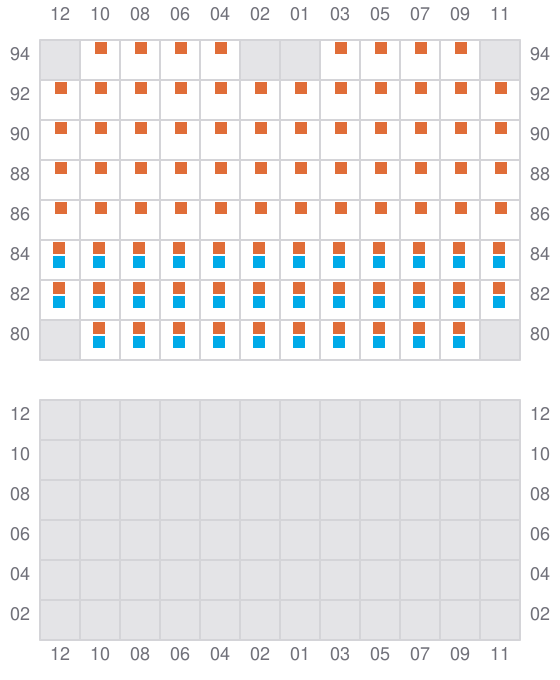

Bay 039 view and slots of QUEEN ESTHER
