REGULA
9430064 | V2QX5 | 9430064 by ********* Last update: Mon Mar 25 2024
General Info
Ship Name:REGULA
IMO Code:9430064
Call Sign:V2QX5
Line Operator:9430064
Class Name for Sister Ships:4MW
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:031
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:704
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

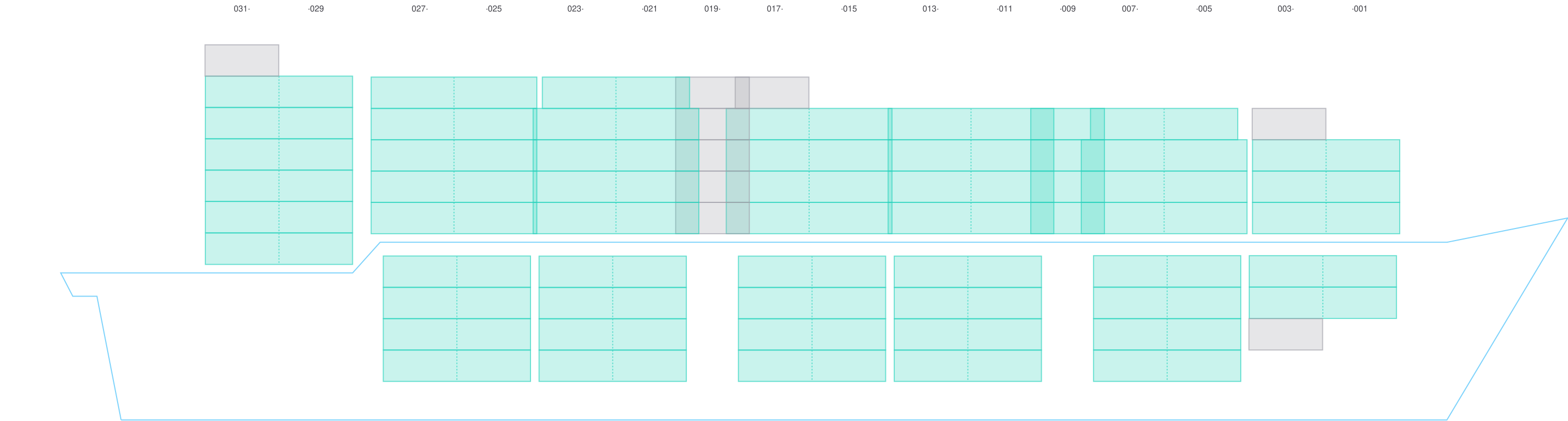

Side View

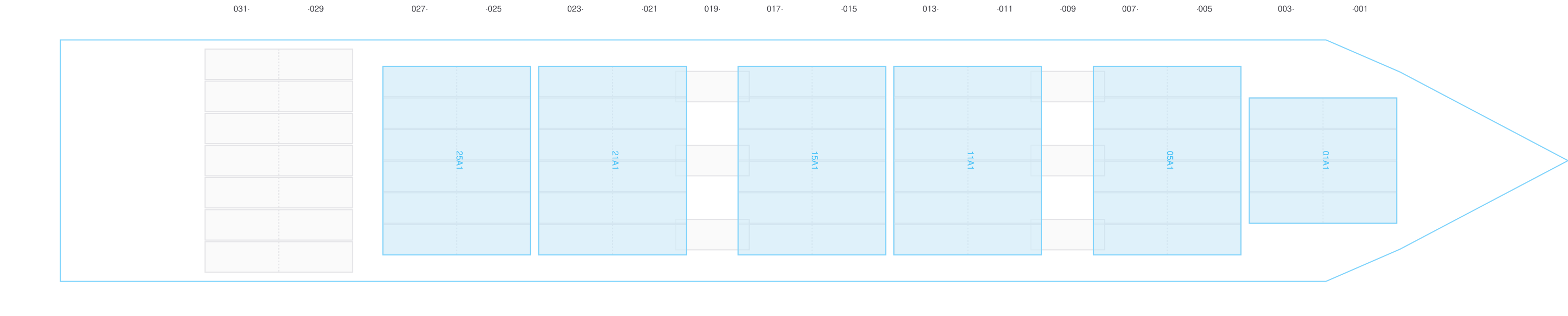

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

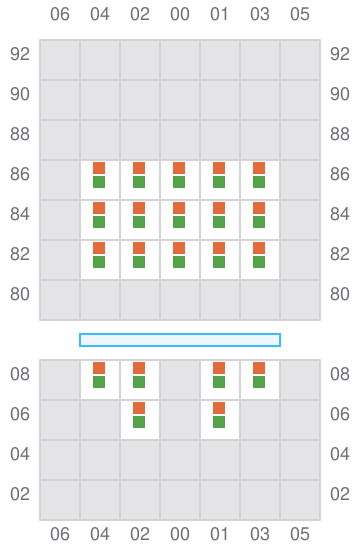

001 (002)
- →

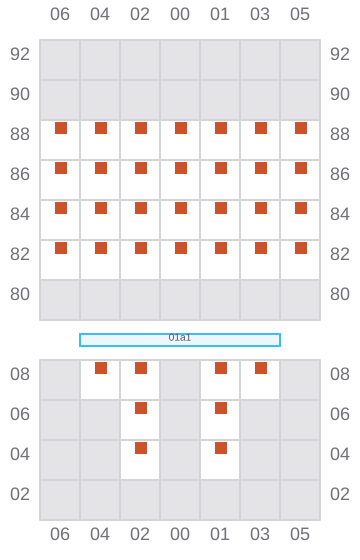

003
- ←
005 (006)
- →

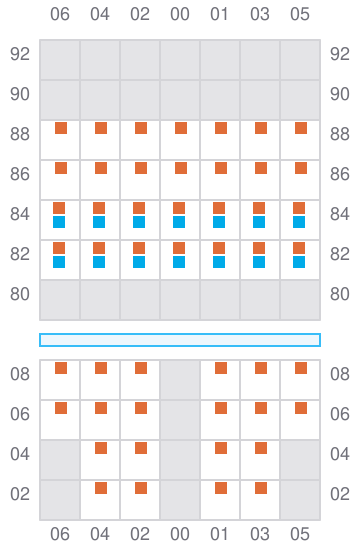

007
- ←
- → / ?
009
- → / ?
011 (012)
- →

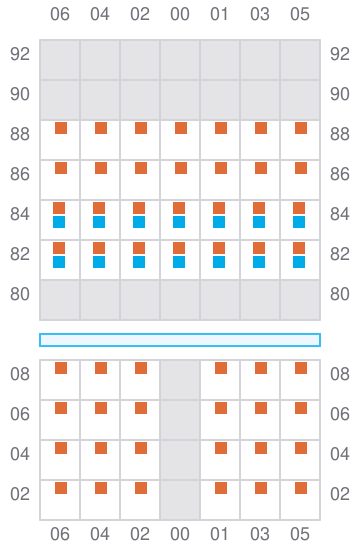

013
- ←
- → / ?
015 (016)
- →
- ? / ←
017
- ←
- → / ?

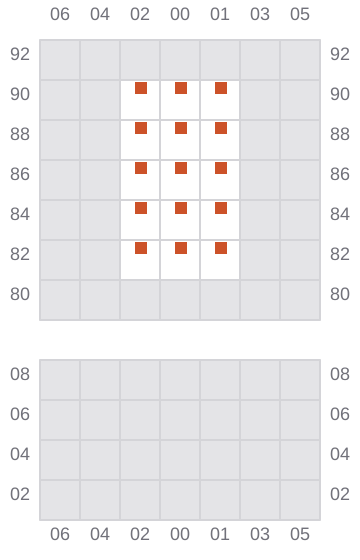

019
- ← / ?
021 (022)
- →

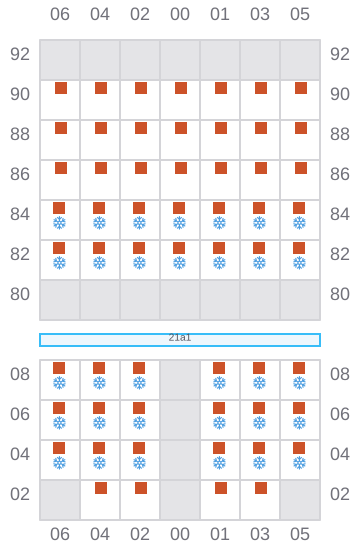

023
- ←
- →

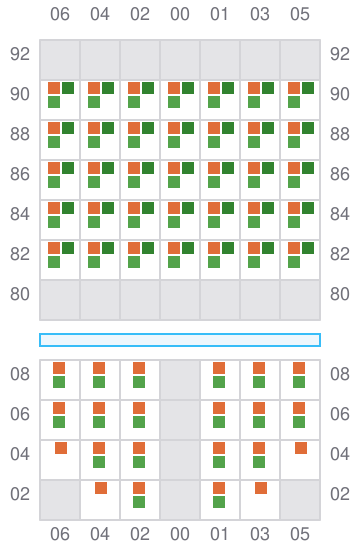

025 (026)
- →

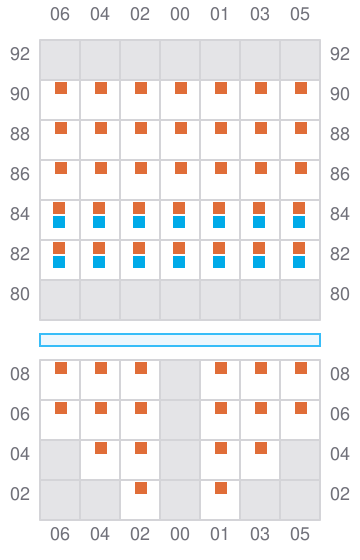

027
- ←
- → / ?
029 (030)
- → / ?

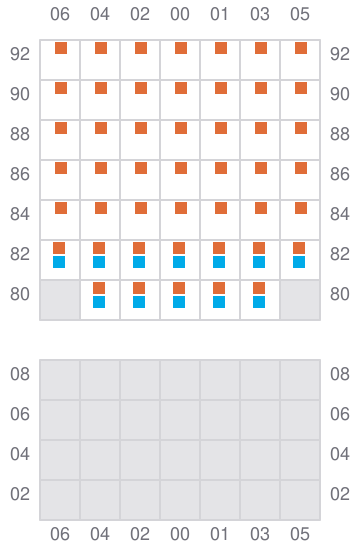

031
- ← / ?
