REN JIAN 15
9459278 | BPLO2 | 9459278 by ********* Last update: Wed Jun 12 2024

General Info

Ship Name:REN JIAN 15
IMO Code:9459278
Call Sign:BPLO2
Line Operator:9459278
Class Name for Sister Ships:MSL
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,395

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of REN JIAN 15

Hatch-Covers View

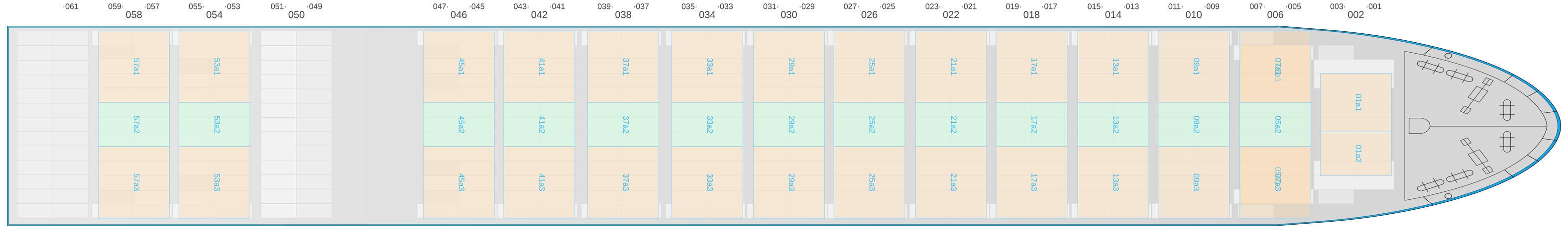

Deck view of REN JIAN 15

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →
Bay 001 view and slots of REN JIAN 15

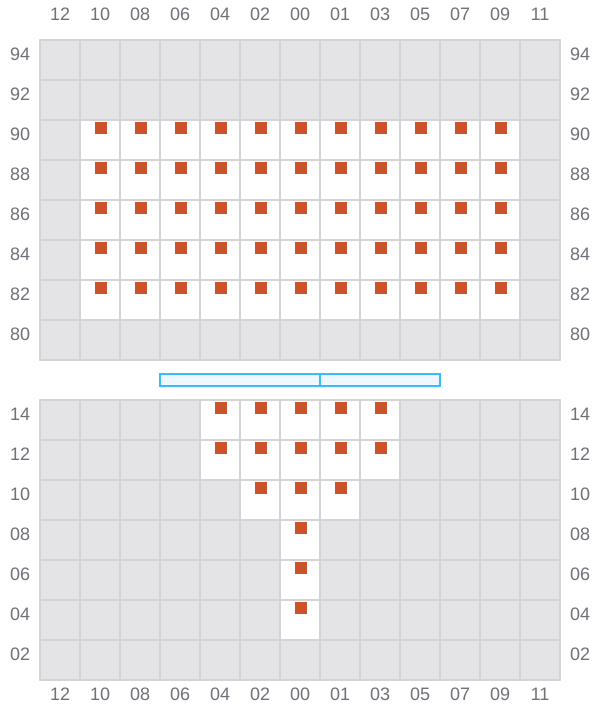

003

  • ←
Bay 003 view and slots of REN JIAN 15

005 (006)

  • →
Bay 005 view and slots of REN JIAN 15

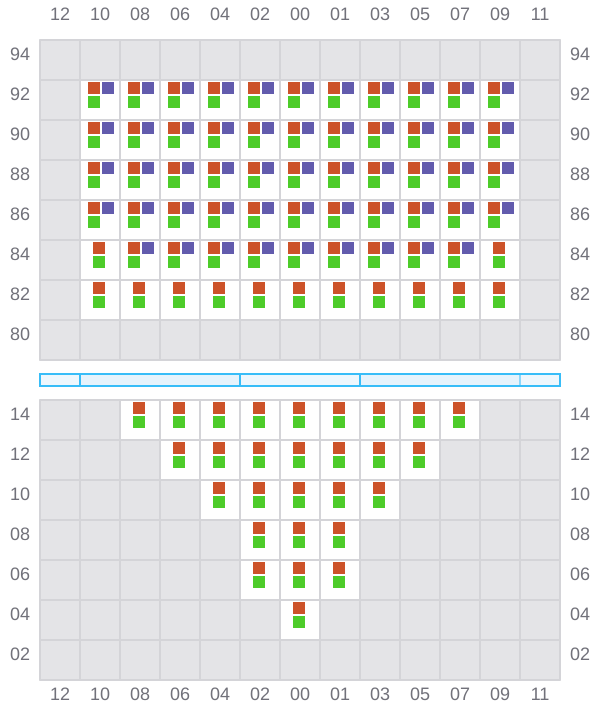

007

  • ←

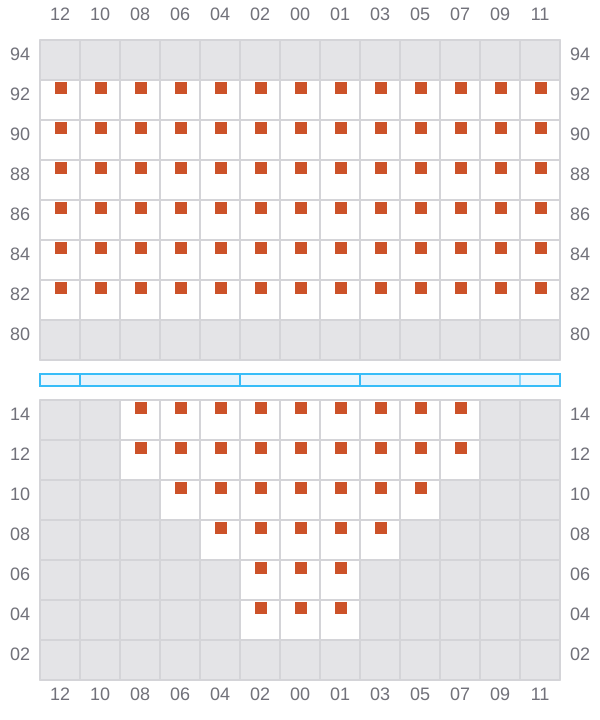

Bay 007 view and slots of REN JIAN 15

009 (010)

  • →

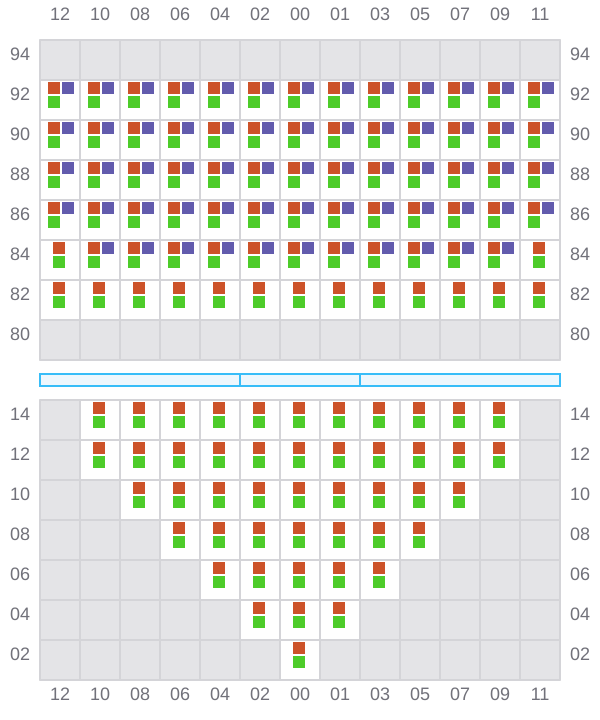

Bay 009 view and slots of REN JIAN 15

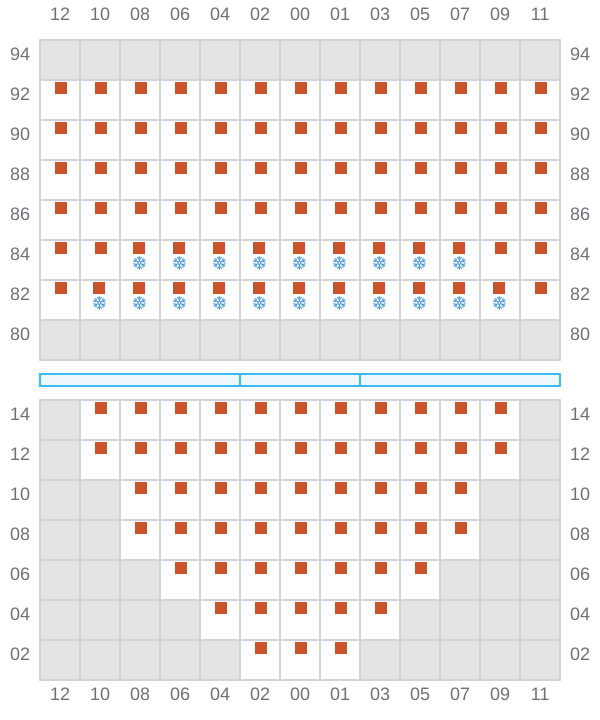

011

  • ←
  • → / ?
Bay 011 view and slots of REN JIAN 15

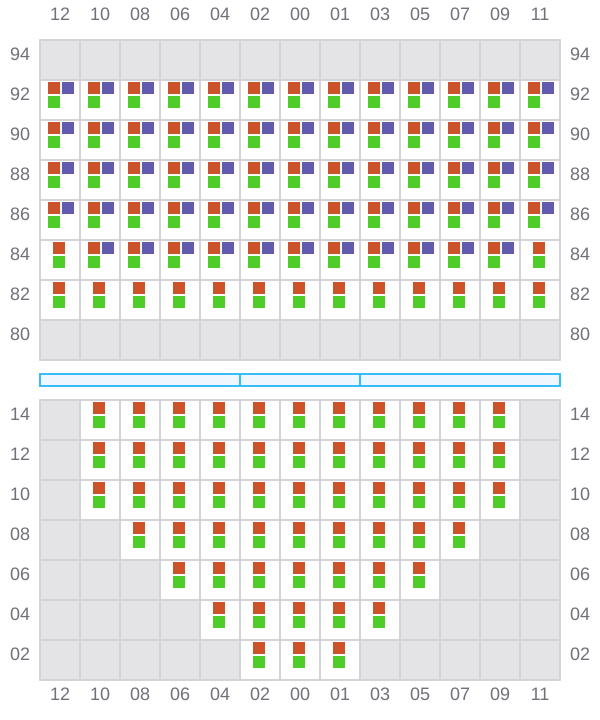

013 (014)

  • →
Bay 013 view and slots of REN JIAN 15

015

  • ←

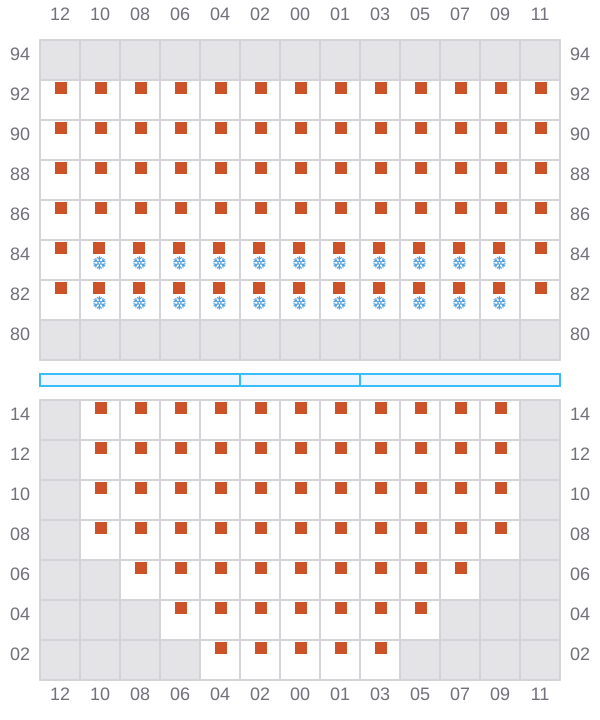

Bay 015 view and slots of REN JIAN 15

017 (018)

  • →

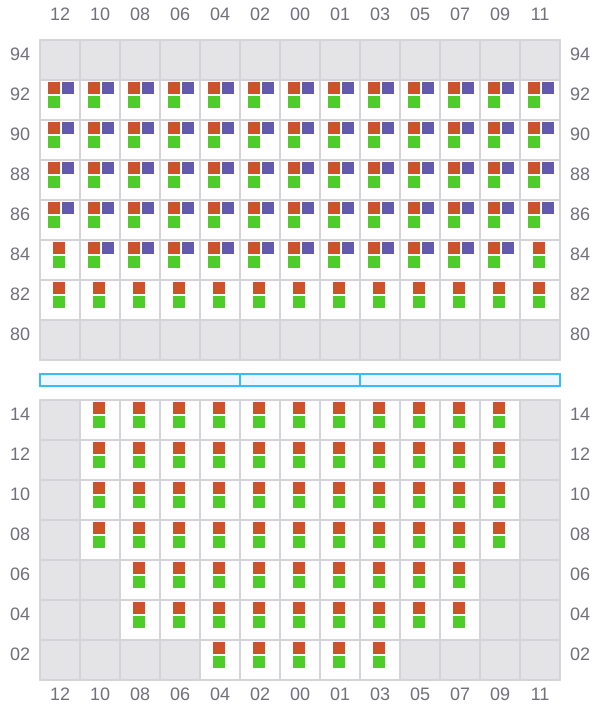

Bay 017 view and slots of REN JIAN 15

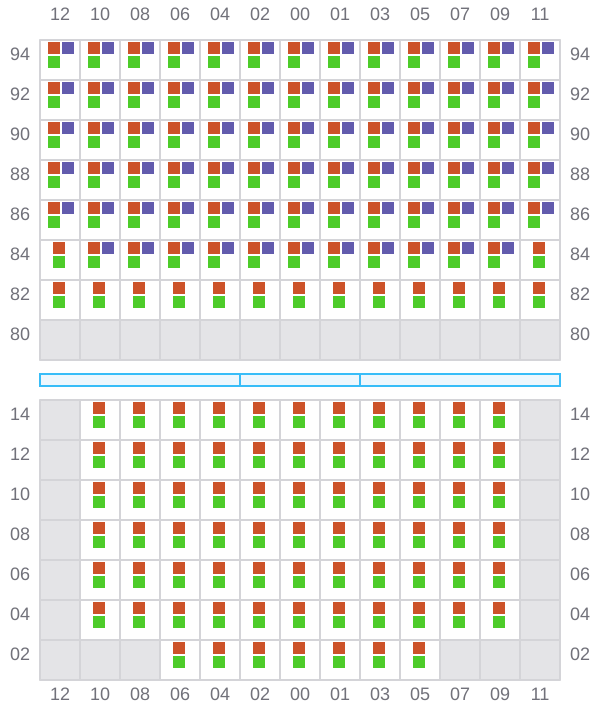

019

  • ←

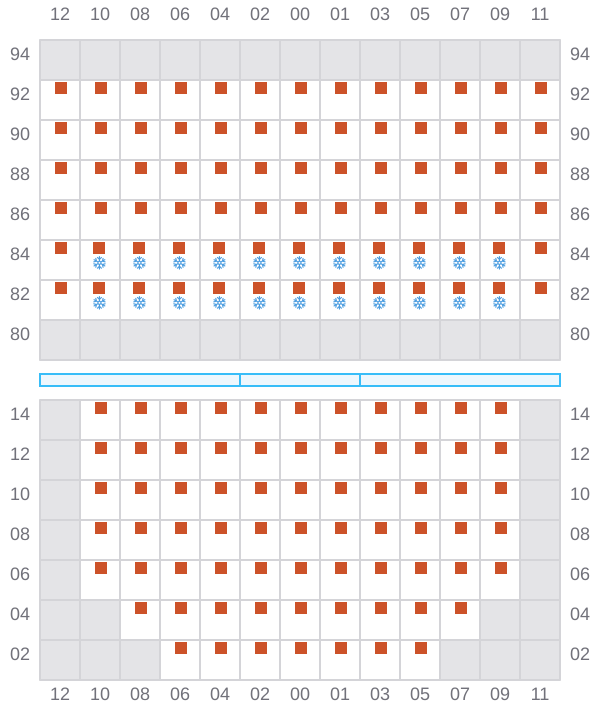

Bay 019 view and slots of REN JIAN 15

021 (022)

  • →
Bay 021 view and slots of REN JIAN 15

023

  • ←
Bay 023 view and slots of REN JIAN 15

025 (026)

  • →
Bay 025 view and slots of REN JIAN 15

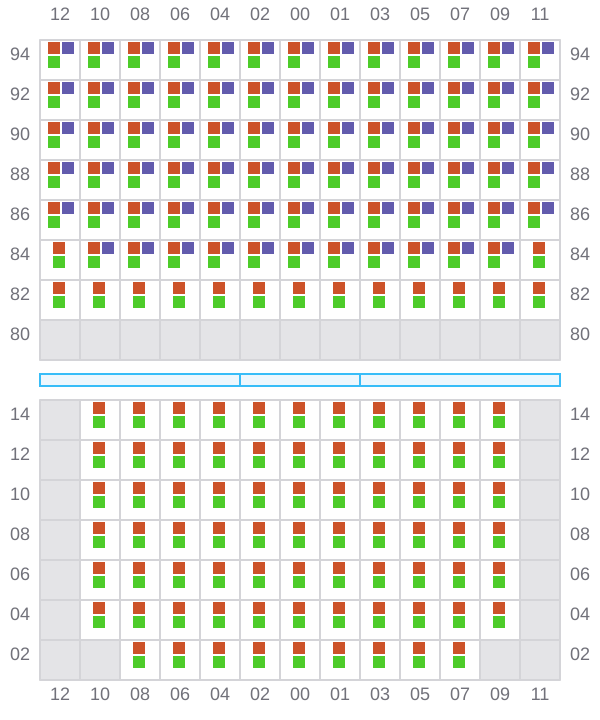

027

  • ←
  • → / ?
Bay 027 view and slots of REN JIAN 15

029 (030)

  • →
Bay 029 view and slots of REN JIAN 15

031

  • ←
  • → / ?
Bay 031 view and slots of REN JIAN 15

033 (034)

  • →

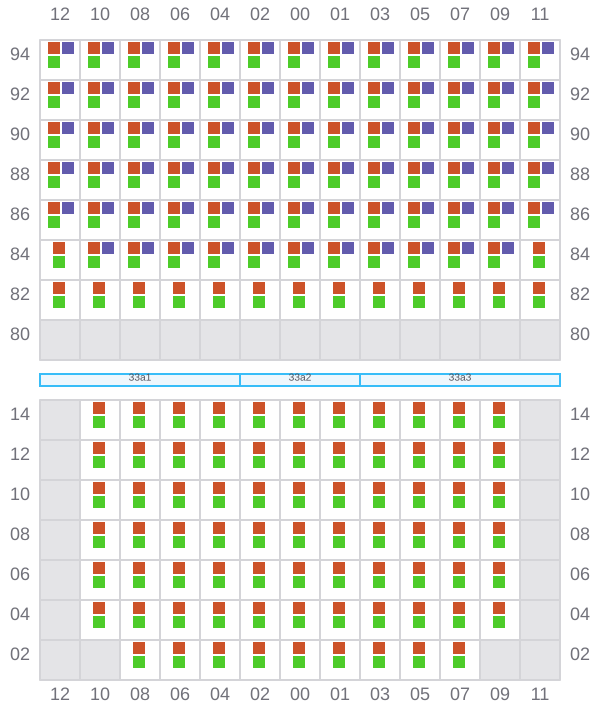

Bay 033 view and slots of REN JIAN 15

035

  • ←
  • →
Bay 035 view and slots of REN JIAN 15

037 (038)

  • →
Bay 037 view and slots of REN JIAN 15

039

  • ←
  • →

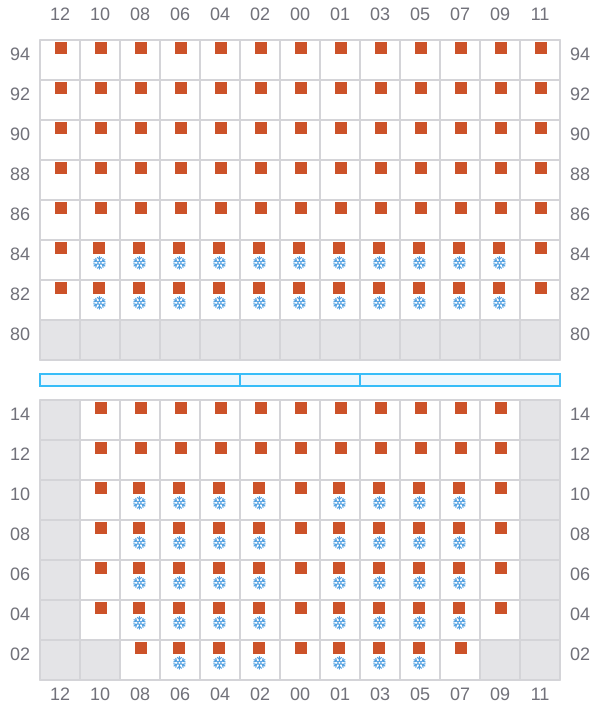

Bay 039 view and slots of REN JIAN 15

041 (042)

  • →
Bay 041 view and slots of REN JIAN 15

043

  • ←
  • → / ?

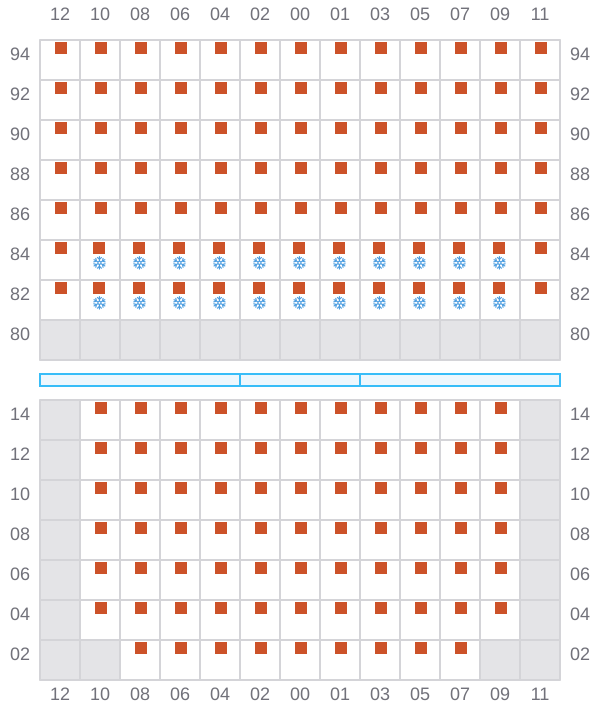

Bay 043 view and slots of REN JIAN 15

045 (046)

  • →

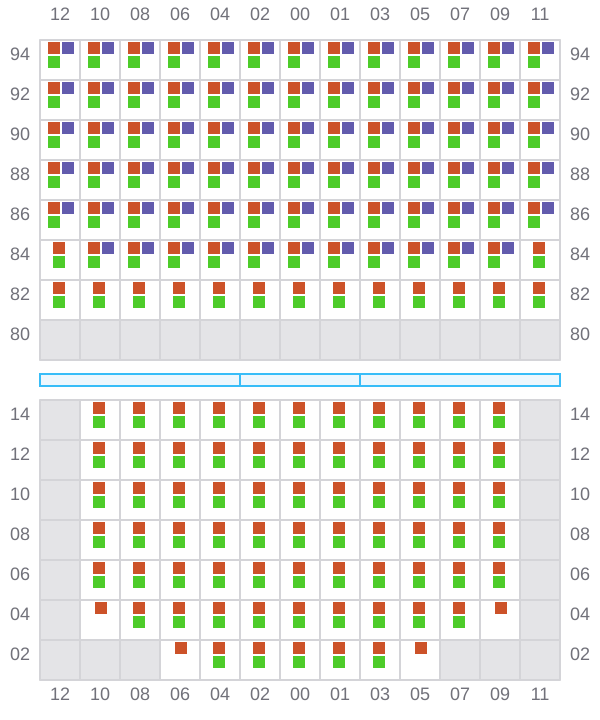

Bay 045 view and slots of REN JIAN 15

047

  • ←
  • → / ?

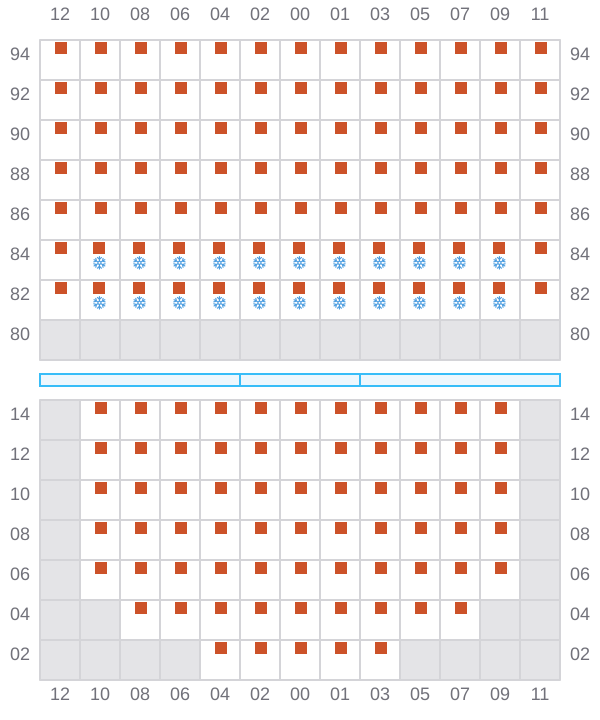

Bay 047 view and slots of REN JIAN 15

049 (050)

  • → / ?

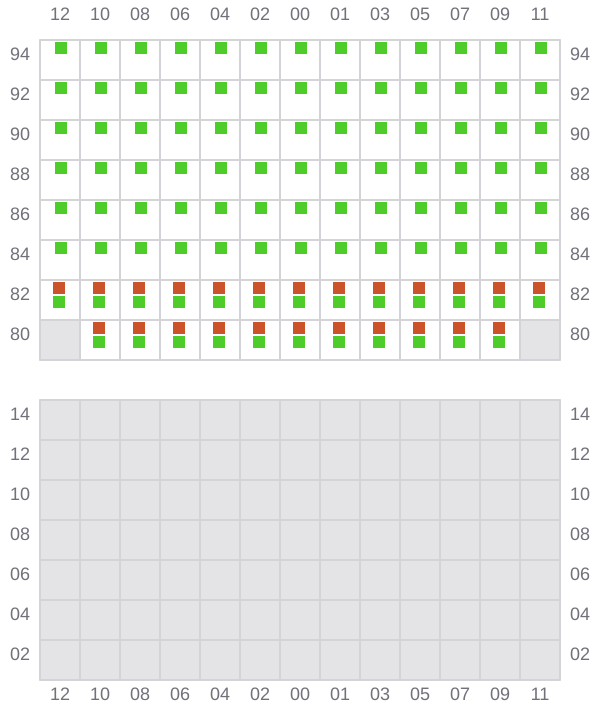

Bay 049 view and slots of REN JIAN 15

051

  • ← / ?
  • → / ?

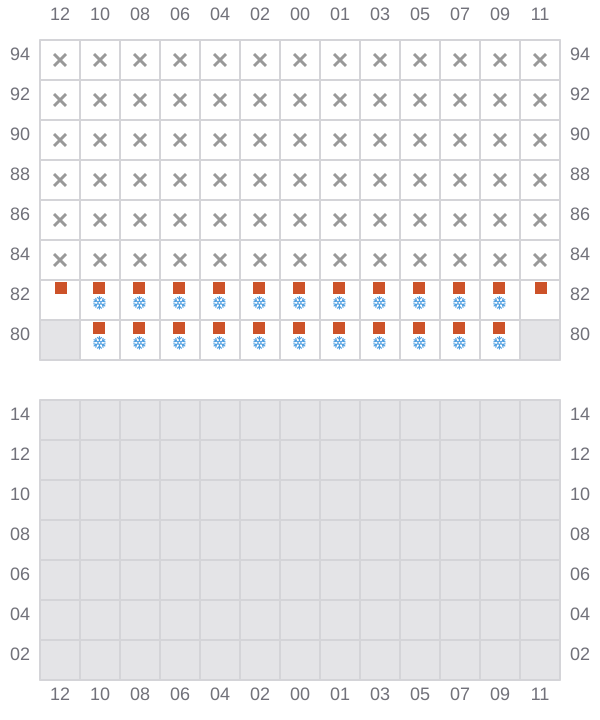

Bay 051 view and slots of REN JIAN 15

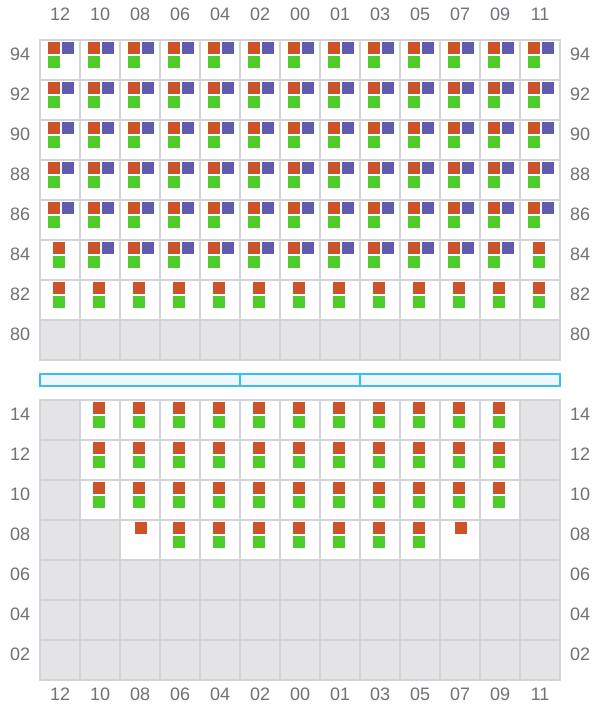

053 (054)

  • →
Bay 053 view and slots of REN JIAN 15

055

  • ←
  • → / ?

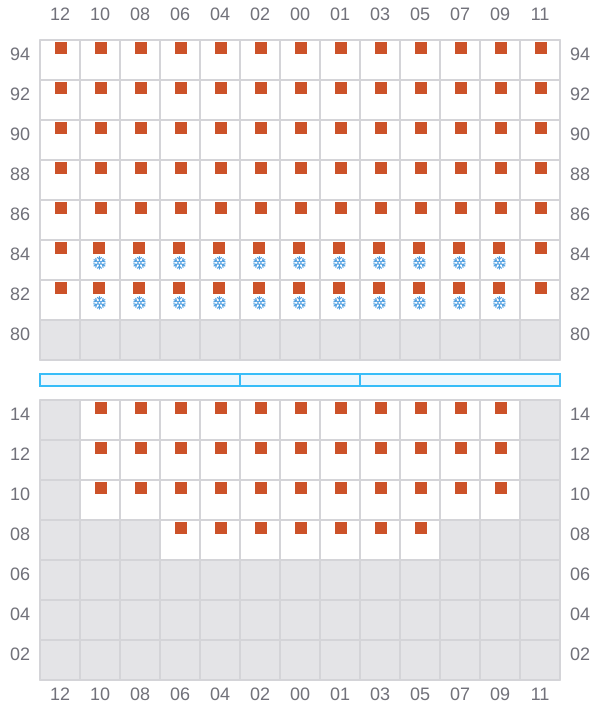

Bay 055 view and slots of REN JIAN 15

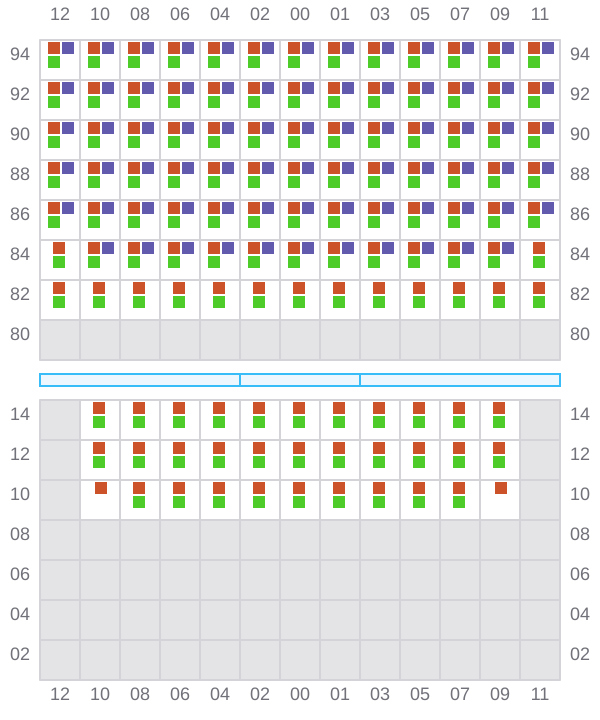

057 (058)

  • →
Bay 057 view and slots of REN JIAN 15

059

  • ←
  • → / ?

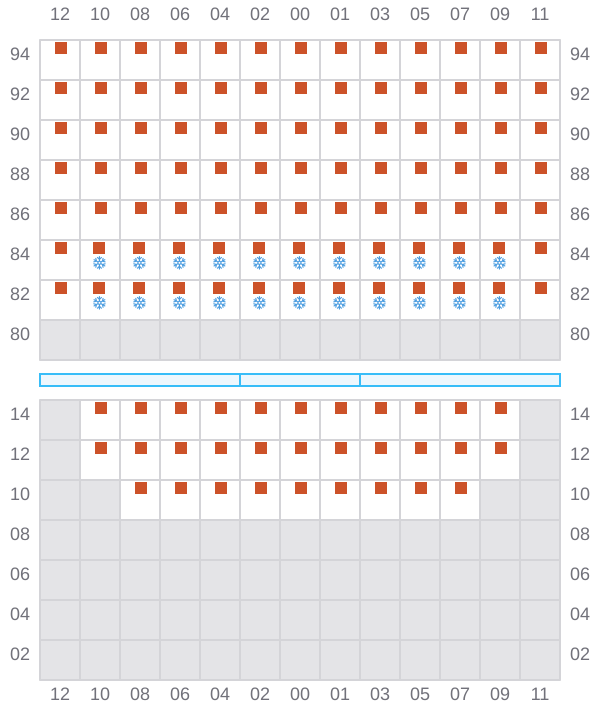

Bay 059 view and slots of REN JIAN 15

061 (062)

  • → / ?

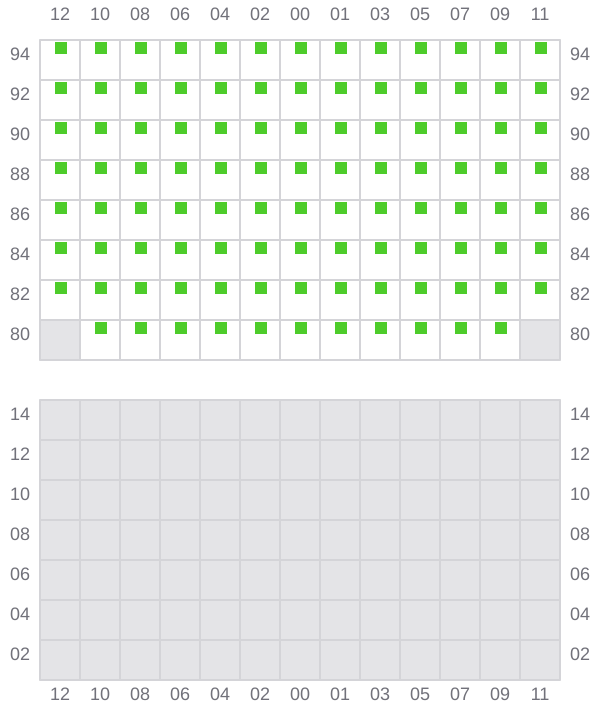

Bay 061 view and slots of REN JIAN 15
