REN JIAN 16
9450911 | BPDY5 | 9450911 by ******************** Last update: Fri Jul 11 2025

General Info

Ship Name:REN JIAN 16
IMO Code:9450911
Call Sign:BPDY5
Line Operator:9450911
Class Name for Sister Ships:RJSX
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):247.00
LOA (Length Overall):260.32
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,343

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

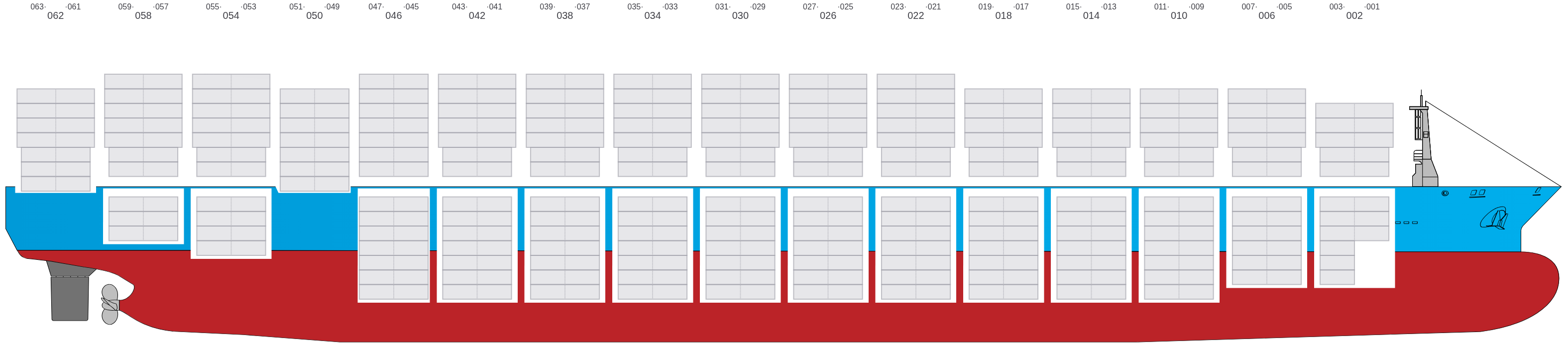

Side view of REN JIAN 16

Hatch-Covers View

Deck view of REN JIAN 16

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →

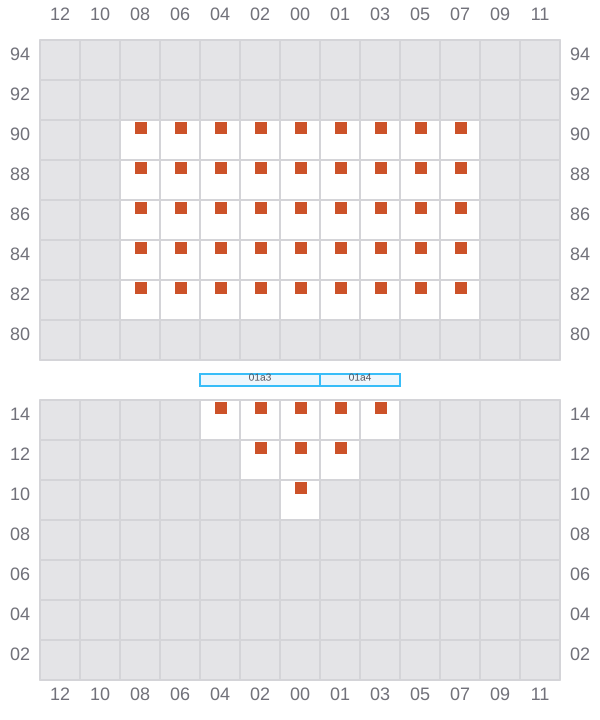

Bay 001 view and slots of REN JIAN 16

003 (002)

  • ←

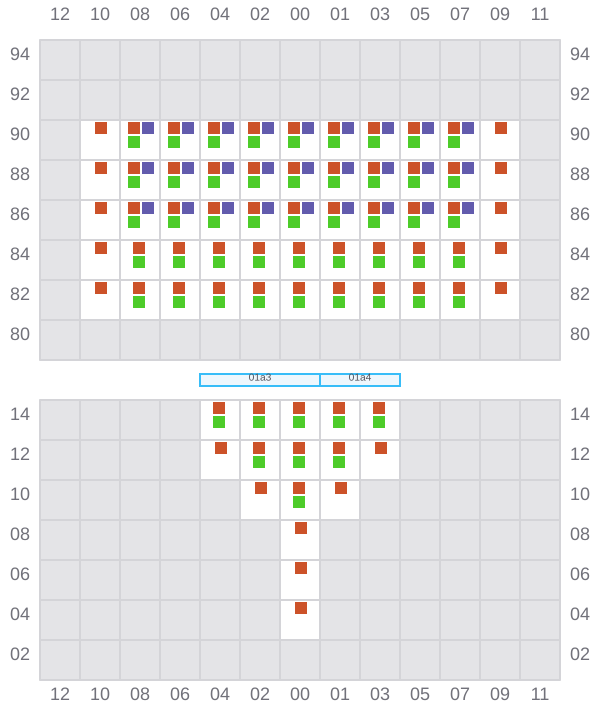

Bay 003 view and slots of REN JIAN 16

005

  • →

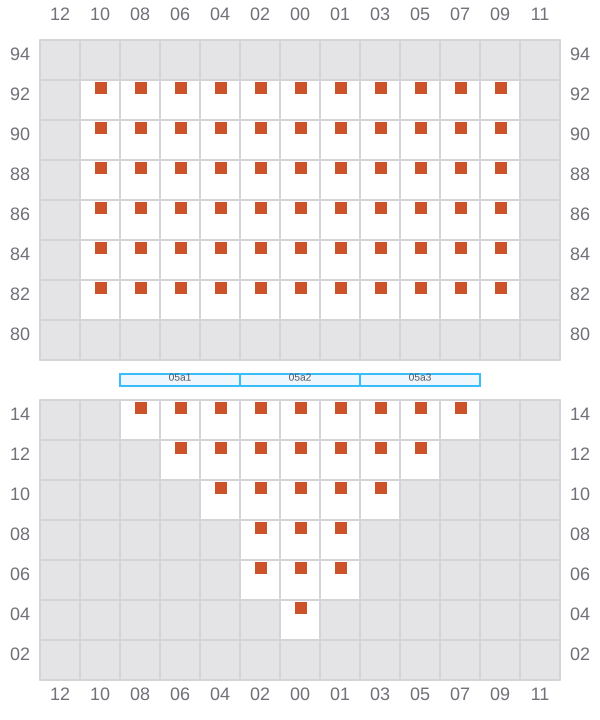

Bay 005 view and slots of REN JIAN 16

007 (006)

  • ←

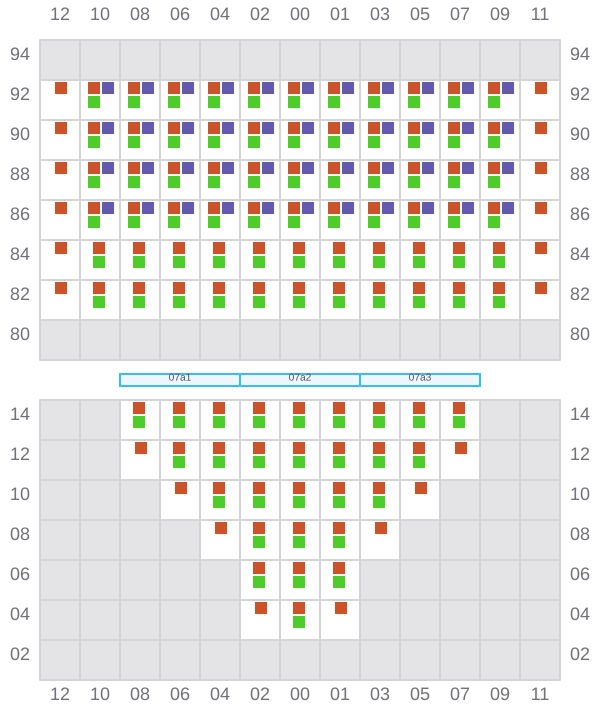

Bay 007 view and slots of REN JIAN 16

009

  • →

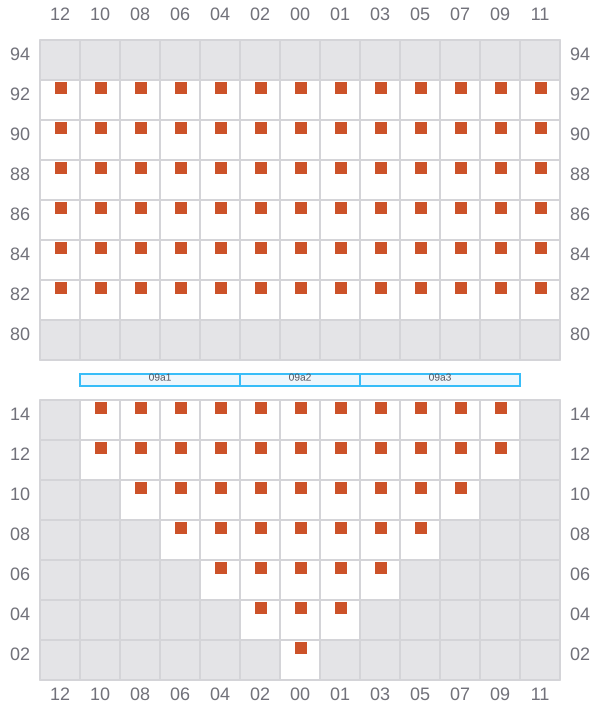

Bay 009 view and slots of REN JIAN 16

011 (010)

  • ←

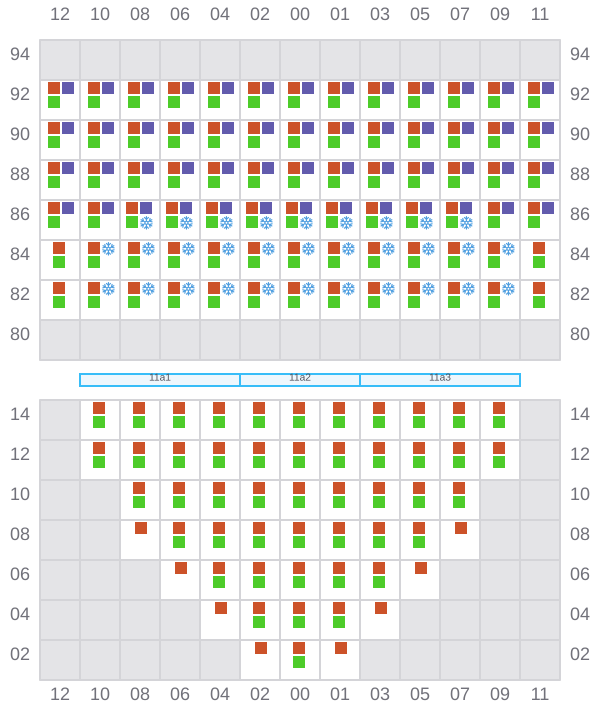

Bay 011 view and slots of REN JIAN 16

013

  • →

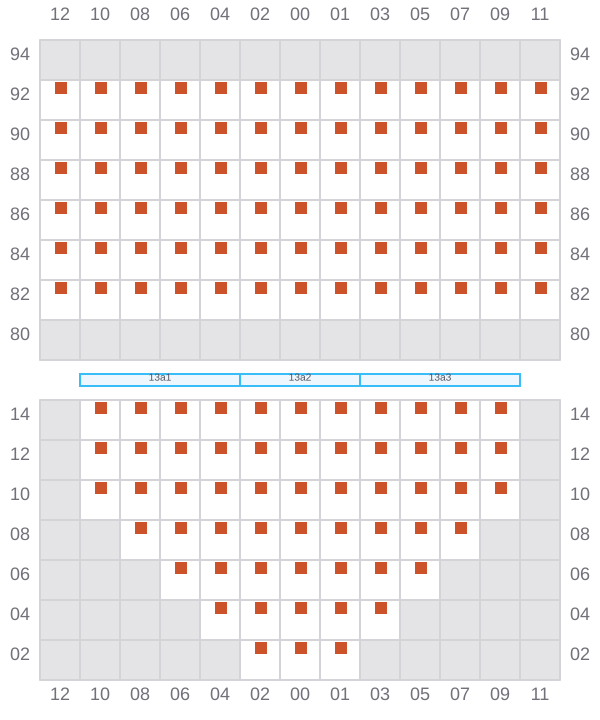

Bay 013 view and slots of REN JIAN 16

015 (014)

  • ←

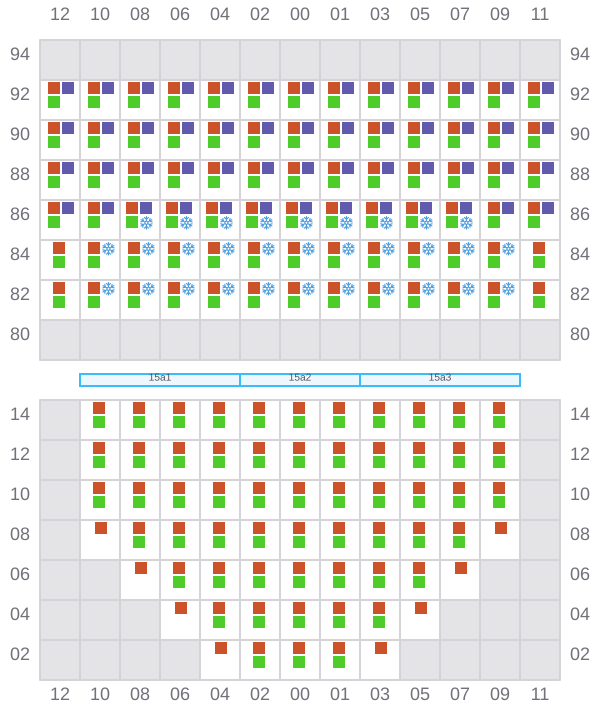

Bay 015 view and slots of REN JIAN 16

017

  • →

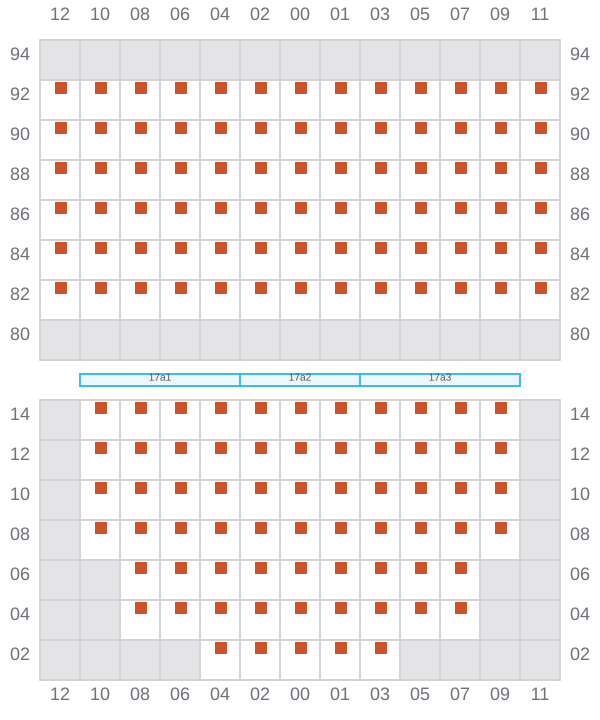

Bay 017 view and slots of REN JIAN 16

019 (018)

  • ←

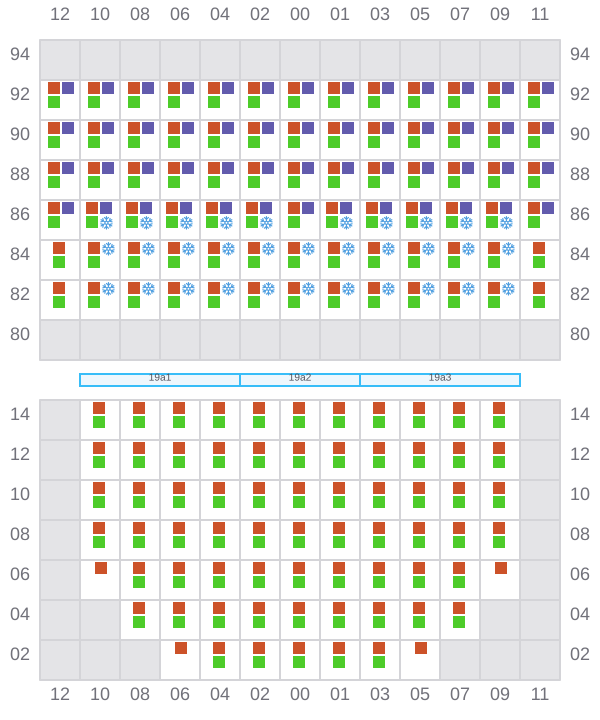

Bay 019 view and slots of REN JIAN 16

021

  • →

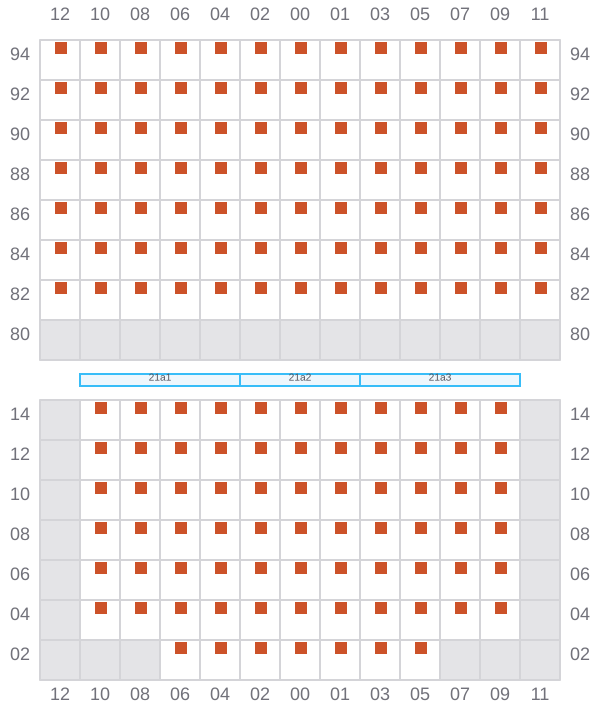

Bay 021 view and slots of REN JIAN 16

023 (022)

  • ←

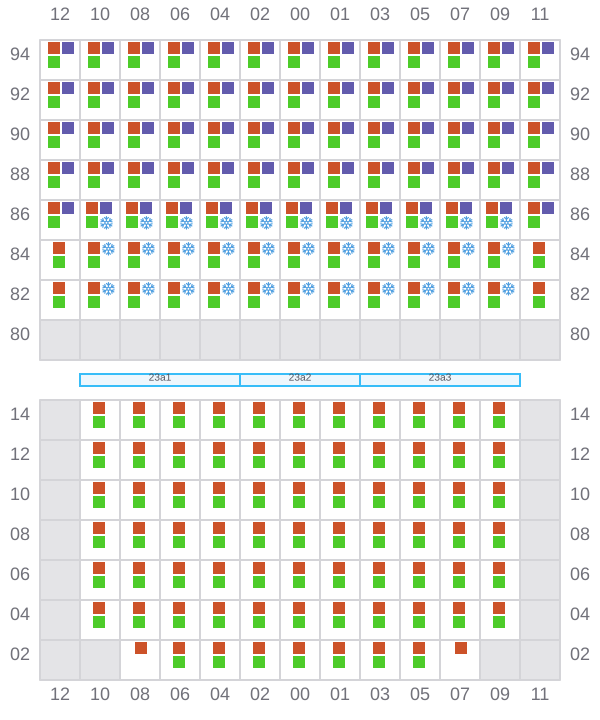

Bay 023 view and slots of REN JIAN 16

025

  • →
Bay 025 view and slots of REN JIAN 16

027 (026)

  • ←
Bay 027 view and slots of REN JIAN 16

029

  • →

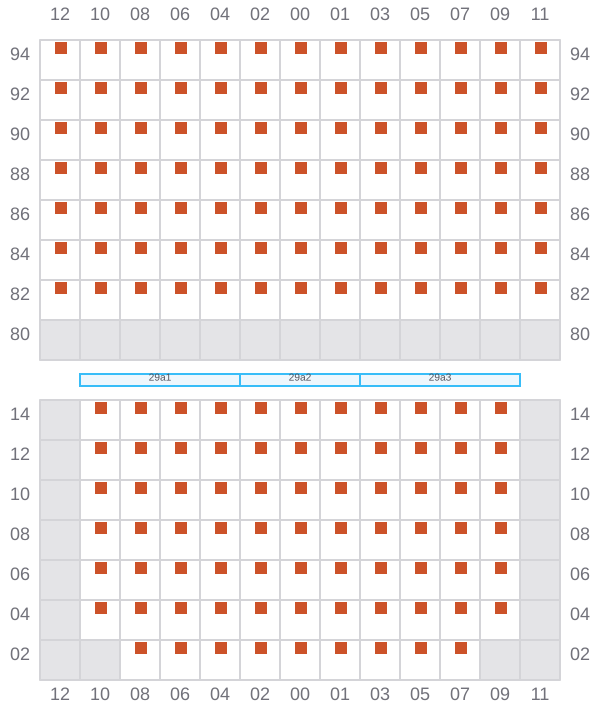

Bay 029 view and slots of REN JIAN 16

031 (030)

  • ←
Bay 031 view and slots of REN JIAN 16

033

  • →
Bay 033 view and slots of REN JIAN 16

035 (034)

  • ←
Bay 035 view and slots of REN JIAN 16

037

  • →

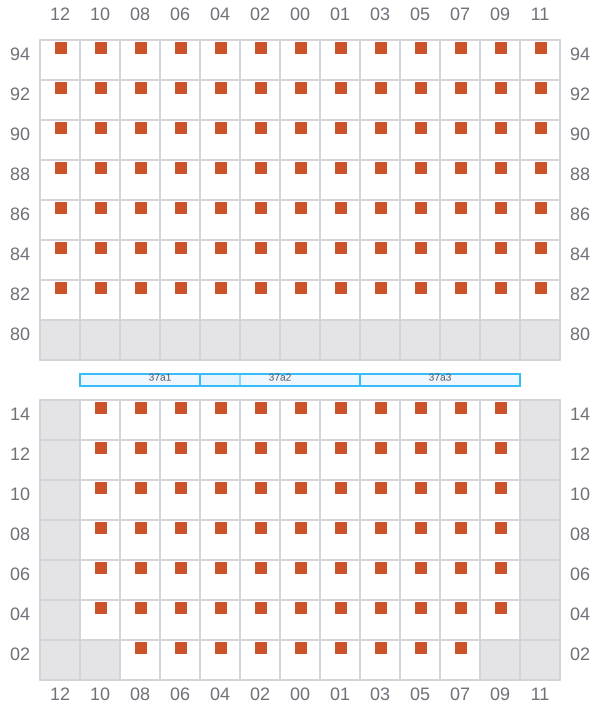

Bay 037 view and slots of REN JIAN 16

039 (038)

  • ←

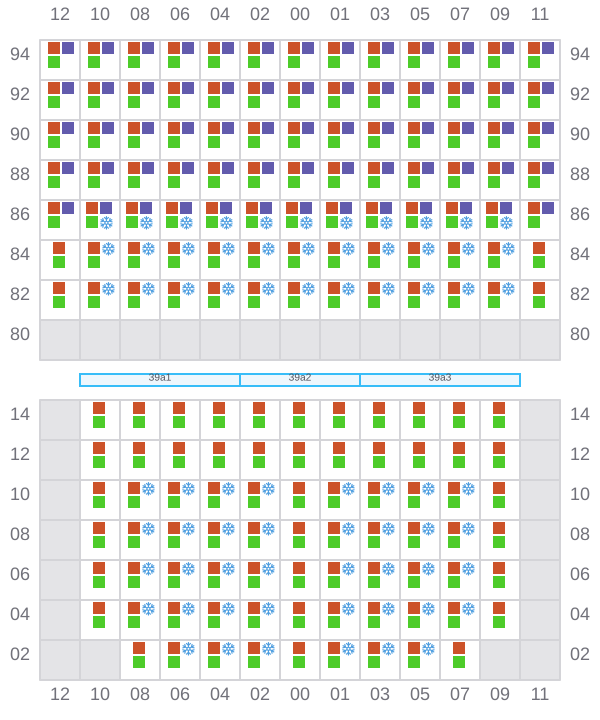

Bay 039 view and slots of REN JIAN 16

041

  • →

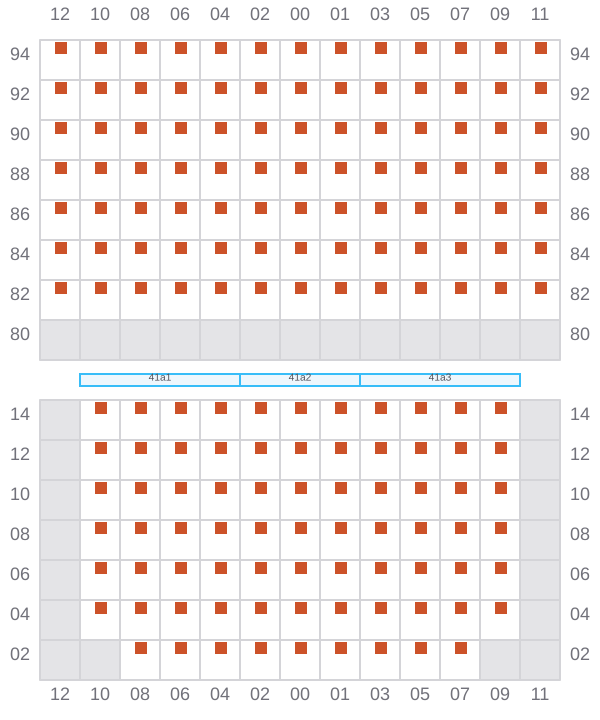

Bay 041 view and slots of REN JIAN 16

043 (042)

  • ←

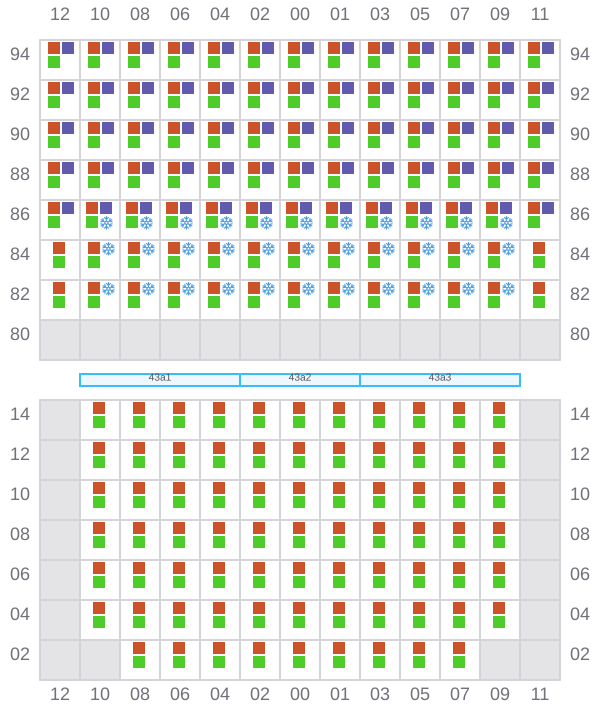

Bay 043 view and slots of REN JIAN 16

045

  • →

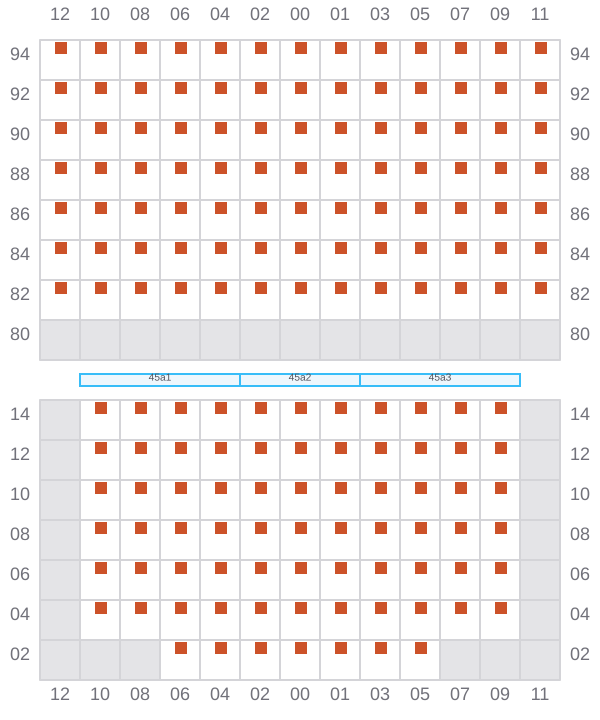

Bay 045 view and slots of REN JIAN 16

047 (046)

  • ←

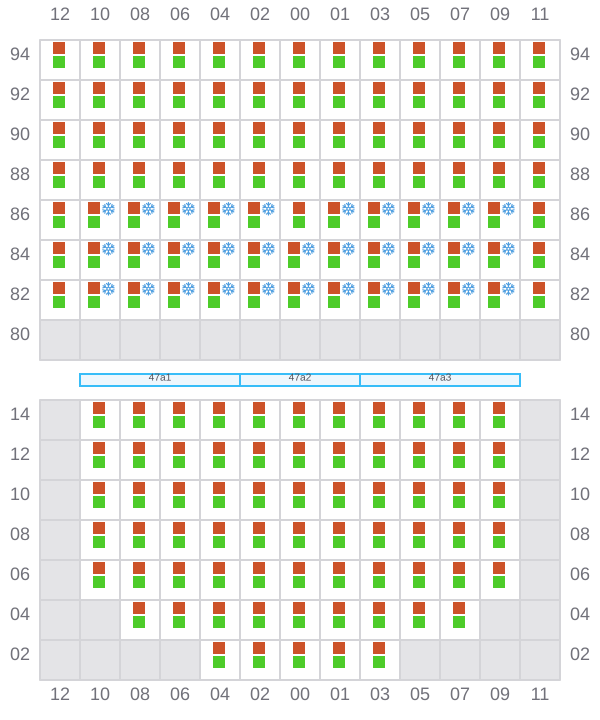

Bay 047 view and slots of REN JIAN 16

049

  • →
Bay 049 view and slots of REN JIAN 16

051 (050)

  • ←

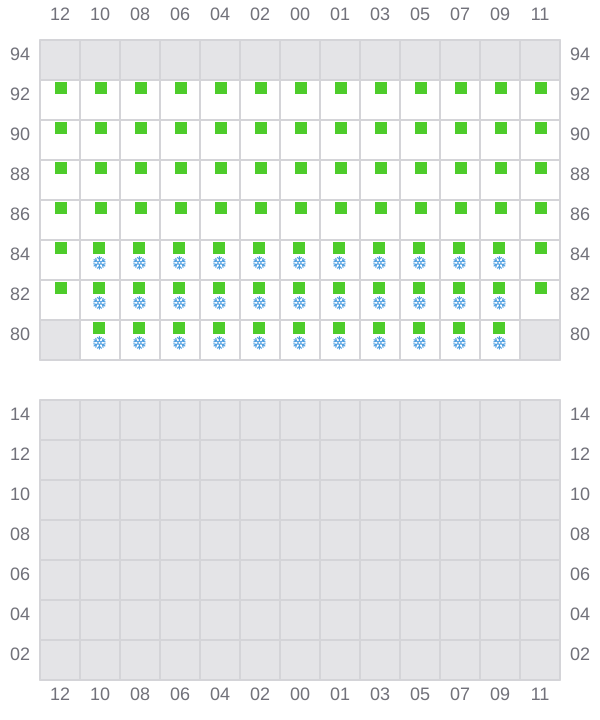

Bay 051 view and slots of REN JIAN 16

053

  • →

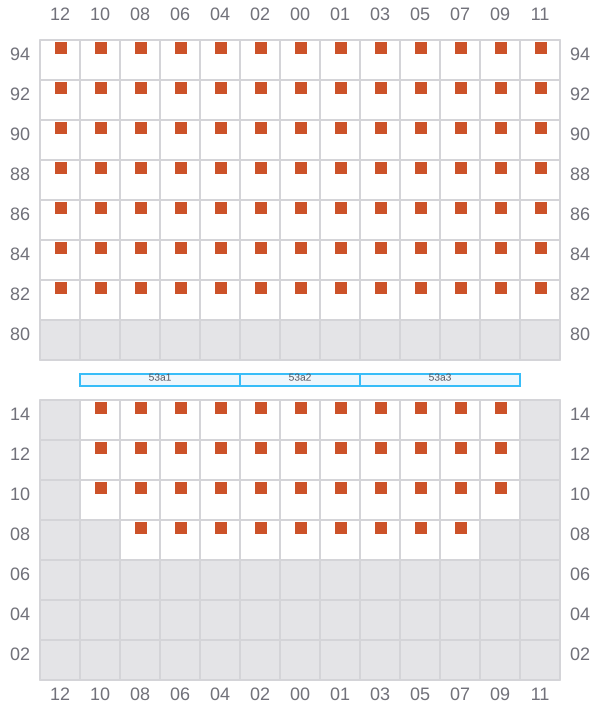

Bay 053 view and slots of REN JIAN 16

055 (054)

  • ←

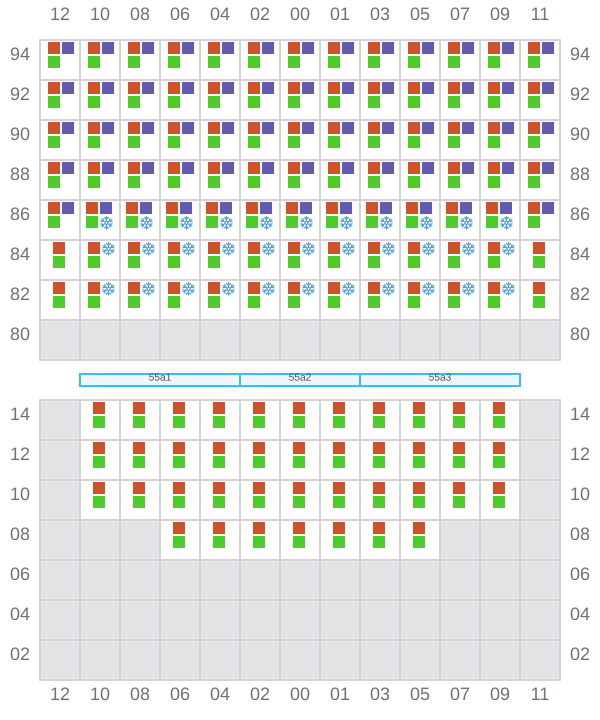

Bay 055 view and slots of REN JIAN 16

057

  • →

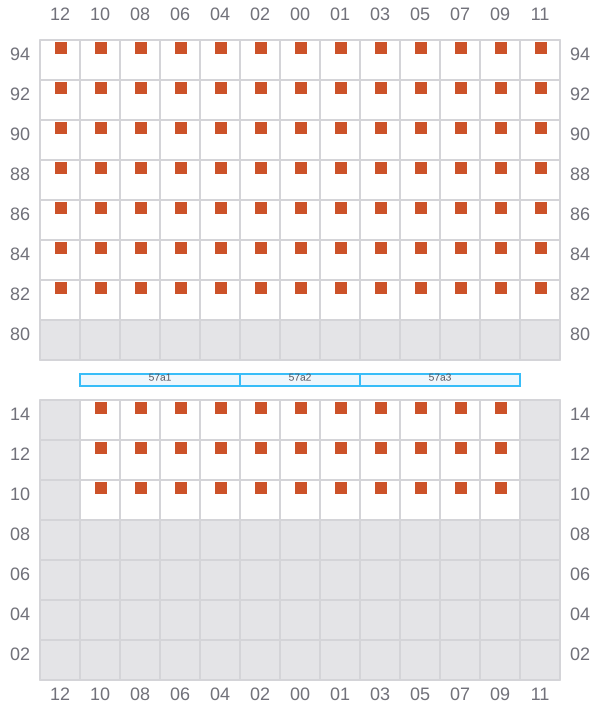

Bay 057 view and slots of REN JIAN 16

059 (058)

  • ←

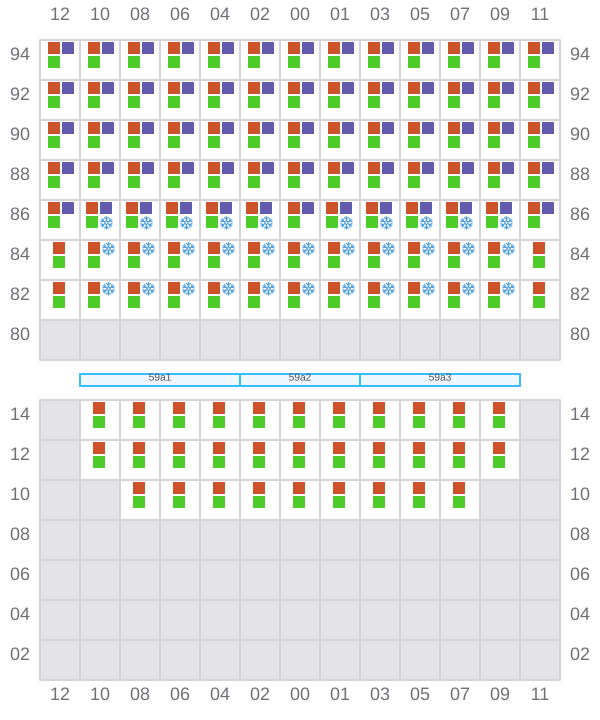

Bay 059 view and slots of REN JIAN 16

061

  • →
Bay 061 view and slots of REN JIAN 16

063 (062)

  • ←

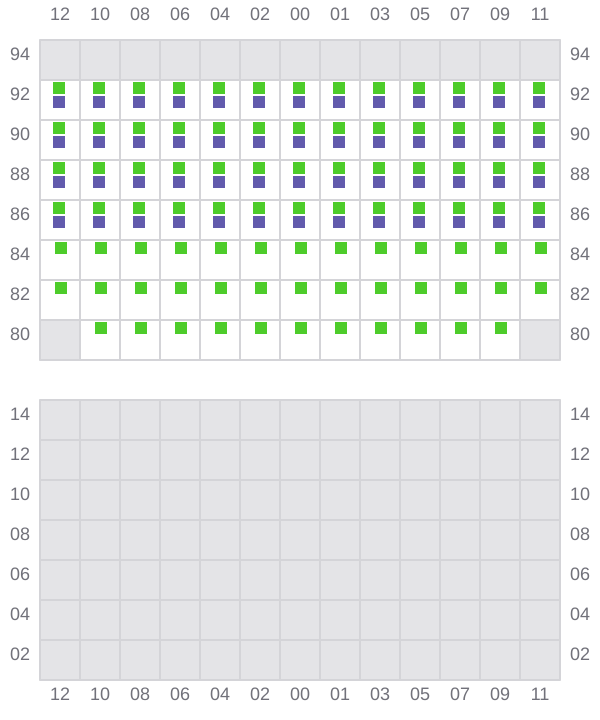

Bay 063 view and slots of REN JIAN 16
