REN JIAN 26
9450947 | BQQS | 9450947 by ********* Last update: Wed Mar 27 2024

General Info

Ship Name:REN JIAN 26

IMO Code:9450947

Call Sign:BQQS

Line Operator:9450947

Class Name for Sister Ships:38Y

Year Built:2010

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:061

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:4,395

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

Side view of REN JIAN 26

Hatch-Covers View

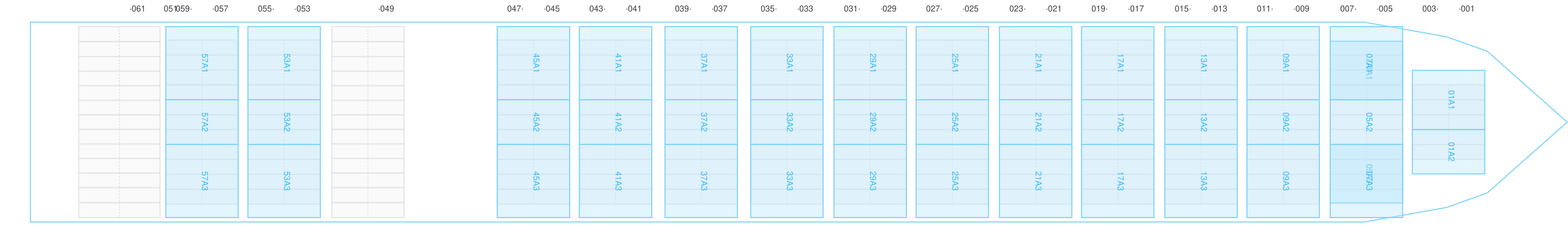

Deck view of REN JIAN 26

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

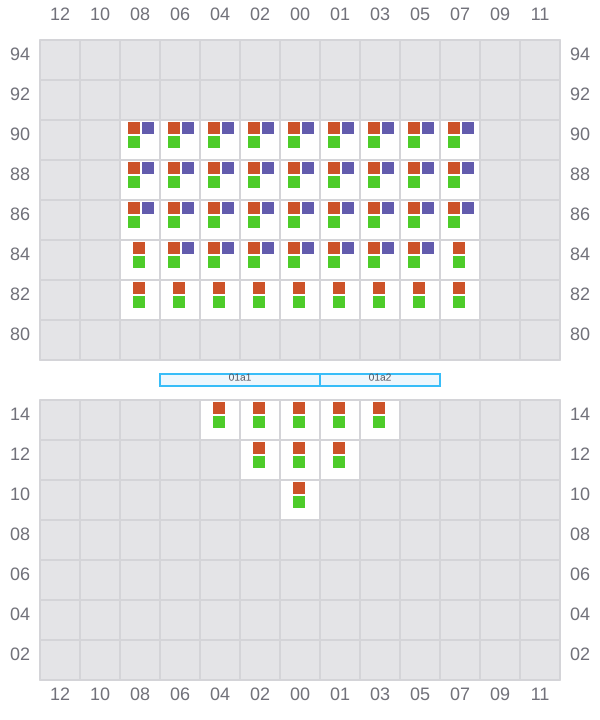

Bay 001 view and slots of REN JIAN 26

003

←

Bay 003 view and slots of REN JIAN 26

005 (006)

→

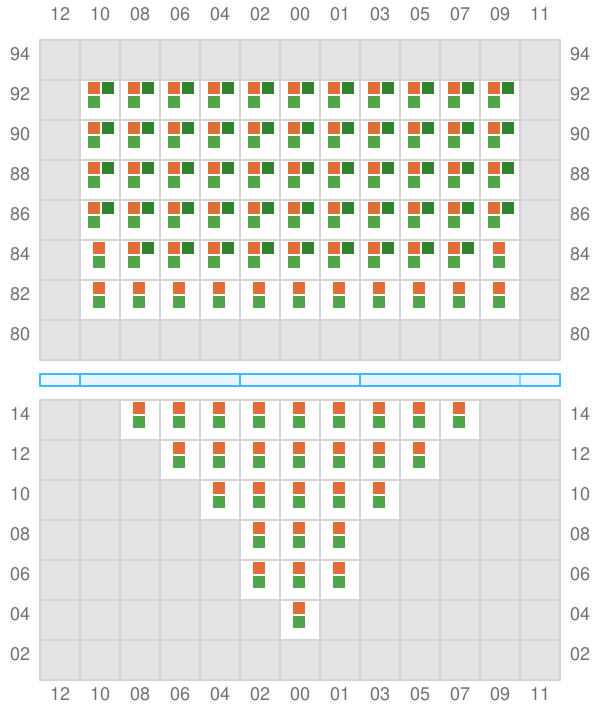

Bay 005 view and slots of REN JIAN 26

007

←

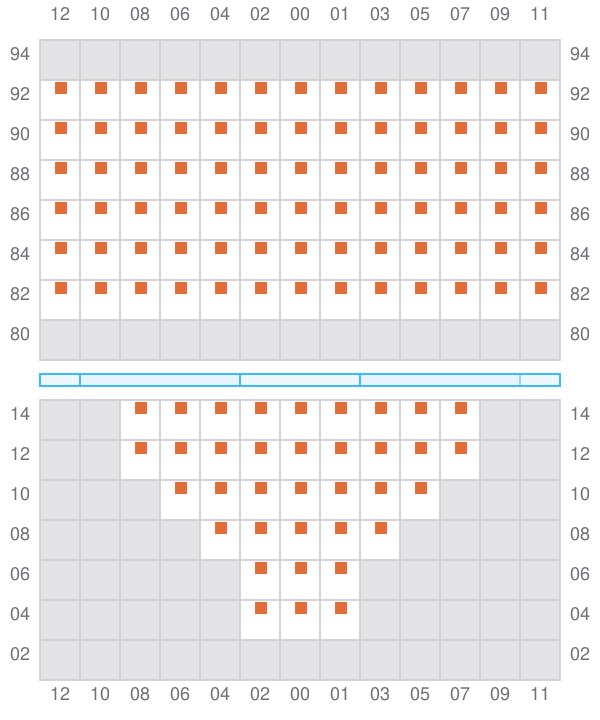

Bay 007 view and slots of REN JIAN 26

009 (010)

→

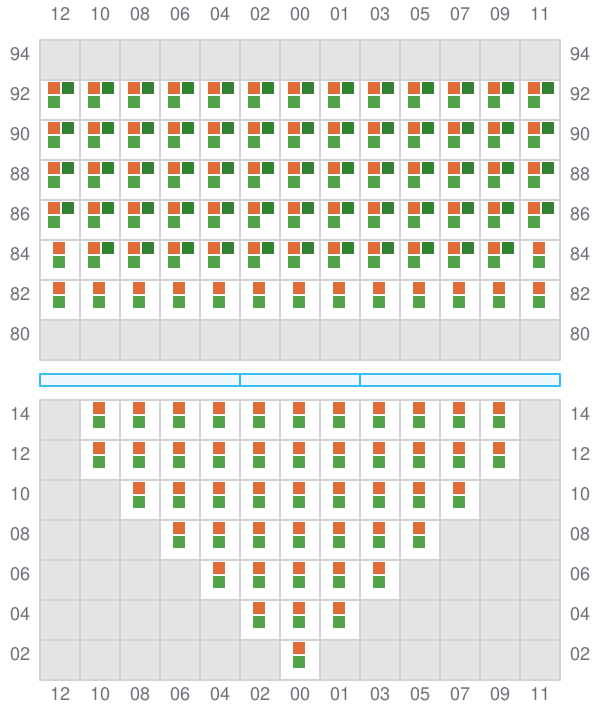

Bay 009 view and slots of REN JIAN 26

011

←
^→ / _?

Bay 011 view and slots of REN JIAN 26

013 (014)

→

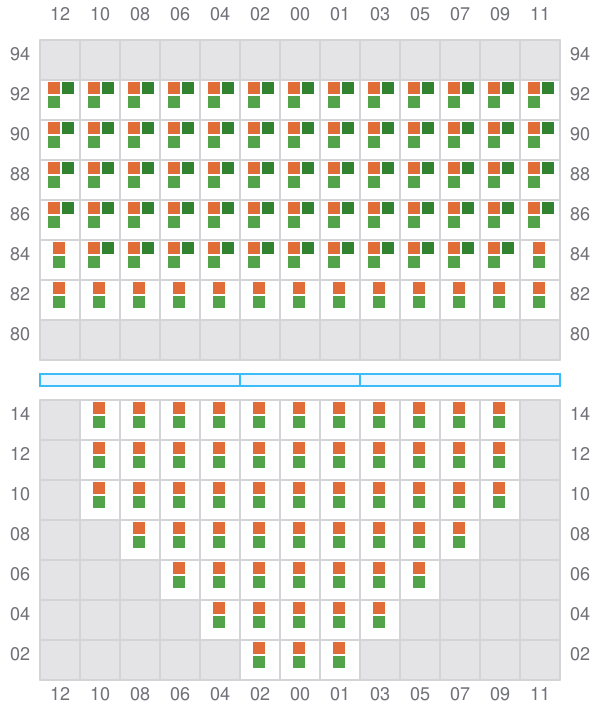

Bay 013 view and slots of REN JIAN 26

015

←

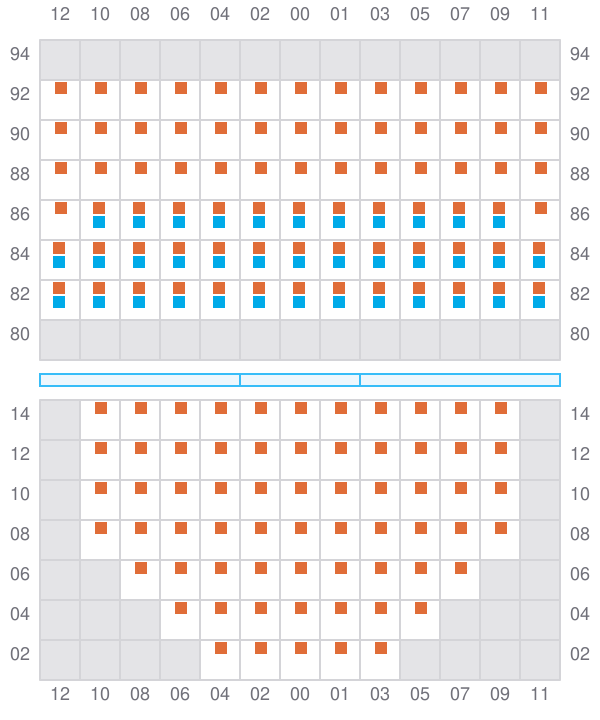

Bay 015 view and slots of REN JIAN 26

017 (018)

→

Bay 017 view and slots of REN JIAN 26

019

←

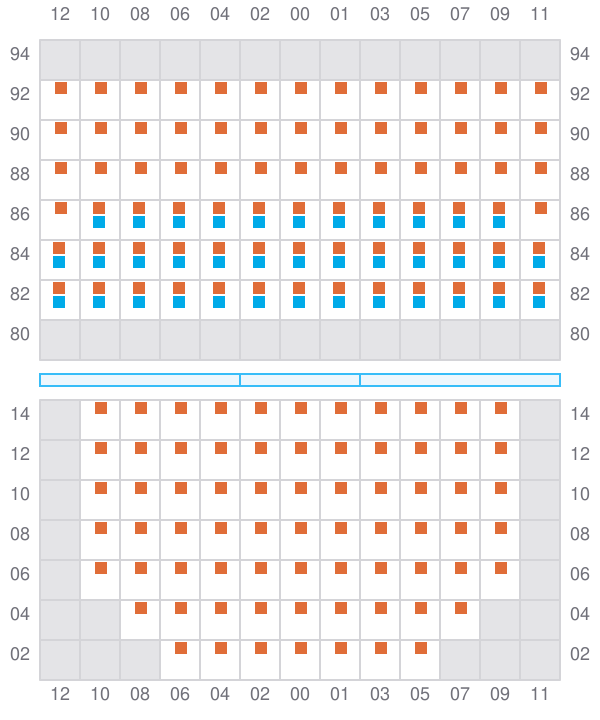

Bay 019 view and slots of REN JIAN 26

021 (022)

→

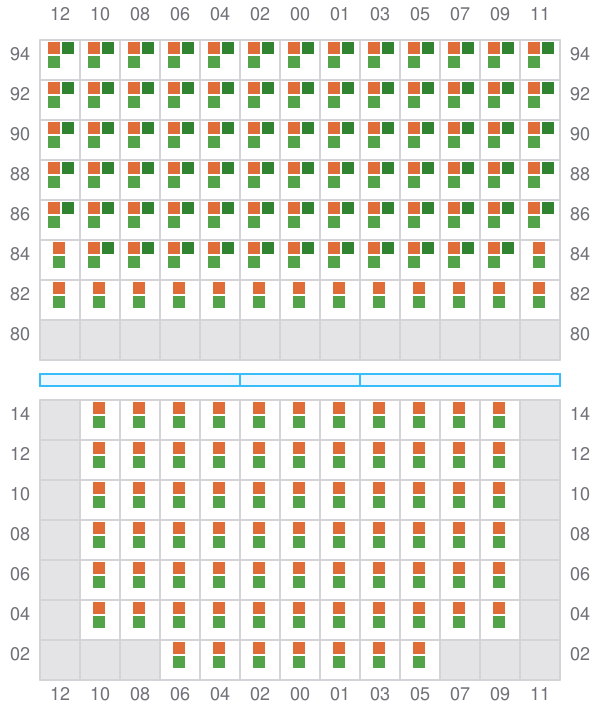

Bay 021 view and slots of REN JIAN 26

023

←

Bay 023 view and slots of REN JIAN 26

025 (026)

→

Bay 025 view and slots of REN JIAN 26

027

←
^→ / _?

Bay 027 view and slots of REN JIAN 26

029 (030)

→

Bay 029 view and slots of REN JIAN 26

031

←
^→ / _?

Bay 031 view and slots of REN JIAN 26

033 (034)

→

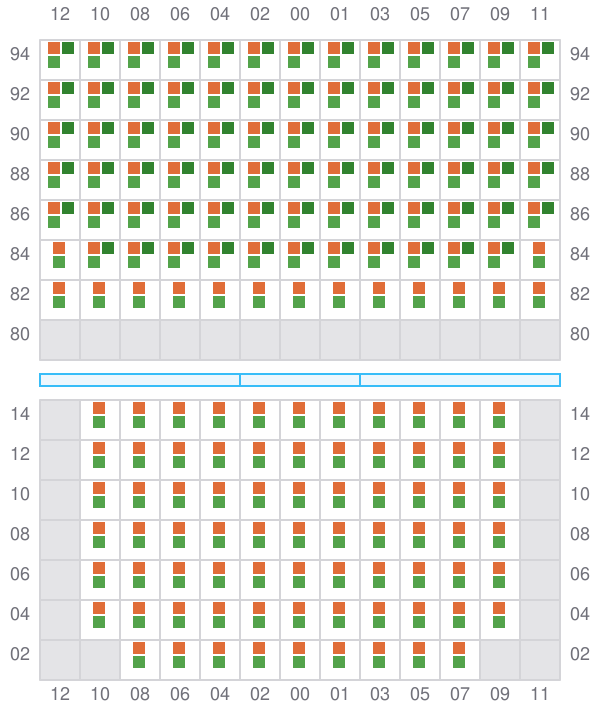

Bay 033 view and slots of REN JIAN 26

035

←
→

Bay 035 view and slots of REN JIAN 26

037 (038)

→

Bay 037 view and slots of REN JIAN 26

039

←
→

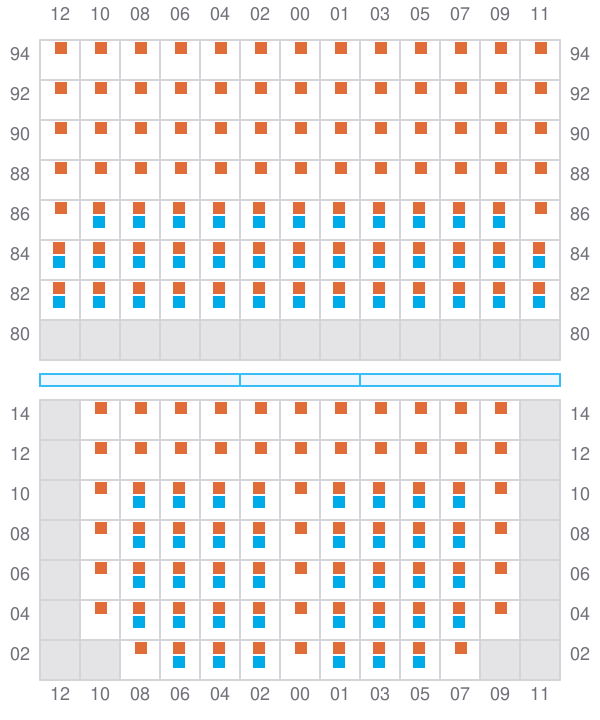

Bay 039 view and slots of REN JIAN 26

041 (042)

→

Bay 041 view and slots of REN JIAN 26

043

←
^→ / _?

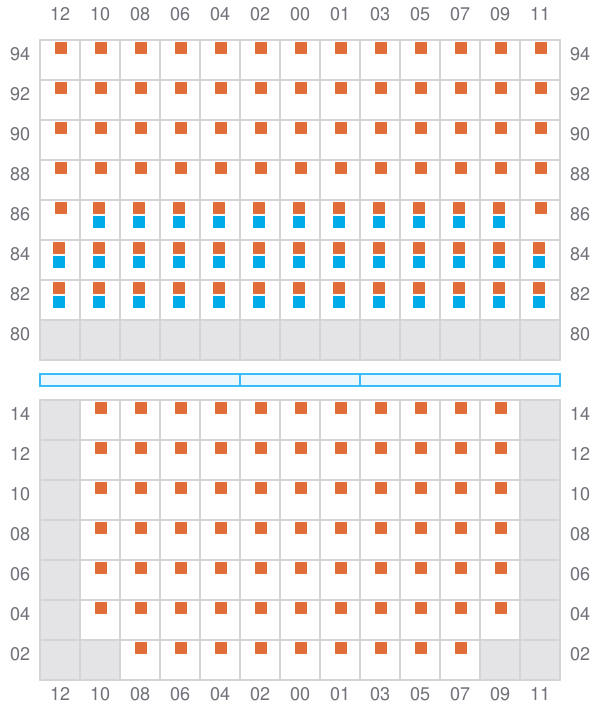

Bay 043 view and slots of REN JIAN 26

045 (046)

→

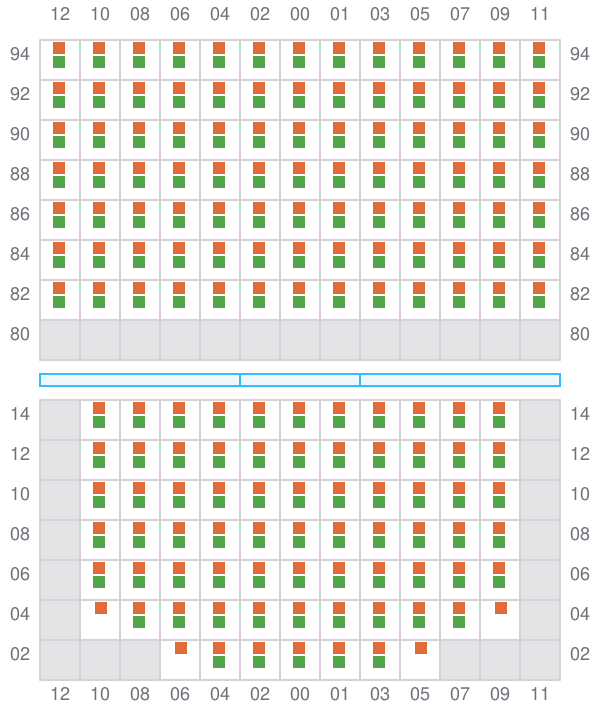

Bay 045 view and slots of REN JIAN 26

047

←
^→ / _?

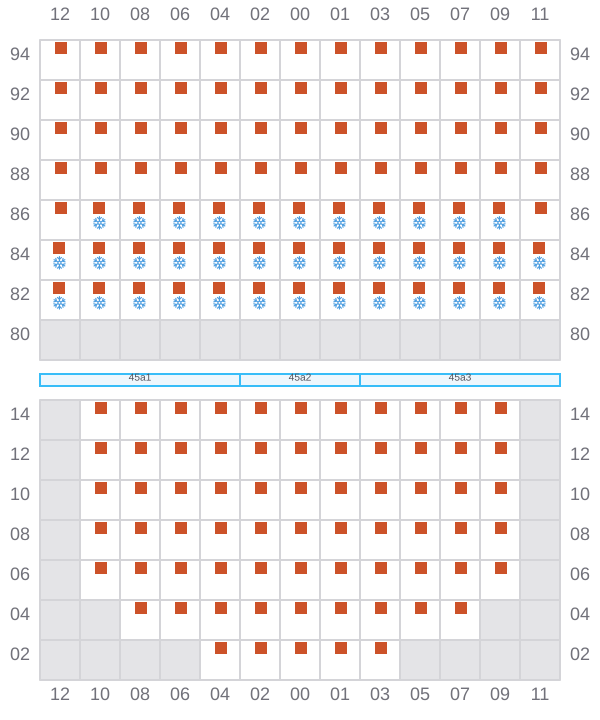

Bay 047 view and slots of REN JIAN 26

049 (050)

^→ / _?
^→ / _?

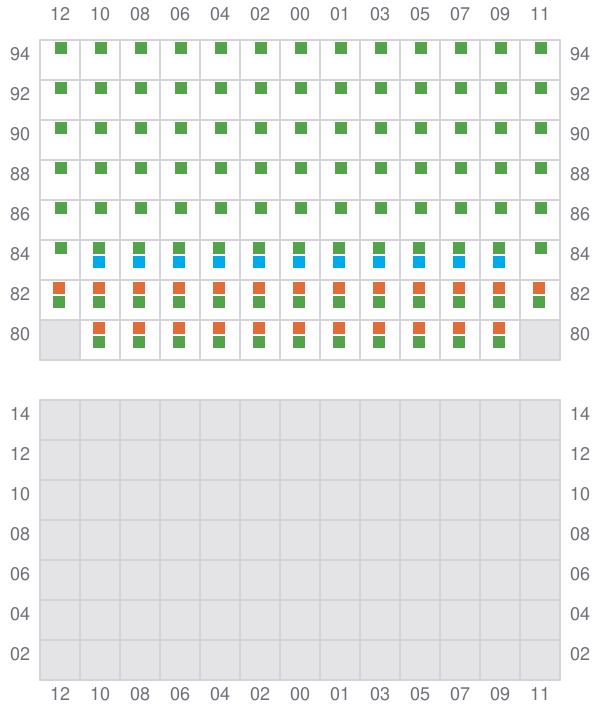

Bay 049 view and slots of REN JIAN 26

051

^← / _?
^→ / _?

Bay 051 view and slots of REN JIAN 26

053 (054)

→

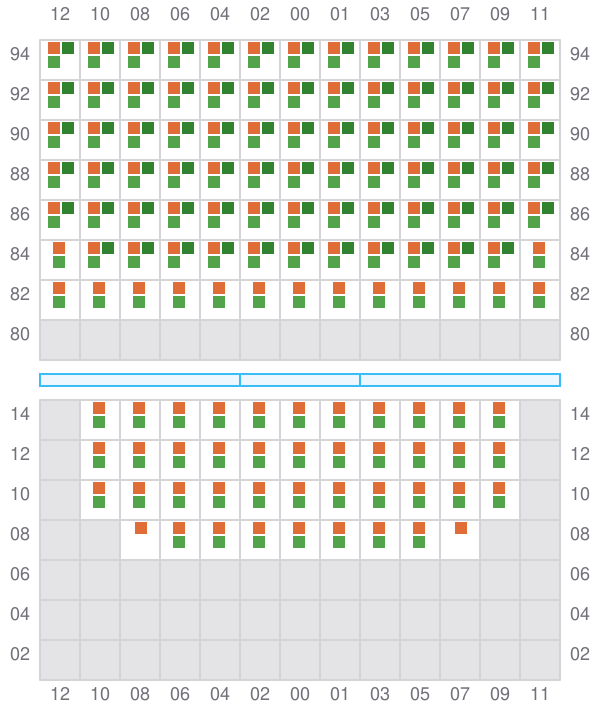

Bay 053 view and slots of REN JIAN 26

055

←
^→ / _?

Bay 055 view and slots of REN JIAN 26

057 (058)

→

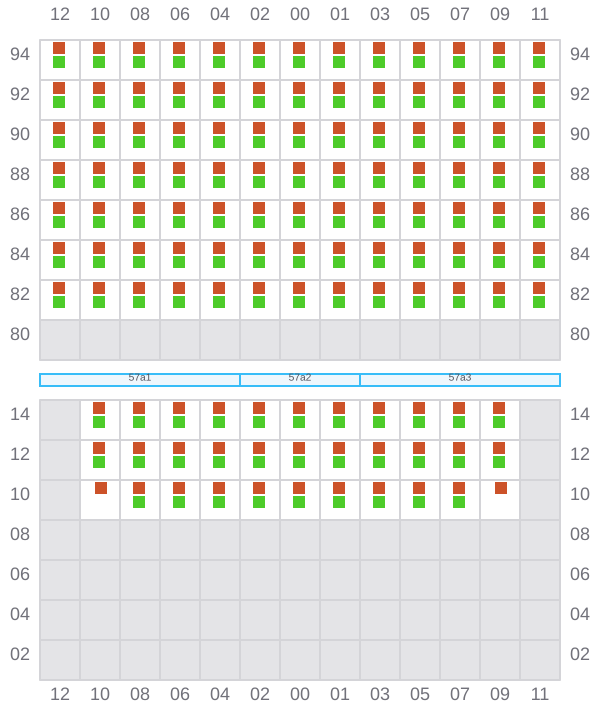

Bay 057 view and slots of REN JIAN 26

059

←
^→ / _?

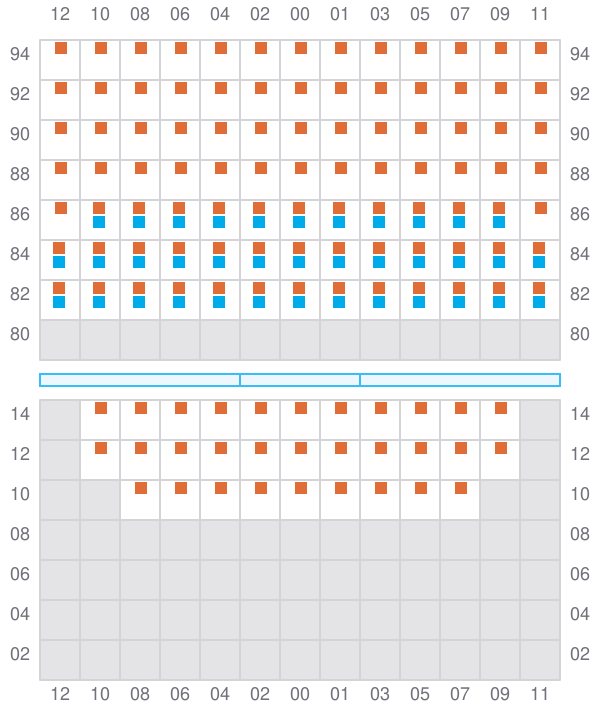

Bay 059 view and slots of REN JIAN 26

061 (062)

^→ / _?

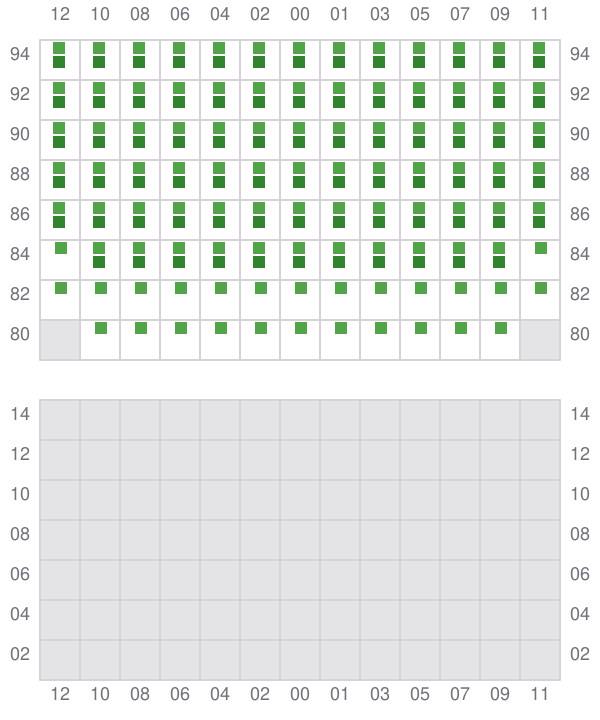

Bay 061 view and slots of REN JIAN 26
