REN JIAN 27
9484510 | BQQT | 9484510 by ********* Last update: Fri Apr 12 2024

General Info

Ship Name:REN JIAN 27
IMO Code:9484510
Call Sign:BQQT
Line Operator:9484510
Class Name for Sister Ships:AS MARIELLA
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,395

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

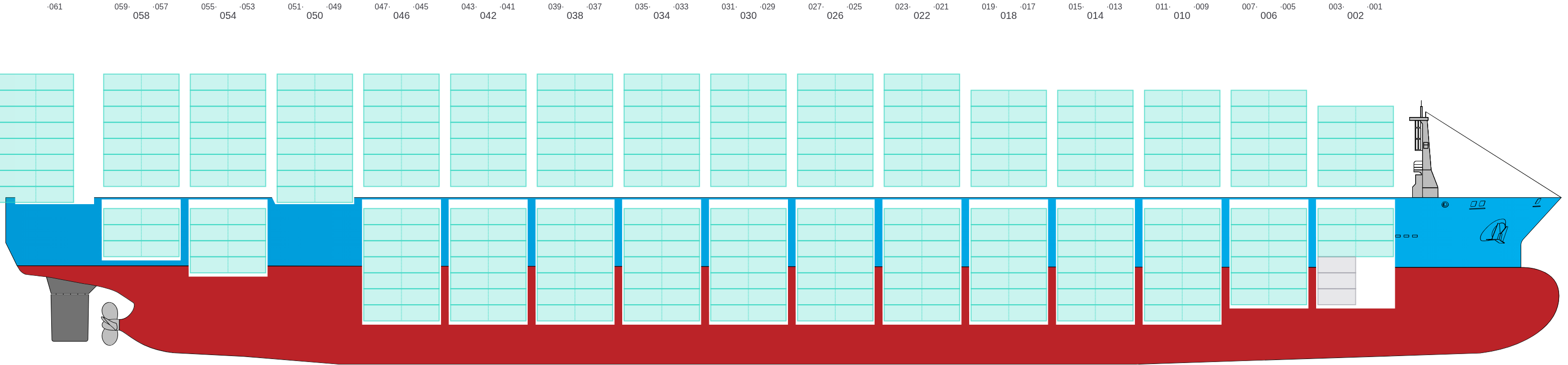

Side View

Side view of REN JIAN 27

Hatch-Covers View

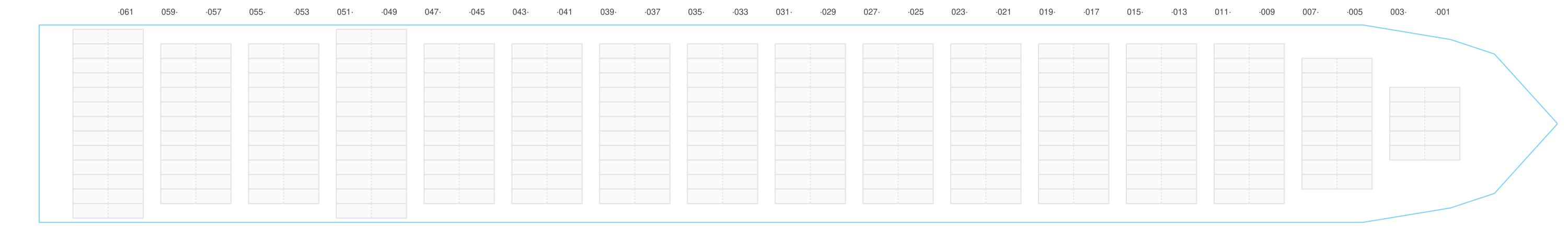

Deck view of REN JIAN 27

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

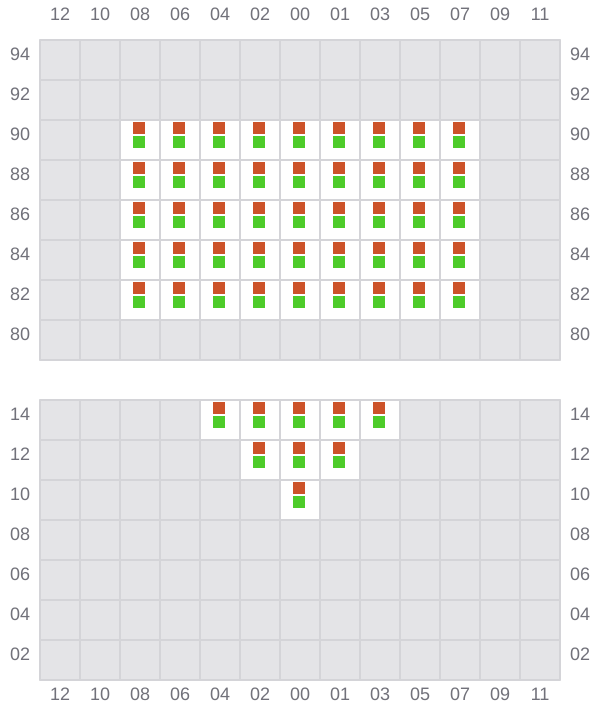

Bay 001 view and slots of REN JIAN 27

003

  • ←

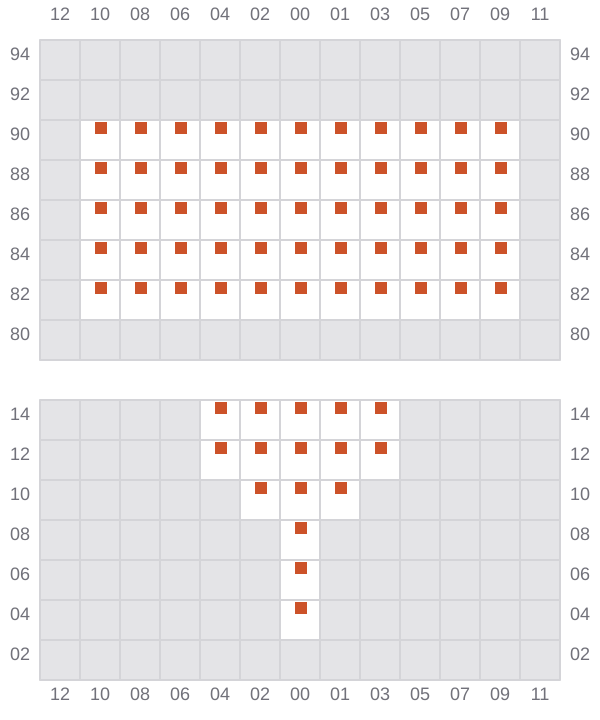

Bay 003 view and slots of REN JIAN 27

005 (006)

  • →

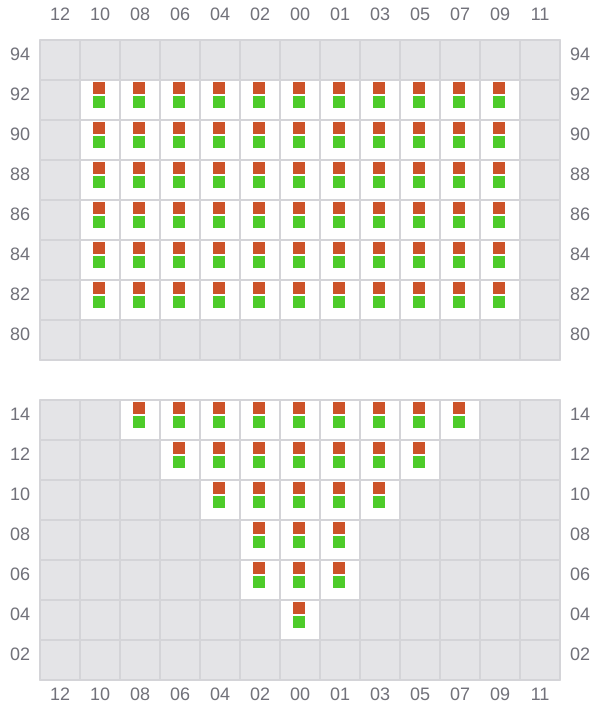

Bay 005 view and slots of REN JIAN 27

007

  • ←

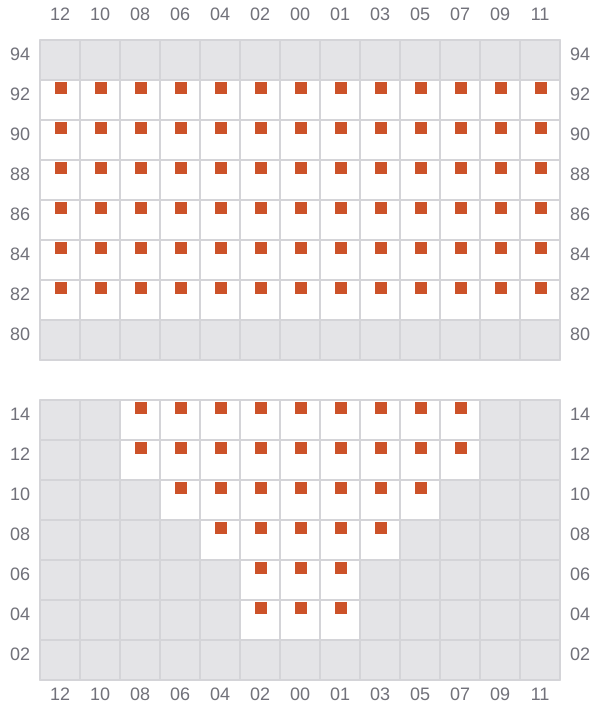

Bay 007 view and slots of REN JIAN 27

009 (010)

  • →

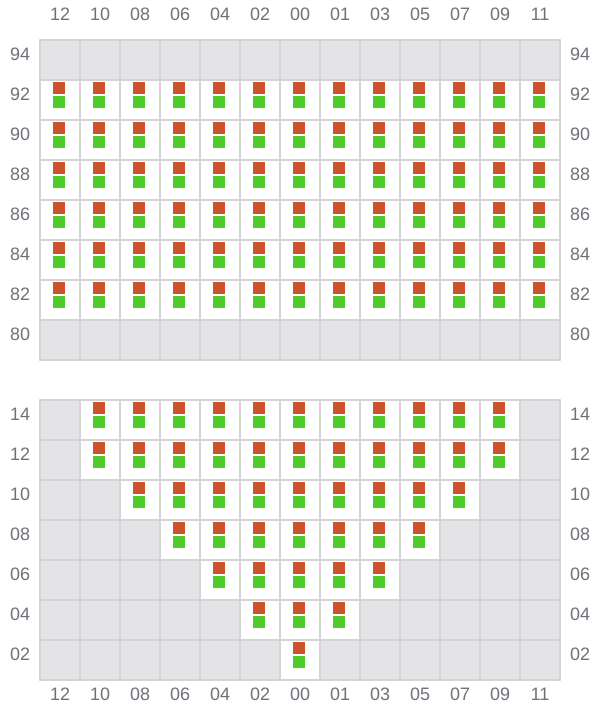

Bay 009 view and slots of REN JIAN 27

011

  • ←

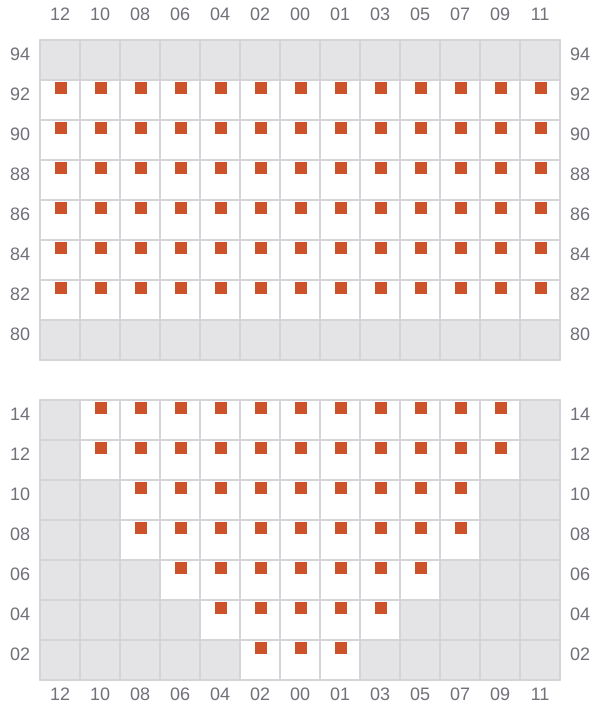

Bay 011 view and slots of REN JIAN 27

013 (014)

  • →
Bay 013 view and slots of REN JIAN 27

015

  • ←
Bay 015 view and slots of REN JIAN 27

017 (018)

  • →

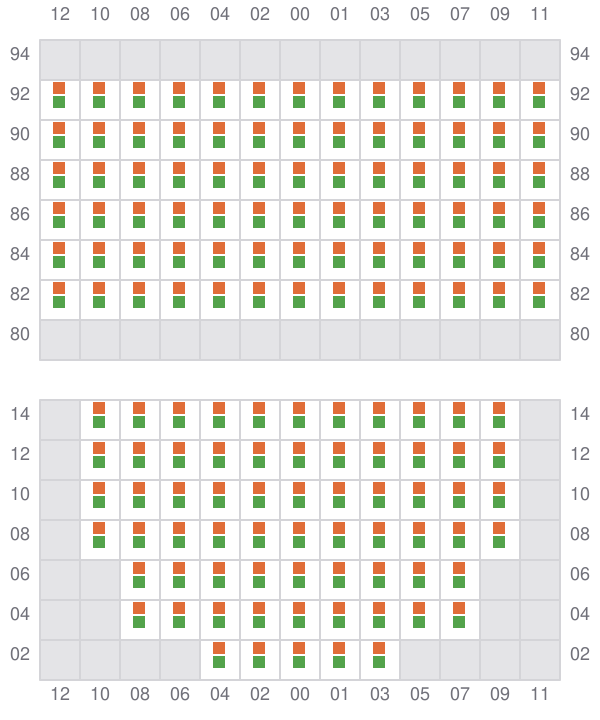

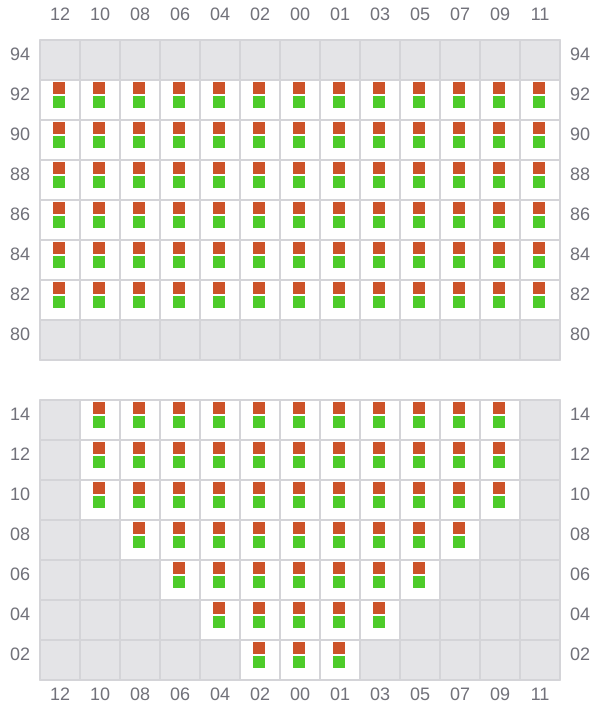

Bay 017 view and slots of REN JIAN 27

019

  • ←

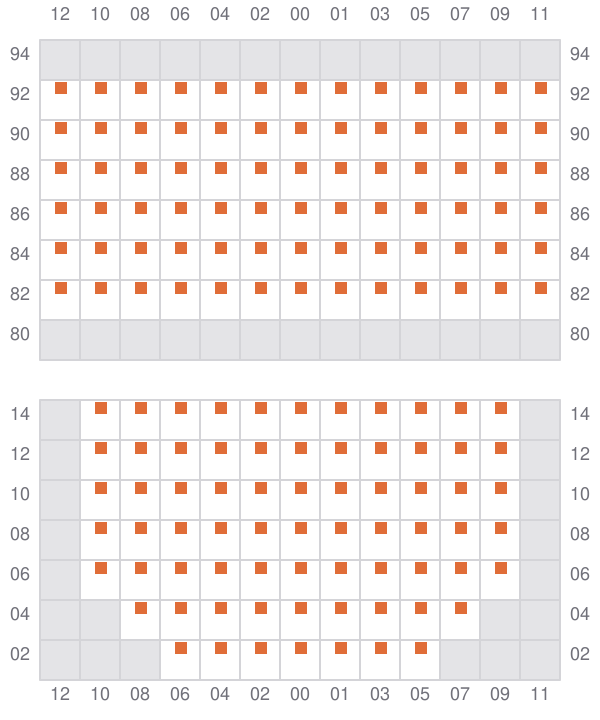

Bay 019 view and slots of REN JIAN 27

021 (022)

  • →

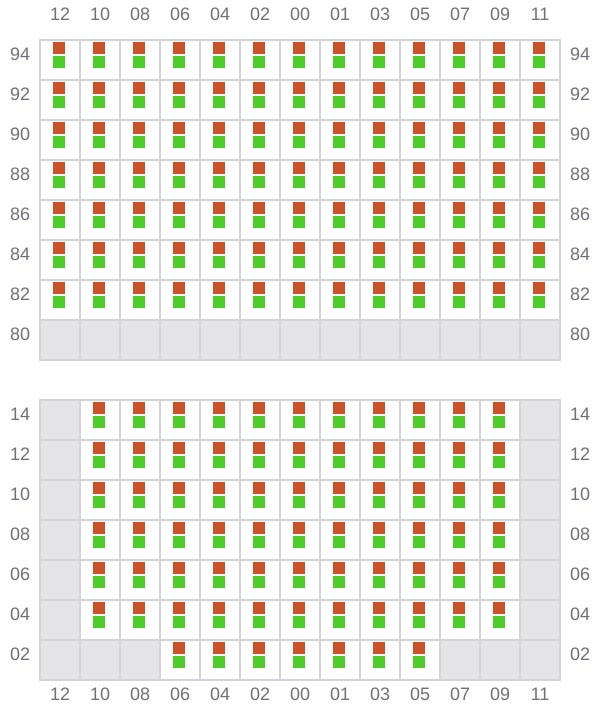

Bay 021 view and slots of REN JIAN 27

023

  • ←
Bay 023 view and slots of REN JIAN 27

025 (026)

  • →

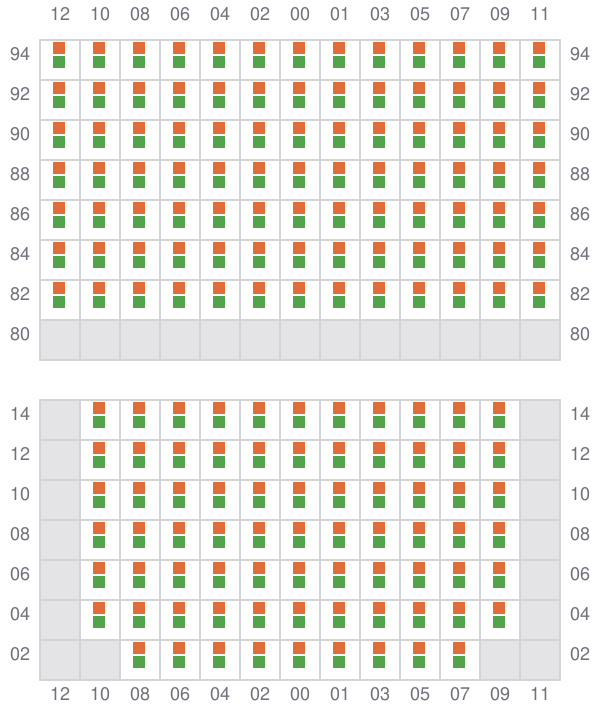

Bay 025 view and slots of REN JIAN 27

027

  • ←

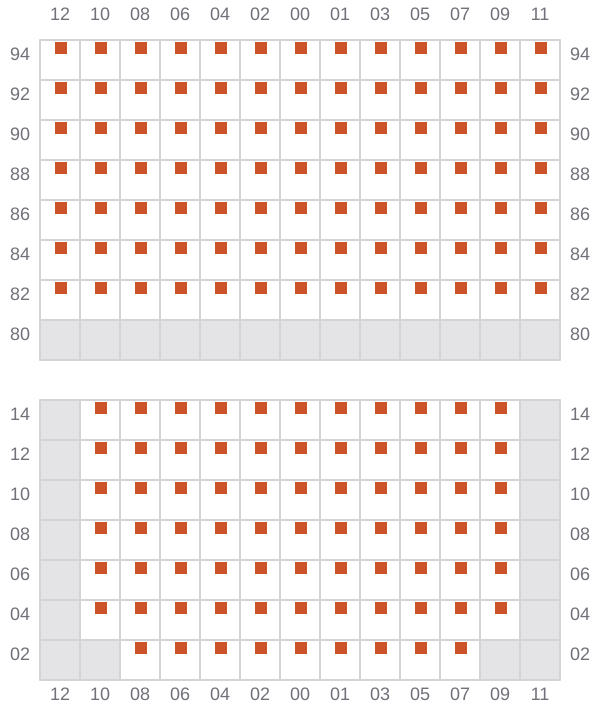

Bay 027 view and slots of REN JIAN 27

029 (030)

  • →
Bay 029 view and slots of REN JIAN 27

031

  • ←
Bay 031 view and slots of REN JIAN 27

033 (034)

  • →
Bay 033 view and slots of REN JIAN 27

035

  • ←
Bay 035 view and slots of REN JIAN 27

037 (038)

  • →
Bay 037 view and slots of REN JIAN 27

039

  • ←
Bay 039 view and slots of REN JIAN 27

041 (042)

  • →

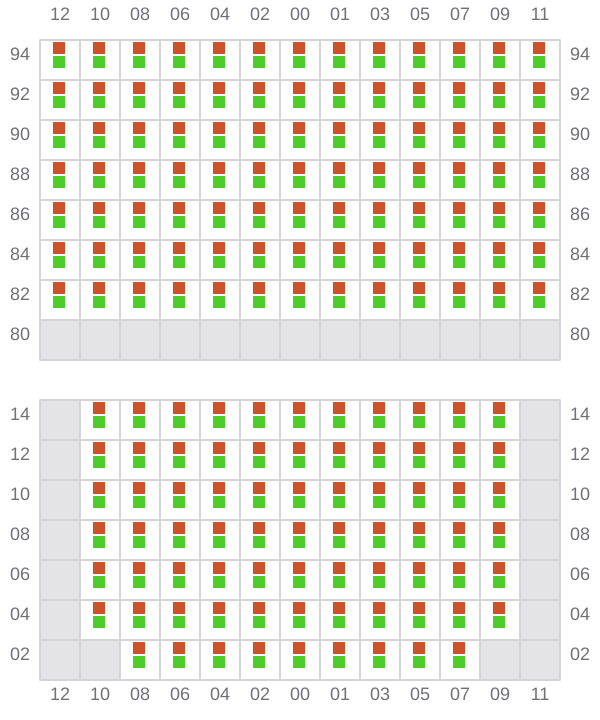

Bay 041 view and slots of REN JIAN 27

043

  • ←

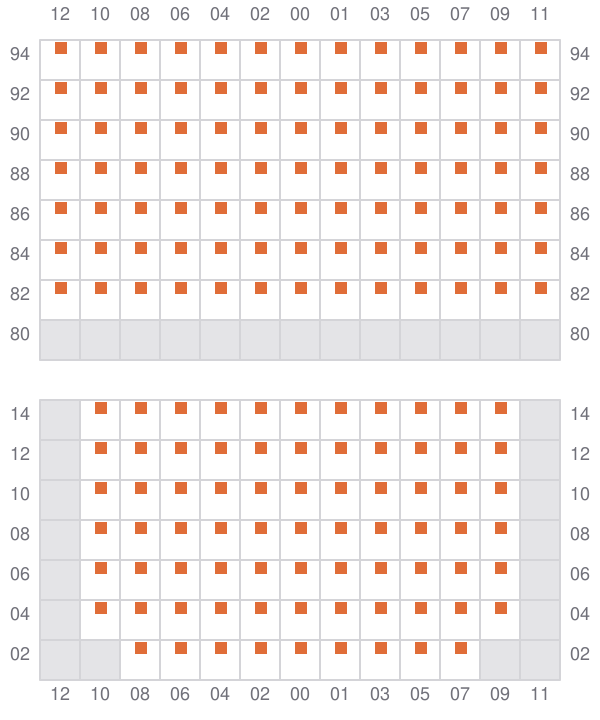

Bay 043 view and slots of REN JIAN 27

045 (046)

  • →
Bay 045 view and slots of REN JIAN 27

047

  • ←

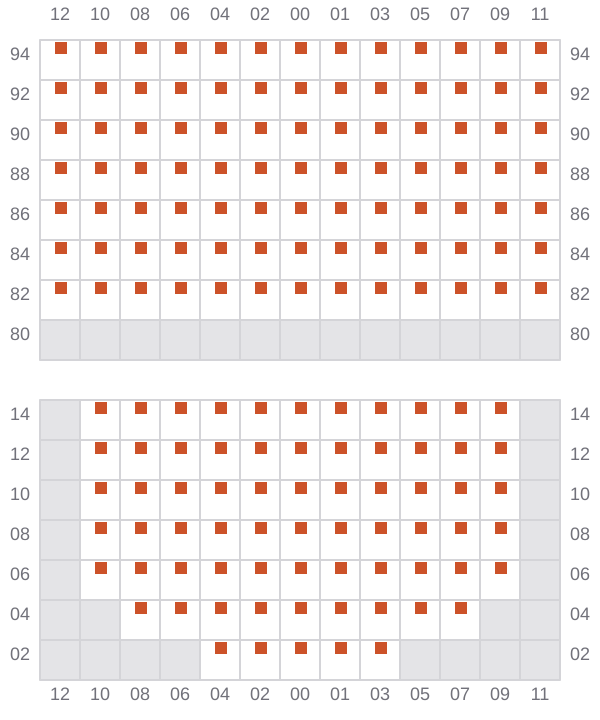

Bay 047 view and slots of REN JIAN 27

049 (050)

  • → / ?

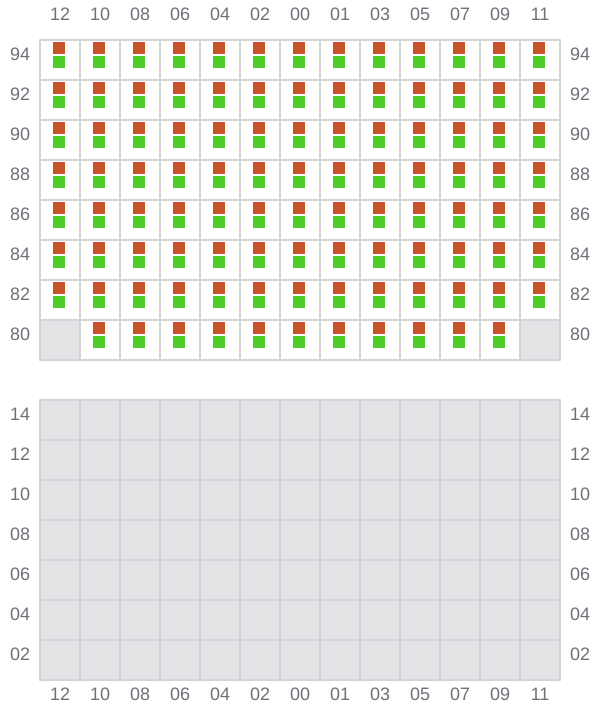

Bay 049 view and slots of REN JIAN 27

051

  • ← / ?

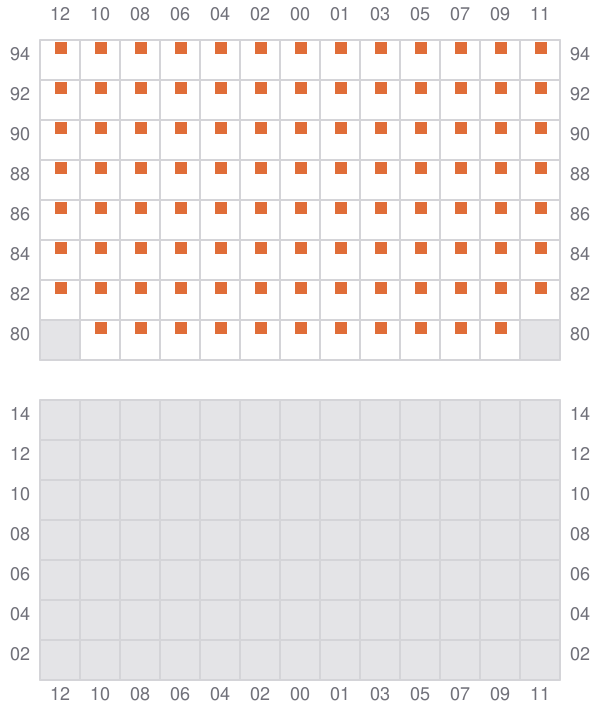

Bay 051 view and slots of REN JIAN 27

053 (054)

  • →

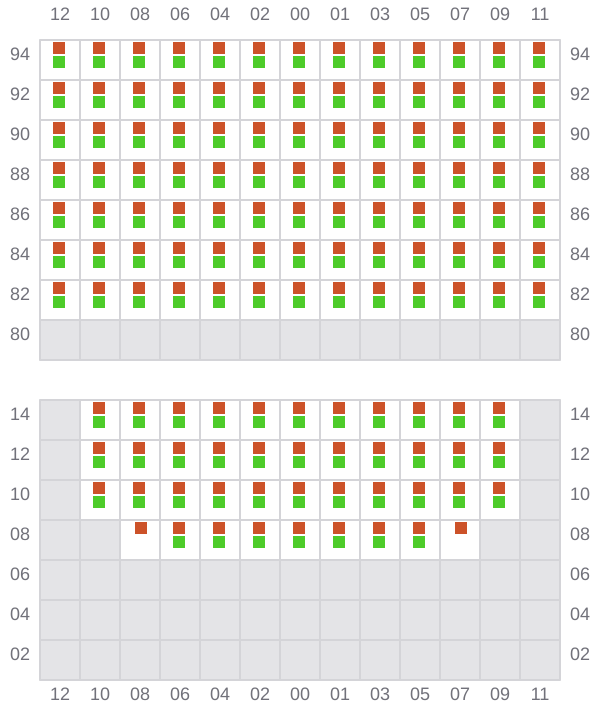

Bay 053 view and slots of REN JIAN 27

055

  • ←

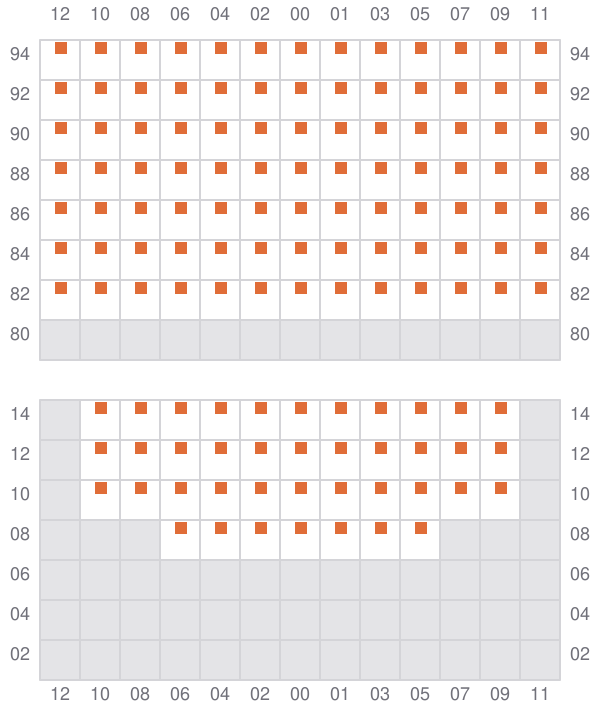

Bay 055 view and slots of REN JIAN 27

057 (058)

  • →

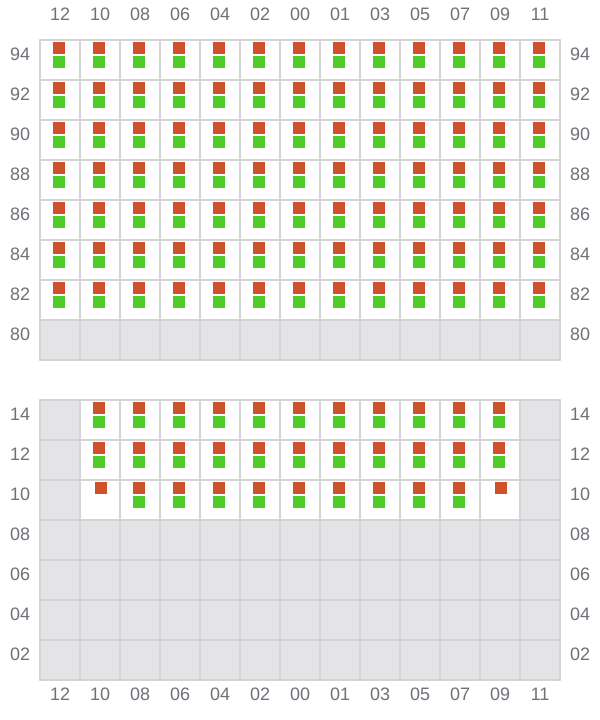

Bay 057 view and slots of REN JIAN 27

059

  • ←

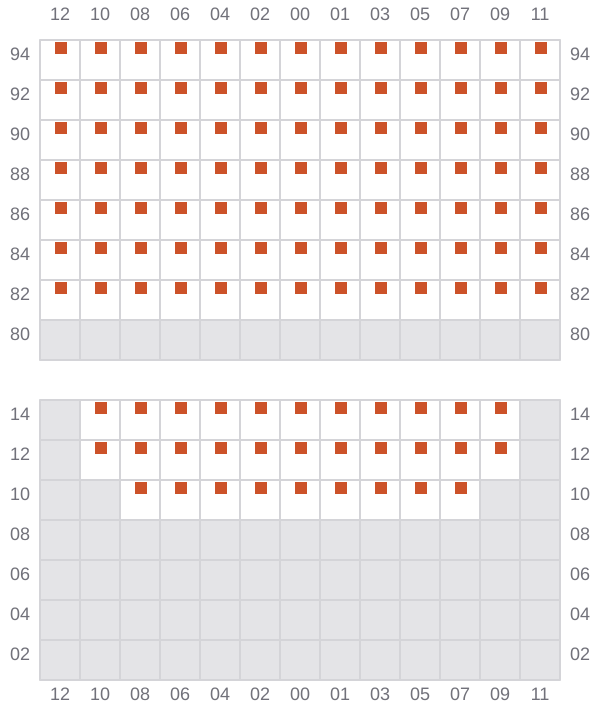

Bay 059 view and slots of REN JIAN 27

061 (062)

  • → / ?

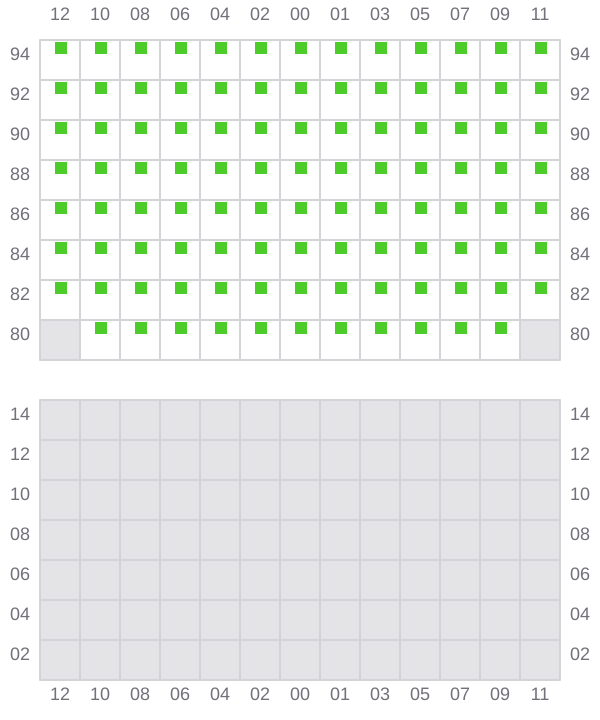

Bay 061 view and slots of REN JIAN 27
