REN JIAN 8
9326756 | BPLL9 | 9326756 by ********* Last update: Mon Aug 19 2024

General Info

Ship Name:REN JIAN 8
IMO Code:9326756
Call Sign:BPLL9
Line Operator:9326756
Class Name for Sister Ships:NYK
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):249.00
LOA (Length Overall):264.11
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,298

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of REN JIAN 8

Hatch-Covers View

Deck view of REN JIAN 8

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

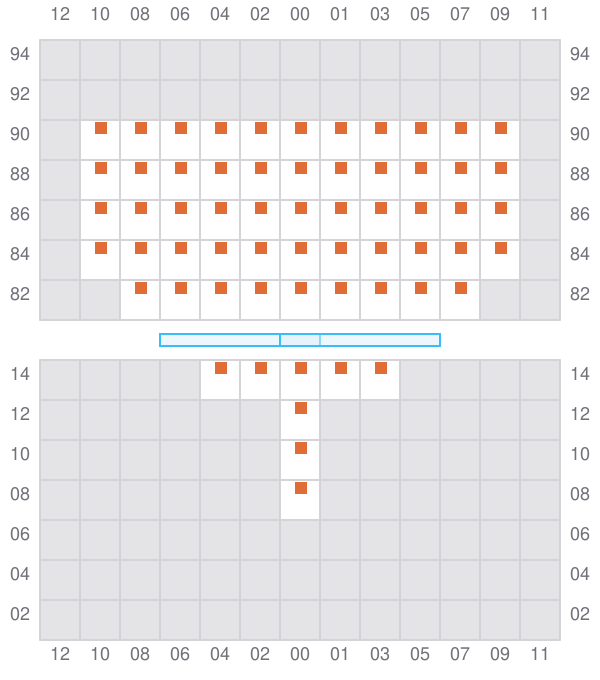

Bay 001 view and slots of REN JIAN 8

003 (002)

  • ←
Bay 003 view and slots of REN JIAN 8

005

  • →
Bay 005 view and slots of REN JIAN 8

007 (006)

  • ←
Bay 007 view and slots of REN JIAN 8

009

  • →
Bay 009 view and slots of REN JIAN 8

011 (010)

  • ←
Bay 011 view and slots of REN JIAN 8

013

  • →

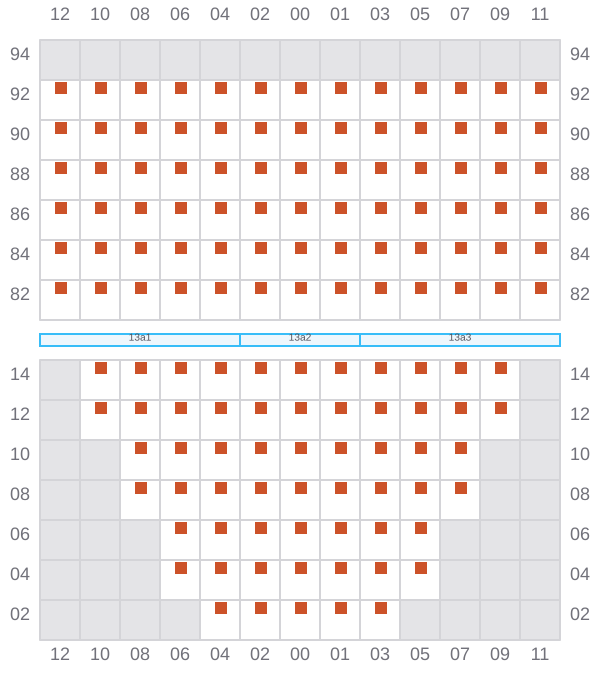

Bay 013 view and slots of REN JIAN 8

015 (014)

  • ←
Bay 015 view and slots of REN JIAN 8

017

  • →

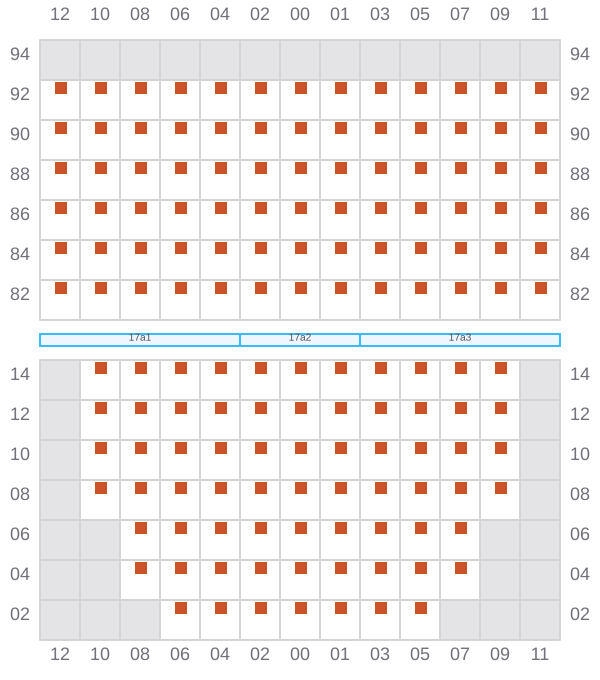

Bay 017 view and slots of REN JIAN 8

019 (018)

  • ←
Bay 019 view and slots of REN JIAN 8

021

  • →
Bay 021 view and slots of REN JIAN 8

023 (022)

  • ←
Bay 023 view and slots of REN JIAN 8

025

  • →
Bay 025 view and slots of REN JIAN 8

027 (026)

  • ←
Bay 027 view and slots of REN JIAN 8

029

  • →
Bay 029 view and slots of REN JIAN 8

031 (030)

  • ←
Bay 031 view and slots of REN JIAN 8

033

  • →
Bay 033 view and slots of REN JIAN 8

035 (034)

  • ←
Bay 035 view and slots of REN JIAN 8

037

  • →
Bay 037 view and slots of REN JIAN 8

039 (038)

  • ←
Bay 039 view and slots of REN JIAN 8

041

  • →

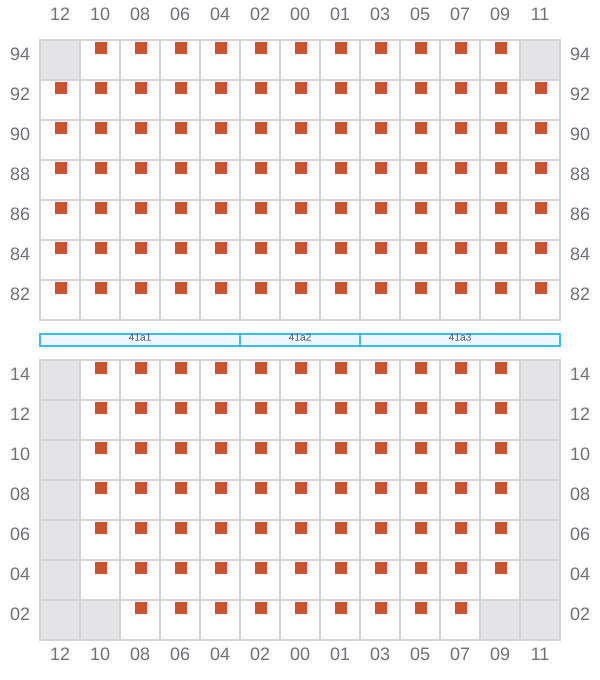

Bay 041 view and slots of REN JIAN 8

043 (042)

  • ←
Bay 043 view and slots of REN JIAN 8

045

  • →
Bay 045 view and slots of REN JIAN 8

047 (046)

  • ←
Bay 047 view and slots of REN JIAN 8

049

  • → / ?
Bay 049 view and slots of REN JIAN 8

051 (050)

  • ← / ?
Bay 051 view and slots of REN JIAN 8

053

  • →
Bay 053 view and slots of REN JIAN 8

055 (054)

  • ←
Bay 055 view and slots of REN JIAN 8

057

  • →
Bay 057 view and slots of REN JIAN 8

059 (058)

  • ←
Bay 059 view and slots of REN JIAN 8

061

Bay 061 view and slots of REN JIAN 8

063 (062)

  • ← / ?
Bay 063 view and slots of REN JIAN 8
