REVERENCE
9250933 | C6SB9 | 9250933 by ********* Last update: Mon Mar 18 2024
General Info
Ship Name:REVERENCE
IMO Code:9250933
Call Sign:C6SB9
Line Operator:9250933
Class Name for Sister Ships:5SZ
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):142.00
LOA (Length Overall):142.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,373
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

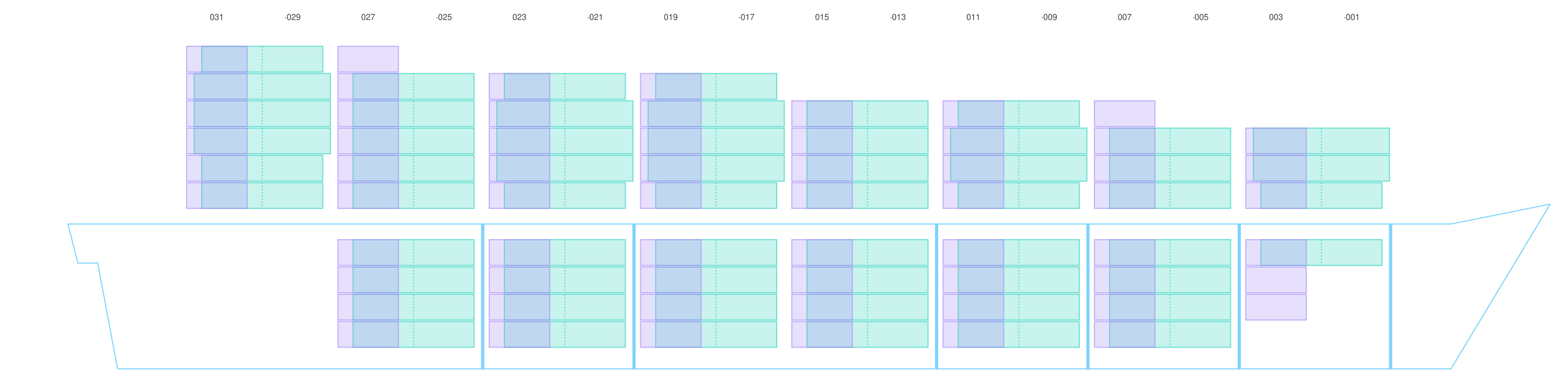

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

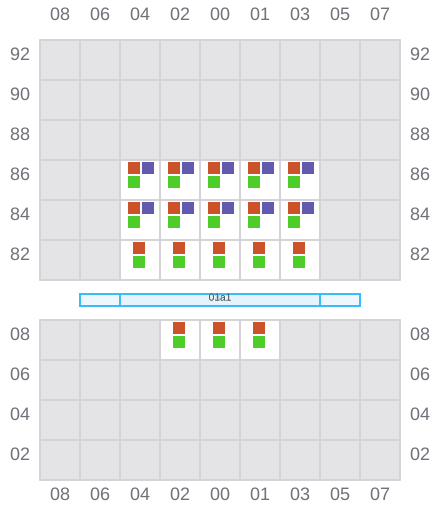

001 (002)
- →

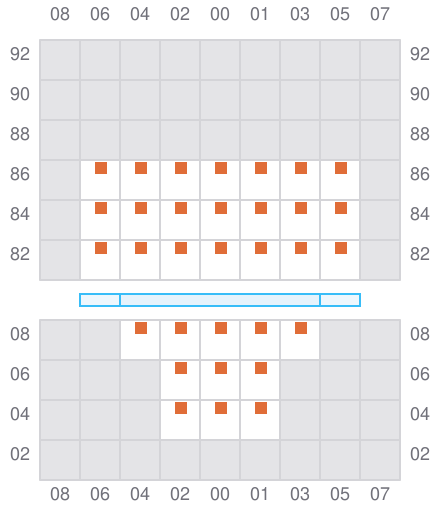

003

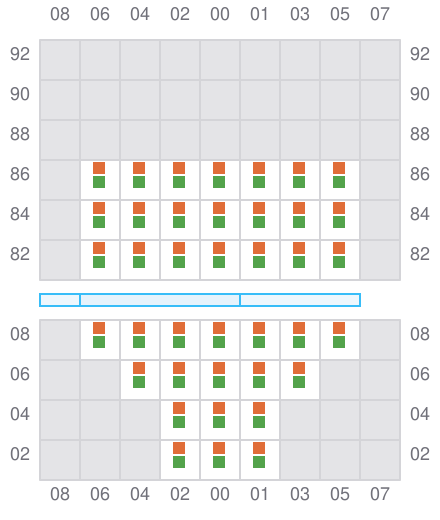

005 (006)
- →

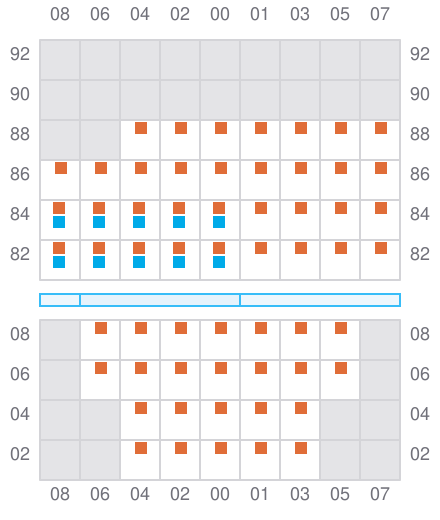

007
- → / ?

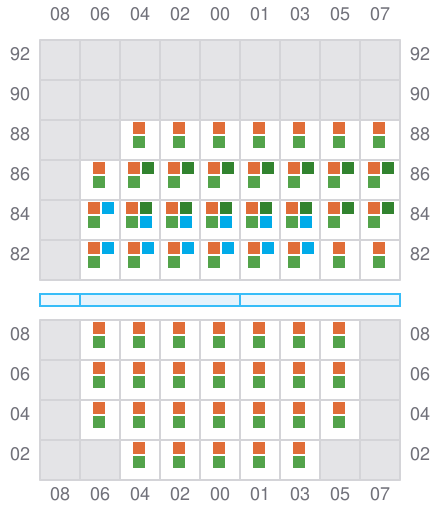

009 (010)
- →
- ← / ?

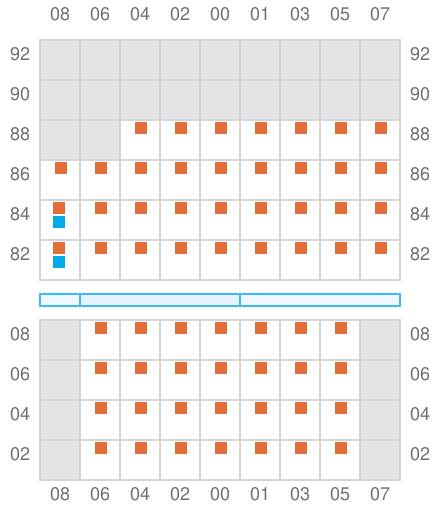

011
- → / ?

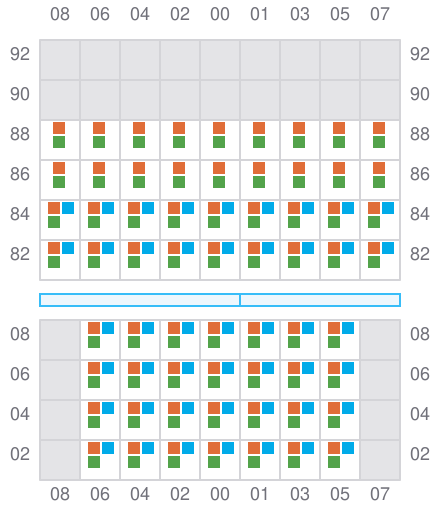

013 (014)
- →
- ←

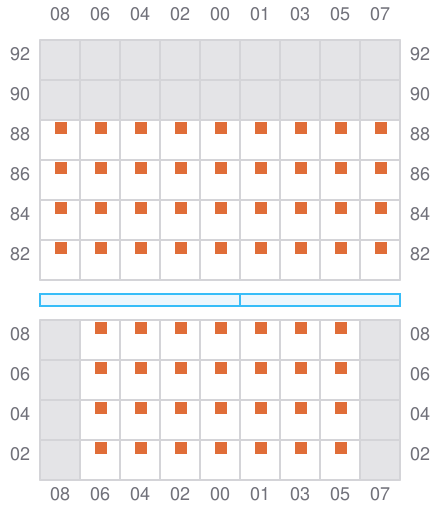

015
- ? / →

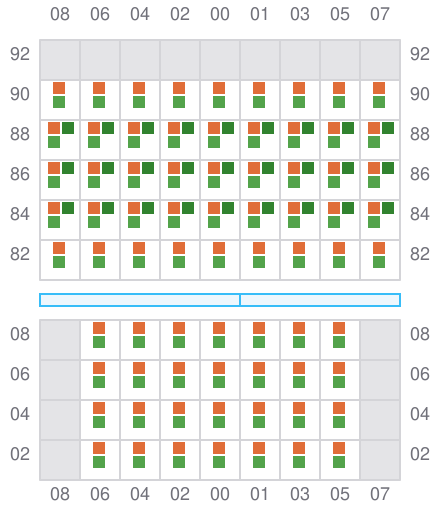

017 (018)
- →

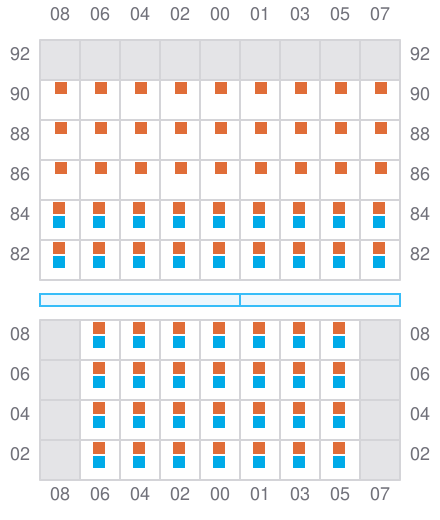

019
- →

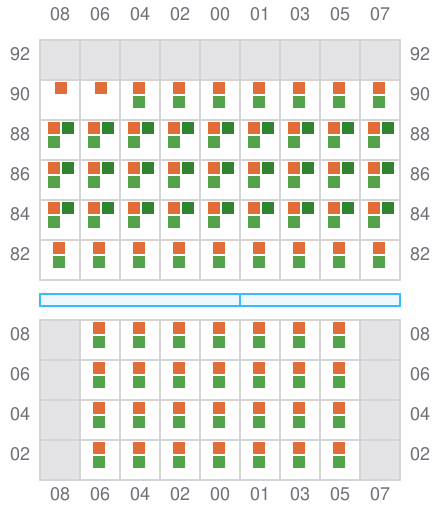

021 (022)
- →
- ← / ?

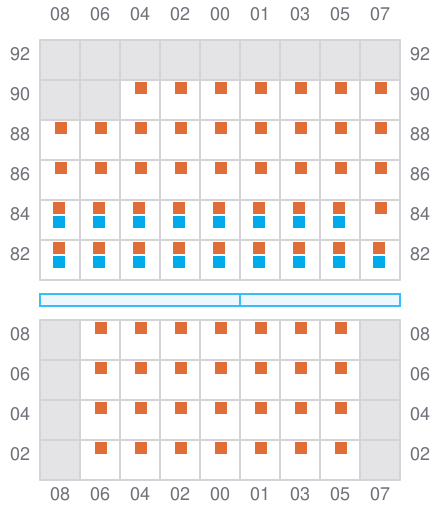

023
- → / ?

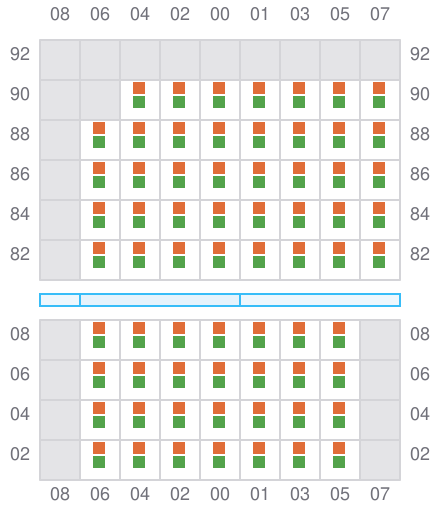

025 (026)
- →

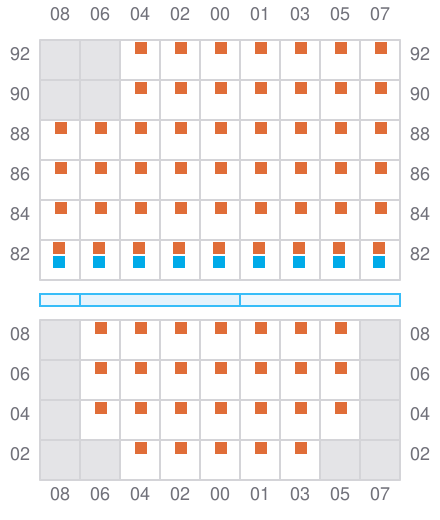

027
- → / ?

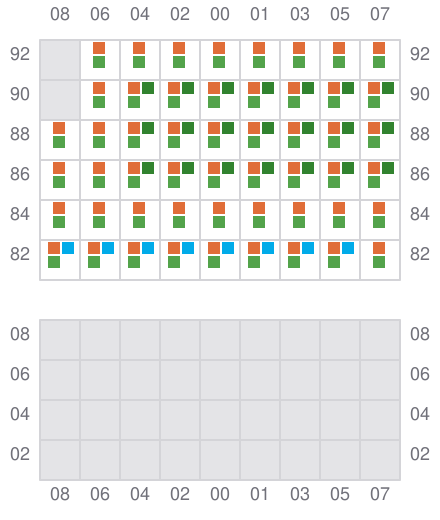

029 (030)
- → / ?
- ← / ?

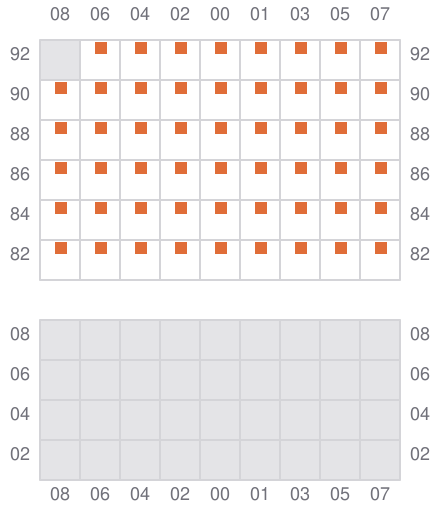

031
