RHINE MAERSK
9456991 | OXPH2 | 9456991 by ********* Last update: Mon Jun 24 2024
General Info
Ship Name:RHINE MAERSK
IMO Code:9456991
Call Sign:OXPH2
Line Operator:9456991
Class Name for Sister Ships:MAE
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):235.00
LOA (Length Overall):249.12
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,644
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

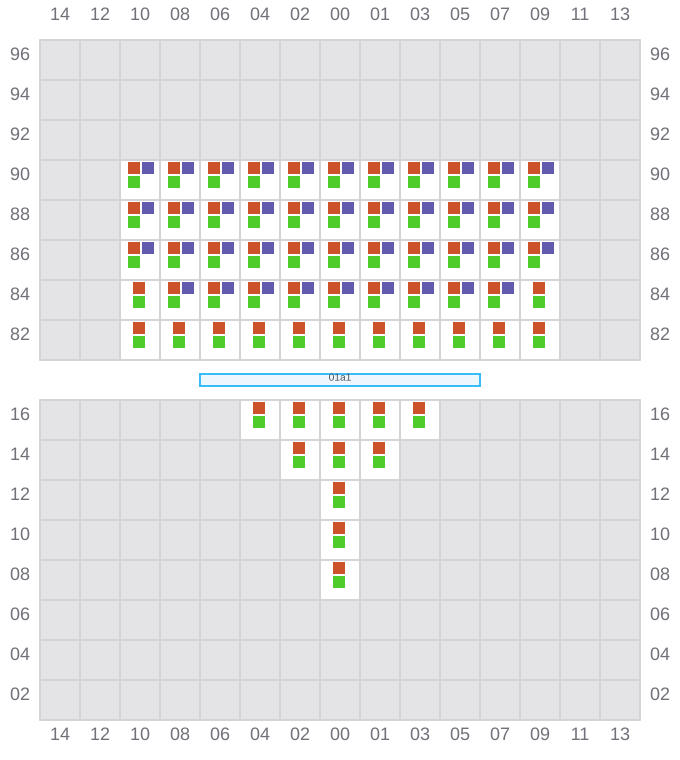

001 (002)
- →

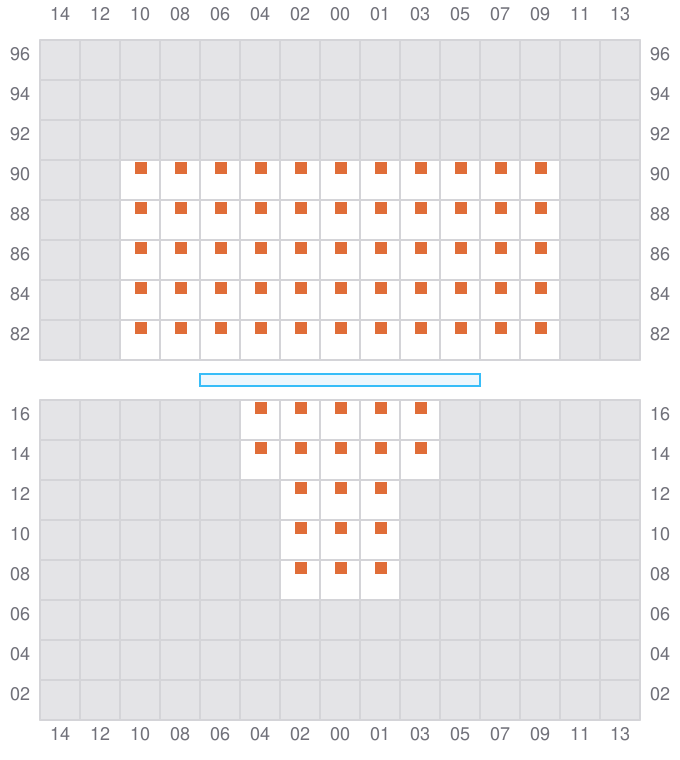

003
- ←

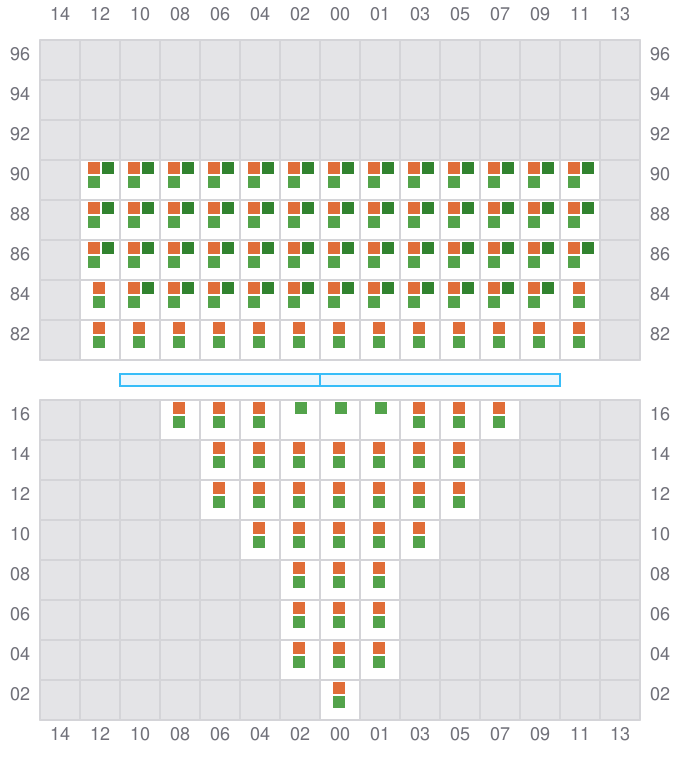

005 (006)
- →
007
- ←
- → / ?

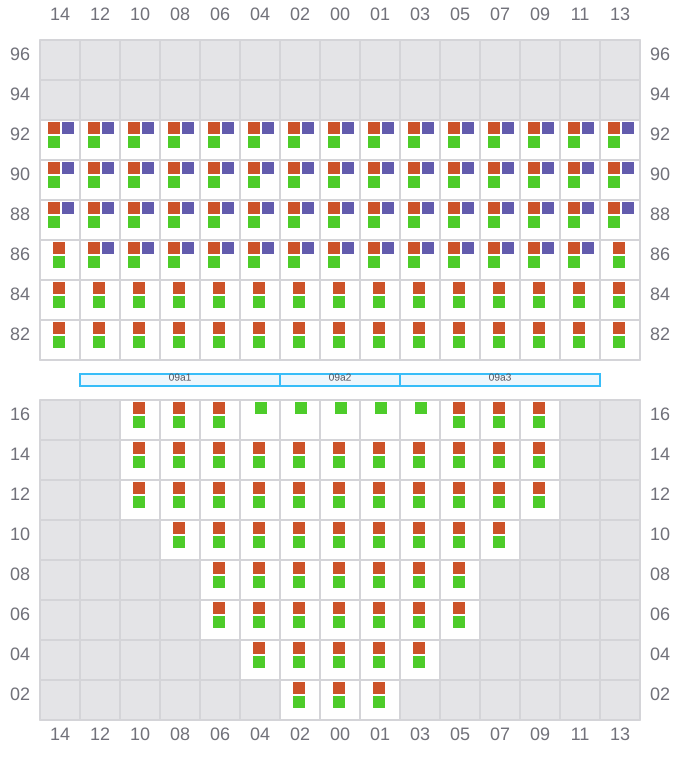

009 (010)
- →

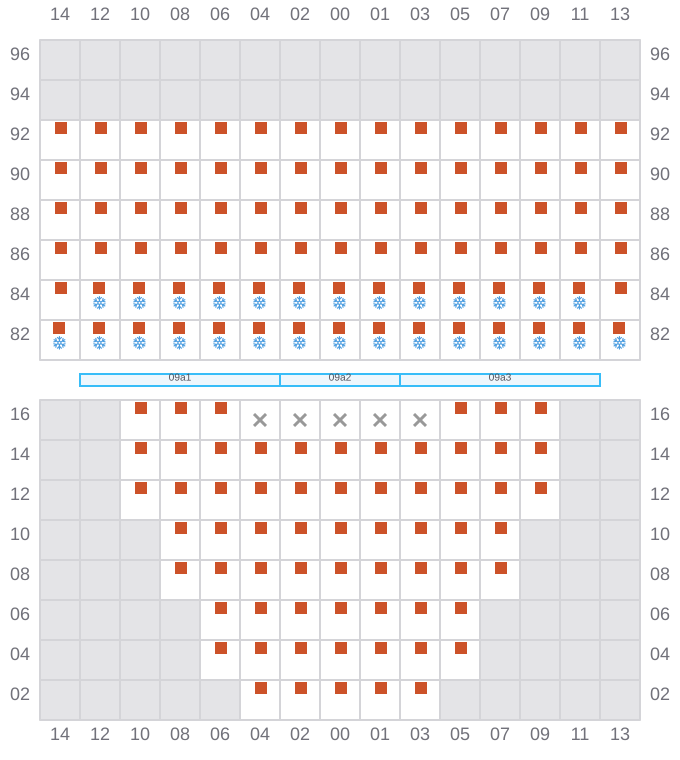

011
- ←
- → / ?

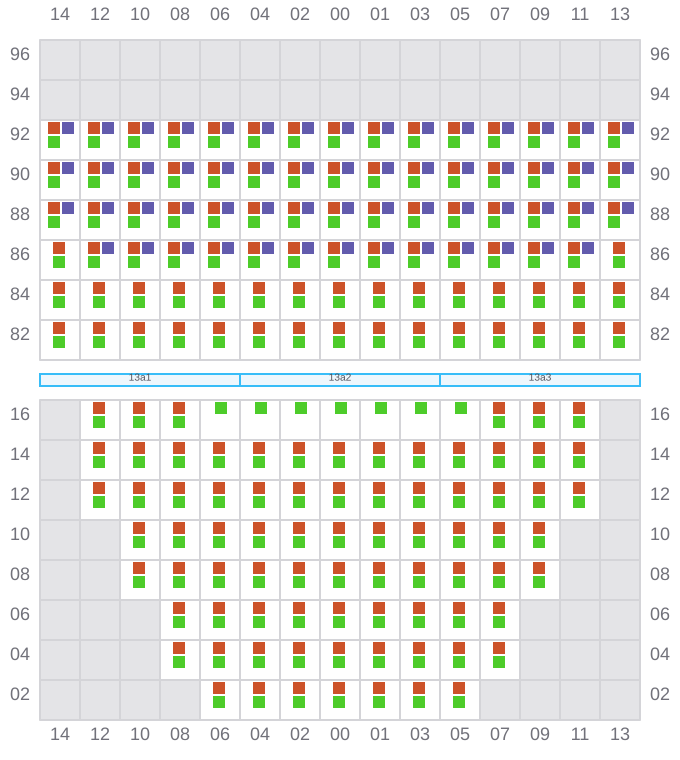

013 (014)
- →

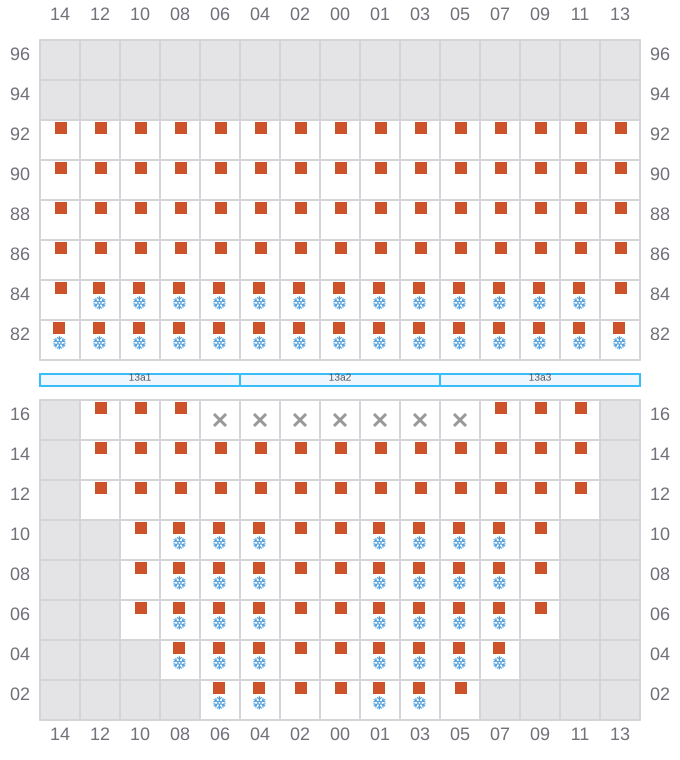

015
- ←
- →

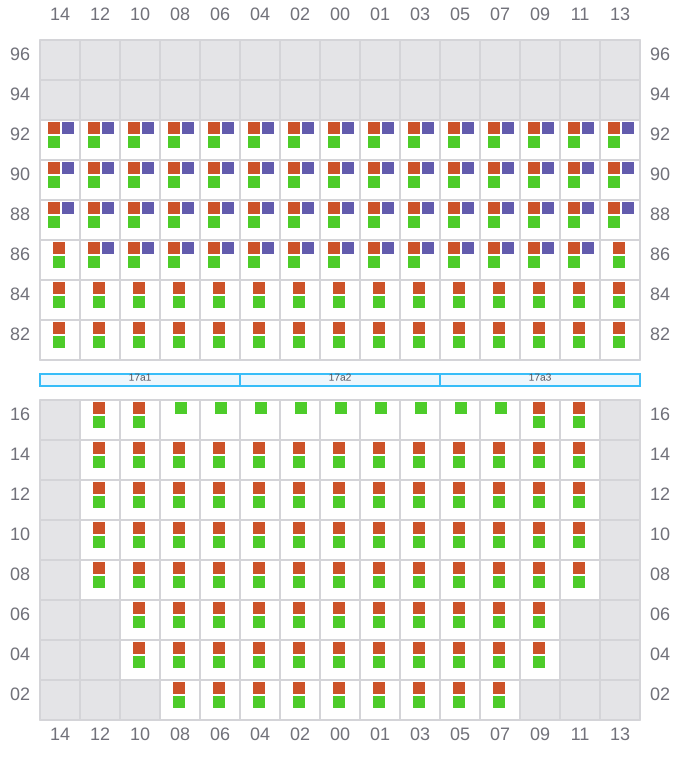

017 (018)
- →
019
- ←
- →
021 (022)
- →

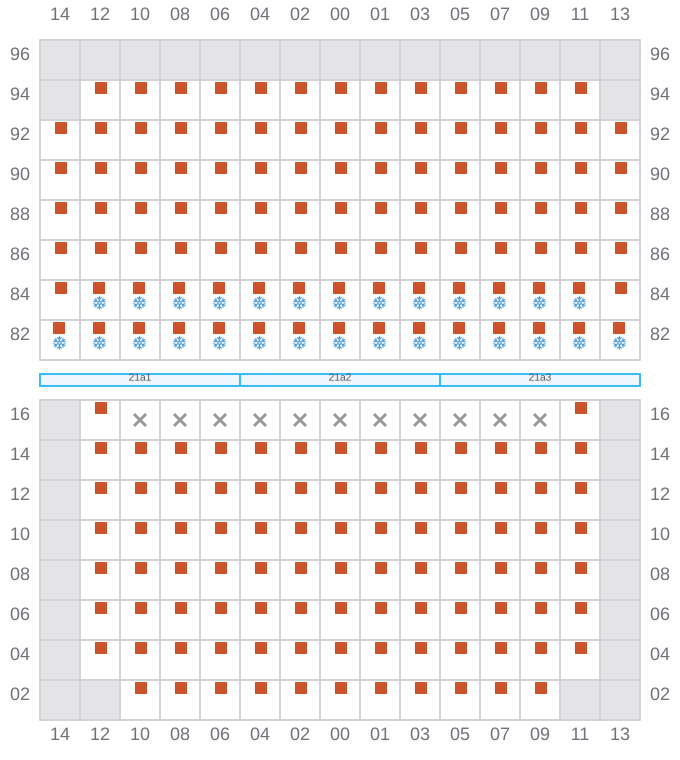

023
- ←
- → / ?

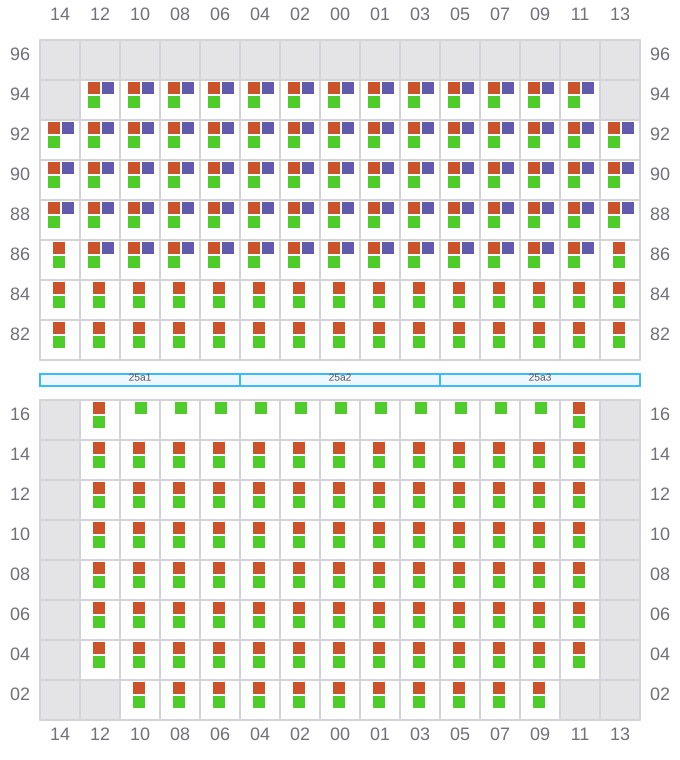

025 (026)
- →

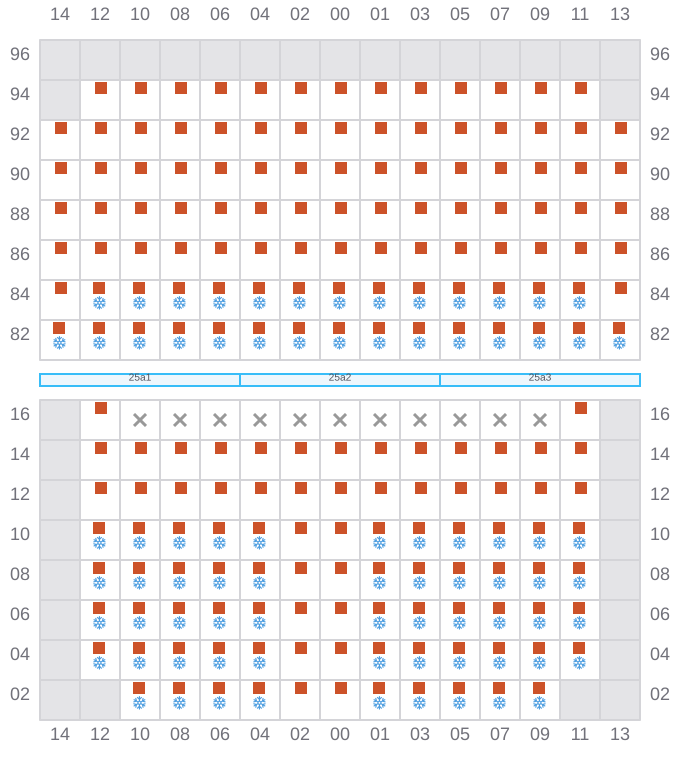

027
- ←
- →
029 (030)
- →

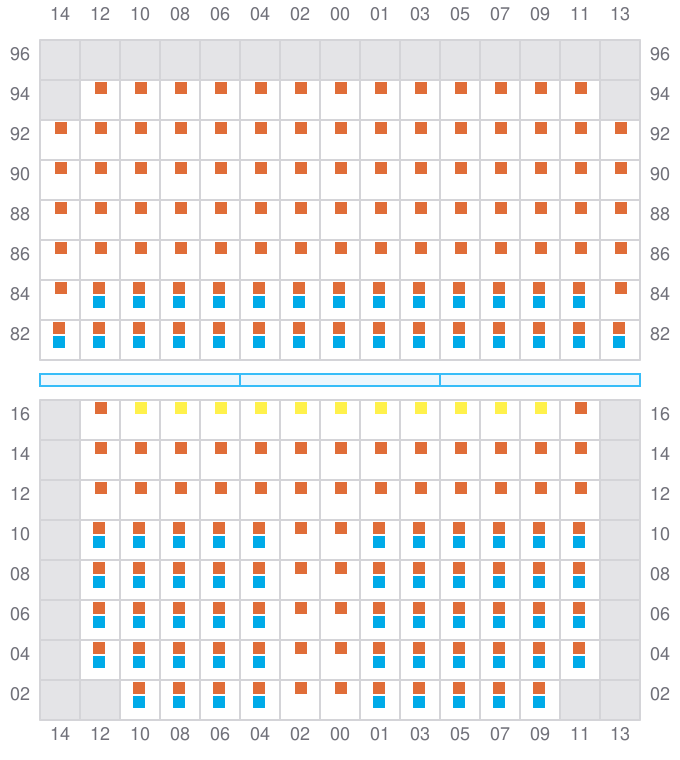

031
- ←
- →

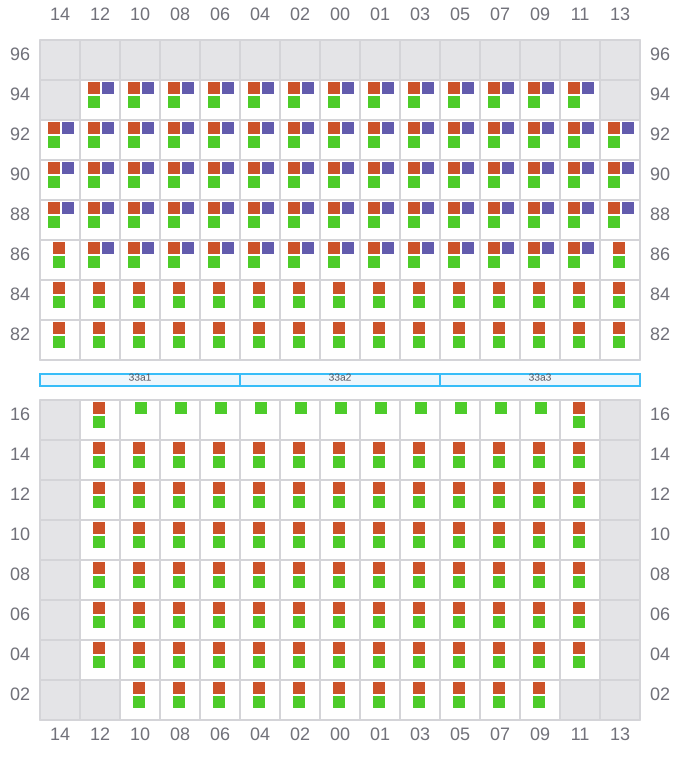

033 (034)
- →

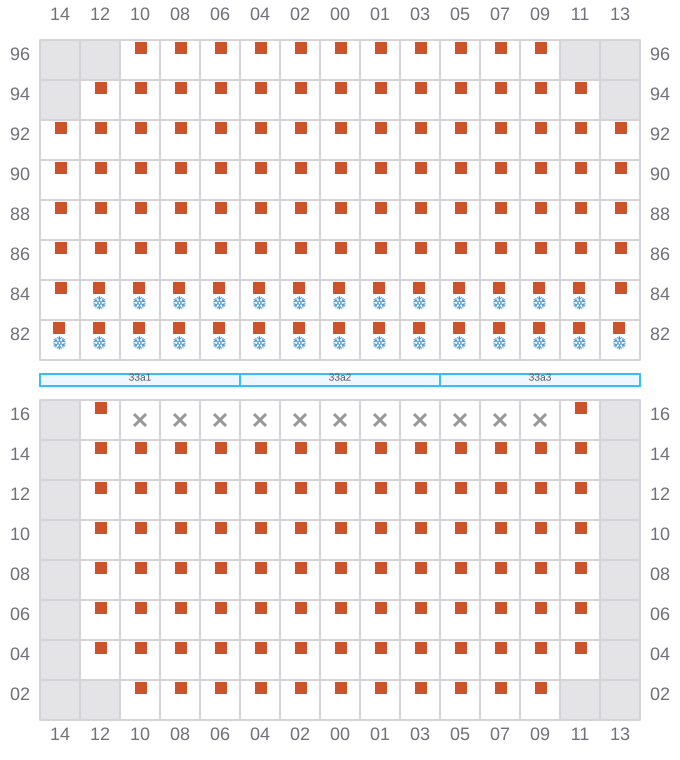

035
- ←
- → / ?

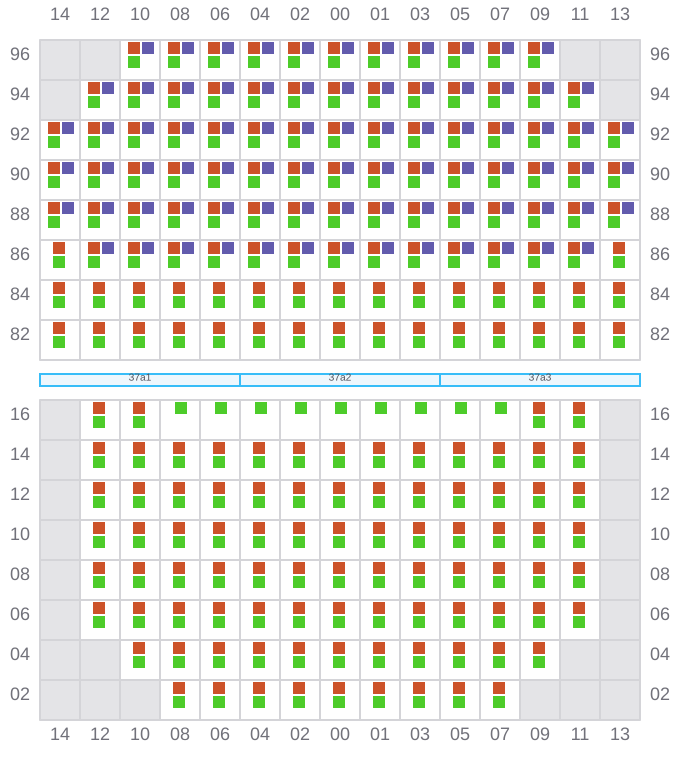

037 (038)
- →

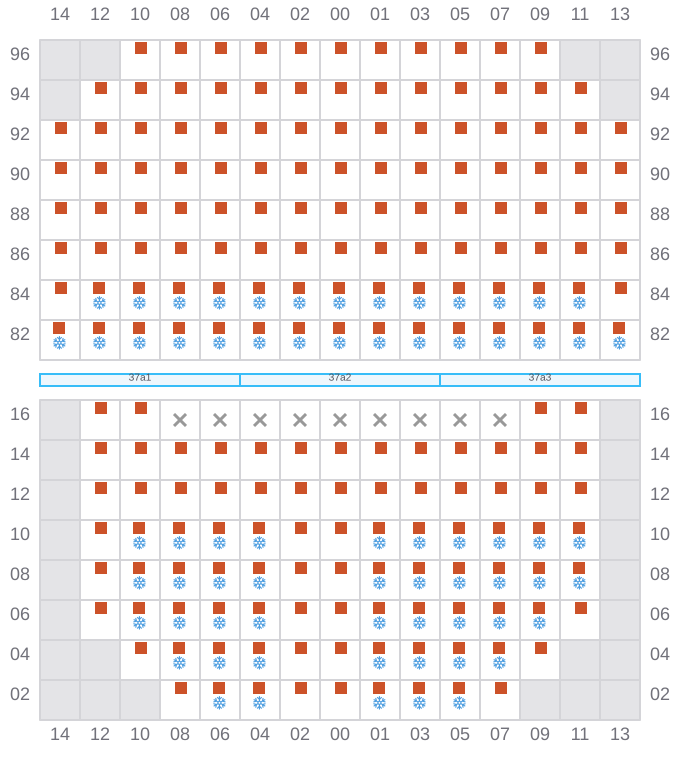

039
- ←
- ? / →

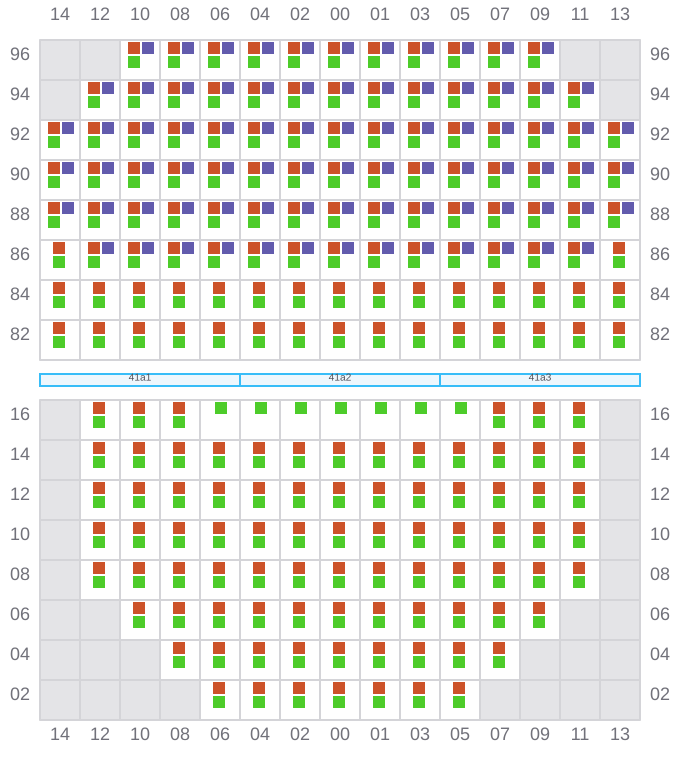

041 (042)
- →
043
- ←

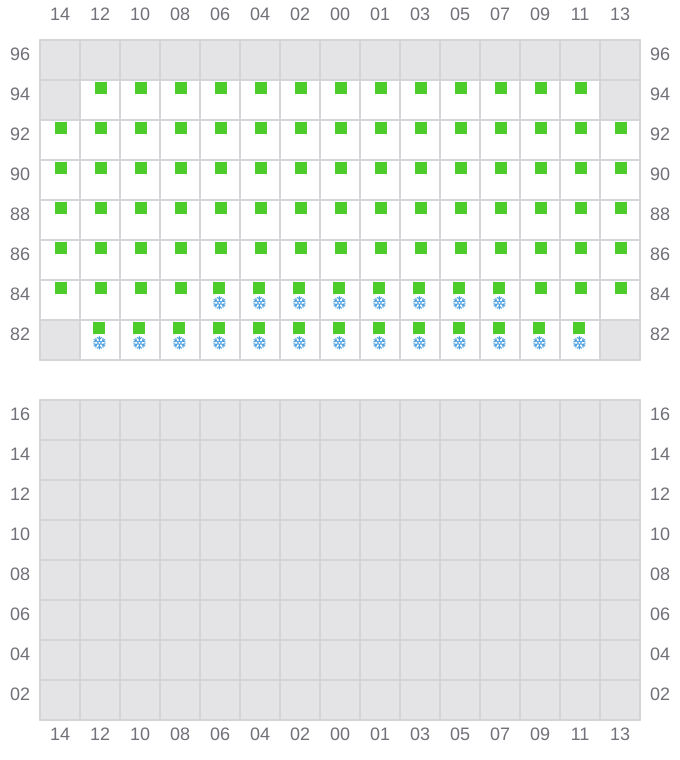

045 (046)
- → / ?
- → / ?

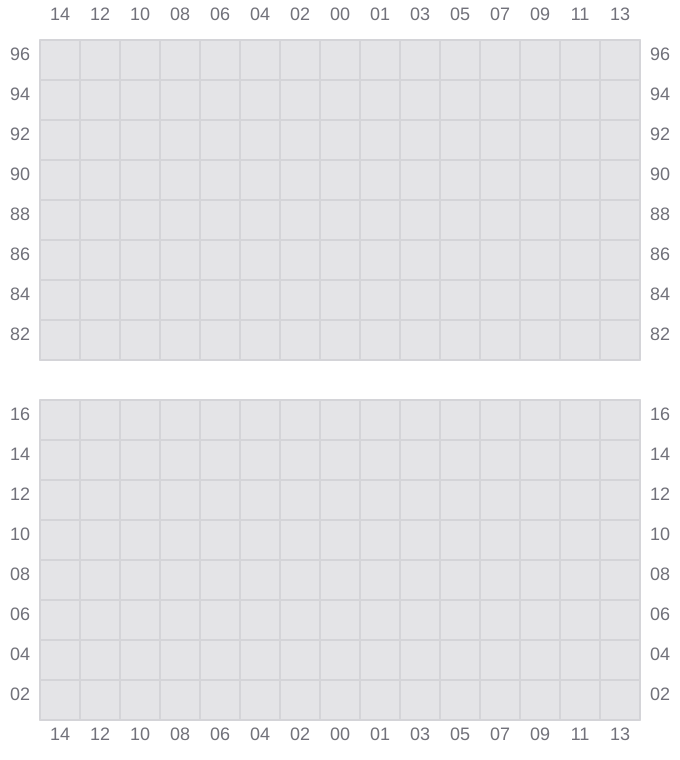

047
049 (050)
- →

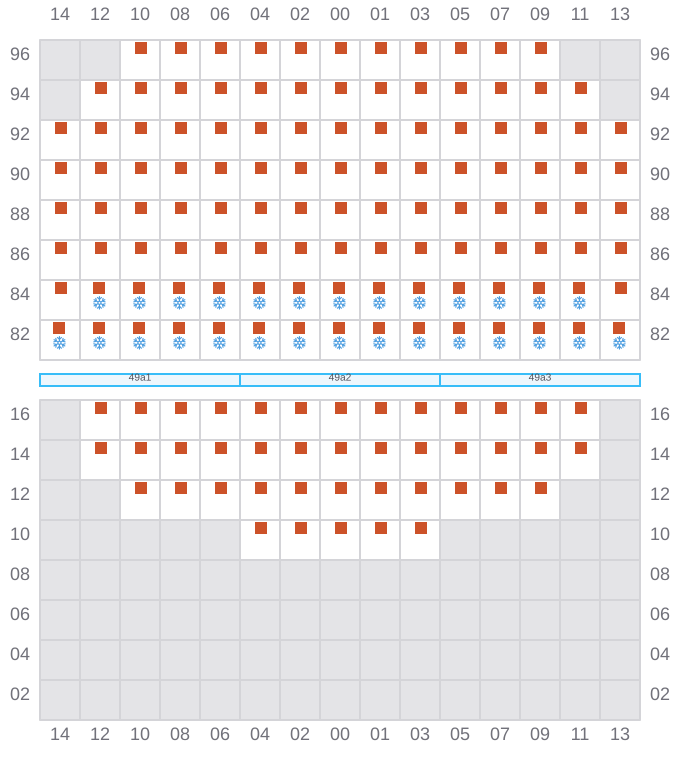

051
- ←
053 (054)
- → / ?
