RHONE MAERSK
9457000 | OXGX2 | 9457000 by ********* Last update: Wed Jun 12 2024
General Info
Ship Name:RHONE MAERSK
IMO Code:9457000
Call Sign:OXGX2
Line Operator:9457000
Class Name for Sister Ships:MSL
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):235.00
LOA (Length Overall):249.11
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,644
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

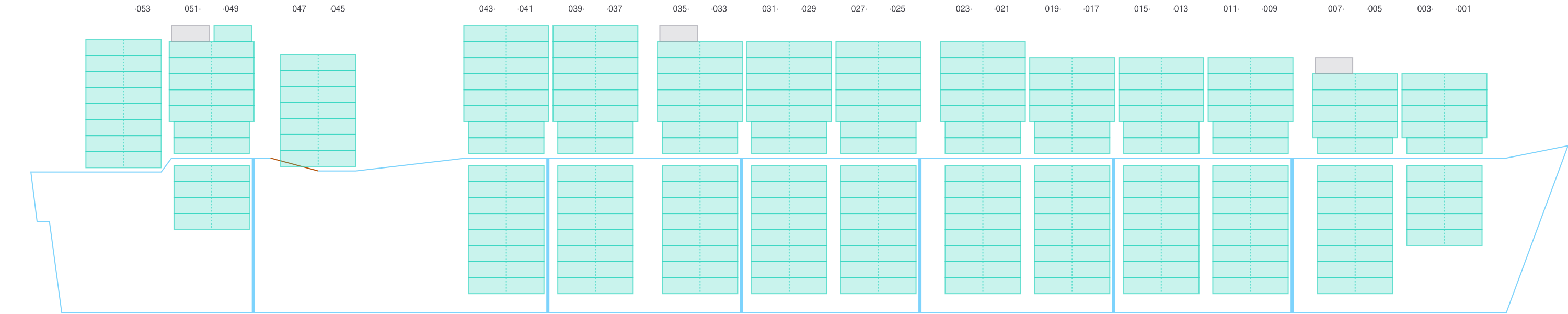

Side View
![Side view of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-sideView.png?v=1718225047976)

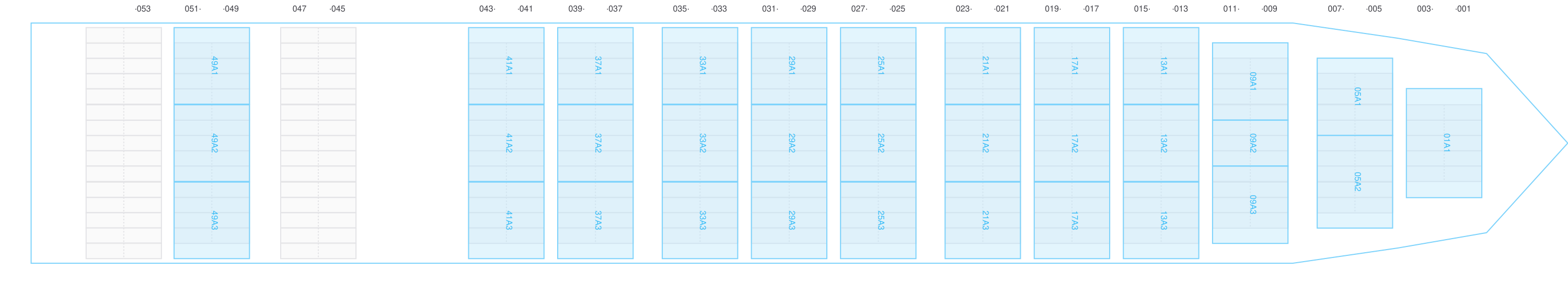

Hatch-Covers View
![Deck view of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-deckView.png?v=1718225047976)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

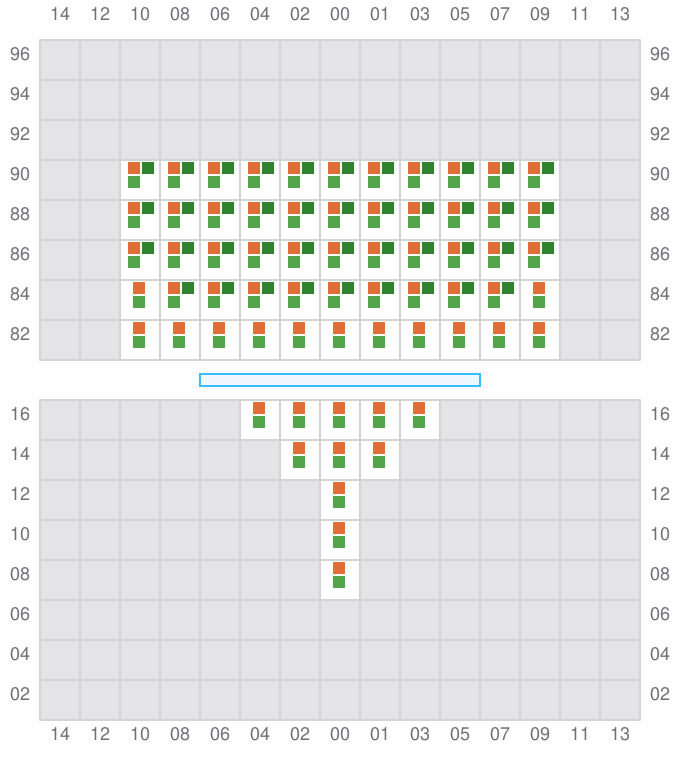

001 (002)
- →
![Bay 001 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b001.png?v=1718225047976)

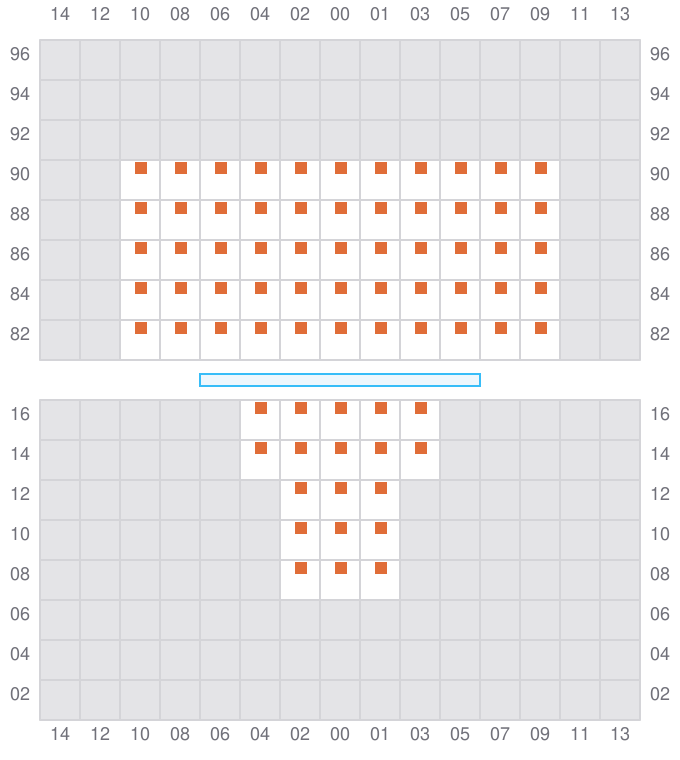

003
- ←
![Bay 003 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b003.png?v=1718225047976)

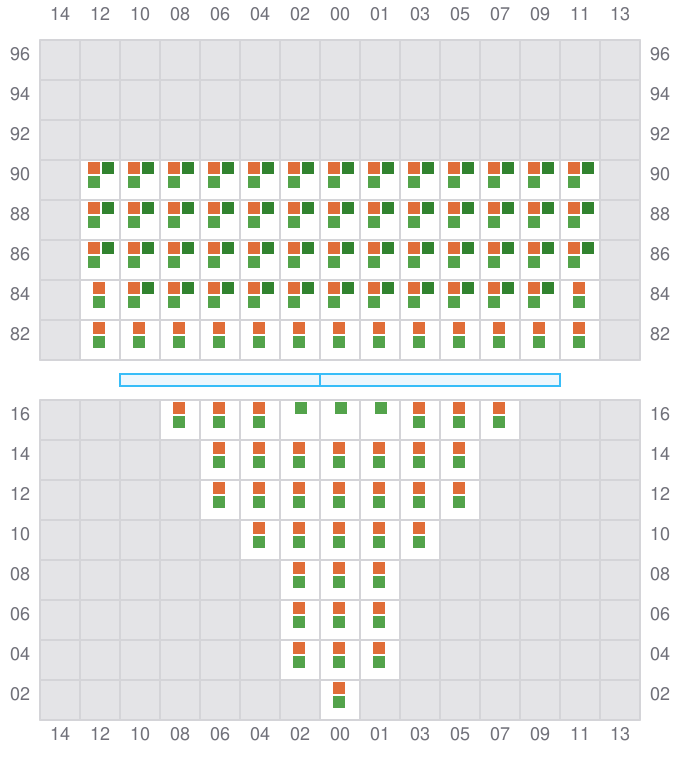

005 (006)
- →
![Bay 005 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b005.png?v=1718225047976)

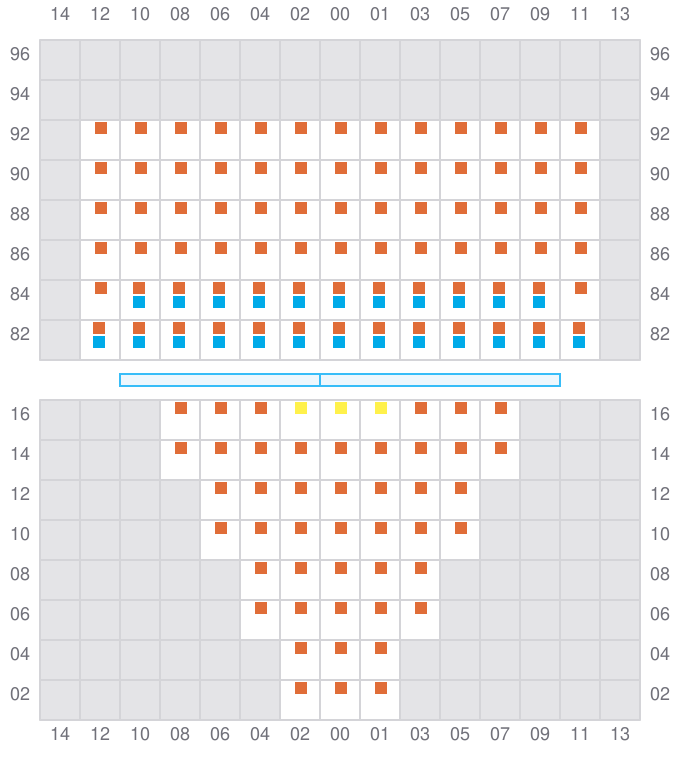

007
- ←
- → / ?
![Bay 007 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b007.png?v=1718225047976)

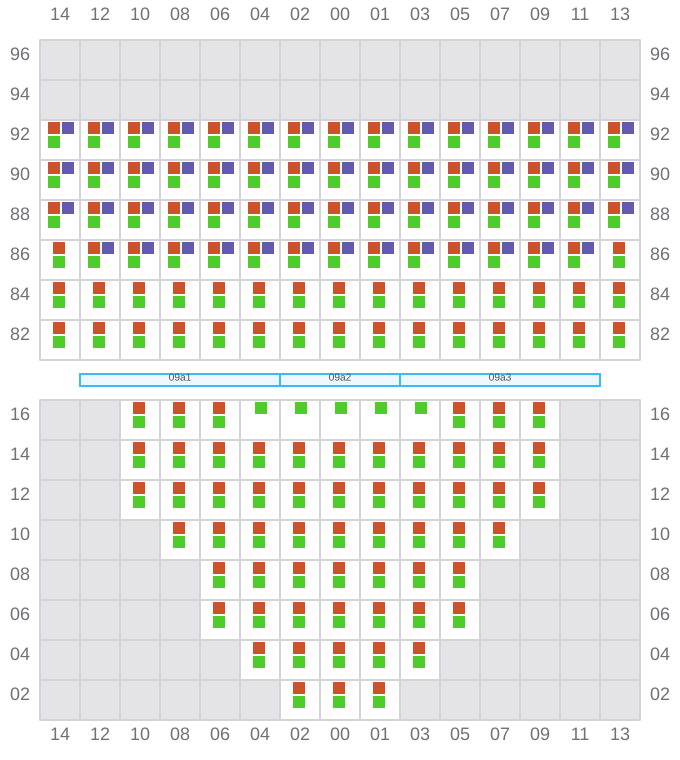

009 (010)
- →
![Bay 009 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b009.png?v=1718225047976)

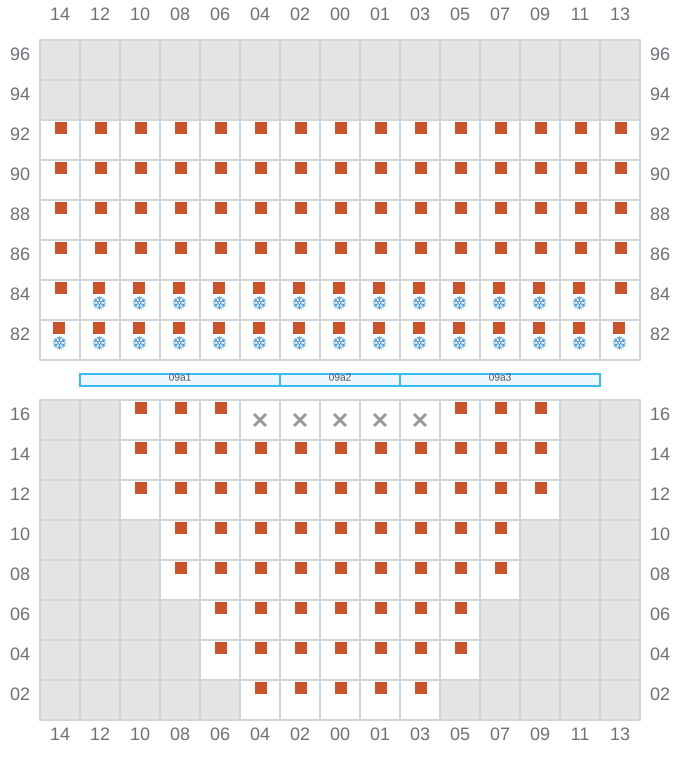

011
- ←
- → / ?
![Bay 011 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b011.png?v=1718225047976)

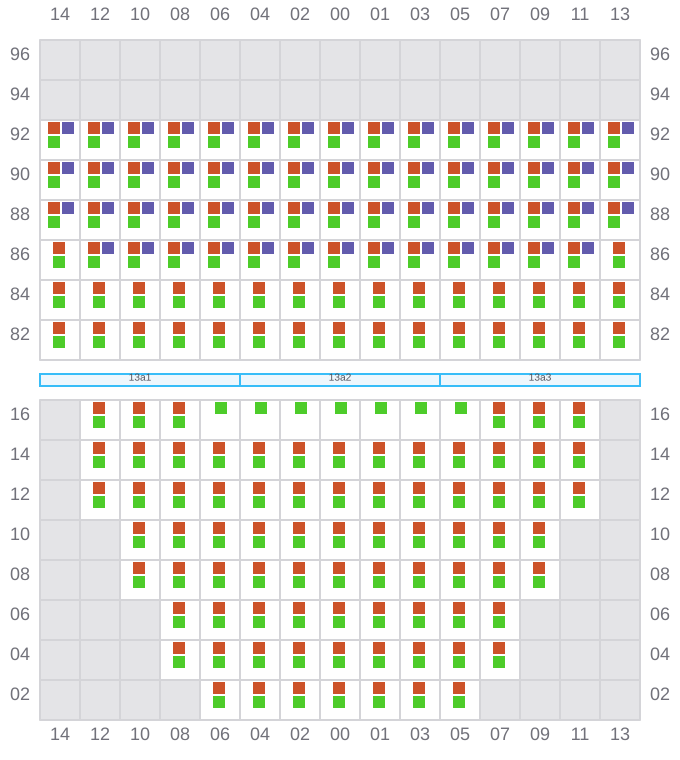

013 (014)
- →
![Bay 013 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b013.png?v=1718225047976)

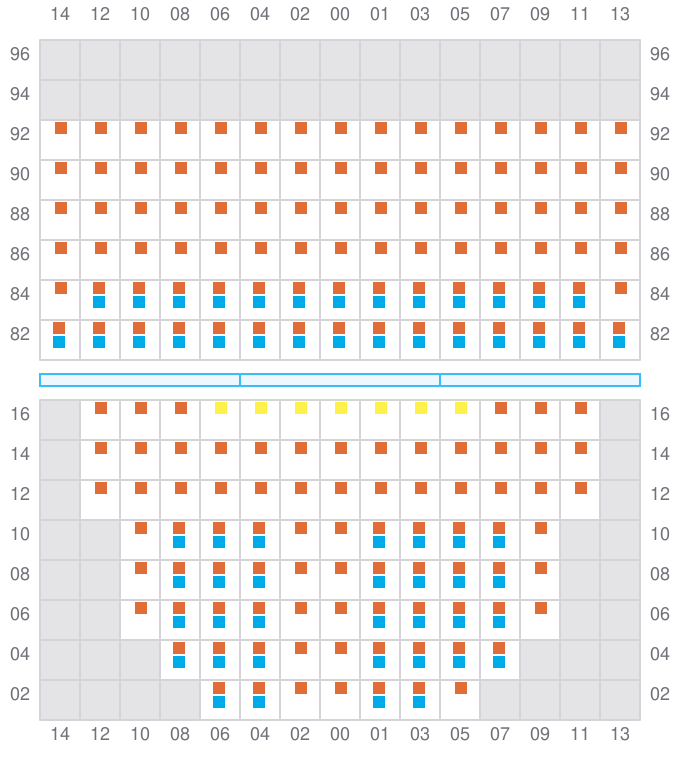

015
- ←
- →
![Bay 015 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b015.png?v=1718225047976)

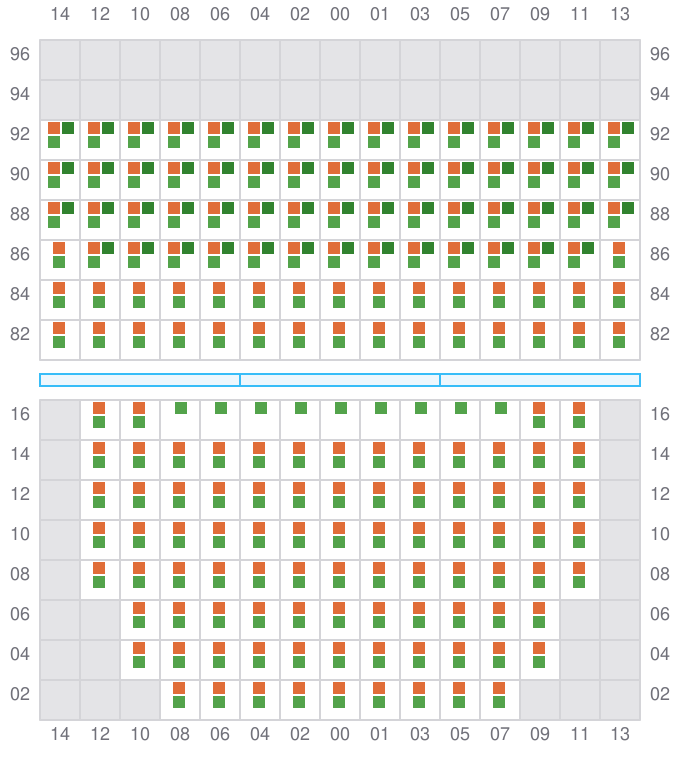

017 (018)
- →
![Bay 017 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b017.png?v=1718225047976)

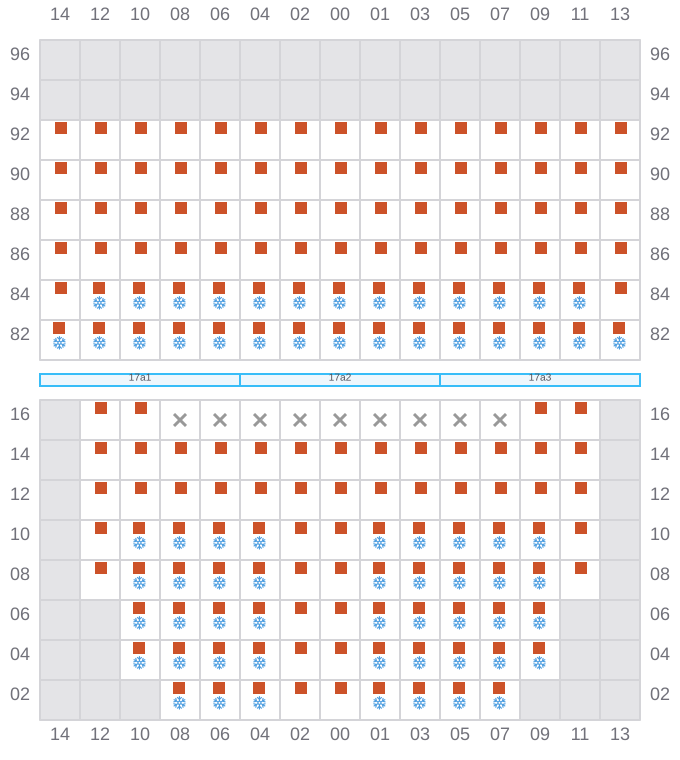

019
- ←
- →
![Bay 019 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b019.png?v=1718225047976)

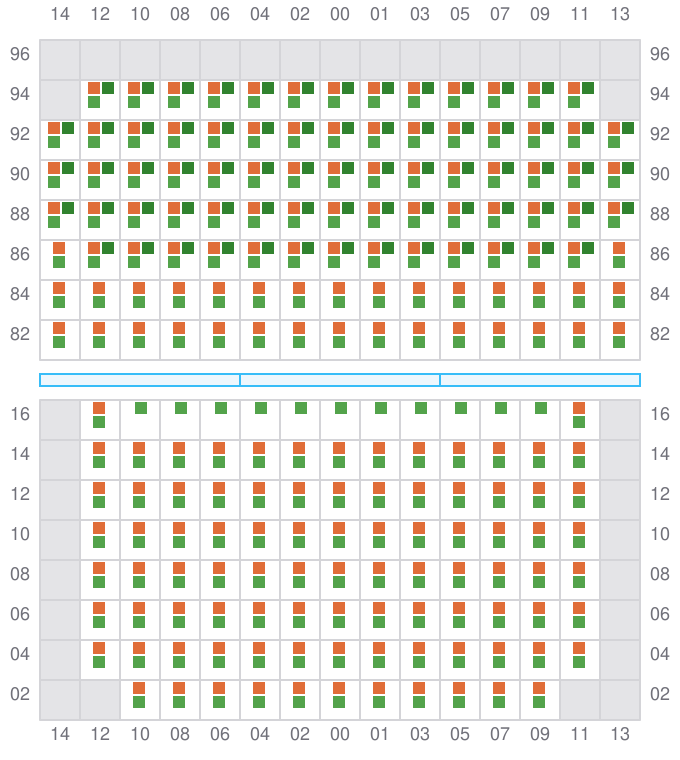

021 (022)
- →
![Bay 021 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b021.png?v=1718225047976)

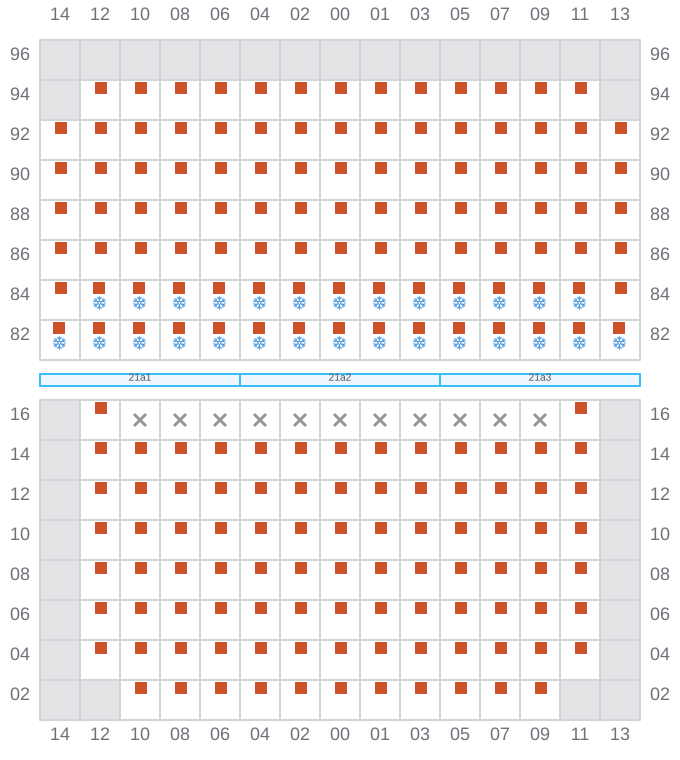

023
- ←
- → / ?
![Bay 023 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b023.png?v=1718225047976)

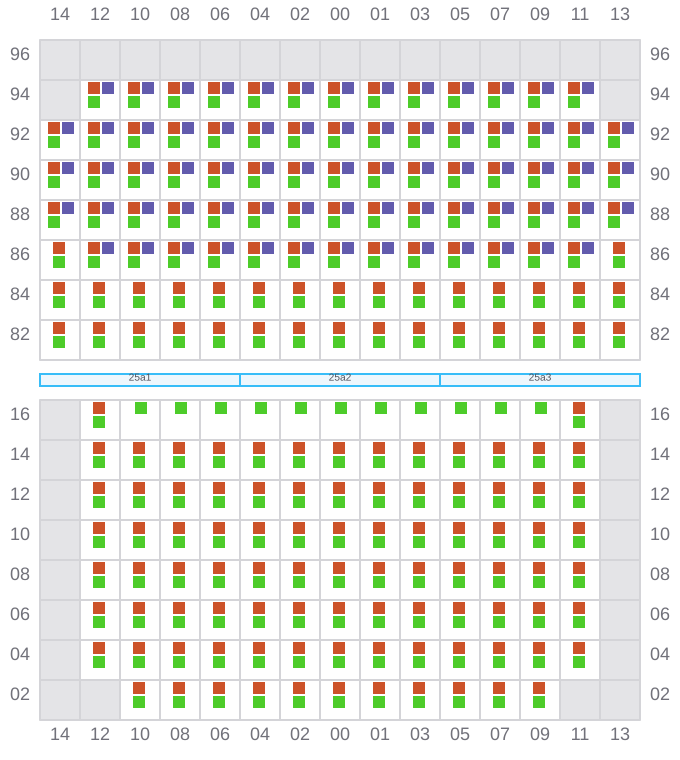

025 (026)
- →
![Bay 025 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b025.png?v=1718225047976)

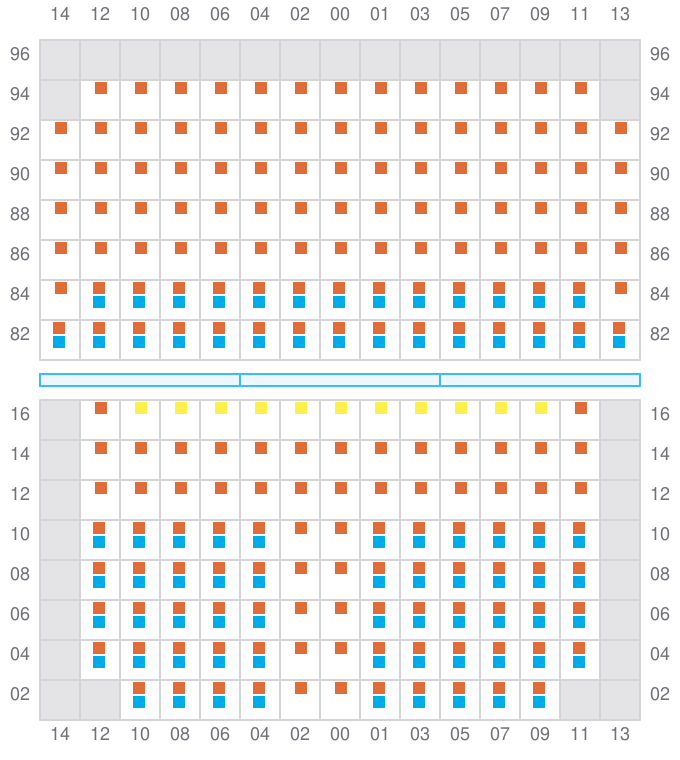

027
- ←
- →
![Bay 027 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b027.png?v=1718225047976)

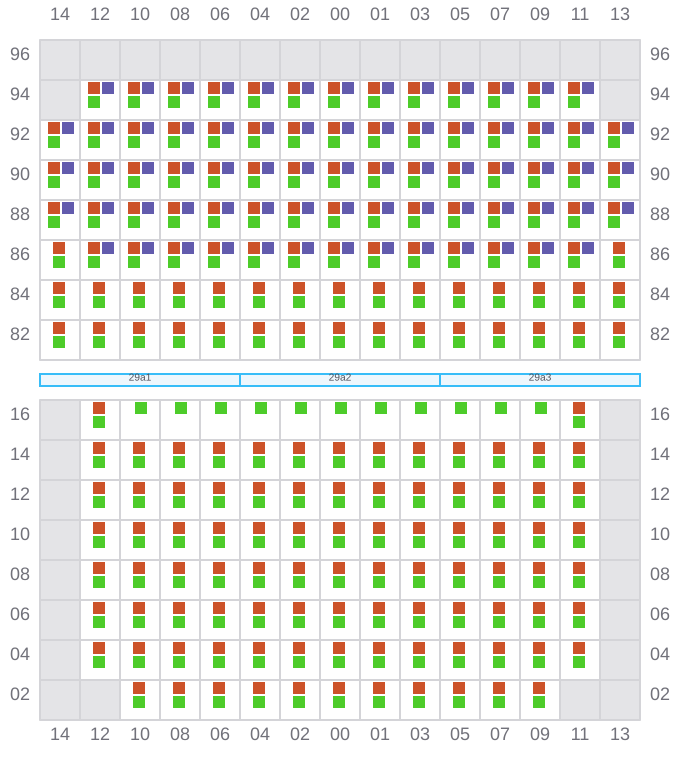

029 (030)
- →
![Bay 029 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b029.png?v=1718225047976)

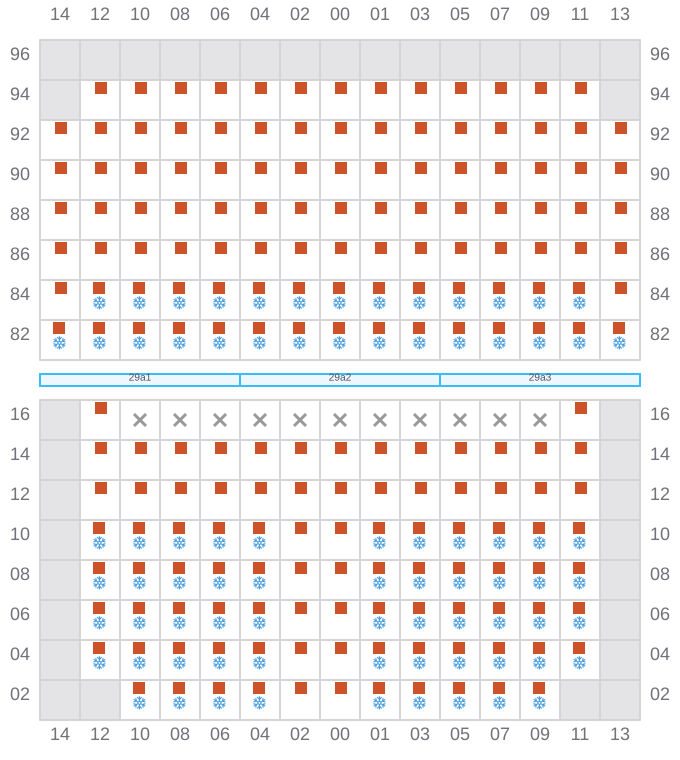

031
- ←
- →
![Bay 031 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b031.png?v=1718225047976)
033 (034)
- →
![Bay 033 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b033.png?v=1718225047976)

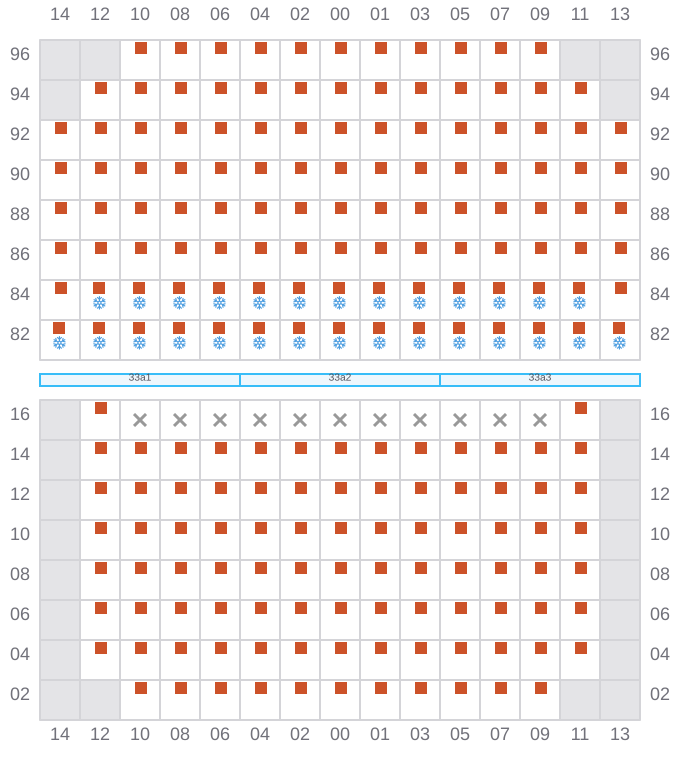

035
- ←
- → / ?
![Bay 035 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b035.png?v=1718225047976)

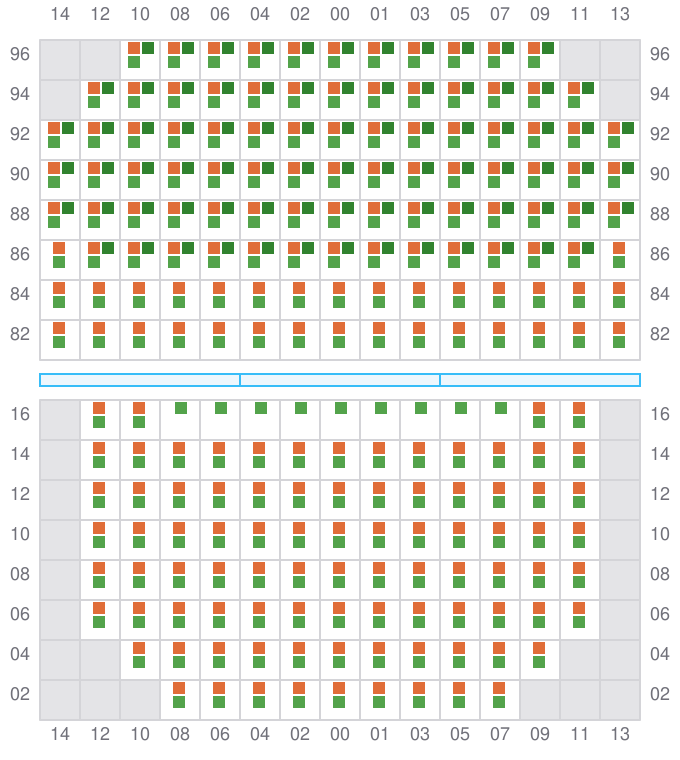

037 (038)
- →
![Bay 037 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b037.png?v=1718225047976)

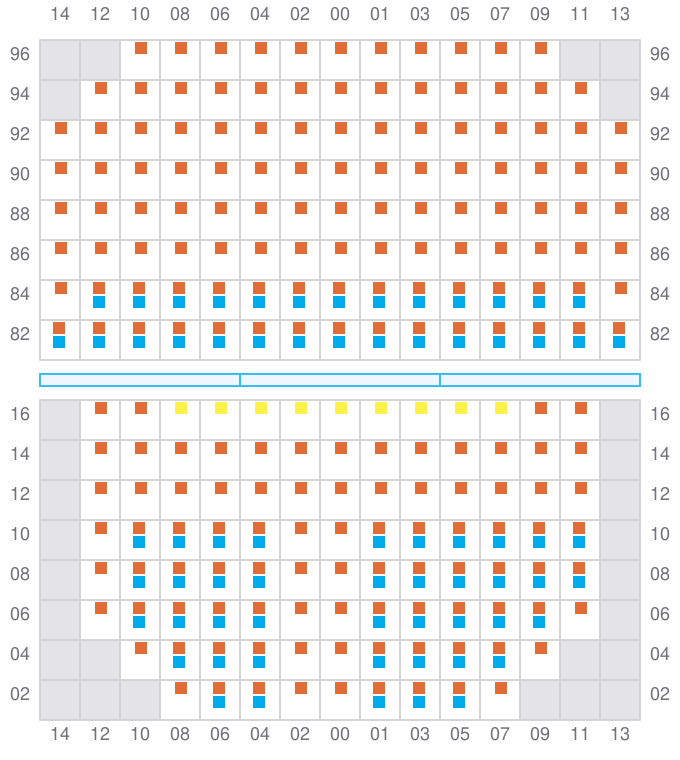

039
- ←
- ? / →
![Bay 039 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b039.png?v=1718225047976)

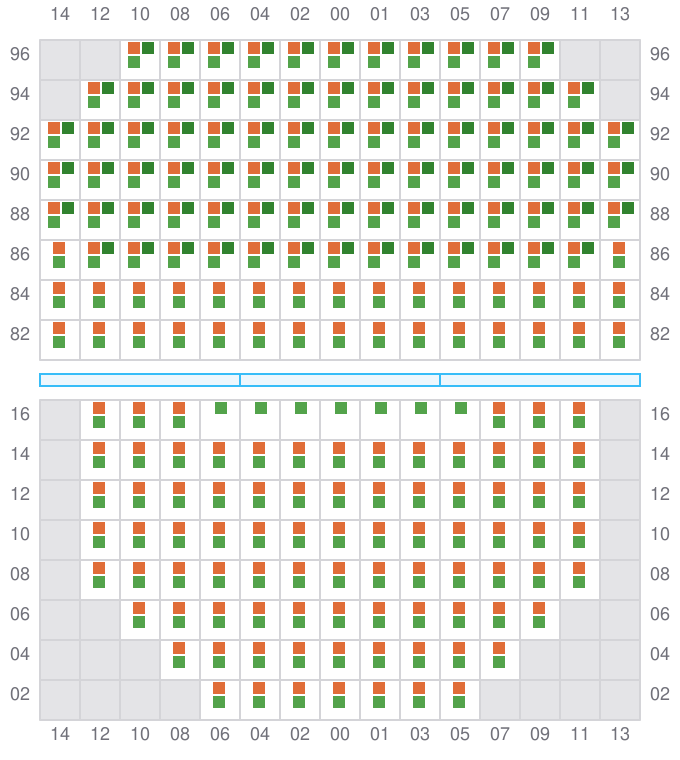

041 (042)
- →
![Bay 041 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b041.png?v=1718225047976)

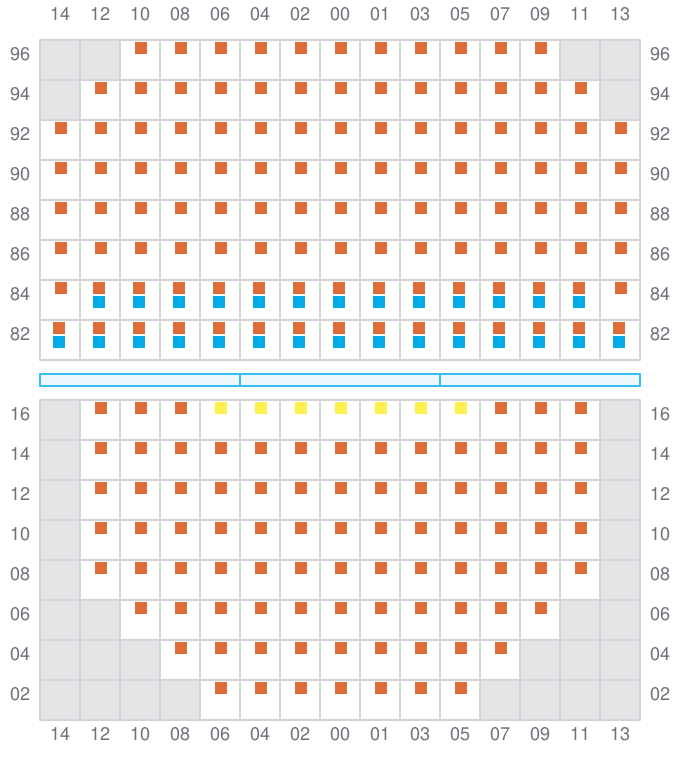

043
- ←
![Bay 043 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b043.png?v=1718225047976)

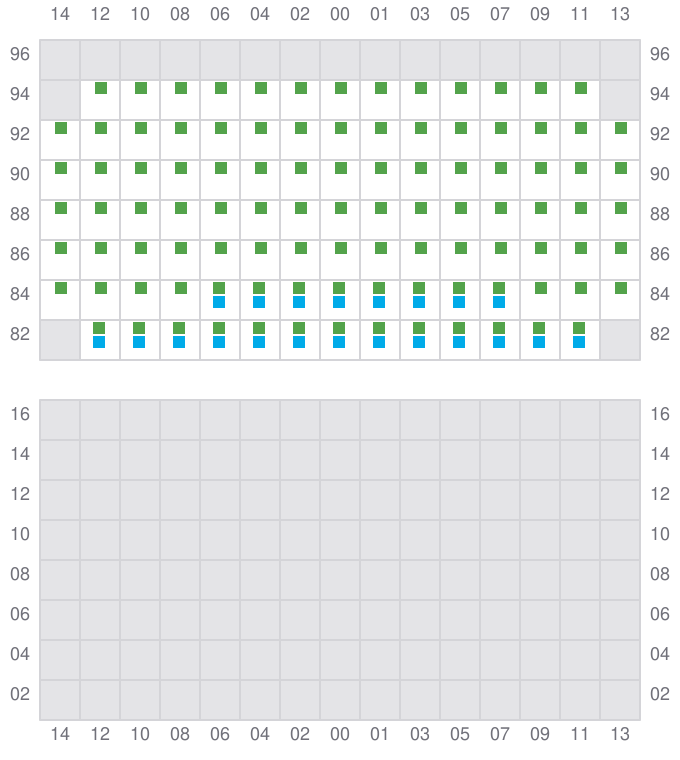

045 (046)
- → / ?
- → / ?
![Bay 045 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b045.png?v=1718225047976)

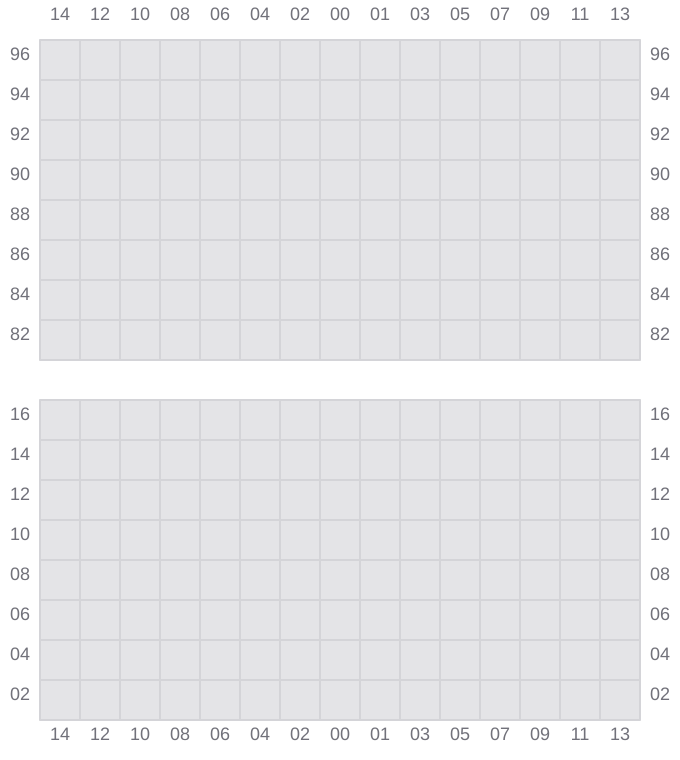

047
![Bay 047 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b047.png?v=1718225047976)

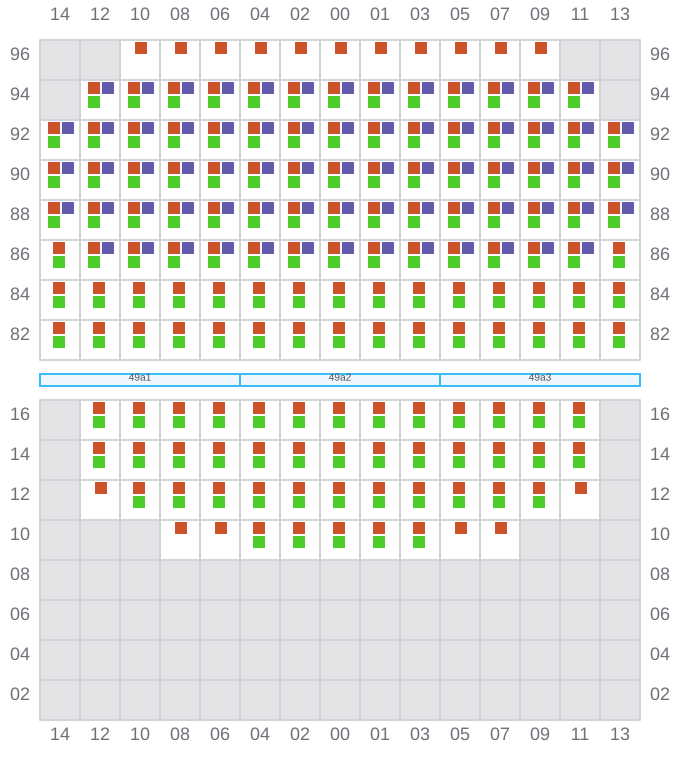

049 (050)
- →
![Bay 049 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b049.png?v=1718225047976)

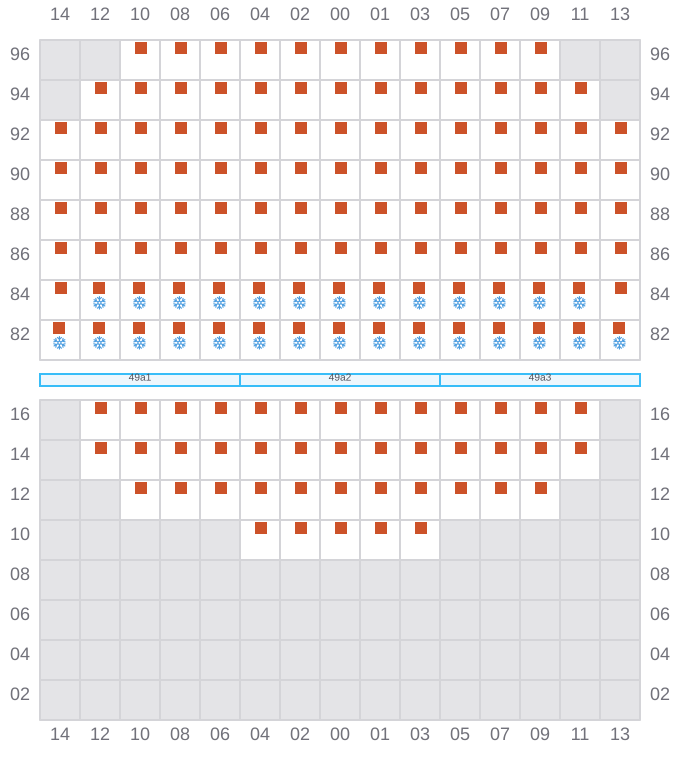

051
- ←
![Bay 051 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b051.png?v=1718225047976)

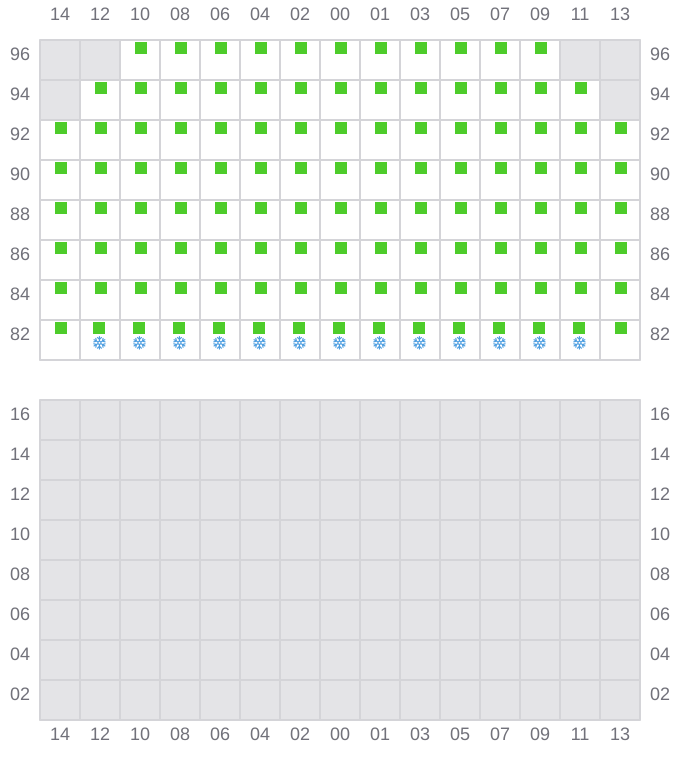

053 (054)
- → / ?
![Bay 053 view and slots of RHONE MAERSK](/vessel-images/ebb7be0c-2d9f-4c10-b023-458a955249b6-b053.png?v=1718225047976)
