RIO CADIZ
9360764 | CQEP5 | CHI by ************************** Last update: Tue Jun 27 2023
General Info
Ship Name:RIO CADIZ
IMO Code:9360764
Call Sign:CQEP5
Line Operator:CHI
Class Name for Sister Ships:LON
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):248.70
LOA (Length Overall):260.89
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,309
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

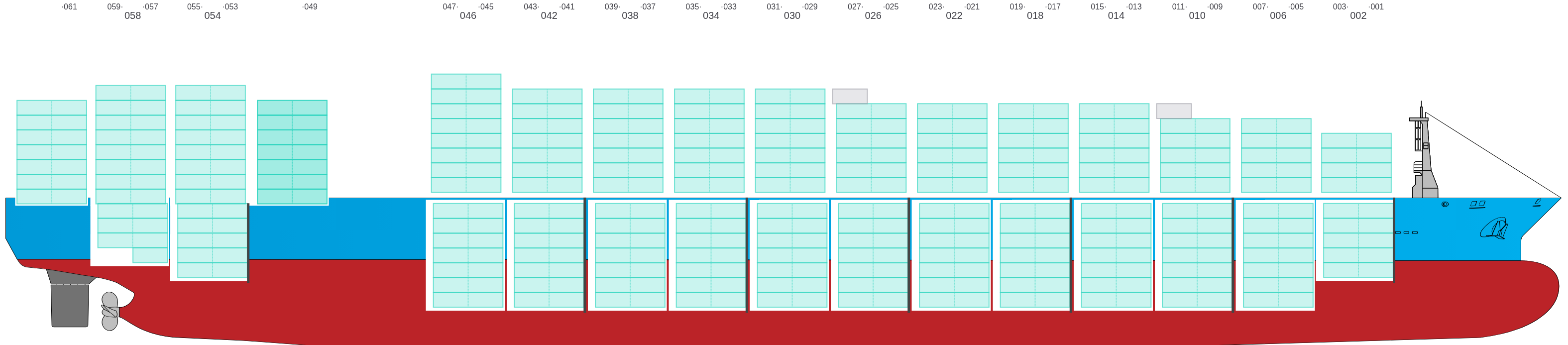

Side View
![Side view of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-sideView.png?v=1687900369747)
Hatch-Covers View
![Deck view of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-deckView.png?v=1687900369747)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

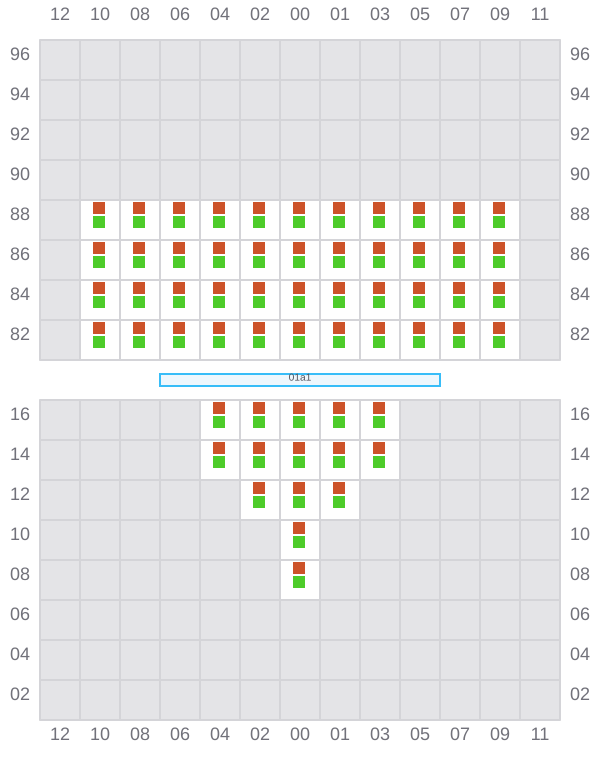

001 (002)
- →
![Bay 001 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b001.png?v=1687900369747)

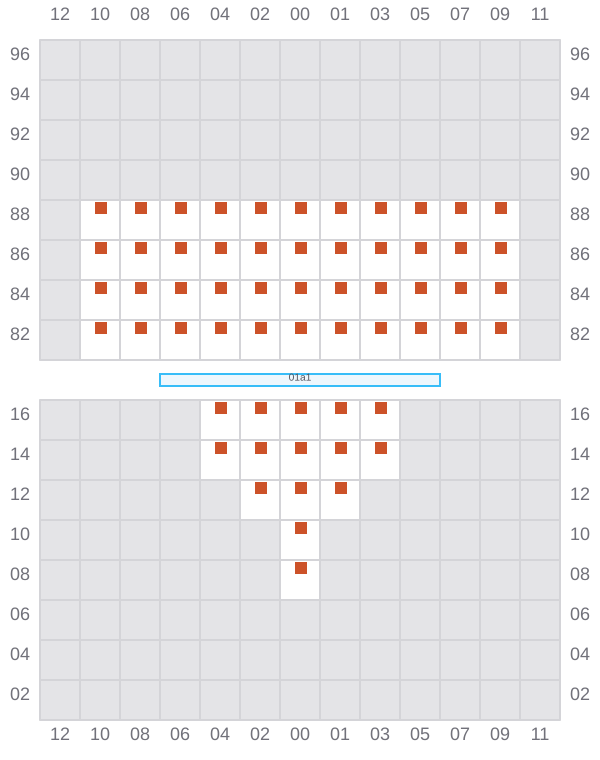

003
- ←
![Bay 003 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b003.png?v=1687900369747)

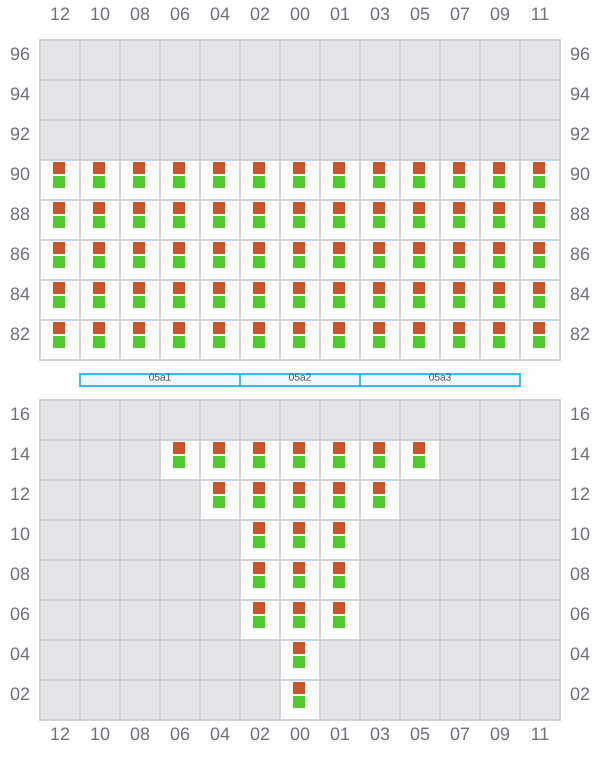

005 (006)
- →
![Bay 005 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b005.png?v=1687900369747)

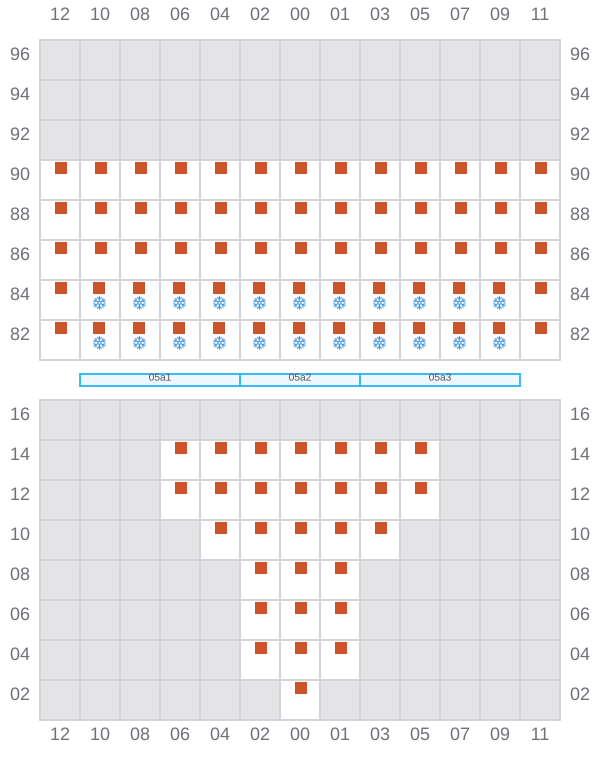

007
- ←
- → / ?
![Bay 007 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b007.png?v=1687900369747)
009 (010)
- →
![Bay 009 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b009.png?v=1687900369747)

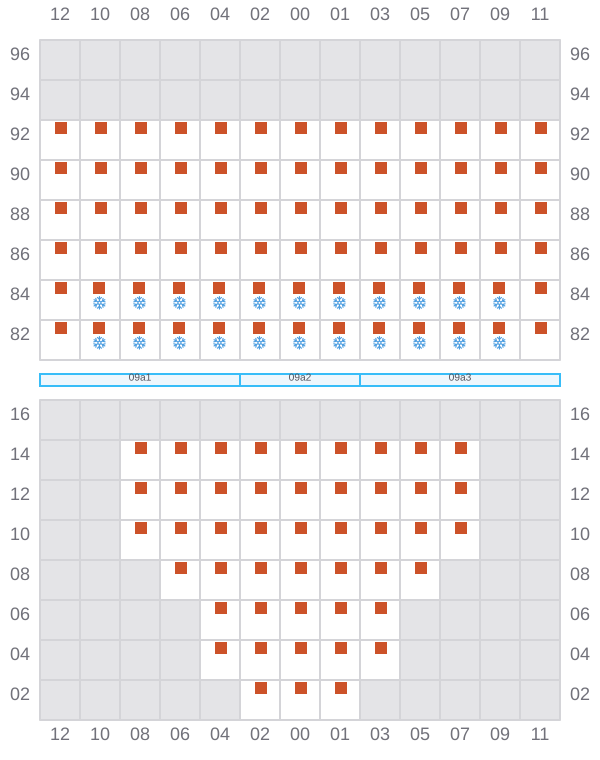

011
- ←
- → / ?
![Bay 011 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b011.png?v=1687900369747)

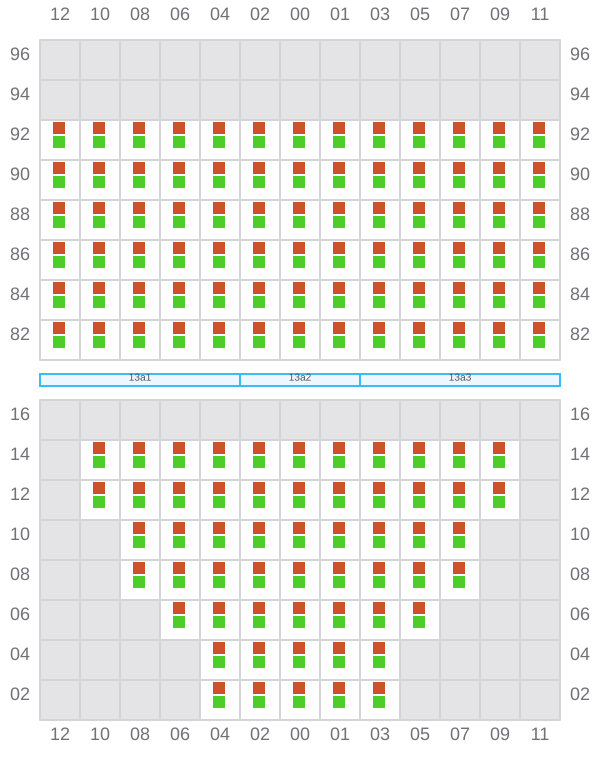

013 (014)
- →
![Bay 013 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b013.png?v=1687900369747)
015
- ←
- → / ?
![Bay 015 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b015.png?v=1687900369747)

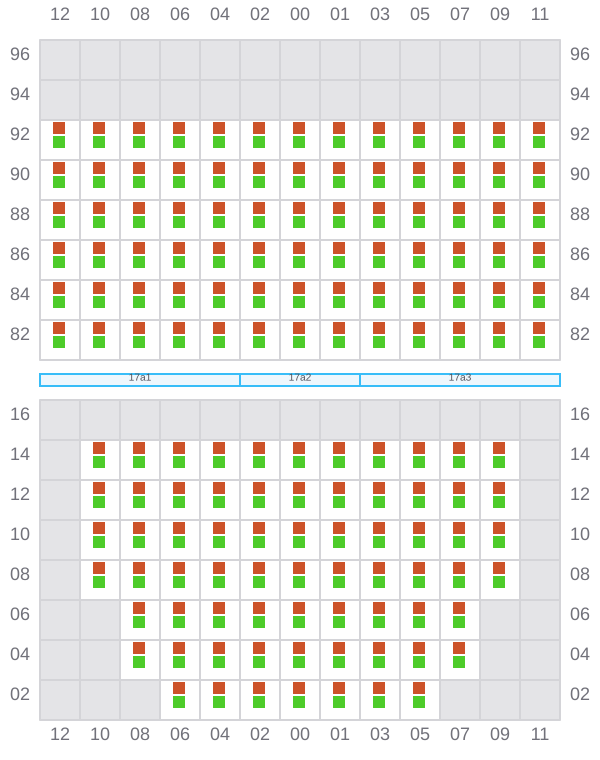

017 (018)
- →
![Bay 017 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b017.png?v=1687900369747)

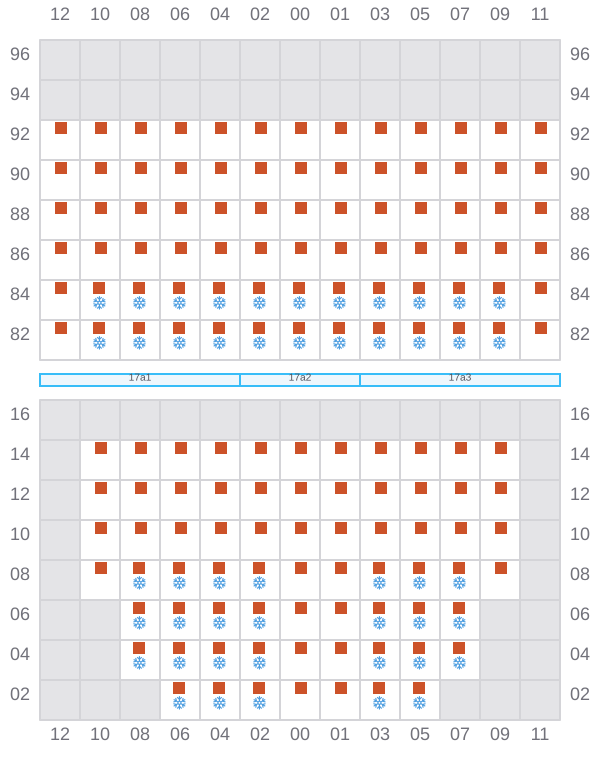

019
- ←
- →
![Bay 019 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b019.png?v=1687900369747)

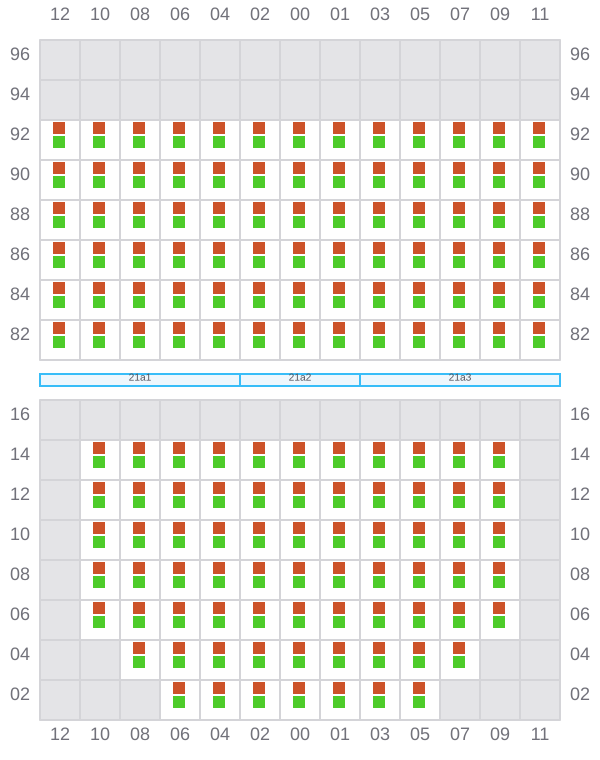

021 (022)
- →
![Bay 021 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b021.png?v=1687900369747)

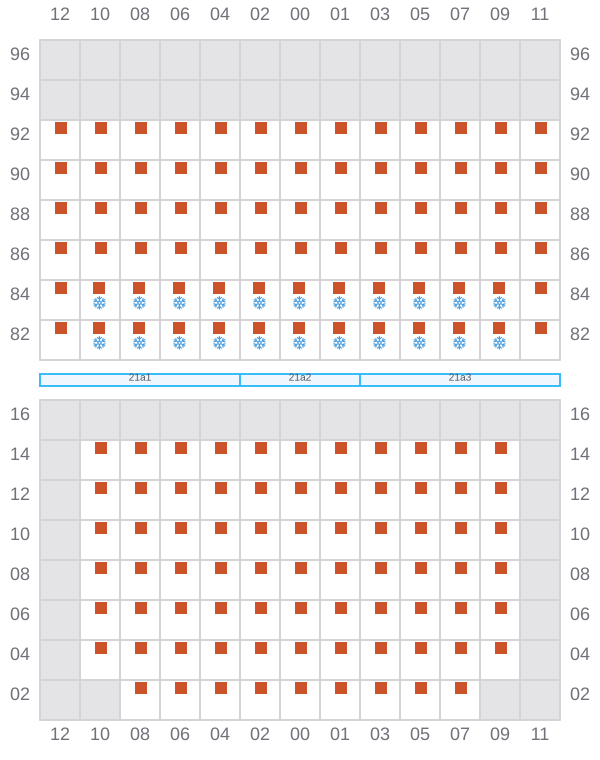

023
- ←
- → / ?
![Bay 023 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b023.png?v=1687900369747)

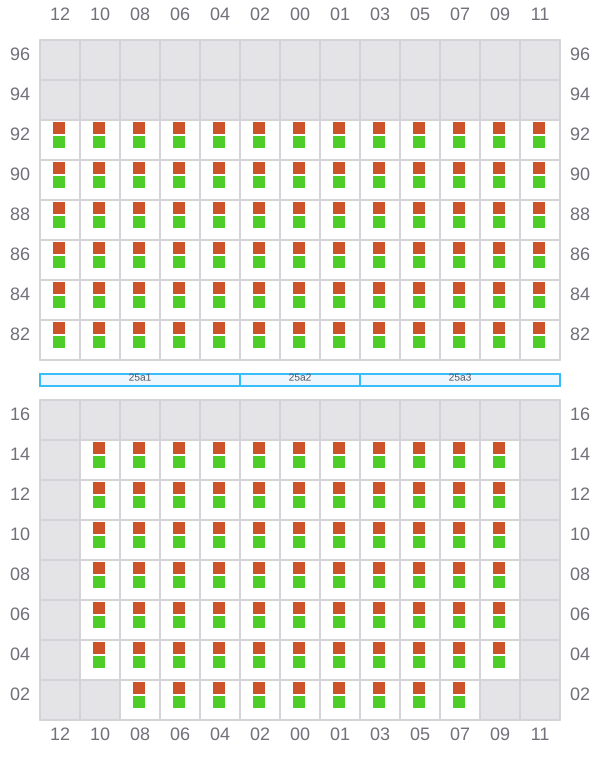

025 (026)
- →
![Bay 025 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b025.png?v=1687900369747)
027
- ←
- →
![Bay 027 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b027.png?v=1687900369747)
029 (030)
- →
![Bay 029 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b029.png?v=1687900369747)
031
- ←
- →
![Bay 031 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b031.png?v=1687900369747)
033 (034)
- →
![Bay 033 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b033.png?v=1687900369747)

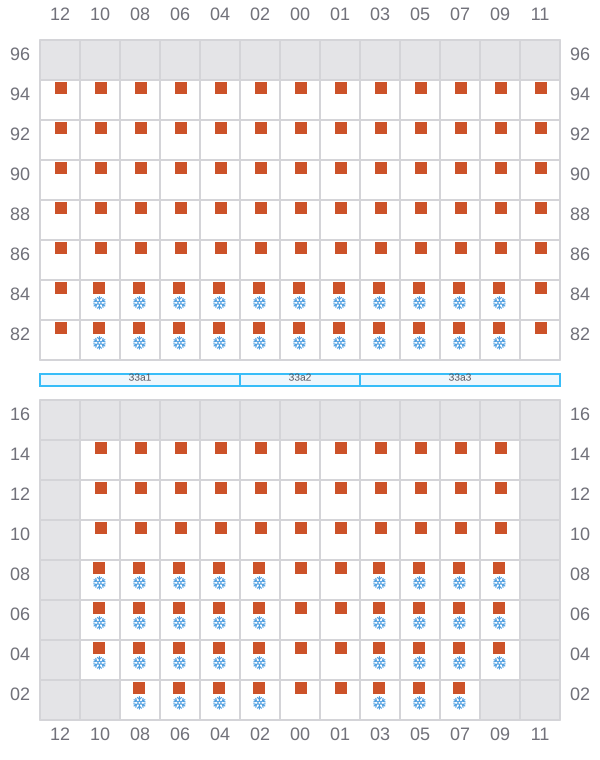

035
- ←
- →
![Bay 035 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b035.png?v=1687900369747)

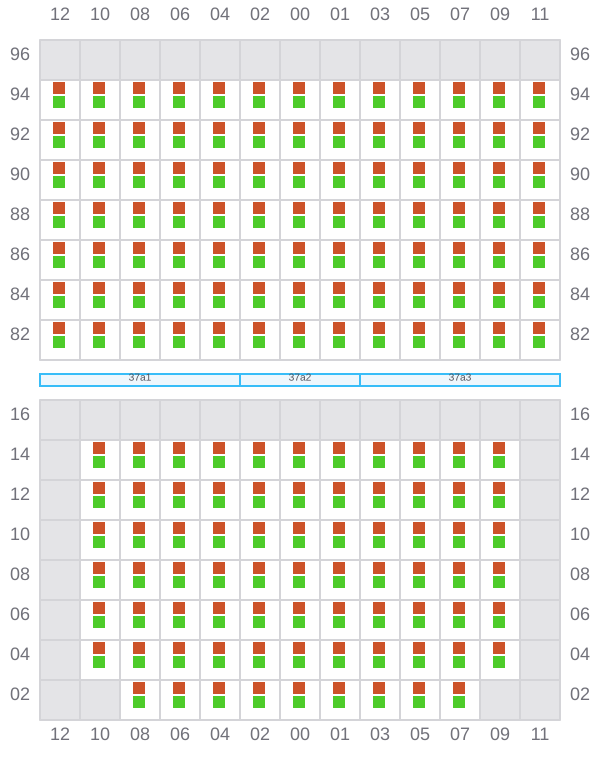

037 (038)
- →
![Bay 037 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b037.png?v=1687900369747)

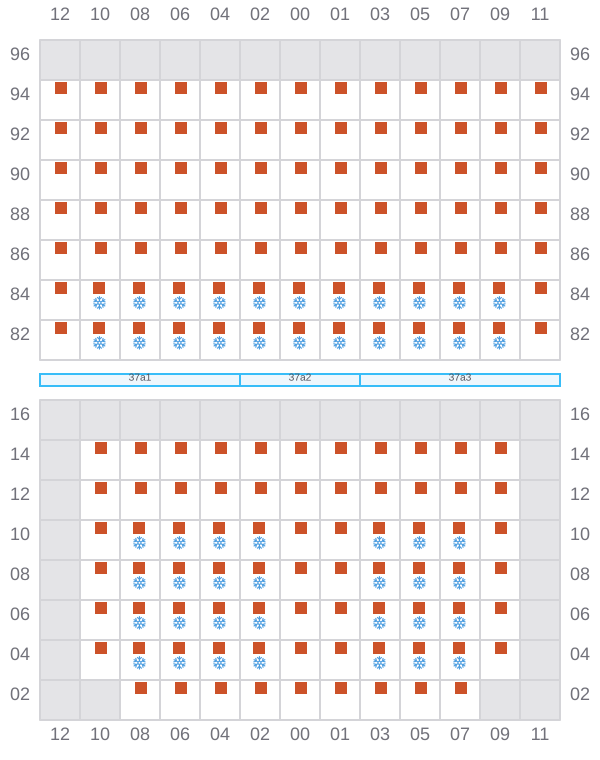

039
- ←
- →
![Bay 039 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b039.png?v=1687900369747)
041 (042)
- →
![Bay 041 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b041.png?v=1687900369747)

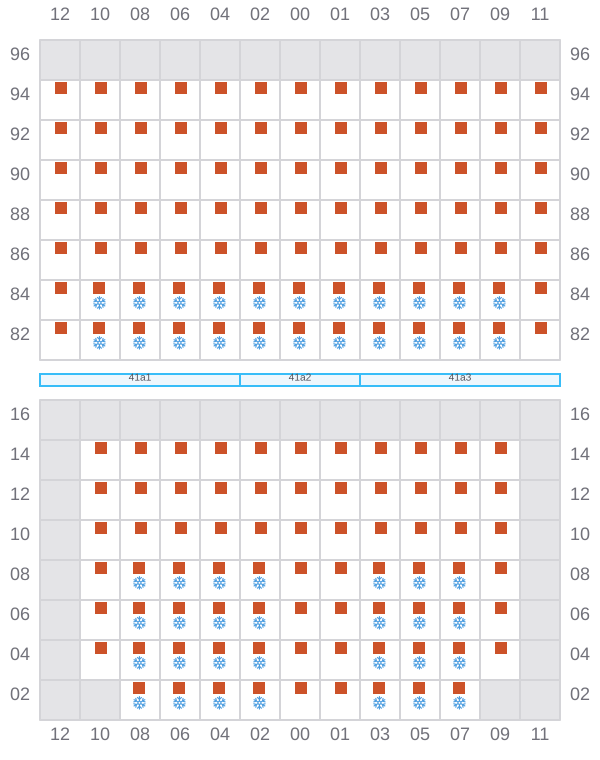

043
- ←
- →
![Bay 043 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b043.png?v=1687900369747)

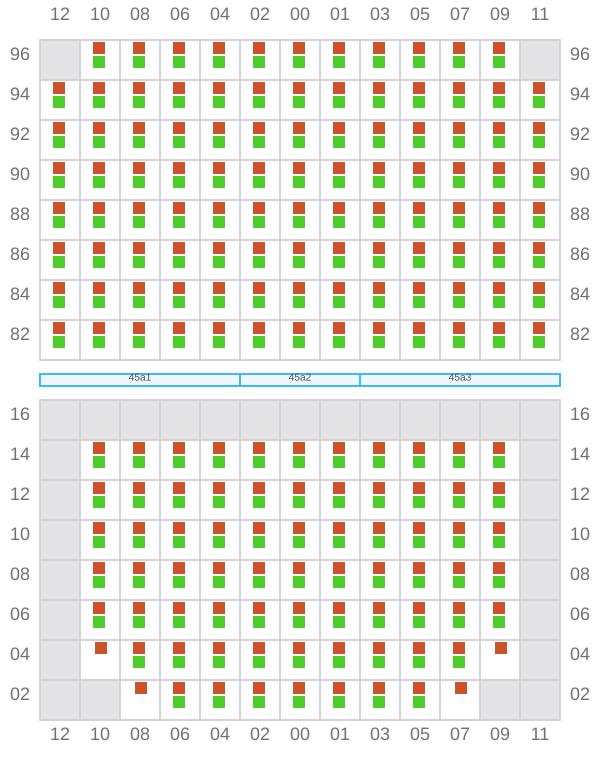

045 (046)
- →
![Bay 045 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b045.png?v=1687900369747)

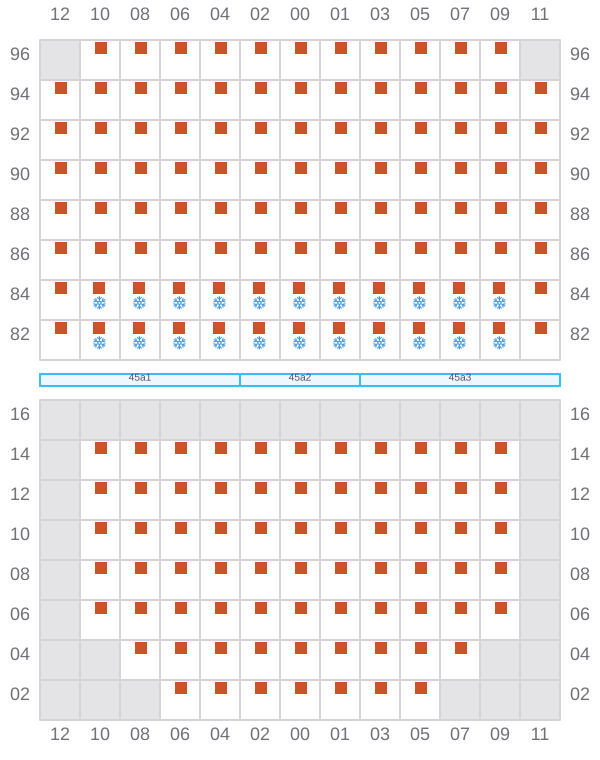

047
- ←
- → / ?
![Bay 047 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b047.png?v=1687900369747)

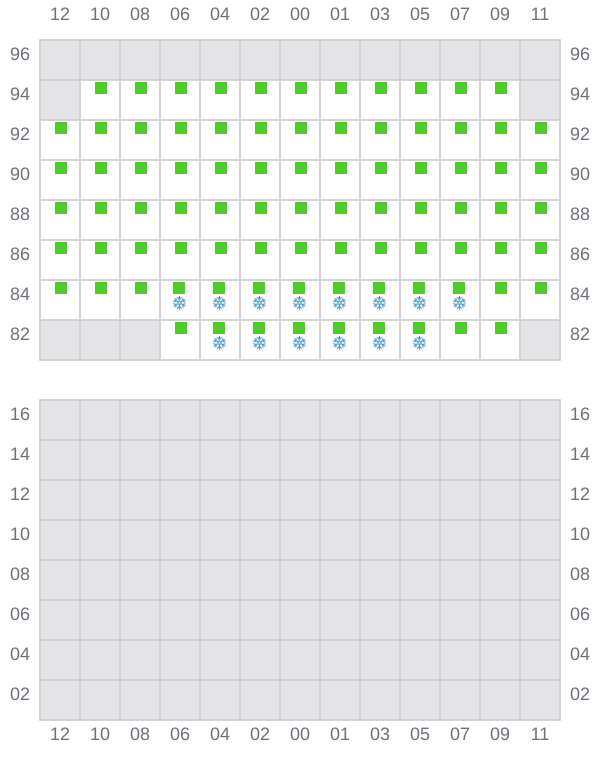

049 (050)
- → / ?
- ← / ?
![Bay 049 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b049.png?v=1687900369747)

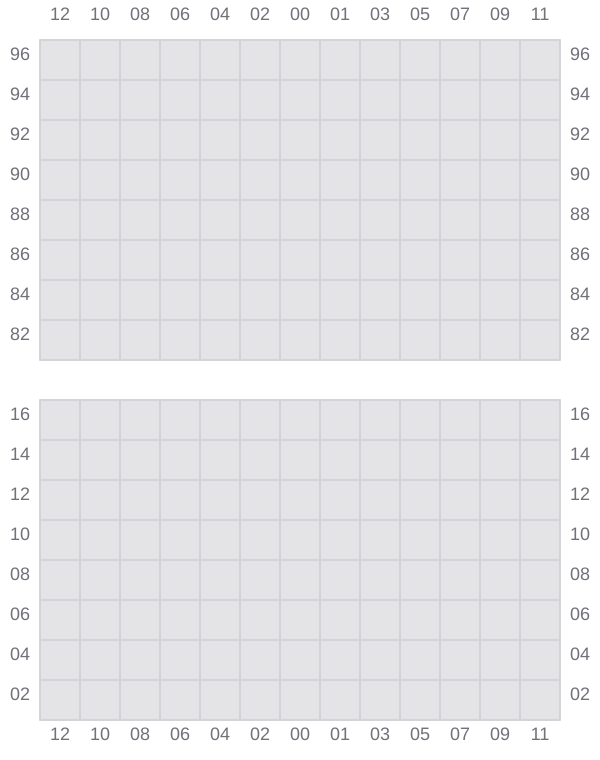

051
![Bay 051 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b051.png?v=1687900369747)

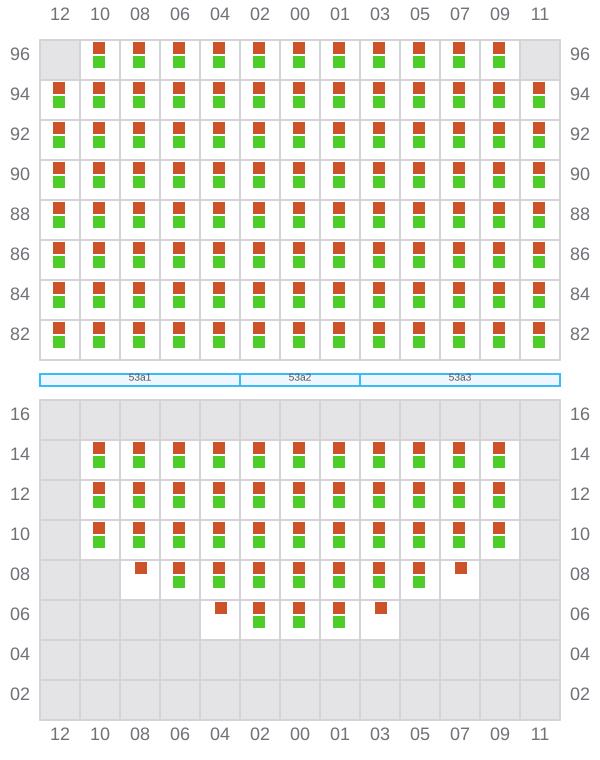

053 (054)
- →
![Bay 053 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b053.png?v=1687900369747)

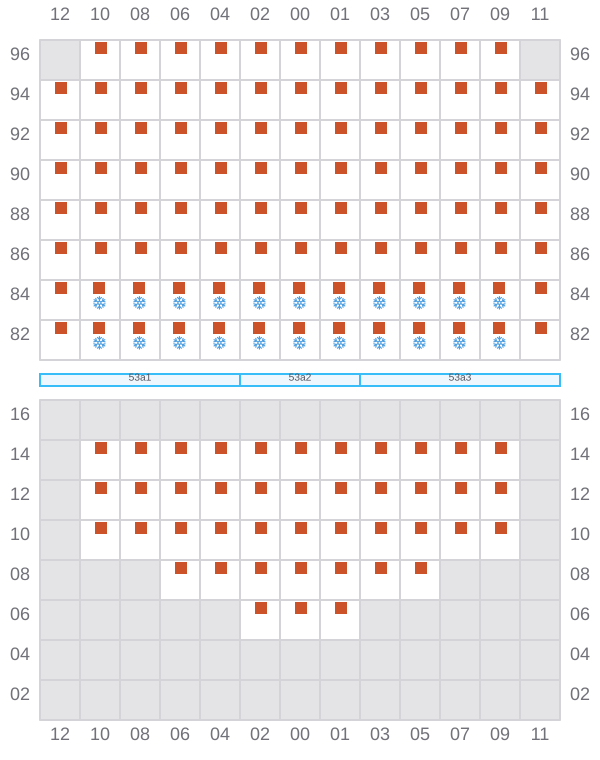

055
- ←
- → / ?
![Bay 055 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b055.png?v=1687900369747)

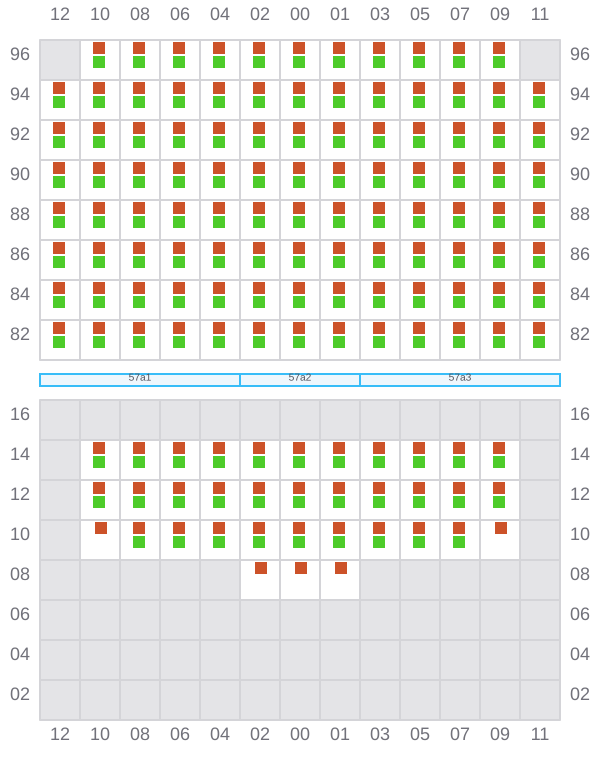

057 (058)
- →
![Bay 057 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b057.png?v=1687900369747)

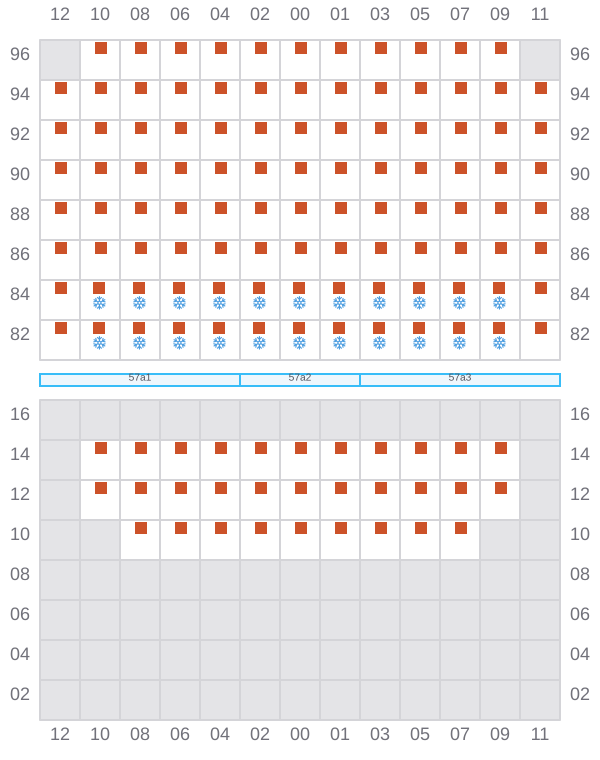

059
- ←
- → / ?
![Bay 059 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b059.png?v=1687900369747)

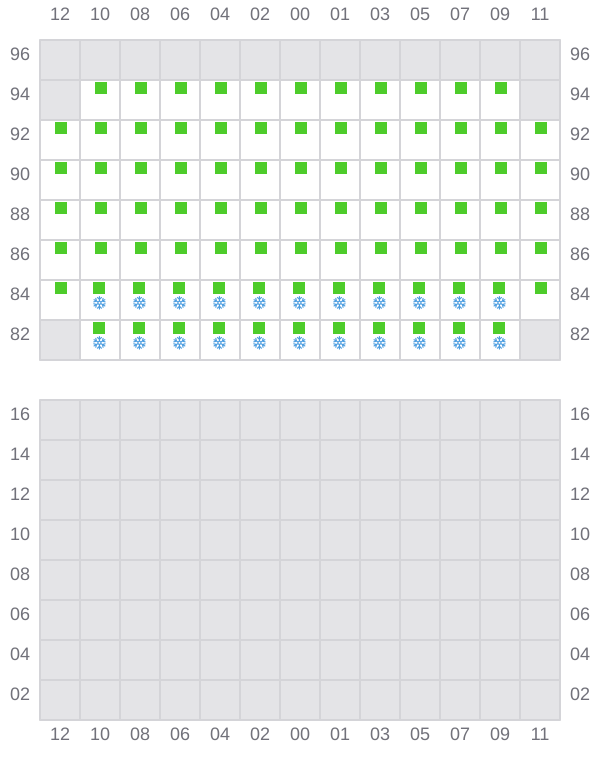

061 (062)
- → / ?
- ← / ?
![Bay 061 view and slots of RIO CADIZ](/vessel-images/c26b7b0b-f6a2-4899-a117-c3c34f93ed91-b061.png?v=1687900369747)
