RIO MADEIRA
9348106 | 9VJZ6 | 9348106 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:RIO MADEIRA
IMO Code:9348106
Call Sign:9VJZ6
Line Operator:9348106
Class Name for Sister Ships:0XP
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:065
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:78
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,904
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

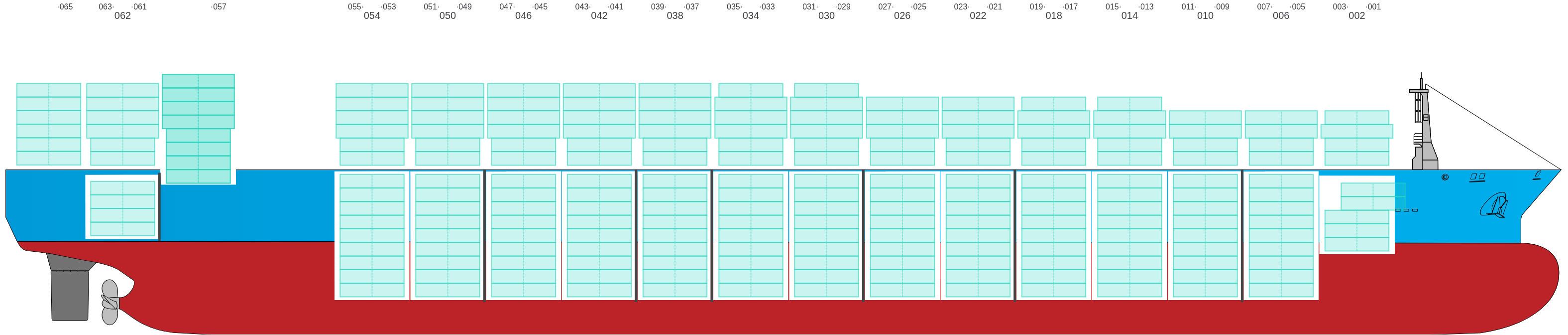

Side View
![Side view of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-sideView.png?v=1711136757479)
Hatch-Covers View
![Deck view of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-deckView.png?v=1711136757479)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

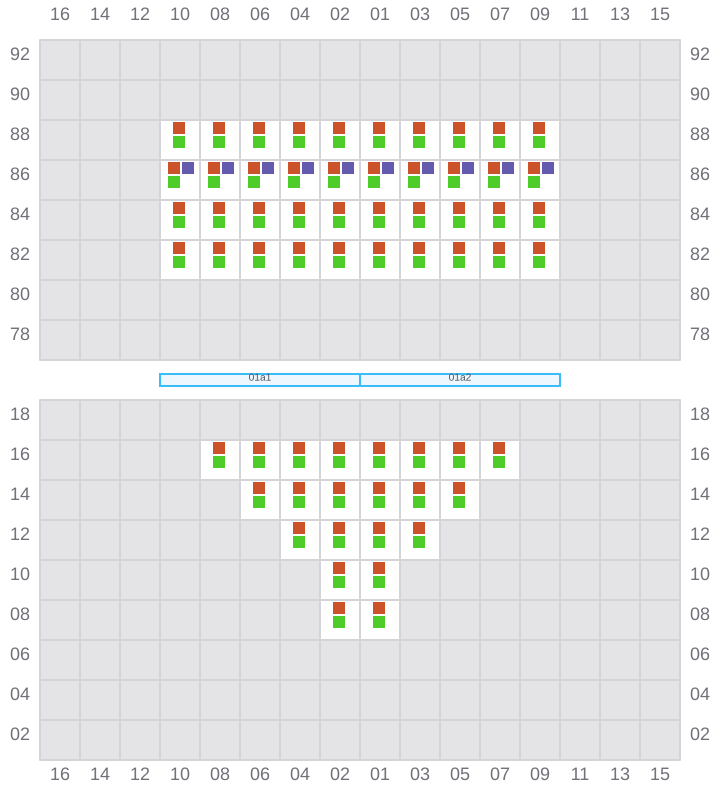

001 (002)
- →
![Bay 001 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b001.png?v=1711136757479)

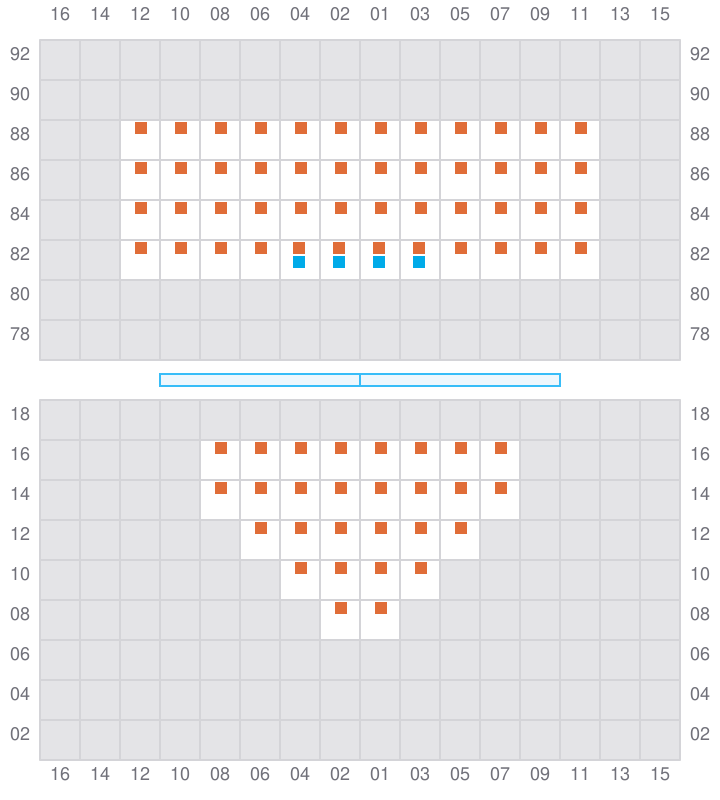

003
- ←
- → / ?
![Bay 003 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b003.png?v=1711136757479)

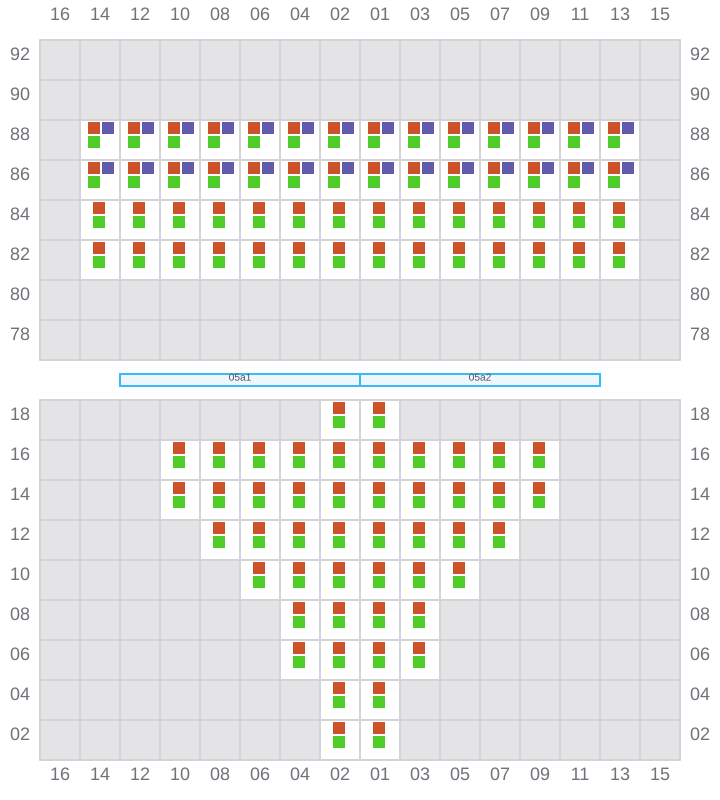

005 (006)
- →
![Bay 005 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b005.png?v=1711136757479)

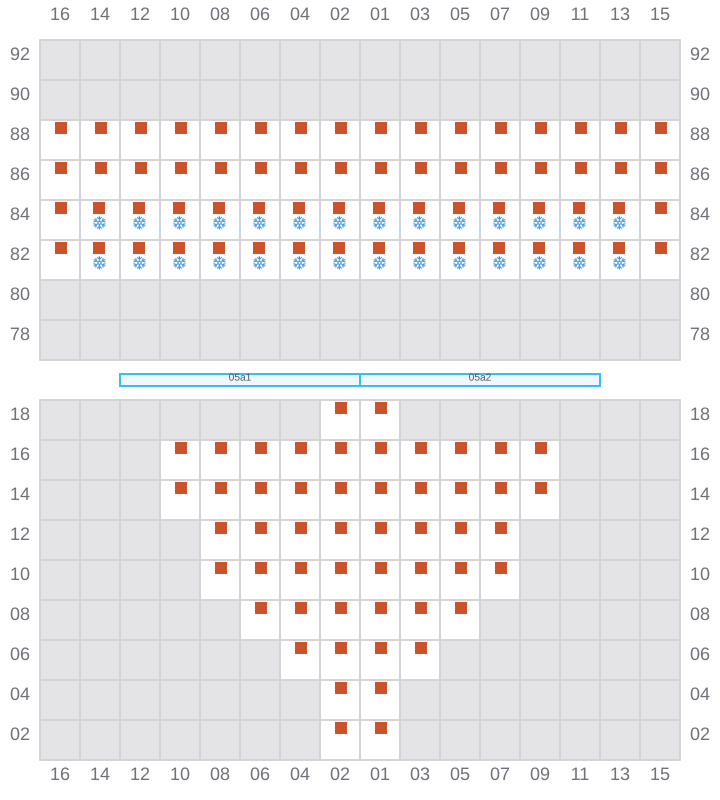

007
- ←
- → / ?
![Bay 007 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b007.png?v=1711136757479)

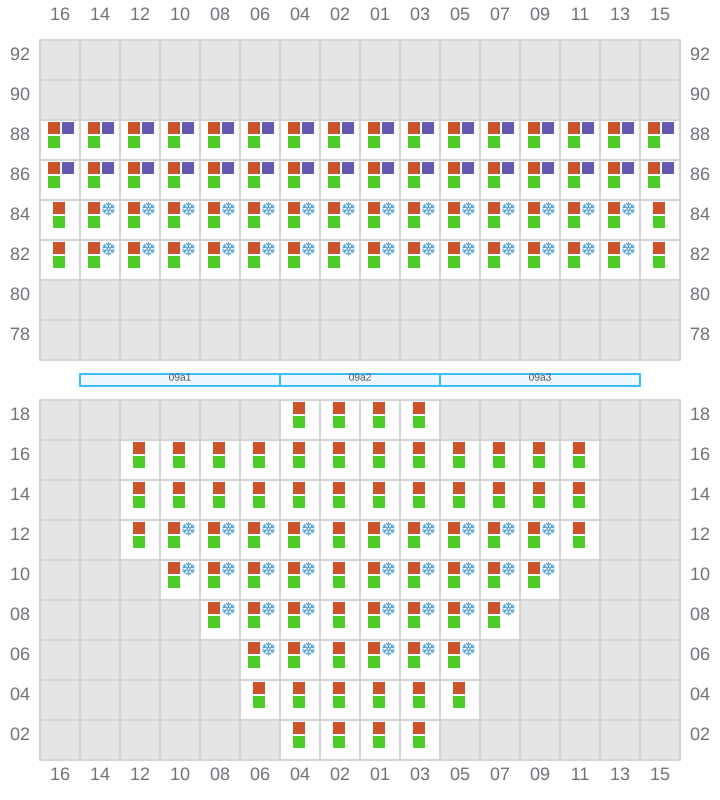

009 (010)
- →
- ←
![Bay 009 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b009.png?v=1711136757479)

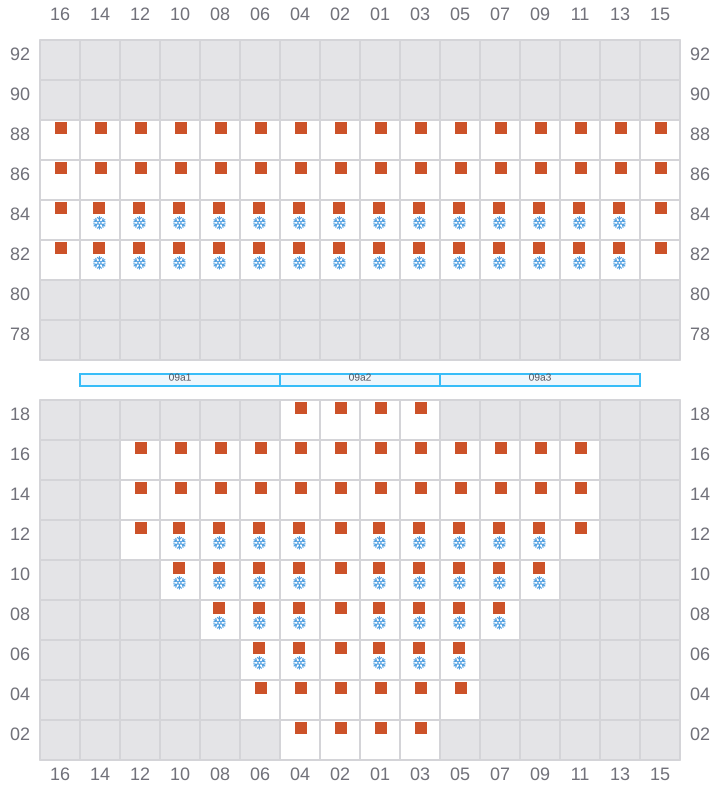

011
- ←
- →
![Bay 011 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b011.png?v=1711136757479)

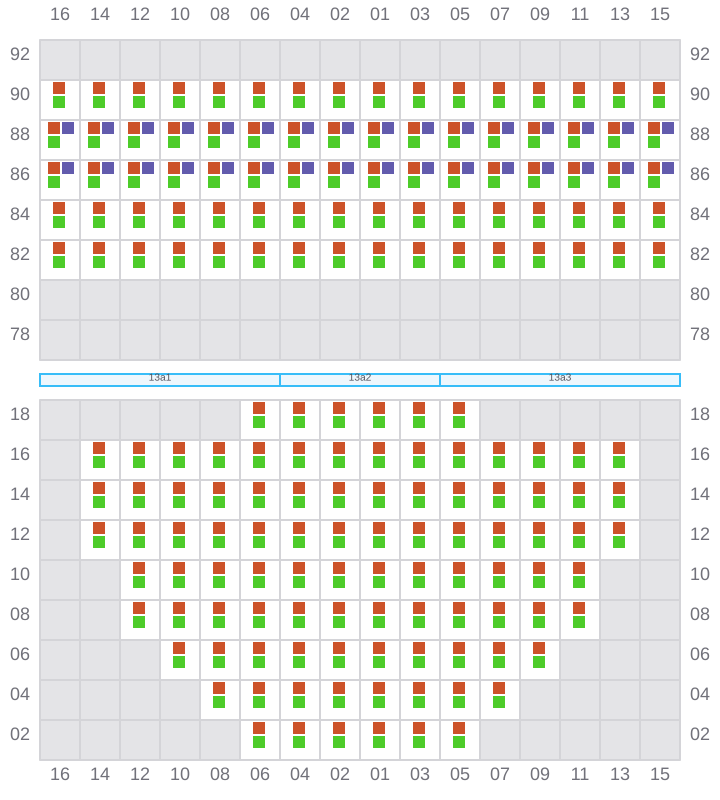

013 (014)
- →
![Bay 013 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b013.png?v=1711136757479)

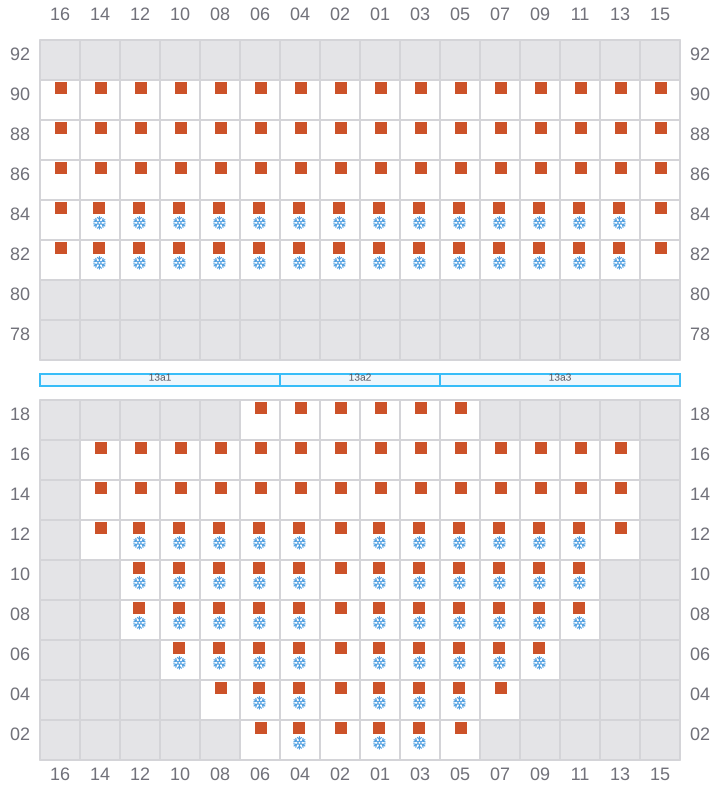

015
- ←
- →
![Bay 015 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b015.png?v=1711136757479)

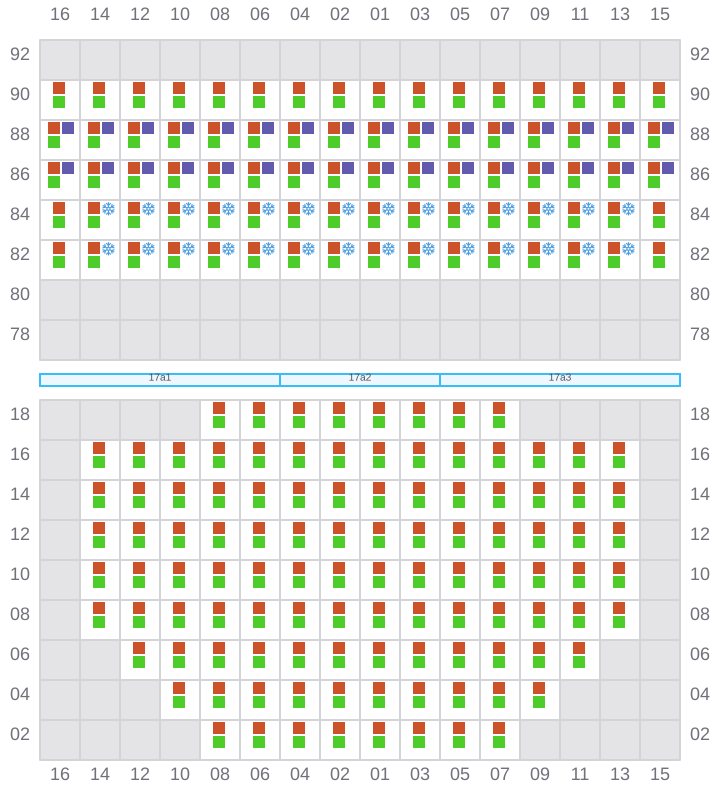

017 (018)
- →
- ← / ?
![Bay 017 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b017.png?v=1711136757479)

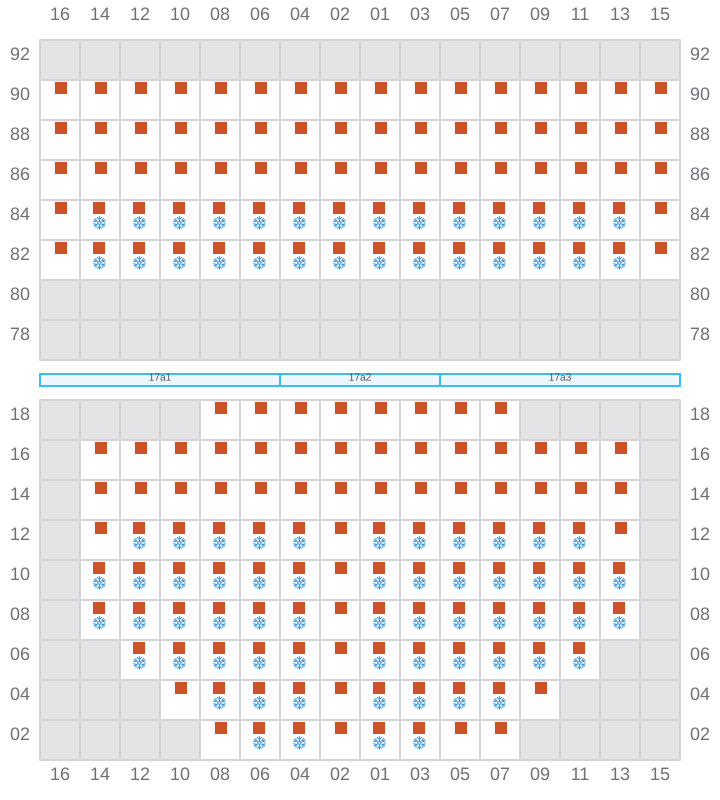

019
- ←
- →
![Bay 019 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b019.png?v=1711136757479)

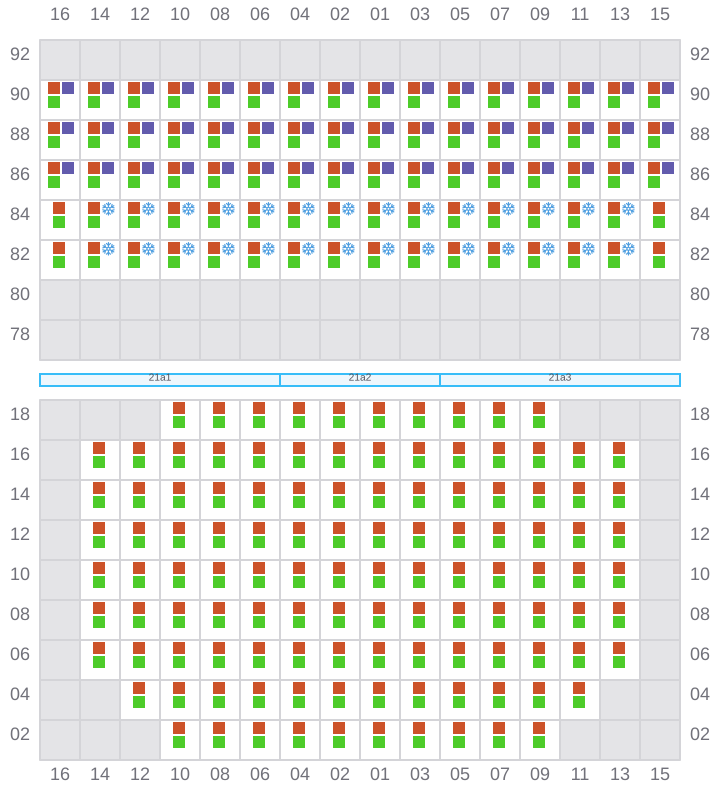

021 (022)
- →
- ← / ?
![Bay 021 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b021.png?v=1711136757479)

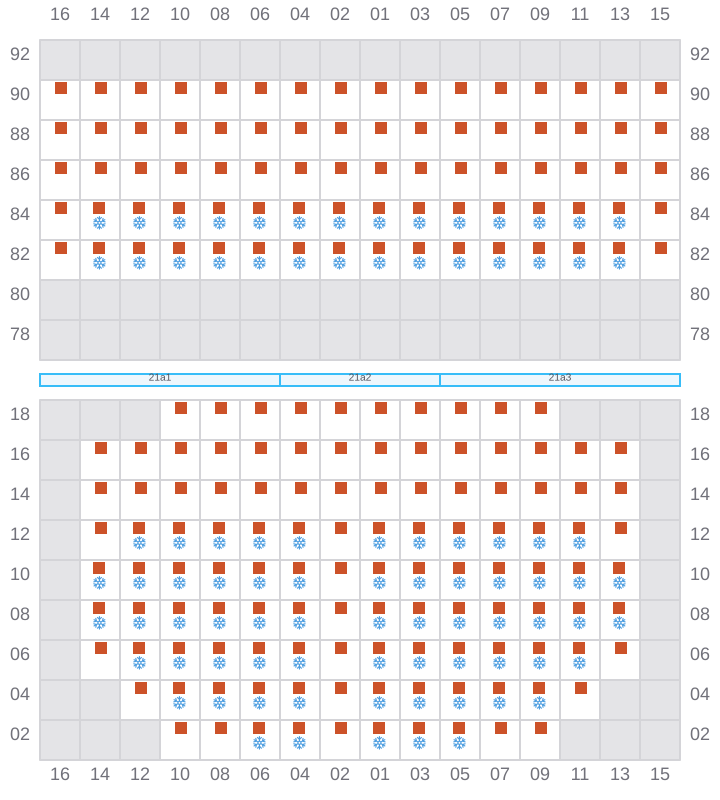

023
- ←
- →
![Bay 023 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b023.png?v=1711136757479)

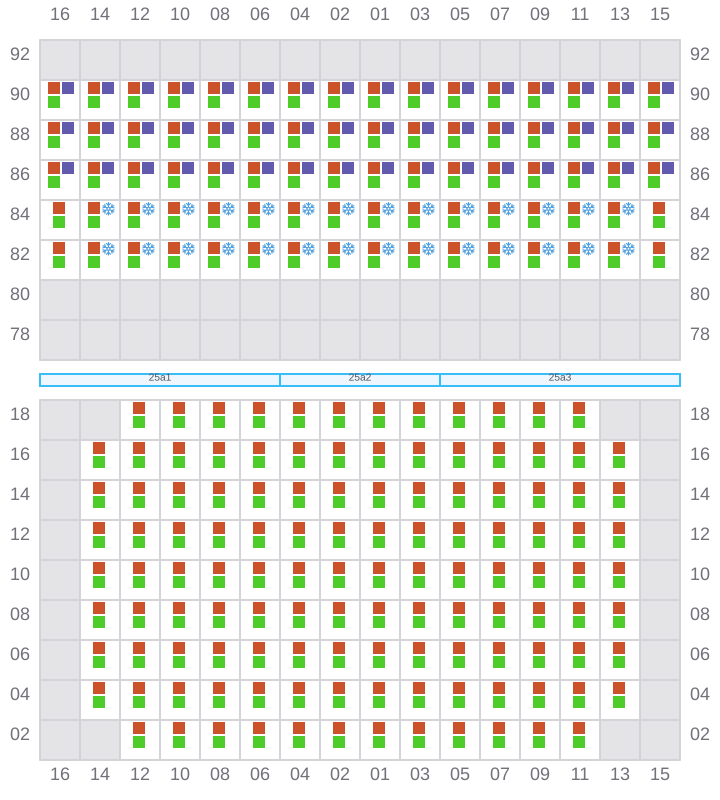

025 (026)
- →
- ← / ?
![Bay 025 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b025.png?v=1711136757479)

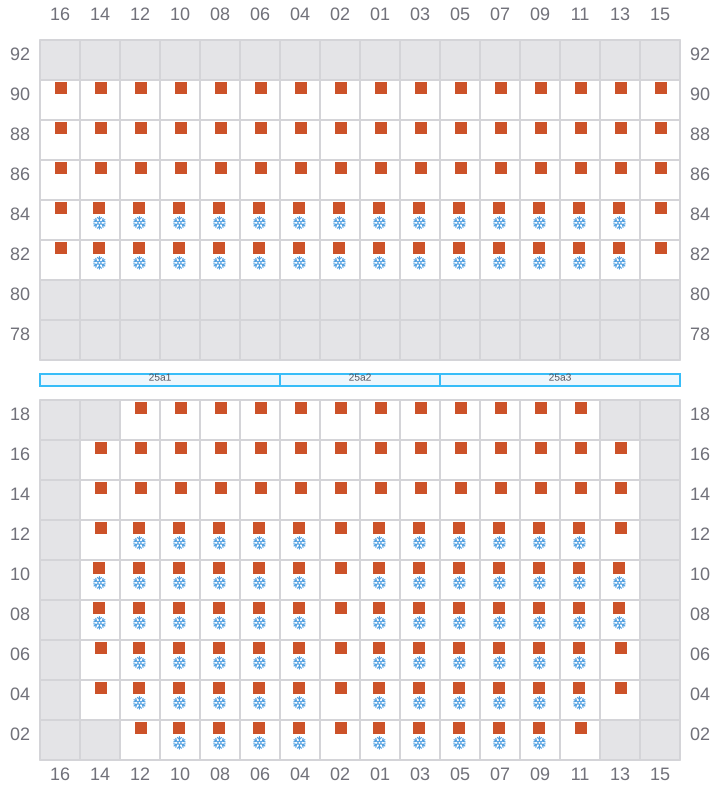

027
- ←
- →
![Bay 027 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b027.png?v=1711136757479)
029 (030)
- →
- ← / ?
![Bay 029 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b029.png?v=1711136757479)
031
- ←
- →
![Bay 031 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b031.png?v=1711136757479)
033 (034)
- →
- ← / ?
![Bay 033 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b033.png?v=1711136757479)
035
- ←
- →
![Bay 035 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b035.png?v=1711136757479)
037 (038)
- →
![Bay 037 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b037.png?v=1711136757479)

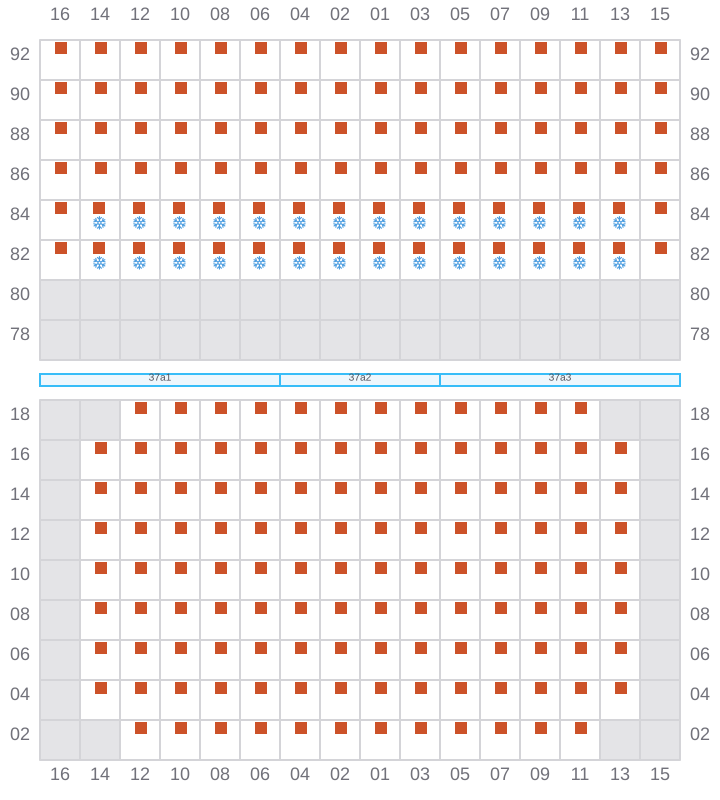

039
- ←
- → / ?
![Bay 039 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b039.png?v=1711136757479)

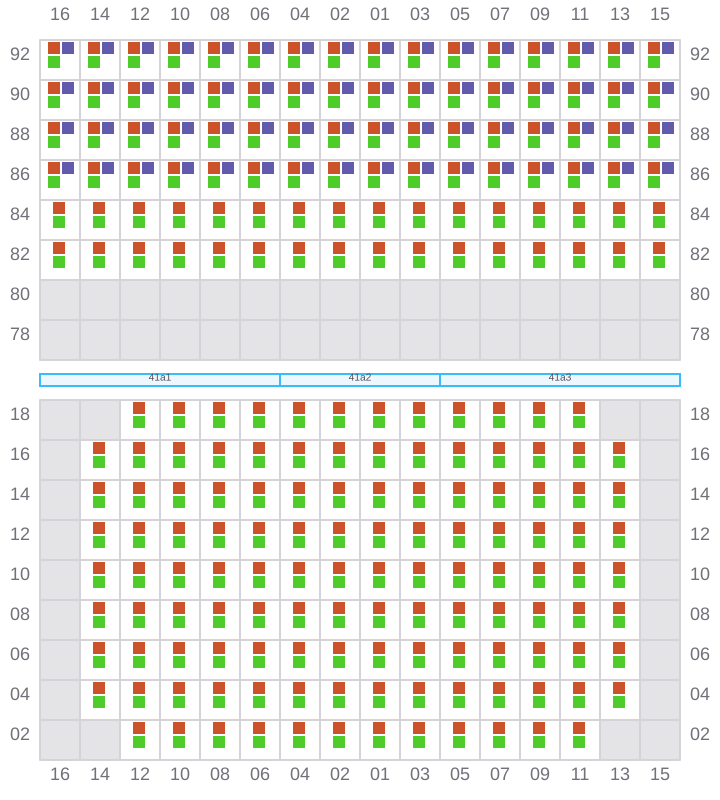

041 (042)
- →
![Bay 041 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b041.png?v=1711136757479)

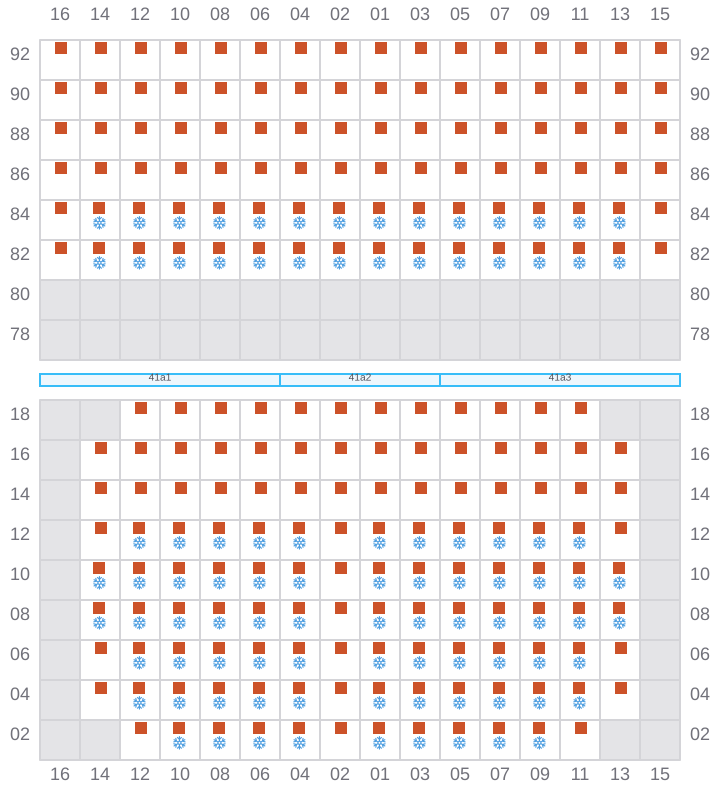

043
- ←
- →
![Bay 043 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b043.png?v=1711136757479)

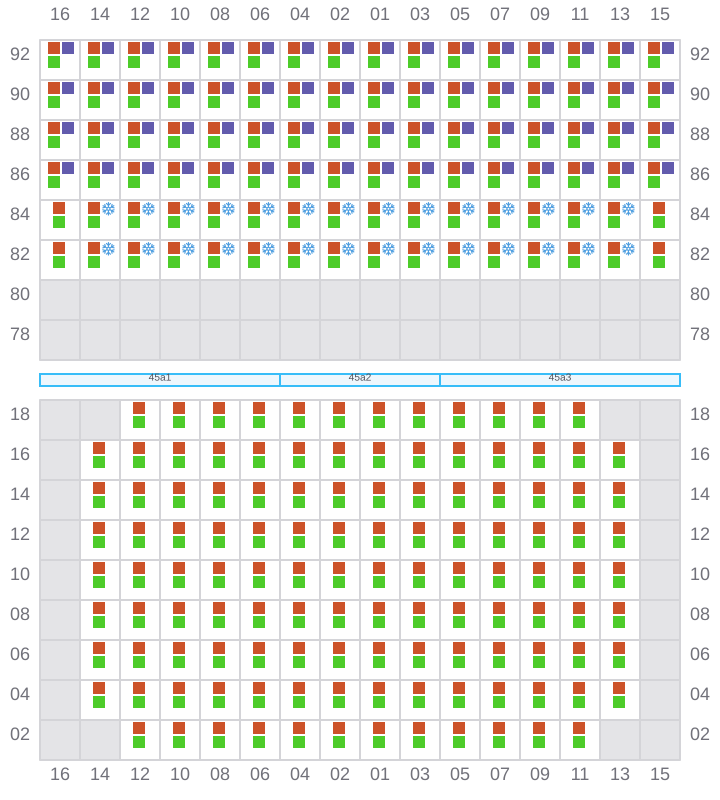

045 (046)
- →
- ← / ?
![Bay 045 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b045.png?v=1711136757479)
047
- ←
- →
![Bay 047 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b047.png?v=1711136757479)

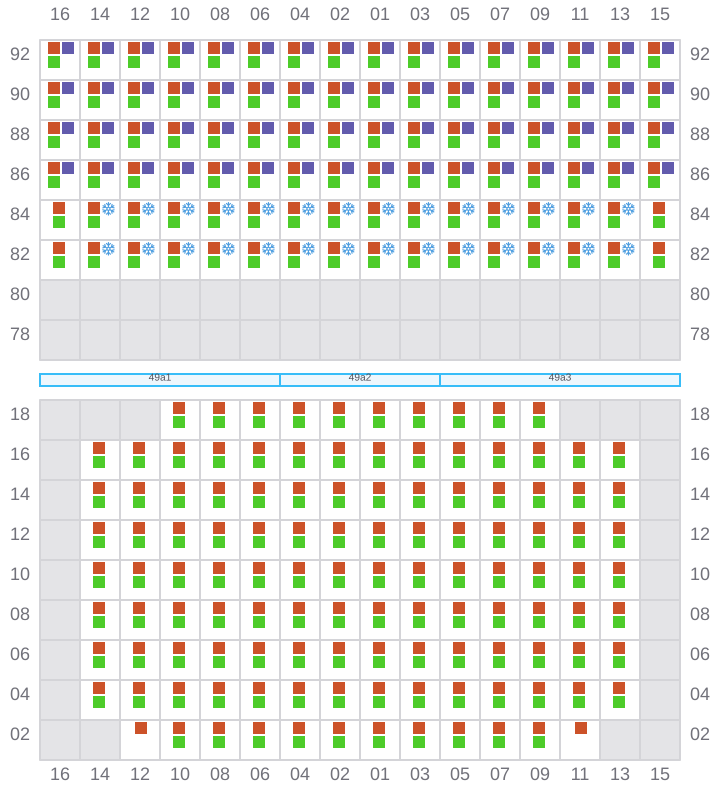

049 (050)
- →
- ← / ?
![Bay 049 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b049.png?v=1711136757479)

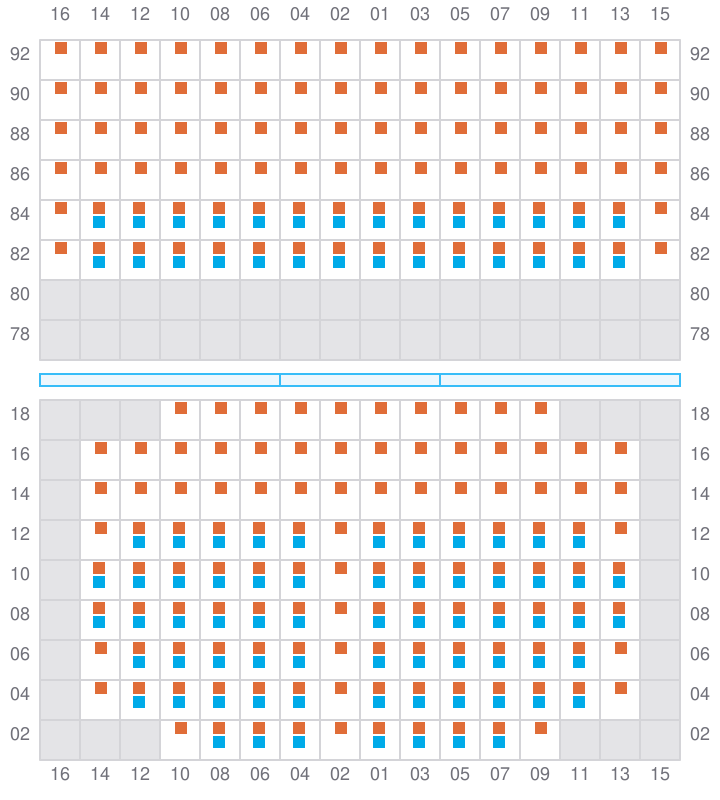

051
- ←
- →
![Bay 051 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b051.png?v=1711136757479)

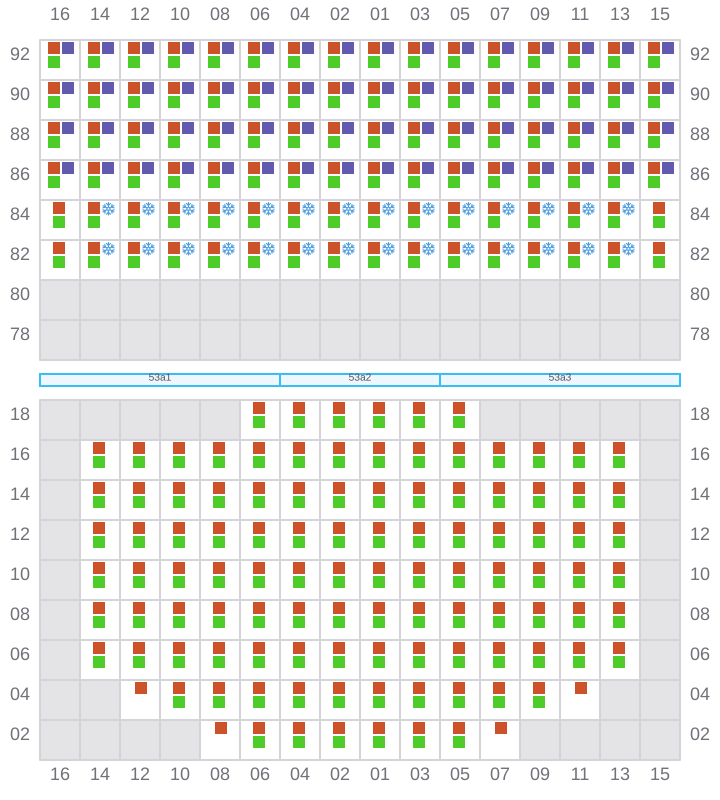

053 (054)
- →
- ← / ?
![Bay 053 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b053.png?v=1711136757479)

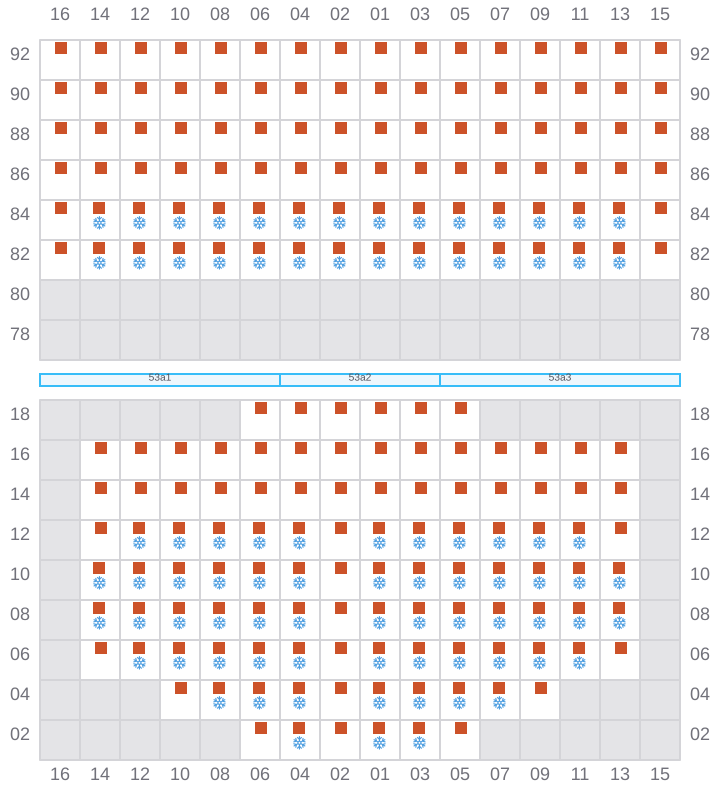

055
- ←
- →
![Bay 055 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b055.png?v=1711136757479)

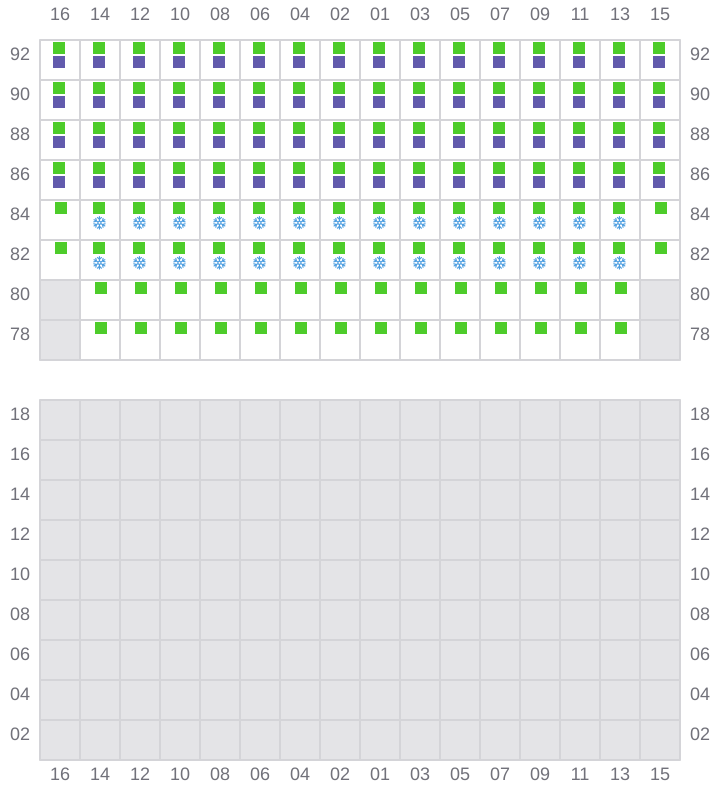

057 (058)
- → / ?
- → / ?
![Bay 057 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b057.png?v=1711136757479)

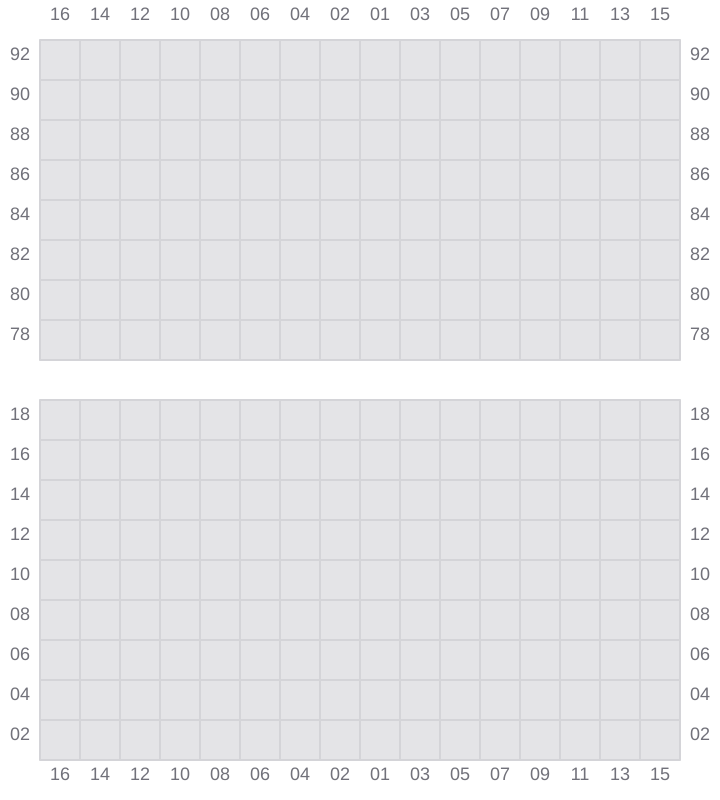

059
![Bay 059 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b059.png?v=1711136757479)

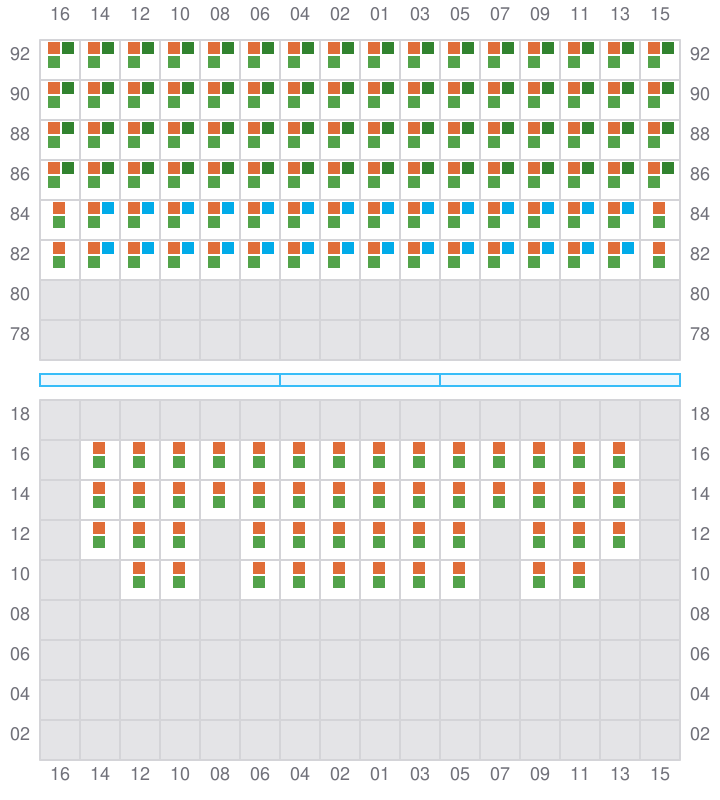

061 (062)
- →
- ← / ?
![Bay 061 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b061.png?v=1711136757479)

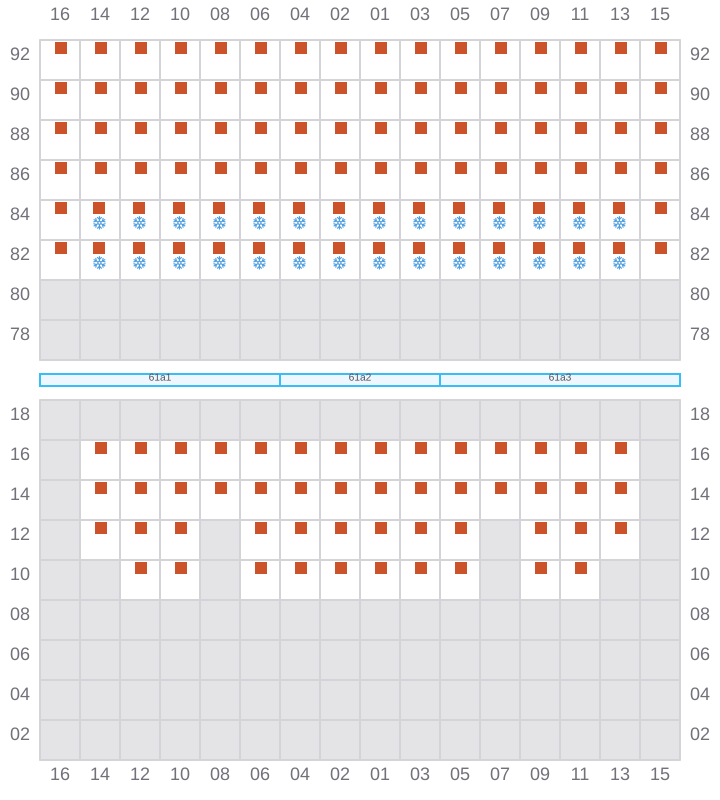

063
- ←
- → / ?
![Bay 063 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b063.png?v=1711136757479)

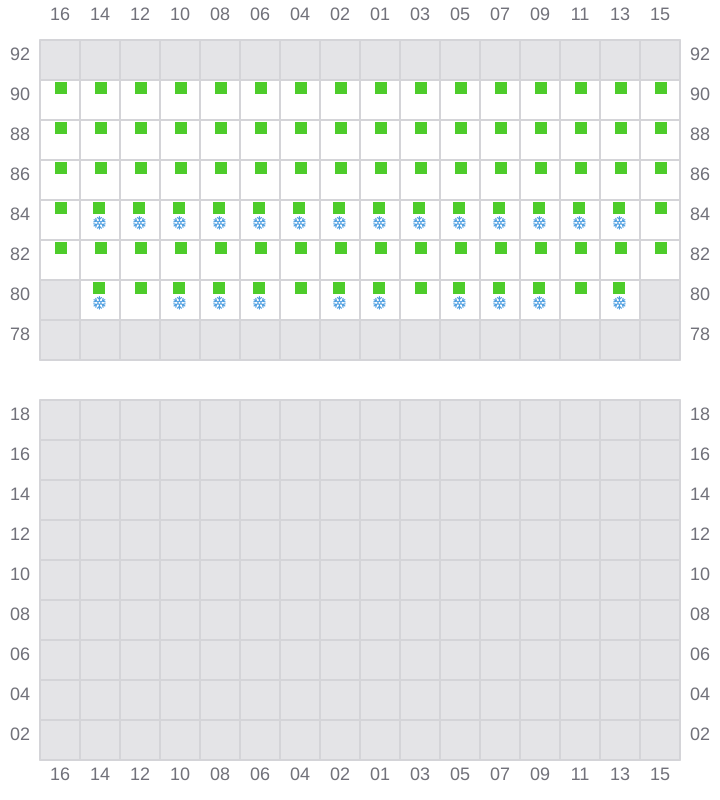

065 (066)
- → / ?
- ← / ?
![Bay 065 view and slots of RIO MADEIRA](/vessel-images/16a10032-1fce-4533-9d9d-d69e357355c8-b065.png?v=1711136757479)
