RIO NEGRO
9357975 | 9V8402 | MSK by ************************** Last update: Sun Jun 25 2023
General Info
Ship Name:RIO NEGRO
IMO Code:9357975
Call Sign:9V8402
Line Operator:MSK
Class Name for Sister Ships:RIO
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:067
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:78
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,768
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

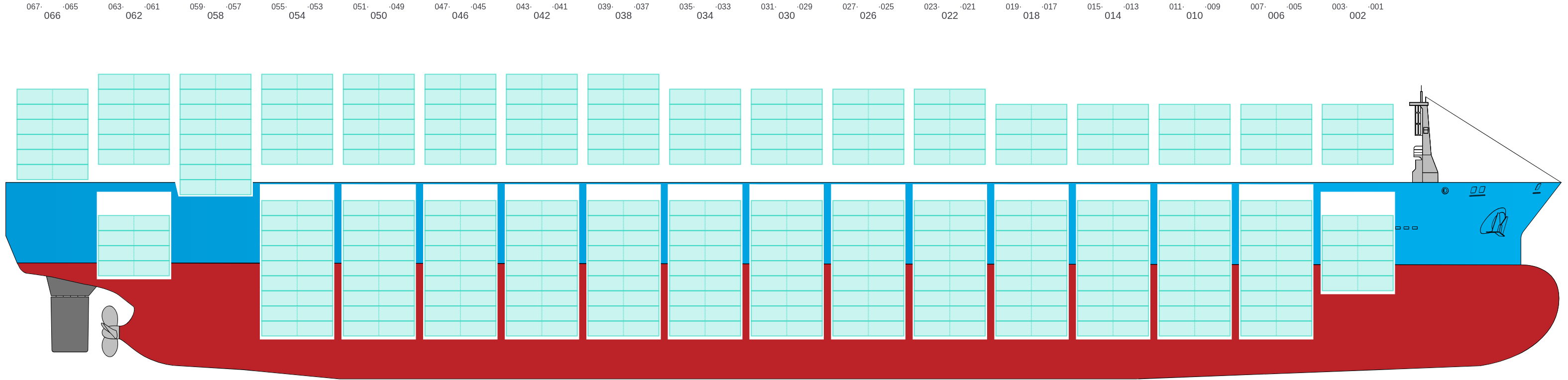

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

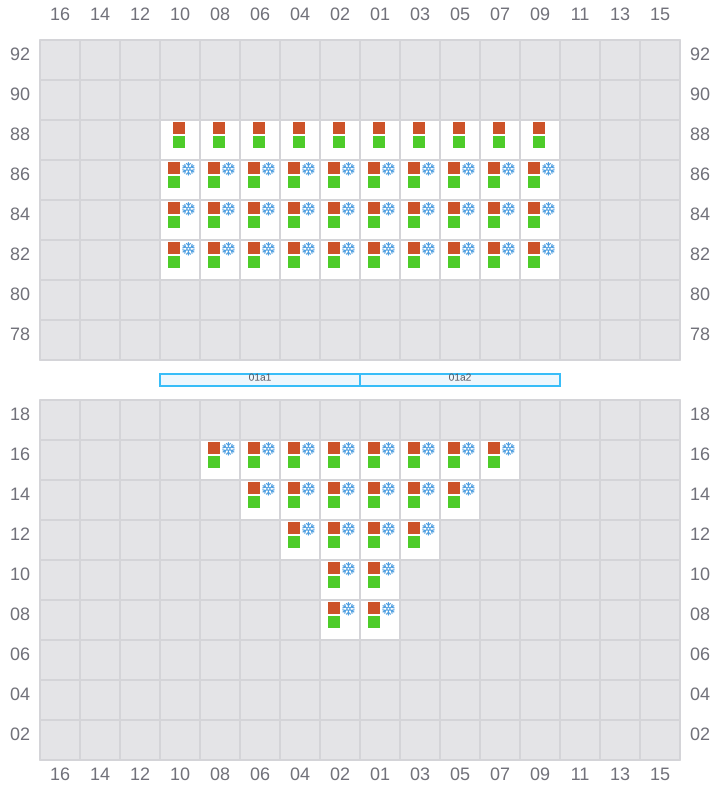

001 (002)
- →

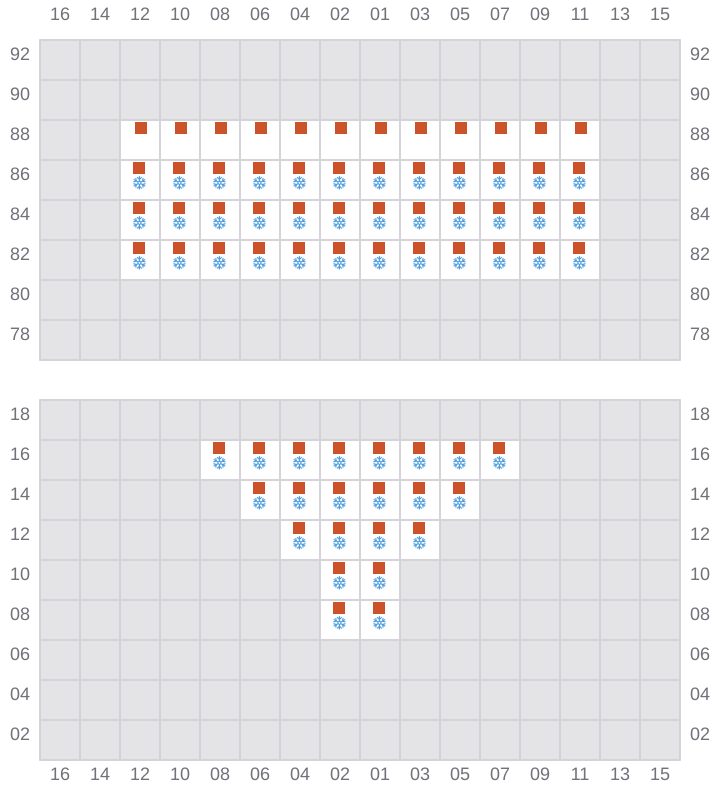

003
- ←

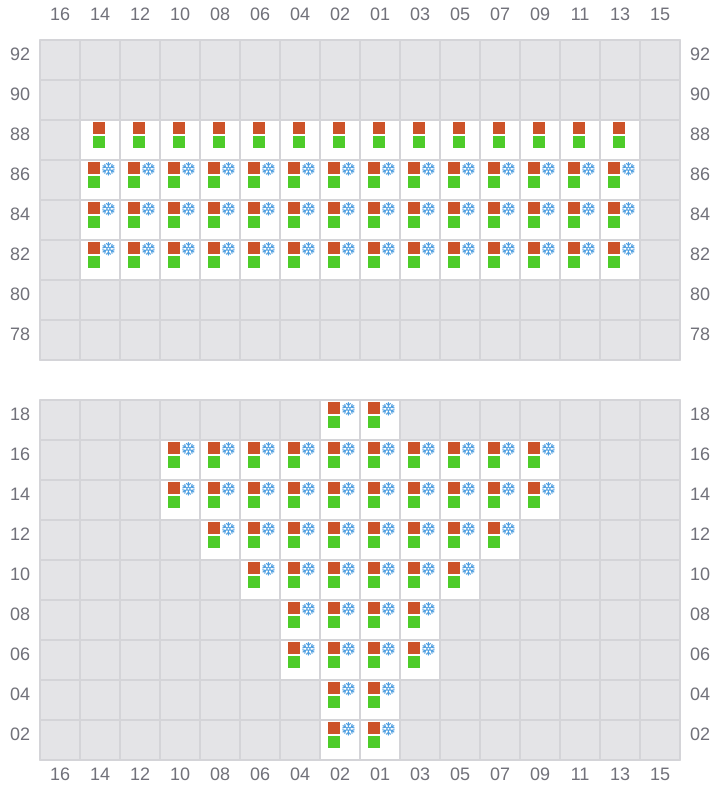

005 (006)
- →

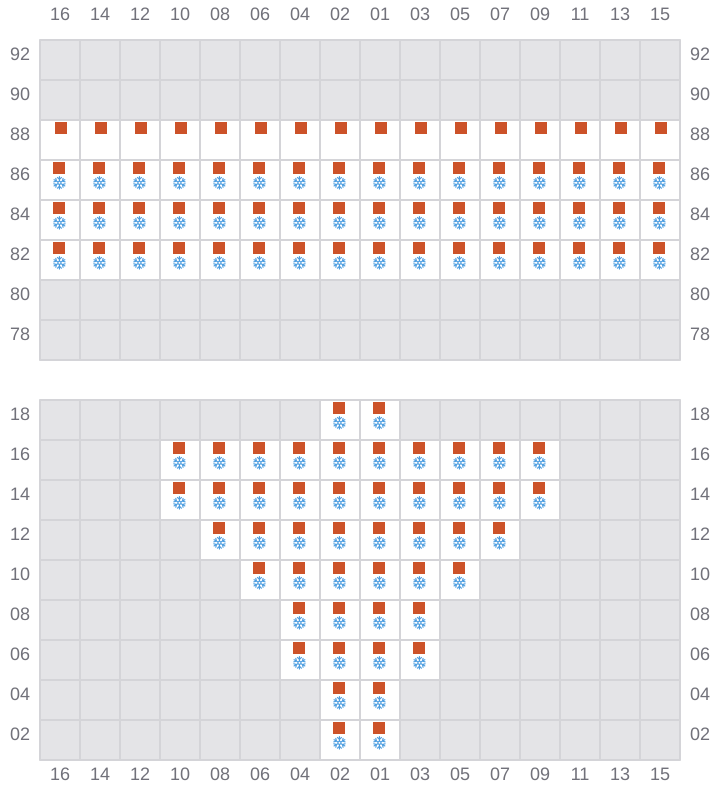

007
- ←

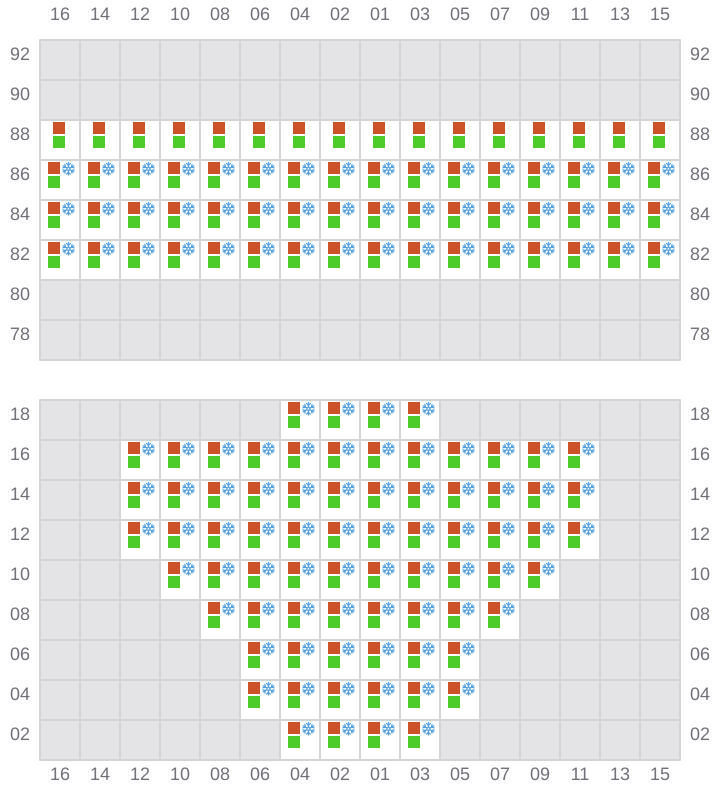

009 (010)
- →

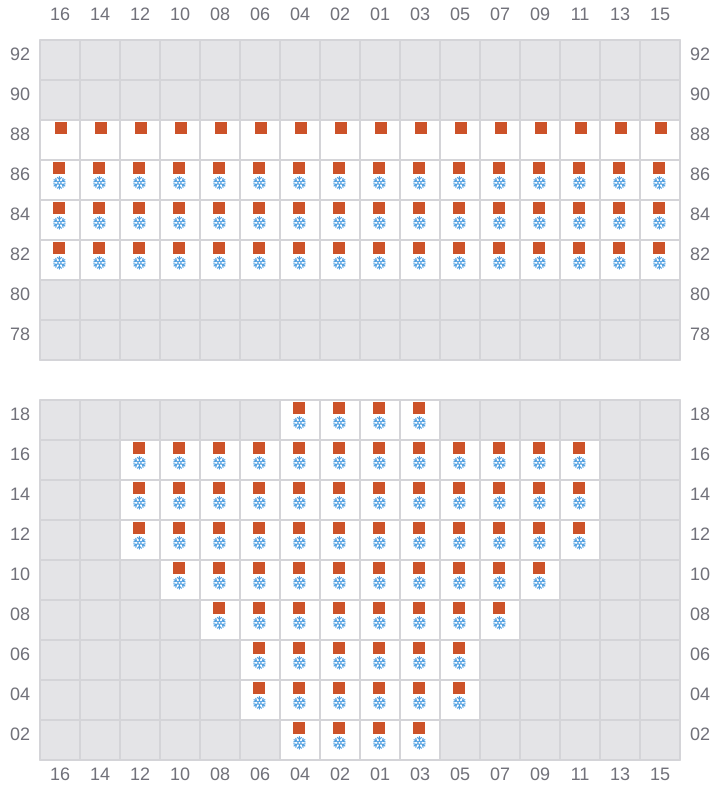

011
- ←

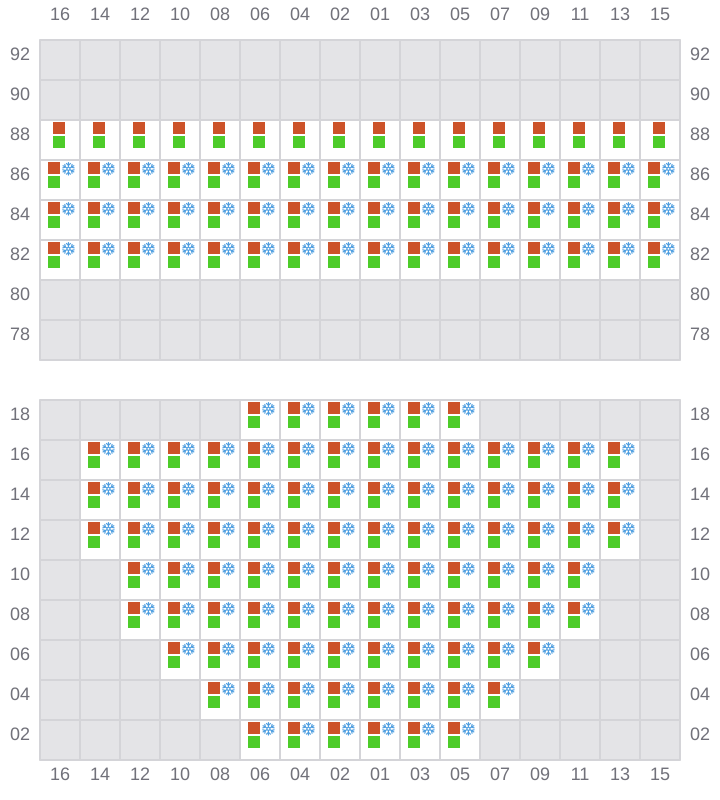

013 (014)
- →

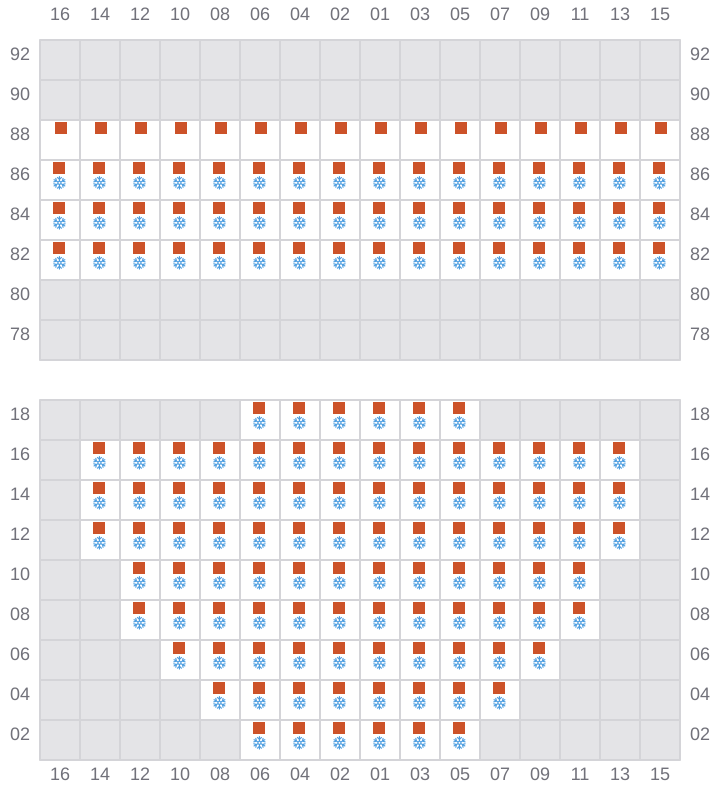

015
- ←

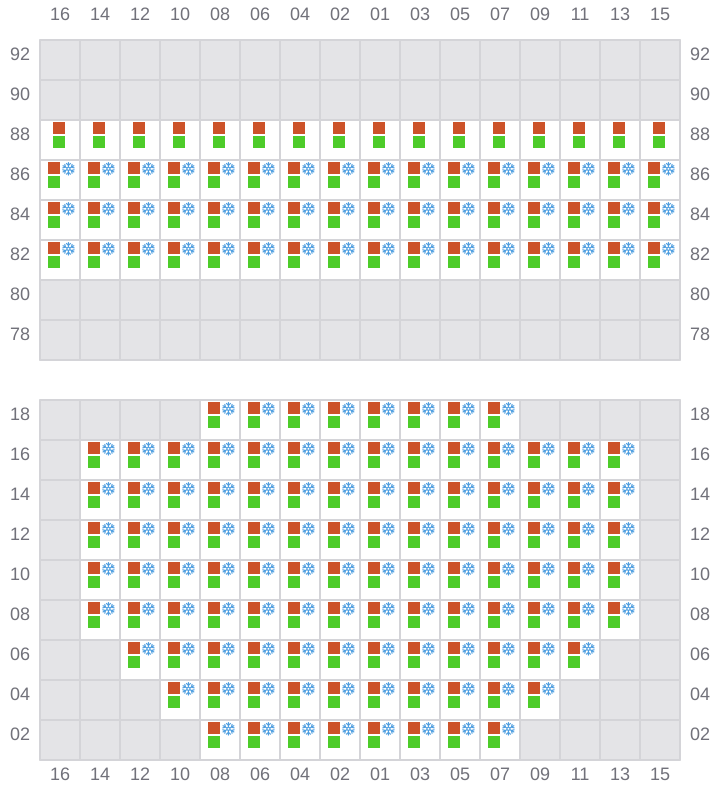

017 (018)
- →

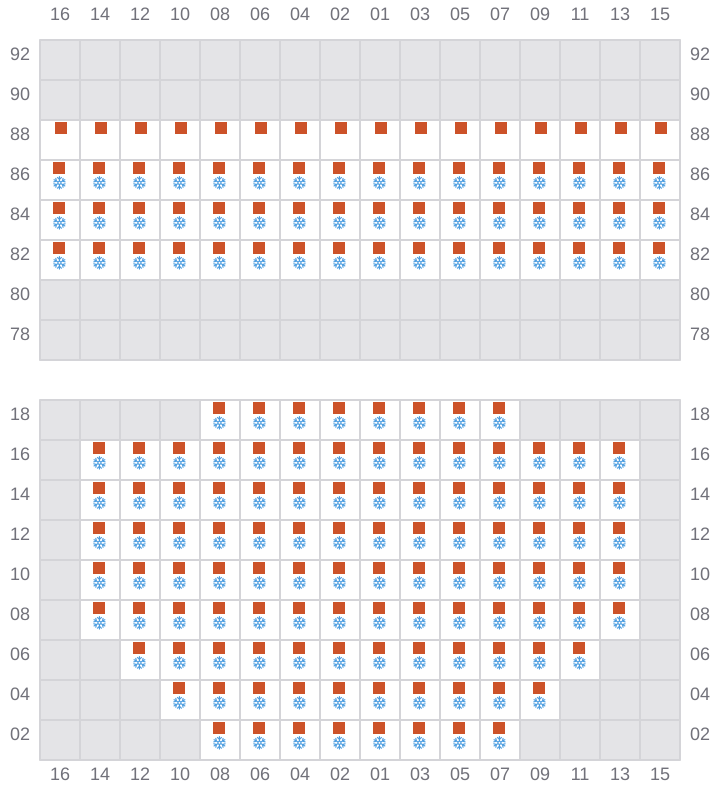

019
- ←

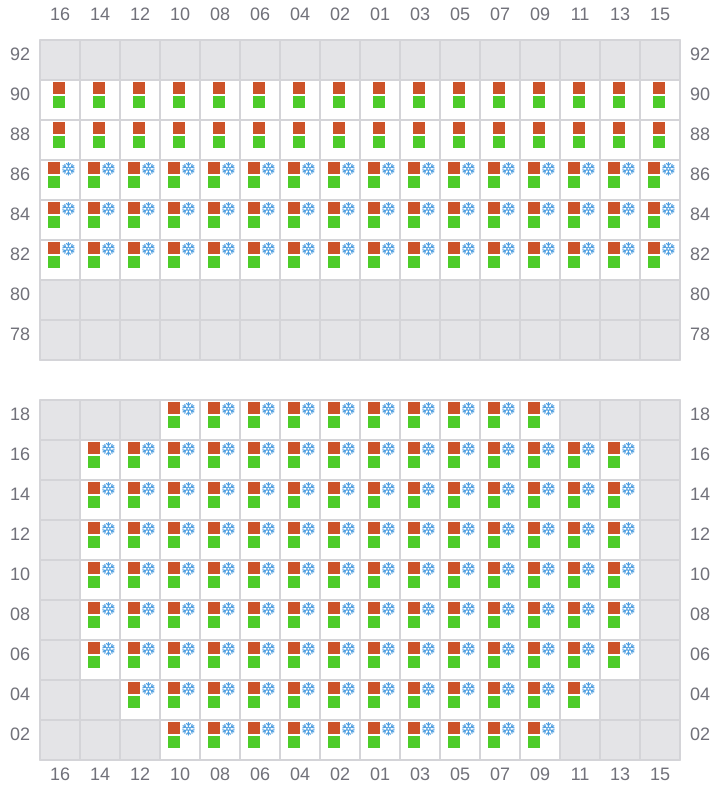

021 (022)
- →

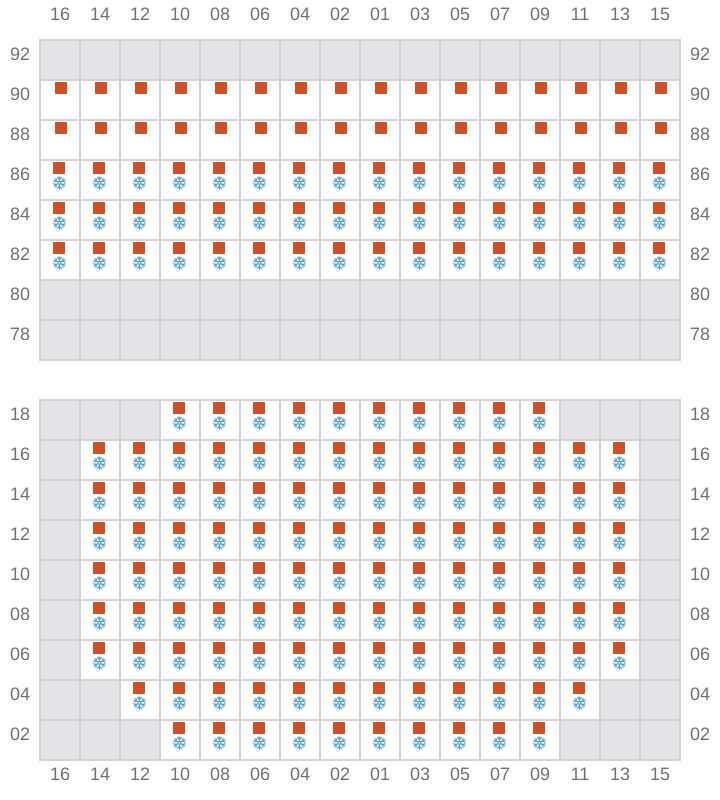

023
- ←

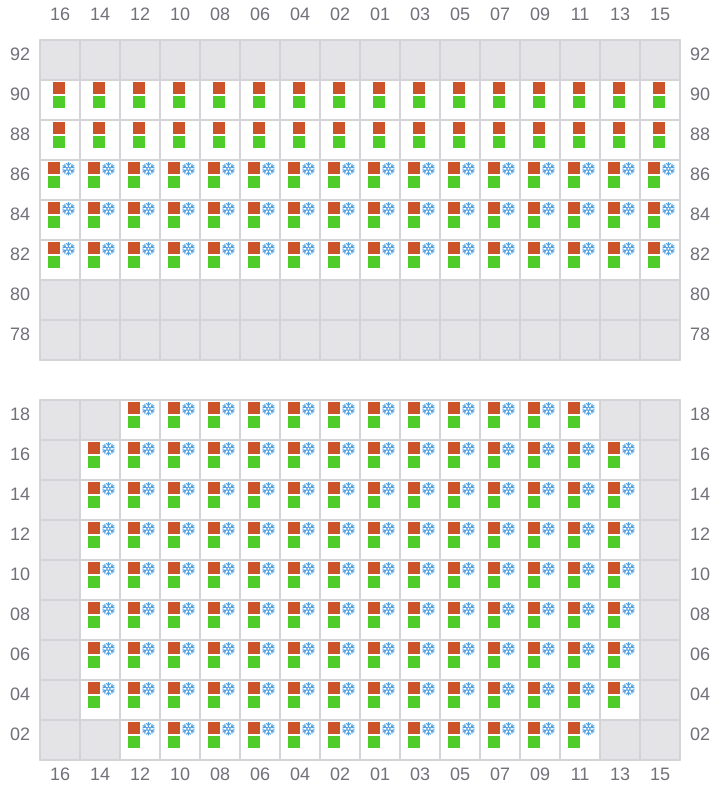

025 (026)
- →
027
- ←
029 (030)
- →
031
- ←

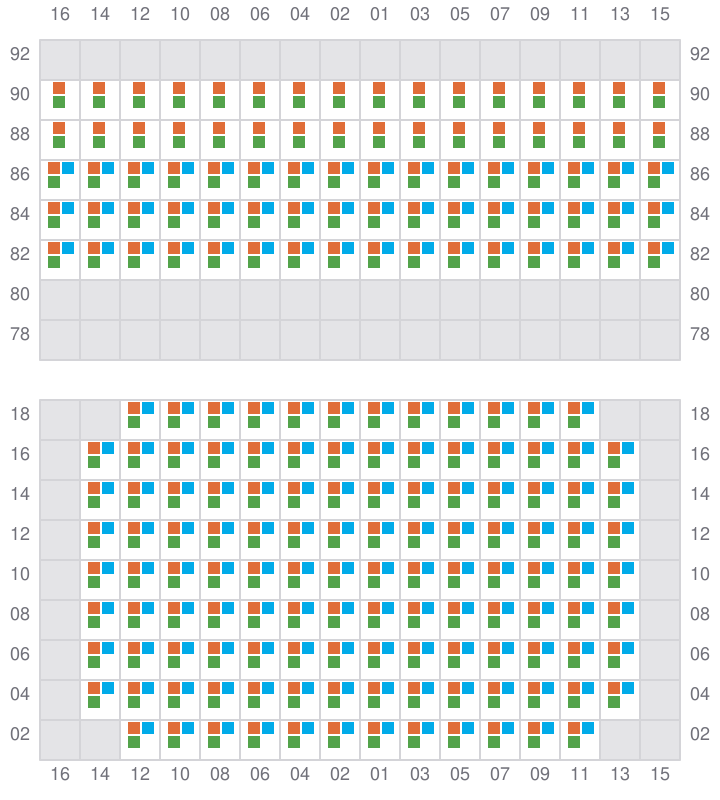

033 (034)
- →

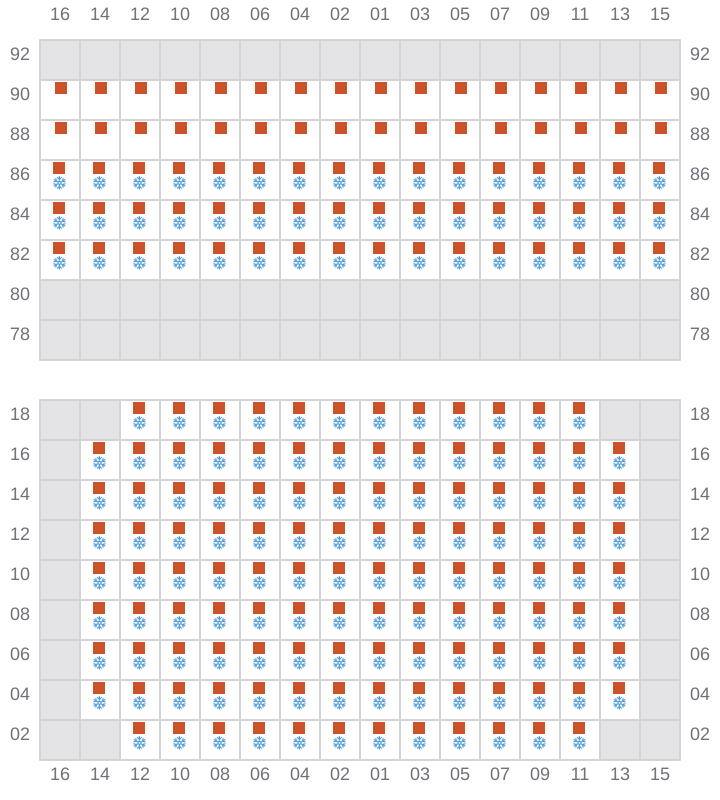

035
- ←

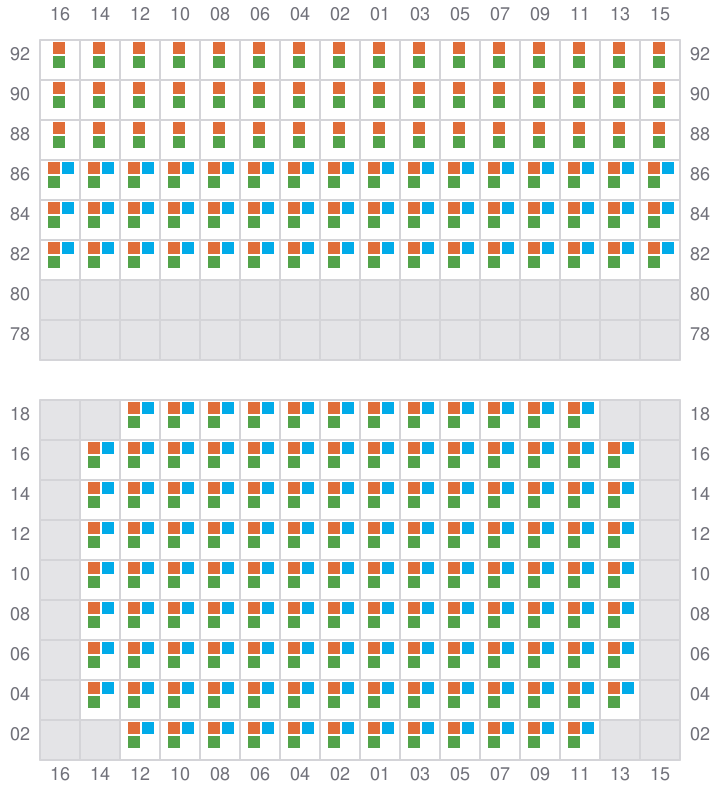

037 (038)
- →
039
- ←

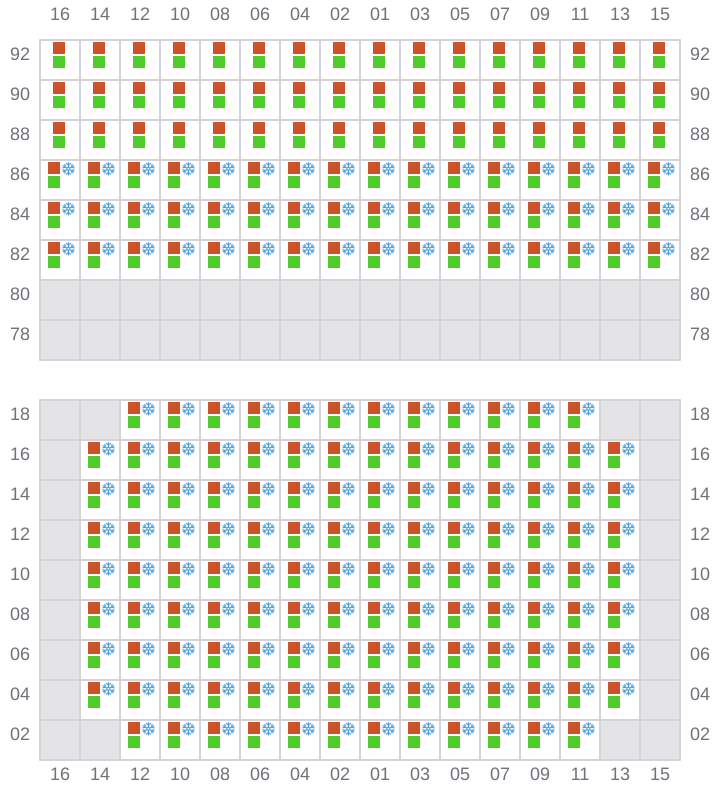

041 (042)
- →

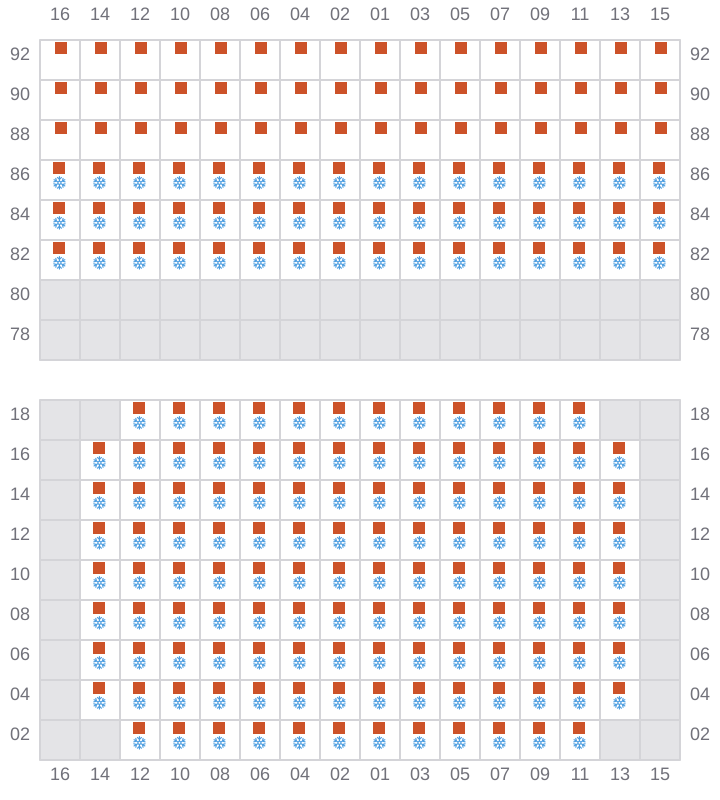

043
- ←
045 (046)
- →
047
- ←

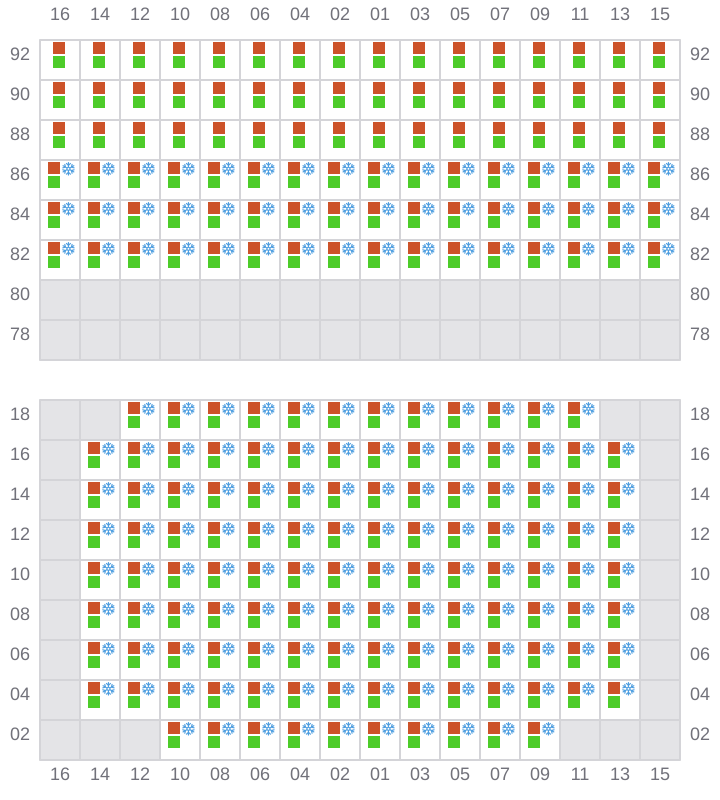

049 (050)
- →

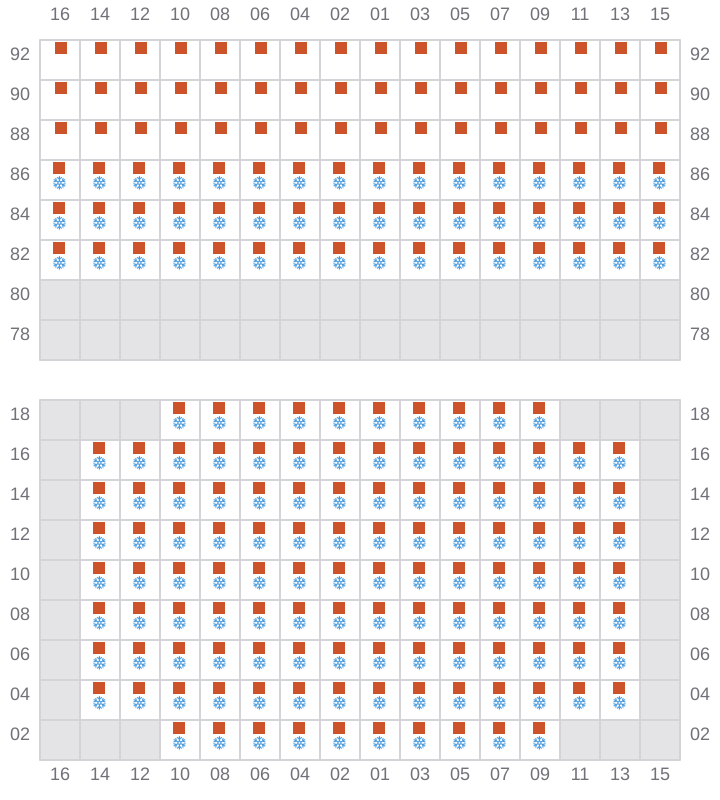

051
- ←

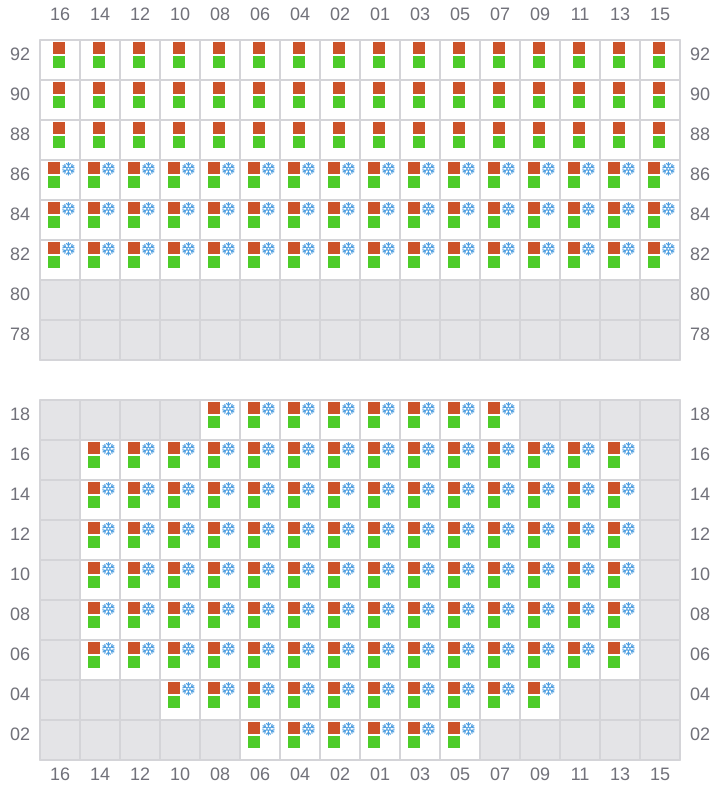

053 (054)
- →

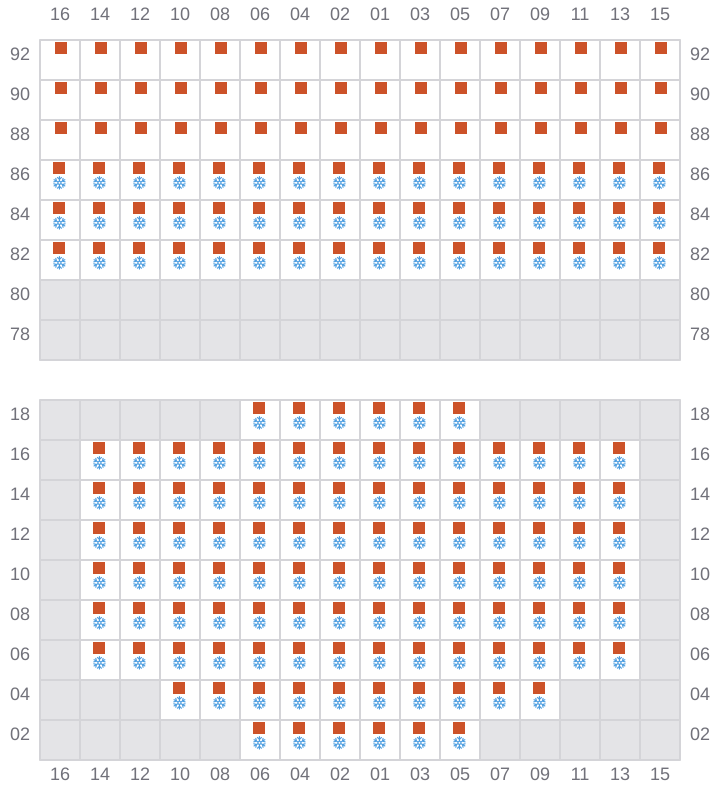

055
- ←

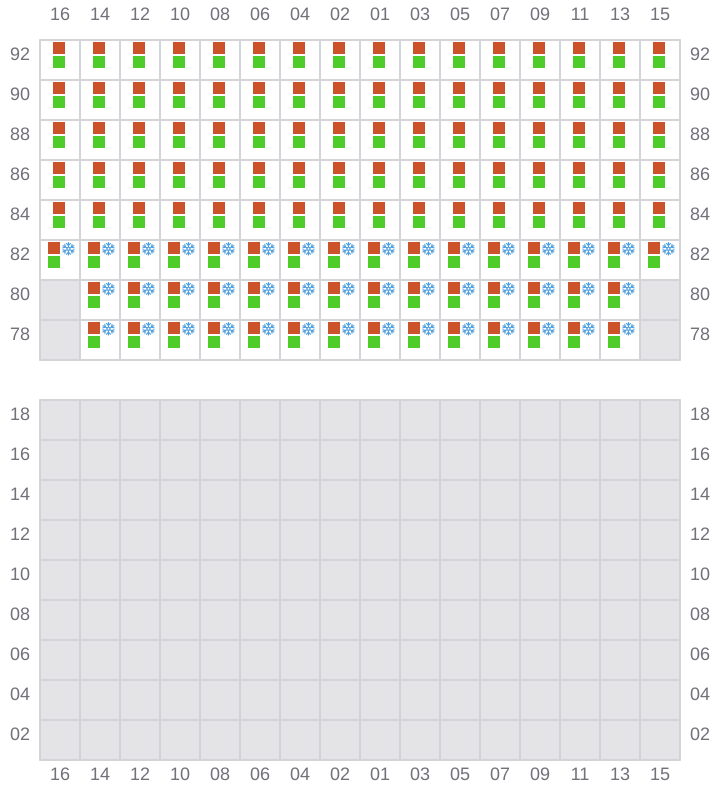

057 (058)
- → / ?

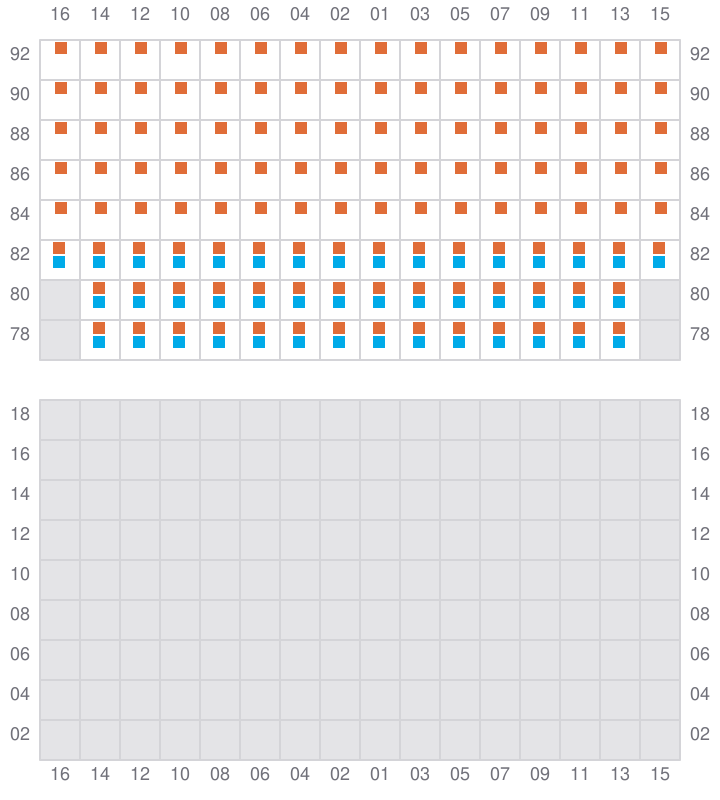

059
- ← / ?

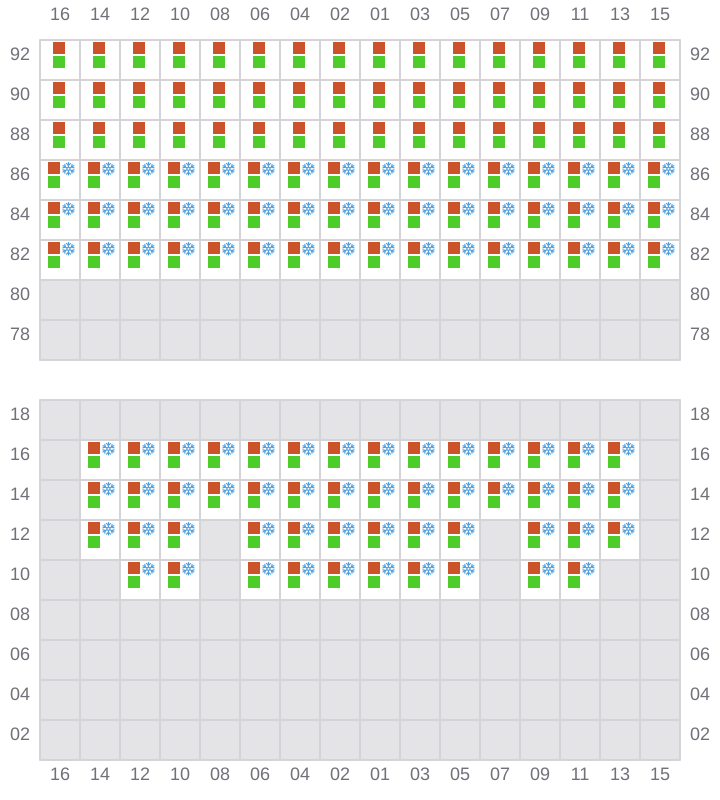

061 (062)
- →

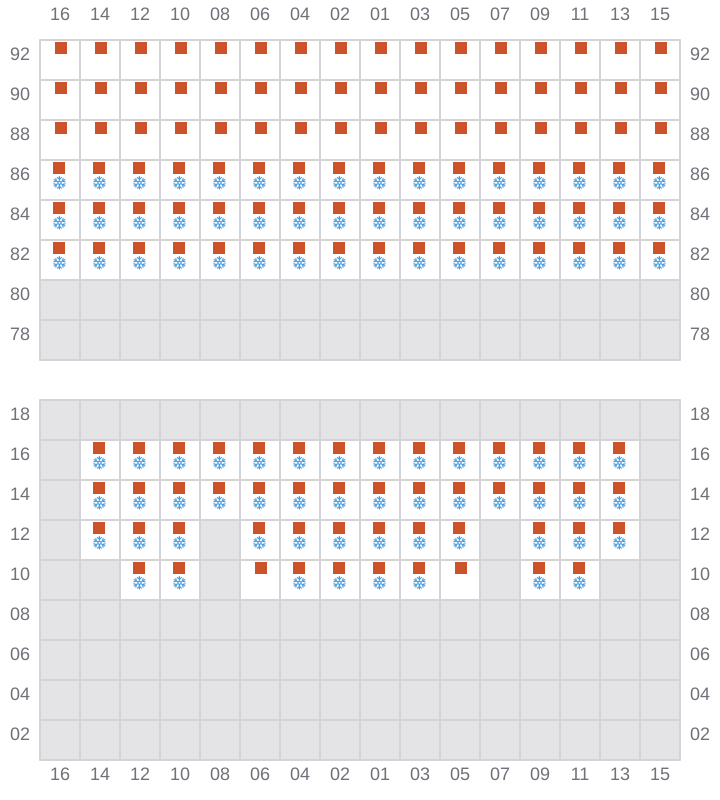

063
- ←

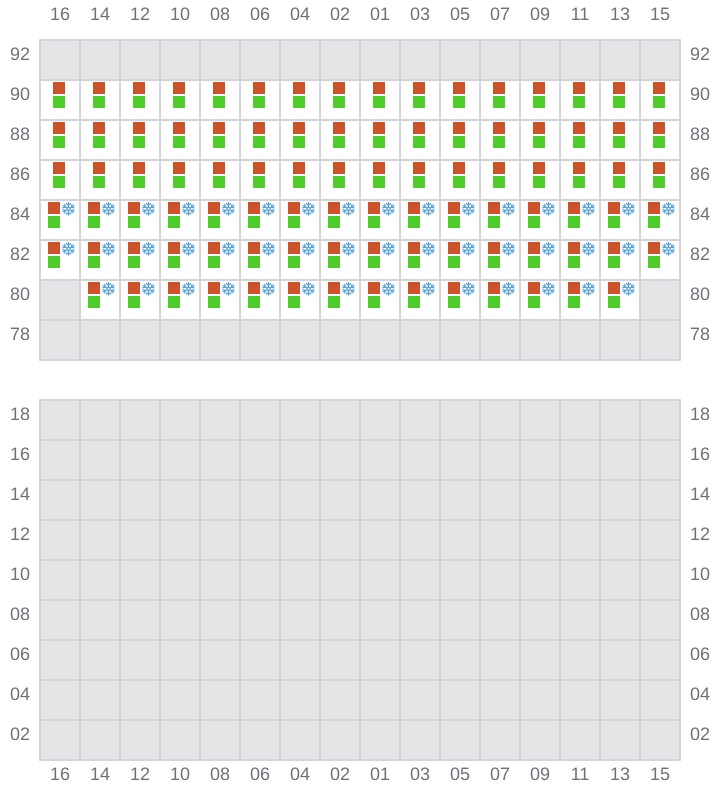

065 (066)
- → / ?

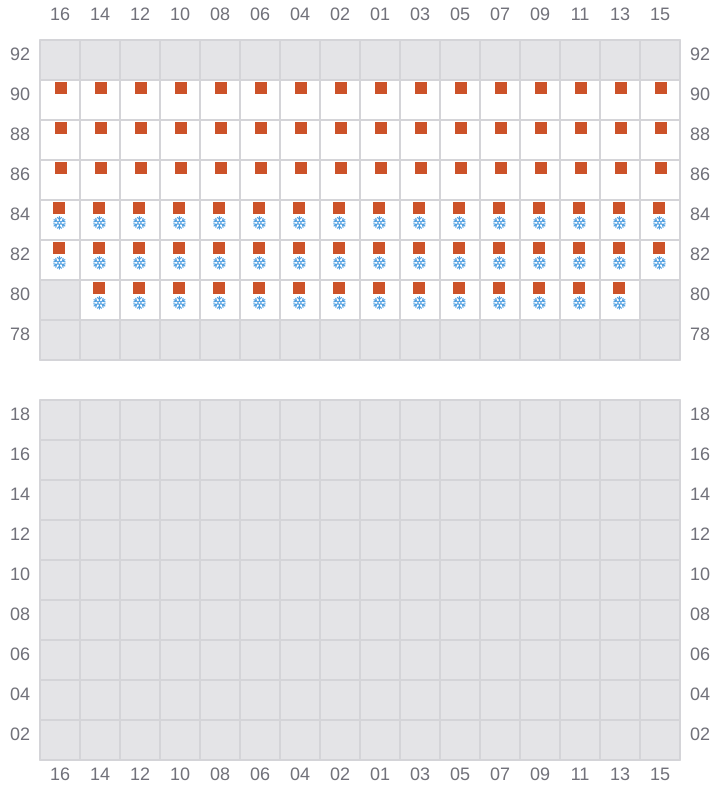

067
- ← / ?
